| Product Type | Fixed Shelf |
| Brand | APC |
| Model | AR8122 / AR8122BLK |
| Rack Height | 1U (1.75 in / 44.45 mm) |
| Width | 19 in (48.26 cm) rack-mountable |
| Depth | 20 in (50.8 cm) |
| Maximum Load Capacity | 250 lb (113.4 kg) |
| Material | Steel |
| Color | Black |
| Mounting Standard | EIA-310 19-inch rack |
| Net Weight | 12 lb (5.44 kg) |
| Package Weight | 15 lb (6.8 kg) |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -25 to 65°C (-13 to 149°F) |
| Relative Humidity | 5-95% non-condensing |
| Main Functions | Mount network equipment, servers, and other devices securely |
| Maintenance | Check screws periodically; clean with dry cloth |
| Safety | Do not exceed 250 lb load; secure equipment to prevent tipping |
| Spare Parts | Mounting screws included; contact APC for replacements |
| Repairability | No user-serviceable parts; contact APC support |
| General Information | Part of the APC NetShelter line; designed for standard 19-inch racks |
Frequently Asked Questions - AR8122 APC
What is the maximum load capacity of the APC AR8122 shelf?
The maximum load capacity is 250 lb (113.4 kg).
What rack height does the AR8122 occupy?
It occupies 1U (1.75 in / 44.45 mm) of rack space.
Can I mount a heavy UPS on this shelf?
Yes, as long as the UPS weighs less than 250 lb and fits the shelf dimensions.
How do I install the AR8122 shelf?
Use the included mounting screws to attach the shelf to the rack rails at the desired height.
Is the AR8122 compatible with all 19-inch racks?
Yes, it complies with the EIA-310 standard for 19-inch racks.
Can the shelf depth be adjusted?
No, the AR8122 has a fixed depth of 20 inches.
How should I clean the shelf?
Clean with a dry or slightly damp cloth. Do not use harsh chemicals.
What tools are needed for installation?
A Phillips screwdriver is typically required to tighten the mounting screws.
Does the AR8122 come with mounting hardware?
Yes, it includes screws and cage nuts for standard rack mounting.
Can I use this shelf in a home rack?
Yes, it works in any standard 19-inch rack, including home server racks.
User questions about AR8122 APC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Wardrobe in PDF format for free! Find your manual AR8122 - APC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AR8122 by APC.
USER MANUAL AR8122 APC

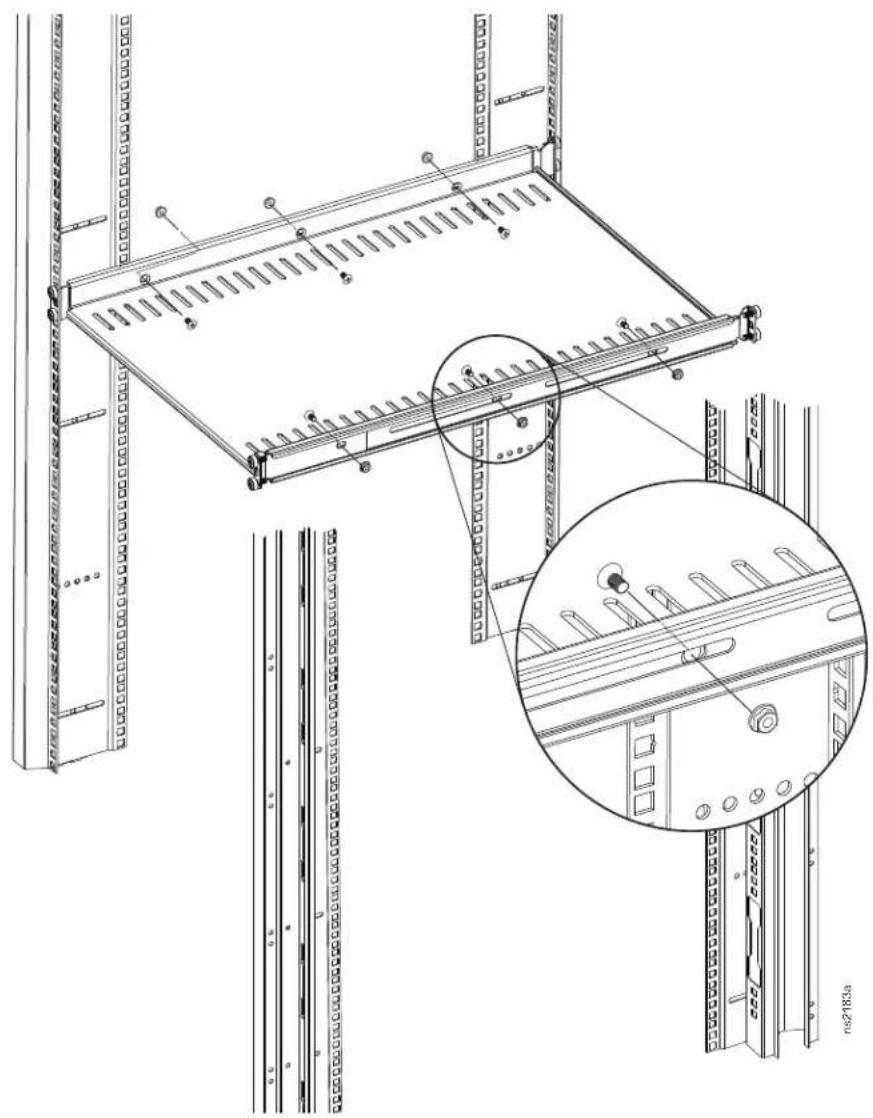

NetShelter™ Monitor / Fixed Shelf (250 lb Max Rated)
AR8122, AR8122BLK
3

