USER MANUAL AP9572 APC
The APC Rack Power Distribution Unit (PDU) distributes power to devices in the rack.
Outlets. The PDU has fifteen (15) IEC-320-C13 outlets.
Power cord. 2.5-m (8.2-ft) IEC-320-C19 to IEC-320-C20 power cord.


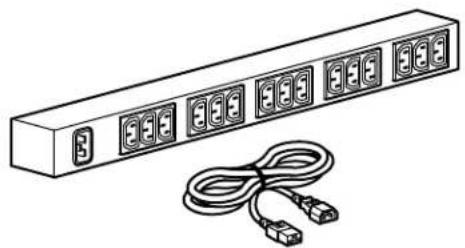

Illustration of a rectangular electronic device with multiple ports and a coiled cable (no text or symbols)Specifications
Electrical
| Input connector IEC-320-C20 plug | |
| Output connectors fifteen (15) IEC-320-C13 outlets | |
| Nominal input voltage 120–240 VAC | |
| Input frequency 50/60 Hz | |
| Physical | |
| Dimensions (H × W × D) | 62.00× 4.44×4.44 cm(24.40× 1.75×1.75in) |
| Shipping dimensions(H × W × D) | 63.81× 16.82×14.60 cm(25.13× 6.63×5.75in) |
| Weight 2.00 kg (4.40 lb) | |
| Shipping weight 2.70 kg (6.00 lb) | |
| Environmental | |
| Elevation (above MSL) | |
| Operating | 0–3000 m (0–10,000 ft) |
| Storage | 0–15 000 m (0–50,000 ft) |
| Temperature | |
| Operating | 0–45°C (32–113°F) |
| Storage | -25–65°C (-13–149°F) |
| Humidity | |
| Operating | 5–95% RH, non-condensing |
| Storage | 5–95% RH, non-condensing |
| Compliance | |
| Safety verifications cULus-EU, CE, EAC, RCM, CMIM, KC, UKCA | |
