AP6031A - Power Strip APC - Free user manual and instructions

Product Type	Basic Rack Power Distribution Unit (PDU)
Brand	APC by Schneider Electric
Model Number	AP6031A
Input Connection	NEMA L6-30P (3.65 m / 12 ft cord included)
Input Voltage	200–240 VAC (+6% to -10%)
Input Current (Max)	30 A (24 A UL/C-UL derated)
Input Frequency	50/60 Hz
Output Voltage	200–240 VAC (+6% to -10%)
Output Connections	(4) C19 outlets
Maximum Output Current (per outlet)	16 A (UL/C-UL derated) / 20 A (PSE)
Maximum Output Current (phase)	30 A (24 A UL/C-UL derated)
Overcurrent Protection	(2) 20 A, 2-pole circuit breakers
Dimensions (H x W x D)	43.81 x 4.36 x 12.57 cm (17.25 x 1.72 x 4.95 in)
Weight	3.80 kg (8.36 lb) net; 4.60 kg (10.12 lb) shipping
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-15 to 60°C (5 to 140°F)
Operating Humidity	5 to 95% non-condensing
Maximum Elevation (Operating)	0 to 3048 m (10,000 ft)
Safety Approvals	UL/C-UL, ROHS 2011/65/EU
Application	Rack-mount power distribution for IT equipment
Maintenance	Wipe with dry cloth; check indicator lights periodically.
Spare Parts & Repairability	Contact APC support for spare parts; not user-serviceable.

Frequently Asked Questions - AP6031A APC

What type of plug does the APC AP6031A use?

The AP6031A uses a NEMA L6-30P twist-lock plug. It requires a matching receptacle rated for 30 A at 200–240 VAC.

Can I plug the AP6031A into a standard wall outlet?

No, the AP6031A is designed for high-power equipment and uses a NEMA L6-30P plug, which is not compatible with standard household outlets. You need a dedicated circuit with a L6-30R receptacle.

What is the maximum load per C19 outlet?

Each C19 outlet can supply up to 16 A (UL/C-UL derated) or 20 A (PSE) depending on local regulations. The total phase current must not exceed 30 A (24 A derated).

How do I mount the AP6031A in a rack?

The unit is designed for horizontal or vertical rack mounting using the included mounting brackets. It occupies 1U of rack space (43.81 mm height). Secure it with screws to the rack rails.

Is the AP6031A surge protected?

The AP6031A is a basic PDU without surge protection. It provides overcurrent protection via internal circuit breakers but does not protect against voltage spikes.

What is the cord length of the AP6031A?

The power cord is 3.65 meters (12 feet) long, terminating with a NEMA L6-30P plug.

Does the AP6031A have a circuit breaker?

Yes, it has two 20 A, 2-pole circuit breakers for overcurrent protection on the outputs.

What are the operating temperature limits?

The AP6031A operates within 0°C to 50°C (32°F to 122°F). Storage temperature range is -15°C to 60°C (5°F to 140°F).

Is the AP6031A compatible with 208V systems?

Yes, the AP6031A accepts input voltages from 200–240 VAC, so it is fully compatible with 208V systems.

How should I clean the AP6031A?

Disconnect the unit and wipe with a dry, lint-free cloth. Do not use liquids or abrasive cleaners. Check ventilation openings for dust buildup periodically.

USER MANUAL AP6031A APC

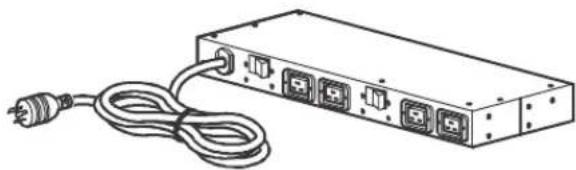

The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.

Outlets. The Rack PDU has four (4) C19 outlets.

Power cord. The 3.65 m (12.00 ft) power cord terminates with a NEMA L6-30P plug.

Line drawing of an electronic device with a power outlet and cable (no text or symbols)

Specifications
Electrical

Input connection NEMA L6-30P cord included
Acceptable input voltage 200–240 VAC +6% to -10%
Maximum input current (phase)	30 A (24 A UL/C-UL derated)
Input frequency 50/60 Hz
Output voltage 200–240 VAC +6% to -10%
Output connections (4) C19
Maximum output current (outlet)	C19; 16 A (UL/C-UL derated)C19; 20 A (PSE)
Maximum output current (phase)	30 A (24 A UL/C-UL derated)
Maximum output current (bank)	16 A UL/C-UL derated)20 A (PSE)
Overcurrent protection (internal)	(2) 20 A, 2-pole breakers
Cord length 3.65 m (12.00 ft)

Physical

Dimensions(H x W x D)	43.81 x 4.36 x 12.57 cm(17.25 x 1.72 x 4.95 in)
Shipping dimensions(H x W x D)	47.29 x 28.09 x 18.00 cm(18.62 x 11.06 x 7.09 in)
Weight 3.80 kg (8.36 lb)
Shipping weight 4.60 kg (10.12 lb)

Environmental

Maximum elevation (above MSL)
Operating	0 to 3048 m (0 to 10,000 ft)
Storage	0 to 15240 m (0 to 50,000 ft)
Temperature
Operating	0 to 50°C (32 to 122°F)
Storage	-15 to 60°C (5 to 140°F)
Humidity
Operating	5 to 95%, non-condensing
Storage	5 to 95%, non-condensing

Compliance

Safety approvals UL/C-UL

ROHS 2011/65/EU – latest revision

en

Customer support and warranty information is available at www.apc.com.

© 2015 Schneider Electric. All trademarks are owned by Schneider Electric Industries S.A.S.

by Schneider Electric

Line drawing of a rectangular electronic device with multiple ports and a power outlet, no text or symbols present.

by Schneider Electric

Line drawing of a rectangular electronic device with four ports and a power outlet, connected by a coiled cable (no text or symbols)
