VLT6 - Flat Screen Mount SANUS - Free user manual and instructions

Product Type	Full-Motion TV Wall Mount
Mounting Surface	Wood Stud, Solid Concrete, Concrete Block (Steel Stud with optional kit)
TV Screw Sizes	M6, M8
Included Components	Wall plate, TV brackets, hardware template, lag bolts, concrete anchors, steel stud anchors
Adjustments	Tilt, Extend/Retract, Lateral Shift (wood stud only), Leveling
Safety Features	Locking mechanism, pinch point protection
Installation Tools Required	Stud finder, drill, drill bits (7/32", 3/8", 1/2"), level, awl or small drill bit, socket wrench
Max TV Weight	Check compatibility via weight chart (not explicitly specified in manual)
Min Wood Stud Size	2 x 4 in (nominal)
Min Concrete Thickness	8 in (20.3 cm)
Max Drywall Thickness	5/8 in (1.5 cm)
Horizontal Spacing Between Fasteners	16 in (40.6 cm)
Pilot Hole Depth (Wood Stud)	2 3/4 in (6.9 cm)
Pilot Hole Depth (Concrete)	3 in (7.6 cm)
Pilot Hole Depth (Steel Stud)	1 in (2.5 cm)
Customer Support (US)	800-359-5520
Customer Support (UK)	0800-056-2853
Weight	Not specified; approximate 10-15 lbs (estimated)

Frequently Asked Questions - VLT6 SANUS

What tools do I need to install the Sanus VLT6 mount?

You will need a stud finder, a drill, drill bits (7/32" for wood studs, 3/8" for concrete, 1/2" for steel studs), a level, an awl or small drill bit for locating stud edges, and a socket wrench.

Can I install this mount on drywall alone?

No, the mount must be attached to wood studs, solid concrete, concrete block, or steel studs (with optional kit). Do not install into drywall alone, as it is not strong enough to support the TV.

What is the maximum TV weight this mount can hold?

The manual does not specify an exact maximum weight, but it states that if your TV (including accessories) weighs more than the mount can support, it is not compatible. Use MountFinder.Sanus.com or call customer service to verify compatibility.

Can I use this mount with a steel stud wall?

Yes, but only with the optional steel stud mounting kit. Contact customer service at 1-800-359-5520 (UK: 0800-056-2853) for more information.

How do I adjust the tilt tension?

Use the tilt tension knob T on the mount to adjust how easily the TV tilts. Tighten it to prevent unwanted movement, or loosen it for easier adjustment.

Can I slide the TV left or right after installation?

Yes, for wood stud installations only, you can slide the TV left or right along the wall plate. For concrete installations, the TV brackets must remain centered.

How do I remove the TV from the mount?

Disconnect all cables. Pull down and hold both release tabs while gently pulling the bottom of the TV away from the wall, then lift the TV up and off the wall plate. Always hold the release tabs down to prevent breaking the locking latch.

What if the screw I need is not in the hardware pack?

Additional TV screw sizes and lengths are provided to fit most TVs. If none fit, contact customer service. Do not use screws that are too short (won't hold) or too long (may damage the TV).

Can I use spacers if my TV has a rounded back?

Yes, use spacers 12, 13, or 14 (included) to create extra space between the TV and the bracket for rounded-back TVs or to accommodate cables.

Where can I find a video guide for installation?

A video guide is available at SANUS.com/2560. You can also call US-based install experts at 1-800-359-5520 or chat at SANUS.com/chatSP.

USER MANUAL VLT6 SANUS

Technical diagram of a mechanical clamp or bracket assembly with two vertical supports and two circular components (no text or symbols)

VLT6

INSTRUCTION MANUAL

GET IT RIGHT

THE FIRST TIME

Follow this step-by-step instruction manual to speed up your installation.

WE'RE HERE TO HELP

Want to watch a video that shows how easy this DIY project will be?

Watch it now at: SANUS.com/2560

Get it right the first time. HeightFinder™ shows you where to drill.

Check it out at: SANUS.com/1172

Group of employees in an office setting, one wearing a headset, others seated in the background (no visible text or symbols)

Our US-based install experts are standing by to help.

Call us at: 800-359-5520

Or, chat at: SANUS.com/chatSP

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Before getting started, let's make sure this mount is perfect for you!

1 Does your TV(including accessories)weigh morethan →		For wood stud and Solid Concrete or Concrete Block Walls		For Steel Stud Walls	No — Perfect!Yes — This mount is NOT compatible.Visit MountFinder.Sanus.com or call 1-800-359-5520(UK: 0800-056-2853) to find a compatible mount.
2 What is yourwall made of?CAUTION:DO NOT installinto drywall alone				concrete rete		Drywall with steel studs?NOT INCLUDED]1-800-359-5520 (UK: 0800-056-2853)
3 Do you haveall the toolsneeded?
4 Ready tobegin?	Please read through these instructions completely to be sure you're comfortable with this easy install process.Also check your TV owner's manual to see if there are any special requirements for mounting your TV.If you do not understand these instructions or have doubts about the safety of the installation, assembly or useof this product, contact Customer Service at 1-800-359-5520 (UK: 0800-056-2853).CAUTION: Avoid potential personal injuries and property damage!This product includes directions and hardware for use with wood stud, solid concrete and concrete block walls –DO NOT install into drywall alone. For information on how to use this product with steel stud walls contact CustomerService and ask about the steel stud mounting kit.The wall must be capable of supporting five times the weight of the TV and mount combined.Do not use this product for any purpose not explicitly specified by manufacturer.Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

Before you begin

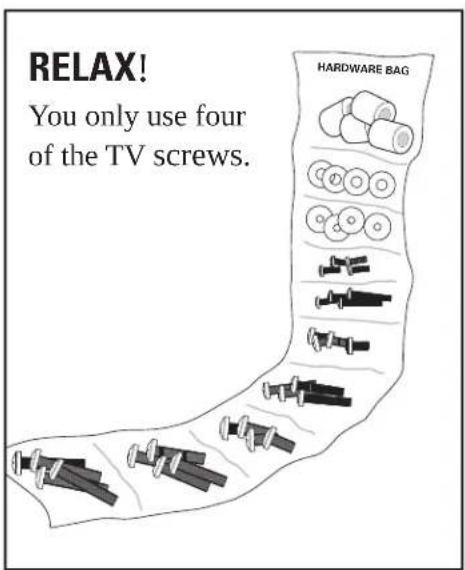

Don't stress out when you see all the hardware included.

Extra TV screw sizes and lengths are provided to fit most TVs.

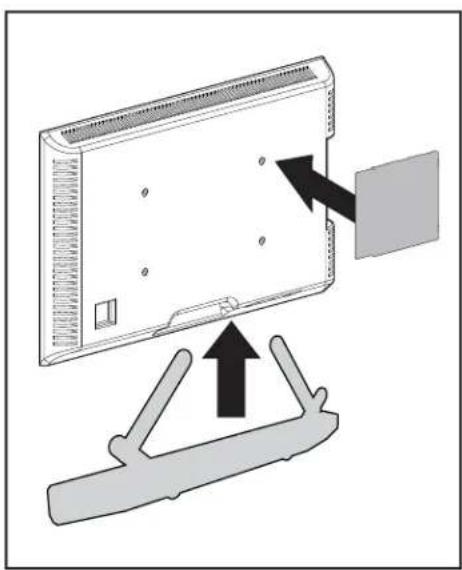

Remove the stand from your TV — if attached.

Install any accessories

you may have purchased — if they require the TV to be removed from the wall for assembly. The TV is removable for future accessory purchases.

Diagram of a server rack with a black arrow pointing to a mechanical component (no text or symbols present)

Diagram showing a device with a slide and a handle, no text or symbols present

Step-by-Step illustrations

speed up your installation.

Don't get it? Read the detailed explanation below each step.

Read ALL CAUTION warnings.

These are IMPORTANT!

Protect the face of your TV when laying it down for installation.

1 ASSEMBLE

TIP:

Each component has a number designation. See PAGE 6.

Secure part X to housing Y using screw S.

CAUTION: Avoid potential

Read Important Stuff read read rea Must Read read read read read rea Read read read Safety First read re

IMPORTANT: Read Important read

NOTE: Read read Dually Noted read

TIP: Read That's Helpful read read

Let's Go

Attach TV Bracket to TVSTEP 1

WARNING:

This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included my parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE:

Not all hardware included will be used.

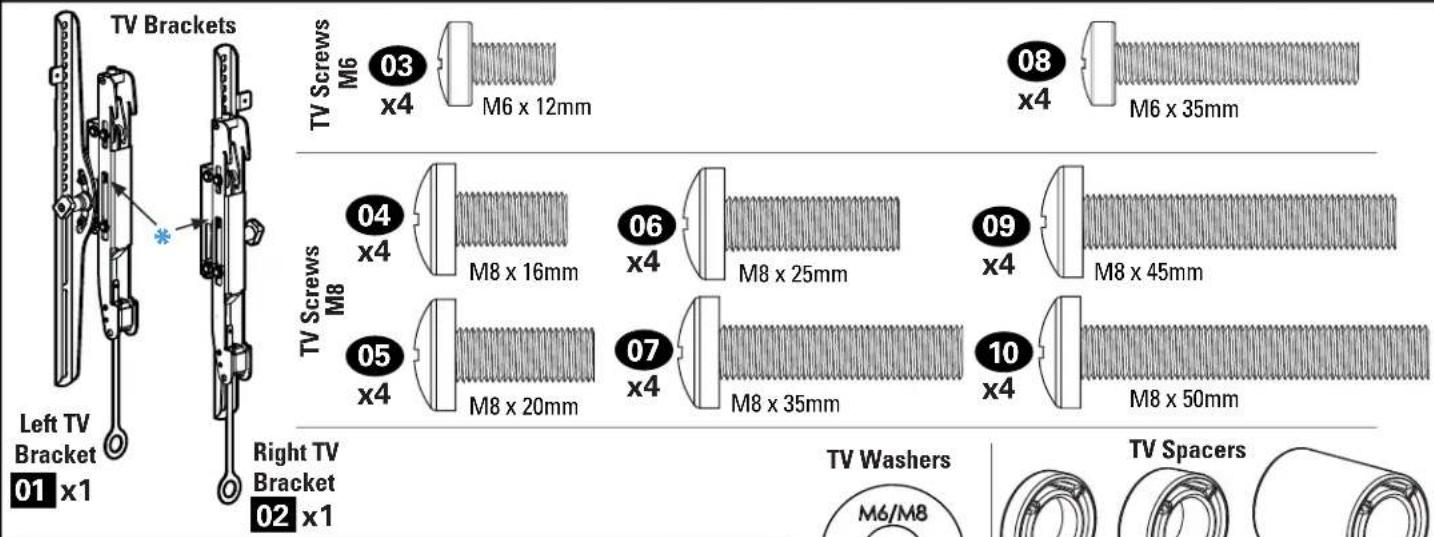

Parts and Hardware for STEP 1

CAUTION: Avoid potential personal injury or property damage!

The TV brackets contain potential pinch points during operation. Step fingers away from pinch points when retracting the TV. (arrows)

x4

x4

5mm2.5mm 22mm

x4

1.1 Select TV Screws

Verify adequate thread engagement with your
screw/washer/spacer combination AND the TV brackets. (STEP 1.2).
TOO SHORT will not hold the TV and TOO LONG will damage the TV

Determine which screw diameter (M6 or M8) fits the four mounting holes on the back of your TV.

1.2 Determine Spacer Need

For flat-back TVs, no
spacers 12 13
or 14 are required.

For rounded-back TVs, cable interference or inset holes, spacers 12, 13 or 14 to create extra space between the TV and TV bracket.

If your TV included inset spacers or wall mount adapters, see Troubleshooting on PAGE 24.

1.3 Attach TV Bracket Assembly to TV

Center the TV brackets 01 and 02 over your TV's mounting hole pattern - making sure the brackets are at the same height. Adjust the release tabs® to the bottom of the TV.

Install using the spacer, screw and washer combination you selected for your TV.

STEP 2

Attach Wall Plate to Wall

WARNING:

This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are

included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.

Never use damaged parts!

NOTE:

Not all hardware included will be used.

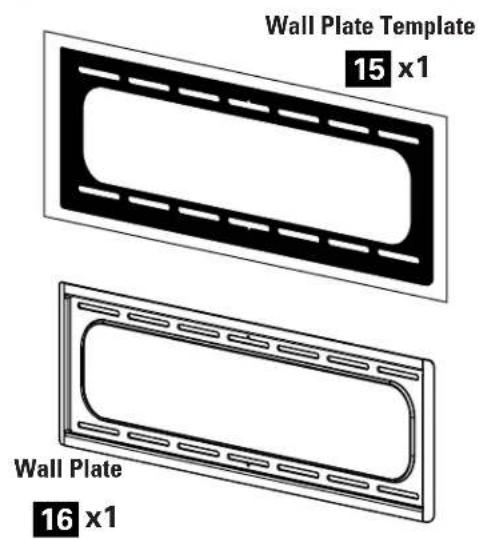

Parts and Hardware for STEP 2

For concrete installations ONLY

⚠️ CAUTION: Do not use in drywall or wood Concrete Anchor

Hex Key

STEP 2A

Stud Installation

CAUTION: Avoid potential personal injury or property damage!

• Drywall covering the wall must not exceed 5/8 in. (1.5 cm)
• Minimum wood stud size: common 2 x 4 in. (5.1 x 10.2 cm) nominal 1 ½ x 3 ½ in. (3.8 x 8.9 cm)
  • Minimum horizontal space between fasteners:16 in. (40.6 cm)
  • Stud centers must be verified

Locate the studs using a stud finder.

Find the edges of the studs using an awl or small drill bit.

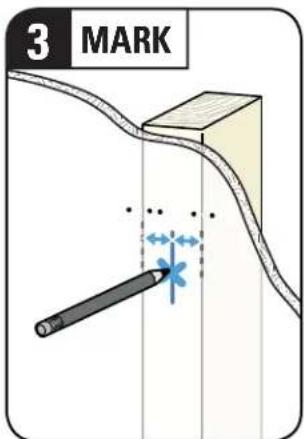

Mark the centers of the studs with a pencil.

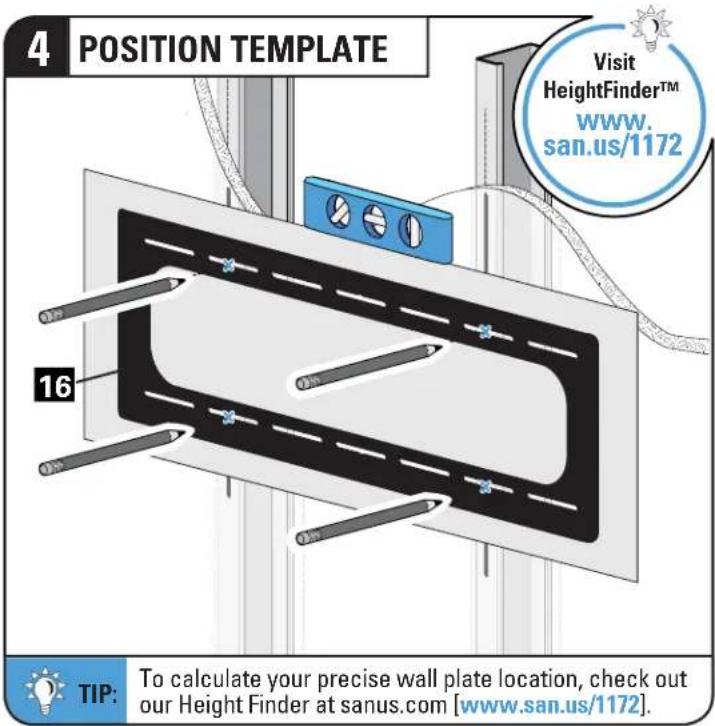

Place the wall plate template 15 at your desired height and position the slotted holes over your stud center lines. Level and mark the hole locations.

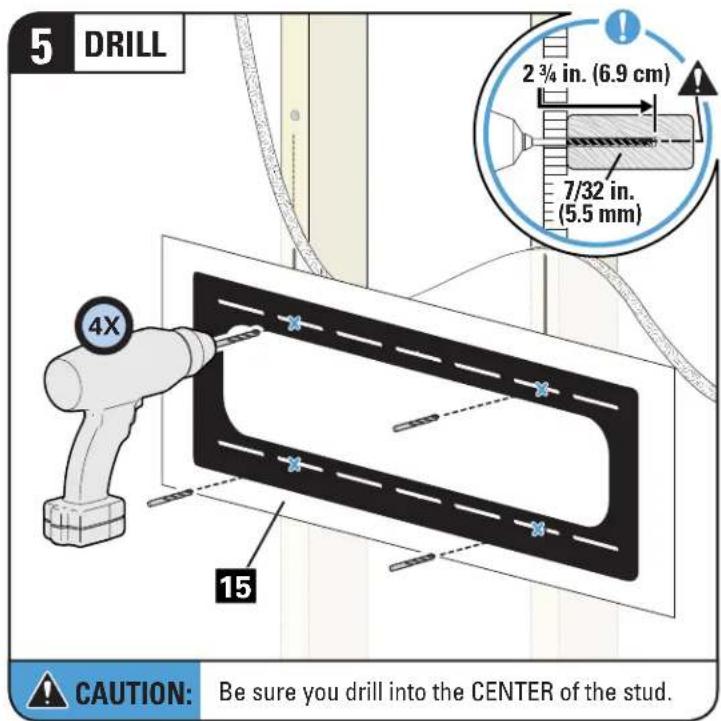

Drill the four pilot holes using a 7/32 in. (5.5 mm) diameter drill bit. IMPORTANT: Pilot holes must be drilled to a depth of 2 34 in. (6.9 cm).

STEP 2A tinued)

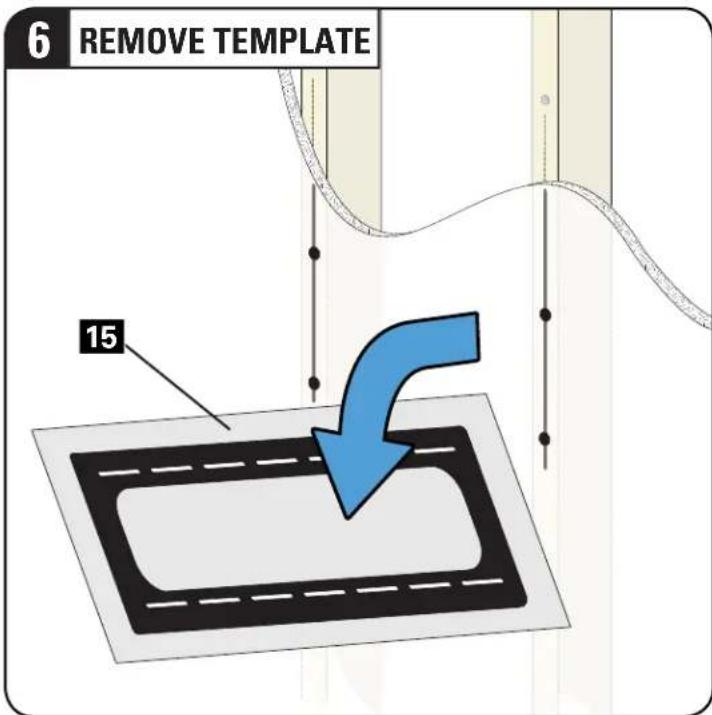

Remove the wall plate template and discard.

Install the four lag bolts 17 and firmly tighten until they are pulled flush against the wall plate 16.
Go to STEP 3 on PAGE 19.

STEP 2B

Solid Concrete or Concrete Block Installation

CAUTION: Avoid potential personal injury or property damage!

• Mount the wall plate 16 directly onto the concrete surface
  • Minimum solid concrete thickness: 8 in. (20.3 cm)
  • Minimum concrete block size: 8 x 8 x 16 in. (20.3 x 20.3 x 40.6 cm)
  • Minimum horizontal space between fasteners: 16 in. (40.6 cm)
• For concrete applications, TV brackets 01 and 02 must remain centered in wall plate 16. Keep this in mind when selecting the wall plate location

Position the wall plate template 15 on the wall at your desired height. Level and mark the hole locations.

STEP 2B

tinued)

Drill four pilot holes using a 3/8 in. (10 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (7.6 cm).

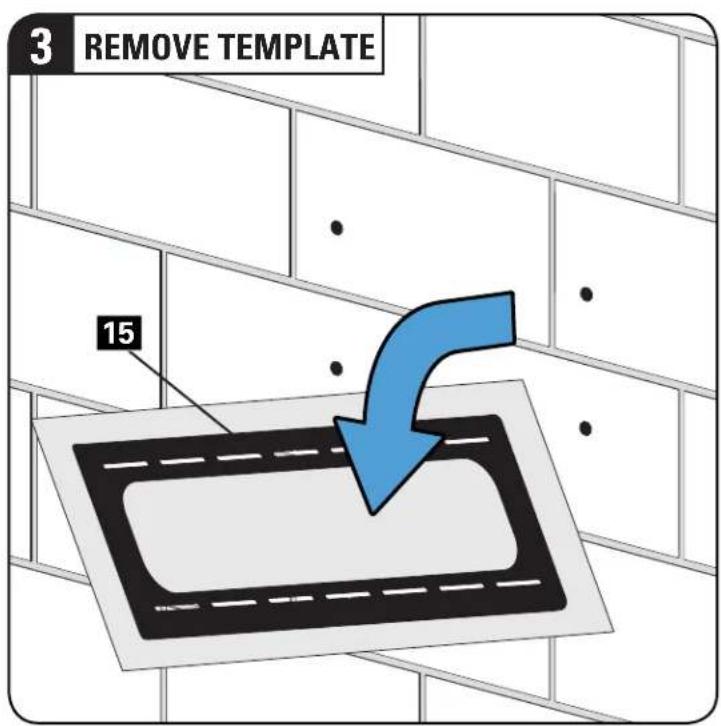

Remove the wall plate template 15 and discard.

Insert four anchors 18.

Install four lag bolts 17. Firmly tighten all four lag bolts 17 until they are pulled flush against the wall plate 16.

Go to STEP 3 on PAGE 19Go to

STEP 2C

CAUTION: Avoid potential personal injury or property damage!

• Studs must be at least 2x4 / 25 ga.
- If back side of wall is unfinished, drywall must be installed to a minimum of one stud left and right of the stud(s) being used to install the mount
- Drywall must be a minimum of 1/2 in. (13 mm) thick on each side of the studs, and a minimum clearance of 1 18 in. (48 mm) behind the wall is required
- This product must be centered on the studs
- Stud type and structural strength must conform to the North American Specification for the Design of Cold-Formed Steel Structural Members [362 S 125 18, C-Shape, S - Stud Section]
- Drywall must be secured to studs with screws 12 in. (304.8 mm) on center

Locate the studs using a stud finder.

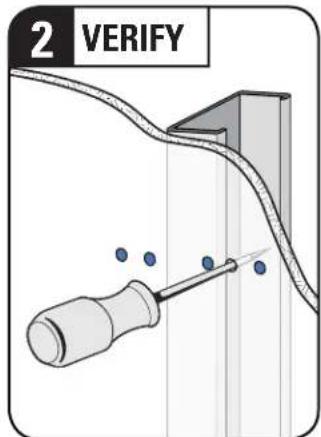

Find the edges of the studs using an awl or small drill bit.

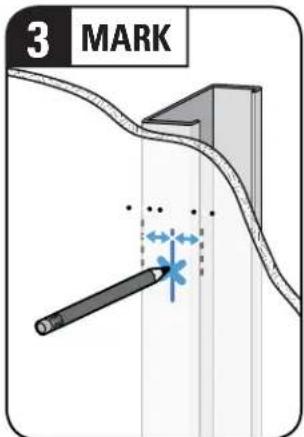

Mark the centers of the studs with a pencil.

Place the wall plate template 16 at your desired height and position the slotted holes over your stud center lines. Level and mark the hole locations.

Drill the four pilot holes using a 1/2 in. (13 mm) diameter drill bit. IMPORTANT: Pilot holes must be drilled to a depth of 1 in. (25 mm). Remove the wall plate template and discard.

STEP 2C

tinued)

a. Insert the four anchors S1* into the drilled holes. b. Pull to rotate the anchor S1* inside the wall. c. Hold the end of the anchor S1, while sliding the cap P against the drywall. d. Snap off the ends of the anchor S1, to lock in place.

7 SECURELY TIGHTEN

CAUTION: Avoid potential personal injury or property damage!
All four screws S2 MUST BE firmly tightened to prevent unwanted movement of the wall plate 16. Ensure the wall plate is securely fastened to the wall before continuing on to the next step.
Install the four screws S2 and washers S3, and firmly tighten until they are pulled flush against the wall plate 16.

STEP 3

Attach TV to Wall Plate

1 HANG

HEAVY! You may need assistance with this step.

CAUTION: Avoid potential personal injury or property damage!

For CONCRETE APPLICATIONS:

TV brackets 01 and 02 MUST remain centered in wall plate 16.

NOTE: For WOOD STUD APPLICATIONS, TV brackets 01 and 02 can

be slid anywhere along wall plate 16 for optimal positioning of your TV.

2 ATTACH

CAUTION: Avoid potential personal injury or property damage!

Always make sure TV brackets 01 and 02 are in the locked position so the TV is securely fastened to the wall plate 16.

Press the bottom of the TV into the wall plate 16 until you hear the lock click, securing the TV in place.

Manage Cables

INSTALL CABLES

TIP: Extend the TV outward AND tilt the TV up or down to gain better access to the back of the TV.

Move your TV to various positions, as needed to attach your cables, then adjust the TV as desired.

Adjustments

LEVEL HEIGHT

To level your TV, turn the level adjustment screw Ⓢ on the top of either TV bracket 01 or 02 to raise or lower that respective side of the TV.

Adjust the height by turning the level adjustment screw Ⓢ on the top of both TV brackets 01 and 02.

TILT EXTEND / RETRACT

Your TV should adjust easily when moved, then stay in place.

Adjust the tilt tension knob T if your TV naturally tilts up or down.

NOTE: If you do not intend to adjust the tilt for different viewing locations, you can tighten the tilt tension knobs to prevent unwanted movement.

Diagram showing a mechanical device with a blue arrow indicating rotation or direction (no text or symbols present)

Illustration of two hands holding a mechanical component with arrows indicating direction (no text or symbols)

CAUTION: Avoid potential personal injury or property damage!

The TV brackets contain potential pinch points during operation. Keep fingers away from pinch points when retracting the TV. (see arrows)

Mechanical linkage diagram showing two metal components with red arrows indicating movement or force directions (no text or symbols present)

Illustration of hands holding a rectangular panel with a vertical ruler inside, no text or symbols present

TV LATERAL SHIFT

REMOVING THE TV

HEAVY! You may need assistance with this step.

CAUTION: Avoid potential personal injury or property damage!

For concrete applications, TV brackets 01 and 02 must remain centered in wall plate 16.

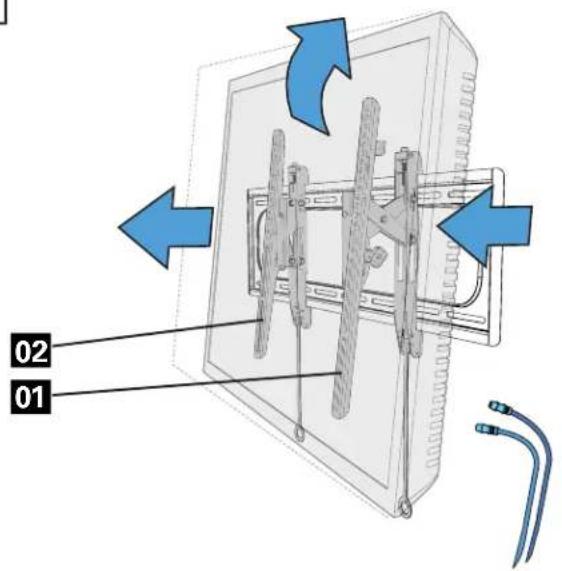

For Wood Stud Installations ONLY: Slide the TV left or right along the wall plate 16 to reposition.

HEAVY! You may need assistance with this step.

1. Disconnect all cables from the TV.

2. To unlock the TV from the wall plate: Pull down and hold both release tabs while gently pulling the bottom of the TV away from the wall.

CAUTION: Avoid potential personal injury or property damage! To prevent breaking the locking latch: always pull and hold the release tabs down while pulling the TV away from the wall.

1. Lift the TV up and off of wall plate 16.

NOTE: To rehang the TV, follow the procedures in STEP 3 on PAGE 19.

Troubleshooting

TV supplied spacers

TV Supplied Spacers

a: Use your TV supplied spacer/adapter for flat back TVs (AND you want your TV closer to the wall).

CAUTION: Avoid potential injury or property damage! Use the correct screw length for adequate thread engagement.

- Too short will not hold the TV. - Too long will damage the TV.

If you are uncertain about your hardware selection, contact Customer Service at 1-800-359-5520.

b: Use your TV supplied spacer/adapter and spacer 12, 13 or 14 for:

• Round (irregular) back TVs

- Extra space needed for cables

CAUTION: Avoid potential injury or property damage! Use the correct screw length for adequate thread engagement.

- Too short will not hold the TV. - Too long will damage the TV.

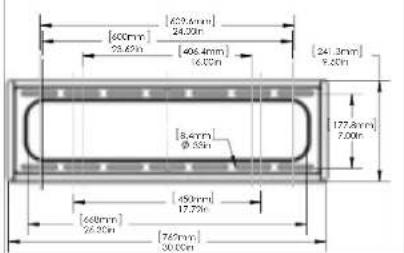

Dimensions in. [mm]

TV INTERFACE

WALL PLATE

FULLY ASSEMBLED MOUNT

TOP VIEW - EXTENDED

TOP VIEW - RETRACTED

3-D

Mechanical assembly diagram showing a rectangular frame with vertical supports and mounting holes (no text or symbols)

SIDE VIEW - EXTENDED

SIDE VIEW - RETRACTED

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

ONE MORE THING: BE A WINNER!

Register your new mount and tell us how you like it for a chance to win in our monthly sweepstakes.

Entering is quick and easy. Visit SANUS.com/1234 and follow three simple steps for your chance to win.

"Monthly Prize" sweepstakes rules and restrictions apply. Visit SANUS.com/1234 for details.

Woman standing beside a black TV wall with arms crossed, in a modern living room setting (no visible text or symbols)

When you share your handiwork with your friends, tag

sanusspaces

for a chance to be featured in the Inspiration Gallery on SANUS.com.

SANUS.com

WE MAKE IT EASY

SanusSystems

CHAT WITH US

pinterest.com/Sanus

BE INSPIRED

SanusSystems

WATCH AND LEARN

800-359-5520 • [e-mail] • SANUS.com

SANUS • 6436 City West Parkway • Eden Prarie, MN 55344 USA

©2016 Milestone AV Technologies. All rights reserved. SANUS is a division of Milestone.

All other brand names or marks are used for identification purposes and are trademarks of their respective owners.

6901-002612 00
