Product Type	Evaporative Humidifier
Brand	Honeywell
Model	HCM710
Tank Capacity	1 US gallon (3.75 L)
Power Supply	120 V, 60 Hz
Filter Type	Replaceable Wick Filter
Replacement Filter	Honeywell HAC-504AW
Flow Control	2 positions: High and Low
Water Level Indicator	Yes
Regular Maintenance	Descaling with vinegar, disinfection with bleach
Filter Replacement Frequency	Every 1 to 2 months depending on use
Safety	Polarized plug, unplug before maintenance
Warranty	3 years limited
Customer Service	1-800-477-0457, [e-mail]
Spare Parts Available	Wick filter HAC-504AW, cleaning cartridge Protec PC-1/PC-2

Frequently Asked Questions - HCM710 HONEYWELL

How to clean the inside of the grille near the fan?

You can clean the grille with a cotton swab or a pipe cleaner inserted gently into the grille openings.

How to reassemble the humidifier after maintenance?

Refer to the 'Reassembling the Humidifier' section of the user guide (page 20) for detailed instructions.

Can I use liquid dish soap to clean the humidifier?

No, use of liquid detergent is not recommended as it leaves hard-to-remove residues that could damage the appliance.

Can I use water treatment products in this humidifier?

Use only products designed for evaporative humidifiers, such as the Protec PC-1 or PC-2 cartridge. Unapproved products may damage the appliance. For hard water, use distilled water.

What setting should I use the humidifier on?

Set to High if the air is very dry, then switch to Low once humidity is restored for quiet operation.

Why is the humidity level not increasing despite prolonged operation?

It may take several days because woodwork, carpets, and objects absorb moisture before the air humidifies. Make sure doors and windows are closed.

Can I operate the humidifier without a filter?

No, the wick filter is essential: it absorbs water and the fan disperses moisture. Without the filter, the appliance will not work properly.

When should I change the wick filter?

Generally every 1 to 2 months depending on water quality and frequency of use. Replace it if you see mineral buildup, reduced output, or tears.

How do I know if my humidifier is working properly?

After about 8 hours of operation, you should notice a significant drop in the water level in the tank.

I don't see steam from the humidifier, is this normal?

Yes, this humidifier works by evaporation and produces an ultrafine, invisible mist. The drop in water level confirms it is working correctly.

USER MANUAL HCM710 HONEYWELL

White Honeywell water purifier with mesh grille and side vent (no text or symbols visible)

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS HUMIDIFIER

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following

1. Always place this humidifier on a firm, flat and level surface. This humidifier may not work properly on an uneven surface.
2. Place this humidifier in an area where it is not accessible to children.
3. Do not place the humidifier near any heat sources such as stoves, radiators and heaters.
4. Do not use the humidifier outdoors.
5. Before using the humidifier, check the power cord for any signs of damage. If the cord is found to be damaged, DO NOT USE and return the humidifier to the manufacturer under the warranty agreement for repair.
6. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit securely in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.

HONEYWELL EASY TO CARE EVAPORATIVE HUMIDIFIER

MODEL HCM-710 Series

1. To disconnect the humidifier, first turn controls to the OFF position, then grip the plug and pull it from the wall outlet. Never pull by the cord.
2. A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.
3. The humidifier should always be unplugged and emptied when not in operation or while being serviced or cleaned.
4. Never tilt or attempt to move the humidifier while it is operating or filled with water. UNPLUG the humidifier before moving.
5. This humidifier requires regular cleaning. Refer to the CLEANING instructions provided. Never clean the humidifier in any manner other than as instructed in this manual.
6. Do not direct moisture flow directly at individuals, walls or furniture.
7. When a humidifier is used in a closed room or small rooms, check periodically for proper ventilation, as excessive humidity can cause condensation stains on walls.
8. Turn the humidifier OFF if you notice moisture on the inside of your windows. For proper humidity reading use a hygrometer, which is available in many hardware and department stores, or by ordering one from the manufacturer.
9. This product is intended for residential use only.

INTRODUCTION

How it Works:

The Easy to Care Evaporative Humidifier is designed to quietly provide invisible cool moisture. Water is absorbed by the treated wicking filter. A fan quietly pushes moisture out of the wick and into the air in the form of an ultra fine invisible mist.

The unique top fill design makes filling as easy as watering a plant.

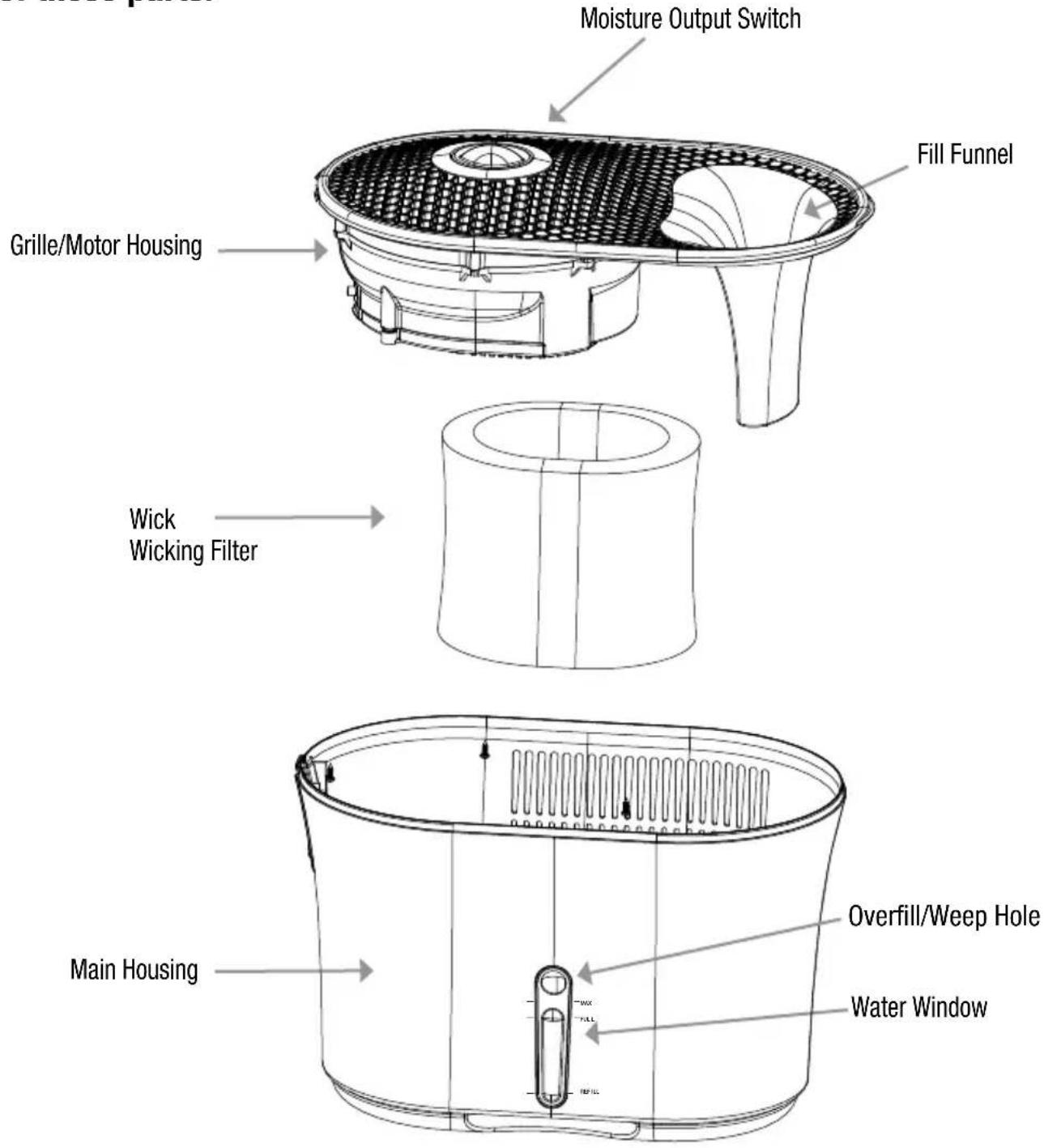

Your humidifier is made up of these parts:

SETTING UP YOUR HUMIDIFIER

Remove from box

Remove packaging material. Remove and set aside instruction manual. Recycle box and packaging materials or save box for end of season storage.

Soak Filter

Remove grille/motor housing and set aside.

Close-up of a wash tank with a textured circular opening, placed in a white kitchen sink (no text or symbols visible)

Remove filter from base and soak in cool water

Black and white photo of a hand holding a glove crossed out by a diagonal line (no text or symbols)

Do not squeeze or wring out filter. This will damage the filter and the unit will not operate properly

Place filter back in humidifier

Place grille/motor hous- ing back on the unit.

Placement

Select a firm, level location at least 6" (15cm) from any walls for proper airflow. Place the humidifier on a water-resistant surface, as water can damage furniture and some flooring.

Kaz USA, Inc. will not accept responsibility for property damage caused by water spillage.

Exterior view of a modern kitchen appliance with a 6-inch angle indicator (no text or symbols on the device itself)

SETTING UP YOUR HUMIDIFIER (continued)

Filling

Product photo of a white water purifier and a small bottle, no visible text or symbols

Fill pitcher or jug with up to 1 gallon of cool water.

Note: You can fill this humidifier with as much as 1 gallon of water or less.

Close-up of a white water dispenser with a mesh vent and water droplet pouring into it (no text or symbols visible)

Pour water into the fill funnel area located on the top of the unit.

DO NOT pour more than 1 gallon into your humidifier. Overfilling your humidifier will result in water being released from the overfill hole located above the water window.

Two-panel image showing a cylindrical object with 'MAX' label and a separate close-up of its surface (no readable text or symbols)

An Indication that your humidifier needs to be refilled is the water level is not visible in the water window or is below the refill line.

Close-up of hands using a plug to adjust electrical plug (no text or symbols visible)

With the power switch in the OFF position, plug the filled humidifier into a polarized 120V outlet. DO NOT FORCE THE POLARIZED PLUG INTO THE OUTLET; It will only fit one way.

DO NOT plug in humidifier with wet hands to avoid electric shock.

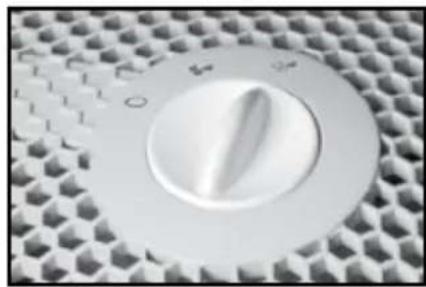

Moisture Output Controls On/Off

Close-up of a white circular switch knob on a textured grid background (no text or symbols visible)

Set your output control to:

High: Maximum Moisture for Larger Rooms

Low: Moisture Maintenance or Sound Sleep

REPLACING YOUR WICKING FILTER

It is recommended that you change your wicking filter every 1-2 months depending on water quality and usage. To extend filter life remove filter from unit when not in use and allow to dry in a well ventilated area.

NOTE: Wicking Filter performance will diminish depending on the mineral content of the water and the amount of airborne dust in the environment.

IMPORTANT: CHECK WICKING FILTER REGULARLY.

Any of the following conditions indicate that it is time to replace the Wicking Filter.

• A buildup of impurities and minerals on the Wicking Filter (evidenced by discoloration of the Wicking Filter)
• An appreciable decrease in Humidifier output. Please keep in mind if your relative humidity is high your humidifier will put out less moisture.
• The top surface of the Wicking Filter is not moist to the touch
  • The Wicking Filter has large holes or tears

The Wicking Filter should be replaced at least one or two times during the season, depending on usage, mineral content of the water and the environment. We encourage you to only use a Honeywell HAC-504AW Replacement Wicking Filter. The use of other Wicking Filters may lead to sub-standard performance.

Use Replacement Wicking Filter HAC-504AW or Filter A.

With dry hands unplug humidifier and carry to kitchen or bathroom.

White portable grille with handle and ventilation slots, no visible text or symbols

Remove grille/motor housing and set aside.

Remove the wicking filter from the main housing. Discard the old wicking filter.

Close-up of a soap dispenser in a kitchen sink with faucet, no visible text or symbols on the device itself.

Soak new filter in cool water.

DO NOT wring filter. Place

new filter in base main housing following the X filter guides inside.

Replace grille/motor housing.

CLEANING

NOTE: It is recommended that all maintenance be done in the kitchen or bathroom on a water resistant surface.

Weekly Cleaning: To properly clean your humidifier we recommend the process of scale removal and disinfecting.

Scale Removal directions:

1 - Remove/Set Aside

Close-up of a plastic filter component with meshed base and perforated top (no text or symbols visible)

Remove grille/motor housing and filter and set aside.

Wicking filters can- not be de-scaled or disinfected. Doing so will damage filters and unit will not operate properly.

2 - Empty 3 - Acid Vinegar

Person pouring liquid into a kitchen sink (no text or symbols visible)

Empty water from the humidifier by pouring out the left or right side of your humidifier. Follow the indicator arrows located inside the main housing.

Vinegar

Close-up of a hand using a tool to cut a textured surface, possibly part of a shoe or hat (no visible text or symbols)

Fill water reservoir of main housing with 1 cup of vinegar. Gently wipe grille funnel area with undiluted vinegar.

4 - Soak & Rinse

Soak for 20 minutes. Rinse main housing until vinegar smell is gone.

5 - Wipe

Close-up of a hand pressing down on a small cylindrical device (no visible text or symbols)

Gently wipe grille funnel area with a soft damp cloth.

Note: Do not soak grille as this could damage the motor.

With your unit un-assembled, proceed to the disinfecting instructions.

CLEANING (continued)

Disinfecting directions: Disinfect following scale removal

Close-up of a white textured cylindrical object with no visible text or symbols

DO NOT DISINFECT the Wicking Filter.

1 - Remove/Set Aside

White plastic kitchen sink with perforated lid and handle (no text or symbols visible)

Set aside grille/motor housing.

2 - Add Bleach

Simple line drawing of a plastic bottle and a spoon, no text or symbols present

NOTE: USING MORE THAN 1 TB OF BLEACH PER GALLON OF WATER WILL RESULT IN DAMAGE TO YOUR HUMIDIFIER.
Add 1 TB of bleach to 1 gallon water. Add 1 gallon of water/bleach solution to water reservoir of the main housing. Using this mixture wipe the walls of the main housing.

3 - Soak

Soak for 15-20 minutes.

4 - Wipe

Close-up of a hand pressing down on a small cylindrical object (no visible text or symbols)

Wipe funnel area of grille/motor housing with the water/bleach solution.

5 - Rinse

Close-up of a shoe being poured into a perforated socket with a black cross symbol (no text or labels)

Main Housing: Thoroughly rinse main housing until the smell of bleach is gone
Grille/Motor Housing: Run water through the FUNNEL AREA ONLY of the grille until the smell of bleach is gone.
NOTE: DO NOT submerge or rinse entire grille as this could damage the motor.

Note: Please be careful of clothing, rugs and other non bleach resistant materials when disinfecting. Spilling bleach on clothing, rugs and certain surfaces may cause damage.

RE-ASSEMBLING YOUR HUMIDIFIER

1 - Replace Filter

Hand placing a mesh material into a bowl with decorative symbols (no text or labels visible)

Replace filter back onto the main housing.

2 - Replace Grille

Close-up of a hand holding a white appliance with ventilation grilles and a lid, showing airflow direction arrows (no text or symbols visible)

Replace grille/motor housing.

END-OF-SEASON CARE AND STORAGE

Follow the CLEANING instructions when the humidifier will not be used for at least one week or more, or at the end of the season.

NOTE: Discard old filters and start with new filters next season.

Dry the humidifier completely before storing.

DO NOT store with water inside the main housing.

Pack unit in original carton and store in a cool, dry location.

CONSUMER RELATIONS

Mail questions or comments to:

Kaz USA, Inc.

Consumer Relations Dept.

250 Turnpike Road, Southborough, MA 01772

Please be sure to specify model number.

Call us toll-free at: 1-800-477-0457

E-mail: [e-mail]

Or visit our website at: www.kaz.com

TO ORDER REPLACEMENT PARTS

HAC-504AW Replacement Wicking Filter

PC-1 or PC-2 Protec ™ Cleaning Cartridge

ELECTRICAL RATINGS

The Honeywell HCM-710 Series models are rated at 120V, 60 Hz.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN THE HUMIDIFIER TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING OR TAMPER WITH INTERLOCK SWITCH YOURSELF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE PRODUCT OR PERSONAL INJURY.

FREQUENTLY ASKED QUESTIONS

Cleaning

Question Answer
How do I clean inside the grille by the fan? You can	clean the grille with a cotton swab or pipe cleaner, gently inserting between the grille slots.
How do I assemble my humidifier after cleaning? See page 8 of your owners manual.
Can I use dish soap to clean my humidifier? It is not recommended that you use dish soap to clean your humidifier as it is very hard to remove all the soap and this could cause damage to your humidifier.
Can I add water treatments to this humidifier? You should only add water treatments to your humidifier that are specifically made for evaporative humidifiers such as the ProtecTM Cleaning Cartridge, model PC-1 or PC-2. Using water treatments that are not recommended for evaporative humidifiers could damage your humidifier. If you are concerned about hard water it is recommended you use distilled water in your humidifier.

Operation

Question Answer
What setting should I put my humidifier on? You should run your humidifier on the highest setting if your room is very dry. Once you are at a more comfortable humidity you can turn your output setting to the low setting.
I ran my humidifier overnight in a very dry room and the humidity barely changed but my water level decreased quite a bit.	It may take a few days for your humidity to increase. Wood, rugs and other objects in your room will absorb moisture before you can feel the effects if it is extremely dry. You should also run your humidifier with the door closed to the room.
Can I run my humidifier without the filter? No, your humidifier will not operate properly without the filter. The filter absorbs the moisture distributed by the water flow channel. A quiet fan then blows through the filter distributing moisture into the air.
How often should I change my wicking filter? In general the wicking filter will last 1-2 months depending on water quality and usage. See Filter Replacement section for information on how to determine when it is time to change the filter.

FREQUENTLY ASKED QUESTIONS (Continued)

Operation (Continued)

Question Answer
How do I know my humidifier is operating properly	You will notice a decrease in the water level after 8 hrs of use.
I cannot see any mist coming out of my humidifier.	Your humidifier uses the process of evaporative. This produces an ultra fine invisible moisture. You will see your water level decrease and this is an indication your humidifier is operating properly.
How much water does my humidifier hold? Your humidifier can hold up to 1 Gallon of water.

3 YEAR LIMITED WARRANTY

You should first read all instructions before attempting to use this product.

A. This 3 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. It also does not apply to the filter or Protec™ Cartridge. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

KAZ USA, INC. IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.

B. At its option, Kaz USA, Inc. will repair or replace this product if it is found to be defective in material or workmanship.

C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.
D. Return defective product to Kaz USA, Inc. with a brief description of the problem. Include proof of purchase and a \10 US/\15.50 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number.

You must prepay shipping charges.

We suggest having tracking or delivery confirmation. Send to:

In U.S.A.:

Kaz USA, Inc.

Attn: Returns Department

4755 Southpoint Drive

Memphis, TN 38118

USA

In Canada:

Kaz Canada, Inc.

Attn: Returns Department

510 Bronte Street South

Milton, ON L9T 2X6

Canada

Please go to www.kaz.com and register your product under the Customer Care Center and receive product information updates and new promotional offers.

White honeywell water purifier with mesh grille and side vent (no visible text or symbols)

IMPORTANTES INSTRUCTIONS DE SÉCURITÉ

LIRE CES INSTRUCTIONS DE SÉCURITÉ AVANT D'UTILISER L'HUMIDIFICATEUR

Symbolic image of a hand holding an antelope, crossed out by a diagonal line (no text or symbols present)

White appliance with ventilation grille and a 6-inch height indicator (no text or symbols on the device itself)

MONTAGE ET MISE EN PLACE DE L'HUMIDIFICATEUR (suite)

Remplissage

Product photo of a white water purifier with a bottle beside it (no visible text or symbols)

Close-up of a white water dispenser with a mesh lid and water being poured into it (no visible text or symbols)

Two-panel image showing a cylindrical object with 'MAX' label on top, and a close-up of its tip on the surface (no readable text or symbols)

Close-up of a hand holding a white electrical plug with a black arrow pointing to it (no text or symbols visible)

Close-up of a white circular switch knob on a textured mesh surface (no text or symbols visible)

REMPLACEMENT DES FILTRES-MÈCHES

Close-up of a hand holding an electrical plug with a black arrow pointing downward (no text or symbols visible)

White electric water heater with cooling fins and a hand holding lid (no visible text or symbols)

Close-up of a white textured object being cut with a hand using a tool, placed on a plastic bag (no text or symbols visible)

Close-up of a white ceramic sink with textured material, no visible text or symbols

Hand placing a mesh packet into a bin with a plus symbol (no text or symbols visible)

6 - Replacer la grille

Close-up of a white appliance with ventilation grilles and a lid, showing hand holding lid (no visible text or symbols)

Close-up of a Enlever et garder with mesh filter and perforated cover (no text or symbols visible)

Close-up of a hand holding a cylindrical object, possibly a container or tool, in a kitchen setting (no visible text or symbols)

Close-up of a white cylindrical object with a mesh texture, resembling a filter or mesh structure (no text or symbols visible)

White plastic kitchen sink with ventilation grille and handle (no text or symbols visible)

Simple line drawing of a milk bottle and a spoon, no text or symbols present

Close-up of a hand pressing down on a small cylindrical device (no visible text or symbols)

Close-up of a shoe being poured into a perforated socket with a black cross symbol (no text or symbols present)

Consumer Relations Dept.

250 Turnpike Road

Southborough, MA 01772

USA

Attn: Returns Department

4755 Southpoint Drive

Memphis, TN 38118

USA

Au Canada:

Kaz Canada, Inc.

Attn: Returns Department

510 Bronte Street South

Milton, ON L9T 2X6

Canada

White honeywell water heater with mesh grille and side panel (no visible text or symbols)

Close-up of a 3D-printed soap dispenser on a sink, with no visible text or symbols on the device itself.

Symbolic image of a hand holding a white object with a black diagonal line through it, enclosed in a circle (no text or symbols present)

Product diagram of a modern water heater with a 6-inch height indicator (no text or symbols on the device itself)

Two white product containers, one bottle and one with mesh cover, displayed against a plain background (no text or symbols visible)

Close-up of a white water dispenser with a mesh grille and water flowing into it (no visible text or symbols)

Two grayscale images showing a cylindrical object with internal features and a scale bar (no text or symbols visible)

Close-up of hands using a power plug to adjust or install a cable (no text or symbols visible)

Close-up of a white circular switch knob on a hexagonal grid background (no text or symbols visible)

Close-up of a square sink with textured material and a water droplet, placed in a kitchen sink (no text or symbols visible)

Hand holding a circular black prohibition symbol (no text or numbers visible)

Close-up of a plastic filter component with meshed base and perforated top (no text or symbols visible)

Person pouring liquid into a bowl in a kitchen (no visible text or symbols)

Close-up of a hand using a tool to clean or store items in a woven basket (no visible text or symbols)

Close-up of a hand pressing down on a small mechanical device (no visible text or symbols)

Close-up of a white mesh filter or foam roller (no text or symbols visible)

White plastic kitchen sink with ventilation grille and handle (no text or symbols visible)

Simple line drawing of a plastic bottle and a spoon, no text or symbols present

Close-up of a hand pressing down on a small cylindrical object (no visible text or symbols)

Close-up of a hand pouring liquid into a perforated shoe with a cross symbol (no text or labels visible)

Hand placing a mesh material into a container with a plus symbol (no text or symbols visible)

Close-up of a hand holding a white appliance with ventilation grilles and arrows indicating airflow or discharge (no text or symbols visible)

Consumer Relations Dept.

250 Turnpike Road

Southborough, MA 01772 USA

Attn: Returns Department

4755 Southpoint Drive

Memphis, TN 38118

USA

En Canada:

Kaz Canada, Inc.

Attn: Returns Department

510 Bronte Street South

Milton, ON L9T 2X6

Canada
