Brand	Frigidaire
Model	FGAC5044W1
Product Type	Dehumidifier
Power Supply	115V~60Hz, grounded 3-prong plug
Operating Temperature Range	41°F (5°C) to 89°F (32°C)
Humidity Setting Range	35% to 85% relative humidity (in 5% increments)
Modes	Auto, Quiet, Dry, Continuous
Fan Speeds	Hi, Med, Lo
Timer	0.5 to 24 hours (delay start or stop)
Filter Type	Washable air filter
Filter Cleaning Interval	Every 2 weeks under normal use
Filter Reset Indicator	After 250 hours of operation
Bucket Full Indicator	Yes, with auto shut-off
Continuous Drainage	Yes, via garden hose (1/2" ID minimum)
Ionizer	Yes, activated via Frigidaire app
Wi-Fi Connectivity	Yes, compatible with Frigidaire app
Child Lock	Yes, press and hold - and + for 3 seconds
Auto Restart After Power Failure	Yes, memorizes last settings
Compressor Delay	3-minute time delay
Clearance Required	12 inches minimum on all sides
Safety Features	Grounded plug, overload protector, auto shut-off on bucket full
FCC Compliance	Class B digital device, contains FCC ID: 2AIBX-NIULL
Warranty	Limited 1 year functional parts and labor

Frequently Asked Questions - FGAC5044W1 FRIGIDAIRE

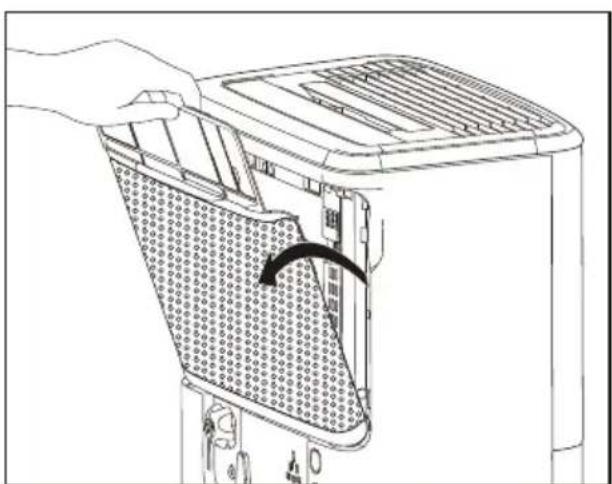

How do I clean the filter?

Open the back grille and pull out the filter. Wash it with clean water, dry it thoroughly, and re-install. Clean every two weeks under normal operating conditions.

What does the 'Bucket Full' light mean?

The light indicates the water bucket is full. The dehumidifier will shut off automatically. Empty the bucket and re-install it properly. If the light stays on, check that the float switch is seated correctly.

How do I set continuous drainage?

Unscrew the drain cap on the back of the unit. Attach a garden hose (1/2 inch inner diameter minimum) to the drain connector. Run the hose to a floor drain. Ensure no kinks or elevations in the hose. The unit will drain continuously when operating.

What does error code 'EC' mean?

The 'EC' code indicates an operating condition issue. Check that the outlet voltage is 115V±10% and the room temperature is between 41°F and 89°F. Unplug and replug the unit. If the code persists, contact an authorized service center.

Can I use an extension cord?

No. Do not use an extension cord or adapter plug. The dehumidifier must be plugged directly into a properly grounded 3-prong outlet.

How do I activate the child lock?

Press and hold the '-' and '+' buttons simultaneously for 3 seconds. The display will show 'LC' for 5 seconds. Repeat to unlock.

Why is the dehumidifier not turning on?

Ensure the power cord is firmly plugged in and the circuit breaker is not tripped. Check that the bucket is correctly installed and the 'Bucket Full' light is off. Also, the unit has a 3-minute compressor delay when restarted.

How do I reset the filter reminder?

After cleaning and replacing the filter, press the 'Filter Reset' button (labeled with a filter icon) on the control panel until the indicator light turns off.

What is the ionizer function?

The ionizer ionizes air molecules to help purify the air. It can only be turned on or off via the Frigidaire app on your smartphone.

How do I pair the dehumidifier with Wi-Fi?

Refer to the Quick Start Guide for your model. Generally, download the Frigidaire app, create an account, and follow the in-app instructions to connect your dehumidifier. The Wi-Fi button on the control panel flashes white during connection.

USER MANUAL FGAC5044W1 FRIGIDAIRE

Important Safety Instructions.... 3

Location.... 4

How It Works.... 5

FCC Statement....6

Dehumidifier Features....7

Operating Instructions.... 7

Care And Cleaning....13

Storage.... 13

Normal Sounds.... 14

Before You Call.... 14

Major Appliance Limited Warranty..... 16

Welcome to our family

Thank you for bringing Frigidaire into your home! We see your purchase as the beginning of a long relationship together.

This manual is your resource for the use and care of your product. Please read it before using your appliance. Keep it handy for quick reference. If something doesn't seem right, the troubleshooting section will help you with common issues.

FAQs, helpful tips and videos, cleaning products, and kitchen and home accessories are available at www.frigidaire.com.

We are here for you! Visit our website, chat with an agent, or call us if you need help. We may be able to help you avoid a service visit. If you do need service, we can get that started for you.

Let's make it official! Be sure to register your product.

Keep your product info here so it's easy to find.

Model Number ____

Serial Number ____

Purchase Date ____

WARNING

For Your Safety

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Read product labels for flammability and other warnings.
• Discard water from bucket. Water is not potable and cannot be used for drinking.

WARNING

Electrical Information

• For your safety and protection, this dehumidifier is equipped with a three-prong grounding plug on the power cord. Do not, under any circumstances, cut or remove the round ground prong from the plug.
• Your dehumidifier must be plugged directly into a properly grounded and polarized three-prong receptacle. If the wall receptacle you intend to use will not accept a three-prong plug, or if you are not sure the outlet is adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified electrician install the proper outlet according to the National Electrical Code and applicable local codes and ordinances. Do not use an extension cord or an adapter plug.
• Never unplug the dehumidifier by pulling on the power cord. Always grip the plug firmly and pull straight out from the receptacle.
• Do not pinch, bend, or knot the power cord.

WARNING

Child Safety Precautions

- Destroy the carton, plastic bags, and any packing materials immediately after the dehumidifier is unpacked. Children should never use these items for play.

• Do not leave children unattended in an area where the appliance is operating. Do not allow them to sit or stand on the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.

SAFETY PRECAUTIONS

DANGER! Avoid Serious Injury or Death

• This dehumidifier contains no user-serviceable parts. Always call an authorized Electrolux servicer for repairs.
• Do not insert or place fingers or objects into the air discharge area or back grille of the unit.
• Do not start or stop the dehumidifier by unplugging the power cord or turning off the power at the electrical box.
• Do not cut or damage the power cord. Do not pull on the power cord.
• If the power cord is damaged, it should only be replaced by an authorized Electrolux servicer.
• In the event of a malfunction (sparks, burning smell, etc.), immediately stop the operation, disconnect the power cord, and call an authorized Electrolux servicer.
• Do not operate the dehumidifier with wet hands. Do not drink any water from the dehumidifier.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The appliance shall be installed in accordance with national wiring regulations.

SAFETY PRECAUTIONS

CAUTION! Avoid Injury or damage to the unit or other property

• Do not direct airflow at fireplaces or other heat related sources as this could cause flare ups.
• Do not climb on or place objects on the unit. Do not hang objects off the unit.
• Do not place containers with liquids on the unit.
• Turn off the dehumidifier at the power source when it will not be used for an extended period of time.
• Operate the unit with air filter in place.
• Do not block or cover the intake grille, discharge area and outlet ports.
• Ensure that any electrical/electronic equipment is one yard away from the unit.
• Do not use or store flammable gases near the unit.

WARNING

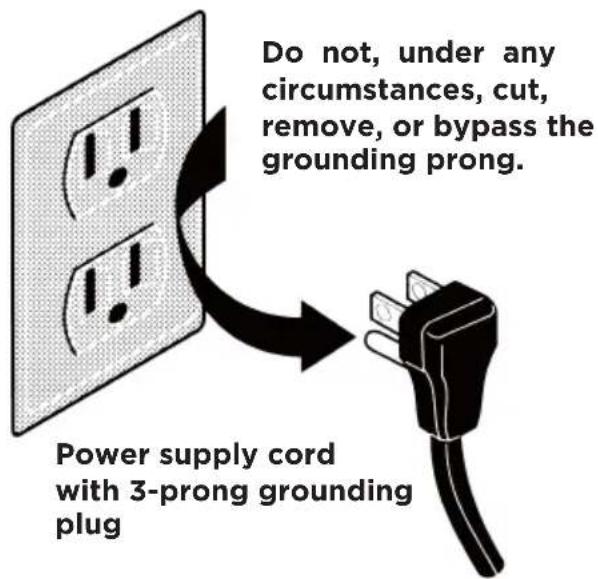

Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove any prong from the power cord.

Grounding type wall receptacle

Location

Selecting a Location

IMPORTANT:

1. Dehumidifier must be operated in an enclosed area to be most effective. Close all doors, windows, and other outside openings to the room. The effectiveness of the dehumidifier depends on the rate at which new moisture-laden air enters the room.
2. Place dehumidifier in a location that does not restrict the airflow of the air intake and air outlet.
3. A dehumidifier operating in a basement will have little or no effect in drying an adjacent enclosed storage area, such as a closet, unless there is adequate circulation of air in and out of the area. It may be necessary to install a second dehumidifier in the enclosed area for satisfactory drying.
4. The dehumidifier must be installed on a level floor that will support it with a full bucket of water.

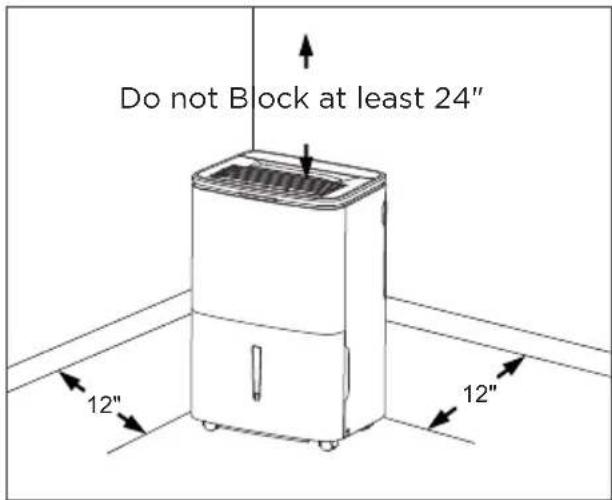

5. There should be a minimum of 12 inches clearance around the dehumidifier. The unit will produce heat while in operation and should not be operated in an enclosed small space like a closet.

How It Works

When the unit is started, the fan begins to pull moisture-laden air across the dehumidifying coils. The coils condense or draw moisture from the air, and air flows through the air outlet louvers into the room as dry, warm air. Moisture removed from air is collected in a bucket on the front of the dehumidifier.

The unit is designed to operate between 41 °F (5 °C), and 89 °F (32 °C). The unit will not work properly if the temperature is out of this temperature range, or the performance of the unit will fall greatly.

The "Compressor" circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly. This prevents overheating of the compressor and possible circuit breaker tripping. Make sure the tank is fitted correctly otherwise unit will not turn on.

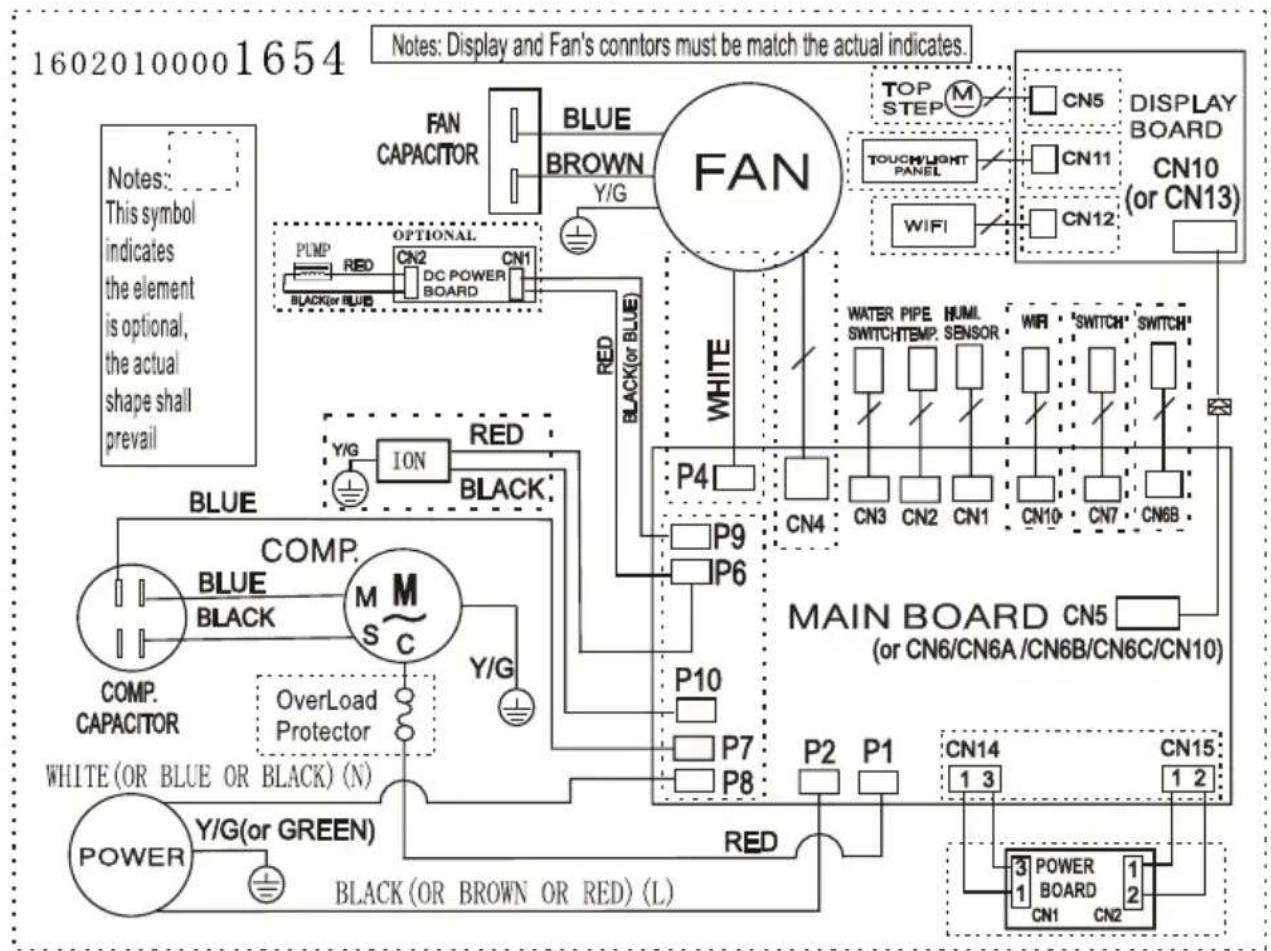

Wiring Diagram

FCC Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the equipment into an outlet other than the one used for the receiver.
• Consult the dealer or an experienced radio/TV technician for assistance.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Host device Labeling

This device includes the following module.

Contains FCC ID: 2AIBX-NIULL

RF exposure statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum 20 cm between the radiator and your body. This transmitter must not be collocated or operating in conjunction with any other

antenna or transmitter unless authorized to do so by the FCC.

INDUSTRY CANADA (IC) STATEMENT

This Class B digital apparatus complies with Canadian ICES-003.

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

The antenna (or antennas) must be installed so as to maintain at all times a distance minimum of at least 20 cm between the radiation source (antenna) and any individual. This device may not be installed or used in conjunction with any other antenna or transmitter.

l'exposition aux RF

Host device Labeling

This device includes the following module. Contains IC: 21700-NIULL

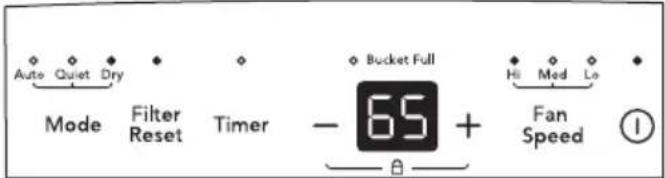

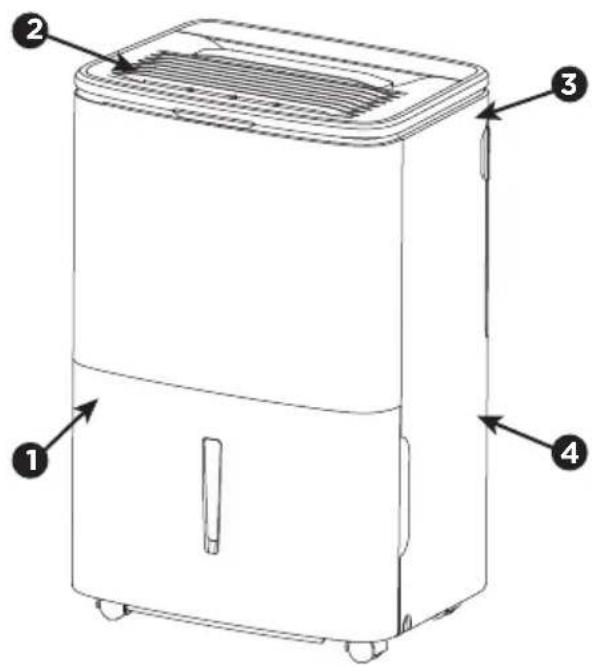

Dehumidifier Features

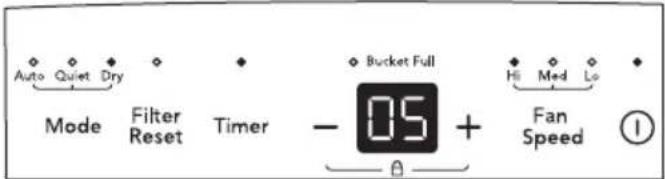

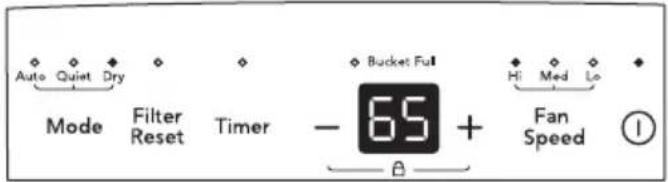

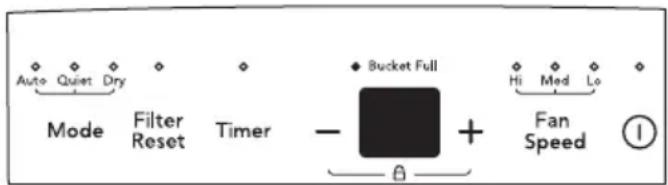

ELECTRONIC CONTROL

Before you begin, thoroughly familiarize yourself with the control panel and all its functions (as shown below). The unit can be controlled by the touch pad alone or with the Frigidaire app*.

A Mode Button

B Bucket Full Indicator

C Displays Humidity

D Wifi Button

E Turns Unit On Or Off

F Sets Fan Speed

G Adjusts Humidity

H Sets Timer

I Check Filter Reset Button

*Refer to the Quick Start Guide that came with your Smart Dehumidifier for detailed instructions on setting up your dehumidifier for connected operation from your smart phone or tablet.

Operating Instructions

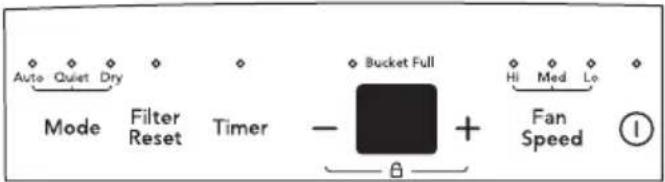

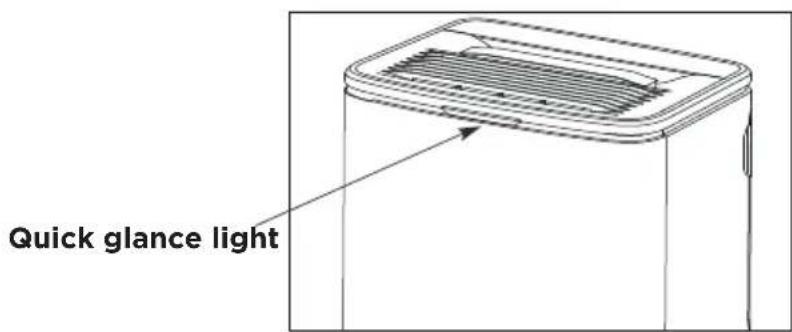

Quick glance light behavior

Situation Quick Glance Light Behavior
In Quiet or Continuous mode.	The light will turn off.
In Dry or Auto mode, when ambient humidity is at or higher the set humidity.	The light will turn off.
In Dry or Auto mode, when ambient humidity is lower then set humidity.	The light will continuously emit a blue light to show the set humidity has been reached.
Situation Quick Glance Light Behavior
When bucket full or clean filter light is on.	The light will emit orange light and gradually turn dark and bright every 4 sec.
When E4, EC, AS or ES error occur.	The light will emit red light and gradually turn dark and bright every 4 sec.
When unit is connecting to internet.	The light will flash white light.

• When the unit is establishing connection to internet the quick glance light will flash in white light and if the connection is established the quick glance light will emit white light for 10 sec then follow the behavior in above table.
• The light can be activated or deactivated by pressing and holding the "Fan Speed" button and "+" button simultaneously for 3 sec.

NOTE

Unit must be upright for one hour prior to operating.

1. Plug the power cord into a properly grounded 115 volt AC outlet.

NOTE

If the "BUCKET FULL" light is flashing, remove the bucket and re-install to reset the float switch.

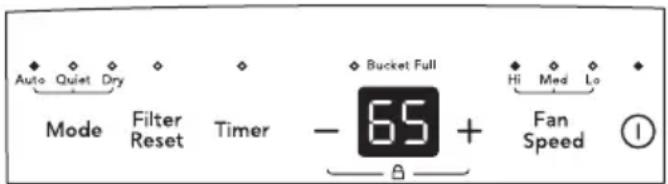

1. To turn the unit on, press the ON/OFF button. The unit will run in the factory setting of Auto mode. In this mode, the unit will automatically set a comfortable humidity and fan speed according to the indoor environment.

Note: In this mode, set humidity and fan speed can not be changed manually and the display will show actual room humidity.

1. To use Quiet mode, press the Mode button to choose Quiet mode. The unit will run in low fan speed for the whole time and the unit will automatically set a comfortable humidity according to the indoor environment.

Note: In this mode, set humidity and fan speed can not be change manually and the display will show actual room humidity.

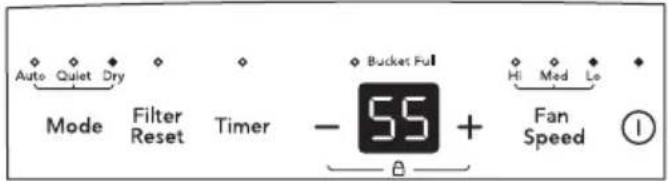

1. To use Dry mode, press the Mode button to choose Dry mode. In this mode, you can press the HUMIDITY - or + buttons to choose a value between 35% to 85%, so the room is kept at a comfortable humidity. Pressing the - or + buttons will change the humidity selection in 5% increments. 5 seconds after you have set the desired humidity, the readout will display the actual room humidity.

1. During the Dry mode, You can also use the FAN SPEED button to change the fan speed to Hi, Med or Lo. The indicator light will show the setting you have selected. A higher fan speed will result in quicker moisture removal.

1. To use CONTINUOUS mode, when in Dry mode pressing the “-” button until the display reads CO. In this mode, the unit will continuously on and the unit will only display CO not the room humidity. To leave this mode, press the “+” button.

1. The Filter reset light will illuminate after 250 hours of operation. At this time refer to the care and cleaning section to remove and clean the filter. Once the filter has been cleaned and replaced, simply press the Filter reset button to extinguish the light.

1. The TIMER function enables you to either Delay Start or Delay Stop the unit in the choice from 0.5 hour to 24 hours. If the unit is running, then selecting Timer will turn the unit off in the hours that will be set (Delay Stop). If the unit is off, then selecting Timer will turn the unit on in the hours that will be set (Delay Start). TIMER setting: First press TIMER button, then adjust timer setting, by tapping or holding the “-” or “+” button to change the delay timer at 0.5 hour increments, up to 10 hours, then by 1 hour increments up to 24 hours. The control will count down the time remaining (8,7.5,7, etc.) until the unit either starts or stops. For the Delay Start, the fan speed and humidity maintained will be the same as previous setting. After TIMER setting finishes, pressing TIMER button again at any time will stop the TIMER function. The Delay Start/Stop Feature will work until the unit either starts or stops. Once that happens the above steps have to be repeated.

NOTE

1. Before entering TIMER setting, make sure power is being supplied to the unit.

2. Before entering TIMER setting, select a desired setting for operation when the unit turn on.

3. Press and hold the “-” and “+” for 3 sec can activate or deactivate the LOCK function. The display will show LC for 5 secs. The control panel will be lock and the setting can not be changed.

1. The unit is equipped with a device called an ionizer. This device can only be activated and deactivated via the Frigidaire app, which can be downloaded onto your smart phone device. By activating this device, it will ionize air molecules.

2. To shut the unit down, press the ON/OFF button.

Note: After a power outage, the unit will memorize the last setting and return the unit to the same setting once power is restored.

Fault Codes

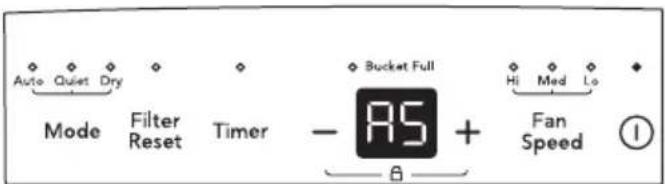

1. If the display reads "AS" or "ES", a sensor has failed. Contact your Authorized Frigidaire Service Center.

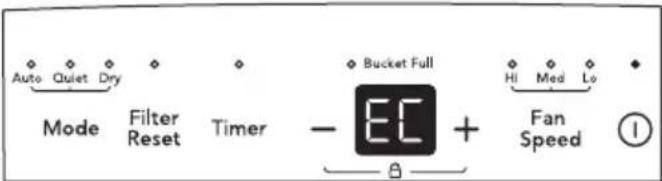

1. If the display reads "EC", check the following operating conditions. Outlet voltage should be 115V±10% and the surrounding temperature should be with in the range of 41 °F to 89 °F. Unplug the unit and plug it in again under normal operating conditions. If the "EC" code persists, contact your Authorized Frigidaire Service Center.

1. If the display reads "E4", the communication between display PCB and main control PCB is faulty. Contact your Authorized Frigidaire Service Center.

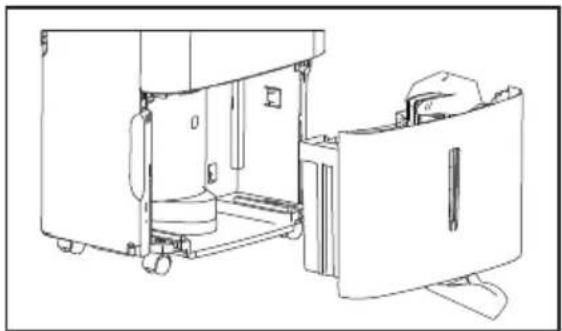

Removing Collected Water

1. Emptying the Bucket:

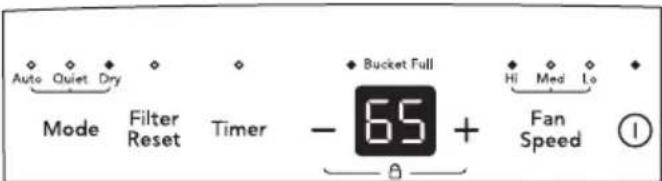

a. When the bucket is full, the unit will shut down and the BUCKET FULL indicator will illuminate.

b. Do not move the unit at this time otherwise water may spill on the floor.

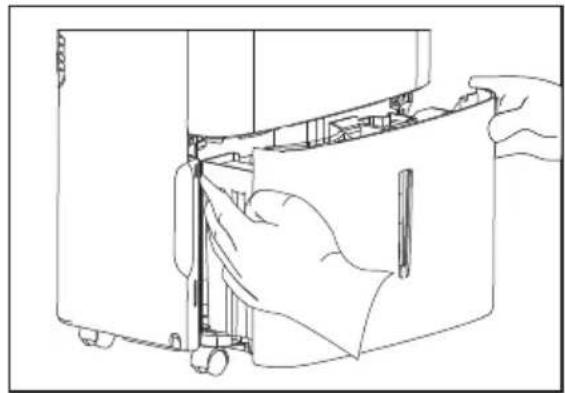

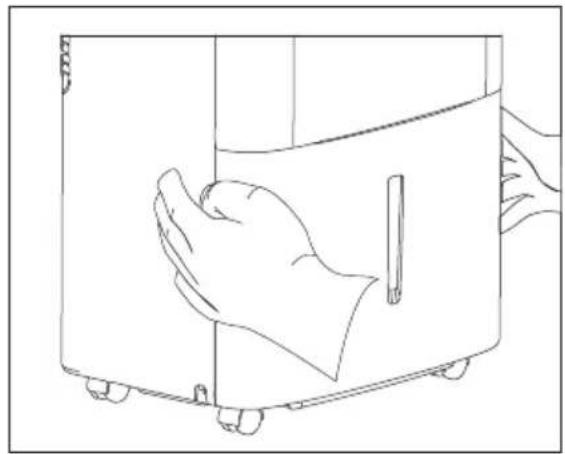

c. Press sides of bucket gently to unclip the bucket from the unit.

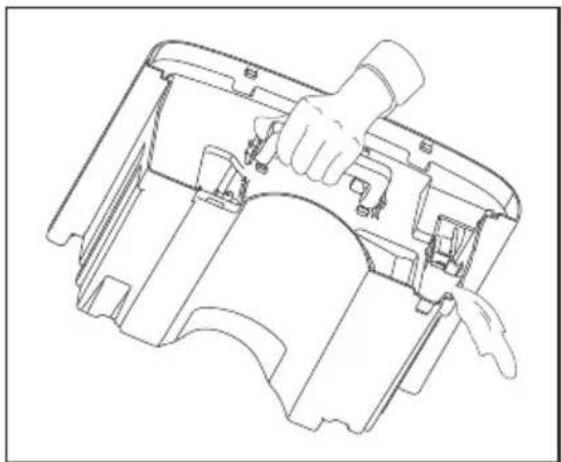

d. Remove the bucket as shown in the photographs below and empty the bucket.

Line drawing of a hand opening a door with wheels, no text or symbols present

Line drawing of hands installing or adjusting a device component, showing internal components and parts (no text or symbols)

Line drawing of a mechanical device with two views: front view and side view (no text or symbols)

Technical line drawing of a mechanical component with hands operating (no text or symbols)

WARNING

Discard water from bucket. Water is not potable and cannot be used for drinking.

e. Replace the empty bucket back into the unit and once seated correctly, the unit will start up again.
f. You should hear a click when the bucket is in the correct position.

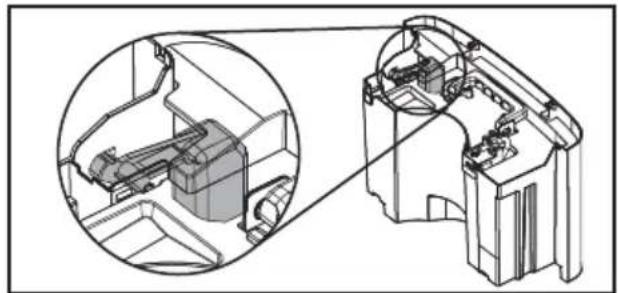

If the bucket full light does not extinguish, check that the float is correctly snapped in place.

Technical line drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

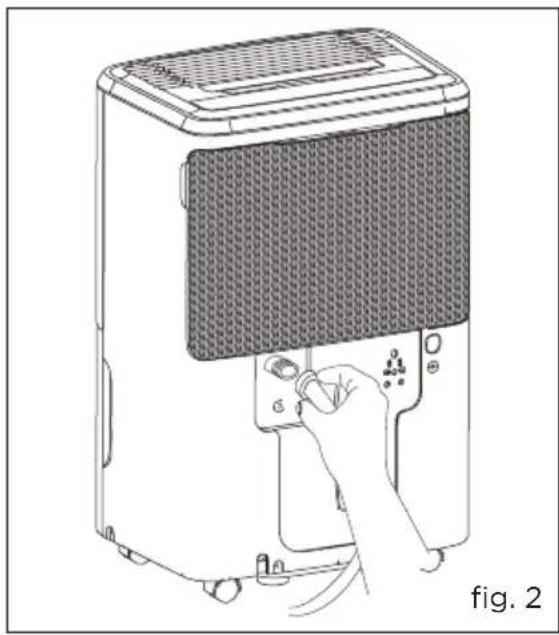

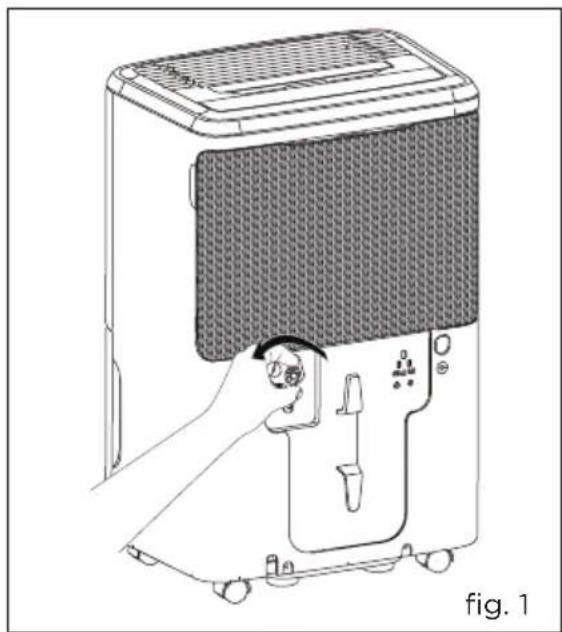

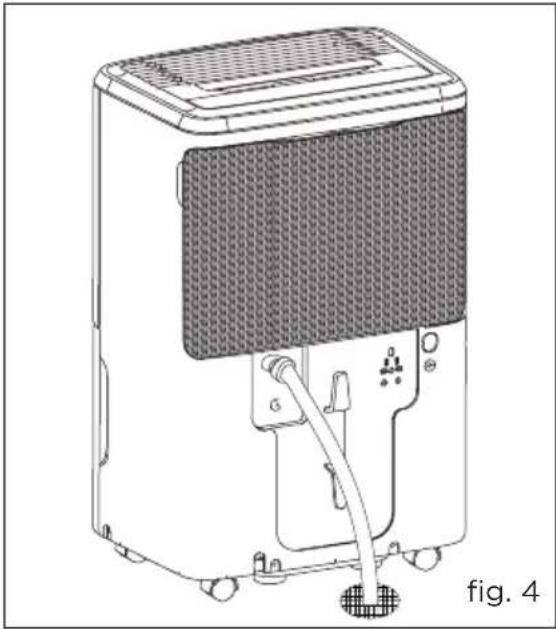

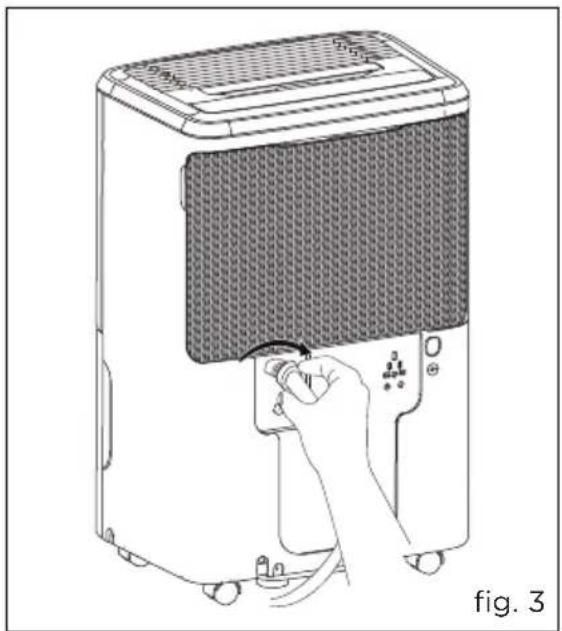

1. Continuous Drainage:

a. For continuous drainage operation, you will need a garden hose and a drain nearby to discharge the water into.
b. Unscrew the drain cap on the back side of the unit. (fig.1)

Line drawing of a portable air purifier device with a person operating it, labeled 'fig. 1' (no text or symbols on the device itself)

c. Insert the female threaded end of the hose onto the drain connector of the unit. (fig.2)

Line drawing of a portable air purifier with a hand inserting a button to its side panel (no text or symbols)

d. Screw the garden hose onto the threaded portion of the drain connector. (fig.3)

Line drawing of a portable air purifier with a hand inserting a plug into the housing (no text or symbols)

e. Make sure the hose is secure so there are no leaks.

f. Direct the hose toward the drain, making sure that there are no kinks that will stop the water flowing.

g. Place the end of the hose into the drain. (fig.4)

Line drawing of a portable air purifier device with mesh cover and control panel (no text or symbols)

h. Select the desired humidity setting and fan speed on the unit for continuous draining to start.

NOTE

1. Check the seal between the hose and the drain connector. If there is a small leak then replace the hose gasket and re-tighten the hose.

2. It is recommended that a Dehumidifier Drain Hose - 1/2" (12.7 mm) or larger be used. Make sure there are no kinks or elevations in the hose.

3. When a hose is not attached to the drain connector, please ensure drain cap is screwed securely to the connector to prevent leakages.

Care and Cleaning

1. Filter

Clean the filter every two weeks based on normal operating conditions.

To remove the filter:

a. Open the back grille and pull out the filter.
b. Wash the filter with clean water then dry.
c. Re-install the filter.

2. Cabinet

a. Dust cabinet with an oil-free cloth, or using a damp cloth.
b. Vacuum grill using brush attachment.

3. Water Bucket

Clean the Water Bucket every two weeks based on normal operating conditions.

a. Clean bucket with warm water and detergent.

Line drawing of a hand inserting a grid-patterned device into a computer tower (no text or symbols)

NOTE:

This unit has available space for use of additional filters. There are different types of additional filters, which are sold separately.

You can purchase additional air filters by visiting Frigidaire.com or by calling the Frigidaire Customer Service Center 1-800-944-9044(US)/1-800-265-8352 (Canada).

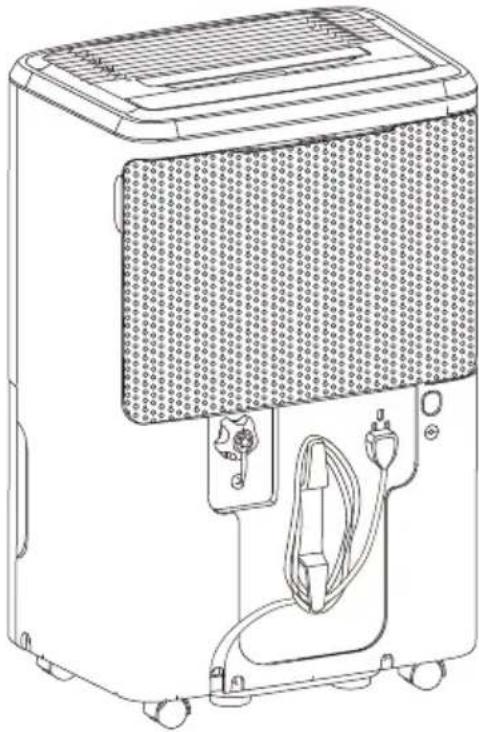

Storage

When unit is not in use, unplug and use the cord wrap shown for your model type.

Line drawing of a portable air conditioner unit with mesh grille and internal wiring (no text or symbols)

Normal Sounds

When unit is not in use, unplug and use the cord wrap shown for your model type.

1 Dripping Sound

The sound of dripping water may be heard during the dehumidification cycle.

② Sound of Rushing Air

At the top of the unit, you may hear the sound of rushing air being moved by the fan.

3 Gurgle/Hiss

"Gurgling or hissing" noise may be heard due to refrigerant passing through evaporator during normal operation.

4 High pitched Chatte

Today's high efficiency compressors may have a high pitched chatter during the dehumidification cycle.

Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance.

SOLUTIONOCCURRENCE

Dehumidifier does not operate.

Wall plug disconnected.Push plug firmly into wall outlet.House fuse blown or circuit breaker tripped.Replace fuse with time delay type or reset circuit breaker.The dryness level you selected has been reached.Dehumidifier automatically shuts off when selected amount of moisture has been removed from the air. If you want to remove more moisture, Select 'CONTINUOUS' by using the humidity button or knob. After the dehumidifier starts, reset the control to the desired setting.Bucket not installed properly.See "Removing Collected Water".Water in the bucket has reached its preset level. Dehumidifier automatically turns off when this occurs.Empty bucket and return bucket to position.Dehumidifier is not turned on.Turn unit on."BUCKET FULL" light is on.Remove bucket, empty water and re-install correctly.

Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance.

	SOLUTIONOCCURRENCE
Dehumidifier runs too much.	·Windows or doors near dehumidifier are open to outdoors. Close all windows or doors to outside.·Area to be dehumidified is too large. Check with your dealer to see if capacity is adequate.·Air movement through dehumidifier is blocked. Grill may be dirty. Use brush attachment of vacuum cleaner to clean grill. See “Care and Cleaning”. Dehumidifier must be placed in a space that does not restrict air flowing into the rear coil or out of the front grill.·Dehumidifier has been installed or restarted recently. The higher the moisture in the room, the longer the dehumidifier will operate.·Dehumidifier is in the CONTINUOUS mode and will remain on in this mode, use the humidity button or knob to set a RH% higher level.
Dehumidifier is operating but room is not dry enough.	·Humidity setting is too high. Press the HUMIDITY button or rotate knob to a lower setting or choose CONTINUOUS for maximum dryness.·Dehumidifier has been installed or restarted recently. The higher the moisture in the room air, the longer it takes for the room air to become dry.·Dehumidifier does not have sufficient clearance to operate. Air flow to the air outlet is blocked. See “Selecting a Location”.·Room temperature is too low. Unit will not operate satisfactorily if the room temperature is below 41 °F(5 °C). See “Operating Conditions”.·Refer to causes under DEHUMIDIFIER RUNS TOO MUCH.
Frost appears on coils behind the filter	·Dehumidifier has been turned on recently. This is normal due to refrigerant rushing through the coil. Frost will usually disappear within 60 minutes.·Room Temperature is too low. All models will operate satisfactorily at temperatures greater than 41 °F (5 °C).
Fan noise.	·Air is moving through the dehumidifier. This is a normal sound.
Trouble connecting the Smart appliance to your wifi Network or experiencing an issue with the app.	·Please visit Frigidaire.com and select the Owner Support section to view Frequently Asked Questions.

If These Solutions Fail, Call 1-800-944-9044(US)/1-800-265-8352(Canada) For Frigidaire Service.

Your appliance is covered by a limited one-year warranty for functional repairs only. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions. After one year from your original date of purchase, the consumer will be responsible for diagnostic, labor and parts costs as well as any removal, transportation and reinstallation expenses which are incurred during service on components.

Exclusions

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

If You Need Service Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.

This limited warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice.

USA

1.800.944.9044

Electrolux Major Appliances

10200 David Taylor Drive

Charlotte, NC 28262

Electrolux

Canada

1.800.265.8352

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada

L5V 3E4

FRIGIDAIRE

welcome home

Our home is your home. Visit us if you need help with any of these things:

owner support

accessories

service

registration

(See your registration card for more information.)

Frigidaire.com

1-800-944-9044

Frigidaire.ca

1-800-265-8352
