USER MANUAL TV-IP1314PI TRENDNET
TV-IP1314PI
TRENDnet User's Guide TV-IP1314PI
Contents
1
Product Overview 4
Features....4
Package Contents ....4
Front View ....5
Mounting....5
Connectors 5
Warnings....6
Cautions....6
Plan for installation location....7
Viewing angle 7
Weather Conditions 7
Hardware Installation 8
Cabling....8
Waterproof cap 8
Mount your camera 8
Access your Camera with the Web Browser....10
Logging-in to the Camera for the First Time (Windows) 10
Logging-in to the Camera for the First Time (OS X) 12
Live View....17
Playback....18
Search for video recordings.... 18
Time Line 18
Playback....19
Slice images from video playback.... 19
Download sections of video....20
Download snapshots....20
Log 21
Search for logs 21
System Information 22
System Configuration.... 23
Device Settings 23
User Accounts 24
Time Settings 24
Daylight Savings 25
Live View Settings 26
Maintenance 27
Network Settings 28
TCP/IP 28
Port 29
DDNS....29

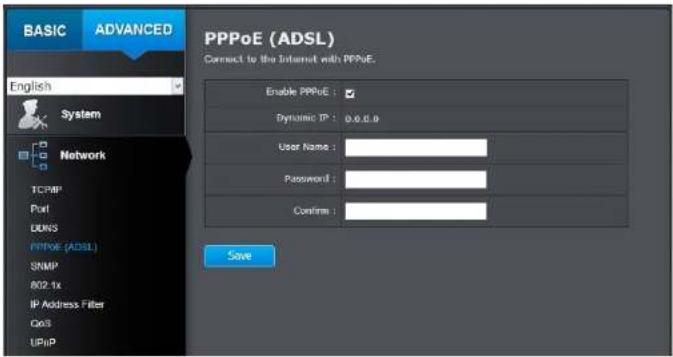

PPPoE....30
SNMP 30
802.1X....32
IP Address Filter 32
Quality of Service (QoS) 33
UPnP 33
Video Settings.... 34
Video Format 34
Display Settings.... 35
On Screen Display Settings 37
Text Overlay....38
TRENDnet User's Guide TV-IP1314PI
Privacy Mask....38
Video Recording 39
Events....40
Motion Detection 40
Video Tampering 42
Notification.... 43
Snapshot 44
Email 45
Network Storage....46
Network Storage 46

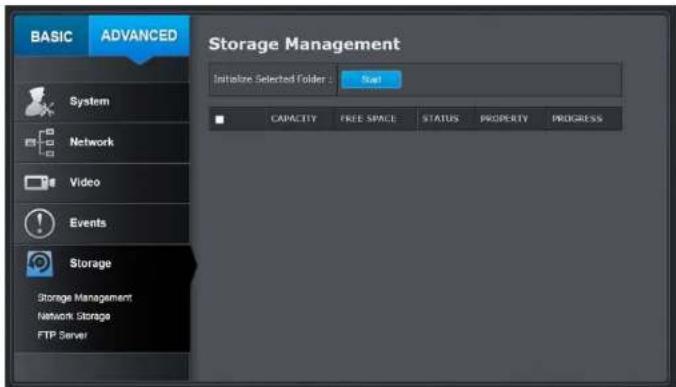

Storage Management 47
FTP Server 48
Regulations....49
Federal Communication Commission Interference Statement 49
RoHS 49
Europe – EU Declaration of Conformity 50
Limited Warranty....51
TRENDnet User's Guide
TV-IP1314PI
Product Overview
TRENDnet's Indoor/Outdoor 4MP H.265 WDR PoE IR Bullet Network Camera, model TV-IP1314PI, provides day and night surveillance with a night vision range of up to 30 meters (98 ft.). This network camera delivers year-round surveillance with an IP67 weather rated housing to withstand environments. Record up to 4MP HD video at 30 fps in a space saving H.265 compression format. View live video with included complimentary software and mobile apps.
Package Contents
TV-IP1314PI package includes:
• TV-IP1314PI
- Quick Installation Guide
• CD-ROM (Utility and User's Guide)
• Camera mounting hardware
• (Optional power adapter not included)
Drilling Template
Mounting Screws
outdoor
Waterproof Accessories
If any package content is missing or damaged, please contact the retail store, online retailer, or reseller/distributor from which the product was purchased.
TRENDnet User's Guide
TV-IP1314PI
Front View
| MicroSD slot | Open the button cover and insert the Micro storage |
| Light Sensor | Detects the brightness in the environment and enable day/night mode automatically |
| IR LEDs | Infra-red covert LEDs for night vision |
Mounting
r on the
default
Connectors
for
TRENDnet User's Guide
TV-IP1314PI
Warnings
Serious injury or death may be caused if any of these warnings are neglected. Follow these safety guards to prevent serious injury or death.
- If using the power adapter, please choose the power adapter that meets the safety extra low voltage (SELV) standard or IEC60950-1 and Limited Power Source standard.
- If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. Disassembling the product will void the warranty cause harm or injury.
- To reduce the risk of fire or electrical shock, do not expose this product to rain or water.
- The installation should be done by a qualified service person and should conform to all construction and electric regulations and other local codes.
Cautions
Injury or equipment damage may be caused if any of these can be neglected. Follow these precautions to prevent potential injury or material damage.
- Make sure the power supply voltage is correct before using the Camera.
- Do not drop the camera or subject to physical shock.
- Do not touch sensor modules with fingers. If cleaning is necessary, use a clean cloth with a bit of ethanol and wipe it gently. If the camera will not be used for an extended period of time, put on the lens cap to protect the sensor from dirt.
- Do not aim the camera lens at the strong light such as the Sun or an incandescent lamp. Strong light can damage the camera sensor.
- The sensor may be burned out by a laser beam, so when any laser equipment is being used, make sure that the surface of the sensor will not be exposed to the laser beam.
- Do not place the camera in extremely hot, cold temperatures (the operating temperature should be between -10^ to 60^ ), and damp environment, and do not expose it to high electron radiation.
- To avoid heat accumulation, good ventilation is required for a proper operating environment.
- Keep out of water and any liquid.
- While shipping, the camera should be packed in its original packing.
TRENDnet User's Guide
TV-IP1314PI
Plan for installation location
Viewing angle
The TV-IP1314PI is a bullet camera with a focused viewing angle (83°) horizontal) that provides non-distorted and detailed images. Choose location where has good angle to shoot the image you expect to see. motion detection area should also be considered when installing the camera.
Weather Conditions
The TV-IP1314PI is a small bullet camera, which fits most installations indoor and outdoor. The camera can work under a wide range of weather conditions. For severe weather conditions, a camera housing with moisture control is recommended. Using the camera in milder conditions will help extend the camera's product life and preserve the quality of the video image.
- Moisture: Avoid damp or moist environments whenever you can. The TV-IP1314PI is an IP66 grade water proof camera, and it will work in moist environments. However, rain may affect the picture quality, especially at night, water may reflect the light from the infra-red illumination and degrade picture quality.
-
Temperature: TV-IP1314PI works within a specified temperature range. Areas with severe temperatures should be avoided when installing the camera. It's recommended that you use an enclosure with a heater and blower if you plan on using this camera outside of the specified temperature range.
-
Sunlight: Avoid direct sun light exposure. Direct sun light will damage the image sensor. If sunlight is necessary for your viewing purposes, provide protection for the image sensor.
- Lighting: Consider installing your camera faces the same direction of the light sources. Shooting images with top-down position outdoor or the next to the existing light source are good choices. Avoid the light source if it creates a shade that darkens the viewing area
temperature and weather
TRENDnet User's Guide
TV-IP1314PI
Hardware Installation
Cabling
It's recommended that the wiring the cable in your home professional. If you already have the cable deployed, make sure the cable and the connectors meet the category 5 Ethernet cable standards. At least 2 pairs of twisted lines are required for power and data. Poor cable quality may cause unexpected problems. Testing your cable or running a new cable is suggested for new camera installation.
Waterproof cap
The TV-IP1314PI itself is IP66 grade water and dust proof. There is a set of network cable water proof caps that comes with the package as well. Run your cable going through the accessories, and then crimp the cable with an RJ45 module. Plug in the network cable and then tighten the waterproof cap to prevent water running into camera through the cable.
Mount your camera
Drill the screw holes and the cable hole if necessary with the drill template comes with the package.
or office by a
TV-IP1314PI

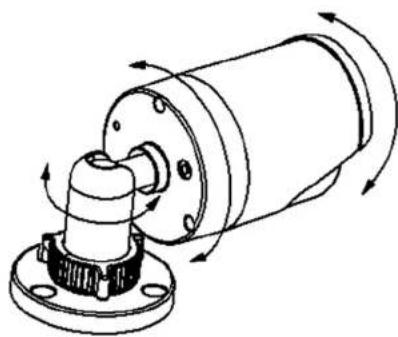

Loosen the lock ring and then adjust the camera position. Tighten the lock ring when you setup the camera position.
TV-IP1314PI
Access your Camera with the Web Browser
Logging-in to the Camera for the First Time (Windows)
- Find the camera from the Utility and double click on the IP address to open the browser.

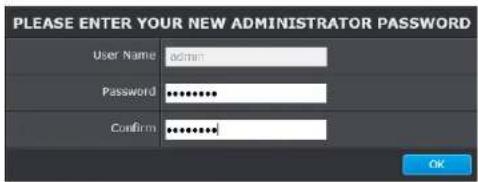

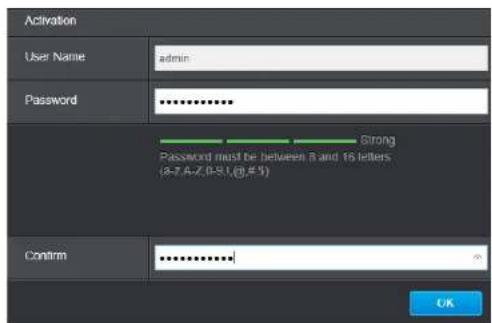

- Activate the admin User Account by entering your desired password, and then click OK.
- The camera management page will detect if you installed the camera video streaming plug-in or not. Click the link to download the plug-in from the camera. (For Internet Explorer and Safari only) Google and Firefox users, skip to step 9.

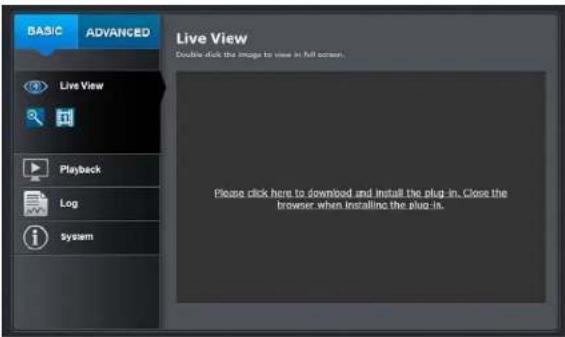

- Download the plug-in to your computer and then and close your browser. Launch the plug-in installation to install the plug-in.
TRENDnet User's Guide
TV-IP1314PI

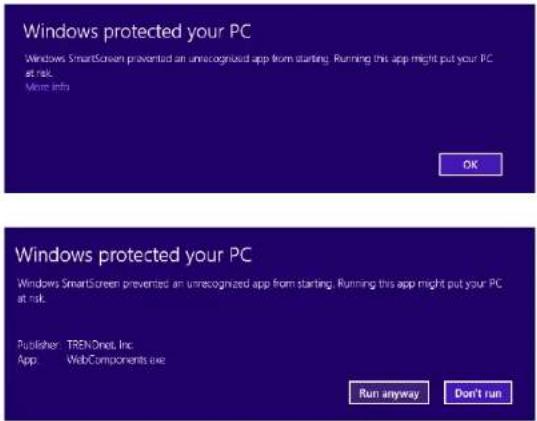

- Permission request may show up depends on the Internet security settings on your computer. Click More Info and then Run anyway to install the plug-in.
- Click Next to install the plug-in.
- Click Finish to finish the installation.
- Open the browser and login again, enter the user name admin and new password again to start secured session.
TRENDnet User's Guide
TV-IP1314PI
- Refresh the browser and the Live View page will show up and begin streaming video.
Logging-in to the Camera for the First Time (OS X)
- Use Camera Utility in Windows to find out the camera's IP address
- Activate the admin User Account by entering your desired password, and then click OK.
TRENDnet User's Guide
TV-IP1314PI
- The camera management page will detect if you installed the camera webcomponent plug-in or not. Click the link to download the plug-in from the TV-IP1314PI camera.
Note: Internet connection is required to download the plug-in. If you do not have Internet access, you can find the plug-in on the CD comes with the package under /Mac folder.
- Quit your browser completely by command-Click on the browser icon and then click Quit before installing the plug-in.

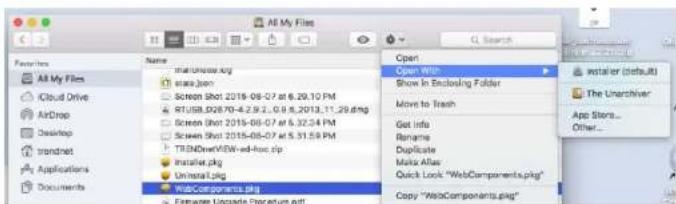

- Go to the Finder and navigate to the Download folder. Command-Click the WebComponents.pkg and then click Open. (If you are install the plugin from the CD when you don't have internet connection, just browse to /Mac folder and double click the WebComponents.pkg file.)
- Click Open with → Installer to start installation.
TRENDnet User's Guide
TV-IP1314PI
7. Click Continue to install the plug-in.

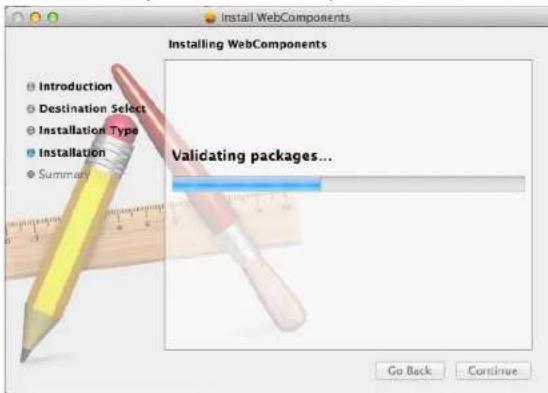

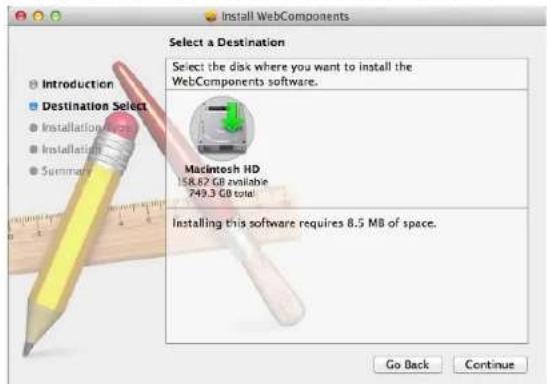

8. Select a destination to install the plug-in. Then click Continue.
9. Use the default location and click Install.
10. Enter your password and click Install Software
TRENDnet User's Guide
TV-IP1314PI
11. Installation will process automatically.
12. Click Close to exit the installation.
13. Open the browser and login again
14. Enter the user name, admin, and the default password, admin, and then click OK.
15. The TV-IP1314PI will ask you to change your password from the default setting. Please enter the new password twice and click OK. The password must be between 8 and 16 characters. (Alphanumeric: a-z, A-Z, 0-9, !, @, #, \$).
TRENDnet User's Guide
TV-IP1314PI
- The Live View page shows up and the video starts to stream.
TRENDnet User's Guide
TV-IP1314PI
Live View

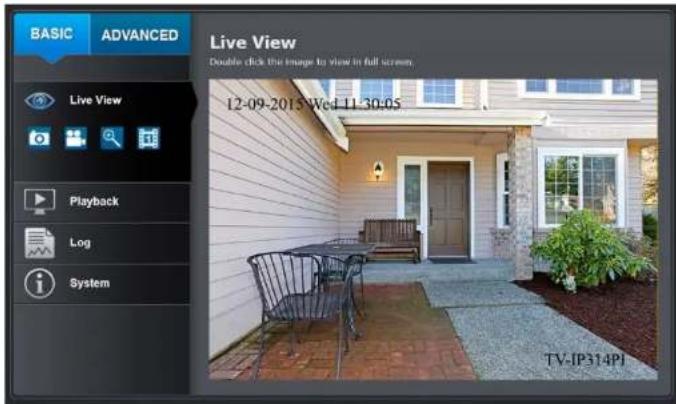

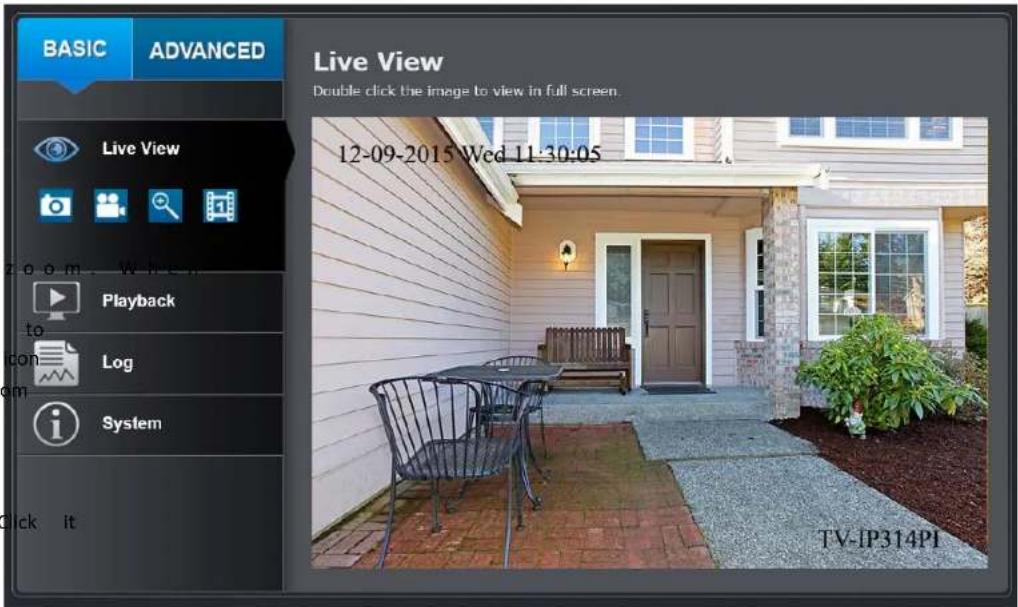

After you log-in into the camera management page, you'll see the Live View page.
Snapshot
Click this icon to take a video snapshot.
Zoom
Click once to enable enabled, click and drag the area on the picture to zoom in. Right click resume 100% zoom. Click the again to disable zoom. The zo function works in full screen mode as well.
Recording
Click once to start recording. again to stop recording. The status bar will indicate if it is in recording state or not.
MJPEG
Video Stream
TV-IP1314PI has two video st H.264 and MJPEG. Switch to view the different video streams by clicking this icon.
Full Screen Mode
a#ek the picture to view in full screen mode. Double click again or escape key on your keyboard to exit full screen mode.
Status Bar
The status bar shows the status you assess at, including enabled the zoom, recording video, and successfully taking a snapshot.
TRENDnet User's Guide
TV-IP1314PI
Playback
You can playback the video recording on the network storage and download the video clip and snapshots to your local computer.
Search for video recordings

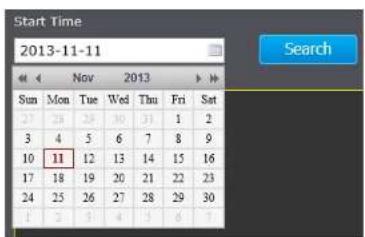

Click the date selection, and then choose a date as the date range of searching. Click Search to start searching.
Time Line
There is a play back head in the center of the time line represented in a yellow vertical line. To look for a specific video recording, move the time line by clicking and dragging it. If the recording is short, zoom in by click button. Click 🔒 to zoom out the time scale. If you know the exact time of the day you are looking for, click ➤ then enter the time you want to playback.
Different types of recordings are identified differently. The sched recordings are marked in blue, and the recordings tri detection are marked in red.
TRENDnet User's Guide
TV-IP1314PI
Playback
Use playback controls to play back the video recording.
Click this button to play the video.
Click this button to pause video playback.
Click this button to stop playback.
Click this button increase playback speed*.
Click this button decrease playback speed*.
Click to playback video frame by frame. Click again for the nextframe
* Note: There are 5 steps of playback speed you can choose from: 1/4, 1/2, 1, 2, and
4 times of original speed.
Slice images from video playback
You can take snapshots from playback video or make new video clips from the video you are playing back.
Click this button to enable zoom. Then click and drag on the video to define the area you want to zoom in. Click again to get back to 100% zoom.
Double click to show video in full screen and press ESC on keyboard to exit full screen mode.
Click this button to disable zoom.
Click this button to take a snapshot of current playback.
Click this button to start clipping a video from playback.
Click this button to stop clipping a video from playback.
TRENDnet User's Guide
TV-IP1314PI
Download sections of video
To save complete video sections or snapshots, you can download the files directly.
Click a button to download video sections.
Check the time of the recording, select the videos you want to download, and then click Download.
Download snapshots
Click 📄 button to list snapshots to download
Schedule Motion
Select the type of event that triggered the snap Choose the Start Time and End Time. Then, click Search to find the snapshot list. Check the time of the snapshot, and then select the snapshots you want to dow then click Download.
TRENDnet User's Guide
TV-IP1314PI
Log
The log of the TV-IP1314PI will be saved on the network storage. You can search the relevant records and save to your local computer. (See Network Storage on page 46 to setup the storage.)
Search for logs

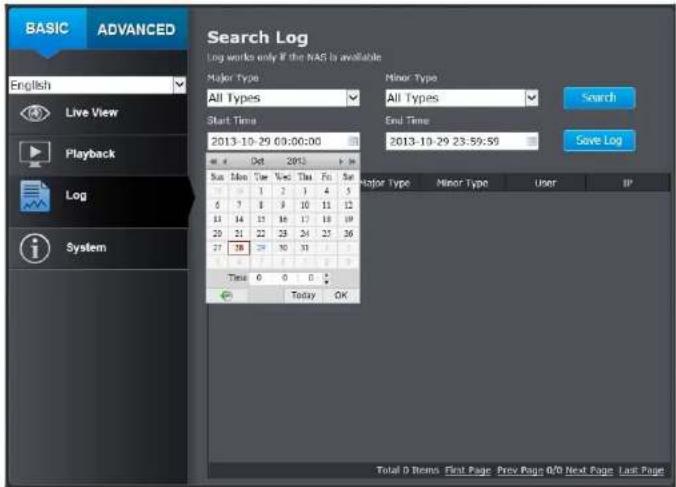

Click the type of log and then the Start Time and End Time. Click Search to start searching.
Total 129 Items First Page Prev Page 1/2 Next Page Last Page
Click First Page, Prev Page, Next Page, and Last Page to show the logs. Click Save Log to save the logs to your computer.
TRENDnet User's Guide
TV-IP1314PI
System Information
System Information page shows the camera's basic information.
| Basic Information | |
| Device Name: | Human readable device name for easy identification. |
| Firmware Version: | Firmware version |
| MAC Address: | The MAC address of Ethernet Interface |
| System Time: | The system time setup in the camera. Keeping this time correct is important for recording, scheduled control and logging accurately. |
| Device Name: | Human readable device name for easy identification. |
| Network Information | |
| IP Address: | IP address of the TV-IP1314PI |
| Subnet Mask: | Network range of IP address |
| Default Gateway: | The default route going from the TV-IP1314PI subnet. |
| Primary DNS: | Primary DNS server address |
| Secondary DNS: | Secondary DNS server address |
TRENDnet User's Guide
TV-IP1314PI
System Configuration
Device Settings
Setup your camera name and location for easy identification. This name will also be recognized by other network camera software as the name of this camera. OSD, On Screen Display, camera name is refern setting as well.
Names
Camera Name: Name of the camera. The camera name setup here can be discovered by other network camera software and OSD, On Screen Display. The default camera name is the model number: TV-IP1314PI
Location: Label where you installed this camera for reference
Authentication
RTSP: TV-IP1314PI's video stream can be accessed with RTSP, Real Time Streaming Protocol. Only the administrator and users can view this video stream Un-checking this box will allow everyone access to this video stream without authentication. Default: Checked.
Service
Enable TV-IP1314PI embedded Telnet service for multiple camera Telnet: control for system developer. Default: disabled.
TRENDnet User's Guide
TV-IP1314PI
User Accounts

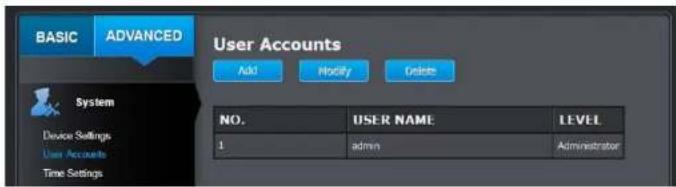

You can setup up to 16 user accounts to access the camera's video stream with a web browser or real time video stream (RTSP). Only one administrator account can be setup to configure the TV-IP1314PI and cannot be deleted.
User Accounts
Add: Click Add button to add one user account
Modify: To change a user's name and password, highlight the user by clicking on it. Then, click Modify button. You can change the user's name and password. You can also change the administrator's password here. But, the administrator's name is fixed, you cannot change that.
Click OK to save the changes.
Time Settings
The accuracy of the system clock is important for scheduling and accurate logging. You can synchronize the system time with your computer automatically check the time accuracy with a network to server).
Automatic Update
NTP Specify a time server (NTP server) to synchronize with.
Server: (e.g. pool.ntp.org)
Interval: The time interval that the TV-IP1314PI will synchronize the time with NTP server. Default: 1440 minutes (24 hours)
Manual Time Sync
Device Time: The system time of this camera.
TRENDnet User's Guide
TV-IP1314PI
Set Time: Click the calendar icon and manually select Check the Sync. with computer time to copy from your computer.
Click Save to save the changes
the Daylight Savings
the time
Setup daylight savings.
Automatic Update
Enable DST: Check this box if your time zone has daylight savings.
Start Time: Enter the date that daylight savings starts
End Time: Enter the date that daylight savings ends
DST Bias Enter how much time the daylight saving adjust daylight savings.
Click Save to save the changes
TRENDnet User's Guide
TV-IP1314PI
Live View Settings
Setup the live view video quality, file size and file saving directories.
Live View Parameters
Live View Configure the buffer size for live view video stream. With Buffer: low buffer size setting, you can get real-time video stream, but the video may be stop and go if the network is congested. With high buffer setting, you can have smooth video streaming, but the video is delayed from the time happening. Medium size can have moderate video stream smoothness and time delay.
Record File Settings
| Record file size: | This size of live view video recording. You can choose 256MB, 512MB, or 1GB a file. Smaller file size is good for many short recordings. |
| Save record files to: | Click Browse and then choose a new destination if you want to save the file somewhere else. |
| Save downloaded files to: | Click Browse and then choose a new destination if you want to save the file somewhere else. |
Picture and Clip Settings
| Save snapshots in live view to: | Click Browse and then choose a new destination if you want to save the file somewhere else. |
| Save snapshots when playback to: | Click Browse and then choose a new destination if you want to save the file somewhere else. |
| Save clips to: | Click Browse and then choose a new destination if you want to save the file somewhere else. |
Click Save to save the changes
TRENDnet User's Guide
TV-IP1314PI
Maintenance
You can restart, load camera settings and upgrade the camera firmware on this page.
Reboot
Reboot: Click this button to reboot this camera.
Reset
Reset: Reset all camera parameters, except the IP parameters and user information.
Default: Load complete factory default to the camera.
Inport Config. File
Config File: To load previously saved settings, click Browse to find the configuration file and then click Import.
Status: Shows the status in loading configuration file.
Export Config. File
Export: Click Export to download configuration file. The file will be downloaded to the Download folder by default.
Remote Upgrade
Firmware: Click Browse to find the latest firmware and the Upgrade.
Status: Shows the status in firmware upgrade.
TRENDnet may periodically release firmware upgrades that might features or fix problems associated with your camera. To find out if there is a firmware upgrade available for your device, please check your model and version using the link.
http://www.trendnet.com/downloads/
- If a firmware upgrade is available, download the firmware to your computer.
- Unzip the file to a folder on your computer.
- Read the firmware upgrade instruction for specific version update information.
- Log into the TV-IP1314PI.
- Getting to this Maintenance page to upgrade firmware.
TRENDnet User's Guide
TV-IP1314PI
Network Settings
TCP/IP
Setup your basic IPv4 and IPv6 network settings on this page.
| Network Interface | |
| MAC Address: | Click this button to reboot this camera. |
| Duplex and Speed: | Choose one of the Ethernet duplex and spe match your network. Default: auto. |
| MTU: | Maximum transmission unit. The maximum field size in the Ethernet packet. |
| Primary DNS: | Enter your first IPv4 or IPv6 DNS server address |
| Secondary DNS: | Enter your second IPv4 or IPv6 DNS server address |
| IPv4 | |
| DHCP: | Check this box if the IP address is assigned by DHCP server. |
| IPv4 Address: | The IPv4 dynamic or static address |
| Subnet Mask: | Network range of the subnet |
| Default Gateway: | The default route going further from TV-IP1314PI IPv4 subnet |
| IPv6 | |
| IPv6 Mode: | Choose Manual, DHCP, or Route Advertisement. Click View Route Advertisement to find a route advertisement. |
| IPv6 Address: | IPv6 address of TV-IP1314PI |
| Prefix Length: | Length of network prefix |
| Default Gateway: | The default route going further from TV-IP1314PI IPv6 subnet |
TRENDnet User's Guide
TV-IP1314PI
Port

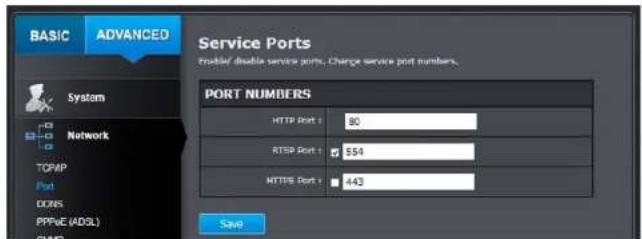

You can change the service port numbers of TV-IP1314PI and enable/disable RTSP or HTTPS services.
Port Numbers
| HTTP Port: | The default web access port. You can change the port number. However, you cannot disable the service. The default port number is 80. |
| RTSP Port: | The Real-Time Streaming Protocol port for streaming. You can change the port num disable the service by uncheck the box. The default port number is 554. |
| HTTPS Port: | The secured web service port. You can do port number, or you can disable the s uncheck the box. The default port number is 443. |
Click Save to save the changes
DDNS
Dynamic Domain Name Service, DDNS, allows you to find your camera from the Internet with an easy to remember domain name.
DDNS
| Server or range Service by | Enable DDNS: | Check this box to enable DDNS Service. |
| DDNS Type: | Select a DDNS service provider. | |
| NO-IP IPServer DynDNS LINE-IP HIDDEN5 | ||
| Server Address: | Enter the DDNS server address. | |
| Domain: | Enter your registered domain/host name on selected DDNS service. | |
| User Name: | Enter the account name. | |
| Password: | Enter the password. | |
| Confirm: | Enter the password again. |
Click Save to save the changes
TRENDnet User's Guide
TV-IP1314PI
PPPoE
Setup PPPoE (ADSL) connection to connect your camera with your ISP, Internet Service Provider.
PPPoE (ADSL)
| Enable PPPoE: | Check this box to enable PPPoE connection. |
| Dynamic IP: | The IP address assigned by ISP |
| User Name: | Enter the account name. |
| Password: | Enter the password. |
| Confirm: | Enter the password again. |
Click Save to save the changes
SNMP

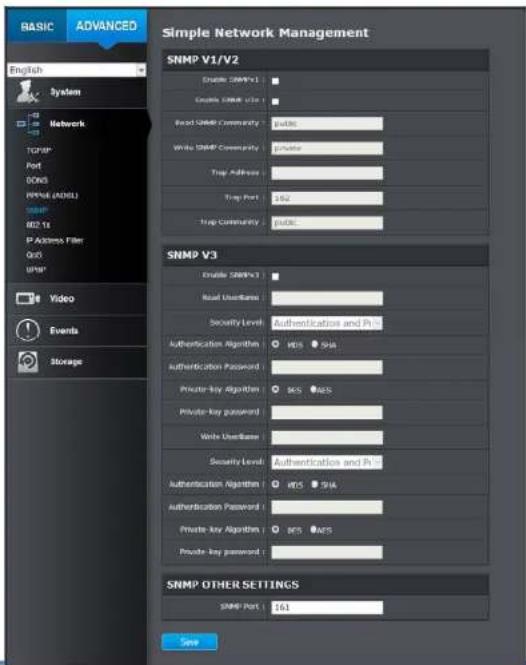

SNMP Settings allows you to assign the contact details, location, community name and trap settings of SNMP. This is a networking management protocol used to monitor network-attached devices. SNMP allows messages (called protocol data units) to be sent to various parts of a network. Upon receiving these messages, SNMP compatible devices (called agents) return data stored in their Management Information Bases.
TRENDnet User's Guide
TV-IP1314PI
SNMP V1/V2
| Enable SNMPv1: | Check this box to enable SNMP v1 management. |
| Enable SNMPv2c: | Check this box to enable SNMP v2c management. |
| Read SNMP Community: | Specify the password to access the SNMP community for read only access. |
| Write SNMP Community: | Specify the password for access to the SNMP community with read/write access. |
| Trap Address: | Specify the IP address for the SNMP trap community. |
| Trap Port: | Specify the port number for the SNMP trap community. |
| Trap Community: | Specify the name of SNMP trap community. |
SNMP V3
| Enable SNMPv3: | Check this box to enable SNMP v3 management. |
| Read User Name: | SNMP v3 member user name. |
| Security Level: | Choose one of the security levels. |
| Authentication and Privacy | |
| Authentication only | |
| Privacy only | |
| Authentication Algorithm: | Choose the authentication method to verify the source of information: MD5 or SHA. |
| Authentication Password: | Specify the authentication password between 8 to 32 letters. |
| Private-key Algorithm: | Choose the privacy key to encrypt SNMP messages: DES or AES. |
| Private-key Password: | Specify the privacy key between 8 to 32 letters. |
| Write User Name: | SNMP v3 manager user name. |
Security Level: Choose one of the security levels.
| Authentication and Privacy |
| Authentication only |
| Privacy only |
| Authentication | Choose the authentication method to verify the Algorithm: source of information: MD5 or SHA. |
| Authentication | Specify the authentication password between 8 to 32 |
| Password: | letters. |
| Private-key | Choose the privacy key to encrypt SNMP messages: |
| Algorithm: | DES or AES. |
| Private-key | Specify the privacy key between 8 to 32 letters. |
| Password: |
SNMP Other Settings
| SNMP Port: | SNMP service port number. |
Click Save to save the changes
TRENDnet User's Guide
TV-IP1314PI
802.1X

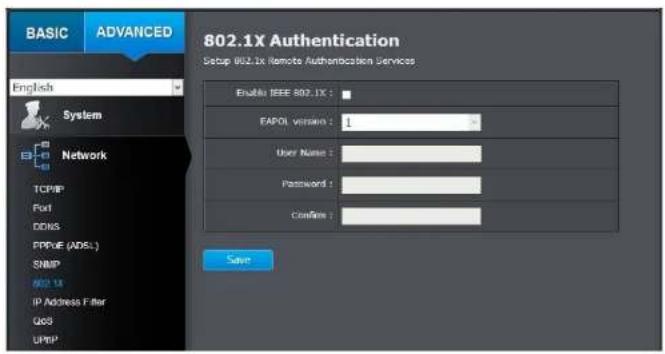

Setup 802.1X for remote authentication service.
802.1X Authentication
| Enable IEEE 802.1X: | Check this box to enable 802.1X authentication service. |
| EAPOL version: | Extensible Authentication Protocol (EAP) over LAP (EAPoL). Choose version 1 or 2. This version number has to match to your 802.1X service EAPOL version. |
| User Name: | Enter the account name. |
| Password: | Enter the password. |
| Confirm: | Enter the password again. |
Click Save to save the changes
IP Address Filter
Set up a list of clients allow only the clients on the list to access this camera or to reject clients on the list from access this camera.
IP Address Filter
| Enable IP Address Filter: | Check this box to enable IP address filtering service. |
| IP Address Filter Type: | Choose Forbidden to ban the listed IP addresses or Allowed to allow listed host to access this camera. |
| Add: | Click Add to add a user account |
| Modify: | To modify an entry on the list, highlight the entry by clicking on it. Then, click the Modify button. |
 Enter the IP address then click OK | |
| Delete: | To delete an entry on the list, highlight the entry by clicking on it. Then, click Delete |
| Clear: | To clear all entries, click Clear |
Click Save to save the changes
TRENDnet User's Guide
TV-IP1314PI
Quality of Service (QoS)
UPnP
Setup traffic prioritization tags the video packets to go through Unimetwork Plug-and-Play is a device discovery protocol set. It all switches and routers with assigned priority. You can set the Differentiadora to easily be found, for example, on a Windows operation system.
Services Code Point (DSCP) bits on outgoing data streams. The QoS capable network device will forward different data in different priorities. The meaning of the value is different in different DiffServ domains. Consult your network manager for the setup details.
IP Address Filter
Video/Audio Enter Video/Audio DSCP. Default: 0. DSCP:
Event/Alarm Enter Event/Alarm DSCP. Default: 0. DSCP:
Management Enter Management DSCP. Default: 0. DSCP:
Click Save to save the changes
UPnP
Enable UPnP: Check this box to enable UPnP connection.
Friendly Name: The name that will be appeared when searched.
Port Mapping
Enable Port Check this box to enable UPnP connection. Mapping:
Port Mapping Choose Manual or Auto port mapping. Mode:
External Port: Choose the port number for mapping.
Click Save to save the changes
TRENDnet User's Guide
TV-IP1314PI
Video Settings
Video Format
Video Encoding:
Choose the video stream you want to modify. H.264 and MJPEG videos are always streaming and can be configured separately.
H.264+ Higher compression option
| Resolution: | H.264 | MJPEG |
 |  | |
| Bitrate Type: | Choose between variable bit rate or constant bit rate for video compression. The default is variable rate. | |
| Video Quality: | Choose the video quality. The default is medium quality. | |
| Frame Rate: | Choose the capturing frame rate. The default value is 30 frames per second. Reduce the frame rate to reduce the capture file size. | |
| Max. Bitrate: | Choose the maximum video sampling bit rate. Default: 2048 | |
| I Frame Interval | An I Frame is a frame that records a complete picture. Frames between I frames, (P frame or B frame) only records the image differences between two frames. Choose the I Frame Interval here. The default is 60. | |
Click Save to save the changes
Sub stream can be used for lower resolution needed application, for example mobile app streaming or NVR streaming.
Third stream is used for Live view only, it has resolution limitation on Chrome, Firefox and Safari. Max resolution can be supported under Internet Explorer.
Note: When H.264+/H.265+ is enabled, Live view on Chrome or Firefox will be disabled due to browser limitation, you can continue to Explorer or Safari to view the camera otherwise disable the H.265+ option.
TRENDnet User's Guide
TV-IP1314PI
Display Settings

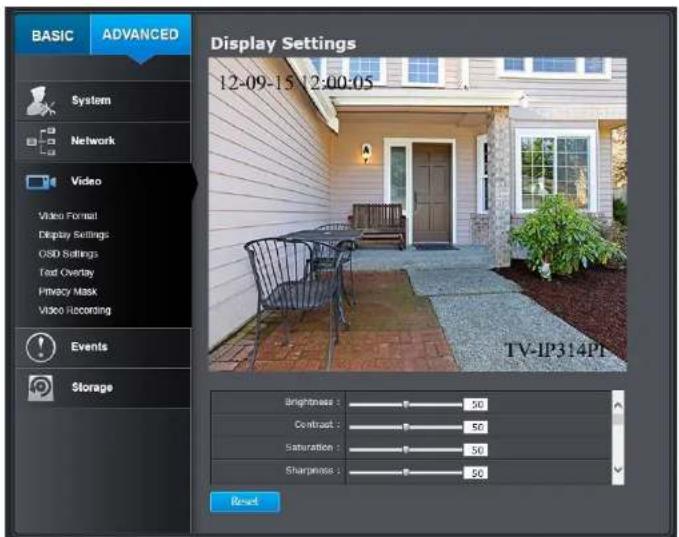

Adjust video image quality, lightness, and color settings here.
| Brightness: | Use the slider or enter a number (0-100) to adjust the image brightness. Default: 50 |
| Contrast: | Use the slider or enter a number (0-100) to adjust the Image contrast. Default: 50 |
| Saturation: | Use the slider or enter a number (0-100) to adjust the color saturation. The greater number means the color will be more saturated. Default: 50 |
| Sharpness: | Use the slider or enter a number (0-100) to adjust the image sharpness. Default: 50 |
| Brightness : | 50 |
| Contrast : | 50 |
| Saturation : | 50 |
| Sharpness : | 50 |
| Smart IR : | Disable |
| Max. Exposure Time : | 1/25 |
| Video Standard : | 50hz |
| Day/Night Switch : | Auto |
| Sensitivity : | Normal |
| Switch Time : | 5 |
| Mirror : | Default |
| WDR : | Disabled |
| Backlight Control : | Close |
| White Balance : | Automatic |
| Digital Noise Reduction : | Normal Mode |
| Noise Reduction Level : | 50 |
TRENDnet User's Guide
TV-IP1314PI
Light sensitivities
| Smart IR: | Smart IR can adjust the strength of infrared lights at night depending on the distance of an object to maintain the maximum IR light distance and while maintaining a clear picture when object is close by. Default: On. | |
| Max. Exposure Time: | 1/31/6 | Adjust this value for exposure time for each picture. You can choose a value between 1/3 second to 1/100,000 second. The default value is 1/30 second exposure time for each picture. |
| Video Standard: | This is the base frequency for the video refresh rate. It is recommended to set to the same frequency of your local video standard (NTSC: 60, PAL: 50). Default: 60Hz. | |
| Day/Night Switch: | DayNightAutoSchedule | Choose whether you want the camera to be set to the day mode (color video) or night mode (IR enhanced black/white video). You can manually set it to day mode or night mode, adjust by lighting (Auto), or pre-define schedule. |
| Auto:Sensitivity: The light sensor sensitivity.Switch Time: The time delayed to switch between modes. Longer switch time can prevent unnecessary mode flipping if an object is blocking the light source temporarily. Range: 5-120 seconds, default: 5 seconds. | ||
Schedule:
Use quick selection or enter the time down below. Click OK to confirm the time you want to set.
Start Time: The start time for day mode. Stop Time: The start time for day mode.
Position adjustments
| Mirror: | HorizontalVerticalHorizontal/VerticalDefaultChoose horizontal, vertical or both to adapt to the physical position of installation. |
TRENDnet User's Guide
TV-IP1314PI
Image adjustments
Back Light Compensation and Wide-Dynamic- Range:
Back light compensation: Setup a fixed light position to compensate and adjust the im dark.
Choose the area that you want to enhance (dark area, not light source). Note: By default, the WDR is disabled. Please enable WDR to set up back light compensation.
WDR: Wide Dynamic Range compensates for the dark area dynamically.
- WDR Level: The level of compensation. Range: 0-100%, default: 20%.
White Balance:
Choose a color Locked Incandescent Lamp(3000K) Warm Light Lamp(4000K) Natural Light(5500K) Fluorescent Lamp(6500K)
temperature as the white color and compensate the color on the whole image.
Digital Noise Reduction:
Choose the mode of noise reduction.
Normal Mode
Noise Reduction Level: Adjust the effect of noise reduction. Range: 0-100%, default: 100%
Expert Mode
Space DNR Level: Adjust the special digital reduction with adjacent pixels. Change the range (0-100%) to change the adjacency effect, default : 50% Time DNR Level: Adjust the 3D digital noise reduction. Compare and reduce noise between video Range: 0-100%, default : 100%
On Screen Display Settings
Display the camera name and the time the video is shooting on the screen
| Display Name: | Check this box to display the product name that was setup in the device settings |
| Display Date: | Check this box to display system time. |
| Display Week: | Check this box to display time of the week. |
| Time Format: | Select 12 or 24-hour time format. |
| Date Format: | Select the date format |
| Display Mode: | Choose how the text will show on the screen. |
| OSD Size: | Select the text size from 16 to 64 or adjusted by screen size automatically. |
Move the red box to position the text. Click Save to save the changes.
frames.
Click Reset to reset the display adjustments
TRENDnet User's Guide
TV-IP1314PI
Text Overlay
Display extra information on the screen over the image.
Check Box: Check this box to enable text overlay.
Text Field: Enter the text you want to display. You can enter your local language if you want. The text field maximum 44 English letters or 20 non-English characters.
Move the red box to position the text.
Click Save to save the changes
Privacy Mask
Create a masking area to keep your privacy. You can create up to four independent masking areas by clicking and dragging on the screen.
allows Enable Privacy Mask: Check this box to enable privacy masking.
Stop Drawing: Click this button to stop drawing.
Clear All: Click this button to clear all the masking areas.
Click Save to save the changes
TRENDnet User's Guide
TV-IP1314PI
Video Recording
| Pre-record: | Recording time before trigger event. |
| Post-record: | Recording time after trigger event. |
| Overwrite: | Select Yes to allow older recordings to be overwritten. |
| Enable Record Schedule: | Check this box and then click Save to enable video recording. |
Click Save to save the changes
Edit: Click Edit to edit the recording schedule. The Edit Schedule window will pop up.
- Select day of the week you want to edit.
- Select All Day or Customized schedule of the day.
- Set the time period and the event you want to trigger the video recording continuous (always recording) or motion detection.
- Click Select All or the weekday you want to have the same schedule on different day.
- Click another day of the week by clicking on its tab to set the next schedule. Click OK when you have finished your settings.
TRENDnet User's Guide
TV-IP1314PI
Events
Motion Detection
Set up how the motion detection event will be triggered and what actions will be triggered.
Enable Check this box to enable motion detection. Click Save Motion to save the choice.
Detection:
Enable Check this box to enable motion tracking. Motion tracking is a dynamic display that shows the current
Tracking: status of motion detection. The motion tracking is displayed with grids in green. The grid area represents the camera motion is happening. Click Save to save the choices.
TRENDnet User's Guide
TV-IP1314PI
Draw Area: Click Draw Area button to start drawing. Click and drag on the area you want to set up the motion detection. You can draw up to 8 different areas. Click Stop Drawing to stop drawing motion detection areas. The red grids represent the motion detection area.
Sensitivity: Move the slider to adjust detection sensitivity.
Clear All: Click this button to clear all the set up areas.
Arming Schedule
Edit: Click Edit to edit the recording schedule. The Edit Schedule window will pop up.
- Select day of the week you want to edit.
-
Select All Day or Customized schedule of the day.
-
Set the time period and the event you want to trigger the video recording continuous (always recording) or motion detection.
- Click Select All or the weekday you want to have the same schedule on different day.
- Click another day of the week by clicking on its tab to set the next schedule. Click OK when you have finished your settings.
Notification
| Send Email: | Check this box to send an e-mail notification when motion is detected. |
| Network Storage: | Check this box to record video to network storage when motion is detected. |
| Upload to FTP: | Check this box to send snapshots to an FTP server when motion is detected. |
Click Save to save the changes
TRENDnet User's Guide
TV-IP1314PI
Video Tampering
This is to detect if the camera has been tampered with and surveillance is compromised. You can set up tamper proof notifications to alert the system manager to check the camera.
| Enable Tamper Detection: | Check this box to enable tamper detection. Click Save to save the settings. |
| Draw Area: | Click Draw Area button to start drawing. Click and drag on the area you want to set up the tamper detection.You can setup only one area for tamper detectClick Stop Drawing to stop drawing motion detection areas. The gray block represents the detection area. |
| Sensitivity: | Move the slider to adjust detection sensitivity. |
| Clear All: | Click this button to clear all the set up areas. |
TRENDnet User's Guide
TV-IP1314PI
Arming Schedule
Edit: Click Edit to edit the recording schedule. The Edit Schedule window will pop up.
- Select day of the week you want to edit.
- Select All Day or Customized schedule of the day.
- Set the time period and the event you want to trigger the video recording continuous (always recording) or motion detection.
- Click Select All or the weekday you want to have the same schedule on different day.
- Click another day of the week by clicking on its tab to set the next schedule. Click OK when you have finished your settings.
Notification
Send Email: Check this box to send an e-mail notification when motion is detected.
Click Save to save the changes
Notification
Provide notifications for other system events, set up your notifications here.
Notification
Notification First, choose the exception type, and then choose Type: the corresponding action.
Send Email: Check this box to send an e-mail notification when motion is detected.
Click Save to save the changes
TRENDnet User's Guide
TV-IP1314PI

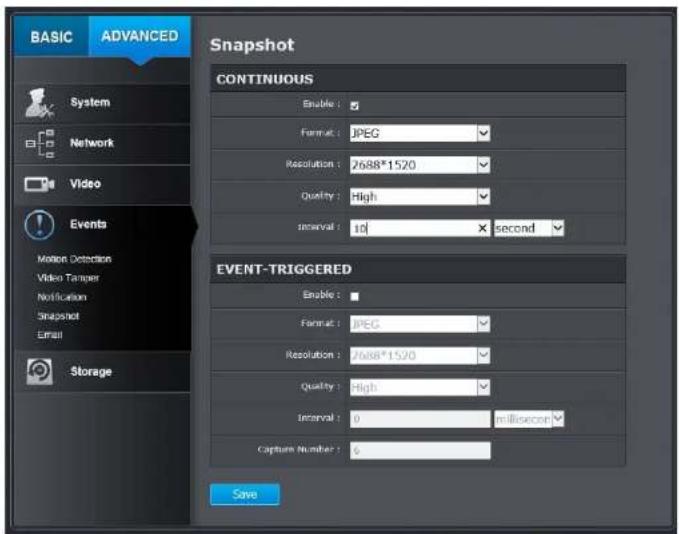

Snapshot
You can set up your camera to continuously taking snapshots snapshots only when events happening.
Continuous
| Enable: | Check this box to take snapshots continuously. |
| Format: | Save snapshots in JPEG format |
| Resolution: | Uses the same resolution set in Video Format for the snapshot resolution. |
| Quality: | Choose a compression quality for snapshots. |
| Interval: | State the time interval between snapshots. The default interval is 10 seconds. |

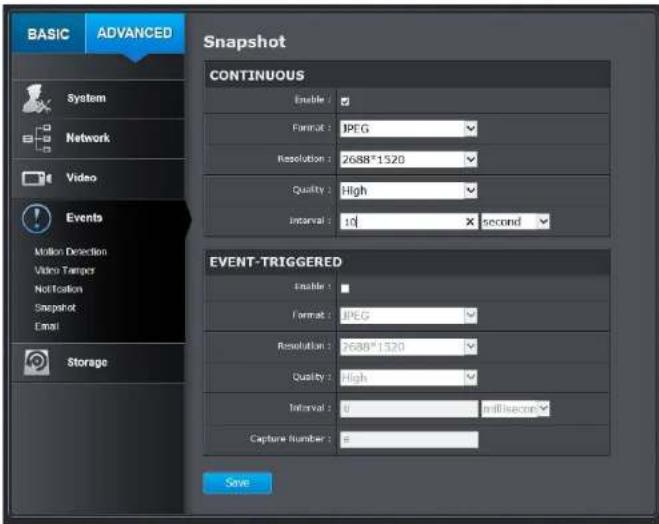

Event triggered or taking
| Enable: | Check this box to take snapshots when an ever occurred. |
| Format: | Save snapshots in JPEG format |
| Resolution: | Uses the same resolution set in Video Format for the snapshot resolution. |
| Quality: | Choose a compression quality for snapshot. |
| Interval: | State the time interval between this series of snapshots. The default interval is 1 second. |
| Capture Number: | State how many snapshots you want to take in a single triggered event. Default: 3 pictures. |
Click Save to save the changes
TRENDnet User's Guide
TV-IP1314PI
Set up email accounts for notifications.
Sender
| Sender: | Enter the name to be appeared as the email sender. |
| Sender's Address: | Enter sender's email address. |
| SMTP Server: | Simple Mail Transportation Protocol Server address, the outgoing email server address. I address as your incoming email server, may Please ask your email service provider for detail. |
| SMTP Port: | Service port number for outgoing email.* |
| Enable SSL: | Check this box if your service provider requires a SSL secured connection. |
| Attach Image/Interval: | Check Attach Image if you want to send a snapshot image with the email notification and select the interval of snapshots in seconds. |
| Authentication: | Check this box if your server requires a password in order to send email. Most email servers require authentication when sending an email. |
| User name: | Enter the user name of outgoing email account |
| Password: | Enter the password |
| Confirm: | Enter the password again to confirm that the password was entered correctly. |
Click Save to save the changes
| Receiver | |
| Receiver 1: | The first receiver's name. |
| Receiver 1's Address: | The first receiver's email address. |
| Receiver 2: | The second receiver's name. |
| Receiver 2's Address: | The second receiver's email address. |
| Receiver 3: | The third receiver's name. |
| Receiver 3's Address: | The third receiver's email address. |
Click Save to save the changes
*Note: Many ISPs does not allow service port 25 going through their network. Other popular ports are 587 and 465. Please consult your email service provider and ISP for detail.
TRENDnet User's Guide
TV-IP1314PI
Network Storage
Network Storage
Network Storage must be setup before it can be managed. For storage management, please refer to the next section.
The TV-IP1314PI supports two formats of network storage file systems: NFS and CIFS. NFS, Network File System, is natively supported by Linux computers and most NAS, Network Attached Storage. CIFS, Common System, is natively supported by Windows® systems and now is supported by Linux. (OS X® file sharing is not standard compatible as a network storage disk here.)
You can add up to 8 network storages for your camera. The recordings will subsequently be stored in these spaces. Save video from the first storage and then the next when the first one is full. Click on the entry to change the settings and click Save to save the settings.
| No: | The sequential number of the network storage. |
| Type: | The type of storage. |
| Server Address: | Enter the IP address of your network storage. |
| File Path: | Enter the shared folder as file path for network storage. You can create a folder under the shared folder and make it a network volume here. Just create the folder and enter the correct path name here. |
| Capacity: | Enter the size of the disk space you want to assign for this storage. The minimum disk space requirement is 8GB. If you do not want to limit the size and use the full physical disk space, put number 0 in this field. |
| et File generally | Choose between NFS or CIFS for file system. If you assign the network storage on a Windows® computer, set it to CIFS. |
| File System: and no t | |
| User Name: | Enter the user name if the network storage requires user name and password. Enter any non-blank letters if no authentication is required. |
| Password: | Enter the password to access the network storage. Enter any non-blank letters if no authentication is required. |
Click Save to save the changes. The camera may reboot to make the network storage available. Go to the next section to format and manage your network storage.
Tip: To create a network storage on your Windows® based system, create a shared folder and then test your set up with another computer. Enter the IP address of the computer here and enter the shared folder name with a
leading forward slash. For example, if you have a shared folder named "SMB", enter "/SMB" in the File Path.
TRENDnet User's Guide
TV-IP1314PI
Storage Management
Network Storage must be setup before it can be managed. To setup storage, please refer to the previous section.
Format: Select a network storage volume and then click Format to format your network storage. This action will form network volume (shared folde Placeholder files (formatting files) will be created to make sure disk allocation is appropriate and the file searching is optimized.
The volume format is a proprietary user space's format. Meaning that you visit the shared folder and see some structured files. Please do not modify these files manually. Modifying these files may cause recording playback problems. Access your recording and system log via the web management user interface to download the recording and snapshots.
Capacity: The total capacity this network storage can use.
Free Space: The free space left for video recording, snapshot and log.
Status: The connection status to the network storage.
Property: This network storage is read only or can be read and write.
Progress: The progress of ongoing task.
Note: The formatting progress depends on the size of the storage and the network bandwidth. It takes a while if you are formatting a big volume or the network connection is not stable.
TRENDnet User's Guide
TV-IP1314PI
FTP Server
| Enable Snapshot to FTP: | Check this box if you want to store snapshots on the FTP. |
| Server Address: | Enter the FTP server IP address. |
| Port: | Enter the service port number of the FTP server. |
| User Name/Anonymous : | Check Anonymous if the FTP server does not require authentication. Enter the User Name if the FTP server requires authentication. |
| Password: | Enter the password of the FTP account. |
| Confirm: | Enter the password again to make sure the password was entered correctly. |
| Directory Structure: | When saving snapshots on an FTP server, they can be saved in a single place or organized with meaningful directory names.Save in root directory: You can choose to store all files in the same folder of FTP login.Save in directory: Structure your folders with camera name or IP address. |
| Directory: | Use Camera Name: Use the camera name to organize the saved files.Use Camera IP: Use the camera IP address to organize the saved files. |
Click Save to save the changes
TRENDnet User's Guide
TV-IP1314PI
Regulations
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accord instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by party responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with the minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The availability of some specific channels and/or operational free bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user.
RoHS
This product is RoHS compliant.
the
TRENDnet User's Guide
TV-IP1314PI
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the Directive 2004/108/EC and 2006/95/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the Directive 2004/108/EC and 2006/95/EC:
Safety: EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
EMC: EN 55022:2010 CLASS B
EN50130-4:2011
EN 61000-3-2:2014
EN 61000-3-3:2013
Directive: EMC Directive 2004/108/EC, RoHS Directive 2011/65/EU WEEE Directive 2012/19/EU, REACH Regulation No.1907/2006
| Česky [Czech] | TRENDnet timto prohlašuje, že tento TV-IP1314PI je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 2004/108/ES a 2006/95/ES. |
| Dansk [Danish] | Undertegnede TRENDnet erklærer herved, at følgende udstyr TV-IP1314PI overholder de væsentlige krav og øvrige relevante krav i direktiv 2004/108/EF og 2006/95/EF. |
| Deutsch [German] | Hiermit erklärt TRENDnet, dass sich das Gerät TV-IP1314PI in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 2004/108/EG und 2006/95/EG befindet. |
| Eesti [Estonian] | Käesolevaga kinnitab TRENDnet seadme TV-IP1314PI vastavust direktiivi 2004/108/EÜ ja 2006/95/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. |
| English | Hereby, TRENDnet, declares that this TV-IP1314PI is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC and 2006/95/EC. |
| Español [Spanish] | Por medio de la presente TRENDnet declara que el TV-IP1314PI cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 2004/108/CE y 2006/95/CE. |
| Ελληνική [Greek] | ME THN ΠΑΡΟΥΣΑΤRENDnet ΔΗΛΩΝΕΙ OTI TV-IP1314PI ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2004/108/ΕΚ, 2006/95/ΕΚ καλ. |
| Français [French] | Par la présente TRENDnet déclare que l'appareil TV-IP1314PI est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 2004/108/CE, 2006/95/CE et. |
| Italiano[Italian] | Con la presente TRENDnet dichiara che questo TV-IP1314PI è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 2004/108/CE e 2006/95/CE. |
| Latviski [Latvian] | AršoTRENDnetdeklarē, ka TV-IP1314PI atbilstDirektīvas 2004/108/EK un 2006/95/EK būtiskajāmprasibām un citiemar to saistitajiemnoteikumiem. |
| Lietuvių[Lithuanian] | Šiuo TRENDnet deklaruoja, kad šis TV-IP1314PI atitinka esminius reikalavimus ir kitas 2004/108/EB ir 2006/95/EB Direktyvos nuostatas. |
| Nederlands[Dutch] | Hierbij verklaart TRENDnet dat het toestel TV-IP1314PI in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 2004/108/EG en 2006/95/EG. |
| Malti [Maltese] | Hawnhekk, TRENDnet, jiddikjara li dan TV-IP1314PI jikkonforma mal-htigijiet essenzjali u ma provvedimenti ohrajn relevanti li hemm fid-Dirrettiva 2004/108/KE u 2006/95/KE. |
| Magyar[Hungarian] | Alulírott, TRENDnet nyllatkozom, hogy a TV-IP1314PI megfelel a vonatkozó alapvető követelményeknek és az 2004/108/EK és a 2006/95/EK irányelv egyéb előírásainak. |
| Polski [Polish] | Niniejszym TRENDnet oświadcza, že TV-IP1314PI jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 2004/108/WE i 2006/95/. |
| Português[Portuguese] | TRENDnet declara que este TV-IP1314PI está conforme com os requisitos essenciais e outras disposições da Directiva2004/108/CE e 2006/95/CE. |
| Slovensko[Slovenian] | TRENDnet izjavlja, da je ta TV-IP1314PI v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive2004/108/ES in 2006/95/ES. |
| Slovensky [Slovak] | TRENDnettýmtovyhlasuje, že TV-IP1314PI spíñazákladnépožiadavky a všetkypríslušnéustanoveniaSmernlice 2004/108/ES a 2006/95/ES. |
| Suomi [Finnish] | TRENDnet vakuuttaa täten että TV-IP1314PI tyyppinen laite on direktiivin2004/108/EY ja 2006/95/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. |
| Svenska [Swedish] | Härmed intygar TRENDnet att denna TV-IP1314PI står I överensstämmelse med de väsentliga egenskapskrav och övrlga relevanta bestämmelser som framgår av direktiv 2004/108/EG och 2006/95/EG. |
TRENDnet User's Guide
TV-IP1314PI
Limited Warranty
TRENDnet warrants its products against defects in material and workmanship, under normal use and service, for the following lengths of time from the date of purchase.
TV-IP1314PI - 3 Years Warranty
If a product does not operate as warranted during the applicable warranty period, TRENDnet shall reserve the right, at its expense, to repair or replace the def product or part and deliver an equivalent product or part to the repair/replacement unit's warranty continues from the original date of purchase. All products that are replaced become the property of TRENDnet. Replacement products may be new or reconditioned. TRENDnet does not issue refunds or credit. Please contact the point-of-purchase for their return policies.
TRENDnet shall not be responsible for any software, fir memory data of customer contained in, stored on, or integrated with any products returned to TRENDnet pursuant to any warranty.
There are no user serviceable parts inside the product. Do not remove or attempt to service the product by any unauthorized service center. This warranty is voided if (i) the product has been modified or repaired by any unauthorized service center, (ii) the product was subject to accident, abuse, or improper use (iii) the product was subject to conditions more severe than those specified in the manual.
Warranty service may be obtained by contacting TRENDnet within the warranty period and providing a copy of the dated proof of the proper submission of required documentation a Return Material Authorization (RMA) number will be issued. An RMA number is required in order to service support for all TRENDnet products. Products that are sent to TRENDnet for RMA service must have the RMA number marked on the outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment. Customers shipping from outside of the USA and Canada are responsible for return shipping fees. Customers shipping from outside of the USA custom charges, including but not limited to, duty, tax, and other fees.
WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, THE CUSTOMER'S SOLE REMEDY SHALL BE, AT TRENDNET'S OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
TRENDNET NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR USE OF TRENDNET'S PRODUCTS.
TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERCEPTION OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT TRENDNET'S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of the state of California.
Some TRENDnet products include software code written by third party developers.
These codes are subject to the GNU General Public License ("GPL") or GNU Less General Public License ("LGPL").
applicable
Go to http://www.trendnet.com/gpl or http://www.trendnet.com Download section purchase. Upon and look for the desired TRENDnet product to access to the GPL Code or LGPL Code.
These codes are distributed WITHOUT WARRANTY and are subject to the copyrights initiate warranty of the developers. TRENDnet does not provide technical support for these codes. Please go to http://www.gnu.org/licenses/gpl.txt or http://www.gnu.org/licenses/
lgpl.txt for specific terms of each license.
a r e r responsible for
2/15/2020
TV-IP1314PI 1.0
TRENDNET®
Product Warranty Registration
Please take a moment to register your product online. Go to TRENDnet's website at http://www.trendnet.com/register
TRENDnet
20675 Manhattan Place
Torrance, CA 90501. USA
- Indoor/Outdoor 4MP H.265 WDR PoE IR Bullet Network Camera
- TRENDnet User's Guide TV-IP1314PI
- Contents
- Product Overview 4
- Plan for installation location....7
- Hardware Installation 8
- Access your Camera with the Web Browser....10
- System Configuration.... 23
- Network Settings 28
- Video Settings.... 34
- Events....40
- Network Storage....46
- Regulations....49
- Limited Warranty....51
- Product Overview
- Features
- Package Contents
- Warnings
- Cautions
- Plan for installation location
- Viewing angle
- Weather Conditions
- Hardware Installation
- Cabling
- Waterproof cap
- Mount your camera
- Access your Camera with the Web Browser
- Logging-in to the Camera for the First Time (Windows)
- TRENDnet User's Guide
- TV-IP1314PI
- Logging-in to the Camera for the First Time (OS X)
- Click Continue to install the plug-in.
- Select a destination to install the plug-in. Then click Continue.
- Use the default location and click Install.
- Enter your password and click Install Software
- Installation will process automatically.
- Click Close to exit the installation.
- Open the browser and login again
- Enter the user name, admin, and the default password, admin, and then click OK.
- The TV-IP1314PI will ask you to change your password from the default setting. Please enter the new password twice and click OK. The password must be between 8 and 16 characters. (Alphanumeric: a-z, A-Z, 0-9, !, @, #, \$).
- Live View
- Snapshot
- Zoom
- Recording
- MJPEG
- Video Stream
- Full Screen Mode
- Status Bar
- Playback
- Search for video recordings
- Time Line
- Slice images from video playback
- Download sections of video
- Download snapshots
- Log
- Search for logs
- System Information
- System Configuration
- Device Settings
- Names
- Authentication
- Service
- User Accounts
- Time Settings
- Automatic Update
- Manual Time Sync
- the Daylight Savings
- Live View Settings
- Live View Parameters
- Maintenance
- Reboot
- Reset
- Inport Config. File
- Export Config. File
- Remote Upgrade
- http://www.trendnet.com/downloads/
- Network Settings
- TCP/IP
- Port
- DDNS
- PPPoE
- SNMP
- 802.1X
- IP Address Filter
- Quality of Service (QoS)
- UPnP
- Port Mapping
- Video Settings
- Display Settings
- Schedule:
- Image adjustments
- White Balance:
- Digital Noise Reduction:
- Normal Mode
- Expert Mode
- On Screen Display Settings
- Text Overlay
- Privacy Mask
- Events
- Motion Detection
- Detection:
- Arming Schedule
- Video Tampering
- Notification
- Click Save to save the changes
- Network Storage
- Storage Management
- Regulations
- Federal Communication Commission Interference Statement
- RoHS
- Europe – EU Declaration of Conformity
- Limited Warranty
- TRENDNET®
- Product Warranty Registration
Brand : TRENDNET
Model : TV-IP1314PI
Category : Security Camera
