Product Type	Wireless N Day/Night Internet Camera
Model	TV-IP551WI
Dimensions	75 x 115 x 30 mm (2.95 x 4.5 x 1.2 in.)
Weight	110 g (3.8 oz)
Power Supply	Input: 100~240V 50/60Hz 0.2A; Output: 5V, 1.2A external power adapter
Image Sensor	1/5" CMOS
Lens	Focal Length 4mm, F/No 1.5
Minimum Illumination	0 lux (with IR)
Night Vision Distance	Up to 7.5 meters
Video Resolution	Up to 640x480 (VGA) at 20 fps
Video Compression	MJPEG
Digital Zoom	4x
Audio	Built-in omnidirectional microphone
Wireless Standard	IEEE 802.11b/g/n up to 150Mbps
Wired Network	10/100Mbps Ethernet
Wireless Security	64/128-bit WEP, WPA/WPA2-PSK
Management	Web-based configuration, up to 64 user accounts
Special Features	Motion detection, email alerts, FTP upload, scheduled recording, WPS
Certifications	CE, FCC
Warranty	3 years
Cleaning and Maintenance	Clean lens with a soft, dry cloth. No user-serviceable parts inside.
Spare Parts and Repairability	No spare parts listed; contact TRENDnet for service. Do not attempt repairs.

Frequently Asked Questions - TV-IP551WI TRENDNET

How do I set up the camera for the first time?

Connect the camera via Ethernet to your router, attach the power adapter, and insert the included CD to run the Setup Wizard. Follow on-screen steps to configure wireless settings and create a password.

Can I view the camera remotely?

Yes. Configure DDNS on the camera or your router, and set up port forwarding. Then access the camera by typing http://yourDDNSdomain:port in a web browser.

How do I reset the camera to factory defaults?

Use a paperclip to press and hold the Reset button on the side panel for 3 seconds. The camera will reboot with default settings (username: admin, password: admin).

What is the maximum number of users that can access the camera?

The camera supports up to 64 user accounts. Each user can have different permissions for viewing, uploading, or emailing images.

Does the camera support night vision?

Yes, the TV-IP551WI has built-in IR LEDs that provide night vision up to 7.5 meters in complete darkness.

How can I record video or capture snapshots?

You can configure motion detection to trigger email alerts or FTP upload of snapshots. Scheduled recording is also available via the Upload and E-mail settings.

What wireless security options are available?

The camera supports 64/128-bit WEP and WPA/WPA2-PSK encryption for secure wireless connections.

How do I update the firmware?

Download the latest firmware from TRENDnet's website. Login to the camera's web interface, go to Tools > Firmware Upgrade, browse for the file, and click Upgrade. Do not power off during the process.

Can I mount the camera on a wall or ceiling?

Yes, a wall/ceiling mounting kit is included. The camera's compact design allows flexible placement.

What should I do if I forget the password?

Reset the camera to factory defaults by holding the Reset button for 3 seconds. The password returns to admin. You can then set a new password via the web interface.

USER MANUAL TV-IP551WI TRENDNET

Two white TRENOnET TV-IPS51W camera modules on stands, no visible text or symbols on the devices themselves.

Wireless N Internet Camera Wireless N Day/Night Internet Camera

TV-IP551W/ TV-IP551WI

TRENDnet User's Guide

Table of Contents

Contents

Product Overview ....1

Package Contents .... 1

Features 1

Product Hardware Features....2

Applicaon Diagram 3

Installaon....4

Wired Connecon 4

WPS Connecon....4

Starng the Setup Wizard ....5

Conguraon....10

Viewing Video 10

Viewing Camera Sengs 11

System 12

Video 12

Audio 12

Wireless 12

Network....13

Acve Users....13

Conguring Camera Sengs 13

System 13

Video 14

Audio 14

Wireless.... 15

Network....16

User 16

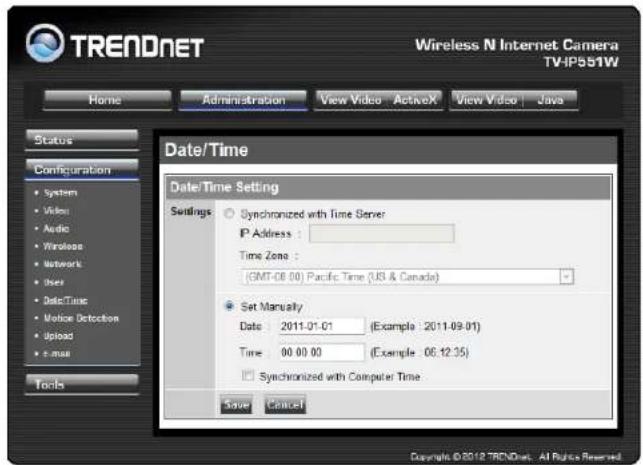

Date/Time 17

Moon Detecon....17

Upload....18

E-mail 19

Tools 20

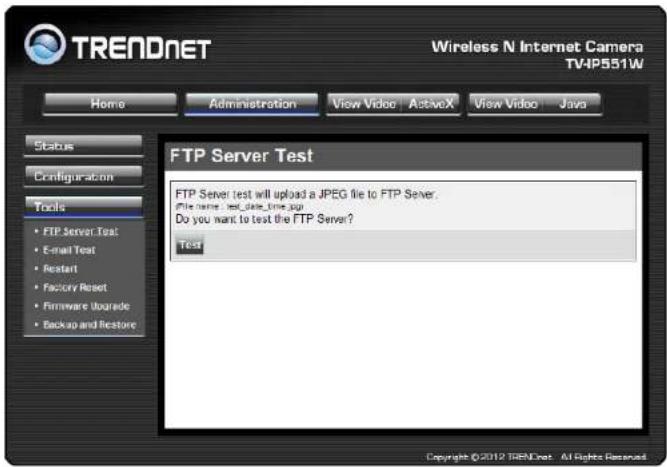

FTP Server Test....20

E-mail Test....20

Restart....21

Factory Reset 21

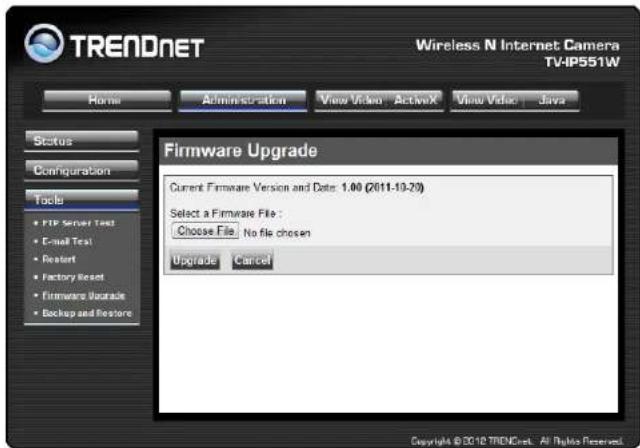

Firmware Upgrade 22

Backup and Restore 22

How to setup/access the camera remotely....23

Technical Specicaons 26

Troubleshoong 29

Product Overview

Package Contents

In addition to your camera, the package includes:

• Mu-Language Quick Installaon Guide
• CD-ROM (Utility & User's Guide)
• Network cable (1.5m / 5)
• Power adapter (5V DC, 1.2A)

If any package contents are missing or damaged, please contact the retail store, online retailer, or reseller/distributor that the item was purchased.

Features

TV-IP551W

The Wireless N Internet Camera, model TV- IP551W, transmits real-me video over the Internet. Wireless n technology provides unsurpassed wireless coverage and improved streaming video quality. Add this camera to your wireless network at the touch of a buon with Wi-Fi Protected Setup (WPS).

Record 640 x 480 (VGA) video at up to 20 frames per second (fps). Manage up to 32 TRENDnet cameras with the included complimentary camera management soware. Advanced features include adjustable moon detector recording areas, email alerts, scheduled recording sessions, one-way audio, an adjustable lens, and four mes digital zoom. A wall/ceiling mounting kit is included and the camera's o white housing blends into most environments.

TV-IP551WI

The Wireless N Day/Night Internet Camera, model TV- IP551WI, transmits real-me video over the Internet. Record crisp video in complete darkness for distances of up to 7.5 meters. Wireless n technology provides unsurpassed wireless coverage and improved streaming video quality. Add this camera to your wireless network at the touch of a buon with Wi-Fi Protected Setup (WPS).

Record 640 x 480 (VGA) video at up to 20 frames per second (fps). Manage up to 32 TRENDnet cameras with the included complimentary camera management soware. Advanced features include adjustable moon detecan recording areas, email alerts, scheduled recording sessions, one-way audio, an adjustable lens, and four mes digital zoom. A wall/ceiling moung kit is included and the camera's o white housing blends into most environments.

Product Hardware Features

Rear Panel View

• LAN Port – Connect Ethernet cables to your wired network devices.
- Power Port – Connect the included power adapter from your camera to an available power outlet.

Note: Use only the adapter that came with your camera.

Front Panel View

• IR LED – Built-in 4 IR LED for night vision uses. (for TV-IP551WI)
• Light Sensor – Detects the light source to turn IR on or o.
• Focus ring – turn to adjust the focus of the camera.
- Microphone – Built-in microphone for audio can be turn on or o.
- Power - This LED indicator is solid blue when your camera is powered on. Otherwise if this LED indicator is o, there is no power to your camera.
- Link – This LED indicator is blinking orange when there is conneccon/data to your camera.

Side Panel View

• Reset Buon – Use an item such as a paperclip to push and hold this buon for 3 seconds and release to reset your camera to its factory defaults.
• WPS (Wi-Fi Protected Setup) – Push and hold this buon for 3 seconds to acvate WPS. The buon LED is blinking green when WPS is acvated.

Applicaon Diagram

Installaon

Wired Connecon

1. Connect the Ethernet Cable

If you intend to use the network camera as a wired device, connect one end of the included Ethernet cable into the Ethernet port on the rear panel of the camera and connect the other end to an available port on your network. If you prefer to use the camera on a wireless network, see below for instrucons on connecng the power adapter.

Line drawing of a hand inserting a small object into a device (no text or symbols)

2. Aach the Power Supply

Aach the included power supply to the DC 5V 1.2A receptor on the rear panel of the camera and then connect it to a wall outlet or power strip. A blue LED will light up under the lens indicang that the camera has power.

Line drawing of a hand inserting a plug into a device (no text or symbols)

WPS Connecon

An alternate method of connecng your camera to your network is by using WPS. WPS is a quick, simple and secure method of adding devices to a network. If you have a router which supports WPS follow the steps below, otherwise, please use the wired mode of seng up the camera.

1. Aach the Power Supply

Line drawing of a hand inserting a small component into a device (no text or symbols)

2. Press the WPS buon on your wireless device then press the WPS buon on the camera.

Close-up of a white electronic device with a green toggle switch and orange arrow pointing to it (no visible text or symbols)

Starng the Setup Wizard

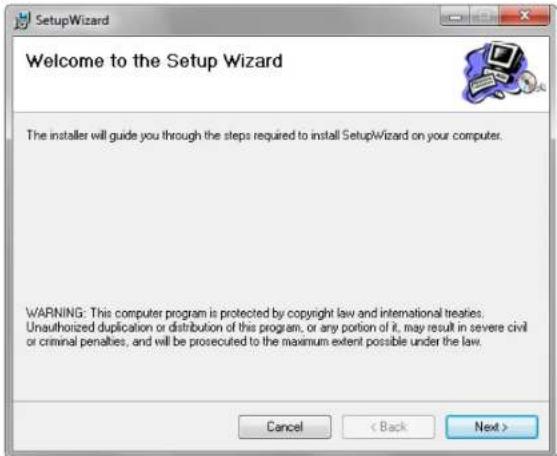

Insert the included CD-ROM into your CD/DVD drive. The Install Wizard program will run automacally.

Note: If the Install Wizard does not run, you may have autorun disabled on your machine. In this case, browse to the CD drive and run InstallWizard.exe to begin the installaon wizard.

Begin by selecng Setup Wizard and follow the on-screen steps to connue the installaon.

When the installaon of the Setup Wizard is complete, run the Setup Wizard:

1. Click Start > Programs > TRENDnet > SetupWizard > SetupWizard. The TRENDnet Setup Wizard appears.

2. Connect an RJ-45 cable from a switch/router to the Ethernet port on the back of the camera and connect the AC power adapter to the camera. Click Next to proceed.

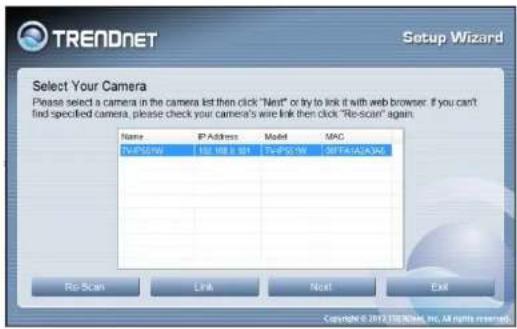

1. From the list of cameras that appears, select the camera you wish to conjure and click Next to connue. If your camera is not listed, ensure that it is connected to both power and the network and click to re-scan the network for your camera.

TRENDnet User's Guide

TV-IP551W / TV-IP551WI

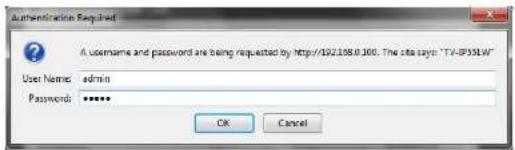

1. Login to your camera by entering the ID and Password. By default, both the ID and Password are set to admin. Click Next to connue.

1. Enter a name for the camera in the Camera Name eld. The name will be used to identify your camera on the network. Enter the correct me for the camera for the me zone it is in. If your camera is in the same me zone as the computer you are using, click the icon to copy the local me to the camera. Click Next to connue.

1. It is strongly recommended that you change your password to secure the camera from being accessed by others. Check the Change Password box and enter the new password in both password elds to conrm the new password. Click Next to connue.

1. Select a conncon opon: (example uses DHCP conncon type) PPPoE: Select this opon if your camera is directly connected to a DSL modem and your ISP requires a PPPoE authencaon to the Internet. DHCP: Select this opon if your camera is connected to a router and DHCP is enabled. Fixed IP: Select this opon if your camera is directly connected to a DSL modem and your ISP has supplied you with a xed IP for your Internet conncon.

Select the radio buon for your conncon type and click Next to connue.

TRENDnet User's Guide

TV-IP551W / TV-IP551WI

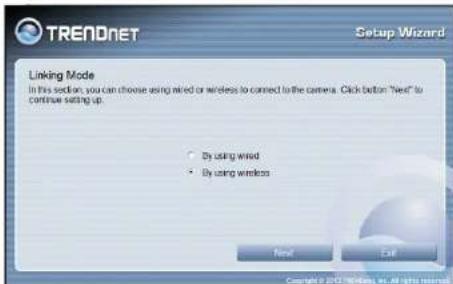

1. Select whether you want to use the camera over an wireless conncon or on a wired conncon. Click No, I don't want to use wireless for the camera. Then click Next to connue. (skip to step 12 for wireless conguraon)

1. A summary screen of the sengs you have chosen appears. Click Next to connue.

1. Aer the Setup Wizard congures the camera, the wizard starts to setup process.

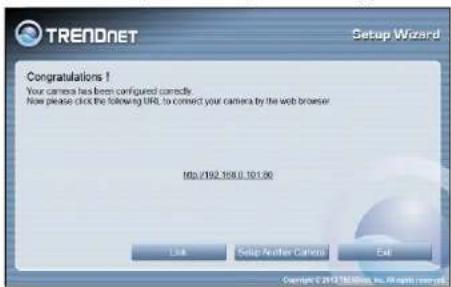

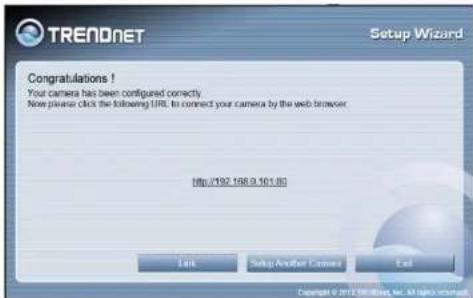

1. When the Setup Wizard has nished, the conguraon is complete and the following screen appears:

You are now ready to use your camera.

Click the IP address link or the link buon to access the camera's advanced conguraon page.

TRENDnet User's Guide

TV-IP551W / TV-IP551WI

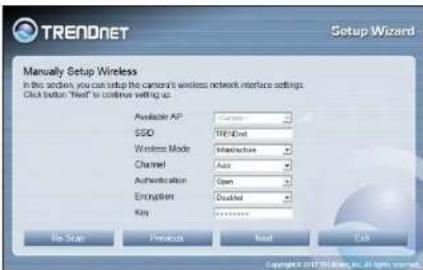

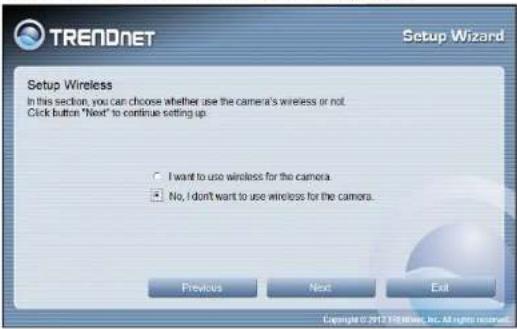

1. When selecng the wireless setup choose "I want to use wireless for the camera, click Next to connue.

Wireless Connecon

• Find the access point (AP) or wireless router you wish to connect to from the Available AP drop down menu.
• In most cases you should leave the Channel set to Auto as the AP will determine the channel of operaon.
• Select the type of authencaon and encrypon required by the access point and enter the Key required to connect.

1. A summary screen of the sengs you have chosen appears. Click Next to connue.

1. Aer the Setup Wizard congures the camera, a screen prompting you for the conneccon method appears.

Check the radio buon for the method of conneccon you want to use for your camera and click Next to connue.

TRENDnet User's Guide

TV-IP551W / TV-IP551WI

15. Connecng over wireless

Disconnect the Ethernet cable from the camera and wait for 1 minute for the camera to turn to wireless mode then click Next to connue.

When the Setup Wizard has nished, the conguraon is complete. If there is no wireless conncon found, the following screen will appear:

When the Setup Wizard has nished, the conguraon is complete. If there is a wireless conneccon found, the following screen will appear:

Conguraon

Aer compleng the Setup Wizard, you are ready to use your camera. The camera's built-in Web conguraon ulity is designed to allow you to easily access and congure your TV-IP551W or TV-IP551WI camera. Open a web browser such as Internet Explorer® and enter the IP address of your camera. To log in, use the User name admin and the password you created in the Setup Wizard. If you did not create a password, the default password is admin. Aer entering your password, click OK.

The home page for the TV-IP551W or TV-IP551WI appears.

Viewing Video

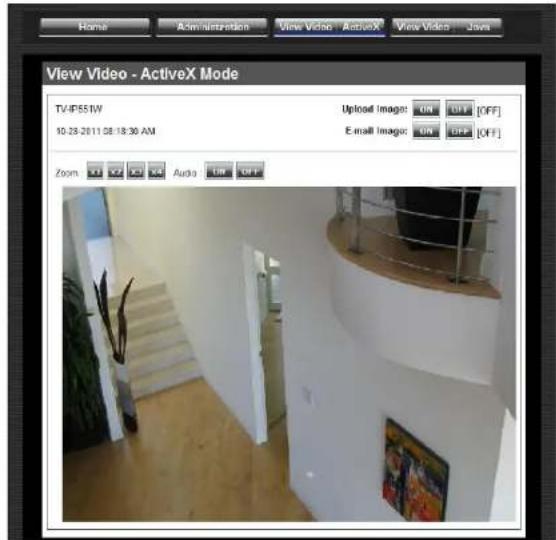

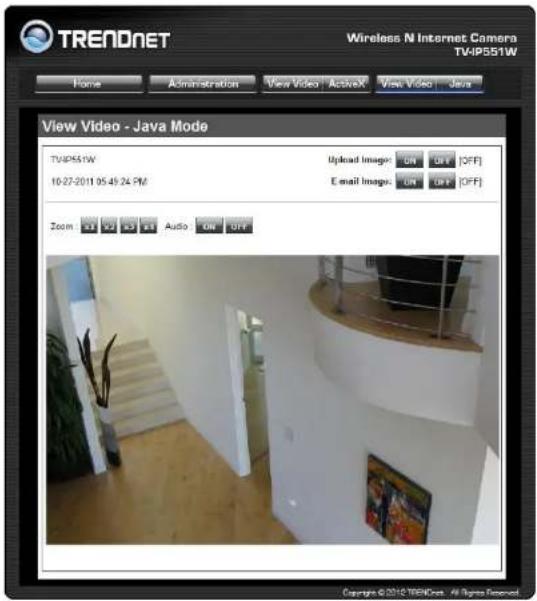

Click VIEW VIDEO | ACTIVEX or VIEW VIDEO | JAVA to begin viewing live video from your camera.

VIEW VIDEO | ACTIVEX

Windows users who do not have Java installed can choose AcveX mode to view video. Internet Explorer will prompt you to install AcveX when you click on the VIEW VIDEO | ACTIVEX link. Mac users must use the Java mode to view video.

VIEW VIDEO | JAVA

Please make sure that you have the latest version of Java installed on your machine to ensure proper operaon when viewing video in Java mode. The Java applicaon can be downloaded from Sun's website free of charge (hp://www.java.com)

Viewing Camera Sengs

To view camera sengs:

1. Login to the camera
2. Click ADMINISTRATION. The system status screen appears.

From the menu on the le side of the screen, select an opon under the STATUS heading.

TRENDnet User's Guide

TV-IP551W / TV-IP551WI

System

This screen shows the Camera Name, Locaon, Model, Firmware Version, MAC Address, IP Address, Ethernet Link Status, Speed and Duplex type.

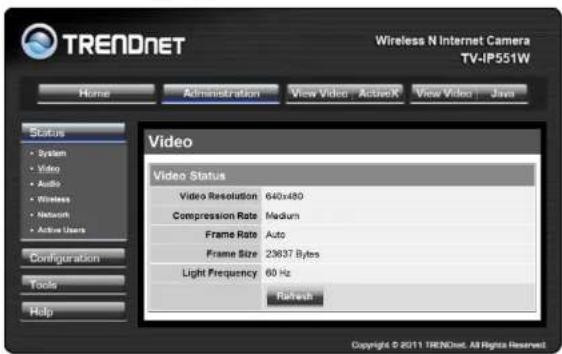

Video

This screen shows the details of the video capture sengs including Video Resoluon, Compression Rate, Frame Rate, Frame Size and Light Frequency.

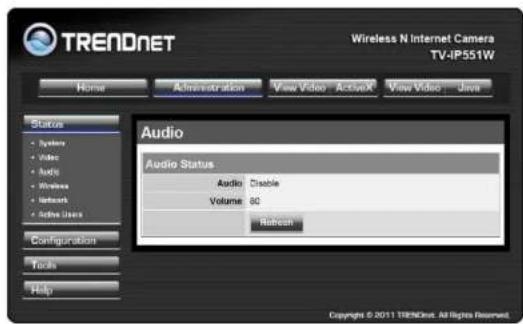

Audio

This screen shows whether audio is enabled and the volume level of the audio.

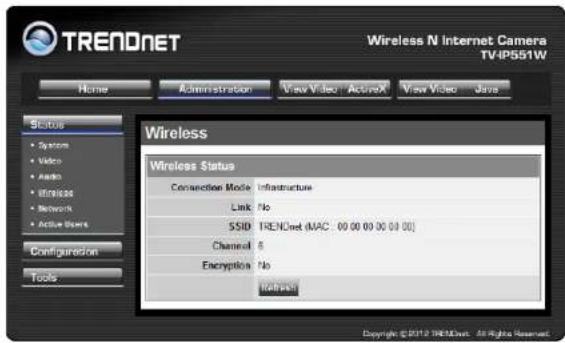

Wireless

This screen shows the conneccon mode, link status, SSID name, channel and encrypon status.

TRENDnet User's Guide

TV-IP551W / TV-IP551WI

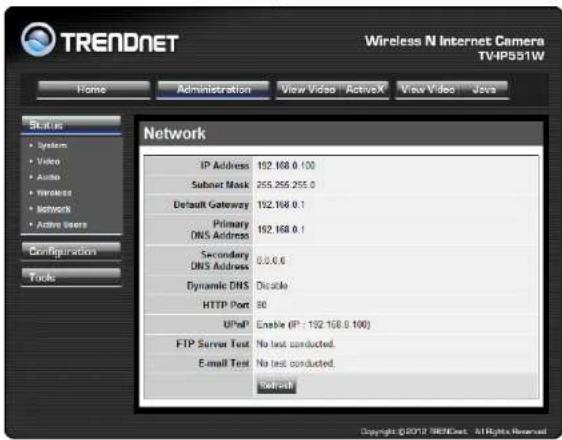

Network

This screen shows various network stascs related to your camera including IP Address, Subnet Mask and Default Gateway.

Acve Users

This screen shows whether there are any acve users logged on to the camera viewing live video.

Conguring Camera Sengs

The TV-IP551W allows you to make conguraon changes from anywhere by connecng to the camera using a standard web browser.

To congure camera sengs:

1. Login to the camera as described in the secon Using the web-based conguraon interface.
2. Click ADMINISTRATION. The system status screen appears.
3. Click CONFIGURATION from the menu on the le side of the screen. The System conguraon screen is displayed. You can then click on any of the menu items on the le of the screen under the Conguraon menu to modify sengs.

System

• Camera Name: This is the name used to identify your camera on your network.
- Locaon: You can enter a descripon of the place where the camera is.
- Admin: In this eld you can change the administrator user name and password. (max. password length is 8 characters)
- LED Control: Seng this to Normal will display the lights on the front of the camera indicang power and network acvity. Seng this to OFF will turn o both lights on the front of the camera.

Video

• Video Resoluon: Select from one of the three resoluons. Higher values provide beer quality but at the expense of higher bandwidth requirements on your network or internet conneccon.
• Compression Rate: Select a compression rate. Higher rates of compression will reduce network load at the expense of lower image quality.
• Frame Rate (Frames/Sec.): Select the number of frames per second you would like for your video. Higher rates provide smoother video but require more bandwidth on your network or internet conncon.
• Brightness Control: Allows you to control the brightness level. Enter a value between 1 and 128.
• Contrast Control: Allows you to control the contrast level. Enter a value between 1 and 128.
• Saturaon Control: Allows you to control the saturaon level. Enter a value between 1 and 128.

• Light Frequency: Select the correct frequency (50Hz/60Hz) to reduce the amount of icker.

• Mirror: Choose whether to mirror the image horizontally or vertically.
  • An-Flicker: Check the box to enable an-icker.

Audio

• Audio: Choose whether to Enable or Disable the camera audio feed.
• Volume: Select the volume percentage level.

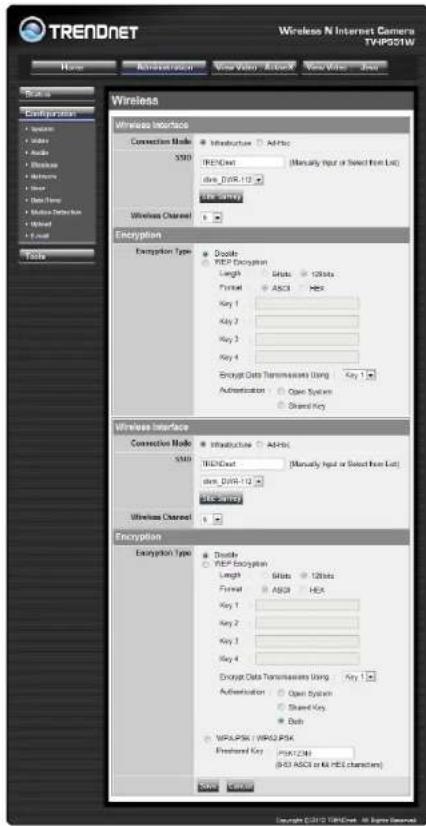

Wireless

• Connecon Mode: Infrastructure is a wireless conncon using an access point as a transmission point of all wireless devices. Ad-Hoc is a wireless connection used without an access point, where your TV-IP551W or TV-IP551WI is directly connected to your PC. This is done using the on-board wireless adapter on the TV-IP551W or TV-IP551WI connected to a wireless adapter on the PC.
• SSID: Service Set Idener. This is an idener for your network. Manually enter the SSID of your wireless network or select it from the drop down menu. You can click Site Survey to see a list of wireless networks within range and further details of their sengs.
• Wireless Channel: When using Infrastructure mode, the channel is specified by the access point and the channel will not be selectable on this menu. When using Ad-Hoc mode, you can specify on which channel you want to communicate with the camera.
• Encrypon Type: It is highly recommended that you encrypt the conneccon. In Infrastructure mode, select an encrypon type and enter details where applicable as you have specied on the access point. If you intend to use Ad-

Hoc mode, you can specify here the encrypon type and preshared key that you want to use to connect from the PC.

TRENDnet User's Guide

TV-IP551W / TV-IP551WI

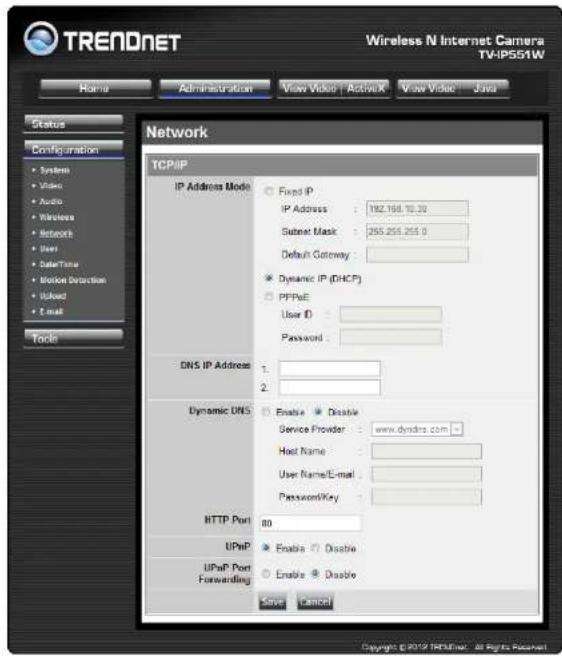

Network

• IP Address Mode: Choose a method to assign an IP address to your camera.

• Fixed IP – If you want to assign a stac or xed IP address to the camera, you may do so here. Your network administrator should be able to provide you with the necessary details to complete this secon.
• Dynamic IP (DHCP) – Allows a DHCP server to automacally assign the camera a network address.

• PPPoE – If you are using a PPPoE conneccon, enter your user name and password here

• Dynamic IP: Enter the Domain Name Server addresses which translate names to IP addresses.

• Dynamic DNS: The Dynamic DNS feature allows you to host a server (e.g. web server, FTP or Game server) using a domain that you own with a dynamically assigned IP address. Many ISPs assign IP addresses dynamically i.e. the IP address changes each me you connect and disconnect. Using a Dynamic DNS service provider, you can connect to your camera no maer what your IP address. Enter the details of your dynamic DNS service provider here.
• HTTP Port: You may congregate a second HTTP port that will allow you to connect to the camera using a standard web browser. The port can be set to a number other than the default TCP ports 80. A corresponding port must be opened on the router. For example, if the port is changed to 1010, users must type "hp://192.168.0.100:1010" instead of only "hp://192.168.0.100".
• uPnP & uPnP Port Forwarding: Enable these to set your camera as a universal plug n play device on your network.

User

• User Access Control: Enable this to allow user accounts to connect to the camera. This opon also enable/disable the authencaon for direct view. For Java mode: hp://camera_ip_address/tvjview.htm
  For AcveX mode: hp://camera_ip_address/tvaview.htm
  (eg. hp://192.168.10.30/tvaview.htm to view the camera live image directly)

- Dene Users: You can create new user accounts here. Enter a user name and password and select whether the user is allowed to upload or email an image from the camera.

TRENDnet User's Guide

TV-IP551W / TV-IP551WI

- Delete User: Select a user from the drop down menu and click the Delete buon to remove a user account from the camera.

Date/Time

• Synchronized with Time Server: If you have an internet me server or have an NTP server designated on your network, you can specify the IP address of it here. Ensure that you select the correct me zone for the camera also.
• Set Manually: If you prefer to manually set the me for the camera, select this mode. You can check the box Synchronized with Computer Time to set the me on the camera to be the same as the computer you are on.

Moon Detecon

• Moon Detecon: Select whether to Enable or Disable moon detecon. This will allow your camera to perform dierent funcons when acvity has been detected in the parts of the screen that you specify.
• Sensitivity: Set a percentage level to determine how sensitive the camera is to acvity.
• Detecon Areas: From the live image shown on this screen, you can le-click on blocks of the grid shown to indicate which parts of the screen you would like to monitor for moon.

Upload

On this screen you can enter details of an FTP Server that you want to upload images from the camera to.

• Host Address: The IP address of the FTP Server
• Port Number: The port number to connect to the FTP on, default port is 21.
• User Name: The user name of the FTP account.
- Password: The password for the user account on the FTP.
- Directory Path: The path you want the les to be uploaded to on the FTP.

• Passive Mode: If the camera is behind a firewall, you might wish to enable Passive mode to allow the camera to upload the pictures.
• Time Schedule: Check Enable upload image to FTP server to enable the Upload funcon.

Always: Selecting this option allows snapshots to be uploaded to your FTP as soon as you click Save.
Schedule: Selectng this opon allows you to conjure specie mes when you want the snapshots to be uploaded to your FTP server.
- Moon Detecon: Selecting this opon sets the camera to upload images upon detecton of moon.
- Manual Operaon: Selecting this opon means the user is responsible for taking a snapshot from the camera to upload.

- Video Frequency: Users can select in frames per second (1, 2, 3 or auto, in auto this could go to 4). The user can also select a duraon for each frame from 1 to 65535 seconds.

- Base File Name: Enter the prex for the lename of each snapshot taken by the camera.

- File: If Overwrite is selected, only a few images will be constantly refreshed, depending on how many snapshots you choose to have sent. Select Date/Time Sux and the pictures will be named with a date and me also. Select a Sequence Number Sux up to 1024 and all the pictures will be numbered from 1-1024. Up to 1024 pictures can be congured. Picture number 1025 will reset to number 1.

E-mail

This secon allows you to conjure the email nocacn sengs of your camera.

- SMTP Server Address: The domain name or IP address of your external mail server.

• SMTP Port Number: The port number of your mail server, usually this is port 25.
• Sender's Email Address: The e-mail address of the person sending the camera snapshots.
• Recipient's E-mail Address: The e-mail address of the person receiving the camera snapshots.
• User Name: The user name of the sender's email account for SMTP authencaon.
• Password: The password of the sender's account for SMTP authencaon.
• Use SSL-TLSS/STARTTLS: If your mail server supports SSL-TLSS or STARTTLS, you can select one of these methods to create an encrypted conncon to the mail server.
• Time Schedule: Check Enable e-mail image to e-mail account to enable the me schedule funcon.

Always: Selecting this opon will allow snapshots to be emailed when you click Save.

Schedule: Selectng this opon allows you to congure specie mes when you want the snapshots to be emailed.
○ Moon Detecon: Selecting this opon sets the camera to e-mail images upon detect of moon.
- Manual Operaon: Selecting this opon means the user is responsible for taking a snapshot from the camera to e-mail.

TRENDnet User's Guide

TV-IP551W / TV-IP551WI

Tools

FTP Server Test

When you have set up the FTP Server in the conguraon secon, you can use this screen to test that the FTP Server sengs are correct. Pressing the Test buon will make a conncon to the FTP Server and upload a le called test_date_me.jpg to the FTP. If the le is not there, you should check that you have entered the FTP details correctly in the conguraon secon.

E-mail Test

When you have set up an e-mail account in the conguraon secon, you can use this screen to test that the E-mail sengs are correct. Pressing the Test buon will make the camera send a test e-mail to the address specied in the conguraon secon. If you do not receive the test e-mail, you should check that you have entered the e-mail details correctly in the conguraon secon.

TRENDnet User's Guide

TV-IP551W / TV-IP551WI

Restart

If you should need to restart the IP camera, you can do this from this screen. Clicking Yes will initiate a reboot sequence on the camera. When you restart the camera you will lose your conneccon to it. Wait 1 minute before aempng to reconnect to the camera so that it has me to go through its boot up sequence. Restarng the camera will retain the conguraon sengs you have entered.

Factory Reset

If you should need to restore the camera to the factory sengs, you can do it from this screen. Clicking Yes will initiate a reboot sequence on the camera. When the camera restarts, you will lose your conncon to it. The username and password will also both be set back to the default admin. Wait 1 minute before aempng to reconnect to the camera so that it has me to go through its boot up sequence.

Note: Factory reset will erase the current conguraon sengs on the camera. You should back up the sengs rst if you wish to keep them. See the Backup and Restore secon for more informaon.

TRENDnet User's Guide

TV-IP551W / TV-IP551WI

Firmware Upgrade

Click the Browse buon and locate the rmware le you saved on your computer and choose Open. When you are ready, click the Upgrade buon to begin the rmware upgrade.

Note: Upgrading the rmware is a sensitive process. Be sure that you have the correct rmware for your model of camera and do not disconnect the power during the upgrade process.

Backup and Restore

When you have set up the camera and you are sased with the sengs, you can backup the sengs to a le for future reference. If you should change the sengs and want to revert back to the previous sengs, you can do so on this page. To backup the conguraon, click Backup and select a locaon to save the le, then choose Save. To restore sengs from a conguraon le, click Browse and locate the backup conguraon le on your hard drive then click OK. Click Restore to complete the process.

How to setup/access the camera remotely

You can either setup the Dynamic DNS conncon via camera itself or your home router. An account from any of the listed DDNS providers is required prior to this operaon.

Congure DDNS on your Camera

1. Go to Camera's DDNS Seng page, click Enable to acvate the feature. Then select a DDNS provider from the list.

1. Enter your DDNS's the Host Name, User Name and Password.

1. In the Port Number secon, assign an HTTP port of the camera. The default HTTP Port on the camera is 80. The example shows above is using port number 9000.

2. Open another web browser and go to your Router's Web Conguraon page. (In the example, TRENDnet's TEW-651BR Wireless N router is used)

TRENDnet User's Guide

TV-IP551W / TV-IP551WI

1. Go to Virtual Server* secon and create a new entry.

Enable: Click Enable

Name: Enter the applicaon name (eg. CameraName)

Protocol: Select TCP

Private Port: The HTTP port that you assign on your Camera.

Public Port: The port used on remote side to access to your Camera.

LAN Server: The local IP address of your Camera.

Then click Add to add the applicaon.

* Please refer to your router's user's manual for detail Virtual Server seng. Some router might use Port Forwarding or Special applications for this funcon. The setup steps should be very similar.

1. Open another web browser and enter your DDNS domain and camera's port number.

hp://yourDomainName:PortNumber

1. Camera's login page will appear.

Congure DDNS on your router

1. Go to Camera's DDNS → Ports Number secon, assign a HTTP port for your camera and click Apply.

1. Login to your router's web conguraon page.

TRENDnet User's Guide

TV-IP551W / TV-IP551WI

3. Find the Dynamic DNS conguraon secon.

4. Enable DDNS, ll out the following informaon and then click Apply.

5. Go to Virtual Server\* secon and create a new entry.

Enable: Click Enable

Name: Enter the applicaon name (eg. Camera Name)

Protocol: Select TCP

Private Port: The HTTP port that you assign on your Camera.

Public Port: The port used on remote side to access to your Camera.

LAN Server: The local IP address of your Camera.

Click Add to add the applicaon.

* Please refer to your router's user's manual for detail Virtual Server seng. Some router might use Port Forwarding or Special applications for this funcon. The setup steps should be very similar.

6. Open another web browser and enter your DDNS domain and camera's port number.

hp://yourDomainName:PortNumber

7. The camera login page will appear.

Technical Specicaons
TV-IP551W

Camera
General	Sensor: 1/5" CMOS SensorBoard LensFocal Length: 4mmF/No: 1.5Minimum illuminaon: 1 luxFocus Depth: 20 cm ~ innityView:Horizontal: 38 degreesVercal: 28.7 degreesDiagonal: 46.5 degreesDigital Zoom: 4x
Audio	Built-In omni-direconal microphoneSensitivity: -38dB +/- 3dB (5 meters max.)Frequency: 100~20000HzS/N: >60dBFormat: PCM
Hardware
Network	IEEE 802.3u 10/100Mbps Auto-MDIX Fast Ethernet
LED	Power, Link/Act
WPS Buon	Enable WPS conncon
Reset Buon	Reset to factory default
PowerConsumpon	Max. 5 was
Power	Input: 100~240V 50/60Hz 0.2AOutput: 5V, 1.2A external power adapter
Dimension	75 x 115 x 30 mm (2.95 x 4.5 x 1.2 in.)
Weight	110 g (3.8 oz)

Temperature	Operang: 0°C ~ 40°C (32°F ~ 104°F) Storage: -15°C ~ 60°C (5°F ~ 140°F)
Humidity	Max. 95% (non-condensing)
Cercaons	CE, FCC
Requirement
Management Interface	Internet Explorer 7.0 or higher Firefox 3.5 or above Safari 4.0 or above
Network Protocols	IPv4, ARP, TCP, UDP, ICMP DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client HTTP PPPoE UPnP
Wireless
Standard	IEEE 802.11b, IEEE 802.11g and IEEE 802.11n
Frequency	2.4 ~ 2.497 GHz ISM band
Modulaon	DQPSK, DBPSK, DSSS and CCK
Antenna	Built in 2dBi antenna
Date Rate	802.11b: up to 11Mbps 802.11g: up to 54Mbps 802.11n: up to 150Mbps
Security	64/128-bit WEP, WPA/WPA2-PSK
Output Power	802.11b: 17dBm (typical) 802.11g: 14.5dBm (typical) 802.11n: 14.5dBm (typical)
Receiving Sensitivity	802.11b: -89dBm at 11Mbps 802.11g: -74dBm at 54Mbps 802.11n: -71dBm at 150Mbps
Channels	1~11 (FCC), 1~13(ETSI)
Management

TRENDnet User's Guide

TV-IP551W / TV-IP551WI

Accounts	Up to 64 user accounts
Remote Login	Remote management supported
Backup /Restore	Save/retrieve conguraon les
Sengs
Image	Brightness, contrast, saturaon, , ip, mirror (horizontal/vercal)
Video Seng	Encoding: MJPEG- Resoluon: 640 x 480 (20 fps), 320 x 240 (30 fps), 160 x 120- Max frame rate: VGA@20fps, QVGA@30fps, QQVGA@30fps- JPEG quality: Very Low, Low, Medium, High, Very High
Snapshot	Trigger event: moon deteconAcon: send alert email and/or upload to FTPReal me snapshot
Port Sengs	HTTP port: 80 (default)
Time	Synchronize with NTP server or set me / date manually

TV-IP551WI

Camera
General	Sensor: 1/5” CMOS SensorBoard LensFocal Length: 4 mmF/No: 1.5Minimum illuminaon: 0 luxFocus Depth: 20 cm ~ innityView:Horizontal: 38.0 degreesVercal: 28.7 degreesDiagonal: 46.5 degreesDigital Zoom: 4x
Audio	Built-in omni-direconal microphoneSensitivity: -38dB +/- 3dB (5 meters max.)

	Frequency: 100~20000HzS/N: >60dBFormat: PCM
Day/Night	Built-in ICRNight vision (IR) up to 7.5 meters
Hardware
Network	IEEE 802.3u 10/100Mbps Auto-MDIX Fast Ethernet
LED	Power, Link/Act
WPS Buon	Enable WPS conncon
Reset Buon	Reset to factory default
PowerConsumpon	Max. 5 Was
Power	Input: 100~240V 50/60Hz 0.2AOutput: 5V, 1.2A external power adapter
Dimension	75 x 115 x 30mm (2.95 x 4.5 x 1.2 in.)
Weight	110 g (3.8 oz)
Temperature	Operang: 0°C ~ 40°C (32°F ~ 104°F)Storage: -15°C ~ 60°C (5°F ~ 140°F)
Humidity	Max. 95% (non-condensing)
Cercaons	CE, FCC
Requirement
Management Interface	Internet Explorer 7.0 or higherFirefox 3.5 or aboveSafari 4.0 or above
Network Protocols	IPv4, ARP, TCP, UDP, ICMPDHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP ClientHTTPPPPoEUPnP

TRENDnet User's Guide

TV-IP551W / TV-IP551WI

Wireless
Standard	IEEE 802.11b, IEEE 802.11g and IEEE 802.11n
Frequency	2.4 ~ 2.497 GHz ISM band
Modulaon	DQPSK, DBPSK, DSSS, and CCK
Antenna	Built-in 2dBi antenna
Date Rate	802.11b: up to 11Mbps802.11g: up to 54Mbps802.11n: up to 150Mbps
Security	64/128-bit WEP, WPA/WPA2-PSK
Output Power	802.11b: 17dBm (typical)802.11g: 14.5dBm (typical)802.11n: 14.5dBm (typical)
Receiving Sensitivity	802.11b: -89dBm at 11Mbps802.11g: -74dBm at 54Mbps802.11n: -71dBm at 150Mbps
Channels	1~11 (FCC), 1~13(ETSI)
Management
Accounts	Up to 64 user accounts
Remote Login	Remote management supported
Backup / Restore	Save/retrieve conguraon les
Sengs
Image	Brightness, contrast, saturaon, sharpness, white balance, ip, mirror (horizontal/vercal), black & white, indoor, outdoor, schedule mode
Video Seng	Encoding: MJPEG- Resoluon: 640 x 480 , 320 x 240 , 160 x 120- Max frame rate: VGA@20fps, QVGA@30fps, QQVGA@30fps- JPEG quality: Very Low, Low, Medium, High, Very High
Snapshot	Trigger event: moon deteconAcon: send alert email and/or upload to FTP

	Real me snapshot
Port Sengs	HTTP port: 80 (default)
Time	Synchronize with NTP server or set me / date manually

Troubleshoong

1. The Power LED and Ethernet Acvity LED do not light up.

The power supply or camera might be faulty. Check that the conneccon to both the power source and the terminal on the back of the camera are secure and that you are using the provided power supply. If the camera is otherwise functioning correctly, the LEDs might have been disabled in the conguraon. See the secon of this guide on Conguraon of System sengs.

2. The camera can't be accessed or access is slow

There might be a problem with the network cable. To conrm that the cables are working, ping the address of a known device on the network. If the cabling is OK and your network is reachable, you should receive a reply similar to the following (...bytes = 32 me = 2 ms).

Another possible problem may be that the network device such as a hub or switch utilized by the Network Camera is not funconing properly. Please conrm the power for the devices are well connected and funconing properly.

3. The camera can be accessed locally but not remotely

This might be caused by a rewall. Check the Internet rewall with your system administrator. The rewall may need to have some sengs changed in order for the Network Camera to be accessible outside your local LAN. For more informaon, please refer to the secon about installing your camera behind a router.

Make sure that the Network Camera isn't conicng with any Web server you may have running on your network.

The default router seng might be a possible reason. Check that the conguraon of the router sengs allow the Network Camera to be accessed outside your local LAN.

4. White vercal lines appear on the image from the camera

It could be that the CMOS sensor (a square panel situated behind the lens that measures the light signals and changes it into a digital format so your computer can present it into an image that you are familiar with) has become overloaded when it has been exposed to bright lights such as direct exposure

to sunlight or halogen lights. Reposition the Network Camera into a more shaded area immediately as prolonged exposure to bright lights will damage the CMOS sensor.

5. The camera images are 'noisy'

Oen if the camera is in a low-light environment, the images can contain a lot of noise. Try enabling Night mode and see if that improves the image quality. Otherwise, try to use the camera in a locaon where there is a bit more light.

6. The camera images are of poor quality.

Make sure that your computer's display properes are set to at least 16-bit color. Using 16 or 256 colors on your computer will produce dithering artifacts in the image, making the image look as if it is of poor quality.

Try also adjusng the brightness, contrast, saturaon, light frequency and anicker controls on the Video Sengs under the Conguraon menu. You may also consider adjusng the resolution of the camera and the compression rate to improve the image.

7. Video can't be viewed through the web browser interface.

AcveX might be disabled. If you are viewing the images from Internet Explorer make sure AcveX has been enabled in the Internet Opons menu. You may also need to change the security sengs on your browser to allow the AcveX plug-in to be installed.

If you are using Internet Explorer with a version number lower than 6, then you will need to upgrade your Web browser soware in order to view the streaming video transmied by the Network Camera. Try also viewing the video using Java. Ensure that you have the latest version of Java installed before you do. Go to www.java.com for more informaon.

TRENDnet User's Guide

TV-IP551W / TV-IP551WI

Federal Communicaon Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference in a residential installaon. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instrucons, may cause harmful interference to radio communicaons. However, there is no guarantee that interference will not occur in a parcular installaon. If this equipment does cause harmful interference to radio or television recepon, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.

Increase the separaon between the equipment and receiver.

Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operaon is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operaon.

FCC Cauon: Any changes or modicaons not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

IEEE 802.11b or 802.11g operaon of this product in the U.S.A. is rmware-limited to channels 1 through 11.

IMPORTANT NOTE:

FCC Radiaon Exposure Statement:

This equipment complies with FCC radiaon exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

This transmier must not be co-located or operang in conjuncon with any other antenna or transmier.

Europe – EU Declaraon of Conformity

This device complies with the essenal requirements of the R&TTE Direcve 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essenal requirements of the R&TTE Direcve 1999/5/EC:

EN 60950-1: 2006 +A11:2009

Safety of Informaon Technology Equipment

EN 62311: 2008

Assessment of electronic and electrical equipment related to human exposure restricons for electromagnec elds (0 Hz-300 GHz)

(IEC 62311:2007 (Modified))

EN 300 328 V1.7.1: (2006-10)

Electromagnec compatibility and Radio spectrum Maers (ERM); Wideband Transmission systems; Data transmission equipment operang in the 2,4 GHz ISM band and using spread spectrum modulaon techniques; Harmonized EN covering essenal requirements under arcle 3.2 of the R&TTE Direcve

EN 301 489-1 V1.8.1: (2008-04)

Electromagnec compatibility and Radio Spectrum Maers (ERM); ElectroMagnec Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements

EN 301 489-17 V2.1.1 (2009-05)

Electromagnec compatibility and Radio spectrum Maers (ERM); ElectroMagnec Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems

This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies.

In Italy the end-user should apply for a license at the naonal spectrum authorities in order to obtain authorizaon to use the device for seng up outdoor radio links and/or for supplying public access to telecommunications and/or network services.

This device may not be used for seng up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed informaon the end-user should contact the naonal spectrum authority in France.

TRENDnet User's Guide

TV-IP551W / TV-IP551WI

csČesky [Czech]	TRENDnet mto prohlašuje, že tento TV-IP551W / TV-IP551WI je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
daDansk [Danish]	Undertegnede TRENDnet erklærer herved, at følgende udstyr TV-IP551W / TV-IP551WI overholder de væsentlige krav og øvrige relevante krav i direkv 1999/5/EF.
deDeutsch [German]	Hiermit erklärt TRENDnet, dass sich das Gerät TV-IP551W / TV-IP551WI in Übereinsmmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Besmmungen der Richtlinie 1999/5/EG bendet.
etEes [Estonian]	Käesolevaga kinnitab TRENDnet seadme TV-IP551W / TV-IP551WI vastavust direkivi 1999/5/EÜ põhinõuetele ja nimetatud direkivist tulenevatele teistele asjakohastele sätetele.
enEnglish	Hereby, TRENDnet, declares that this TV-IP551W / TV-IP551WI is in compliance with the essenal requirements and other relevant provisions of Direcve 1999/5/EC.
esEspañol [Spanish]	Por medio de la presente TRENDnet declara que el TV-IP551W / TV-IP551WI cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Direcva 1999/5/CE.
elEλληνική [Greek]	ME THN ΠΑΡΟΥΣΑ TRENDnet ΔΗΛΩΝΕΙ OTI TV-IP551W / TV-IP551WI ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/EK.
frFrançais [French]	Par la présente TRENDnet déclare que l'appareil TV-IP551W / TV-IP551WI est conforme aux exigences essenelles et aux autres disposions permentes de la direcve 1999/5/CE.
itItaliano [Italian]	Con la presente TRENDnet dichiara che questo TV-IP551W / TV-IP551WI è conforme ai requisi essenziali ed alle altre disposizioni pernen stabilite dalla direva 1999/5/CE.
lvLatviski [Latvian]	Ar što TRENDnet deklarē, ka TV-IP551W / TV-IP551WI atbilst Direkvas 1999/5/EK būskajām prasībām un ciem ar to

	saistajiem noteikumiem.
itLietuvių[Lithuanian]	Šiuo TRENDnet deklaruoja, kad šis TV-IP551W / TV-IP551WI anka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
nlNederlands[Dutch]	Hierbij verklaart TRENDnet dat het toestel TV-IP551W / TV-IP551WI in overeenstemming is met de essenële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
ntMal[Maltese]	Hawnhekk, TRENDnet, jiddikjara li dan TV-IP551W / TV-IP551WI jikkonforma mal-ħgijiet essenzjali u ma provvedimen oħrajn relevan li hemm d-Dirreva 1999/5/EC.
huMagyar[Hungarian]	Alulíro, TRENDnet nyilatkozom, hogy a TV-IP551W / TV-IP551WI megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb előírásainak.
plPolski[Polish]	Niniejszym TRENDnet oświadcza, že TV-IP551W / TV-IP551WI jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
ptPortuguês[Portuguese]	TRENDnet declara que este TV-IP551W / TV-IP551WI está conforme com os requisitos essenciais e outras disposições da Direcva 1999/5/CE.
slSlovensko[Slovenian]	TRENDnet izjavlja, da je ta TV-IP551W / TV-IP551WI v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direkve 1999/5/ES.
skSlovensky[Slovak]	TRENDnet týmto vyhlasuje, že TV-IP551W / TV-IP551WI spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
fiSuomi[Finnish]	TRENDnet vakuuaa täten eä TV-IP551W / TV-IP551WI tyyppinen laite on direkivin 1999/5/EY oleellisten vaamusten ja sitä koskevien direkivin muiden ehtojen mukainen.
svSvenska[Swedish]	Härmed intygar TRENDnet a denna TV-IP551W / TV-IP551WI står l överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direkv 1999/5/EG.

Limited Warranty

TRENDnet warrants its products against defects in material and workmanship, under normal use and service, for the following lengths of me from the date of purchase.

TV-IP551W / TV-IP551WI - 3 Years Warranty

AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1 year warranty.

If a product does not operate as warranted during the applicable warranty period, TRENDnet shall reserve the right, at its expense, to repair or replace the defective product or part and deliver an equivalent product or part to the customer. The repair/replacement unit's warranty connues from the original date of purchase. All products that are replaced become the property of TRENDnet. Replacement products may be new or reconditioned. TRENDnet does not issue refunds or credit. Please contact the point-of-purchase for their return policies.

TRENDnet shall not be responsible for any soware, rmware, informaon, or memory data of customer contained in, stored on, or integrated with any products returned to TRENDnet pursuant to any warranty.

There are no user serviceable parts inside the product. Do not remove or aempt to service the product by any unauthorized service center. This warranty is voided if (i) the product has been modified or repaired by any unauthorized service center, (ii) the product was subject to accident, abuse, or improper use (iii) the product was subject to conditions more severe than those specied in the manual.

Warranty service may be obtained by contacting TRENDnet within the applicable warranty period and providing a copy of the dated proof of the purchase. Upon proper submission of required documenta on a Return Material Authorizaon (RMA) number will be issued. An RMA number is required in order to initiate warranty service support for all TRENDnet products. Products that are sent to TRENDnet for RMA service must have the RMA number marked on the outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment. Customers shipping from outside of the USA and Canada are responsible for return shipping fees. Customers shipping from outside of the USA are responsible for custom charges, including but not limited to, duty, tax, and other fees.

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, THE CUSTOMER'S SOLE REMEDY SHALL BE, AT TRENDNET'S OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TRENDNET NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR USE OF TRENDNET'S PRODUCTS.

TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT TRENDNET'S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of the state of California.

Some TRENDnet products include soware code written by third party developers. These codes are subject to the GNU General Public License ("GPL") or GNU Lesser General Public License ("LGPL").

Go to http://www.trendnet.com/gpl_or hp://www.trendnet.com Download secon and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. Please go to http://www.gnu.org/licenses/gpl.txt_or hp://www.gnu.org/licenses/lgpl.txt_for specific terms of each license.

PWP05202009v2

TRENDNET®

Product Warranty Registration

Please take a moment to register your product online. Go to TRENDnet's website at http://www.trendnet.com/register

TRENDnet

20675 Manhattan Place

Torrance, CA 90501. USA

Copyright ©2012. All Rights Reserved. TRENDnet.
