USER MANUAL zoopa Q165 RIOT ACME

Anleitung

Manual

© Copyright 2015 ACME the game company GmbH

Sicherheitshinweise

WARNUNG:

1x zoopa Q165 RIOT Quadrocopter

1x USB- Lademodul

1x LiPo Akku

Drehung

360° Flip Funktion

ACME the game company GmbH

Boikweg 24

33129 Delbrück

Germany

Please read carefully before first use!

Manual

Technical Data

Size:

Weight:

Recommended Age:

Field of use:

Battery:

Controller: 2.4 GHz

135x145x25mm

approx. 35g

10+ years

Indoor and Outdoor

3.7V LiPo;

Vers.: 1.0

© Copyright 2015 ACME the game company GmbH

Safety advice

WARNING:

NOTE THE FOLLOWING ADVICE, TO AVOID DAMAGES AND SHORTCUTS: ONLY USE RECOMMENDED SPARE PARTS DO NOT DISSAMBLE THE PRODUCT INNER PARTS CAN BE REPAIRED BY THE USER. PLEASE CONTACT QUALIFIED STAFF IF YOU ARE NOT FAMILIAR WITH RC-MODELS.

SERVICE & SUPPORT

ACME the game company GmbH Boikweg 24

33129 Delbrück Germany

Tel: [phone]

[e-mail] or http://www.ACME-online.de

SAFETY ADVICE

Danger of fire and explosion occurs if a battery is not connected properly.

Always charge LiPo batteries under supervision.

Please stop charging if you notice a deformation or if the battery is blowing up!

Charge LiPo batteries at 15° and 25°C

Avoid heating of over 50°C at discharge.

Do not shortcut, never throw into fire!

Only use original batteries.

-Always use the original LiPo-battery
-Do not use if the battery deforms, discolors or softens
-Store the battery at temperatures between 15° and 25° C at dry and dark places.

The charging capacity shall be at min. 75%
-Store away from children and pets
-Keep away from fire, water, heating sources and foreign matters that can cause a shortcut
-Always use the original charger which is placed on a fireproof surface
-Avoid mechanical exposure and do not open
-NEVER SHORTCUT
-Do not touch the battery if gas or liquid leaks out of the battery
-Improper handling may result into health problems
-Dispose wasted batteries properly
- Never exhaust the battery

CE Declaration

Herewith we declare that this item is in accordance with the essential requirements and other relevant regulations of the directive 1999/5/EC. A copy of the original declaration of conformity can be obtained at the address above.

This product uses LiPo batteries. LiPo batteries are recyclable, and a valuable resource. To dispose of the battery, remove it and take it to a resource recovery facility.

WEEE Reg. Nr.: DE64989527

Information for disposal of crossed Bin marked products

This symbol is marked on a product or packaging, it means that the product including the batteries must not be disposed of with your general household waste. Only discard electrical/electronic items in separate collection schemes, which cater for the recovery and recycling of materials contained within. Your co-operation is vital to ensure the success of these schemes and for the protection of the environment.

ATTENTION! Choking hazard – Not for children under 3 years!!!

Content of the box

Please check the completeness before you use the product!

1x zoopa Q165 RIOT Quadrocopter

1x 2.4GHz Controller

1x USB- Charger

1x LiPo battery

1x Manual

1x spare propeller

Additionally, you need 6pcs. AA batteries!

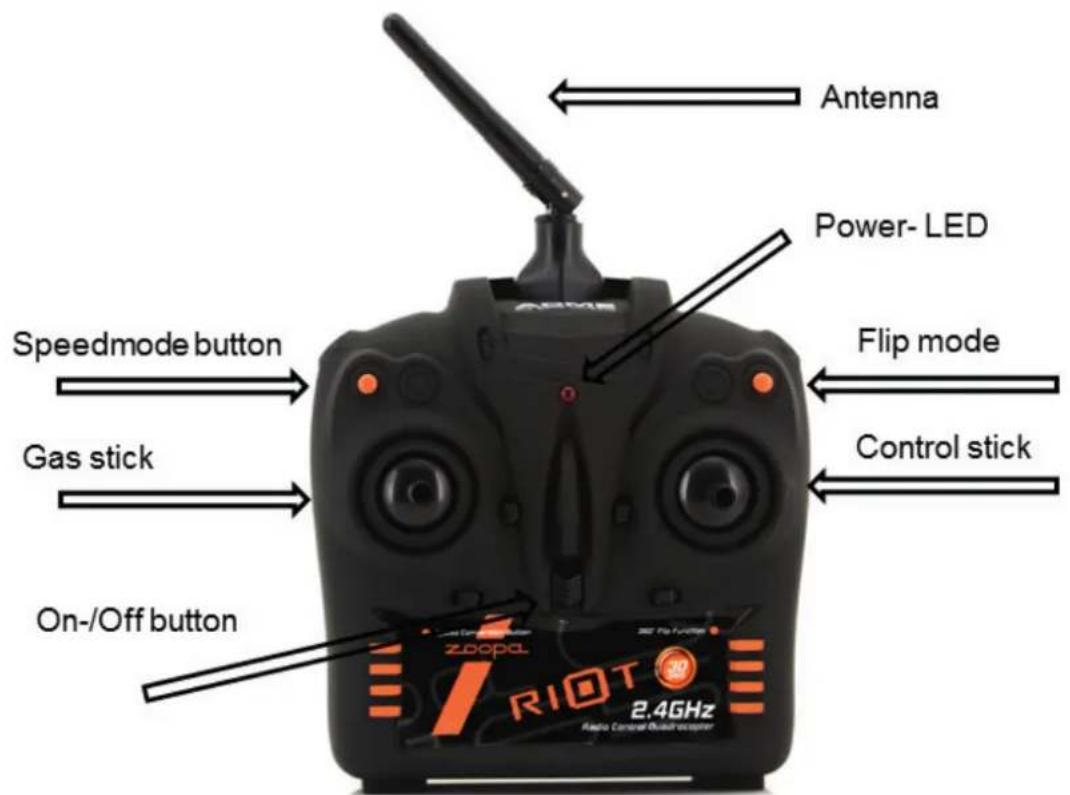

Structure

Please note!

Never fly if there are any people, animals or obstacles around!

Never fly at strong wind or bad weather!

Make sure that you are allowed to fly in the area you are using the model!

Always switch on the controller before you switch on the model and make sure that it is switched on during the use. Do not switch the controller off while the model is working!

First steps and information

Carefully read this manual.

The zoopa Q165 RIOT is a RTF (Ready-to-Fly) model.

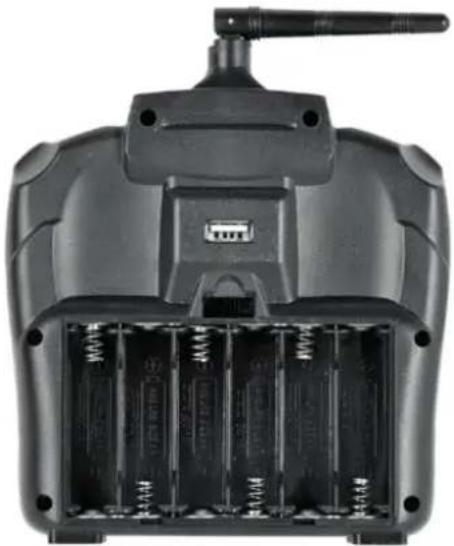

You additionally require 6pcs. AA Batteries for the activation. Please insert these under attention of the correct polarity (check marks on the inside of the controller) and then close the controller with the cover of the battery case.

ATTENTION : Only use standard batteries (non-rechargeable). Make sure that these are inserted correctly (+/-) !

ACME the game company GmbH assumes no liability for privacy violations, personal injury and damage to private property caused by the user of the model.

Please follow carefully the instructions in this guide step by step, to ensure proper handling.

Charging the battery

The LiPo battery will be charged through the supplied USB-Charger.

Connect the battery with the charger and make sure that it is plugged correctly.

Now connect it to an USB source, for example your computer.

You can alternately use an USB power adaptor.

(Art. No. FCHD43).

Charging will be shown through the integrated LED. This process can take up to 70 minutes. As soon as the battery is fully charged, the LED will shut off.

Only use the original battery, because other batteries may have a different polarity and can damage your equipment!

How to insert and connect the battery

As soon as the battery is fully charged, please insert it into the case that is located underneath the model.

Do not connect the battery yet.

Switch on the controller. The Power LED will start to flash. Place the zoopa Q165 RIOT on an even surface. Now connect the battery to the zoopa Q. The LED of the model switches on. Now move up the gas stick (left) until it's end position and move it down again. Controller and model are now paired.

Check the polarity before you connect the battery !

First tries and flight advices

Before you start your first flight tests, make sure that there are no other people or animals around. Keep an area of 3x3 meters free!

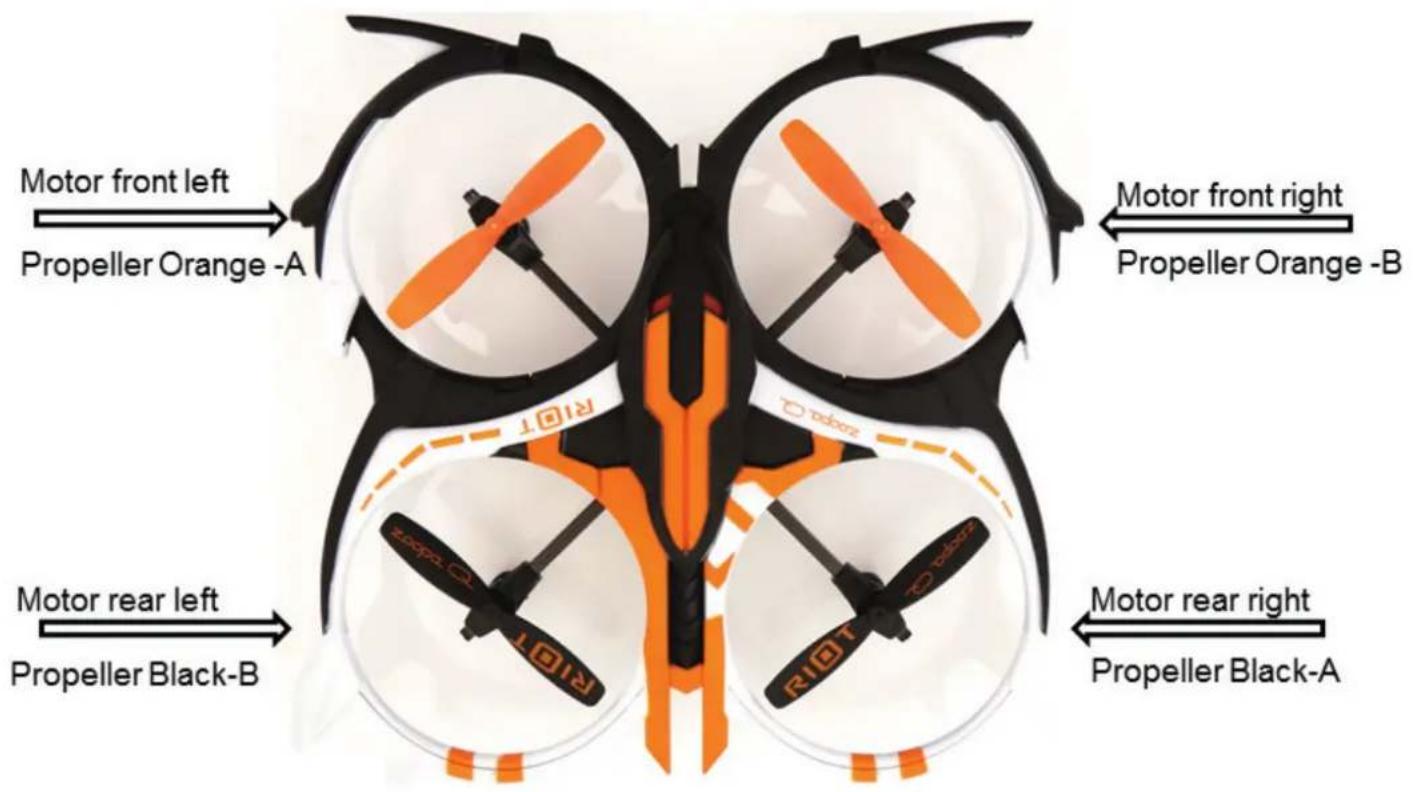

The orange blades show the front side of the model. The black blades show the tail of the quadrocopter. The different colors provide a simple orientation during flight.

Power the gas slowly to test all functions at the beginning.

Rise / Descent

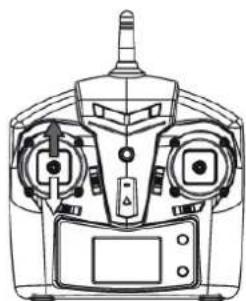

Move up the gas stick (left) to lift the model and move it down to let it sink.

Right / Left

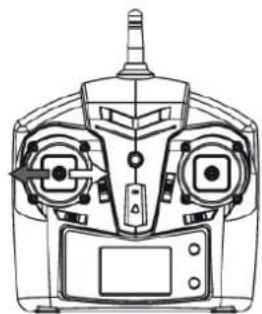

Move the Controllstick (right) to the left or right, to let the model pan to the left and right.

Turn

Move the left stick to the left and right, to turn the model around its own axis.

Forwards/ Backwards

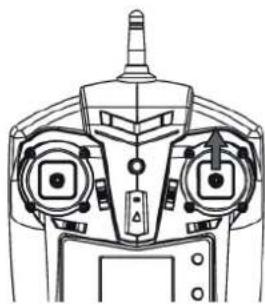

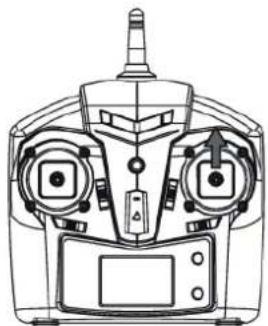

Move the Controllstick (right) up and down, to fly forwards or backwards.

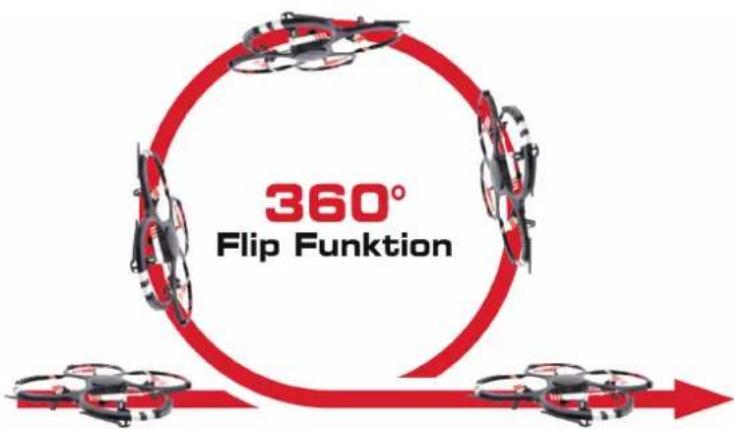

360° Flip Mode

The model offers a Flip Mode. Do not perform the flip before you are familiar with the model and the controls.

To perform the flip, the model should have gained sufficient height (at least 3 meters). Hold the zoopa Q165 RIOT on height. Now press the Flip button (upper right button on the controller) and keep it pressed. Move up the right control stick and release it immediately – the zoopa Q165 RIOT will now perform the Flip.

Speedmodes

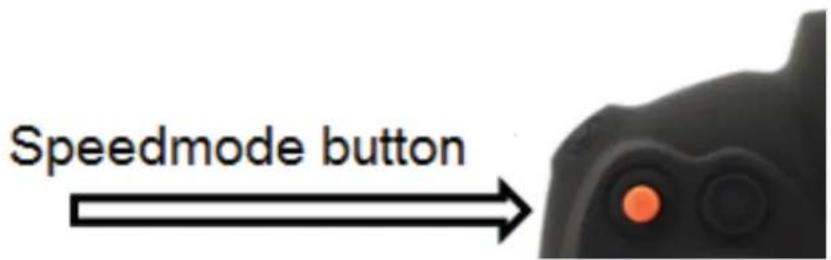

You can choose between 3 different flight modes. Press the speedmode-button (upper left corner) on the controller, to change the mode.

Mode 1: Preset, the model flies at reduced speed. Recommended for beginners.

Mode 2: The model flies faster and more agile, the radius of movement is bigger.

Mode 3: The model flies at highest possible speed.

Troubleshooting

Error	Source	Solution
The model does not react on commands	Controller batteries are not inserted correctly. Batteries are empty Model battery empty	Check the batteriesReplace the batteriesRecharge the battery
The model makes strange sounds	Blades/gears are damaged	Check the blades/gears. Replace them if needed
The controller has no connection to the model	Weak batteryController batteries are not inserted correctlyBattery defectiveThe model is out of range	Recharge the batteryReplace the batteriesThe battery needs to be replaced
The flight is not sufficient	The motors have lost performance	Check the motors and replace them if needed

If you have any further problems, feel free to contact us! Our details are quoted on the following page at "Service & Support".

Battery Maintenance

To get the best performance from the integrated LiPo- battery, please note:

-Never leave the model in activated state, always switch off when not using

-For storage (more than 2 days), charge the battery for at least 85%.

-For longer storage, (>5 days) disconnect the battery from the model.

-Only store at room temperature.

-Regularly charge the battery every 3 months if the model is not being used.

If these points are not followed, the LiPo battery can be damaged or destroyed.

Spares and Accessories

Art. No.	Description
ZQ01660 zoopa Q 165 RIOT Quadrocopter
ZQ0166-A zoopa Q 165 RIOT Body / Chassis
ZQ0166-B zoopa Q 165 RIOT LiPo battery
ZQ0166-C zoopa Q 165 RIOT Propeller Set
ZQ0166-E zoopa Q 165 RIOT Mainboard
ZQ0166-F zoopa Q 165 RIOT USB-Charger
ZQ0166-G zoopa Q 165 RIOT Motor Set
FCHD43 USB Charging adaptor

Warranty

The consumer is without prejudice to any claim against the seller granted a guarantee to the following conditions:

» New devices and their components exhibiting defects within 24 months from the purchase due to manufacturing and / or material faults, are ACME the game company at its option, reflecting the current state of the art
Exchanged or repaired free device. For wear parts (eg batteries, motors, etc.), this warranty is valid or 3 months from purchase.
» This warranty does not apply if the device defect is due to improper treatment and / or failure to comply with these instructions.
» This warranty does not extend to self- paid by the customer services.
» Warranty claims are to make immediate payment of the Guarantee case.
» Ownership of devices or components that are returned to ACME the game company as part of the exchange, shall become the property of ACME the game company.
» By services rendered under warranty, the warranty period is not extended.
» So far there is no warranty case to ACME the game company reserves the right to charge the customer for replacement, repair, or shipping costs. The customer will be informed in advance.

Damages resulting from mechanical influences are not covered under warranty.

Service & Support

ACME the game company GmbH

Boikweg 24

33129 Delbrück

Germany

© Copyright 2015 ACME the game company GmbH

1x Quadrocoptère zoopa Q165 RIOT

1x Chargeur USB

1x Batterie LiPo

1x hélice de rechange

Avant/ Arrière

Mode flip à 360°

Sélection du mode

ACME the game company GmbH

Boikweg 24

33129 Delbrück

Allemagne
