Product Type	Automatic Wrist Blood Pressure Monitor
Brand	Walgreens
Model	WGNBPW-710
Dimensions	2.68 x 2.95 x 1.15 inches (68 x 75 x 29.3 mm)
Weight (without batteries)	0.19 lbs (88 g)
Power Source	Two 1.5V DC “AAA” alkaline batteries
Measurement Method	Oscillometric
Measurement Range (Pressure)	40–280 mmHg
Measurement Range (Pulse)	40–199 beats/min
Accuracy (Pressure)	±3 mmHg
Accuracy (Pulse)	±5% of reading
Memory Capacity	60 readings
Auto Shut-off	1 minute after last button operation
Wrist Circumference Range	5.3–7.7 inches (13.5–19.5 cm)
Risk Category Index	Compares readings to NIH blood pressure standards
Irregular Heartbeat Detector	Indicates pulse irregularity during measurement
Date/Time Setting	Adjustable via DATE/TIME SET button
Warranty	5-year limited warranty
Care & Cleaning	Clean with a slightly damp soft cloth; avoid chemicals
Operating Environment	Temperature: 41–104°F (5–40°C), Humidity: 15–93% RH
Storage/Transport Environment	Temperature: -13–158°F (-25–70°C), Humidity: <93% RH
Included Accessories	2 “AAA” alkaline batteries, instruction manual
Intended Use	Home healthcare; not for diagnosis or treatment
Not Suitable For	Individuals with arrhythmias, pregnant women, children under 18

Frequently Asked Questions - WGNBPW-710 Walgreens

How do I set the date and time on the WGNBPW-710?

Press the DATE/TIME SET button on the top of the monitor. The hour will blink; adjust it using the + button, then press DATE/TIME SET again to confirm. Repeat for minutes, month, day, and year.

What do the error codes on the display mean?

EE: Measurement error – reposition cuff and keep wrist still. E1: Air circuit abnormality – measure again. E2: Pressure exceeded 300 mmHg – turn unit off and retry. E3: Cannot determine measurement data – measure again. EP: System error – measure again.

How should I position my wrist for an accurate reading?

Place the cuff on your bare left wrist with palm facing up. Ensure the cuff edge is about 1/4–1/2 inch (1 cm) from your palm. Fasten it snugly. Rest your elbow on a table so the cuff is at heart level. Sit upright, do not talk or move during measurement.

Can I use this monitor on my right wrist?

Yes, if directed by your physician due to poor circulation in your left arm. However, always use the same wrist for consistent readings. The default recommendation is the left wrist.

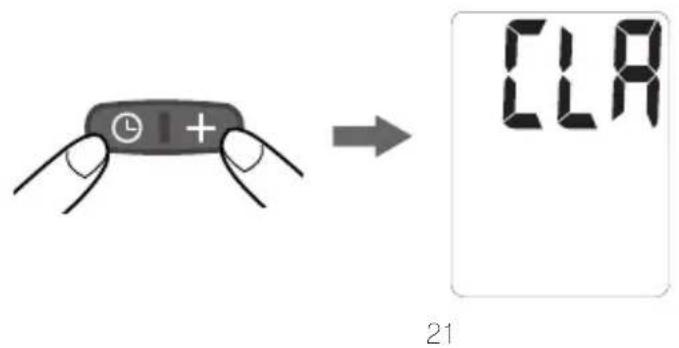

How do I clear all stored memory readings?

Press and hold the MEMORY and + buttons simultaneously while in memory recall mode. All data will be erased automatically.

What does the Irregular Heartbeat Detector (IHB) icon mean?

The IHB icon appears when a pulse irregularity is detected. Movement, talking, or an actual irregular heartbeat can cause this. If the icon appears frequently, consult your physician. The device is not a substitute for cardiac examination.

How do I clean and maintain the blood pressure monitor?

Clean the monitor body and cuff with a slightly damp, soft cloth. Do not use thinners, alcohol, or petrol. Remove batteries if not using for a long time. Do not immerse in water or expose to extreme temperatures.

Is this monitor suitable for people with arrhythmias?

No. This product is not suitable for individuals with arrhythmias. It may have difficulty obtaining accurate readings for pregnant women, those with diabetes, poor circulation, kidney problems, or stroke survivors.

What should I do if the monitor does not turn on?

Check that batteries are installed correctly with proper polarity. Replace with two new 'AAA' alkaline batteries if the battery symbol appears or display is blank. Ensure battery contacts are clean.

How accurate is the WGNBPW-710 compared to a manual reading?

Blood pressure measurements from this device are equivalent to those obtained by a trained observer using the cuff/stethoscope method, within ±3 mmHg for pressure and ±5% for pulse rate, as per American National Standard.

USER MANUAL WGNBPW-710 Walgreens

AUTOMATIC WRIST

Blood Pressure Monitor

Color calibration bar with grayscale and multicolor sections, no text or symbols present

TABLE OF CONTENTS

INTRODUCTORY INFORMATION:

Important Product Notices and Safety Instructions .... 3

About Blood Pressure....5

Blood Pressure Standard....5

How This Blood Pressure Monitor Works....7

USAGE INFORMATION:

Name/Function of Each Part 8

Display Explanations....9

Installing Batteries 11

Date & Time Set Procedure....13

Applying the Cuff....14

Correct Measurement Posture 15

Measurement Procedure....16

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

Risk Category Index 19

Irregular Heartbeat Detector (IHB) 20

Recalling Values from Memory......21

Clearing Values from Memory 21

Important Notes Regarding Your Blood Pressure Measurement....22

Care, Maintenance & Cleaning 23

Potential for Electromagnetic Interference....25

Electromagnetic Compatibility (EMC)......26

Troubleshooting....28

Specifications 29

5 Year Limited Warranty 31

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

IMPORTANT PRODUCT NOTICES AND SAFETY INSTRUCTIONS

When using your blood pressure monitor, basic precautions should always be followed. Please read and follow all instructions and warnings before using this product. Save these instructions for future reference.

• Please note that this is a home healthcare product only and it is not intended to serve as a substitute for the advice of a physician or medical professional.
• This device uses the oscillometric method to measure systolic and diastolic blood pressure, as well as heart rate.
• Do not use this device for diagnosis or treatment of any health problem or disease. Measurement results are for reference only. Consult a healthcare professional for interpretation of blood pressure measurements. Contact your physician if you have or suspect any medical problem. Do not change your medications without the advice of your physician or healthcare professional.
• This product is not suitable for people with arrhythmias. This device may have difficulty determining the proper blood pressure for pregnant women, individuals with irregular heartbeat, diabetes, poor circulation of blood, kidney problems or for users who have suffered from a stroke.
• Excessive use may result in blood flow interference, which is likely to cause uncomfortable sensations, such as partial subcutaneous hemorrhage, or temporary numbness to your wrist. In general these symptoms should not last long. However, if you do not recover in time, please seek advice from a medical professional.

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

• Consult your physician before measuring blood pressure at the wrist if you have any of the following conditions: Severe hypertension, severe diabetes, severe arteriosclerosis, severe kidney disease or vascular disease that may compromise circulation.
• The pulse display is not suitable for checking the frequency of heart pacemakers.
• Electromagnetic interference: The device contains sensitive electronic components. Avoid strong electrical or electromagnetic fields in the direct vicinity of the device (e.g. mobile telephones, microwave ovens). These may lead to temporary impairment of measurement accuracy.
• Consider the electromagnetic compatibility of the device (ex. power disturbance, radio frequency interference etc.) Please use this device indoors only.
  • Use blood pressure monitor only for its intended use.
• Do not wrap the cuff around body parts other than your wrist.
  • Not for use by or on persons under the age of 18.
• Do not use this device on infants, children, or those who cannot express their own intention.
  • Use only 1.5V "AAA" alkaline batteries for power supply.

Blood pressure measurements determined with this device are equivalent to those obtained by a trained observer using the cuff/stethoscope auscultatory method, within the limits prescribed by the American National Standard, Manual, electronic, or automated sphygmomanometers.

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

ABOUT BLOOD PRESSURE

What is Blood Pressure?

Blood pressure is the pressure exerted on the artery walls while blood flows through the arteries. The pressure measured when the heart contracts and sends blood out of the heart is systolic (highest) blood pressure. The pressure measured when the heart dilates with blood flowing back into the heart is called diastolic (lowest) blood pressure.

Why Measure Your Blood Pressure?

Among today's various health problems, those associated with high blood pressure are very common. High blood pressure dangerously correlates with cardiovascular diseases. Therefore, blood pressure monitoring is important for identifying those at risk.

BLOOD PRESSURE STANDARD

The table on page 6 contains defined levels for hypertension that are publicly available from the National Heart Lung and Blood Institute at the U.S. National Institutes of Health (NIH) (http://www.nhlbi.nih.gov/health/dci/Diseases/Hbp/HBP_Whatls.html). Users can compare their own blood pressure readings against these defined levels to determine if they may be potentially at increased risk.

This table is applicable to most adults aged 18 and older.

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

Blood pressure tends to go up and down, even in people who normally don't have high readings. If your numbers stay above the "normal" range most of the time, you may be at increased risk and should consult your physician.

Category Systolic (mmHg) Diastolic (mmHg)
Normal Less than 120	and Less than 80
Prehypertension 120-139 or 80-89
High Blood Pressure
Stage 1 140-159 or 90-99
Stage 2 160 or higher	or 100 or higher

Although one can easily find where their own blood pressure readings fall on this table, this monitor comes equipped with a Risk Category Index that automatically compares each reading to the defined levels and provides a helpful cue if your reading falls into one of the stages that could potentially indicate increased risk. See page 19 for more information on this feature.

Please note that cues provided by this monitor are only intended to assist you in using this table. The table and cues are only provided for convenience to help you understand your non-invasive blood pressure reading as it relates to the NIH information. They are not a substitute for a medical examination by your physician. It is important for you to consult with your physician regularly. Your physician will tell you your normal blood pressure range as well as the point at which you may actually be considered to be at risk.

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

HOW THIS BLOOD PRESSURE MONITOR WORKS

This monitor uses innovative technology to detect your blood pressure. This technology enables the monitor to automatically inflate and deflate at the appropriate level for each individual. With one touch of a button, the cuff will automatically inflate to block the blood flow through your artery. Next, the deflation process starts.

Please note that any muscle movement during inflation or deflation will cause measurement error. When measurement is complete, the monitor will display your systolic pressure, diastolic pressure, and pulse readings.

The monitor automatically finds where your measurement results fall on the NIH's National Heart Lung and Blood Institute's table and provides a cue if your reading falls into one of the stages that could potentially indicate increased risk. See page 19 for more information on this feature.

The appearance of the [C-O] indicates that a pulse irregularity consistent with an irregular heartbeat was detected during measurement. Refer to page 20 for more information on the Irregular Heartbeat Detector.

Color calibration bar with grayscale and multicolor squares, no text or symbols present

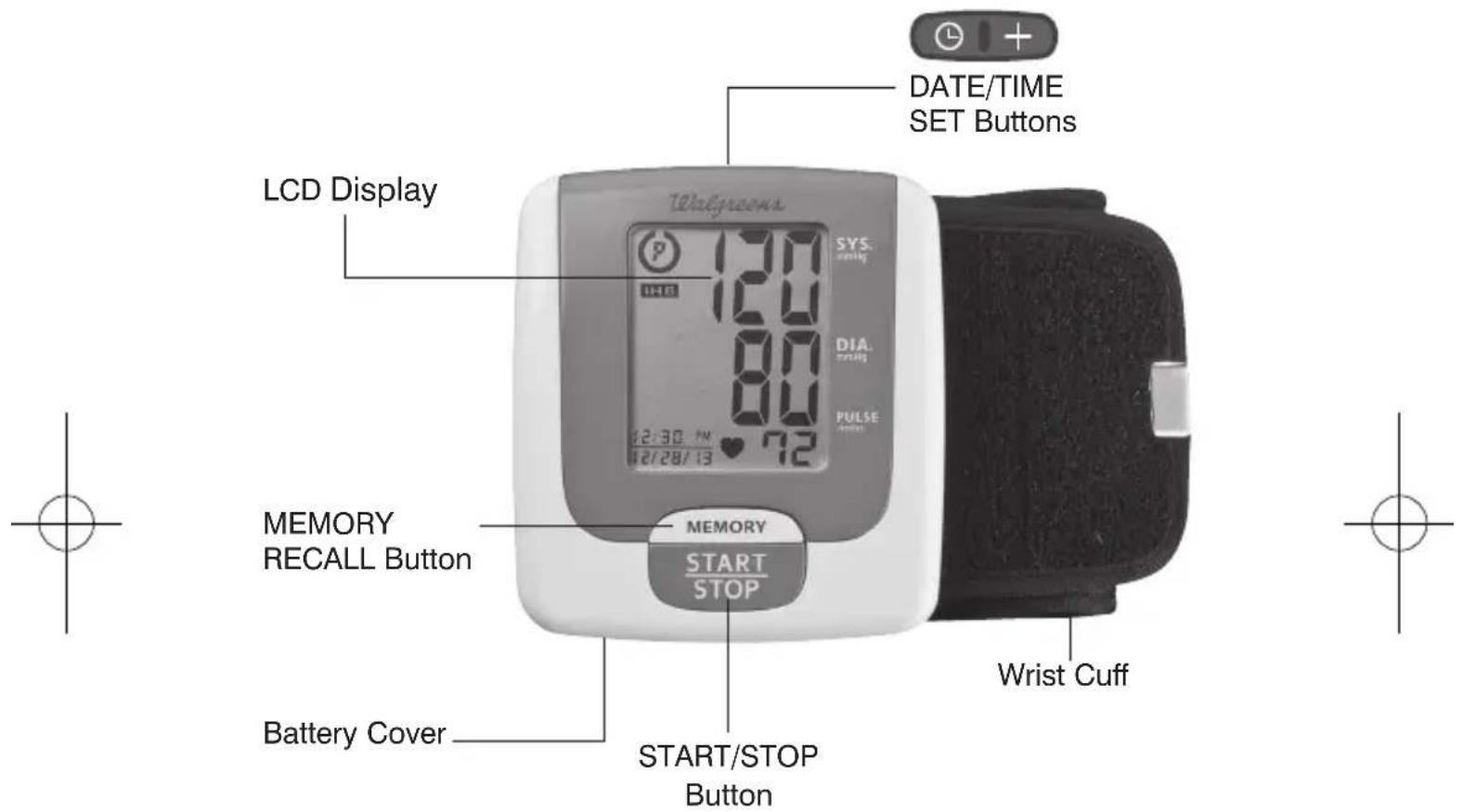

NAME/FUNCTION OF EACH PART

Accessories for unit :

2 "AAA" size, 1.5V alkaline batteries included with the unit.

Color calibration bar with grayscale and multicolor sections, no text or symbols present

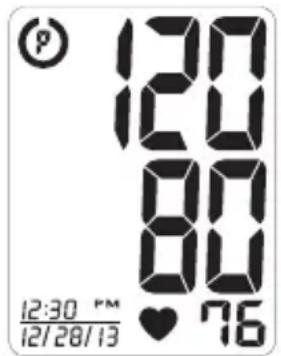

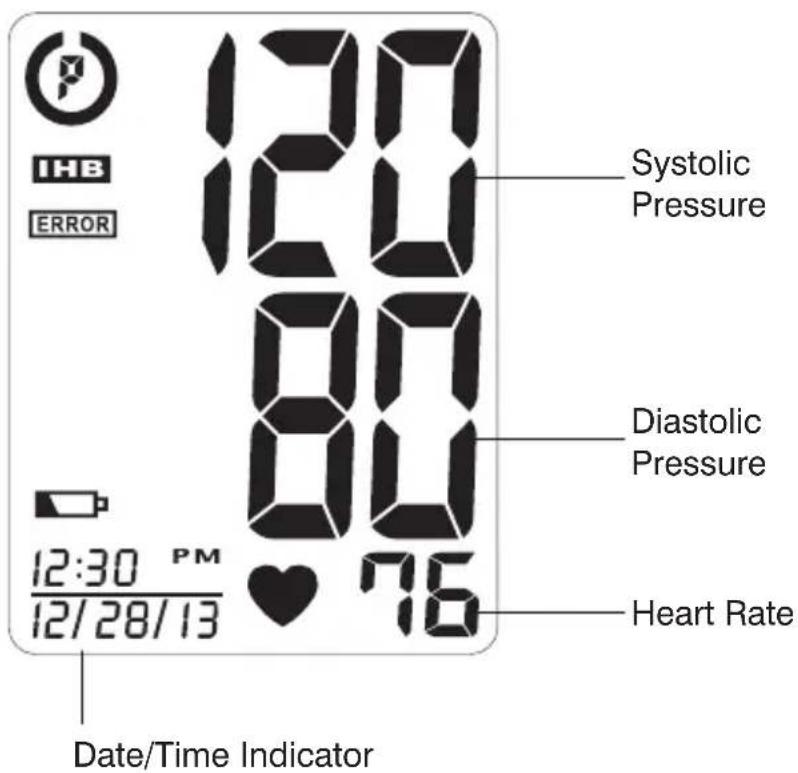

DISPLAY EXPLANATIONS

Color calibration bar with grayscale and multicolor sections, no text or symbols present

Display Symbols:

	Weak Battery Symbol: Appears when batteries should be replaced.
	Pulse Symbol: Shows the heart rate per minute.
	Irregular Heartbeat Detector: See page 20 for more information.
	Risk Category Index: See page 19 for more information.

If ERROR and any of the following letters and numbers appear in the area that systolic pressure should be displayed, an error has occurred with your reading. See Troubleshooting section of this manual for more information.

EE	Measurement Error: Wrap the cuff correctly and keep wrist steady during measurement. Measure again.
E1	Air Circuit Abnormality: Measure again.
E2	Pressure Exceeding 300 mmHg: Switch the unit off to clear, then measure again.
E3	Error Determining Measurement Data: Measure again.
EP	System Error: Measure again.

Color calibration bar with grayscale and multicolor sections, no text or symbols present

INSTALLING BATTERIES

1. The battery cover is located along the side of the monitor. Remove battery cover by pressing down and pulling away from the monitor.

Illustration of a closed device with an arrow indicating a component, no text or symbols present

1. Install batteries according to the polarity indications inside the compartment (as shown in figure 2). Battery Type: 2 Alkaline LR03 "AAA" size

Line drawing of a battery pack with two batteries and an open casing, labeled with numbers 1, 2, and 3 (no text or symbols on the diagram itself)

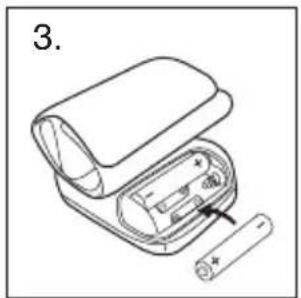

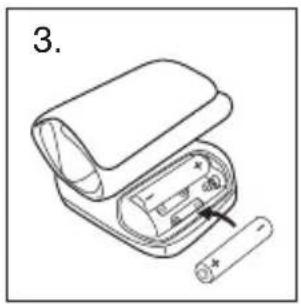

1. Insert the other battery, according to the polarity indications inside the compartment (as shown in figure 3).

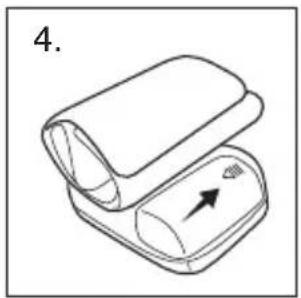

1. Replace the cover by inserting it back into place.

Line drawing of a medical device with an arrow indicating direction (no text or symbols)

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

Replace the batteries if:

• The weak battery symbol appears on the display.
• Nothing appears on the display when the power is switched on.

As the supplied batteries are for test only, they may be discharged earlier than batteries you buy in stores. Replace all batteries at one time (as simultaneous set). Use only 1.5V “AAA” alkaline batteries. Remove batteries when the unit is not in use for extended periods of time. Date and time will need to be reset if batteries are removed or replaced. Clean contacts on battery and in battery compartment with a soft dry cloth each time you install batteries.

Note:

Batteries are hazardous waste. Do not dispose of them together with the household garbage.

Color calibration bar with grayscale and multicolor sections, no text or symbols present

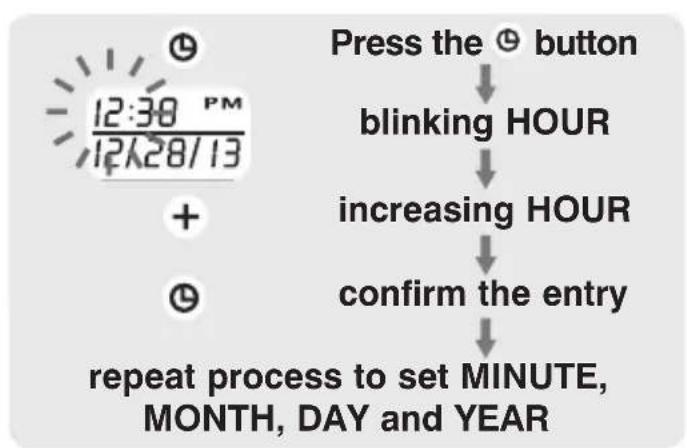

DATE & TIME SET PROCEDURE

1. To adjust the date and time, press the DATE/TIME SET button 🔒 located on the top of the monitor.
2. The display will show a blinking number showing the HOUR. Change the HOUR by pressing the + button. Each press will increase the number by one in a cycling manner. Press the DATE/TIME SET button 📋 again to confirm the entry, and the screen will show a blinking number representing the MINUTE.
3. Change the MINUTE, MONTH, DAY and YEAR as described in Step 2 above, using the + button to change the numbers and the DATE/TIME SET button ⏻ to confirm the entries.

Color calibration bar with grayscale and multicolor sections, no text or symbols present

APPLYING THE CUFF

1. Remove all watches, wrist jewelry, etc. prior to attaching the
   wrist monitor. Clothing sleeves should be rolled up and the cuff should be wrapped around bare skin for correct measurements.
2. Apply cuff to left wrist with palm facing up as shown in Fig. A.
3. Make sure the edge of the cuff is about 1/4"\~1/2" (1 cm) from the palm as shown in Fig. B.
4. In order to ensure accurate measurements, fasten the hook and loop strap securely around your wrist so there is no extra space between the cuff and the wrist. If the cuff is not wrapped tight enough, the measurement values will not be accurate.
5. If your physician has diagnosed you with poor circulation in your left arm, place the cuff around your right wrist as shown in Fig. C.

Note:

• This device should not be used when your wrist is wounded or injured.
• If it is not possible to use the cuff on your left wrist, it can also be used on your right wrist. However, all measurements should be made using the same wrist.

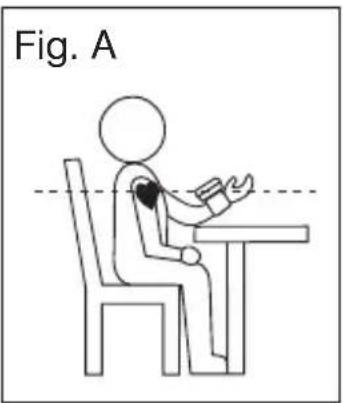

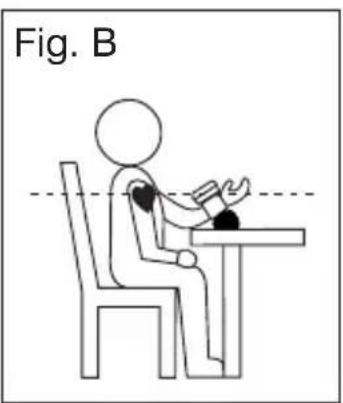

CORRECT MEASUREMENT POSTURE

1. Place your elbow on a table so that the cuff is at the same level as your heart as shown in Fig. A. Relax your entire body, especially between your elbow and fingers.

Note: Your heart is located slightly below your armpit.

1. If the cuff is not at the same level as your heart or if you cannot keep your arm completely still throughout the reading, use a soft object such as a folded towel to support your wrist as shown in Fig. B.

2. Turn your palm upwards.

3. Sit upright in a chair, and take 5-6 deep breaths.

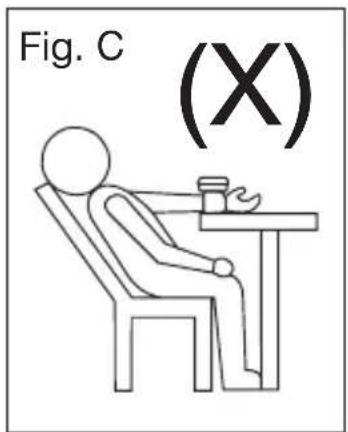

Avoid leaning back while the measurement is being taken as shown in Fig. C.

Color calibration bar with grayscale and multicolor sections, no text or symbols present

MEASUREMENT PROCEDURE

Important Notes:

• Position the monitor at the same level as your heart during measurement to ensure accurate readings.
• Blood pressure changes with every heartbeat and is in constant fluctuation throughout the day.
• Blood pressure measurement can be affected by the position of the user, his or her physiologic condition and other factors. For greatest accuracy, wait 1 hour after exercising, bathing, eating, drinking beverages with alcohol or caffeine, or smoking to measure blood pressure.
• Before a measurement, it is suggested that you sit quietly for 15 minutes as measurements taken during a relaxed state will have greater accuracy. You should not be physically tired or exhausted while taking a measurement.
• During the measurement, do not talk or move your arm or hand muscles.
  • See page 22 for additional notes regarding your blood pressure measurement.

If you are using this blood pressure monitor for the first time, please remove the protective film from the screen.

Color calibration bar with grayscale and multicolor squares, no text or symbols present

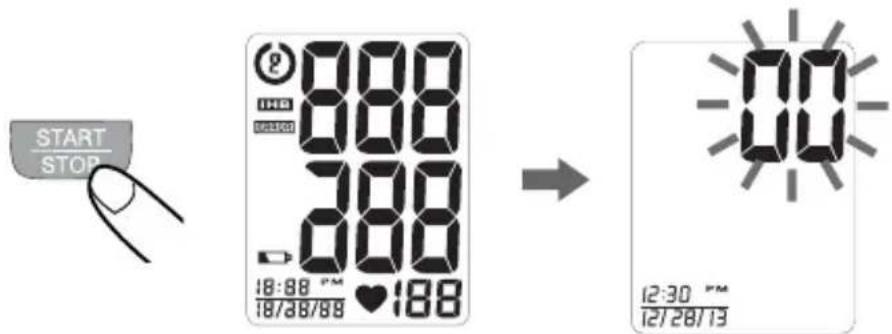

1. With the cuff wrapped around your wrist, press the START/STOP button. Do not inflate the cuff unless it is wrapped around your wrist. All digits will light up, checking the display functions. The checking procedure will be completed after about 3 seconds.

1. After all symbols disappear, the display will show "00". The monitor is "Ready to Measure" and will automatically inflate the cuff to begin measurement. The cuff will then begin deflating as measurement continues.

Note:

The monitor will re-inflate automatically if the system detects that your body requires more pressure for measurement.

Color calibration bar with grayscale and multicolor sections, no text or symbols present

1. When the measurement is completed, the cuff will deflate entirely and systolic pressure, diastolic pressure and pulse will be shown simultaneously on the LCD screen. The measurement is then automatically stored into memory.

Note:

• This monitor automatically turns off approximately 1 minute after last operation. You may also press the START/STOP button to turn the unit off.
• To interrupt the measurement, you may press the START/STOP button (recommended), the MEMORY button or DATE/TIME SET (buttons). The cuff will deflate immediately after a button is pressed.

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

RISK CATEGORY INDEX

This monitor comes equipped with a Risk Category Index that automatically compares each reading to defined levels established by the U.S. National Institutes of Health's (NIH) National Heart Lung and Blood Institute as described earlier in this manual, and provides a helpful cue if your reading falls into one of the stages that could potentially indicate increased risk. No cue is given if the reading falls in the normal range as defined by NIH. Please note that cues provided by this monitor are only intended to assist you in using this table. The table and cues are only provided for convenience to help you understand your non-invasive blood pressure reading as it relates to the NIH information. They are not a substitute for a medical examination by your physician. It is important for you to consult with your physician regularly. Your physician will tell you your normal blood pressure range as well as the point at which you may actually be considered to be at risk.

Stage 2 Hypertension

Prehypertension

Stage 1 Hypertension

Normal (No Symbol)

Color calibration bar with grayscale and multicolor sections, no text or symbols present

IRREGULAR HEARTBEAT DETECTOR (IHB)

The appearance of the IHB icon indicates that a pulse irregularity consistent with an irregular heartbeat was detected during measuremer

Usually this is not a cause for concern. However, if the symbol appears often, we recommend you seek medical

advice. Please note that the device does not replace a cardiac examination, but serves to detect pulse irregularities at an early stage.

Irregular Heartbeat Detector

Movement, shaking or talking during the measurement can result in pulse irregularities that may cause the appearance of this icon. Therefore, it is of great importance to not move or talk during measurement.

To determine the presence of an irregular heartbeat, the average of the heartbeat intervals is calculated with the first 3 normal effective heartbeat values. It is important to note that the average is not a strict mathematical averaging of all recorded intervals. At least 3 beats with 25% or greater difference from the average heartbeat interval will generate the IHB icon on the screen.

IMPORTANT INFORMATION:

This blood pressure monitor is not designed for use by people with arrhythmias nor for diagnosing or treating an arrhythmia problem. As a safeguard, we recommend that if you have arrhythmias such as atrial or ventricular premature beats and atrial fibrillation or any other special conditions you should check with your physician before using your blood pressure monitor.

Color palette bar with grayscale gradient and a central crosshair (no text or symbols)

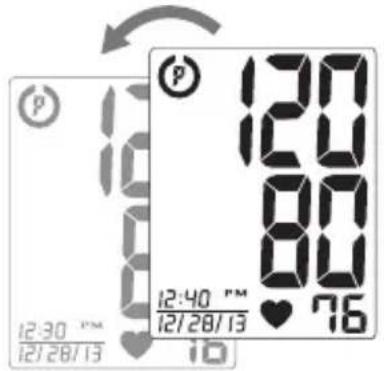

RECALLING VALUES FROM MEMORY

1. Press the MEMORY button to access the memory.

1. Every new press of the MEMORY button will recall a previous reading. The latest reading will be recalled first.

CLEARING VALUES FROM MEMORY

Press and hold the Ⓐ and + buttons at the same time while in memory recall mode and the data will be erased automatically.

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

IMPORTANT NOTES REGARDING YOUR BLOOD PRESSURE MEASUREMENT

• Take your reading in a comfortable environment as measurements can be affected by hot or cold temperatures. Take your blood pressure at normal body temperature.
- Do not move or talk during measurement as this can elevate readings.
- Do not move or cross legs during measurement. Keep feet flat on floor.
- Do not touch cuff or monitor during measurement procedure.
- It is suggested that you take your measurements at the same time each day and use the same wrist for consistency.
- Users should wait a minimum of 5 minutes before taking additional measurements. More time may be necessary depending upon your physiology.
- The measurement results that users receive are for reference only. If users have any blood pressure concerns, please consult a physician.
- Once inflation reaches 300 mmHg, the unit will deflate automatically for safety reasons.
• This product is not suitable for people with arrhythmias.
- This device may have difficulty determining the proper blood pressure for pregnant women and for users with irregular heartbeat, diabetes, poor circulation of blood, kidney problems, or for users who have suffered a stroke.

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

CARE, MAINTENANCE & CLEANING

• Clean the blood pressure monitor body and cuff carefully with a slightly damp, soft cloth. Do not press. Do not wash cuff or use chemical cleaner on it. Never use thinner, alcohol or petrol (gasoline) as a cleaner.
• Leaky batteries can damage the unit. Remove the batteries when the unit will not be used for a long time.
• Follow local ordinances and recycling instructions regarding disposal or recycling of the device and device components, including batteries.
• If the unit is stored near freezing, allow it to acclimate to room temperature before use.
• This blood pressure monitor is not field serviceable. You should not use any tool to open the device nor should you attempt to adjust anything inside the device. If you have any problems with this device, please contact HoMedics Consumer Relations (contact information on warranty page).
• Do not immerse the unit in water as this will result in damage to the unit.
• Do not subject the monitor or cuff to extreme temperatures, humidity, moisture, or direct sunlight. Protect from dust.

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

• Do not fold the cuff tightly.
• Do not disassemble the monitor or cuff. If in need of repair, refer to the warranty section of this manual.
• Do not subject the monitor to extreme shocks (do not drop on floor).
• Do not inflate the cuff unless wrapped around wrist.
• Do not wrap the cuff around body parts other than your wrist.
• Do not drop or insert any object into any opening.
• This monitor may not meet its performance specifications if stored or used outside of these temperature and humidity ranges:

• Storage/Transportation • Environment

Temperature:

-13°F\~158°F

(-25^ 70^)

Humidity:

Less than 93% RH

Operation Environment

Temperature:

41^ F 104^ F

(5°C \~40°C)

Humidity:

15 \~ 93% RH

Color calibration bar with grayscale and multicolor sections, no text or symbols present

POTENTIAL FOR ELECTROMAGNETIC INTERFERENCE

To avoid inaccurate results caused by electromagnetic interference between electrical and electronic equipment, do not use the device near

a cell phone or microwave oven. For most wireless

communication devices, it is recommended to maintain a distance of 10.8 feet (3.3m) in order to avoid electromagnetic interference.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.

Such modifications could void the user authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

ELECTROMAGNETIC COMPATIBILITY (EMC)

• Guidance and manufacturer's declaration – electromagnetic emissions

The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments:

Emissions test Compliance Electromagnetic environment – guidance
RF emissions CISPR 11 Group 1 RF energy is used only to maintain device's operation. Therefore, its RF emissions are so low that it's not likely to cause any interference in nearby electronic equipment.
RF emissions CISPR 11 Class B
Harmonic emissions IEC 61000-3-2	Not Applicable	The device is suitable for use in all establishments, including domestic establishments, and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes.
Voltage fluctuations/ flicker emissions IEC 61000-3-3	Not Applicable

• Guidance and manufacturer's declaration – electromagnetic immunity

The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments:

Immunity test IEC	60601 test level Compliance level Electromagnetic environment-guidance
Electrostatic discharge (ESD)IEC 61000-4-2	± 6 kV contact± 8 kV air	± 6 kV contact± 8 kV air	Floors should be wood, concrete or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30 %.
Power frequency (50/60 Hz)magnetic fieldIEC 61000-4-8	3 A/m 3 A/m Powerfrequency magnetic fields

- Recommended separation distances between portable and mobile RF communication equipment and the device.

The device is intended for use in an electromagnetic environment where radiated RF disturbances are under control. User can help prevent electromagnetic interference by keeping the device at a minimum distance from portable and mobile RF communications equipment (transmitters). Below table details the maximum output power of transmitter:

Rated maximum output power of transmitter W	Separation distance according to frequency of transmitter m
	150 kHz to 80 MHz Not Applicable	80 MHz to 800 MHz d = 1.2	800 MHz to 2.5 GHz d = 2.3
0.01 NA 0.12	0.23
0.1	NA 0.38 0.73
1	NA	1.2	2.3
10 NA	3.8	7.3
100	NA	12	23

Color calibration bar with grayscale and multicolor squares, no text or symbols present

For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.

NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

• Guidance and manufacturer's declaration – electromagnetic immunity

The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments:

Immunity test	IEC 60601 test level	Compliance level	Electromagnetic environment – guidance
Conducted RFIEC 61000-4-6Radiated RFIEC 61000-4-3	3 Vrms150 kHz to80 MHz3 V/m80 MHz to2.5 GHz	Not Applicable3 V/m	Portable and mobile RF communications equipment should be used no closer to any part of the device, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.Recommended separation distanced = 1.2 80 MHz to 800 MHzd = 2.3 800 MHz to 2.5 GHzwhere P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in metres (m).Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey, a should be less than the compliance level in each frequency range.bInterference may occur in the vicinity of equipment markedwith the following symbol:[IMAGE]
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the device is used exceeds the applicable RF compliance level above, the device should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the device.b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.

TROUBLESHOOTING

If any abnormality arises during use, please check the following points:

SYMPTOMS	POSSIBLE CAUSES	CORRECTION
Unit does not turn on when the START/STOP button is pushed.	Batteries have run down.	Replace them with two new “AAA” alkaline batteries.
	Battery polarities have been positioned incorrectly.	Re-insert the batteries in the correct positions.
EE measurement error symbol shown on display or the blood pressure value is displayed excessively low (or high).	Cuff has been placed incorrectly.	Wrap the cuff properly so that it is positioned correctly. Measure again.
	Did you talk or move during measurement?	Keep wrist steady during measurement. Measure again.
	Shaking of the wrist with the cuff on.
E1 error symbol shown on display	Air circuit abnormality.	Measure again.
E2 error symbol shown on display	Inflation pressure exceeding 300 mmHg.	Switch the unit off, then measure again.
E3 error symbol shown on display	Error determining measurement data.	Measure again.
EP error symbol shown on display	System error. Measure again.

Note: If the unit still does not work, contact HoMedics Consumer Relations. Under no circumstance should you disassemble or attempt to repair the unit by yourself. Contact information for HoMedics Consumer Relations Department can be found on the warranty page.

SPECIFICATIONS

Power Source:	Two 1.5V DC “AAA” Alkaline batteries
Measurement Method:	Oscillometric
Measurement Range:	Pressure: 40~280 millimeters Mercury (mmHg)Pulse: 40~199 beats/minute
Accuracy:	Pressure: ±3 mmHgPulse: ±5% of reading
Pressure Sensor:	Semi-conductor
Inflation:	Pump driven
Deflation:	Automatic Pressure release valve
Memory Capacity:	60 memories
Auto-shut-off:	1 minute after last button operation
Operation Environment:	Temperature: 41°F~104°F (5°C~40°C)Humidity: 15% ~ 93% RH
Storage/Transportation Environment:	Temperature: -13°F~158°F(-25°C~70°C)Humidity: Less than 93% RH

Color calibration bar with grayscale and multicolor sections, no text or symbols present

Weight:	0.19 lbs (88 g) (without batteries)
Wrist Circumference:	5.3” - 7.7” (13.5cm - 19.5cm)
Accessories:	2 “AAA” alkaline batteries, instruction manual
Dimensions:	2.68”(L) x 2.95”(W) x 1.15”(H)68mm(L) x 75mm(W) x 29.3mm(H)
	Internally Powered equipmentType BF EquipmentIPx0-No special protection against the ingress of water.Not suitable for use in presence of flammable anesthetic mixture wth air, oxygen or nitrous oxide. Continuous operation with short-time loading.
	Follow instructions for use.

Note: These specifications are subject to change without notice.

Color calibration bar with grayscale and multicolor sections, no text or symbols present

Made exclusively for

Walgreens

For service or repair, do not return this unit to the retailer. Contact HoMedics Consumer Relations at:

Email:

cservice@

homedics.com

Phone:

1-800-466-3342

Business Hours:

8:30am-7pm ET

Monday-Friday

LIMITED FIVE YEAR WARRANTY

HoMedics sells its products with the intent that they are free of defects in manufacture and workmanship for a period of five years from the date of original purchase, except as noted below. HoMedics warrants that its products will be free of defects in material and workmanship under normal use and service. This blood pressure monitor meets the simulated measurement cycles test requirement per EN1060-3, part 8.10. This warranty extends only to consumers and does not extend to Retailers.

To obtain warranty service on your HoMedics product, contact a Consumer Relations Representative by telephone at 1-800-466-3342 for assistance. Please make sure to have the model number of the product available.

HoMedics does not authorize anyone, including, but not limited to, Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers, to obligate HoMedics in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/power supply; loss of power; dropped product; malfunction or damage of an operating part from failure to provide manufacturers recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of HoMedics.

This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications is not covered under this warranty.

Distributed by

HOMEDICS

HoMedics, LLC

3000 Pontiac Trail

Commerce

Township, MI

48390

Printed in China

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE, HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIEU OF REPAIR OR REPLACEMENT.

This warranty does not extend to the purchase of opened, used, repaired, repackaged and/or resealed products, including but not limited to sale of such products on Internet auction sites and/or sales of such products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of HoMedics.

This warranty provides you with specific legal rights. You may have additional rights which may vary from state to state. Because of individual state regulations, some of the above limitations and exclusions may not apply to you.

HoMedics® is a registered trademark of HoMedics, LLC.

© 2012-2013 HoMedics, LLC. All rights reserved.

IB-WGNBPW710A

P/N: 323102378 VER. 001

MONITOR AUTOMÁTICO

Color calibration bar with grayscale and multicolor sections, no text or symbols present

ÍNDICE

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

Color calibration bar with grayscale and multicolor swatches, no text or symbols present

Color calibration bar with grayscale and multicolor sections, no text or symbols present

Color calibration bar with grayscale and multicolor swatches, no text or symbols present

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

Line drawing of a closed device with an arrow indicating a point on its side (no text or symbols present)

Line drawing of a battery pack with two batteries and an open casing, labeled with number 2 (no text or symbols on the diagram itself)

Line drawing of a medical device with an arrow indicating direction (no text or symbols)

Color calibration bar with grayscale and multicolor sections, no text or symbols present

Color calibration bar with grayscale and multicolor swatches, no text or symbols present

Color calibration bar with grayscale and multicolor swatches, no text or symbols present

Color calibration bar with grayscale and multicolor swatches, no text or symbols present

Color calibration bar with grayscale and multicolor sections, no text or symbols present

Color calibration bar with grayscale and multicolor sections, no text or symbols present

Color calibration bar with grayscale and multicolor swatches, no text or symbols present

Color calibration bar with grayscale and multicolor swatches, no text or symbols present

ÍNDICE DE CATEGORÍA DE RIESGO

Color calibration bar with grayscale and multicolor sections, no text or symbols present

DETECTOR DE LATIDOS CARDÍACOS IRREGULARES (IHB)

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

CUIDADO, MANTENIMIENTO Y LIMPIEZA

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

Color calibration bar with grayscale and multicolor swatches, no text or symbols present

POTENCIAL DE INTERFERENCIA ELECTROMAGNÉTICA

Color calibration bar with grayscale and RGB color swatches, no text or symbols present

Color calibration bar with grayscale intensity scale and a central crosshair (no text or symbols)

Color calibration bar with grayscale and multicolor swatches, no text or symbols present

ESPECIFICACIONES

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

Color calibration bar with grayscale and multicolor sections, no text or symbols present

Commerce Township, MI 48390

Impreso en China

GARANTÍA LIMITADA POR CINCO AÑOS

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)
