TO1460BC - Oven BLACK & DECKER - Free user manual and instructions

Product Type	Toaster Oven
Brand	Black & Decker
Model	TO1460BC
Power Supply	120 V ~ 60 Hz
Power	1500 W (estimated)
Functions	Toast, convection baking, broil, keep warm
Timer	60 minutes with auto shut-off and audible signal
Temperature Range	66 °C to 230 °C (estimated)
Capacity	4 slices of bread (estimated)
Material	Metal, tempered glass door
Dimensions (W × D × H)	40 cm × 30 cm × 25 cm (estimated)
Weight	5 kg (estimated)
Care and Cleaning	Clean with soapy water, slide rack and removable crumb tray, dishwasher safe
Safety	Hot surface, auto shut-off, polarized plug
Spare Parts (numbers)	Crumb tray (T01460-01), slide rack (TO1460-02), baking pan (T01460-03), temperature selector (T01460-04), timer (T01460-05)
Warranty	2-year limited (US and Canada)
Use	Household use only

Frequently Asked Questions - TO1460BC BLACK & DECKER

How to clean the oven?

Before cleaning, make sure the oven is off, unplugged and cool. Clean the glass door with a damp sponge and soapy water. Removable parts (rack, crumb tray, baking pan) can be washed by hand or in the dishwasher. Do not use metal scouring pads.

How to use the toast function?

Set the temperature selector to TOAST. Set the function to TOAST. Turn the toast selector past 20, then back to the desired level. The oven turns off automatically at the end of the cycle and sounds an audible signal.

Can I use glass containers in the oven?

Yes, oven-safe glass or ceramic dishes without lids are acceptable. Make sure the top of the container is at least 3.81 cm (1 1/2 in) from the upper heating elements.

What if the oven does not heat?

Check that the timer is set (or set to STAY ON). Make sure the appliance is plugged into a working outlet. If the problem persists, contact customer service at 1-800-231-9786 (Canada).

How to set the timer?

Turn the timer selector past the 20 mark, then back to the desired time (up to 60 minutes). For continuous operation, choose the STAY ON option.

What is the maximum oven temperature?

The maximum temperature indicated for convection baking is about 230 °C (450 °F) (estimated). For keep warm, the range is 66 °C to 93 °C (150 °F to 200 °F).

The oven emits an odor on first use, is this normal?

Yes, it is normal to notice a slight odor and some smoke during the first minutes of use. This is due to the burning off of manufacturing residues. Make sure the room is well ventilated.

How to change the crumb tray?

The crumb tray is removable. To remove it, the oven door must be closed. Grasp the handle under the door and pull the tray outward. Discard crumbs, wash and dry it before replacing.

Can I leave the oven unattended?

It is not recommended to leave the oven unattended while operating. In case of fire, unplug the appliance but do not open the door. Keep the inside of the oven clean to reduce risks.

How to use the convection function?

Preheat the oven for at least 10 minutes to the desired temperature. Set the temperature selector and function to Bake. Thanks to the fan, heat circulates evenly for uniform cooking.

USER MANUAL TO1460BC BLACK & DECKER

CONVECTION COUNTERTOP OVEN

FOUR À CONVECTION POUR LE COMPTOIR

Customer Care Line:

USA 1-800-231-9786

Accessories/Parts (USA)

1-800-738-0245

For online customer service

and to register your product, go to

www.prodprotect.com/applica

Black and white photo of a Starbucks 10-inch toaster oven with a food item on the front (no visible text or symbols)

MODEL/MODÈLE

○ T01460BC

Please Read and Save this Use and Care Book

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions.
  Do not touch hot surfaces. Use handles or knobs.
  To protect against electrical shock do not immerse cord, plugs or appliance in water or other liquid.
  ○ Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
  Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
  The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
  ○ Do not use outdoors.
  Do not let cord hang over edge of table or counter, or touch hot surfaces.
  Do not place on or near a hot gas or electric burner, or in a heated oven.
  Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
  Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to OFF, then remove plug from wall outlet.
  Do not use appliance for other than intended use.
  ○ Use extreme caution when removing tray or disposing of hot grease.
  Oversized foods or metal utensils must not be inserted in a toaster oven, as they may create a fire or risk of electric shock.
  A fire may occur if the toaster oven is covered or touching flammable material including curtains, draperies, walls and the like, when in operation.
  Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts resulting in a risk of electric shock.

Extreme caution should be exercised when using containers constructed of other than metal or glass.
Do not store any material, other than manufacturer's recommended accessories, in this oven when not in use.
Do not place any of the following materials in the oven: paper, cardboard, plastic and the like.
Do not cover crumb tray or any part of this oven with metal foil. This will cause overheating of the oven.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

GROUNDED PLUG

As a safety feature, this product is equipped with a grounded plug, which will only fit into a three-prong outlet. Do not attempt to defeat this safety feature. Improper connection of the grounding conductor may result in the risk of electric shock. Consult a qualified electrician if you are in doubt as to whether the outlet is properly grounded.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

a) A short power-supply cord is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Longer extension cords are available and may be used if care is exercised in their use.
c) If an extension cord is used,

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance, and
2) The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel; in Latin America, by an authorized service center.

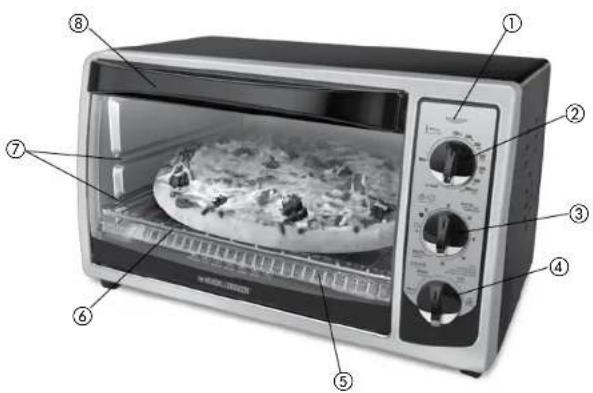

Product may vary slightly from what is illustrated.

Important:

When making toast or using the TIMER function, always turn knob past 20 and then turn back or forward to desired setting.

1. Power on indicator light

+ 2. Temperature (Temp °F/°C selector knob (Part # T01460-04)

† 3. 60-minute TIMER/TOAST shade selector knob (Part # T01460-05)

1. Cooking FUNCTION selector knob

† 5. Removable crumb tray (Part # T01460-01)

† 6. Slide rack/broil rack (Part # T01460-02)

1. Rack slots

2. Door handle

† 9. Bake pan/drip tray (Part # T01460-03) (not shown)

Note: † indicates consumer replaceable/removable parts

How to Use

This product is for household use only.

Caution: Do not leave oven unattended when in operation. Food ignition may occur. If this happens, unplug unit but DO NOT open door. To reduce the risk of fire, keep oven interior completely clean and free of food residues, oil, grease and any other combustible materials.

Caution: A fire may occur if the toaster oven is covered or touching flammable materials including curtains, draperies, walls and the like when in operation or after, when still hot. Do not place any of the following materials in the oven, on top of the oven, or in contact with the oven sides or bottom surfaces: paper, cardboard, plastic or the like.

GETTING STARTED

• Wash all removable parts as instructed in CARE AND CLEANING.
• Please go to www.prodprotect.com/applica to register your warranty.
• Select a location where this unit is to be used, allowing enough space from back of the unit and the wall to allow heat to flow without damage to cabinets and walls.
  • Plug unit into electrical outlet.

IMPORTANT INFORMATION ABOUT YOUR OVEN

• This oven gets hot. When in use, always use oven mitts or potholders when touching any outer or inner surface of the oven.
• During first few minutes of use you may notice smoke and a slight odor. This is normal and should cause no concern.

- You must set the timer or select STAY ON for the oven to function.

TOAST FUNCTION

It is not necessary to preheat the oven for toasting.

1. Set temperature selector knob (TEMP °F/°C) to TOAST position.
2. Set cooking FUNCTION selector knob to TOAST.
3. Open oven door and insert slide rack.
4. Place desired pieces of bread or bagel to be toasted directly on slide rack and close the door.
5. Turn toast shade selector knob to 20 and then turn back to desired toast shade.
   Note: You must set the toast shade selector knob as desired for the oven to begin toasting.

6. For best results, select the medium setting for your fist cycle, then adjust lighter or darker to suit your taste. The on indicator light comes on and remains on during toasting cycle. When toast cycle is complete, a signal bell sounds. The oven and the on indicator light go off.

7. Open the oven door and using oven mitt or pot holder, slide the rack out to remove the toast.

8. Unplug appliance when not in use.

CONVECTION BAKING

Convection uses a fan to circulate heat evenly for consistently better cooking.

Note: This oven has been designed with preset temperatures to accommodate convection baking. For best results, when baking or cooking, always preheat the oven for at least 10 minutes at the desired temperature setting.

1. Open oven door. Insert slide rack into the bottom slot.
2. Set temperature selector knob desired temperature setting.
3. Set cooking FUNCTION selector knob to Bake.

4. Turn time past 20 and then turn back or forward to desired baking time, including preheat time. The on indicator light comes on and remains on during the entire baking time. The heating elements will cycle on and off to maintain even heat distribution.

5. Once oven has preheated, open oven door and insert food. Close oven door.

You can cook your food 3 ways:

• Use the bake pan/drip tray placed on the slide rack
• Place bake pan/drip tray under the slide rack/broil rack.
• Place food directly on the slide rack/broil rack

Note: Be sure the top edge of the food or container is at least 1 12 ” (3.81 cm) away from upper heating elements.

1. Cook food according recipe or package instructions and check at minimum time to see if it is done.

2. Once cooking cycle is finished:

3. If not using the timer, signal bell sounds, the on indicator light goes off and the oven automatically turns off.

4. If the timer is not on, turn the TIMER/TOAST selector knob from the STAY ON position to the Off position. The on indicator light goes off.

5. Open oven door and using oven mitt or pot holder, slide the rack out to remove food.

6. Unplug appliance when not in use.

BROILING

Note: When broiling, preheat oven for 10 minutes.

Turn the temperature selector to BROIL.

1. Insert slide rack into upper slot. Set cooking FUNCTION selector to BROIL.
2. Open oven door and using the bake pan as a drip tray, insert it under the slide rack on the rack support rails.
3. Turn timer past 20 then turn back or forward to desired broiling time. Select STAY ON if you want to control cooking time yourself.

Note: Be sure the top edge of the food or container is at least 1½" [3.81 cm] away from the upper heating elements.

Important: Food should not extend beyond the edges of the bake pan/drip tray to avoid drippings from falling onto the heating elements.

1. Cook food according to recipe or package instructions and check at minimum time to see if it is done.
2. When finished broiling, using an oven mitt or pot holder, slide out broiling rack together with bake pan to remove food.
3. Unplug appliance when not in use.

BROILING CHART

Cooking times are approximate and should be adjusted to individual preference.

FOOD APPROXIMATE TIME
Chicken pieces (1-4) 30 - 40 minutes
Hamburguers (1-3) 8 - 22 minutes
Beef steaks (1-2) 18 - 25 minutes
Fish steaks (1-6) 10 - 18 minutes

KEEP WARM FUNCTION

This feature is designed to keep already-cooked food warm right after they have been cooked. Use this function for short periods of time; to prevent food from drying out cover with foil.

1. Set temperature selector knob (TEMP °F /°C) to 150°F to 200°F.
2. Turn cooking FUNCTION selector knob to KEEP WARM.
3. When cycle is complete, a signal bell sounds. Oven and power indicator light go off.
4. If not using the timer, turn oven OFF when not in use.

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

CLEANING

Important: Before cleaning any part, be sure the oven is off, unplugged, and cool.

• Clean the glass door with a sponge, soft cloth or nylon pad and soapy water. Do not use a spray glass cleaner.
• To remove the slide rack, open the door, pull the rack forward and out. Wash the slide rack in soapy water or in a dishwasher. To remove stubborn spots, use a polyester or nylon pad.
• Wash the bake pan in soapy water. To minimize scratching, use a polyester or nylon pad.
• To clean crumb tray, grasp handle below oven glass and pull tray out. Dispose of crumbs and wipe tray with a damp cloth and dry thoroughly.

Note: The oven door must be closed to remove crumb tray.

• Wipe the top and exterior walls with a damp cloth or sponge. Dry thoroughly.
• Metal, ovenproof glass or ceramic bakeware without glass lids can be used in your oven. Follow manufacturer's instructions. Be sure the top edge of the container is at least 1 12 [3.81 cm] away from the upper heating elements.

NEED HELP?

For service, repair or any questions regarding your appliance, call the appropriate 800 number on cover of this book. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

Two-Year Limited Warranty

(Applies only in the United States and Canada)

What does it cover?

- Any defect in material or workmanship provided; however, Applica's liability will not exceed the purchase price of product.

For how long?

- Two years from the date of original purchase with proof of such purchase.

What will we do to help you?

- Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

- Save your receipt as proof of date of sale.

- Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.

- If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use

• Damage from misuse, abuse or neglect

- Products that have been modified in any way

- Products used or serviced outside the country of purchase

• Glass parts and other accessory items that are packed with the unit

• Shipping and handling costs associated with the replacement of the unit

- Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

- This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

BLACK&DECKER. is a trademark of The Black & Decker Corporation, Towson, Maryland, USA

Made and Printed in People's Republic of China
