Product Type	Coffee Maker
Brand	Bunn
Model	Speed Brew BT
Dimensions (W x D x H)	7.7 x 10.5 x 14.5 inches
Weight	10.5 lbs
Power	1400 Watts, 120 V, 60 Hz
Water Tank Capacity	50 oz (1.5 L)
Brew Time (full carafe)	About 3 minutes
Carafe Capacity	10 cups (50 oz)
Material	Stainless steel tank and aluminum housing
Heating System	Patented sprayhead design for even extraction
Temperature	200°F (93°C) brewing temperature
Pause & Serve	Enabled (remove carafe mid-brew temporarily stops flow)
Auto Shut-Off	No (stays hot with internal tank)
Filter Type	Bunn paper filters (flat bottom) or gold-tone reusable
Cleaning Requirements	Descale every 3 months with Bunn cleaner or white vinegar
Safety Certifications	UL, NSF
Warranty	1 year limited parts and labor
Recommended Coffee Grind	Medium to medium-coarse (paper filter) or coarse (gold-tone)
Drip Tray	Removable for easy cleaning
Part Number	BT (various color options: black, white, red)

Frequently Asked Questions - Speed Brew BT Bunn

How do I clean my Bunn Speed Brew BT?

For daily cleaning, remove the carafe and sprayhead, wash with warm soapy water. Descale every 3 months using Bunn descaling solution or a 50/50 water-vinegar mixture. Run at least 3 full cycles of plain water after descaling.

Why is my coffee not hot enough?

Ensure the coffee maker is plugged into a grounded outlet and the tank has enough water. The internal heater maintains water at ~200°F. If still lukewarm, the heater may need replacement or the machine may need descaling.

Can I use a reusable gold filter?

Yes, Bunn gold-tone permanent filters work in the Speed Brew BT. Use a coarse grind to avoid clogging, and rinse the filter after each use.

How do I brew a half pot?

You may brew any amount from 2 to 10 cups. Always ensure the water level covers the heating element. For best flavor, brew full 50 oz carafes.

Does the Speed Brew BT have auto shut-off?

No it does not. The internal tank stays hot to keep water at brewing temperature. If you want to turn it off, unplug the machine. It is designed to be left on for multiple brews.

What size coffee filter do I need?

Use Bunn #5900 flat bottom paper filters or standard 8-12 cup flat bottom filters. Not cone filters.

How long does the brewing process take?

The Speed Brew BT brews a full 50 oz carafe in about 3 minutes thanks to its high-power heating system and sprayhead design.

Why is the carafe dripping after brewing?

Check that the carafe is fully seated on the warming plate. If the flow continues, the brew basket may be tilted, or the sprayhead needs cleaning. Also ensure the carafe lid is closed properly.

What is the warranty on the Bunn Speed Brew BT?

Bunn offers a 1-year limited warranty on parts and labor for home use. Commercial use may have different coverage. Keep your receipt.

Can I use the Speed Brew BT for iced coffee?

Yes, brew a double-strength coffee (use twice the grounds) directly over a pitcher filled with ice. The machine's high temperature ensures proper extraction.

USER MANUAL Speed Brew BT Bunn

SPEED BREW OWNER'S MANUAL

For models: BT, CSB, GR & SB

BUNN

WHY BUNN?

Since 1957, restaurants and cafés have chosen BUNN ^® as their trusted coffeemaker. For over 60 years, we’ve built our business with a very simple mission: to create the best coffee experience possible by building the best coffeemakers possible. What we started then we continue today, by ensuring quality in the cup for every cup. We’re proud to be a company based on honesty and hard work, and a passion for great coffee wherever it is served — your home included!

You're about to enjoy years and years of better coffee. How, you ask? It's called The BUNN Difference: a finely-tuned calibration of time, temperature and turbulence that extracts maximum flavor from coffee in the optimal amount of time.

Simple stopwatch icon inside a black circle (no text or symbols)

TIME

Quick 4-minute brew time ensures coffee is never bitter.

Simple white thermometer icon inside a black circle (no text or symbols)

TEMPERATURE

Internal hot water tank heats water to the optimal brew temperature range.

Simple icon of a showerhead with raindrops, no text or symbols present

TURBULENCE

Created in the brew funnel as water uniformly showers over coffee, resulting in smooth flavor.

WARNING

RISK OF FIRE OR ELECTRICAL SHOCK

TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK

DO NOT DISASSEMBLE THE COFFEEMAKER NO USER-SERVICEABLE PARTS INSIDE

REPAIR SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY

This symbol alerts you to important operating and service instructions.

This symbol alerts you to the risk of fire or electric shock in the accompanying message.

NOTE: The short power-supply cord provided reduces the risk of becoming entangled in or tripping over a longer cord. If an extension cord is used, its marked electrical rating must be at least as great as the electrical rating of the coffeemaker. Make sure the extension cord does not hang over the edge of a table or counter and that it cannot be pulled on by children or tripped over. The extension cord must be a 3-wire cord of the 3-pronged, 3-socketed, grounding type (including grounding conductor).

TABLE OF CONTENTS

GETTING STARTED....5

SAFEGUARDING....7

COFFEEMAKER FEATURES ....8

INITIAL SETUP....10

HOW TO BREW....12

CARE & CLEANING 14

TROUBLESHOOTING 19

WARRANTY 22

GETTING STARTED

Record the model and date code before using. The model and date code are located on the bottom of your coffeemaker.

MODEL: ____

BT, CSB, GR, or SB

DATE CODE: ____

Questions?

Go to bunn.com/home-products/service-form or call customer service USA 1-800-352-2866, Canada 1-800-263-2256

Please have your model and date code ready when calling for service.

53883.0001A 7/17 © 2017 BUNN-O-MATIC CORPORATION

PLEASE READ ALL INSTRUCTIONS BEFORE STARTING.

SPECIFICATIONS

BREW CAPACITY: 4 to 10 (5) oz. cups per batch

ELECTRICAL: UL and C-UL Listed FOR HOUSEHOLD USE ONLY. Coffeemaker has an attached, 3-prong grounded cord set and requires 2-wire service with ground.

ELECTRICAL RATED:

BT: 120 volts AC, 7 amps, single phase, 60 Hz, 850-watts

CSB: 120 volts AC, 7.5 amps, single phase, 60 Hz, 900-watts

GR: 120 volts AC, 7.5 amps, single phase, 60 Hz, 900-watts

SB: 120 volts AC, 7 amps, single phase, 60 Hz, 900-watts

Not designed for High Altitude locations above 4,000 feet. High Altitude units are available. See Bunn.com for details.

SAFEGUARDING

IMPORTANT

Follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock and personal injury.

• READ ALL THE INSTRUCTIONS IN THIS MANUAL.
• Use caution. This coffeemaker produces hot liquids: hot liquids can burn you
• Place and use coffeemaker on a level surface.
• Do not touch hot surfaces. Use handles.
• Do not tip the coffeemaker.
• To protect against electric shock, do not place cord, plugs or coffeemaker in water or other liquids.
• Do not open lid during brewing.
• Close supervision is necessary when coffeemaker is used around children.
• Internal hot water tank contains hot water. Before cleaning, removing or replacing parts, press power switch off, unplug coffeemaker and let it cool (up to 2 hours.)

• Do not operate coffeemaker with a damaged cord or plug, or any other malfunction or damage. Return appliance to an authorized service facility for examination, repair or adjustment.

• Using an accessory not evaluated for use with this coffeemaker may cause injury.

• Use coffeemaker indoors only.
• Do not let cord hang over edge of table or counter.
• Do not place coffeemaker in or near a hot gas or electric burner, in a heated oven, or in any other heated area.
• Do not use carafe on a range top or in a microwave.
• Do not use coffeemaker for any purpose other than its intended use.
• Do not remove brew funnel or carafe while brewing.
• Do not set a hot carafe on a cold surface.
• Do not use a cracked carafe or a carafe with a loose or weakened handle.
• Do not pour any liquid into the internal hot water tank other than water or vinegar for cleaning, as specified in this manual.
• Do not clean carafe with cleansers, steel wool pads, or other abrasive materials.
• When coffeemaker is not in use, keep lid in the closed position.
• To disconnect, turn any control to the OFF position, then unplug from wall outlet.

SAVE THESE INSTRUCTIONS

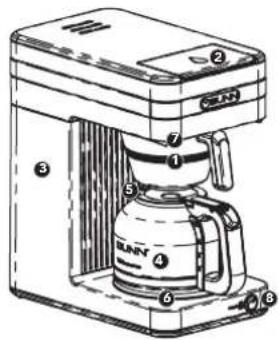

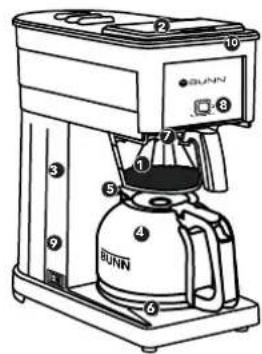

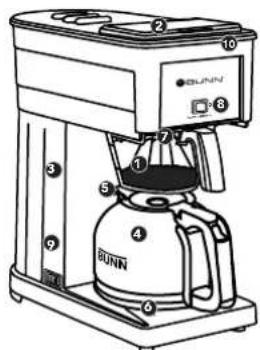

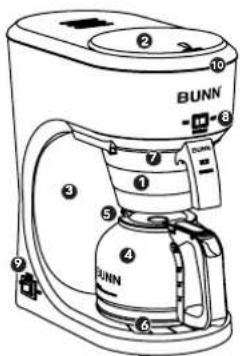

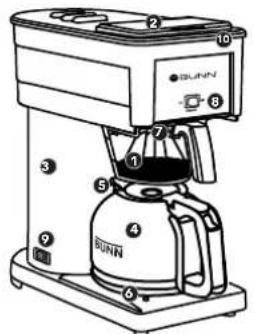

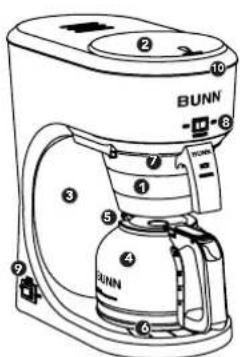

COFFEEMAKER FEATURES

FEATURES

1 Brew Funnel
2 Lid
3ternal Hot Water Tank
4 rip-Free Glass Carafe
5 arafe Lid with Drip-Free Spout
6'armer Plate
7 Sprayhead

8armer Switch
9nk Power Switch
10ur-In Bowl
11eliming Tool
12ermal Carafe
13ermal Carafe Lid
14 Base

BX Brewer

Speed Brew

CSB2

GR Brewer

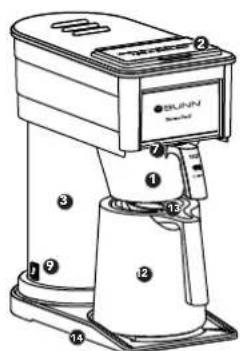

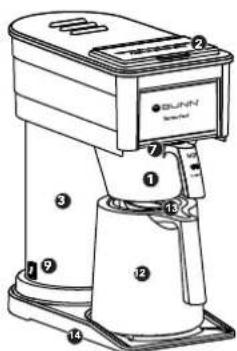

BT Brewer

INITIAL SETUP

DO NOT PLUG IN THE COFFEEMAKER UNTIL STEP 5, OR YOU RISK PERMANENTLY DAMAGING THE MACHINE.

It takes 2 full carafes of cold water to fill the internal hot water tank and prepare your coffeemaker for brewing. Follow the steps on the next page for proper set up.

IMPORTANT: DO NOT PLUG IN COFFEEMAKER UNTIL STEP 5.

Illustration of a hand inserting a cup into a stack of books, enclosed in a circular frame (no text or symbols)

1. SLIDE THE EMPTY BREW FUNNEL INTO THE FUNNEL RAILS

Illustration of a hand inserting a card into a box, enclosed in a circular frame (no text or symbols)

1. FILL CARAFE WITH WATER

2. Pour water into the coffeemaker

3. Position carafe on the warmer plate
4. Close the lid

5. Wait 4 minutes

6. REPEAT STEP 2

7. YOU HAVE FILLED THE TANK

8. Wait until the water stops flowing into the carafe

9. Then pour out the water from the carafe
10. Reposition the carafe on the warmer plate

Simple line drawing of an electrical outlet with a plug and power outlet, enclosed in a circle (no text or symbols)

1. PLUG IN COFFEEMAKER

2. TURN COFFEEMAKER ON

3. Press the tank power switch on the side of the base to the ON position

4. Wait 15 minutes for the water to heat
5. Keep the tank switch on for everyday use
   (If the machine is not going to be used for 4 or more days, turn it off. For extended nonuse, see page 18.)

Please see the following section for brewing instructions.

HOW TO BREW

HOW TO BREW

1ace a BUNN ^® coffee filter into the brew funnel
2 coop ground coffee into the filter
3 Gently shake the brew funnel to level the grounds
4 Slide the brew funnel into the coffeemaker's funnel rails
5 Fill the carafe with water: 20oz for 4 cups, 50oz for 10 cups.
6 Open the coffeemaker's pour-in lid
7 Pour the water into the coffeemaker
8 Position the carafe on the warmer plate (or on the base for BT Models*)
9 Turn on the warmer switch
10 Close the lid
11 Vait 4 minutes for the drip-out to complete

BREWING CHART

WATER COFFEE
Cups Ounces Grams Tablespoons
42032.54-5
63048.76-7
84064.98-9
105081.110-11

CARE & CLEANING

BASIC CLEANING

FOR SPEED BREW MODELS: (Excluding BT)

• Wash the brew funnel and glass carafe after each use.
• Both are top rack dishwasher safe.

Important: Separate the carafe lid from the carafe when washing in the dishwasher, and use the top shelf only for both the glass and the lid. If washing by hand, use a mild, non-abrasive dish soap.

- Wipe the outside of the coffeemaker occasionally, including the area above the brew funnel.

NOTE: After wipe down, ensure that the warmer switch is in the OFF position.

FOR BT MODEL:

Important: Do not use an abrasive cleaning device to clean the carafe, because it will scratch the stainless steel. Occasionally, remove the brew through valve on the Thermal Carafe Lid and clean with mild, non abrasive detergent. To remove the valve, lift at the edge and pull up. Be sure to clean the passage where the valve is located.

• To remove coffee stains from inside the thermal carafe, place a paper filter in the brew funnel and pour 2 teaspoons of powder dishwasher detergent into the brew funnel.
• Pour one carafe of water into the coffeemaker.
• Position the carafe on the base and close the lid.
• When the brewing cycle stops, remove the brew funnel and discard the filter.
• Rinse the funnel.
• Allow the carafe to sit for about 15 minutes.
• Use a soft bristled brush to clean the inside and outer rim of the carafe.
• Scrub the carafe pour lip and lid with a soft cloth, warm water and mild detergent.
• When finished, pour out the solution in the carafe.
• Rinse the carafe and the lid.

CLEANING THE SPRAYHEAD TUBE

Cleaning the sprayhead tube removes deposits formed by natural mineral content in your water. The more mineral content in your water, the more you should clean.

A good rule of thumb is to do it every 3 months. If you have very hard water then twice a month may be necessary.

You'll need: the deliming tool provided with your machine, a toothpick, dish soap, and a soft cloth.

• Press the tank power switch to the OFF position, unplug the coffeemaker and allow it to cool for at least 2 hours.
• Remove the funnel and unscrew the sprayhead, loosening with your fingertips.
• Insert all but 2 inches of the deliming tool into the sprayhead tube.
• Slide the deliming tool in and out of the sprayhead tube 5 or 6 times to loosen any deposits.

• Remove the deliming tool and reinsert the brew funnel.

• Pour a carafe of fresh water into the coffeemaker.

• Place the empty carafe on the warmer plate and close the lid. Water will flow into the carafe.
• Check the sprayhead holes and clear any deposits with the toothpick.
• Clean the sprayhead with a cloth and dish soap. Rinse it with water.
• Empty the water from the carafe and place the empty carafe on the warmer plate.
• Remove the brew funnel and reinstall the sprayhead. Reinsert the brew funnel.
• Plug in the coffeemaker. Press the tank power switch to the ON position.
• Wait 15 minutes for the water in the tank to reach brew temperature.
• Your machine is again ready for brewing.

*NOTE: For a replacement sprayhead or deliming tool call customer service at 1-800-352-2866 (USA) or 1-800-263-2256 (Canada).

DEEP CLEANING

Deep clean your coffeemaker at least every 3 months. More frequency may be needed, depending on the mineral content in your water.

Deep cleaning your coffeemaker removes mineral deposits in your internal hot water tank and will prolong the life of your coffeemaker.

You'll need: 1 quart (32oz) of white vinegar, a toothpick and dish soap.

• Slide the brew funnel into the funnel rails.
• Place the carafe on the coffeemaker.
• Open the lid and pour the vinegar into the coffeemaker.
• Close the lid. Empty the carafe when liquid stops flowing.

• Flip the tank switch to the OFF position and unplug the coffeemaker. Allow the vinegar to sit in the coffeemaker for at least 2 hours.

• Remove the brew funnel and unscrew the sprayhead. Check the sprayhead holes and clear any deposits with the toothpick.

• Clean the sprayhead with a cloth and dish soap.
• Rinse with water.
• Pour a carafe of fresh water into the coffeemaker. Place the carafe on the warmer plate and reinsert the brew funnel.
• Close the lid (the water will begin to flush out the vinegar from the internal hot water tank).
  • Empty the carafe when the liquid has stopped flowing.
• Repeat the process of cycling fresh cold water 3 or more times or until you no longer smell vinegar.
• Remove the brew funnel and reattach the sprayhead.
• Replace the brew funnel and place the carafe on the warmer plate. Plug in the coffeemaker. Flip the tank switch to the ON position.
• Allow the water in the tank to reach brewing temperature (which should take about 15 minutes). Your coffeemaker is again ready for brewing.

Questions? Contact customer service at 1-800-352-2866 (USA) or 1-800-263-2256 (Canada).

• Transported
• Shipped
• Stored in an unheated location with a chance of freezing
• Not to be used for an extended period of time

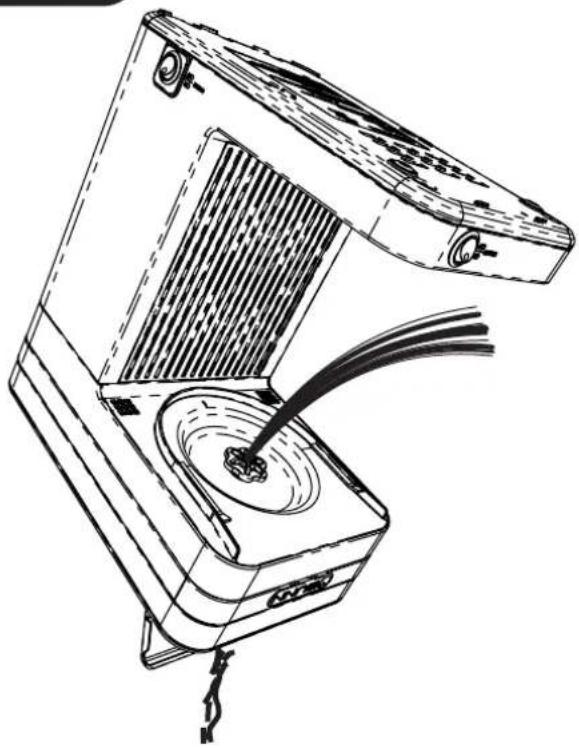

TO DRAIN:

1 Flip the tank switch to the OFF position, unplug the coffeemaker and it allow to cool for at least 2 hours.
2 Remove the brew funnel and the sprayhead, loosening with your fingertips.
3 Grasp the back of the coffeemaker and turn it upside down over a sink.
4 Continue tipping the coffeemaker until the flow from the sprayhead tube and lid stops.
5 Attach the sprayhead and insert brew funnel into coffeemaker.
6 Return the coffeemaker to the upright position.

Technical line drawing of a mechanical device with a central component and cable, no visible text or symbols

TROUBLESHOOTING

TROUBLESHOOTING

COFFEE DOESN'T COME OUT

• Were at least 20oz of water poured into the coffeemaker? Between 20oz and 50oz of water must be poured in for proper brewing (see page 13, Step 5).
• Is the pour-in lid closed? Water is not released from the reservoir into the tank until the lid is closed.
• Has the coffeemaker been left on for an extended period without being used? If so, then the water tank may need to be topped off. Press power switch OFF, unplug the machine, and go through the setup process until water begins to flow (see page 11). If water begins to flow in Step 2, then skip Step 3.
• Has the coffeemaker been in storage? Go through the entire initial setup process (see page 11).
• Is there water still in the pour-in reservoir? If so, the sprayhead may be clogged. Press power switch OFF and unplug the machine. Let cool for two hours. Then clean the sprayhead and sprayhead tube as per instructions on page 17. Plug the machine back in.

DELIMING TOOL DOESN'T GO IN ALL THE WAY

- Follow the sprayhead tube cleaning guidelines. (see page 18)

MACHINE ONLY PARTIALLY BREWED

- Has the coffeemaker been left on for an extended period without being used? If so, then the water tank may have needed to be topped off. Now that the tank has been refilled, brewing should provide the same volume as normal.

NOTE: there will always be slightly less volume of brewed coffee than water poured in to the coffeemaker. This is because some of the water is absorbed by the coffee grounds.

• [For coffeemakers using glass decanters] Is the warmer switch on? If not, turn it on.
• [For BT coffeemakers using a thermal carafe] Is the Thermal Carafe being pre-heated? See the note on page 13.

COFFEE IS COLD

- Is the coffeemaker unplugged and/or is the tank power switch in the OFF position? Make sure that the coffeemaker is plugged in and that the tank power switch is in the ON position. Allow 15 minutes for the water to reheat.

TROUBLESHOOTING

FUNNEL IS OVERFLOWING

• What kind of filters are you using? Your filters may be of the wrong porosity or size. Use BUNN filters: you can order more filters at bunn.com.
• Is your sprayhead in place? If the sprayhead is missing, the funnel will overflow.
• What kind of coffee are you using? What kind of water do you have? If you brew decaf or fine grind coffee, or if you use soft water, you may need a special flow restrictor sprayhead. One can be obtained by completing an online form at bunn.com/home-products/parts-form or by calling 1-800-352-2866 (USA), 1-800-263-2256 (Canada).

COFFEEMAKER MAKES RUMBLING NOISE

• Does this occur after a brew, and then intermittently throughout the day? This occurs normally as the water in the tank reheats to brew temperature and should last just a few minutes.
• Has the sprayhead tube been cleaned recently? If not, follow the instructions as found on page 16.

WATER FLOWS BEFORE LID IS CLOSED

• Make sure lid is completely open to activate the rubber stopper in the pour-in-bowl.
• The coffeemaker is not designed to hold water in the pour-in-bowl overnight.
• Remove the top lid to ensure that the rubber stopper is in place and the area is clean.

COFFEEMAKER LEAKS

• 1-800-352-2866 (USA), 1-800-263-2256 (Canada) or visit bunn.com/home-products/service-form.

NEVER DISASSEMBLE THE COFFEEMAKER. THERE ARE NO USER SERVICEABLE PARTS INSIDE.

WARRANTY

Bunn-O-Matic Corporation ("BUNN") warrants the BUNN® Speed Brew Coffee Coffeemaker, except glass carafe, to be free from defects in materials and workmanship existing at the time of manufacture and appearing within the later of the following warranty periods:

a) Three (3) years from the date of original purchase of a NEW Coffeemaker with delivery of a valid receipt evidencing such purchase or, in the absence of such a receipt, from the date of manufacture; or
b) One (1) year from the date a REPAIRED OR REPLACEMENT Coffeemaker is received by customer, in the case BUNN determined a coffeemaker returned within the NEW Coffeemaker warranty period required repair or replacement.

If such a defect appears during the warranty period, we will (at our sole option) repair or replace the defective Coffeemaker with no charge for service or parts, provided Coffeemaker is delivered at the customer's expense to one of our authorized service centers (see page 6 for customer service info).

Warranty does not cover claims resulting from misuse, failure to follow instructions on installation and use, use with water having a high mineral content, neglect, use of unauthorized attachments, commercial use, use on a current or voltage other than specified on the Coffeemaker, or unauthorized service during the warranty period on conditions otherwise covered by warranty.

THIS WARRANTY SHALL BE EXCLUSIVE AND SHALL BE IN LIEU OF ANY OTHER WARRANTY, WRITTEN, ORAL, OR IMPLIED INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. In any event, the duration of any warranties implied by law, including but not limited to any implied warranties of merchantability or fitness for a particular purpose, is expressly limited to the duration of this limited warranty. Some states do not allow time limitations on implied warranties, so the above limitation may not apply to you.

WARRANTY

THE CUSTOMER'S EXCLUSIVE REMEDY FOR BREACH OF THIS WARRANTY OR OF ANY IMPLIED WARRANTY, OR OF ANY OTHER OBLIGATION ARISING BY OPERATION OF LAW OR OTHERWISE, SHALL BE LIMITED AS SPECIFIED HEREIN TO REPAIR OR REPLACEMENT, AT OUR SOLE OPTION. IN ANY EVENT, RESPONSIBILITY FOR SPECIAL, INCIDENTAL AND CONSEQUENTIAL DAMAGES IS EXPRESSLY EXCLUDED. Some states do not allow limitation or exclusion of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights; you may have other rights, which vary from state to state.

TRADEMARKS

BUNN Pour-O-Matic, BUNN, BUNN with the stylized red line, The Horizontal Red Line, Bunn-OMatic, Bunn-O-Matic, Velocity Brew, My Café, Speed Brew, Phase Brew, trifecta, Air Infusion, Quality Beverage Equipment Worldwide, The Mark of Quality in Beverage Equipment Worldwide, A Partner You Can Count On, Brew Better Not Bitter, Brew better, not bitter., Coffee At Its Best, Nothing Brews Like a BUNN, Respect Earth, Respect Earth with the stylized leaf and coffee cherry design, are either trademarks or registered trademarks of Bunn-O-Matic Corporation.

ENJOY

BUNN

MANUAL DE USUARIO SPEED BREW

Simple icon of a showerhead spraying water, no text or symbols present

TURBULENCIA

Vaya a bunn.com/home-products/service-form o llame al:

53883.0001A 7/17 © 2017 BUNN-O-MATIC CORPORATION

CSB2

Percoladora GR

Speed Brew

Percoladora BT

Illustration of a hand holding a stack of books, enclosed in a circular frame (no text or symbols)

1. DESLICE EL VACÍO EMBUDO EN LOS RIELES DE EMBUDO

2. LLENE LA JARRA CON AGUA

Simple line drawing of an electrical outlet with a plug and bulb, enclosed in a circle (no text or symbols)

5. ENCHUFE LA CAFETERA

6. ENCIENDA LA CAFETERA

Technical line drawing of a mechanical device with a central component and cable, no visible text or symbols

BUNN Pour-O-Matic, BUNN, BUNN with the stylized red line, The Horizontal Red Line, Bunn-OMatic, Bunn-O-Matic, Velocity Brew, My Café, Speed Brew, Phase Brew, trifecta, Air Infusion, Quality Beverage Equipment Worldwide, The Mark of Quality in Beverage Equipment Worldwide, A Partner You Can Count On, Brew Better Not Bitter, Brew better, not bitter., Coffee At Its Best, Nothing Brews Like a BUNN, Respect Earth, Respect Earth with the stylized leaf and coffee cherry design, son marcas comerciales o marcas registradas de Corporación Bunn-O-Matic.

DISFRUTE

BUNN
