Product Type	Portable Air Conditioner
Model	MPS1-07CRN1-2
Brand	Comfee
Cooling Capacity	7,000 BTU (approx.)
Coverage Area	Up to 250 sq. ft.
Power Supply	115V / 60Hz
Power Consumption	660 W (approx.)
Current	5.7 A
Refrigerant	R410A
Dimensions (WxHxD)	16.5 x 26.0 x 13.5 inches
Weight	45.0 lbs
Noise Level	52 dB (approx.)
Modes	Cool, Fan, Dehumidify
Fan Speeds	3 (Low, Medium, High)
Timer	24-hour programmable timer
Remote Control	Yes (batteries included)
Installation Kit	Window kit included
Filter Type	Washable mesh filter
Maintenance	Clean filter every 2 weeks
Energy Efficiency	EER 10.6 (approx.)

Frequently Asked Questions - MPS1-07CRN1-2 COMFEE

How do I install the Comfee MPS1-07CRN1-2 air conditioner?

Install the unit near a window and use the included window kit to seal the exhaust hose. Ensure the hose is straight and free of kinks. Connect the power cord to a grounded outlet.

How often should I clean the filter?

Clean the washable mesh filter every two weeks for optimal performance. Simply remove the filter, rinse with water, and let it dry completely before reinstalling.

What does the 'E4' error code mean?

The 'E4' error code indicates an issue with the temperature sensor. Try resetting the unit by unplugging it for 5 minutes. If the error persists, contact Comfee support.

Can I use an extension cord?

No, direct connection to a wall outlet is recommended. Extension cords may cause voltage drop or overheating. Use a dedicated 15-amp circuit if possible.

How do I set the timer?

Press the Timer button on the remote or control panel. Use the + and - buttons to set the desired hours (1-24). The unit will turn on or off automatically.

What is the maximum room size for this unit?

The MPS1-07CRN1-2 is suitable for rooms up to 250 square feet (approx. 7,000 BTU). For larger rooms, consider a higher BTU model.

Why is water leaking from the unit?

During dehumidifying mode, the unit removes moisture. If the internal tank is full, it may leak. Drain the water via the rear drain plug or connect a hose for continuous drainage.

How do I switch between cooling and fan mode?

Press the Mode button repeatedly to cycle through Cool, Fan, and Dehumidify modes. In Fan mode, no cooling occurs; it circulates air only.

Does this air conditioner have a sleep mode?

Yes, press the Sleep button on the remote. Sleep mode gradually increases the temperature by 1-2°F over time for comfortable sleeping and energy savings.

What is the warranty period?

Comfee offers a 1-year limited warranty on parts and labor. Register your product online for extended coverage options.

USER MANUAL MPS1-07CRN1-2 COMFEE

MOBILE TYPE AIR CONDITIONERS (LOCAL AIR CONDITIONERS)

OWNER'S MANUAL

The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details.

CP007IU-S1(G)(DY)

202000192641

20170508

Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventative care on your part can save you a great deal of time and money over the life of your air conditioner. Before operating this product, please read the instructions carefully and save this manual for future use.

Read This Manual

Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. You'll find many answers to common problems in the chart of troubleshooting tips. If you review our chart of Troubleshooting Tips first, you may not need to call for service at all.

CAUTION

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play the appliance. Cleaning and user maintenance shall not be made by children without supervision. (be applicable for the European Countries)
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (be applicable for other countries except the European Countries)
• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The appliance shall be installed in accordance with national wiring regulations.
• Do not operate your air conditioner in a wet room such as a bathroom or laundry room.
• The appliance with electric heater shall have at least 1 meter space to the combustible materials.
• Contact the authorised service technician for repair or maintenance of this unit.
• Contact the authorised installer for installation of this unit.

CONTENTS

SOCIABLE REMARK

Sociable remark....2

SAFETY PRECAUTIONS

Safety rules 3

Operating condition 3

Electrical information 4

IDENTIFICATION OF PARTS

Accessories 4 Name of each 5

Names of parts....5

AIR CONDITIONER FEATURES

Electronic control operating instructions 6

OPERATING INSTRUCTIONS

Operating instructions 7

INSTALLATION INSTRUCTIONS

Location 9

Window kit installation 9

Exhaust hose installation 12

Water drainage 13

CARE AND MAINTENANCE

Care and maintenance 14

TROUBLESHOOTING TIPS

Trouble shooting 15

[NO TEXT]

NOTE

The rating data indicated on the energy label is based on the testing condition of installing the un-extended air exhaust duct without adaptor A & B (The duct and the adaptor A & B are listed in the accessories chart of the Instruction Manual). See the right figure.

SOCIABLE REMARK

When using this air conditioner in the European countries, the following information must be followed:

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

It is prohibited to dispose of this appliance in domestic household waste.

For disposal, there are several possibilities:

A) The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user.
B) When buying a new product, the retailer will take back the old product at least free of charge.
C) The manufacture will take back the old appliance for disposal at least free of charge to the user.
D) As old products contain valuable resources, they can be sold to scrap metal dealers.

Wild disposal of waste in forests and landscapes endangers your health when hazardous substances leak into the ground-water and find their way into the food chain.

Note About Fluorinated Gasses

-Fluorinated greenhouse gases are contained in hermetically sealed equipment. For specific information on the type, the amount and the CO2 equivalent in tonnes of the fluorinated greenhouse gas (on some models), please refer to the relevant label on the unit itself.

-Installation, service, maintenance and repair of this unit must be performed by a certified technician.

-Product uninstallation and recycling must be performed by a certified technician.

SAFETY PRECAUTIONS

Safety rules

To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage.

Always do this

• Your air conditioner should be used in such a way that it is protected from moisture, e.g. condensation, splashed water, etc. Do not place or store your air conditioner where it can fall or be pulled into water or any other liquid. Unplug immediately if it occurs.
• Always transport your air conditioner in a vertical position and stand on a stable, level surface during use.
• Turn off the product when not in use.
  ● Always contact a qualified person to carry out repairs. If the supply cord is damaged it must be repaired by a qualified repairer.
• Keep an air path of at least 30cm all around the
  unit from walls, furniture and curtains
• If the air conditioner is knocked over during use, turn off the unit and unplug from the mains supply immediately.
• Always use the switch on the control panel.

Never do this

• Do not operate your air conditioner in a well room such as a bathroom or laundry room.
• Do not touch the unit with wet or damp hands or when barefoot.
• Do not press the buttons on the control panel with anything other than your fingers.
• Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has been dropped or damaged.
• Never use the plug to start and stop the unit.
• Do not cover or obstruct the inlet or outlet grilles.
• Do not use hazardous chemicals to clean or come into contact with the unit. Do not use the unit in the presence of inflammable substances or vapour such as alcohol, insecticides, petrol, etc.
• Do not allow children to operate the unit unsupervised.
• Do not use this product for functions other than those described in this instruction manual.

Energy Save

• Use the unit in the recommended room size.
• Locate the unit where furniture cannot obstruct the air flow.
• Keep blinds/curtains closed during the sunniest part of the day.
• Keep the filters clean.
• Keep doors and windows closed to keep cool air in and warm air out (cooling mode) or keep warm air in and cool air out(heating mode).

Operating condition

- The air conditioner must be operated within the temperature range indicated below:

MODE ROOM TEMPERATURE
COOL	17°C(62 F)-35 C(95 F)
DRY	13°C(56 F)-35 C(95 F)
HEAT(heat pump type)	5°C(11 F)-30 C(86 F)
HEAT(electrical heat type)	≤30°C/86°F

Suggested tools for window kit installation

1. Screwdriver(medium size Phillips)
2. Tape measure or ruler
3. Knife or scissors
4. Saw(In the event that the window kit needs to be cut down in size because the window is too narrow for direct installation)

IDENTIFICATION OF PARTS

For your safety

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove any prong from the power cord.

▲ WARNING

Electrical Infor mation

• Be sure the electrical service is adequate for the model you have chosen. This information can be found on the serial plate, which is located on the side of the cabinet and behind the grille.
• Be sure the air conditioner is properly grounded. To minimize shock and fire hazards, proper grounding is important. The power cord is equipped with a three-prong grounding plug for protection against shock hazards.
• Your air conditioner must be used in a properly grounded wall receptacle. If the wall receptacle you intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified electrician install the proper receptacle.
• Ensure the receptacle is accessible after the unit installation.

Accessories

PARTS :	PARTS NAME :	QUANTITY :
	Exhaust hose(supplied), adapter B(round mouth or flat month:depending on models) and Window Slider Kit and bolt (※)	1 set
	Adaptor B(round mouth) (※)	1 set
	Wall Exhaust Adaptor A(※)	1 pc
	Expansion Plug and wooden screw(※)	4/ pc
	Foam seal (※)	3/pc
	Remote Controller and Battery (For remote control models only)	1set
	Drain hose	1pc

NOTE: Optional parts( ) , some models without. * Check all the accessories are included in the package and please refer to the installation instructions for their usage.
NOTE: All the illustrations in this manual are for explanation purpose only. Your air conditioner may be slightly different. The actual shape shall prevail.

IDENTIFICATION OF PARTS

NAMES OF PARTS

Front

① Operation Panel
2 Horizontal Louver Control Lever (adjust manually)
③ Carrying Handle (both sides)
4 Remote signal receptor
Panel

Rear

Model A

a Upper Air Filter
(Behind the grille)

7 Air Outlet

8 Wheel

Air intake

10 Drain Outlet

11 Air intake

12 Lower Air Filter (Behind the grille)

Bottom tray drain outlet

Model B

Upper Air Filter
7 Air Outlet
8 Wheel
Air intake
Drain Outlet
11 Air intake
Bottom tray drain outlet

AIR CONDITIONER FEATURES

ELECTRONIC CONTROL OPERATING INSTRUCTIONS

Before you begin, thoroughly familiarize yourself with the control panel and remote controller and all its functions, then follow the symbol for the functions you desire.

The unit can be controlled by the unit control panel alone or with the remote controller. NOTE: This manual does not include Remote Controller Operations, see the <> packed with the unit for details.

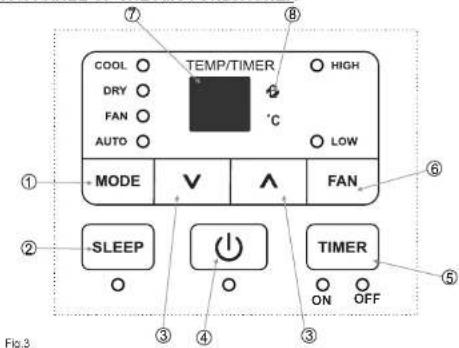

OPERATION PANEL OF THE AIR CONDITIONER

① MODE select button

Selects the appropriate operating mode. Each time you press the button, a mode is selected in a sequence that goes from AUTO, COOL, DRY and FAN. The mode indicator light illuminates under the different mode setting.

② SLEEP button

Used to initiate the SLEEP operation.

UP( + ) and DOWN( - ) button

Used to adjust (increasing/decreasing) temperature settings in 1°C/2F (or 1°F) increments in a range of 17°C/82°F to 30°C/88°F (or 86°F) or the TIMER setting in a range of 0\~24hrs. NOTE: The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert from one to the other, press and hold the Up and Down buttons at the same time, for 3 seconds.

④ ON-OFF button

Power switch on/off.

5 TIMER button

Used to initiate the AUTO ON start time and AUTO OFF stop time program, in conjunction with the &♥ buttons.

FAN button

Press to select the fan speed in three steps-LOW, HIGH and AUTO. The fan speed indicator light illuminates under different fan settings except AUTO speed. When select AUTO fan speed, all the fan indicator lights will turn dark.

7 LED Display

-Shows the set temperature in "C"br "°F" ("°F" no display) and the Auto-timer settings. While on DRY and FAN modes, it shows the room temperature.

OPERATING INSTRUCTIONS

Error codes:

E1- Room temperature sensor error Unplug the unit and plug it back in. If error repeats, call for service.

E2- Evaporator temperature sensor error- Unplug the unit and plug it back in. If error repeals, call for service.

E4- Display panel communication error- Unplug the unit and plug it back in. If error repeats, call for service.

Protection codes:

P1- Bottom tray is full - Connect the drain hose and drain the collected water away. If error repeats, call for service.

NOTE: When more than one codes occur, the priority of the code display order is: E4--E2--E1--P1.

POWER MANAGEMENT feature

When the ambient temperature is lower (Cooling mode) or higher (Heating mode) than the setting temperature for a period of time, the unit will be automatically operate power management feature. The compressor and fan motor stop and the power management indicator light illuminates. When the ambient temperature is higher (Cooling mode) or lower (Heating mode) than the setting temperature, the unit will be automatically quit the power management feature. The power management indicator light turns dark and the compressor and (or) fan motor run.

Operating Instructions

COOL operation

- Press the "MODE" button until the "COOL" indicator light comes on.

- Press the ADJUST buttons * / or * * to select your desired room temperature. The temperature can be set within a range of 17°C-30°C/62°F-88°F (or 86°F).

- Press the "FAN" button to choose the fan speed.

DRY operation

- Press the "MODE" button until the "DRY" indicator light comes on. - Under this mode, you cannot select a fan speed or adjust the temperature. - Keep windows and doors closed for the best dehumidifying effect.

- Do not put the duct to window.

AUTO operation

When you set the air conditioner in AUTO mode, it will automatically select cooling, fan only operation depending on what temperature you have selected and the room temperature.

The air conditioner will control room temperature automatically round the temperature point set by you.

- Under AUTO mode, you can not select the fan speed.

NOTE: Under AUTO mode, both the AUTO mode and the actual operation mode indicator lights illuminate.

FAN operation

- Press the 'MODE' button until the "FAN" indicator light comes on.

- Press the "FAN" button to choose the fan speed. The temperature cannot be adjusted.

Do not put the duct to window

TIMER operation

When the unit is on, first press the Timer button, the TIMER OFF indicator light illuminates. It indicates the Auto Stop program is initiated. Press the Timer button again, the TIMER ON indicator light illuminates. It indicates the Auto Start program is initiated.

When the unit is off, first press the Timer button, the TIMER ON indicator light illuminates. It indicates the Auto Start program is initiated. When the unit. Press the Timer button again, the TIMER OFF indicator light illuminates. It indicates the Auto Stop program is initiated.

Press or hold the UP or DOWN button to change the Auto time by 0.5 hour increments, up to 10 hours, then at 1 hour increments up to 24 hours. The control will count down the time remaining until start.

The selected time will register in 5 seconds and the system will automatically revert back to display the previous temperature calling.

Turning the unit ON or OFF at any time or adjusting the timer setting to 0.0 will cancel the Auto Start/Stop timed program.

When the malfunction (E1 or E2) occurs, the Auto Start/Stop timed program will also be cancelled.

OPERATING INSTRUCTIONS

SLEEP/ECO operation

Press this button, the selected temperature will increase(cooling) or decrease(heating) by 1°C/2 F(or 1 F) 30 minutes. The temperature will then increase (cooling) or decrease (heating) by another 1°C/2 F(or 1 F) after an additional 30 minutes. This new temperature will be maintained for 7 hours before it returns to the originally selected temperature. This ends the Sleep/Eco mode and the unit will continue to operate as originally programmed.

NOTE: This feature is unavailable under FAN or DRY mode.

Fig.4

Other features

Auto-Restart(on some models)

If the unit breaks off unexpectedly due to the power cut, it will restart with the previous function setting automatically when the power resumes..

Wait 3 minutes before resuming operation After the unit has stopped, it can not be restarted operation in the first 3 minutes. This is to protect the unit. Operation will automatically start after 3 minutes.

Air flow direction adjustment

Adjust the air flow direction manually (Fig.4):

• The louver can be set to the desired position manually.
• Do not place any heavy objects or other loads on the louver, doing so will cause damage to the unit.
• Ensure the louver is fully opened under heating operation.
• Keep the louver fully opened during operation.

INSTALLATION INSTRUCTIONS (optional)

INSTALLATION INSTRUCTIONS

Location

• The air conditioner should be placed on a firm foundation to minimize noise and vibration. For safe and secure positioning, place the unit on a
  smooth, level floor strong enough to support the unit. ● The unit has casters to aid placement, but it should only be rolled on smooth, flat surfaces. Use caution when rolling on carpet surfaces. Do not attempt to roll the unit over objects.

● The unit must be placed within reach of a properly rated grounded socket.

- Never place any obstacles around the air inlet or outlet of the unit.

- Allow at least 30cm of space from the wall for efficient air-conditioning.

Window Slider Kit Minimum: 67.5cm(2.22ft) Maximum: 123cm(4.04ft)

Window Slider Kit Minimum:67.5cm(2.22ft) Maximum:123cm(4.04ft)

Window Slider Kit Minimum:67.5cm(2.22ft) Maximum:123cm(4.04ft)

Window Slider Kit Minimum:67.5cm(2.22ft). Maximum:123cm(4.04ft).

Window Slider kit Installation

Your window slider kit has been designed to fit most standard "Vertical" and "horizontal" window applications. However, it may be necessary for you to improvise/modify some aspects of the installation procedures for certain types of window. Please refer to Fig. 6& Fig.7 for minimum and maximum window openings. Window slider kit can be fixed with a bolt (see Fig.7a).

Note: If the window opening is less than the mentioned minimum length of the window slider kit, cut that one with a hole in it short to fit for the window opening. Do never cut out the hole in window slider kit.

INSTALLATION INSTRUCTIONS (optional)

Installation in a double-hung sash window

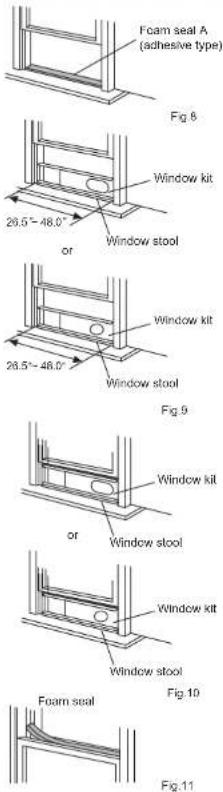

1. Cut the foam seal(adhesive type) to the proper length and attach it to the window stool. Fig.8
2. Attach the window slider kit to the window stool. Adjust the length of the window slider kit according to the width of window, shorten the adjustable window kit if the width of window is less than 26.5 inches. Open the window sash and place the window slider kit on the window stool. See Fig.9.
3. Cut the foam seal(adhesive type) to the proper length and attach it on the top of the window. Shown as in Fig.10.
4. Close the window sash securely against the window.
5. Cut the foam seal to an appropriate length and seal the open gap between the top window sash and outer window sash. Shown as in Fig.11.

10

INSTALLATION INSTRUCTIONS (optional)

Installation in a sliding sash window

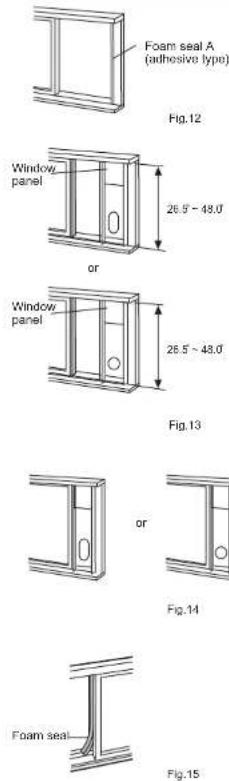

1. Cut the foam seal(adhesive type) to the proper length and attach it to the window frame, Fig. 12.

2. Attach the window slider kit to the window stool. Adjust the length of the window slider kit according to the width of window, shorten the adjustable window kit if the width of window is less than 26.5 inches. Open the window sash and place the window slider kit on the window stool. See Fig.13.

3. Cut the foam seal(adhesive type) to the proper length and attach it on the top of the window. Shown as in Fig.14.

4. Close the sliding sash securely against the window.

5. Cut the foam seal to an appropriate length and seal the open gap between the top window sash and outer window sash. Shown as in Fig.15.

11

INSTALLATION INSTRUCTIONS (optional)

Fig.16

Fig.17

Fig.18

Fig.19

Exhaust hose installation:

The exhaust hose and adaptor must be installed or removed in accordance with the usage mode.

COOL, AUTO mode	Install
FAN.DEHUMIDIIFY mode	Remove

1. Install the window Exhaust adaptor B onto the exhaust hose as shown in Fig.16, or Fig.17. Refer to the previous pages for window kit installation.
2. Push the Exhaust hose into the air outlet opening along the the arrow direction(See Fig.18).

The exhaust hose can be installed into the wall

(Not applicable to the units without adaptor A, expansion plugs and wooden screws of Accessories).

1. Prepare a hole in the wall. Install the wall Exhaust adaptor A onto the wall(outside) by using 4 expansion plugs and wading plugs, he uses to further apply (See Fig. 10).

2. Attach the Exhaust hose installed adaptor B(round mouth) to wall Exhaust adaptor A.

Note:

Cover the hole using the adaptor cap when not in use.
- The duct can be compressed or extended moderately according to the installation requirement, but it is desirable to keep the duct length to a minimum.

IMPORTANT:

DO NOT OVER BEND THE DUCT (SEE Fig.20)

△CAUTION:

Make sure that there is no obstacle around the air outlet of the exhaust hose (in the range of 500mm) in order to the exhaust system works properly.

Fig.20

12

INSTALLATION INSTRUCTIONS

Fig.21
Remove the drain plug

Drain plug

Fig.22

Fig.23

Water drainage:

• During dehumidifying modes, remove the drain plug from the back of the unit, install the drain connector(5/8 universal female mender) with 3/4 hose(locally purchased). For the models without drain connector, just attach the drain hose to the hole. Place the open end of the hose directly over the drain area in your basement floor. Please refer to Fig.21 & 22.
• When the water level of the bottom tray reaches a predetermined level, the unit beeps 8 times, the digital display area shows "P1". At this time the air conditioning/dehumidification process will immediately stop. However, the fan motor will continue to operate(this is normal). Carefully move the unit to a drain location, remove the bottom drain plug and let the water drain away (Fig.23). Re-install the bottom drain plug and Restart the machine until the "P1" symbol disappears. If the error repeats, call for service. NOTE: Be sure to reinstall the bottom drain plug before using the unit.

13

13

Upper filter (take out)
Lower filler (take out)
Fig.24(model A)

Upper filter (install)
Lower filter (install)
Fig.25(model A)

Upper filter (take out)
Fig.26(model B)

CARE AND MAINTENANCE

IMPORTANT:

1) Be sure to unplug the unit before cleaning or servicing.
2) Do not use gasoline, thinner or other chemicals to clean the unit.
3) Do not wash the unit directly under a tap or using a hose. It may cause electrical danger.
4) If the power cord is damaged, it should be repaired by manufacture or its agency.

1. Air filter

• Clean the air filter at least once every two weeks to prevent inferior fan operation because of dust.
  Removal This unit has two filters. Take the upper and lower filters out along the arrow direction (Fig.24), then take the filter down. (Note: model B has only upper filter, see Fig.26)
• Cleaning Wash the air filter by immersing it gently in warm water (about 40°C/104°F) with a neutral detergent. Rinse the filter and dry it in a shady place.
  Mounting Install the upper and lower air filters after cleaning (see Fig.25).

NOTE: The upper (lower) grills and the upper (lower) air filters are connected and can be separated.

2. Unit enclosure

- Use a lint-free cloth soaked with neutral detergent to clean the unit enclosure. Finished by a dry clean cloth.

3. Unit idle for a long time

• Remove the rubber plug at the back of the unit and attach a hose to drain outlet. Place the open end of the hose directly over the drain area in your basement floor (See Fig.22 & 23).
• Remove the plug from the bottom drain outlet, all the water in the bottom tray would drain out (See Fig.24).
• Keep the appliance running on FAN mode for half a day in a warm room to dry the appliance inside and prevent mold forming.
• Stop the appliance and unplug it, wrapped the cord and bundle it with the tape. Remove the batteries from the remote controller.
• Clean the air filter and reinstall it.

TROUBLE SHOOTING

TROUBLES	POSSIBLE CAUSES	SUGGEST REMEDIES
1. Unit does not Start when Pressing on/off Button	- P1 appears in the display window	Drain the water in the bottom tray.
	- Room temperature is lower than the set temperature.(Cooling mode)	Reset the temperature.
2. Not cool enough	- The windows or doors in the room are not closed.	Make sure all the windows and doors are closed.
	- There are heat sources inside the room.	Remove the heat sources if possible.
	- Exhaust air duct is not connected or blocked.	Connect the duct and make sure it can function properly.
	- Temperature setting is too high.	Decrease the set temperature.
	- Air filter is blocked by dust.	Clean the air filter.
4. Nolsy or vibration	- The ground is not level or not flat enough.	Place the unit on a flat, level ground if possible.
5. Gurgling sound	- The sound comes from the flowing of the refrigerant inside the air-conditioner.	It is normal.
6. Power shut off at Heating mode	- The automatic over heat protection function. When the temperature at the air outlet exposed 70 €/155 F3th e de voe will sit op.	Switch on again after the unit has cool down.
