ERC-D1233(WH) - Rice cooker Elba - Free user manual and instructions

Product Type	Electric Rice Cooker
Brand	Elba
Model	ERC-D1233(WH)
Colour	White
Rated Voltage	220-240V~50/60Hz
Rated Power	275~330W
Capacity (Raw Rice)	Up to 1.5 cups (approx. 0.24L)
Capacity (Cooked Rice)	Approximately 3 cups
Heating Method	Bottom heating plate
Functions	Cooking, automatic keep warm
Keep Warm Function	Yes, automatic after cooking
Inner Pot Material	Aluminum with non-stick coating
Inner Pot Removable	Yes
Measuring Cup Included	Yes (approx. 0.16L)
Steam Outlet	Yes
Safety Features	Auto shut-off, overheat protection, dry burning prevention
Body Material	Plastic
Accessories	Rice scoop, measuring cup
Cleaning	Inner pot with mild detergent; body with damp cloth
Warranty	1 year

Frequently Asked Questions - ERC-D1233(WH) Elba

What is the maximum amount of rice I can cook in this rice cooker?

The maximum cooking capacity is 1.5 cups of raw rice using the provided measuring cup. This yields approximately 3 cups of cooked rice.

Can I cook grains other than rice, such as quinoa or oatmeal?

The rice cooker is primarily designed for white rice. However, you can cook other grains, but you may need to adjust the water level and cooking time according to the grain type. Always monitor the process and refer to the grain's instructions.

How should I clean the inner pot?

Clean the inner pot with mild detergent and a soft sponge. Avoid using metal brushes, scouring pads, or abrasive cleaners to prevent scratching the non-stick coating. If food sticks, soak the pot in water before cleaning.

Why is my rice undercooked?

Undercooked rice may result from insufficient water or not pressing the power switch down fully. Ensure the water level reaches the indicated line for the number of cups, and that the switch is engaged until cooking completes.

Why is the rice overcooked or mushy?

Overcooked rice typically occurs from too much water. Follow the water level markings on the inner pot or adjust based on your preference. Also, avoid using hot water as it can affect the thermostat.

Can I use the inner pot directly on a gas stove?

No, never use the inner pot on a gas stove or any direct heat source. It will deform the pot and damage the non-stick coating. Only use it inside the rice cooker.

How do I know when the rice is cooked?

When the rice is done, the power switch will automatically pop up with a 'click' sound. The 'Cook' indicator light turns off, and the 'Warm' light turns on, indicating the keep warm mode.

Is it safe to leave the rice cooker unattended while cooking?

The manual advises never to leave the appliance unattended while in use. Stay nearby to monitor cooking and ensure safe operation.

Can I wash the main body with water?

No, do not immerse the main body, power cord, or plug in water. Clean the exterior with a damp cloth and wipe dry. The inner pot can be washed separately.

What does the warranty cover?

The warranty covers manufacturing defects for one year from the date of purchase. It does not cover accessories, consumable parts (like inner pot or scoop), or damage from improper use.

USER MANUAL ERC-D1233(WH) Elba

White rice cooker with black handle and control panel (no visible text or symbols)

ELBA

MINI RICE COOKER

MODEL: ERC-D1233(WH)

Owner's Manual

Please read this manual carefully before operating your set.

Retain it for future reference

Record model number and serial number of the set.

See the label attached on the set and quote this information to your dealer when you require service.

For The Warranty Terms & Conditions, Please Refer To Warranty Certificate.

Thank you for choosing Rasonic Electric Rice Cooker. Please read the operation manual carefully before using and well keep this operation manual for your later reference.

Table of Contents

1. Important Safeguards
2. Product Specifications
3. Product Descriptions
4. Operation Instructions
5. Cleaning and Maintenance
6. Storage
7. Special Avowal
8. After Sales Service

1. Important Safeguards

When using the rice cooker, please follow the below basic safety precautions:

The following chart indicates the degree of damage caused by wrong operation.

Warning: Indicates hazards that may cause death or severe injury.

Caution: Indicates hazards that may cause human injuries or property damages.

The following symbols can distinguish the instruction types that need to be strictly followed.

	These symbols mean prohibition.
	These symbols mean requirement that must be followed.

	Never allow children to operate the appliance alone or play as toy. Please put the appliance in a place not reachable by children.		Please use the power socket with rated current over 10A and ground wire individually.
	Never leave the appliance unattended when in use or operate without inner pot in the main body.		The appliance is for household use only. Do not use it outdoors or on other purposes that are not in the operation manual.
	Do not use deformed inner pot to avoid short circuit due to poor contact with heating plate.		Please make sure the rice cooker is plugged in tightly at both ends of the power cord on the rice cooker and the power socket before use.
	Do not get your face or hands close to the steam outlet during use or right after use. Never touch the heating plate right after use.		Make sure the plug is dry before use.
	Do not place heavy objects on the power cord. Never clip, modify, stretch or twist the power cord.		Do not hang the power cord over the edge of a table, counter-top or touch any hot surface.

Warning

Do not touch, plug in or remove the plug with wet hands, it can cause electric shock.

When in use, do not use cloth or other foreign objects to block the steam outlet, it is to avoid lid deformation or change color.

Do not attempt to modify the rice cooker by yourself or repair with any parts that are not authorized.

Always check the condition of rice cooker, inner pot, power cord and plug. To avoid hazard, stop using the rice cooker immediately if any damage found.

Never immerse the main body, power cord or plug in water or let them wet.

The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Caution

Do not use other container to substitute the original inner pot.

Do not exceed the maximum water indication line in the inner pot to prevent water and steam spilling from the rice cooker.

Make sure the outer surface of inner pot and heating plate are clean and dry before use, otherwise it may cause the rice cooker break down.

After use, remove the plug from the socket and make sure the rice cooker completely cools down before moving, cleaning or checking.

Do not open the lid, move or shake the rice cooker when in use, it can cause danger.

Be sure to grasp the power plug itself when plug in or remove the plug. Do not grasp the power cord.

Do not place the rice cooker in environment that is humid, unstable, near water or fire.

Do not operate the appliance when the power cord is tangle, otherwise it will speed up the power cord deterioration.

1. Product Specifications

Model	ERC-D1233(WH)
Rated Voltage	220-240V~50/60Hz
Rated Power	275~330W

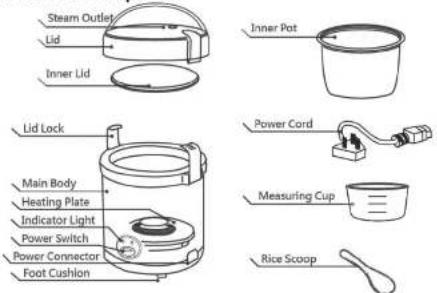

1. Product Descriptions


(The products have similar structure. Food box for reheat is only available. Drawing is for reference only, appearance please refer to the actual products.)

4. Operation Instructions

1. Measure rice

2. Provided measuring cup – a cup of rice is about 0.16L which is approximately one-person quantity.
   • Maximum rice cooking capacity of the rice cooker is 1.5 cups, otherwise rice may spill from the rice cooker.

3. Wash rice and add water

Do not wash rice directly in the inner pot to avoid scratching its coating. Please wash rice in other containers.

- Put the rinsed rice in the inner pot, then add suitable amount of water. For a cup of rice, add water to the inner pot until the water level reach the indication line "1 Cup". You may adjust the water amount according to your own preference on the rice texture. (Note: Do not use hot water to cook rice, it will affect the heat detection of the thermostat and the rice texture.)

1. Put the inner pot inside the main body, then cover with the lid.

2. Before putting the inner pot inside the rice cooker main body, make sure the outer and bottom surface of the inner pot is wiped dry and clean. If foreign substance on the heating plate is found, please remove it immediately.

3. Put the inner pot inside the main body horizontally and make sure it directly contacts with the heating plate. Be sure the rice is evenly distributed in the inner pot.

4. When cover the lid, lock the lid by matching the notch on both sides of the lid with the extruded marks on the main body, press the lid lock at two ends until a "click" sound is heard.

5. Connect power to the rice cooker to start cooking.

6. Insert one end of power cord to the power connector on the rice cooker main body and the other end to the power socket tightly. The "Warm" indicator light will be on.

7. Press down the power switch, the "Warm" indicator light goes off and the "Cook" indicator light goes on that means to start cooking.

8. After the rice is cooked, the power switch will rebound to the original position automatically with a "click" sound. The "Cook" indicator light will turn off. The "Warm" indicator light will turn on which means the rice cooker switches to keep warm status automatically.

9. After changing to keep warm status, you may keep the rice in the rice cooker for 10-15 minutes, the rice would become soft and taste better.
10. When the rice cooker is not in use, the plug must be removed from the power socket.

5. Cleaning and Maintenance

1. Must unplug the rice cooker and let it cool down completely before cleaning.
2. Please clean the inner pot with mild detergent. Never use poisonous or corrosive detergent for cleaning.
3. If food sticks on the inner pot, you may soak the inner pot with clean water for a while before cleaning.

1. To avoid damage to the inner pot, please read below precautions:

2. Do not wash rice in the inner pot directly to avoid damage on the inner pot non-stick coating and affect cooking quality of rice.

3. Do not crash the inner pot or heat it directly on fire, otherwise it will cause the inner pot to deform and damage.
4. Do not cook food which is acidic (such as vinegar) or alkaline in the inner pot, it will cause corrosion to the inner pot.
5. Please use original rice scoop, do not use metal utensils to avoid scratch on the inner pot coating.
6. Please use sponge or soaked cloth to clean the inner pot. Never clean with metal brush, scouring pad or other hard material.

7. The color of inner pot may change with time, however it does not affect the food hygiene and function of the inner pot.

8. If dirts are attached on the heating plate, main body or lid, clean it with a wet cloth and then wipe it dry.

6. Storage

1. Always let the rice cooker cool down completely before storage.
2. When store the rice cooker, please put it in a box and store in a dry place.
3. When store the rice cooker, never wrap the power cord round the rice cooker or clip the power cord, it prevents deterioration on the power cord.

7. Special Avowal

1. The information above has been checked. Our company reserves the hermeneutic power to any printing errors or misunderstanding on the content.
2. If there are technical improvements on the appliance, the operation manual will be updated in new version without prior notice. The product appearance and specification are subject to the manufacturer information.

8. After Sales Service

For any defect caused under normal use, our company is responsible for repairing or replacing any parts of the said electrical appliance free of charge within one year guarantee period commencing from the date of purchase. Any defective part which has been replaced shall become our property. Warranty service does not cover the repair or replacement of accessories, consumable parts such as housing, inner pot, etc. If the appliance is used improperly, for commercial use or semi-commercial use, or not follow the instructions in the operation manual, the warranty becomes invalid and our company will refuse any liability and repairing cost for the damage caused.

User must present the official invoice / redemption voucher and warranty card (printed on packing box) with the chop from sales point / redemption centers for maintenance. For enquiries, please call Shun Hing Electric Service Centre Limited hotline at 2406 5666.
