PXR03WLSFSC - Wine cellar GE - Free user manual and instructions
Find the device manual for free PXR03WLSFSC GE in PDF.
| Product Type | Wine Cellar (Dual-Zone) |
| Model Number | PXR03WLSFSC |
| Brand | GE |
| Installation Type | Freestanding |
| Clearance Required (Sides) | 2" (51 mm) |
| Clearance Required (Top) | 2" (51 mm) |
| Clearance Required (Back) | 3" (76 mm) |
| Temperature Range | 7°C - 18°C (44°F - 65°F) |
| Number of Zones | 2 (Upper and Lower) |
| Control Type | Touch screen with digital display |
| Interior Light | Yes, switchable manually or auto 30s |
| Lock/Unlock Feature | Yes, press Lock/Unlock key for 3 seconds |
| Power Supply | 120 V, 60 Hz, 15 A circuit |
| Power Cord | 3-prong grounding plug |
| Cooling System | Compressor-based |
| Defrost Method | Manual when frost reaches 1/8" (3 mm) |
| Temperature Display | Celsius or Fahrenheit selectable |
| Memory Function | Restores last settings after power loss |
| Error Codes | E1, E4, E6 for sensor/communication faults |
| Leveling Legs | Adjustable front legs, 1/8" tilt to back |
| Cleaning | Mild soap and water; stainless steel cleaner for some models |
| Warranty | 1 year limited parts and labor |
| Safety Features | Child entrapment prevention, grounding required |
| Spare Parts Availability | Through GE Appliances or authorized servicers |
Frequently Asked Questions - PXR03WLSFSC GE
User questions about PXR03WLSFSC GE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Wine cellar in PDF format for free! Find your manual PXR03WLSFSC - GE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PXR03WLSFSC by GE.
USER MANUAL PXR03WLSFSC GE
Safety Instructions....2,3
Installation Instructions.....4
Operating Instructions
Control Settings 5,6
Care and Cleaning 7,8
Troubleshooting Tips ..... 9, 10
Consumer Support
Product Registration....11
Warranty 13
Consumer Support 14
Owner's Manual and Installation
PXR03


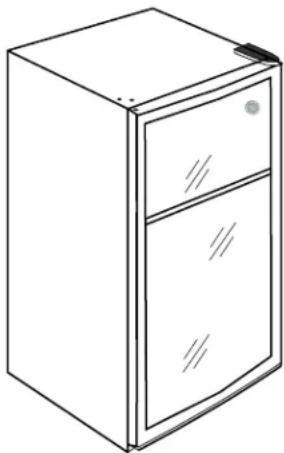

Line drawing of a single refrigerator with two doors and front panel (no text or symbols)Write the model and serial numbers here:
Model # ____
Serial #
Find these numbers on the Rating Plate located either inside the or outside on the rear wall of the Wine Chiller.
▲ WARNING!
Use this appliance only for its intended purpose as described in this Owner's Manual.
SAFETY PRECAUTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
This wine chiller must be properly installed and located in accordance with these instructions before it is used.
Do not allow children to climb, stand or hang on the shelves in the wine chiller. They could damage the wine chiller and seriously injure themselves.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- Keep fingers out of the "pinch point" areas; clearances between the doors and between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area.
■ Unplug the wine chiller before cleaning and making repairs.
NOTE: We strongly recommend that any servicing be performed by a qualified individual.
- Do not store or install this appliance outdoors.
▲ DANGER! RISK OF CHILD ENTRAPMENT
PROPER DISPOSAL OF THE WINE CHILLER
Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigeration products are still dangerous... even if they will sit for "just a few days." If you are getting rid of your old appliance, please follow the instructions below to help prevent accidents.
Before You Throw Away Your Old Refrigeration Product:
Take off the doors.
Leave the shelves in place so that children may not easily climb inside.
CFC Disposal
Your old refrigerator has a cooling system that used CFCs (chlorofluorocarbons). CFCs are believed to harm stratospheric ozone.
If you are throwing away your old refrigerator, make sure the CFC refrigerant is removed for proper disposal by a qualified servicer. If you intentionally release this CFC refrigerant, you can be subject to fines and imprisonment under provisions of environmental legislation.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord.
However, if you must use an extension cord, it is absolutely necessary that it be CSA certified, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.
HOW TO CONNECT ELECTRICITY
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.
The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.
If you have only a standard 2-prong wall outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.
The wine chiller should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.
This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.
Never unplug your wine chiller by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.
Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the wine chiller away from the wall, be careful not to roll over or damage the power cord.
USE OF ADAPTER PLUGS
Adapter plugs are not permitted in Canada.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
Installing the wine chiller.
Removing the Packaging
Before using the wine chiller, be sure all packing materials and tape have been removed, including any protective film covering the control and any film protecting the cabinet.
If you are discarding an old refrigeration product, remove the doors to reduce the danger of children being trapped inside.
Installation Guidelines
The wine chiller must be freestanding.
- Allow the following clearances for ease of installation, proper air circulation and electrical connections:
Each side 2" (51 mm)
Top 2" (51 mm)
Back 3" (51 mm)
Before connecting the appliance to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
Do not install the wine chiller where the temperature will go below 55^ F ( 13^ C) or above 90^ F ( 32^ C).
- Install it on a level floor.
Do not install the wine chiller where it will be subject to direct sunlight, heat or moisture.
- Do not store or install this appliance outdoors.
The following models must be installed on the floor: GWS04, GCS04.
Leveling Legs
Adjustable legs at the front corners of the wine chiller should be set so the wine chiller is firmly positioned on the floor, with a 1/8" (3 mm) tilt to the back to help the door closure.
To adjust the leveling legs, turn the legs clockwise to raise the wine chiller, counterclockwise to lower it.
Interior Light (available on some Models)
You can turn the light ON or OFF by pushing the light switch located on the right side of the control panel housing. If the interior light is left on, the temperature will be higher.
Loading the Wine
As with any refrigeration product, there is a slight temperature variance at different locations within each compartment. The lower shelves provide a slightly cooler temperature than the upper shelves.
Setting the Temperature Control

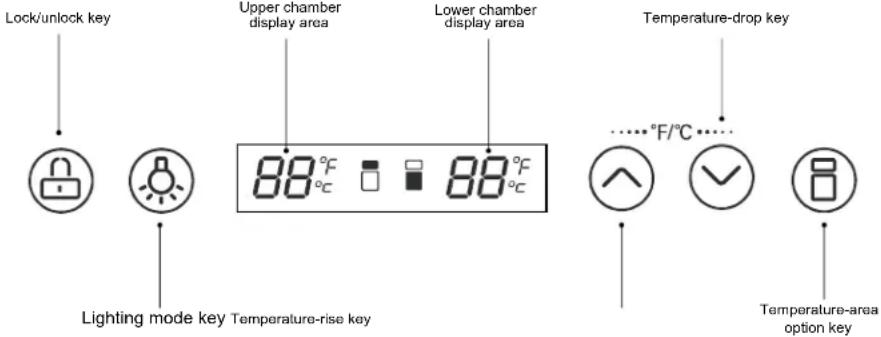

Display Panel
When the Wine Chiller is Plugged In
After plugging in the wine chiller and making your temperature selection, allow the wine chiller to reach the set temperature before loading your wine. This may take up to 12 hours to completely stabilize.
After loading the wine, you may notice a rise in the temperature. Allow adequate time for the temperature to return back to the set temperature. This may take up to 12 hours to completely stabilize.
When first powering on, the display screen gives a full display for 3 seconds and the start-up sound rings; then the machine enters into operation in the locked state. See below for unlocking instructions.
If there is no key operation for 30 seconds, the display screen will turn off. The display screen will turn on again, if you touch any key.
When powering on, the temperature of the upper chamber will be adjusted according to the factory pre-set. By pressing the Option key ⑧, the
Switching of the Fahrenheit temperature and Celsius temperature
Press the Temperature-rise key ⬇ and the Temperature-drop key ⬇ at the same time for 3 seconds to switch between Celsius
Lock/Unlock Key Button
By pressing the Lock/Unlock key 📋 for 3 seconds, the buzzer rings and the locked mode is activated; the temperature display areas (digit display areas) of upper chamber and lower chamber turn off.
By pressing the Lock/Unlock key for 3 seconds in the locked mode, the buzzer rings and the locked mode is de-activated; After unlocking, the temperature display area of selected chamber turns on.
NOTE: WHEN USING ANY COMPARTMENT FOR BOTH WINE AND BEER STORAGE WE RECOMMEND THAT YOU PLACE RED WINE BOTTLES ON TOP SHELF AND BEER ON BOTTOM SHELF.
temperature area will be switched between upper chamber and lower chamber. Once a chamber is selected, the display will flash and at this time the temperature of the chamber can be set up. After locking, temperature display stops flashing.
By selecting the key to switch the temperature areas (upper or lower chamber), the temperature display of upper or lower chamber flashes.
By pressing the Temperature-rise key the temperature will increase 1°C (or °F). After locking, the cooler will operate according to the setting temperature;
By pressing the Temperature-drop key, the temperature will decrease 1°C (or °F). After locking, the cooler will operate according to the setting temperature
The wine cooler's temperature can be set between 7\~18°C (44\~65°F).
temperature and Fahrenheit temperature; the screen will display the Fahrenheit temperature or Celsius temperature under the current mode.
When in the locked mode, if you touch any key besides the Light key, the display screen will keep flashing for 2.5 seconds and the buzzer will ring, alerting you to unlock the control.
About the controls and settings.
Interior Light
■ After the power is on for 3 seconds, the lighting turns on by default for 30 seconds. If the lighting key is not operated within 30 seconds, the lighting will automatically turn off.
■ Press the Lighting mode key to turn on or turn off the light.
Important:
In order to extend the compressor life, please restart wine cooler after waiting 3 minutes.
■ Memory Function:
The cooler has a power off memory function. When power comes on again, the wine cooler will operate according to the setting mode before the power went off.
Fault Indication:
If the codes in the following table are displayed on the display area, it means the cooler has the faults indicated.
| Fault code Fault Description | |
| Upper chamber display E1 The fault of | temperature sensor of upper chamber |
| Lower chamber display E1 The fault of | temperature sensor of lower chamber |
| Upper chamber display E4 The fault of | defrosting sensor of upper chamber |
| Lower chamber display E4 The fault of | defrosting sensor of lower chamber |
| Upper chamber display E6 Communication fault | |
Call for service if any of the above error messages show.
You should touch the temperature control panel softly as the panel is touch screen control. Please protect the touch control panel carefully to avoid scratching, keep far away from strong magnetic fields and high humidity, or it can cause wine cooler to not work properly.
Cleaning the Outside
IMPORTANT: Unplug the wine chiller before cleaning.
Keep the outside clean. The cabinet can be washed with mild soap and water. Rinse thoroughly with clear water.
Never use abrasive scouring powders.
Use a glass cleaner or mild soap and water and a soft cloth to clean the glass door. Do not use any abrasive powders.
Wipe the control panel with a damp cloth. Dry thoroughly. Do not use cleaning sprays, large amounts of soap and water, abrasives or sharp objects on the panel—they can damage it. Some paper towels can also scratch the control panel.
Do not wipe the wine chiller with a soiled dishcloth or towel. These may leave a residue that can erode the paint. Do not use scouring pads, powdered cleaners, bleach or cleaners containing bleach because these products can scratch and weaken the paint finish.
Stainless steel. Regularly clean and polish the stainless steel areas (on some models) with a commercially available stainless steel cleaner such as Gleem-it ^® to preserve and protect the fine finish. Gleem-it ^® is available at leading hardware stores. It is also available through our website, GEAppliances.ca, or call 1.888.261.3055. Order part number WX10X15.
Do not use appliance wax or polish on the stainless steel.
Protect the paint finish. The finish on the outside of the wine chiller is a high-quality, baked-on paint finish. With proper care, it will stay new-looking and rust-free for years. Apply a coat of kitchen/appliance wax when the wine chiller is new, and then at least twice a year.
Cleaning the Inside
IMPORTANT: Unplug the wine chiller before cleaning.
To clean the inner liner and racks, use a warm water and baking soda solution—about one tablespoon (15 mL) of baking soda to a quart (1 liter) of water. This both cleans and neutralizes odors. Rinse and wipe dry.
The vinyl door gasket may be cleaned with mild soap and water or a baking soda solution. Rinse well.
Do not use detergents, scouring powders, spray cleaners or other harsh chemicals to clean the interior.
Defrosting
Defrost whenever frost on the inside surfaces of the storage area becomes 1/8" (3 mm) thick.
Never use a heater of any kind, scraper or sharp instrument to remove frost as it may damage the wine chiller.
To defrost, unplug the wine chiller. Remove the contents and wipe inside surfaces and
racks with a clean towel. If frost does not come off easily, allow the frost to melt somewhat and wipe off.
After defrosting, make sure inside surfaces are dry; then return the contents to the wine chiller and set the temperature control to the desired setting.
In the Event of a Power Failure
If the power fails, open the door as infrequently as possible to maintain the temperature. A gradual rise in temperature should not have any adverse effect on the wine.
If it is extremely hot, you may want to unload the wine from the wine chiller and move the wine to a cooler location until power is restored.
When power is restored, the controls automatically are set to the Factory Setting 50°F (10°C). If needed, reset the controls to the desired setting.
Care and cleaning.
Vacation Time
■ Short vacations: Leave the Wine/ Beverage Cooler operating during vacations of less than three weeks.
- Long vacations: If the appliance will not be used for several months, remove
all items and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.
Preparing to Move
Unload the wine, then secure the racks and door by taping them in place to prevent damage.
Turn the adjustable leveling legs up to the base to avoid damage.
Be sure the wine chiller stays in an upright position during the move.
Energy Saving Tips
The Wine/Beverage Cooler should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.
■ Try not to open the door too often, especially when the weather is wet or hot. Once you open the door, mind to close it as soon as possible.
This appliance is intended to be used exclusively for the storage wine.
■ Every now and then check if the appliance is sufficiently ventilated (adequate air circulation behind the appliance).
For wine storage appliances, please arrange the temperature following the instruction: SPARKLE: 41-45°F (5-7°C), WHITE: 46-54°F (8-12°C), RED: 55-65°F (13-18°C).
LED Refrigerator Lights
An authorized technician will need to replace the LED light
Troubleshooting Tips
Save time and money! Review the charts on the following pages first and you may not need to call for service.
| Problem Possible Causes What To Do | ||
| Wine chiller does not operate and the display is blankthe fuse is blown. | Wine chiller is unplugged. | Push the plug completely into the outlet. |
| The circuit breaker is tripped/the fuse is blown. | Replace fuse or reset the breaker. | |
| Vibration or rattling (slight vibration uneven is normal) | Wine chiller is on an surface. | See the Leveling Legs section. |
| The Wine/Beverage The rattling noise may come cooler seems to make too much noise. | from the flow of the refrigerant, which is normal. | |
| As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your Wine/ Beverage Cooler. | ||
| Contraction and expansion of the inside walls may cause popping and crackling noises. | ||
| The Wine/Beverage Cooler is not level. | ||
| Motor operates for long periods or cycles | Normal when wine chiller is first plugged in. | Wait 12 hours for the wine chiller to completely cool down. |
| Often occurs when large amounts of wine are placed in wine chiller. | This is normal. | |
| Door left open. | Door is not self-closing. Always make sure that the door is closed after opening.Check to see if a bottle is holding door open. | |
| Hot weather or frequent door openings. | This is normal. | |
| Temperature control set at the coldest setting. | See About the control and settings. | |
| Wine chiller is too close to the wall. | See the Installation Guidelines section for the correct clearances. | |
| Wine chiller too warm | Normal when wine chiller is first plugged in. | Wait 12 hours for the wine chiller to completely cool down. |
| Often occurs when large amounts of wine are placed in wine chiller. | This is normal. | |
| Temperature control not set cold enough. | See About the control and settings. | |
| Warm weather or frequent door openings. | Set the temperature control one step colder.See About the control and settings. | |
| Wine chiller is too close to the wall. | See the Installation Guidelines section for the correct clearances. | |
Before you call for service...
| Problem Possible Causes What To Do | ||
| Wine chiller too warmdoor is closed after opening.• Check to see if a bottle is holding door open.may have occurred. | Door left open. | • Door is not self-closing. Always make sure that the |
| If the temperature setting isnot showing what you lastselected, a power outage | • When the power came back on, the wine chillerreturned to the default setting, which is 50^ ( 10^ ).Reset the control to the desired setting. | |
| Wine chiller has odor | Interior needs cleaning. | • See Care and cleaning. |
| Moisture forms onoutside of wine chiller | Not unusual during periodsof high humidity. | • Wipe surface dry. |
| Moisture collects inside(in humid weather,air carries moistureinto wine chiller whendoor is opened) | Too frequent or too longdoor openings. | |
| Wine bottles touching | • Reposition bottles. | |
| Frost forms on interiorsurfaces of wine chillerSee the Defrosting section.• Door is not self-closing. Always make sure that thedoor is closed after opening.• Check to see if a bottle is holding door open. | This is normal. | • See the Defrosting section. |
| Door left open. | • Excessive frost may form if the door is left open. | |
| • See the Defrosting section.• Door is not self-closing. Always make sure that thedoor is closed after opening.• Check to see if a bottle is holding door open. | ||
| Wine chiller too coldis set too cold.may have occurred. | Temperature control | • See About the control and settings. |
| If the temperature setting isnot showing what you lastselected, a power outage | • When the power came back on, the wine chillerreturned to the default setting, which is 50^ ( 10^ ).Reset the control to the desired setting. | |
| The room temperature wherethe wine chiller is located istoo cold. | • For proper operation, the room temperature shouldbe equal to or greater than the set temperature of thewine chiller. | |
| Temperature in thedisplay is not thetemperature thatwas just set. | This is normal. | • After you set the temperature, the display will goback to showing the actual temperature. |
| Condensation on frontof door | Wine chiller is located in ahigh humidity environment. | • Wipe off the condensation with a clean, dry cloth.• Locate the wine chiller in a lower humidityenvironment. |
| Water on floor behindwine chiller | Door left open.door is closed after opening.• Check to see if a bottle is holding door open. | • Door is not self-closing. Always make sure that the |
| The door will notclose properly | The Wine/Beverage Cooler isnot level. | |
| The door was reversed and notproperly installed.The gasket is dirty.The shelves are out of position. | ||
Please place in envelope and mail to:
For Canadian Customers
All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. For service call 1-800-561-3344.
Proof of the original purchase date is needed to obtain service under warranty.
For The Period Of: Mabe Will Replace:
One Year
From the date of the original purchase
Any part of the wine chiller which fails due to a defect in materials or workmanship. During this limited one-year warranty, Mabe will also provide, free of charge, all labour and service to replace the defective part.
What Mabe Will Not Cover:
■ Service trips to your home to teach you how to use the product.
■ Improper installation.
Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
■ Loss of wine due to spoilage.
- Replacement of house fuses or resetting of circuit breakers
■ Damage to the product caused by accident, fire, floods or acts of God.
In-home warranty service will be provided in areas where it is available and deemed reasonable by Mabe to provide.
■ Incidental or consequential damage to personal property caused by possible defects with this appliance.
Please read your Use & Care Material:
If you then have any questions about operating the product, please contact your dealer or our Consumer Affairs office at the address below, or call toll free: MC Commercial Inc.
1-800-561-3344
Consumer Information Service
This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. If the product is located in an area where service by a Mabe Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized Mabe Service location.
Some provinces do not allow the exclusion or limitation of consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from province to province. To know what your legal rights are in your province, consult your local or provincial consumer affairs office.
Warrantor: MC Commercial Inc.
If further help is needed concerning this warranty, write;
Consumer Relations Manager - MC Commercial Inc.
1 Factory Lane, Suite 310, Moncton NB E1C 9M3
Service Telephone Numbers
In-Home Repair Service 1-800-561-3344
Expert Mabe repair service is only a phone call away.
Parts and Accessories 1-800-263-0686
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.
Service Satisfaction
If you are not satisfied with the service you receive from Mabe, follow these steps. First, contact the people who serviced your appliance. Next, if you are still not pleased, write all the details—including your phone number-to:
Manager, Consumer Relations,
MC Commercial Inc., Suite 310, 1 Factory Lane,
Moncton (N.-B.) E1C 9M3
- ▲ WARNING!
- SAFETY PRECAUTIONS
- ▲ DANGER! RISK OF CHILD ENTRAPMENT
- PROPER DISPOSAL OF THE WINE CHILLER
- Before You Throw Away Your Old Refrigeration Product:
- CFC Disposal
- USE OF EXTENSION CORDS
- HOW TO CONNECT ELECTRICITY
- USE OF ADAPTER PLUGS
- Installing the wine chiller.
- Removing the Packaging
- Installation Guidelines
- Leveling Legs
- Interior Light (available on some Models)
- Loading the Wine
- Setting the Temperature Control
- When the Wine Chiller is Plugged In
- Switching of the Fahrenheit temperature and Celsius temperature
- Lock/Unlock Key Button
- About the controls and settings.
- Interior Light
- Important:
- ■ Memory Function:
- Fault Indication:
- Cleaning the Outside
- Cleaning the Inside
- Defrosting
- In the Event of a Power Failure
- Care and cleaning.
- Vacation Time
- Preparing to Move
- Energy Saving Tips
- LED Refrigerator Lights
- For The Period Of: Mabe Will Replace:
- One Year
- What Mabe Will Not Cover:
- Please read your Use & Care Material:
- Warrantor: MC Commercial Inc.
- Service Telephone Numbers
Brand : GE
Model : PXR03WLSFSC
Category : Wine cellar
