Product Type	Freezer (refrigerator-freezer)
Brand	GE
Model	GFE26JMMES
Capacity	26 cu ft (approx 736 L)
Height	177.5 cm
Width	91.4 cm
Depth (excluding handles)	92.2 cm
Depth with door open	127.5 cm
Weight (estimated)	120 kg
Power supply	115 V, 60 Hz, 15-20 A
Installation	Freestanding, requires water line connection
Rapid cooling	TurboCool™ (for refrigerator compartment)
Door alarm	Yes (sounds after 2 minutes open)
Water and ice dispenser	Yes (interior and exterior)
Automatic ice maker	Yes (in door, 100-130 ice cubes/24h)
Water filter	MWF or XWF cartridge, replace every 6 months
Lighting	LED (replace by certified technician)
Shelves	Adjustable, including QuickSpace™
Climate-controlled bins	Yes (separate for fruits and vegetables)
Freezer drawer	Full-width with removable baskets
Sabbath mode	Yes
Dispenser lock	Yes (via controls)
Warranty	Limited (parts and labor)
Customer service	1-800-432-2737 (US) / 1-800-561-3344 (Canada)

Frequently Asked Questions - GFE26JMMES GE

How to set the freezer temperature?

Use the freezer compartment temperature control on the control panel. The temperature is preset to 0 °F (-17.8 °C). Allow 24 hours for the temperature to stabilize after adjustment. Press the Freezer key to adjust.

How to replace the water filter?

The water filter is located in the upper right rear corner of the refrigerator compartment. Turn the old filter to the left to remove it. Insert the new filter, turn it to the right until it stops. Run 6 liters of water to purge the system, then reset the indicator by holding the Water Filter key for 3 seconds.

The ice maker is not producing ice, what to do?

Check that the water supply is open and the pressure is between 40 and 120 psi. Ensure the ice maker arm is not obstructed. Newly installed refrigerator may take 12 to 24 hours to produce ice. Discard the first few batches to clean the line.

How to activate TurboCool mode?

Press the Alarm key (door alarm) for 3 seconds. The display shows 'tc'. This function quickly cools the refrigerator compartment. Use it after adding a large amount of food or after a power outage.

How to clean the refrigerator interior?

Unplug the appliance. Use a solution of warm water and baking soda (1 tablespoon per liter of water). Clean with a soft sponge, rinse, and dry. Do not use abrasive or chlorine cleaners. For stainless steel surfaces, use a specific cleaner.

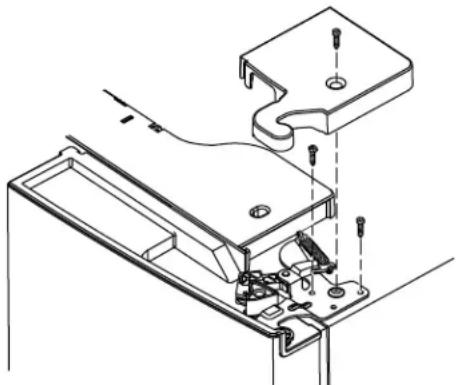

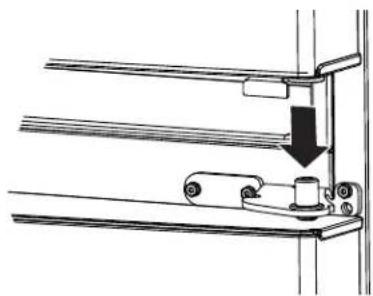

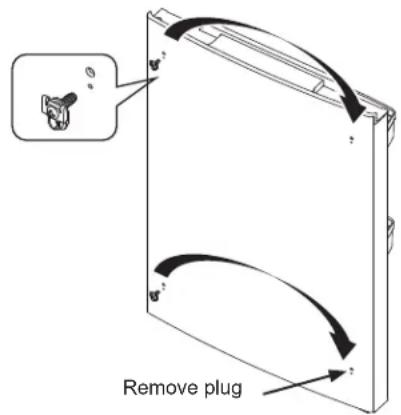

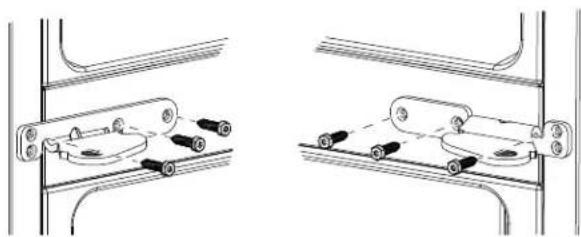

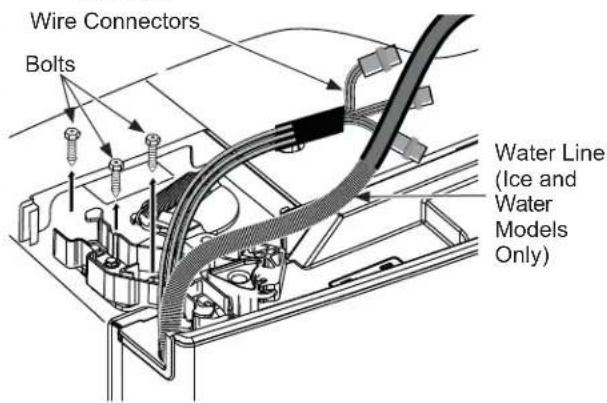

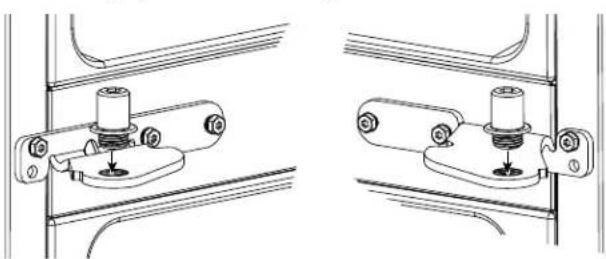

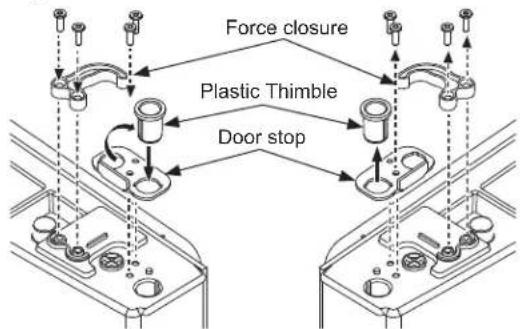

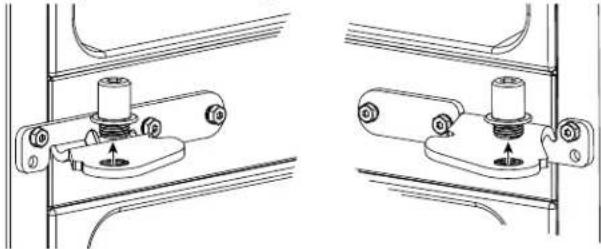

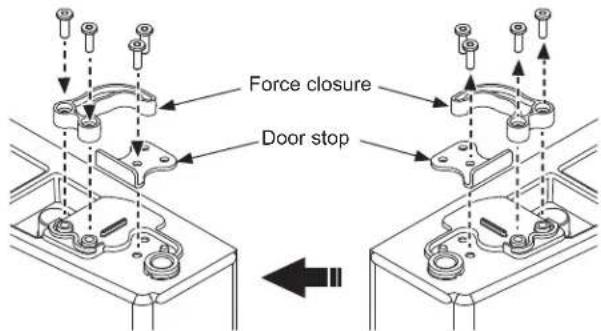

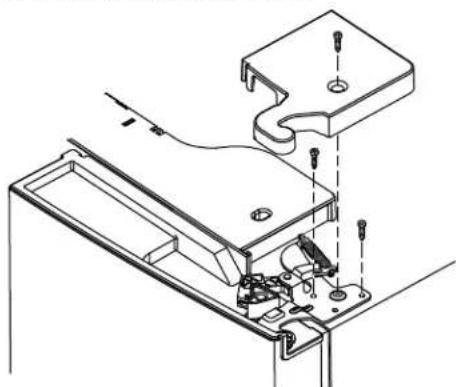

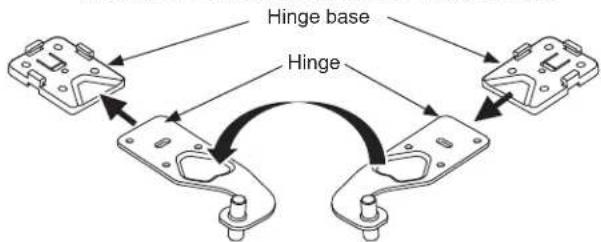

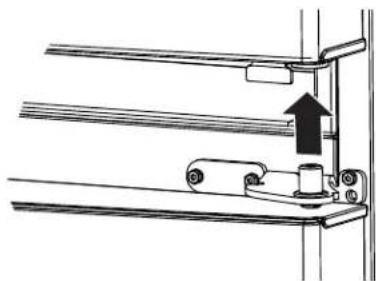

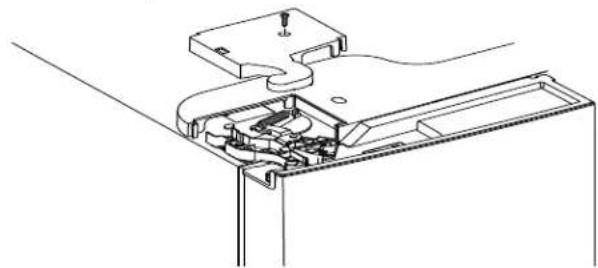

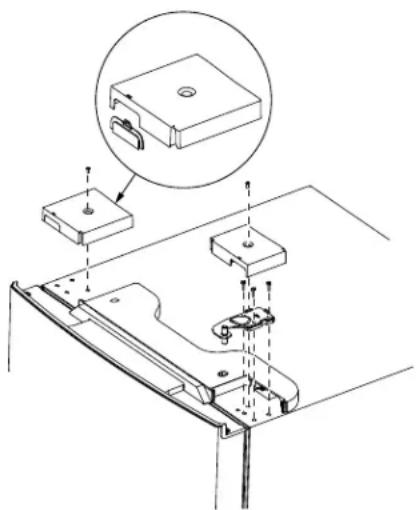

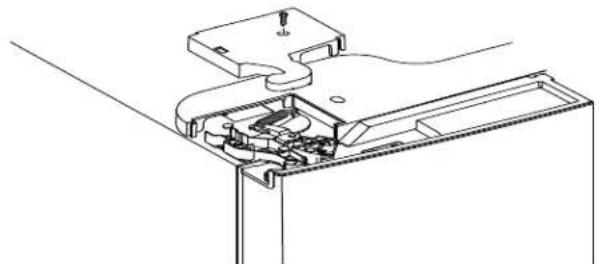

How to reverse the door swing?

Refer to the 'Door Reversal' section in the manual. Remove the hinges, brackets, and plugs, then reinstall them on the opposite side. The manual provides detailed steps and a list of necessary tools (hex key, Torx T20, etc.). It is recommended to have assistance.

What to do if the door alarm sounds?

The alarm triggers if a door remains open for more than 2 minutes. Close the door to stop the sound. If the alarm persists, ensure the door is properly closed and the gasket is clean. To disable the alarm, press the Door Alarm key.

How to lock the water and ice dispenser?

Press the Lock key for 3 seconds. The dispenser and all controls are locked. To unlock, press Lock again for 3 seconds.

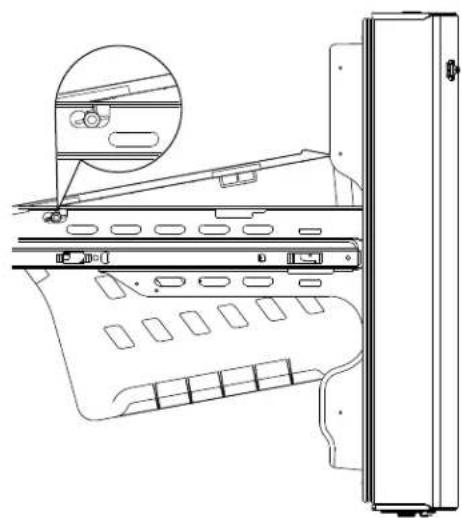

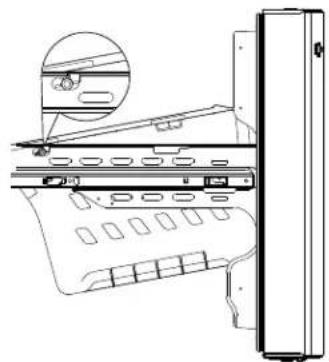

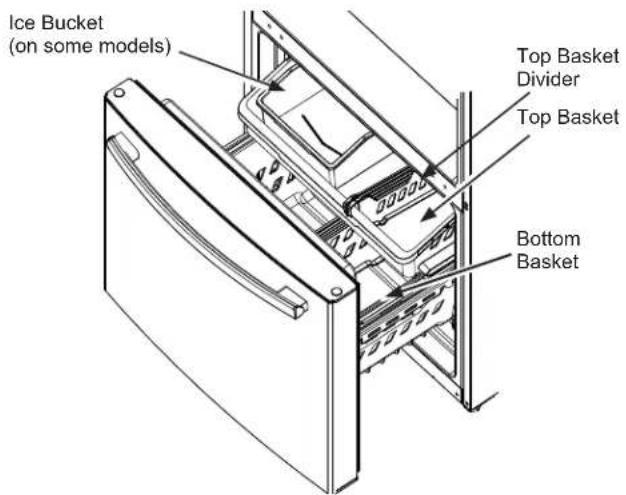

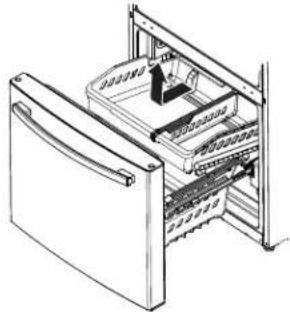

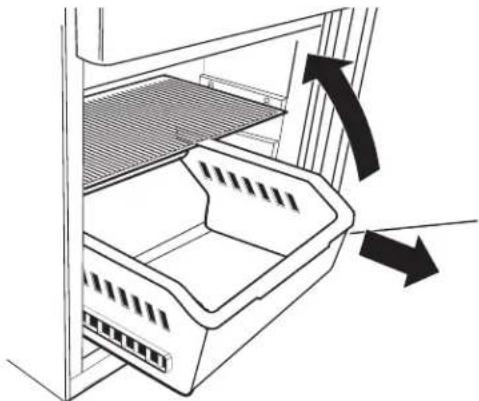

How to remove the freezer baskets?

Pull the upper basket all the way out, lift the front, and remove it. For the lower basket, first remove the upper basket, then lift the front of the lower basket and pull to disengage it from the tabs. Refer to the 'Freezer Drawer' section for details.

How to contact customer service?

In the United States, call 1-800-432-2737 or visit GEAppliances.com. In Canada, call 1-800-561-3344 or visit electromenagersge.ca. For parts and accessories, call 1-877-959-8688 (US) or 1-800-661-1616 (Canada).

USER MANUAL GFE26JMMES GE

SAFETY INFORMATION ..... 3

OPERATING INSTRUCTIONS

Features 5

Controls 7

Dispenser* 9

Water Filter - MWF 10

Water Filter - XWF 11

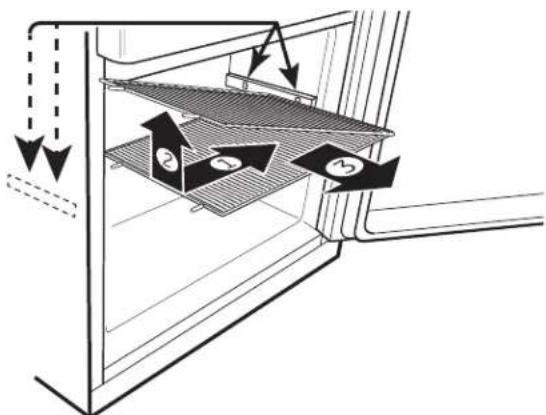

Shelves and Bins 12

Pans 13

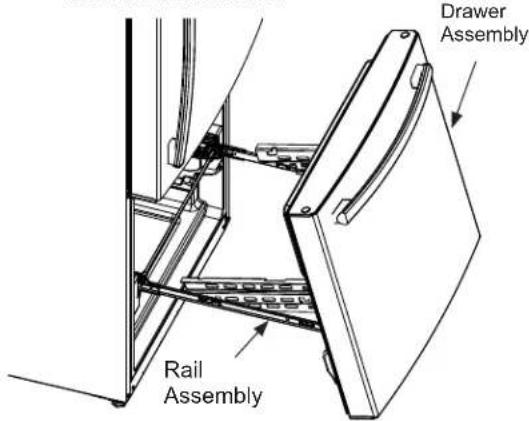

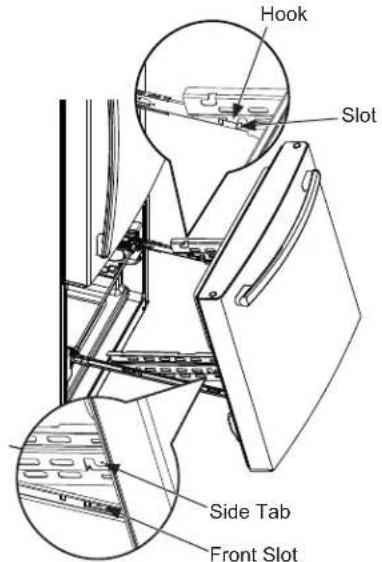

Freezer Drawer* 14

Freezer Compartment 15

Automatic Icemaker 16

CARE AND CLEANING ..... 17

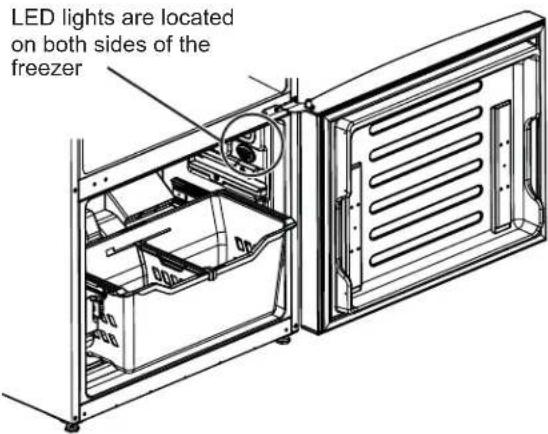

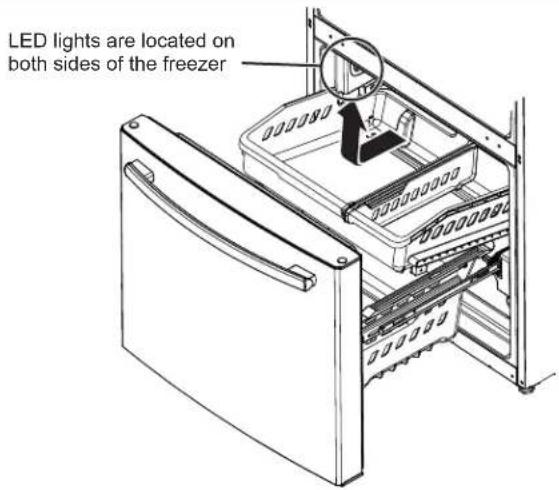

Replacing the Lights 18

INSTALLATION INSTRUCTIONS

Preparing to Install the

Refrigerator 19

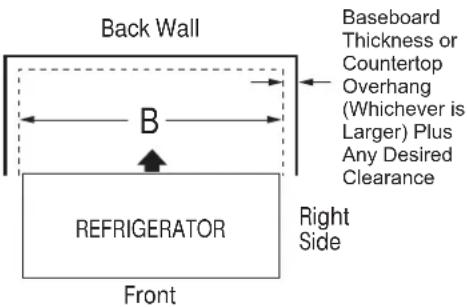

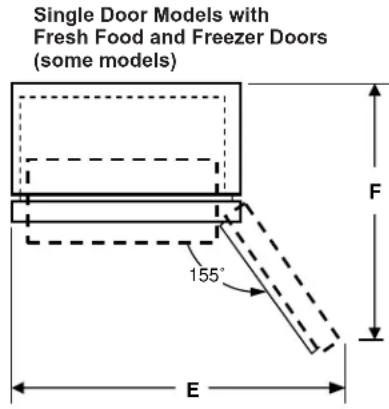

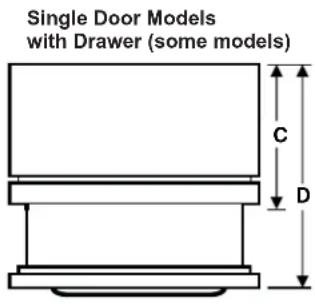

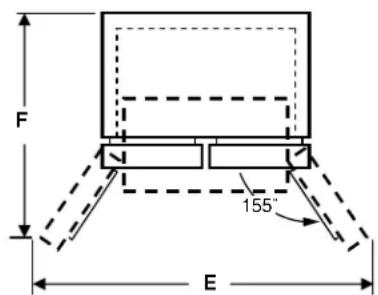

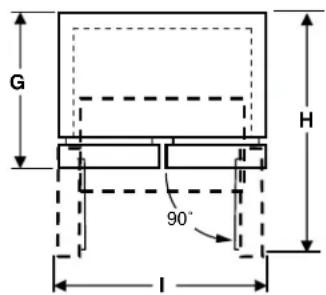

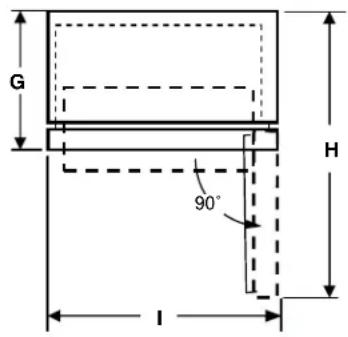

Appliance Dimensions 20

Installing the Refrigerator 21

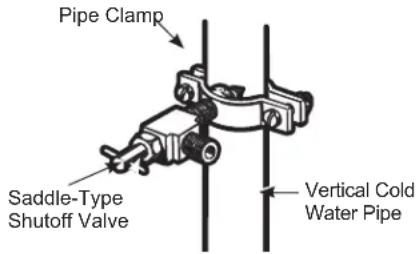

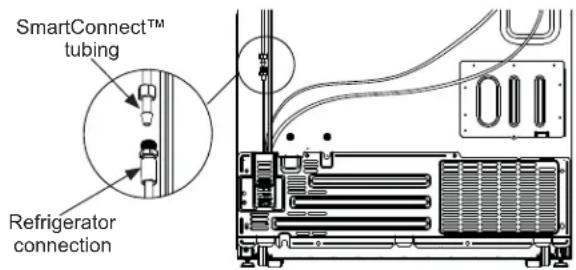

Installing the Water Line ..... 3 5

TROUBLESHOOTING TIPS

Normal Operating Conditions ..... 38

Troubleshooting 39

LIMITED WARRANTY ..... 4 2

CONSUMER SUPPORT

Water Filter Warranty 43

Performance Data Sheets ..... 4 4

Consumer Support 48

*Select Models Only

Write the model and serial numbers here:

Model # ____

Serial # ____

Find these numbers on a label on the left side, near the middle of the refrigerator compartment.

OWNER'S MANUAL & INSTALLATION INSTRUCTIONS

GE, GE Profile and GE Café

Models 18, 19, 21, 24, 25, 26

& 27 cuft

ENGLISH/FRANÇAIS/ ESPAÑOL

THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.

Whether you grew up with GE Appliances, or this is your first, we're happy to have you in the family.

We take pride in the craftsmanship, innovation and design that goes into every GE Appliances product, and we think you will too. Among other things, registration of your appliance ensures that we can deliver important product information and warranty details when you need them.

Register your GE appliance now online. Helpful websites and phone numbers are available in the Consumer Support section of this Owner's Manual. You may also mail in the pre-printed registration card included in the packing material.

GE APPLIANCES

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

WARNING

To reduce the risk of fire, explosion, electric shock, or injury when using your refrigerator, follow these basic safety precautions:

■ This refrigerator must be properly installed and located in accordance with the Installation Instructions before it is used.
■ Unplug the refrigerator before making repairs or cleaning.
NOTE: Power to the refrigerator cannot be disconnected by any setting on the control panel. NOTE: Repairs must be performed by a qualified Service Professional.

■ Replace all parts and panels before operating.

■ Do not use an extension cord.

■ Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

■ Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

■ To prevent suffocation and entrapment hazards to children, remove the fresh food and freezer doors from any refrigerator before disposing of it or discontinuing its use.

■ To avoid serious injury or death, children should not stand on, or play in or with the appliance.
■ Children and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved.
This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments; catering and similar non-retail applications.
■ Connect to potable water supply only. A cold water supply is required for automatic icemaker operation. The water pressure must be between 40 and 120 psi (275-827 kilopascals).

CAUTION

To reduce the risk of injury when using your refrigerator, follow these basic safety precautions.

■ Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping or dropping. Tempered glass is designed to shatter into many small pieces if it breaks.

- Keep fingers out of the “pinch point” areas; clearances between the doors and between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area.

■ Do not touch the cold surfaces in the freezer compartment when hands are damp or wet, skin may stick to these extremely cold surfaces.

■ Do not refreeze frozen foods which have thawed completely.
In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector mechanism, or with the heating element that releases the cubes. Do not place fingers or hands on the automatic ice making mechanism while the refrigerator is plugged in.
■ Use a sturdy glass when dispensing ice (on models with ice dispenser

STATE OF CALIFORNIA PROPOSITION 65 WARNINGS

WARNING

This product contains one or more chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

INSTALLATION

WARNING

PLOSION HAZARD

Keep flammable materials and vapors, such as gasoline, away from refrigerator. Failure to do so can result in fire, explosion, or death.

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

CONNECTING ELECTRICITY

WARNING

LECTRICAL SHOCK HAZARD

Plug into a grounded 3-prong outlet

Do not remove the ground prong

Do not use an adapter

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.

The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.

Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.

Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. Do not use an adapter.

The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.

A 115 Volt AC, 60 Hz, 15- or 20-amp fused, grounded electrical supply is required. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.

Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.

Immediately discontinue use of a damaged supply cord. If the supply cord is damaged, it must be replaced by a qualified service professional with an authorized service part from the manufacturer.

When moving the refrigerator away from the wall, be careful not to roll over or damage the power cord.

PROPER DISPOSAL OF YOUR OLD REFRIGERATOR

WARNING

SUFFOCATION AND ENTRAPMENT HAZARD

Failure to follow these disposal instructions can result in death or serious injury

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous even if they will sit for "just a few days." If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents.

Before You Throw Away Your Old Appliance

■ Take off the fresh food and freezer doors.

■ Leave the shelves in place so that children may not easily climb inside.

Refrigerant and Foam Disposal:

Dispose of appliance in accordance with Federal and Local Regulations. Flammable insulation material used requires special disposal of your appliance. Contact your local authorities for the environmentally safe disposal of your appliance.

READ AND SAVE THESE INSTRUCTIONS

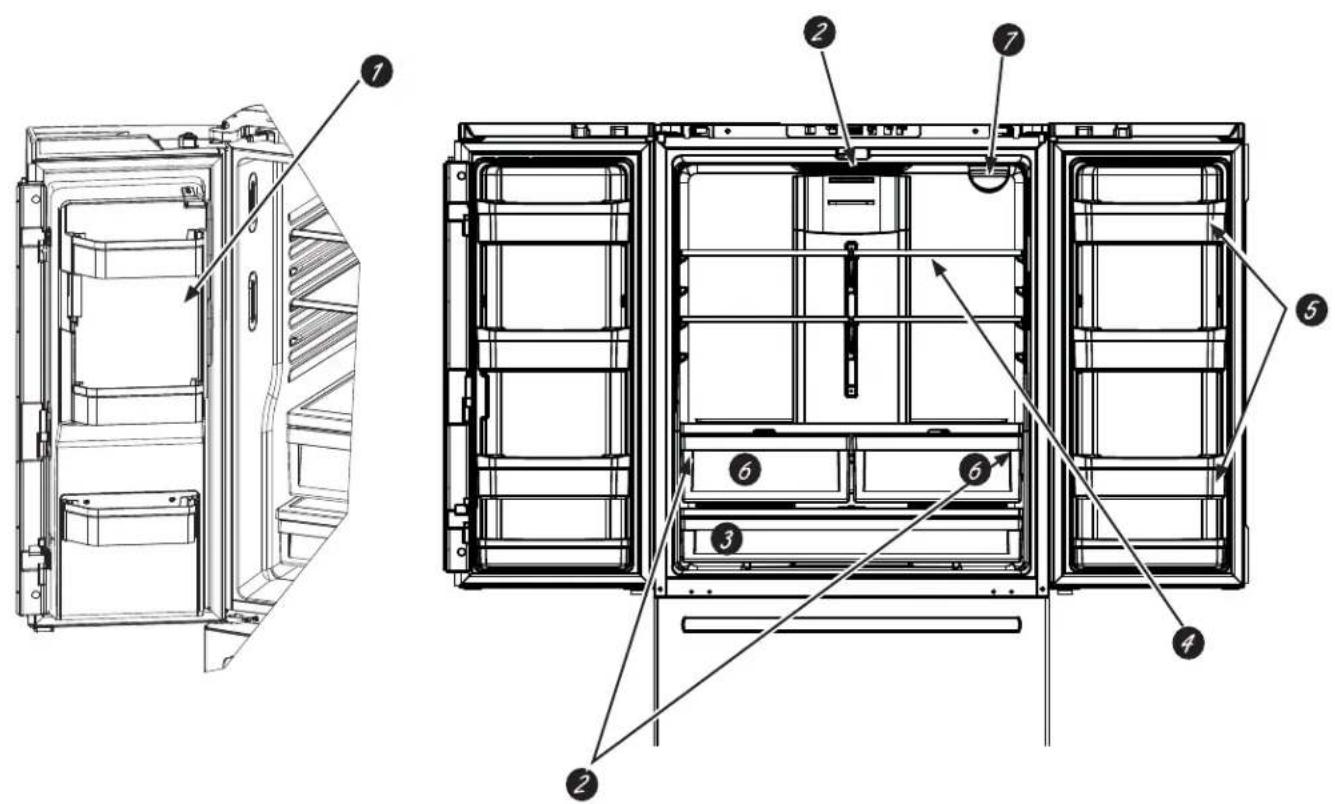

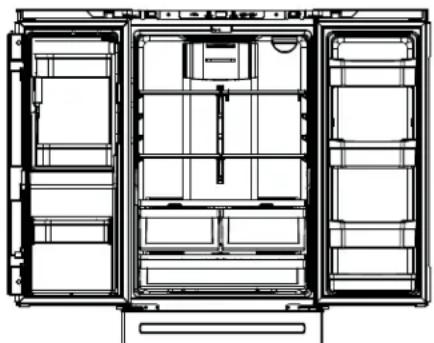

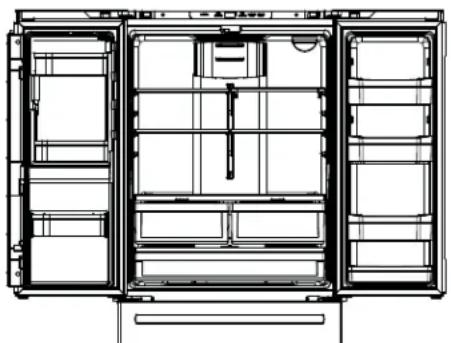

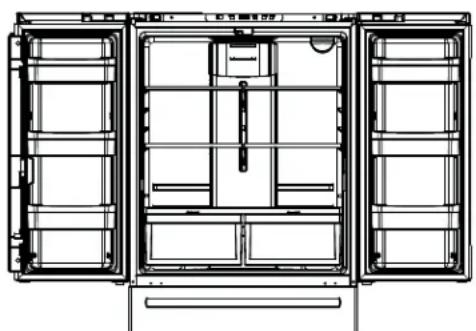

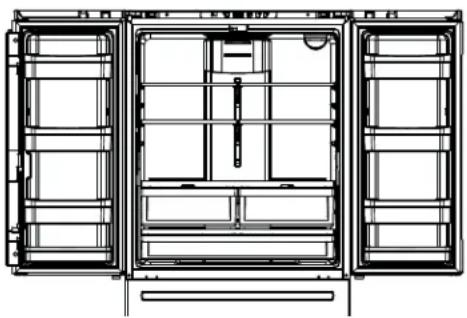

French Door Models

1 Space-saving icemaker (on some models) Icemaker and bin are located on the door creating more usable storage space.

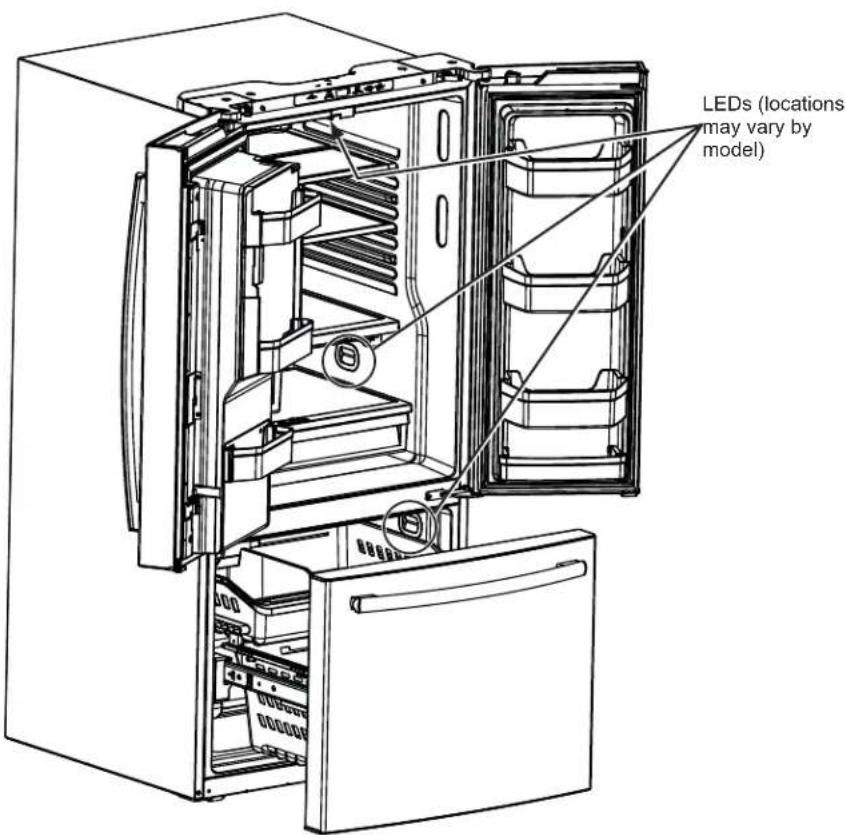

2 LED lighting LED lights in the fresh food compartment are located at the top center and on the left and right sides of climate zone pans. LED lights are also located in the freezer; see pages 13 and 14.

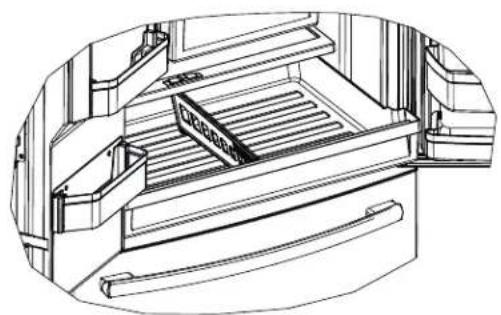

3 Full-width drawer A full-width drawer that can accommodate larger items is located at the bottom of the fresh food compartment.

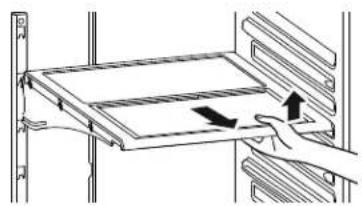

4 QuickSpace™ shelf (on some models) Functions as a normal full-sized shelf when needed and easily slides back to store tall items below.

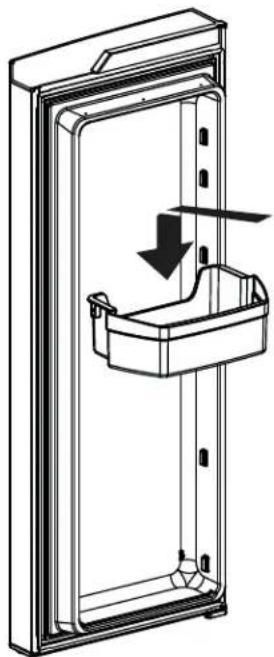

5 Removable/adjustable door bins Can be moved up or down to accommodate your needs.

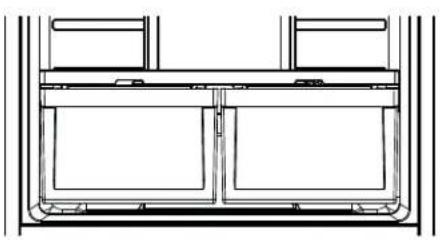

Climate zone drawers Separate pans for produce storage.
7 Water filter Accessible for easy replacement.

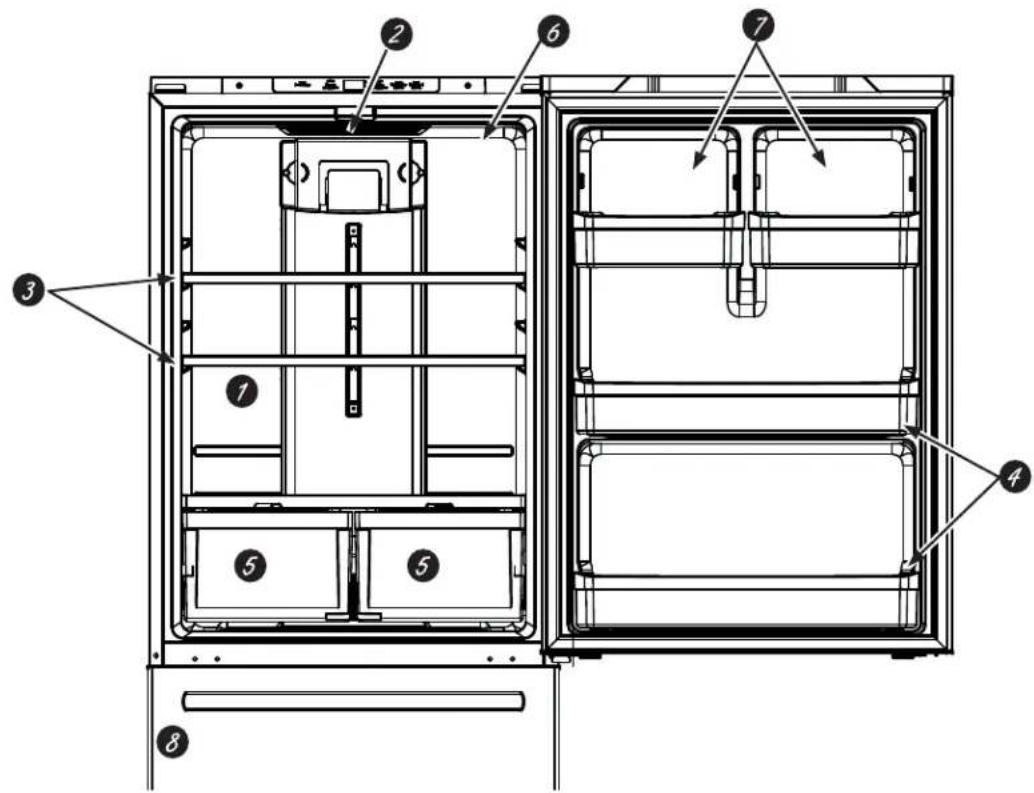

Single Door Models

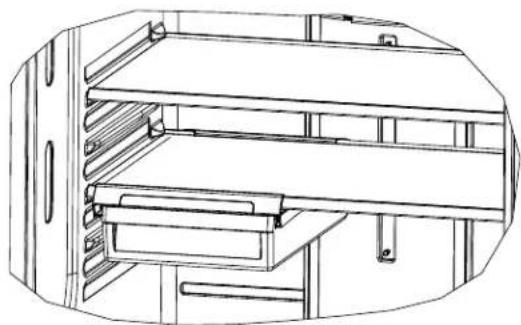

1 Floating snack pan

Can be moved to different locations to best serve your needs.

② LED lighting

LED light is located at the top of the fresh food compartment. LED lights are also located in the freezer; see pages 13 and 14.

3 Full-width shelves

Full-width shelves that can accommodate larger items.

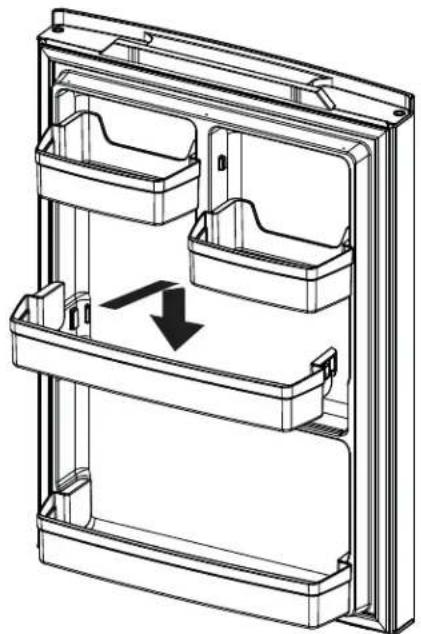

Full-width gallon door bins

Nonadjustable full-width door bins that will hold gallon containers.

5 Climate zone pans

Separate bins for produce storage.

6 Water filter (on some models)

Accessible for easy replacement.

Can be moved up or down to accommodate your needs.

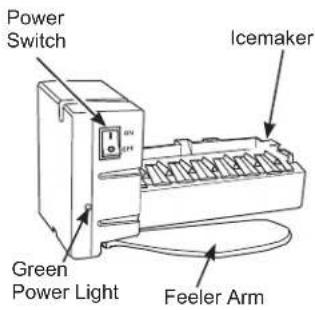

8 Icemaker (on some models)

Icemaker is located in the freezer on some models. Icemaker Kit IM4D is available for models that are icemaker-ready. For installation instructions see the IM4D owner's manual found at GEAppliances.com.

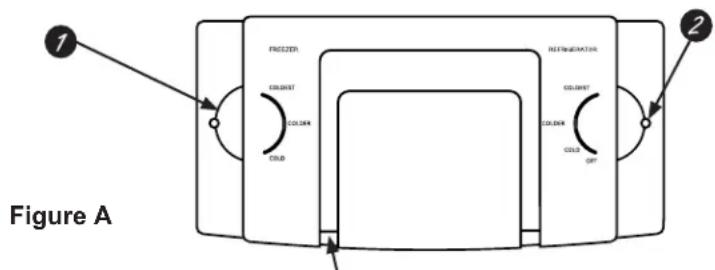

GBE21D, GBE21A Internal Control

Note: Do not block air outlet by placing food items directly against it. Erratic temperatures may result.

Knob Position Temperature Guide
Refrigerator Freezer
Coldest 34°F(1.1°C)	Coldest -6°F(-21.1°C)
Colder 37°F(2.8°C)	Colder 0°F(-17.8°C)
Cold 44°F(6.7°C)	Cold 6°F(-14.4°C)

1 Freezer Compartment Temperature Control Adjust freezer compartment temperature. The freezer temperature is preset in the factory at the Colder position. Allow 24 hours for temperature to stabilize to the preset recommended setting.

2 Fresh Food Compartment Temperature Control Adjust fresh food compartment temperature. The fresh food temperature is preset in the factory at the Colder position. Allow 24 hours for temperature to stabilize to the preset recommended setting.

NOTE: Power to the refrigerator cannot be disconnected by any setting on the control panel.

GDE21D, GDE21E, PDE21K, GDE25E, GNE21D, GNE21F, PNE21K, PNE21N, GWE19J, GNE25D, GNE25J, PNE25J, CNE25S, PNE25N, GNE27J, GNE27E

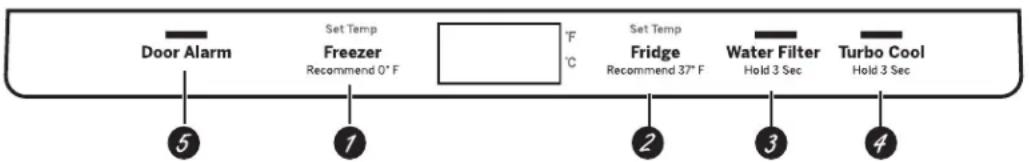

Top Control

1 Freezer Compartment Temperature Control Adjust freezer compartment temperature. The freezer temperature is preset in the factory at 0°F (-17.8°C). Allow 24 hours for temperature to stabilize to the preset recommended setting.
2 Fresh Food Compartment Temperature Control Adjust fresh food compartment temperature. The fresh food temperature is preset in the factory at 37^ F ( 2.8^ C). Allow 24 hours for temperature to stabilize to the preset recommended setting.
3 Water Filter Press and hold 3 seconds to reset the Water Filter.
4 Turbo Cool To set the TurboCool™, press the Turbo Cool pad for 3 seconds. The display will show tc. TurboCool™ rapidly cools the refrigerator compartment in order to more quickly cool foods. Use TurboCool™ when adding a large amount of the food to the refrigerator compartment, putting away foods after they have been sitting out at room temperature, or when putting away warm leftovers. It can also be used if the refrigerator has been without power for an extended period.

NOTE: The refrigerator temperature cannot be changed during TurboCool™. The freezer temperature is not affected during Turbo Cool. When opening the refrigerator door during TurboCool™, the fans will continue to run if they have cycled on.

5 Door Alarm To set the alarm, press the Door Alarm pad. This alarm will sound if either door is open for more than 2 minutes. The beeping stops when you close the door.

NOTE: To put the refrigerator control in the OFF position, simultaneously touch the words Freezer and Fridge for 3 seconds. Power to the refrigerator cannot be disconnected by any setting on the control panel.

Changing °F to °C or °C to °F: Press and hold the "DOOR ALARM" and "FREEZER" buttons simultaneously for 5 seconds to set °C to °F or °F to °C.

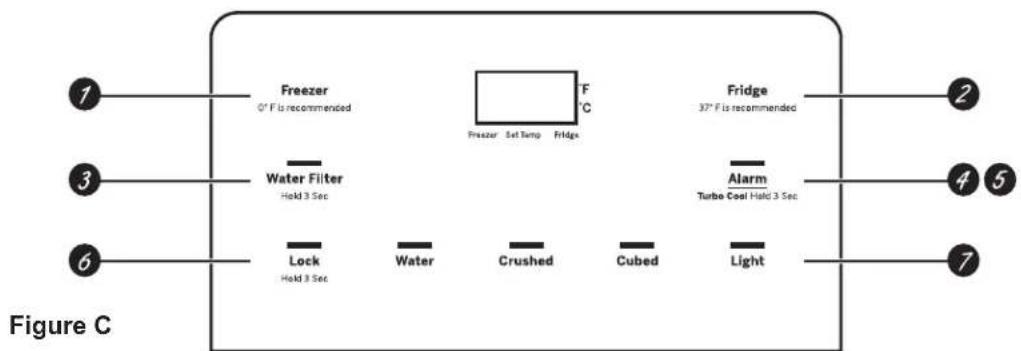

GYE18J, PYE18H, GFE24J, PFE24J, CFE24S, PFE24H, GFE26J External Control

1 Freezer Compartment Temperature Control

Adjust freezer compartment temperature. The freezer temperature is preset in the factory at 0^ F (-17.8°C). Allow 24 hours for temperature to stabilize to the preset recommended setting.

2 Fresh Food Compartment Temperature Control

Adjust fresh food compartment temperature. The fresh food temperature is preset in the factory at 37^ F ( 2.8^ C). Allow 24 hours for temperature to stabilize to the preset recommended setting.

3 Water Filter

Press and hold 3 seconds to reset the Water Filter.

4 Turbo Cool

To set the Turbo Cool™, press the Alarm pad for 3 seconds. The display will show tc.

Turbo Cool™ rapidly cools the refrigerator compartment in order to more quickly cool foods. Use Turbo Cool™ when adding a large amount of the food to the refrigerator compartment, putting away foods after they have been sitting out at room temperature, or when putting away warm leftovers. It can also be used if the refrigerator has been without power for an extended period.

NOTE: The refrigerator temperature cannot be changed during Turbo Cool™. The freezer temperature is not affected during Turbo Cool. When opening the refrigerator door during Turbo Cool™, the fans will continue to run if they have cycled on.

5 Alarm

Press the Alarm pad to toggle the door alarm between off and on. The alarm will sound if either door is left open for more than 2 minutes. The beeping stops when you close the door.

6 Lock

Press and hold the Lock pad for 3 seconds to lock out ice and water dispenser and all other controls. Press and hold to unlock the controls.

7 LED dispenser Light

Press the Light pad to turn your dispenser light on and off.

NOTE: To put the refrigerator control in the OFF position, simultaneously touch the words Freezer and Fridge for 3 seconds. Power to the refrigerator cannot be disconnected by any setting on the control panel.

Changing °F to °C or °C to °F: Press and hold the "FREEZER" and "ALARM" buttons simultaneously for 5 seconds to set °C to °F or °F to °C.

NOTE: The refrigerator is shipped with protective film covering the temperature controls. If this film was not removed during installation, remove it now.

Sabbath Modes (on some models)

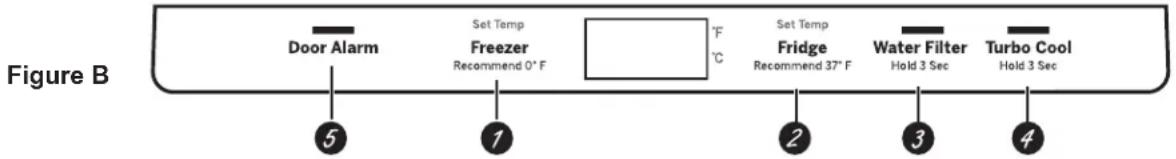

Models with Figure B controls

■ Press and hold the "DOOR ALARM" and "WATER FILTER" buttons simultaneously for 5 seconds to enter/exit Sabbath Mode.

Models with Figure C controls

■ Press and hold the "LOCK" and "LIGHT" buttons simultaneously for 5 seconds to enter/exit Sabbath Mode.

Water & Ice Dispenser

(See Controls)

Press the glass gently against the dispenser cradle.

The spill shelf is not self-draining. To reduce water spotting, the shelf should be cleaned regularly.

If no water is dispensed when the refrigerator is first installed, there may be air in the water line system.

Press the dispenser paddle for at least five minutes to remove trapped air from the water line and to fill the water system. To flush out impurities in the water line, throw away the first six full glasses of water.

CAUTION

Laceration Hazard

■ Never put fingers or any other object into ice crusher discharge opening. Doing so can result in contacting the ice crushing blades and lead to serious injury or amputation
■ Use a sturdy glass when dispensing ice. A delicate glass may break and result in personal injury.

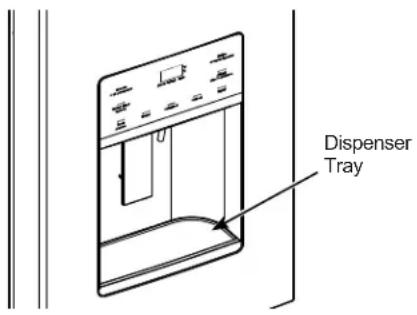

To remove Dispenser Tray

■ Pull Dispenser Tray out.

To reinstall Dispenser Tray

■ Push in until it is firmly in place.

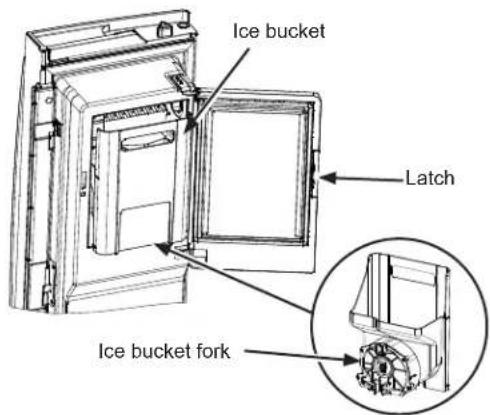

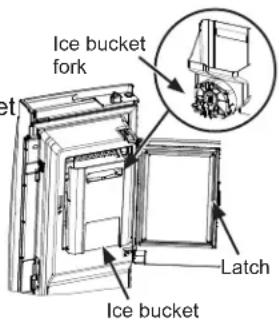

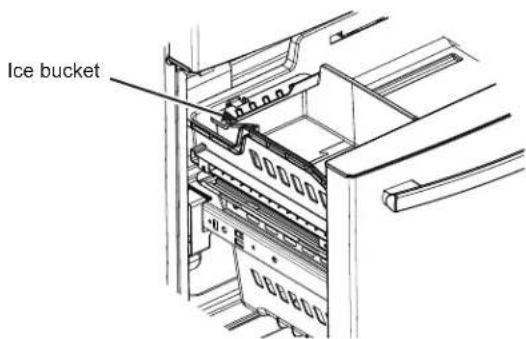

Door Ice Bin

1. Open left fresh food door.
2. Pull down latch to release bin door.
3. Using handhold, lift ice bucket up and out to clear locators in bottom of bin.

4. To replace the ice bucket, set it on the guide brackets and push until the ice bucket seats properly.

5. If bucket cannot be replaced, rotate the Ice Bucket Fork 1/4 turn clockwise.

Internal Water Dispenser

(on some models)

The water dispenser is located on the left wall inside the refrigerator compartment.

To dispense water:

1. Hold the glass against the recess.
2. Push the water dispenser button.
3. Hold the glass underneath the dispenser for 2–3 seconds after releasing the dispenser button. Water may continue to dispense after the button is released.

Pure technical line drawings of mechanical components without any text, numbers, or symbols

If no water is dispensed when the refrigerator is first installed, there may be air in the water line system. Press the dispenser button for at least 5 minutes to remove trapped air from the water line and to fill the water system. During this process, the dispenser noise may be loud as the air is purged from the water line system. To flush out impurities in the water line, throw away the first 6 glassfuls of water.

NOTE: To avoid water deposits, the dispenser should be cleaned periodically by wiping with a clean cloth or sponge.

Important Facts About Your Dispensers

• Do not add ice from trays or bags to the door icemaker bucket. It may not crush or dispense.
  ■ Avoid overfilling glass with ice and use of narrow glasses. Backed-up ice can jam the chute or cause the door in the chute to freeze shut. If ice is blocking the chute remove the ice bucket, poke it through with a wooden spoon.
  ■ Beverages and foods should not be quick-chilled in the door icemaker bin. Cans, bottles or food packages in the storage drawer may cause the icemaker or auger to jam.
  ■ To keep dispensed ice from missing the glass, put the glass close to, but not touching, the dispenser opening.
  ■ Some crushed ice may be dispensed even though you selected CUBED ICE. This happens occasionally when a few cubes accidentally get directed to the crusher.
  ■ After crushed ice is dispensed, some water may drip from the chute.
  ■ Sometimes a small mound of frost will form on the door in the ice chute. This condition is normal and usually occurs when you have dispensed crushed ice repeatedly.

Water Filter Cartridge - MWF (on some models)

Water Filter Cartridge

The water filter cartridge is located in back upper right corner of the refrigerator compartment.

When to replace the filter on models with a replacement indicator light

There is a replacement indicator light for the water filter cartridge on the dispenser. A red light will start blinking to tell you that you need to replace the filter soon.

The filter cartridge should be replaced when the replacement indicator light turns red or if the flow of water to the dispenser or icemaker decreases.

When to replace the filter on models without a replacement indicator light

The filter cartridge should be replaced every six months or earlier if the flow of water to the dispenser or icemaker decreases.

Removing the filter cartridge

If you are replacing the cartridge, first remove the old one by slowly turning it to the left. Do not pull down on the cartridge. A small amount of water may drip down.

NOTE: To reduce the risk associated with property damage due to water leakage, read and follow instructions before installation and use of this system. Installation and use MUST comply with all sate and local plumbing codes.

CAUTION

If air has been trapped in the system, the filter cartridge may be ejected as it is removed. Use caution when removing.

Installing the Filter Cartridge

1. Fill the replacement cartridge with water from the tap to allow for better flow from the dispenser immediately after installation.
2. Line up the arrow on the cartridge and the cartridge holder. Place the top of the new cartridge up inside the holder. Do not push it up into the holder.
3. Slowly turn it to the right until the filter cartridge stops. DO NOT OVERTIGHTEN. As you turn the cartridge, it will automatically raise itself into position. The cartridge will move about a 1/2 turn.
4. Run water from the dispenser for 1-1/2 gallons (about three minutes) to clear the system and prevent sputtering.
5. Press and hold the RESET WATER FILTER pad (on some models) on the dispenser for three seconds.

NOTE: A newly installed water filter cartridge may cause water to spurt from the dispenser.

Filter Bypass Plug

You must use the filter bypass plug when a replacement filter cartridge is not available. The dispenser and the icemaker will not operate without the filter or filter bypass plug.

WARNING

To reduce the risk associated with choking, do not allow children under 3 years of age to have access to small parts during the installation of this product. The disposable filter cartridge should be replaced every 6 months at the rated capacity, or sooner if a noticeable reduction in flow rate occurs.

For the maximum benefit of your filtration system, GE Appliances recommends the use of GE Appliances-branded filters only. Using GE-branded filters in GE Appliances and Hotpoint® refrigerators provides optimal performance and reliability. GE Appliances filters meet rigorous industry NSF standards for safety and quality that are important for products that are filtering your water. GE Appliances has not qualified non-GE-branded filters for use in GE Appliances and Hotpoint refrigerators and there is no assurance that non-GE-branded filters meet GE's standards for quality, performance and reliability.

If you have questions, or to order additional filter cartridges, visit our website at gewaterfilters.com or call GE Appliances Parts and Accessories, 877.959.8688. (Canada 1.800.661.1616 or geappliances.ca/en/products/parts-filters-accessories).

Water Filter Cartridge

The water filter cartridge holder is located in the back upper-right corner of the fresh food refrigerator compartment.

When to Replace the Filter

If there is a replacement indicator light for the water filter cartridge on the dispenser, the red filter light will start blinking to tell you that you need to replace the filter soon.

• For external control models, the filter light will blink while you are dispensing until the filter is replaced.
• For top control models, the filter light will blink while the door is open until the filter is replaced.

For models that don't have the indicator light, the filter cartridge should be replaced every six months, or earlier if the flow of water to the dispenser or icemaker decreases.

Removing the Filter

If you are replacing the filter, first remove the previous one:

1. Open the filter cartridge housing by squeezing the 2 front tabs and gently pulling down.
2. Rotate the filter down.
3. Gently grasp the filter and slowly turn it counterclockwise about a 14 turn. The filter should automatically release itself when you have rotated it far enough to the left. A small amount of water may drip down.

CAUTION

If air has been trapped in the system, the filter cartridge may be ejected as it is removed. Use caution when removing.

Filter Bypass Plug

To reduce the risk of property damage due to water leakage, you MUST use the filter bypass plug when a replacement filter cartridge is not available. Some models do not come equipped with the filter bypass plug. To obtain a free bypass plug, call 800-GECARES. In Canada, call 800.561.3344. The dispenser and icemaker will not operate without either the filter or bypass plug installed. The bypass plug is installed in the same way as a filter cartridge

Installing the Filter in a Bottom Freezer Refrigerator

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

1. Open the filter cartridge housing by squeezing the 2 front tabs and gently pulling down.
2. Line up the ports on the filter with the ports on the filter cartridge holder, and gently insert the filter.
3. Slowly turn the filter to the right until it stops. DO NOT OVERTIGHTEN. As you turn the filter, it will automatically adjust itself into position. The filter will move about a 14 turn or 90 degrees, until the arrow on the filter aligns with the arrow on the filter cartridge holder.
4. Slowly push the filter up into the clips.
5. Close the filter cartridge housing by gently pushing the lid upwards until the tabs lock into place.
6. Run water from the dispenser for 2 gallons (7.6 liters) or approximately 5 minutes to clear the system. Water may spurt out and air bubbles may be visible during this process. If water is not flowing, check to make sure the filter has been fully rotated to the right.
7. Press and hold the WATER FILTER pad (only on select models) on the dispenser for three seconds.

Application Guidelines/Water Supply

Service Flow 0.5 gpm (1.89 lpm)
Water Supply Potable	Water
Water Pressure 25-120 psi (172-827 kPa)
Water Temperature 33°F-100°F (0.6°C-38°C)
Capacity 170 gallons (643.5 liters)

Sign-up for TEXT REMINDERS by texting REPLACE to 70543.

⚠ WARNING

To reduce the risk associated with choking, do not allow children under 3 years of age to have access to small parts during the installation of this product. The disposable filter cartridge should be replaced every 6 months at the rated capacity, or sooner if a noticeable reduction in flow rate occurs.

For the maximum benefit of your filtration system, GE Appliances recommends the use of GE Appliances-branded filters only. Using GE Appliances-branded filters in GE Appliances and Hotpoint® refrigerators provides optimal performance and reliability. GE Appliances filters meet rigorous industry standards for safety and quality that are important for products that are filtering your water. GE Appliances has not qualified non-GE Appliances-branded filters for use in GE Appliances and Hotpoint refrigerators and there is no assurance that non-GE Appliances-branded filters meet GE Appliances standards for quality, performance and reliability.

If you have questions, or to order additional filter cartridges, visit our website at gewaterfilters.com or call GE Appliances Parts and Accessories, 877.959.8688. (Canada 1.800.661.1616 or GEAppliances.ca/en/products/parts-filters-accessories)

Shelves and Bins

Not all features are on all models.

Rearranging the Refrigerator Shelves

Shelves in the refrigerator compartment are adjustable.

To remove the shelves:

1. Remove all items from the shelf.

2. Tilt the shelf up at the front.

3. Lift the shelf up at the back and bring the shelf out.

Diagram of a mechanical or electrical component with arrows indicating direction (no text or symbols)

To replace the shelves:

1. While tilting the shelf up, insert the top hook at the back of the shelf in a slot on the track.

2. Lower the front of the shelf until the bottom of the shelf locks into place.

Quick Space Shelf (on some models)

This shelf splits in half and slides under itself for storage of tall items on the shelf below.

This shelf can be removed and replaced or relocated.

Diagram showing a hand pressing down on a panel with arrows indicating motion (no text or symbols)

NOTE: The back half of the Quick Space Shelf is not adjustable.

Technical line drawing of a mechanical assembly or lifting device (no text or symbols visible)

Adjustable Door Bins (on some models)

To remove: Lift the bin straight up; then pull out.

To replace: Engage the bin in the molded supports on the door and push down to lock in place.

Technical line drawing of a door handle assembly with a downward arrow indicating force or motion (no text or symbols)

Non-Adjustable Gallon Door Bins (on some models)

To remove: Lift the bin straight up; then pull out.

To replace: Engage the bin in the molded supports on the door and push down to lock in place.

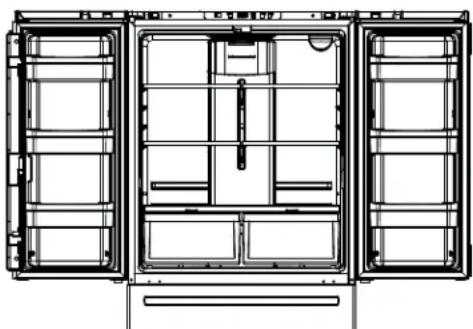

Technical line drawing of a multi-level refrigerator unit with internal compartments and a directional arrow indicating rotation (no text or symbols)

Pans

Not all features are on all models.

Climate Zone Pans

Keep fruits and vegetables organized in separate compartments for easy access. Excess water that may accumulate in the bottom of the drawers or under the drawers should be wiped dry.

To remove pan:

Slide the pan out to the stop position, lift the pan up and past the stop position and pull forward.

Technical line drawing of a cabinet or enclosure structure with no visible text or symbols

Full -Width Pan (on some models)

To remove pan:

1. Pull the pan out to the stop position.
2. Lift the front of the drawer up and out.

To replace pan:

1. Place back of the drawer in first and rotate drawer front down to seat it on the slides.
2. Push the drawer in to the closed position.

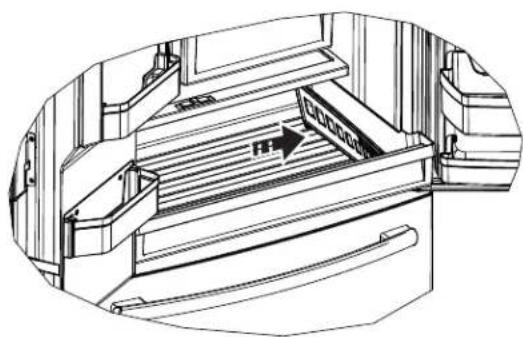

How to Remove and Replace Drawer Divider

To remove:

1. Pull the drawer out to the stop position.
2. Slide pan divider to right to release it from pan.

To replace:

Reverse steps 1 and 2 to replace drawer divider.

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and a labeled arrow (no text or symbols present)

Floating Snack Pan (on some models)

This pan can be moved to the most useful location for your family's needs.

To remove, slide the pan out to the stop position, lift the pan up and past the stop position and lift it out.

Technical line drawing of a mechanical cabinet or rack system with multiple shelves and mounting brackets (no text or symbols)

Freezer Drawer (on some models)

Not all features are on all models.

FREEZER BASKETS

1. An ice bucket in the top basket (on some models).
2. A top full-width basket.
3. A bottom full-width basket (with divider - in some models).

NOTE: Do not fill baskets higher than the rim of the basket. This may cause baskets to stick or jam when opening or closing.

Appearance and features may vary

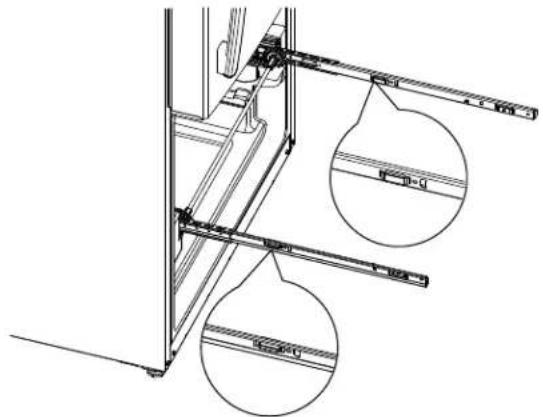

Top Basket Removal

To remove the top full-width basket on freezer drawer models:

1. Pull the basket out to the stop location.
2. Lift basket up to release it from the slides.

When replacing the basket, make sure that the basket remains mounted on the side rails and over the slides of the bottom basket.

NOTE: Always be sure to fully close this basket.

Bottom Basket Removal

To remove the bottom full-width basket on freezer drawer models:

1. Open the bottom freezer drawer until it stops.
2. Remove the top freezer basket.

3. The bottom freezer basket rests on the inside tabs on the drawer slides.

4. Lift the front of the basket and pull forward.

5. Release the pin from the slot to remove the basket.

When replacing the bottom full-width basket, tilt the basket back and lower it into the drawer. Rotate the basket to a horizontal position and press down. Make sure to place the pin back into the slot.

NOTE: Always be sure that the basket is seated on the bracket tabs before sliding the drawer back into the freezer.

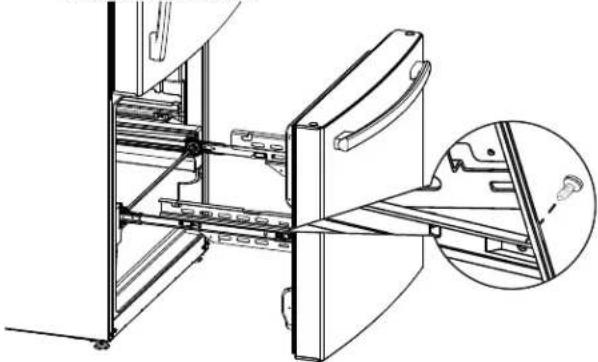

Technical line drawing of a mechanical assembly with an inset showing a close-up detail (no text or symbols)

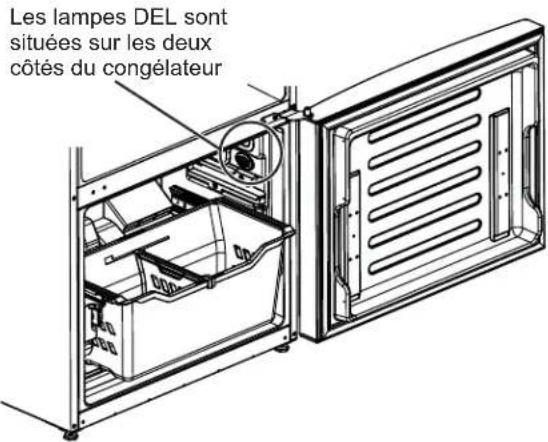

Freezer Compartment

Not all features are on all models.

FREEZER SHELF AND BASKET

1. A full-width fixed wire shelf
2. A full-width sliding plastic basket

NOTE: Do not fill baskets higher than the rim. This may cause basket to stick or jam when opening or closing.

Basket Removal

To remove the full-width sliding basket on freezer door models:

1. Open the basket out to its full extension.
2. Lift up the front of the basket and pull straight out to remove.

When replacing the basket, insert the plastic basket into the lower liner rails and push back into place.

Diagram of a refrigerator interior showing a tray with ventilation slots and an upward arrow indicating rotation (no text or symbols)

Fixed Shelf Removal

NOTE: The full-width wire shelf is not intended to slide.

To remove for cleaning, push the shelf to one side while then pull up on the opposite side and out to remove.

To replace the full-width wire shelf, insert one side of the shelf into the supports, pushing the shelf to that side until the opposite side will fit into its supports.

Automatic Icemaker

A newly installed refrigerator may take 12 to 24 hours to begin making ice.

Automatic Icemaker (on some models)

The icemaker will produce seven cubes per cycle approximately 100–130 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other use conditions.

If the refrigerator is operated before the water connection is made to the icemaker, set the power switch in the OFF position.

When the refrigerator has been connected to the water supply, set the power switch to the ON position.

The icemaker will fill with water when it cools to 15^ F ( -10^ C). A newly installed refrigerator may take 12 to 24 hours to begin making ice cubes.

You may hear a buzzing sound each time the icemaker fills with water.

Throw away the first few batches of ice to allow the water line to clear.

Be sure nothing interferes with the sweep of the feeler arm.

When the bin fills to the level of the feeler arm, the icemaker will stop producing ice. It is normal for several cubes to be join

If ice is not used frequently, old ice cubes will become cloudy, taste stale and shrink.

NOTE: In homes with lower-than-average water pressure, you may hear the icemaker cycle multiple times when making one batch of ice.

CAUTION

To minimize the risk of personal injury, avoid contact with the moving parts of the ejector

mechanism, or with the heating element that releases the cubes. Do not place fingers or hands on the automatic ice making mechanism while the refrigerator is plugged in.

For Refrigerator Models with Icemaker in the Door Ice Bucket and Dispenser

• Open the ice box door on inside of the left door.
• Pull up and out on the ice bucket in the left hand door to remove it from the compartment.
• To replace the ice bucket, set it on the guide brackets and push until the ice bucket seats properly.
• If bucket cannot be replaced, rotate the ice bucket fork 1/4 turn clockwise.
• Icemaker can be turned on and off using this display (see Controls on pages 7 and 8.)

For Refrigerator Models with Icemaker in the Freezer Compartment

Some models come with an icemaker installed in the freezer compartment. For those models that come ice-maker ready, you can purchase Kit IM4D. Visit our website at GEAppliances.com or call GE Appliances Parts and Accessories, 877.959.8688 (in Canada visit geappliances.ca/en/products/parts-filters-accessories or call 1.800.661.1616).

There is ice storage in the freezer compartment located on the left side of the upper basket. Pull the upper basket forward to remove the ice bucket.

Care and Cleaning

Cleaning the Outside

The stainless steel panels, door handles and trim.

Do not use appliance wax, polish, bleach, or other products containing chlorine on stainless steel. Stainless steel can be cleaned with a commercially available stainless steel cleaner. A spray-on stainless steel cleaner works best.

Silver-accented plastic parts.

Wash parts with soap or other mild detergents. Wipe clean with a sponge, damp cloth or paper towel. Do not use scouring pads, powdered cleaners, bleach or cleaners containing bleach because these products can scratch and weaken the paint finish.

Should spill tray need cleaning use lime remover.

Cleaning the Inside

Unplug the refrigerator before cleaning.

If this is not practical, wring excess moisture out of sponge or cloth when cleaning around switches, lights or controls.

Use an appliance wax polish on the inside surface between the doors.

Use warm water and baking soda solution—about a tablespoon (15 ml) of baking soda to a quart (1 liter) of water. This both cleans and neutralizes odors. Rinse and wipe dry.

CAUTION

Do not clean glass shelves or covers

with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impact such as bumping or dropping.

Tempered glass is designed to shatter into many small pieces if it breaks.

Behind the Refrigerator

Be careful when moving the refrigerator away from the wall. All types of floor coverings can be damaged, particularly cushioned coverings and those with embossed surfaces.

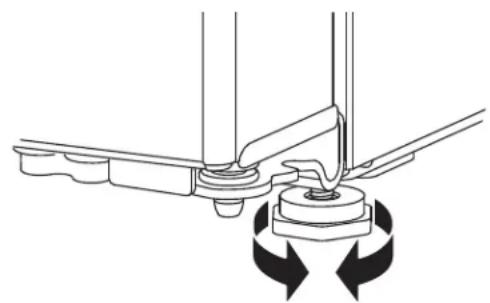

Raise the leveling legs located at the bottom front of the refrigerator.

Pull the refrigerator straight out and return it to position by pushing it straight in. Moving the refrigerator in a side direction may result in damage to the floor covering or refrigerator.

Lower the leveling legs until they touch the floor.

When pushing the refrigerator back, make sure you don't roll over the power cord or water supply line.

Preparing for Vacation

For long vacations or absences, remove food and unplug the refrigerator. Clean the interior with a baking soda solution of one tablespoon (15 ml) of baking soda to one quart (1 liter) of water. Leave the doors open.

If the temperature can drop below freezing, have a qualified service technician drain the water supply system to prevent serious property damage due to flooding.

1) Turn refrigerator off (pages 7 and 8) or unplug the refrigerator.

2) Empty ice bucket
3) Turn water supply off

If you cut the water supply off, turn off the icemaker (pg. 15).

Upon returning from vacation:

1) Replace the water filter.
2) Run 2 gallons of water through the cold water dispenser (about 5 minutes) to flush the system.

Preparing to Move

Secure all loose items such as shelves and drawers by taping them securely in place to prevent damage.

When using a hand truck to move the refrigerator, do not rest the front or back of the refrigerator against the hand truck. This could damage the refrigerator.

Handle only from the sides of the refrigerator.

Be sure the refrigerator stays in an upright position during moving.

Care and Cleaning

Replacing the Lights

There is LED lighting in the fresh food compartment at the top center and on the left and right sides above the climate zone pans on the french door models. LED lighting is located at the top of the fresh food compartment on the single door models.

LED lights are also located at the top of the left and right sides of the freezer in all models.

An authorized technician will need to replace the LED light.

If this assembly needs to be replaced, call GE Appliances Service at 1.800.432.2737 in the United States or 1.800.561.3344 in Canada.

Installation Instructions

Refrigerator

Questions? Call 800.GE.CARES (800.432.2737) or visit our Website at: GEAppliances.com

In Canada, call 1.800.561.3344 or visit our Website at: GEAppliances.ca

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT — Observe all governing codes and ordinances. Save these instructions for local inspector's use.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level – Installation of this appliance requires basic mechanical skills.
• Completion time – Refrigerator Installation 20 minutes
  Water Line Installation 30 minutes
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.

PREPARATION

MOVING THE REFRIGERATOR INDOORS

If the refrigerator will not fit through a doorway, the refrigerator door and freezer drawer or door can be removed.

• To remove the refrigerator door, see Step 1 in the Reversing the Door Swing section.
  • To remove the freezer drawer, see the Removing the Freezer Drawer section.

WATER SUPPLY TO THE ICEMAKER AND DISPENSER

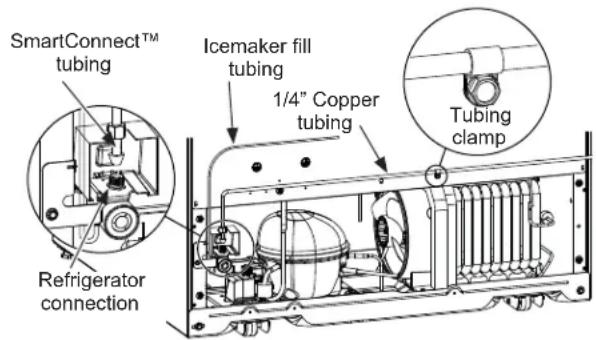

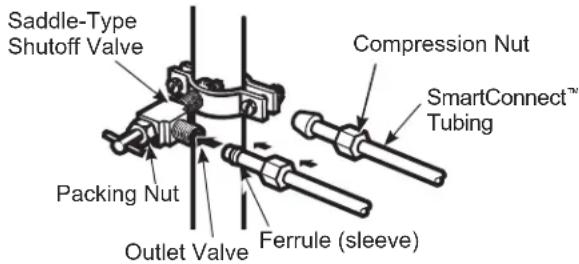

If the refrigerator has an icemaker, it will have to be connected to a cold water line. A GE Appliances water supply kit (containing tubing, shutoff valve, fittings and instructions) is available at extra cost from your dealer, by visiting our website at GEAppliances.com (in Canada at GEAppliances.ca) or from Parts and Accessories, 877.959.8688 (in Canada 1.800.661.1616).

TOOLS YOU MAY NEED

Adjustable Wrench

^3/8 " and ^5/8 " Socket Ratchet/Driver

1/4" Outer Diameter Compression Nut and Ferrule (sleeve) (icemaker models only)

Line drawing of a screwdriver with a pointed tip, shown in perspective view (no text or symbols)

Phillips-Head Screwdriver

3/32", 1/8" & 3/16" Allen Wrenches

1/8" Drill Bit and Electric or Hand Drill

Tape Measure

Pencil

1/4" Nut Driver

Wire Cutters

Level

Torx T20, Driver

APPLIANCE DIMENSIONS

ITEM	18/19 cuft models with french doors	21 cuft models with single door	21 cuft models with french doors	25 cuft models with single door	24/25 cuft models with french doors	26/27 cuft models with french doors
A* 69-7/8" (177.5 cm) 69-7/8"	(177.5 cm)	69-7/8" (177.5 cm)	69-7/8" (177.5 cm)	69-7/8" (177.5 cm)	69-7/8" (177.5 cm)	69-7/8" (177.5 cm)
B 33" (83.8 cm) 30"	(76.2 cm)	30" (76.2 cm)	33" (83.8 cm)	33" (83.8 cm)	36" (91.4 cm)
C** 30-7/8" (78.4 cm)	36-1/8" (91.8 cm)	36-3/8" (92.4 cm)	37-3/8" (94.9 cm)	37-1/8" (94.3 cm)	36-5/16" (92.2 cm)
D** 41-3/32" (104.4 cm)	-	54" (137.2 cm)	54-3/4" (139.1 cm)	54-3/4" (139.1 cm)	50-3/16" [127.5 cm]
E 48-3/8" (122.8 cm) 55"	(139.7 cm)	54-7/8" (139.4cm)	60-1/2" (153.7 cm)	60-1/2" (153.7 cm)	54-13/16" (139.2 cm)
F 39-17/32" (100.4 cm)	45-5/8" (115.9 cm)	37" (94 cm)	48" (121.9 cm)	38-3/4" (98.4 cm)	43-23/32" (111.1 cm)
G 28-7/8" (73.3 cm)	33-7/8" (86 cm)	34-3/8" (87.3 cm)	34-7/8" (88.6 cm)	35-3/8" (89.9 cm)	33-13/16" (85.9 cm)
H 41-15/16" (106.5 cm)	61" (154.9 cm)	45-7/8" (116.5 cm)	65" (165.1 cm)	48-3/8" (122.9 cm)	48-3/4" (123.8 cm)
I** 40-1/2" (102.9 cm) 33-1/2" (85.1 cm)	37-5/8" (95.6 cm)	36" (91.4 cm)	40-1/2" (102.9 cm)	43-3/8" (110.2 cm)

NOTE: * The height of the refrigerator to the top of the door. ** Includes the handle.

MEASURE THE CABINET OPENING ACCORDING TO THE WIDTH OF THE REFRIGERATOR

Measure width of cabinet opening where refrigerator will be placed, B. Be sure to account for any countertop overhang, baseboard thickness and any clearance desired. Width, B, should not be less than 30"-36" (76.2 cm - 91.4 cm) (depending on model). The refrigerator will be placed approximately in the middle of this opening.

INSTALLING THE REFRIGERATOR

REFRIGERATOR LOCATION

• Do not install the refrigerator where the temperature will go below 60°F (16°C) because it will not run often enough to maintain proper temperatures.
  ■ Do not install the refrigerator where the temperature will go above 100^ F ( 37^ C) because it will not perform properly.
  ■ Do not install the refrigerator in a location exposed to water (rain, etc.) or direct sunlight.
  ■ Install it on a floor strong enough to support it fully loaded.

CLEARANCES

Allow the following clearances for ease of installation, proper air circulation and plumbing and electrical connections.

Sides 1/8" (3 mm)

Top 1" (25 mm) Cabinet/Hinge Cover

Back 2" (50 mm)

IMPORTANT NOTES

This refrigerator without the handles ranges from 34" to 35-1/4" (86.4 cm - 89.5 cm) depending on your model (see dimension G on the previous page). Doors and passageways leading to the installation location must be at least 36" (91.4 cm) in order to leave the doors attached to the refrigerator while transporting it into the installation location. If passageways are less than 36" (91.4 cm), the refrigerator doors can easily be scratched and damaged. The doors can be removed to allow the refrigerator to be safely moved indoors.

• If you need to remove the door and you have the french door model, see Removing French Doors.
- If you need to remove the door and you have the single fresh food door model, see Reversing the Door.
• To remove the freezer door and you have the model with a freezer drawer see Removing Freezer Drawer.
• If you have the model with the hinged freezer door see Reversing the Door.
- If it is NOT necessary to remove doors, skip to Page 31. Leave tape and all packaging on doors until the refrigerator is in the final location. Once in place, install door handles (see Steps 1 and 2).
- SKID REMOVAL: Tilt refrigerator to each side to remove skid.
- NOTE: Use a padded hand truck to move this refrigerator. Place the refrigerator on the hand truck with a side against the truck. We strongly recommend that TWO PEOPLE move and complete this installation.

1 ATTACH FRESH FOOD HANDLE(S)

Attach the handle to the mounting fasteners by aligning the slots on the handle with the mounting fasteners. Slide the handle down until you hear a "click".

NOTE: For French Door models, follow the same procedure for both doors.

2 ATTACH FREEZER HANDLE

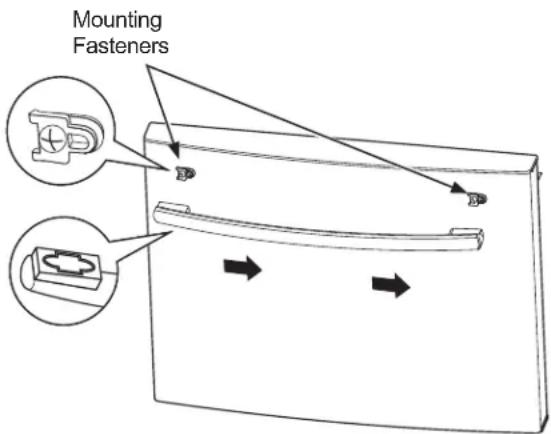

Attach the handle to the mounting fasteners by aligning the slots on the handle with the mounting fasteners. Slide the handle to the right until you hear a "click".

INSTALLING THE REFRIGERATOR (Cont.)

REMOVING FRENCH DOORS

(on some models)

WARNING

Follow all steps when reversing failure to follow these instructions, or overtightening screws, can lead off and result in injury and property

IMPORTANT NOTES

When removing french doors:

• Read the instructions all the way through before starting.
• Handles are included inside the refrigerator.
• Place the screws by their related parts to avoid using them in the wrong places.
• Provide a non-scratching work surface for the doors.

CAUTION

Lifting Hazard.

Single person lift can cause injury. Use assistance when handling, moving or lifting the refrigerator doors.

NOTE: When moving door, to prevent damage to door and electronics carefully place the door in a proper location.

WARNING

To eliminate the risk of electric shock or injury during installation, you must first unplug the refrigerator before proceeding. Failure to follow these instructions can result in electrical shock.

Tape the doors shut with adhesive tape.

Pure technical line drawing of a mechanical component with no text or symbols

REMOVING RIGHT DOOR

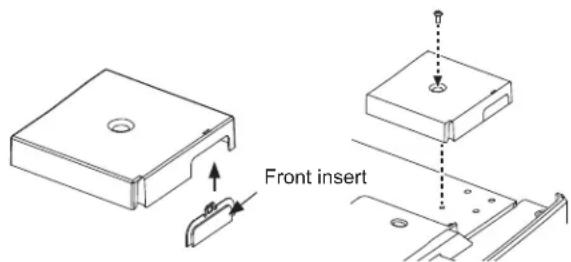

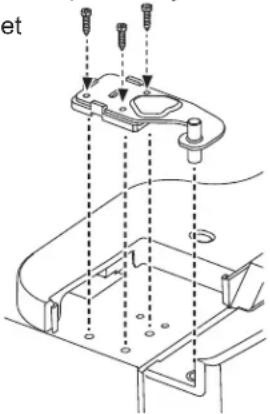

A. Remove the hinge cover on top of the right fresh food door by removing the screw using a Phillips screwdriver.

Technical line drawing of a mechanical assembly with mounting holes and internal components (no text or symbols)

B Using a 5/16" socket ratchet/driver, remove the bolts securing the top hinge to the cabinet. Lift the hinge support straight up to free the hinge pin from the socket in the top of the door.
C. Remove the tape from the right door and tilt the door away from the cabinet. Lift the door off the center hinge pin.
D. Set the door on a non-scratching surface with the inside up.

Technical diagram of a mechanical assembly with a bracket and mounting base (no text or symbols)

REMOVING LEFT DOOR

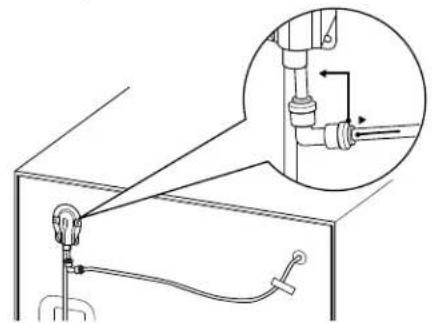

A. For Ice and Water Models Only: Unplug the water line from the back of the refrigerator and remove all tape that fixes the water line to the refrigerator.

Technical diagram of a plumbing fixture with pipe fittings and a magnified inset showing internal components (no text or labels)

INSTALLING THE REFRIGERATOR (Cont.)

② REMOVING LEFT DOOR (cont.)

B. Remove the hinge cover on top of the left fresh food door by removing the screw using a Phillips screwdriver.

Technical line drawing of a mechanical assembly with no visible text or symbols

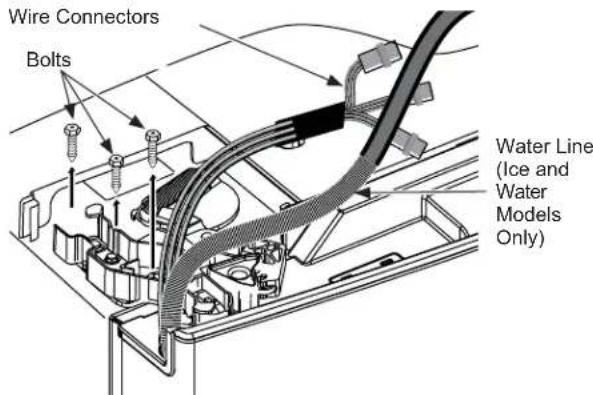

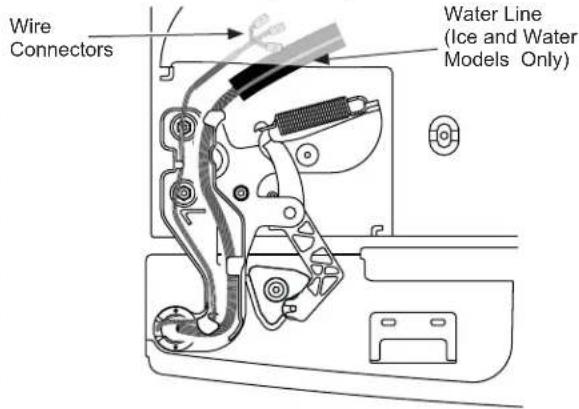

C. Unplug the 3 wire connectors and move the wires until you can see the screws holding the hinge.

For Ice and Water Models Only: Pull the water line very carefully.

D. Using a 5/16" socket/ratchet driver, remove the bolts securing the top hinge to the cabinet.

For NON Ice and Water Models Only: Lift the hinge straight up to free the hinge pin from the socket in the top of the door and pass the wire through the slot in the hinge. For Ice and Water Models Only: Do not remove hinge from the door.

E. Remove the tape from the door, open the door 90 degrees and tilt the door away from the cabinet. Lift the door off the center hinge pin.

F. Set the door on a non-scratching surface with the inside up.

Technical line drawing of a mechanical assembly with a bracket and mounting base (no text or symbols)

③ REMOVING CENTER HINGES AND BRACKETS

A. Using a 1/4" Allen wrench, remove the 2 hinge pins from the hinge brackets.

Technical line drawing of two mechanical clamping components mounted on a frame (no text or symbols)

B. Using a 5/16" socket/ratchet driver, remove the bolts securing the center hinge brackets to the cabinet.

Technical line drawing of two mechanical components with mounting holes and levers (no text or symbols)

INSTALLING THE REFRIGERATOR (Cont.)

REINSTALLING FRENCH DOORS (on some models)

IMPORTANT NOTES

When replacing the french doors:

- Read the instructions all the way through before starting.

CAUTION

Lifting Hazard.

Single person lift can cause injury. Use assistance when handling, moving or lifting the refrigerator doors.

NOTE: When moving door, to prevent damage to door and electronics carefully place the door in a proper location.

WARNING

To eliminate the risk of electric shock or injury during installation, you must first unplug the refrigerator before proceeding. Failure to follow these instructions can result in electrical shock.

REINSTALLING CENTER HINGE BRACKETS AND HINGES

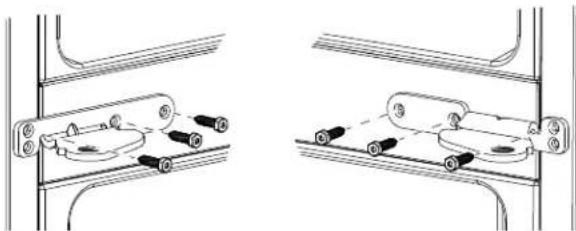

A. Using a 5/16" socket/ratchet driver, reinstall the bolts and center hinge brackets to the cabinet.

Technical line drawing of two mechanical components with mounting holes and bolts (no text or symbols)

B. Using a 1/4" Allen wrench, reinstall the 2 hinge pins into the hinge brackets.

Technical line drawing of two mechanical clamping or mounting bracket assembly (no text or symbols)

REHANGING THE RIGHT DOOR

A. Lower the refrigerator door onto the right hinge pin.

Technical line drawing of a mechanical assembly with a downward arrow indicating force or motion (no text or symbols present)

B. Make sure the door is aligned with the cabinet. Attach the hinge to the top of the cabinet loosely with bolts removed earlier.
C. Make sure the gasket on the door is flush against the cabinet and is not folded. Tighten the bolts to 60 lb/in.(6.78 Nm).

Technical line drawing of a mechanical assembly with mounting holes and internal components (no text or symbols)

D. Replace the right hinge cover on top of the refrigerator using a Phillips screwdriver.

REHANGING THE LEFT DOOR

A. For NON Ice and Water Models Only: Pass the wire through the slot in the hinge. Place the hinge pin into the top of the door.
B. Lower the refrigerator door onto the left hinge pin.

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

INSTALLING THE REFRIGERATOR (Cont.)

REINSTALLING FRENCH DOORS (Cont.) (on some models)

③ REHANGING THE LEFT DOOR (Cont.)

C. Make sure the door is aligned with the cabinet. Attach the hinge to the top of the cabinet loosely with bolts removed earlier.
D. Make sure the gasket on the door is flush against the cabinet and is not folded. Tighten the bolts to 60 lb/in. (6.78 Nm).

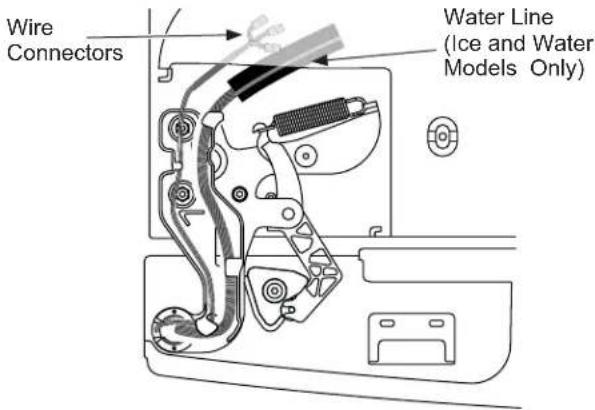

E. Plug the wire connectors together and rout the wire inside the plastic port.

F. For Ice and Water Models Only: Put the water line into the hole and pass through the plastic port to the back of the refrigerator. Plug the water line back into the fixture on back of the refrigerator. Tape water line to the refrigerator.

Technical diagram of a pipe fitting with an inset showing internal components (no text or labels)

G. Replace the left hinge cover on top of the refrigerator using a Phillips screwdriver.

Technical line drawing of a mechanical assembly with no visible text or symbols

INSTALLING THE REFRIGERATOR (Cont.)

REMOVING FREEZER DRAWER

(on some models)

IMPORTANT NOTES

When removing freezer drawer:

• Read the instructions all the way through before starting.
• Provide a non-scratching work surface for the doors.

1 REMOVE THE BASKETS

A. Open the freezer drawer until it stops.
B. Pull the top basket out until it stops. Lift the basket up on the front and out to remove.

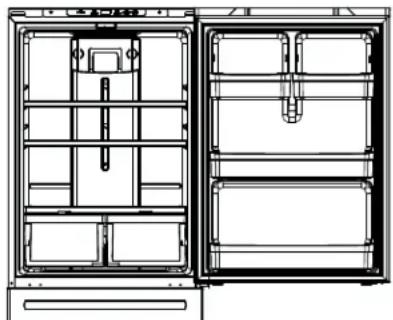

Line drawing of an open refrigerator with internal compartments and a door handle (no text or symbols)

C. The lower basket rests on a frame inside the freezer drawer. Lift the front of the basket and pull it forward. Release the pins from the slots on the frame to remove the basket.

Technical line drawing of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

② REMOVE THE DRAWER FRONT

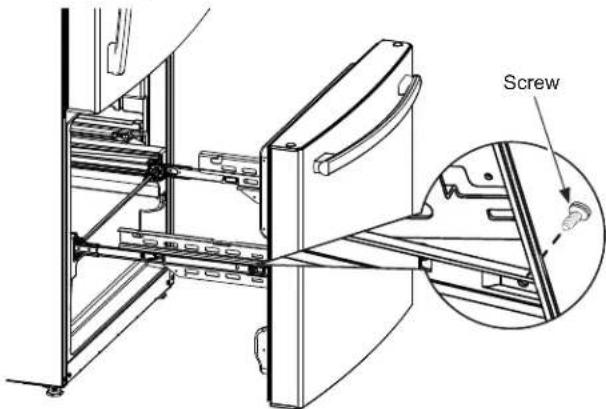

A. Remove the screw on each side of the railing.

B. Lift up on both sides of the freezer drawer handle to separate the drawer railings from the rail assemblies.

C. Set the drawer front on a non-scratching surface.

D. Push the rail assemblies back into locking position.

INSTALLING THE REFRIGERATOR (Cont.)

REMOVING FREEZER DRAWER (on some models) (Cont.)

③ REINSTALL FREEZER DRAWER FRONT

A. Pull the rail assemblies to the maximum extension.
B. Locate the slots on the inside of each slide.

Technical line drawing of a structural assembly with two circular insets showing detail views (no text or symbols)

C. Insert the hooks on the ends of the drawer assembly extensions into the slots near the back of the slides.

D. Lower the front end of the freezer drawer assembly so the side tabs fit into the front slots on the rail assemblies.
E. Replace the safety screws in both sides of the slide assemblies.

Technical line drawing of a refrigerator internal structure with an inset close-up view (no text or symbols)

F. Replace lower and upper baskets (see About freezer drawer, page 12).

INSTALLING THE REFRIGERATOR (Cont.)

REVERSING THE DOOR

(on some models)

WARNING

Follow all steps when reversing the door swing. Failure to follow these instructions, leaving off parts, or overtightening screws, can lead to the door falling off and result in injury and property damage.

IMPORTANT NOTES

When reversing doors:

• Read the instructions all the way through before starting.
• Logo badge, handles, plugs and right hinge cover are included inside the refrigerator (some models).
• Place the screws by their related parts to avoid using them in the wrong places.
• Provide a non-scratching work surface for the doors.

CAUTION

Lifting Hazard.

Single person lift can cause injury. Use assistance when handling, moving or lifting the refrigerator doors.

NOTE: When removing door, to prevent damage to door and electronics carefully place the door in a proper location.

NOTE: The lower door hinge pin and hinge are keyed and must be matched correctly for the door to self close properly. Please follow directions carefully.

Freezer door is heavy. Use both hands to secure the door before lifting.

WARNING

To eliminate the risk of electric shock or injury during installation, you must first unplug the refrigerator before proceeding. Failure to follow these instructions can result in electrical shock.

REMOVE THE REFRIGERATOR DOORS

A. Tape the door shut with masking tape.

Isometric line drawing of a 3D rectangular block with corner notches (no text or symbols)

REMOVE THE REFRIGERATOR DOORS (Cont.)

B. Remove right and left hinge covers on top of the refrigerator using a Phillips screwdriver.

Technical line drawing of a mechanical assembly with mounting brackets and a magnified inset showing a component (no text or symbols)

C. Using a 5/16" socket/ratchet driver, remove the bolts securing the top hinge to the cabinet. Lift the hinge straight up to remove.
D. Remove the tape and tilt the fresh food door away from the cabinet. Lift the door off of the o
E. Set the fresh food door on a non-scratching surface with the inside up.

For Models With a Freezer DRAWER:

F. Using a 1/4" Allen wrench, remove the hinge pin from the hinge bracket. The hinge pin will be used again on the opposite side.
G. Using a 5/16" socket/ratchet driver, remove the bolts securing the center hinge to the cabinet.

Technical diagram of a mechanical clamp or bracket with multiple screws inserted (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an upward arrow (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

INSTALLING THE REFRIGERATOR (Cont.)

REMOVE THE REFRIGERATOR DOORS (Cont.)

H. Remove the button plugs on the left side of the cabinet across from where the hinge bracket was located and install in the holes where the bracket was removed.

Pure mechanical assembly diagram showing a beam with supports and fasteners (no text or symbols)

I. Flip the center hinge bracket and install on the left side of the cabinet where the button plugs were removed.

Mechanical assembly diagram showing a valve mechanism with multiple bolts and a central component (no text or labels)

J. Using a 1/4" Allen wrench, install the hinge pin into the center hinge bracket.

For Models With a Freezer DOOR:

F. Tape the freezer door shut with adhesive tape.

G. Using a 1/4" Allen wrench remove the hinge pin from the hinge bracket. The hinge pin will be used again on the opposite side.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

H. Remove the tape and tilt the door away from the cabinet. Lift the door off of the bottom hinge pin.

I. Using a thing-blade screwdriver remove the button plug from the top left side of the door and install it on the opposite side.

Technical line drawing of a mechanical component with a curved arrow indicating direction (no text or symbols)

J. Set the door on a non-scratching surface with the inside up.

K. Using a 5/16" socket/ratchet driver, remove the bolts securing the center hinge to the cabinet.

Technical line drawing of a mechanical assembly with no visible text or symbols

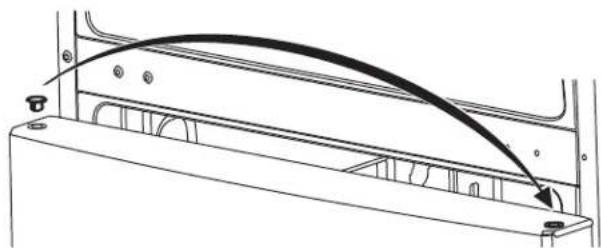

L. Locate the button plugs in the kit and install them in the opposite side of center hinge.

Pure technical line drawing of a structural beam with supports and connection points (no text or symbols)

M. Flip the center hinge bracket. Using a 5/16" socket/ratchet driver, install the center hinge bolt on the left side of the cabinet and torque to 60 in-lb. (6.78 Nm).

Technical line drawing of a mechanical assembly with a tool and base mount (no text or symbols)

N. Using a 1/4" Allen wrench, install the hinge pin into the center hinge bracket. Do not let the pin go past the bottom of the bracket.

O. Using a 5/16" socket/ratchet driver, remove the screws from the bottom hinge bracket. These will be reinstalled on the other side. Pull up on the hinge pin to remove.

Technical diagram of a mechanical assembly with no visible text or symbols

P. Using a Torx T-20 screwdriver, remove the screw from the cabinet and install it on the other side.

Q. Using 5/16" socket/ratchet driver, install the bottom hinge bracket and torque the screws to 60 in-lb. (6.78 Nm).

Mechanical assembly diagram showing a lever and mounting base with no visible text or symbols

Remount the hinge and pin in the opposite hole on the cabinet.

INSTALLING THE REFRIGERATOR (Cont.)

WARNING

Follow all steps when reversing

the door swing. Failure to follow these instructions, leaving off parts, or overtightening screws, can lead to the door falling off and result in injury and property damage.

② REINSTALL FREEZER DOOR

A. Using a Torx T-20 screwdriver, remove the bolts securing the door stop on the bottom right of the door.
B. Using a Trox T-20 screwdriver, remove the plastic force closure on the bottom right of the door.
C. Flip the plastic force closure and mount it to the bottom left of the door.
D. I install the door stop to the bottom left of the door.

E. Lower the freezer door and make sure to insert the hinge pin in the bottom hole of the door.

Technical line drawing of a mechanical assembly with a cylindrical component inserted (no text or symbols)

F. Straighten the door and line it up with the center hinge bracket. Using a 1/4" Allen wrench, turn the hinge pin until it extends through the hinge bracket and into the door.

Technical line drawing of a mechanical assembly with no visible text or symbols

③ REINSTALL FRESH FOOD DOOR

A. Using a Torx T-20 screwdriver, remove the bolts securing the door stop on the bottom right of the door.

B. Transfer the plastic thimble to the opposite hole. Install the door stop with the plastic thimble on the opposite side.
C. Using a Trox T-20 screwdriver, remove the plastic force closure on the bottom right of the door.
D. Flip the plastic force closure and mount it to the bottom left of the door.
E. Install the door stop to the bottom left of the door.
F. Lower the fresh food door and make sure to insert the hinge pin in the bottom hole of the door.

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

G. Remove the hinge base from the hinge. Flip the hinge over and remount to hinge base.

INSTALLING THE REFRIGERATOR (cont.)

③ REINSTALL FRESH FOOD DOOR (Cont.)

H. Insert the top hinge pin inside the hole in the top left of the fresh food door. Make sure the door is aligned with the cabinet. Attach the hinge to the top of the cabinet loosely with the bolts that were removed previously.

Make sure the gasket on the door is flush against the cabinet and not folded.

Support the door on the handle side and make sure the door is straight and the gap between the doors is even across the front. While holding the door in place, tighten the screws to 60 in-lb. (6.78 Nm).

For Models with a Freezer DRAWER:

I. Remove the front insert from the left hinge cover. Install the left hinge cover using a Phillips screwdriver and the screw removed earlier.

Technical line drawing of a mechanical assembly with mounting holes and a central component (no text or symbols)

J. Install the front insert into the right hinge cover. Install the right hinge cover using a Phillips screwdriver and the screws removed earlier.

For Models with a Freezer DOOR:

I. Locate the left hinge cover that comes with the kit. Using a Phillips screwdriver, install the cover with the screws provided.

Technical line drawing of a mechanical assembly with mounting holes and a bracket (no text or symbols)

③ REINSTALL FRESH FOOD DOOR (Cont.)

J. Locate the insert for the right hinge cover that comes with the kit and install.

K. Using a Phillips screwdriver, install the right hinge cover with screws provided.

4 TRANSFER HANDLE MOUNTING FASTENERS

A. Remove the plug from the lower right whole.
B. Using a Phillips screwdriver remove the screws holding the mounting brackets from the left side and install them on the right side.

5 INSTALLING LOGO BADGE

A. Locate the new logo badge from the kit. Remove the adhesive backing paper and align the pins on the back of the badge with the holes in the door. Apply pressure to the badge to ensure it sticks to the do
B. Locate the button plug from the kit and install it in the opposite side of handle.

Pure technical line drawing of a mechanical component with no text or symbols

INSTALLING THE REFRIGERATOR (cont.)

CONNECTING TO THE HOUSE WATER LINE

(Icemaker models only)

A cold water supply is required for automatic icemaker operation. If there is not a cold water supply, you will need to provide one. See Installing the Water Line section.

NOTES:

• Before making the connection to the refrigerator, be sure the refrigerator power cord is not plugged into the wall outlet.
• If your refrigerator does not have a water filter, we recommend installing one if your water supply has sand or particles that could clog the screen of the refrigerator's water valve. Install it in the water line near the refrigerator. If using SmartConnect™ Refrigerator Tubing Kit, you will need an additional tube (WX08X10002) to connect the filter. Do not cut plastic tube to install filter.
• Before connecting the water line to the house, purge the house line for at least 2 minutes.

A. If you are using copper tubing, place a compression nut and ferrule (sleeve) onto the end of the tubing coming from the house cold water supply.

If you are using the SmartConnect™ tubing, the nuts are already assembled to the tubing.

B. If you are using copper tubing, insert the end of the tubing into the refrigerator connection, at the back of the refrigerator, as far as possible. While holding the tubing, tighten the fitting.

If you are using SmartConnect™ tubing, insert the molded end of the tubing into the refrigerator connection, at the back of the refrigerator, and tighten the compression nut until it is hand tight. Then tighten one additional turn with a wrench. Over tightening may cause leaks.

C. Fasten the tubing into the clamp provided to hold it in position. You may need to pry open the clamp.

One of the illustrations below will look like the connection on your refrigerator.

WARNING

Connect to potable water supply only.

A cold water supply is required for automatic icemaker operation. The water pressure must be between 40 and 120 psi (275-827 kilopascals).

WARNING

.ECTRIC SHOCK HAZARD

Attach tubing clamp using existing hole only. DO NOT drill into the refrigerator.

Icemaker-Ready Models

Icemaker-Installed Models

TURN ON THE WATER SUPPLY

(Icemaker models only)

Turn the water on at the shutoff valve (house water supply) and check for any leaks.

Mechanical assembly diagram showing a rotating shaft and connecting rod (no text or symbols)

PLUG IN THE REFRIGERATOR

On models with an icemaker, before plugging in the refrigerator, make sure the icemaker power switch is set to the 0 (off) position.

See the grounding information attached to the power cord.

Simple line drawing of an electrical outlet with a plug and socket (no text or symbols)

INSTALLING THE REFRIGERATOR (cont.)

PUT THE REFRIGERATOR IN PLACE

Move the refrigerator to its final location.

Adjustable legs at the front corners of the refrigerator should be set so the refrigerator is firmly positioned on the floor, and the front is raised just enough that the door closes easily when opened about halfway.

To adjust the leveling legs, turn the legs clockwise to raise the refrigerator, counterclockwise to lower it.

Mechanical assembly diagram showing a lever mechanism with two curved arrows indicating rotational motion (no text or symbols)

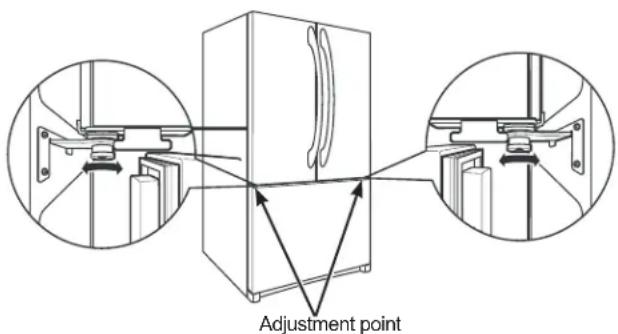

LEVEL THE REFRIGERATOR DOORS (on some models)

Remember a level refrigerator is necessary for getting the doors perfectly even. If you need help, review the previous section on leveling the refrigerator.

If the doors remain uneven, turn the adjustable pin to raise the lowest door using a 1/4" allen wrench to turn the pin.

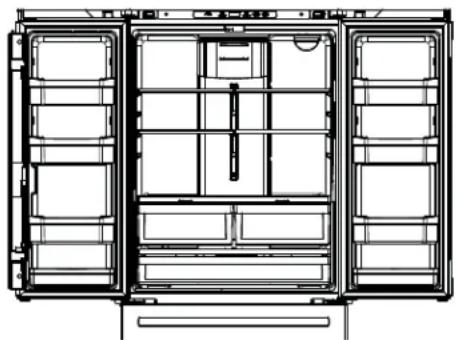

Refrigerator suggested assembly

Shelves shown in the location for best energy efficiency.

Architectural floor plan of a refrigerator showing internal compartments and doorways (no text or labels)

GYE18J, PYE18H
18 cuft. Models
French Door with Freezer Drawer

Architectural floor plan of a multi-level building with internal compartments and structural elements (no text or labels)

GWE19J
19 cuft. Models
French Door with
Freezer Drawer

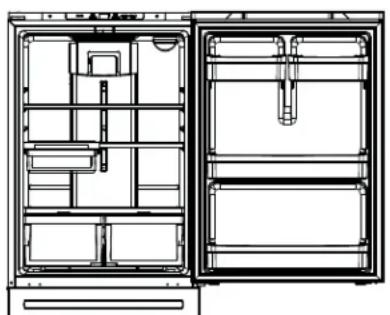

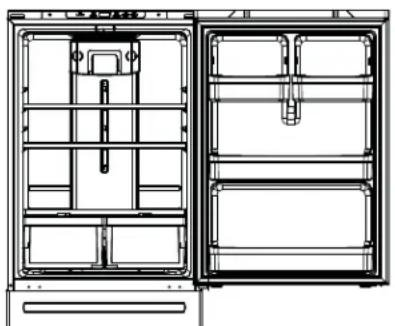

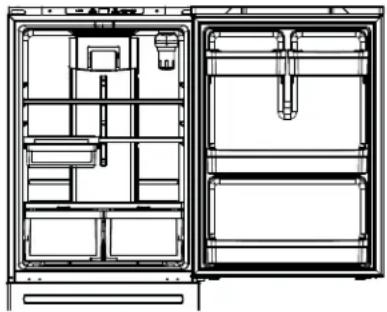

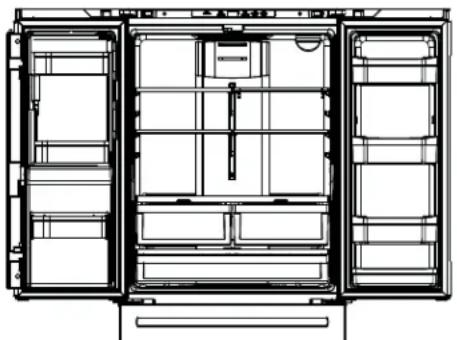

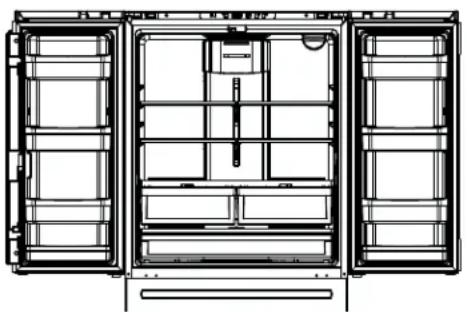

Refrigerator suggested assembly (cont.)

Shelves shown in the location for best energy efficiency.

Technical line drawing of a multi-panel refrigerator with doors open (no text or symbols)

GNE21D, GNE21F,
PNE21K, PNE21N
21 cuft. Models
French Door with Freezer Drawer

Line drawing of an open refrigerator with internal compartments and doors (no text or symbols)

GDE21D, GDE21E,
PDE21K, GDE25E
21, 25 cuft. Models
Single Door with Freezer Drawer

Technical line drawing of a refrigerator front view showing internal compartments and doorways (no text or labels)

GBE21D, GBE21A
21 cuft. Models
Single Door with Freezer Door

Technical line drawing of a mechanical assembly with no visible text or symbols

Icemaker in the door is available for all 24 and 26 french door models.

Architectural floor plan of a multi-level building with internal compartments and doorways (no text or labels)

GFE24J, PFE24J, CFE24S,
PFE24H 24 cuft. Models
French Door with Freezer Drawer

Architectural line drawing of a multi-level refrigerator with doors, shelves, and doorways (no text or labels)

GFE26J
26 cuft. Models
French Door with Freezer Drawer

Technical line drawing of a cabinet or enclosure with multiple doors and internal compartments (no text or symbols)

GNE25D, GNE25J, PNE25J,
CNE25S, PNE25N, GNE27J
25, 27 cuft. Models
French Door with Freezer Drawer

Technical line drawing of a three-panel cabinet or enclosure with internal compartments and doorways (no text or symbols)

GNE27E
27 cuft. Models
French Door with Freezer Drawer

INSTALLING THE WATER LINE

BEFORE YOU BEGIN

Recommended copper water supply kits are WX8X2, WX8X3 or WX8X4, depending on the amount of tubing you need. Approved plastic water supply lines are SmartConnect™ Refrigerator Tubing (WX08X10006, WX08X10015 and WX08X10025).

When connecting your refrigerator to a GE Appliances Reverse Osmosis Water System, the only approved installation is with a GE Appliances RVKit. For other reverse osmosis water systems, follow the manufacturer's recommendations.

If the water supply to the refrigerator is from a Reverse Osmosis Water Filtration System (RO) AND the refrigerator also has a water filter, use the refrigerator's filter bypass plug. Using the refrigerator's water filtration cartridge in conjunction with an RO water filter can result in hollow ice cubes. Some models do not come equipped with the filter bypass plug. To obtain a free bypass plug, call 800-GECARES. In Canada call 800.561.3344.

This water line installation is not warranted by the refrigerator or icemaker manufacturer. Follow these instructions carefully to minimize the risk of expensive water damage.

Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and lead to water leakage or flooding. Call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator.

To prevent burns and product damage, do not hook up the water line to the hot water line.

Do not install the icemaker tubing in areas where temperatures fall below freezing.

When using any electrical device (such as a power drill) during installation, be sure the device is double insulated or grounded in a manner to prevent the hazard of electric shock, or is battery powered.

All installations must be in accordance with local plumbing code requirements.

WHAT YOU WILL NEED

- Copper or SmartConnect™ Refrigerator Tubing kit, 1/4" outer diameter to connect the refrigerator to the water supply. If using copper, be sure both ends of the tubing are cut square.

To determine how much tubing you need: measure the distance from the water valve on the back of the refrigerator to the water supply pipe. Be sure there is sufficient extra tubing to allow the refrigerator to move out from the wall after installation.

SmartConnect™ Refrigerator Tubing Kits are available in the following lengths:

6' (1.8 m) - WX08X10006

15' (4.6 m) - WX08X10015

25' (7.6 m) - WX08X10025

WARNING

Connect to potable water supply only.

A cold water supply is required for automatic icemaker operation. The water pressure must be between 40 and 120 psi (275-827 kilopascals)

INSTALLING THE WATER LINE (cont.)

WHAT YOU WILL NEED (cont.)

NOTE: The only GE Appliances approved plastic tubing is that supplied in SmartConnect™ Refrigerator Tubing kits. Do not use any other plastic water supply line because the line is under pressure at all times. Certain types of plastic will crack or rupture with age and cause water damage to your home.

• A GE Appliances water supply kit (containing tubing, shutoff valve and fittings listed below) is available at extra cost from your dealer or from Parts and Accessories, 877.959.8688 (in Canada 1.800.661.1616).
• A cold water supply. The water pressure must be between 20 and 120 p.s.i. (138-827 kPa).

- Power drill.

• 1/2" or adjustable wrench.
• Straight and Phillips blade screwdriver.

• Two 1/4" outer diameter compression nuts and 2 ferrules (sleeves)—to connect the copper tubing to the shutoff valve and the refrigerator water valve. OR
• If you are using a SmartConnect™ Refrigerator Tubing kit, the necessary fittings are preassembled to the tubing.

- If your existing copper water line has a flared fitting at the end, you will need an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR you can cut off the flared fitting with a tube cutter and then use a compression fitting. Do not cut formed end from SmartConnect™ Refrigerator tubing.

- Shutoff valve to connect to the cold water line. The shutoff valve should have a water inlet with a minimum inside diameter of 5/32" at the point of connection to the COLD WATER LINE. Saddle-type shutoff valves are included in many water supply kits. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes.

Install the shutoff valve on the nearest frequently used drinking water line.

1 SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet long enough to clear the line of water.

② CHOOSE THE VALVE LOCATION

Choose a location for the valve that is easily accessible. It is best to connect into the side of a vertical water pipe. When it is necessary to connect into a horizontal water pipe, make the connection to the top or side, rather than at the bottom, to avoid drawing off any sediment from the water pipe.

③ DRILL THE HOLE FOR THE VALVE

Drill a 1/4" hole in the water pipe (even if using a self-piercing valve), using a sharp bit. Remove any burrs resulting from drilling the hole in the pipe.

Take care not to allow water to drain into the drill.

Failure to drill a 1/4" hole may result in reduced ice production or smaller cubes.

Simple line drawing of a mechanical component with a curved handle and threaded end (no text or symbols)

INSTALLING THE WATER LINE (cont.)

4 FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water pipe with the pipe clamp.

NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

5 TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer begins to swell.

NOTE: Do not over tighten or you may crush the tubing.

6 ROUTE THE TUBING

Route the tubing between the cold water line and the refrigerator.

Route the tubing through a hole drilled in the wall or floor (behind the refrigerator or adjacent base cabinet) as close to the wall as possible.

7 FASTEN THE SHUTOFF VALVE

Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and connect it to the shutoff valve.

Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely.

For plastic tubing from a SmartConnect™

Refrigerator Tubing kit, insert the molded end of the tubing into the shutoff valve and tighten compression nut until it is hand tight, then tighten one additional turn with a wrench. Over tightening may cause leaks.

NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

8 FLUSH OUT THE TUBING

Turn the main water supply on and flush out the tubing until the water is clear.

Shut the water off at the water valve after about one quart (1 liter), or 2 minutes, of water has been flushed through the tubing.

Simple line drawing of a mechanical or electrical component with a flower-like shape and curved arrow (no text or symbols)

To complete the installation of the refrigerator, go back to Step 11 in Installing the Refrigerator.

Normal Operating Conditions.

Newer refrigerators sound different from older refrigerators.

Modern refrigerators have more features and use newer technology.

Do you hear what I hear? These conditions are normal.

HUMMM...

WHOOSH...

■ The new high efficiency compressor may run faster and longer than your old refrigerator and you may hear a high-pitched hum or pulsating sound while it is operating.
■ You may hear a whooshing sound when the doors close. This is due to pressure equalizing within the refrigerator.

WHIR!

• You may hear the fans spinning at high speeds. This happens when the refrigerator is first plugged in, when the doors are opened frequently or when a large amount of food is added to the refrigerator or freezer compartments. The fans are helping to maintain the correct temperatures.

■ The fans change speeds in order to provide optimal cooling and energy savings.

CLICKS, POPS, CRACKS and SNAPS

■ You may hear cracking or popping sounds when the refrigerator is first plugged in. This happens as the refrigerator cools to the correct temperature.
■ Expansion and contraction of cooling coils during and after defrost can cause a cracking or popping sound.
■ On models with an icemaker, after an ice making cycle, you may hear the ice cubes dropping into the ice bucket.
■ On models with a dispenser, during water dispense, you may hear the water lines move at initial dispense and after dispenser button is released.

WATER SOUNDS

■ The flow of refrigerant through the cooling coils may make a gurgling noise like boiling water.
■ Water dropping on the defrost heater can cause a sizzling, popping or buzzing sound during the defrost cycle.
■ A water dripping noise may occur during the defrost cycle as ice melts from the evaporator and flows into the drain pan.
■ Closing the door may cause a gurgling sound due to pressure equalization.

Troubleshooting Tips... Before you call for service

Save time and money! Review the charts on the following pages first and you may not need to call for service.

Problem Possible Causes What	at to Do
Refrigerator does not operate	Refrigeratorin defrost cycle.	Wait about 30 minutes for defrost cycle to end.
	Either or both controls set to OFF. Set the controls to a lower temperature setting.
	Refrigeratoris unplugged. Push the plug completely into the outlet.
	The fuse is blown/circuit breaker is tripped.	Replace fuse or reset the breaker.
	Refrigerator is in showroom mode. Unplug the refrigerator and plug it back in.
Vibration or rattling (slight vibration is normal)	Leveling legs need adjusting. See Level the refrigerator.
Motor operates for long periods or cycles on and off frequently. (Modern refrigerators with more storage space and a larger freezer require more operating time. They start and stop often to maintain even temperatures.)	Normal when refrigerator is first plugged in.	Wait 24 hours for the refrigerator to completely cool down.
	Often occurs when large amounts of food are placed in refrigerator.	This is normal.
	Door left open. Check to see if package is holding door open.
	Hot weather or frequent door openings. This is normal.
	Temperature controls set at the coldest setting.	See Controls section
Refrigerator or freezer compartment too warm	Temperature control not set cold enough.	See Controls section
	Warm weather or frequent door openings.	Set the temperature control one step colder. See Controls section
	Door left open. Check to see if package is holding door open.
Frost or ice crystals on frozen food (frost within package is normal)	Door left open. Check to see if package is holding door open.
	Too frequent or too long door openings. This is normal.
Divider between refrigerator and freezer compartments feels warm	Automatic energy saver system circulates warm liquid around front edge of freezer compartment.	This helps prevent condensation on the outside.
Automatic icemaker does not work Ice	maker power switch is in the OFF position.	Set the power switch to the ON position.
	Water supply turned off or not connected.	See Installing the Water Line section
	Freezer compartment too warm.	Wait 24 hours for the refrigerator to completely cool down.
	Piled up cubes in the storage bin cause the icemaker to shut off.	Level cubes by hand.
	Ice cubes stuck in icemaker.	Turn off the icemaker, remove cubes, and turn the icemaker back on.
Freezer cooling, fresh food not cooling	Normal, when refrigerator first plugged in or after extended power outage	Wait 24 hours for temperature in both compartments to reach selected temperatures.
Ice dispenser opens after closing freezer drawer (on some models)	Normal	The ice dispenser door may open after closing freezer door to allow access.

Troubleshooting Tips... Before you call for service

Problem Possible Causes	What to Do
Ice cubes have odor/taste Ice storage bin needs cleaning. Empty and wash b n. Discard old cubes.
Small or hollow cubes Water filter clogged. Replace filter cartridge with new cartridge or with plug.
Slow ice cube freezing Door left open. Check to see if package is holding door open.
Temperature control not set cold enough. See Controls section
Frequent ‘buzzing sound’ Icemaker power switch is in the l (on) position, but the water supply to the refrigerator has not been connected.		Set the power switch to the 0 (off) position. Keeping it in the l (on) position will damage the water valve.
Orange glow in the freezer	Defrost heater is on.	This is normal.
Water has poor taste/odor	Water dispenser has not been used for a long time.	Dispense water until all water in system is replenished.
Water in first glass is warm	Normal when refrigerator is first installed.	Wait 24 hours for the refrigerator to completely cool down.
	Water dispenser has not been used for a long time.	Dispense water until all water in system is replenished.
	Water system has been drained.	Allow several hours for replenished supply to chill.
Water dispenser does not work	Water supply line turned off or not connected.	See Installing the water line section
	Water filter clogged. Replace filter cartridge or remove filter and install plug.
	Air may be trapped in the water system.	Press the dispenser arm for at least two minutes.
	Dispenser is LOCKED.	Press and hold the LOCK pad for 3 seconds.
Water spurting from dispenser	Newly-installed filter cartridge.	Run water from the dispenser for 3 minutes (about one and a half gallons).
Water is not dispensed but icemaker is working	Water in reservoir is frozen.	Call for service.
	Refrigerator control setting is too cold.	Set to a warmer setting.
No water or ice cube production	Supply line or shutoff valve is clogged.	Call a plumber.
	Water filter clogged. Replace filter cartridge or remove filter and install plug.
Refrigerator has odor	Foods transmitting odor to refrigerator.	Foods with strong odors should be tightly wrapped. Keep an open box of baking soda in the refrigerator; replace every three months.
	Interior needs cleaning.	See Care and Cleaning section
Moisture forms on outside of refrigerator	Not unusual during periods of high humidity.	Wipe surface dry.
Moisture collects inside (in humid weather, air carries moisture into refrigerator when doors are opened)	Too frequent or too long door openings.	This is normal.
	Due to the higher humidity in the refrigerator, you may on occasion experience fog or small amounts of moisture in the refrigerator compartment.	This is normal and may come and go as different food loads and environmental conditions change. Wipe dry with a paper towel if desired.
Interior light does not work	No power at outlet.	Replace fuse or reset the breaker.
	LED lights are out	Call Service - see Replacing the Lights

Troubleshooting Tips... Before you call for service

Save time and money! Review the charts on the following pages first and you may not need to call for service.

Problem Possible Causes	What to Do
Hot air from bottom of refrigerator	Normal air flow cooling motor. In the refrigeration process, it is normal that heat be expelled in the area under the refrigerator. Some floor coverings are sensitive and will discolor at these normal and safe temperatures.	This is normal.
Refrigerator never shuts off but the temperatures are OK	Adaptive defrost keeps compressor running during door openings.	This is normal. The refrigerator will cycle off after the door remains closed for 2 hours.
Refrigerator is beeping Door is open. Close door.
Door not closing properly Door gas	asket on hinge side sticking or folding over.	Apply paraffin wax to the face of the gasket.
Actual temperature not equal to Set temperature	Unit just plugged in. Allow 24 hours for system to stabilize.
	Door open for too long. Allow 24 hours for system to stabilize.
	Warm food added to refrigerator. Allow 24 hours for system to stabilize.
	Defrost cycle is in process. Allow 24 hours for system to stabilize.
Door/drawer does not close by itself	Leveling legs need adjusting. See level the refrigerator
Freezer door/drawer pops open when refrigerator door is closed	This is normal if, after popping open, the freezer door/drawer closed on its own.	This indicates that there is a good seal on the freezer door/ drawer. If the freezer door/drawer does not automatically close after popping open, then see the Problem: Door/ drawer does not close by itself, above.
Food freezing in the refrigerator	Food too close to the air vent at the back of the refrigerator.	Move the food away from the air vent.
	Refrigerator control is set too cold. Move the refrigerator control to a warmer temperature setting one increment at a time.
Water is leaking from dispenser Glass not being held under the dispenser long enough after button is released.		Hold the glass underneath the dispenser for 2–3 seconds after releasing the dispenser button. Water may continue to dispense after the button is released
		Air may be present in the water line system, causing water to drip after being dispensed.	Dispense water for at least 2 minutes to remove air from system.
My display is showing tc Turbo Cool function is activated. See Controls section
Water filter indicator light changed color	This is normal.	See Water Filter Cartridge - MWF or XWF section
Water filter indicator light remains red even after replacing the water filter	Water filter indicator must be reset.	Press and hold the WATER FILTER pad for 3 seconds. See Water Filter Cartridge - MWF or XWF section.
Water filter indicator light is not lit	This is normal. The filter cartridge should be replaced when the replacement indicator light turns red.	See Water Filter Cartridge - MWF or XWF section
Handle is loose / handle has a gap	Handle needs adjusting.	See Attach the Fresh Food Handle and Attach the Freezer Handle sections
Refrigerator doors are not even (on French Door models only)	Doors need realigning.	See Level the Refrigerator Doors section.
Baskets stick or jam when opening or closing	Baskets are too full.	To open: remove some of the products from the basket when opened as far as possible. Readjust the products left in the basket and try to open the basket again.To close: readjust products in the basket or remove any product that is above the rim of the basket and close the basket.

GE Appliances Refrigerator Limited Warranty

GEAppliances.com

For US Customers, all warranty service is provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service online, visit us at geappliances.com, or call GE Appliances at 800.GE.CARES (800.432.2737). Please have your serial number and your model number available when calling for service. In Canada, call 800.561.3344.

Servicing your refrigerator may require the use of the onboard data port for diagnostics. This gives a GE Appliances Factory Service technician the ability to quickly diagnose any issues with your appliance and helps GE Appliances improve its products by providing GE Appliances with information on your appliance. If you do not want your appliance data to be sent to GE Appliances, please advise your technician NOT to submit the data to GE Appliances at the time of service.

For the Period of: GE Appliances Will Replace

One YearFrom the date of the original purchase	Any part of the refrigerator which fails due to a defect in materials or workmanship.During the limited one-year warranty, GE Appliances will also provide, free of charge, all labor and related service to replace the defective part.
Thirty Days(Water filter, if included)From the original purchase date of the refrigerator	Any part of the water filter cartridge which fails due to a defect in materials or workmanship.During this limited thirty-day warranty, GE Appliances will also provide, free of charge, a replacement water filter cartridge.

GE PROFILE ^TM AND GE CAFÉ ^TM MODELS

Five YearsFrom the date of the purchase

Any part of the sealed refrigerating system (the compressor, condenser, evaporator an all connecting tubing) which fails due to a defect in materials or workmanship.During this limited five-year sealed refrigerating system warranty, GE Appliances will also provide, free of charge, all labor and related service to replace the defective part in the sealed refrigerating system.

What GE Appliances Will Not Cover:

■ Service trips to your home to teach you how to use the product.
■ Improper installation, delivery or maintenance.
■ Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
■ Loss of food due to spoilage.
■ Replacement of house fuses or resetting of circuit breakers.
■ Damage to finish, such as surface rust, tarnish, or small blemishes not reported within 48 hours of delivery.

■ Replacement of the water filter cartridge, if included, due to water pressure that is outside the specified operating range or due to excessive sediment in the water supply.
■ Replacement of the light bulbs, if included, or water filter cartridge, if included, other than as noted above.
■ Damage to the product caused by accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this appliance.
■ Product not accessible to provide required service.
■ Damage caused by a non-GE Appliances Brand water filter.

EXCLUSION OF IMPLIED WARRANTIES

Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

For US Customers: This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances Service location for service. In Alaska, the limited warranty excludes the cost of shipping or service calls to your home. Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: GE Appliances, a Haier company

Louisville, KY 40225

For Customers in Canada: This limited warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In-home warrant service will be provided in areas where it is available and deemed reasonable by MC Commercial Inc. to provide. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances Service location for service.

Warrantor Canada: MC Commercial Inc., Burlington Ontario, L7R 5B6

Water Filter Cartridge Limited Warranty

Contact us at geapplianceparts.com, or call 800.GE.CARES.

For the period of GE Appliances will replace
Thirty DaysFrom the dateof the originalpurchase	Any part of the water filter cartridge which fails due to a defect in materialsor workmanship during this limited thirty-day warranty.*

What GE Appliances will not cover:

■ Service trips to your home to teach you how to use the product.
■ Improper installation.
■ Failure of the product if it is abused, misused, used for other than the intended purpose or used commercially.
■ Replacement of house fuses or resetting of circuit breakers.
■ Damage to the product caused by accident, fire, floods, or acts of God.
■ Incidental or consequential damage caused by possible defects with this appliance.

EXCLUSION OF IMPLIED WARRANTIES

Your sole and exclusive remedy is part exchange as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to six months or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

For Purchases Made In Iowa: This form must be signed and dated by the buyer and seller prior to the consummation of this sale.

This form should be retained on file by the seller for a minimum of two years.

Buyer:

Name

Address

City State Zip

Signature Date

Seller:

Name

Address

City State Zip

Signature Date

*If your GE Appliances part fails because of a manufacturing defect within thirty days from the date of original purchase for use, we will give you a new or, at our option, a rebuilt part without charge. Return the defective part to the parts supplier from whom it was purchased together with a copy of the "proof of purchase" for the part. If the part is defective and shows no signs of abuse, it will be exchanged. The warranty does not cover the failure of parts which are damaged while in your possession, are abused, or have been installed improperly. It does not cover the cost of returning the part to the supplier from whom it was purchased nor does it cover the cost of labor to remove or install it to diagnose the fault. It does not cover parts used in products in commercial use except in the case of air conditioning equipment. In no event shall GE Appliances be liable for consequential damages.

Warrantor: GE Appliances, a Haier company

Louisville, KY 40225

Performance Data Sheet

SmartWater™ Filtration System—GE Appliances MWF Cartridge

The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specified in NSF/ANSI Standard 42 and Standard 53. System tested and certified by NSF International against NSF/ANSI Standard 42 and Standard 53 for the reduction of substances listed below.

Capacity 300 Gallons (1,135 Liters). Contaminant Reduction Determined by NSF testing.

Substance Tested for Reduction	Average Influent	NSF specified Challenge Concentration	Avg % Reduction	Average Product Water Concentration	Max Permissible Product Water Concentration	NSF Reduction Requirements	NSF Test Report
Chlorine Taste and Odor	2.0 mg/L	2.0 mg/L ± 10%	97.4%	0.05 mg/L	N/A	≥50%	J-00137878
Nominal Particulate Class I, ≥0.5 to < 1.0 μm	11,333,333 pts/mL	At least 10,000 particles/mL	99.9%	5,510 pts/mL	N/A	≥85%	J-00137881
Cyst*	101,000 cysts/L	Minimum 50,000 cysts/L	99.99%	1 cyst/L	N/A	≥99.95%	J-00100036
Asbestos	133 MF/L	10^7 to 10^8 fibers/L; fibers greater than 10 μm in length	>99%	<1 MF/L	N/A	≥99%	J-00137886
Atrazine	0.008 mg/L	0.009 mg/L ± 10%	91.3%	0.0007 mg/L	0.003 mg/L	N/A	J-00137910
Benzene	0.014 mg/L	0.015 mg/L ± 10%±	96.5%	0.0005 mg/L	0.005 mg/L	N/A	J-00137912
Carbofuran	0.08 mg/L	0.08 mg/L ± 10%	74.5%	0.01 mg/L	0.04 mg/L	N/A	J-00147488
Endrin	0.007 mg/L	0.006 mg/L ± 10%	97.1%	0.0002 mg/L	0.002 mg/L	N/A	J-00100039
Lead @ pH 6.5	0.148 mg/L	0.15 mg/L ± 10%	99.3%	0.001 mg/L	0.010 mg/L	N/A	J-00137914
Lead @ pH 8.5	0.155 mg/L	0.15 mg/L ± 10%	99.3%	0.001 mg/L	0.010 mg/L	N/A	J-00137915
Lindane	0.002 mg/L	0.002 mg/L ± 10%	96.5%	0.00002 mg/L	0.0002 mg/L	N/A	J-00137924
Mercury @ pH 6.5	0.006 mg/L	0.006 mg/L ± 10%	87.6%	0.0004 mg/L	0.002 mg/L	N/A	J-00137925
Mercury @ pH 8.5	0.006 mg/L	0.006 mg/L ± 10%	93.2%	0.0007 mg/L	0.07 mg/L	N/A	J-00092355
P-Dichlorobenzene	0.223 mg/L	0.225 mg/L ± 10%	99.8%	0.005 mg/L	0.075 mg/L	N/A	J-00137926
Tetrachloroethylene	0.014 mg/L	0.015 mg/L ± 10%	96.5%	0.0005 mg/L	0.005 mg/L	N/A	J-00137929
Toxaphene	0.017 mg/L	0.015 mg/L ± 10%	>93.9%	0.001 mg/L	0.003 mg/L	N/A	J-00137928
2, 4-D	0.192 mg/L	0.210 mg/L ± 10%	77.7%	0.040 mg/L	0.07 mg/L	N/A	J-00147489

*Based on the use of Cryptosporidium parvum oocysts.

The following pharmaceutical reduction claims have not been certified by NSF International or the state of California. Claims tested and verified by independent laboratory:

Contaminant Reduction	Average Influent	NSF specified Challenge Concentration	Avg % Reduction	Average Product Water Concentration	Max Permissible Product Water Concentration	NSF Reduction Requirements	NSF Test Report
Atenolol 978 ng/L N/A 99.5% 5.0 ng/L N/A N/A J-00121587
Fluoxetine 907 ng/l N/A 99.4% 5.4 ng/L N/A N/A J-00121587
Ibuprofen 885 ng/L N/A 94.1% 52.3 ng/L N/A N/A J-00121588
Progesterone	1097 ng/L	N/A 99.5% 5.0 ng/L N/A N/A J-00121589
Trimethoprim	415 ng/L N/A 99.5% 2.0 ng/L N/A N/A J-00121587

Application Guidelines/Water Supply Parameters

Service Flow	0.5 gpm (21.9 lpm)
Water Supply	Potable Water

Water Pressure	40-120 psi (276-827 kPa)
Water Temperature	33°F-100°F (0.6°C-38°C)

It is essential that the manufacturer's recommended installation, maintenance and filter replacement requirements be carried out for the product to perform as advertised. See Installation Manual for Warranty information.

NOTE: While the testing was performed under standard laboratory conditions, actual performance may vary. Contaminant reduction testing is conducted every five years by certifying agency to maintain certification.

Replacement Cartridge: MWF. For estimated costs of replacement elements please call 1.877.959.8688 or visit our website at geapplianceparts.com.

WARNING

To reduce the risk associated with ingestion of contaminants:

- Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before and after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts.

REPLACEMENT ELEMENT

Tested and certified by NSF International against NSF/ANSI Standard 42 and Standard 53 in model GE Appliances MWF for the reduction of the claims specified on the performance data sheet.

NOTICE

To reduce the risk associated with property damage due to water leakage:

• Read and follow use instructions before installation and use of this system.
  • Installation and use MUST comply with all state and local plumbing codes.
• Do not install if water pressure exceeds 120 psi (827 kPa). If your water pressure exceeds 80 psi (552 kPa), you must install a pressure-limiting valve. Contact a plumbing professional if you are uncertain how to check your water pressure.
• Do not install where water hammer conditions may occur. If water hammer conditions exist you must install a water hammer arrester. Contact a plumbing professional if you are uncertain how to check for this condition.
• Do not install on hot water supply lines. The maximum operating water temperature of this filter system is 100^ (38°C).
• Protect filter from freezing. Drain filter when temperatures drop below 33°F (0.6°C).
• The disposable filter cartridge should be replaced every 6 months at the rated capacity, or sooner if a noticeable reduction in flow rate occurs.

■ System certified by IAPMO R&T against NSF/ANSI Standards 42, 53, 401 for the reduction of claims specified on the performance data sheet and at iapmort.org.
■ Actual performance may vary with local water conditions.

Substance Tested for Reduction	Influent challenge concentration (mg/L)	Maximum permissible product water concentration (mg/L)	Avg % Reduction
Chlorine Taste and Odor 2.0 mg/L +/- 10% N/A 96.9
Chloramine Taste and Odor 3.0 mg/L +/- 10% 0.5	96.9
Particulate, Class I	At least 10,000/mL	N/A	91.4
Cysts	50,000/L	N/A >99.99
Lead	0.15	0.01 98.85
Mercury	0.006	0.002 96.3
Asbestos	107 to 108 fibers/L	N/A	>99
Toxaphene	0.015 +/- 10%	0.003	86.95
VOC (Chloroform surrogate chemical)	0.300	0.015 99.7
Alachlor	0.050	0.001 > 98
Atrazine	0.100	0.003 > 97
Benzene	0.081	0.001 > 99
Carbofuran	0.190	0.001 > 99
carbon tetrachloride 0.078	0.0018 98
chlorobenzene	0.077	0.001 > 99
chloropicrin	0.015	0.0002	99
2,4-D	0.110	0.0017	98
dibromochloropropane (DBCP)	0.052	0.00002	> 99
o-Dichlorobenzene	0.08	0.001	> 99
p-Dichlorobenzene	0.040	0.001	> 98
1,2-dichloroethane	0.088	0.0048 95
1,1-dichloroethylene	0.083	0.001 > 99
cis-1,2-dichloroethylene 0.170	0.0005	> 99
trans-1,2-dichloroethylene	0.086	0.001 > 99
1,2-dichloropropane	0.080	0.001 > 99
cis-1,3-dichloropropylene	0.079	0.001 > 99
dinoseb	0.170	0.0002 99
Endrin	0.053	0.00059 99
Ethylbenzene	0.088	0.001 > 99
ethylene dibromide (EDB)	0.044	0.00002	> 99
bromochloroacetonitrile	0.022	0.0005 98
dibromoacetonitrile	0.024	0.0006 98
dichloroacetonitrile	0.0096	0.0002 98
trichloroacetonitrile	0.015	0.0003 98
1,1-dichloro-2-propanone	0.0072	0.0001 99
1,1,1-trichloro-2-propanone	0.0082	0.0003 96
heptachlor (H-34, Haptox)	0.025	0.00001	>99
heptachlor epoxide	0.0107	0.0002 98
hexachlorobutadiene	0.044	0.001 > 98
hexachlorocyclopentadiene	0.060	0.000002	> 99
Lindane	0.055	0.00001	> 99
methoxychlor	0.050	0.0001	> 99
pentachlorophenol	0.096	0.001 > 99
simazine	0.120	0.004 > 97
Styrene	0.150	0.0005	> 99
1,1,2,2-tetrachloroethane	0.081	0.001 > 99
Tetrachloroethylene	0.081	0.001 > 99
Toluene	0.078	0.001 > 99
2,4,5-TP (silvex)	0.270	0.0016 99
tribromoacetic acid	0.042	0.001 > 98
1,2,4-Trichlorobenzene	0.160	0.0005	> 99
1,1,1-trichloroethane	0.084	0.0046 95
1,1,2-trichloroethane	0.150	0.0005	> 99
trichloroethylene	0.180	0.0010	> 99
bromoform	0.300	0.015 95
bromodichloromethane 0.300	0.015	95
chlorodibromomethane 0.300	0.015	95
xylenes	0.070	0.001 >99
Meprobamate	400 +/- 20%	60	95.5
Atenolol	200 +/- 20%	30	95.9
Carbamazepine	1400 +/- 20%	200	98.6
DEET	1400 +/- 20%	200 98.6
Metolachlor	1400 +/- 20%	200 98.7
Trimethoprim	140 +/- 20%	20	96.1
Linuron	140 +/- 20%	20	96.6
TCEP	5000 +/- 20%	700 98.1
TCPP	5000 +/- 20%	700 98.1
Phenytoin	200 +/- 20%	30	96
Ibuprofen	400 +/- 20%	60	95.9
Naproxen	140 +/- 20%	20	96.5
Estrone	140 +/- 20%	20	97.1
Bisphenol A	2000 +/- 20%	300 99.1
Nonyl phenol	1400 +/- 20%	200 97.3

Application Guidelines/Water Supply Parameters

Service Flow 0.5 gpm (1.89 lpm)
Water Supply Potable Water
Water Pressure 25-120 psi (172-827 kPa)
Water Temperature 33°F-100°F (0.6°C-38°C)
Capacity 170 gallons (643.5 liters)

It is essential that the manufacturer's recommended installation, maintenance and filter replacement requirements be carried out for the product to perform as advertised. See Installation Manual for Warranty information.

Note: While the testing was performed under standard laboratory conditions, actual performance may vary. Replacement Cartridge: XWF. For estimated costs of replacement elements please call 1.877.959.8688 or visit our website at gewaterfilters.com.

WARNING

To reduce the risk associated with ingestion of contaminants:

- Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before and after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts.

NOTICE

To reduce the risk of water leakage or flooding, and to ensure optimal filter performance:

• Read and follow use instructions before installation and use of this system.
• Installation and use MUST comply with all state and local plumbing codes.
• Do not install if water pressure exceeds 120 psi (827 kPa). If your water pressure exceeds 80 psi (552 kPa), you must install a pressure-limiting valve. Contact a plumbing professional if you are uncertain how to check your water pressure.
• Do not install where water hammer conditions may occur. If water hammer conditions exist you must install a water hammer arrester. Contact a plumbing professional if you are uncertain how to check for this condition.
• Do not install on hot water supply lines. The maximum operating water temperature of this filter system is 100^ (38°C).
• Protect filter from freezing. Drain filter when temperatures drop below 33^ (0.6°C).
• Change the disposable filter cartridge every six months or sooner if you observe a noticeable reduction in water flow rate.
• Failure to replace the disposable filter cartridge at recommended intervals may lead to reduced filter performance and cracks in the filter housing, causing water leakage or flooding.
• This System has been tested according to NSF/ANSI 42, 53 and 401 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42, 53 and 401.

XWF System is certified by IAPMO R&T against NSF/ANSI Standards 42,53, and 401 for the reduction of claims specified on the performance data sheet and at iapmort.org.

Consumer Support

GE Appliances Website

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! You can also shop for more great GE Appliances products and take advantage of all our on-line support services designed for your convenience. In the US: GEAppliances.com In Canada: GEAppliances.ca

Register Your Appliance

Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.

In the US: GEAppliances.com/register

In Canada: Prodsupport.mabe.ca/crm/Products/ProductRegistration.aspx

Schedule Service

Expert GE Appliances repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year. In the US: GEAppliances.com/service or call 800.432.2737 during normal business hours. In Canada: GEAppliances.ca/en/support/service-request or call 800.561.3344

Extended Warranties

Purchase a GE Appliances extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime. GE Appliances Services will still be there after your warranty expires. In the US:

GEAppliances.com/extended-warranty or call 800.626.2224 during normal business hours.

In Canada: GEAppliances.ca/en/support/purchase-extended-warranty or call 866.277.9842

Parts and Accessories

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes

(VISA, MasterCard and Discover cards are accepted). Order on-line today 24 hours every day.

In the US: GEApplianceparts.com or by phone at 877.959.8688 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Customers in Canada should consult the yellow pages for the nearest authorized GE Appliances service parts distributor, visit our website at GEAppliances.ca/en/products/parts-filters-accessories or call 800.661.1616.

Contact Us

If you are not satisfied with the service you receive from GE Appliances, contact us on our Website with all the details including your phone number, or write to:

In the US: General Manager, Customer Relations | GE Appliances, Appliance Park | Louisville, KY 40225

GEAppliances.com/contact

In Canada: Director, Consumer Relations, MC Commercial Inc. | Suite 310, 1 Factory Lane | Moncton, N.B. E1C 9M3

GEAppliances.ca/en/contact-us

CONSIGNES DE SÉCURITÉ ..... 3

CONSIGNES D'UTILISATION

Panneau de commande supérieur GDE21D, GDE21E, PDE21K, GDE25E, GNE21D, GNE21F, PNE21K, PNE21N, GWE19J, GNE25D, GNE25J, PNE25J, CNE25S, PNE25N, GNE27J, GNE27E

Figure B

Pure technical line drawings of mechanical components without any text, numbers, or symbols

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Diagram of a mechanical or electrical component with arrows indicating direction (no text or symbols)

Diagram of a hand holding a rectangular object with arrows indicating direction, mounted on a vertical shelf (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a door frame with an arrow indicating direction (no text or symbols)

Technical line drawing of a multi-level refrigerator with internal compartments and a directional arrow indicating rotation (no text or symbols)

Bacs

Technical line drawing of a mechanical or architectural component with no visible text or symbols

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical cabinet or rack system with multiple shelves and mounting brackets (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up of a component (no text or symbols present)

Technical line drawing of a mechanical component with labeled parts 1 and 2 (no text or symbols beyond labels)

Diagram of a refrigerator interior showing two compartments with arrows indicating direction (no text or symbols)

Diagram of airflow or heat transfer through a window with arrows indicating direction (no text or symbols)

Line drawing of a screwdriver with a magnified inset showing the tip (no text or symbols)

Tournevis cruciforme

Isometric line drawing of a mechanical component with multiple notches and grooves (no text or symbols)

1 ENLÈVEMENT DE LA PORTE DROITE

Technical line drawing of a mechanical assembly with mounting bracket and internal components (no text or symbols)

Technical line drawing of a mechanical assembly with a bracket and mounting base (no text or symbols)

② ENLÈVEMENT DE LA PORTE GAUCHE

INSTALLATION DU RÉFRIGÉRATEUR (Suite)

2 ENLÈVEMENT DE LA PORTE GAUCHE (Suite)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with two parallel rods and a central rotating component (no text or symbols)

③ ENLÈVEMENT DES CHARNIÈRES ET SUPPORTS CENTRAUX

Technical line drawing of two mechanical assembly components (no text or symbols)

Technical line drawing of two mechanical components with mounting holes and shafts (no text or symbols)

INSTALLATION DU RÉFRIGÉRATEUR (Suite)

Technical line drawing of two mechanical components with mounting brackets and fasteners (no text or symbols)

Technical line drawing of two mechanical clamping or mounting bracket components (no text or symbols)

RACCROCHAGE DE LA PORTE DROITE

Technical line drawing of a mechanical assembly with a downward arrow indicating force or motion (no text or symbols present)

Technical line drawing of a mechanical assembly with mounting holes and internal components (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

INSTALLATION DU RÉFRIGÉRATEUR (Suite)

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

INSTALLATION DU RÉFRIGÉRATEUR (Suite)

Line drawing of an open refrigerator with internal compartments and a door handle (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a component detail (no text or symbols)

② ENLEVER LE DEVANT DU TIROIR

Technical line drawing of a mechanical assembly with two circular annotations highlighting features (no text or symbols present)

Technical line drawing of a refrigerator interior showing internal compartments and doorways (no text or symbols)

Isometric line drawing of a 3D rectangular block with corner notches and a side gap (no text or symbols)

1 ENLEVER LES PORTES DU RÉFRIGÉRATEUR (Suite)

Technical line drawing of a mechanical assembly with mounting brackets and a magnified inset showing a component detail (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an upward arrow (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly with three screws inserted (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

INSTALLATION DU RÉFRIGÉRATEUR (Suite)

ENLEVER LES PORTES DU RÉFRIGÉRATEUR (Suite)

Pure mechanical assembly diagram showing two parallel beams with fasteners and mounting holes (no text or symbols)

Mechanical assembly diagram showing a valve mounted on a bracket with two screws (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical component with a curved arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure technical line drawing of a structural beam with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with a tool and base (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with pivot point and mounting base (no text or symbols)

INSTALLATION DU RÉFRIGÉRATEUR (Suite)

AVERTISSEMENT

Mechanical assembly diagram showing a cylindrical component inserted into a bracket (no text or labels)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

③ RÉINSTALLER LA PORTE DU COMPARTIMENT RÉFRIGÉRATEUR

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical assembly with mounting holes and structural supports (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and a central component (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and a bracket (no text or symbols)

③ RÉINSTALLER LA PORTE DU COMPARTIMENT RÉFRIGÉRATEUR (Suite)

Pure mechanical diagram showing a lever and pivot point without any text or symbols

INSTALLATION DU RÉFRIGÉRATEUR (Suite)

Simple line drawing of an electrical outlet with a plug and socket (no text or symbols)

Mechanical assembly diagram showing a rotating component with two curved arrows indicating rotational motion (no text or symbols)

Architectural floor plan of a multi-level refrigerator with doors and drawers (no text or labels)

Architectural floor plan of a multi-level refrigerator with doors, drawers, and storage compartments (no text or labels)

Technical line drawing of a multi-panel refrigerator with doors open (no text or symbols)

Architectural line drawing of a refrigerator interior showing internal compartments and doorways (no text or labels)

Technical line drawing of an open refrigerator with internal compartments and doors (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Architectural line drawing of a multi-level refrigerator or refrigerator unit (no text or symbols)

Architectural floor plan of a multi-level building with internal compartments and structural elements (no text or labels)

Technical line drawing of a three-panel refrigerator with doors and internal compartments (no text or symbols)

Technical line drawing of a three-panel refrigerator unit (no text or symbols)

INSTALLATION DE LA CONDUITE D'EAU (Suite)

CE DONT VOUS AUREZ BESOIN (Suite)

Simple line drawing of a mechanical component with a threaded end and curved top (no text or symbols)

INSTALLATION DE LA CONDUITE D'EAU (Suite)

4 FIXER LE ROBINET DE SECTIONNEMENT

Simple line drawing of a flower with petals and a curved arrow, no text or symbols present

Garant : GE Appliances, a Haier company

Louisville, KY 40225

Garant : GE Appliances, a Haier company

Louisville, KY 40225

Au Canada : Prodsupport.mabe.ca/crm/Products/ProductRegistration.aspx

GEAppliances.com/contact

Au Canada : Director, Consumer Relations, MC Commercial Inc. | Suite 310, 1 Factory Lane | Moncton, N.B. E1C 9M3

18, 19, 21, 24, 25, 26

y 27 cuft

ESPAÑOL

GRACIAS POR HACER QUE GE APPLIANCES SEA PARTE DE SU HOGAR.

Control Superior de GDE21D, GDE21E, PDE21K, GDE25E, GNE21D, GNE21F, PNE21K, PNE21N, GWE19J, GNE25D, GNE25J, PNE25J, CNE25S, PNE25N, GNE27J, GNE27E

Figure B

Pure technical line drawings of mechanical components without any text, numbers, or symbols

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Diagram of a mechanical or electrical component with arrows indicating direction (no text or symbols)

Diagram showing a hand pressing down on a wooden shelf with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a door frame with an arrow indicating direction (no text or symbols)

Technical line drawing of a multi-level electronic device with internal compartments and a downward arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical or architectural component with no visible text or symbols

Technical line drawing of a mechanical device with internal compartments and structural elements (no text or symbols)

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Technical line drawing of a multi-level cabinet or rack system (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Diagram of a refrigerator interior showing a drawer with an open drawer and directional arrows indicating movement (no text or symbols)

Illustration of a screwdriver with a magnified view of the tip (no text or symbols)

Isometric line drawing of a mechanical component with multiple notches and grooves (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a bracket and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with a central rotating component (no text or symbols)

RETIRO DE LAS BISAGRAS CENTRALES Y DE LOS SOPORTES

Technical line drawing of two mechanical components with mounting holes and a central shaft (no text or symbols)

Technical line drawing of two mechanical components with mounting holes and levers (no text or symbols)

Technical line drawing of two mechanical components with numbered parts, no text or symbols present

Technical line drawing of two mechanical clamping or mounting bracket components (no text or symbols)

Technical line drawing of a mechanical assembly with a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Technical diagram of a pipe valve assembly with a magnified inset showing internal components (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Isometric line drawing of a refrigerator interior showing internal compartments and storage racks (no text or labels)

Technical line drawing of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

Technical line drawing of a structural frame assembly with two circular annotations highlighting specific components (no text or symbols present)

Technical line drawing of a refrigerator interior showing internal compartments and door mechanism (no text or symbols)

Isometric line drawing of a 3D rectangular block with corner notches and a side tab (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a magnified inset showing a component (no text or symbols)

Mechanical assembly diagram showing a bolted joint with mounting brackets (no text or symbols)

Technical line drawing of a mechanical clamp or bracket with two screws inserted (no text or symbols)

Pure mechanical assembly diagram showing a beam with supports and fasteners, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical component with a curved arrow indicating motion or force (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure technical line drawing of a structural beam with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with a tool and base (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a lever and mounting base with no visible text or symbols

Mechanical assembly diagram showing a pin inserted into a housing (no text or labels)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

③ VUELVA A INSTALAR LA PUERTA DE REFRIGERADOR

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical assembly with mounting holes and structural supports (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and a bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Mechanical diagram showing a lever mechanism with rotating arrows (no text or symbols)

ENCHUFE EL REFRIGERADOR

Simple line drawing of an electrical outlet with a plug and socket (no text or symbols)

Mechanical assembly diagram showing a rotating component with two curved arrows indicating rotational motion (no text or symbols)

Architectural line drawing of a three-panel refrigerator with doors open (no text or symbols)

Technical line drawing of a refrigerator interior with doors, shelves, and doorways (no text or labels)

Architectural line drawing of a multi-level refrigerator or oven unit (no text or symbols)

Modelos GNE21D, GNE21F, PNE21K, PNE21N
21 cuft. Puerta Francesa con Cajón del Congelador

Technical line drawing of an open refrigerator with internal compartments and ventilation ducts (no text or labels)

Modelos GDE21D, GDE21E, PDE21K, GDE25E
21, 25 cuft. Una Sola Puerta con Cajón del Congelador

Technical line drawing of an open refrigerator with internal compartments and doors (no text or symbols)

Technical line drawing of a mechanical or architectural component with no visible text or symbols

Architectural floor plan of a multi-level building with internal compartments and structural elements (no text or labels)

Architectural floor plan of a multi-level refrigerator with doors and compartments (no text or labels)

Technical line drawing of a multi-panel refrigerator unit (no text or symbols)

Modelos GNE25D, GNE25J, PNE25J, CNE25S, PNE25N, GNE27J 25, 27 cuft. Puerta Francesa con Cajón del Congelador

Architectural line drawing of a multi-level cabinet or storage unit with no visible text or symbols

Simple line drawing of a mechanical component with a threaded end and curved top (no text or symbols)

Simple line drawing of a flower with petals and a curved arrow, no text or symbols present

Garante: GE Appliances, a Haier company Louisville, KY 40225

Warrantor Canada: MC Commercial Inc, Burlington, Ontario, L7R 5B6

Garante: GE Appliances, a Haier company Louisville, KY 40225
