Type	LED TV
Model	LED-20H HDT2
Brand	Grunkel
Screen Size	20 inches (51 cm)
Resolution	HD (1366 x 768) or Full HD (1920 x 1080)
Power Supply	100-240 V~ 50/60 Hz
Power Consumption	Approx. 30 W (typical)
Weight	Approx. 3.5 kg (with stand)
Dimensions (with stand)	Approx. 480 x 320 x 150 mm
Inputs	HDMI, VGA, SCART, USB, Mini-AV, Mini-YPbPr, RF antenna, PC audio
Outputs	Earphone, COAXIAL

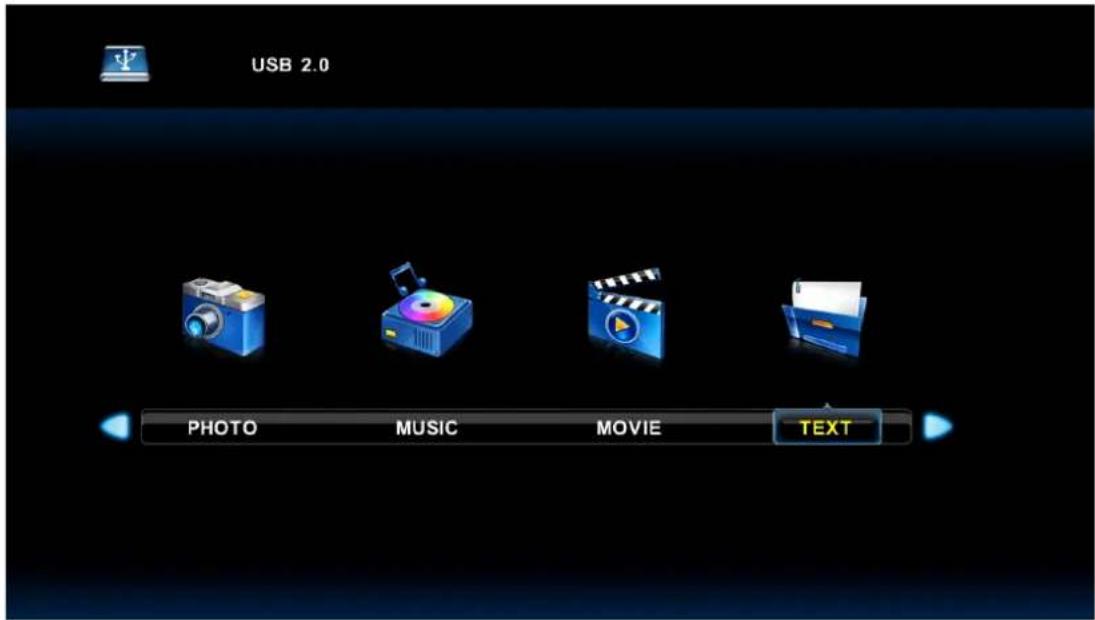

USB Function	Supports photo, music, movie & text playback; PVR recording
Digital TV	DVB-T/T2 (depending on region)
Remote Control	Included with buttons for power, volume, channels, menu, etc.
Safety Features	Auto standby, child lock, hotel mode
Installation	Auto tuning, manual scan, channel edit
Picture Modes	Standard, Dynamic, Soft, User (via PMODE)
Sound Modes	Standard, Music, Movie, Sports, User (via SMODE)
Teletext	Yes (via TEXT button)
EPG	Electronic Program Guide (in DTV mode)

Frequently Asked Questions - LED-20H HDT2 Grunkel

How do I set up my Grunkel LED-20H HDT2 for the first time?

Upon first power-on, the Installation Guide appears. Use the arrow keys to select your language, country, and energy mode. Then press OK to auto-tune channels. This may take several minutes.

Why is the remote control not working?

First, check the batteries and replace if necessary. Ensure there are no obstacles between the remote and the TV. If still not working, try pressing the POWER button on the TV itself to verify the TV is operational.

How can I connect external devices like a DVD player or game console?

Use the HDMI input for best quality. Alternatively, connect via Mini-AV or Mini-YPbPr with the appropriate cables. Press the SOURCE button to select the corresponding input.

Can I record TV programs to a USB drive?

Yes, in DTV source you can press the RECORD (●) button to start recording. Note: the USB drive will be formatted when used for burning, so do not store important files. The drive must support FAT/FAT32.

What picture modes are available?

Press the PMODE button to cycle through Standard, Dynamic, Soft, and User. In the menu, you can also adjust Contrast, Brightness, Colour, and Sharpness.

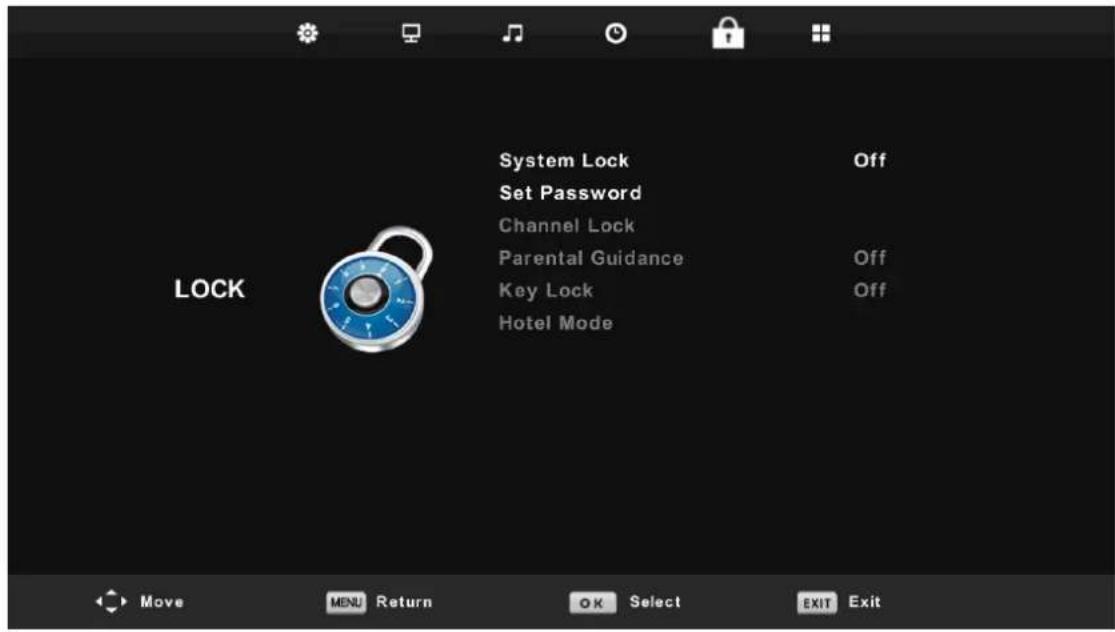

How do I set parental controls?

Press MENU, go to LOCK system, and enter the default password 0000. You can enable System Lock, change password, lock specific channels, set Parental Guidance ratings, or enable Key Lock to disable the TV buttons.

Why is there no sound from the TV?

Press the MUTE button to ensure sound is not muted. Check the volume level. If using external audio, verify the connections. Also, try pressing the AUDIO button to select the correct audio language or mode.

Can I connect the TV to my computer?

Yes, use the VGA input along with the PC AUDIO input. Press SOURCE to select VGA. The SCREEN menu in OSD allows adjustments like H-Offset, V-Offset, and Auto Adjust.

What should I do if the TV does not turn on?

Ensure the power cord is securely plugged into a working outlet. Try pressing the POWER button on the TV itself. If the indicator light does not come on, the remote batteries may be dead; replace them. If still no power, contact service.

How do I clean the screen and cabinet?

Unplug the TV. Use a soft, dry cloth to gently wipe the screen. Do not use any liquid cleaners or abrasive materials. For the cabinet, a slightly damp cloth with mild soap can be used, but avoid moisture entering the openings.

USER MANUAL LED-20H HDT2 Grunkel

Simple line drawing of a laptop on a stand, no text or symbols present

LED-20H FHDT2

Contenido

Illustration of a computer monitor with a crossed-out hand and lightning bolts, symbolizing cloud or data explosion (no text present)

Simple line drawing of a computer monitor with a blue X mark and hanging cables (no text or symbols)

Illustration of a computer monitor with a 'X' symbol and fireworks above it (no text or symbols present)

Simple line drawing of a box with a 'X' symbol inside, emitting steam from its lid (no text or symbols present)

Cartoon illustration of a person using a computer monitor with a blue X symbol (no text or symbols present)

Illustration of a computer monitor with a blue X mark and lightning bolts, no text or symbols present.

Illustration of a person standing next to a computer monitor and a small globe with a bird (no text or symbols)

Simple line drawing of a hammer striking a surface with radiating lines (no text or symbols)

1. Auto Tuning (Ajuste automático)

a. BORRAR

1. Información CI

Audio

COINTER ELECTRONICA S.L.

Fax: [phone]

E-mail: [e-mail]

@prunkel

USER'S MANUAL

LED TV SET

Illustration of a laptop on a stand, no text or symbols present

LED-20H FHDT2

Contents

• Introduction
• Warning
• Caution
• Main Unit Description
• Remote Control
• OSD basic adjustment
• DTV Features
• PVR Operation
• USBFeatures
• Specifications
• Trouble Shooting

Introduction

Thank you very much for your purchase of our product of LED TV. It serves as a normal color TV and PC monitor. To enjoy your TV to the full from the very beginning, read this manual carefully and keep it handy for ready reference.

INSTALLATION

① Locate the TV in a room where direct light does not strike the screen. Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.
② Allow enough space between the receiver and the wall to permit ventilation.
③ Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.
④ This TV can be connected to 100-240V\~50/60HZ.
⑤ Do not install the TV in a location near heat sources such as radiator, air ducts, direct sunlight, or in a place somewhere like close compartment and close area. Do not cover the ventilation openings when using the TV.
⑥ The indicator light will last about 30 seconds to go out after cutting off the electricity, during this period, you cannot repower it on until the indicator light goes out, thanks a lot for your attention!

Warning

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO AVOID THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER- SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol is intended to alert the user to avoid the risk of electric shock, do not disassemble this equipment by anyone except a qualified service personnel.

This symbol is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the equipment.

Class I structures of equipment should be connected to the grid power output with a protective earth connection on the socket.

Power plug as a broken appliance, broken installations should be easy to operate.

Caution

Illustration of a computer monitor with a crossed-out hand and lightning bolts, symbolizing electrical hazard (no text or symbols present)

High voltages are used in the operation of this product. Do not open the product's casing. Refer servicing to qualified service personnel.

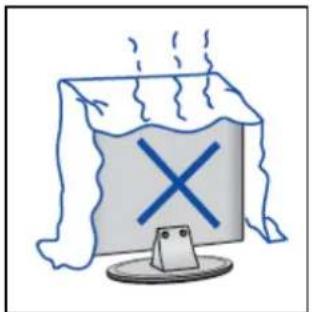

Simple line drawing of a computer monitor with a blue X mark and hanging fabric (no text or symbols)

To prevent fire or electrical shock hazard, do not expose the main unit to rain or moisture, do not place objects filled with liquids, such as vases, on the apparatus.

Illustration of a computer monitor with a 'X' symbol and fireworks above it (no text or symbols present)

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Simple line drawing of a cartoon character with a cross symbol inside, standing on a platform (no text or symbols present)

Avoid exposing the main unit to direct sunlight and other sources of heat. Do not stand the television receiver directly on other products which give off heat. E. g. video cassette players, Audio amplifiers. Do not block the ventilation holes in the back cover. Ventilation is essential to prevent failure of electrical component. Do not squash power supply cord under the main unit or other heavy objects.

Caution

Never stand on, lean on, push suddenly the product or its stand. You should Pay special attention to children.

Illustration of a computer monitor with a blue X mark and lightning bolts, placed on a table (no text or symbols)

Do not place the main unit on an unstable cart stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it should fall.

Illustration of a person standing next to a computer monitor and a small globe with a bird (no text or symbols)

When the product is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Simple line drawing of a hammer striking a surface on a computer monitor with radiating lines (no text or symbols)

The LED panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LED panel breaks.

Main unit description

Control Panel Button Function

VOL+: Volume up.

VOL- : Volume down.

CH+: TV channel up.

CH- : TV channel down.

MENU : Press to select the main menu.

SOURCE : Select the input signal.

POWER : Turn the TV on or off.

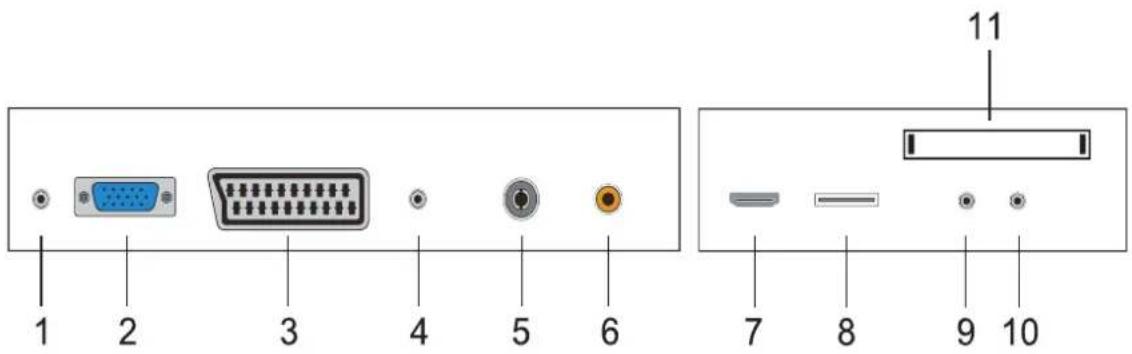

TV Terminal Connections

1. EARPHONE output
2. VGA input
3. SCART input
4. PC AUDIO input
5. RF antenna
6. COAXIAL output
7. HDMI input
8. USB input
9. Mini-AV input
10. Mini-YPbPr input
11. CI interface

Optional Configuration as below:

Connect the USB to the USB jack on the set.

NOTE

- It is only 500 mA MAX of DC current output when you connect with USB jack

- To ensure the Mobile HD works well, you should use other power supply for the Mobile HD. And do not use the USB jack in the same time.

- It supports Mobile HD by connecting with USB jack (must more than 2 GB). The partitions of the Mobile HD can't be more than 4 partitions. The max partition is 2TB. It supports FAT/FAT32 document. The max FAT document is 4GB and the max FAT32 document is 2TB.

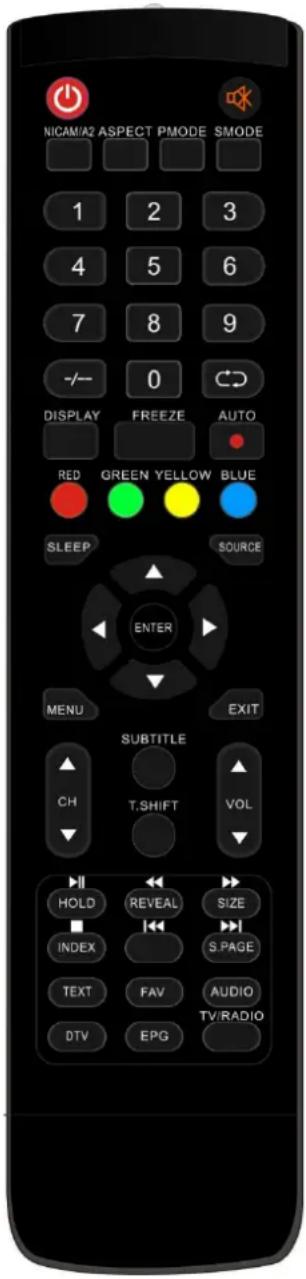

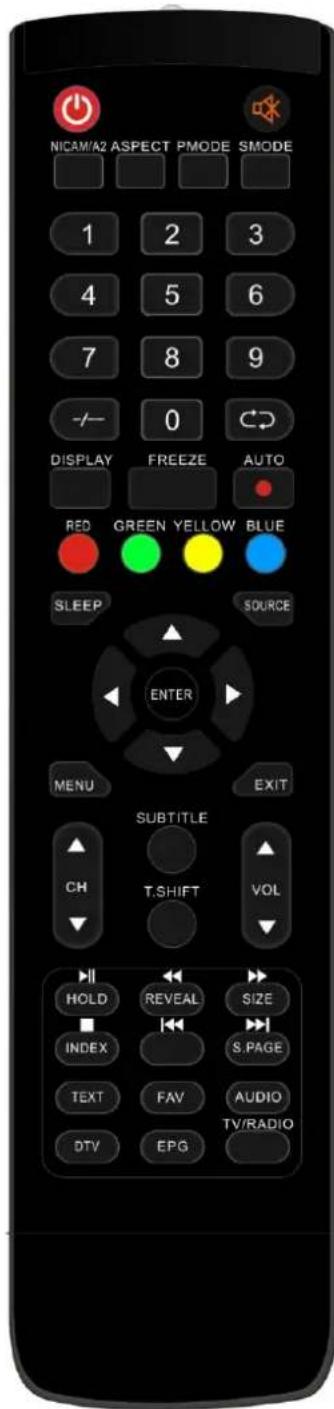

Remote control

: Press this button to Turn the TV on or off. : Press this button to mute or restore sound.

NICAM/A2: In the TV condition, press this key to select the stereo mode.

ASPECT: Press to adjust picture ratio.

PMODE: Select picture mode.

SMODE: Select sound mode.

0-9: Select and switch to a channel using 0 - 9.

-/----: Switch the program digit.

: Switch back and front between the current and previous channels.

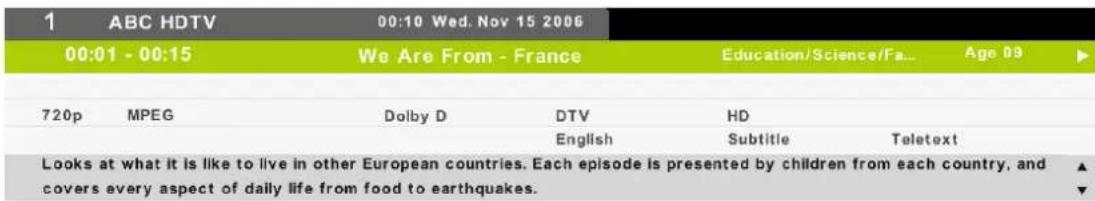

DISPLAY: Display TV information.

FREEZE: Press to hold the picture.

: Start to record.

( The U disk will be formatted when in burning, please do not store important files in the U disk )

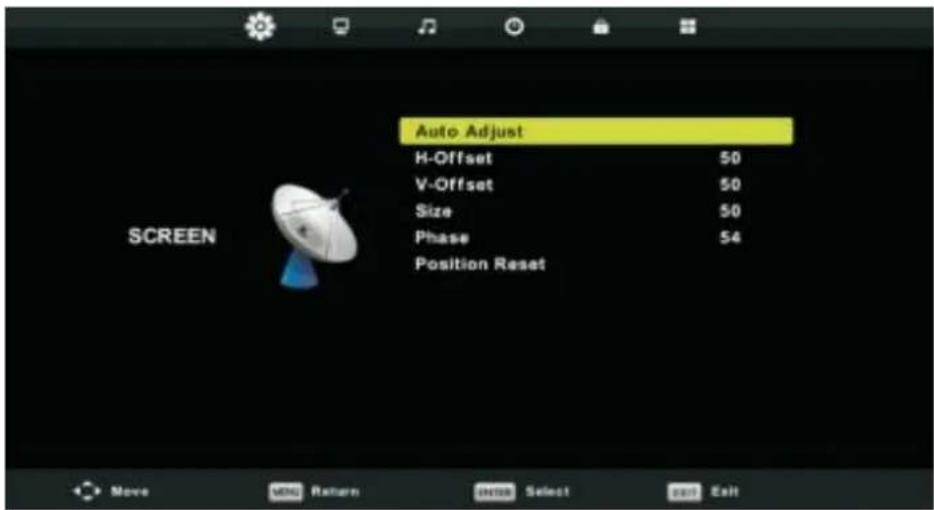

AUTO: Adjust the picture automatically in pc mode.

RED, GREEN, YELLOW, BLUE: Correspond to the different colored subjects.

SLEEP: Set the sleep timer.

SOURCE: Press to change signal source.

ENTER: Enter the selected option or execute the selected operation. NOTE: press this button to display "channel list" in TV source.

MENU: Press this button to enter the main menu for various optional adjustable setting.

EXIT: Exit the OSD (On-screen display).

CH▼/CH▲: Change the channel up and down.

VOL ▼/VOL▲: Adjust the volume.

SUBTITLE: Open or close subtitle. (Used for models with DTV function only)

T.SHIFT: Press the button to pause current DTV program and start record background (Used for models with DTV function only)

HOLD: Freeze a multi-page passage on screen in Teletext mode. (Used for European region only)

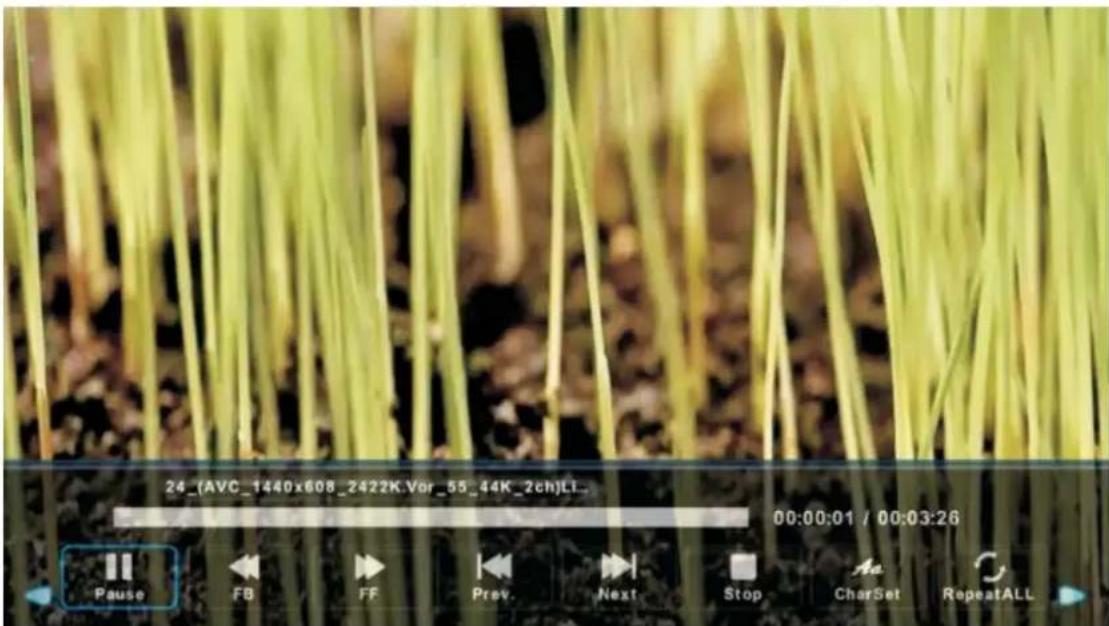

: Press to start playing the MEDIA, or to pause playing.

(Used for models with MEDIA function only)

REVEAL: Press this button to reveal the hidden information in Teletext page. Press again to hide the information.

◀: Press to play backward (Used for models with MEDIA function only)

SIZE: Display the top, bottom or all of page to read easily in Teletext mode.

: Press to play forward.(Used for models with MEDIA function only)

INDEX: Press this button to go to the index page in Teletext.

☐: Stop playing the Media.(Used for models with MEDIA function only)

: Skip to previous chapter (Used for models with MEDIA function only)

S.PAGE: Carry out the function of SUBCODE in the text while enter the text display mode.

▶: Skip to next chapter (Used for models with MEDIA function only)

TEXT: Press to enter the Tele text mode.

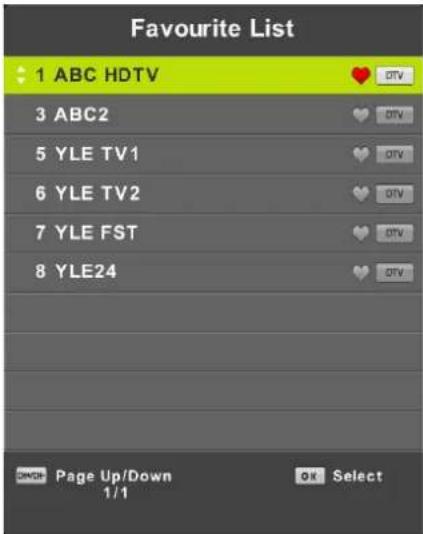

FAV: Switch between customer set " Favorite List"

AUDIO: Press to select the DTV audio.

(Used for models with DTV function only)

DTV: Press to switch to DTV (Digital TV) mode.

NOTE: press this button to display "Record list" in DTV

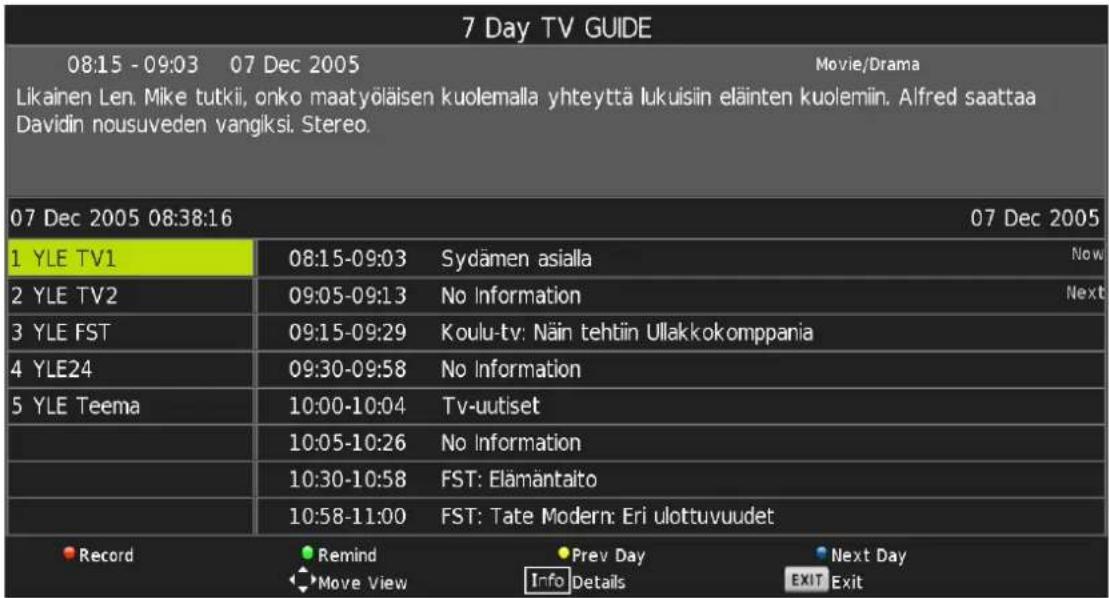

EPG: Enter electronic program guide. (Used for models with DTV function only)

TV/RADIO : Switch between TV and RADIO (Used for models with DTV function only)

OSD basic adjustment

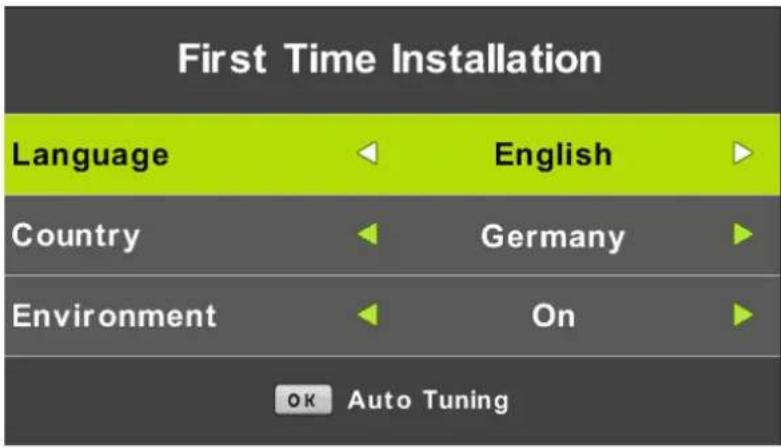

Installation Guide

If this is the first time you are turning on the TV and there are no programs in the TV memory, the installation Guide menu will appear on the screen.

1. Press the “▲/▼/◄/►” button to select the language.
2. Press the “▲/▼/◄/►” button to select the local country you want to
3. Press the “▲/▼/◄/►” button to select energy mode.

Note: Searching for platform will take a long time, please be patient!

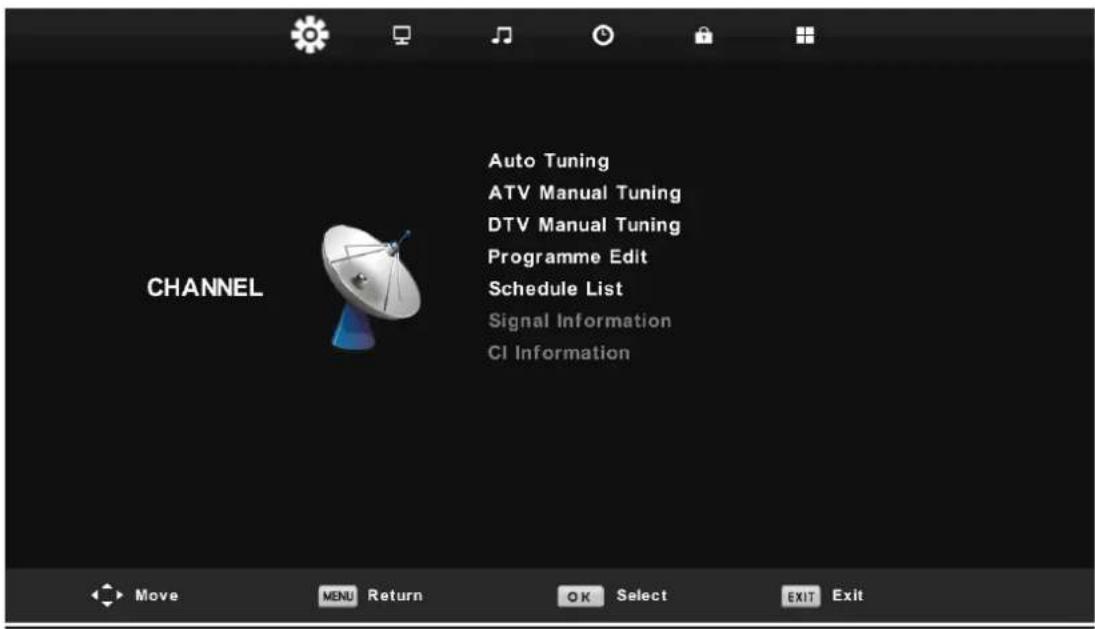

Channel

Press MENU button to display the main menu. Press ◀ / ▶ button to select CHANNEL in the main menu

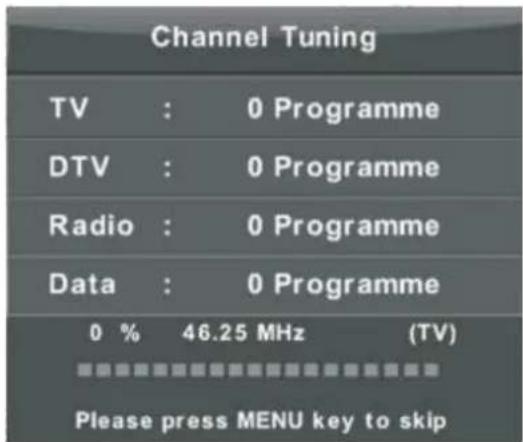

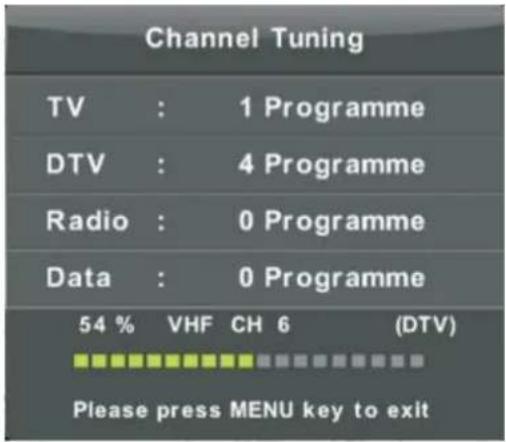

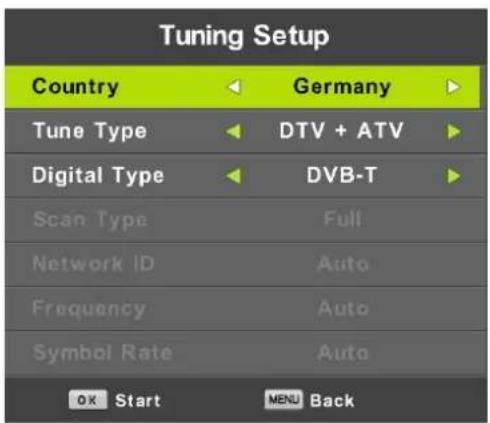

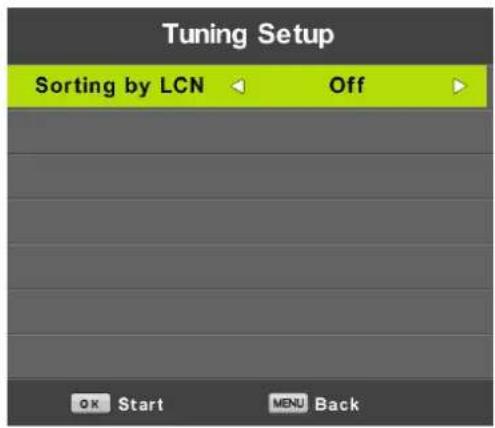

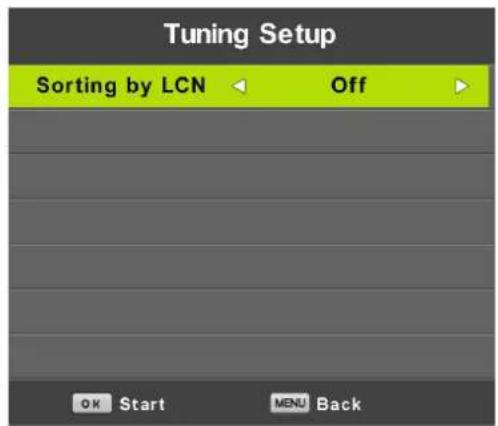

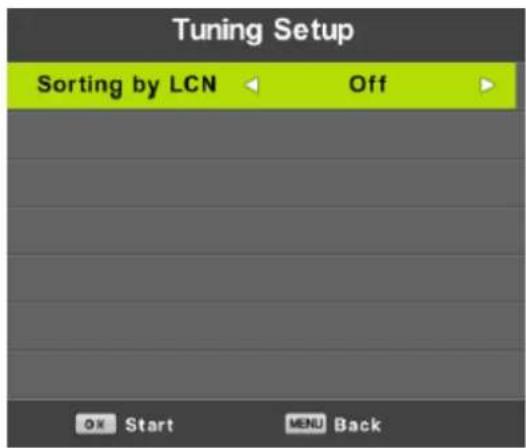

1. Auto Tuning

Press “▲/▼” button to select “Auto Scan”

Press “▲/▼” button to select country and press the“▲/▼” button to select Tune Type and Digital Type.

Press "OK" button to start scanning. Press "MENU" button to skip or "EXIT" button to stop.

Note: Searching for platform will take a long time. Please be patient!

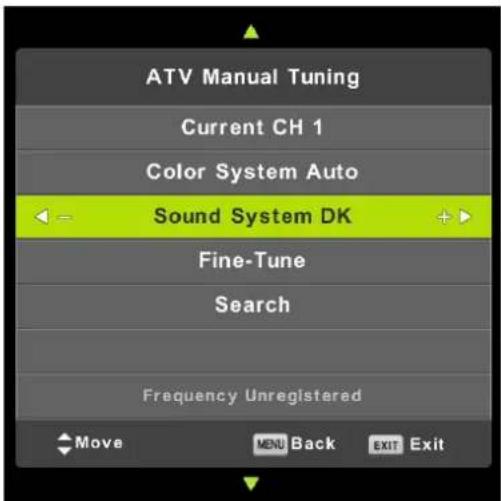

2. Analog Manual Scan

Press “▲/▼” button to select “Manual scan” and press the “▶” button to ATV Manual Tuning. Press “MENU” button to return the previous menu. Press “EXIT” button to exit the menu.

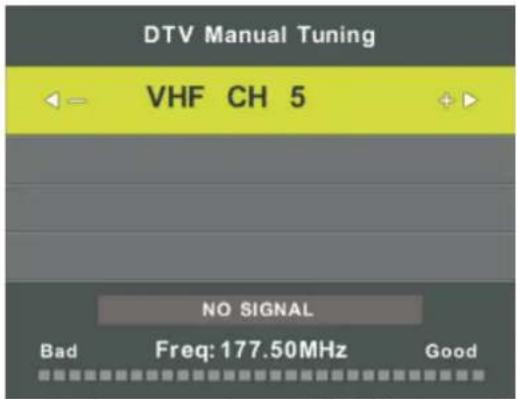

3. Digital Manual Tuning

Press “▲/▼” button to select “Diigital Manual Scan” and press the “▼” button to start.

Press "MENU" button to return the previous menu.

Press "EXIT" button to exit the menu.

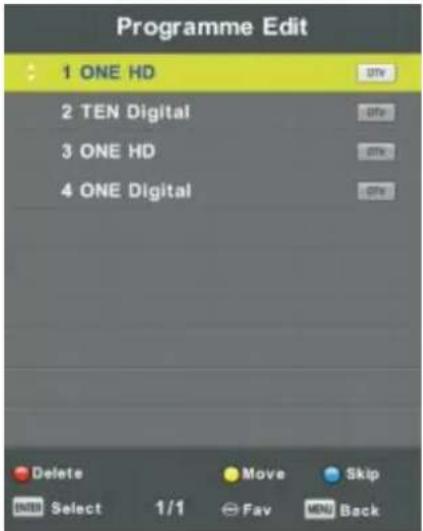

4. Channel Edit

Press “▲/▼” button to select “Channel Edit” and press the “ENTER” button to enter.

a. DELETE

Press “▲/▼” button to select the program and press “RED” button once to delete the program.

b. SKIP

Press “▲/▼” button to select the channel which you want to skip and press the “BLUE” button to skip. Press “BLUE” button again to cancel the setting.

c. MOVE

Press “▲/▼” button to select the channel and press the “YELLOW” button to move. Then press the “▲/▼” button to select the channel with which you want to move. Press “YELLOW” button again to confirm.

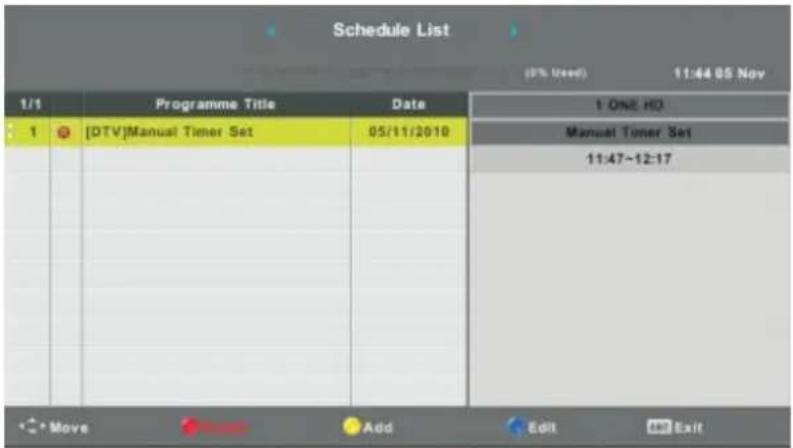

5. Schedule List

Press “▲/▼” button to select “Schedule List” and Press “ENTER” button to enter submenu

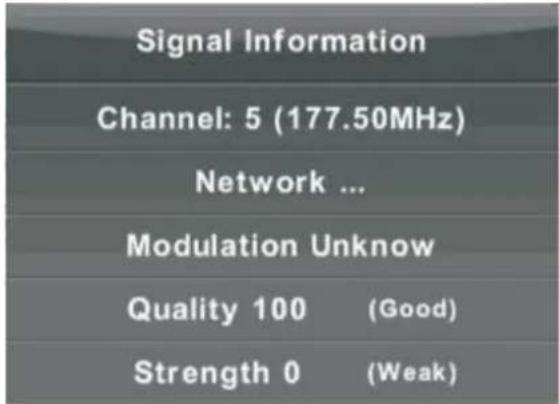

6. Signal information (only use in DTV)

Press “▲/▼” button to select “Signal information” and Press “MENU” button to return the previous menu. Press “EXIT” button to exit the menu.

7. CI Information

Press “▲/▼” button to select “CI Info” and press the “OK” button to check CI card information..

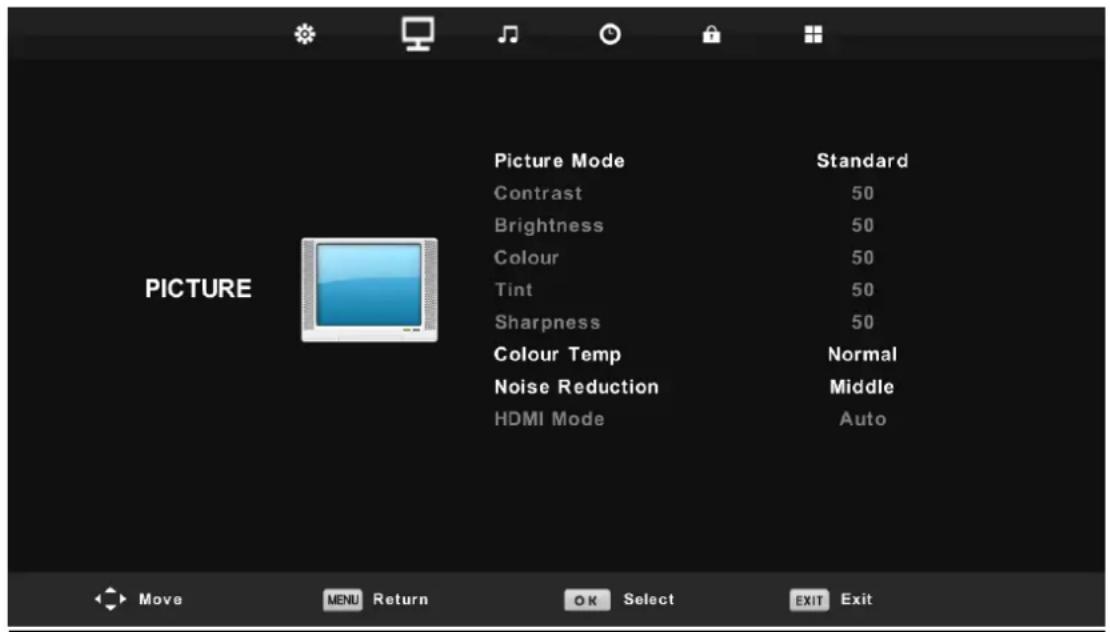

You can select the type of picture, which best corresponds to your viewing.

Press the “MENU” button to enter the OSD menu. Then press “◀/▶” button to select the “PICTURE” menu. Press “▲/▼” button to select “Picture Mode” and press the “OK” button to select.

1. Press “▲/▼” button to select “Contrast” and press the “◀/▶” button to enter contrast adjustment menu to adjust contrast.
2. Press “▲/▼” button to select “Brightness” and press the “◀/▶” button to enter brightness adjustment menu to adjust brightness.
3. Press “▲/▼” button to select “Colour” and press the “◀/▶” button to enter colour adjustment menu to adjust colour.
4. Press “▲/▼” button to select “Sharpness” and press the “◀/▶” button to enter sharpness adjustment menu to adjust sharpness.
5. Press “▲/▼” button to select “Tint” and press the “◀/▶” button to enter Tint adjustment menu to adjust Tint.

Note: The 'hue' item is used in NTSC mode only.

1. Press “▲/▼” button to select “Color Temp” and press the “◀/▶” button to select mode: Normal, Cold, Warm.

2. Press “▲/▼” button to select “Noise Reduction” and press the “◀/▶” button to select.

3. Press “▲/▼” button to select “HDMI Mode” and press the “◀/▶” button to select.

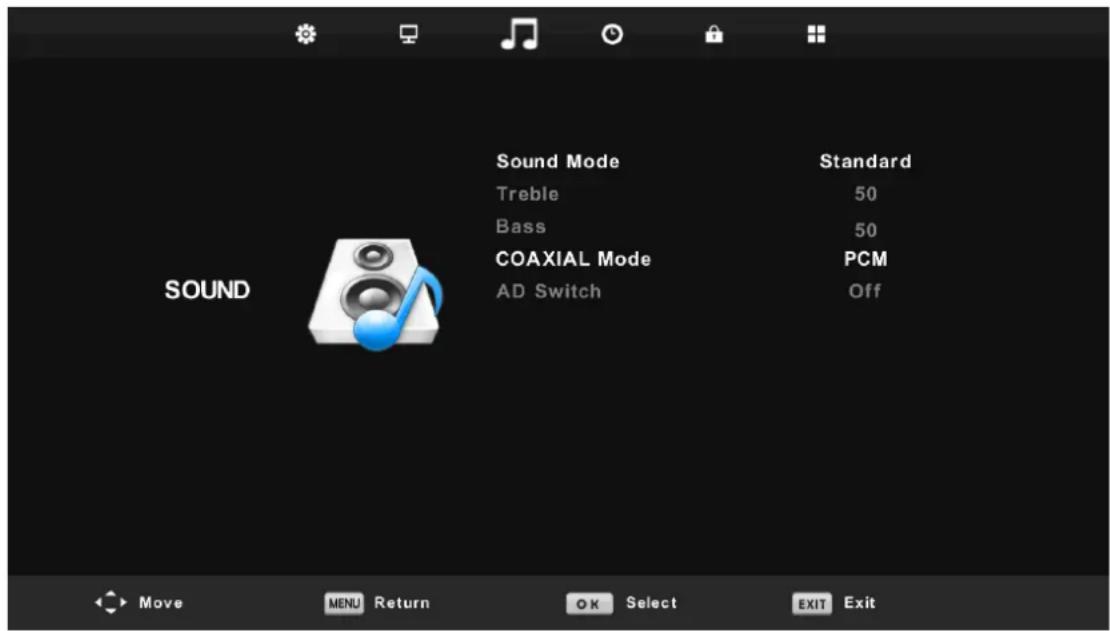

SOUND

You can select the type of sound, which best corresponds to your listening.

Press the “MENU” button to enter the OSD menu. Then press “◀/▶” button to select the “SOUND” menu.

1. Press “▲/▼” button to select “Sound Mode” and press the “◀/▶” button to select mode.
2. Press “▲/▼” button to select “Treble” and press the “◀/▶” button to adjust.
3. Press “▲/▼” button to select “Bass” and press the “◀/▶” button to adjust.
4. Press “▲/▼” button to select “COAXIAL Mode” and press the “◀/▶” button to adjust.
5. Press “▲/▼” button to select “AD Switch” and press the “◀/▶” button to adjust.

TIME

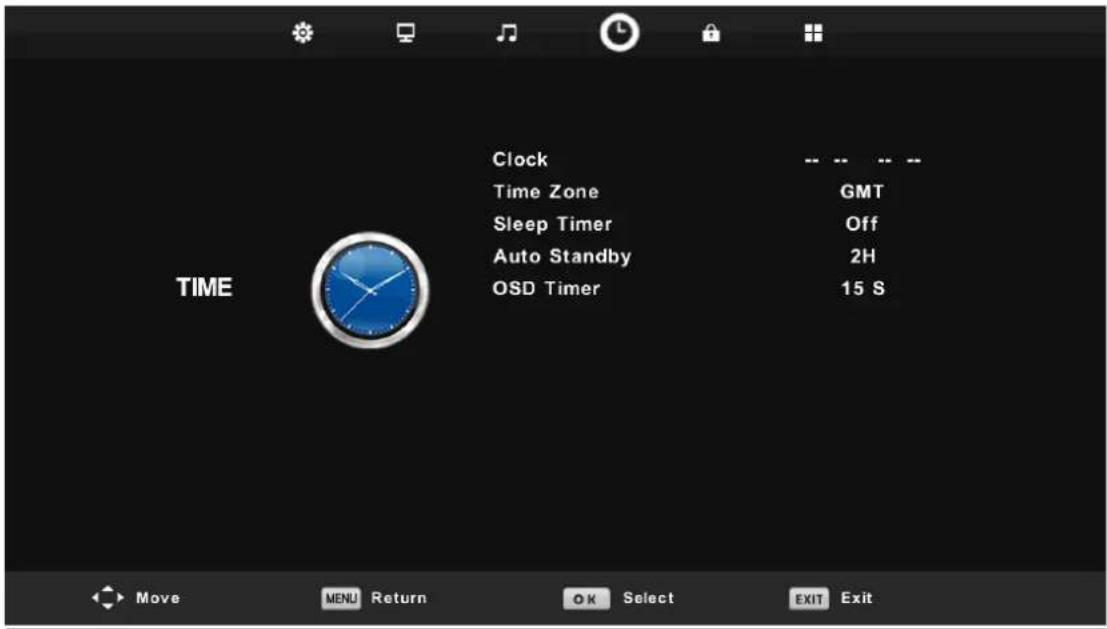

Press the “MENU” button to enter the OSD menu. Then press “◀/▶” button to select the “Time” menu.

1. Press “▲/▼” button to select “Time Zone” and Press “ENTER” button to enter submenu. Press “▲/▼/◄/►” button to select time zone”.
2. Press “▲/▼” button to select “Sleep Timer” and Press “ENTER” button to enter submenu. Press the “▲/▼” button to adjust.
3. Press “▲/▼” button to select “Auto Standby” and Press “ENTER” button to enter submenu. Press the “▲/▼” button to adjust.
4. Press “▲/▼” button to select “OSD Timer” and Press “ENTER” button to enter submenu. Press the “▲/▼” button to adjust.

LOCK

Press the “MENU” button to enter the OSD menu. Then press “◀/▶” button to select the “Lock System” menu. The default password is “0000”.

Note: The administrator password is "8899".

1. Press “▲/▼” button to select “System Lock” and then press “◀/▶” button to select “On” or “Off”
2. Press ▼ / ▲ button to select "Set Password" and set your new password.
3. Press “▲/▼” button to select “Channel Locks” and press the “GREEN” button to select channel (s) to lock.
4. Press “▲/▼” button to select “Parental Guidance” and press the “◀/▶” button to set.
5. Press ▼ / ▲ button to select "Key Lock", then press button to select "On" or "Off", The key board will be invalid if you set Lock Keypad "On".

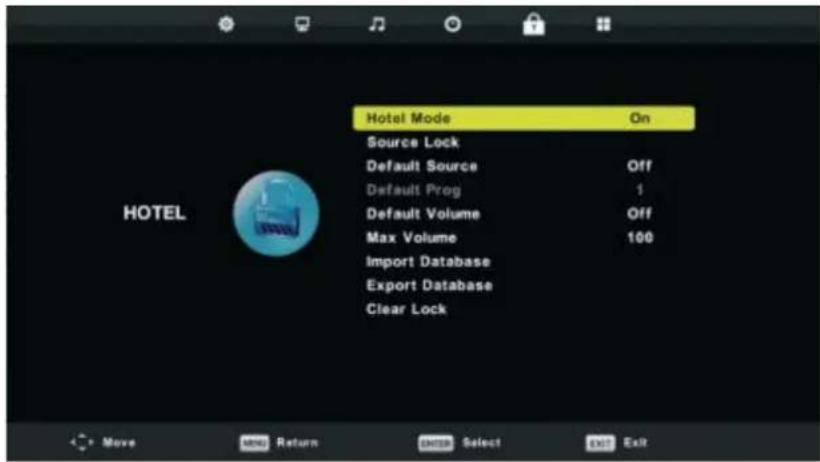

6. Press ▼ / ▲ button to select "Hotel Mode" and press the "▶" button to enter the sub-menu to set.

SETUP

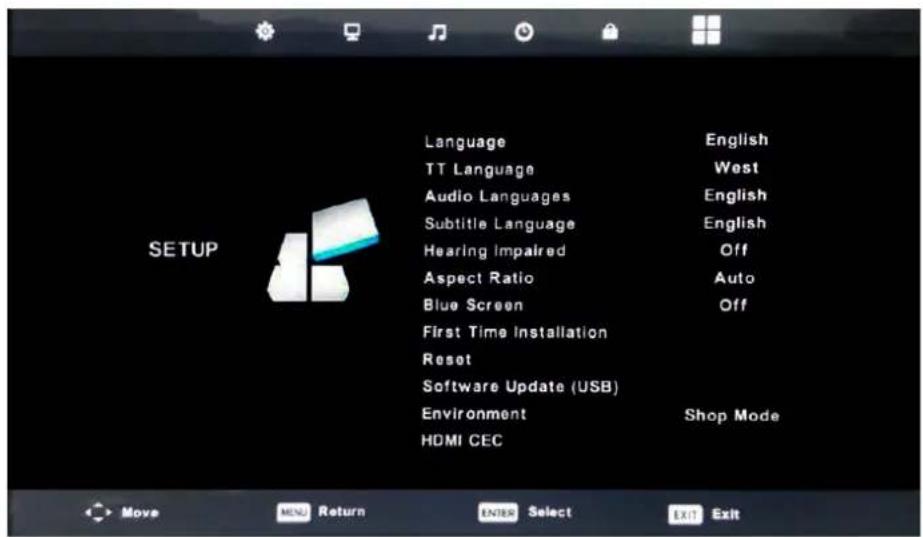

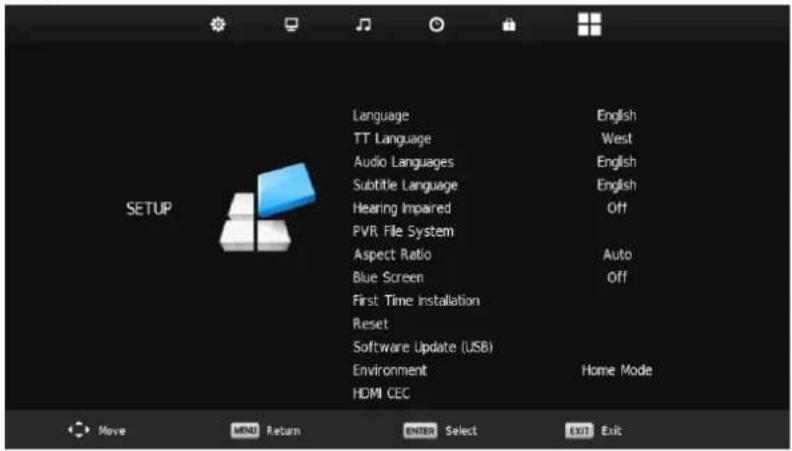

Press the “MENU” button to enter the OSD menu. Then press“◀/▶” button to select the “SETUP” menu.

1. Press “▲/▼” button to select “Language” and press the “◀/▶” button to select the OSD language which you desire.
2. Press “▲/▼” button to select “TT Language” and press the “◀/▶” button to select the TT language which you desire.
3. Press “▲/▼/” button to select “Audio Language” and press the “▶” button to enter the Audio language adjustment menu to select the Audio language which you desire.

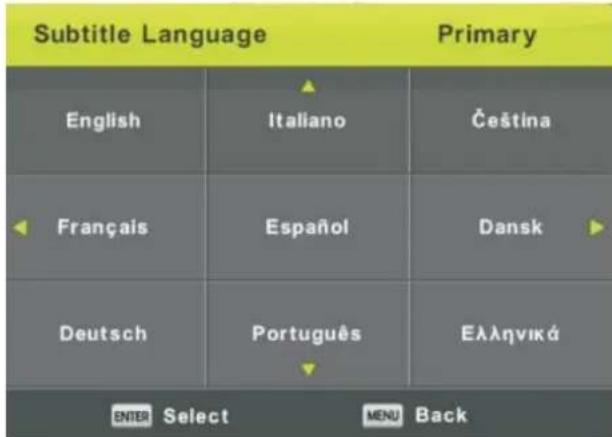

4. Press “▲/▼” button to select “Subtitle Language” and press the “▶” button to enter the subtitle language adjustment menu to select the subtitle language which you desire.

Note: This function is only used for DTV source.

1. Press “▲/▼” button to select “Hearing Impaired” and press the “◀/▶” button to select “On” or “Off”.

2. Press “▲/▼” button to select “Aspect Ratio” and press the “◀/▶” button to select to select aspect ratio: Auto,4:3,16:9,Zoom1, Zoom2

3. Press “▲/▼” button to select “Blue Screen” and press the “◀/▶” button to select “On” or “Off”.

4. Press “▲/▼” button to select “First Time Installation” and press “ENTER” button to enter.

5. Press “▲/▼” button to select “Reset”, then press “ENTER” a dialogue. Press “◀” button selecting “Yes” to restore all setting to default setting.

6. Press “▲/▼” button to select “Software Update” and press “OK” button to update software using USB.

Note: It is only use for service

1. Press “▲/▼ /◄/►” button to select “Environment”: Home Mode, Shop Mode.

2. Press “▲/▼” button to select “HDMI CEC”.

SCREEN

Press the “MENU” button to enter the OSD menu. Then press“◀/▶” button to select the “SCREEN” menu.(Only available in PC mode)

1. Press “▲/▼” button to select “Auto Adjust” and press the “ENTER” button to adjust.
2. Press “▲/▼” button to select “H-Offset” and press the “◀/▶” button to adjust.
3. Press “▲/▼” button to select “V-Offset” and press the “◀/▶” button to adjust.
4. Press “▲/▼” button to select “Size” and press the “ENTER” button to adjust.
5. Press “▲/▼” button to select “Phase” and press the “ENTER” button to adjust.
6. Press “▲/▼” button to select “Position Reset” and press the “ENTER” button to adjust.

DTV Features

Favorite List

When the source is selected as DTV, users can enter Favorite List by pressing "FAV" button. The "Favorite List" window is illustrated as follows:

You can press the “◀/▶” button to select the favorite list number

Program Information

When the source is selected as DTV, you can press "display" button to display the channel's information. The program information window is illustrated as follows:

Audio

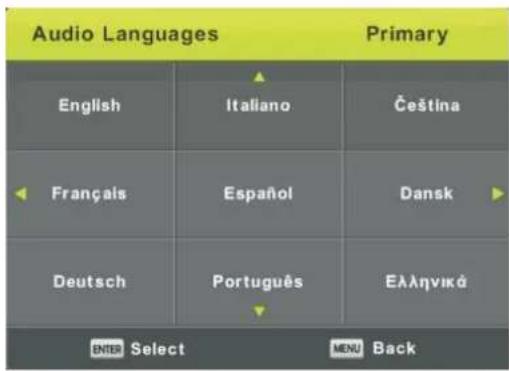

When the source is selected as DTV, users can enter the Setup menu to enter the “Audio Language” menu. The “audio language” window is illustrated, and press “▲/▼” button to select the “Audio Language” menu.

Subtitle

When the source is selected as DTV, users can go to the menu to set.

Note: The pictures in regard to function are provided for reference purposes only.

Electronic Program Guide (EPG)

Electronic Program Guide (EPG) provides program information which will be broadcasted now or in the future. The system will display EPG window by pressing “EPG” button. DATE and TIME information is displayed on the right of the window. The left side shows all channels. The right side shows the programs in the channel. The selected program is also displayed on the top of the screen.

1. Press the “▲/▼” button to select the Program. You can press “RED” button to enter record mode. Press “GREEN” button to display the program’s detail. Press “YELLOW” button to Check details at PVR’s Schedule List introduction. Press “Blue” button to enter remind setting.
2. Press the “▲/▼” button to select and press the “◀/▶” button to select the channel number to see the current channel’s program forecast.

Note: The U disk will be formatted when in burning, please do not store important files in the U disk.

PVR Operation

In DTV source, press the "MENU" button to enter the OSD menu. Then press“◀ / ▶” button to select the "Setup" menu.

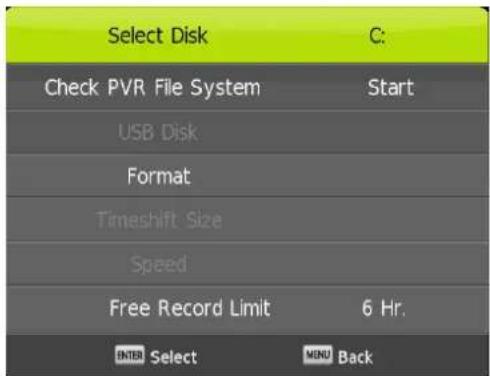

1. Press “▲/▼” button to select “PVR File System” and press the “ENTER” button to enter.
2. Press “▲/▼” button to select “Check PVR File System”, then press “ENTER” button to enter.

Note:

1. The U disk will be formatted when in format, please do not store important files in the U disk.
2. Press “●” button for the first time to start recording, for the second time, the sign of recorder will be slimmed down, but it's still under recording.

USB Features

Press the "SOURCE" button to change to the "MEDIA" source.

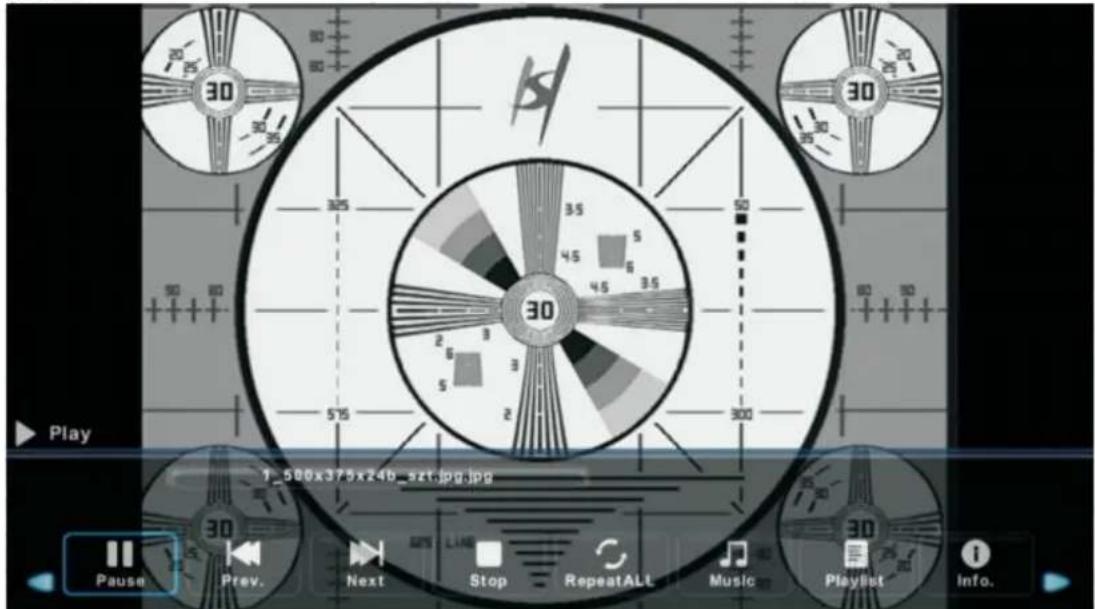

1. Press the “◀ / ▶” button enter the “PHOTO” option, and press “ENTER” button to enter
2. Press "◀ / ▶" button to select drive disk you want to watch, then press enter button to enter.
3. Press the "EXIT" button to back to the previous menu.

Music

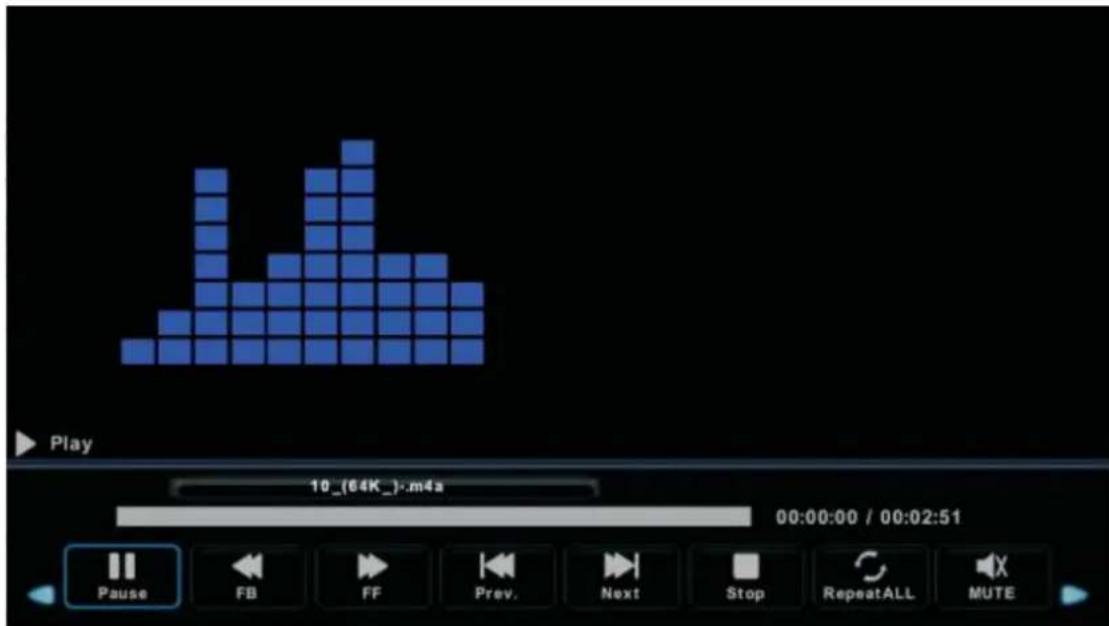

1. Press “◀ / ▶” button to select MUSIC in the main menu, then press “ENTER” button to enter
2. Press "◀ / ▶" button to select drive disk you want to watch, then press enter button to enter
3. Press the "exit" button to back to the previous menu

Movie

1. Press “◀ / ▶” button to select “MOVIE” in the main menu, then press “ENTER” button to enter
2. Press" ◀ / ►" button to select drive disk you want to watch, then press enter button to enter
3. Press the "exit" button to back to the previous menu.

TE T

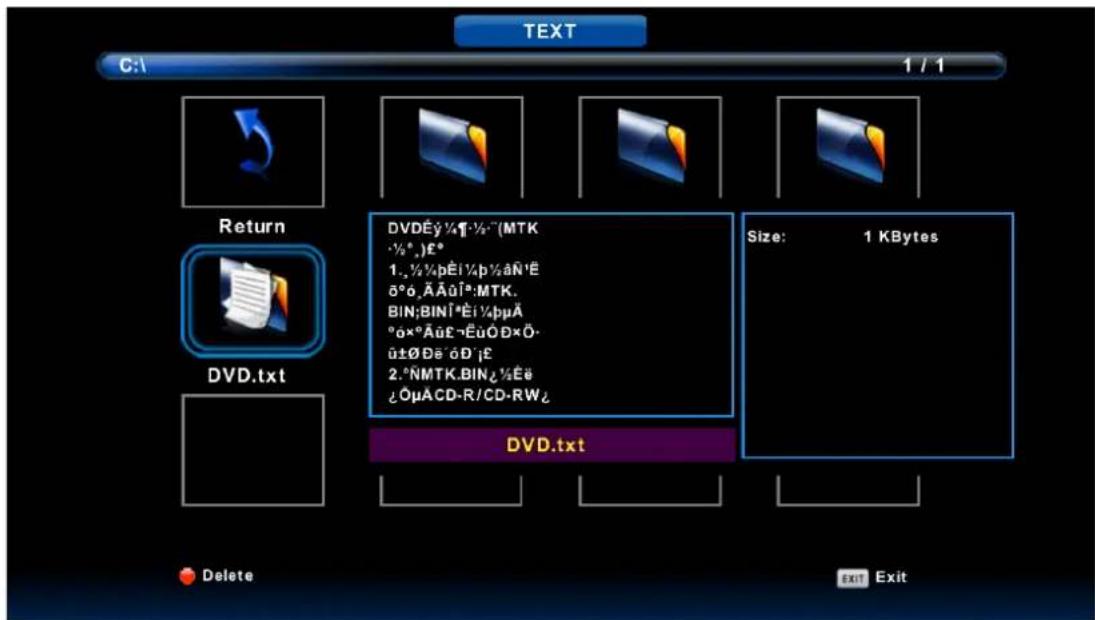

1. Press “◀ / ▶” button to select TEXT in the main menu, then press “ENTER” button to enter
2. Press "◀ / ▶" button to select drive disk you want to watch, then press enter button to enter
3. Press the "exit" button to back to the previous menu

SPECIFICATIONS

RGB INPUT

Mode Resolution	Horizontal Frequency (KHz)	Vertical Frequency (HZ)
DOS 720x400 31.5 70
VGA 640x480 31.5 60
SVGA 800x600 37.9 60
XGA 1024x768 48.4 60
WXGA 1366x768 47.7 60

HDMI INPUT

Mode Resolution		Horizontal Frequency (KHz)	Vertical Frequency (HZ)
VGA 640	x 480 31.47 59.94
480i 720	x480i 15.73 59.94/60
576i	720 x 576i	15.63	50
480p 720	x480p	31.47 59.94/60
576p	720 x 576p	31.26	50
720p	1280 x 720p	37.50	50
		44.96	59.94/60
1080i	1920 x 1080i	28.13	50
		33.75	59.94/60
1080p	1920 x 1080p	56.25	50
		67.5	59.94/60

COMPONENT (YPbPr) INPUT

Mode Resolution		Horizontal Frequency (KHz)	Vertical Frequency (HZ)
480i 720	x480i 15.73	59.94/60
576i	720 x 576i	15.63	50
480p 720	x480p	31.47	59.94/60
576p	720 x 576p	31.26	50
720p	1280 x 720p	37.50	50
		44.96	59.94/60
1080i	1920 x 1080i	28.13	50
		33.75	59.94/60
1080p	1920 x 1080p	56.25	50
		67.5	59.94/60

Trouble Shooting

Before consulting service personnel, check the following chart for possible solutions.

PROBLEM	SOLUTION
TV will not turn on	Make sure the power cord is plugged in.The batteries in the remote control may be Exhausted; replace the batteries.
No picture, no sound	Check the cable between TV and antenna/ external AV device.Press the power button on the remote.Press the SOURCE button the remote, then press the “▲/▼”button repeatedly to select the TV source.
Poor picture, sound OK	Check the cable between TV and antenna/ external AV device.Try another channel, the station may have broadcast difficulties.Adjust the brightness/contrast in the Video menu. Check that the unit is set to PAL
Audio noise ●Move any infrared equipment away from the TV.

The TFT LED panel uses a panel consisting of sub pixels which requires sophisticated technology to produce. However, there may be a small number of bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

@runkel

MANUAL DO

UTILIZADOR

TV LED

Simple line drawing of a laptop on a stand (no text or symbols)

LED-20H FHDT2

Conteúdo

Illustration of a computer monitor with a crossed-out screwdriver and lightning bolts, symbolizing electrical hazard (no text or symbols present)

Cuidado

Simple line drawing of a computer monitor with a blue X mark and a hanging curtain beside it (no text or symbols)

Cuidado

Illustration of a computer monitor with a 'X' symbol and a flower above it, no text or symbols present.

Cuidado

Simple line drawing of a steaming container with a cross symbol, placed on a base (no text or labels)

Cuidado

Cuidado

Illustration of a computer monitor with a blue X mark and lightning bolts, no text or symbols present.

Cuidado

Illustration of a computer monitor and a cartoon character with a bug, next to a circular icon (no text or symbols)

Cuidado

Simple line drawing of a hammer striking a surface on a computer monitor (no text or symbols)

Cuidado

a. ELIMINAR

7. Informação CI

Audio
