CR 18DL - Saw HITACHI - Free user manual and instructions

Product type	Reciprocating saw
Brand	Hitachi
Model	CR 18DL
Nominal voltage	18 V
Battery type	Li-ion (not included)
Stroke length	28 mm
No-load speed	0 - 3000 strokes/min
Cutting capacity in wood	90 mm
Cutting capacity in steel	10 mm
Weight (with battery)	2.3 kg
Dimensions (L x W x H)	380 x 85 x 180 mm
Variable speed	Yes, progressive electronic
LED light	Yes
Lock-off trigger	Yes
Restart protection	Yes
Maintenance and cleaning	Clean after use, replace worn blades
Spare parts available	Blades, batteries, chargers
Repairability	Repairability score: 7.8/10
Package contents	Saw only (battery and charger not included)
Warranty	2 years

Frequently Asked Questions - CR 18DL HITACHI

How to change the blade on the Hitachi CR 18DL saw?

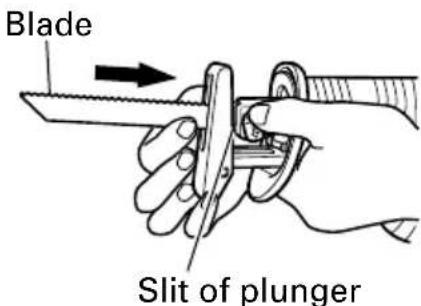

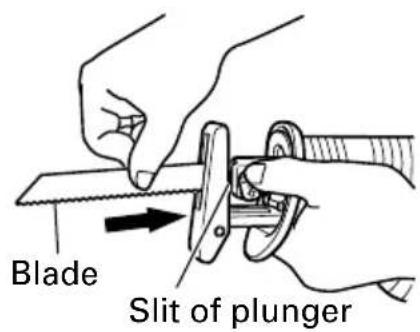

Unlock the blade holder by turning the locking ring counterclockwise. Insert the blade fully then release the ring. Check that the blade is securely held by pulling on it.

What battery does the Hitachi CR 18DL use?

It uses a Hitachi 18 V Li-ion battery from the BSL18 series (models BSL1815, BSL1820, BSL1830, etc.). The battery is not included.

Is the Hitachi CR 18DL compatible with Metabo batteries?

No, it is only compatible with Hitachi 18 V batteries. Only use original batteries to avoid any risk.

How to adjust the saw speed?

Press the trigger slightly for low speeds, press it fully for maximum speed. The electronic speed control allows progressive control.

Can you cut metal with the CR 18DL?

Yes, with a suitable blade (steel up to 10 mm). Use a fine-tooth blade and lubricate the cut to extend blade life.

How to clean the saw after use?

Disconnect the battery. Wipe the housing with a damp cloth (no water). Clean the air vents with a soft brush. Lubricate the blade holder if necessary.

Does the saw have an LED light?

Yes, the CR 18DL is equipped with an LED that illuminates the cutting area for precise work.

What to do if the blade jams?

Immediately release the trigger. Check that the blade is suitable for the material. If the jam persists, remove the battery and inspect the blade.

How to store the Hitachi CR 18DL saw?

Store it in a dry, frost-free place. Remove the battery if not used for a long time. Use a transport case if possible.

Where to find spare parts for the CR 18DL?

Consult an authorized Hitachi dealer or online parts sites. Blades, batteries and chargers are readily available.

USER MANUAL CR 18DL HITACHI

Technical line drawing of a mechanical tool with textured grip and handle (no text or symbols)

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

WARNING

IMPROPER OR UNSAFE use of this power tool can result in death or serious bodily injury! This manual contains important information about product safety. Please read and understand this manual BEFORE operating the power tool. Please keep this manual available for other users and owners before they use the power tool. This manual should be stored in safe place.

INSTRUCTIONS DE SECURITE ET MODE D'EMPLOI

⚠ AVERTISSEMENT

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE CORDLESS RECIPROCATING SAW .... 8

IMPORTANT SAFETY INSTRUCTIONS

FOR BATTERY CHARGER 9

IMPORTANT SAFETY INSTRUCTIONS

FOR USE OF THE BATTERY AND

BATTERY CHARGER 10

CAUTION ON LITHIUM-ION BATTERY 11

FUNCTIONAL DESCRIPTION

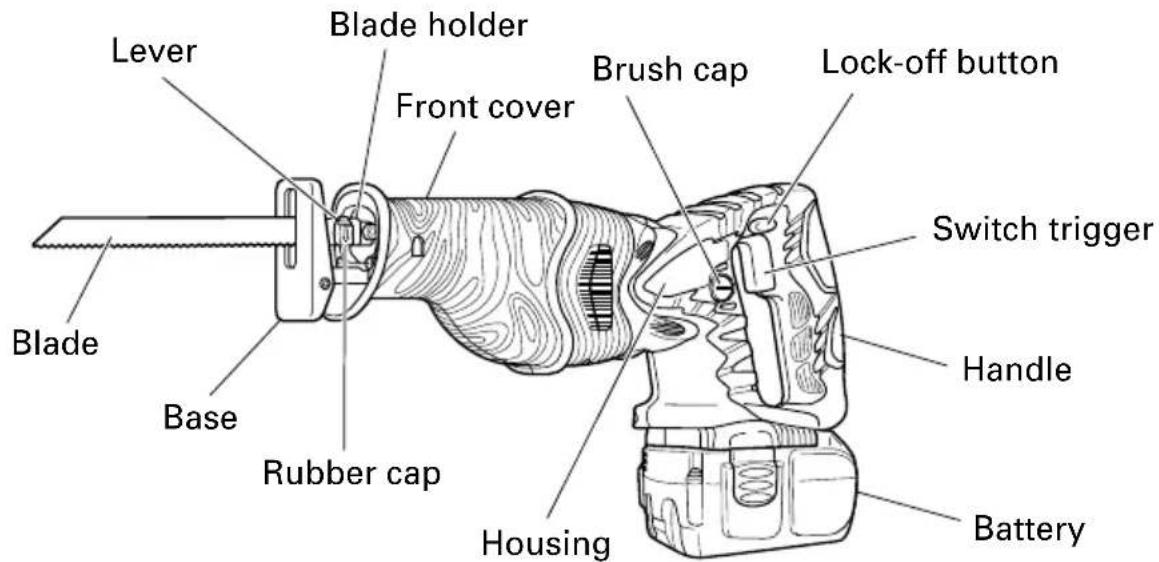

NAME OF PARTS 12

SPECIFICATIONS 13

Page

ASSEMBLY AND OPERATION 14

APPLICATIONS 14

REMOVAL AND INSTALLATION METHOD OF BATTERY 14

CHARGING METHOD 14

BEFORE USE 19

HOW TO USE THE CORDLESS RECIPROCATING SAW 22

MAINTENANCE AND INSPECTION 25

ACCESSORIES 27

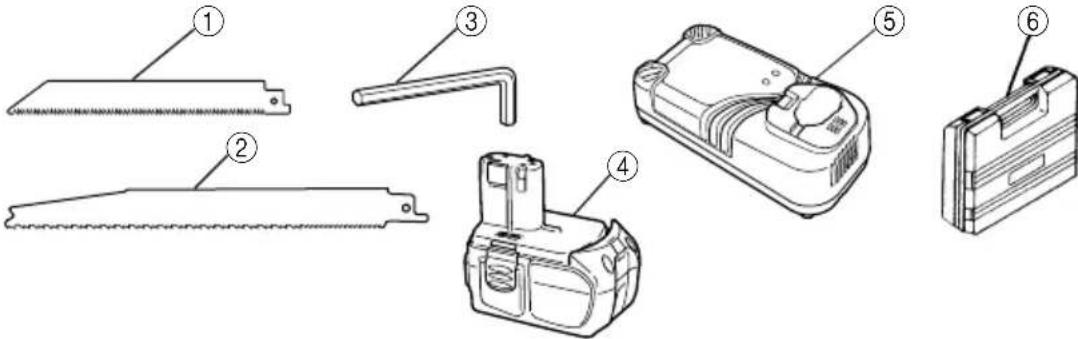

STANDARD ACCESSORIES 27

OPTIONAL ACCESSORIES 29

PARTS LIST 88

TABLE DES MATIERES

Français

Page

INFORMATIONS IMPORTANTES DE SÉCURITÉ ..... 30

SIGNIFICATION DES MOTS D'AVERTISSEMENT .... 30

SECURITE

AVERTISSEMENTS DE SECURITE GENERAUX CONCERNANT LES OUTILS ÉLECTRIQUES... 31

REGLES DE SECURITE SPECIFIQUES ET SYMBOLES .... 34

CONSIGNES DE SÉCURITÉ IMPORTANTES POUR L'UTILISATION DU SCIE ALTERNATIVE À BATTERIE .. 35

CONSIGNES DE SECURITE IMPORTANTES POUR LE CHARGEUR DE BATTERIE .... 36

CONSIGNES DE SÉCURITÉ IMPORTANTES POUR L'UTILISATION DE LA BATTERIE ET DU CHARGEUR DE BATTERIE.... 37

PRÉCAUTIONS RELATIVES A LA BATTERIE AU LITHIUM ION 38

DESCRIPTION FONCTIONNELLE

NOM DES PARTIES 39

SPECIFICATIONS 40

Page

ASSEMBLAGE ET FONCTIONNEMENT ..... 41

APPLICATIONS 41

MÉTHODE DE RETRAIT ET D'INSTALLATION DE LA BATTERIE 41

MÉTHODE DE RECHARGE 41

IMPORTANT SAFETY INFORMATION

Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool.

Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the "SAFETY" section of this Instruction Manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the power tool and in this Instruction Manual.

NEVER use this power tool in a manner that has not been specifically recommended by HITACHI.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.

CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage.

NOTE emphasizes essential information.

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING:

Read all safety warnings and instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit.

Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.

Power tools create sparks which may ignite the dust of fumes.

c) Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.

Never modify the plug in any way.

Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.c)

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool.

Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs.

Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

WARNING:

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known [to the State of California] to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

●Lead from lead-based paints,
●Crystalline silica from bricks and cement and other masonry products, and
●Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

SPECIFIC SAFETY RULES AND SYMBOLS

1. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord.

Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

1. Use clamps or another practical way to secure and support the workpiece to a stable platform.

Holding the work by hand or against your body leaves it unstable and may lead to loss of control.

1. NEVER touch moving parts.

NEVER place your hands, fingers or other body parts near the tool's moving parts.

1. NEVER operate without all guards in place.

NEVER operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.

1. Use right tool.

Don't force small tool or attachment to do the job of a heavy-duty tool.

Don't use tool for purpose not intended —for example— don't use circular saw for cutting tree limbs or logs.

1. NEVER use a power tool for applications other than those specified.

NEVER use a power tool for applications other than those specified in the Instruction Manual.

1. Handle tool correctly.

Operate the tool according to the instructions provided herein. Do not drop or throw the tool. NEVER allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

1. Definitions for symbols used on this tool.

V ...... volts

==...... direct current

Hz ...... hertz

A ...... amperes

No ...... no load speed

---/min .... revolutions or reciprocation per minute

1. Keep all screws, bolts and covers tightly in place.

Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

1. Do not use power tools if the plastic housing or handle is cracked.

Cracks in the tool's housing or handle can lead to electric shock. Such tools should not be used until repaired.

1. Blades and accessories must be securely mounted to the tool.

Prevent potential injuries to yourself or others. Blades, cutting implements and accessories which have been mounted to the tool should be secure and tight.

1. NEVER use a tool which is defective or operating abnormally.

If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a Hitachi authorized service center.

13. Carefully handle power tools.

Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

14. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents.

Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE CORDLESS RECIPROCATING SAW

WARNING: Death or serious bodily injury could result from improper or unsafe use of the Cordless Reciprocating Saw. To avoid these risks, follow these basic safety instructions:

1. NEVER touch the tool blade with bare hands after operation.
2. ALWAYS wear ear protectors when using for extended periods.

Abstract black-and-white icon of a human head silhouette with a thermometer symbol inside, enclosed in a square frame (no text or numbers)

1. ALWAYS wear eye protection that meets the requirement of the latest revision of

Silhouette of a helmet with a visor icon and arrow pointing to the head (no text or symbols)

1. ALWAYS be careful with buried object such as an underground, wiring.

Touching these active wiring or electric cable with this tool, you may receive an electric shock.

Comfirm if there are any buried object such as electric cable within the wall, floor or ceiling where you are going to operate here after.

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGER

WARNING: Death or serious bodily injury could result from improper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

1. This manual contains important safety and operating instructions for battery charger Model UC18YRL, UC18YFL and UC18YGL2.
2. Before using battery charger, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
3. To reduce risk of injury, charge HITACHI rechargeable battery type EB7, EB9, EB12, EB14, EB18, BCL14, BCL18 and EBM18 series. Other type of batteries may burst causing personal injury and damage.
4. Do not expose battery charger to rain or snow.
5. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons.
6. To reduce risk of damage to electric plug and cord, pull by plug when disconnecting battery charger.
7. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
8. An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire and electric shock.
   If extension cord must be used make sure:
   a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger:
   b. That extension cord is properly wired and in good electrical condition; and
   c. That wire size is large enough for AC ampere rating of battery charger as specified in Table 1.

Table 1 RECOMMENDED MINIMUM AWG SIZE FOR EXTENSION CORDS FOR BATTERY CHARGERS

AC Input Rating Amperes* AWG Size of Cord
Equal to or but less Length of Cord, Feet (Meter) greater than than 25 (7.5) 50 (15) 100 (30) 150 (45)
0	2	1	8	18
2	3	1	8	18
3	4	1	8	18

* If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing the wattage rating by the voltage rating—for example:

$$ \frac {1 , 2 5 0 \text { watts }}{1 2 5 \text { volts }} = 1 0 \text { amperes } $$

1. Do not operate battery charger with damaged cord or plug-replace them immediately.
2. Do not operate battery charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman.
3. Do not disassemble battery charger; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
4. To reduce risk of electric shock, unplug charger from receptacle before attempting any maintenance or cleaning. Removing the battery will not reduce this risk.
5. This battery charger might be attached to HITACHI battery operated tools as a standard accessory. In this case, please confirm instruction Manual of the HITACHI battery operated tools before using the battery charger.

IMPORTANT SAFETY INSTRUCTIONS FOR USE OF THE BATTERY AND BATTERY CHARGER

You must charge the battery before you can use the power tool. Before using the model UC18YRL or UC18YFL or UC18YGL2 battery charger, be sure to read all instructions and cautionary statements on it, the battery and in this manual.

REMEMBER: USE ONLY HITACHI BATTERY TYPES EB7 SERIES, EB9 SERIES, EB12 SERIES, EB14 SERIES, EB18 SERIES, BCL14 SERIES, BCL18 SERIES AND EBM18 SERIES. OTHER TYPES OF BATTERIES MAY BURST AND CAUSE INJURY!

Follow these instructions to avoid the risk of injury:

WARNING: Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. NEVER disassemble the battery.
2. NEVER incinerate the battery, even if it is damaged or is completely worn out. The battery can explode in a fire.
3. NEVER short-circuit the battery.
4. NEVER insert any objects into the battery charger's air vents. Electric shock or damage to the battery charger may result.
5. NEVER charge outdoors. Keep the battery away from direct sunlight and use only where there is low humidity and good ventilation.

6. NEVER charge when the temperature is below 32^ F ( 0^ C) or above 104^ F ( 40^ C).

7. NEVER connect two battery chargers together.

8. NEVER insert foreign objects into the hole for the battery or the battery charger.

9. NEVER use a booster transformer when charging.

10. NEVER use an engine generator or DC power to charge.

11. NEVER store the battery or battery charger in places where the temperature may reach or exceed 104^ F ( 40^ C).

12. ALWAYS operate charger on standard household electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.

13. ALWAYS wait at least 15 minutes between charges to avoid overheating the charger.

14. ALWAYS disconnect the power cord from its receptacle when the charger is not in use.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output.

In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out (the battery voltage drops to about 12V), the motor stops.
   In such case, charge it up immediately.
2. If the tool is overloaded, the motor may stop. In this case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.
3. If the battery is overheated under overload work, the battery power may stop.
   In this case, stop using the battery and let the battery cool. After that, you can use it again.

SAVE THESE INSTRUCTIONS AND

MAKE THEM AVAILABLE TO OTHER USERS AND

OWNERS OF THIS TOOL!

FUNCTIONAL DESCRIPTION

NOTE:

The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool.

NEVER operate, or attempt any maintenance on the tool unless you have first read and understood all safety instructions contained in this manual.

Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own power tool.

NAME OF PARTS

1. Cordless Reciprocating Saw (CR18DL)

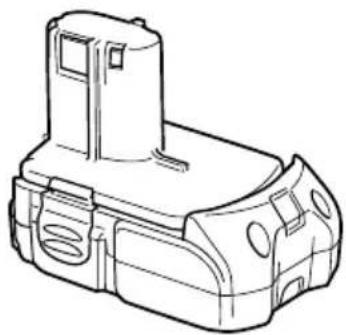

○Battery

Fig. 1

2. Battery Charger

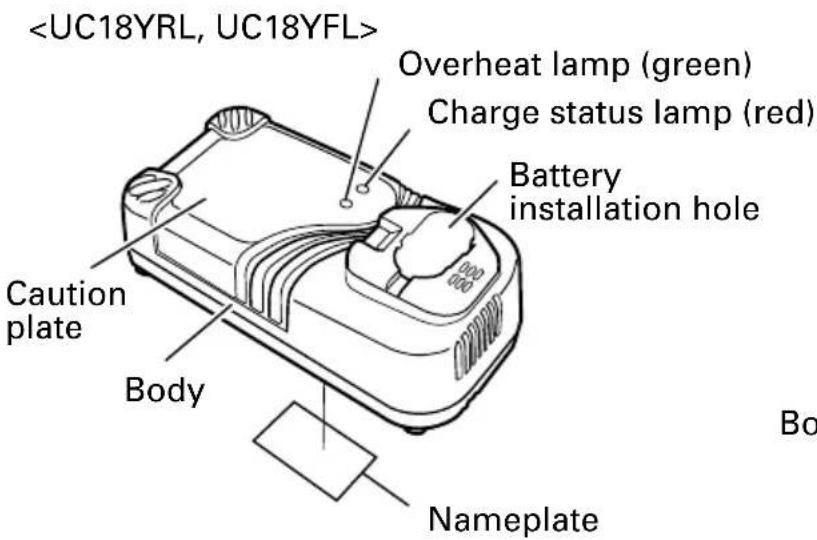

Fig. 2

Fig. 3

SPECIFICATIONS

1. Cordless Reciprocating Saw (CR18DL)

Motor DC motor
No-Load Speed 0 – 2100/min.
Stroke 1-1/8" (28 mm)
Capacity Mild Steel Pipe: O.D. 3-1/2" (90 mm)Vinyl Chloride Pipe: O.D. 3-1/2" (90 mm)Wood: Depth 3-1/2" (90 mm)
Battery Type Lithium – ion battery
Weight 7.5 lbs. (3.4 kg) 7.0 lbs. (3.2 kg)

1. Battery Charger

Model UC18YRL / UC18YFL UC18YGL2
Input power source Single phase: AC120V 60Hz
Charging time(At a temperature of 68°F (20°C))	Approx. 20 min. .....BCL1815Approx. 45 min. .....EBM1830	Approx. 40 min. .....BCL1815Approx. 90 min. .....EBM1830
Charging voltage	DC 7.2 – 18V
Charging current	DC 3.5A	DC 2.0A
Weight 1.3 lbs. (0.6 kg)	0.9 lbs. (0.4 kg)

NOTE: The charging time may vary according to ambient temperature and power source voltage.

ASSEMBLY AND OPERATION

APPLICATIONS

○Cutting metal and stainless steel pipe.
○Cutting various lumber.
○Cutting mild steel, aluminum and copper plate.
○Cutting synthetic resins, such as phenol resin and vinyl chloride.

REMOVAL AND INSTALLATION METHOD OF BATTERY

CAUTION: Be sure to keep the switch turned off and the lock-off button moved to right position (lock position). (See Fig. 23)

Fig. 4

○How to install the battery.

Align the battery with the groove in tool handle and slip it into place.

Always insert it all the way until it locks in place with a little click. If not, it may accidentally fall out of the tool, causing injury to you or someone around you. (Fig. 4)

○How to remove the battery.

Withdraw battery from the tool handle while pressing the latches (2 pcs.) on the sides of the battery. (Fig. 4)

CHARGING METHOD

NOTE: Before plugging into the receptacle, make sure the following points.

○The power source voltage is stated on the nameplate.
○The cord is not damaged.

WARNING: Do not charge at voltage higher than indicated on the nameplate.

If charged at voltage higher than indicated on the nameplate, the charger will burn out.

1. Insert the plug of battery charger into the receptacle.

When the plug of battery charger has been inserted into the receptacle, the charge status lamp will blink in red. (At 1-second intervals)

Black and white illustration of a hand with a lightning bolt symbol, no text or labels present

WARNING:

Do not use the electrical cord if damaged. Have it repaired immediately.

1. Insert the battery to the battery charger.

Insert the battery into the battery charger as shown in Fig. 5. Make sure it contacts the bottom of the battery charger.

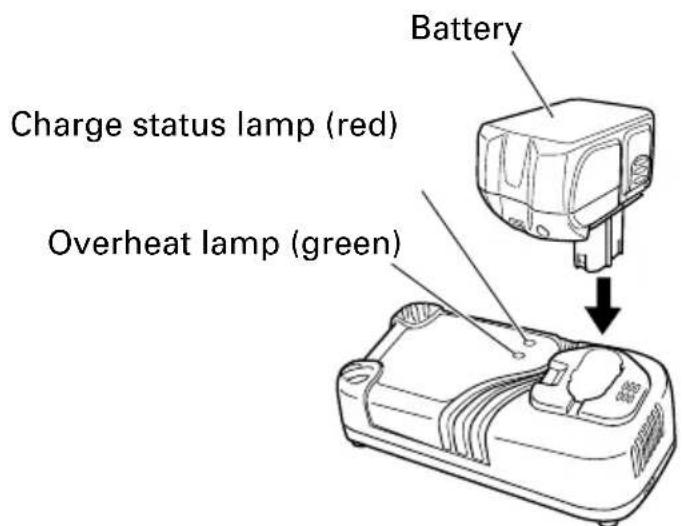

Fig. 5

1. Charging

When the battery is connected to the battery charger, charging will commence and the pilot lamp will light in red. (See Table 2)

NOTE: If the pilot lamp flikers in red, pull out the plug from the receptacle and check if the battery is properly mounted.

When the battery is fully charged, the pilot lamp will bilink in red slowly. (At 1-second intervals) (See Table 2)

Table 2

Indications of the pilot lamp
Charge status lamp (RED)	Before charging	Blinks (RED)	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
	While charging	Lights (RED)	Lights continuously
	Charging complete	Blinks (RED)	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
	Charging impossible	Flickers (RED)	Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for 0.1 seconds)	Malfunction in the battery or the charger
Overheat lamp (GREEN)	Overheat standby	Lights (GREEN)	Lights continuously	Battery overheated. Unable to charge (Charging will commence when battery cools).

NOTE: When standby for cooling battery, UC18YRL cools the overheated battery by cooling fan.

○Regarding the temperature of the rechargeable battery.

The temperatures for rechargeable batteries are as shown in the table below, and batteries that have become hot should be cooled for a while before being recharged.

Table 3

Rechargeable batteries Temperature at which the battery can be recharged

EBM1830, BCL1815 32°F — 122°F (0°C — 50°C)

1. Disconnect battery charger from the receptacle.

CAUTION:

Do not pull the plug out of the receptacle by pulling on the cord.

Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

1. Remove the battery from the battery charger.

Supporting the battery charger with hand, pull out the battery from the battery charger.

1. Insert the plug of battery charger into the receptacle.

When the plug of battery charger has been inserted into the receptacle, pilot lamp will blink in red. (At 1-second intervals)

Black and white illustration of a hand with a lightning bolt symbol (no text or numbers)

⚠ WARNING: Do not use the electrical cord if damaged. Have it repaired immediately.

2. Insert the battery to the battery charger.

Insert the battery into the battery charger as shown in Fig. 6. Make sure it contacts the bottom of the battery charger.

Fig. 6

3. Charging

When the battery is connected to the battery charger, charging will commence and the pilot lamp will light in red. (See Table 4)

NOTE: If the pilot lamp does not light or blink in red, pull out the plug from the receptacle and check if the battery is properly mounted.

When the battery is fully charged, the pilot lamp will blink in red slowly. (At 1-second intervals) (See Table 4)

Table 4

Indications of the pilot lamp
Pilot lamp(red)	Before charging	Blinks	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
	While charging	Lights	Lights continuously
	Charging complete	Blinks	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
	Overheat standby	Blinks	Lights for 1 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)	Battery overheated. Unable to charge. (Charging will commence when battery cools)

○Regarding the temperature of the rechargeable battery.

The temperatures for rechargeable batteries are as shown in Table 3, and batteries that have become hot should be cooled for a while before being recharged.

1. Disconnect battery charger from the receptacle.

CAUTION:

Do not pull the plug out of the receptacle by pulling on the cord.

Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

1. Remove the battery from the battery charger.

Supporting the battery charger with hand, pull out the battery from the battery charger.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2 – 3 times.

CAUTION:

●When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.
- If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the pilot lamp of the charger lights for 1 second, does not light for 0.5 seconds (off for 0.5 seconds).
The battery will not be recharged. In such a case, let the battery cool before charging.

How to make the batteries perform longer.

○Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

○Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while.

CAUTION:

• When the battery charger has been continuously used, the battery charger will heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.
• If the battery is rechraged when it is warm due to battery use or exposure to sunlight, the pilot lamp may light in green. (UC18YRL, UC18YFL)

The battery will not be recharged. In such a case, let the battery cool before charging.

- When the pilot lamp flickers in red (at 0.2 second intervals), check for and take out any foreign objects in the charger's battery installation hole. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center. (UC18YRL, UC18YFL)

BEFORE USE

Check the work area to make sure that it is clear of debris and clutter.

Clear the area of unnecessary personnel. Ensure that lighting and ventilation is adequate.

PRIOR TO OPERATION

1. Mounting the blade

This unit employs a detachable mechanism that enables mounting and removal of saw blades without the use of a wrench or other tools.

(1) Turn on and off the switching trigger several times so that the lever can jump out of the front cover completely. Thereafter, turn off the switch and remove the battery. (Fig. 7)

CAUTION: Be absolutely sure to keep the switch turned off and the battery removed to prevent any accident.

Fig. 7

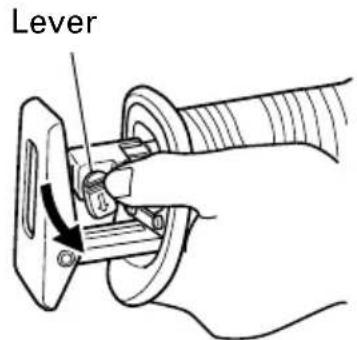

(2) Push the lever in the direction of the arrow mark shown in Fig. 8 marked on the lever.

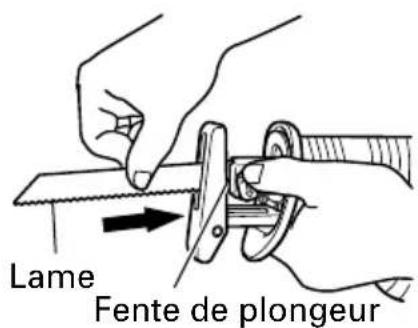

(3) Insert the saw blade all the way into the small slit of the plunger tip with the lever pushing. You can mount this blade either in the upward or downward direction. (Fig. 9, Fig. 10)
(4) When you release the lever, the spring force will return the lever to the correct position automatically. (Fig. 11)
(5) Pull the back of the saw blade two or three times by hand and check that the blade is securely mounted. When pulling the blade, you will know it is properly mounted if it clicks and the lever moves slightly. (Fig. 12)

CAUTION: When pulling the saw blade, be absolutely sure to pull it from the back. Pulling other parts of the blade will result in an injury.

1. Dismounting the blade

(1) Turn on and off the switching trigger several times so that the lever can jump out of the front cover completely. Thereafter, turn off the switch and remove the battery. (Fig. 7)

⚠️ CAUTION: Be absolutely sure to keep the switch turned off and the battery removed to prevent any accident.

(2) After you have pushed the lever in the direction of the arrow mark shown in Fig. 8, turn the blade so it faces downward. The blade should fall out by itself. If the blade doesn't fall out, pull it out by hand.

CAUTION: Never touch the saw blade immediately after use. The metal is hot and can easily burn your skin.

WHEN THE BLADE IS BROKEN

Even when the saw blade is broken and remains inside the small slit of the plunger, it should fall out if you push the lever in the direction of the arrow mark, and face the blade downward. If it doesn't fall out itself, take it out using the procedures explained below.

Fig. 8

Fig. 9

Fig. 10

Fig. 11

Fig. 12

(1) If a part of the broken saw blade is sticking out of the small slit of the plunger, pull out the protruding part and take the blade out.
(2) If the broken saw blade is hidden inside the small slit, hook the broken blade using a tip of another saw blade and take it out. (Fig. 13)

MAINTENANCE AND INSPECTION OF SAW BLADE MOUNT

(1) After use, blow away sawdust, earth, sand, moisture, etc., with air or brush them away with a brush, etc., to ensure that the blade mount can function smoothly.

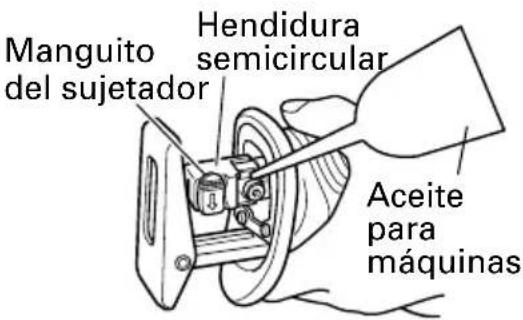

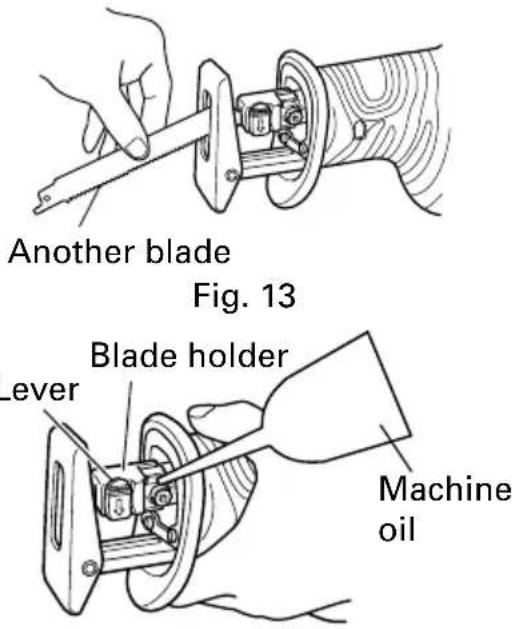

(2) As shown in Fig. 14, carry out lubrication around the blade holder on a periodic basis by use of cutting fluid, etc.

NOTE:

Continued use of the tool without cleaning and lubricating the area where the saw blade is installed can result in some slack movement of the lever due to accumulated sawdust and chips. Under the circumstances, pull a rubber cap provided on the lever in the direction of an arrow mark as shown in Fig. 15 and remove the rubber cap from the lever. Then, clean up the inside of the blade holder with air and the like and carry out sufficient lubrication.

The rubber cap can be fitted on if it is pressed firmly onto the lever. At this time, make certain that there exists no clearance between the blade holder and the rubber cap, and furthermore ensure that the saw-blade-installed area can function smoothly.

CAUTION:

Do not use any saw blade with a worn-out blade hole. Otherwise, the saw blade can come off, resulting in personal injury. (Fig. 16)

3. Adjusting the base

Loosen the set screw with an Allen wrench and move the base forward, as shown in Fig. 17, Fig. 18. Tighten the set screw slightly, ensure the base does not move back and forth, and firmly tighten the set screw. Ensure that the base does not contact the blade.

4. Confirm that the battery is mounted correctly.

Fig. 14

Fig. 15

Fig. 16

Fig. 17

Fig. 18

HOW TO USE THE CORDLESS RECIPROCATING SAW

CAUTION:

○Avoid carrying it with your finger on the switch. A sudden startup can result in an unexpected injury.
○Be careful not to let sawdust, earth, moisture, etc., enter the inside of the machine through the plunger section during operation. If sawdust and the like accumulate in the plunger section, always clean it before use.
○Do not remove the front cover (refer to Fig. 7). Be sure to hold the body from the top of the front cover.
During use, press the base against the material while cutting. Vibration can damage the saw blade if the base is not pressed firmly against the workpiece.

Furthermore, a tip of the saw blade can sometimes contact the inner wall of the pipe, damaging the saw blade.

○Select a saw blade of the most appropriate length. Ideally, the length protruding from the base of the saw blade after subtracting the stroke should be larger than the material (see Fig. 19 and Fig. 21). If you cut a large pipe, large block of wood, etc., that exceeds the cutting capacity of a blade; there is a risk that the blade may contact with the inner wall of the pipe, wood, etc., resulting in damage. (Fig. 20, Fig. 22)

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. Therefore, if the tool is overloaded, the motor may stop. However, this is not the trouble but the result of protection function. In this case, release the switch of tool and eliminate the causes of overloading.

1. Switch operation

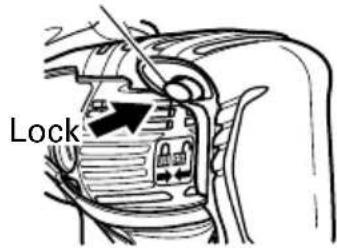

(1) Lock-off button

The tool is equipped with a lock-off button. To activate the trigger lock, move the button to the right positon. Move the button to the left to operate the tool. (Fig. 23, Fig. 24)

⚠️ CAUTION: Always lock the switch when carrying or storing the tool eliminate unintentional starting.

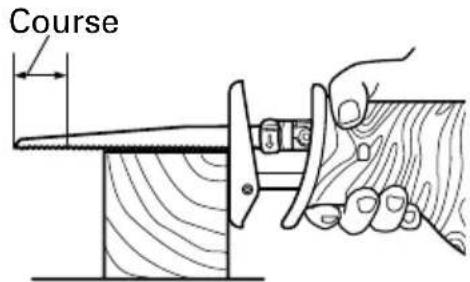

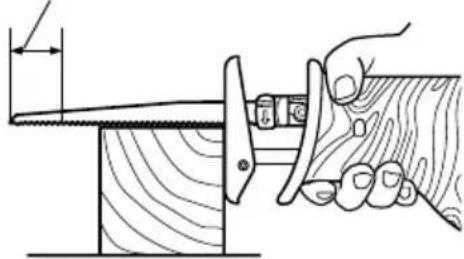

Stroke

Illustration of a hand using a saw to cut wood grain into a slot (no text or symbols)

Fig. 19

Illustration of a hand using a saw to cut a circular object, with no visible text or symbols

Fig. 20

Stroke

Illustration of a hand using a saw to cut wood grain, showing mechanical components and cutting edge (no text or symbols)

Fig. 21

Illustration of a hand using a tool to cut wood grain using a cutting tool (no text or symbols present)

Fig. 22

Lock-off button

Fig. 23

(2) Trigger switch

This tool is equipped with a variable speed controlled trigger switch. The tool can be turned "ON" or "OFF" by squeezing or releasing the trigger. The blade plunger stroke rate can be adjusted from the minimum to maximum nameplate stroke rate by the pressure you apply to the trigger. Apply more pressure to increase the speed and release pressure to decrease speed.

1. Cutting metallic materials

CAUTION:

○Press the base firmly against the workpiece.

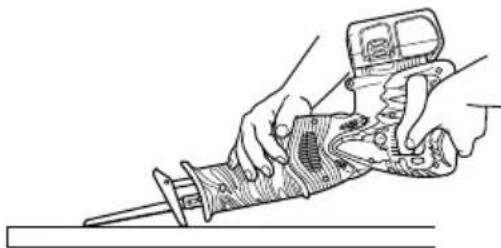

Never apply any unreasonable force to the saw blade when cutting. Doing so can easily break the blade.
○The motor can be locked sometimes, depending on the combination of the material to be cut and the blade. Whenever the motor gets locked, switch it off immediately.

(1) Fasten a workpiece firmly before operation. (Fig. 25)
(2) When cutting metallic materials, use proper machine oil (turbine oil, etc.). When not using liquid machine oil, apply grease over the workpiece.

CAUTION: The service life of the saw blade will be drastically shortened if you don't use machine oil.

1. Cutting lumber

When cutting lumber, make sure that the workpiece is fastened firmly before beginning. (Fig. 26)

CAUTION: Never apply any unreasonable force to the saw blade when cutting. Also remember to press the base against the lumber firmly.

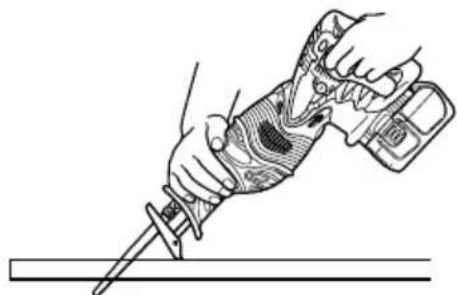

1. Sawing curved lines

We recommend that you use the BIMETAL blade mentioned in Page 29 for the saw blade since it is tough and hardly breaks.

Lock-off button

Fig. 24

Illustration of a hand using a tool to cut a piece of material, labeled Fig. 25 (no text or symbols on the diagram itself)

Illustration of hands using a tool to cut a piece of wood, labeled Fig. 26 (no text or symbols on the diagram itself)

Line drawing of hands using a tool to cut a component (no text or symbols present)

Fig. 27

Line drawing of hands using a tool to cut a component (no text or symbols present)

Fig. 28

Illustration of a hand using a tool to cut a cylindrical object, no text or symbols present

Fig. 29

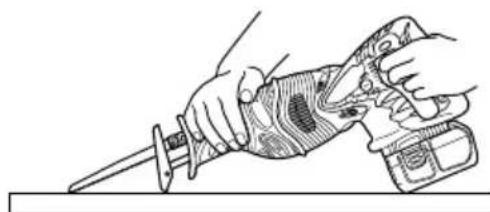

CAUTION: Delay the feed speed when cutting the material into small circular arcs. An unreasonably fast feed may break the blade.

5. Plunge cutting

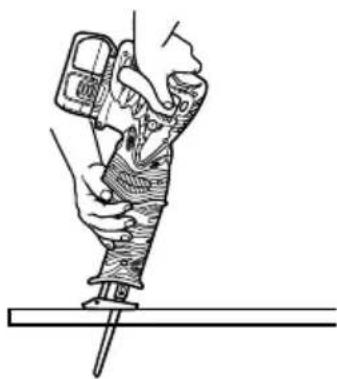

With this tool, you can perform pocket cutting on plywood panels and thin board materials. You can carry out pocket cutting quite easily with the saw blade installed in reverse as illustrated in Fig. 28, Fig. 30, and Fig. 32. Use the saw blade that is as short and thick as possible. We recommend for this purpose that you use BI-METAL Blade No. 132 mentioned in Page 29. Be sure to use caution during the cutting operation and observe the following procedures.

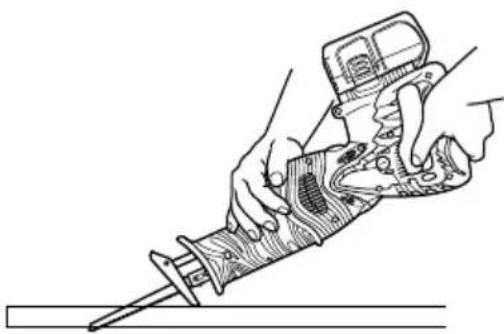

(1) Press the lower part (or the upper part) of the base against the material. Pull the switch trigger while keeping the tip of the saw blade apart from the material. (Fig. 27, Fig. 28)
(2) Raise the handle slowly and cut in with the saw blade little by little. (Fig. 29, Fig. 30)
(3) Hold the body firmly until the saw blade completely cuts into the material. (Fig. 31, Fig. 32)

CAUTION:

○Avoid plunge cutting for metallic materials. This can easily damage the blade.
Never pull the switch trigger while the tip of the saw blade is pressed against the material. If you do so, the blade can easily be damaged when it collides with the material.
○Make absolutely sure that you cut slowly while holding the body firmly. If you apply any unreasonable force to the saw blade during the cutting operation, the blade can easily be damaged.

Illustration of hands using a power tool to apply electrical circuitry (no text or symbols present)

Fig. 30

Illustration of a hand using a tool to cut a knife, no text or symbols present

Fig. 31

Line drawing of a hand using a tool to lift a cylindrical object, no text or symbols present

Fig. 32

MAINTENANCE AND INSPECTION

⚠ WARNING: Be sure to turned off the switch and remove the battery before maintenance and inspection.

1. Inspecting the blade

Continued use of a dull or damaged blade will result in reduced cutting efficiency and may cause overloading of the motor. Replace the blade with a new one as soon as excessive abrasion is noted.

1. Inspecting the screws

Regularly inspect all screws and ensure that they are properly tightened. Should any of the screws be loosened, retighten them immediately.

⚠ WARNING: Using this Cordless Reciprocating Saw with loosened screws is extremely dangerous.

1. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

Wear limit

1. Inspecting the carbon brushes (Fig. 33)

The motor employs carbon brushes which are consumable parts. Since and excessively worn carbon brush can result in motor trouble, replace the carbon brush with new ones when it becomes worn to or near the “wear limit”. In addition, always keep carbon brushes clean and ensure that they slide freely within the brush holders.

NOTE:

When replacing the carbon brush with a new one, be sure to use the Hitachi Carbon Brush Code No. 999058.

1. Replacing carbon brushes

Take out the carbon brush by first removing the brush cap and then hooking the protrusion of the carbon brush with a slotted-head screw driver, etc., as shown in Fig. 34, Fig. 35.

When installing the carbon brush, choose the direction so that the nail of the carbon brush (Fig. 34) agrees with the contact portion outside the brush tube (Fig. 36). Then push it in with a finger.

Lastly, install the brush cap.

Fig. 33

Nail of carbon brush

Fig. 34

CAUTION: Be absolutely sure to insert the nail of the carbon brush into the contact portion outside the brush tube. (You can insert whichever one of the two nails provided.)

Caution must be exercised since any error in this operation can result in the deformed nail of the carbon brush and may cause motor trouble at an early stage.

Line drawing of hands assembling a mechanical component (no text or symbols)

Fig. 35

1. Check for Dust

Dust may be removed with a soft cloth or a cloth dampened with soapy water.

Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics.

1. Disposal of the exhausted battery

WARNING:

Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of it's useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

Fig. 36

1. Storage

Storing in a place below 104^ F ( 40^ C) and out of the reach of children.

1. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a HITACHI AUTHORIZED SERVICE CENTER, ONLY.

1. Service parts list

CAUTION: Repair, modification and inspection of Hitachi Power Tools must be carried out by a HITACHI AUTHORIZED SERVICE CENTER.

This Parts List will be helpful if presented with the tool to the HITACHI AUTHORIZED SERVICE CENTER when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS:

Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts may be changed without prior notice.

ACCESSORIES

⚠ WARNING: ALWAYS use Only authorized HITACHI replacement parts and accessories. NEVER use replacement parts or accessories which are not intended for use with this tool. Contact HITACHI if you are not sure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

NOTE:

Accessories are subject to change without any obligation on the part of the HITACHI.

STANDARD ACCESSORIES

CR18DL(With 3.0Ah battery)
	1Blade (No. 103) (Code No. 725322) .... 12Blade (No. 132) (Code No. 725362) .... 13Allen wrench (Code No. 944458) .... 14Battery (EBM1830) .... 25Charger (UC18YRL or UC18YFL or UC18YGL2) .... 16Plastic case (Code No. 324313) .... 1
CR18DL(With 1.5Ah battery)	1Blade (No. 103) (Code No. 725322)....12Blade (No. 132) (Code No. 725362)....13Allen wrench (Code No. 944458)....14Battery (BCL1815)....25Charger (UC18YRL or UC18YFL or UC18YGL2)....16Plastic case (Code No. 324313)....1
CR18DL(others)	1Blade (No. 103) (Code No. 725322)....12Allen wrench (Code No. 944458)....1

OPTIONAL ACCESSORIES......sold separately

1. Battery (EBM1830) 2. Battery (BCL1815)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component (no text or symbols)

1. Saw Blades

TYPE LENGTH	WIDTH TPI			MATERIAL	CODE NO.	BLADES /POUCH
WOOD CUTTING 9" (228 mm)	6" (152 mm) 3/4" (18 mm) 6 HCS 725300 5
	8 mm) 3/4" (18 mm) 5 HCS 725301 5
	12" (305 mm) 3/4" (18 mm) 6 HCS 725302 5
WOOD CUTTINGNAIL-EMBEDED	6" (152 mm) 3/4" (18 mm) 6 BI-METAL 725310 5
	6" (152 mm) 3/4" (18 mm) 6 BI-METAL 725311 5
	6" (152 mm) 5/8" (16 mm) 6 BI-METAL 725312 5
	9" (228 mm) 3/4" (18 mm) 6 BI-METAL 725313 5
	12" (305 mm) 3/4" (18 mm) 6 BI-METAL 725314 5
METAL CUTTING	6" (152 mm) 3/4" (18 mm) 10 BI-METAL 725320 5
	9" (228 mm) 3/4" (18 mm) 10 BI-METAL 725321 5
	6" (152 mm) 3/4" (18 mm) 14 BI-METAL 725322 5
	9" (228 mm) 3/4" (18 mm) 14 BI-METAL 725323 5
	6" (152 mm) 3/4" (18 mm) 18 BI-METAL 725324 5
	9" (228 mm) 3/4" (18 mm) 18 BI-METAL 725326 5
	6" (152 mm) 3/4" (18 mm) 24 BI-METAL 725325 5
	9" (228 mm) 3/4" (18 mm) 24 BI-METAL 725327 5
ALL PURPOSE	6" (152 mm) 3/4" (18 mm) 10//14 BI-METAL 725330 5
	9" (228 mm)	3/4" (18 mm)	10//14	BI-METAL	725331	5
	12" (305 mm) 3/4" (18 mm) 10//14 BI-METAL 725332 5
CARBIDE GRIT	9" (228 mm)	3/4" (18 mm)	GRIT	—	725340	3
DEMOLITION	9" (228 mm) 7/8" (22 mm) 6 BI-METAL 725350 3
	9" (228 mm) 7/8" (22 mm) 9 BI-METAL 725351 3
NEW WOOD	6" (152 mm)	3/4" (18 mm)	PROG.	BI-METAL	725360	5
NEW METAL	6" (152 mm)	3/4" (18 mm)	PROG.	BI-METAL	725361	5
NEW ALL PURPOSE	8" (203 mm)	3/4" (18 mm)	PROG.	BI-METAL	725362	5

PROG.: NEW PROGRESSIVE TOOTH HCS: HIGHSPEED CARBON STEEL

NOTE:

Specifications are subject to change without any obligation on the part of the HITACHI.

INFORMATIONS IMPORTANTES DE SÉCURITÉ

Abstract black-and-white icon of a human head silhouette with a thermometer symbol inside, no text or labels present.

Silhouette of a helmet with a visor and arrow pointing to it (no text or symbols)

Black and white illustration of a hand with a lightning bolt symbol (no text or numbers)

⚠ AVERTISSEMENT:

Black and white illustration of a hand with a lightning bolt symbol (no text or numbers)

Fig. 8

Fig. 9

Fig. 10

Fig. 11

Fig. 12

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols present)

Fig. 13

Fig. 14

Illustration of a hand using a saw to cut a circular object, with no visible text or symbols

Fig. 20

Fig. 21

Illustration of a hand using a tool to cut wood grain using a cutting tool (no text or symbols present)

Fig. 22

Illustration of a hand using a tool to cut a mechanical component, labeled Fig. 25 (no text or symbols on the diagram itself)

Illustration of hands using a tool to cut or repair a mechanical component, labeled 'Fig. 26' (no text on diagram itself)

Illustration of hands using a tool to cut a component (no text or symbols visible)

Fig. 27

Line drawing of hands using a power tool to cut a component (no text or symbols present)

Fig. 28

Two-step illustration of a hand using a tool to cut a screwdriver into a workpiece, labeled Fig. 29 (no text or symbols on the diagrams themselves)

Fig. 30

Illustration of a hand using a power tool to cut a saw (no text or symbols present)

Fig. 31

Illustration of a hand using a tool to lift a cable or wire (no text or symbols present)

Fig. 32

ENTRETIEN ET INSPECTION

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Fig. 35

Technical line drawing of a mechanical component with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical component (no text or symbols)

Technical line drawing of a mechanical component (no text or symbols)

3. Lames

TYPE LONGUEUR	LARGEUR TPI MATÉRIAU				NO. DE LAMES/ CODE POCHE
COUPE DE BOIS 9" (228 mm)	6" (152 mm) 3/4" (18 mm) 6 HCS		725300 5
	3/4" (18 mm) 5 HCS 725301 5
	12" (305 mm) 3/4" (18 mm) 6 HCS		725302 5
COUPE DE BOIS AVEC CLOUS ENFONCÉS	6" (152 mm) 3/4" (18 mm) 6 bi-métal 725310		5
	6" (152 mm) 3/4" (18 mm) 6 bi-métal 725311		5
	6" (152 mm) 5/8" (16 mm) 6 bi-métal 725312		5
	9" (228 mm) 3/4" (18 mm) 6 bi-métal 725313		5
	12" (305 mm) 3/4" (18 mm) 6 bi-métal 725314		5
COUPE DE MÉTAUX	6" (152 mm) 3/4" (18 mm) 10 bi-métal 725320		5
	9" (228 mm) 3/4" (18 mm) 10 bi-métal 725321		5
	6" (152 mm) 3/4" (18 mm) 14 bi-métal 725322		5
	9" (228 mm) 3/4" (18 mm) 14 bi-métal 725323		5
	6" (152 mm) 3/4" (18 mm) 18 bi-métal 725324		5
	9" (228 mm) 3/4" (18 mm) 18 bi-métal 725326		5
	6" (152 mm) 3/4" (18 mm) 24 bi-métal 725325		5
	9" (228 mm) 3/4" (18 mm) 24 bi-métal 725327		5
TOUS USAGES	6" (152 mm) 3/4" (18 mm) 10//14		bi-métal 725330 5
	9" (228 mm)	3/4" (18 mm)	10//14	bi-métal	725331
	12" (305 mm) 3/4" (18 mm) 10//14		bi-métal 725332 5
GRENAILLE AU CARBURE	9" (228 mm)	3/4" (18 mm)	GRIT	—	725340
DÉMOLITION	9" (228 mm) 7/8" (22 mm) 6 bi-métal 725350		3
	9" (228 mm) 7/8" (22 mm) 9 bi-métal 725351		3
BOIS NEUF	6" (152 mm)	3/4" (18 mm)	PROG.	bi-métal	725360
MÉTAL NEUF	6" (152 mm)	3/4" (18 mm)	PROG.	bi-métal	725361
TOUS USAGES, NEUFS	8" (203 mm) 3/4" (18 mm) PROG. bi-métal 725362

PROG.: NOUVELLE DENT PROGRESSIVE HCS: ACIER AU CARBONE RAPIDE

REMARQUE:

Abstract black-and-white icon of a human head silhouette with a thermometer inside, no text or symbols present.

Silhouette of a helmet with a visor and arrow pointing to it (no text or symbols)

Black and white illustration of a hand with a lightning bolt symbol (no text or numbers)

ADVERTENCIA:

Black and white illustration of a hand with a lightning bolt symbol (no text or numbers)

Hand holding a mechanical component with a curved arrow indicating rotation (no text or symbols)

Fig. 8

Fig. 9

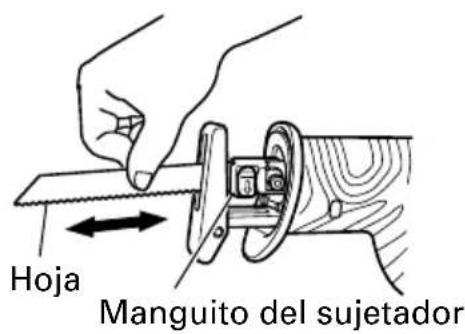

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Fig. 11

Fig. 12

Fig. 13

Fig. 14

Illustration of a hand using a saw to cut a wooden object, no text or symbols present

Fig. 20

Carrera

Illustration of a hand using a caliper to measure a wooden plank (no text or symbols present)

Fig. 21

Illustration of a hand using a tool to cut wood grain using a cutting tool (no text or symbols present)

Fig. 22

Illustration of hands using a tool to cut a mechanical component, labeled Fig. 25 (no text or symbols on the diagram itself)

Illustration of hands using a tool to cut a wooden block, labeled Fig. 26 (no text or symbols on the diagram itself)

Line drawing of hands using a tool to cut a component (no text or symbols present)

Fig. 27

Illustration of hands using a power tool to cut a saw (no text or symbols visible)

Fig. 28

Illustration of hands using a tool to apply material or equipment (no text or symbols visible)

Fig. 29

Line drawing of hands using a handheld tool to apply material, no text or symbols present

Fig. 30

Line drawing of a hand using a tool to cut a tool, no text or symbols present

Fig. 31

Illustration of a hand using a tool to lift a mechanical component (no text or symbols visible)

Fig. 32

Line drawing of a hand holding a mechanical component with a tool inserted (no text or symbols)

Fig. 35

Technical line drawing of a mechanical component with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical component (no text or symbols)

Technical line drawing of a mechanical component or housing (no text or symbols)

1. Hojas

TIPO LARGO ANCHO TPI MATERIAL					No. de HOJAS/código BOLSA
CORTE DE MADERA 9" (228 mm)	6" (152 mm) 3/4" (18 mm) 6 HCS	725300 5
	mm) 3/4" (18 mm) 5 HCS 725301 5
	12" (305 mm) 3/4" (18 mm) 6 HCS 725302 5
CORTE DE MADERA CLAVADA	6" (152 mm) 3/4" (18 mm) 6 BIMETALICAS 725310 5
	6" (152 mm) 3/4" (18 mm) 6 BIMETALICAS 725311 5
	6" (152 mm) 5/8" (16 mm) 6 BIMETALICAS 725312 5
	9" (228 mm) 3/4" (18 mm) 6 BIMETALICAS 725313 5
	12" (305 mm) 3/4" (18 mm) 6 BIMETALICAS 725314 5
CORTE DE METAL	6" (152 mm) 3/4" (18 mm) 10 BIMETALICAS 725320 5
	9" (228 mm) 3/4" (18 mm) 10 BIMETALICAS 725321 5
	6" (152 mm) 3/4" (18 mm) 14 BIMETALICAS 725322 5
	9" (228 mm) 3/4" (18 mm) 14 BIMETALICAS 725323 5
	6" (152 mm) 3/4" (18 mm) 18 BIMETALICAS 725324 5
	9" (228 mm) 3/4" (18 mm) 18 BIMETALICAS 725326 5
	6" (152 mm) 3/4" (18 mm) 24 BIMETALICAS 725325 5
	9" (228 mm) 3/4" (18 mm) 24 BIMETALICAS 725327 5
TODO USO	6" (152 mm) 3/4" (18 mm) 10//14	BIMETALICAS 725330 5
	9" (228 mm)	3/4" (18 mm)	10//14	BIMETALICAS	725331
	12" (305 mm) 3/4" (18 mm) 10//14	BIMETALICAS 725332 5
PARTICULAS DE CARBURO	9" (228 mm)	3/4" (18 mm)	GRIT	—	725340
DEMOLICION	9" (228 mm) 7/8" (22 mm) 6 BIMETALICAS 725350 3
	9" (228 mm) 7/8" (22 mm) 9 BIMETALICAS 725351 3
MADERA NUEVA	6" (152 mm)	3/4" (18 mm)	PROG.	BIMETALICAS	725360
METAL NUEVO	6" (152 mm)	3/4" (18 mm)	PROG.	BIMETALICAS	725361
TODO USO NUEVO	8" (203 mm)	3/4" (18 mm)	PROG.	BIMETALICAS	725362

PROG.: BYEVI DIENTE PROGRESIVO

HCS: ACERO AL CARBONO DE GRAN VELOCIDAD DE CORTE

NOTA:

Line drawing of a quill pen in an inkwell (no text or symbols)

Item No.	Part Name	Q'TY
1 BLADE HOLDER (A) 1
2 NUT M4 (BLACK) 1
3 PLUNGER 1
4 PACKING WASHER 1
5 FELT PACKING 1
6 O-RING (1AP-12) 1
7 M ETAL 2
8 UPPER COVER ASS'Y 1
9 HEX. SOCKET HD. BOLT (W/SP.WASHER) M5 × 16 4
10 SPECIAL BOLT M4 1
11 CAP 1
12 LEVER (A) 1
13 SPRING (D) 1
14 HOLDER PIN (B) 1
15 SPRING (B)		1
16 BASE		1
17 MACHINE SCREW (W/SP. WASHER) M4 × 12		5
18 COVER PLATE		1
19 FRONT COVER		1
20 SEAL LOCK FLAT HD. SCREW M4 × 12		3
21 BEARING COVER (B)		1
22 BALL BEARING 6901ZZCMPS2L		1
23 SPINDLE		1
24 METAL (B)		1
25 HEX. SOCKET HD. BOLT (W/FLANGE) M5 × 12		1
26 TAPPING SCREW (W/SP. WASHER) D5 × 30		4
27 GEAR COVER ASS'Y		1
28 SEAL LOCK HEX. SOCKET FLAT HD. BOLT M5 × 12		2
29 NYLOCK HEX. SOCKET FLAT HD. BOLT M6 × 16		1
30 SEAL PACKING		1
31 PACKING (B)		1
32 CONNECTOR HOLDER		1
33 CONNECTOR		1
34 CONNECTING PIECE (A)		1
35 NEEDLE ROLLER		1
36 BALANCE WEIGHT		1
37 GEAR		1
38 RETAINING RING (E-TYPE) FOR D10 SHAFT		1
39 BALL BEARING 6001VVCMPS2L		1
40 BEARING COVER (A)		1
41 ARMATURE ASS'Y DC 18V		1
42 BALL BEARING 608VVC2PS2L		1
43 MAGNET		1
44 BRUSH BLOCK 1
45 HOUSING (A).(B) SET 1
46 BRUSH CAP		2
47 CARBON BRUSH		2
48 HITACHI LABEL		1

Item No.	Part Name	Q'TY
49	CAUTION LABEL	1
50	TERMINAL PIECE	1
51	PUSHING BUTTON	1
52	DC-SPEED CONTROL SWITCH	1
53	NAME PLATE	1
54	TAPPING SCREW (W/FLANGE) D4 × 20	8
55	HEAT SINK	1
56	MACHINE SCREW (W/WASHERS) M3 × 12	1
57	BATTERY	1
501	BLADES NO.103	1
503	HEX. BAR WRENCH 4MM	1
504	CHARGER	1
505	CASE	1

Line drawing of a quill pen in an inkwell (no text or symbols)

Line drawing of a quill pen with inkwell (no text or symbols)

Please contact HITACHI KOKI U.S.A. LTD. at 1-800-59-TOOLS (toll free), or HITACHI AUTHORIZED POWER TOOL SERVICE CENTER recarding COLLECTION.

Pour le RAMASSAGE, contacter HITACHI KOKI U.S.A. LTD. au 1-800-59-TOOLS (appel gratuit), ou UN SERVICE APRÈS-VENTE D'OUTILS ÉLECTRIQUE AGRÉÉ PAR HITACHI.

Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo 108-6020, Japan

Distributed by

Hitachi Koki U.S.A., Ltd.

PO Box 970

Braselton, GA 30517

Hitachi Koki Canada Corp.

450 Export Blvd. Unit B,

Mississauga ON L5S 2A4
