RHDW3B - Dishwasher RUSSELL HOBBS - Free user manual and instructions

Product Type	Freestanding Dishwasher
Model Number	RHDW3 (B) (SS)
Brand	Russell Hobbs
Dimensions (H x W x D)	845 mm x 598 mm x 600 mm
Capacity	12 place settings
Rated Voltage	220-240 V ~ 50 Hz
Energy Consumption (Eco)	0.91 kWh per cycle
Water Consumption (Eco)	11 litres per cycle
Wash Programs	Intensive, Normal, Eco, Glass, Quick 90', Rapid 30'
Half Load Function	Yes (select programs)
Dry Plus Function	Yes (select programs)
Time Delay	3, 6, 9, or 12 hours
Water Softener	Adjustable (levels H1-H6)
Rinse Aid Dispenser Capacity	Approx. 110 ml
Salt Container Capacity	Approx. 1.5 kg
Filter System	Coarse, Main, and Fine filters

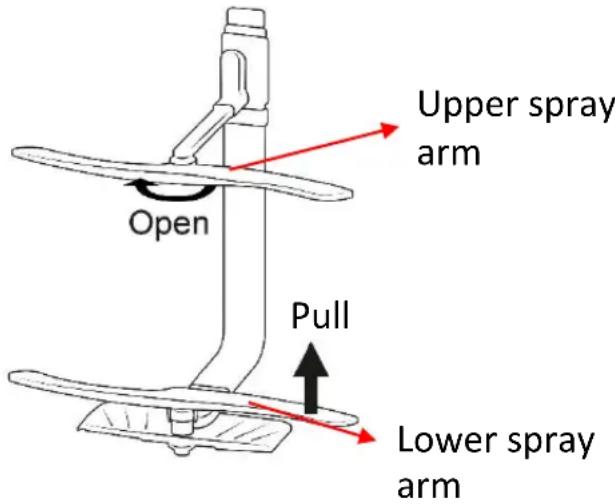

Spray Arms	Upper and lower, removable for cleaning
Adjustable Upper Basket	Yes (height adjustable)

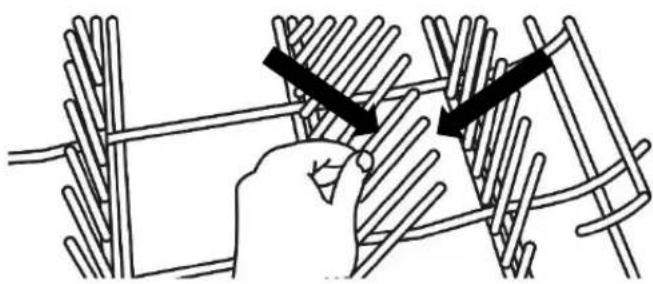

Folding Spikes (Lower Basket)	Yes

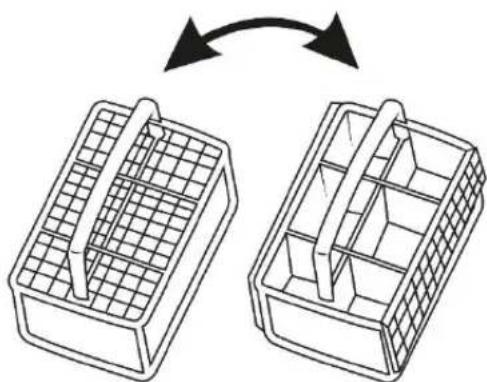

Cutlery Basket	With adjustable compartments
Maximum Inlet Water Pressure	1 MPa (145 psi)
Minimum Inlet Water Pressure	0.04 MPa (5.8 psi)
Warranty	12 months from date of purchase
Customer Service & Spare Parts	Call 0345 208 8750 or visit www.productcare.co.uk

Frequently Asked Questions - RHDW3B RUSSELL HOBBS

How do I set the water softener level?

Turn on the dishwasher, within 60 seconds press and hold the Start/pause button for more than 5 seconds. Then press Start/pause repeatedly to select the desired level (H1-H6) according to your water hardness. Press the On/off button to save.

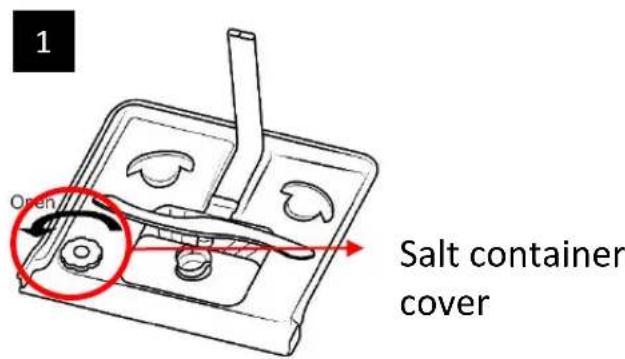

Why is the salt warning light on?

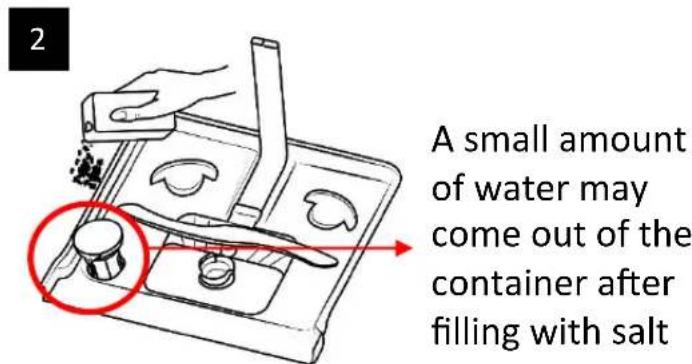

The salt container needs refilling. Add approximately 1.5 kg of dishwasher-specific salt and fill the container with water. Run a quick program immediately afterward to prevent damage.

How do I use the Half Load function?

Select a program (Intensive, Normal, Eco, Glass, or Quick 90'), then press the Half Load button before closing the door. This function saves water and energy for loads of 6 or fewer place settings. Note: Half Load and Dry Plus cannot be used simultaneously.

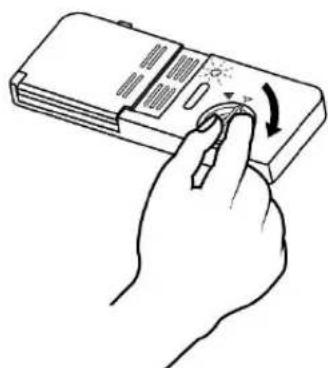

What should I do if the dishes are not drying properly?

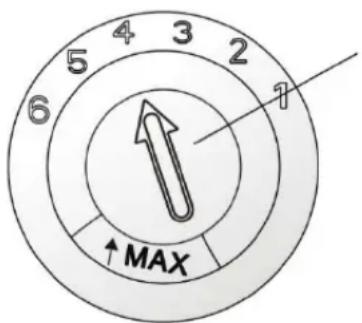

Check the rinse aid level and increase the dosage setting (up to 6) if needed. Ensure you are using a program with a drying cycle. After the cycle ends, leave the door ajar for 15 minutes before unloading.

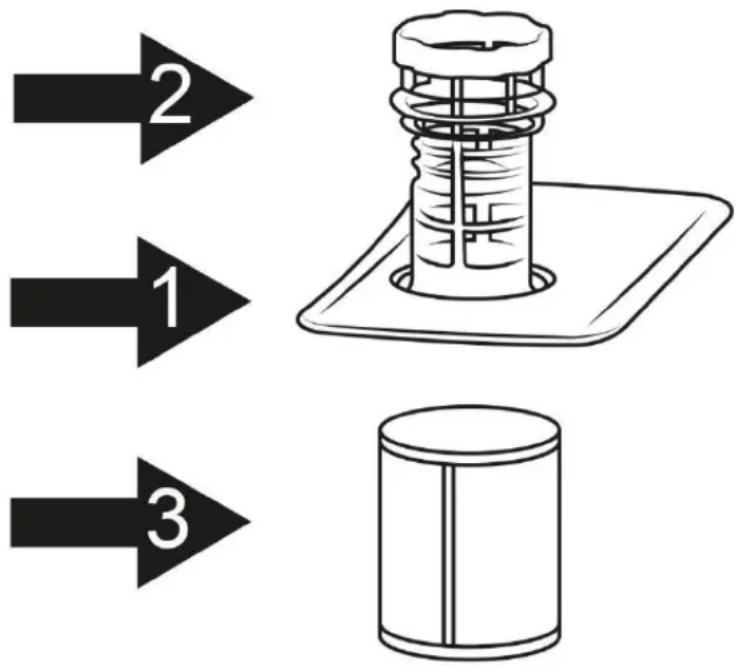

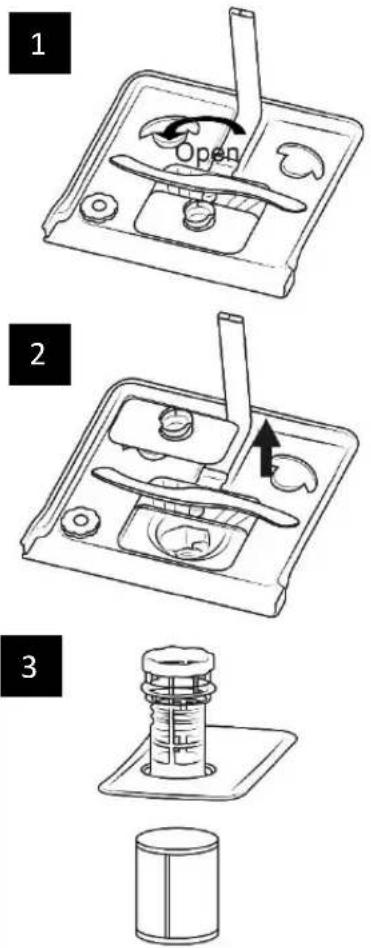

How do I clean the filters?

Remove the lower basket. Twist the coarse filter counterclockwise and lift it out along with the main and fine filters. Rinse all parts under running water and scrub gently with a brush. Reassemble and replace. Clean at least once a week.

Can I open the dishwasher during a cycle?

Yes, open the door slightly to stop the spray arms. After they stop, you can open fully to add dishes. Close the door; the cycle will resume after 10 seconds. Be cautious of hot water.

What detergent should I use?

Use only detergents specifically designed for automatic dishwashers. Avoid soap, laundry detergent, or hand washing detergents. You can use powder, gel, or tablets. For tablets, use longer programs to ensure complete dissolution.

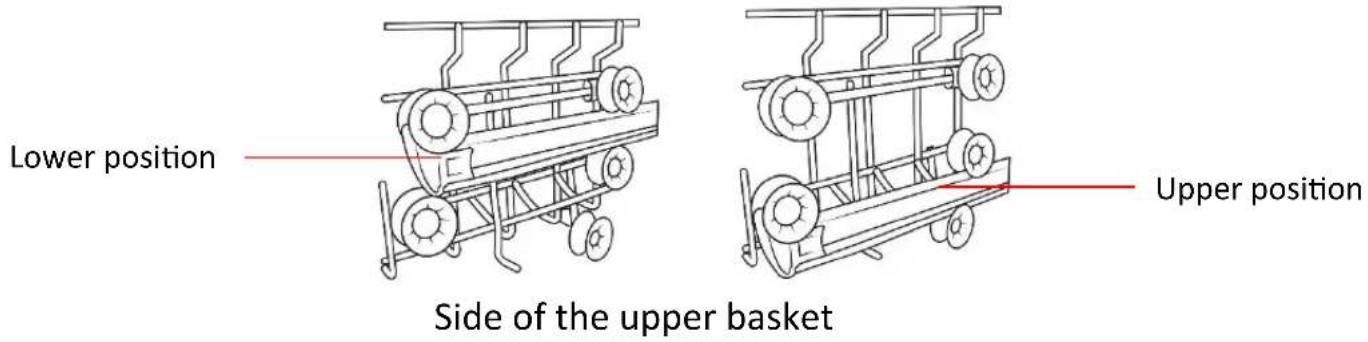

How do I adjust the upper basket height?

The upper basket can be raised or lowered by placing the wheels on different rail heights. Lift the basket slightly and reposition the wheels. This allows more space for large items in either basket.

What do the error codes mean?

If the Rapid 30' indicator flashes, it indicates a water inlet problem (check water supply and pressure). If the Glass indicator flashes, there is an overflow (check for leaks and turn off water supply). If both Rapid 30' and Quick 90' flash, the appliance is not reaching required temperature (heating element fault).

How do I contact customer service for spare parts?

Call 0345 208 8750 (Monday-Friday 8am-8pm, Saturday 9am-1pm) or visit www.productcare.co.uk for spare parts and service.

USER MANUAL RHDW3B RUSSELL HOBBS

60cm Wide Dishwasher Instruction Manual

Modelnumber(s):

RHDW3 (B) (SS)

For Customer Services & Spare Parts please call 0345 208 8750 Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm or visit us at www.productcare.co.uk

IMPORTANT: RETAIN FOR FUTURE REFERENCE

Contents

Safety instruction 3-4

Water & electrical connection 5-6

Disposal of old electrical appliances 6

Saving energy & water 7

Unpacking the dishwasher 8

Product overview 9

Control panel 10-12

Water Hardness & setting the salt 13-14

Loading the salt into the container 14-15

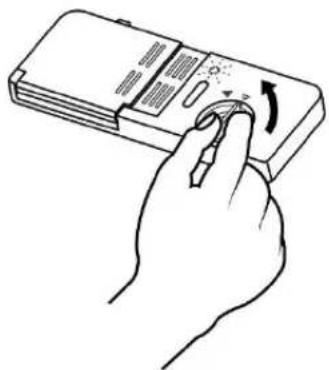

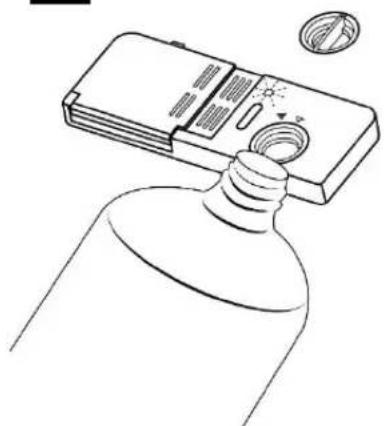

Rinse aid dispenser 15-17

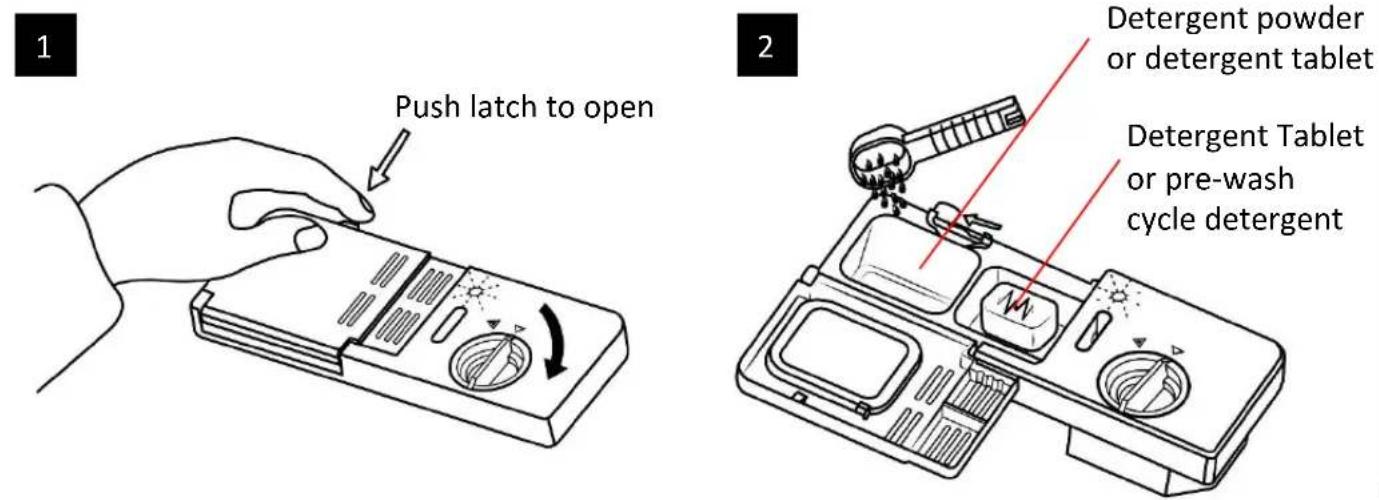

Detergent 17-20

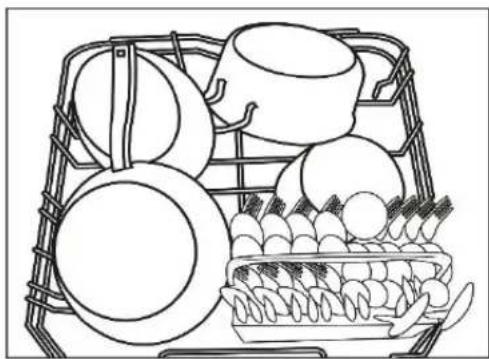

Loading the dishwasher 21-25

Washing programs 26

Washing cycles 27-29

Installation 30

Drain hose connection 31

Water connection 32

Maintenance & Cleaning 33-37

Trouble Shooting 38-41

Connection to the Mains Supply 42

Guarantee 43

Technical Specification 44

Notes 45

Safety Instructions

The appliance was designed and manufactured in compliance with current international safety standards. The following information has been provided for safety reasons and should therefore be read carefully. Keep this instruction manual in a safe place for future reference. If the appliance is sold, given away or moved, please ensure the manual is kept with the machine, so that the new owner may benefit from the advice contained within it.

Please read this instruction manual carefully: it contains important information regarding the safe installation, use and maintenance of the appliance.

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• Use the dishwasher only for its intended function.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
  • DO NOT allow children to play with the appliance or tamper with its controls.
• The appliance must be used by adults only, to wash domestic crockery according to the instructions in this manual.
• If the appliance breaks down, do not under any circumstances touch the internal parts in an attempt to carry out the repair work yourself.
• It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of the cover.
• Do not tamper with the controls.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• During installation, the power supply cable must not be excessively or dangerously bent or flattened.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the machine exposed to rain and storms.
• Do not touch the appliance when barefoot.
• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
• The water supply tap must be shut off and the plug should be removed from the electrical socket before cleaning the appliance or carrying out any maintenance work.
• The door should not be left open as it may create a dangerous obstacle.

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am - 8pm & Saturday 9am - 1pm

or visit us at www.productcare.co.uk

Safety Instructions

• If your family includes children:

• Keep detergents and rinse aids away from children.
• Keep children away from the open door of a dishwasher, there could still be some detergent left inside.

- Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.

- Do not allow the control panel to become wet. Clean with a soft, damp cloth.

- Do not use detergents, abrasives or spray-on cleaners on the control panel.

- Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.

- Do not use detergents not designed for an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.

- Ensure you do not use any corrosive chemicals or vapours in the appliance. It is not designed for industrial or laboratory use.

- You should clean your dishwasher with a damp cloth. Don't allow water to seep into any openings.

- Do not lean or sit on the open door of the appliance: this may cause the appliance to overturn.

- Never put any objects into the openings on the outer case.

- Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

- Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.

- When loading items to be washed, position sharp items so that they are not likely to damage the door seal.

- Check that the detergent compartment is empty after completion of the wash cycle.

- Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not marked, check the manufacturer's recommendations.

- The packaging material should not be used as a toy: it can become a choking or suffocation

• Packaging material could be dangerous for children!

Important notes:

- Any technical checks should be conducted exclusively by a trained and authorised technician: Repairs carried out by unauthorised persons will invalidate the guarantee, as well as posing a potential hazard to the user.

- The manufacturer declines all responsibility for damage to persons or property resulting from failure to observe the above precautions, from tampering with even a single component or from the use of non-original spare parts.

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am - 8pm & Saturday 9am - 1pm

or visit us at www.productcare.co.uk

Water and Electrical Connection

Important note: Connection to the water and electricity supplies should only be performed by a qualified technician.

Electrical Connection

Before inserting the plug into the electrical socket, make sure that:

• The socket is earthed and complies with current regulations;
• The socket can withstand the maximum load of the appliance, which is indicated on the appliance's rating
• The power supply voltage falls within appliance’s rating
• The socket is compatible with the plug of the appliance. If this is not the case, ask an authorised technician to replace the plug
• Do not use extension cables or multiple sockets.
• Once the appliance has been installed, the power supply cable and the electrical socket should be easily accessible.
  • The cable should not be bent or compressed.

Important notes:

• If the power supply cable is damaged, it must be replaced by the manufacturer or its Technical Assistance Service in order to prevent all potential hazards.
  • This appliance must be earthed.

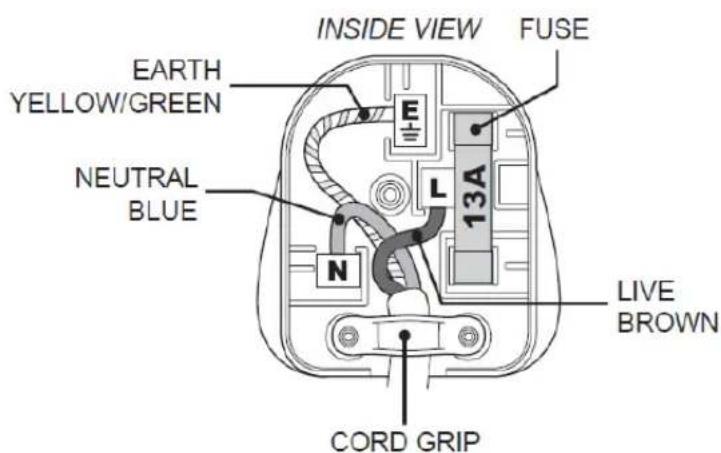

• Your appliance comes fitted with a plug and a 13A fuse. If you need to replace the fuse, only those rated at 13A and ASTA approved to BS1362 should be used. Correct replacement is identified by colour coding or the marking on base of plug.
  • DO NOT use the plug unless the fuse cover is fitted.

Water connection

• The dishwasher should not stand on top of the water hoses or the electricity supply cable.
  • If the inlet hose is not long enough, contact a specialist store or an authorised technician
  • The hose should not be bent or compressed.
• The appliance must be connected to the water supply network using new hoses. Do not use old hoses.
• Ensure that the new hose supplied is connected and the old hose is disposed of safely.
  • DO NOT overtighten the hose connector, hand tight is sufficient.
• Ensure the fill hose is not kinked.

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am - 8pm & Saturday 9am - 1pm

or visit us at www.productcare.co.uk

Water and Electrical Connection

• Tap connections*: A range of adaptors are available to suit your tap.
• DO NOT connect the dishwasher to a single outlet instantaneous water heater or an electric heater.
• It MUST NOT be connected to a surface water drain.
• The maximum permissible inlet water pressure is 1Mpa.
• The minimum permissible inlet water pressure is 0.04Mpa.
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not obstruct any ventilation openings.

If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary, it may be tilted onto its back.

Disposal of old electrical appliances

• The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Saving energy and respecting the environment.
• Please dispose of packaging and old appliances carefully.
• To minimise risk of injury to children, remove the door, plug and cut mains cable off flush with the appliance.
• Dispose of these parts separately to ensure that the appliance can no longer be plugged into a mains socket and the door cannot be locked shut.

Russell Hobbs

Saving water and energy

• Only start a wash cycle when the dishwasher is full.
• While waiting for the dishwasher to be filled, prevent unpleasant odours with the Rapid Wash.
• Select a wash cycle that is suited to the type of dishes/crockery and to the soil level of the dishes/crockery using (see the washing program section): - for dishes with a normal soil level, use the Eco wash cycle, which guarantees low energy and water consumption levels.
• if the load is smaller than usual activate the Half load function.

- If your electricity supply contract gives details of electricity saving time bands, run wash cycles during the periods when a lower tariff is applied.

• use the Time Delay start function to help you organise the wash cycles accordingly.

- We strongly recommend that you use detergents that do not contain phosphates or chlorine, as these products are harmful to the environment. We recommend Phosphate-free and chlorine-free detergents containing enzymes.

- Enzymes provide a particularly effective action at temperatures around 50^ C, and as a result detergents containing enzymes can be used in conjunction with low-temperature wash cycles in order to achieve the same results as a normal 65^ C wash cycle.

- To avoid wasting detergent, use the product in appropriate quantities based on the manufacturer's recommendations, the hardness of the water and the soil level and quantity of the crockery. Even if they are biodegradable, detergents contain substances that may alter the balance of nature.

- Recycling & Disposal Information: As part of our continued commitment to helping the environment, we reserve the right to use quality recycled components to keep down customer costs and minimise material wastage.

- Please dispose of packaging and old appliances carefully.

Russell Hobbs

Unpacking the appliance

1. Remove the appliance from all packaging and check that the product has not been damaged during transportation. If it has been damaged, contact the manufacturer or the retailer and do not proceed any further with the installation process. Below are key areas to check:
   • A misaligned door
2. Damage to the door
   • Dents or holes in side panels and the top panel.
   • Dents in the inside
   • If you can see any damage do not use the dishwasher

Before using your dishwasher for the first time:

Before using the dishwasher for the first time you must complete the following, as failure to do so will invalidate the guarantee:

1. Connection to the water and electricity supplies should only be performed by a qualified technician.
2. Set the water softener
3. Add 1.5Kg dishwasher salt and then fully fill the salt container with water
4. Fill the rinse aid dispenser
5. Fill in the detergent dispenser

Russell Hobbs

Product Overview

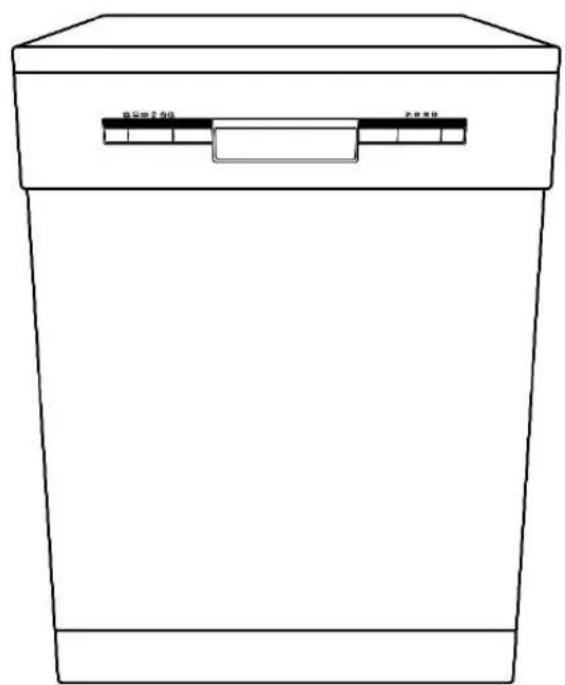

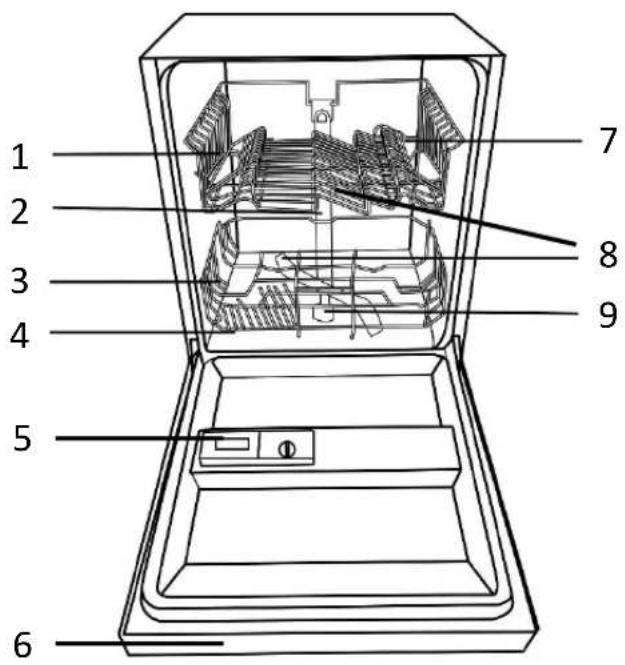

Front view

13

14

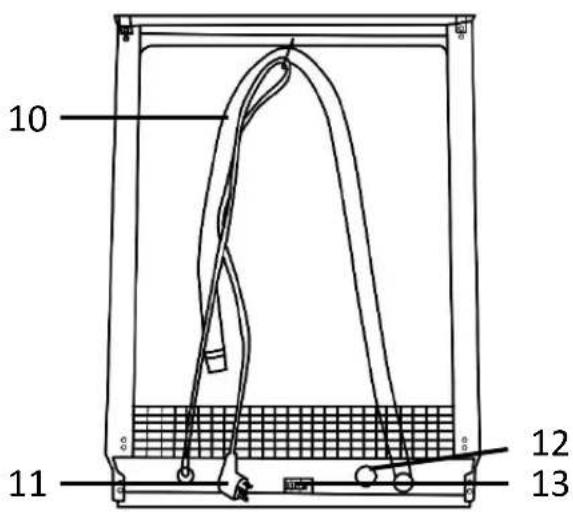

Rear view

15

1. Upper basket
2. Inner pipe
3. Lower basket
4. Salt aid container
5. Detergent dispenser
6. Control panel (on the front of the door)
7. Mug shelf

8. Spray arms

9. Filter

10. Drain pipe
11. Power cord
12. Inlet pipe connector
13. Cutlery basket
14. Salt funnel
15. Installation accessories (please see installation section)

Unit Parts & Spare Parts

Before installation, check that all parts detailed in the product overview are present. If any parts are missing, please contact the Product Care Customer Service team on 0345 208 8750 or visit us at www.productcare.co.uk

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am - 8pm & Saturday 9am - 1pm

or visit us at www.productcare.co.uk

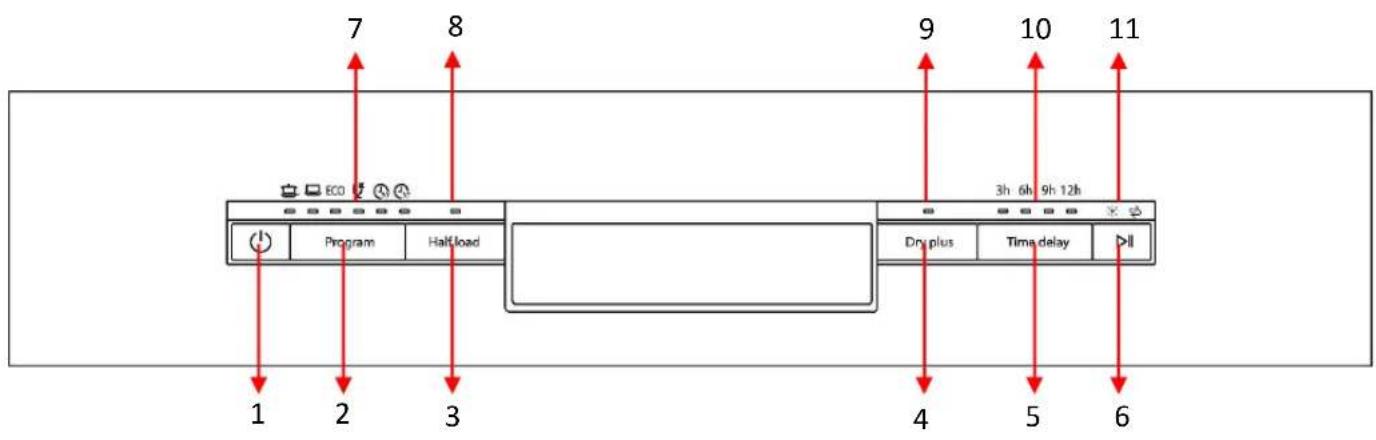

Control Panel

1. On/off button
2. Program button
3. Half load button
4. Dry plus button
5. Time delay button
6. Start/pause button

7. Program indicator lights

8. Half load indicator light

9. Dry plus indicator light
10. Time delay indicator lights (3 hours, 6 hours, 9 hours & 12 hours)
11. Salt aid warning & rinse aid warning indicator lights (when these are shown they need refilling)

Control Panel Functions and Indicators

On/off button

Press to turn appliance on and off

Program button

Press to select the program you wish to select, these are:

• Intensive
• Normal
• Eco
• Glass
• Quick 90'
• Rapid 30'

Please see washing programs section for the full details of the washing programs.

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am - 8pm & Saturday 9am - 1pm

or visit us at www.productcare.co.uk

Control Panel

Half load button

Press to select half load function (press after selecting the required program but prior to closing the door of the appliance). This function should only be used when 6 or less place settings have been loaded in to the appliance and require washing. Please note the half load function and Dry plus functions can not be selected at the same time.

This function can only be used with following programs:

• Intensive
• Normal
• Eco
• Glass
• Quick 90'

Dry plus

Press to select extra drying function (press after selecting the required program but prior to pressing the start button). This will mean the temperature of rinse circle of the compatible programs to increase to 69°. Please note the half load function and Dry plus functions can not be selected at the same time.

This function can only be used with following programs:

• Intensive
• Normal
• Eco
• Glass
• Quick 90'

Time delay button

Press to select time you wish to delay the start of the wash program by (press after selecting the required program but prior to pressing the start button)

Start/pause button

Press to start the selected program or pause the washing program that is running.

Program indicator lights

Light to show which program has been selected

Half load indicator light

Lights up when the half load function has been selected

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am - 8pm & Saturday 9am - 1pm

or visit us at www.productcare.co.uk

Control Panel

Dry plus indicator light

Light to show the dry plus function has been selected

Time delay indicator lights (3 hours, 6 hours, 9 hours & 12 hours)

Light to show which delay time has been selected

Salt aid warning & rinse aid warning indicator lights

Light up when the salt container and/or rinse aid dispenser need to be refilled

Russell Hobbs

Pre-Installation

Important Note: Prior to installation and first use the following 4 steps must be followed, failure to do so will void your guarantee:

1. Set the water softener level
2. Add 1.5kg dishwasher salt and fill the salt container with water
3. Add rinse aid to the rinse aid dispenser
4. Fill the detergent dispenser with detergent powder or a detergent tablet

Water Hardness & Setting the Salt

The water softener must be set digitally, using the water hardness setting function. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. The higher the content of these minerals and salts, the harder your water is. The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting Salt Consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

Please follow the steps below for adjustment in salt level/consumption:

1. Open the door and switch on the appliance.
2. Within 60 seconds after the appliance was switched on press and hold the 'Start/pause' button for more than 5 seconds to start the water softener setting function. The salt and rinse aid warning lights will flash periodically during the water setting function.
3. Press the 'Start/pause' button to select the required softener level in accordance with your local water hardness level. The program indicator lights will light up to indicator the different softener levels (please see the table on the following page). The softener levels will change in the following sequence: H1->H2->H3->H4->H5->H6 (H1 is the lowest setting and H6 is the highest setting).
4. Press the On/off button to set the softener level.

Note: The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

Water Hardness & Setting the Salt

It is recommended that adjustments should be made in accordance with the following scheme:

Softener level	Program indicator light sequence	Salt consumption (gram/cycle)	Water Hardness (Clarke)
H1	Rapid 30'	0 0-6
H2	Quick 90'	9 7-14
H3	Quick 90' & Rapid 30'	12 15-21
H4	Glass	20 22-28
H5	Glass & Rapid 30'	30 29-42
H6	Glass & Quick 90'	60 43-69

Note: Contact your local water board for information on the hardness of your water supply.

Loading the salt into the container

Important Note:

• Only use salt specifically designed for use in dishwashers. Every other type of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. In case of damage caused by the use of unsuitable salt the manufacturer do not give any warranty and we are not liable for any damage caused.
• Only fill with salt just before starting one of the complete washing programs.
• This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

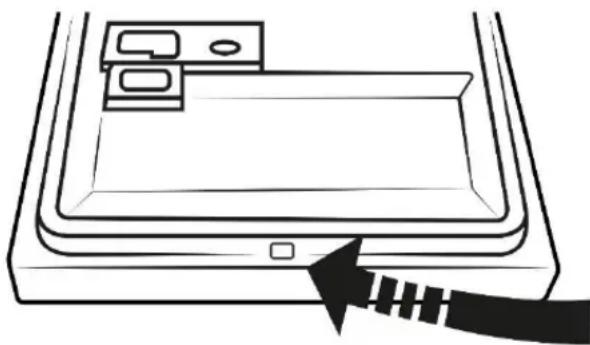

The salt container is located beneath the lower basket and should be filled as explained in the following section:

1. Remove the lower basket and then unscrew and remove the cap from the salt container. See diagram 1 on the following page.
2. Place the salt funnel that is provided into the hole and pour approximately 1.5kg of dishwasher salt into the salt container
3. Fully fill the salt container with water. It is normal for a small amount of water to come out of the salt container. See diagram 2 on the following page.
4. After filling the container, screw the cap tightly back clockwise.
5. Usually, the salt warning indicator light will stop being illuminated within 2-6 days after the salt container has been filled.

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm

or visit us at www.productcare.co.uk

1. Immediately after filling the salt into the salt container, a washing program should be started (We suggest to use the Quick or rapid programs) Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This may affect the guarantee.

Note:

• The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled.
• If there are spills of salt, a soak or a rapid program should be run to remove the excessive salt.

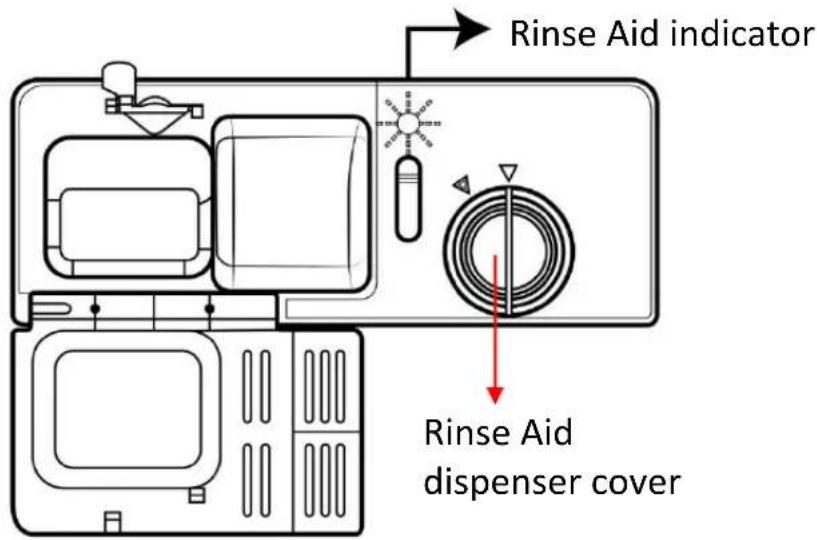

Rinse Aid Dispenser

Rinse Aid dispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.

To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

Function of Rinse Aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Important note:

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This may damage the appliance.

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am - 8pm & Saturday 9am - 1pm

or visit us at www.productcare.co.uk

When to Refill the Rinse Aid Dispenser

There is a rinse aid warning indicator light in the control panel which will light when there is no or little rinse aid in the rinse aid dispenser. Alternatively you can manually check/estimate the amount of rinse aid in the rinse aid dispenser from the colour of the optical level indicator located next to the cap. When the rinse-aid container is full, the whole indicator will be darker. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid level fall 1/4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below:

Full
3 / 4 full
1 / 2 full
- 1 / 4 full - Should refill to spotting
○ Empty

1. To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
2. Pour the rinse aid into the dispenser, being careful not to overfill.
3. Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

1

Hand holding a device with a knob and scroll wheel (no text or symbols visible)

2

Line drawing of a bottle with a bulb and a stack of papers above it, no text or symbols present

3

Hand holding a device with a scroll wheel, showing a curved arrow indicating rotation (no text or symbols present)

NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door.

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am - 8pm & Saturday 9am - 1pm

or visit us at www.productcare.co.uk

Rinse Aid Dispenser

The rinse aid dispenser has six settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser cover and rotating the dial to "5". If the dishes still aren't drying properly or have spots on them, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4" (Factory setting is "4".)

Rinse Aid adjustment dial

Note: Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

Detergent

Detergent with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher.

Important notes:

• Only use detergent specifically made for use in dishwashers.
• Keep your detergent fresh and dry.
• Don't put powder detergent into the dispenser until you're ready to wash dishes.
• Dishwasher detergent is corrosive! Keep it out of reach of children.

Detergents

There are 3 sorts of detergents:

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am - 8pm & Saturday 9am - 1pm

or visit us at www.productcare.co.uk

Detergent

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 7*clarke. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

• conventional, alkaline detergents with caustic components
- low alkaline concentrated detergents with natural enzymes

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items will need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly if added mid cycle.

Russell Hobbs

Detergent

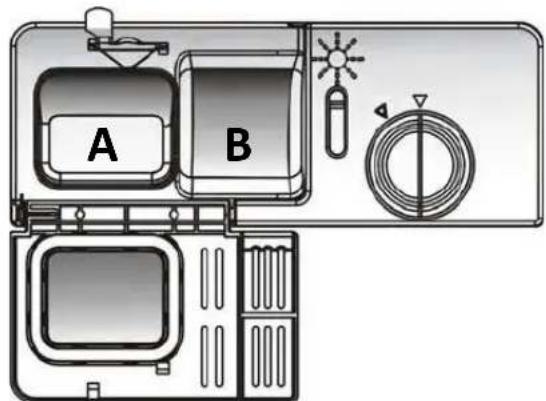

Detergent Dispenser

The detergent dispenser is located on the inside of the dishwasher door and is approximately halfway up the door. The dispenser can be filled with either detergent powder or a detergent tablet, compartment A can be loaded with detergent powder or a detergent tablet and compartment B can be loaded with a detergent tablet or Pre-wash cycle detergent

Filling the Detergent Dispenser

Note: observe the dosing and storage recommendations that are stated on the detergent packaging.

1. The detergent dispenser will automatically open during a washing cycle to release the detergent powder or detergent tablet into the appliance. However should you need to manually open the dispenser you can do this by pushing the latch on top of the dispenser, the dispenser door will spring open

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am - 8pm & Saturday 9am - 1pm

or visit us at www.productcare.co.uk

Detergent

1. Fill the detergent dispenser with the correct amount of detergent powder in compartment A or 1 detergent tablet in compartment B. If the dishes are heavily soiled, place an additional detergent dose in compartment B, this detergent will take effect during the pre-wash phase (this is not required if using a detergent tablet).

Information about the amount of detergent for each program can be located in the program information section. Please be aware that the amount of detergent that is to be used can be affected by the level soiling of your dishes and the water hardness of the area you live in. Please observe the manufacturer's recommendations on the detergent packaging.

Note:

• Only use detergent specifically made for use in dishwashers.
• Observe the dosing and storage recommendations that are stated on the detergent packaging.
• Don't put powder detergent into the dispenser until you're ready to wash dishes.

• Dishwasher detergent is corrosive! Keep it out of reach of children

• Close the lid and press until it locks in place.

Russell Hobbs

Loading the Dishwasher

Notes:

• Only purchase and wash utensils which are identified as dishwasher safe.
• Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers.
• For particular items, select a program with as low a temperature as possible.
• To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended.

Items not suitable for the dishwasher

• Cutlery with wooden, horn china or mother-of-pearl handles
• Plastic items that are not heat resistant
- Older cutlery with glued parts that are not high temperature resistant
• Bonded cutlery items or dishes
- Pewter or copper items
- Crystal glass
• Steel items are subject to rusting, specifically knife steel.
- Wooden platters
- Items made from synthetic fibres

Items that may not be suitable for the dishwasher

• Some types of glasses can become dull after a large number of washes
• Silver and aluminium parts have a tendency to discolour during washing
- Glazed patterns may fade if machine washed frequently

Before Loading the Dishwasher

For best performance of the dishwasher, follow these loading guidelines (Features and appearance of baskets and cutlery baskets may vary from your model):

1. Scrape off any large amounts of left over food from dishes/crockery
2. Soften remnants of burnt food in pans and other crockery.
3. Place objects in the dishwasher in the following way:
   a. Items such as cups, glasses, pots/pans, etc. are faced downwards.
   b. Curved items, or ones with recesses, should be loaded at an angle so that water can run off.
   c. All utensils are stacked securely and can not tip over.

Russell Hobbs

Loading the Dishwasher

d. All utensils are placed in the way that the spray arms can rotate freely during washing.
e. Load hollow items such as cups, glasses, pans etc. with the opening facing downwards so that water cannot collect in the container or a deep base.
f. Dishes and items of cutlery must not lie inside one another, or cover each other.
g. To avoid damage to glasses, they must not touch.
h. Load large items which are most difficult to clean into the lower basket.
i. The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups.
j. Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Long bladed knives stored in an upright position are a potential hazard!

1. Do not overload your dishwasher. This is important for good results

2. Very small items should not be washed in the dishwasher as they could easily fall of the basket

3. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms.

4. Pots, serving bowls, etc. must always be placed top down.

5. Deep pots should be slanted to allow water to flow out.

6. The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

7. The height of the upper basket is adjustable

Russell Hobbs

Loading the Dishwasher

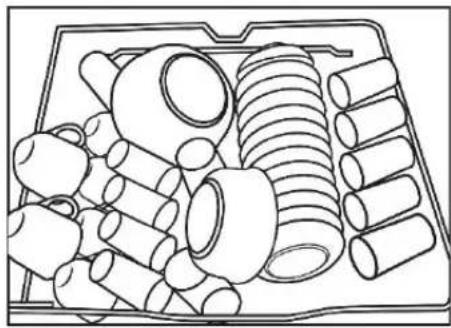

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty).

Position the dishes and cookware so that they will not get moved by the spray of water. The below diagram is an example of how to load the upper basket:

Line drawing of a mechanical component with multiple cylindrical and threaded parts arranged in a tray (no text or symbols)

Front of upper basket

Loading the Lower Basket

We suggest that you place large items and the most difficult to clean items into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Line drawing of a basket containing various household items including plates, pots, and a tray with utensils (no text or symbols)

Front of lower basket

Notes:

• Pots, serving bowls, etc., must always be placed top down
• Deep pots should be slanted to allow water to flow out
• The lower basket features folding spikes so that larger/more pots and pans can be loaded.

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am - 8pm & Saturday 9am - 1pm

or visit us at www.productcare.co.uk

Loading the Dishwasher

Adjustable Upper Basket Height

The height of the upper basket can be adjusted in order to create more space for large dishes/crockery/utensils for both the upper/lower basket. The factory setting for the upper basket is set at the highest setting so there is more space for larger dishes/crockery/utensils for both lower basket height. The height of the upper basket can be adjusted by placing the wheels on different height of the rails.

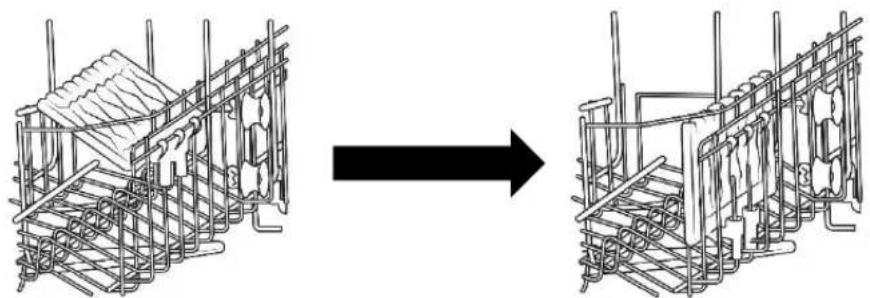

Folding back the cup shelves

For better stacking of pots and pans, the cup shelves can be folded down as shown in the below. If required the cup shelves can even be removed.

Diagram showing structural modification of a mechanical component before and after, with no visible text or symbols.

Folding spikes on the lower basket

For better stacking of pots and pans, the spikes can be folded down as show in the below:

Illustration of a hand tying a knot with arrows indicating rope movement (no text or symbols)

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am - 8pm & Saturday 9am - 1pm

or visit us at www.productcare.co.uk

Loading the Dishwasher

Cutlery Basket

Cutlery should be placed in the cutlery basket with the handles at the bottom, except for knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position. If the rack has side baskets, the spoons should be loaded separately into the appropriate slots. Long utensils should be placed in the horizontal position at the front of the upper basket as shown in the picture.

For the best cleaning performance place the cutlery in the basket separately, you must make sure that they do not nest/group together.

The compartments of the cutlery basket can be adjusted by folding over the 2 separating covers:

Two wireframe diagrams of a food container with mesh grids, one increasing and the other decreasing (no text or symbols)

Do not let any item extend through the bottom.

Circular diagram with grid lines and a cross symbol, no readable text or labels

Removing the dishes

• It is normal that the dishwasher is wet inside.
- It is recommend to wait for the drying cycle (if the program that has been selected has this) to finish and for the dishes/crockery to cool before removing them
- To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am - 8pm & Saturday 9am - 1pm

or visit us at www.productcare.co.uk

Washing Programs

Program	Cycle information	Cycle stages	Detergent dosage	Running time (mins)	Energy (kWh)	Water (litres) required	Half load function	Delay timer function
Intensive	for heavily soiled crocker and normally soiled pots, pans, glasses and dishes (can be used for dishes with dried on soiling)	Pre-wash (50°) wash (60°) Rinse (70°) drying	170	1.6	18.5	Yes	Yes	Yes
Normal	for normally soiled loads such as pots, dishes, glasses and integrity soiled pans	Pre-wash (45°) wash (55°) Rinse (65°) drying	180	1.3	15	Yes	Yes	Yes
Eco	for normally soiled loads such as pots, dishes, glasses and integrity soiled pans	Pre-wash (45°) wash (55°) Rinse (65°) drying	190	0.91	11	Yes	Yes	Yes
Glass	for Lightly Soiled Glass and crocker	Pre-wash wash (40°) Rinse (60°) drying	130	0.9	14.5	Yes	Yes	Yes
Quick 90°	for Lightly Soiled loads (the load will not be fully dried when program has finished)	Wash (65°) Rinse or Tablet: 3 in 1	90	1.35	12.5	Yes	Yes	Yes
Rapid 30°	A quick wash for Lightly Solid loads (this program doesn't have a drying stage so the load will be wet when cycle has finished)	Wash (45°) Rinse Rinse (55°)	30	0.75	11.5	No	No	Yes

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am - 8pm & Saturday 9am - 1pm

or visit us at www.productcare.co.uk

Washing Cycles

Turning on the appliance

Starting the wash cycle

1. Pull out the lower and upper basket, load the dishes and push them back. It is recommended to load the lower basket first, then the upper one (see the loading the dishwasher section).
2. Pour in the detergent powder or put in the detergent tablet into the detergent dispenser (see the detergent section) and close the detergent dispenser cover.
3. Insert the plug into the socket. The power supply must be 220-240 AC / 50 HZ,
4. Make sure that the water supply is turned on to full pressure.
5. Close the door and press the ON/OFF button (the ON indicator will light up)
6. Select your required program by pressing the PROGRAM button (the indicator light of the program you have selected will light up).
7. If required and if the program is compatible with the function you should select half load or dry plus and/or delay timer functioned.
8. Press the start button, the machine will beep and the washing cycle will begin.

Change the program

A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the Detergent section).

If you wish to change the program and it is possible, then press the start/pause button, then press and hold the PROGRAM button for more than 3 seconds. The machine will enter the standby state, at this point you can now select the program you require by pressing the PROGRAM button. Once this has been done the start/pause button and the wash cycle will begin.

Note: If you open the door during a wash cycle, the machine will pause. The program light will stop blinking and the buzzer will beep every minute unless you close the door. After you close the door, the machine will continue to work after 10 seconds.

Time delay

The starting time of a washing programme can be delayed, please follow the steps below:

1. Open the dishwasher door, load your soiled dishes/crockery and add detergent and then close the door.
2. Press the on/off button to turn on the dishwasher and select your preferred program.

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm

or visit us at www.productcare.co.uk

Washing Cycles

1. Press the Time Delay button and set the required delay start time (this will be shown by time delay the indicator lights).

2. Press the start button, the unit will start the programme at the assigned time automatically.

Half load

In case you do not have enough dishes for a full load, the half load option can be selected with certain programs (please see the Wash Program section). Please follow the steps below:

1. Open the dishwasher door, load your soiled dishes/crockery and add detergent and then close the door.
2. Press the on/off button to turn on the dishwasher.
3. Select your preferred programme.
4. Press the "Half Load" button.
5. Close the door and press the start button, the unit will start the program.

Please note the half load function and Dry plus functions can not be selected at the same time.

Dry plus

In case you do not have enough dishes for a full load, the half load option can be selected with certain programs (please see the Wash Program section). Please follow the steps below:

1. Open the dishwasher door, load your soiled dishes/crockery and add detergent.
2. Press the on/off button to turn on the dishwasher.
3. Select your preferred programme.
4. Press the "Half Load" button.
5. Press the start button, the unit will start the program.

Please note the half load function and Dry plus functions can not be selected at the same time.

Adding a dish during a cycle

If you have forgotten to load a dish then it can be added at any time before the detergent is dispensed. Please follow the below steps when adding a forgotten dish:

1. Open the door slightly to stop the washing.
2. After the spray arms stop working, you can open the door completely.
3. Load the forgotten dish or dishes.
4. Close the door, the dishwasher will start running again after 10 seconds.

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am - 8pm & Saturday 9am - 1pm

or visit us at www.productcare.co.uk

Washing Cycles

Note: It is dangerous to open the door when washing, because the hot water may scald you.

At the end of the wash cycle

When a program has finished, the buzzer of the dishwasher will sound for 8 seconds, after this duration it will stop. Turn off the appliance using the ON/OFF button and open the door of the dishwasher. Turn off the water tap if necessary

Note: The appliance will switch off automatically 30 minutes after the program has finished.

Open the door carefully

Hot dishes are sensitive to knocks. The dishes therefore must be allowed to cool down for approximately 15 minutes before removing from the appliance. Open the dishwasher's door, leave it ajar and wait approximately 15 minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

Unloading the dishwasher

It is normal that the dishwasher is wet inside. It is recommend to wait for the drying cycle (if the program that has been selected has this) to finish and for the dishes/crockery to cool before removing them. To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

Russell Hobbs

Installation

• This appliance can be installed as a freestanding unit only.
• We recommend that 2 people handle the dishwasher during installation.
- Avoid damaging the product during installation, positioning of the appliance requires two people in order to avoid injuries or damage to the appliance.
- Be sure to wear gloves when installing the appliance to avoid personal injury, edges of the door and other parts of the appliance are sharp.
- Your appliance should not be located in direct sunlight or exposed to continuous heat or extremes of temperature (e.g. next to a radiator, boiler or cooker). If this is not feasible, then you should install an insulation plate between the appliance and the adjacent heat source.
- You should check whether there is an electrical socket available, which will be accessible after your appliance is installed.
- Place the appliance flatly and firmly on a solid base.
- All parts removed must be saved to do the reinstallation in the future. Ensure the dishwasher is unplugged and empty.
- Be sure to leave enough space for the opening of the door, to avoid damage to the appliance or personal injury.
- The installation position of dishwasher should be near the existing inlet and drain hoses and power point.
- The side of the cabinet that is adjacent to the water supply and drainage should be chosen to facilitate the connection of water inlet hose and drain hose of the dishwasher.
- For personal safety: Do not use an extension cord or an adapter plug with this appliance.
- Do not, under any circumstances, cut or remove the earthing connection from the power cord
- Ensure the power cord is not underneath any of the appliances feet or trapped by any part of the appliance.

Positioning the appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

Once the appliance is positioned for levelling, the height of the dishwasher may be altered by adjusting the height of the feet; the appliance should not be inclined more than 2^ .

Simple line drawing of a two-story building with horizontal and vertical supports, no text or symbols present.

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am - 8pm & Saturday 9am - 1pm

or visit us at www.productcare.co.uk

Connection of the Water Supply & Drain Hose

Important notes:

• Connection to the water and electricity supplies should only be performed by a qualified technician.
• The dishwasher should not stand on top of the water hoses or the electricity supply cable. The water inlet and outlet hoses and the electricity supply cable may be positioned towards the right or the left in order to achieve the best possible installation.

Connection of the Drain hose

Important notes:

• Before connecting the drain hose, remove any internal restrictions; this will prevent a build up of debris which could cause a blockage remove any restrictions from the waste spigot and ensure that the sealing bung is removed.
• It MUST NOT be connected to a surface water drain.
• Do Not connect the dishwasher to the drain with an extended drainage hose (use the ones supplied with the appliance), if an extension hose is needed then a pump must be installed to pump the drainage through and out.

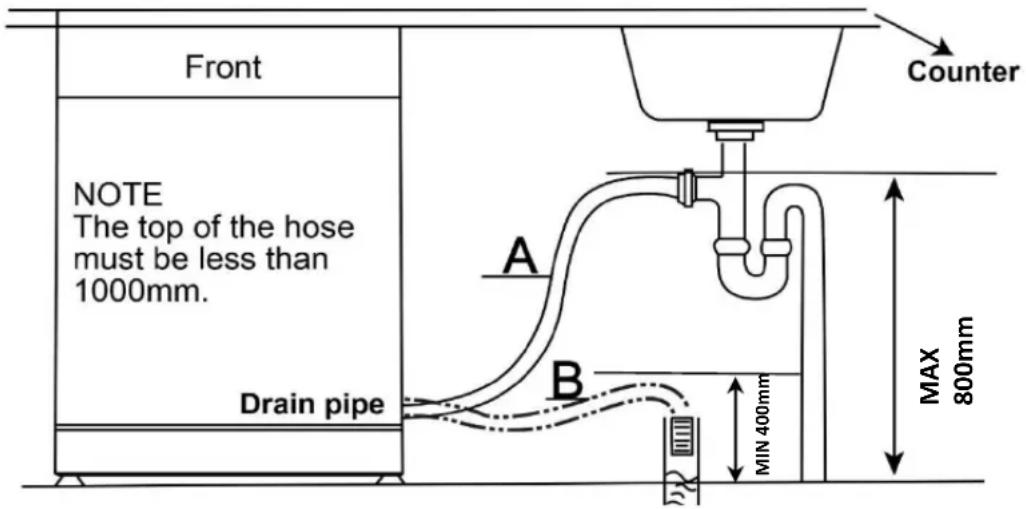

Insert the drain hose into a drain pipe that has a minimum diameter of 4cm (40mm) making sure to avoid bending or crimping it. Use the drain hose hook (accessory 13) that is supplied with the appliance. The top of the hose must be at a height between 40cm/400mm (B on the diagram) and 80cm/800mm (A on the diagram). The free end of the hose must not be immersed in water to avoid the back flow of it.

• Ensure the drain hose is securely attached, to prevent it coming away while the machine is in use and causing a flood.
• Fit the end drain hose that is connected to the waste pipe securely by using a “Jubilee” type clip.

Russell Hobbs

Connection of the Water Supply & Drain Hose

Connection of the Water Supply

Important note: Before attaching the water inlet hose, run the water until it is perfectly clear so that any impurities that may be present in the water do not clog the appliance. This precaution is needed to avoid the risk of the water inlet getting blocked and damaging the appliance.

Connect the water inlet hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. The water inlet hose must be connected to a cold water supply.

Notes:

• If the inlet hose is not long enough, contact a specialist store or an authorised technician.
- The maximum permissible inlet water pressure is 1Mpa.
- The minimum permissible inlet water pressure is 0.04Mpa.
• The hose should not be bent or compressed.
- The appliance must be connected to the water supply network using new hoses.
- Do not use old hoses.
- Ensure that the new hose supplied is connected and the old hose is disposed of safely.
• DO NOT overtighten the hose connector, hand tight is sufficient.
- Ensure the fill hose is not kinked.
- DO NOT connect the dishwasher to a single outlet instantaneous water heater or an electric heater.

Before First Use

Before the first use of the dishwasher after installation you must check for the following points:

1. All packing materials and printings have been removed from the dishwasher
2. The dishwasher is level and fixed properly
3. The water inlet valve is open
4. There is no leakage at the connections water inlet hose and the water inlet valve or the drain hose and the drain.
5. The inlet and drain hoses are knotted
6. The wires are tightly connected and not trapped
7. The power is switched on

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am - 8pm & Saturday 9am - 1pm

or visit us at www.productcare.co.uk

Maintenance & Cleaning

Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pump. The residue may block the filter, in this case they must be removed.

The filter system consists of a coarse filter, a flat (Main filter) and a micro filter (Fine filter).

2) Coarse Filter

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift out.

1) Main Filter

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

3) Fine filter

This filter holds soil and food residues in the sump area and prevents it from being redeposit on the dishes during wash cycle.

Filter Assembly

Important notes:

• The dishwasher must never be used without the filters.
• Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

The filter efficiently removes particles of food from the wash water, allowing it to be recycled during the wash cycle. For best performance and cleaning results, the filter must be cleaned regularly. For this reason, it is recommended to remove the larger food particles trapped in the filter after each use by removing all debris from all parts of the filter (you may need to use a cleaning brush to remove all debris from the coarse and fine filters) and rinse all parts of the filter under running water.

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am - 8pm & Saturday 9am - 1pm

or visit us at www.productcare.co.uk

Maintenance & Cleaning

To remove the filter device, twist the coarse filer (part 2) and pull it in a upwards direction. All parts of the filter will lift away from the bottom of the appliance

1. Turn the coarse filter (part 2) in anti-clockwise direction, then pull it in a upwards direction

2. The filter system can be removed

3. To separate all parts of the filter, hold the fine filter (part 3) tightly, twist the coarse filter (part 1) in an anti-clockwise direction and pull it upwards

To replace the filter reverse steps 1, 2 and 3.

Important notes:

• Inspect the filters for blocking after every use
• The filter system must be cleaned at lease once a week
- When cleaning the filters, don't knock/tap them. Otherwise, the filters could be contorted and the performance of the dishwasher could be affected.

Russell Hobbs

Maintenance & Cleaning

Cleaning the door

Important note:

Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.

Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sure to dry it thoroughly.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Line drawing of a device with a scroll arrow pointing to a screen (no text or symbols)

door lock and electrical components

Protect Against Freezing

Important note:

If your dishwasher cannot work because of the ice, please contact professional service persons.

You must take frost protection measures for the dishwasher in winter, if it is used in a cold environment. Every time after washing cycles, please operate as follows

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm

or visit us at www.productcare.co.uk

Maintenance & Cleaning

1. Cut off the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a bowl to catch the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump

Cleaning the Spray Arms

It is necessary to clean the spray arms regularly for hard water chemicals, as these will clog the spray arm jets and bearings.

To remove the upper spray arm, hold the nut and at the same time rotate the arm clockwise to remove it.

To remove the lower spray arm, pull the spray arm upward.

Wash the arms in warm soapy water and use a soft cleaning brush to clean the jets. Replace them after rinsing them thoroughly in clean water

How to Keep your Dishwasher in the Correct Condition

After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

Remove the Plug from the socket

Before cleaning or performing maintenance, always remove the plug from the socket.

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am - 8pm & Saturday 9am - 1pm

or visit us at www.productcare.co.uk

Maintenance & Cleaning

No Solvents or Abrasive Cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water.

To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little vinegar, or a cleaning product made specifically for dishwashers.

When not in use for a long time

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back but cannot be left in this position.

Seals

One of the factors that cause odours to form in the dishwasher is food that remains food debris and moisture in the seals. Periodic cleaning these with a damp sponge will prevent this from occurring.

Russell Hobbs

Trouble Shooting

Problem Causes Solution
Dishwasher doesn't start	Power supply is not turned on	Make sure the power cord is properly plugged into the wall socket.Make sure the dishwasher is turned on and the door is closed securely.
	Fuse blown, or the circuit breaker acted	Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher
	Water supply is not turned on	Check that the water supply is connected properly and the water is turned on.
	Water pressure is low	Check that the water pressure is within the required level, please see water connection section.
	Door of dishwasher not properly closed.	Make sure to close the door properly/full.
	A fault has occurred	Switch of the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and reset the program.If this does not work unplug the appliance and leave for 5 minutes, then put the plug back in and turn on the appliance.
Water has not drained for the dishwasher	Wash program has not finished	The wash program may not have finished, close the door and wait for the wash program to complete in full
	Drain hose is bent	Check drain hose.
	Filter clogged/blocked	Check all parts of the filter and clean if necessary, please see filter section.
	Drains clogged/blocked	Check the drains to make sure they are draining well. If they aren't you will need to get them unblocked and may need a plumber to do this. If the dishwasher still won't drain then a service engineer may be needed.
The dishwasher does not take any water	There is no water in the mains supply	Check the water supply has not been cut off or if there is a fault in your area.
	Water inlet pipe is bent	Water inlet pipe.
	Turn on the water tap and/or vale	Turn on the water tap/valve and the appliance will start after a few minutes.

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm

or visit us at www.productcare.co.uk

Trouble Shooting

Problem Causes	Solution
Suds in the tub	Improper detergent	Use only the dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Pour 1 gallon of cold water to the tub, then close the dishwasher and select any cycle.The first part of the cycle will see the dishwasher drain out the water (you will be able to hear this taking place). When the draining has finished open the door and check if the suds is disappeared. Repeat if necessary.
	Spilled rinse-aid	Always wipe up rinse-aid spills immediately, because if left in the tub then suds will be produced.
Stained tub interior	Detergent with colourant was used	Make sure that the detergent is the one without colourant.
White film on inside surface	Hard water minerals	To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
There are rust stains on cutlery	The affected items are not corrosion resistant	Purchase dishwasher safe cutlery or hand wash the cutlery that isn't dishwasher safe
	A program was not run after dishwasher salt was added. If this is done then traces of salt will get into the wash cycle and cause corrosion	Always run the quick wash program after adding dishwasher salt without any crockery in the dishwasher.
	The lid of the water softener is loose	Check the lid and ensure it is fitted correctly and tight.
Knocking noise in the wash cabinet	A spray arm is knocking against an item in a basket	Interrupt the program, and rearrange the items which are obstructing the spray arm.
Rattling noise in the wash cabinet	Items of crockery are loose in the wash cabinet	Interrupt the program, and rearrange the items of crockery.
Knocking noise in the water pipes	This may be caused by on-site installation or the cross-section of the piping	This has no influence on the dishwasher function, if in doubt, contact a suitably qualified plumber.

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm

or visit us at www.productcare.co.uk

Trouble Shooting

Problem Causes	Solution
The dishes are not clean	Dishwasher has been overloaded	Arrange the dishes correctly or wash in 2 separately loads, please see the Loading the Dishwasher section.
	The dishes were not loaded correctly	Arrange the dishes correct, please see the Loading the Dishwasher section.
	The program was not powerful enough	Select a more intensive program, please see the Wash Program section.
	Not enough detergent was dispensed.	Use more detergent, or change your detergent.
	Too much detergent was dispensed or the incorrect detergent has been used	The detergent has not been measured out correctly or it is not suitable for use in dishwashers
	Items are blocking the path of spray arms	Re-arrange the items so that the spray can rotate freely.
	The filter in the base of wash cabinet is not clean or is not correctly fitted. This may cause the spray arm jets to get blocked	Clean and/or fit the filter correctly.Clean the spray arm jets, please see the Cleaning the Spray Arms section
	Insufficient dishwasher salt and Rinse aid need to be refilled	Dishwasher salt and Rinse-aid need to be refilled, please see the Dishwasher Salt and Rinse Aid sections.
	The lid on the rinse-aid dispenser was not shut correctly	Shut correctly and re-wash
The dishes and glasses are streaked or have a bluish tinge	The rinse-aid dosage is too high.	Reduce the rinse-aid dosage
Cloudiness on glassware	Combination of soft water and too much detergent	Use less detergent if you have soft water and/or select a shortest cycle to wash the glassware and to get them clean.The Glass Wash program could be used.
Black or grey marks on dishes	Aluminium utensils have rubbed against dishes	Use a mild abrasive cleaner to eliminate those marks.
Detergent left in dispenser cups	Dishes block cups or cups incorrectly loaded	Re-loading the dishes properly.

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm

or visit us at www.productcare.co.uk

Trouble Shooting

Problem Causes	Solution
The dishes are not drying	Improper loading	Load the dishwasher as suggested in the directions.
	Too little Rinse-aid	Increase the amount of rinse-aid and/or refill the rinse-aid dispenser.
	Dishes are removed too soon	Do not empty your dishwasher immediately after washing cycle has ended. Open the door slightly so that the steam can escape.Only begin unloading the dishwasher when the dishes are cool to the touch. Empty the low basket first. This prevents water form dropping off dishes in the upper basket.
	Wrong program has been selected or a program without a drying cycle	In short programs the drying time is shorter or the program won't have a drying cycle at all.Choose a program with a long washing time.
	The crockery is made from non-stick material or plastic	Remove from dishwasher and leave to dry or dry with a dish cloth.
	Use of cutlery with a low-quality coating	Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher.

Error codes

Error codes Meanings Possible causes
The Rapid Wash indicator light flickers	Water inlet problem/fault	Water intake is restricted or water pressure is too low.
The Glass Wash indicator light flickers	Overflow.	The dishwasher is leaking
The Rapid Wash & 90min. indicator light flickers	Not reaching required temperature	Heating element fault

Note: If overflow occurs, turn off the main water supply before calling a service engineer. If there is water in the base of the tub because of an overfill or small leak, the water should be removed before restarting the dishwasher.

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am - 8pm & Saturday 9am - 1pm

or visit us at www.productcare.co.uk

Connection to the Mains Supply

WARNING- THIS APPLIANCE MUST BE EARTHED

This appliance is designed to operate from a mains supply of AC220V - 240V; 50HZ. Check that the voltage marked on the product corresponds with your supply voltage.

For UK use only – Plug fitting details (where applicable):

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The GREEN/YELLOW wire is the EARTH and must be connected to the terminal which is marked with the letter E or by the earth symbol or coloured GREEN or GREEN/YELLOW.

The BLUE wire is the NEUTRAL and must be connected to the terminal marked with the letter N or coloured BLACK.

The BROWN wire is the LIVE wire and must be connected to the terminal marked with the letter L or coloured RED.

Always ensure that the plug cord grip is fastened correctly.

Warning symbol depicting a lightning bolt inside a triangle (no text or numbers)

DANGER Electric Shock Risk

If a 13A (BS1363) fused plug is used it must be fitted with a 13amp fuse conforming to BS1362 and be BSI or ASTA approved.

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750 Opening times: Monday - Friday 8am - 8pm & Saturday 9am - 1pm or visit us at www.productcare.co.uk

Guarantee

This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship you must contact Product Care with the original proof of purchase so a replacement or refund can be arranged.

Refund or replacement is at the discretion of Product Care.

The following conditions apply:

• Product Care will require a valid proof of purchase at the point of replacement or refund.
• The product must be installed and used in accordance with the instructions contained in this instruction guide and any other instructions for use which has been supplied.
  • It must be used for domestic purposes only and for its intended use.
• This guarantee does not cover wear and tear, damage, misuse or consumable parts.

This does not affect your statutory rights.

Imported by

G2S LIMITED

WIGAN

WN2 4AY

Russell Hobbs

Technical Specification

Model number RHDW3 (B) (SS)

Rated Voltage 220V – 240V \~ 50Hz

Capacity 12 place settings

External Dimensions(HxWxD) 845mm x 598mm x 600mm

Russell Hobbs

Notes

Russell Hobbs

For Customer Services & Spare Parts please call 0345 208 8750

Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm

or visit us at www.productcare.co.uk

For Customer Services &

Spare Parts please call

0345 208 8750

Opening times:

Monday – Friday

8am – 8pm

&

Saturday

9am – 1pm

or visit us at

www.productcare.co.uk

This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste. Only discard electrical/electronic/battery items in separate collection schemes, which cater for the recovery and recycling of materials contained within. Your co-operation is vital to make sure the success of these schemes and for the protection of the environment. For your nearest disposal facility, visit www.recycle-more.co.uk or ask in store for details.

We reserve the right due to possible changes to design to alter the instruction manual without prior notice.
