USER MANUAL 665.14733 KENMORE

Toronto, Ontario, Canada M5B 2C3

www.sears.ca

TABLE OF CONTENTS

PROTECTION AGREEMENTS ......2

Accessories....2

WARRANTY 3

COMPACTOR SAFETY.... 4

INSTALLATION INSTRUCTIONS....5

Unpacking....5

Location Requirements....5

Electrical Requirements 6

Undercounter Installation....6

COMPACTOR USE 9

How Your Compactor Works 9

Loading 9

Starting Your Compactor....9

EXTRA PAC™ Cycle 10

Air Freshener 10

Removing a Filled Bag 10

Installing a New Bag 11

COMPACTOR CARE....12

Cleaning....12

TROUBLESHOOTING....13

SERVICE NUMBERS ....BACK COVER

PROTECTION AGREEMENTS

Master Protection Agreements

Congratulations on making a smart purchase. Your new Kenmore® product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That's when having a Master Protection Agreement can save you money and aggravation.

The Master Protection Agreement also helps extend the life of your new product. Here's what the Agreement* includes:

√ Parts and labor needed to help keep products operating properly under normal use, not just defects. Our coverage goes well beyond the product warranty. No deductibles, no functional failure excluded from coverage—real protection.
√ Expert service by a force of more than 10,000 authorized Sears service technicians, which means someone you can trust will be working on your product.
√ Unlimited service calls and nationwide service, as often as you want us, whenever you want us.
√ "No-lemon" guarantee – replacement of your covered product if four or more product failures occur within twelve months.
√Product replacement if your covered product can't be fixed.
√ Annual Preventive Maintenance Check at your request – no extra charge.
√ Fast help by phone – we call it Rapid Resolution – phone support from a Sears representative on all products. Think of us as a “talking owner’s manual.”

√ Power surge protection against electrical damage due to power fluctuations.
√ \$250 Food Loss Protection annually for any food spoilage that is the result of mechanical failure of any covered refrigerator or freezer.
√ Rental reimbursement if repair of your covered product takes longer than promised.
√ 25% discount off the regular price of any non-covered repair service and related installed parts.

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime day or night, or schedule a service appointment online.

The Master Protection Agreement is a risk free purchase. If you cancel for any reason during the product warranty period, we will provide a full refund. Or, a prorated refund anytime after the product warranty period expires. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information in the U.S.A. call 1-800-827-6655.

*Coverage in Canada varies on some items. For full details call Sears Canada at 1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. or Canada call 1-800-4-MY-HOME®.

Accessories

To ensure proper functioning of your compactor, use Sears replacement parts only. To order replacement parts or accessories, call 1-800-4-MY-HOME® and ask for the appropriate part number or contact your authorized Kenmore dealer.

KENMORE APPLIANCE WARRANTY

ONE YEAR LIMITED WARRANTY

When installed, operated and maintained according to all supplied instructions, if this appliance fails due to a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® (1-800-469-4663) to arrange for free repair.

If this appliance is ever used for other than private family purposes, this warranty applies for only 90 days from the date of purchase.

This warranty covers only defects in material and workmanship. Sears will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, incandescent light bulbs, and bags.
2. A service technician to instruct the user in correct product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada*.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

*In Canada, in-home repair service is not available in all areas, nor will this warranty cover user or servicer travel and transportation expenses if this product is located in a remote area (as defined by Sears Canada Inc.) where an authorized servicer is not available.

Sears Brands Management Corporation Hoffman Estates, IL 60179

Sears Canada Inc.

Toronto, Ontario, Canada M5B 2C3

COMPACTOR SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using an electrical appliance, basic precautions should always be followed, including the following:

• Read all instructions before using the compactor.
  ■ Close supervision is necessary when used by or near children. Do not allow to be used as a toy, or to run unattended at any time. Lock Key Switch when not in use and store key out of reach of children.
  ■ Do not touch moving parts.
  ■ Do not operate with a damaged cord set, plug, motor, or after damage in any manner. Have the compactor examined, repaired or adjusted by an authorized serviceperson.
  ■ Use only for intended use as described in this manual. Do not use other than manufacturer's recommended attachments.

■ Do not compact toxic or volatile flammable material such as oily rags and insect sprays. Do not compact lighted cigarettes, cigars, or other hot or burning items. Do not overload the compactor.
■ Do not take apart the compactor. Incorrect reassembly can cause electric shock when subsequently used.
■ Handle a loaded trash bag with care. Sharp objects can pierce the bag and cause injury. Do not overload trash bag with heavy material such as glass.
■ This compactor is intended for household use only.

SAVE THESE INSTRUCTIONS

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

INSTALLATION INSTRUCTIONS

Installer: Leave Use and Care Guide with the homeowner.

Homeowner: Keep Use and Care Guide for future reference and for local electrical inspector's use, if required.

Unpacking

WARNING

Excessive Weight Hazard

Use two or more people to move and install compactor.

Failure to do so can result in back or other injury.

IMPORTANT: Begin in the room where the compactor will be located.

1. Remove compactor from shipping carton.
2. Remove all packaging materials such as tape and shipping pads.
3. Use a mild detergent and warm water to remove waxy residue caused by shipping material.
4. Dry thoroughly with a soft cloth. For more information, see "Cleaning."
5. Be sure the power cord is attached to the cord clip on the rear of the compactor.

A. Cord clip

1. Place the 2 corner posts from the carton on the floor near the compactor.

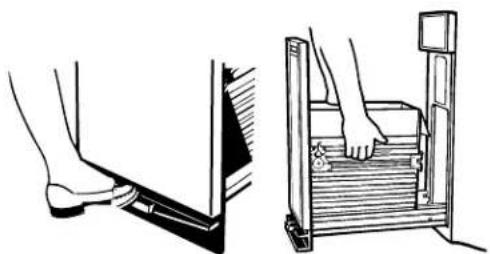

2. Press the foot pedal to open the compactor drawer and remove any shipping materials or other items from the drawer.

NOTE: Do not remove the compactor bag.

1. Grasp sides of drawer and lift drawer out of compactor. Place the drawer on the 2 corner posts.

Illustration of two mechanical device components: one with a foot pressing down on a slide, the other with a hand pressing down on a slide (no text or symbols present)

1. Place the other 2 corner posts on the floor to the side of the compactor.
2. Grasp the sides of the compactor cabinet and put compactor on its side on top of the corner posts.
3. Remove the shipping base from the bottom of the compactor.

A. Leveling legs
B. Shipping base

Location Requirements

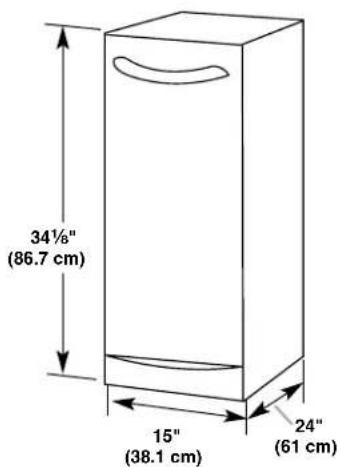

Product dimensions

Cutout dimensions

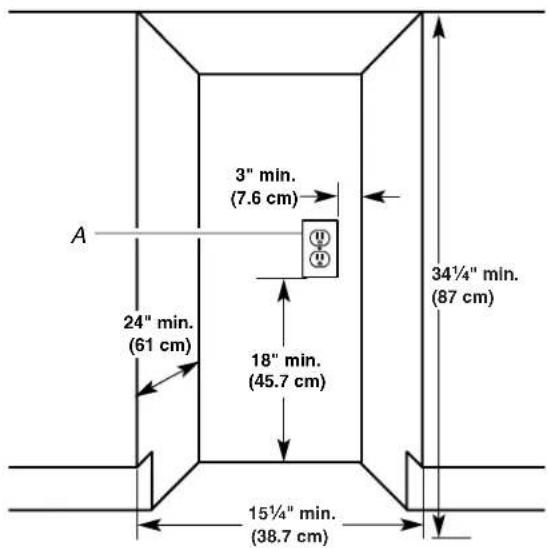

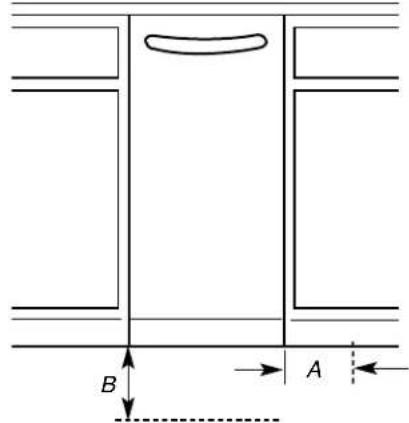

A. Grounded electrical outlet must be a minimum of 3" (7.6 cm) away from surrounding cabinets or nearby walls as shown. It can be placed either to the left or the right side of the product.

Clearance dimensions

A. Leave 6" (15.2 cm) of clearance space to the right side of the compactor in order to remove the compactor bags.

B. Leave 23" (58.4 cm) of clearance in front of the compactor in order to fully open or remove the compactor drawer.

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Recommended Grounding Method

This compactor is for use on a single phase, 115-volt, 60 Hz, AC only, 15- or 20-amp fused and properly grounded circuit and is equipped with a grounding plug as shown below. It is recommended that a separate circuit serving only this appliance be provided.

This compactor must be grounded while in use to reduce the risk of electric shock. The compactor is equipped with a three-conductor cord and 3 prong grounding-type plug to fit the proper grounding-type receptacle. The green (or green and yellow) conductor in the cord is the grounding wire. Do not connect the green (or green and yellow) wire to a live terminal.

Undercounter Installation

NOTE: Proper installation is your responsibility. Make sure you have everything necessary for correct installation. It is the personal responsibility and obligation of the customer to contact a qualified installer to assure that electrical installation meets all national and local codes and ordinances.

Tools needed

Gather the required tools and parts before starting installation.

Level
■ Pliers
■ Phillips No. 2 screwdriver
■ 5/16" Box-end wrench
■ Tape measure
■ Scissors
■ Flat-blade screwdriver
■ Utility knife

IMPORTANT:

■ Slide compactor onto cardboard or hardboard before moving compactor across floor to avoid floor covering damage.

■ Do not allow the rear frame of the compactor to touch the floor covering when lifting or moving compactor.

Installing

1. Measure the height of your kitchen cabinet opening. The top of the compactor should be a minimum of 18 " (3 mm) from the top of the kitchen cabinet opening.

The rear wheels are preset for a kitchen cabinet opening height of 34 ^1/4 " (87 cm) (position 1).

To adjust for other kitchen cabinet opening heights:

■ Loosen self-tapping screw just enough to clear stud from hole in position 1.

■ Move the rear wheel and stud to position 2 or 3 as needed for your kitchen cabinet opening measurement: Position 2: 3414 " to 34716 " (87 to 87.5 cm) Position 3: 34716 " to 3458 " (87.5 to 88 cm) NOTE: To level the unit in position 3, you may need to add shims under the front leveling legs.

■ Tighten screw. Repeat for other rear wheel.

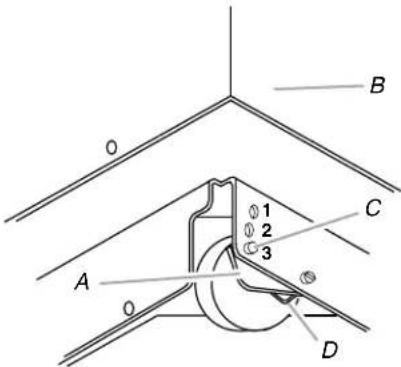

A. Wheel bracket assembly
B. Compactor cabinet
C. Locating stud
D. Self-tapping screw (pivot)

1. Use pliers to lower front leveling legs away from compactor cabinet. Adjust legs so there will be a 18 " (3 mm) to 14 " (6.4 mm) space between the top of the compactor and the top of the kitchen cabinet opening. Stand the compactor upright.
2. Move the compactor close to its final position.
3. To install handle:

■ Insert screws into the holes from the inside of the drawer.
■ Place handle on the front of the drawer and align handle screw holes with screw ends. (The handle should appear as a "smile" when installed.)

■ Tighten screws snugly.

A. 2 screws inserted into holes from inside of drawer
B. Top of drawer
C. Handle installed on drawer front

1. Plug into a grounded 3 prong outlet.

2. Determine whether you want the compactor cabinet or drawer front flush with the kitchen cabinet face.

Using 2 - #8 - 18 x 5/16" mounting screws (provided), attach the retaining brackets to the compactor cabinet top as needed.

■ If the compactor cabinet face is to be flush with the kitchen cabinet face, place retaining bracket mounting screws through "1."
■ If the compactor drawer front is to be flush with the kitchen cabinet face, place retaining bracket mounting screws through "3."

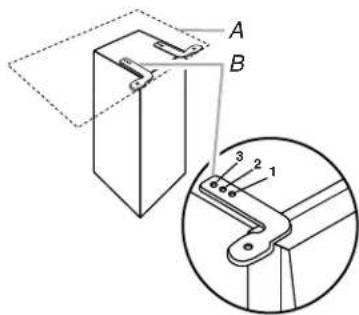

If the compactor is to be midway between "1" and "3," place the retaining bracket mounting screws through "2."

A. Countertop
B. Retaining bracket

7 Slowly lift the front slightly and roll compactor into the kitchen cabinet opening.

1. Using 2 - #8 - 18 x 1/2" mounting screws (provided), fasten the retaining brackets to the countertop with the mounting screws.

Countertop mounting

A. Countertop
B. Retaining bracket
C. Mounting screw (provided)

NOTE: If retaining brackets cannot be attached to the underside of countertop, attach mounting clips (provided) to retaining brackets. Fasten compactor to kitchen cabinet face with mounting screws through the mounting clips.

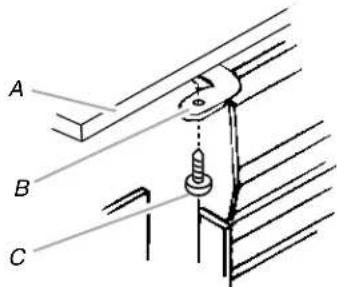

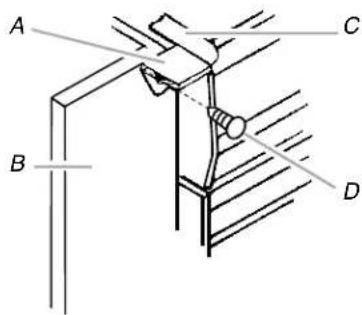

Cabinet-face mounting

A. Mounting clip (provided)
B. Kitchen cabinet
C. Retaining bracket
D. Mounting screw (provided)

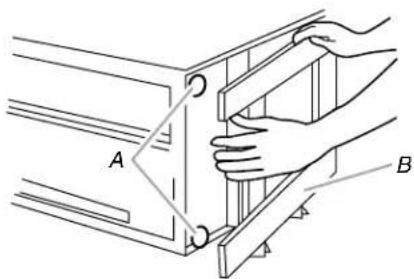

1. Grasp sides of compactor drawer and place bottom of drawer into tracks. Lift at the handle so drawer will go over drawer stops. Close drawer. Check to see whether drawer opens freely. If the toe plate rubs against floor, see "Adjusting the Toe Plate" for further instructions.

Adjusting the Toe Plate

If the toe plate rubs the floor covering, the toe plate clearance may be changed as follows:

1. Mark on each side of the toe plate the amount of toe plate that rubs the floor covering.
2. Remove the drawer from the unit. See Step 3 in the "Unpacking" section.
3. Use a ruler and a pencil or chalk to draw a line between the marks on each side of toe plate.
4. Use scissors or utility knife to cut toe plate along line.
5. Replace drawer. If toe plate still rubs floor covering, repeat steps 1-4.

COMPACTOR USE

How Your Compactor Works

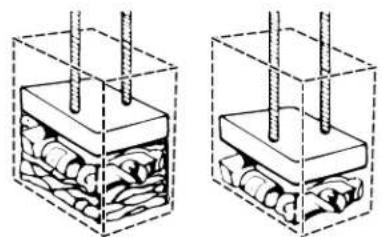

The compacting ram is the part of the compactor which compresses the trash. The compacting ram does not go to the bottom of the drawer. You will not see compacting of trash the first few times you load the compactor.

NOTE: The compactor drawer should be more than 12 full before the compactor can begin to compress the load.

You may hear a noise when glass breaks. Strong glass bottles may not break at all. The trash in a full compactor bag will be about 14 the size of its original bulk.

Two identical diagrams of a container with stacked layers and vertical rods, no text or symbols present.

Load bulky trash, bottles, and cans in the center of the drawer. Bottles or cans not placed in the center may become caught between the ram and the drawer. The Drawer Monitor Switch then senses a "misload" and causes the ram to return to the "up" position without compacting.

Cross-sectional diagram of a vehicle inside a vehicle cabin (no text or symbols)

Loading

IMPORTANT: Do not push items down into compactor with hands or feet.

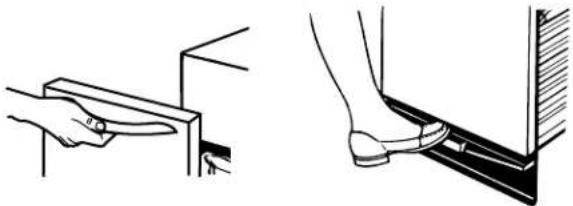

1. Lift and pull the handle or press the foot pedal to open the compactor drawer.

NOTE: Pressing the foot pedal opens the container only 3" to 6" (7.6 cm to 15.2 cm), depending on the load. Use the handle to completely pull out compactor drawer.

Two technical line drawings showing a hand holding a rectangular object and a foot interacting with a curved mechanical component (no text or symbols)

1. Place trash in compactor.

■ Wrap or cover wet or messy trash.

■ Do not compact items that may develop offensive odors such as raw meat, fish, grapefruit rinds, disposable diapers, or personal hygiene items.

■ Load bottles or cans on their sides in the center of the drawer. Do not load bottles in an upright position.

Illustration of a car inside a vehicle (no text or symbols visible)

1. Close the drawer.

Starting Your Compactor

1. Lift and pull the handle or press the foot pedal to open the compactor drawer. Load trash.

2. Keep Key-Knob (located on the control panel) in the "ON" position.

Technical line drawing of a door handle and panel with labeled component A (no text or symbols beyond label)

A. Control panel

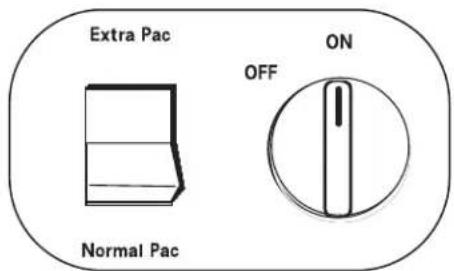

1. Set Cycle switch to Normal Pac.

1. Close compactor.

2. Press foot-actuated START pedal to start the compacting cycle.

NOTE: When the compacting cycle is completed, open the drawer and turn the Key-Knob to "OFF." Remove the Key-Knob and store it out of children's reach.

EXTRA PAC™ Cycle

The EXTRA PAC ^™ cycle extends the use of a bag by putting constant pressure on the trash to keep it from springing back. Regular use of the EXTRA PAC ^™ cycle can increase bag capacity up to 25%.

During the EXTRA PAC ^™ cycle, the ram will stay in the down position for extra compacting. The drawer is locked and cannot be opened when the ram is down. For best results, use the EXTRA PAC ^™ cycle for at least 30 minutes at a time.

To use EXTRA PAC ™ cycle

1. Lift and pull the handle or press the foot pedal to open the compactor drawer. Load trash.
2. Keep Key-Knob (located on the control panel) in the "ON" position.

Technical line drawing of a door handle and lever mechanism (no text or symbols)

A. Control panel

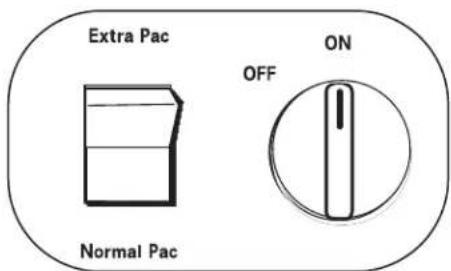

1. Set Cycle switch to Extra Pac.

1. Close compactor.
2. Press foot-actuated START pedal to start the compacting cycle.
3. During the compacting cycle, the compactor remains locked until you lift up on the foot pedal.

NOTE: When the compacting cycle is done, open the drawer and turn the Key-Knob to "OFF." Remove the Key-Knob and store it out of children's reach.

Air Freshener

The solid air freshener system is designed to help control odors that might develop in the trash. An air freshener disc can be purchased in department stores (not sold with compactor). Place the disk-shaped solid air freshener into the air freshener compartment. The air freshener should last 4 to 6 weeks. It is used more rapidly when the temperature is high or the air is very dry.

Removing a Filled Bag

The compactor bag should be removed when trash is compacted almost to the top of the drawer. If bag is too heavy when full, remove bag when weight is easier to lift and carry.

IMPORTANT: Do not push items down into compactor with hands or feet.

NOTE: Use paper or plastic bags made for use in a compactor. These bags are designed to resist cuts, tears and leaks. Compactor bags sized to fit compactor drawer make managing compacted trash easier. Compactor bags are available from your Sears store or service center.

To remove a filled bag

1. Lift and pull the handle or press the foot pedal to open the compactor drawer completely.
2. You may already have a paper or plastic bag in place. Please refer to appropriate instructions for your bag.

■ If you have a paper bag, lift and fold up the top folded edges of the bag. Fold ends in and bring side flaps together. Fold flaps to close bag.

Illustration of hands handling a folded or cushioned object with a handle (no text or symbols)

Line drawing of a person using a computer mouse on a keyboard (no text or symbols)

Lift and fold up top bag edges. Fold ends to close bag.

■ If you have a plastic bag, remove top of bag from bag retainer buttons. Close bag with a twist tie.

Remove bag from retainer buttons.

Line drawing of hands cleaning a bag of bread into a container (no text or symbols)

Close bag with twist tie.

1. Release drawer side latch. Tilt right drawer side down. This will make removing the full bag easier.

1. Lift bag by bag caddy handles. Remove trash bag from compactor and dispose properly.

NOTE: Fully compacted trash bags will be heavy. Handle with care.

Illustration of hands using a tool to handle a bag, with a labeled point A pointing to the object (no text or symbols present)

A. Lifting bag caddy by handles

Installing a New Bag

Do not use any kind of bag other than those designed especially for use in your compactor. Order replacement compactor bags through your local dealer. See "Accessories."

IMPORTANT:

Before installing a new bag, be sure:

■ The drawer side is securely locked.

■ The container is clean and free of debris.

To install a new bag

1. Close drawer side. Lock drawer side latch.

Hand operating a mechanical clamp or lever mechanism (no text or symbols visible)

1. Put bag caddy into drawer.

A. Bag caddy inside drawer

1. Place either a plastic or paper bag into the drawer.

■ If using a paper bag, open bag and pull top edges over the drawer top. Slide front edge of bag over front edge of drawer. Slide rear edge over rear of drawer.
■ If using plastic bag, open bag and pull top edges over drawer top. Lock bag into place by pulling the 4 prepunched holes over the bag retainer buttons. Holes will expand over buttons without harming bag.

Simple line drawing of a rectangular container with a side arm, no text or symbols present

Line drawing of a person using a bench presser to lift a wooden plank (no text or symbols)

Installing paper bag Installing plastic bag

1. Press inside of bag against the drawer bottom, sides and corners for a smooth fit.

Illustration of a person pressing down on a wooden plank (no text or symbols)

COMPACTOR CARE

Your new compactor is designed to give you many years of dependable service. However, there are a few things you are expected to do in order to properly maintain your compactor. This section will tell you how to clean and care for your compactor.

Cleaning

Before cleaning the compactor, turn the Key-Knob (or Key-Switch) to the OFF & LOCK position and remove it.

NOTE: Any services other than those outlined in this section should be performed by a designated service representative.

Cleaning Exterior Surfaces

1. Wash exterior surfaces (including stainless steel) with a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Rinse and dry thoroughly with a soft cloth.
2. Wipe up spills right away. Some foods can damage the finish if left on the compactor surface.

Cleaning Inside the Drawer

NOTE: You may want to wear gloves since there may be bits of glass in the drawer.

1. Remove the bag. See "Removing a Filled Bag."
2. Press down on the lever-action lock (or Side-Lock latch).

1. Hold the lever-action lock down and tilt the side of the drawer out until the lock clears the drawer front. NOTE: If desired, the drawer side can be removed by tilting it up, then lifting it out.

Line drawing of hands holding a rectangular container with a handle, no text or symbols present

1. Wash the interior of the drawer with a clean sponge or soft cloth and a mild detergent in warm water. Rinse and dry thoroughly with a soft cloth.

2. If the drawer side was removed, slide it back into the tilted position.

3. Press the lever-action lock (or Side-Lock Latch) down while pushing the drawer side to the upright position.
   7.Latch the drawer side by pushing up the lever-action lock (or Side-Lock Latch).

Cleaning Inside the Cabinet

NOTE: You may want to wear gloves since there may be bits of glass in the cabinet.

1. Pull the drawer out until it stops. NOTE: Look to see how the drawer rollers move in the tracks. It will be easier to replace the drawer after you have finished cleaning.

Diagram of a hand pressing down on a mechanical device with an arrow indicating left motion (no text or symbols)

1. Lift the front of the drawer to clear the stops.
2. Grasp the drawer on the sides and pull it out the rest of the way. Set the drawer down gently.

1. Vacuum the inside of the cabinet. Liquid spills or wet trash should be cleaned up by hand, or by using a vacuum designed to pick up liquids.

Illustration of a hand using a tool to clean or store items (no text or symbols visible)

1. Wash the inside of the cabinet with a clean sponge or soft cloth and a mild detergent in warm water. Rinse and dry thoroughly with a soft cloth.
2. To replace the drawer, grasp it by the sides and insert the rollers onto the tracks.
   7.Lift the front of the drawer and push it in fully past the stops.

Cleaning the Ram

NOTE: You may want to wear gloves since there may be bits of glass on the ram cover.

1. Wipe glass particles off of the ram cover with a cloth or paper towels.
2. Remove foods with a clean sponge or soft cloth and a mild detergent in warm water. Rinse and dry thoroughly with a soft cloth.

Line drawing of a hand cleaning a wall-mounted device (no text or symbols)

Cleaning Before a Vacation

If you will be away for more than a couple of days, remove the compactor bag. Remove the Key-Knob (or Key-Switch) and store it out of children's reach.

TROUBLESHOOTING

Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.

Trash is not compacting

■ Is the drawer less than half full? Drawer must be more than half full before trash is compacted.

Your compactor will not operate

Is the power supply cord unplugged? Plug into a grounded 3 prong outlet.

■ Has a household fuse blown, or has a circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.

■ Is the drawer completely closed? Close the drawer firmly and start the compactor again.

Is the Key-Knob turned all the way to ON? Turn the Key-Knob (Key-Switch) fully to ON. See "Starting Your Compactor."

The drawer will not open

■ Did you lift up on the handle to pull drawer out or press foot pedal? Drawer is designed to slightly open until you lift up on the handle to pull drawer out or press on the foot pedal.
■ Is the ram all the way up? Drawer will open only when ram is fully raised.
To raise the ram, lift up on the foot pedal. See "Starting Your Compactor."
Is the EXTRA PAC™ cycle selected? Drawer remains locked until you reset it by lifting up on the foot pedal. See "Starting Your Compactor."

There is not enough compaction or force

■ Do you use the compacting cycle frequently enough? Compacting works best when only a few items are loaded.

Bottles do not break

How often do you notice this? Bottles will not break every time. The thickness of the bottle's glass and the content of the trash load below it may keep the bottle from breaking.

ÍNDICE

Toronto, Ontario, Canada M5B 2C3

Illustration of a person's legs and feet stepping down on stairs, showing foot positioning and stair level (no text or symbols)

Technical line drawing of two hands assembling a mechanical component labeled A and B (no text or symbols present)

Two identical diagrams of a container with stacked layers and vertical rods, no text or symbols present.

Illustration of a vehicle inside a container with visible exhaust pipes (no text or symbols)

Cómo cargar

Two technical line drawings showing a hand interacting with a rail and a foot, both without any text or symbols.

Diagram of a vehicle inside a vehicle cabin, showing internal components and no text or symbols

1. Cierre la gaveta.

A. Panel de control

Line drawing of a door handle and blade assembly (no text or symbols)

A. Panel de control

Line drawing of hands using a tool to handle a piece of wood or paper (no text or symbols)

Line drawing of a person using a bench press on a wooden table (no text or symbols)

Line drawing of a hand washing clothes from a sink into a bowl (no text or symbols)

Illustration of hands handling a bag with a knife, no text or symbols present

Hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Simple line drawing of a rectangular container with horizontal lines inside, no text or symbols present.

Line drawing of a person pressing down on a wooden plank (no text or symbols)

Illustration of a person pressing down on a wooden plank (no text or symbols)

Simple line drawing of two hands opening a rectangular box (no text or symbols)

Diagram of a hand pressing a wooden frame with an arrow indicating left motion (no text or symbols)

Illustration of a hand using a tool to clean or store items (no text or symbols visible)

Line drawing of a hand cleaning a wall-mounted device (no text or symbols)

INSTRUCTIONS D'INSTALLATION....29

Déballage 29

Toronto, Ontario, Canada M5B 2C3

SÉCURITÉ DU COMPACTEUR

Illustration of a person's legs and feet stepping down on stairs, showing foot positioning and usage (no text or symbols)

Cross-sectional diagram of a layered geological or structural structure with embedded columns and vertical posts (no text or labels)

Diagram of a mechanical assembly with cylindrical components and two vertical rods inside a dashed box (no text or labels)

Illustration of a vehicle inside a vehicle cabin, showing internal components and no text or symbols

Chargement

Two technical diagrams showing a hand holding a rectangular object and a foot interacting with a wall-mounted device (no text or symbols present)

Simple line drawing of a car inside a vehicle (no text or symbols)

1. Fermer le tiroir.

Technical line drawing of a door handle and seat with labeled component A (no text or symbols beyond label)

Technical line drawing of a door handle and seat with labeled component A (no text or symbols beyond label)

Illustration of hands using a tool to handle a piece of wood or paper (no text or symbols visible)

Line drawing of a person using a bench press on a wooden table (no text or symbols)

Line drawing of hands cleaning a bed with a cloth (no text or symbols)

Illustration of hands using a tool to handle a bag, with a label 'A' visible (no text or symbols on the diagram itself)

Hand using a manual tool to adjust or install a mechanical component (no text or symbols visible)

Simple line drawing of a rectangular container with horizontal lines at both ends (no text or symbols)

Line drawing of a person pressing down on a wooden plank (no text or symbols)

Line drawing of a person's legs resting on a wooden plank (no text or symbols)

Simple line drawing of two hands opening a rectangular box (no text or symbols)

Diagram of a hand opening a mechanical device with an arrow indicating left motion (no text or symbols present)

Illustration of a hand using a tool to clean or brush a surface (no text or symbols)

Line drawing of a hand cleaning a wall-mounted device (no text or symbols)

Get it fixed, at your home or ours!

Your Home

For troubleshooting, product manuals and expert advice:

managemylife

www.managemylife.com

For repair – in your home – of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it!

For the replacement parts, accessories and owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances and items like garage door openers and water heaters.

1-800-4-MY-HOME® (1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment, and electronics, call anytime for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.)

www.sears.com

1-800-469-4663 (Canada)

www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.)

1-800-361-6665 (Canada)
