USER MANUAL BVSTMF2316-033 OSTER

© 2016 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All rights reserved. In Canada, imported and distributed by Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions, 20B Hereford Street, Brampton, Ontario L6Y 0M1.

P.N. 188789 Rev A GCDS-OST47306-SL

Black Oster coffee maker with control panel and lid, no visible text or symbols on device body

www.oster.ca

IMPORTANT SAFETY INSTRUCTIONS

1. Read all instructions before using.
2. Before connecting the appliance to the power supply, check that the voltage indicated on the appliance corresponds with the voltage in your home. If this is not the case, contact your dealer and do not use the Milk Frother.
3. To disconnect, turn any control to OFF, then remove plug from wall outlet.
4. Do not operate the appliance without anything in it to avoid damaging the heat elements.
5. Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not let the cord hang over the edge of a table or counter or touch a hot surface.
7. Do not place on or near a hot gas or electric burner or in a heated oven.
8. Ensure that the appliance is used on a firm and flat surface out of reach of children, this will prevent the appliance from overturning and prevent damage or injury.

2

1. Keep hands and utensils out of container while frothing or mixing to reduce the risk of injury to persons or damage to the appliance.
2. To protect against a fire, electric shock or personal injury, do not immerse cord, electric plugs, jug or base in water or other liquids.
3. Close supervision is necessary when any appliance is used by or near children.
4. Do not touch hot surfaces. Use handles or knobs.
5. Extreme caution must be used when moving an appliance containing hot liquids.
6. Avoid contacting moving parts.
7. The use of attachments not recommended or sold by manufacturer may cause fire, electric shock or injury.
8. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
9. This appliance is only used for frothing and heating milk. Do not use the appliance for other than intended use.
10. Always operate the appliance with cover in place.
11. Children should be supervised to ensure that they do not play with the appliance.

3

1. Do not use outdoors.
2. Save these instructions.

SAVETHESEINSTRUCTIONS HOUSEHOLD USE ONLY

POLARIZED PLUG

This appliance has a polarized plug. To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way, If the plug does not fit fully into the outlet, reverse the plug, If it still does not fit, contact a qualified electrician, Do not attempt to modify the plug in any way.

4

POWER CORD INSTRUCTIONS

a) A short power-supply cord is to be provided to reduce risks resulting from becoming entangled in or tripping over a long cord.
b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used,

1) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance.
2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord.
3) The longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over.

5

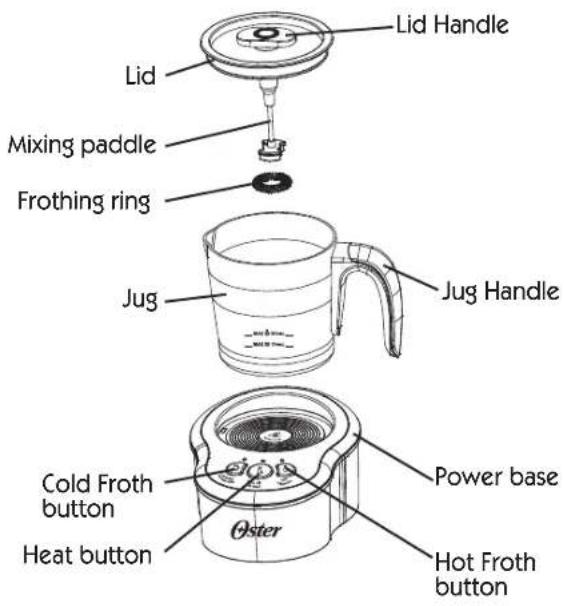

KNOW YOUR MILK FROTHER BEFORE THE FIRST USE

The appliance can be used for finishing the following tasks separately: Frothing milk - hot or cold or heating milk.

1. Before using your milk frother, clean all the parts according to the section "CLEANING AND MAINTENANCE".
2. The mixing paddle is equipped with frothing ring. The frothing ring is used for frothing hot or cold milk. The mixing paddle is used for mixing milk during heating to prevent from sticking.

NOTE: the max capacity of the jug is 800ml.

1. Place the appliance on a flat surface.
2. Fill the jug with up to 150 ml of milk, and replace the lid.

NOTE: For best performance, use cold milk straight out of the refrigerator. The max milk quantity permitted to add is 150 ml, to avoid milk overflowing after frothing.

1. Place the jug on the power base and connect the plug into a power outlet.

2. Press the cold froth button once, the corresponding indicator will illuminate blue, the mixing paddle and frothing ring will rotate for frothing milk separately but the heating element will not heat up. The appliance will automatically stop rotating after operating for approximately 2 minutes.

NOTE: Do not remove the lid during the milk frothing process.

NOTE: During operation, you can stop operating by pressing the cold froth button.

1. When the appliance has stopped operating, open the lid, pour out the frothed milk and enjoy it.

2. Always disconnect the power supply when not use.

II. Heating Milk

1. Place the appliance on a flat surface.

2. Open the lid.

3. Fill the jug with up to 250ml of milk, and replace the lid.

NOTE: the max milk quantity permitted to add is 250ml, to avoid milk overflowing after heating.

1. Place the jug on the power base and connect the plug into a power outlet and 3 LED lights will illuminate Red.

2. Press the heat button once, a blue indicator light will illuminate and then the appliance will start to work. Once the temperature is reached, the heating element will stop heating and the mixing paddle will stop rotating automatically.

Note: During operation, you can stop operating by pressing the heat button once. Note: The rotation of mixing paddle is only used for avoiding sticking. It will not froth the milk.

1. When the appliance has stopped operating, open the lid, pour out the warmed milk and enjoy it.

Caution: Minimum 3 minutes rest time must be maintained between two continuous cycles, otherwise the appliance will enter self-protection state automatically after working for 5 cycles continuously. The indicator will illuminate red and flash. After 10 minutes, the appliance will switch to standby state and you can continue operating the appliance.

8

1. Always disconnect the power supply when not use.

III. Frothing & Heating

1. Place the appliance on a flat surface.

2. Fill the jug with the desired amount of milk, and replace the lid.

NOTE: the max milk quantity permitted to add is 150ml, to avoid milk overflowing after mixing or frothing.

1. Place the jug on the power base and connect the plug into a power outlet. 3 LED lights will illuminate Red.

2. Press the hot froth button once, a blue indicator light will illuminate. Then the appliance will start to work. Once the temperature of milk is reached, the heating element will stop heating and the mixing paddle will stop rotating automatically.

3. When the appliance has stopped operating, open the lid, pour out the warmed and frothed milk to enjoy it.

Note: Do Not Remove the lid during the milk frothing process.

Caution: Minimum 3 minutes rest time must be maintained between two continuous cycles, otherwise the appliance will enter self-protection state automatically after working for 5 cycles continuously. The indicator will illuminate red and flash. After 10 minutes, the appliance will switch to standby state and you can continue operating the appliance.

1. Always disconnect the power supply when not use.

CLEANING AND MAINTENANCE

Always disconnect the appliance from the power outlet and allow it to cool down before cleaning.

CAUTION: Never immerse the power base in water or allow moisture to come in contact with these parts.

1. After each use, wash the lid, jug and frothing ring in warm water and mild detergent. Rinse thoroughly and dry. This product is not dishwasher safe.

CAUTION: Never use sharp cleaning objects such as hard nylon or metal brushes or abrasive cleaning agents to avoid scratching on the inside or outside of the milk container. Never put the base in the dishwasher or immerse into water or other liquids.

WARRANTY INFORMATION

1-YEAR LIMITED WARRANTY

Sunbeam Products, Inc. doing business as Jarden Consumer Solutions or if in Canada, Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions (collectively "JCS") warrants that for a period of one year from the date of purchase, this product will be free from defects in material and workmanship. JCS, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty. Do NOT attempt to repair or adjust any electrical or mechanical functions on this product. Doing so will void this warranty. This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. JCS dealers, service centers, or retail stores selling JCS products do not have the right to alter, modify or any way change the terms and conditions of this warranty. This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than JCS or an authorized JCS service center. Further, the warranty does not cover: Acts of God, such as fire, flood, hurricanes and tornadoes.

What are the limits on JCS's Liability?

JCS shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or statutory warranty or condition.

Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty.

JCS disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise.

JCS shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of contract, fundamental or otherwise, or for any claim brought against purchaser by any other party.

Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from province to province, state to state or jurisdiction to jurisdiction.

How to Obtain Warranty Service

In the U.S.A.

If you have any question regarding this warranty or would like to obtain warranty service, please call 1-800-334-0759 and a convenient service center address will be provided to you.

In Canada

If you have any question regarding this warranty or would like to obtain warranty service, please call 1-800-667-8623 and a convenient service center address will be provided to you.

In the U.S.A., this warranty is offered by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions located in Boca Raton, Florida 33431. In Canada, this warranty is offered by Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions, located at 20B Hereford Street, Brampton, Ontario L6Y 0M1. If you have any other problem or claim in connection with this product, please write our Consumer Service Department.

PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE
