B-8P - Subwoofer Sound Ordnance - Free user manual and instructions

Product Type	Powered Subwoofer
Brand	Sound Ordnance
Model	B-8P
Driver Size	8 inches
Cone Material	Polypropylene
Voice Coil Diameter	1.5 inches (38 mm)
Basket Material	Heavy gauge stamped steel
Amplifier Power Output (RMS)	80 watts
Amplifier Power Output (Peak)	160 watts
Frequency Response	20-200 Hz
Crossover Frequency Range	70-200 Hz
Crossover Slope	6 dB/octave
Phase Control	0-180 degrees
Bass EQ	Adjustable (0 dB boost)
Power Supply	12V DC negative ground
Fuse Rating	1 x 7.5 amp
Dimensions (Width x Height x Depth1 x Depth2)	14.875" x 11.13" x 14.875" x 10.125" (377.83 x 282.58 x 377.83 x 257.18 mm)
Port Dimensions	1" diameter x 10" length (25 mm x 254 mm)
Grille	Acrylic grille included
Power Mode	Auto (signal sense) or Remote wire
Input Connections	Low level RCA and high level speaker wire
Warranty	3 years parts and labor
Package Contents	Powered subwoofer, acrylic grille, manual
Safety	Disconnect battery before installation; keep away from water and high temperatures

Frequently Asked Questions - B-8P Sound Ordnance

How do I connect the subwoofer to a factory stereo without RCA outputs?

Use the high level inputs (speaker wire) provided. Connect the speaker outputs from your factory stereo to the high level input harness, observing correct polarity. Do not use both low and high level inputs simultaneously.

What is the difference between Auto Mode and Remote Wire mode?

In Auto Mode, the subwoofer turns on automatically when it detects an incoming audio signal, ideal for factory head units without a remote wire. In Remote Wire mode, it turns on when 12V DC is applied to the remote turn-on lead, giving you direct control from an aftermarket head unit.

How do I adjust the phase control?

Start with the phase control set to 0 degrees. Listen from the normal listening position. If bass sounds weak or thin, adjust the phase control gradually until the bass becomes full and punchy. This compensates for any delay between the subwoofer and the rest of the system.

My subwoofer won't turn on (no power LED). What should I check?

First, check that the BAT+ wire has 11-16VDC, the REM wire (if used) has 12V, and the GND wire is securely connected to clean bare metal. If all connections are good, inspect the fuse and replace if blown.

Why is there engine noise?

Engine noise is typically caused by a bad ground connection or a signal ground loop. Ensure the subwoofer's ground is attached to clean, unpainted metal. Also, reroute RCA cables away from high-current wiring to reduce radio frequency interference.

How do I set the gain (LEVEL control) correctly?

Turn the LEVEL control fully counterclockwise. Set your head unit volume to about 3/4 of its maximum. Slowly turn the LEVEL control clockwise until you hear audible distortion, then turn it back slightly counterclockwise. This matches the head unit output to the subwoofer input.

What is the recommended fuse rating for the B-8P?

The subwoofer uses a single 7.5 amp fuse. Always replace with the same rating to avoid damage. The power wire should also have a fuse within 18 inches of the battery, sized according to your installation kit.

Can I use both low level (RCA) and high level inputs at the same time?

No, do not connect both input types simultaneously. Use only one type: either low level RCA outputs from an aftermarket head unit, or high level speaker wire inputs from a factory stereo.

What are the dimensions of the B-8P subwoofer?

The dimensions are: Width 14.875 inches (377.83 mm), Height 11.13 inches (282.58 mm), Depth 1 14.875 inches (377.83 mm), Depth 2 10.125 inches (257.18 mm). Depth 2 likely refers to mounting depth or depth with grille.

Does the Sound Ordnance B-8P come with a warranty?

Yes, it comes with a 3-year limited warranty covering parts and labor, valid only in the USA and Canada. The warranty applies to the original purchaser from an authorized dealer. Proof of purchase is required for service.

USER MANUAL B-8P Sound Ordnance

Basket: Heavy gauge stamped steel

Cone material: Polypropylene

Voice coil diameter: 1.5" (38 mm)

Power output:80 watts RMS (160 watts peak)

Frequency response:46-150 Hz

Port diameter and length:....1"×10"(25mm×254mm)

Dimensions:

Width: 14.875" (377.83 mm)

Height: 11.13" (282.58)

Depth 1:....14.875" (377.83 mm)

Depth 2:10.125(257.18mm)

Acrylic grille included

In order to improve this product, specifications and design are subject to change without notice.

Exclusively designed and produced for

Virtual Gateways LLC

1540 Quiet Acres

Charlottesville VA,22911,USA

SOUND ORDNANCE

POWERED SUBWOOFERS

B-8P

B-8PT

Thank you for purchasing Sound Ordnance

You're now ready to win the battle for great sound.

To ensure safe operation, always follow the instructions and guidelines in this manual.

Keep this manual handy for reference.

www.soundordnance.com

All rights reserved.

TABLE OF CONTENTS

Safety Instructions 3

Setup and Installation 4

Connections 5

Wiring 7

Controls and Setup 8

Troubleshooting 9

Operation 10

SAFETY INSTRUCTIONS

The product's warranty is rendered void in cases of damage resulting from failure to comply with safety and operating instructions. We do not accept any liability for consequential damages. We do not accept any liability for personal injury or damage to property caused by incorrect handling of the device or failure to observe the safety and operating instructions. In such cases the warranty is rendered void.

High volume levels can cause hearing damage or loss. Use care when setting the volume of your subwoofer. Obey any local noise laws or ordinances.

To prevent injury or damage to your powered subwoofer, please read and follow the instructions in the manual.

If you're not confident about installing your powered subwoofer, call us at 1-800-955-9094.

Disconnect the cable to your car battery's negative terminal before starting the installation.

• For safety reasons, do not attempt to modify the subwoofer.
• Only a 12V DC car supply system (negative ground) should be used. Never connect the subwoofer to any other voltage supply.
• Extra care should be taken when first turning on the amplifier after installation. Please follow the operating instructions carefully.

• Keep water and other liquids away from the vicinity of the powered subwoofer. This could result in a fire or a fatal electrical shock. If liquids get into the subwoofer, immediately disconnect the power to the subwoofer.

• Do not expose the subwoofer to high temperatures, strong vibrations or heavy loads.

• Do not leave packaging material unattended around childern.
• Observe the safety and operating instructions of this subwoofer and any other devices connected to the subwoofer.
• Disconnect the negative battery terminal to your car battery before beginning installation. Some vehicles may require a reset after this. Consult with your car dealer or mechanic.

SETUP AND INSTALLATION

To ensure proper operation, please read these instructions carefully before installing and using this powered subwoofer.

These installation instructions do not cover all possible installation issues. If you're not confident about installing your powered subwoofer, call us at 1-800-955-9094.

1. Read and understand the instructions before attempting to install this powered subwoofer.
2. Disconnect the negative terminal from the battery prior to starting the installation. Disconnecting the negative terminal on some vehicles may result in safety equipment becoming disabled. Consult with your car dealer or mechanic if you have any questions or concerns.

3. For the best possible sound, use high-quality connectors and wiring.

4. Exercise caution before doing any drilling or cutting in your car. Be careful of fuel lines, electrical wiring, vacuum lines, or fuel tanks in your vehicle.

5. Never run power or speaker wires underneath your vehicle. Protect the wires by keeping them inside the vehicle.
   6 Avoid running power or speaker wires over, near, or through sharp-edged surfaces. Use rubber grommets to protect wires running through openings in metal.

CONNECTIONS

Do not use both low and high level inputs at the same time - connect only one or the other.

Never run any wires underneath or outside the vehicle.

NOTE: Be sure to follow specific instructions included with your amplifier installation kit (not included with this powered subwoofer). The information below should be used a general guideline only.

Power Wire (BAT+)

• Disconnect the negative battery terminal before proceeding. Call 1-800-955-9094 for instructions if you are unsure.
• Plan wire routing before cutting any wires to length. Begin by routing the power BAT+ wire from the battery to the subwoofer location. Use a grommet when running wires through the firewall or metal openings. Avoid running the power wire near existing vehicle wiring to prevent induced noise from entering the audio system.
  • Exercise caution when drilling holes to avoid damaging fuel lines or existing vehicle wiring.
• The BAT+ wire MUST be fused within 18" of the battery for protection of the vehicle's electrical system.

Ground Wire (GND)

- The subwoofer's ground wire should be as short as possible. Choose a

clean unpainted section of metal or the vehicle chassis when attaching the ground connection. Be sure to clean the area of any dirt or grease.

Remote Turn-on Wire (REM)

- The remote turn-on wire connects to the head unit's amplifier turn-on lead or other switched 12-volt source.

Input Signal

• The subwoofer's input signal connects to the head unit's low level (RCA) or high level (speaker wire) outputs.
  • Dedicated subwoofer or low level inputs signal deliver the best performance. If unavailable, use the high level inputs - when interfacing with factory head unit for instance. Be sure to observe the correct polarity when using the high level inputs.

B-8P Connections and Controls

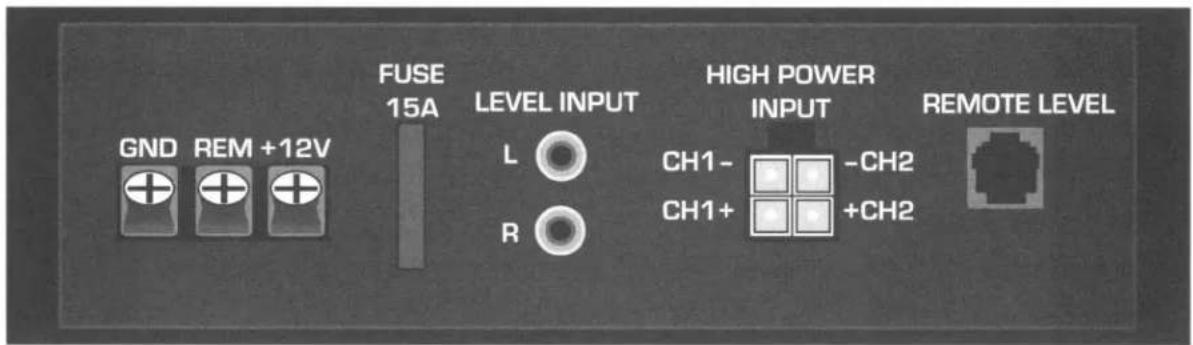

B-8PT Connections

WIRING

B-8P/B-8PT

CONTROLS AND SETUP

POWER MODE(AUTO MODE)	Set the switch to AUTO MODE is your system setup doesn't have a remote wire, as with stock head units. The subwoofer will turn on automatically when it detects an incoming signal.
POWER MODE(REMOTE WIRE)	Set the switch to REMOTE WIRE is you have attached a remote turn-on lead to the subwoofer.
LEVEL	The LEVEL control (gain) is used to obtain the best possible match between the head unit audio output and the amplifier input. Begin by turning the input level control fully counterclockwise. Next, turn up the head unit volume control around 3/4 of the way up. Adjust the input level control clockwise until audible distortion is heard, then slightly counterclockwise to provide the best match.
BASS EQ	The BASS EQ lets you boost or attenuate the bass level to match your listening preference. Set the Bass EQ at 0dB to start, and increase the level for stronger bass.
PHASE	The PHASE control compensates for delay between the subwoofer's output and the rest of the sound system. Begin with the phase control set to 0 degrees. If the sound is adequate from the normal listening position inside the vehicle, no further adjustment is necessary. If the sound is thin or lacking bass, adjust the phase control until the bass is full and punchy.
FREQ	The FREQ is an adjustable crossover will filter out frequencies the frequency it's set for. Adjust it to where the sub's sound output blends with the rest of the sound system.
POWER	The POWER LED indicator illuminates red during normal operation.

TROUBLESHOOTING

PROBLEM	CAUSE	ACTION
Unit will not turn on (no power LED indicator)	BAT+ wire not connected or incorrect voltage REM wire not connected or incorrect voltageGND wire not connectedFuse(s) blown	Check connections for proper voltage (11~16VDC)Check connection to groundReplace fuse(s)
Unit will not turn on (no power LED indicator)	Volume turned all the way downSpeaker defective or damagedInput signal not connected	Increase volume level at head unitCheck/replace speakerCheck high or low level inputs for proper connection
Unit blows fuse(s)	Incorrect fuse ratingBAT+ wire touching chassis groundSubwoofer defective or damaged	Use fuse(s) with correct ratingCheck for pinched wireCheck/replace subwoofer
Engine noise	Bad ground connectionSignal ground loop or RFI (radio frequency interference)	Make sure subwoofer is grounded to clean bare metalRe-route RCA cables from existing high current wiring
Distorted audio output	Incorrect input signal type or input level too high	Check connections and reduce/adjust input level
Low audio output	Incorrect input signal type or input level too low	Check connections and increase or adjust input level
Weak bass	Low frequency output is out of phase	Adjust phase control as needed

SPECIFICATIONS

	B-8P	B-8PT
Maximum Output Power	160 W	250 W
Continuous Output Power	80 W	120 W
Frequency Response	20-200Hz	40-200Hz W
Crossover Frequency	70-200Hz	80-200Hz
Crossover Slope	6dB/octabe	18dB/octave
Phase	0-180 degrees	0-180 degrees
Fuse	1 x 7.5 amp	1 x 15 amp
Dimensions (mm)	390 x 234 x 390	230 x 80 x 340

SOUND ORDNANCE

To ensure safe operation, always follow the instructions and guidelines in this manual.

Keep this manual handy for reference.

www.soundordnance.com

All rights reserved.

Virtual Gateways LLC™ Limited Warranty (Valid Only in the U.S.A. and Canada)

Virtual Gateways LLC (“Virtual”) warrants this Product (expressly excluding any accessories) against defects in material or workmanship as follows:

Terms of warranty coverage: This warranty covers the product during the warranty period so long as the product is owned by the same individual whose name appears on the invoice received upon purchase of the product. Product must be purchased from an authorized dealer or this Warranty will not be honored. Transferring possession of the product to a subsequent owner will void this warranty. In the event service is required the product must be delivered within the warranty period, transportation prepaid by you to Virtual Gateways LLC, 1 Crutchfield Park, Charlottesville, VA 22911. Prior to returning the product you must first obtain a return authorization number from Virtual by calling 1-800-955-9094. You will need to carefully package the product using adequate packing material to prevent damage in transit and include in the package your Return Authorization Number, name, address, telephone number where you can be reached during business hours, a copy of your dated sales receipt, and a detailed description of the problem. You are responsible for removal and installation of the product. Proof of purchase in the form of a bill of sale which is evidence that the product is within the warranty period MUST be presented to obtain warranty service. Virtual will pay the cost of returning the repaired or replacement product to you within the United States of America or Canada within 8 to 12 weeks from the time of receipt of a product which is determined to be covered under this warranty by Virtual. Any removal or defacement of the unit's serial number will void this warranty.

Warranty Period: For a period of 3 years for parts and 3 years for labor from date of the original purchase from an authorized dealer, if this Product is determined by Virtual to be defective Virtual will repair or replace the Product with a new, rebuilt or refurbished unit of comparable value, at Virtual's sole option, without charge to you for parts or actual repair work. Parts and/or replacement units supplied under this warranty may be new, rebuilt or refurbished at the option of Virtual.

What's Not Covered: This warranty does not cover any product used in any trade, business, industrial or commercial application; customer instruction, installation, set up adjustments, signal reception problems, cabinet, cosmetic or appearance items, any damage to recordings, or recordings of tapes or discs, any damage to product resulting from alterations, modifications, accident, misuse, negligence or abuse, damage due to lightning or power surges; subsequent damage from leaking, damaged or inoperative batteries or the use of batteries different from those specified in the owner instructions; speakers subjected to power in excess of published power rating; damage due to improper operation or maintenance, connection to improper voltage supply; attempted repair by anyone other than Virtual; damage from improper maintenance; damage incurred in transit; damage or defects caused by the use of unauthorized parts or labor. This warranty does not cover consumables, (fuses, batteries, etc.).

This warranty does not cover the cost of parts and labor which would be otherwise provided without charge under this warranty, obtained from any source other than Virtual.

This warranty is invalid if the factory applied serial number has been modified, altered or removed from the Product.

This warranty is only valid in the United States of America and Canada.

Your Rights: REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. VIRTUAL SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some states or provinces do not allow limitations on how long an implied warranty lasts, and some states or provinces do not allow the exclusion or limitation of incidental or consequential damages. The above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state or province.
