Product Type	DVD Player
Model Number	DVP-NS45P
Brand	Sony
Power Requirements	120 V AC, 60 Hz (U.S./Canadian models)
Power Consumption	10 W
Dimensions (W x H x D)	430 x 43 x 208 mm
Weight	1.72 kg
Laser Type	Semiconductor laser
Video Signal Format	NTSC
Audio Frequency Response (DVD PCM 96 kHz)	2 Hz to 44 kHz
Signal-to-Noise Ratio	115 dB (LINE OUT L/R)
Harmonic Distortion	0.003%
Dynamic Range (DVD)	103 dB
Playable Discs	DVD VIDEO, DVD-RW/-R, DVD+RW/+R, VIDEO CD, Music CD, CD-RW/-R, DATA CD/DVD (MP3, JPEG)
Video Outputs	Composite (RCA), S-Video, Component (Y Pb Pr)
Audio Outputs	Analog stereo (LINE OUT), Digital coaxial (DIGITAL OUT)
Progressive Scan	Yes (480p)
Surround Sound Effects	TV Virtual Surround (TVS) - Dynamic Theater, Dynamic, Wide, Night, Standard
Playback Modes	Program, Shuffle, Repeat, A-B Repeat
Additional Functions	Zoom, Picture Navigation, Multi-Angle, Subtitle, Parental Control, Child Lock, Resume
Cleaning Instructions	Use soft cloth slightly moistened with mild detergent; do not use abrasive pads or solvents
Safety Compliance	FCC Class B, Laser Class 1
Repair	Refer to qualified service personnel; use manufacturer-specified replacement parts
Operating Temperature	5 °C to 35 °C
Supplied Accessories	Remote control, Audio/Video cord, AA batteries (2)

Frequently Asked Questions - DVP-NS45P SONY

How do I play a DVD on the DVP-NS45P?

Turn on the TV and player. Press the OPEN/CLOSE button on the remote or front panel to open the disc tray. Place the disc with the playback side facing down, then press PLAY. The tray closes and playback starts automatically. Use the MENU or TOP MENU button to access disc menus.

Why is there no picture when I play a disc?

Check that the video cable is securely connected to the correct input on your TV. Ensure the TV input source is set to the corresponding input. If using progressive output, make sure your TV supports 480p and the PROGRESSIVE button is set correctly (press to cycle between AUTO, VIDEO, or NORMAL). Also clean the disc if dirty.

Why is there no sound?

Verify that the audio cables are firmly connected to the TV or amplifier. Check that the amplifier input is set correctly and that mute is not enabled. If using digital audio, ensure the AUDIO SETUP has DOLBY DIGITAL set to D-PCM if your receiver lacks a decoder. Also, press AUDIO to cycle through available soundtracks.

How do I set up the player for the first time?

After connecting the player, turn it on and press ENTER when the Quick Setup prompt appears. Select the on-screen display language, TV type (4:3 or 16:9), and audio output connection type (analog or digital). Follow the on-screen instructions to complete the setup. You can also access Quick Setup later via the SETUP menu.

How should I clean the player and discs?

For the player cabinet, use a soft cloth slightly dampened with a mild detergent solution. Never use abrasive pads, alcohol, or benzine. For discs, wipe gently from the center outward with a clean cloth. Do not use commercial disc cleaners or anti-static sprays. Always handle discs by the edges.

Can I play discs from other regions?

The DVP-NS45P has a region code printed on the rear. It only plays DVD VIDEOS with the same region code or ALL region code. Playing a disc from a different region will display a prohibition message. This is a copyright protection feature.

How do I use the Child Lock feature?

To lock the disc tray, with the player in standby mode, press RETURN, then ENTER, then I/ (On/Standby) on the remote. The front panel displays LOCKED. To unlock, repeat the procedure. The tray cannot be opened while locked.

What is the Multi-disc Resume function?

The player remembers the point where you stopped playback for up to six discs. Press PLAY after stopping to resume from that point. To start from the beginning, press STOP twice. This feature can be turned on/off in the CUSTOM SETUP menu under MULTI-DISC RESUME.

How do I change the audio language or subtitles?

During playback, press the AUDIO button repeatedly to cycle through available audio tracks or languages. Press SUBTITLE to turn subtitles on/off or change language. Options depend on the disc. Some discs allow selection via the disc menu (press MENU or TOP MENU).

How can I zoom in or search for a specific scene?

Press ZOOM repeatedly to magnify the image (2x, 3x, 4x) and use the arrow keys to pan. For searching, press SEARCH (or use the number buttons) to enter a title, chapter, or time code. You can also use PICTURE NAVI to display a grid of chapter/ track thumbnails for quick selection.

USER MANUAL DVP-NS45P SONY

Operating Instructions US

For customers in the U.S.A Owner's Record

The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. DVP-NS45P

Serial No.

For Customers in Canada

If this product is not working properly, please call 1-877-602-2008 for Peace of Mind Warranty Replacement service.

For other product related questions please contact our Customer Information Service Centre at 1-877-899-7669 or write to us at: Customer Information Service 115 Gordon Baker Road, Toronto, Ontario, M2H 3R6

DVP-NS45P

© 2006 Sony Corporation

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

The AC power cord must be changed only at a qualified service shop.

CAUTION

The use of optical instruments with this product will increase eye hazard. As the laser beam used in this CD/DVD player is harmful to eyes, do not attempt to disassemble the cabinet.

Refer servicing to qualified personnel only.

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage"

within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Note

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

Notes About the Discs

• To keep the disc clean, handle the disc by its edge. Do not touch the surface.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car. • After playing, store the disc in its case.
• Clean the disc with a cleaning cloth.

Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner, commercially available disc/lens cleaners, or anti-static spray intended for vinyl LPs.
• If you have printed the disc's label, dry the label before playing.

Important Safeguards

For your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference.

Carefully observe all warnings, precautions and instructions on the appliance, or the one described in the operating instructions and adhere to them.

Use

Power sources

This set should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of electrical power supplied to your home, consult your dealer or local power company. For those sets designed to operate from battery power, or other sources, refer to the operating instructions.

Grounding or Polarization

This set is equipped with a polarized ac power cord plug (a plug having one blade wider than the other), or with a three-wire grounding type plug (a plug having a third pin for grounding). Follow the instructions below:

For the set with a polarized AC power cord plug:

This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the polarized plug by forcing it in.

For the set with a three-wire grounding type AC plug:

This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the grounding plug.

Overloading

Do not overload wall outlets, extension cords or convenience receptacles beyond their capacity, since this can result in fire or electric shock.

Object and Liquid Entry

Never push objects of any kind into the set through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the set.

Attachments

Do not use attachments not recommended by the manufacturer, as they may cause hazards.

Cleaning

Unplug the set from the wall outlet before cleaning or polishing it. Do not use liquid cleaners or aerosol cleaners. Use a cloth lightly dampened with water for cleaning the exterior of the set.

Installation

Water and Moisture

Do not use power-line operated sets near water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

Power-Cord Protection

Route the power cord so that it is not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the plugs, receptacles, and the point where the cord exits from the appliance.

Accessories

Do not place the set on an unstable cart, stand, tripod, bracket, or table. The set may fall, causing serious injury to a child or an adult, and serious damage to the set. Use only a cart stand tripod, bracket, or table recommended by the manufacturer.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Ventilation

The slots and openings in the cabinet are provided for necessary ventilation. To ensure reliable operation of the set, and to protect it from overheating, these slots and openings must never be blocked or covered.

- Never cover the slots and openings with a cloth or other materials.

- Never block the slots and openings by placing the set on a bed, sofa, rug or other similar surface.

- Never place the set in a confined space, such as a bookcase, or built-in cabinet, unless proper ventilation is provided.

- Do not place the set near or over a radiator or heat register, or where it is exposed to direct sunlight.

Antennas

Outdoor antenna grounding

If an outdoor antenna or cable system is installed, follow the precautions below.

An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits.

WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM, EXTREME CARE SHOULD BE TAKEN TO KEEP FROM CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.

Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Antenna Grounding According to the National Electrical Code

NEC - National Electrical Code

Lightning

For added protection for this set during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and powerline surges.

Service

Damage Requiring Service

Unplug the set from the wall outlet and refer servicing to qualified service personnel under the following conditions:

- When the power cord or plug is damaged or frayed.

- If liquid has been spilled or objects have fallen into the set.

- If the set has been exposed to rain or water.

- If the set has been subject to excessive shock by being dropped, or the cabinet has been damaged.

- If the set does not operate normally when following the operating instructions. Adjust only those controls that are specified in the

operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the set to normal operation.

- When the set exhibits a distinct change in performance - this indicates a need for service.

Servicing

Do not attempt to service the set yourself as opening or removing covers may expose you to dangerous voltage or other hazards.

Refer all servicing to qualified service personnel.

Replacement parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.

Safety Check

Upon completion of any service or repairs to the set, ask the service technician to perform routine safety checks (as specified by the manufacturer) to determine that the set is in safe operating condition.

Precautions

The power requirements and power consumption of this player are indicated on the back of the player. Check that the player's operating voltage is identical with your local power supply.

On safety

• To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.
• Should any solid object or liquid fall into the cabinet, unplug the player and have it checked by qualified personnel before operating it any further.

On power sources

• The player is not disconnected from the AC power source as long as it is connected to the wall outlet, even if the player itself has been turned off.
• If you are not going to use the player for a long time, be sure to disconnect the player from the wall outlet. To disconnect the AC power cord, grasp the plug itself; never pull the cord.

On placement

• Place the player in a location with adequate ventilation to prevent heat build-up in the player.
• Do not place the player on a soft surface such as a rug.
• Do not place the player in a location near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shock.
• Do not install the player in an inclined position. It is designed to be operated in a horizontal position only.
• Keep the player and the discs away from equipment with strong magnets, such as microwave ovens, or large loudspeakers.
• Do not place heavy objects on the player.

On operation

• If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player turned on for about half an hour until the moisture evaporates.
• When you move the player, take out any discs. If you don't, the disc may be damaged.

For the model supplied with the AC plug adaptor

If the AC plug of your unit does not fit into the wall outlet, attach the supplied AC plug adaptor.

On adjusting volume

Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level section is played.

On cleaning

Clean the cabinet, panel, and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

On cleaning discs, disc/lens cleaners Do not use a commercially available cleaning disc or disc/lens cleaner (wet or spray type). These may cause the apparatus to malfunction.

IMPORTANT NOTICE

Caution: This player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Plasma display panel televisions and projection televisions are susceptible to this.

If you have any questions or problems concerning your player, please consult your nearest Sony dealer.

Table of Contents

WARNING 2

Notes About the Discs 2

Important Safeguards 3

Precautions 5

About This Manual. 7

This Player Can Play the Following Discs 8

Index to Parts and Controls 10

Guide to the Control Menu Display 13

Hookups. 16

Hooking Up the Player....16

Step 1: Unpacking ..... 16

Step 2: Inserting Batteries Into the Remote. 16

Step 3: Connecting the Video Cords ..... 17

Step 4: Connecting the Audio Cords ..... 20

Step 5: Connecting the Power Cord ..... 22

Step 6: Quick Setup. 22

Playing Discs 24

Playing Discs 24

Resuming Playback From the Point Where You Stopped the Disc (Multi-disc Resume) 26

Using the DVD's Menu. 27

Selecting "ORIGINAL" or "PLAY LIST" on a DVD-RW/DVD-R ..... 27

Playing VIDEO CDs With PBC Functions (PBC Playback) 28

Various Play Mode Functions (Program Play, Shuffle Play, Repeat Play, A-B Repeat Play). 29

Searching for a Scene 34

Searching for a Particular Point on a Disc (Search, Scan, Slow-motion Play, Freeze Frame) 34

Searching for a Title/Chapter/Track/Scene, etc. 35

Searching by Scene (PICTURE NAVIGATION) 37

Viewing Information About the Disc 38

Checking the Playing Time and Remaining Time 38

Sound Adjustments 41

Changing the Sound 41

TV Virtual Surround Settings (TVS)....42

Enjoying Movies 44

Changing the Angles 44

Displaying the Subtitles 44

Adjusting the Playback Picture (CUSTOM PICTURE MODE)....45

Sharpening the Picture (SHARPNESS)....47

Enjoying MP3 Audio and JPEG Images 48

About MP3 Audio Tracks and JPEG Image Files 48

Playing MP3 Audio Tracks or JPEG Image Files. 49

Enjoying JPEG Images as a Slide Show 52

Using Various Additional Functions 54

Locking Discs (CUSTOM PARENTAL CONTROL, PARENTAL CONTROL) 54

Controlling Your TV with the Supplied Remote 57

Settings and Adjustments 58

Using the Setup Display....58

Setting the Display or Sound Track Language (LANGUAGE SETUP) ..... 59

Settings for the Display (SCREEN SETUP)....60

Custom Settings (CUSTOM SETUP)....61

Settings for the Sound (AUDIO SETUP) 62

Additional Information 64

Troubleshooting 64

Self-diagnosis Function (When letters/numbers appear in the display). . . . . 67

Glossary....67

Specifications....69

Language Code List. 70

Parental Control Area Code List 70

Index 71

About This Manual

• Instructions in this manual describe the controls on the remote. You can also use the controls on the player if they have the same or similar names as those on the remote.
• "DVD" may be used as a general term for DVD VIDEOs, DVD+RWs/DVD+Rs (+VR mode) and DVD-RWs/DVD-Rs (video mode).
• The meaning of the icons used in this manual is described below:

Icons Meaning
DVDVideo	Functions available for DVD VIDEOs and DVD+RWs/DVD+Rs in +VR mode or DVD-RWs/DVD-Rs in video mode
DVDVR	Functions available for DVD-RWs/DVD-Rs in VR (Video Recording) mode
VCD	Functions available for VIDEO CDs (including Super VCDs or CD-Rs/CD-RWs in video CD format or Super VCD format)
CD	Functions available for music CDs or CD-Rs/CD-RWs in music CD format
DATA CD	Functions available for DATA CDs (CD-ROMs/CD-Rs/CD-RWs containing MP3* audio tracks, and JPEG image files)
DATA DVD	Functions available for DATA DVDs (DVD-ROMs/DVD+RWs/DVD+Rs/DVD-RWs/DVD-Rs containing MP3* audio tracks, and JPEG image files)

* MP3 (MPEG-1 Audio Layer III) is a standard format defined by ISO (International Organization for Standardization)/IEC (International Electrotechnical Commission) MPEG which compresses audio data.

This Player Can Play the Following Discs

Format of discs
DVD VIDEO
DVD-RW/-R
DVD+RW/+R
VIDEO CD/Music CD
CD-RW/-R

"DVD+RW," "DVD-RW," "DVD+R," "DVD-R," "DVD VIDEO," and "CD" logos are trademarks.

Note about CDs/DVDs

The player can play CD-ROMs/CD-Rs/CD-RWs recorded in the following formats:

-music CD format

-video CD format

-MP3 audio tracks and JPEG image files of format conforming to ISO 9660* Level 1/Level 2, or its extended format, Joliet -KODAK Picture CD format

* A logical format of files and folders on CD-ROMs, defined by ISO (International Organization for Standardization).

The player can play DVD-ROMs/

DVD+RWs/DVD-RWs/DVD+Rs/DVD-Rs recorded in the following format:

-MP3 audio tracks and JPEG image files of format conforming to UDF (Universal Disk Format).

Example of discs that the player cannot play

The player cannot play the following discs:

• CD-ROMs/CD-Rs/CD-RWs other than those recorded in the formats listed on this page.
• CD-ROMs recorded in PHOTO CD format. • Data part of CD-Extras. • DVD Audio discs. • HD layer on Super Audio CDs.

Also, the player cannot play the following discs:

• A DVD VIDEO with a different region code.
• A disc recorded in a color system other than NTSC, such as PAL or SECAM (this player conforms to the NTSC color system).
• A disc that has a non-standard shape (e.g., card, heart). • A disc with paper or stickers on it.
• A disc that has the adhesive of cellophane tape or a sticker still left on it.

Region code

Your player has a region code printed on the back of the unit and only will play DVD VIDEOS (playback only) labeled with identical region codes. This system is used to protect copyrights.

DVD VIDEOS labeled 📂 all also play on this player.

If you try to play any other DVD VIDEO, the message “Playback prohibited by area limitations.” will appear on the TV screen. Depending on the DVD VIDEO, there may be no region code indication, even though playing the DVD VIDEO is prohibited by area restrictions.

Notes

- Notes about DVD+RWs/DVD+Rs, DVD-RWs/DVD-Rs or CD-Rs/CD-RWs

Some DVD+RWs/DVD+Rs, DVD-RWs/DVD-Rs, or CD-Rs/CD-RWs cannot be played on this player due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software. The disc will not play if it has not been correctly finalized. For more information, refer to the operating instructions for the recording device. Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have been correctly finalized. In this case, view the disc by normal playback. Also some DATA CDs/DATA DVDs created in Packet Write format cannot be played.

- Music discs encoded with copyright protection technologies

This product is designed to playback discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product.

• Note on DualDiscs

A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. However, since the audio material side does not conform to the Compact Disc (CD) standard, playback on this product is not guaranteed.

Note on playback operations of DVDs and VIDEO CDs

Some playback operations of DVDs and VIDEO CDs may be intentionally set by software producers. Since this player plays DVDs and VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVDs or VIDEO CDs.

Copyrights

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Index to Parts and Controls

For more information, see the pages indicated in parentheses.

Front panel

1 I/ (on/standby) button (24) 2 Disc tray (24) 3 Front panel display (11) 4 (open/close) button (24) 5 (play) button (24)

6 (stop) button (25) 7 ◀◀◀/▶▶▶ (previous/next) buttons (34) 8 PROGRESSIVE button/indicator (19) Lights up when the player outputs progressive signals. 9 (remote sensor) (16)

Rear panel

1 DIGITAL OUT (COAXIAL) jack (20) 2 LINE OUT L/R (AUDIO) jacks (20) 3 LINE OUT (VIDEO) jack (17)

4 S VIDEO OUT jack (17) 5 COMPONENT VIDEO OUT jacks (17)

Front panel display

When playing back a DVD VIDEO/DVD-VR mode disc

When playing back a VIDEO CD with Playback Control (PBC) (28)

When playing back a CD, DATA CD (MP3 audio)/DATA DVD (MP3 audio), or VIDEO CD (without PBC)

* When playing DATA DVDs, the DVD indicator is displayed. When playing VIDEO CDs (without PBC), the VCD indicator is displayed.

Remote

1 TV I/ (on/standby) button (57) 2 ▲ OPEN/CLOSE button (25) 3 Number buttons (27) The number 5 button has a tactile dot.* 4 CLEAR button (29) 5 TOP MENU button (27) 6 ←/↑/↓/→ buttons (27) 7 RETURN button (25) 8 REPLAY/STEP/ADVANCE/STEP buttons (25, 35)

9 ◀◀◀/▶▶ PREV/NEXT (previous/next) buttons (25) 10 ◀◀◀/▶▶ SCAN/SLOW buttons (35) 11 ZOOM button (25, 51) 12 SLOW PLAY/FAST PLAY buttons (25) 13 AUDIO button (41) 14 SUBTITLE button (44) 15 I/ (on/standby) button (24) 16 VOL (volume) +/- buttons (57) The + button has a tactile dot.* 17 TV/VIDEO button (57) 18 PICTURE NAVI (picture navigation) button (37, 51) 19 TIME/TEXT button (38) 20 MENU button (27) 21 ENTER button (22) 22 DISPLAY button (13) 23 ▷ PLAY button (24) The ▷ button has a tactile dot.* 24 ■ STOP button (25) 25 || PAUSE button (25) 26 SUR (surround) button (42) 27 ANGLE button (44)

Guide to the Control Menu Display

Use the Control Menu to select a function and to view related information. Press DISPLAY repeatedly to turn on or change the Control Menu display as follows:

Control Menu display

The Control Menu display 1 and 2 will show different items depending on the disc type. For details about each item, see the pages in parentheses.

Example: Control Menu display 1 when playing a DVD VIDEO.

*1 Displays the scene number for VIDEO CDs (PBC is on), track number for VIDEO CDs/CDs, album number for DATA CDs/DATA DVDs. *2 Displays the index number for VIDEO CDs, MP3 audio track number or JPEG image file number for DATA CDs/DATA DVDs. *3 Displays Super VCD as "SVCD." *4 Displays the date for JPEG files.

To turn off the display

Press DISPLAY.

List of Control Menu items

Item Item	Name, Function
	TITLE (page 35)/SCENE (page 35)/TRACK (page 35)Selects the title, scene, or track to be played.
	CHAPTER (page 35)/INDEX (page 35)Selects the chapter or index to be played.
	TRACK (page 35)Selects the track to be played.
	ORIGINAL/PLAY LIST (page 27)Selects the type of titles (DVD-RW/DVD-R in VR mode) to be played, the ORIGINAL one, or an edited PLAY LIST.
	TIME/TEXT (page 35)Checks the elapsed time and the remaining playback time.Input the time code for picture and music searching.Displays the DVD/CD text, or the DATA CD/DATA DVD track/file name.
	PROGRAM (page 29)Selects the title, chapter, or track to play in the order you want.
	SHUFFLE (page 31)Plays the title, chapter, or track in random order.
	REPEAT (page 32)Plays the entire disc (all titles/all tracks/all albums) repeatedly or one title/chapter/track/album repeatedly.
	A-B REPEAT (page 33)Specifies the parts you want to play repeatedly.
	CUSTOM PICTURE MODE (page 45)Adjusts the video signal from the player. You can select the picture quality that best suits the program you are watching.
	SHARPNESS (page 47)Exaggerates the outline of the image to produce a sharper picture.
	PARENTAL CONTROL (page 54)Set to prohibit playback on this player.
	SETUP (page 58)QUICK Setup (page 22)Use Quick Setup to choose the desired language of the on-screen display, the aspect ratio of the TV and the audio output signal.CUSTOM SetupIn addition to the Quick Setup setting, you can adjust various other settings.RESETReturns the settings in “SETUP” to the default setting.
	ALBUM (page 48)Selects the album that contains MP3 audio track and JPEG image file to be played.
	FILE (page 35)Selects the JPEG image file to be played.
	DATE (page 51)Displays the date the picture was taken by a digital camera.
	INTERVAL (page 53)Specifies the duration for which the slides are displayed on the screen.
	EFFECT (page 53)Selects the effects to be used for changing slides during a slide show.

MODE (MP3, JPEG) (page 52)

Selects the data type; MP3 audio track (AUDIO), JPEG image file (IMAGE) or both (AUTO) to be played when playing a DATA CD or DATA DVD.

Hint

The Control Menu icon indicator lights up in green

except "OFF" ("PROGRAM," "SHUFFLE,"

"REPEAT," "A-B REPEAT," "CUSTOM

PICTURE MODE," "SHARPNESS" only). The

"ORIGINAL/PLAY LIST" indicator lights up in green when you select "PLAY LIST" (default setting).

Hooking Up the Player

Follow steps 1 to 6 to hook up and adjust the settings of the player.

Notes

• Plug cords securely to prevent unwanted noise.
• Refer to the instructions supplied with the components to be connected.
• You cannot connect this player to a TV that does not have a video input jack.
• Be sure to disconnect the power cord of each component before connecting.

Step 1: Unpacking

Check that you have the following items:

• Audio/Video cord (phono plug · 3 ↔ phono plug · 3) (1)
• Remote commander (remote) (1) • Size AA (R6) batteries (2)

A plug adaptor is included with some models.

Step 2: Inserting Batteries Into the Remote

You can control the player using the supplied remote. Insert two Size AA (R6) batteries by matching the ⊕ and ⊖ ends on the batteries to the markings inside the compartment. When using the remote, point it at the remote sensor on the player.

Notes

• Do not leave the remote in an extremely hot or humid place.
• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.
• Do not expose the remote sensor to direct light from the sun or a lighting apparatus. Doing so may cause a malfunction.
• If you do not use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

Step 3: Connecting the Video Cords

Connect this player to your TV monitor, projector, or AV amplifier (receiver) using a video cord. Select one of the patterns A through C, according to the input jack on your TV monitor, projector, or AV amplifier (receiver).

In order to view progressive signal (480p) pictures with a compatible TV, projector, or monitor, you must use pattern A.

A If you are connecting to a video input jack

Connect the yellow plug of an audio/video cord (supplied) to the yellow (video) jack. You will enjoy standard quality images.

With this connection, select "NORMAL (INTERLACE)" (default) by pressing the PROGRESSIVE button on the front panel.

B If you are connecting to an S VIDEO input jack

Connect an S VIDEO cord (not supplied). You will enjoy high quality images. With this connection, select "NORMAL (INTERLACE)" (default) by pressing the PROGRESSIVE button on the front panel.

C If you are connecting to a monitor, projector, or AV amplifier (receiver) having component video input jacks (Y, PB, PR)

Connect the component via the COMPONENT VIDEO OUT jacks using a component video cord (not supplied) or three video cords (not supplied) of the same kind and length. You will enjoy accurate color reproduction and high quality images.

If your TV accepts progressive 480p format signals, use this connection and press the PROGRESSIVE button on the front panel to output progressive signals. For details, see "Using the PROGRESSIVE button" (page 19).

When connecting to a standard 4:3 screen TV

Depending on the disc, the image may not fit your TV screen. To change the aspect ratio, see page 60.

Note

Do not connect a VCR, etc., between your TV and the player. If you pass the player signals via the VCR, you may not receive a clear image on the TV screen. If your TV has only one audio/video input jack, connect the player to this jack.

Using the PROGRESSIVE button

By using the PROGRESSIVE button on the front panel, you can select the signal format in which the player outputs video signals (Progressive or Interlace), and the conversion method for progressive signals. The PROGRESSIVE indicator lights up when the player outputs progressive signals.

Each time you press PROGRESSIVE, the display changes as follows:

◆PROGRESSIVE AUTO

Select this setting when:

– your TV accepts progressive signals, and, – the TV is connected to the COMPONENT VIDEO OUT jacks.

Normally select this under the above condition. This automatically detects the software type, and selects the appropriate conversion method.

Note that the picture will not be clear or no picture will appear if you select these settings when either of the above conditions is not met.

◆PROGRESSIVE VIDEO

Select this setting when:

– your TV accepts progressive signals, and, – the TV is connected to the COMPONENT VIDEO OUT jacks, and, – you want to fix the conversion method to PROGRESSIVE VIDEO for video-based software. Select this if the image is not clear when you select PROGRESSIVE AUTO.

Note that the picture will not be clear or no picture will appear if you select these settings when either of the above conditions is not met.

NORMAL (INTERLACE)

Select this setting when:

– your TV does not accept progressive signals, or, - your TV is connected to jacks other than the COMPONENT VIDEO OUT jacks (LINE OUT (VIDEO) or S VIDEO OUT).

About DVD software types and the conversion method

DVD software can be divided into two types: film-based software and video based software. Video-based software is derived from TV, such as dramas and sit-coms, and displays images at 30 frames/60 fields per second. Film-based software is derived from film and displays images at 24 frames per second. Some DVD software contains both video and film.

In order for these images to appear natural on your screen when output in progressive format, the progressive signals need to be converted to match the type of DVD software that you are watching.

Note

When you play video-based software in progressive signal format, sections of some types of images may appear unnatural due to the conversion process when output through the COMPONENT VIDEO OUT jacks. Images from the S VIDEO OUT and LINE OUT (VIDEO) jacks are unaffected as they are output in the normal (interlace) format.

Step 4: Connecting the Audio Cords

Select one of the following patterns A or B, according to the input jack on your TV monitor, projector, or AV amplifier (receiver).

This will enable you to listen to sound.

Signal flow

* The yellow plug is used for video signals (page 17).

Hint

For correct speaker location, see the operating instructions supplied with the connected components.

A Connecting to audio L/R input jacks

This connection will use your TV's or stereo amplifier's (receiver's) two speakers for sound. Connect using the audio/video cord (supplied).

- Surround effect (page 43)

TV: Dynamic Theater, Dynamic, Wide, Night

Stereo amplifier (receiver): Standard, Night

B Connecting to a digital audio input jack

If your AV amplifier (receiver) has a Dolby Digital*1 or DTS*2 decoder and a digital input jack, use this connection.

Connect using a coaxial digital cord (not supplied).

Coaxial cord

- Surround effect

Dolby Digital (5.1ch), DTS (5.1ch)

*1 Manufactured under license from Dolby Laboratories. “Dolby,” “Pro Logic,” and the double-D symbol are trademarks of Dolby Laboratories. *2 “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

Notes

• After you have completed the connection, make the appropriate settings in Quick Setup (page 22). Otherwise, no sound or a loud noise will come from your speakers.
• The TVS effects of this player cannot be used with this connection.
• In order to listen to DTS sound tracks, you must use this connection. DTS sound tracks are not output through the LINE OUT L/R (AUDIO) jacks, even if you set “DTS” to “ON” in Quick Setup (page 22).

Step 5: Connecting the Power Cord

Plug the player and TV power cords into an AC outlet.

Step 6: Quick Setup

Follow the steps below to make the minimum number of basic adjustments for using the player. To skip an adjustment, press ▶▶. To return to the previous adjustment, press ◀◀.

1 Turn on the TV. 2 Press I/⏻. 3 Switch the input selector on your TV so that the signal from the player appears on the TV screen.

"Press [ENTER] to run QUICK SETUP" (press enter to run Quick Setup) appears at the bottom of the screen. If this message does not appear, select "QUICK" (quick) under "SETUP" (setup) in the Control Menu to run Quick Setup (page 59).

4 Press ENTER without inserting a disc.

The Setup Display for selecting the language used in the on-screen display appears.

5 Press ↑/↓ to select a language.

The player displays the menu and subtitles in the selected language.

6 Press ENTER.

The Setup Display for selecting the aspect ratio of the TV to be connected appears.

7 Press ↑/↓ to select the setting that matches your TV type.

◆ If you have a 4:3 standard TV • 4:3 LETTER BOX or 4:3 PAN SCAN (page 60) ◆ If you have a wide-screen TV or a 4:3 standard TV with a wide-screen mode • 16:9 (page 60)

8 Press ENTER.

The Setup Display for selecting the type of jack used to connect your amplifier (receiver) appears.

9 Press ↑/↓ to select the type of jack (if any) you are using to connect to an amplifier (receiver), then press ENTER.

If you did not connect an AV amplifier (receiver), select "NO," then go to step 13.

If you connected an AV amplifier (receiver) using just an audio cord, select "YES: LINE OUTPUT L/R (AUDIO)," then go to step 13.

If you connected an AV amplifier (receiver) using a digital coaxial cord, select "YES: DIGITAL OUTPUT."

10 Press ↑/↓ to select the type of Dolby Digital signal you wish to send to your amplifier (receiver).

If your AV amplifier (receiver) has a Dolby Digital decoder, select "DOLBY DIGITAL." Otherwise, select "D-PCM."

11 Press ENTER.

"DTS" is selected.

12 Press ↑/↓ to select whether or not you wish to send a DTS signal to your amplifier (receiver).

If your AV amplifier (receiver) has a DTS decoder, select "ON." Otherwise, select "OFF."

13 Press ENTER.

Quick Setup is finished. All connections and setup operations are complete.

Playing Discs

Playing Discs DVDVideo DVDVR

VCD CD DATA CD DATA DVD

Depending on the DVD or VIDEO CD, some operations may be different or restricted. Refer to the operating instructions supplied with your disc.

1 Turn on your TV.

2 Press I/⏻.

The player turns on.

3 Switch the input selector on your TV so that the signal from the player appears on the TV screen.

◆ When using an amplifier (receiver)

Turn on the amplifier (receiver) and select the appropriate channel so that you can hear sound from the player.

4 Press ≅ on the player, and place a disc on the disc tray.

Playback side facing down

5 Press ▷.

The disc tray closes. The player starts playback (continuous play). Adjust the volume on the TV or the amplifier (receiver). Depending on the disc, a menu may appear on the TV screen. For DVD VIDEOS, see page 27. For VIDEO CDs, see page 28.

To turn off the player

Press I/☐. The player enters standby mode.

Hint

You can have the player turn off automatically whenever you leave it in stop mode for more than 30 minutes. To turn this function on or off, set "AUTO POWER OFF" in "CUSTOM SETUP" to "ON" or "OFF" (page 61).

Note

Discs created on DVD recorders must be correctly finalized before they can be played. For more information about finalizing, refer to the operating instructions supplied with the DVD recorder.

Notes on playing DTS sound tracks on a DVD VIDEO

• DTS audio signals are output only through the DIGITAL OUT (COAXIAL) jack. - When you play a DVD VIDEO with DTS sound tracks, set "DTS" to "ON" in "AUDIO SETUP" (page 63). - If you connect the player to audio equipment without a DTS decoder, do not set "DTS" to "ON" in "AUDIO SETUP" (page 63). A loud noise may come out from the speakers, affecting your ears or causing the speakers to be damaged.

Additional operations

To Operation

Stop Press ■
Pause Press ■■
Resume play after pause	Press ■■ or ▷
Go to the next chapter, track, or scene in continuous play mode	Press ▶▶■
Go back to the previous chapter, track, or scene in continuous play mode	Press ◀◀◀
Stop play and remove the disc	Press ▲
Replay the previous scene*1	Press ←• ◀■REPLAY during playback
Briefly fast forward the current scene*2	Press •→ ||▶ADVANCE during playback
Magnify the image*3	Press ZOOM repeatedly. Press CLEAR to cancel.

*1 DVD VIDEOs/DVD-RWs/DVD-Rs only

*2 DVD VIDEOs/DVD-RWs/DVD-Rs/DVD+RWs/DVD+Rs only

*3 Video and JPEG pictures only (except BACKGROUND pictures). You can move the enlarged picture using left/up/down/right arrows. Depending upon the contents of the disc, the zoom function may be canceled automatically when the picture is moved.

Note

You may not be able to use the Replay or Advance function with some scenes.

Playback quickly or slowly with sound

You can listen to dialog or sound while playing the current scene quickly or slowly.

During playback, press FAST PLAY or SLOW PLAY.

The speed changes when you press either FAST PLAY or SLOW PLAY.

To return to normal playback

Press ▷.

Notes

• You can only use this function with DVDs/VIDEO CDs/Super VCDs and DVD-RWs/DVD-Rs in VR mode only.
• “Operation not possible” will appear when maximum or minimum speed is reached.
• During Fast Play or Slow Play mode, you cannot change the angle (page 44), subtitle (page 44) and sound (page 41). The sound can only be changed for VIDEO CDs/Super VCDs.
• Fast Play and Slow Play functions do not work when playing DTS sound tracks.
• You cannot use Fast Play or Slow Play functions when playing a still picture on DVD-RW/DVD-R in VR mode.

Locking the disc tray (Child Lock)

You can lock the disc tray to prevent children from opening it.

When the player is in standby mode, press ⏻ RETURN, ENTER, and then I/⏻ on the remote.

The player turns on and “LOCKED” appears on the front panel display. The ≡ and ▲ buttons on the player or the remote do not work while the Child Lock is set.

To unlock the disc tray

When the player is in standby mode, press ⬇ RETURN, ENTER, and then ⏻/⏻ again.

Note

Even if you select “RESET” under “SETUP” in the Control Menu (page 59), the disc tray remains locked.

Resuming Playback From the Point Where You Stopped the Disc (Multi-disc Resume)

The player stores the point where you stopped the disc for up to 6 discs and resumes playback the next time you insert the same disc. If you store a resume playback point for the seventh disc, the resume playback point for the first disc is deleted.

1 While playing a disc, press ■ to stop playback.

“RESUME” appears on the front panel display.

2 Press ▷.

The player starts playback from the point where you stopped the disc in step 1.

Hint

To play from the beginning of the disc, press ■ twice, then press ▷.

Notes

• “MULTI-DISC RESUME” in “CUSTOM SETUP” must be set to “ON” (default) for this function to work (page 62).
• The point where you stopped playing is cleared when:
• you change the play mode.
• you change the settings on the Setup Display.
• For DVD-RWs/DVD-Rs in VR mode, CDs, DATA CDs, and DATA DVDs, the player remembers the resume playback point for the current disc.

The resume point is cleared when:

– you open the disc tray. – you disconnect the power cord. – the player enters standby mode (DATA CD/DATA DVD only). – Resume Play does not work during Shuffle Play and Program Play. – This function may not work with some discs. – If “MULTI-DISC RESUME” in “CUSTOM SETUP” is set to “ON” and you play a recorded disc such as DVD-RW, the player may play other recorded discs from the same resume point.

Using the DVD's Menu

DVD video

A DVD is divided into long sections of a picture or a music feature called “titles.” When you play a DVD that contains several titles, you can select the title you want using the TOP MENU button. When you play DVDs that allow you to select items such as language for the sound and subtitles, select these items using the MENU button.

Selecting "ORIGINAL" or "PLAY LIST" on a DVD-RW/DVD-R (DVD-VR)

Some DVD-RWs/DVD-Rs in VR (Video Recording) mode have two types of titles for playback: originally recorded titles (ORIGINAL) and titles that can be created on recordable DVD players for editing (PLAY LIST). You can select the type of title to be played.

1 Press TOP MENU or MENU.

The disc's menu appears on the TV screen.

The contents of the menu vary from disc to disc.

2 Press ←/↑/↓/→ or the number buttons to select the item you want to play or change.

If you press the number buttons, the following display appears.

Press the number buttons to select the item you want.

1 Press DISPLAY when the player is in stop mode.

The Control Menu appears.

2 Press ↑/↓ to select (ORIGINAL/PLAY LIST), then press ENTER.

The options for "ORIGINAL/PLAY LIST" appear.

3 Press ENTER.

3 Press ↑/↓ to select a setting.

• PLAY LIST: plays the titles created from “ORIGINAL” for editing. • ORIGINAL: plays the titles originally recorded.

4 Press ENTER.

Playing VIDEO CDs With PBC Functions (PBC Playback)

PBC (Playback Control) allows you to play VIDEO CDs interactively by following the menu on the TV screen.

1 Start playing a VIDEO CD with PBC functions. The menu for your selection appears. 2 Press the number buttons to select the item number you want. 3 Press ENTER. 4 Follow the instructions in the menu for interactive operations.

Refer to the instructions supplied with the disc, as the operating procedure may differ depending on the VIDEO CD.

To return to the menu

Press 📋 RETURN.

Hint

To play without using PBC, press ◀◀◀/▶▶ or the number buttons while the player is stopped to select a track, then press ▷ or ENTER.

“Play without PBC” appears on the TV screen and the player starts continuous play. You cannot play still pictures such as a menu.

To return to PBC playback, press ■ twice then press ▷.

Note

Depending on the VIDEO CD, "Press ENTER" in step 3 may appear as "Press SELECT" in the instructions supplied with the disc. In this case, press ▷.

Various Play Mode Functions (Program Play,

Shuffle Play, Repeat Play, A-B Repeat Play)

You can set the following play modes:

• Program Play (page 29)
• Shuffle Play (page 31)
• Repeat Play (page 32) • A-B Repeat Play (page 33)

Note

The play mode is canceled when:

• you open the disc tray. – the player enters standby mode by pressing ⏻/⏻.

Creating your own program (Program Play) DVD VIDEO VCD CD

You can play the contents of a disc in the order you want by arranging the order of the titles, chapters, or tracks on the disc to create your own program. You can program up to 99 titles, chapters, and tracks.

1 Press DISPLAY.

The Control Menu appears.

2 Press ↑/↓ to select

(PROGRAM), then press ENTER.

The options for "PROGRAM" appear.

3 Press ↑/↓ to select "SET →," then press ENTER.

"TRACK" is displayed when you play a VIDEO CD, or CD.

Titles or tracks recorded on a disc

4 Press →.

The cursor moves to the title or track row "T" (in this case, "01").

Chapters recorded on a disc

5 Select the title, chapter, or track you want to program.

◆ When playing a DVD VIDEO

For example, select chapter "03" of title "02."

Press ↑/↓ to select "02" under "T," then press ENTER.

Next, press ↑/↓ to select "03" under "C," then press ENTER.

Selected title and chapter

◆ When playing a VIDEO CD, or CD

For example, select track "02."

Press ↑/↓ to select "02" under "T," then press ENTER.

Total time of the programmed tracks

6 To program other titles, chapters, or tracks, repeat steps 4 to 5.

The programmed titles, chapters, and tracks are displayed in the selected order.

7 Press ▷ to start Program Play.

Program Play begins.

When the program ends, you can restart the same program again by pressing ▷.

To return to normal play

Press CLEAR, or select "OFF" after step 2. To play the same program again, select "ON" in step 3 and press ENTER.

To change or cancel a program

1 Follow steps 1 to 3 of “Creating your own program (Program Play).”

2 Select the program number of the title, chapter, or track you want to change or cancel using ↑/↓ and press →. If you want to delete the title, chapter, or track from the program, press CLEAR.

3 Follow step 5 for new programming. To cancel a program, select “--” under “T,” then press ENTER.

To cancel all of the titles, chapters, or tracks in the programmed order

1 Follow steps 1 to 3 of “Creating your own program (Program Play).” 2 Press ↑ and select “ALL CLEAR.” 3 Press ENTER.

Hint

You can perform Repeat Play or Shuffle Play of programmed titles, chapters, or tracks. During Program Play, follow the steps of Repeat Play (page 32) or Shuffle Play (page 31).

Notes

• When you program tracks on a Super VCD, the total playing time is not displayed.
• You cannot use this function with VIDEO CDs or Super VCDs with PBC playback.

Playing in random order (Shuffle Play) DVDvideo VCD CD

You can have the player “shuffle” titles, chapters, or tracks. Subsequent “shuffling” may produce a different playing order.

1 Press DISPLAY during playback.

The Control Menu appears.

2 Press ↑/↓ to select (SHUFFLE), then press ENTER.

The options for "SHUFFLE" appear.

3 Press ↑/↓ to select the item to be shuffled.

◆ When playing a DVD VIDEO • TITLE - CHAPTER ◆ When playing a VIDEO CD or CD - TRACK ◆ When Program Play is activated - ON: shuffles titles, chapters, or tracks selected in Program Play.

4 Press ENTER.

Shuffle Play starts.

To return to normal play

Press CLEAR, or select "OFF" in step 3.

Hints

• You can set Shuffle Play while the player is stopped. After selecting the “SHUFFLE” option, press ▷. Shuffle Play starts.
• Up to 200 chapters in a disc can be played in random order when “CHAPTER” is selected.

Note

You cannot use this function with VIDEO CDs or Super VCDs with PBC playback.

Playing repeatedly (Repeat Play)

DVDVideo DVDVR VCD CD DATA CD DATA DVD

You can play all of the titles or tracks on a disc, or a single title, chapter, or track repeatedly.

You can use a combination of Shuffle or Program Play modes.

1 Press DISPLAY during playback.

The Control Menu appears.

2 Press ↑/↓ to select (REPEAT), then press ENTER.

The options for “REPEAT” appear.

3 Press ↑/↓ to select the item to be repeated.

◆ When playing a DVD VIDEO

• DISC: repeats all of the titles.

- TITLE: repeats the current title on a disc.

- CHAPTER: repeats the current chapter.

◆ When playing a DVD-VR mode disc

- DISC: repeats all the titles of the selected type.

- TITLE: repeats the current title on a disc.

- CHAPTER: repeats the current chapter.

◆ When playing a VIDEO CD or CD

• DISC: repeats all of the tracks.

- TRACK: repeats the current track.

◆ When playing a DATA CD or DATA DVD with MP3 audio tracks or JPEG image files

• DISC: repeats all of the albums.

• ALBUM: repeats the current album.

- TRACK (MP3 audio tracks only): repeats the current track.

◆ When Program Play or Shuffle Play is activated

- ON: repeats Program Play or Shuffle Play.

4 Press ENTER.

Repeat Play starts.

To return to normal play

Press CLEAR, or select "OFF" in step 3.

Hint

You can set Repeat Play while the player is stopped. After selecting the “REPEAT” option, press ▷. Repeat Play starts.

Notes

• You cannot use this function with VIDEO CDs or Super VCDs with PBC playback.
• When repeating a DATA CD/DATA DVD which contains MP3 audio tracks and JPEG image files, and their playing times are not the same, the sound will not match the image.
• When “MODE (MP3, JPEG)” is set to “IMAGE (JPEG)” (page 52), you cannot select “TRACK.”

Repeating a specific portion (A-B Repeat Play)

You can play a specific portion of a title, chapter or track repeatedly. (This function is useful when you want to memorize lyrics, etc.)

1 Press DISPLAY during playback.

The Control Menu appears.

2 Press ↑/↓ to select [A-B] (A-B REPEAT), then press ENTER.

The options for “A-B REPEAT” appear.

3 Press ↑/↓ to select "SET →," then press ENTER.

The “A-B REPEAT” setting bar appears.

4 During playback, when you find the starting point (point A) of the portion to be played repeatedly, press ENTER.

The starting point (point A) is set.

5 When you reach the ending point (point B), press ENTER again.

The set points are displayed and the player starts repeating this specific portion.

To return to normal play

Press CLEAR, or select "OFF" in step 3.

Notes

• When you set A-B Repeat Play, the settings for Shuffle Play, Repeat Play, and Program Play are canceled.
• A-B Repeat Play does not work across multiple titles.
• You may not set A-B Repeat Play for contents on a DVD-RW/DVD-R (VR mode) that contains still pictures.

Searching for a Scene

Searching for a Particular Point on a Disc (Search, Scan, Slow-motion Play, Freeze Frame)

You can quickly locate a particular point on a disc by monitoring the picture or playing back slowly.

Notes

• Depending on the disc, you may not be able to do some of the operations described.
• For DATA CDs/DATA DVDs, you can search for a particular point only on an MP3 audio track.

Locating a point quickly using the PREV (previous)/NEXT (next) buttons (Search)

DVDVideo DVDVR VCD CD DATA CD DATA DVD

You can search for the next or previous chapter, track, or scene using ◀◀◀/▶▶ on the player.

During playback, press ▶▶▶ or ◀◀◀ once briefly to go to the next or previous chapter/track/scene. Or, press and hold ▶▶▶ or ◀◀◀ to search forward or backwards, and release the button when you find the point you want to return to normal playback. (Search)

Locating a point quickly by playing a disc in fast forward or fast reverse (Scan)

DVDVideo DVDVR VCD CD DATA CD DATA DVD

Press ◀◀◀◀ or ▶▶▶▶ while playing a disc. When you find the point you want, press ▶▶ to return to normal speed. Each time you press ◀◀◀◀ or ▶▶▶▶ during scan, the scan speed changes. With each press the indication changes as shown below. Actual speeds may differ between discs.

Playback direction

Opposite direction

The “· 2▶”/“· 2◀” playback speed is about twice the normal speed.

The “3▶▶”/“3◀◀” playback speed is faster than “2▶▶”/“2◀◀” and the “2▶▶”/“2◀◀” playback speed is faster than “1▶▶”/“1◀◀.”

Watching frame by frame (Slow-motion Play)

DVDVideo DVDVR VCD

Press ◀◀◀◀ or ▶▶▶▶ when the player is in pause mode. To return to normal speed, press ▷.

Each time you press ◀◀◀◀ or ▶▶▶▶ during Slow-motion Play, the playback speed changes. Two speeds are available. With each press the indication changes as follows:

Playback direction

2▶↔1▶

Opposite direction (DVD/DVD-VR mode only)

2 1

The “2 ▶”/“2 ▶” playback speed is slower than “1 ▶”/“1 ▶.”

Playing one frame at a time (Freeze Frame) DVDvideo DVDVR VCD

When the player is in the pause mode, press •→ ||► STEP to go to the next frame. Press ←• ◀◀| STEP to go to the preceding frame (DVD/DVD-VR mode only). To return to normal playback, press ▷.

Note

You cannot search for a still picture on a DVD-RW/DVD-R in VR mode.

Searching for a Title/ Chapter/Track/Scene, etc. DVDVideo DVDVR VCD CD

DATA CD DATA DVD

You can search a DVD by title or chapter, and you can search a VIDEO CD/CD/DATA CD/DATA DVD by track, index, file or scene. As titles and tracks are assigned unique numbers on the disc, you can select the desired one by entering its number. You can also search for a scene using the time code.

1 Press DISPLAY (When playing a DATA CD or DATA DVD with JPEG image files, press twice).

The Control Menu appears.

2 Press ↑/↓ to select the search method.

◆ When playing a DVD VIDEO/DVD-VR mode disc

TITLE

CHAPTER

TIME/TEXT

Select "TIME/TEXT" to search for a starting point by inputting the time code.

◆ When playing a VIDEO CD or Super VCD without PBC Playback

TRACK

INDEX

◆ When playing a VIDEO CD or Super VCD with PBC Playback

SCENE

◆ When playing a CD

TRACK

◆ When playing a DATA CD/DATA DVD

ALBUM

TRACK (MP3 audio tracks only)

FILE (JPEG image files only)

Example: when you select CHAPTER

“** (**)” is selected (** refers to a number). The number in parentheses indicates the total number of titles, chapters, tracks, indexes, scenes, albums or files.

3 Press ENTER.

“** (**)” changes to “-- (**).”

4 Press the number buttons to select the title, chapter, track, index, scene, etc., number you want to search.

If you make a mistake

Cancel the number by pressing CLEAR, then select another number.

5 Press ENTER.

The player starts playback from the selected number.

To search for a scene using the time code (DVD VIDEO/DVD-VR mode only)

1 In step 2, select TIME/TEXT. “T **:**:**” (playing time of the current title) is selected.

2 Press ENTER. “T **:**:**” changes to “T --:--:-.”

3 Input the time code using the number buttons, then press ENTER. For example, to find the scene at 2 hours, 10 minutes, and 20 seconds after the beginning, just enter “2:10:20.”

Hints

• When the Control Menu display is turned off, you can search for a chapter (DVD VIDEO/DVD-VR mode) or track (CD/DATA CD/DATA DVD) by pressing the number buttons and ENTER.
• You can display the first scene of titles, chapters, or tracks recorded on the disc on a screen divided into 9 sections. You can start playback directly by selecting one of the scenes. For details, see "Searching by Scene (PICTURE NAVIGATION)" (page 37).

Notes

• The title, chapter, or track number displayed is the same number recorded on the disc.
• You cannot search for a scene on a DVD+RW/DVD+R using the time code.

Searching by Scene

(PICTURE NAVIGATION) DVDvideo VCD

You can divide the screen into 9 subscreens and find the desired scene quickly.

1 Press PICTURE NAVI during playback.

The following display appears.

2 Press PICTURE NAVI repeatedly to select an item.

• CHAPTER VIEWER (DVD VIDEO only): displays the first scene of each chapter. • TITLE VIEWER (DVD VIDEO only): displays the first scene of each title.
• TRACK VIEWER (VIDEO CD/ Super VCD only): displays the first scene of each track.

3 Press ENTER.

The first scene of each chapter, title, or track appears as follows.

1	2	3
4	5	6
7	8	9

4 Press ←/↑/↓/→ to select a chapter, title, or track, and press ENTER.

Playback starts from the selected scene.

To return to normal play during setting, press ⬇ RETURN or DISPLAY.

Hint

If there are more than 9 chapters, titles, or tracks, ▼ is displayed at the bottom right of the screen. To display the additional chapters, titles, or tracks, select the bottom scenes and press ↓. To return to the previous scene, select the top scenes and press ↑.

Note

Depending on the disc, you may not be able to select some items.

Viewing Information About the Disc

Checking the Playing Time and Remaining

Time

DVDvideo

DVDVR

VCD

CD

DATA CD DATA DVD

You can check the playing time and remaining time of the current title, chapter, or track. Also, you can check the DVD/CD text or track name (MP3 audio) recorded on the disc.

1 Press TIME/TEXT during playback.

The following display appears.

2 Press TIME/TEXT repeatedly to change the time information.

The available time information depends upon the type of disc you are playing.

◆ When playing a DVD VIDEO or DVD-VR mode disc

• T *:*:* (hours: minutes: seconds) Playing time of the current title - T-:*:*:* Remaining time of the current title • C *:*:* Playing time of the current chapter - C-:*:*:* Remaining time of the current chapter

◆ When playing a VIDEO CD or Super VCD (with PBC functions)

• *:* (minutes: seconds) Playing time of the current scene ◆ When playing a VIDEO CD (without PBC functions), or CD
• T *:* (minutes: seconds) Playing time of the current track
• T-*** Remaining time of the current track
• D *:* Playing time of the current disc
• D—*:* Remaining time of the current disc ◆ When playing a Super VCD (without PBC functions)
• T *:* (minutes: seconds) Playing time of the current track ◆ When playing a DATA CD (MP3 audio) or DATA DVD (MP3 audio)
• T *:* (minutes: seconds) Playing time of the current track

Checking the play information of the disc

To check the DVD/CD text

Press TIME/TEXT repeatedly in step 2 to display text recorded on the DVD/CD.

The DVD/CD text appears only when text is recorded on the disc. You cannot change the text. If the disc does not contain text, "NO TEXT" appears.

To check DATA CD (MP3 audio)/DATA DVD (MP3 audio) album name, etc.

By pressing TIME/TEXT while playing MP3 audio tracks on a DATA CD/DATA DVD, you can display the name of the album/track, and the audio bit rate (the amount of data per second of the current audio track) on your TV screen.

Checking the information on the front panel display

You can view the time information and text displayed on the TV screen also on the front panel display. The information on the front panel display changes as follows when you change the time information on your TV screen.

When playing a DVD VIDEO or DVD-VR mode disc

Playing time of the current title

Remaining time of the current title

Playing time of the current chapter

Remaining time of the current chapter

Text

Current title and chapter number

(returns to top automatically)

When playing a DATA CD (MP3 audio)/DATA DVD (MP3 audio)

Playing time and number of the current track

When playing a VIDEO CD (without PBC functions), or CD

Playing time and number of the current track

Hints

• When playing VIDEO CDs without PBC functions, the track number and the index number are displayed after the text.
• When playing VIDEO CDs with PBC functions, the scene number or the playing time are displayed.
• Long text that does not fit in a single line will scroll across the front panel display.
• You can also check the time information and text using the Control Menu (page 13).

Notes

• Depending on the type of disc being played, the DVD/CD text or track name may not be displayed.
• The player can only display the first level of the DVD/CD text, such as the disc name or title.
• Playing time of MP3 audio tracks may not be displayed correctly.
• If you play a disc containing JPEG image files only, "NO AUDIO DATA" appears when "MODE (MP3, JPEG)" is set to "AUTO," "JPEG" appears when "MODE (MP3, JPEG)" is set to "IMAGE (JPEG)" in the front panel display.

Sound Adjustments

Changing the Sound

DVDvideo DVDVR VCD CD DATA CD

DATA DVD

When playing a DVD VIDEO recorded in multiple audio formats (PCM, Dolby Digital, or DTS), you can change the audio format. If the DVD VIDEO is recorded with multilingual tracks, you can also change the language.

With CDs, DATA CDs, DATA DVDs, or VIDEO CDs, you can select the sound from either the right or left channel and listen to the sound of the selected channel through both the right and left speakers. For example, when playing a disc containing a song with the vocals on the right channel and the instruments on the left channel, you can hear the instruments from both speakers by selecting the left channel.

1 Press AUDIO during playback.

The following display appears.

1 ENGLISH DOLBY DIGITAL 3/2.1

2 Press AUDIO repeatedly to select the desired audio signal.

◆ When playing a DVD VIDEO

Depending on the DVD VIDEO, the choice of language varies.

When 4 digits are displayed, they indicate a language code. See “Language Code List” on page 70 to see which language the code represents. When the same language is displayed two or more times, the DVD VIDEO is recorded in multiple audio formats.

◆ When playing a DVD-VR mode disc

The types of sound tracks recorded on a disc are displayed. The default setting is underlined.

Example:

• 1 : M A [Inain sound) • 1: SUB (sub sound) • 1: MAIN+SUB (main and sub sound)

◆ When playing a VIDEO CD, CD, or DATA CD (MP3 audio)/DATA DVD (MP3 audio)

The default setting is underlined.

• STEREO: standard stereo sound • 1/L: the sound of the left channel (monaural) • 2/R: the sound of the right channel (monaural)

◆ When playing a Super VCD

The default setting is underlined.

• 1: STEREO: the stereo sound of the audio track 1 • 1:1/L: the sound of the left channel of the audio track 1 (monaural) • 1:2/R: the sound of the right channel of the audio track 1 (monaural) • 2: STEREO: the stereo sound of the audio track 2 • 2:1/L: the sound of the left channel of the audio track 2 (monaural) • 2:2/R: the sound of the right channel of the audio track 2 (monaural)

Notes

• While playing a Super VCD on which the audio track 2 is not recorded, no sound will come out when you select “2: STEREO,” “2:1/L,” or “2:2/R.”
• When playing DVD-RW/DVD-R in VR mode: If you connect to an AV amplifier (receiver) using the DIGITAL OUT (COAXIAL) jack and want to switch between the sound tracks, set “DOLBY DIGITAL” to “D-PCM” in “AUDIO SETUP.”

Checking the audio signal format DVD video

You can check the audio signal format by pressing AUDIO repeatedly during playback. The format of the current audio signal (Dolby Digital, DTS, PCM, etc.) appears as shown below.

Example:

Dolby Digital 5.1 ch

Example:

Dolby Digital 3 ch

About audio signals

Audio signals recorded in a disc contain the sound elements (channels) shown below. Each channel is output from a separate speaker.

• Front (L)
• Front (R)
• Center
• Rear (L)
• Rear (R)
• Rear (Monaural): This signal can be either the Dolby Surround Sound processed signals or the Dolby Digital sound's monaural rear audio signals. • LFE (Low Frequency Effect) signal

Note

If "DTS" is set to "OFF" in "AUDIO SETUP" (page 63) the DTS track selection option will not appear on the screen even if the disc contains DTS tracks.

TV Virtual Surround Settings (TVS) DVDVideo

When you connect a stereo TV or 2 front speakers, TVS (TV Virtual Surround) lets you enjoy surround sound effects by using sound imaging to create virtual rear speakers from the sound of the front speakers (L: left, R: right) without using actual rear speakers. TVS was developed by Sony to produce surround sound for home use using just a stereo TV.

This only works when playing a multichannel Dolby audio sound track. Furthermore, if the player is set up to output the signal from the DIGITAL OUT (COAXIAL) jack, the surround effect will only be heard when “DOLBY DIGITAL” is set to “D-PCM” in “AUDIO SETUP” (page 63).

1 Press SUR during playback.

The following display appears.

2 Press SUR repeatedly to select one of the TVS sounds.

See the explanations given for each item in the following section.

• TVS DYNAMIC THEATER • TVS DYNAMIC • TVS WIDE • TVS NIGHT • TVS STANDARD

To cancel the setting

Select "OFF" in step 2.

TVS DYNAMIC THEATER

Creates one set of LARGE virtual rear speakers and virtual subwoofer from the sound of the front speakers (L, R) without using actual rear speakers and subwoofer (shown below).

This mode is effective when the distance between the front L and R speakers is short, such as with built-in speakers on a stereo TV.

TVS DYNAMIC

Creates one set of virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers (shown below). This mode is effective when the distance between the front L and R speakers is short, such as with built-in speakers on a stereo TV.

TVS WIDE

Creates five sets of virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers (shown below). This mode is effective when the distance between the front L and R speakers is short, such as with built-in speakers on a stereo TV.

TVS NIGHT

Large sounds, such as explosions, are suppressed, but the quieter sounds are unaffected. This feature is useful when you want to hear the dialog and enjoy the surround sound effects of “TVS WIDE” at low volume.

TVS STANDARD

Creates three sets of virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers (shown below). Use this setting when you want to use TVS with 2 separate speakers.

L: Front speaker (left)

R: Front speaker (right)

☐: Virtual speaker

Notes

• When the playing signal does not contain a signal for the rear speakers, the surround effects cannot be heard.
• When you select one of the TVS modes, turn off the surround setting of the connected TV or amplifier (receiver). • Make sure that your listening position is between and at an equal distance from your speakers, and that the speakers are located in similar surroundings.
• Not all discs will respond to the “TVS NIGHT” function in the same way.
• The TVS effects do not work when using the Fast Play or Slow Play functions, even though you can change the TVS modes.

Enjoying Movies

Changing the Angles

DVDvideo

If various angles (multi-angles) for a scene are recorded on the DVD VIDEO, “☐” appears in the front panel display. This means that you can change the viewing angle.

1 Press ANGLE during playback.

The number of the angle appears on the display.

2 Press ANGLE repeatedly to select an angle number.

The scene changes to the selected angle.

Note

Depending on the DVD VIDEO, you may not be able to change the angles even if multi-angles are recorded on the DVD VIDEO.

Displaying the Subtitles

DVDVideo DVDVR

If subtitles are recorded on the discs, you can change the subtitles or turn them on and off whenever you want while playing a DVD.

1 Press SUBTITLE during playback.

The following display appears.

2 Press SUBTITLE repeatedly to select a setting.

◆ When playing a DVD VIDEO

Select the language.

Depending on the DVD VIDEO, the choice of language varies.

When 4 digits are displayed, they indicate a language code. See “Language Code List” on page 70 to see which language the code represents.

◆ When playing a DVD-VR mode disc

Select "ON."

To turn off the subtitles

Select "OFF" in step 2.

Notes

• Depending on the DVD VIDEO, you may not be able to change the subtitles even if multilingual subtitles are recorded on it. You also may not be able to turn them off.
• While playing a disc with subtitles, the subtitle may disappear when you press FAST PLAY or SLOW PLAY button.

Adjusting the Playback Picture (CUSTOM PICTURE MODE)

DVD video

DVD VR

VCD

DATA CD

DATA DVD

You can adjust the video signal of the DVD, VIDEO CD or DATA CD/DATA DVD in JPEG format from the player to obtain the picture quality you want. Choose the setting that best suits the program you are watching. When you select "MEMORY," you can make further adjustments to each element of the picture (color, brightness, etc.).

1 Press DISPLAY during playback (When playing a DATA CD or DATA DVD with JPEG image files, press twice).

The Control Menu appears.

2 Press ↑/↓ to select (CUSTOM PICTURE MODE), then press ENTER.

The options for “CUSTOM PICTURE MODE” appear.

3 Press ↑/↓ to select the setting you want.

The default setting is underlined.

• STANDARD: displays a standard picture. - DYNAMIC 1: produces a bold dynamic picture by increasing the picture contrast and the color intensity. - DYNAMIC 2: produces a more dynamic picture than DYNAMIC 1 by further increasing the picture contrast and color intensity. • CINEMA 1: enhances details in dark areas by increasing the black level. • CINEMA 2: white colors become brighter and black colors become richer, and the color contrast is increased. - MEMORY: adjusts the picture in greater detail.

4 Press ENTER.

The selected setting takes effect.

Hint

When you watch a movie, “CINEMA 1” or “CINEMA 2” is recommended.

Adjusting the picture items in "MEMORY"

You can adjust each element of the picture individually.

• PICTURE: changes the contrast • BRIGHTNESS: changes the overall brightness • COLOR: makes the colors deeper or lighter • HUE: changes the color balance

1 In step 3 of “Adjusting the Playback Picture,” select “MEMORY” and press ENTER.

The “PICTURE” adjustment bar appears.

2 Press ←/→ to adjust the picture contrast.

To go to the next or previous picture item without saving the current setting, press ↑/↓.

3 Press ENTER.

The adjustment is saved, and the "BRIGHTNESS" adjustment bar appears.

4 Repeat steps 2 and 3 to adjust "BRIGHTNESS," "COLOR," and "HUE."

To turn off the display

Press RETURN, or DISPLAY.

Note

The "BRIGHTNESS" setting is not effective if you connect the player via the LINE OUT (VIDEO) or S VIDEO OUT jack and select "PROGRESSIVE AUTO" or "PROGRESSIVE VIDEO" by using the PROGRESSIVE button on the front panel.

Sharpening the Picture

(SHARPNESS)

DATA DVD

You can enhance the outlines of images to produce a sharper picture.

1 Press DISPLAY during playback (When playing a DATA CD or DATA DVD with JPEG image files, press twice).

The Control Menu appears.

2 Press ↑/↓ to select

(SHARPNESS), then press ENTER.

The options for "SHARPNESS" appear.

3 Press ↑/↓ to select a level.

• 1: enhances the outline. • 2: enhances the outline more than 1.

4 Press ENTER.

The selected setting takes effect.

To cancel the "SHARPNESS" setting

Select "OFF" in step 3.

Note

This setting is not effective if you connect the player via the LINE OUT (VIDEO) or S VIDEO OUT jack and select "PROGRESSIVE AUTO" or "PROGRESSIVE VIDEO" by using the PROGRESSIVE button on the front panel.

Enjoying MP3 Audio and JPEG Images

About MP3 Audio Tracks and JPEG Image Files

MP3 is audio compression technology that satisfies the ISO/IEC MPEG regulations.

JPEG is image compression technology.

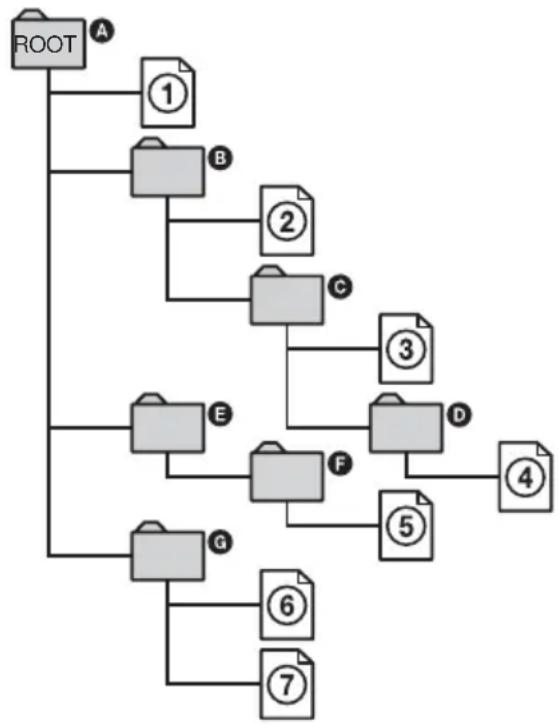

You can play DATA CDs/DATA DVDs that contain MP3 audio tracks or JPEG image files.

DATA CDs/DATA DVDs that the player can play

You can play back DATA CDs (CD-ROMs/CD-Rs/CD-RWs) or DATA DVDs (DVD-ROMs/DVD+RWs/DVD+Rs/DVD-RWs/DVD-Rs) recorded in MP3 (MPEG-1 Audio Layer III) and JPEG format.

However, this player only plays DATA CDs whose logical format is ISO 9660 Level 1/Level 2 or Joliet, and DATA DVDs of Universal Disk Format (UDF).

Refer to the instructions supplied with the disc drives and the recording software (not supplied) for details on the recording format.

Note

The player may not be able to play some DATA CDs/DATA DVDs created in the Packet Write format.

MP3 audio track or JPEG image file that the player can play

The player can play the following tracks and files:

-MP3 audio tracks with the extension ".MP3."

-JPEG image files with the extension ".JPEG" or ".JPG."

–JPEG image files that conform to the DCF* image file format.

* “Design rule for Camera File system”: Image standards for digital cameras regulated by JEITA (Japan Electronics and Information Technology Industries Association).

Notes

• The player will play any data with the extension “.MP3,” “.JPG,” or “.JPEG,” even if they are not in MP3 or JPEG format. Playing these data may generate a loud noise which could damage your speaker system.
• The player does not conform to audio tracks in mp3PRO format.
• Some JPEG files cannot be played.

About playback order of albums, tracks, and files

Albums play in the following order:

◆Structure of disc contents

Tree 1 Tree 2 Tree 3 Tree 4 Tree 5

When you insert a DATA CD/DATA DVD and press ▷, the numbered tracks (or files) are played sequentially, from ① through ⑦. Any sub-albums/tracks (or files) contained within a currently selected album take priority over the next album in the same tree. (Example: C contains D so ④ is played before ⑤.)

When you press MENU and the list of album names appears (page 50), the album names are arranged in the following order:

A → B → C → D → F → G. Albums that do not contain tracks (or files) (such as album E) do not appear in the list.

Hints

• If you add numbers (01, 02, 03, etc.) to the front of the track/file names when you store the tracks (or files) in a disc, the tracks and files will be played in that order.
• Since a disc with many trees takes longer to start playback, it is recommended that you create albums with no more than two trees.

Notes

• Depending on the software you use to create the DATA CD/DATA DVD, the playback order may differ from the above illustration.
• The playback order above may not be applicable if there are more than 200 albums and 300 tracks/files in each album.
• The player can recognize up to 200 albums (the player will count just albums, including albums that do not contain MP3 audio tracks and JPEG image files). The player will not play any albums beyond the 200th album. • Proceeding to the next or another album may take some time.

Playing MP3 Audio Tracks or JPEG Image Files DATA CD DATA DVD

You can play MP3 audio tracks and JPEG image files on DATA CDs (CD-ROMs/CD-Rs/CD-RWs) or DATA DVDs (DVD-ROMs/DVD+RWs/DVD+Rs/DVD-RWs/DVD-Rs).

Hint

You can view the disc information while playing MP3 audio tracks (page 38).

Notes

• DATA CDs recorded in KODAK Picture CD format automatically start playing when inserted. - If no MP3 audio track or JPEG image file is recorded on the DATA CD/DATA DVD, "No audio data" or "No image data" appears on the screen.

Selecting an album

1 Press MENU.

The list of albums on the disc appears.

When an album is being played, its title is shaded.

2 Press ↑/↓ to select the album you want to play.

3 Press ▷.

Playback starts from the selected album.

To select MP3 audio tracks, see

"Selecting an MP3 audio track" (page 50).

To select JPEG image files, see

"Selecting a JPEG image file" (page 51).

To stop playback

Press ■.

To go to the next or previous page

Press → or ←.

To turn on or off the display

Press MENU repeatedly.

Hint

Of the selected album, you can select to play only the MP3 audio tracks, JPEG image files, or both, by setting “MODE (MP3, JPEG)” (page 52).

Selecting an MP3 audio track

1 After step 2 of "Selecting an album," press ENTER.

The list of tracks in the album appears.

2 Press ↑/↓ to select a track, and press ENTER.

Playback starts from the selected track.

To stop playback

Press ■.

To go to the next or previous page

Press → or ←.

To return to the previous display

Press 📷 RETURN.

To go to the next or previous MP3 audio track

Press ▶▶▶ or ◀◀ during playback. You can select the first track of the next album by pressing ▶▶▶ during playback of the last track of the current album.

Note that you cannot return to the previous album by using ◀◀◀, and that you need to select the previous album from the album list.

Selecting a JPEG image file

1 After step 2 of "Selecting an album," press PICTURE NAVI.

The image files in the album appear in 16 subscreens. A scroll box is displayed on the right.

1	2	3	4	1
5	6	7	8
9	1	0	1
13 14 15 16

To display the additional image, select the bottom images and press ↓. To return to the previous image, select the top images and press ↑.

2 Press ←/↑/↓/→ to select the image you want to view, and press ENTER.

The selected image appears. Example

To go to the next or previous JPEG image file

Press ← or → during playback. You can select the first file of the next album by pressing → during playback of the last file of the current album.

Note that you cannot return to the previous album by using ←, and that you need to select the previous album from the album list.

To rotate a JPEG image

Press ↑/↓ while viewing the image. Each time you press ↑, the image rotates counterclockwise by 90 degrees.

To return to normal view, press CLEAR. Note that the view also returns to normal if you press ↔ to go to the next or previous image.

Example: when ↑ is pressed once.

Rotating direction

To magnify a JPEG image (ZOOM)

Press ZOOM while viewing the image. You can enlarge the image up to four times the original size, and scroll using ←/↑/↓/→. To return to normal view, press CLEAR.

◆When pressed once (x2)

The image enlarges twice the original size.

◆When pressed twice (x4)

The image enlarges four times the original size.

To stop viewing the JPEG image

Press ■.

Hints

• While viewing JPEG image files, you can set options such as "INTERVAL" (page 53), "EFFECT" (page 53), and "SHARPNESS" (page 47).
• You can view JPEG image files without MP3 audio by setting "MODE (MP3, JPEG)" to "IMAGE (JPEG)" (page 52).
• The date the picture was taken is displayed beside "DATE" in the Control Menu (page 13). Note that no date may appear depending on the digital camera.

Note

PICTURE NAVI does not work if "AUDIO (MP3)" is selected in "MODE (MP3, JPEG)" (page 52).

Enjoying JPEG Images as a Slide Show

DATA CD DATA DVD

You can play JPEG image files on a DATA CD or DATA DVD successively as a slide show.

1 Press MENU.

The list of albums on the DATA CD/DATA DVD appears.

2 Press ↑/↓ to select an album.

3 Press ▷.

The JPEG images in the selected album start playing as a slide show.

To stop playback

Press ■.

Notes

• The slide show stops when ↑/↓ or ZOOM is pressed. To resume the slide show, press ▶.
• This function does not work if “MODE (MP3, JPEG)” is set to “AUDIO (MP3)” (page 52).

Viewing a slide show with sound (MODE (MP3, JPEG))

When JPEG image files and MP3 audio tracks are placed in the same album, you can enjoy a slide show with sound.

1 Press DISPLAY during stop mode.

The Control Menu appears.

2 Press ↑/↓ to select DATA (MODE (MP3, JPEG)), and press ENTER.

The options for “MODE (MP3, JPEG)” appear.

3 Press ↑/↓ to select "AUTO" (default), and press ENTER.

• AUTO: plays both the JPEG image files and MP3 audio tracks in the same album as a slide show. • AUDIO (MP3): plays only MP3 audio tracks continuously.
• IMAGE (JPEG): plays only JPEG image files continuously.

4 Press MENU.

The list of albums on the DATA CD/DATA DVD appears.

5 Press ↑/↓ to select the album that contains both the MP3 audio tracks and JPEG images you want to play.

6 Press ▷.

A slide show starts with sound.

Hints

• To repeat both MP3 audio tracks and JPEG image files in a single album, repeat the same MP3 audio track or album when “MODE (MP3, JPEG)” is set to “AUTO.” See “Playing repeatedly (Repeat Play)” (page 32) to repeat the track or album.
• The player recognizes a maximum of 200 albums regardless of the selected mode. Of each album, the player recognizes up to 300 MP3 audio tracks and 300 JPEG image files when “AUTO” is selected, 600 MP3 audio tracks when “AUDIO (MP3)” is selected, 600 JPEG image files when “IMAGE (JPEG)” is selected.

Notes

• This function does not work if the MP3 audio tracks and JPEG image files are not placed in the same album.
• If playing time of JPEG image or MP3 audio is longer than the other, the longer one continues without sound or image.
• If you play large MP3 track data and JPEG image data at the same time, the sound may skip. It is recommended that you set the MP3 bit rate to 128 kbps or lower when creating the file. If the sound still skips, then reduce the size of the JPEG file.

Setting the pace for a slide show (INTERVAL)

You can set the time the slides are displayed on the screen.

1 Press DISPLAY twice while viewing a JPEG image or when the player is in stop mode.

The Control Menu appears.

2 Press ↑/↓ to select (INTERVAL), then press ENTER.

The options for "INTERVAL" appear.

3 Press ↑/↓ to select a setting.

The default setting is underlined.

• NORMAL: sets the duration to between 6 to 9 seconds.
• FAST: sets a duration shorter than NORMAL.
• SLOW 1: sets a duration longer than NORMAL.
• SLOW 2: sets a duration longer than SLOW 1.

4 Press ENTER.

Note

Some JPEG files, especially progressive JPEG files or JPEG files of 3,000,000 pixels or more, may take longer to display than others, which may make the duration seem longer than the setting you selected.

Selecting the slides' appearance (EFFECT)

You can select the way the slides are displayed during a slide show.

1 Press DISPLAY twice while viewing a JPEG image or when the player is in stop mode.

2 Press ↑/↓ to select (EFFECT), then press ENTER.

The options for "EFFECT" appear.

3 Press ↑/↓ to select a setting.

The default setting is underlined.

• MODE 1: the image sweeps in from top to bottom.
• MODE 2: the image sweeps in from left to right.
• MODE 3: the image stretches out from the center of the screen.
• MODE 4: the images randomly cycle through the effects.
• MODE 5: the next image slides over the previous image. • OFF: turns off this function.

4 Press ENTER.

Using Various Additional Functions

Locking Discs (CUSTOM PARENTAL CONTROL, PARENTAL CONTROL)

You can set two kinds of playback restrictions for a disc.

• Custom Parental Control You can set playback restrictions so that the player will not play inappropriate discs.
• Parental Control Playback of some DVD VIDEOS can be limited according to a predetermined level such as the age of the users. Scenes may be blocked or replaced with different scenes. The same password is used for both Parental Control and Custom Parental Control.

Custom Parental Control

DVDVideo VCD CD

You can set the same Custom Parental Control password for up to 40 discs. When you set the 41st disc, the first disc is canceled.

1 Insert the disc you want to lock. If the disc is playing, press ■ to stop playback. 2 Press DISPLAY while the player is in stop mode. The Control Menu appears. 3 Press ↑/↓ to select (PARENTAL CONTROL), then press ENTER.

The options for "PARENTAL CONTROL" appear.

4 Press ↑/↓ to select "ON →," then press ENTER.

◆ If you have not entered a password The display for registering a new password appears.

Enter a 4-digit password using the number buttons, then press ENTER. The display for confirming the password appears.

◆ When you have already registered a password

The display for entering the password appears.

5 Enter or re-enter your 4-digit password using the number buttons, then press ENTER.

"Custom parental control is set." appears and then the screen returns to the Control Menu.

To turn off the Custom Parental Control function

1 Follow steps 1 to 3 of "Custom Parental Control." 2 Press ↑/↓ to select "OFF →," then press ENTER. 3 Enter your 4-digit password using the number buttons, then press ENTER.

To play a disc for which Custom Parental Control is set

1. Insert the disc for which Custom Parental Control is set. The “CUSTOM PARENTAL CONTROL” display appears.

2. Enter your 4-digit password using the number buttons, then press ENTER. The player is ready for playback.

Hint

If you forget your password, enter the 6-digit number “199703” using the number buttons when the “CUSTOM PARENTAL CONTROL” display asks you for your password, then press ENTER. The display will ask you to enter a new 4-digit password.

Parental Control (limited playback) DVD video

Playback of some DVD VIDEOS can be limited according to a predetermined level such as the age of the users. The “PARENTAL CONTROL” function allows you to set a playback limitation level.

1. Press DISPLAY while the player is in stop mode.

The Control Menu appears.

2. Press ↑/↓ to select (PARENTAL CONTROL), then press ENTER.

The options for “PARENTAL CONTROL” appear.

3. Press ↑/↓ to select "PLAYER →," then press ENTER.

◆ If you have not entered a password The display for registering a new password appears.

Enter a 4-digit password using the number buttons, then press ENTER. The display for confirming the password appears.

◆ When you have already registered a password

The display for entering the password appears.

4 Enter or re-enter your 4-digit password using the number buttons, then press ENTER.

The display for setting the playback limitation level appears.

5 Press ↑/↓ to select "STANDARD," then press ENTER.

The selection items for “STANDARD” are displayed.

6 Press ↑/↓ to select a geographic area as the playback limitation level, then press ENTER.

The area is selected.

When you select “OTHERS →,” select and enter a standard code in the table on page 70 using the number buttons.

7 Press ↑/↓ to select "LEVEL," then press ENTER.

The selection items for “LEVEL” are displayed.

8 Select the level you want using ↑/↓, then press ENTER.

Parental Control setting is complete.

The lower the value, the stricter the limitation.

To turn off the Parental Control function

Set "LEVEL" to "OFF" in step 8.

To play a disc for which Parental Control is set

1 Insert the disc and press ▷. The display for entering your password appears.

2 Enter your 4-digit password using the number buttons, then press ENTER. The player starts playback.

Hint

If you forget your password, remove the disc and repeat steps 1 to 3 of “Parental Control (limited playback).” When you are asked to enter your password, enter “199703” using the number buttons, then press ENTER. The display will ask you to enter a new 4-digit password. After you enter a new 4-digit password, replace the disc in the player and press ▷. When the display for entering your password appears, enter your new password.

Notes

• When you play discs which do not have the Parental Control function, playback cannot be limited on this player.
• Depending on the disc, you may be asked to change the parental control level while playing the disc. In this case, enter your password, then change the level. If the Resume Play mode is canceled, the level returns to the previous level.

Changing the password

1 Press DISPLAY while the player is in stop mode.

The Control Menu appears.

2 Press ↑/↓ to select

(PARENTAL CONTROL), then press ENTER.

The options for “PARENTAL CONTROL” appear.

3 Press ↑/↓ to select "PASSWORD →," then press ENTER.

The display for entering the password appears.

4 Enter your 4-digit password using the number buttons, then press ENTER. 5 Enter a new 4-digit password using the number buttons, then press ENTER. 6 To confirm your password, re-enter it using the number buttons, then press ENTER.

If you make a mistake entering your password

Press ← before you press ENTER and input the correct number.

Controlling Your TV with the Supplied Remote

You can control the sound level, input source, and power switch of your Sony TV with the supplied remote.

You can control your TV using the buttons below.

By pressing You can

TV I/Turn the TV on or off

VOL +/- Adjust the volume of the TV

TV/VIDEO Switch the TV's input source between the TV and other input sources.

Note

Depending on the connected unit, you may not be able to control your TV using all or some of the buttons on the supplied remote.

Settings and Adjustments

Using the Setup Display

By using the Setup Display, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup Display, among other things.

For details on each Setup Display item, see pages from 59 to 63.

Note

Playback settings stored in the disc take priority over the Setup Display settings and not all of the functions described may work.

1 Press DISPLAY when the player is in stop mode.

The Control Menu appears.

2 Press ↑/↓ to select (SETUP), then press ENTER.

The options for "SETUP" appear.

3 Press ↑/↓ to select "CUSTOM," then press ENTER.

The Setup Display appears.

4 Press ↑/↓ to select the setup item from the displayed list: "LANGUAGE SETUP," "SCREEN SETUP," "CUSTOM SETUP," or "AUDIO SETUP." Then press ENTER.

The Setup item is selected.

Example: "SCREEN SETUP"

Selected item

5 Press ↑/↓ to select an item, then press ENTER.

The options for the selected item appear. Example: "TV TYPE"

6 Press ↑/↓ to select a setting, then press ENTER.

The setting is selected and setup is complete.

Example: "16:9"

To enter the Quick Setup mode

Select "QUICK" in step 3. Follow from step 5 of the Quick Setup explanation to make basic adjustments (page 22).

To reset all of the "SETUP" settings

1. Select "RESET" in step 3 and press ENTER. 2. Select "YES" using ↑/↓. You can also quit the process and return to the Control Menu by selecting "NO" here. 3. Press ENTER. All the settings explained on pages 59 to 63 return to the default settings. Do not press I/While resetting the player, which takes a few seconds to complete.

Setting the Display or Sound Track Language

(LANGUAGE SETUP)

"LANGUAGE SETUP" allows you to set various languages for the on-screen display or sound track.

Select "LANGUAGE SETUP" in the Setup Display. To use the display, see "Using the Setup Display" (page 58).

◆ OSD (On-Screen Display)

Switches the display language on the screen.

◆ MENU (DVD VIDEO only)

You can select the desired language for the disc's menu.

◆ AUDIO (DVD VIDEO only)

Switches the language of the sound track. When you select "ORIGINAL," the language given priority in the disc is selected.

◆ SUBTITLE (DVD VIDEO only)

Switches the language of the subtitle recorded on the DVD VIDEO.

When you select "AUDIO FOLLOW," the language for the subtitles changes according to the language you selected for the sound track.

Hint

If you select "OTHERS →" in "MENU," "SUBTITLE," or "AUDIO," select and enter a language code from "Language Code List" on page 70 using the number buttons.

Note

If you select a language in "MENU," "SUBTITLE," or "AUDIO" that is not recorded on a DVD VIDEO, one of the recorded languages will be automatically selected.

Settings for the Display

(SCREEN SETUP)

Choose settings according to the TV to be connected.

Select “SCREEN SETUP” in the Setup Display. To use the display, see “Using the Setup Display” (page 58).

The default settings are underlined.

TV TYPE

Selects the aspect ratio of the connected TV (4:3 standard or wide).

4:3 LETTER BOX	Select this when you connect a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen.
4:3 PAN SCAN	Select this when you connect a 4:3 screen TV. Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit.
16:9 Select this	is when you connect a wide-screen TV or a TV with a wide mode function.

4:3 LETTER BOX

4:3 PAN SCAN

16:9

Note

Depending on the DVD, "4:3 LETTER BOX" may be selected automatically instead of "4:3 PAN SCAN" or vice versa.

◆ SCREEN SAVER

The screen saver image appears when you leave the player in pause or stop mode for 15 minutes, or when you play a CD, or DATA CD/DATA DVD (MP3 audio) for more than 15 minutes. The screen saver will help prevent your display device from becoming damaged (ghosting). Press ▷ to turn off the screen saver.

ON Turns on the screen saver.

OFF Turns off the screen saver.

◆ BACKGROUND

Selects the background color or picture on the TV screen when the player is in stop mode or while playing a CD, or DATA CD (MP3 audio)/DATA DVD (MP3 audio).

JACKETPICTURE	The jacket picture (still picture) appears, but only when the jacket picture is already recorded on the disc (CD-EXTRA, etc.). If the disc does not contain a jacket picture, the “GRAPHICS” picture appears.
GRAPHICS	A preset picture stored in the player appears.
BLUE The background color is blue.
BLACK The background color is black.

◆ BLACK LEVEL

Selects the black level (setup level) for the video signals output from the jacks other than COMPONENT VIDEO OUT.

ON	Sets the black level of the output signal to the standard level.
OFF Lowers	the standard black level. Use this when the picture becomes too white.

Selects the black level (setup level) for the video signals output from the COMPONENT VIDEO OUT jacks. You cannot select this when the player outputs progressive signals (page 19).

OFF Sets the	black level of the output signal to the standard level. Normally select this position.
ON Raises the	standard black level.Use this setting when the picture appears too dark.

◆ 4:3 OUTPUT

This setting is effective only when you set "TV TYPE" in "SCREEN SETUP" to "16:9."

Adjust this to watch 4:3 aspect ratio progressive signals. If you can change the aspect ratio on your progressive format (480p) compatible TV, change the setting on your TV, not the player. Note that this setting is effective only when “PROGRESSIVE AUTO” or “PROGRESSIVE VIDEO” is selected by the PROGRESSIVE button on the front panel.

FULL	Select this when you can change the aspect ratio on your TV.
NORMAL Select this when you cannot change the aspect ratio on your TV. Shows a 16:9 aspect ratio signal with black bands on left and right sides of the image.

16:9 aspect ratio TV

Custom Settings (CUSTOM

SETUP)

Use this to set up playback related and other settings.

Select "CUSTOM SETUP" in the Setup Display. To use the display, see "Using the Setup Display" (page 58).

The default settings are underlined.

◆ AUTO POWER OFF

Switches the Auto Power Off setting on or off.

OFF Switches	this function off.
ON The player	enters standby mode when left in stop mode for more than 30 minutes.

AUTO PLAY

Switches the Auto Play setting on or off. This function is useful when the player is connected to a timer (not supplied).

OFF	Switches this function off.
ON Automatically	cally starts playbackwhen the player is turned on bya timer (not supplied).

DIMMER

Adjusts the lighting of the front panel display.

BRIGHT	Makes the lighting bright.
DARK Makes	the lighting dark.

◆ PAUSE MODE (DVD VIDEO/DVD-VR mode only)

Selects the picture in pause mode.

AUTO The picture, including subjects that move dynamically, is output with no jitter. Normally select this position.

FRAME The picture, including subjects that do not move dynamically, is output in high resolution.

◆ TRACK SELECTION (DVD VIDEO only)

Gives the sound track which contains the highest number of channels priority when you play a DVD VIDEO on which multiple audio formats (PCM, DTS, or Dolby Digital format) are recorded.

OFF	No priority given.
AUTO Priority	given.

Notes

• When you set the item to “AUTO,” the language may change. The “TRACK SELECTION” setting has higher priority than the “AUDIO” settings in “LANGUAGE SETUP” (page 59).
• If you set “DTS” to “OFF” (page 63), the DTS sound track is not played even if you set “TRACK SELECTION” to “AUTO.”
• If PCM, DTS, and Dolby Digital sound tracks have the same number of channels, the player selects PCM, DTS, and Dolby Digital sound tracks in this order.

◆ MULTI-DISC RESUME (DVD VIDEO/VIDEO CD only)

Switches the Multi-disc Resume setting on or off. Resume playback can be stored in memory for up to 6 different DVD VIDEOS/VIDEO CDs (page 26).

ON	Stores the resume setting in memory for up to six discs.
OFF Does not	store the resume setting in memory. Playback restarts at the resume point only for the current disc in the player.

Note

If you run Quick Setup, Multi-disc Resume setting stored in memory may return to the default settings.

Settings for the Sound

(AUDIO SETUP)

"AUDIO SETUP" allows you to set the sound according to the playback and connection conditions.

Select “AUDIO SETUP” in the Setup Display. To use the display, see “Using the Setup Display” (page 58).

The default settings are underlined.

◆ AUDIO ATT (attenuation)

If the playback sound is distorted, set this item to “ON.” The player reduces the audio output level.

This function affects the output of the LINE OUT L/R (AUDIO) jacks.

OFF Normally, select this position.

ON Select this when the playback sound from the speakers is distorted.

◆ AUDIO DRC (Dynamic Range Control) (DVD VIDEO/DVD-VR mode only)

Makes the sound clear when the volume is turned down when playing a DVD that conforms to “AUDIO DRC.”

This function affects the output from the following jacks:

-LINE OUT L/R (AUDIO) jacks

- DIGITAL OUT (COAXIAL) jack only when “DOLBY DIGITAL” is set to “D-PCM” (page 63).

STANDARD	Normally select this position.
TV MODE Makes low sounds clear even if you turn the volume down.
WIDE RANGE	Gives you the feeling of being at a live performance.

◆ DOWNMIX (DVD VIDEO/DVD-VR mode only)

Switches the method for mixing down to 2 channels when you play a DVD which has rear sound elements (channels) or is recorded in Dolby Digital format. For details on the rear signal components, see “Checking the audio signal format” (page 42). This function affects the output of the following jacks: - LINE OUT L/R (AUDIO) jacks - DIGITAL OUT (COAXIAL) jack when “DOLBY DIGITAL” is set to “D-PCM” (page 63).

DOLBY SUR-ROUND	Normally, select this position.Multi-channel audio signals are output to 2 channels for enjoying surround sounds.
NORMAL	Multi-channel audio signals are downmixed to 2 channels for use with your stereo.

◆ DIGITAL OUT

Selects if audio signals are output via the DIGITAL OUT (COAXIAL) jack.

ON	Normally select this position. When you select “ON,” see “Setting the digital output signal” for further settings.
OFF The influence of the digital circuit upon the analog circuit is minimal.

Setting the digital output signal

Switches the method of outputting audio signals when you connect a component such as an amplifier (receiver) or MD deck with a digital input jack.

For connection details, see page 20. Select “DOLBY DIGITAL,” “DTS,” and “48kHz/96kHz PCM” after setting “DIGITAL OUT” to “ON.”

If you connect a component that is incompatible with the selected audio signal, a loud noise (or no sound) may be heard from the speakers, risking damage to your ears or speakers.

◆ DOLBY DIGITAL (DVD VIDEO/DVD-VR mode only)

Selects the type of Dolby Digital signal.

D-PCM Select	this when the player is connected to an audio component without a built-in Dolby Digital decoder. You can select whether the signals conform to Dolby Surround (Pro Logic) or not by making adjustments to the “DOWNMIX” item in “AUDIO SETUP” (page 63).
DOLBY DIGITAL	Select this when the player is connected to an audio component with a built-in Dolby Digital decoder.

◆ DTS

Selects whether or not to output DTS signals.

OFF	Select this when the player is connected to an audio component without a built-in DTS decoder.
ON Select this	when the player is connected to an audio component with a built-in DTS decoder.

◆ 48kHz/96kHz PCM (DVD VIDEO only)

Selects the sampling frequency of the audio signal.

48kHz/16bit	The audio signals of DVD VIDEOs are always converted to 48kHz/16bit.
96kHz/24bit	All types of signals including 96kHz/24bit are output in their original format. However, if the signal is encrypted for copyright protection purposes, the signal is only output as 48kHz/16bit.

Note

The analogue audio signals from the LINE OUT L/R (AUDIO) jacks are not affected by this setting and keep their original sampling frequency level.

Additional Information

Troubleshooting

If you experience any of the following difficulties while using the player, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer (For customers in the USA only).

Power

The power is not turned on.

→ Check that the power cord is connected securely.


There is no picture/picture noise appears.

Re-connect the connecting cord securely. The connecting cords are damaged. Check the connection to your TV (page 17) and switch the input selector on your TV so that the signal from the player appears on the TV screen. The disc is dirty or flawed. If the picture output from your player goes through your VCR to get to your TV or if you are connected to a combination TV/VIDEO player, the copy-protection signal applied to some DVD programs could affect picture quality. If you still experience problems even when you connect your player directly to your TV, try connecting your player to your TV's S VIDEO input (page 17). You have selected "PROGRESSIVE AUTO" or "PROGRESSIVE VIDEO" using the PROGRESSIVE button on the front panel (the PROGRESSIVE indicator lights up) even though your TV cannot accept the progressive signal. In this case, select "NORMAL (INTERLACE)" so that the PROGRESSIVE indicator turns off.

Even if your TV is compatible with progressive format 480p signals, the image may be affected when you set the player to progressive format. In this case, select "NORMAL (INTERLACE)" using the PROGRESSIVE button on the front panel so that the PROGRESSIVE indicator turns off and the player is set to normal (interlace) format.

The picture does not fill the screen, even though the aspect ratio is set in "TV TYPE" under "SCREEN SETUP."

The aspect ratio of the disc is fixed on your DVD.

Sound

There is no sound.

Re-connect the connecting cord securely. The connecting cord is damaged. The player is connected to the wrong input jack on the amplifier (receiver) (page 20). The amplifier (receiver) input is not correctly set. The player is in pause mode or in Slow-motion Play mode. The player is in fast forward or fast reverse mode. If the audio signal does not come through the DIGITAL OUT (COAXIAL) jack, check the audio settings (page 63). While playing a Super VCD on which the audio track 2 is not recorded, no sound will come out when you select "2:STEREO," "2:1/L," or "2:2/R."

Sound distortion occurs.

Set "AUDIO ATT" in "AUDIO SETUP" to "ON" (page 62).

The sound volume is low.

The sound volume is low on some DVDs. The sound volume may improve if you set "AUDIO DRC" in "AUDIO SETUP" to "TV MODE" (page 62). Set "AUDIO ATT" in "AUDIO SETUP" to "OFF" (page 62).

Operation

The remote does not function.

The batteries in the remote are weak.

There are obstacles between the remote and the player.

→ The distance between the remote and the player is too far.

→ The remote is not pointed at the remote sensor on the player.

The disc does not play.

→ The disc is turned over.

Insert the disc with the playback side facing down.

→ The disc is skewed.

→ The player cannot play certain discs (page 8).

→ The region code on the DVD does not match the player.

→ Moisture has condensed inside the player (page 5).

→ The player cannot play a recorded disc that is not correctly finalized (page 9).

The MP3 audio track cannot be played (page 49).

→ The DATA CD is not recorded in an MP3 format that conforms to ISO 9660 Level 1/Level 2 or Joliet.

→ The DATA DVD is not recorded in MP3 format that conforms to UDF (Universal Disk Format).

→ The MP3 audio track does not have the extension ".MP3."

→ The data is not formatted in MP3 even though it has the extension ".MP3."

The data is not MPEG-1 Audio Layer III data.

The player cannot play audio tracks in mp3PRO format.

“MODE (MP3, JPEG)” is set to “IMAGE (JPEG)” (page 52).

The JPEG image file cannot be played (page 49).

The DATA CD is not recorded in a JPEG format that conforms to ISO 9660 Level 1/Level 2, or Joliet.

The DATA DVD is not recorded in JPEG format that conforms to UDF (Universal Disk Format).

The file has an extension other than “.JPEG” or “.JPG.”

The image is larger than 3072 (width) · 2048 (height) in normal mode, or more than 3,300,000 pixels in progressive JPEG. (Some progressive JPEG files cannot be displayed even if the file size is within this specified capacity.)

The image does not fit the screen (the image is reduced).

“MODE (MP3, JPEG)” is set to “AUDIO (MP3)” (page 52).

The MP3 audio tracks and JPEG image files start playing simultaneously.

“MODE (MP3, JPEG)” is set to “AUTO” (page 52).

The album/track/file names are not displayed correctly.

The player can only display numbers and alphabet. Other characters are displayed as “*”.

The disc does not start playing from the beginning.

→ Program Play, Shuffle Play, Repeat Play, or A-B Repeat Play is selected (page 29).

→ Resume play has taken effect (page 26).

The player starts playing the disc automatically.

→ The disc features an auto playback function.

→ “AUTO PLAY” in “CUSTOM SETUP” is set to “ON” (page 61).

Playback stops automatically.

→ While playing discs with an auto pause signal, the player stops playback at the auto pause signal.

Some functions such as Stop, Search, Fast Play, Slow Play, Slow-motion Play, Repeat Play, Shuffle Play, or Program Play cannot be performed.

→ Depending on the disc, you may not be able to do some of the operations above. Refer to the operating manual that comes with the disc.

The language for the sound track cannot be changed.

→ Try using the DVD's menu instead of the direct selection button on the remote (page 27). → Multilingual tracks are not recorded on the DVD being played. → The DVD prohibits the changing of the language for the sound track.

The subtitle language cannot be changed or turned off.

→ Try using the DVD's menu instead of the direct selection button on the remote (page 27). → Multilingual subtitles are not recorded on the DVD being played. → The DVD prohibits the changing of subtitles.

The angles cannot be changed.

→ Try using the DVD's menu instead of the direct selection button on the remote (page 27). → Multi-angles are not recorded on the DVD being played. → The angle can only be changed when the “☐” indicator lights up on the front panel display (page 11). → The DVD prohibits changing of the angles.

The player does not operate properly.

→ When static electricity, etc., causes the player to operate abnormally, unplug the player.

5 numbers or letters are displayed on the screen and on the front panel display.

→ The self-diagnosis function was activated. (See the table on page 67.)

The disc tray does not open and "LOCKED" appears on the front panel display.

→ Child Lock is set (page 25).

The disc tray does not open and "TRAY LOCKED" appears on the front panel display.

→ Contact your Sony dealer or local authorized Sony service facility.

"Data error" appears on the TV screen when playing a DATA CD/DATA DVD.

→ The MP3 audio track/JPEG image file you want to play is broken. → The data is not MPEG-1 Audio Layer III data. → The JPEG image file format does not conform to DCF (page 48). → The JPEG image file has the extension ".JPG" or ".JPEG," but is not in JPEG format.

Self-diagnosis Function

(When letters/numbers appear in the display)

When the self-diagnosis function is activated to prevent the player from malfunctioning, a five-character service number (e.g., C 13 50) with a combination of a letter and four digits appears on the screen and the front panel display. In this case, check the following table.

First three characters of the service number Cause and/or corrective action

C 13 The disc is dirty or recordedin a format that this player cannot play (page 8).→Clean the disc with a cleaning cloth or check its format (page 2).

C 31 The disc is not inserted correctly.→Re-insert the disc correctly.

E XX(xx is a number)

To prevent a malfunction, the player has performed the self-diagnosis function.→Contact your nearest Sony dealer or local authorized Sony service facility and give the 5-character service number.Example: E 61 10

Glossary

Album (page 48, 50)

A unit in which to store JPEG image files or MP3 audio tracks on a DATA CD/DATA DVD. (“Album” is an exclusive definition for this player.)

Chapter (page 11)

Sections of a picture or a music feature that are smaller than titles. A title is composed of several chapters. Depending on the disc, no chapters may be recorded.

Dolby Digital (page 21, 63)

Digital audio compression technology developed by Dolby Laboratories. This technology conforms to multi-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. Dolby Digital provides the same discrete channels of high quality digital audio found in “Dolby Digital” theater surround sound systems. Good channel separation is realized because all of the channel data is recorded discretely and little deterioration is realized because all channel data processing is digital.

DTS (page 21, 63)

Digital audio compression technology that Digital Theater Systems, Inc. developed. This technology conforms to multi-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. DTS provides the same discrete channels of high quality digital audio. Good channel separation is realized because all of the channel data is recorded discretely and little deterioration is realized because all channel data processing is digital.

DVD VIDEO (page 7)

A disc that contains up to 8 hours of moving pictures even though its diameter is the same as a CD.

The data capacity of a single-layer and single-sided DVD is 4.7 GB (Giga Byte), which is 7 times that of a CD. The data capacity of a double-layer and single-sided DVD is 8.5 GB, a single-layer and double-sided DVD is 9.4 GB, and double-layer and double-sided DVD is 17 GB.

The picture data uses the MPEG 2 format, a worldwide standard of digital compression technology. The picture data is compressed to about 1/40 (average) of its original size. The DVD also uses a variable rate coding technology that changes the data to be allocated according to the status of the picture. Audio information is recorded in a multi-channel format, such as Dolby Digital, allowing you to enjoy a more realistic audio presence.

Furthermore, various advanced functions such as the multi-angle, multilingual, and Parental Control functions are provided with the DVD.

DVD-RW (page 7)

A DVD-RW is a recordable and rewritable disc that is the same size as a DVD VIDEO. The DVD-RW has two different modes: VR mode and Video mode. DVD-RWs created in Video mode have the same format as a DVD VIDEO, while discs created in VR (Video Recording) mode allow the contents to be programmed or edited.

A DVD+RW (plus RW) is a recordable and rewritable disc. DVD+RWs use a recording format that is comparable to the DVD VIDEO format.

A JPEG image recorded on a DATA CD/DATA DVD (“File” is an exclusive definition for this player.) A single file consists of a single image.

DVDs can be classified as Film based or Video based software. Film based DVDs contain the same images (24 frames per second) that are shown at movie theaters. Video based DVDs, such as television dramas or sit-coms, display images at 30 frames/60 fields per second.

Normal (Interlace) format shows every other line of an image as a single “field” and is the standard method for displaying images on television. The even number field shows the even numbered lines of an image, and the odd numbered field shows the odd numbered lines of an image.

Compared to the Interlace format that alternately shows every other line of an image (field) to create one frame, the Progressive format shows the entire image at once as a single frame. This means that while the Interlace format can show 30 frames/60 fields in one second, the Progressive format can show 60 frames in one second. The overall picture quality increases and still images, text, and horizontal lines appear sharper. This player is compatible with the 480 progressive format.

Progressive JPEGs are used mostly on the internet. They are different from other JPEGs in that they “fade in” gradually instead of being drawn from top to bottom when displayed on a browser. This lets you view the image while it is being downloaded.

The longest section of a picture or music feature on a DVD, movie, etc., in video software, or the entire album in audio software.

System

Laser: Semiconductor laser

Signal format system: NTSC

Audio characteristics

Frequency response: DVD VIDEO (PCM 96 kHz): 2 Hz to 44 kHz (± 1.0 dB)/DVD VIDEO (PCM 48 kHz): 2 Hz to 22 kHz (± 0.5 dB)/CD: 2 Hz to 20 kHz (± 0.5 dB)

Signal-to-noise ratio (S/N ratio): 115 dB (LINE OUT L/R (AUDIO) jacks only)

Harmonic distortion: 0.003 %

Dynamic range: DVD VIDEO: 103 dB/CD: 99 dB

Wow and flutter: Less than detected value (±0.001% W PEAK)

Outputs

(Jack name: Jack type/Output level/Load impedance)

LINE OUT (AUDIO): Phono jack/2 Vrms/10 kilohms

DIGITAL OUT (COAXIAL): Phono jack/0.5 Vp-p/75 ohms

COMPONENT VIDEO OUT(Y, PB, PR):

Phono jack/Y: 1.0 Vp-p/PB, PR: interlace1 = 0.648 Vp-p, progressive or interlace2 = 0.7 Vp-p/75 ohms

*1 BLACK LEVEL (COMPONENT OUT) is ON

*2 BLACK LEVEL (COMPONENT OUT) is OFF

LINE OUT (VIDEO): Phono jack/1.0 Vp-p/75 ohms

S VIDEO OUT: 4-pin mini DIN/Y: 1.0 Vp-p, C: 0.286 Vp-p/75 ohms

General

Power requirements:

U.S./Canadian models: 120 V AC, 60 Hz Models for other areas: 110 -240 V AC, 50/60 Hz See page 5 for further information.

Power consumption:

U.S./Canadian models: 10 W Models for other areas: 9 W

Dimensions (approx.):

430 · 43 · 208 mm (17 · 1 11/16 · 8 1/5 in.) (width/height/depth) incl. projecting parts

Mass (approx.): 1.72 kg (3 4/5 lb)

Operating temperature: 5 °C to 35 °C (41 °F to 95 °F)

Operating humidity: 25 % to 80 %

Supplied accessories

See page 16.

Specifications and design are subject to change without notice.

Language Code List

For details, see pages 41, 44, 59.

The language spellings conform to the ISO 639: 1988 (E/F) standard.

Code Language Code Language Code Language Code Language
1027 Afar	1183 Irish	1347 Maori	1507 Samoan
1028 Abkhazian	1186 Scots Gaelic	1349 Macedonian	1508 Shona
1032 Afrikaans	1194 Galician	1350 Malayalam	1509 Somali
1039 Amharic	1196 Guarani	1352 Mongolian	1511 Albanian
1044 Arabic	1203 Gujarati	1353 Moldavian	1512 Serbian
1045 Assamese	1209 Hausa	1356 Marathi	1513 Siswati
1051 Aymara	1217 Hindi	1357 Malay	1514 Sesotho
1052 Azerbaijani	1226 Croatian	1358 Maltese	1515 Sundanese
1053 Bashkir	1229 Hungarian	1363 Burmese	1516 Swedish
1057 Byelorussian	1233 Armenian	1365 Nauru	1517 Swahili
1059 Bulgarian	1235 Interlingua	1369 Nepali	1521 Tamil
1060 Bihari	1239 Interlingue	1376 Dutch	1525 Telugu
1061 Bislama	1245 Inupiak	1379 Norwegian	1527 Tajik
1066 Bengali; Bangla	1248 Indonesian	1393 Occitan	1528 Thai
	1253 Icelandic	1403 (Afan)Oromo	1529 Tigrinya
1067 Tibetan	1254 Italian	1408 Oriya	1531 Turkmen
1070 Breton	1257 Hebrew	1417 Punjabi	1532 Tagalog
1079 Catalan	1261 Japanese	1428 Polish	1534 Setswana
1093 Corsican	1269 Yiddish	1435 Pashto;	1535 Tonga
1097 Czech	1283 Javanese	Pushto	1538 Turkish
1103 Welsh	1287 Georgian	1436 Portuguese	1539 Tsonga
1105 Danish	1297 Kazakh	1463 Quechua	1540 Tatar
1109 German	1298 Greenlandic	1481 Rhaeto-	1543 Twi
1130 Bhutani	1299 Cambodian	Romance	1557 Ukrainian
1142 Greek	1300 Kannada	1482 Kirundi	1564 Urdu
1144 English	1301 Korean	1483 Romanian	1572 Uzbek
1145 Esperanto	1305 Kashmiri	1489 Russian	1581 Vietnamese
1149 Spanish	1307 Kurdish	1491 Kinyarwanda	1587 Volapük
1150 Estonian	1311 Kirghiz	1495 Sanskrit	1613 Wolof
1151 Basque	1313 Latin	1498 Sindhi	1632 Xhosa
1157 Persian	1326 Lingala	1501 Sangho	1665 Yoruba
1165 Finnish	1327 Laothian	1502 Serbo-	1684 Chinese
1166 Fiji	1332 Lithuanian	Croatian	1697 Zulu
1171 Faroese	1334 Latvian;	1503 Singhalese
1174 French	Lettish	1505 Slovak
1181 Frisian	1345 Malagasy	1506 Slovenian	1703 Not specified

Parental Control Area Code List

For details, see page 55.

Code	Area Code	Area Code	Area Code	Area
2044	Argentina	2165	Finland	2362 Mexico
2047	Australia	2174	France	2376 Netherlands
2046	Austria	2109	Germany	2390 New Zealand
2057	Belgium	2248	India	2379 Norway
2070	Brazil	2238	Indonesia	2427 Pakistan
2079	Canada	2254	Italy	2424 Philippines
2090	Chile	2276	Japan	2436 Portugal
2092	China	2304	Korea	2489 Russia
2115	Denmark	2363	Malaysia	2501 Singapore

Index

Numerics

16:9 60

4:3 LETTER BOX 60

4:3 PAN SCAN 60

48kHz/96kHz PCM 63

5.1 Channel Surround 21

A

A-B REPEAT 33

ADVANCE 25

ALBUM 36

Album 48, 67

ANGLE 44

AUDIO 41, 59

AUDIO ATT 62

AUDIO DRC 62

AUDIO SETUP 62

AUTO PLAY 61

B

BACKGROUND 60

Batteries 16

BLACK LEVEL 60

BLACK LEVEL

COMPONENT OUT) 61

C

CD 8, 24

CHAPTER 35

Chapter 67

CHAPTER VIEWER 37

Checking the audio signal format 42

Child Lock 25

Connecting 17

Continuous play CD/VIDEO CD 24 DVD 24

Control Menu 13

CUSTOM 58

CUSTOM PARENTAL CONTROL 54

CUSTOM PICTURE MODE 45

CUSTOM SETUP 61

D

DATA CD 7, 48

DATA DVD 7, 48

DATE 51

DIGITAL OUT 63

Digital output 63

DIMMER 61

Display

Control Menu Display 13

Front panel display 11

Setup Display 58

DOLBY DIGITAL 41, 63, 67

DOWNMIX 63

DTS 41, 63, 67

DVD 7, 24, 68

DVD+RW 7, 25, 68

DVD's menu 27

DVD-RW 7, 27, 68

E

EFFECT 53

F

Fast forward 34

FAST PLAY 25

Fast reverse 34

FILE 36

File 68

Film based software 19, 68

Freeze Frame 35

Front panel display 11

H

Handling discs 2

Hooking up 16

INDEX 36

Interlace format 68

INTERVAL 53

JPEG 7, 48

LANGUAGE SETUP 59

Locating

a specific point by watching the TV screen 34

MEMORY 46

MENU 59

MODE (MP3, JPEG) 52

MP3 7, 48

MULTI-DISC RESUME 26, 62

N

NORMAL (INTERLACE) 19

Normal (Interlace) format 68

0

On-screen display

Control Menu Display 13 Setup Display 58

ORIGINAL 27

ORIGINAL/PLAY LIST 27

OSD 59

P

PARENTAL CONTROL 54

PAUSE MODE 62

PBC Playback 28

Picture Navigation 37, 51

Play List 27

Program 29

Program Play 29

Progressive Auto 19

Progressive format 68

Progressive Video 19

Q

Quick 59

Quick Setup 22, 59

R

Remote 12, 16, 57

Repeat 32

Repeat Play 32

REPLAY 25

RESET 59

S

Scan 34

SCENE 35

SCREEN SAVER 60

SCREEN SETUP 60

Searching 34

SETUP 58

Setup Display 58

SHARPNESS 47

SHUFFLE 31

Shuffle Play 31

Slide Show 52

SLOW PLAY 25

Slow-motion Play 35

Speakers

Hooking up 20

SUBTITLE 44, 59

Surround 42

T

TIME/TEXT 38

TITLE 35

Title 68

TITLE VIEWER 37

TOP MENU 27

TRACK 36

Track 11

TRACK SELECTION 62

TRACK VIEWER 37

Troubleshooting 64

TV TYPE 60

TVS (TV Virtual Surround) 42

U

Usable discs 8

V

Video based software 19, 68

VIDEO CD 7, 24

Z

ZOOM 25, 51

Table of contents

Connections. 3

Notes

Printed on 100% recycled paper using VOC (Volatile Organic Compound)-free vegetable oil based ink.
