USER MANUAL RoboSHOT 12E AVBMP Vaddio

High-Definition Professional PTZ Camera

for Use with AV Bridge MATRIX PRO

999-99000-500/500W RoboSHOT 12E AVBMP (black or white), worldwide 999-99100-500/500W RoboSHOT 30E AVBMP (black or white), worldwide

What's in the box

Product photo of a black remote control unit with a camera and remote, displayed with a small card (no visible text or symbols on the device itself)

Two white and black electronic devices with camera lens modules, no visible text or symbols on the devices themselves.

Product photo of a white remote control unit with attached screen and remote control (no visible text or symbols)

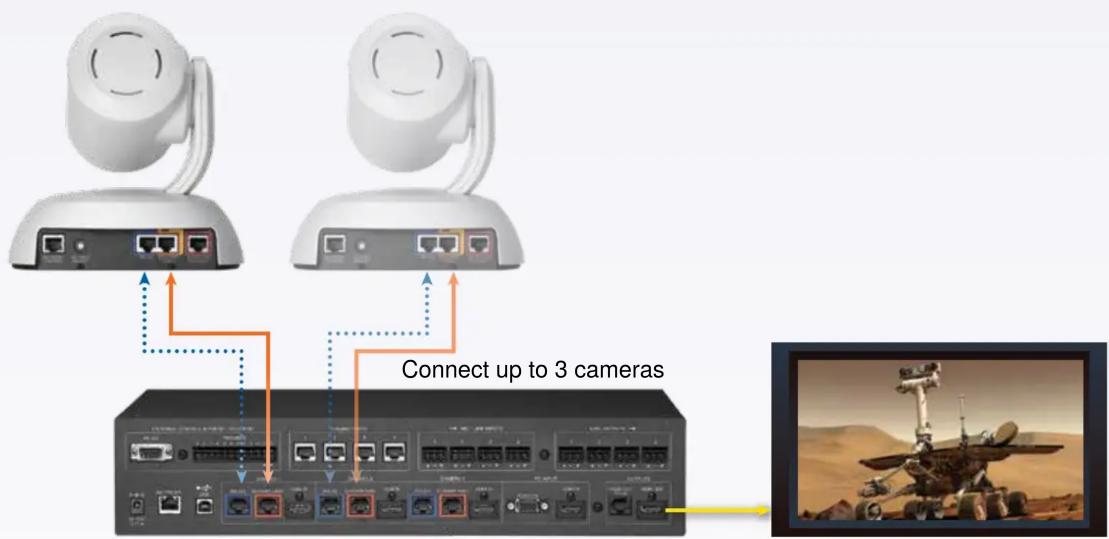

See the Installation Guide or Complete Manual for RoboSHOT 12, RoboSHOT 30, RoboSHOT 12E CAT-5, and RoboSHOT 30E CAT-5 for complete packing lists and additional connection diagrams.

vaddio®

Document 411-0025-01 Rev B
March 2019
Vaddio is a brand of Legrand AV · www.legrandav.com · Phone [phone] · Fax [phone] · Email [e-mail]
Visit us at support.vaddio.com for firmware updates, specifications, drawings, manuals, technical support information, and more.
©2019 Legrand AV Inc. Vaddio is a registered trademark of Legrand AV Inc. All other brand names or marks are used for identification purposes and are trademarks of their respective owners.
All patents are protected under existing designations. Other patents pending.
