D-3550 AND D-3551 INSTALLATION INSTRUCTIONS

SELECT PROPER APPLICATION FROM ILLUSTRATIONS BELOW. THEN FOLLOW INSTALLATION INSTRUCTIONS ON GIVEN PAGE.

ADJUST SPRING POWER ACCORDING TO CHART (FOR STANDARD, PARALLEL ARM, AND TOP JAMB APPLICATIONS)
REFER PAGE 6 FOR TRACK RAIL APPLICATION

ADJUST SPRING POWER FOR DOOR WIDTH AS INDICATED IN CHART.TO INCREASE CLOSING POWER, TURN SPRING ADJUSTING NUT CLOCKWISE. MAXIMUM ADJUSTMENT IS APPROXIMATERY 11 TURNS.

Technical line drawing of a mechanical component with a labeled 'NUT' feature (no other text or symbols)

Closer size	Max. Door Width		Turns of Spring Adjusting Nut
			D-3550		D-3551
	Exterior	Interior	from Preset	from Minimum	from Preset	from Minimum
1		Less than 2'-8"			-3	0
2	Less than 2'-6"	2'-8"	-3	0	-1	2
3	2'-6"	3'-2"	-1	2	1	4
4	3'-0"	3'-8"	2	5	5	8
5	3'6"	4'-0"	4	7
6	4'-0"	5'-0"	7	10

SPRING ADJUSTING NUT

FINAL ADJUSTMENT AND REGULATING PROCEDURES

REGULATING DOOR SPEED AND LATCHING SPEED

ADJUSTING FOOT FOR ADDITIONAL CLOSING POWER

REGULATING BACKCHECK

THE INTENSITY OF BACKCHECK ACTION IS REGULATED BY VALVE SHOWN. TURN CLOCKWISE TO INCREASE — OR COUNTERCLOCKWISE TO DECREASE CHECKING. CAUTION: SET VALVE FOR A SLIGHT CUSHIONING EFFECT. IT IS DAMAGING TO THE CLOSER IF THE CHECKING ACTION IS TOO ABRUPT. BACKCHECK SHOULD NEVER BE USED IN LIEU OF A DOOR STOP

FOR MODELS HAVING "DELAYED ACTION"

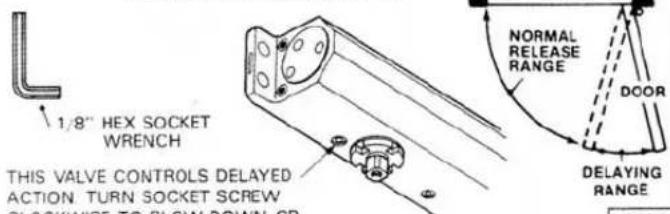

"DELAYED ACTION" IS OBTAINED BY OPENING DOOR INTO THE DELAYING RANGE, AS SHOWN. UPON RELEASE. THE DOOR TRAVELS SLOWLY THRU THE DELAYING RANGE THEN CONTINUES AT REGULAR SPEED IN THE NORMAL RELEASE RANGE UNTIL CLOSED. THE NORMAL RELEASE RANGE IS APPROXIMATELY 70°

INSTALLATION INSTRUCTIONS

STANDARD APPLICATION

CLOSER MOUNTED ON HINGE SIDE OF DOOR

RIGHT HAND DOOR ILLUSTRATED. SAME DIMENSIONS APPLY FOR LEFT HAND DOOR — MEASURED FROM HINGE Ⓛ.

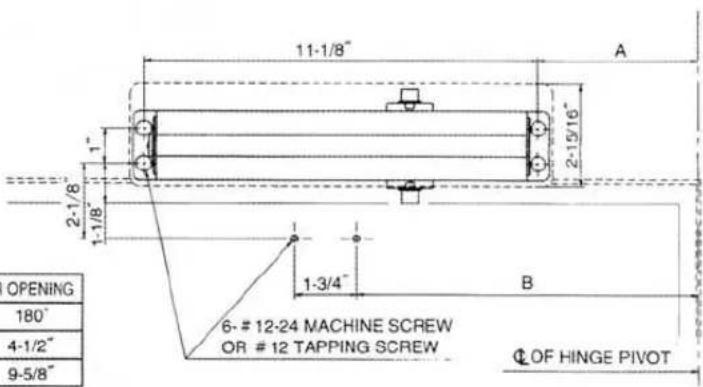

DIMENSION	MAXIMUM DOOR OPENING
	120°	180°
A	11-5/8"	9-5/8"
B	6-1/2"	4-1/2"

A
1. MARK LOCATION OF ATTACHING SCREWS ON DOOR AND FRAME AS SHOWN ABOVE. 2. ATTACH CLOSER TO DOOR WITH SHORT END OF CLOSER FACING TOWARD HINGE.
B
ATTACH FOOT TO FRAME WITH PIVOT AWAY FROM HINGE AS ILLUSTRATED BELOW.

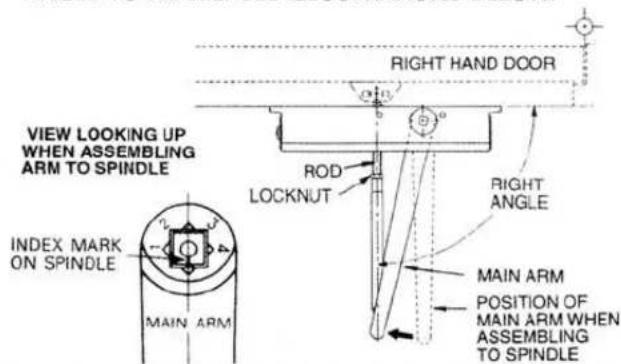

ASSEMBLE MAIN ARM TO CLOSER WITH INDEX MARK ON SPINDLE ALIGNED WITH AXIS OF ARM AS ILLUSTRATED BELOW. ATTACH ARM WITH WASHER AND SCREW.

C

D
TIGHTEN LOCKNUT SECURELY WHEN ROD IS AT RIGHT ANGLE TO DOOR. SEE ILLUSTRATION BELOW.

E
ADJUST AND REGULATE DOOR CLOSER AS DIRECTED AT PAGE 1.

F

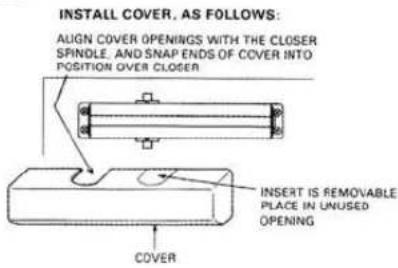

INSTALL COVER, AS FOLLOWS:

INSTALLATION INSTRUCTIONS

PARALLEL ARM APPLICATION

CLOSER MOUNTED ON STOP SIDE OF DOOR

DIMENSION	MAXIMUM DOOR OPENING
	120°	180°
A	9"	6-3/8"
B	5"	2-3/8"

A

1. MARK LOCATIONS OF ATTACHING SCREWS ON DOOR AND FRAME AS SHOWN ABOVE.
2. ATTACH CLOSER TO DOOR AND FOOT BRACKET TO FRAME (LONG END OF CLOSER TOWARD HINGE).

B

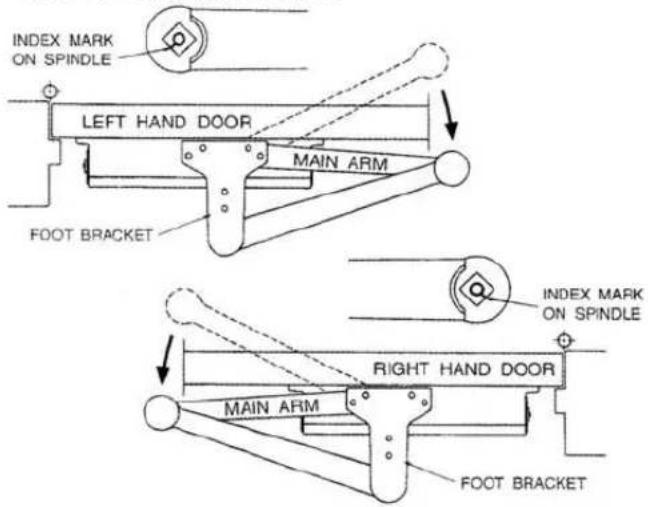

ASSEMBLE MAIN ARM TO CLOSER WITH INDEX MARK ON END OF SPINDLE 45° FROM AXIS OF ARM, AS ILLUSTRATED BELOW, USING A WRENCH ON THE BOTTOM SPINDLE TO ROTATE SPINDLE INTO POSITION. ATTACH ARM TO SPINDLE WITH WASHER AND SCREW.

C

IF FOOT ASSEMBLY SHOWN ON PAGE 2 IS PACKED WITH CLOSER, CONVERT TO FOOT BRACKET ASSEMBLY SHOWN ABOVE AS FOLLOWS: REMOVE ROD ASSEMBLY FROM FOOT AND ATTACH ROD TO FOOT BRACKET USING WASHER AND SCREW SHOWN. TIGHTEN LOCKNUT SECURELY WHEN END OF MAIN ARM IS POSITIONED 1-1/2" AWAY FROM DOOR.

D

ADJUST AND REGULATE DOOR CLOSER AS DIRECTED AT PAGE 1.

E

INSTALL COVER AS FOLLOWS:

INSTALLATION INSTRUCTIONS

TOP JAMB APPLICATION

CLOSER MOUNTED ON FRAME ON STOP SIDE OF DOOR

RIGHT HAND DOOR

ILLUSTRATED

SAME DIMENSIONS

APPLY FOR LEFT HAND

DOOR—MEASURED FROM

HINGE.

DIMENSION	MAXIMUM DOOR OPENING
	120°	180°
A	6-1/2"	4-1/2"
B	11-5/8"	9-5/8"

A

1. MARK LOCATION OF ATTACHING SCREWS ON DOOR AND FRAME AS SHOWN ABOVE.
2. ATTACH CLOSER TO FRAME WITH SHORT END OF CLOSER FACING TOWARD HINGE.

B

ATTACH FOOT TO DOOR WITH PIVOT AWAY FROM HINGE AS ILLUSTRATED BELOW.

D

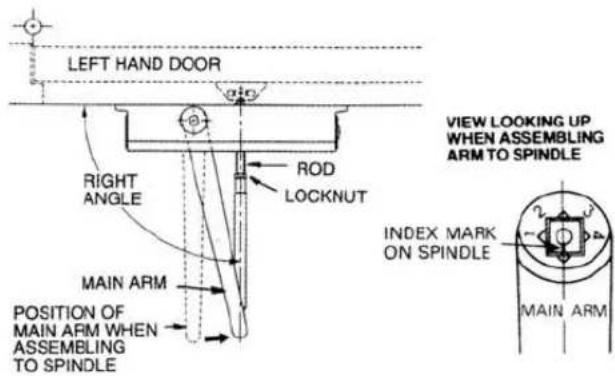

TIGHTEN LOCKNUT SECURELY WHEN ROD IS AT RIGHT ANGLE TO FRAME. SEE ILLUSTRATIONS BELOW.

E

ADJUST AND REGULATE DOOR CLOSER AS DIRECTED AT PAGE 1.

F

INSTALL COVER AS FOLLOWS:

C

ASSEMBLE MAIN ARM TO CLOSER WITH INDEX MARK ON SPINDLE ALIGNED WITH AXIS OF ARM AS ILLUSTRATED BELOW. ATTACH ARM WITH WASHER AND SCREW.

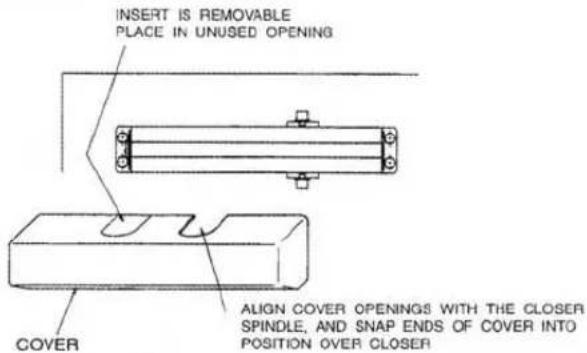

ALIGN COVER OPENINGS WITH THE CLOSER SPINDLE, AND SNAP ENDS OF COVER INTO POSITION OVER CLOSER

INSTALLATION INSTRUCTIONS

TRACK RAIL APPLICATION

CLOSER MOUNTED ON

HING SIDE OF DOOR

WITH TRACK RAIL ON FRAME

A
ASSEMBLE MAIN ARM TO CLOSER 45' AWAY FROM DOOR AS ILLUSTRATED BELOW. ATTACH ARM WITH WASHER AND SCREW. ATTACH CLOSER TO DOOR WITH SHORT END OF CLOSER FACING TOWARD HINGE.

B
INSERT SLIDER OF ARM INSIDE TRACK RAIL AS ILLUSTRATED BELOW.

C
ASSEMBLE END CAPS ON BOTH ENDS OF TRACK RAIL. ATTACH TRACK RAIL ON FRAME WITH SCREW.

D
ADJUST AND REGULATE DOOR CLOSER AS DIRECTED AT PAGE 1.

E

ADJUST SPRING POWER ACCORDING TO CHART FOR TRACK RAIL APPLICATION

Closer size	Max. Door Width		Turns of Spring Adjusting Nut
	Exterior	Interior	from Preset	from Minimum
1	—	less than 2'-8"	-3 Turns	0
2	less than 2'-6"	2'-8"	0	+3 Turns
3	2'-6"	3'-2"	+6 Turns	+9 Turns

D-3550T: Identical closer can be used as Standard, Parallel Arm, and Top Jamb Application. Spring power is adjustable as indicated in chart.

INSTALLATION INSTRUCTIONS

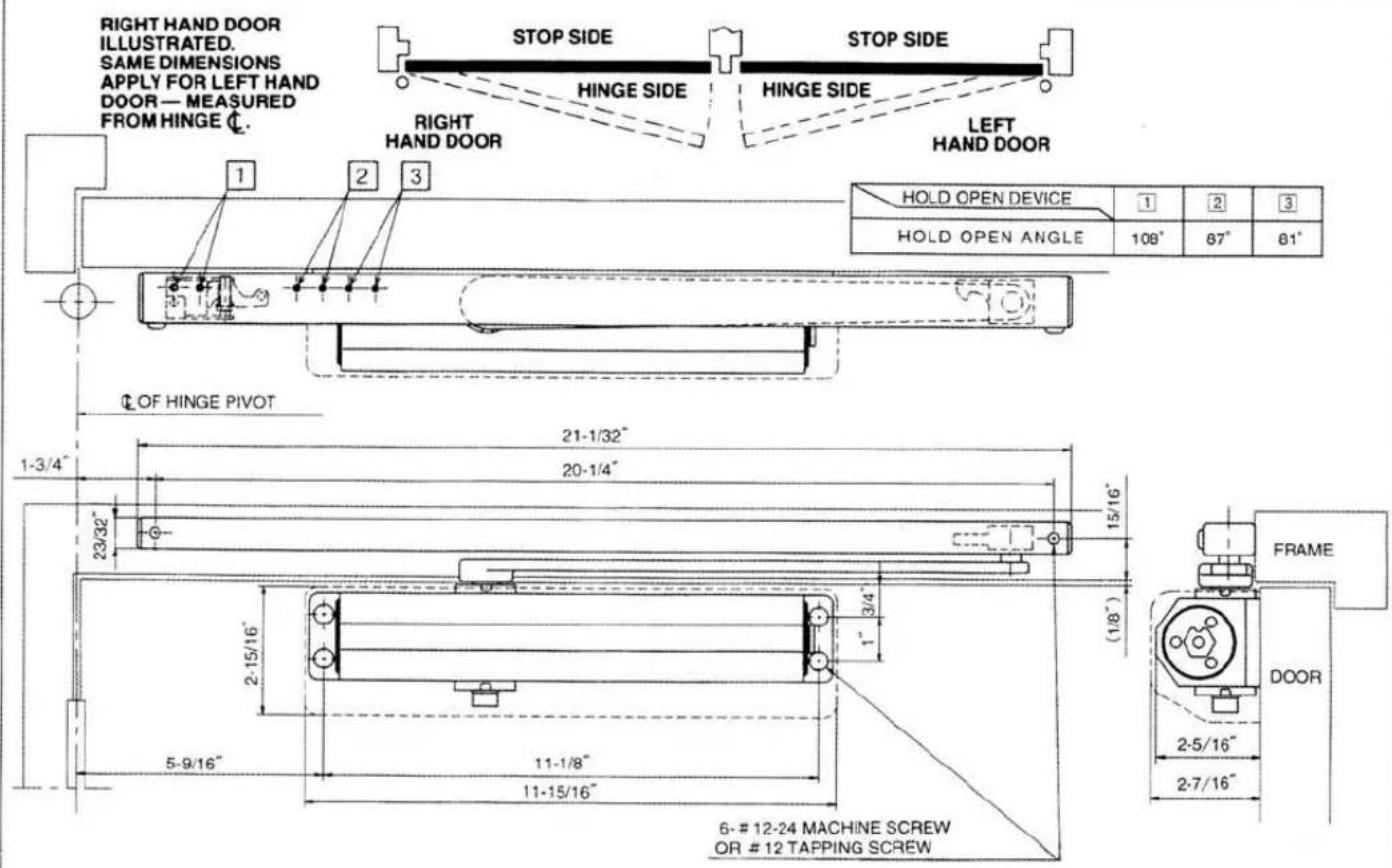

DIMENSION		HOLD-OPEN ANGLE FOR HOLD-OPEN MODELS	STOP ANGLE FOR WITH STOP MODELS	MAX OPENING ANGLE FOR WITHOUT STOP MODELS
A	B
11-1/8"	4-3/8"	85°	85°	95°*NOTE
10-1/2"	3-3/4"	90°	90°	100°*NOTE
9-3/8"	2-5/8"	100°	100°	120°*NOTE
8-1/4"	1-1/2"	110°	110°	160°*NOTE

*NOTE: A SUPPLEMENTAL DOOR STOP IS ALWAYS RECOMMENDED FOR INSTALLATIONS NOT INCORPORATING A STOP IN THE CLOSER ARM. DAMAGE TO THE DOOR, FRAME AND CLOSER MAY OCCUR IF NO STOP IS USED.

A

1. MARK LOCATIONS OF ATTACHING SCREWS ON DOOR AND FRAME AS SHOWN ABOVE.
2. ATTACH CLOSER TO DOOR AND FOOT BARACKET TO FRAME (LONG END OF CLOSER TOWARD HINGE).

B

ASSEMBLE MAIN ARM TO CLOSER WITH INDEX MARK ON END OF SPINDLE 45° FROM AXIS OF ARM, AS ILLUSTRATED BELOW, USING A WRENCH ON THE BOTTOM SPINDLE TO ROTATE SPINDLE INTO POSITION. ATTACH ARM TO SPINDLE WITH WASHER AND SCREW.

C

MOUNT CLOSER ON DOOR AND MOUNT PARALLEL BRACKET TO FRAME STOP AS PER TEMPLATE.

D

ADJUST AND REGULATE DOOR CLOSER AS DIRECTED ON PEGE 1 FOR SPEED, LATCHING ACTION, BACKCHECK, AND DELAYED ACTION. CAUTION: BACKCHECK IS ESSENTIAL TO PREVENT ARM FROM STRIKING ARM STOP WITH IMPACT.

E

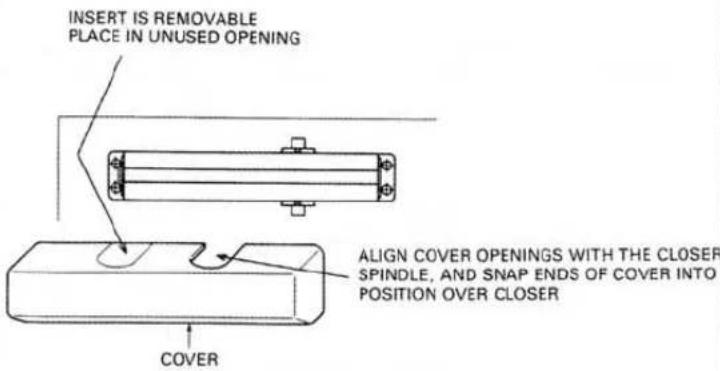

INSTALL COVER AS FOLLOWS :

FOR HOLD-OPEN ARM: A QUARTER TURN ON THE CONTROL HANDLE WILL ENGAGE OR DISENGAGE THE HOLD-OPEN FUNCTION.
