Brand	Stanley
Model	D4550
Product Type	Door Closer
Application	Interior or exterior doors up to 4 ft wide and 150 lbs
Mounting	Standard arm, surface mounted (parallel arm optional)
Dimensions (Overall)	10.0 x 2.2 x 1.8 inches (254 x 56 x 46 mm)
Weight	2.5 lbs (1.13 kg)
Material	Cast iron body with steel arm and cover
Finish	Aluminum (optional: dark bronze, brass)
Closing Speed Adjustment	Adjustable via valve (sweep and latch speed)
Backcheck	Adjustable backcheck cushioning at 70-85 degrees opening
Latch Speed	Separate valve for final 15 degrees closing regulation
Spring Power	Adjustable spring size (1-4 or 2-5)
Maximum Opening Angle	180 degrees (with optional stop)
Temperature Range	-20°F to 120°F (-29°C to 49°C)
Compliance	ANSI/BHMA A156.4 Grade 1
Warranty	Limited lifetime
Maintenance	Periodic lubrication with light oil; check screws and arm
Safety Features	Prevents door slamming; adjustable backcheck for safety
Included Parts	Closer body, arm assembly, mounting screws, template
Repairability	Sealed unit; replaceable arm and screws
Installation Guide	Template and instructions included; standard or top jamb mount

Frequently Asked Questions - D4550 STANLEY

How do I adjust the closing speed on my Stanley D4550 door closer?

To adjust the closing speed, locate the two valves on the front of the closer body. Turn the first valve (sweep speed) clockwise to slow down the main closing arc, or counterclockwise to speed it up. The second valve (latch speed) adjusts the final 15 degrees of closure. Use a hex key or screwdriver as specified in the manual.

Can the Stanley D4550 be used on exterior doors?

Yes, the D4550 is suitable for both interior and exterior doors. It is built with a weather-resistant cast iron body and can operate in temperatures from -20°F to 120°F. Ensure the closer is properly sealed and lubricated for outdoor use.

What is the maximum door weight and width for the D4550?

The Stanley D4550 is designed for doors up to 4 ft (48 inches) wide and weighing up to 150 lbs. For heavier or wider doors, consider a higher grade closer such as the Stanley D5000 series.

How do I install the D4550 door closer?

Installation involves mounting the closer body on the door frame (or door leaf) and attaching the arm to the door. Use the included template to mark screw holes. Ensure the closer is positioned according to the desired mounting pattern (standard or parallel arm). Tighten all screws securely and adjust the spring tension as needed.

Does the D4550 have a backcheck feature?

Yes, the D4550 includes an adjustable backcheck valve that cushions the door when it is opened forcefully, typically activating when the door is opened between 70 and 85 degrees. Adjust it by turning the backcheck screw counterclockwise to increase cushioning or clockwise to decrease.

What tools do I need to adjust the D4550?

You will need a hex key (Allen wrench) or a flathead screwdriver, depending on the valve design. The user manual specifies the exact tool sizes. Typically, a 4 mm hex key is used for spring power and valve adjustments.

Can I reverse the closer mounting for push or pull side?

Yes, the D4550 can be installed on the push side (closer body on frame) or pull side (closer body on door). The standard arm configuration works for pull side; a parallel arm bracket is required for push side. Refer to the manual for specific instructions.

How often should I lubricate the D4550?

The D4550 is a sealed unit and does not require regular lubrication. However, inspect the arm and pivot points annually and apply a light silicone lubricant if movement becomes stiff. Avoid over-lubricating, as it may attract debris.

What is the warranty on the Stanley D4550?

Stanley offers a limited lifetime warranty on the D4550 door closer against defects in material and workmanship. The warranty covers the original purchaser and requires proof of purchase. Normal wear and tear or misuse are not covered.

Why is my door closer not closing the door completely?

Common causes include insufficient spring power (adjust the spring size to a higher setting), misalignment of the arm, or the latch speed valve being too slow. Check also if the door hinges are binding. Adjust the sweep and latch speed valves counterclockwise to increase closing force.

USER MANUAL D4550 STANLEY

D-4550 AND D-4551 INSTALLATION INSTRUCTIONS

SELECT PROPER APPLICATION FROM ILLUSTRATIONS BELOW. THEN FOLLOW INSTALLATION INSTRUCTIONS ON GIVEN PAGE.
STANDARD APPLICATION

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

CLOSER MOUNTED ON HINGE SIDE OF DOOR
USE PAGE 2

PARALLEL ARM APPLICATION

Technical line drawing of a mechanical assembly with no visible text or symbols

CLOSER MOUNTED ON STOP SIDE OF DOOR
USE PAGE 3 USE PAGE 6 (EDA)

TOP JAMB APPLICATION

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

CLOSER MOUNTED ON FRAME ON STOP SIDE OF DOOR
USE PAGE 4

TRACK RAIL APPLICATION

Technical line drawing of a mechanical bracket assembly (no text or symbols)

CLOSEF MOUNTED ON HINGE SIDE OF DOOR WITH TRACK-RAIL ON FRAME
USE PAGE 5

ADJUST SPRING POWER ACCORDING TO CHART

(FOR STANDARD, PARALLEL ARM, AND TOP JAMB APPLICATIONS)

REFER PAGE 6 FOR TRACK RAIL APPLICATION

ADJUST SPRING POWER FOR DOOR WIDTH AS INDICATED IN CHART.TO INCREASE CLOSING POWER, TURN SPRING ADJUSTING NUT CLOCKWISE. MAXIMUM ADJUSTMENT IS APPROXIMATERY 21 TURNS.

Technical line drawing of a mechanical component with mounting holes and wiring (no text or symbols)

SPRING ADJUSTING NUT

Closer size	Max. Door Width		Turns of Spring Adjusting Nut
			D-4550		D-4551
	Exterior	Interior	from Preset	from Minimum	from Preset	from Minimum
1		Less than 2'-8"	-8	0	-2	0
2	Less than 2'-6"	2"-8"	-5	3	1	3
3	2'-6"	3'-2"	-3	5	6	8
4	3'-0"	3'-8"	0	8	14	16
5	3'-6"	4'-0"	3	11
6	4'-0"	5'-0"	6	14

FINAL ADJUSTMENT AND REGULATING PROCEDURES

REGULATING DOOR SPEED AND LATCHING SPEED
TURN SOCKET SCREW CLOCKWISE TO SLOW DOWN—OR COUNTER—CLOCKWISE TO SPEED UP DOOR MOVEMENT

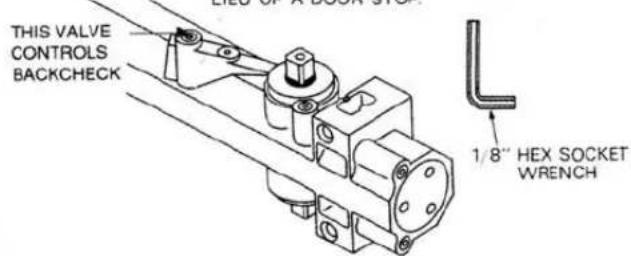

REGULATING BACKCHECK

THE INTENSITY OF BACKCHECK ACTION IS REGULATED BY VALVE SHOWN, TURN CLOCKWISE TO INCREASE — OR COUNTERCLOCKWISE TO DECREASE CHECKING. CAUTION: SET VALVE FOR A SLIGHT CUSHIONING EFFECT. IT IS DAMAGING TO THE CLOSER IF THE CHECKING ACTION IS TOO ABRUPT. BACKCHECK SHOULD NEVER BE USED IN LIEU OF A DOOR STOP.

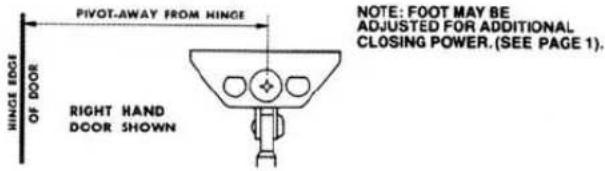

ADJUSTING FOOT FOR ADDITIONAL CLOSING POWER

FOR MODELS HAVING "DELAYED ACTION"

"DELAYED ACTION" IS OBTAINED BY OPENING DOOR INTO THE DELAYING RANGE, AS SHOWN UPON RELEASE. THE DOOR TRAVELS SLOWLY THRU THE DELAYING RANGE THEN CONTINUES AT REGULAR SPEED IN THE NORMAL RELEASE RANGE UNTIL CLOSED. THE NORMAL RELEASE RANGE IS APPROXIMATELY 70"

INSTALLATIONINSTRUCTIONS	STANDARD APPLICATION	CLOSER MOUNTED ONHINGE SIDE OF DOOR

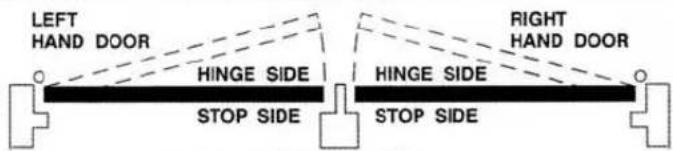

RIGHT HAND DOORILLUSTRATED.SAME DIMENSIONSAPPLY FOR LEFT HANDDOOR — MEASUREDFROM HINGE C.		IMENSION MAXIMUM DOOR OPENING120° 180°A 11-5/8" 9-5/8"B 8-1/2" 6-1/2"
A1. MARK LOCATION OF ATTACHING SCREWS ON DOOR ANDFRAME AS SHOWN ABOVE.2. ATTACH CLOSER TO DOOR WITH SHORT ENDOF CLOSER FACING TOWARD HINGE.	D	TIGHTEN LOCKNUT SECURELY WHEN ROD IS AT RIGHTANGLE TO DOOR. SEE ILLUSTRATION BELOW.

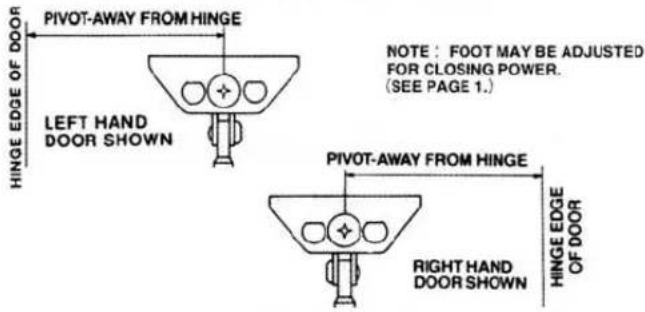

BATTACH FOOT TO FRAME WITH PIVOT AWAYFROM HINGE AS ILLUSTRATED BELOW.
CASSEMBLE MAIN ARM TO CLOSER WITHINDEX MARK ON SPINDLE ALIGNED WITHAXIS OF ARM AS ILLUSTRATED BELOW.ATTACH ARM WITH WASHER AND SCREW.[IMAGE]	E	ADJUST AND REGULATE DOOR CLOSERAS DIRECTED AT PAGE 1.
	F	INSTALL COVER, AS FOLLOWS:

INSTALLATION INSTRUCTIONS
STANDARD APPLICATION
CLOSER MOUNTED ON HINGE SIDE OF DOOR
RIGHT HAND DOOR ILLUSTRATED. SAME DIMENSIONS APPLY FOR LEFT HAND DOOR — MEASURED FROM HINGE Ⓕ.

DIMENSION	MAXIMUM DOOR OPENING
	120°	180°
A	11-5/8"	9-5/8"
B	8-1/2"	6-1/2"

A
1. MARK LOCATION OF ATTACHING SCREWS ON DOOR AND FRAME AS SHOWN ABOVE. 2. ATTACH CLOSER TO DOOR WITH SHORT END OF CLOSER FACING TOWARD HINGE.

B

ATTACH FOOT TO FRAME WITH PIVOT AWAY FROM HINGE AS ILLUSTRATED BELOW.

D

TIGHTEN LOCKNUT SECURELY WHEN ROD IS AT RIGHT ANGLE TO DOOR. SEE ILLUSTRATION BELOW.

E

ADJUST AND REGULATE DOOR CLOSER AS DIRECTED AT PAGE 1.

F

INSTALL COVER, AS FOLLOWS:

INSTALLATION INSTRUCTIONS

PARALLEL ARM APPLICATION

CLOSER MOUNTED ON STOP SIDE OF DOOR

DIMENSION	MAXIMUM DOOR OPENING
	120°	180°
A	9"	6-3/8"
B	10-27/32"	8-7/32"

A

1. MARK LOCATIONS OF ATTACHING SCREWS ON DOOR AND FRAME AS SHOWN ABOVE.
2. ATTACH CLOSER TO DOOR AND FOOT BRACKET TO FRAME (SHORT END OF CLOSER TOWARD HINGE).

B

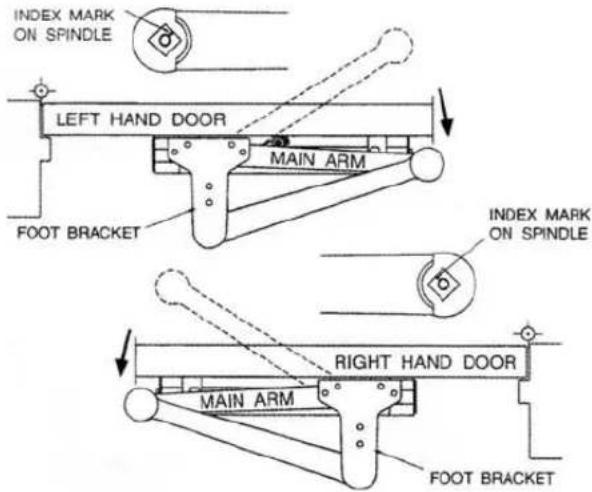

ASSEMBLE MAIN ARM TO CLOSER WITH INDEX MARK ON END OF SPINDLE 45° FROM AXIS OF ARM, AS ILLUSTRATED BELOW, USING A WRENCH ON THE BOTTOM SPINDLE TO ROTATE SPINDLE INTO POSITION. ATTACH ARM TO SPINDLE WITH WASHER AND SCREW.

C

IF FOOT ASSEMBLY SHOWN ON PAGE 2 IS PACKED WITH CLOSER, CONVERT TO FOOT BRACKET ASSEMBLY SHOWN ABOVE AS FOLLOWS: REMOVE ROD ASSEMBLY FROM FOOT AND ATTACH ROD TO FOOT BRACKET USING WASHER AND SCREW SHOWN. TIGHTEN LOCKNUT SECURELY WHEN END OF MAIN ARM IS POSITIONED 1-1/2' AWAY FROM DOOR.

D

ADJUST AND REGULATE DOOR CLOSER AS DIRECTED AT PAGE 1.

E

INSTALL COVER AS FOLLOWS:

INSTALLATION INSTRUCTIONS

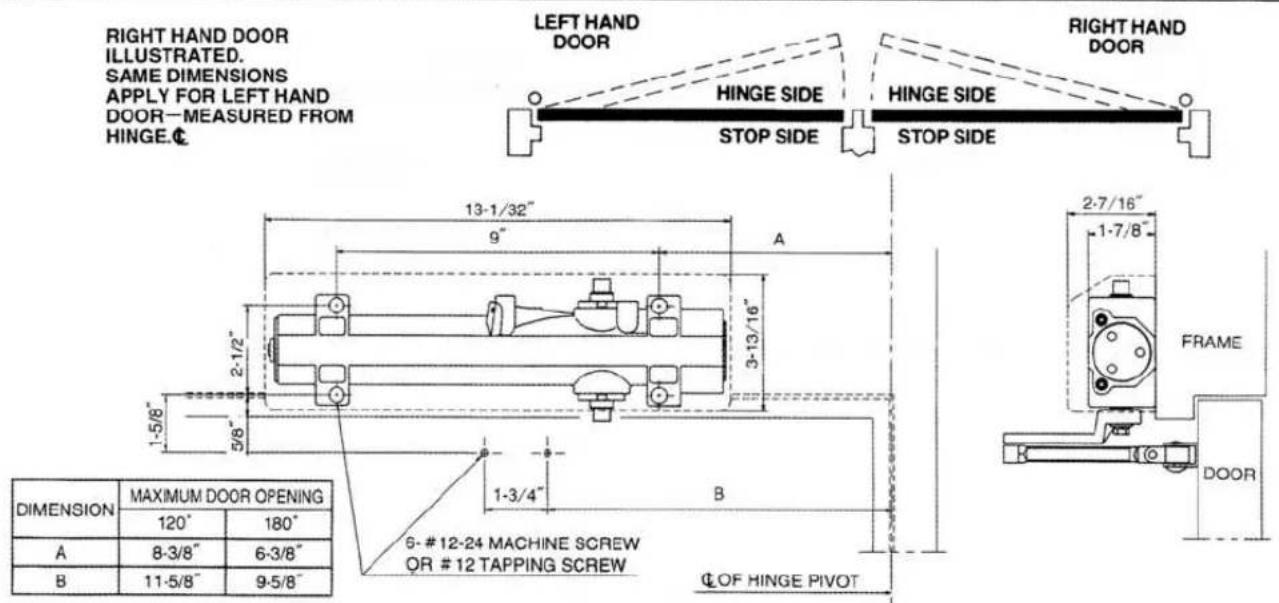

TOP JAMB APPLICATION

CLOSER MOUNTED ON FRAME ON STOP SIDE OF DOOR

A

1. MARK LOCATION OF ATTACHING SCREWS ON DOOR AND FRAME AS SHOWN ABOVE.
2. ATTACH CLOSER TO FRAME WITH SHORT END OF CLOSER FACING TOWARD HINGE.

B

ATTACH FOOT TO DOOR WITH PIVOT AWAY FROM HINGE AS ILLUSTRATED BELOW.

D

TIGHTEN LOCKNUT SECURELY WHEN ROD IS AT RIGHT ANGLE TO FRAME. SEE ILLUSTRATIONS BELOW.

E

ADJUST AND REGULATE DOOR CLOSER AS DIRECTED AT PAGE 1.

C

ASSEMBLE MAIN ARM TO CLOSER WITH INDEX MARK ON SPINDLE ALIGNED WITH AXIS OF ARM AS ILLUSTRATED BELOW. ATTACH ARM WITH WASHER AND SCREW.

F

INSTALL COVER AS FOLLOWS:

INSTALLATION INSTRUCTIONS	TRACK RAIL APPLICATION			CLOSER MOUNTED ON HING SIDE OF DOOR WITH TRACK RAIL ON FRAME
RIGHT HAND DOOR ILLUSTRATED. SAME DIMENSIONS APPLY FOR LEFT HAND DOOR - MEASURED FROM HINGE Q.	STOP SIDE HINGE SIDE RIGHT HAND DOOR	STOP SIDE HINGE SIDE HINGE SIDE	LEFT HAND DOOR	1	2	3
				HOLD OPEN ANGLE	106"	86"
OF HINGE PIVOT 1-3/4 23/32 7-5/8" 9" 13-1/32" 6-# 12-24 MACHINE SCREW OR # 12 TAPPING SCREW				FRAME 1-7/8" 2-7/16"	DOOR
ASSEMBLE MAIN ARM TO CLOSER 45' AWAY FROM DOOR AS ILLUSTRATED BELOW. ATTACH ARM WITH WASHER AND SCREW. ATTACH CLOSER TO DOOR WITH SHORT END OF CLOSER FACING TOWARD HINGE.		INSERT SLIDER OF ARM INSIDE TRACK RAIL AS ILLUSTRATED BELOW.		ASSEMBLE END CAPS ON BOTH ENDS OF TRACK RAIL. ATTACH TRACK RAIL ON FRAME WITH SCREW.
ADJUST AND REGULATE DOOR CLOSER AS DIRECTED AT PAGE 1.		ADJUST SPRING POWER ACCORDING TO CHART FOR TRACK RAIL APPLICATION

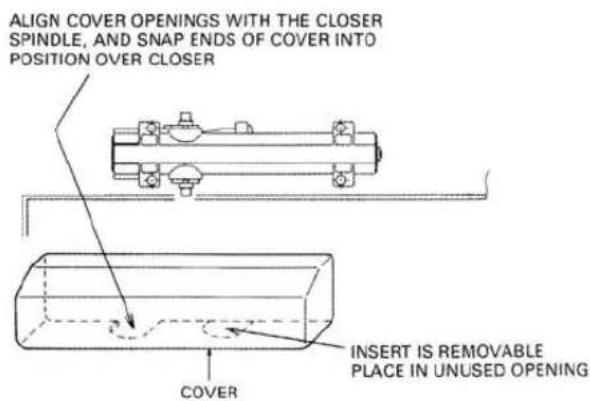

INSTALL COVER, AS FOLLOWS: ALIGN COVER OPENINGS WITH THE CLOSER SPINDLE, AND SNAP ENDS OF COVER INTO POSITION OVER CLOSER	REMOVABLE UNUSED OPENING	Closer size	Max. Door Width		Turns of Spring Adjusting Nut
			Exterior	Interior	from Preset	from Minimum
		1	——	less than 2'-8"	-3 Turns	0
		2	less than 2'-6"	2'-8"	0	+3 Turns
		3	2'-6"	3'-2"	+4 Turns	+7 Turns
		4	3'-0"	3'-8"	+12 Turns	+20 Turns
		※ D-4550T:Identical closer can be used as Standard, Parallel Arm, and Top Jamb Application. Spring power is adjustable, as indicated in chart.

INSTALLATION INSTRUCTIONS

APPLY FOR RIGHT HAND

DOOR—MEASURED FROM HINGE C.

* NOTE: A SUPPLEMENTAL DOOR STOP IS ALWAYS RECOMMENDED FOR INSTALLATIONS NOT INCORPORATING A STOP IN THE CLOSER ARM. DAMAGE TO THE DOOR, FRAME AND CLOSER MAY OCCUR IF NO STOP IS USED.

A

1. MARK LOCATIONS OF ATTACHING SCREWS ON DOOR AND FRAME AS SHOWN ABOVE.
2. ATTACH CLOSER TO DOOR AND FOOT BARACKET TO FRAME (SHORT END OF CLOSER TOWARD HINGE).

B

ASSEMBLE MAIN ARM TO CLOSER WITH INDEX MARK ON END OF SPINDLE 45° FROM AXIS OF ARM, AS ILLUSTRATED BELOW, USING A WRENCH ON THE BOTTOM SPINDLE TO ROTATE SPINDLE INTO POSITION. ATTACH ARM TO SPINDLE WITH WASHER AND SCREW.

C

MOUNT CLOSER ON DOOR AND MOUNT PARALLEL BRACKET TO FRAME STOP AS PER TEMPLATE.

D

ADJUST AND REGULATE DOOR CLOSER AS DIRECTED ON PEGE 1 FOR SPEED, LATCHING ACTION, BACKCHECK, AND DELAYED ACTION.

CAUTION: BACKCHECK IS ESSENTIAL TO PREVENT ARM FROM STRIKING ARM STOP WITH IMPACT.

E

INSTALL COVER AS FOLLOWS :

FOR HOLD-OPEN ARM: A QUARTER TURN ON THE CONTROL HANDLE WILL ENGAGE OR DISENGAGE THE HOLD-OPEN FUNCTION.
