D4551 - Door closer STANLEY - Free user manual and instructions

Brand	Stanley
Model	D4551
Product Type	Door Closer
Application	Interior and exterior doors
Door Weight Capacity	Up to 150 lbs (68 kg)
Door Width Capacity	Up to 48 inches (122 cm)
Adjustable Closing Speed	Yes, via hydraulic valves
Adjustable Latching Speed	Yes
Backcheck Function	Yes, adjustable
Mounting Type	Regular arm, parallel arm, or top jamb
Material	Steel body with aluminum alloy arm
Finish	Powder-coated or anodized (multiple colors available)
Dimensions (Body)	Approx. 10.5 x 2.75 x 2.75 inches (267 x 70 x 70 mm)
Weight	Approx. 3.5 lbs (1.6 kg)
Power Source	Mechanical (spring-loaded, no electricity required)
Temperature Range	-30°F to 120°F (-34°C to 49°C)
Compliance	ANSI/BHMA Grade 1 certified
Warranty	Limited lifetime warranty
Maintenance	Periodic lubrication of moving parts recommended
Safety Features	Backcheck prevents door from slamming open; adjustable closing force
Spare Parts	Available separately (arm, springs, valves)
Repairability	Serviceable by replacing internal cartridges

Frequently Asked Questions - D4551 STANLEY

How do I adjust the closing speed on my Stanley D4551 door closer?

Locate the two adjustment valves on the closer body. Turn the closing speed valve (usually marked 'C' or with an arrow) clockwise to slow, counterclockwise to speed up. The latching speed valve (marked 'L') controls the last few inches of closure. Always adjust in small increments (1/4 turn) and test.

What is the maximum door weight for the D4551?

The Stanley D4551 can handle doors up to 150 lbs (68 kg) and widths up to 48 inches (122 cm). For heavier doors, consider using a stronger closer or two units.

Can I install the D4551 on a fire-rated door?

Yes, the D4551 is suitable for fire-rated assemblies when installed according to local fire codes. Ensure the closer is mounted properly and does not interfere with door closing. Check your building regulations for specific requirements.

How do I change the mounting arm type from regular to parallel?

The D4551 comes with a universal arm that can be configured for regular (surface mount), parallel, or top jamb installation. Refer to the manual for bracket positions. You may need to reverse the arm shoe or use different screw holes.

What maintenance does the door closer require?

Periodic lubrication of the arm pivot points and pinions is recommended every 6-12 months. Use a light machine oil. Also, check screws for tightness and clean the arms to prevent dirt buildup.

How do I install the D4551 on a door?

Installation involves mounting the closer body on the door or frame (depending on layout), attaching the arm brackets, and adjusting the length. Use a template for drilling holes. Ensure the closer is level and the arm geometry is correct. Tighten all bolts securely.

The door closer is making a hissing noise. What should I do?

Hissing often indicates air in the hydraulic system or low oil. This may resolve after a few cycles. If persistent, check for leaks at the valves or piston rod. If oil is visible, the unit may need replacement or service.

Can I adjust the backcheck force on the D4551?

Yes, the backcheck valve controls the resistance when the door is pushed open too quickly. Turn the backcheck adjusting screw (often marked 'B' or 'BC') clockwise to increase dampening, counterclockwise to decrease.

What tools are needed for installation?

You'll need a drill (for pilot holes), screwdrivers (Phillips and flathead), a tape measure, a level, and a hex wrench (Allen key) for some adjustments. The mounting template helps ensure accurate placement.

Where can I find replacement parts for the D4551?

Stanley offers spare parts kits including springs, valves, and arm assemblies. Contact Stanley customer support or visit their website. Many parts are also available through hardware distributors or online retailers.

USER MANUAL D4551 STANLEY

D-4550 AND D-4551 INSTALLATION INSTRUCTIONS

SELECT PROPER APPLICATION FROM ILLUSTRATIONS BELOW. THEN FOLLOW INSTALLATION INSTRUCTIONS ON GIVEN PAGE.
STANDARD APPLICATION

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

CLOSER MOUNTED ON HINGE SIDE OF DOOR
USE PAGE 2

PARALLEL ARM APPLICATION

Technical line drawing of a mechanical assembly with no visible text or symbols

CLOSER MOUNTED ON STOP SIDE OF DOOR
USE PAGE 3 USE PAGE 6 (EDA)

TOP JAMB APPLICATION

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

CLOSER MOUNTED ON FRAME ON STOP SIDE OF DOOR
USE PAGE 4

TRACK RAIL APPLICATION

Technical line drawing of a mechanical bracket assembly (no text or symbols)

CLOSEF MOUNTED ON HINGE SIDE OF DOOR WITH TRACK-RAIL ON FRAME
USE PAGE 5

ADJUST SPRING POWER ACCORDING TO CHART

(FOR STANDARD, PARALLEL ARM, AND TOP JAMB APPLICATIONS)

REFER PAGE 6 FOR TRACK RAIL APPLICATION

ADJUST SPRING POWER FOR DOOR WIDTH AS INDICATED IN CHART.TO INCREASE CLOSING POWER, TURN SPRING ADJUSTING NUT CLOCKWISE. MAXIMUM ADJUSTMENT IS APPROXIMATERY 21 TURNS.

Technical line drawing of a mechanical component with no visible text or symbols

SPRING ADJUSTING NUT

Closer size	Max. Door Width		Turns of Spring Adjusting Nut
			D-4550		D-4551
	Exterior	Interior	from Preset	from Minimum	from Preset	from Minimum
1		Less than 2'-8"	-8	0	-2	0
2	Less than 2'-6"	2"-8"	-5	3	1	3
3	2'-6"	3'-2"	-3	5	6	8
4	3'-0"	3'-8"	0	8	14	16
5	3'-6"	4'-0"	3	11
6	4'-0"	5'-0"	6	14

FINAL ADJUSTMENT AND REGULATING PROCEDURES

REGULATING DOOR SPEED AND LATCHING SPEED
TURN SOCKET SCREW CLOCKWISE TO SLOW DOWN—OR COUNTER—CLOCKWISE TO SPEED UP DOOR MOVEMENT

REGULATING BACKCHECK

THE INTENSITY OF BACKCHECK ACTION IS REGULATED BY VALVE SHOWN, TURN CLOCKWISE TO INCREASE — OR COUNTERCLOCKWISE TO DECREASE CHECKING. CAUTION: SET VALVE FOR A SLIGHT CUSHIONING EFFECT. IT IS DAMAGING TO THE CLOSER IF THE CHECKING ACTION IS TOO ABRUPT. BACKCHECK SHOULD NEVER BE USED IN LIEU OF A DOOR STOP.

ADJUSTING FOOT FOR ADDITIONAL CLOSING POWER

FOR MODELS HAVING "DELAYED ACTION"

"DELAYED ACTION" IS OBTAINED BY OPENING DOOR INTO THE DELAYING RANGE, AS SHOWN UPON RELEASE. THE DOOR TRAVELS SLOWLY THRU THE DELAYING RANGE THEN CONTINUES AT REGULAR SPEED IN THE NORMAL RELEASE RANGE UNTIL CLOSED. THE NORMAL RELEASE RANGE IS APPROXIMATELY 70"

INSTALLATIONINSTRUCTIONS	STANDARD APPLICATION	CLOSER MOUNTED ONHINGE SIDE OF DOOR
RIGHT HAND DOORILLUSTRATED.SAME DIMENSIONSAPPLY FOR LEFT HANDDOOR — MEASUREDFROM HINGE C.		IMENSION MAXIMUM DOOR OPENING120° 180°A 11-5/8" 9-5/8"B 8-1/2" 6-1/2"
A1. MARK LOCATION OF ATTACHING SCREWS ON DOOR ANDFRAME AS SHOWN ABOVE.2. ATTACH CLOSER TO DOOR WITH SHORT ENDOF CLOSER FACING TOWARD HINGE.	D	TIGHTEN LOCKNUT SECURELY WHEN ROD IS AT RIGHTANGLE TO DOOR. SEE ILLUSTRATION BELOW.
BATTACH FOOT TO FRAME WITH PIVOT AWAYFROM HINGE AS ILLUSTRATED BELOW.
CASSEMBLE MAIN ARM TO CLOSER WITHINDEX MARK ON SPINDLE ALIGNED WITHAXIS OF ARM AS ILLUSTRATED BELOW.ATTACH ARM WITH WASHER AND SCREW.[IMAGE]	E	ADJUST AND REGULATE DOOR CLOSERAS DIRECTED AT PAGE 1.
	F	INSTALL COVER, AS FOLLOWS:

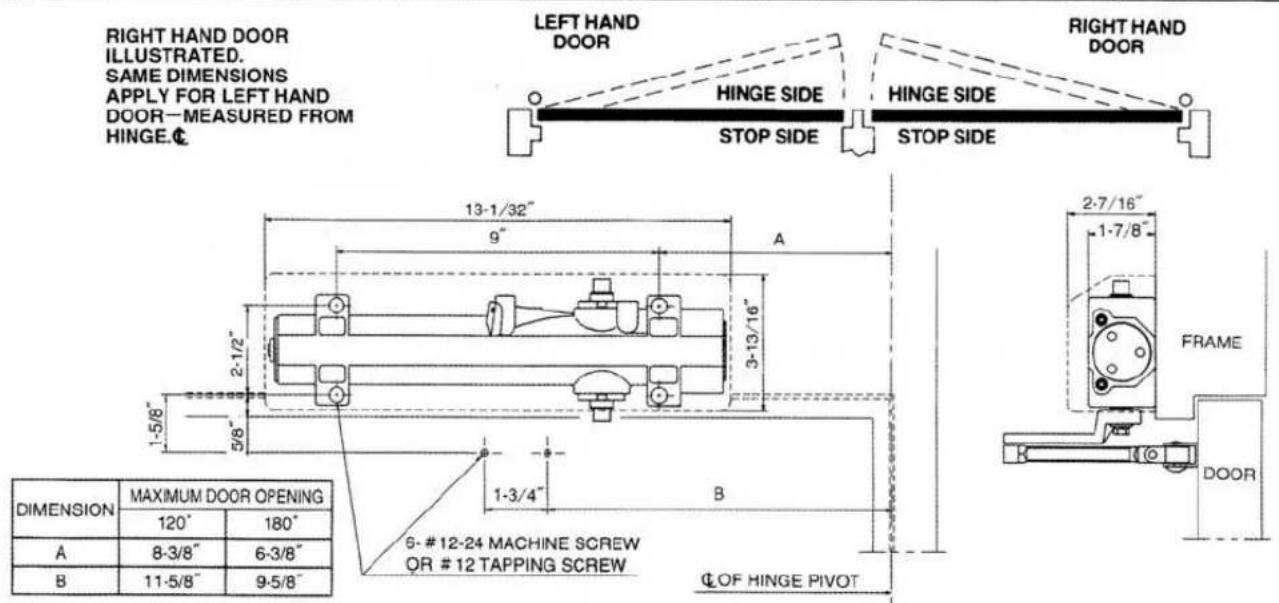

INSTALLATION INSTRUCTIONS
STANDARD APPLICATION
CLOSER MOUNTED ON HINGE SIDE OF DOOR

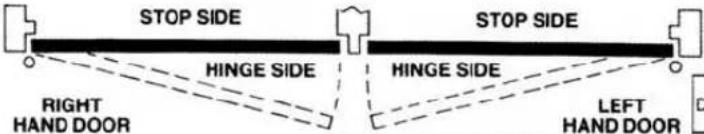

RIGHT HAND DOOR ILLUSTRATED. SAME DIMENSIONS APPLY FOR LEFT HAND DOOR — MEASURED FROM HINGE Ⓕ.

DIMENSION	MAXIMUM DOOR OPENING
	120°	180°
A	11-5/8"	9-5/8"
B	8-1/2"	6-1/2"

A
1. MARK LOCATION OF ATTACHING SCREWS ON DOOR AND FRAME AS SHOWN ABOVE. 2. ATTACH CLOSER TO DOOR WITH SHORT END OF CLOSER FACING TOWARD HINGE.

B

ATTACH FOOT TO FRAME WITH PIVOT AWAY FROM HINGE AS ILLUSTRATED BELOW.

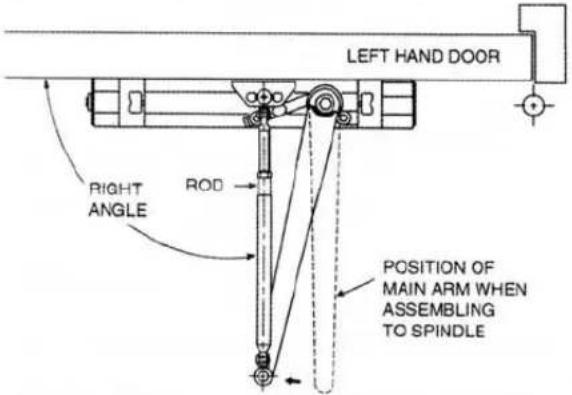

D

TIGHTEN LOCKNUT SECURELY WHEN ROD IS AT RIGHT ANGLE TO DOOR. SEE ILLUSTRATION BELOW.

E

ADJUST AND REGULATE DOOR CLOSER AS DIRECTED AT PAGE 1.

F

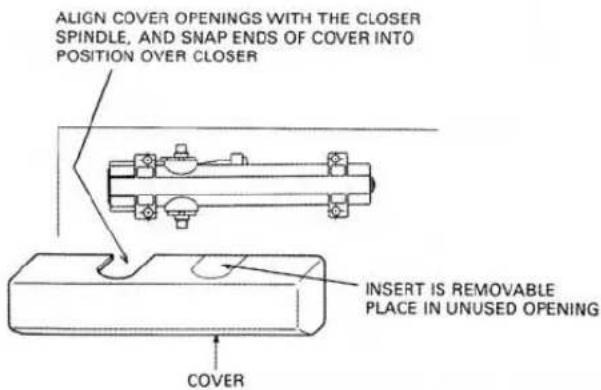

INSTALL COVER, AS FOLLOWS:

INSTALLATION INSTRUCTIONS

PARALLEL ARM APPLICATION

CLOSER MOUNTED ON STOP SIDE OF DOOR

DIMENSION	MAXIMUM DOOR OPENING
	120°	180°
A	9"	6-3/8"
B	10-27/32"	8-7/32"

A

1. MARK LOCATIONS OF ATTACHING SCREWS ON DOOR AND FRAME AS SHOWN ABOVE.
2. ATTACH CLOSER TO DOOR AND FOOT BRACKET TO FRAME (SHORT END OF CLOSER TOWARD HINGE).

B

ASSEMBLE MAIN ARM TO CLOSER WITH INDEX MARK ON END OF SPINDLE 45° FROM AXIS OF ARM, AS ILLUSTRATED BELOW, USING A WRENCH ON THE BOTTOM SPINDLE TO ROTATE SPINDLE INTO POSITION. ATTACH ARM TO SPINDLE WITH WASHER AND SCREW.

C

IF FOOT ASSEMBLY SHOWN ON PAGE 2 IS PACKED WITH CLOSER, CONVERT TO FOOT BRACKET ASSEMBLY SHOWN ABOVE AS FOLLOWS: REMOVE ROD ASSEMBLY FROM FOOT AND ATTACH ROD TO FOOT BRACKET USING WASHER AND SCREW SHOWN. TIGHTEN LOCKNUT SECURELY WHEN END OF MAIN ARM IS POSITIONED 1-1/2' AWAY FROM DOOR.

D

ADJUST AND REGULATE DOOR CLOSER AS DIRECTED AT PAGE 1.

E

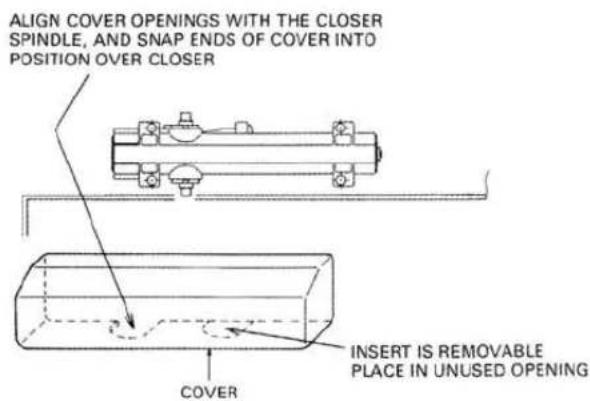

INSTALL COVER AS FOLLOWS:

INSTALLATION INSTRUCTIONS

TOP JAMB APPLICATION

CLOSER MOUNTED ON FRAME ON STOP SIDE OF DOOR

A

1. MARK LOCATION OF ATTACHING SCREWS ON DOOR AND FRAME AS SHOWN ABOVE.
2. ATTACH CLOSER TO FRAME WITH SHORT END OF CLOSER FACING TOWARD HINGE.

B

ATTACH FOOT TO DOOR WITH PIVOT AWAY FROM HINGE AS ILLUSTRATED BELOW.

D

TIGHTEN LOCKNUT SECURELY WHEN ROD IS AT RIGHT ANGLE TO FRAME. SEE ILLUSTRATIONS BELOW.

E

ADJUST AND REGULATE DOOR CLOSER AS DIRECTED AT PAGE 1.

C

ASSEMBLE MAIN ARM TO CLOSER WITH INDEX MARK ON SPINDLE ALIGNED WITH AXIS OF ARM AS ILLUSTRATED BELOW. ATTACH ARM WITH WASHER AND SCREW.

F

INSTALL COVER AS FOLLOWS:

INSTALLATION INSTRUCTIONS	TRACK RAIL APPLICATION			CLOSER MOUNTED ON HING SIDE OF DOOR WITH TRACK RAIL ON FRAME
RIGHT HAND DOOR ILLUSTRATED. SAME DIMENSIONS APPLY FOR LEFT HAND DOOR - MEASURED FROM HINGE Q.	STOP SIDE HINGE SIDE RIGHT HAND DOOR	STOP SIDE HINGE SIDE HINGE SIDE	LEFT HAND DOOR	1	2	3
				HOLD OPEN ANGLE	106"	86'
OF HINGE PIVOT 1-3/4 23/32 7-5/8" 9" 13-1/32" 6-# 12-24 MACHINE SCREW OR # 12 TAPPING SCREW				FRAME 1-7/8" 2-7/16"	DOOR
A ASSEMBLE MAIN ARM TO CLOSER 45' AWAY FROM DOOR AS ILLUSTRATED BELOW. ATTACH ARM WITH WASHER AND SCREW. ATTACH CLOSER TO DOOR WITH SHORT END OF CLOSER FACING TOWARD HINGE.		B INSERT SLIDER OF ARM INSIDE TRACK RAIL AS ILLUSTRATED BELOW.		C ASSEMBLE END CAPS ON BOTH ENDS OF TRACK RAIL. ATTACH TRACK RAIL ON FRAME WITH SCREW.
D ADJUST AND REGULATE DOOR CLOSER AS DIRECTED AT PAGE 1. INSTALL COVER, AS FOLLOWS: ALIGN COVER OPENINGS WITH THE CLOSER SPINDLE, AND SNAP ENDS OF COVER INTO POSITION OVER CLOSER REMOVABLE UNUSED OPENING		ADJUST SPRING POWER ACCORDING TO CHART FOR TRACK RAIL APPLICATION
		Closer size	Max. Door Width		Turns of Spring Adjusting Nut
			Exterior	Interior	from Preset	from Minimum
		1	——	less than 2'-8"	-3 Turns	0
		2	less than 2'-6"	2'-8"	0	+3 Turns
		3	2'-6"	3'-2"	+4 Turns	+7 Turns
		4	3'-0"	3'-8"	+12 Turns	+20 Turns
		※ D-4550T:Identical closer can be used as Standard, Parallel Arm, and Top Jamb Application. Spring power is adjustable, as indicated in chart.

INSTALLATION INSTRUCTIONS

LEFT HAND DOOR ILLUSTRATED. SAME DIMENSIONS APPLY FOR RIGHT HAND DOOR—MEASURED FROM HINGE C.

DIMENSION		HOLD-OPEN ANGLE FOR HOLD-OPEN MODELS	STOP ANGLE FOR WITH STOP MODELS	MAX. OPENING ANGLE FOR WITHOUT STOP MODELS
A	B
11-1/8"	10-1/4"	85°	85°	95°* NOTE
10-1/2"	9-5/8"	90°	90°	100°* NOTE
9-3/8"	8-1/2"	100°	100°	120°* NOTE
8-1/4"	7-3/8"	110°	110°	160°* NOTE
6-5/8"	5-3/4"	133°	133°	180°* NOTE

* NOTE: A SUPPLEMENTAL DOOR STOP IS ALWAYS RECOMMENDED FOR INSTALLATIONS NOT INCORPORATING A STOP IN THE CLOSER ARM. DAMAGE TO THE DOOR, FRAME AND CLOSER MAY OCCUR IF NO STOP IS USED.

A

1. MARK LOCATIONS OF ATTACHING SCREWS ON DOOR AND FRAME AS SHOWN ABOVE.
2. ATTACH CLOSER TO DOOR AND FOOT BARACKET TO FRAME (SHORT END OF CLOSER TOWARD HINGE).

B

ASSEMBLE MAIN ARM TO CLOSER WITH INDEX MARK ON END OF SPINDLE 45° FROM AXIS OF ARM, AS ILLUSTRATED BELOW, USING A WRENCH ON THE BOTTOM SPINDLE TO ROTATE SPINDLE INTO POSITION. ATTACH ARM TO SPINDLE WITH WASHER AND SCREW.

C

MOUNT CLOSER ON DOOR AND MOUNT PARALLEL BRACKET TO FRAME STOP AS PER TEMPLATE.

D

ADJUST AND REGULATE DOOR CLOSER AS DIRECTED ON PEGE 1 FOR SPEED, LATCHING ACTION, BACKCHECK, AND DELAYED ACTION. CAUTION: BACKCHECK IS ESSENTIAL TO PREVENT ARM FROM STRIKING ARM STOP WITH IMPACT.

E

FOR HOLD-OPEN ARM: A QUARTER TURN ON THE CONTROL HANDLE WILL ENGAGE OR DISENGAGE THE HOLD-OPEN FUNCTION.
