Product Type	Video Projector
Brand	AAXA Technologies
Model	ST200
Display Technology	DLP
Native Resolution	640 x 480
Brightness	200 Lumens
Contrast Ratio	1000:1
Lamp Life	20,000 Hours (LED)
Keystone Correction	±15° Vertical
Focus	Manual
Dimensions (W x D x H)	6.5 x 4.5 x 1.5 inches
Weight	1.2 lbs
Power Supply	DC 5V 2A
Battery Life	2 Hours
Inputs	HDMI, USB, AV, Audio Out
Built-in Speaker	1W Mono
Remote Control	Included
Main Functions	Portable projection, media playback, gaming
Maintenance	Clean lens with soft, dry cloth
Safety Warnings	Do not look into lens; keep away from moisture
Spare Parts Availability	Replacement LED module available
Repairability	User-replaceable filter; professional service for LED

Frequently Asked Questions - ST200 AAXA Technologies

How do I connect my smartphone to the ST200 projector?

Use an HDMI adapter (not included) for smartphones with HDMI output, or use a wireless display adapter plugged into the projector's HDMI port.

What is the maximum projection size?

The ST200 can project up to 80 inches diagonally in a darkened room, depending on distance.

How long does the battery last?

The built-in battery lasts approximately 2 hours on a full charge.

Can I play media directly from a USB drive?

Yes, the projector supports video, photo, and music playback from USB drives via its built-in media player.

Is the projector compatible with game consoles?

Yes, it works with game consoles that output via HDMI (e.g., Nintendo Switch, PS4, Xbox One).

How do I clean the lens?

Use a soft, lint-free cloth to gently wipe the lens. Avoid using liquids or abrasive materials.

What is the native resolution?

The native resolution is 640x480, but it can support up to 1080p via downscaling.

Does it have built-in speakers?

Yes, a 1-watt mono speaker is built-in, but for better sound, use the audio out jack with external speakers.

How do I adjust the focus?

Rotate the focus ring on the lens barrel until the image is sharp.

Is the projector safe for children?

Always supervise children. Never look directly into the lens to avoid eye damage. Keep the projector away from water.

USER MANUAL ST200 AAXA Technologies

Short Throw LED Pico Projector

Hand holding a white projector with ventilation grille and 'ST200' label (no additional text or symbols visible)

User Guide

Caution!

WARNING: Please use this product as instructed. Misuse may cause injury or death.

DO NOT use while driving.

DO NOT expose to water or wet surfaces. Electric shock may occur.

DO NOT expose the projected LED image to your eyes or the eyes of others.

DO NOT block or restrict airflow from ventilation holes as this may cause the projector to overheat.

Keep the projector, battery, or charger away from any heat sources.

Caution for Battery Use

• Do not pierce or puncture the battery with sharp objects.
• Do not heat the product or expose it to high temperature.
• Do not wet it or place it in any liquid.

Caution for Headphone Use

• Prolonged use at high volume may impair your hearing.
• High volume during walking or driving may cause distractions and result in injury or death.

Table of Contents

Chapter 1: ST200 at a glance 16

1 Main Unit Front/Back 18

2 Remote & Keypad

3 Accessories 20

Chapter 2: Getting Started 21

4 Powering On / OFF 23

5 Focus Adjustment / Short-Throw 24

Optics 26

6 Battery Installation 27

7 Connecting to a Computer VGA 29

9 | Connecting to a Computer HDMI 30

11 Connecting to Composite Video 31

13 Connecting to HDMI Video 36

15 Connecting to Speaker or Head- 38

1 phones 39

40

Connecting a Micro SD Card

Connecting to a USB Host

Chapter 3: Menu Screens

Portable Media Player

Video Player Menu

Video FAQ

Photo Viewer Menu

Photo FAQ

Music Player Menu

Music FAQ

Ebook Viewer Menu

Setup Menu

Keystone Adjustments

Chapter 4: Technical Details

Troubleshooting

Specifications

ST200 at a Glance

Chapter 1

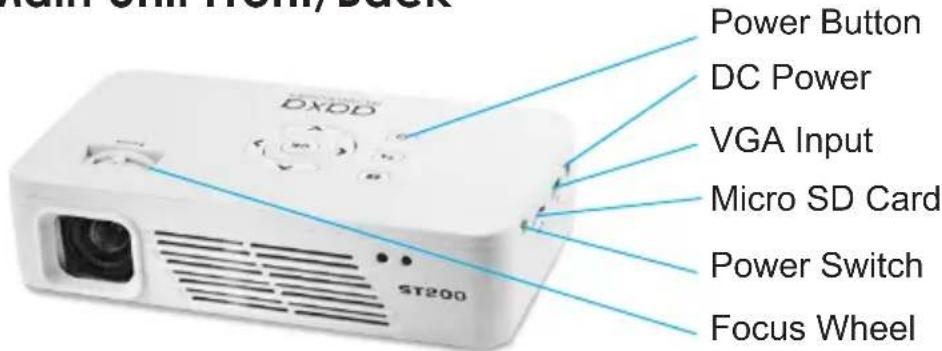

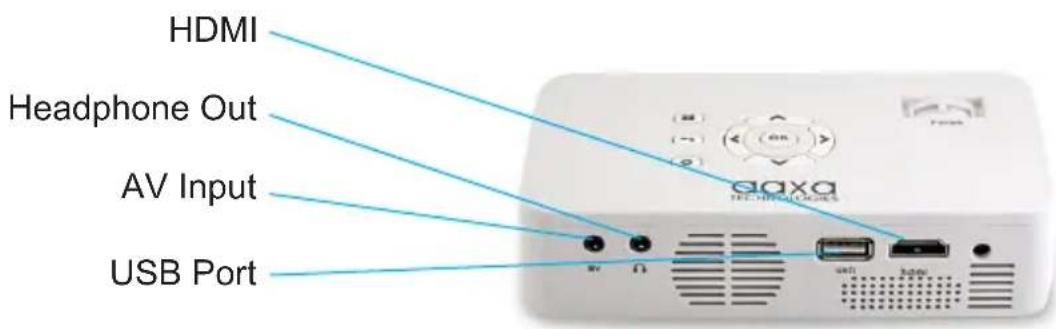

Main Unit Front/Back

Remote & Keypad

Both the keypad and remote can be used to navigate through the menus. The "Main Menu Navigation" on the remote functions exactly the same as the directional pad on the ST200 unit. The Media Player Menu Navigation allows you to control the media you are currently playing. There is also an Input source button and a keystone up/down on the remote control. You may also control the volume with the mute button or with the volume up and volume down buttons.

NOTICE: Pressing power on the remote will only put the projector in STANDBY mode. Please switch the On / Off switch of the projector to the "Off" position if you want to turn it off.

Accessories

Line drawing of a tripod-mounted tripod with a small stand and handle (no text or symbols)

Tripod

Remote

Line drawing of two connected I/O connectors (no text or symbols)

VGA Cable

Line drawing of a cable and plug assembly (no text or symbols)

Power Adapter

Line drawing of a multi-pin connector with multiple Ethernet ports (no text or symbols)

A/V Cable

*Under various circumstances, the actual accessories may be different from those shown in the pictures above.

Getting Started

Chapter 2

Powering ON the projector

1. Connect the power cord to the ST200.
2. Connect the wall plug into the wall power source.
3. Switch the On/Off switch on the side of the projector to the "On" position. The projector should turn on automatically. If the projector does not turn on automatically with the On/Off switch to "On" position press the power button on the top of the projector or press the power button on the remote control.

Standby Mode

1. Stand By Mode – To enter “stand by mode” press the power button on top of the projector twice. This will put the projector into “stand by mode”. In “stand by mode” the projector is idle but is able to be powered on with the remote control or “wake up feature” (custom models only). “Stand by mode” consumes power even when the projector is idle.

Powering OFF the projector

1. Switch the On/Off switch to "Off" to turn off the projector.

Note: The ST200 Projector battery does not charge when the projector is in operation.

Focus Adjustment /Short-Throw Optics

Focus Adjustment

- Spin the focus wheel left or right until the image becomes clear.

Short-Throw Optics

- The ST200 incorporates a short-throw optical system. Short-throw optics have the advantage of delivering a brighter and larger image at a shorter "throw" distance. The calculation of a projector's throw ratio is (distance / picture width) and the ratio for the ST200 is 0.8.

Throw Distance Chart

Distance inch (")	Diagonal Inch (")
12	17
24	34
36	52
48	69
60	86
72	103

Simple diagram of two overlapping rectangular shapes with bidirectional arrows (no text or symbols)

Throw Ratio 0.8

*minimum throw distance: 10 inches

Installing the Battery Pack

Step 1. Unplug ST200 from the power adapter and power switch to "OFF" position.

Step 2. Remove the (3) screws holding the battery to ST200 casing.

Step 3. Remove the battery casing and disconnect battery from receptacle.

Step 4. Connect the new battery harness to the receptacle on the PCBA.

Step 5. Install the battery until it fits in correctly onto the ST200 and reinstall the (3) screws

White electronic device casing with visible circuit board and mounting holes, marked with red circles (no text or symbols)

White electronic device casing with exposed circuit board and red wiring, no visible text or symbols

Note: The ST200 Projector already comes with the battery preinstalled.

Connecting to a Computer via VGA

Step 1:

Connect the large end of the

VGA Cord

to your computer's

VGA Adapter

Step 2:

Connect the small end of the

VGA Cord

to your ST200's

VGA Adapter

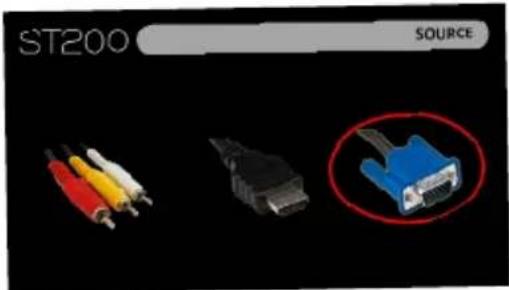

Step 3:

In the Main Menu

Laptop with a pink projector and a tripod stand nearby (no visible text or symbols)

Three electronic connectors with color-coded wires and a blue D-sub connector, displayed against a black background (no text or symbols on the devices themselves)

Select "VGA" icon Select "IN

Connecting to a Computer Cont.

Step 4:

Enabling VGA or HDMI output on your Computer – To enable VGA or HDMI output on your computer most computers require “turning on” the video output feature. Each computer is different. Please consult your owner’s manual for instructions to enable VGA or HDMI output. Below are standard instructions for a Windows 7 computer – not all systems are the same.

Step 5:

Press Windows+P to toggle through display settings. Select either "Duplicate" or "Extend" depending on your viewing option.

*NOTE: different operating systems may differ

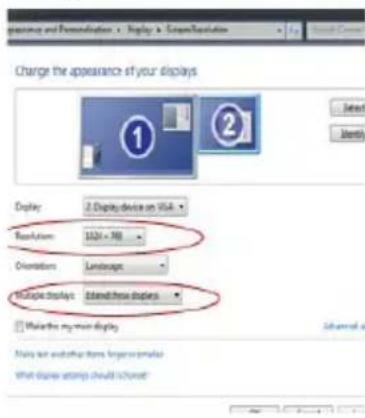

Step 6:

1. Right click on computer desktop and select "Screen Resoluton".
2. Display Properties window will pop up.
3. If a secondary monitor is grayed out, click on it and select "Extend these displays" in the "Multiple Displays" drop down.
4. If the image is blurry or the text is not legible, adjust the screen resolution. We recommend 1280x720.

Connecting to a Computer via HDMI

Step 1:

Connect one end of the

to your computer's

HDMI Cord

HDMI Adapter

Step 2:

Connect one end of the

to your ST200s

HDMI Cord

HDMI Adapter

Step 3:

In the Main Menu

Pink projector on a tripod next to a laptop, no visible text or symbols

Select "INPUT" icon

Three electronic connectors (red, yellow, black, blue) with a red circle highlighting one (no text or symbols on the devices themselves)

Select "HDMI" icon

Connecting to a Computer Cont.

Step 4:

Enabling VGA or HDMI output on your Computer – To enable VGA or HDMI output on your computer most computers require “turning on” the video output feature. Each computer is different. Please consult your owner’s manual for instructions to enable VGA or HDMI output. Below are standard instructions for a Windows 7 computer – not all systems are the same.

Step 5:

Press Windows+P to toggle through display settings. Select either "Duplicate" or "Extend" depending on your viewing option.

*NOTE: different operating systems may differ

Step 6:

1. Right click on computer desktop and select "Screen Resolution".
2. Display Properties window will pop up.
3. If a secondary monitor is grayed out, click on it and select "Extend these displays" in the "Multiple Displays" drop down.
4. If the image is blurry or the text is not legible, adjust the screen resolution. We recommend 1280x720.

Connecting to Composite Video

Step 1:

Connect one end of the

to your ST200's

Composite Cord

A/V Adapter

Step 2:

Connect opposite end of

to your devices

Composite Cord

Composite Cord

Connecting to Composite Video Cont.

Step 3:

In the Main Menu

Select "INPUT" icon

Three electronic components: a red circle with three colored cables, a black D- port, and a blue V- port against a black background (no text or symbols on the devices themselves)

Select "AV" icon

Step 4:

Turn on your multimedia device.

Connectivity with multimedia devices

The ST200 can connect to many media devices including: iPod, iPhone, iPad, VHS players, DVD players, smart phones, cameras, video game consoles and other peripherals with ease.

*Apps on smart phones require video out capabilities to be displayed with the ST200.

Connecting to HDMI Video

Step 1:

Connect one end of the

HDMI

to your ST200's

HDMI Adapter

Step 2:

Connect one end of the

HDMI

to your devices

HDMI Adapter

Two black hard drives stacked on a white background (no visible text or symbols)

14

Connecting to HDMI Video Cont.

Step 3:

In the Main Menu

Three electronic connectors shown against a black background: red, yellow, and blue RJ48 (no text or symbols on the devices themselves)

Select "INPUT" icon Select "HDMI" icon

Step 4:

Turn on your multimedia device. If available select 1280x720 or 1920x1080

Connectivity with multimedia devices

The ST200 can connect to many media devices including: iPod, iPhone, iPad, VHS players, DVD players, smart phones, cameras, video game consoles and other peripherals with ease.

*Apps on smart phones require video out capabilities to be displayed with the ST200.

Connecting Speakers/Headphones

Step 1: Connect your speakers/headphones to the projector's speaker adapter.

Close-up of a black audio jack with metallic connector and dotted line indicating alignment (no text or symbols)

3.5 mm cord Speaker Adapter

Step 2: Ensure the power and volume on your speaker or headphones is turned on.

Step 3: Place the headphones on and enjoy!

CAUTION for Headphone Use

- Prolonged use at high volume may impair hearing.

Micro SD Card

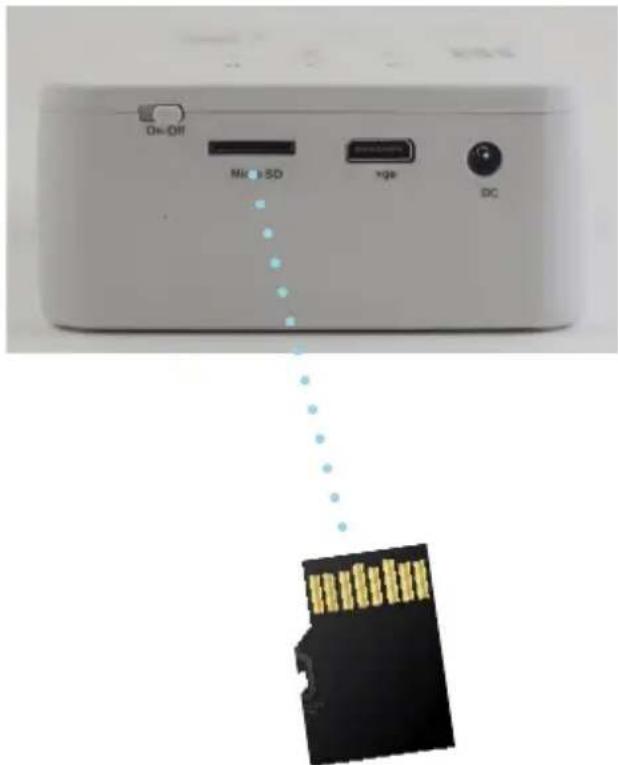

How to insert your Micro SD Card

• Slide in your SD card into the SD card slot on the left side of the ST200. (as shown in picture)
  • Gently slide the SD card until it clicks into place.

How to access your Micro SD Card

• Once your SD Card has been inserted, you can navigate to any media content in the main menu.
  • After selecting the media content, choose the SD card selection.
• You can now access the data on your SD card through the onboard media player.

*Review the Specification section of this manual to read about the supported file formats.

Micro SD Card Cont.

Media Player menu

• In the Media Player selection you can choose from Videos, Audio, Pictures, and Text.

- Select the appropriate menu for the type of file you wish to view.

File Menu System

- The ST200 will show all folders and files you have on your SD Card in the C: drive.

- Use the directional buttons to navigate to different folders or files.

Return: Brings you back to the main menu

USB Host

How to insert your USB Drive

• Slide your USB Drive into USB adapter. (as shown in pictur
  • Gently slide the drive until it cannot go in any further.

How to access your USB Drive

• Once your USB Drive has been inserted, you can navigate to any media content in the main menu.
  • After selecting the media content, choose the USB selection.
• You can now access the data on your USB drive through the onboard media player.

*Review the Specification section of this manual to read about the supported file formats.

USB Host Cont.

Media Player menu

• In the Media Player selection you can choose from either one of the following: Videos, Audio, Pictures, and Text.
- Select the appropriate menu for the type of file you wish to view.

File Menu System

• The ST200 will show all folders and files you have on your USB Drive.
• Use the directional buttons to navigate to different folders or files.

Return: Brings you back to the main menu

Portable Media Player Chapter 3

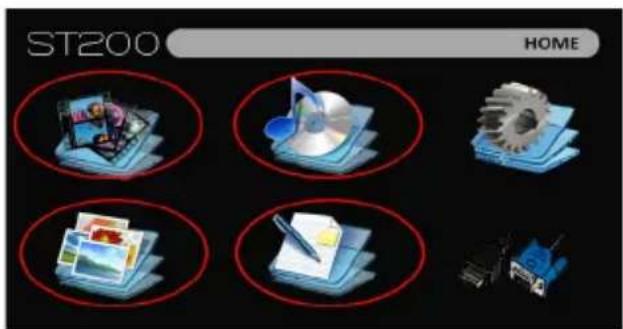

Main Menu

The ST200 features a built in PMP (Portable Media Player) function.

This function allows the projector to play videos, pictures, music files, and text. To access the main menu simply turn on the projector.

• Scroll left or right by pressing the left and right directional buttons.
• To select a submenu, highlight the desired submenu and press the OK button located in the middle of the keypad or remote.
• To go back to the previous page while in a submenu, press the back on the far right just underneath the directional keypad.

Video Player Menu

Opening a file:

• Select the video option from the main menu.
• Select the hardware media the file is stored on.
• Choose which file you wish to play.

Select the "Video" icon.

The ST200 will show all folders and files you have on your USB or SD Drives. Use the directional buttons to navigate to different folders or files.

Video Player Menu

Playing Videos

To use the video controls, use the directional keys to highlight the option you wish to choose.

Keystone Up

Directional Right

Ok Selection

Directional Left

Keystone Down

- To open the video player menu, press "OK" on the projector.

- To close the video player menu, hit "back" on the projector.

- To adjust the volume press left or right on the directional pad when the video player menu is closed.

Note: There are ten more video player menu options to choose from after the "Aspect" option. To view them, continue to press the right directional key to navigate to the other options.

Video Playback FAQ

How do I loop a video?

1. Choose either USB or SD Card for playback.

1. Navigate the folders until you reach the file you wish to play.

2. Highlight the file you want to play, then confirm the selection.

3. Move selection on video player menu to "repeat", and confirm the selection.

4. The video will now loop after playback is finished.

Photo Menu

Select the "Photo" icon.

Opening a file:

• Select the photo option from the main menu.
• Select the hardware media the file is stored on.
• Choose which file you wish to play.

The ST200 will show all folders and files you have on your USB or SD Drives. Use the directional buttons to navigate to different folders or files.

Photo Menu

Viewing Pictures

To use the photo controls, use the directional keys to highlight the option you wish to choose.

Keystone Up

Directional Left

OK Selection

Directional Right

Keystone Down

- To open the photo player menu, press "OK" on the projector.

- To close the video player menu, hit "back" on the projector.

- To navigate to the next photo, use the left or right directional keys.

Note: There are four more menu options after the "info" option. These include the rotation and zoom tools. To navigate to these settings, use the directional keypad and move to the right of the info setting.

Photo Slideshow FAQ

How do I play a slideshow?

1. Choose either USB or SD Card for playback.

1. Navigate to the folder that contains the pictures you wish to see in the slideshow.
2. Confirm selection of the first picture.
3. Press "play" in the photo menu
4. Slideshow will now play.
5. NOTE: Selecting "repeat" will loop slideshow.

How do I manually control the slideshow?

1. After selecting the photo you wish to be displayed, you can press "play" to start the slideshow (as outlined in the previous FAQ).
2. To manually control the slideshow, you must pause the slideshow with the "play/ pause" button.
3. You may use either the left or right directional keys on your remote or on top of the projector itself to flip through the pictures in the current playlist.

Music Player Menu

Select the "Audio" icon.

Opening a file:

• Select the audio option from the main menu.
• Select the hardware media the file is stored on.
• Choose which file you wish to play.

The ST200 will show all folders and files you have on your USB or SD Drives. Use the directional buttons to navigate to different folders or files.

Music Player Menu

Listening to Audio

To use the audio controls, use the directional keys to highlight the option you wish to choose. When the player menu is not open you can control the volume with the left and right directional buttons on the projector or from the remote.

Move selection left

Move selection right

Confirm selection

• To open the music menu, press "OK" on the projector.
• To close the music menu, hit "back" on the projector.
• Use the left and right direction keys to change the volume.

Note: The "playlist" and "info" option settings are located after "Repeat A" option. Please navigate further to the right to view these options.

Music Playback FAQ

How do I loop a song?

1. Choose either USB or SD Card for playback.

1. Navigate the folders until you reach the file you wish to play.
2. Highlight the file you want to play, then confirm the selection.
3. Move selection on music player menu to "repeat", and confirm the selection.
4. The song will now loop after playback is finished.

How do I create a song playlist?

1. Insert your media device (either microSD card or USB) into computer.
2. Make a new folder on media device (folder name will be the name of the playlist).
3. Transfer songs from computer to the new folder, name accordingly.
4. Remove media device from computer and insert into projector.
5. Navigate to Audio section, then choose appropriate media device.
6. Navigate to your playlist folder.
7. Start at first song.
8. Playback will follow each successive song on the list.

*To create a special order for the list, add numerical numbering to the beginning of each file.

EBook Viewer Menu

Opening a file:

• Select the text option from the main menu.
• Select the hardware media the file is stored on.
• Choose which file you wish to play.

The ST200 will show all folders and files you have on your USB or SD Drives. Use the directional buttons to navigate to different folders or files.

Viewing text files

The ST200 Pico Projector allows you to view text files. Select the file you want to view in the file menu for the particular storage device on which the file is stored. You can press the left and right arrow buttons on the directional pad or remote to flip through the pages you have in the present folder.

*Review Specification section of this manual for supported ebook formats.

Setup Menu

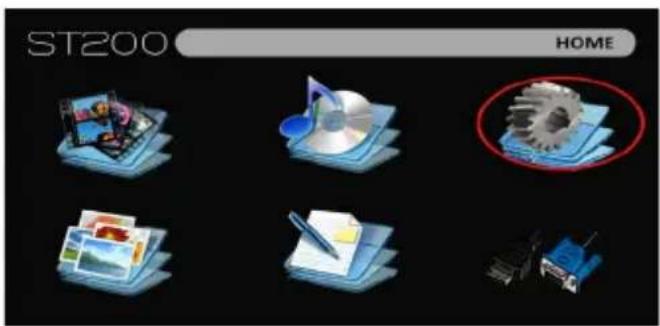

The Settings Menu can be accessed by selecting "Settings" on the main menu

Within the settings menu there are four more submenus that allow you to customize your ST200 to the settings you want.


• Picture Mode User
• Color Mode Medium
- Slideshow Time
- Projection
- Aspect Ratio
- PC Setup
- Upgrade

Sound

• Sound Mode
  • Balance
• Auto Volume
• Surround Sound

Time

• Clock
• Off Time
• On Time
• Sleep Timer
• Auto Sleep Time

Option

• OSD Language
• Restore Factory Default
• OSD Duration
• Current Version

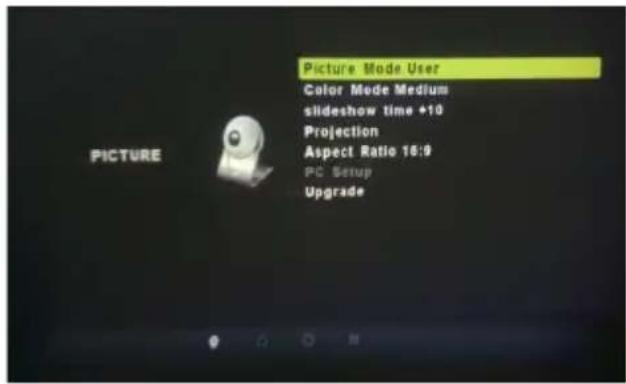

Picture Settings

Picture Mode

• Changes the picture mode to different settings depending on your choosing.

Color Mode

- Adjusts the color temperature from hot to cool (red to blue).

Slideshow Time

- Adjusts the time for your slide-shows.

Aspect Ratio

• Changes the aspect ratio of the picture - 4:3, 16:9*

PC Setup

- Disabled for this model

Upgrade

- Allows you to upgrade the software via USB

*Caution: Some pictures may be cut off when aspect ratio is set incorrectly

Sound Settings

Sound Mode

- Change the sound mode depending on what is currently playing.

Balance

- Adjusts the balance of the sound, from left to right.

Auto Volume

- Sets the projector to auto-detect for the volume. The projector will auto detect the appropriate sound mode.

Surround Sound

- Adjusts the surround sound capabilities of the projector.

Time Settings

Clock

- Adjust the time/date.

Off Time

- Sets a time for auto turn off of projector

On Time

- Sets a time for the projector to auto turn on.

Sleep Timer

- Sets a timer until the projector to go into sleep mode

Auto Sleep

- Sets the auto sleep of the unit.

Option Settings

OSD Language

• Changes the language of the device.

- Restores the projector to factory settings.

OSD Duration

- Allows the projector to set a duration for the selected OSD language.

Current Version

- Displays you the current version you have installed for the projector

Keystone Adjustments

Night cityscape with illuminated skyscrapers reflected in water, no visible text or symbols

What is Keystoneing?

"Keystoning" occurs when a projector is aligned non-perpendicularly to a screen, or when the projection screen has an angled surface. The image that results from one of these misalignments will look trapezoidal rather than square.

Digital Keystone Adjustments

By adding a special, selectable, algorithm to the scaling, some new projectors are able to alter the image before it reaches the projection lens. The result is a squared image, even at an angle.

Keystone Adjustments FAQ

How to Correct Keystone

• If the image looks trapezoidal with the base larger (as pictured right), press the bottom button on the directional pad on the top of the ST200 until the keystone effect corrects and the picture turns into a square projection.
• If the image looks trapezoidal with the top larger (as pictured right), press the top button on the directional pad on the top of the ST200 until the keystone effect corrects and the picture turns into a square projection.

Night cityscape with illuminated skyscrapers reflected in water (no visible text or signage)

Night cityscape with illuminated skyscrapers reflected in water (no visible text or signage)

Night cityscape with colorful reflections in the water (no visible text or symbols)

Technical Details

Chapter 4

Troubleshooting

IMAGE IS BLURRED

Possible Causes Solution
The Projector is not in focus Adjust the focus with the	focus adjustment dialuntil the image comes into focus
The Projector is offset from plane / angle of operation	Move the projector so that it is both 180 degrees and on an evern plane with the screen.

No Sync, No Signal

1. Be sure to setup the computer to enable a video signal output. On some laptops this is done by pressing and holding Function F5 key. If using the ST200 as an external monitor on Windows based systems, this can be done by selecting "extend my desktop to this monitor". The native resolution of the ST200 projector is 1280x720. Depending on the video driver different resolutions may need to be selected for proper output.

Technical Details

Troubleshooting

THE PROJECTOR DOES NOT TURN ON

Possible Causes Solution
There is no power Check to ensure the power outlet	or battery source is good. check the power adapter to ensure a proper connection with the wall outlet as well as the proejctor. Confirm that the unit is charged and has enough power
The power button was not held long enough To power	on the projector, the power button needs to be depressed for a full 3 seconds. try holding the power button until the optical engine turns on

NO PICTURE / FILE NOT SUPPORTED

Possible Causes Solution
The video source is not properly connected or selected	Check the video source signal to ensure that it is properly connected. Select the current input source by choosing the input desired from the main menu
Incorrect file extension / Video is encoded with incorrect codec	Please refer to “Specifications” page to see which file types and codex are supported. Verify that the file was encoded properly.

Specifications

Brightness

Native Resolution

Maximum Resolution

Contrast Ratio

Projectoin Lens:

Image Size:

Lamp:

Video in:

150 Lumens

1280x720(720P)

1920x1080(1080P)

2000:1

Manual Focus

10\~100 inches

Triple RGB LEDs with Vibrant Color

Technology Life 15,000hrs

Composite A/V

VGA(mini-VGA)

HDMI

Audio Output:

SD Card

USB:

1.0 W stereo speakers

3.5 mm audio jack

MicroSD Card Slot

(16 GB maximum)

USB Host

(Memory Sticks)

Dimensions

Weight

140x80x35mm

0.7 lbs

Please direct all customer service inquiries to:

AAXA Technologies, Inc.

1541 Parkway Loop Suite F

Tustin, CA 92780

[phone]

[e-mail]
