Product Type	LED TV
Brand	Dynex
Model	DX-60D260A13
Screen Size (diagonal)	60 inches
Display Resolution	1080p (1920 x 1080)
Refresh Rate	120Hz
Aspect Ratio	16:9
Contrast Ratio (typical)	2000:1
Dynamic Contrast Ratio	12,000:1
Brightness (center typical)	250 cd/m²
Response Time	8 ms
Viewing Angle (horizontal/vertical)	176° / 176°
Dimensions without Stand (WxHxD)	56.6 x 35.5 x 4.6 in (143.8 x 90.1 x 11.6 cm)
Dimensions with Stand (WxHxD)	56.6 x 38 x 13 in (143.8 x 96.5 x 33 cm)
Weight without Stand	69.4 lbs (31.5 kg)
Weight with Stand	75 lbs (34 kg)
Power Consumption (On)	150 W
Power Consumption (Standby)	< 1 W
Power Input	AC 120V/60Hz
Audio Output Power	10 W per channel (2 speakers)
HDMI Inputs	3 (side), HDMI 2 with ARC
Component Video Inputs	1 (side, shared with composite)
Composite Video Input	1 (side, shared with component Y)
VGA Input	1 (side)
USB Port	1 (side, supports JPEG and firmware upgrade)
Digital Audio Output	1 optical (side)
Analog Audio Output / Headphone	1 (side, 3.5mm)
Antenna/Cable Input	1 (side)
Tuner	ATSC, NTSC, Clear-QAM
VESA Mount Pattern	400 x 400 mm
INlink (HDMI-CEC)	Yes
Motion 120Hz Technology	Dynex Motion 120Hz with 24p Film Mode
Parental Controls (V-Chip)	Yes (version 2.0)
Closed Captioning	Yes (analog and digital)
Sleep Timer	Yes
Channel Labeling	Yes (up to 11 characters)
USB Media Support	JPEG photo viewer
Remote Control	Dynex RC05A-13 with batteries (2 AAA)
Warranty	1 year limited
Cleaning Instructions	Clean with dry cloth only
Safety Compliance	FCC Class B, CAN ICES-3(B)/NMB-3(B), UL listed wall mount required
OSD Languages	English, French, Spanish

Frequently Asked Questions - DX-60D260A13 Dynex

What types of connections are available on the Dynex DX-60D260A13 TV?

The TV offers multiple connection options: HDMI (3 ports, one with ARC), component video (shared with composite), composite video, VGA for computer, USB for photo viewing, digital optical audio output, analog audio output/headphone, and an antenna/cable input.

How do I connect a cable or satellite box for the best picture quality?

For the best quality, use an HDMI cable directly from the box to one of the TV's HDMI ports. If HDMI is not available, use component video cables with separate audio cables. For a basic connection, use a coaxial cable from the wall to the TV's antenna input, but this provides only good quality.

What should I do if the remote control stops working?

First, ensure there are no obstructions between the remote and the TV sensor. Check that the batteries are installed correctly and replace them if needed. Also, make sure the TV is plugged in and turned on. If using a universal remote, see the manual for compatible codes.

How can I set up parental controls to block inappropriate content?

Press MENU, go to Settings > Parental Controls. Enter the default password 0000. You can then enable System Lock, set ratings to block, and change the password. Use the V-Chip to block programs based on content ratings.

Why is there no sound from the TV?

Check that the volume is turned up and not muted. Ensure headphones are not plugged in (they mute the speakers). Verify the correct audio mode is selected and that external audio cables are securely connected. Also check that the broadcast signal is strong.

How do I scan for available channels?

Press MENU, go to Channels > Auto Channel Scan. Choose your signal source: Antenna, Cable, or Cable/Satellite Box. The TV will automatically search and store channels. This may take several minutes.

Can I mount this TV on a wall? What size bracket do I need?

Yes, the TV is wall-mountable with a VESA 400x400 mm bracket. Use a UL-listed bracket rated for the TV's weight (75 lbs with stand, approx. 69 lbs without). At least two people are needed for safe installation. See the manual for screw lengths.

What is INlink and how do I use it?

INlink is Dynex's name for HDMI-CEC. It allows connected HDMI devices to control each other. To use, enable INlink in Settings > INlink. You can then control compatible devices with the TV remote and set features like auto power off.

How do I clean the TV screen safely?

Clean only with a dry cloth. Do not use water, cleaners, or abrasive materials. To avoid scratches, gently wipe the screen. For the cabinet, use a soft dry cloth. Unplug the TV before cleaning.

What should I do if the TV turns off by itself?

Check if the sleep timer is set. Press SLEEP on the remote to see or cancel the timer. Also, ensure the TV is not overheating and that ventilation openings are not blocked. If the problem persists, try resetting to default settings.

USER MANUAL DX-60D260A13 Dynex

Important Safety Instructions 2

Warning 2

Caution 3

Introduction 4

INlink....4

120Hz screen refresh 4

Installing the stand or wall-mount bracket 5

Installing the stand 5

Installing a wall-mount bracket 5

TV components 5

Package contents 5

Front 6

Side 6

Remote control 7

Making connections 8

What connection should I use? 8

Connecting power 9

Connecting a cable or satellite box 9

Connecting an antenna or cable TV (no box) 12

Connecting a DVD or Blu-ray player 12

Connecting a VCR 14

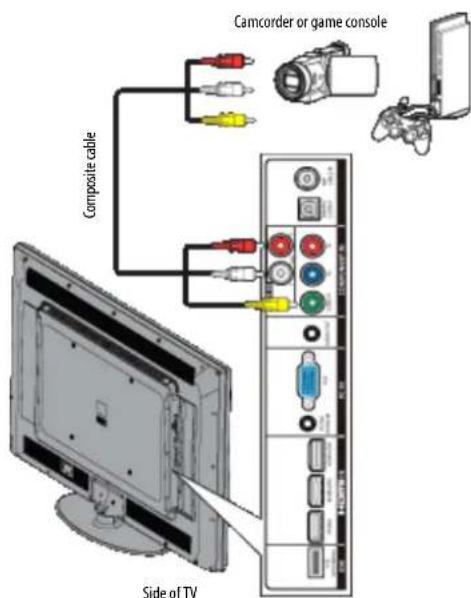

Connecting a camcorder or game console 15

Connecting a computer 15

Connecting a USB flash drive 16

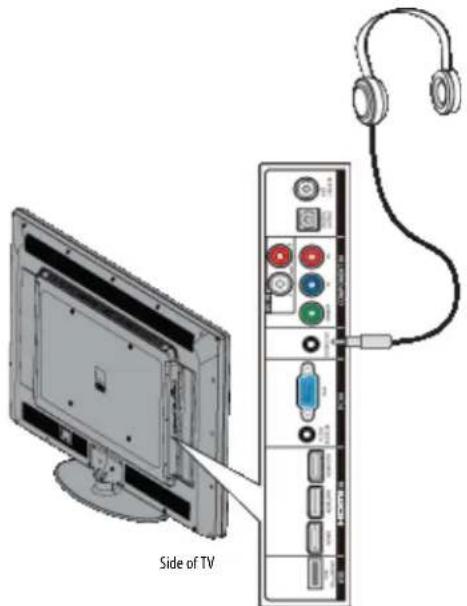

Connecting headphones 17

Connecting a basic home theater system 17

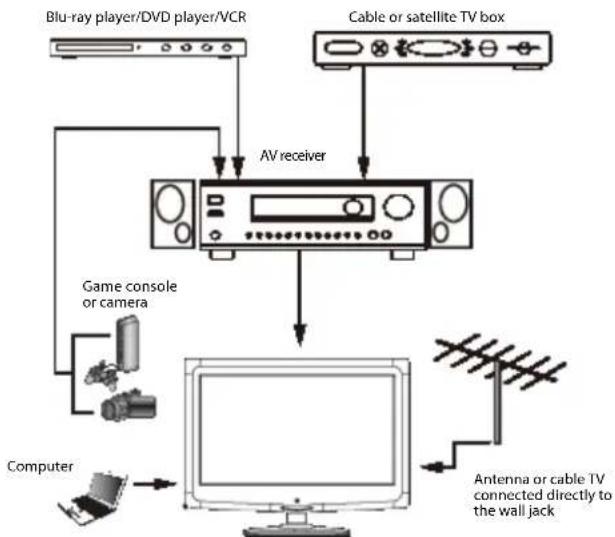

Connecting a home theater system with multiple devices 18

Using the remote control 18

Installing remote control batteries 18

Aiming the remote control 19

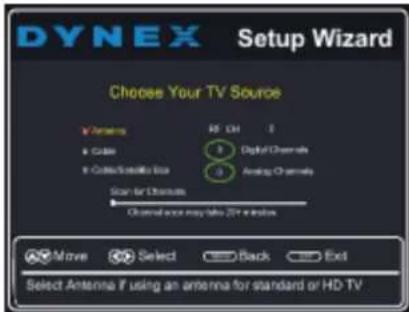

Turning on your TV for the first time 19

Understanding the basics 20

Turning your TV on or off 20

Selecting the video input source 20

Using the on-screen menus 20

Navigating the menus 21

Selecting a channel 21

Adjusting the volume 21

Viewing channel information 21

Viewing system information 21

Adjusting the picture 22

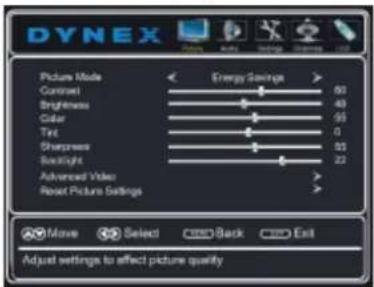

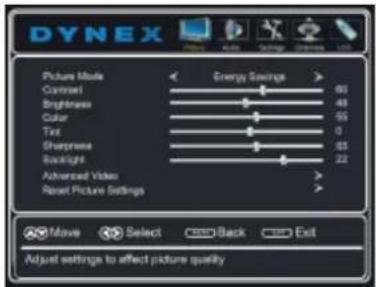

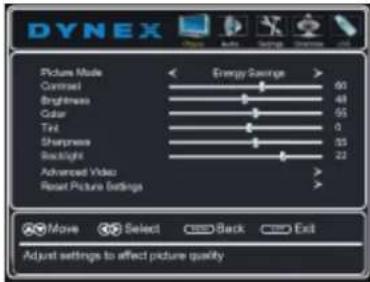

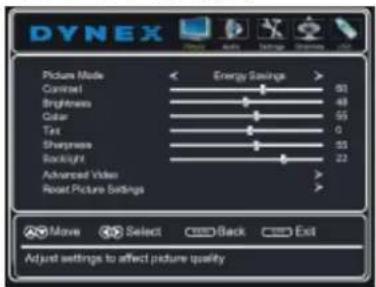

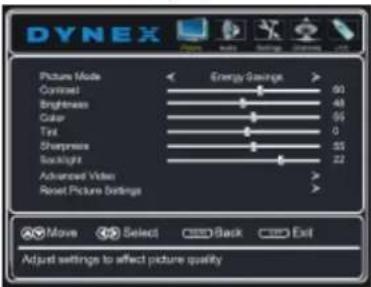

Adjusting the TV picture 22

Adjusting the computer image 23

Adjusting the sound 23

Adjusting sound settings 23

Playing TV audio only 24

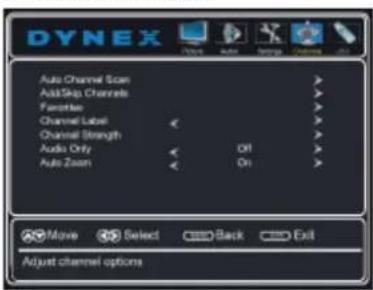

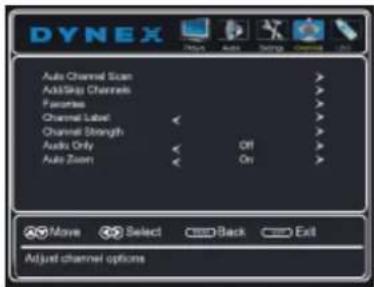

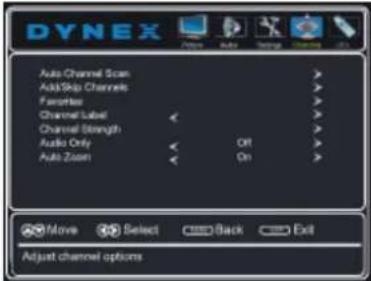

Changing channel settings 24

Automatically scanning for channels 24

Hiding channels 25

Setting up a favorite channel list 25

Viewing a favorite channel 26

Adding or changing a channel label 26

Checking the digital signal strength 26

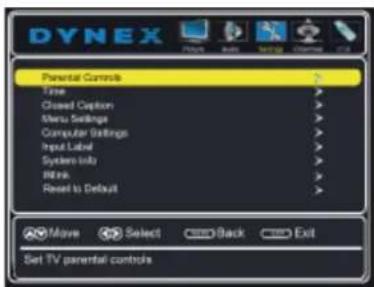

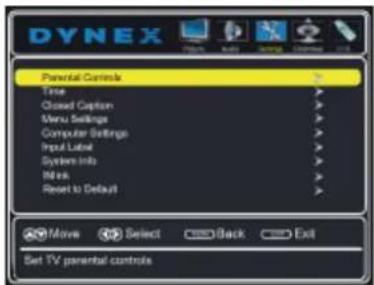

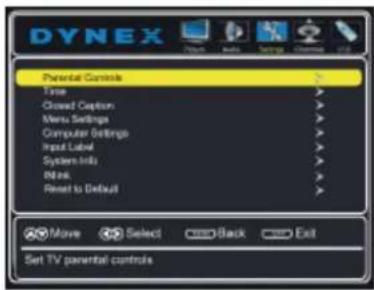

Setting parental controls 26

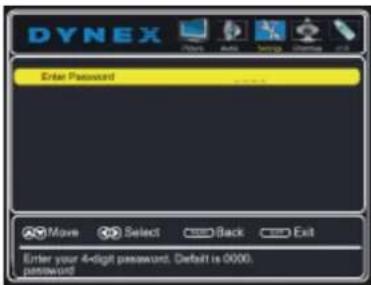

Setting or changing the password 26

Locking control buttons 27

Blocking unrated TV 28

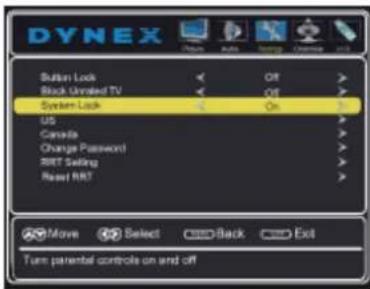

System Lock 28

Setting parental control levels 29

Downloading rating information 30

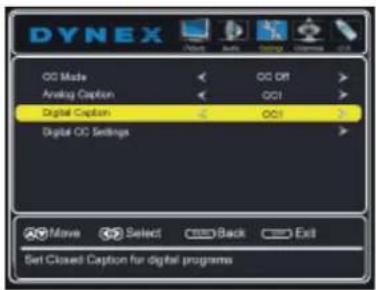

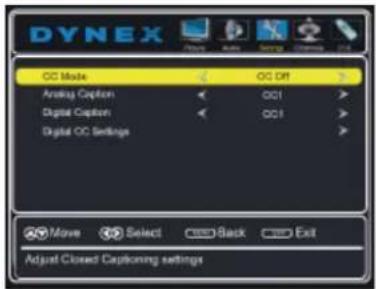

Using closed captioning 30

Turning closed captioning on or off 30

Selecting the analog closed captioning mode 31

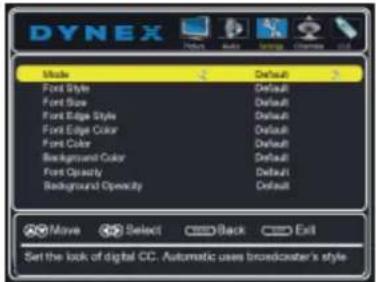

Customizing digital closed captioning styles 31

Adjusting time settings 32

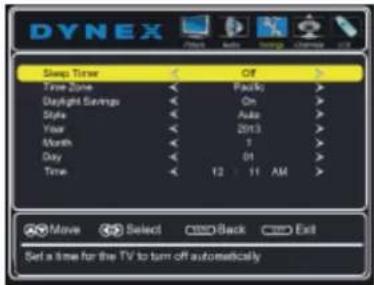

Setting the clock 32

Setting the sleep timer 33

Adjusting menu settings 33

Selecting the menu language 33

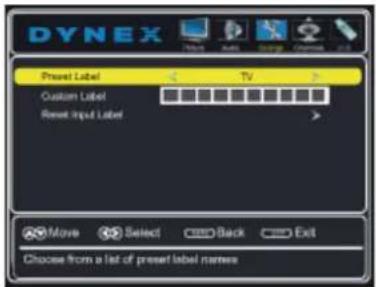

Labeling an input source 33

Using INlink 34

Turning INlink on or off 34

Turning Device Auto Power Off on or off 35

Turning TV Auto Power On on or off 35

Displaying a list of INlink-compatible (HDMI-CEC) devices 36

Restoring settings to default 36

Using a USB flash drive 36

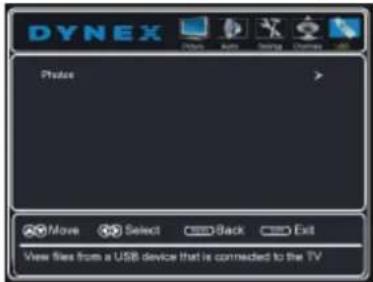

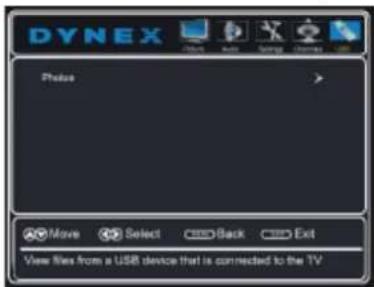

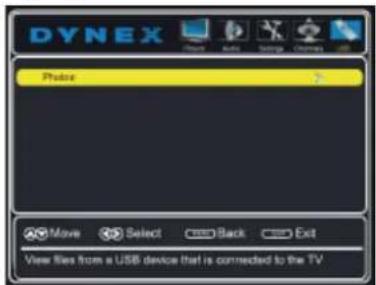

Switching to USB mode 36

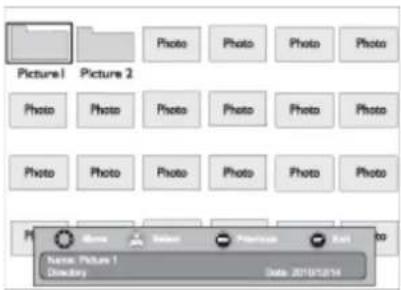

Browsing photos 37

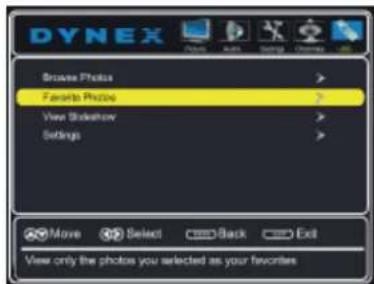

Viewing your favorite photos 37

Viewing photos in a slideshow 38

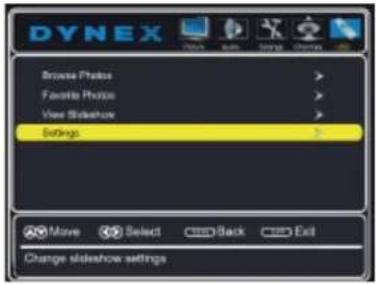

Customizing slideshow settings 38

Maintaining 39

Cleaning 39

Servicing 39

Troubleshooting 39

Video and audio 39

Remote control 41

General 41

Specifications 42

Programming universal remote controls 43

Programming a different universal remote control 43

For additional help and information... 43

Common universal remote control codes 43

Legal notices 43

One-year limited warranty - Dynex Televisions 45

Definitions: 45

How long does the coverage last? 45

What does this warranty cover? 45

How to obtain warranty service? 45

Where is the warranty valid? 45

What does the warranty not cover? 45

CHILD SAFETY

It makes a difference how and where you use your flat panel display

As you enjoy your new product, keep these safety tips in mind

The issue

The home theater entertainment experience is a growing trend, and larger TVs are popular purchases. However, TVs are not always supported on the proper stands or installed according to the manufacturer's recommendations. We and the consumer electronics industry are committed to making home entertainment enjoyable and safe.

TVs that are inappropriately placed on dressers, bookcases, shelves, desks, speakers, chests, or carts may fall over and cause injury.

Tune into safety

• One size of TV stand does not fit all. Use only a TV stand rated for the weight of your TV.
• Carefully read and understand all enclosed instructions for proper use of this product.
• Don't let children climb on or play with entertainment system furniture and TVs.
• Don't place TVs on furniture that can easily be used as steps, such as a crate or chest of drawers.
• Remember that children can become excited while watching a program, especially on a “larger-than-life” TV. Make sure that you place or install the TV where it cannot be pushed, pulled over, or knocked down.
  • Make sure that you route all cords and cables so that they cannot be pulled or grabbed by curious children.

Simple line drawing of a monitor with a crossed-out refrigerator symbol (no text or labels)

Wall mounting

If you decide to wall mount your TV, always remember:

• One size of wall mount does not fit all. Use only a wall mount rated for the weight of your TV and that has been recommended by this TV manufacturer, listed in this manual, or otherwise listed by an independent laboratory as suitable for your TV.
• Follow all instructions supplied by the TV and wall mount manufacturers.
• If you have any doubts about your ability to safely wall mount your TV, get help from a professional installer.
• Make sure that the wall where you are mounting the TV is appropriate. Some wall mounts are not designed to be mounted to walls backed with steel studs or cinder blocks. If you are unsure, ask a professional installer.
  • TVs can be heavy. At least two people are required for safe wall mount installation.

Consumer Electronics Association

Important Safety Instructions

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your TV. This label is located on the back of your TV.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your TV.

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5 Do not use this apparatus near water.

6 Clean only with dry cloth.

7 Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11 Only use attachments/accessories specified by the manufacturer.

12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or when unused for long periods of time.

14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15 The wall plug is the disconnecting device. The plug must remain readily operable.

16 An apparatus with a three-prong, grounding-type plug is a Class I apparatus which needs to be grounded to prevent possible electric shock. Make sure that you connect the Class I apparatus to a grounding-type, three-prong outlet.

17 Remote control batteries should not be exposed to excessive heat such as sunshine, fire, or the like.

18 The apparatus should not be exposed to dripping or splashing and no objects filled with liquids, such as vases, should be placed on the apparatus.

Warning

Electric shock hazard

To reduce the risk of fire or electric shock, do not remove any cover or expose the device to rain or moisture. No user-serviceable parts are inside. Refer servicing to qualified service technicians.

Lightning

For added protection for your device receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the power outlet and disconnect any antenna or cable system. This helps prevent property damage and personal injury from lightning and power line surges.

Power lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

Handling the LCD panel

- Your TV's screen is made of glass. Do not drop your TV or hit, jolt, or press hard against the LCD panel. If the screen breaks, be careful of broken glass.

- If the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause skin inflammation.

- If the liquid gets in your mouth, immediately gargle, rinse, and consult with your doctor. Also, if the liquid gets in your eyes or touches your skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean water.

Replacement parts

When replacement parts are required, make sure that the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, personal injury, or other hazards.

Safety check

After completing any service or repair to this device, ask the service technician to perform routine safety checks to determine that your TV is in correct operating condition.

Power source

Operate your TV only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult an electrician or your local power company.

Servicing

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

Caution

Damage requiring service

Unplug this TV from the power outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged or frayed.
• If liquid has been spilled or objects have fallen into your TV.
• If your TV has been exposed to rain or water.
• If your TV does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions because incorrect adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore your TV to its normal operation.
• If your TV has been dropped or damaged in any way.
• When your TV exhibits a distinct change in performance.

Outdoor antenna grounding

If an outside antenna or cable system is connected to your TV, make sure that the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to correct grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of the antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

① Antenna lead-in wire
② Grounding clamp
③ Antenna discharge unit
④ Grounding conductors
⑤ Ground clamps
⑥ Power service grounding electrode system
⑦ Electric service equipment

Note to CATV system installer

Article 820 of the National Electrical Code, ANSI/NFPA No. 40 provides guidance for correct grounding. Specifically, it states that the cable ground must be connected to the grounding system of the building as close to the point of cable entry as practical.

Condensation

Moisture will form on the TV if the TV is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly. When this happens, the TV's performance may be impaired. To prevent this, let the TV stand in its new surroundings for about an hour before switching it on, or make sure that the room temperature rises gradually.

Condensation may also form during the summer if the TV is exposed to the breeze from an air conditioner. In such cases, change the location of the TV.

Mobile telephone warning

To avoid interference with your TV picture and sound, operating problems, or even damage, keep your cordless and cellular telephones away from the TV.

End of life directives

Your TV contains tin-lead solder and a fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated for environmental reasons. Your TV also contains material that can be recycled and reused. For disposal or recycling information, contact your local authorities to find a recycler in your area.

Non-active pixels

The LCD panel contains almost 3 million thin film transistors, which provide exceptionally sharp video quality. Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green, or red point. These non-active pixels do not adversely affect the performance of your TV, and are not considered defects.

Introduction

Congratulations on your purchase of a high-quality Dynex product. Your DX-60D260A13 represents the state of the art in LED TV design and is designed for reliable and trouble-free performance.

INlink

Enjoy the benefit of having HDMI CEC compatible products plug and play! No setup is needed! CEC technology lets different components discover and communicate with each other. (See page 34 for instructions on how to use INlink.)

120Hz screen refresh

With a 120 Hz screen refresh rate twice the rate of a 60 Hz screen, a screen with 1,080 lines of resolution (up from 720 lines in the last generation of HDTVs), and special motion-detection technology, you will experience a picture with clearer detail and brightness, smoother transitions, and reduced motion blurring, particularly when watching fast-motion sports and action scenes. (See page 22 for instructions on how to adjust the TV picture.)

Installing the stand or wall-mount bracket

Notes

• If you plan to wall-mount your TV, do not install the stand.
• Store the stand and stand screws in case you decide to use the stand in the future.

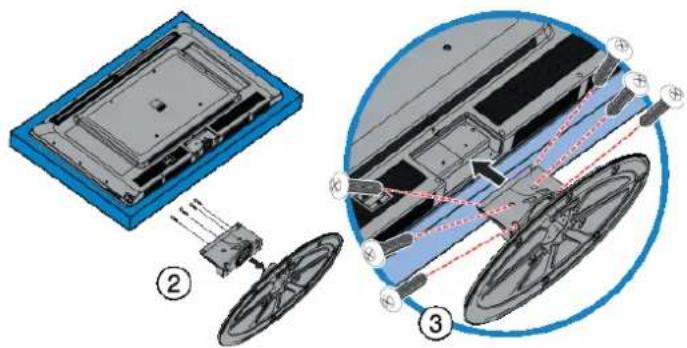

Installing the stand

1 Carefully place your TV face-down on a cushioned, clean surface to protect the screen from damages and scratches.

3D CAD model of a rectangular electronic component with internal structure, enclosed in a blue frame (no text or symbols visible)

2 Secure the stand column to the stand with the four M4 (20 mm) screws provided.

Screw type Screw length # of screws

M4 20 mm 4

3 Attach the stand assembly to the TV using the six M4 (16 mm) screws provided.

Screw type Screw length # of screws

M4 16 mm 6

Installing a wall-mount bracket

Warning

This TV is intended to be supported by a UL Listed wall mount bracket with suitable weight/load. (See "Miscellaneous" on page 42.)

To attach your TV to a wall-mount bracket:

1 Carefully place your TV face-down on a cushioned, clean surface to protect the screen from damages and scratches.

3D CAD model of a rectangular electronic component with internal structure and mounting holes (no text or symbols)

2 Attach the wall-mount bracket to your TV using the mounting holes on the back of your TV. See the instructions that came with the wall-mount bracket for information about how to correctly hang your TV.

Note

• The length of the wall-mount screws vary depending on the wall-mount bracket you purchased. See the instructions that came with the wall-mount bracket for screw lengths.
- The mounting holes on the back of your TV take type M6 screws.

TV components

Package contents

• Remote control and batteries (2 AAA)
• TV stand
- M4 type (20 mm length) (4 pcs) to connect the stand column to the stand base.
- M4 type (16 mm length) (6 pcs) to connect the stand column to the TV.
- Stand column
• QUICK SETUP GUIDE
• IMPORTANT INFORMATION

Front Side

# Item Description
1	Power indicator	Turns off when your TV is on.Lights red when your TV is off (standby mode).
2	Remote control sensor	Receives signals from the remote control. Do not block.
3	MENU	Press to open the on-screen menu. For more information, see "Selecting a channel" on page 21.
4	INPUT	Press to open the INPUT SOURCE list, press ^ or ▼ to select the video input source, then press INPUT again. For more information, see "Selecting the video input source" on page 20.In menu mode, press to confirm selections.
5	VOL+/VOL-	Press to increase or decrease the volume.
6	CH▲/CH▼	Press to go to the next or previous channel in the channel list. For more information, see "Selecting a channel" on page 21.
7	(power)	Press to turn your TV on or off (standby mode). Warning: When your TV is off, power still flows through it. To completely disconnect power, unplug the power cord.

# Item Description
1	ANT CABLE IN	Connect an antenna or cable TV to this jack. For more information, see “Using coaxial cable (good)” on page 11.
2	DIGITAL OUTPUT (optical)	Connect a digital audio amplifier or home theater system to this jack to listen to TV audio through the amplifier speakers. For more information, see “Using digital audio” on page 17.
3	AV IN AUDIO L/R	Connect the audio for a component video device to these jacks. For more information, see “Using component video (better)” on page 10.ORConnect the audio for a composite video device to these jacks. For more information, see “Using composite video (good)” on page 11.
4	COMPONENT IN VIDEO/Y, PB, PR OR AV INVIDEO/Y	The COMPONENT IN VIDEO/Y jack works as the component video jack or as a composite video jack.Connect the video for a component video device to these jacks. For more information, see “Using component video (better)” on page 10.ORConnect the video for a composite video device to the VIDEO/Y jack. For more information, “see “Using composite video (good)” on page 11.
5	AUDIO OUT	Connect headphones, an analog audio amplifier, a home theater system, or a sound bar to this jack. For more information, see “Using analog audio” on page 18.
6	PC IN VGA	Connect the video (VGA) for a computer to this jack. For more information, see “Using VGA” on page 15.
7	PC IN PC/DVI AUDIO IN	Connect the audio for a computer to this jack. For more information see “Using VGA” on page 15.ORConnect the audio for a DVI device to this jack. For more information see, “Using DVI (same as HDMI but requires an audio connection)” on pages 10.
8	HDMI1/DVIHDMI2/ARCHDMI3	Connect HDMI devices to these jacks. For more information, see “Using HDMI (best)” on page 9.If you are connecting a DVI device, connect the video for a DVI device to the HDMI1/DVI. For more information, see “Using DVI (same as HDMI but requires an audio connection)” on pages 10.If you are connecting a home theater system, we recommend that you connect it to the HDMI2/ARC jack.
9	USB	Connect a USB flash drive to this jack to view compatible JPEG picture files. For more information, see “Connecting a USB flash drive” on page 16 and “Using a USB flash drive” on page 36.

Remote control

# Button Description
1	(Power)	Press to turn your TV on or off (Standby mode).WARNING: When your TV is off, power still flows into it. To disconnect power, unplug the power cord.
2	Video Input	Press to select the input source.PressTVto selectTV.Pre ssHDMIone or more times to sel the device connected to theHDMI1/DVI, HDMI2/ARC, or HDMI3jack.Pre ssVIDEOto select the device connected to theAVorComponent IN jacks.ACChas no function.

# Button Description
3	Numbers	Press to enter channel numbers and the parental control password.
4	• (Dot)	Press to enter a digital sub-channel number. For more information, see "Selecting a channel" on page 21.
5	ENTER Press to confirm selections or changes.
6	MENU Press to open the on-screen menu.
7	EXIT Press to close the on-screen menu.
8	INPUT	Press to open the INPUT SOURCE list, then press ▲ or ▼ to select a video input source. For more information, see "Selecting the video input source" on page 20.
9	CH-LIST Press to open the channel list. Hidden channels are grayed and cannot be selected. See "Hiding channels" on page 25.
10	VOL+/VOL- Press to increase or decrease the volume.
11	SLEEP	Press to set the sleep timer. For more information, see "Setting the sleep timer" on page 33.
12	ZOOM	Press to select the aspect ratio. For more information, see "Adjusting the TV picture" on page 22.
13	Media control	Press these buttons to control playback from an HDMI-CEC compatible device. For more information, see "Displaying a list of INlink-compatible (HDMI-CEC) devices" on page 36.
14	○ (recall)	Press to go to the last viewed channel. In USB mode, press to return to a higher level folder.
15	▲▼ ◀▶	Press to navigate through the on-screen menus and adjust settings.
16	Home Press to open the on-screen menu.
17	INFO	Press to display TV status information, such as the channel number, channel name (if available), or signal source. For more information, see "Viewing channel information" on page 21.
18	CCD	Press to turn closed captioning on or off. You can select CC On, CC Off, or CC On When Mute. For more information, see "Turning closed captioning on or off" on page 30.
19	FAVORITE	Press to open the Favorites channel list. For more information, see "Setting up a favorite channel list" on page 25 and "Viewing a favorite channel" on page 26.
20	✕ MUTE	Press to mute the sound. Press again to restore the sound.
21	CH ∧/CH ∨	Press to go to the next or previous channel in the channel list. For more information, see "Selecting a channel" on page 21.
22	PICTURE	Press to select the picture mode. You can select Vivid, Standard, Energy Savings, or Custom. For more information, see "Adjusting the TV picture" on page 22.
23	MTS/SAP	In analog TV mode, press to select Stereo, Mono, or SAP. In digital TV mode, press to select an alternate audio language, if available. For more information, see "Adjusting sound settings" on page 23.
24	AUDIO	Press to select the sound mode. for more information, see "Adjusting the sound" on page 23.

Making connections

What connection should I use?

Your TV has several connection types for connecting devices to your TV.

For the best video quality, you should connect a device to the best available connection.

Use the following tables to identify cables:

Connection type and jack	Video quality	Cable connector
HDMI video/audio	Best (use this if your devices have HDMI)
Component video (requires an audio connection)	Better than composite, or coaxial
Composite video (requires an audio connection)	Better than coaxial
Coaxial video/audio	Good

Connection type and jack	Cable connectors
Digital optical audio
Analog audio
VGA (computer) video and audio

You can use the HDMI1/DVI jack on your TV to connect a DVI device to your TV. You need to attach an HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device.

Cautions

• Check the jacks for position and type before making any connections.
• Loose connections can result in image or color problems. Make sure that all connections are tight and secure.
  • The external audio/video equipment shown may be different from your equipment. If you have questions, refer to the documentation that came with your equipment.
  • Always unplug the power cord when connecting external equipment.

Connecting power

To connect the power:

- Plug the AC power cord into an AC power outlet.

Diagram showing a cable being inserted into a monitor, with an outlet labeled 'X' pointing to the cable (no text or symbols beyond basic labels)

Notes

• Your TV should only be operated from the power source indicated on the label.
  • Always unplug the AC power cord from the power outlet when you will not be using your TV for an extended period of time.

Connecting a cable or satellite box

Many cable or satellite TV boxes have more than one connection type. To get the best video, you should use the best connection type available. For more information, see "What connection should I use?" on page 8.

Notes

• If the signal level for a channel is weak, the picture may be distorted. Adjust the antenna or use a highly directional outdoor or set-top antenna with a built-in amplifier.
  • If the picture quality is good on some channels and poor on others, the problem may be caused by a poor or weak signal from the broadcaster or cable TV provider.
• If you connect to cable or satellite TV without a set-top box and experience poor picture quality, you may need to install a set-top box to improve signal reception and picture quality. Contact your cable or satellite TV provider about upgrading to a set-top box.
• Many high-definition (HD) channels upscale standard-definition (SD) content. The picture displayed on your TV is still displayed as SD, thus the picture quality will not be as clear or crisp as it would be if the content was originally recorded in HD.

Using HDMI (best)

To connect a cable or satellite box using HDMI:

1 Make sure that your TV's power cord is unplugged, and all connected equipment is turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect an HDMI cable (not provided) to the HDMI jack on the side of your TV and to the HDMI OUT jack on the cable or satellite box.

4 Plug your TV's power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
5 Press INPUT to open the INPUT SOURCE list.
6 Press ▲ or ▼ to highlight HDMI 1, HDMI 2, or HDMI 3 then press ENTER.

Note

An HDMI cable carries both audio and video. You do not need to use any audio cables.

Using DVI (same as HDMI but requires an audio connection)

Note

You must use the HDMI1/DVI jack to connect a cable or satellite box using DVI. If you use another HDMI jack, you will not hear sound from the TV speakers.

To connect a cable or satellite box using DVI:

1 Make sure that your TV's power cord is unplugged, and all connected equipment is turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect an HDMI-DVI adapter (not provided) to one end of an HDMI cable (not provided), then connect the adapter to the DVI OUT jack on the cable or satellite box.
4 Connect the other end of the cable to the HDMI1/DVI jack on the side of your TV.

5 Connect a 3.5mm audio cable (not provided) to the PC/DVI AUDIO IN jack on the side of your TV and to the AUDIO OUT jacks on the cable or satellite box.

Note

When you connect the audio using the PC/DVI AUDIO IN jack, the audio output is analog.

6 Plug your TV's power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
7 Press INPUT to open the INPUT SOURCE list.
8 Press ▲ or ▼ to highlight HDMI 1, then press ENTER.

Using component video (better)

To connect a cable or satellite box using component video:

1 Make sure that your TV's power cord is unplugged, and all connected equipment is turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect a component video cable (not provided) to the VIDEO/Y, PB, and PR video jacks on the side of your TV and the component video out jacks on the cable or satellite box.

Cables are often color-coded to match color-coded jacks.

4 Connect an audio cable (not provided) to the AV IN AUDIO L/R jacks on the side of your TV and to the audio out jacks on the cable or satellite TV box.

Note

• The VIDEO/Y, PB, and PR video jacks (used to connect a component device) share the AV IN AUDIO L/R jacks with the VIDEO/Y jack (used to connect a composite device).
• When you connect the audio using the AV IN AUDIO L/R jacks, the audio output is analog.

5 Plug your TV's power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
6 Press INPUT to open the INPUT SOURCE list.
7 Press ▲ or ▼ to highlight COMPONENT/AV then press ENTER.

Using composite video (good)

To connect a cable or satellite box using composite video:

1 Make sure that your TV's power cord is unplugged, and all connected equipment is turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect an AV cable (not provided) to the VIDEO/Y jack and AV IN AUDIO L/R jacks on the side of your TV and to the composite video and audio out jacks on the cable or satellite box.

Note

• The VIDEO/Y, PB, and PR video jacks (used to connect a component device) share AV IN AUDIO L/R jacks with the VIDEO/Y jack (used to connect a composite device).
• When you connect the audio using the AV IN AUDIO L/R jacks, the audio output is analog.

Cables are often color-coded to match color-coded jacks.

4 Plug your TV's power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
5 Press INPUT to open the INPUT SOURCE list.
6 Press ▲ or ▼ to highlight COMPONENT/AV then press ENTER.

Using coaxial cable (good)

To connect a cable or satellite box using coaxial cable:

1 Make sure that your TV's power cord is unplugged, and all connected equipment is turned off.
2 Connect a coaxial cable (not provided) to the TV IN ANT/CABLE IN jack on the side of your TV and to the antenna or cable TV wall jack.

3 Plug your TV's power cord into a power outlet, then turn on your TV.
4 Press INPUT to open the INPUT SOURCE list.
5 Press ▲ or ▼ to highlight TV then press ENTER.
6 If you cannot tune to channels you know exist, scan for channels. See "Automatically scanning for channels" on page 24.

Notes

• Use a coaxial cable to eliminate interference and noise from radio waves.
• Do not bundle the coaxial cable with the power cord or other cables.
• If the antenna is not installed correctly, contact qualified service personnel to correct the problem.
• If the signal level for a channel is weak, the picture may be distorted. Adjust the antenna or use a highly directional outdoor or set-top antenna with a built-in amplifier.
• If the picture quality is good on some channels and poor on others, the problem may be caused by a poor or weak signal from the broadcaster or cable TV provider.
• If you connect to cable or satellite TV without a set-top box and experience poor picture quality, you may need to install a set-top box to improve signal reception and picture quality. Contact your cable or satellite TV provider about upgrading to a set-top box.
• Many high-definition (HD) channels upscale standard-definition (SD) content. The picture displayed on your TV is still displayed as SD, thus the picture quality will not be as clear or crisp as it would be if the content was originally recorded in HD.

Connecting an antenna or cable TV (no box)

To connect an antenna or cable TV (no box):

1 Make sure that your TV's power cord is unplugged, and all connected equipment is turned off.
2 Connect a coaxial cable (not provided) to the TV IN ANT/CABLE IN jack on the side of your TV and to the antenna or cable TV wall jack.

3 Plug your TV's power cord into a power outlet, then turn on your TV.
4 Press INPUT to open the INPUT SOURCE list.
5 Press ▲ or ▼ to highlight TV then press ENTER.
6 If you cannot tune to channels you know exist, scan for channels. See "Automatically scanning for channels" on page 24.

Notes

• Use a coaxial cable to eliminate interference and noise from radio waves.
• Do not bundle the coaxial cable with the power cord or other cables.
• If the antenna is not installed correctly, contact qualified service personnel to correct the problem.
• If the signal level for a channel is weak, the picture may be distorted. Adjust the antenna or use a highly directional outdoor or set-top antenna with a built-in amplifier.
• If the picture quality is good on some channels and poor on others, the problem may be caused by a poor or weak signal from the broadcaster or cable TV provider.
• If you connect to cable or satellite TV without a set-top box and experience poor picture quality, you may need to install a set-top box to improve signal reception and picture quality. Contact your cable or satellite TV provider about upgrading to a set-top box.
• Many high-definition (HD) channels upscale standard-definition (SD) content. The picture displayed on your TV is still displayed as SD, thus the picture quality will not be as clear or crisp as it would be if the content was originally recorded in HD.

Connecting a DVD or Blu-ray player

Using HDMI (best)

To connect a DVD or Blu-ray player using HDMI:

1 Make sure that your TV's power cord is unplugged and the DVD or Blu-ray player is turned off.
2 Connect an HDMI cable (not provided) to the HDMI jack on the side of your TV and to the HDMI OUT jack on the DVD or Blu-ray player.

3 Plug your TV's power cord into a power outlet, then turn on your TV.
4 Turn on the DVD or Blu-ray player, then set it to the correct output mode. For more information, see the documentation that came with the player.
5 Press INPUT to open the INPUT SOURCE list.
6 Press ▲ or ▼ to highlight HDMI1, HDMI2, or HDMI3, then press ENTER.

Note

You can also press HDMI repeatedly to select the DVD or Blu-ray player.

Using DVI (same as HDMI but requires an audio connection)

Note

You must use the HDMI 1/DVI jack to connect a DVD or Blu-ray player using DVI. If you use another HDMI jack, you will not hear sound from the TV speakers.

To connect a DVD or Blu-ray player using DVI:

1 Make sure that your TV's power cord is unplugged and the DVD or Blu-ray player is turned off.
2 Connect an HDMI-DVI adapter (not provided) to one end of an HDMI cable (not provided), then connect the adapter to the DVI OUT jack on the DVD or Blu-ray player.
3 Connect the other end of the cable to the HDMI1/DVI jack on the side of your TV.

4 Connect a 3.5mm audio cable (not provided) to the PC/DVI AUDIO IN jack on the side of your TV and to the AUDIO OUT jacks on the DVD or Blu-ray player.
5 Plug your TV's power cord into a power outlet, then turn on your TV.
6 Turn on the DVD or Blu-ray player, then set it to the correct output mode. For more information, see the documentation that came with the player.
7 Press INPUT to open the INPUT SOURCE list.
8 Press ▲ or ▼ to select HDMI1, then press ENTER.

Note

You can also press HDMI one or more times to select the DVD or Blu-ray player.

Using component video (better)

To connect a DVD or Blu-ray player using component video:

1 Make sure that your TV's power cord is unplugged and the DVD or Blu-ray player is turned off.
2 Connect a component video cable (not provided) to the VIDEO/Y, PB, and PR jacks on the side of your TV and to the COMPONENT OUT jacks on the component video device.

Cables are often color-coded to match color-coded jacks. Note: The yellow video connector on the AV cable connects to the green VIDEO/Y jack.

3 Connect an audio cable (not provided) to the AV IN AUDIO L/R jacks on the side of your TV and to the L/R AUDIO OUT jacks on the DVD or Blu-ray player.

Notes

• The VIDEO/Y, PB, and PR video jacks (used to connect a component device) share the AV IN AUDIO L/R jacks with the VIDEO/Y jack (used to connect a composite device).
• When you connect the audio using the AV IN AUDIO L/R jacks, the audio output is analog.

4 Plug your TV's power cord into a power outlet, then turn on your TV.
5 Turn on the DVD or Blu-ray player, then set it to the correct output mode. For more information, see the documentation that came with the player.
6 Press INPUT to open the INPUT SOURCE list.
7 Press ▲ or ▼ to select COMP/AV, then press ENTER.

Note

You can also press VIDEO to select the DVD or Blu-ray player.

Using composite video (good)

To connect a DVD or Blu-ray player using composite video:

1 Make sure that your TV's power cord is unplugged and the DVD or Blu-ray player is turned off.
2 Connect an AV cable (not provided) to the VIDEO/Y jack and AV IN AUDIO L/R jacks on the side of your TV and to the AV OUT jacks on the DVD or Blu-ray player.

Note

• The VIDEO/Y, PB, and PR video jacks (used to connect a component device) share the AV IN AUDIO L/R jacks with the VIDEO/Y jack (used to connect a composite device).
• When you connect the audio using the AV IN AUDIO L/R jacks, the audio output is analog.

Cables are often color-coded to match color-coded jacks.

Note: The yellow video connector on the AV cable connects to the green VIDEO/Y jack.

3 Plug your TV's power cord into a power outlet, then turn on your TV.
4 Turn on the DVD or Blu-ray player, then set it to the correct output mode. For more information, see the documentation that came with the player.
5 Press INPUT to open the INPUT SOURCE list.
6 Press ▲ or ▼ to select COMP/AV, then press ENTER.

Notes

You can also press VIDEO to select the DVD or Blu-ray player.

Connecting a VCR

To connect a VCR:

1 Make sure that your TV's power cord is unplugged and the VCR is turned off.
2 Connect an AV cable (not provided) to the VIDEO/Y jack and AV IN AUDIO L/R jacks on the side of your TV and to the AV OUT jacks on the VCR.

Note

• The VIDEO/Y, PB, and PR video jacks (used to connect a component device) share the AV IN AUDIO L/R jacks with the VIDEO/Y jack (used to connect a composite device).
• When you connect the audio using the AV IN AUDIO L/R jacks, the audio output is analog.

Cables are often color-coded to match color-coded jacks.

Note: The yellow video connector on the AV cable connects to the green VIDEO/Y jack.

3 Plug your TV's power cord into a power outlet, then turn on your TV and the VCR.
4 Press INPUT to open the INPUT SOURCE list.
5 Press ▲ or ▼ to select COMP/AV, then press ENTER.

Note

You can also press VIDEO to select the VCR.

Connecting a camcorder or game console

Note

If your camcorder or game console has an HDMI connection, we recommend that you use the HDMI connection to get the best quality possible.

To connect a camcorder or game console:

1 Make sure that your TV's power cord is unplugged and the camcorder or game console is turned off.
2 Connect an AV cable (not provided) to the VIDEO/Y jack and AV IN AUDIO L/R jacks on the side of your TV and to the AV OUT jacks on the camcorder or game console.

Note

• The VIDEO/Y, PB, and PR video jacks (used to connect a component device) share the AV IN AUDIO L/R jacks with the VIDEO/Y jack (used to connect a composite device).
• When you connect the audio using the AV IN AUDIO L/R jacks, the audio output is analog.

Cables are often color-coded to match color-coded jacks. Note: The yellow video connector on the AV cable connects to the green VIDEO/Y jack.

3 Plug your TV's power cord into a power outlet, then turn on your TV.
4 Turn on the camcorder or game console, then set it to the correct output mode. For more information, see the documentation that came with the camcorder or game console.
5 Press INPUT to open the INPUT SOURCE list.
6 Press ▲ or ▼ to select COMP/AV, then press ENTER.

Notes

You can also press VIDEO to select the camcorder or game console.

Connecting a computer

Tip

Some computers have an HDMI jack. You can use an HDMI cable to connect the computer for a better picture.

Using VGA

To connect a computer using VGA:

1 Make sure that your TV's power cord is unplugged and the computer is turned off.
2 Connect a VGA cable (not provided) to the PC IN VGA jack on the side of your TV and to the VGA jack on the computer.

3 Connect an audio cable with a stereo mini plug (not provided) to the PC/DVI AUDIO IN jack on the side of your TV and to the AUDIO OUT jack on the computer.
4 Plug your TV's power cord into a power outlet, then turn on your TV and the computer.
5 Press INPUT to open the INPUT SOURCE list.
6 Press ▲ or ▼ to select VGA, then press ENTER.
7 Adjust the display properties on the computer, if necessary.

Using HDMI

To connect a computer using HDMI:

1 Make sure that your TV's power cord is unplugged and the computer is turned off.
2 Connect an HDMI cable (not provided) to the HDMI jack on the side of your TV and to the HDMI OUT jack on the computer.

3 Plug your TV's power cord into a power outlet, then turn on your TV and the computer.
4 Press INPUT to open the INPUT SOURCE list.
5 Press ▲ or ▼ to highlight HDMI1, HDMI2, or HDMI3, then press ENTER.

Note

You can also press HDMI repeatedly to select the computer.

6 Adjust the display properties on the computer, if necessary.

Connecting a USB flash drive

To connect a USB flash drive:

1 Plug a USB flash drive into the USB port on the side of your TV.

Caution

Do not remove the USB flash drive or turn off the TV while using the USB flash drive. You may lose data or damage the USB flash drive.

2 Press INPUT to open the INPUT SOURCE list.
3 Press ▲ or ▼ to select USB, then press ENTER.

Note

The Photos viewer only supports JPEG format images (with ".jpg" file extensions) and not all JPEG files are compatible with your TV. For more information, see "Using a USB flash drive" on page 36.

Connecting headphones

When you connect headphones, audio plays through the headphones and the TV speakers are muted. See "Adjusting sound settings" on page 23.

Warning

Loud noise can damage your hearing. When using headphones, use the lowest volume setting on your headphones that still lets you hear the sound.

To connect headphones:

- Connect the headphones to the AUDIO OUT jack on the side of your TV.

Note

You can also connect an amplifier, home theater system, or sound bar to the AUDIO OUT jack. If you want to connect an amplifier, home theater system, or sound bar, you need to disconnect the headphones.

Connecting a basic home theater system

Using digital audio

To connect a basic home theater system using digital audio:

1 Make sure that your TV's power cord is unplugged and the home theater system is turned off.
2 Connect a digital optical audio cable (not provided) to the DIGITAL OUTPUT jack on the side of your TV and to the optical AUDIO IN jack on the digital home theater system.

Using analog audio

To connect a home theater system using analog audio:

1 Make sure that your TV's power cord is unplugged and the home theater system is turned off.
2 Connect a 3.5mm audio cable (not provided) to the AUDIO OUT jack on the side of your TV and to the AUDIO IN jacks on the analog home theater system.

Note

You can connect headphones, an amplifier, a home theater system, or a sound bar to the AUDIO OUT jack. If you want to use headphones, you need to disconnect the amplifier, home theater system, or sound bar.

Connecting a home theater system with multiple devices

The connections you make depend on the video and audio jacks available on your devices. Refer to the documentation that came with your devices for connection information.

Just remember to use the best connection types available for the best picture and sound. For information about connection types, see "What connection should I use?" on page 8.

Using the remote control

Installing remote control batteries

To install the remote control batteries:

1 Press the release button on the back of the remote control to remove the battery compartment cover.
2 Insert two AAA batteries into the battery compartment. Make sure that you match the + and - symbols on the batteries with the + and - symbols in the battery compartment.

Diagram of a door lock mechanism showing internal components and a directional arrow (no text or symbols)

3 Replace the cover.

Diagram of a mechanical device with a vertical component and internal components (no text or symbols)

Cautions

• Batteries should not be exposed to excessive heat, such as sunshine, heat registers, or fire
• Battery chemicals can cause a rash. If the batteries leak, clean the battery compartment with a cloth. If chemicals touch your skin, wash immediately.
• Make sure that batteries are disposed of correctly. Do not burn or incinerate.

Notes

• Do not mix batteries of different types.
• Do not mix old and new batteries.
• Remove batteries when the charge is depleted.
• If the remote control is not going to be used for an extended period of time, remove the batteries.

Aiming the remote control

To aim the remote control:

- Point the remote control towards the remote sensor on the front of your TV.

Turning on your TV for the first time

The first time you turn on your TV, the Setup Wizard opens. The Setup Wizard guides you through setting up basic settings including the menu language, time setting, picture mode, and TV signal source.

To set up your TV:

1 Make sure that you have:

• Installed the remote control batteries. (See page 18 for details.)
• Connected an antenna, cable TV, or satellite TV. (See page 9 through 11 for details.)
• Connected the power cord. (See page 9 for details.)

2 Press ⏻ (power) to turn on your TV. The Choose Your Menu Language screen opens.

3 Press ▲ or ▼ to highlight the language you want, then press ENTER. The Choose Your Time Setting screen opens.

4 Press ▲ or ▼ to highlight Style, then press ◀ or ▶ to select Manual (to set the date and time manually) or Auto (to set the date and time automatically from a TV signal source based on the time zone you select).

Note
	If you select Auto, the displayed time will be incorrect until your TV gets the correct time from a TV signal source.

5 If you selected Auto for Style, press ▲ or ▼ to highlight Time Zone, then press ◀ or ▶ to select your time zone. You can select Eastern, Central, Mountain, Pacific, Alaska, Hawaii, Newfoundland, or Atlantic.

6 If you selected Auto for Style, press ▲ or ▼ to highlight Daylight Savings, then press ◀ or ▶ to select On (if your viewing area observes Daylight Savings Time) or Off (if your viewing area does not observe Daylight Savings Time).
7 If you selected Manual for Style, set the date by pressing ▲ or ▼ to highlight Year, Month, or Day, then pressing ◀ or ▶ to adjust the setting.
8 If you selected Manual for Style, set the time by pressing ▲ or ▼ to highlight Time, then pressing ◀ or ▶ to select the hour, minute, or AM/PM field. Press ▲ or ▼ to adjust the setting.
9 Press ENTER. The Choose Your Picture Mode screen opens.

10 Press ▲ or ▼ to highlight Home Mode or Retail Mode, then press ENTER.

If you selected Retail Mode, a message asks you to confirm your selection. Retail Mode is not an energy savings mode. Select Yes to continue using Retail Mode, or select No to change your selection, then press ENTER.

The Choose Your TV Source screen opens.

11 Press ▲ or ▼ to highlight Antenna, Cable, or Cable/Satellite Box, then press ENTER.

• If you select Antenna or Cable, your TV scans for available channels. The scan may take several minutes.
• If you select Cable/Satellite box, your TV does not need to scan for channels:
• During antenna scanning, your TV searches for digital channels first. When the digital channel search is complete, a message appears asking if you want to search for analog channels. Select Yes to continue searching for analog channels, or select No to stop searching for channels.

Note

The channel scan can take up to 20+ minutes. You can press EXIT to stop the auto channel search, but you will need to run the auto channel search again to create a channel list.

12 To watch TV, press INPUT, press ▲ or ▼ to highlight the video input source for your TV in the INPUT SOURCE list, then press ENTER.

• If your TV is connected to an antenna, cable TV (no box), or cable or satellite TV box using a coaxial cable, select TV.
• If your TV is connected to a cable or satellite box using an HDMI cable or HDMI cable with a DVI adapter, select HDMI1, HDMI2, or HDMI3.
• If your TV is connected to a cable or satellite box using a component video cable, select COMP/AV.
• If your TV is connected to a cable or satellite box using a composite video cable, select COMP/AV.

Understanding the basics

Turning your TV on or off

To turn your TV on or off:

1 Make sure that the power cord is connected to a power outlet.
2 Press (Power) to turn on your TV. The power indicator LED turns off.
3 Press (Power) again to turn off your TV. Your TV enters Standby mode and the power indicator turns red.

Warning
	When your TV is in standby mode, it is still receiving power. To completely disconnect power, unplug the power cord.

Note
	If your TV does not receive an input signal for several minutes, it automatically goes into standby mode.

Selecting the video input source

To select the video input source:

1 Turn on your TV, then press INPUT. The INPUT SOURCE list opens.

2 Press ▲ or ▼ to highlight the video input source, then press ENTER.

You can also press a direct input button on your remote control to select the video input source.

• Press TV to select TV (if your TV is connected to an antenna, cable TV (no box), or cable or satellite TV using a coaxial cable).
• Press VIDEO to select component or composite input.
• Press HDMI one or more times to select one of the HDMI inputs.
  • The ACC button has no function.

Using the on-screen menus

Notes

• Depending on the signal source selected, you may see different options on your screen. The following menus are shown in TV mode.
• Menu items that are not selectable are grayed out.
• Menus in this manual are described in TV mode, unless otherwise indicated.
• The screens shown in this manual are for explanation purposes and may vary from the actual screens on your TV.

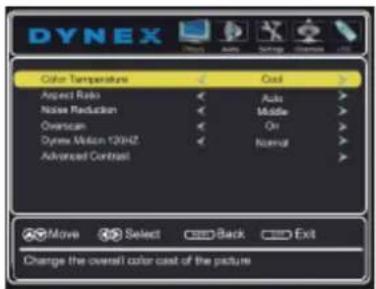

Picture menu (TV mode)

Audio menu (TV mode)

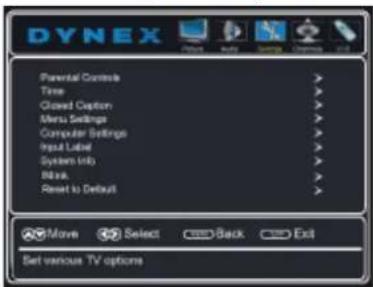

Settings menu (TV mode)

Channels menu (TV mode)

USB menu (USB mode)

Navigating the menus

Press MENU to open the on-screen menu.

Press◀ or ▶ to move the cursor on the screen or to adjust a selected item.

Press ▲ or ▼ to select menu options.

Press ENTER to confirm a selection or enter a sub-menu.

Press MENU to return to the previous menu.

Press EXIT to close the menu.

Selecting a channel

To select a channel:

• Press CH ∧ or CH ∨ to go to the next or previous channel on the memorized channel list.
• Press the number buttons to enter the channel number you want, then wait for the channel to change or press ENTER to immediately change the channel.
• To select a digital sub-channel, press the number buttons to select the main digital channel, press ● (dot), then press the number button for the sub-channel. Wait for the channel to change, or press ENTER to immediately change the channel. For example, to tune to channel 5.1, press 5, ● (dot), then 1.

Note
	Button presses must be within three seconds of each other.

• Press (return) to go to the last viewed channel.
• Press CH-LIST to open the channel list, press ▲ or ▼ to highlight a channel, then press ENTER. Hidden channels are grayed and cannot be selected. See "Hiding channels" on page 25.

- Press FAVORITE to open the favorite channel list, press ▲ or ▼ to highlight a channel, then press ENTER. For information on setting up a favorite channel list, see "Setting up a favorite channel list" on page 25.

Note
	If a list has more than one page, press ▲ Or ▼ to scroll through the pages.

Adjusting the volume

To adjust the volume:

• Press VOL+ or VOL− to increase or decrease the volume.
• Press ✦ MUTE to turn off the sound. Press ✦ MUTE again to turn the sound back on.

Viewing channel information

To view channel information:

- Press INFO to view an information banner. The information banner shows the current program information such as channel number, video input source, and resolution.

- Digital channel information—Displays the channel number, channel label, broadcast program name, TV rating, signal type, audio information, resolution, CC mode, and current time, if provided by the broadcaster.

- Analog channel information—Displays channel number, channel label (if present), signal type, and audio information, if provided by the broadcaster.

Viewing system information

To view system information:

1 Press MENU. The on-screen menu opens.

2 Press ◀ or ▶ to highlight Settings, then press ▼ or ENTER. The Settings menu opens.

3 Press ▲ or ▼ to highlight System Info, then press ENTER. Information about the TV software version is displayed.
4 Press MENU to return to the previous menu, or press EXIT to close the menu.

Adjusting the picture

Adjusting the TV picture

To adjust the TV picture:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ▼ or ENTER to access the menu.

3 Press ▲ or ▼ to highlight an option, press ◀ or ▶ to adjust the setting, or press ▶ or ENTER to go to the sub-menu. You can select:

• Picture Mode—Selects the picture mode. You can select:

• Vivid—(a bright and vivid picture). Significantly increases the contrast, brightness, and sharpness. This selection is good for video games, animation, and in bright light environments.
- Standard—(a standard picture). Moderately increases the contrast, brightness, and sharpness. This selection is good for standard TV broadcasts.
- Energy Savings—(the backlight brightness is decreased). Your TV has a backlight that provides light for displaying a picture. By reducing the amount of light, your TV uses less energy.
- Custom—(customized picture). Lets you manually adjust picture settings such as brightness, contrast, and sharpness.

Note

You can also press PICTURE on your remote control to select the picture mode.

• Contrast—Adjusts the brightness of the light areas of the picture.
• Brightness—Adjusts the brightness of the dark areas of the picture.
  • Color—Adjusts the color intensity of the picture. A low setting may make the color look faded. A high setting may make the color look artificial.
• Tint—Adjusts the color balance of the picture. Use this control to make skin tones look more natural.
• Sharpness—Adjusts the color detail of images. If you set this control too high, dark images may appear with light or white edges.
• Backlight—Increasing the backlight setting increases the brightness and display performance of the screen. The higher the setting, the higher the power consumption.

- Advanced Video—Opens the Picture - Advanced Video menu where you can adjust additional video options.

• Color Temperature—Selects the color temperature. You can select Cool (to enhance the blues), Normal, or Warm (to enhance the reds).
- Noise Reduction—Selects the noise reduction mode to reduce picture noise (snow). You can select Low, Middle, High, or Off.
- Overscan—When on, text and images extend past the screen edges to hide edge artifacts. You can select On or Off.
- Dynex Motion 120Hz —Reduces motion blur and eliminates film judder with clear detail and smooth motion. You can select:

• Off—Turns off Dynex Motion 120Hz.
• Low—Sets the effect to minimum.
• Normal—Provides smooth and clear picture motion for normal use.
  • High—Eliminates motion blur with clear detail and smooth motion.
• 24p Film Mode—Provides smooth and clear picture motion from film based video.

- Advanced Contrast—Set advanced contrast options. You can select Adaptive Contrast or Dynamic Contrast Ratio On or Off.

- Aspect Ratio—Adjust how the picture fills the screen.

Aspect ratio option Example

Normal:Original aspect ratio is preserved. Black bars are present if content is not widescreen (16:9).
Zoom:Expands the image to fill the screen. The top and bottom of the image may be cropped.
Wide:Use this option to view content recorded in a 16:9 (wide-screen) aspect ratio.
Aspect ratio option Example
Cinema: Stretches the image at the edges, but keeps a clear image in the center.
Auto: The picture display is adjusted to the correct aspect ratio automatically (TV mode only). This setting is only active when Auto Zoom in the Channels menu is set to On.

Note

You can also press ZOOM to select the aspect ratio.

- Reset Picture Settings—Resets all picture settings to factory mode.

4 Press ◀ or ▶ to adjust the option, or press ▲ or ▼ to select a setting.
5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Adjusting the computer image

To adjust the computer image:

1 Make sure that your TV is in VGA mode. For more information, see "Selecting the video input source" on page 20.
2 Press MENU. The on-screen menu opens with the Picture menu displayed.

3 Press ◀ or ▶ to highlight Settings, then press ENTER. The Settings menu opens.

4 Press ▲ or ▼ to highlight Computer Settings, then press ENTER. The Settings-Computer settings menu opens.

5 Press ▲ or ▼ to highlight an option, then press ENTER to access the option. You can select:

• Auto Adjust—Automatically adjusts the image settings such as position and phase.
  • H. Position—Moves the image right or left.
  • V. Position—Moves the image up or down.
• Clock—Minimize vertical stripes in the screen image.
• Phase—Adjusts the focus of stable images.

6 Press ◀ or ▶ to adjust the option, or press ▲ or ▼ to select a setting.

7 Press MENU to return to the previous menu, or press EXIT to close the menu.

Adjusting the sound

Adjusting sound settings

To adjust the sound settings:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Audio, then press ▼. The Audio menu opens.

3 Press ▲ or ▼ to highlight an option, then press ◀ or ▶ to adjust the option. You can select:

- Sound Mode—Selects the sound mode. You can select:

- Standard—Balances treble and bass. This setting is good for watching standard TV broadcasts.

• News—Enhances vocals for TV audio. This setting is good for watching news broadcasts.
  • Music—Preserves the original sound. This setting is good for listening to music.
  • Theater—Enhances treble and bass for a rich sound experience. This setting is good for watching DVDs, Blu-ray discs, and HDTV.

• Custom—Lets you manually adjust sound settings.

• Treble—Adjusts the high sounds.
  • Bass—Adjusts the low sounds.
  • Balance—Adjusts the balance between the left and right audio channels.

• Digital Audio/SPDIF—Sends digital audio to an external audio system. You can select PCM (to output audio in 2-channel stereo), or RAW (to pass through the original digital audio sound).
  • Audio Language—(Digital channels only) Selects an alternate audio language, if available.

• MTS/SAP—(Analog channels only) Selects the audio mode. You can select:

• Mono—Select this option if there is noise or static on weak stereo broadcasts.

• Stereo—Select this option for programs broadcast in stereo.
• SAP—Select this option to listen to a secondary audio program, if available.

Note

You can also press MTS/SAP one or more times to select the audio mode.

- Reset Audio Settings—Reset all audio settings to factory defaults.

4 Press MENU to return to the previous menu, or press EXIT to close the menu.

Playing TV audio only

You can turn off the picture on your TV and listen to the program audio only.

To play TV audio only:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Channels, then press ▼. The Channels menu opens.

3 Press ▲ or ▼ to highlight Audio Only, then press ENTER.
4 Press ◀ or ▶ to select On.
5 Press MENU to return to the previous menu, or press EXIT to close the menu. The picture turns off in approximately three to five seconds.

Notes

• Audio only works only when the input source is TV and your TV is receiving a broadcast signal.
• To exit audio only mode, press any button except the power button. When you exit audio only mode, the Audio Only option is automatically reset to Off.

Changing channel settings

Automatically scanning for channels

When you scan for channels, your TV searches for channels with signals and stores the channel information in the channel list. When you press CH ∧ or CH ∨, your TV goes to the next or previous channel in the channel list.

If the TV signal source changes, for example you change from an outdoor antenna to cable TV (no box), you need to scan for channels.

To automatically scan for channels:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Channels, then press ▼ or ENTER. The Channels menu opens.

3 Press ▲ or ▼ to highlight Auto Channel Scan, then press ENTER. The Choose Your TV Source screen opens.

4 Press ▲ or ▼ to highlight Antenna, Cable, or Cable/Satellite Box, then press ENTER.

- If you are using an antenna for a standard or HD TV signal, select Antenna.

- If your cable is connected directly to the TV (using no tuner box), select Cable.

- If your cable is connected to your TV through a tuner box, select Cable/Satellite Box.

If you selected Antenna or Cable, your TV searches automatically for available channels in your area and stores the channel information in the channel list. This may take several minutes. While scanning, the TV displays a progress report.

-Or-

If you selected Cable/Satellite Box, the channel search is not necessary.

Note

You can press EXIT to stop the auto channel search, but you will need to run the auto channel search again to create a channel list.

Hiding channels

You can hide channels in the channel list. When you press CH ∧ or CH ∨, your TV skips the hidden channels. You can still tune to a hidden channel by pressing the number buttons for the channel.

To hide channels:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Channels, then press ▼. The Channels menu opens.

3 Press ▲ or ▼ to highlight Add/Skip Channels, then press ENTER. The channel list opens.

4 Press ▲▼ to highlight the channel you want to hide, then press ENTER. The check mark disappears.

Notes
	A channel with a check mark is not hidden. A channel with no check mark is hidden. If the list has more than one page, press ▲ or ▼ to scroll through the pages.

5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Setting up a favorite channel list

You can create a favorite channel list so you can quickly browse through your favorite channels by pressing FAVORITE, then selecting a channel from the favorite channel list.

To set up a favorite channel list:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Channels, then press ▼ or ENTER. The Channels menu opens.

3 Press ▲ or ▼ to highlight Favorites, then press ENTER. The Channels-favorites list opens.

4 Press ▲▼ to highlight the channel you want to add to the favorites list, then press ENTER. A check mark appears next to the channel.

Notes

• To remove a channel from the favorites list, highlight the channel, then press ENTER. The check mark disappears and the channel is removed from the list.
- If the list has more than one page, press ▲ or ▼ to scroll through the pages.

5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Viewing a favorite channel

To view a favorite channel:

1 Press FAVORITE on your remote control. The Favorites channel list opens.
2 Press ▲ or ▼ to highlight a channel, then press ENTER to tune to the channel.

Adding or changing a channel label

If a channel is not already labeled, you can label the channel to make it easier to identify. You can also relabel a channel that is already labeled.

To add or change a channel label:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Channels, then press ▼ or ENTER. The Channels menu opens.

3 Press ▲ or ▼ to highlight Channel Label, then press ENTER. The Channel Label screen opens.
4 Press ▲ or ▼ to select the channel you want to label, then press ▶ to move to the channel label field.

5 Press ▲ or ▼ to select a character, then press ◀ or ▶ to move to the previous or next position. Repeat this step to add more characters. You can enter as many as 11 characters. If you need to delete a character, enter a blank space, then press ENTER.
6 When you have completed the label, press ENTER. 7 Press MENU to return to the previous menu, or press EXIT to close the menu.

Checking the digital signal strength

You can check the digital signal strength to determine if you need to adjust your antenna or digital cable input. The higher the signal strength, the less likely you are to experience picture degradation.

To check the digital signal strength:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Channels, then press ▼ or ENTER. The Channels menu opens.

3 Press ▲ or ▼ to highlight Channel Strength, then press ENTER. The DTV signal strength is indicated by the color bar.
4 Press MENU to return to the previous menu, or press EXIT to close the menu.

Setting parental controls

Parental controls let you prevent your children from watching inappropriate material on TV. When set, parental controls read the rating of the program (with some exceptions, such as news and sports) and deny access to programs that exceed the ratings level you select. To watch programs that exceed the selected rating, you must enter the password.

Setting or changing the password

To set or change the password:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Settings, then press ▼. The Settings menu opens with Parental Controls highlighted.

3 Press ENTER. The Enter Password screen opens.

4 Press the number buttons to enter the four-digit password. The default password is 0000. You should change the password to something you can remember. The Parental Controls menu opens.

5 Press ▲ or ▼ to highlight Change Password, then press ENTER. The Password Entry screen opens.

6 Press the number buttons to enter the old password, enter a new password, then enter the new password again. The password has been successfully changed.

7 Press MENU to return to the previous menu, or press EXIT to close the menu.

Locking control buttons

When the button lock is turned On, the buttons on the side of your TV are locked, and you can only operate your TV using the remote control.

To lock control buttons:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Settings, then press ▼. The Settings menu opens with Parental Controls highlighted.

3 Press ENTER. The Enter Password screen opens.

4 Press the number buttons to enter the four-digit password. The Parental Controls menu opens with Button Lock highlighted.

5 Press ENTER.

6 Press ◀ or ▶ to select On (locks the buttons) or Off (unlocks the buttons).
7 Press MENU to return to the previous menu, or press EXIT to close the menu.

Blocking unrated TV

When block unrated TV is turned ON, you block TV programs that do not have a rating. You will be prompted to enter the parental controls password to view the program.

To block unrated TV:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Settings, then press ▼. The Settings menu opens with Parental Controls highlighted.

3 Press ENTER. The Enter Password screen opens.

4 Press the number buttons to enter the four-digit password. The Parental Controls menu opens.

5 Press ENTER.

6 Press ◀ or ▶ to select On (blocks unrated TV) or Off (does not block unrated TV).

7 Press MENU to return to the previous menu, or press EXIT to close the menu.

System Lock

This setting turns the Parental Controls function on or off.

To turn on system lock:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Settings, then press ▼. The Settings menu opens with Parental Controls highlighted.

3 Press ENTER. The Enter Password screen opens.

4 Press the number buttons to enter the four-digit password. The Parental Controls menu opens.

5 Press ENTER.

6 Press ◀ or ▶ to select On (turns on system lock) or Off (turns off system lock).

7 Press MENU to return to the previous menu, or press EXIT to close the menu.

Setting parental control levels

You can set parental control levels for the U.S. and Canada. Parental control settings are only applicable to programs that have a rating signal.

To set parental control levels:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Settings, then press ▼. The Settings menu opens with Parental Controls highlighted.

3 Press ENTER. The Enter Password screen opens.

4 Press the number buttons to enter the four-digit password. The Parental Controls menu opens.

5 Press ▲ or ▼ to highlight US (or Canada to set controls for Canada), then press ENTER. The Ratings screen opens

6 Press ▲ or ▼ or ◀ or ▶ to highlight the rating you want to block, then press ENTER. A lock symbol appears when a rating is blocked.

Note

When you block a rating, that rating and all higher ratings are blocked.

7 Press EXIT to close the menu.

U.S. rating levels

U.S. TV ratings

NONE Not rated

TV-Y All children

TV-Y7 Suitable for children 7 and older

TV-G General audiences

TV-PG Parental guidance suggested

TV-14 Parental guidance strongly suggested

TV-MA Mature audiences only

Some of the age-based TV Parental Guidelines ratings also have content-based ratings.

U.S. TV content ratings

All All ratings are blocked

FV Fantasy violence

L Strong language

S Sexual situations

V	V	i	o	I
D	Suggestive dialog

U.S. movie (MPAA) ratings

None	Movie not rated
G	General audiences
PG	Parental guidance suggested
PG-13 Suitable for children 13 and older
R	Parental guidance suggested for children under 17
NC-17 Not suitable for children under 17
X	Adults only

Canadian rating levels

Canadian English ratings

E Exempt programming

C Suitable for all children

C8+ Suitable for children 8 and older

G General audiences

PG Parental guidance suggested

14+ Suitable for children 14 and older

18+ Adult only

Canadian French ratings

E Exempt programming

G General audiences

8ans+ Suitable for children 8 and older

13ans+ Suitable for children 13 and older

16ans+ Suitable for children 16 and older

18ans+ Adult only

Downloading rating information

To download rating information:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Settings, then press ▼. The Settings menu opens with Parental Controls highlighted.

3 Press ENTER. The Enter Password screen opens.

4 Press the number buttons to enter the four-digit password. The Parental Controls menu opens.

5 Press ▲ or ▼ to highlight RRT Setting, then press ENTER.

If the program is broadcast with RRT5 rating information, the information is downloaded automatically and can be used for parental controls.

6 To reset the RRT5 information to the factory default, press ▲ or ▼ to highlight Reset RRT5, then press ENTER. A box opens. Follow the on-screen instructions.

7 Press EXIT to close the menu.

Using closed captioning

Closed captions (CC or subtitles) are intended to provide people who are hearing impaired with access to TV programs. However, this feature is also useful for viewers who are learning a new language, beginning to read, or in a noisy environment. Text captions are displayed to transcribe speech and often other relevant sounds. Closed captioning availability and content depends on the broadcaster and may vary across programs in a channel.

Turning closed captioning on or off

To turn closed captioning on or off:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Settings, then press ▼. The Settings menu opens.

3 Press ▲ or ▼ to highlight Closed Caption, then press ENTER. The Settings-Closed Caption menu opens.

4 Press ▲ or ▼ to highlight CC Mode, then press ◀ or ▶ to select CC Off (turns off closed captioning), CC On (turns on closed captioning), or CC On When Mute (turns on closed captioning when the sound is muted).

5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Note
	You can also press CCD to turn closed captioning on or off.

Selecting the analog closed captioning mode

To select the closed captioning mode:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Settings, then press ▼. The Settings menu opens.

3 Press ▲ or ▼ to highlight Closed Caption, then press ENTER. The Settings-Closed Caption menu opens.

4 Press ▲ or ▼ to highlight Analog Caption, then press ◀ or ▶ to select an analog caption setting. You can select:

- CC1 through CC4—Closed captioning appears in a small banner across the bottom of the screen. CC1 is usually the "printed" version of the audio. CC2 through CC4 display content provided by the broadcaster.

- Text1 through Text4—Closed captioning covers half or all of the screen. Text1 through Text4 display content provided by the broadcaster.

5 Press EXIT to close the menu.

Customizing digital closed captioning styles

To customize digital closed captioning styles:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Settings, then press ▼. The Settings menu opens.

3 Press ▲ or ▼ to highlight Closed Caption, then press ENTER. The Settings-Closed Caption menu opens.

4 Press ▲ or ▼ to highlight Digital Caption (only available for digital stations), then press ◀ or ▶ to select a digital caption setting, then press ENTER. You can select CS1 through CS6 or CC1 through CC4.

5 Press ▲ or ▼ to highlight Digital CC Settings, then press ENTER. The Digital CC Settings menu opens.

6 Press ▲ or ▼ to select Mode, then press ◀ or ▶ to select Custom.

Note
	To reset the closed caption styles to their defaults, set Mode to Default.

7 Press ▲ or ▼ to highlight an option, then press ◀ or ▶ to adjust the style. You can select:

• Font Style—Selects the font style.
• Font Size—Selects the font size.
• Font Edge Style—Selects the style of the window edge.
• Font Edge Color—Selects the color of the window edge.
• Font Color—Selects the color for the words.
• Background Color—Selects the color for the background.
• Font Opacity—Selects the opacity level for the words.
• Background Opacity—Selects the opacity level for the background.

8 Press EXIT to close the menu.

Adjusting time settings

Setting the clock

To set the clock:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Settings, then press ▼. The Settings menu opens.

3 Press ▲ or ▼ to highlight Time, then press ENTER. The Settings-Time menu opens.

4 Press ▲ or ▼ to highlight Style, then press ◀ or ▶ to select Manual (to set the date and time manually), or Auto (to have the date and time set automatically from a TV source signal, based on your time zone.
5 If you selected Auto for Mode, press ▲ or ▼ to highlight Time Zone, then press ◀ or ▶ to select your time zone. You can select Atlantic, Eastern, Central, Mountain, Pacific, Alaska, Hawaii, or Newfoundland.
6 If your viewing area observes daylight savings time, press ▲ or ▼ to highlight Daylight Savings, then press ◀ or ▶ to select On or Off.
7 If you selected Manual for Style:

- Press ▲ or ▼ to highlight Year, Month, or Date, press ◀ or ▶ to adjust the setting.

- Press ▲ or ▼ to highlight Time, press ◀ or ▶ to highlight the hour, minute, or AM/PM field, then press ▲ or ▼ to adjust the setting.

8 Press EXIT to close the menu.

Setting the sleep timer

You can set the amount of time before your TV automatically turns off.

To set the sleep timer:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Settings, then press ▼. The Settings menu opens.

3 Press ▲ or ▼ to highlight Time, then press ▶ or ENTER. The Settings-Time menu opens.

4 Press ▲ or ▼ to highlight Sleep Timer, then press ▲ or ▶ to select the amount of time before your TV turns off automatically. You can select Off, 5, 10, 15, 30, 60, 90, 120, 180, or 240 minutes. To turn off the sleep timer, select Off.

5 Press EXIT to close the menu.

Adjusting menu settings

Selecting the menu language

To select the on-screen menu language:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Settings, then press ▼. The Settings menu opens.

3 Press ▲ or ▼ to highlight Menu Settings, then press ▶ or ENTER. The Settings-Menu Settings menu opens with Menu Language highlighted.

4 Press ◀ or ▶ to select the menu language. You can select English, Français, or Español.

5 Press EXIT to close the menu.

Labeling an input source

You can add a label to a video input source to make it easier to identify. These labels are displayed on the INPUT SOURCE list and on the banner that appears when you press INFO.

To label an input source:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Settings, then press ▼. The Settings menu opens.

3 Press ▲ or ▼ to highlight Input Labels, then press ENTER. The Settings-Input Label screen opens with Preset Label highlighted.

4 Press ◀ or ▶ to select a preset label from several options, or select Custom to enter your own label.

5 If you select Custom, press ▲ or ▼ to highlight Custom Label, then press ▶.
6 Press ▲ or ▼ to select a character.
7 Press ▶ to move to the next position. Repeat this step to enter additional characters. You can enter as many as 10 characters. If you need to delete a character, enter a blank space.
8 When you complete the label, press MENU. The next time you press INPUT, the new label appears in the INPUT SOURCE list.
9 Press EXIT to close the menu.

Using INlink

INlink lets you control HDMI CEC-compatible devices connected to the HDMI jacks on your TV using the remote control that came with your TV. To use INlink, you must set the INlink Control option on the SETTINGS-INlink menu to On.

Turning INlink on or off

To turn INlink on or off:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Settings, then press ▼. The Settings menu opens.

3 Press ▲ or ▼ to highlight INlink, then press ENTER. The Settings-INlink menu opens.

4 Press ▲ or ▼ to highlight INlink Control, then press ◀ or ▶ to select On (to turn on the INlink Control option), or Off (to turn off the INlink Control option).
5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Turning Device Auto Power Off on or off

Automatically turn off HDMI CEC devices when the TV is turned off and INlink is set to ON.

To turn Device Auto Power Off on or off:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Settings, then press ▼. The Settings menu opens.

3 Press ▲ or ▼ to highlight INlink, then press ENTER. The Settings-INlink menu opens.

4 Press ▲ or ▼ to highlight Device Auto Power Off, then press ◀ or ▶ to select On (to turn off the connected device when you turn off your TV), or Off (to not turn off the connected device when you turn off your TV).

5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Turning TV Auto Power On on or off

Automatically turn on the TV when the HDMI CEC device is powered on, if allowed by the device.

To turn TV Auto Power On on or off:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Settings, then press ▼. The Settings menu opens.

3 Press ▲ or ▼ to highlight INlink, then press ENTER. The Settings-INlink menu opens.

4 Press ▲ or ▼ to highlight TV Auto Power On, then press ◀ or ▶ to select On (to turn on your TV when the connected device is turned on), or Off (to not turn on your TV when the connected device is turned on).

5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Displaying a list of INlink-compatible (HDMI-CEC) devices

You can display a list of HDMI CEC devices that are connected to your TV.

To display a list of INlink-compatible devices:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Settings, then press ▼. The Settings menu opens.

3 Press ▲ or ▼ to highlight INlink, then press ENTER. The Settings-INlink menu opens.

4 Press ▲ or ▼ to highlight INlink Device Lists, then press ENTER. A list of the HDMI CEC-compatible devices you have connected to your TV appears.

5 Press MÉNU to return to the previous menu, or press EXIT to close the menu.

Note

• HDMI cables must be used to connect HDMI CEC-compatible devices to your TV.
• The connected device's HDMI CEC feature must be turned on.
• If you connect an HDMI device that is not HDMI CEC-compatible, the INlink Control option does not work.

Restoring settings to default

Caution

When you restore default settings, all the settings you have customized are reset.

To restore settings to default:

1 Press MENU. The on-screen menu opens with the Picture menu displayed.

2 Press ◀ or ▶ to highlight Settings, then press ▼. The Settings menu opens.

3 Press ▲ or ▼ to highlight Reset to Default, then press ENTER. A confirmation box opens.

4 Press ◀ or ▶ to select Yes (to reset all settings to factory default), or No (to not reset).

5 Press EXIT to close the menu.

Using a USB flash drive

You can connect a USB flash drive to your TV to view compatible JPEG pictures.

Notes

• The JPEG picture viewer only supports JPEG format images (with ".jpg" file extensions).
• Not all JPEG files are compatible with your TV.

Switching to USB mode

To switch to USB mode:

1 Make sure that you have connected the USB flash drive to the USB port on the side of your TV.
2 Press INPUT. The INPUT SOURCE list opens.
3 Press ▲ or ▼ to highlight USB, then press ENTER.

Note

To exit USB mode, press INPUT to open the INPUT SOURCE list, then select another input source.

Browsing photos

To browse photos on a USB flash drive:

1 Switch to USB mode (see "Switching to USB mode" on page 36).
2 Press MENU. The USB menu opens.

3 Press ▼ to access the menu. Photos is highlighted.

4 Press ENTER to access the menu. The USB Photos menu opens with Browse Photos highlighted.

5 Press ENTER. The screen displays folder names and photo files stored on the USB flash drive in a thumbnail index with the first photo or folder highlighted. A control bar appears at the bottom of the screen.

6 To navigate the thumbnail index screen, press:

• ▲▼◀ or ▶ to browse through the files and folders.
• ENTER to view a highlighted photo full screen, or open a highlighted folder.
• MENU to open the USB menu.
• FAVORITE to add or remove a photo from the favorite photo list. A heart appears on a photo that has been added to the list.

- EXIT to return to the USB menu.

When a photo is displayed full screen, a control bar appears at the bottom of the photo. The file name, picture resolution, size, and date are displayed on the bottom of the control bar. If you do not press a button within 10 seconds, the control bar closes. Press any button to open the control bar again.

7 To navigate the photo screen, press:

• ◀ to go to the previous photo.
• ▶ to go to the next photo.
- ENTER to rotate the photo clockwise.

- ZOOM one or more times to enlarge the image by x2 or x4, or to select Fill (to display the photo at its actual size). You can press ▲▼◀ or ▶ to pan the photo.

- EXIT to return to the thumbnail index.

- MENU to return to the USB menu.

Viewing your favorite photos

After you have created your favorite photo list, you can browse your favorite photos quickly.

To view your favorite photos:

1 Switch to USB mode (see "Switching to USB mode" on page 36).
2 Press MENU. The USB menu opens.

3 Press ▼ to access the Photos menu. Photos is highlighted.

4 Press ENTER to access the USB Photos menu. The USB Photos menu opens.

5 Press ▲ or ▼ to highlight Favorite Photos, then press ENTER. A thumbnail index of your favorite photos opens with a control bar at the bottom of the screen.

6 You can select photos and navigate on the photo screen the same way you browse photos. For information, see "Browsing photos" on page 37.

Viewing photos in a slideshow

To view photos in a slideshow:

1 Switch to USB mode (see "Switching to USB mode" on page 36).
2 Press MENU. The USB menu opens.

3 Press ▼ to access the Photos menu. Photos is highlighted.

4 Press ENTER to access the USB Photos menu. The USB Photos menu opens.

5 Press ▲ or ▼ to highlight View Slideshow, then press ENTER. A slideshow begins with the first photo in the current folder.

When a photo is displayed full screen, a control bar appears at the bottom of the photo. The file name, picture resolution, size, and date are displayed on the bottom of the control bar. If you do not press a button within 10 seconds, the control bar closes. Press any button to open the control bar again.

6 To control the slideshow, press:

• ENTER to pause or start the slideshow.
• EXIT to exit the slideshow and return to the thumbnail index.
• MENU to return to the USB menu.

Customizing slideshow settings

You can customize the slideshow settings by selecting Repeat, Shuffle, Speed, and Transition settings.

To customize slideshow settings:

1 Switch to USB mode (see "Switching to USB mode" on page 36).
2 Press MENU. The USB menu opens.

3 Press ▼ to access the Photos menu. Photos is highlighted.

4 Press ENTER to access the USB Photos menu. The USB Photos menu opens.

5 Press ▲ or ▼ to highlight Settings, then press ENTER. The USB Photos Settings menu opens.

6 Press ▲ or ▼ to highlight an option, then press ENTER. You can select:

• Repeat—To repeat the slideshow when it reaches the end. You can select On or Off.
• Shuffle—To display the photos in random order. You can select On or Off.
• Speed—To set the amount of time a photo is displayed before the next photo is shown. You can select 4 sec, 6 sec, or 8 sec.
  • Transition—To select the way photos transition when moving to the next file in the slideshow. You can select:
  • None—for no transition effect.
• Fade to Black—to fade the screen to black between photos.
• Vertical Wipe—to wipe the screen from top to bottom between photos.
• Horizontal Wipe—to wipe the screen from left to right between photos.
• Random—To randomly select a transition effect.

7 Press EXIT to close the menu.

Maintaining

• Do not use your TV in areas that are too hot or too cold, because the cabinet may warp or the screen may malfunction. Your TV works best in temperatures that are comfortable to you.
• Storage temperatures are 32^ to 122^ (0° to 50°C).
• Working temperatures are 41^ to 104^ (5° to 40°C).
• Do not place your TV in direct sunlight or near a heat source.

Cleaning

• Before cleaning the screen, unplug your TV from the power outlet.

• Clean your TV with a soft, lint-free cloth. If surfaces are extremely dirty, use a soft cloth dampened with a weak detergent solution.

• Use an eyeglass cleaner to clean the screen. Never use alcohol, paint thinner, or benzine.

• Before using a chemically treated cloth, read the instructions that came with the cloth.
• Do not spray insecticide liquid near your TV. Such chemicals may cause damage and discoloration to the exposed surfaces.

Servicing

Do not try to repair your TV yourself. There are no user-serviceable parts inside. Turn off your TV, unplug the power cord, then contact an authorized service center.

Troubleshooting

Warning

Do not try to repair your TV yourself. Contact authorized service personnel.

Video and audio

Problem Solution
Picture does not fill the screen. There are black bars around the picture.	· Change the aspect ratio. An increasing amount of digital TV and movies are presented in wide screen (16:9). See “Adjusting the TV picture” on page 22.
No picture (screen is not lit) and no sound.	· Press on the TV or the remote control. · Make sure that the video cables are connected securely to the back of your TV. · Adjust the contrast and brightness. See “Adjusting the TV picture” on page 22. · Make sure that the power cord is plugged in. · Make sure that the correct video input source is selected. See “Selecting the video input source” on page 20. · Try another channel. The station may be experiencing problems. · Make sure that the incoming signal is compatible. · Make sure that the antenna or cable TV is connected correctly and securely. See “Connecting a cable or satellite box” on page 9 or “Using coaxial cable (good)” on page 11. · Check the closed caption settings. Some TEXT modes can block the screen.
Picture quality is good on some channels and poor on others. Sound is good.	· The problem may be caused by a poor or weak signal from the broadcaster or cable TV provider. · If you connect to cable or satellite TV without a set-top box and experience poor picture quality, you may need to install a set-top box to improve signal reception and picture quality. Contact your cable or satellite TV provider about upgrading to a set-top box.
Dark, poor, or no picture (screen is lit), but sound is good.	Try another channel. The station may be experiencing problems.Make sure that the antenna or cable TV is connected correctly and securely. See "Connecting a cable or satellite box" on page 9 or "Using coaxial cable (good)" on page 11.Make sure that Audio Only option is set to Off. See "Playing TV audio only" on page 24.Adjust the brightness. See "Adjusting the TV picture" on page 22.Make sure that the correct picture mode is selected. See "Adjusting the TV picture" on page 22.If you are using an antenna, the digital channel signal may be low. To check the digital channel signal strength, see "Checking the digital signal strength" on page 26.If you are using an antenna and the signal strength is low, adjust the antenna or use a highly directional outdoor antenna or set-top antenna with a built-in amplifier.Make sure that the video cables are connected securely to the back of your TV.The video cable(s) you are using may be bad. Try a new set.
No color, dark picture, or color is not correct.	Try another channel. The station may be experiencing problems.Adjust the color saturation. See "Adjusting the TV picture" on page 22.Make sure that the video cables are connected correctly and securely to the back of your TV.Make sure that the antenna or cable TV is connected correctly and securely. See "Connecting a cable or satellite box" on page 9 or "Using coaxial cable (good)" on page 11.If you are using an antenna, the digital channel signal may be low. To check the digital channel signal strength, see "Checking the digital signal strength" on page 26.If you are using an antenna and the signal strength is low, adjust the antenna or use a highly directional outdoor antenna or set-top antenna with a built-in amplifier.
Only snow (noise) appears on the screen.	Try another channel. The station may be experiencing problems.Make sure that the antenna or cable TV is connected correctly and securely. See "Connecting a cable or satellite box" on page 9 or "Using coaxial cable (good)" on page 11.If you are using an antenna, the digital channel signal may be low. To check the digital channel signal strength, see "Checking the digital signal strength" on page 26.If you are using an antenna and the signal strength is low, adjust the antenna or use a highly directional outdoor antennora set-top antenna with a built-in amplifier.

Problem Solution
Dotted lines or stripes appear on the screen.	Make sure that the antenna or cable TV is connected correctly and securely. See "Connecting a cable or satellite box" on page 9 or "Using coaxial cable (good)" on page 11.If you are using an antenna, the digital channel signal may be low. To check the digital channel signal strength, see "Checking the digital signal strength" on page 26.If you are using an antenna and the signal strength is low, adjust the antenna or use a highly directional outdoor antenna or set-top antenna with a built-in amplifier.Make sure that the video cables are connected securely to the back of your TV.The video cable(s) you are using may be bad. Try a new set.Other devices (for example, surround sound receiver, external speakers, fans, or hair dryers) may be interfering with your TV. Try turning off one device at a time to determine which device is causing interference. After you have determined which device is causing interference, move it further from the TV to eliminate the interference.
Double images. • Use a highly directional outdoor antenna, cable TV, or satellite TV.
The picture has a few bright or dark spots.	A few bright or dark spots on an LED screen is normal. It does not affect the operation of this TV.
Good picture, but no sound.	Increase the volume.Unplug the headphones.Make sure that the sound is not muted.Make sure that the correct audio mode is selected.Make sure that the audio cables are connected correctly and securely to the back of your TV.Make sure that the antenna or cable TV is connected correctly and securely. See "Connecting a cable or satellite box" on page 9 or "Using coaxial cable (good)" on page 11.If you are using an antenna, the digital channel signal may be low. To check the digital channel signal strength, see "Checking the digital signal strength" on page 26.The audio cable(s) you are using may be bad. Try a new set.
Poor picture. • Make sure that the room is not too bright.Light reflecting off the screen can make the picture difficult to see.If an S-VHS camera or a camcorder is connected while another connected device is turned on, the picture may be poor. Turn off one or more devices.
Good sound but poor color.	Adjust the contrast, color, and brightness settings. See "Adjusting the TV picture" on page 22.
Audio noise. • Other devices (for example, surround sound receiver, external speakers, fans, or hair dryers) may be interfering with your TV. Try turning off one device at a time to determine which device is causing interference. After you have determined which device is causing interference, move it further from the TV to eliminate the interference.
No output from one of the speakers.	Adjust the audio balance. See "Adjustingsound settings" on page 23.Make sure that the audio cables are connected correctly and securely to the back of your TV.
After images appear.	Do not display a still image, such as a logo, game, or computer image, for an extended period of time. This can cause a permanent after-image to be burned into the screen. This type of damage is not covered by your warranty.

Remote control

Problem Solution
Remote control does not work.	Make sure that the power cord is correctly connected to your TV and a power outlet.Make sure that there are no obstructions between the remote control and the remote control sensor on the front of the TV.Point the remote control directly at the remote control sensor on your TV. For the location of the remote control sensor, see "Front" on page 6.Make sure that the batteries are installed correctly. See "Installing remote control batteries" on page 18.Replace dead batteries with new batteries.See "Installing remote control batteries" on page 18.
Trouble programming your existing universal remote control.	See instructions and a table of common codes in "Programming a different universal remote control" on page 43.Codes are subject to change. For up-to-date codes, go to www.dynexproducts.com/remotecodes.Replace dead batteries with new batteries.See "Installing remote control batteries" on page 18.Refer to the User Guide that accompanied your universal remote control and contact the manufacturer if problems persist.

General

Problem Solution
No power. • Make sure that the power cord is correctly connected to your TV and a power outlet.• Unplug the power cord, wait 60 seconds, then plug the cord back in and turn on your TV.• Other devices (for example, surround sound receiver, external speakers, fans, or hair dryers) may be interfering with your TV. Try turning off one device at a time to determine which device is causing interference. After you have determined which device is causing interference, move it further from the TV to eliminate the interference.
“No signal” error message is displayed.	• Press INPUT and make sure that you have selected the correct input for the device or service you are trying to use.• If you are using a cable or satellite box, use the remote that came with that box to change channels.• Make sure that you have the correct input selected to view channels from the cable or satellite box.

Problem Solution
After Auto Channel Search, there are no channels.	• Reception can vary by channel depending on the broadcast power level of a given station. Contact your cable or satellite TV provider.• Make sure that the antenna or cable/satellite box is connected securely to your TV.• Try replacing the cable between the antenna/cable or cable/satellite box and your TV.
One or more channels do not display.	• Make sure that the channels are not blocked. See “Setting parental control levels” on page 29.• Make sure that the channels are not hidden. The channel may have been deleted from the channel list. You can tune to the channel by pressing the number buttons or you can add the channel back to the channel list. See “Hiding channels” on page 25.• If you are using a cable or satellite box, use the remote that came with that box to change channels.• Make sure that you have the correct input selected to view channels from the cable or satellite box.• If you are using an antenna, the digital channel signal may be low. To check the digital channel signal strength, see “Checking the digital signal strength” on page 26.
Password is lost.	• Enter 9999 to access parental controls, then set a new password. See “Setting or changing the password” on page 26.
Some settings cannot be accessed.	• If a setting is grayed, the setting is not available in the current video input mode.
TV cabinet creaks.	• When the TV is in use, the temperature rises naturally and may cause the cabinet to expand or contract which can cause a creaking noise. This is not a malfunction.
Control buttons do not work.	• Make sure that the Button Lock option is set to No. See “Locking control buttons” on page 27.• Unplug the power cord, wait a few seconds, then plug the cord back in and turn on your TV.
TV keeps turning off.	• Make sure that the sleep timer is not turned on. See “Setting the sleep timer” on page 33.

Note
	If the problem is not solved by using these troubleshooting instructions, turn off your TV, then turn it on again.

Specifications

Specifications are subject to change without notice.

Dimensions and weight

DX-60D260A13

Without stand:35.5 x 56.6 x4.6 in.(90.1 x 143.8 x 11.6 cm)69.4 lbs (31.5 kg)

With stand:38 x 56.6 x 13 in. (96.5 x 143.8 x 33 cm)75 lbs (34 kg)

Screen

DX-60D260A13
Screen size measured diagonally 60"
Display type LED
Panel 60 Hz vs.120 Hz 120Hz
Display resolution 1080p
Panel resolution 1920 (H) × 1080 (V)
Aspect ratio 16:9
Contrast ratio (typical)-panel 2000:1
Dynamic contrast ratio-list value 12,000:1
Brightness (center typical) cd/m2 250 nits
Comb filter 3d y/c digital
Response time 8 ms
Horizontal viewing angle 176°
Vertical viewing angle 176°

Display resolutions/VGA scan rates

DX-60D260A13
HDMI	Suggested Resolutions: 1080p, 1080i, 720p, 480p, 480i
Component video	Suggested Resolutions: 1080p, 1080i, 720p, 480p, 480i

Tuner

DX-60D260A13
Analog	NTSC
Digital	ATSC, 8-VSB, Clear-QAM

Inputs

DX-60D260A13
HDMI/DVI	3 (side)E-EDID compliantHDCP compliant
Component video 1 (side)
Composite video	1 (side)Shared withcomponent Y
Shared audio (componentand composite)	Yes
S-Video	No
PC/VGA	1 (side)
3.5mm PC audio input	1 (side)
DVI	1 (side)HDMI1/DVI jack
USB	1 (side)Supports JPEG andfirmware upgrade
Antenna/Cable	1 (side)

Outputs

DX-60D260A13
Video	No
Analog audio/Headphone	1 (side)
Digital audio	1 Optical (side)
WiFi	No
Ethernet	No

Audio

DX-60D260A13
Watts/Channel	10W
Number of Speakers	2

Power

DX-60D260A13
Power consumption	On: 150 WStandby: <1 W
Power input	AC 120V/60Hz

Miscellaneous

DX-60D260A13
OSD languages	English, French, Spanish
INlink	Yes
Game Mode	Yes
ENERGY STAR qualified	No
Internet connectable	No
TV base screws	M4 type (20 mm length) (4 pcs) to connect the stand column to the stand base.M4 type (16 mm length) (6 pcs) to connect the stand column to the TV.
V-Chip (version 2.0)	Yes
Sleep timer	Yes
Channel labeling	Yes
VESA mount (mm)(horizontal × vertical)	400 × 400

Note: The length of the wall-mount screws vary depending on the wall-mount bracket you purchased. See the instructions that came with the wall-mount bracket for screw lengths.

Programming universal remote controls

Programming a different universal remote control

You can operate your Dynex TV with a new or existing universal remote control.

To program a different universal remote control:

1 See the table below for common codes. If you have problems programming your remote or need a different remote control code, visit www.dynexproducts.com/remotecodes for the latest remote control code information.
2 Follow your universal remote control's instructions to enter the TV code you found in Step 1.

Tips

• If your universal remote control has a code search feature, run a code search to identify a code that matches your TV. See your universal remote control's instructions for details.
• If your universal remote control has a "Learn" feature, you can manually program it using the Dynex TV remote to "teach" the commands one at a time. See your universal remote control's instructions for details.

For additional help and information...

1. Visit http://www.dynexproducts.com/remotecodes
2. Call technical support for the universal remote control or cable/satellite company of the remote/set-top box you are trying to program.
3. Call the Dynex Customer Care Center 1-800-305-2204

Common universal remote control codes

Notes

• This note only goes with TV/Blu-ray or TVs.
- The following codes may not provide full functionality. You may need to use the remote control that came with your TV, especially to control the Blu-ray or DVD functions.

The following is a list of the most common remote control codes. Codes for other remote controls are available online at: www.dynexproducts.com/remotecodes, or check with your cable or satellite TV provide for the remote control code.

Dynex TV codes for universal remote controls (for all Dynex TVs manufactured after Jan. 1, 2007)

Universal remote control makes and models

One for All 0054
Phillips 0198, 0490
RCA 135
Sony	068, 069, 078, 096, 100, 164, 168, 229, 026

Set-top box makes and models
Cablevision	068, 069, 078, 096, 100, 164, 168, 229, 026
Charter	2002, 1204, 1423, 1517, 0171, 1963, 0463, 1463, 0842, 1326, 167, 415, 424, 450, 456, 461, 507, 523, 567, 577, 586
Comcast	10171, 11204, 11326, 11463, 11517, 11641, 11780, 11785, 11892, 11963, 12002
Cox 1326, 1463
DirectTV	10171, 11204, 11326, 11517, 11564, 11641, 11963, 12002
Dish Network 720
Time Warner	400, 450, 461, 456, 11463, 1463, 0463
TiVo 0091
Verizon 0198, 0490

Tips

• The brand name is often visible on the front of the universal remote control, and the model number is often visible on the back.
• If your universal remote control isn't listed on the chart, refer to your universal remote control's instructions and try codes for the brands Orion, Emerson, Memorex, Sansui, Sylvania, or Zenith. You may need to try several codes before finding a match.

Legal notices

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measure

-- Reorient or relocate the receiving antenna -- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RF/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Canada Notice

This Class B digital apparatus complies with Canadian CAN ICES-3 (B)/NMB-3(B).

This device complies with Industry license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LCC.

Dolby Laboratories

DOLBY DIGITAL

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

One-year limited warranty - Dynex Televisions

Definitions:

Dynex Products ("Dynex") warrants to you, the original purchaser of this new Dynex-branded television ("Product"), that the Product shall be free of defects in the original manufacturer of the material or workmanship for a period of one (1) year from the date of your purchase of the Product ("Warranty Period"). For this warranty to apply, your Product must be purchased in the United States or Canada from a Best Buy or Future Shop authorized dealer of Dynex brand products only that are packaged with this warranty statement.

How long does the coverage last?

The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. Your purchase date is printed on the receipt you received with the Product.

What does this warranty cover?

During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Dynex repair center or store personnel, Dynex will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Dynex and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Dynex Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.

How to obtain warranty service?

If you purchased the Product at a Best Buy or Future Shop retail store location and your television Product has a screen size of less than 42 inches, please take your original receipt and the Product to any Best Buy or Future Shop store. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. If you purchased the Product from a Best Buy or Future Shop online web site, mail your original receipt and the Product to the address listed on the web site. Make sure that you put the Product in its original packaging or packaging that provides the same amount of protection as the original packaging.

To obtain in-home warranty service for a television with a screen 42 inches or larger, in the United States call 1-888-BESTBUY, Canada call 1-866-BESTBUY for Future Shop call 1-800-663-2275. Call agents will diagnose and correct the issue over the phone or will have an Dynex-approved repair technician dispatched to your home.

Where is the warranty valid?

This warranty is valid only in the United States and Canada at Best Buy or Future Shop branded retail stores or websites to the original purchaser of the product in the county where the original purchase was made.

What does the warranty not cover?

This warranty does not cover:

• Customer instruction/education
• In s t a l l a t i o n

- Set up adjustments

- Cosmetic damage

- Damage due to acts of God, such as power surges

• A c c i d e n t ( s )

- Misuse, unintentional or intentional

- Abuse, unintentional or intentional

• N e g l i g e n c e

- Commercial purposes/use, including but not limited to use in a place of business or in communal areas of a multiple dwelling condominium or apartment complex, or otherwise used in a place of other than a private home.

- Modification of any part of the Product, including the antenna

- Plasma display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).

- Damage due to incorrect operation or maintenance

- Connection to an incorrect voltage or power supply

- Outages, static, or other problems with over-the-air reception of television broadcast signals.

- Attempted repair by any person not authorized by Dynex to service the Product

- Products sold "as is" or "with all faults"

- Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)

• Products where the factory applied serial number has been altered or removed
• Loss or Theft of this product or any part of the product
• Failures or Damage caused by any contact including but not limited to liquids, gels or pastes.
• Up to three (3) pixel failures (dots that are dark or incorrectly illuminated) grouped in an area smaller than one tenth (1/10) of the display size or up to five (5) pixel failures throughout the display. (Pixel based displays may contain a limited number of pixels that may not function normally.)

- Problems with delay in motion or action of video images while playing first-person style video games.

REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. DYNEX SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. DYNEX PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Contact Dynex:

For customer service please call 1-800-305-2204

www.dynexproducts.com

Distributed by Best Buy Purchasing, LLC

7601 Penn Avenue South, Richfield, Minnesota, U.S.A. 55423-3645

© 2013 BBY Solutions, Inc.

All rights reserved. DYNEX is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.

DYNEX™

www.dynexproducts.com

US and Canada Market - [phone]

Distributed by Best Buy Purchasing, LLC

7601 Penn Ave. South, Richfield, MN 55423 U.S.A.

© 2013 BBY Solutions, Inc. All rights reserved.

DYNEX is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and

brand names are trademarks of their respective owners.
