Product Type	Washing machine
Brand	Ariston Thermo
Model	ARXXL105
Dimensions (W x H x D)	59.5 cm x 85 cm x 56.5 cm
Maximum Load Capacity	7 kg
Maximum Spin Speed	1000 rpm
Water Pressure Range	0.05 - 1 MPa (0.5 - 10 bar)
Drum Capacity	52 litres
Energy Rated Programme	Cotton 60°C, 7 kg (Programme 6)
Number of Wash Cycles	11 main cycles + 5 partial cycles
Functions	Delay Timer (up to 12 h), Easy Iron, Extra Rinse, Super Wash
Detergent Dispenser	4 compartments (pre-wash, main wash, fabric softener, bleach)
Load Balancing System	Yes
Self-Cleaning Pump	Yes
Woolmark Certification	Yes (Platinum Care endorsement)
Door Lock Indicator	Yes
Manual Pages	60
Language Support	English, Spanish, Portuguese, Greek, Romanian

Frequently Asked Questions - ARXXL105 Ariston Thermo

How do I properly install and level the washing machine?

Place the machine on a flat, sturdy floor. Use the adjustable front feet to level it; the angle of inclination must not exceed 2°. Remove the 3 transport screws at the rear and close the holes with the provided plastic plugs. Keep the screws for future moves.

How do I connect the water and electricity supplies?

Connect the inlet hose to a cold water tap (3/4 gas thread) using the seal. Attach the other end to the machine’s water inlet on the top right rear. For drainage, position the drain hose between 65 and 100 cm from the floor, ensuring it is not underwater. Plug into an earthed socket with the correct voltage indicated on the technical data plate.

What should I do if the washing machine does not start?

Check that the appliance is plugged in, the door is closed, the water tap is open, and the ON/OFF button is pressed. Ensure the START/PAUSE button was pressed. If a delay start is set, the cycle will begin after the delay. Also verify there is no power outage.

How do I clean the detergent dispenser drawer?

Remove the drawer by pulling it outwards while lifting it. Wash it under running water. Clean the compartments and the recess inside the machine. Reinsert the drawer fully. Perform this cleaning frequently to prevent blockages.

How do I clean the pump?

Unplug the machine and ensure the wash cycle has ended. Remove the lower front panel with a screwdriver. Unscrew the pump lid anticlockwise (some water may spill). Clean the interior of any coins or buttons. Screw the lid back on and replace the panel.

How do I open the door manually during a power cut?

Unplug the machine. If water level is above the door, drain with the hose into a bucket. Remove the lower front panel using a screwdriver. Pull the plastic tie-rod tab downwards until it releases, then open the door simultaneously. Reposition the panel securely.

What are the special wash cycles available?

The machine offers cycles like Sanitizing (high temperature with bleach), Goodnigt (silent, ends with water left, spin later), Baby (extra rinsing for sensitive skin), Mix 30' and Mix 15' (quick cycles), Shirts, Silk/Curtains, and Wool (Woolmark certified). Each has specific temperature and spin settings.

How do I use the Delay Timer function?

Press the Delay Timer button repeatedly to select a delay from 1 to 12 hours. The corresponding indicator light will flash. After pressing START/PAUSE, the delay can only be decreased. Once the delay expires, the cycle starts automatically.

What do the flashing indicator lights mean?

If the START/PAUSE indicator (orange) flashes rapidly along with a function indicator light, it indicates a problem. Common issues include door not closed, water supply off, or drain hose blocked. Check the troubleshooting section. A flashing delay timer light shows the remaining delay time.

How should I care for the door and drum?

After each wash, leave the porthole door ajar to allow the drum to dry and prevent odours. Periodically clean the rubber gasket with a soft damp cloth. Do not use abrasive cleaners. This helps maintain hygiene and prolongs the appliance's life.

USER MANUAL ARXXL105 Ariston Thermo

Unpacking and levelling

Connecting the electricity and water supplies

The first wash cycle

Technical data

Description of the washing machine and starting a wash cycle, 4-5

Control panel

Indicator lights

Starting a wash cycle

Wash cycles, 6

Table of wash cycles

Personalisation, 7

Setting the temperature

Setting the spin speed

Functions

Detergents and laundry, 8

Detergent dispenser drawer

Bleach cycle

Preparing the laundry

Garments requiring special care

Load balancing system

Precautions and tips, 9

General safety

Disposal

Opening the porthole door manually

Care and maintenance, 10

Cutting off the water or electricity supply

Cleaning the washing machine

Cleaning the detergent dispenser drawer

Caring for the door and drum of your appliance

Cleaning the pump

Checking the water inlet hose

Troubleshooting, 11

Service, 12

GB

! This instruction manual should be kept in a safe place for future reference. If the washing machine is sold, transferred or moved, make sure that the instruction manual remains with the machine so that the new owner is able to familiarise himself/herself with its operation and features.
! Read these instructions carefully: they contain vital information relating to the safe installation and operation of the appliance.

Unpacking and levelling

Unpacking

1. Remove the washing machine from its packaging.
2. Make sure that the washing machine has not been damaged during the transportation process. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

Technical line drawing of a mechanical or electrical component with concentric rings and directional arrows (no text or symbols)

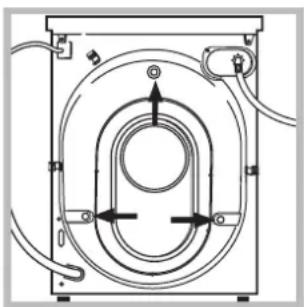

1. Remove the 3 protective screws (used during transportation) and the rubber washer with the corresponding spacer, located on the rear part of the appliance (see figure).

2. Close off the holes using the plastic plugs provided.

3. Keep all the parts in a safe place: you will need them again if the washing machine needs to be moved to another location.
   ! Packaging materials should not be used as toys for children.

Levelling

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or anything else.

Line drawing of a car door corner with a circular button and directional arrow (no text or symbols)

1. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured in relation to the worktop, must not exceed 2^ .

Levelling the machine correctly will provide it with stability, help to avoid vibrations and excessive noise and prevent it from shifting while it is operating. If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the washing machine.

Connecting the electricity and water supplies

Connecting the water inlet hose

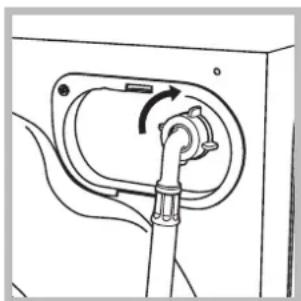

1. Insert seal A into the end of the inlet hose and screw the latter onto a cold water tap with a 3/4 gas threaded opening (see figure). Before performing the connection, allow the water to run freely until it is perfectly clear.

Diagram of a hand holding a pipe with a valve mechanism, no text or symbols present

1. Connect the inlet hose to the washing machine by screwing it onto the corresponding water inlet of the appliance, which is situated on the top right-hand side of the rear part of the appliance (see figure).

2. Make sure that the hose is not folded over or bent.

! The water pressure at the tap must fall within the values indicated in the Technical details table (see next page).
! If the inlet hose is not long enough, contact a specialised shop or an authorised technician.
! Never use second-hand hoses.
! Use the ones supplied with the machine.

Connecting the drain hose

Connect the drain hose, without bending it, to a drainage duct or a wall drain located at a height between 65 and 100 cm from the floor;

Diagram of a pipe connection with a magnified inset showing a device (no text or symbols present)

alternatively, rest it on the side of a washbasin or bathtub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

• the socket is earthed and complies with all applicable laws;
• the socket is able to withstand the maximum power load of the appliance as indicated in the Technical data table (see opposite);
• the power supply voltage falls within the values indicated in the Technical data table (see opposite);
• the socket is compatible with the plug of the washing machine. If this is not the case, replace the socket or the plug.

! The washing machine must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions.

! When the washing machine has been installed, the electricity socket must be within easy reach.

! Do not use extension cords or multiple sockets.
! The cable should not be bent or compressed.
! The power supply cable must only be replaced by authorised technicians.

Warning! The company shall not be held responsible in the event that these regulations are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using the wash cycle 1.

Technical data
Model	ARXXL 105
Dimensions	width 59.5 cmheight 85 cmdepth 56,5 cm
Capacity	from 1 to 7 kg
Electrical connections	please refer to the technical data plate fixed to the machine
Water connections	maximum pressure 1 MPa (10 bar)minimum pressure 0.05 MPa (0.5 bar)drum capacity 52 litres
Spin speed	up to 1000 rotations per minute
Energy rated programmes according to regulation EN 60456	programme 6; temperature 60°C; using a load of 7 kg.
	This appliance conforms to the following EC Directives:- 72/23/EEC dated 19/02/73 (Low Voltage) and subsequent modifications- 89/336/EEC dated 03/05/89 (Electromagnetic Compatibility) and subsequent modifications- 2002/96/EC

Description of the washing machine and starting a wash cycle

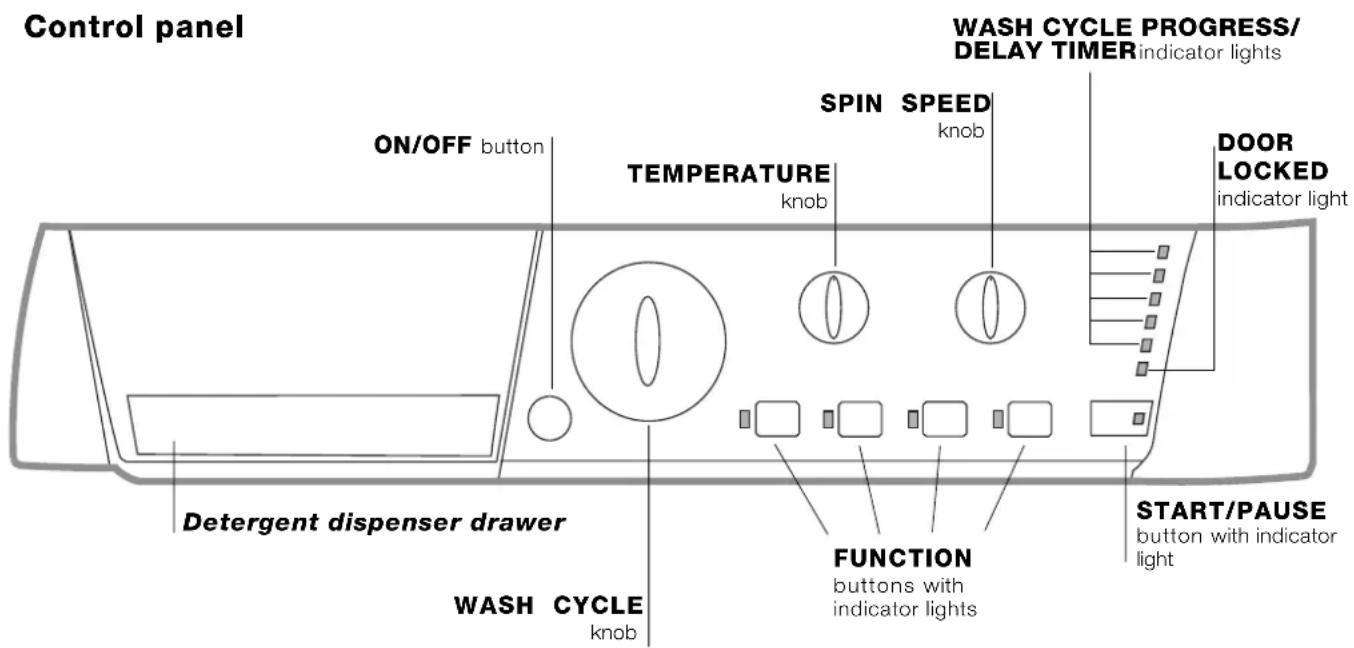

Detergent dispenser drawer: used to dispense detergents and washing additives (see "Detergents and laundry").

There is a key which provides a summary of the available wash cycles inside the detergent dispenser drawer; this may be consulted at any time.

ON/OFF button: switches the washing machine on and off.

WASH CYCLE knob: programmes the wash cycles. During the wash cycle, the knob does not move.

FUNCTION buttons with indicator light: used to select the available functions. The indicator light corresponding to the selected function will remain lit.

TEMPERATURE knob: sets the temperature or the cold wash cycle (see "Personalisation").

SPIN SPEED knob: sets the spin speed or exclude the spin cycle completely (see "Personalisation").

WASH CYCLE PROGRESS/DELAY TIMER

indicator lights: used to monitor the progress of the wash cycle.

The illuminated indicator light shows which phase is in progress.

If the Delay Timer function has been set, the time remaining until the wash cycle starts will be indicated (see next page).

DOOR LOCKED indicator light: indicates whether the door may be opened or not (see next page).

START/PAUSE button with indicator light: starts or temporarily interrupts the wash cycles.

N.B. To pause the wash cycle in progress, press this button; the corresponding indicator light will flash orange, while the indicator light for the current wash cycle phase will remain lit in a fixed manner. If the DOOR LOCKED → indicator light is switched off, the door may be opened.

To start the wash cycle from the point at which it was interrupted, press this button again.

Indicator lights

The indicator lights provide important information. This is what they can tell you:

Delayed start

If the DELAY TIMER function has been activated (see "Personalisation"), after the wash cycle has been started the indicator light corresponding to the selected delay period will begin to flash:

As time passes, the remaining delay will be displayed and the corresponding indicator light will flash:

Once the set delay has elapsed, the flashing indicator light will switch off and the selected wash cycle will begin.

Wash cycle phase indicator lights

Once the desired wash cycle has been selected and has begun, the indicator lights switch on one by one to indicate which phase of the cycle is currently in progress.

Wash

Rinse

Spin

Drain

End of wash cycle

Function buttons and corresponding indicator lights

When a function is selected, the corresponding indicator light will illuminate. If the selected function is not compatible with the programmed wash cycle, the corresponding indicator light will flash and the function will not be activated. If a function which is incompatible with another function selected previously, only the most recent selection will remain active.

Door locked indicator light

If this indicator light is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damage, wait for the indicator light to switch off before you open the appliance door.

N.B. If the DELAY TIMER function is activated, the door cannot be opened; pause the machine by pressing the START/PAUSE button if you wish to open it.

! If the START/PAUSE indicator light (orange) flashes rapidly at the same time as the function indicator light, this indicates a problem has occurred (see "Troubleshooting").

Starting a wash cycle

1. Switch the washing machine on by pressing the ON/OFF button. All indicator lights will switch on for a few seconds, then they will switch off and the START/PAUSE indicator light will pulse.
2. Load the laundry and close the door.
3. Set the WASH CYCLE knob to the desired programme.
4. Set the washing temperature (see "Personalisation").
5. Set the spin speed (see "Personalisation").
6. Measure out the detergent and washing additives (see "Detergents and laundry").
7. Select the desired functions.
8. Start the wash cycle by pressing the START/PAUSE button and the corresponding indicator light will remain lit in a fixed manner, in green.
   To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new cycle.
9. At the end of the wash cycle the END indicator light will switch on. The DOOR LOCKED indicator light will switch off, indicating that the door may be opened. Take out your laundry and leave the appliance door ajar to make sure the drum dries completely.
   Switch the washing machine off by pressing the ON/OFF button.

Table of wash cycles

Wash cycles	Description of the wash cycle	Max temp. (°C)	Max. speed (rpm)	Detergents			Max. load (kg)	Cycle duration
				Bleach	Wash	Fabric softener
Special cycles
6	Sanitizing cycle: Extremely soiled whites.	90°	1000	●	●	●	7	165
6	Sanitizing cycle (1): Heavily soiled whites and resistant colours.	60°	1000 -		●	●	7	175
7	Goodnigt cycle: Lightly soiled delicate colours.	40°	800 -		●	●	4	290
8	Baby cycle: Heavily soiled delicate colours.	40°	800 -		●	●	2 118
9	Shirts	40°	600 -		●	●	2	70
10	Silk/Curtains: For garments in silk and viscose, lingerie.	30°	0	-	●	●	2	55
11	Wool: For wool, cashmere, etc.	40°	600 -		●	●	1,5	55
Everyday wash cycles (Daily)
1	Cotton:Heavily soiled whites and resistant colours.	60°	1000	●	●	●	7 130
1	Cotton (2):Heavily soiled whites and delicate colours.	40°	1000	●	●	●	7 115
2	Coloured Cottons (3): Lightly soiled whites and delicate colours.	40°	1000	●	●	●	7	85
3	Synthetics resistents: Heavily soiled resistant colours.	60°	800 -		●	●	3	85
3	Synthetics delicatesLightly soiled resistant colours.	40°	800 -		●	●	3	70
4	Mix 30': To refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).	30°	800 -		●	●	3	30
5	Mix 15': To refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).	30°	800 -		●	●	1,5	15
Partial wash cycles
A	Rinse	-	1000	-	-	●	7	44
B	Light rinse	-	800	-	-	●	3	37
C	Spin	-	1000	-	-	-	7	16
D	Light spin	-	800	-	-	-	3	12
E	Drain no spin	-	0	-	-	-	7	2

The information contained in the table is intended as a guide only.

For all Test Institutes:

1) Test wash cycle in compliance with regulation EN 60456: set wash cycle 6 with a temperature of 60^ C.
2) Long wash cycle for cottons: set wash cycle 1 with a temperature of 40^ C.
3) Short wash cycle for cottons: set wash cycle 2 with a temperature of 40^ C.

Specials wash cycles

Sanitizing cycle (wash cycle 6). A high-temperature hygienic wash cycle (over 60^ C) which requires the use of bleach. Pour the bleach, the detergent and the additives into the relevant compartments (see paragraph entitled “Detergent dispenser drawer”).

Goodnigt cycle (wash cycle 7). This is a silent cycle which can be run at night, when the electricity prices are lower. The wash cycle is designed for cottons and synthetics. At the end of the cycle the machine stops while there is still water in the drum; to spin and drain the laundry press the START/PAUSE button; alternatively the machine will perform the spin cycle and drain the water automatically after 8 hours.

Baby cycle (wash cycle 8). This wash cycle can be used to remove the soiling typically caused by babies, while ensuring that all detergent is removed from nappies in order to prevent the delicate skin of babies from suffering allergies. The cycle has been designed to reduce the amount of bacteria by using a greater quantity of water and optimising the effect of special disinfecting additives added to the detergent.

At the end of the wash cycle, the machine will slowly rotate the drum to prevent the formation of creases; to end the cycle press the START/PAUSE button.

Mix 30' (wash cycle 4) this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 30 minutes and therefore saves both energy and time. By selecting this wash cycle (4 at 30^ ), it is possible to wash different fabrics together (except for wool and silk items), with a maximum load of 3kg .

Mix 15' (wash cycle 5) this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 15 minutes and therefore saves both energy and time. By selecting this wash cycle (5 at 30^ ), it is possible to wash different fabrics together (except for wool and silk items), with a maximum load of 1.5kg .

Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see Table of wash cycles).

The temperature may be lowered, or even set to a cold wash (✗).

The washing machine will automatically prevent you from selecting a temperature which is higher than the maximum value set for each wash cycle.

Setting the spin speed

Turn the SPIN SPEED knob to set the spin speed for the selected wash cycle.

The maximum spin speeds available for each wash cycle are as follows:

Wash cycles Maximum spin speed

Cottons 1000 rpm

Synthetics 800 rpm

Wool 600 rpm

Silk drain only

The spin speed may be lowered, or the spin cycle can be excluded altogether by selecting the symbol. The washing machine will automatically prevent you from selecting a spin speed which is higher than the maximum speed set for each wash cycle.

Functions

The various wash functions available with this washing machine will help to achieve the desired results, every time. To activate the functions:

1. Press the button corresponding to the desired function;

2. the function is enabled when the corresponding indicator light is illuminated.

Note: If the indicator light flashes rapidly, this signals that this particular function may not be selected in conjunction with the selected wash cycle.

Delay timer

This timer delays the start time of the wash cycle by up to 12 hours.

Press the button repeatedly until the indicator light corresponding to the desired delay time switches on. The fifth time the button is pressed, the function will be disabled.

N.B. Once you have pressed the START/PAUSE button, the delay time may only be decreased if you wish to modify it.

!This option is enabled with all programmes.

Easy iron

By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At the end of the cycle the washing machine will perform slow rotations of the drum; the EASY IRON and START/PAUSE indicator lights will flash (orange) and the RINSE phase will remain lit in a fixed manner. To end the cycle, press the START/PAUSE button or the EASY IRON button.

For the Silk (10) wash cycle, the machine will end the cycle while the laundry is soaking and the EASY IRON indicator light will flash. To drain the water so that the laundry may be removed, press the START/PAUSE button or the EASY IRON button.

! This function may not be used in conjunction with wash cycles 4, 5, 6, 7, 8, 11, C, D, E.

Extra rinse

By selecting this function, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly useful for sensitive skin.

! This function may not be used in conjunction with wash cycles 4, 5, C, D, E.

Super Wash

Because a greater quantity of water is used in the initial phase of the cycle, and because of the increased cycle duration, this function offers a high-performance wash.

! This function may not be used in conjunction with wash cycles 4, 5, 6, 10, 11, A, B, C, D, E.

Detergent dispenser drawer

Good washing results also depend on the correct dose of detergent: adding too much detergent will not necessarily result in a more efficient wash, and may in fact cause build up on the inside of your appliance and contribute to environmental pollution.

! Do not use hand washing detergents because these create too much foam.

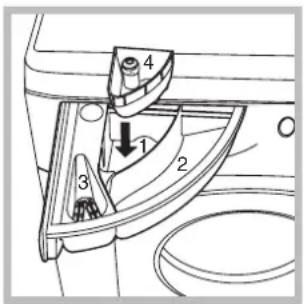

Open the detergent dispenser drawer and pour in the detergent or washing additive, as follows.

compartment 1: Pre-wash detergent (powder)

Before pouring in the detergent, make sure that extra compartment 4 has been removed.

compartment 2: Detergent for the wash cycle (powder or liquid)

Liquid detergent should only be poured in immediately prior to the start of the wash cycle.

compartment 3: Additives (fabric softeners, etc.)

The fabric softener should not overflow the grid.

extra compartment 4: Bleach

Bleach cycle

Bleaching may only be performed in conjunction with wash cycles 1, 2, 6.

Pour the bleach into extra compartment 4; pour the detergent and softener into the corresponding compartments, then select one of the abovementioned wash cycles.

This option is recommended only for very soiled cotton garments.

Preparing the laundry

• Divide the laundry according to:
• the type of fabric/the symbol on the label
• the colours: separate coloured garments from whites.
• Empty all garment pockets and check the buttons.
• Do not exceed the listed values, which refer to the weight of the laundry when dry:
  Durable fabrics: max. 7 kg
  Synthetic fabrics: max. 3 kg
  Delicate fabrics: max. 2 kg
  Wool: max. 1.5 kg

How much does your laundry weigh?

1 sheet 400-500 g
1 pillow case 150-200 g
1 tablecloth 400-500 g
1 bathrobe 900-1200 g
1 towel 150-250 g

Garments requiring special care

Shirts: use special wash cycle 9 to wash shirts in various fabrics and colours. It guarantees maximum care is taken of the garments and minimises the formation of creases.

Silk: use special wash cycle 10 to wash all silk garments. We recommend the use of special detergent which has been designed to wash delicate clothes.

Curtains: these should be folded and placed inside the bag provided. Use wash cycle 10.

Wool: Hotpoint/Ariston is the only washing machine manufacturer to have been awarded the prestigious Woolmark Platinum Care endorsement (M.0508) by the Woolmark Company, which means that all woollen garments may be washed in the washing machine, even those which state "hand wash only" on the label. Wash cycle 11 therefore offers complete peace of mind when washing woollen garments in the washing machine (max. load 1.5 kg) and guarantees optimal performance.

Load balancing system

Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.

! This washing machine was designed and constructed in accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully.

General safety

• This appliance was designed for domestic use only.
• The washing machine must only be used by adults, in accordance with the instructions provided in this manual.
• Do not touch the machine when barefoot or with wet or damp hands or feet.
• Do not pull on the power supply cable when unplugging the appliance from the electricity socket. Hold the plug and pull.
• Do not open the detergent dispenser drawer while the machine is in operation.
• Do not touch the drained water as it may reach extremely high temperatures.
• Never force the porthole door. This could damage the safety lock mechanism designed to prevent accidental opening.
• If the appliance breaks down, do not under any circumstances access the internal mechanisms in an attempt to repair it yourself.
• Always keep children well away from the appliance while it is operating.
• The door can become quite hot during the wash cycle.
• If the appliance has to be moved, work in a group of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
• Before loading laundry into the washing machine, make sure the drum is empty.

Disposal

• Disposing of the packaging materials: observe local regulations so that the packaging may be re-used.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Opening the porthole door manually

In the event that it is not possible to open the porthole door due to a powercut, and if you wish to remove the laundry, proceed as follows:

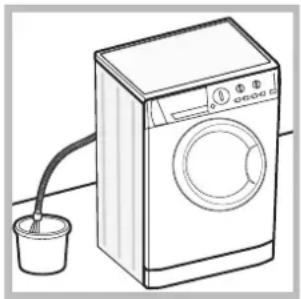

Line drawing of a washing machine with a cup beside it (no text or symbols)

1. remove the plug from the electrical socket.
2. make sure the water level inside the machine is lower than the door opening; if it is not, remove excess water using the drain hose, collecting it in a bucket as indicated in the figure.

Simple line drawing of a tool inserted into a bracket with an arrow indicating direction (no text or symbols)

1. using a screwdriver, remove the cover panel on the lower front part of the washing machine (see figure).

Hand pressing a button on a computer interface (no text or symbols visible)

Hand inserting a small component into a device (no text or symbols visible)

1. pull outwards using the tab as indicated in the figure, until the plastic tie-rod is freed from its stop position; pull downwards and open the door at the same time.
2. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Cutting off the water and electricity supplies

• Turn off the water tap after every wash cycle. This will limit wear on the hydraulic system inside the washing machine and help to prevent leaks.
• Unplug the washing machine when cleaning it and during all maintenance work.

Cleaning the washing machine

The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser drawer

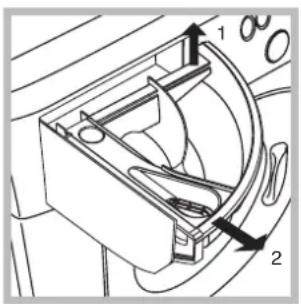

Remove the dispenser by raising it and pulling it out (see figure). Wash it under running water; this operation should be repeated frequently.

Caring for the door and drum of your appliance

• Always leave the porthole door ajar in order to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber which protects the pump, situated in its bottom part.

! Make sure the wash cycle has finished and unplug the appliance.

To access the pre-chamber:

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

1. using a screwdriver, remove the cover panel on the lower front part of the washing machine (see figure);

Pure technical line drawing of a mechanical component with no text or symbols

1. unscrew the lid by rotating it anti-clockwise (see figure): a little water may trickle out. This is perfectly normal;

2. clean the inside thoroughly;

3. screw the lid back on;
4. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use second-hand hoses.

Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see "Assistance"), make sure that the problem cannot be not solved easily using the following list.

Problem:

The washing machine does not switch on.

The wash cycle does not start.

The washing machine does not take in water (the indicator light for the first wash cycle stage flashes rapidly).

The washing machine continuously takes in and drains water.

The washing machine does not drain or spin.

The washing machine vibrates a lot during the spin cycle.

The washing machine leaks.

The START/PAUSE indicator light (orange) and the function indicator lights flash rapidly.

There is too much foam.

Possible causes / Solutions:

- The appliance is not plugged into the socket fully, or is not making contact. - There is no power in the house.

- The washing machine door is not closed properly. - The ON/OFF button has not been pressed. - The START/PAUSE button has not been pressed. - The water tap has not been opened. - A delayed start has been set (see "Personalisation").

- The water inlet hose is not connected to the tap. - The hose is bent. - The water tap has not been opened. - There is no water supply in the house. - The pressure is too low. - The START/PAUSE button has not been pressed.

- The drain hose is not fitted at a height between 65 and 100cm from the floor (see "Installation"). - The free end of the hose is under water (see "Installation"). - The wall drainage system is not fitted with a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and contact the Assistance Service. If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special anti-draining valves are available in shops and help to avoid this inconvenience.

- The wash cycle does not include draining: some wash cycles require the drain phase to be started manually. - The EASY IRON function has been activated: To complete the wash cycle, press the START/PAUSE button ("Personalisation"). - The drain hose is bent (see "Installation"). - The drainage duct is clogged.

- The drum was not unlocked correctly during installation (see "Installation"). - The washing machine is not level (see "Installation"). - The washing machine is trapped between cabinets and walls (see "Installation").

- The water inlet hose is not screwed on properly (see "Installation"). - The detergent dispenser drawer is blocked (for cleaning instructions, see "Care and maintenance"). - The drain hose is not fixed properly (see "Installation").

- Switch off the machine and unplug it, wait for approximately 1 minute and then switch it back on again. If the problem persists, contact the Technical Assistance Service.

- The detergent is not suitable for machine washing (it should display the text "for washing machines" or "hand and machine wash", or the like). - Too much detergent was used.

Before calling for Assistance:

• Check whether you can solve the problem alone (see "Troubleshooting");
• Restart the programme to check whether the problem has been solved;
• If this is not the case, contact an authorised Technical Assistance Centre using the telephone number provided on the guarantee certificate.

!Always request the assistance of authorised technicians.

Have the following information to hand:

• the type of problem;
  • the appliance model (Mod.);
  • the serial number (S/N).
  This information can be found on the data plate applied to the rear of the washing machine, and can also be found on the front of the appliance by opening the door.

Ελληνικά

Περιεχόμενα

Εγκατάσταση, 14-15

GR

Technical line drawing of a mechanical housing or enclosure with internal components and directional arrows (no text or symbols)

Line drawing of a door handle with a spiral pattern on the front panel and an arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a pipe with a valve, showing rotational motion (no text or symbols)

Diagram of a pipe connection with a hanging object above it (no text or symbols)

Line drawing of a washing machine with a bucket and a drain outlet (no text or symbols)

Simple line drawing of a mechanical component with a screw and directional arrows (no text or symbols)

Hand holding a device with a black arrow pointing to a component (no text or symbols visible)

Hand inserting a USB into a device (no text or symbols visible)

Simple line drawing of a tool interacting with a bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

RO

Technical line drawing of a mechanical or electrical component with concentric rings and directional arrows (no text or symbols)

Simple line drawing of a car door corner with a circular button and directional arrow (no text or symbols)

Line drawing of a hand holding a pipe with a valve mechanism (no text or symbols)

Simple line drawing of a pipe connection with a bulb above it (no text or symbols)

Line drawing of a washing machine with a bucket and a drain outlet (no text or symbols)

Simple line drawing of a mechanical component with a lever and directional arrows (no text or symbols)

Hand pressing a button on a computer interface (no text or symbols visible)

Illustration of a hand inserting a plug into a device (no text or symbols visible)

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

ES

Technical line drawing of a mechanical housing or enclosure with internal components and directional arrows (no text or symbols)

Simple line drawing of a door corner with a scroll wheel and directional arrow (no text or symbols)

Diagram of a pipe valve inside a cabinet, showing rotational flow direction (no text or symbols)

Diagram of a pipe connection with a connector, showing fluid flow and support structure (no text or labels)

Line drawing of a washing machine with a bucket and a drain outlet (no text or symbols)

Simple line drawing of a tool interacting with a bracket (no text or symbols)

Hand inserting a USB into a device component (no text or symbols visible)

Illustration of a hand inserting a plug into a device (no text or symbols visible)

Simple line drawing of a tool interacting with a bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

PT

Technical line drawing of a mechanical housing or enclosure with internal components and directional arrows (no text or symbols)

Line drawing of a car door corner with a circular button and directional arrow (no text or symbols)

Line drawing of a hand holding a pipe with a valve mechanism (no text or symbols)

Diagram of a pipe connection with a connector, showing fluid flow and support structure (no text or labels)

Line drawing of a washing machine with a cup beside it (no text or symbols)

Simple line drawing of a tool interacting with a bracket, showing motion arrows (no text or symbols)

Hand pressing a button on a device component, showing a black arrow indicating left motion (no text or symbols present)

Hand inserting a component into a device (no text or symbols visible)

Simple line drawing of a tool interacting with a bracket (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols
