FPSBHM2524R - Hand blender SUNBEAM - Free user manual and instructions

Product Type	Hand Mixer
Brand	Sunbeam
Model	FPSBHM2524R
Color	White and Black
Voltage	120 V (USA/Canada)
Speed Settings	6 (Stir, Mix, Blend, Beat, Whip)
Burst of Power Button	No
Attachments Included	2 Beaters, 1 Drink Rod
Attachment Types	Stainless steel beaters, drink rod
Attachment Eject	Yes (via speed control dial in OFF position)
Ergonomic Handle	Yes, soft-grip open handle
Heel Rest	Yes
Bowl Rest	Yes
Retractable Cord	No
Cord Length	Short (non-retractable)
Dishwasher Safe Attachments	Yes
Cleaning	Wipe mixer body with damp cloth; do not immerse
Safety Features	Polarized plug, automatic eject in OFF
Warranty	1 year limited
Country of Origin	China

Frequently Asked Questions - FPSBHM2524R SUNBEAM

How do I attach the beaters?

Ensure the speed control is in OFF and unplugged. Insert the stem into the opening, turn slightly, and push until it clicks.

How many speeds does the mixer have?

It has 6 speeds: Stir, Mix, Blend, Beat, and Whip (5-6).

Can I wash the beaters in the dishwasher?

Yes, all attachments are dishwasher safe. They can also be washed in hot, soapy water.

How do I remove the beaters?

Set speed to OFF, unplug, and press the beater eject button on the top of the mixer.

What is the drink rod used for?

It is designed to mix frozen or powdered drinks in plastic or metal containers. Do not crush ice.

Is there a burst of power feature on this model?

No, the Burst of Power button is not included on model FPSBHM2524R.

What is the warranty period?

Sunbeam offers a 1-year limited warranty from the date of purchase against defects in material and workmanship.

Can I use an extension cord?

No, extension cords are not recommended for safety reasons.

How do I clean the mixer body?

Wipe with a damp cloth and dry thoroughly. Do not immerse in water.

Where can I get service or repairs?

Contact Sunbeam Consumer Service at 1-800-458-8407 (USA) or 1-800-667-8623 (Canada) for authorized service centers.

USER MANUAL FPSBHM2524R SUNBEAM

For product questions:

Sunbeam Consumer Service

USA:1.800.458.8407

Canada : 1.800.667.8623

www.sunbeam.com

© 2012 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All rights reserved. Distributed by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions, Boca Raton, Florida 33431.

Sunbeam Consumer Service

Made with 100% recycled paper

PrintedinChinaImpresoenChina

GCDS-SUN26220-77.

Sunbeam®

User Manual Mixmaster® Hand Mixer

2524, 2525, 2526, 2545, MODELS/2546, FPSBHM1801, FPSBHM2524R, MODELOS FPSBHM1502

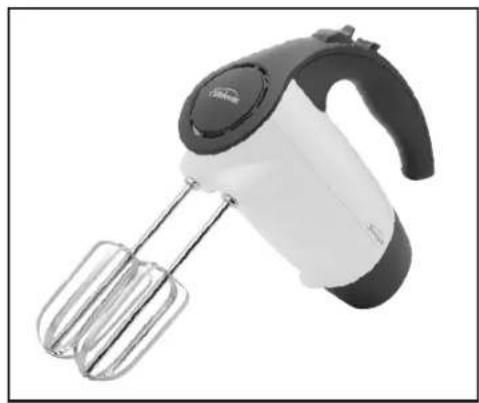

White and black electric mixer with whisk, no visible text or symbols

www.sunbeam.com

P.N. 116161-004

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions before use.
2. To protect against risk of electrical shock, do not put hand mixer in water or other liquid. This may cause personal injury and/or damage to the product.
3. To disconnect, turn off controls and unplug from outlet.
4. Unplug from outlet while not in use, before putting on or taking off parts and before cleaning.
5. Avoid contact with moving parts. Keep hands, hair, clothing, as well as spatulas and other utensils away from beaters during operation to reduce the risk of injury to persons and/or damage to the hand mixer.
6. Do not operate hand mixer with a damaged cord or plug, after the appliance malfunctions, or if it is dropped or damaged in any manner. Return appliance to the nearest Authorized Sunbeam Service Center for examination, repair or electrical or mechanical adjustment.
7. Do not use with an extension cord.
8. The use of attachments not recommended or sold by Sunbeam Products may cause fire, electrical shock or injury.
9. Do not let cord hang over edge of table or countertop.
10. Do not let cord touch hot surfaces, including a stove.
11. Do not use outdoors or for commercial purposes.
12. Remove beaters from hand mixer before washing them.
13. Do not place hand mixer on or near a hot burner or in a heated oven.
14. Do not use hand mixer for other than intended use.
15. Do not leave hand mixer unattended while it is operating.
16. Close supervision is necessary when mixer is used by or near children.

THIS UNIT IS FOR HOUSEHOLD USE ONLY

FOR PRODUCTS PURCHASED IN THE U.S. AND CANADA ONLY

To reduce the risk of electrical shock, this appliance has a polarized plug (one blade is wider than the other). This plug fits a polarized outlet only one way; if the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

FOR PRODUCTS PURCHASED IN THE U.S. AND CANADA ONLY

A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

SAVE THESE INSTRUCTIONS

MIXING GUIDE

Please keep in mind that the various mixing tasks and related speeds, listed in the table below, may vary slightly from recipe to recipe.

For most recipes, it is better to begin your mixing on a slower speed until the ingredients begin combining, then move to the appropriate speed range for the particular task.

When mixing larger quantities you may need to increase the Mixmaster ^® hand mixer speed due to the amount of mixing required and the larger load on the machine.

MIXINGSPEED TASKS EXAMPLE

1 Stir Use when stirring liquid ingredients or when mixing dry and liquid together alternately in a recipe. Use when preparing any of the ready-prepared or packaged instant puddings2 Mix Use when a recipe calls for combining ingredients together. Use for quick breads or muffins that require a brisk action, just enough to blend.3 Blend Use when preparing cake mixes or for directions calling for a medium speed. Use to cream butter and sugar together.4 Beat Use when preparing a frosting from a recipe or package. Use when whipping cream for desserts.5-6 Whip Use to mash potatoes to develop a light and fluffy texture. Use when whipping egg whites.

A. SPEED CONTROL DIAL/ATTACHMENT EJECT BUTTON – Speed control button that also functions as the beater eject button.
B. BURST OF POWER® BUTTON (Models 2525, 2526, 2545, 2546, FBSBHM1801 & FBSBHM1502) - This feature allows for an added boost to the selected speed setting at the press of a button.
C. ERGONOMIC HANDLE – The soft-grip open handle has been ergonomically designed to provide comfort to prevent hand fatigue during heavy or long mixing tasks.
D. HEEL REST - The newly designed heel rest provides exceptional stability.
E. BOWL REST – The bowl rest tab allows you to easily rest the hand mixer against the bowl to provide more stability and comfort while mixing.
F. BEATERS – For creaming butter and sugar, plus mixing cake batter.

OTHER ATTACHMENTS (see chart below for options for each model)

	2524&FPSBHM2524R	2525	2526	2545	2546	FBSBHM1502	FBSBHM1801
G. DRINK ROD				•
I.L. SPATULA				•
I. DOUGH HOOKS				•		•
J. WHINK				•
K. WIRE BEATERS(Includes 2)					•
L. RETRACTABLE CORD	•		•
M. STORAGE BAG							•

Line drawing of a box with a strap and labeled part M (no text or symbols on the object itself)

H. DRINK ROD
I. SPATULA
J. Dough Hooks
K. WHISK
L. WIRE BEATERS (2)
M. STORAGE BAG

PREPARING THE HAND MIXER FOR USE

The Sunbeam® Hand Mixer has been designed to assist you in preparing delicious foods.

Before using your mixer for the first time, wash the attachments in hot, soapy water. Rinse and dry thoroughly. NOTE: All attachments are dishwasher safe.

INSTALLING ATTACHMENTS

Make sure the speed control is in the "OFF" position and unplugged from an electrical outlet. Insert attachments one at a time by placing stem end into the opening on the bottom of the mixer. Turn attachment slightly and push in until it clicks into position. (See Figure A) Plug into the appropriate outlet.

Turn mixer on and adjust speed setting using the control on the top of the unit.

NOTE: The whisk and drink rod may be inserted into either opening on the bottom of the mixer.

Illustration of a hand mixer with a screwdriver, labeled Figure A (no text or symbols on the device itself)

ATTACHMENTS

BEATERS – The heater design allows for thorough, fast mixing results for all types of batters.

DOUGH Hooks - Use these hooks to knead light dough or other heavy batters. Use at lower speeds for best results.

NOTE: The dough hook with the collar fits into the left drive hole and the other one goes into the right. (See Figure B) If dough hooks do not click into the drive

Illustration of a hand washing a small electric shaver with a spring, labeled Figure B (no text or symbols on the device itself)

DRINK ROD – The drink rod is designed to mix all types of frozen or powdered drinks. Recommended for use in plastic or metal beverage containers only.

NOTE: Drink rod does not crush ice. For best use, add ice after mixing beverage.

SPATULA – The spatula is convenient to use for scraping unmixed ingredients from the sides of the bowl and removing mixed ingredients from the bowl, etc. The spatula is not heat-resistant and it will melt if placed on or near hot surfaces.

WHISK – The whisk is used to beat air into mixtures such as egg whites.

WIRE BEATERS – The wire beater design provides thorough mixing results for light batters.

STORAGE BAG - Storage Bag to conveniently store the mixer and all accessories. (FPSBHM1801 Only)

OPERATING INSTRUCTIONS

When building up a recipe that requires the addition of dry ingredients, such as flour, slow the speed down while these ingredients are being added to avoid a snowstorm effect. Once the extra ingredients begin combining, slowly increase to the appropriate speed for the particular mixing task.

USING YOUR HAND MIXER

Slowly guide mixer around the sides and through the center of the bowl, going in the same direction. Be careful not to over beat the mixture. Over beating tends to make some mixtures tough.

Whenever scraping of the bowl is required, stop the mixer and scrape sides and bottom of bowl with a rubber spatula as needed. Turn speed control to "OFF" and rest mixer on its heel rest while adding ingredients. Make sure to position beaters over mixing bowl so any drippings will fall back into the mixing bowl.

When mixing is complete, set speed control to "1" and raise beaters slowly from batter to clean off clinging food. Make sure to turn unit to "OFF" before raising beaters completely out of mixing bowl.

SPEED CONTROL DIAL/ATTACHMENT EJECT BUTTON - The hand mixer features a large and conveniently located speed control button that also functions as the beater eject button when in the "OFF" position. The design allows for a smooth push of the thumb to release the beaters. There will be a noticeable "click" when ejecting beaters.

BURST OF POWER® BUTTON (2525, 2526, 2545, 2546, FPSBHM1801 & FPSBHM1502) – During especially heavy mixing tasks, press the button to drive through the mixture with ease. Once the button is released, the mixer will return to the original speed setting.

RETRACTABLE CORD SECTION (SELECT MODELS ONLY)

1. When winding the cord, hold the plug with one hand, and press the winding button with the other hand. (Failure to hold plug may cause plug to fly.)
2. The cord reel is compact for multi-layer winding of the cord. In case cord is not fully rewound, pull out the cord and steer cord evenly on the reel.
3. In case the cord is not pulled out easily, pull cord firmly.
4. Select the amount of cord desired before plugging into an electrical outlet.
5. Do not allow children to use retractable cord feature as the cord may cause injury.

CARING & CLEANING OF YOUR MIXER

1. Before cleaning any part of the mixer, set the position selector to the "OFF" position, then unplug the cord from the outlet and eject the beaters. Make sure to wash and dry all parts thoroughly before using them again.

2. The attachments may be washed in hot, soapy water or in a dishwasher.

3. The mixer and the cord can be cleaned with a damp cloth but the final clean must be with a dry cloth.
4. To remove stubborn spots, wipe surfaces with a piece of cloth, slightly dampened, in soapy water or a mild, non-abrasive cleaner.
5. Do not use any abrasive cleaner or material to clean any part of the hand mixer, as it can harm the body of the product.

STORAGE

Store the hand mixer on its heel rest in a clean, dry location such as a cabinet or shelf. Store beaters in a drawer or in storage bag (for select models only).

MAINTENANCE

Other than the recommended cleaning, no further user maintenance should be necessary. If for any reason your hand mixer should require repairs, do not try to fix it yourself. Send it to the nearest Authorized Sunbeam Appliance Service Center.

EJECTING BEATERS

Make sure the speed control is in the "OFF" position and unplugged from an electrical outlet. Scrape off any excess batter with a rubber spatula. Grasp the stems of the beaters with your hand and press the beater eject button.

One Year Limited Warranty

Sunbeam Products, Inc. doing business as Jarden Consumer Solutions or if in Canada, Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions (collectively "JCS") warrants that for a period of one year from the date of purchase, this product will be free from defects in material and workmanship. JCS, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty. Do NOT attempt to repair or adjust any electrical or mechanical functions on this product. Doing so will void this warranty.

This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. JCS dealers, service centers, or retail stores selling JCS products do not have the right to alter, modify or any way change the terms and conditions of this warranty.

This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than JCS or an authorized JCS service center. Further, the warranty does not cover: Acts of God, such as fire, flood, hurricanes and tornadoes.

What are the limits on JCS's Liability?

JCS shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or statutory warranty or condition.

Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty.

JCS disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise.

JCS shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of contract, fundamental or otherwise, or for any claim brought against purchaser by any other party.

Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from province to province, state to state or jurisdiction to jurisdiction.

How to Obtain Warranty Service

In the U.S.A.

If you have any question regarding this warranty or would like to obtain warranty service, please call 1.800.458.8407 and a convenient service center address will be provided to you.

In Canada

If you have any question regarding this warranty or would like to obtain warranty service, please call 1.800.667.8623 and a convenient service center address will be provided to you.

In the U.S.A., this warranty is offered by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions located in Boca Raton, Florida 33431. In Canada, this warranty is offered by Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions, located at 20 B Hereford Street, Brampton, Ontario L6Y 0M1. If you have any other problem or claim in connection with this product, please write our Consumer Service Department.

PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE.

NOTES

NOTAS
