loudspeaker connection

& positioning

guidelines for

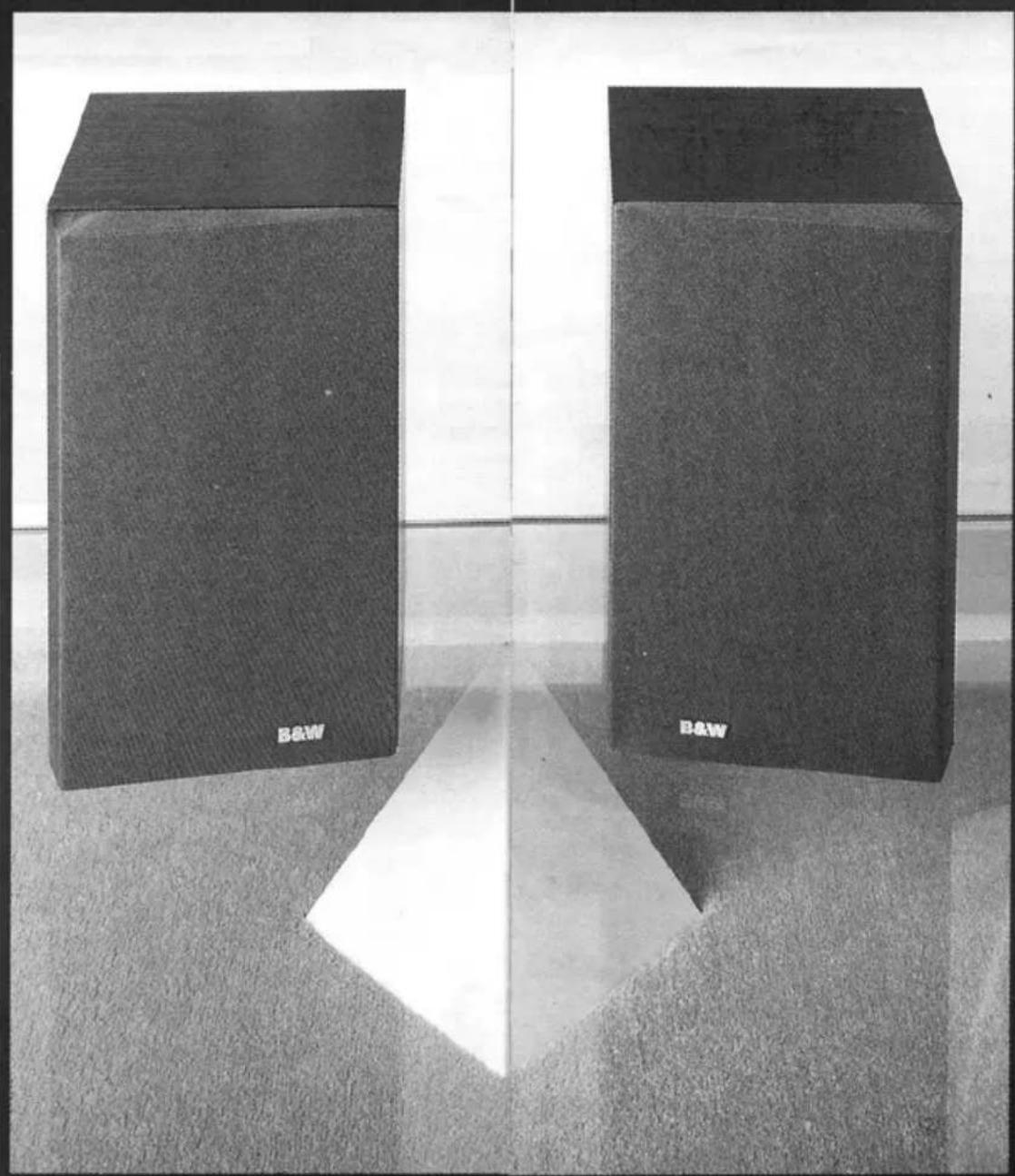

Two B&W audio speakers standing upright on a textured floor, no visible text or symbols on the devices themselves.

Electrical connection to the loudspeakers can be made

either by the screw terminals or 1mm banana plugs. The red terminal on the loudspeaker should be connected to the positive terminal on your amplifier, and the black terminal to the negative.

Correct phasing of stereo systems is extremely important, as in correct connection will result in poor stereo reproduction and loss of deep bass. To check your connections, set your amplifier to mono reproduction and place the speakers face-to-face, about 10cm apart. Play some music with deep bass content and if the connections are correct the sound will appear to originate from between the speakers hand with plenty of bass. If the sound is lacking in bass, reverse the connections to one speaker only.

Keep the connecting leads at short as possible and use a cable thickness of at least 2.5mm, preferably 4mm.

loudspeaker positioning

The placement of your loudpeakers and the general room acoustics have a marked effect on the sound reproduction below around 400Hz. The variation in acoustics from room to room makes precise positioning instructions impossible. In general, however, a free standing location and asymmetrical positioning relative to the room boundaries will give better imagery. Avoiding floor and corner mounting will give the most even frequency response. Listening trials in alternative positions are usually rewarded by improvements in the final results.

ancillary equipment

Whilst we cannot recommend specific equipment, the quality of reproduction from 201/202/203i monitors will do justice to the best available components.

Refer to the specifications for the recommended amplifier rating. The power rating is a guide only, and in fact the high efficiency of your speakers allows a wider range of power ratings which will still give acceptable output levels. In general a large amplifier used sensibly is less likely to cause damage than an over-driven small amplifier.

NL

aansluiten op de

eindversterker

Frequency range	53Hz to 22kHz(-6dB points)	45Hz to 22kHz(-6dB points)	40Hz to 22kHz(-6dB points)
Bass loading	Fourth-order vented alignment	Fourth-order vented alignment	Fourth-order vented alignment
Frequency response	66Hz to 20kHz ±3dB(free-field)	48Hz to 20kHz ±3dB(free-field)	47Hz to 20kHz ±3dB(free-field)
Dispersion	20Hz to 20kHzVertical:±2dB over 10° arcHorizontal:±2dB over 40° arc	20Hz to 20kHzVertical:±2dB over 10° arcHorizontal:±2dB over 40° arc	20Hz to 20kHzVertical:±2dB over 10° arcHorizontal:±2dB over 40° arc
Sensitivity	90dB(2.83V, 1m)	90dB(2.83V, 1m)	90dB(2.83V, 1m)
Distortion	For 90dB at 1mSecond harmonic:<3% (20Hz to 300Hz)<1% (300Hz to 20kHz)Third harmonic:<3% (20Hz to 150Hz)<1% (150Hz to 20kHz)	For 90dB at 1mSecond harmonic:<3% (20Hz to 300Hz)<1% (300Hz to 20kHz)Third harmonic:<3% (20Hz to 150Hz)<1% (150Hz to 20kHz)	For 90dB at 1mSecond harmonic:<1% (20Hz to 300Hz)Third harmonic:<1.5% (20Hz to 300Hz)<1% (300Hz to 20kHz)
Impedance	4Ω nominal	4Ω nominal	4Ω nominal
Crossover	Second-order low-pass and high-pass	Second-order low-pass and high-pass	Third-order low-passSecond-order high-pass
Drive units	One 180mm (7in) low frequency with composite short fibre cone.One 25mm (1in) high frequency with polyester dome	One 180mm (7in) low frequency with composite short fibre cone.One 19mm (1in) high frequency with polyamide dome	Two 180mm (7in) low frequency with polypropylene coneOne 19mm (1in) high frequency with polyamide dome
Power handling	60W DIN suitable for amplifiers up to 100W RMS	65W DIN suitable for amplifiers up to 120W RMS	95W DIN suitable for amplifiers up to 180W RMS
Dimensions	H: 360mm (14in)W: 225mm (9in)D: 181mm (7in)	H: 497mm (19 in)W: 225mm (9in)D: 222mm (8 in)	H: 720mm (28 in)W: 225mm (9in)D: 257mm (10 in)
Weight	4.1kg (9lb)	5.7kg (12% lb)	9kg (20b)
Cabinet finish	Simulated veneer of black ash	Simulated veneer of black ash	Simulated veneer of black ash

B&W Loudspeakers Ltd reserve the right to amend details of their specifications in line with technical developments.

B&W 200 Series Improved, 2011, 2021 and 2031 are trademarks of B&W Loudspeakers Ltd.

©B&W Loudspeakers Ltd, Meadow Road, Worthing, BN11 2RX England.
