Product Type	Hi-Fi System with CD Player
Brand	GPX
Model	HC221B
Dimensions (W x H x D)	Approx. 15.7 x 10.2 x 12.6 inches (400 x 260 x 320 mm)
Weight	Approx. 11 lbs (5 kg)
Power Supply	AC 120V ~ 60Hz
Power Consumption	30W (standby: <1W)
Supported Media	CD, CD-R, CD-RW, MP3 via USB
Connectivity	Bluetooth, USB, AUX input (3.5mm), FM/AM antenna
Audio Output	2 x 10W RMS (20W total)
Radio Tuner	FM/AM digital tuner with preset stations
Functions	CD playback, FM/AM radio, Bluetooth streaming, USB playback, AUX input, clock, alarm
Control	Front panel buttons, remote control included
Display	LED digital display with clock
Speaker Configuration	2-way bass reflex speakers (detachable)
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use liquids or aerosols.
Safety Precautions	Do not expose to moisture or heat sources. Unplug during storms or long inactivity.
Spare Parts & Repairability	Contact GPX customer service for replacement parts. Device is not user-serviceable.
General Information	Designed for home entertainment. Includes user manual and warranty card.

Frequently Asked Questions - HC221B GPX

How do I pair my phone with the HC221B via Bluetooth?

Press the Source button repeatedly until Bluetooth appears on the display. On your phone, search for devices and select GPX HC221B. If prompted, enter 0000.

Why is there no sound from the speakers?

Check that the speakers are properly connected to the main unit. Ensure the volume is turned up and the system is not muted. Also verify the input source is correct.

How do I set the clock?

Press and hold the Clock button (or Time Set) until the hour flashes. Use the + and - buttons to adjust. Press the button again to set minutes. Repeat to confirm.

Can I play music from a USB drive?

Yes. Insert a USB drive with MP3 files into the USB port. Press Source to select USB mode. Use the Play/Pause and Skip buttons to control playback.

How do I clean the system?

Unplug the unit. Use a soft, lint-free cloth slightly dampened with water to wipe the exterior. Do not use any solvents or abrasive cleaners. Avoid getting moisture inside.

What should I do if the remote control stops working?

Replace the batteries with new ones (CR2025). Ensure there are no obstructions between the remote and the sensor. Point the remote directly at the unit.

How do I preset radio stations?

Tune to the desired station manually. Press and hold a number button (1-9) until the display blinks. Repeat for other stations. You can then recall presets by pressing the corresponding number.

The CD is not playing. What could be wrong?

Ensure the CD is inserted with the label facing up. Check for scratches or dirt on the disc. Try a different CD. If the drawer doesn't close, gently push it in.

Is there a warranty for this product?

Yes, the GPX HC221B comes with a 1-year limited warranty. For warranty claims, contact GPX support with your proof of purchase.

Can I connect headphones to this system?

The HC221B does not have a dedicated headphone jack. Use the AUX output only for connecting an amplifier or speakers.

USER MANUAL HC221B GPX

Black-and-white photo of a portable electronic audio workstation with two speakers and a digital clock (no visible text or symbols)

HC221B

Home Music System

For the most up-to-date version of this User's Guide, go to www.gpx.com

Warnings and Precautions

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
• AVERTISSEMENT: Pour réduire le risque d'incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l'humidité.
• CAUTION: Use of any controls or adjustments or performance of procedures other than those herein specified may result in hazardous radiation exposure.
• WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
• WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.
• WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause.
• CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• PRÉCAUTION: Danger d'explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l'équivalent.
• WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in the unit. Only use rechargeable NiMH batteries.

• WARNING: The remote control's button cell battery contains mercury. Do not put in the trash, instead recycle or dispose of as hazardous waste

• WARNING: Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.
  • WARNING: Shock hazard - Do Not Open.
  • AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.

Do not mix old and new batteries.

Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This product utilizes a Class 1 laser to read Compact Discs. This laser Compact Disc Player is equipped with safety switches to avoid exposure when the CD door is open and the safety interlocks are defeated. Invisible laser radiation is present when the CD Player's lid is open and the system's interlock has failed or been defeated. It is very important that you avoid direct exposure to the laser beam at all times. Please do not attempt to defeat or bypass the safety switches.

Important Safety Instructions

1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.
2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC Warnings

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Additional Warnings

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

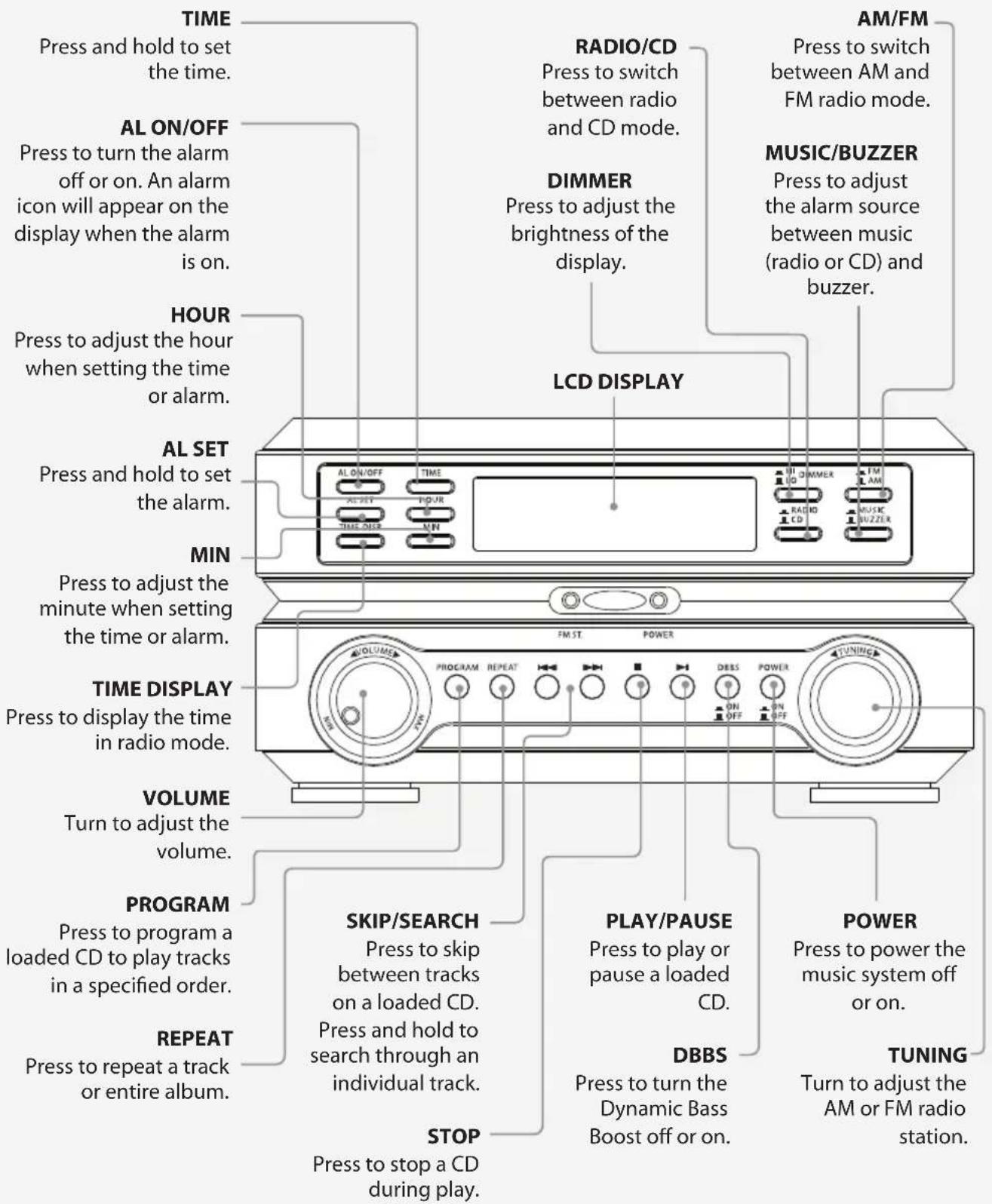

Introduction

PLAY/PAUSE

Press to play or pause a loaded CD.

STOP

Press to stop a CD during play.

REPEAT

Press to repeat a track or entire album.

SKIP/SEARCH

Press to skip between tracks on a loaded CD. Press and hold to search through an individual track.

Setup

Power

Plug the attached AC cord into a standard AC power outlet to power the home music system.

Remote Power

Requires 2, AAA size, batteries (not included)

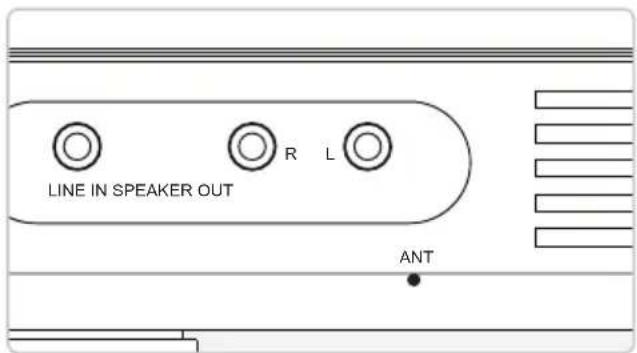

Speaker Connections

Connect the included speakers to the SPEAKER OUTPUT on the back of the music system.

The speaker to be placed on the right side of the music system, when facing the system, should be plugged into the output labeled "R". The left speaker should be plugged into the output labelled "L".

CD, Radio and 3.5mm Audio Input

1. Press the OPEN/CLOSE button to open the CD door.
2. Insert a CD, label side facing up.
3. Manually close the CD door.

Playing a CD

1. Follow the instructions for Loading a CD.
2. Press the POWER button to turn the player on.
3. Press the CD/RADIO button to switch to CD mode.
4. Press the PLAY/PAUSE button to begin playing the loaded CD.

Programming a CD

1. Follow the instructions for Loading a CD and Playing a CD.
2. Press the STOP button to stop the CD.
3. Press the PROGRAM button.
4. Press the SKIP/SEARCH buttons to select a track from the loaded CD to play first.
5. Press the PROGRAM button.
6. Repeat steps 4 and 5 to program tracks from the loaded CD to play in the order they are selected.
7. Press the PLAY/PAUSE button to begin playing the programmed CD.
8. Press the STOP button twice to cancel the program.

Listening to the AM or FM RadioLoading a CD

1. Press the POWER button to turn the player on.
2. Press the CD/RADIO button to switch to radio mode.
3. Press the AM/FM button to switch between AM and FM mode.
4. Turn the TUNING dial to adjust the AM or FM radio station.

Radio Reception

Adjust the FM WIRE ANTENNA to adjust FM radio reception.

An AM antenna is built into the music system. Adjust the position of the music system to adjust AM radio reception.

Using the Audio Input

Requires a 3.5mm audio cable (not included)

1. Connect a 3.5mm audio cable to the 3.5MM AUDIO INPUT on the music system and an audio output on an MP3 player or other audio source.

2. Use the native controls on the connected MP3 player or other audio source to play, pause, and control music output through the connected music system.

When the 3.5mm Audio Input is connected, CD mode and Radio mode will be deactivated.

Clock and Alarm

Setting the Clock

1. Press the POWER button to turn the system off.
2. Press and hold the TIME button.
3. While holding the TIME button, press the HOUR and MIN buttons to set the time.
4. Release the TIME button to finish setting the clock.

Setting the Alarm

1. Press the POWER button to turn the system off.
2. Press and hold the AL SET button.
3. While holding the AL SET button, press the HOUR and MIN buttons to set the time.
4. Release the AL SET button to finish setting the alarm time.
5. Press the AL OFF/ON button to activate or deactivate the alarm.
6. Press the MUSIC/BUZZER button to switch between music or buzzer.
7. When set to MUSIC, press the CD/RADIO button to switch between waking to CD or radio.
8. When the set alarm time is reached, the music system will power on and alert you using the set mode.

Cancelling the Alarm

1. Press the AL OFF/ON button to activate or deactivate the alarm.
   An alarm icon will appear on the display when the alarm is activated.

Company Information

International Support

To download this User's Guide in English, Spanish, or French, or to get answers to frequently asked questions, visit the support section at www.gpx.com.

For Warranty Information and the most up-to-date version of this User's Guide, go to: www.gpx.com

Green Initiative

protect for today • sustain for tomorrow
