Travelmate 4200 series - Keyboard ACER - Free user manual and instructions

Product Type	Notebook Keyboard
Model	Acer TravelMate 4200 Series
Number of Keys	88/89 keys (depending on region)
Embedded Numeric Keypad	Yes
Function Keys	12 function keys (F1-F12)
Hotkeys	Fn combos for brightness, volume, sleep, display toggle, etc.
Windows Keys	Two (Start and Application key)
Keyboard Controller	ENE KB 910Q
Connection Type	Internal ribbon cable to mainboard
Compatibility	Acer TravelMate 4200 series only
Dimensions (approx.)	Width: ~32 cm, Height: ~12 cm (standard notebook keyboard)
Weight (approx.)	~200 g
Power Supply	Powered by laptop via internal connection
Languages Supported	Multiple (US International, UK, French, German, etc.)
Spare Part Numbers	KB.TNT07.xxx (varies by language)
Care and Cleaning	Use a soft, dry cloth; avoid liquids. Remove keyboard gently during cleaning.
Safety Precautions	Disconnect battery before removal; use anti-static wrist strap.
Repairability	Replaceable as a whole unit; removal requires opening laptop (see service guide).

Frequently Asked Questions - Travelmate 4200 series ACER

How many keys does the Acer TravelMate 4200 keyboard have?

The keyboard has 88 or 89 keys depending on the regional layout, including an embedded numeric keypad and 12 function keys.

How do I use the numeric keypad on this keyboard?

Press Num Lock to enable the embedded numeric keypad. The keys with blue numbers on the upper right of the keycaps become numeric. Press the Fn key combined with the Num Lock key to toggle it on/off.

What are the hotkey combinations on this keyboard?

Hotkeys are activated by pressing Fn + another key. Examples: Fn+F4 for Sleep, Fn+F5 for display toggle, Fn+F6 to blank screen, Fn+F7 touchpad toggle, Fn+F8 speaker toggle, Fn+Up/Down for brightness, Fn+Left/Right for volume.

How do I clean the keyboard of my TravelMate 4200?

Turn off the laptop and disconnect power. Use a soft, lint-free cloth slightly dampened with water or isopropyl alcohol. Wipe gently. Do not pour liquids. For deep cleaning, you can remove the keyboard (see service guide).

Can I replace the keyboard myself?

Yes, it is replaceable. Follow the disassembly steps in the service guide: remove the battery, then the middle cover, then the keyboard screws, lift the keyboard, and disconnect the ribbon cable. Use anti-static precautions.

What should I do if some keys are not working?

Check if the keyboard ribbon cable is properly connected. Restart the laptop. If key(s) remain unresponsive, the keyboard may be faulty. Try an external USB keyboard to verify. Replace the internal keyboard if needed.

Is the keyboard backlit?

No, the TravelMate 4200 keyboard is not backlit.

How do I type special characters like Euro or Dollar sign?

The Euro symbol may be printed on a key. To type it, press Alt Gr+5 (or the dedicated Euro key) in some layouts. The Dollar sign is usually Shift+4. See your regional layout for exact keys.

Where can I find a replacement keyboard for my TravelMate 4200?

Replacement keyboards are available from Acer spare parts distributors. Use the part number from the service guide: KB.TNT07.xxx where xxx varies by language (e.g., KB.TNT07.001 for Chinese, KB.TNT07.002 for US International).

How do I enable or disable the touchpad using the keyboard?

Press Fn+F7 to toggle the touchpad on or off. This hotkey is specifically for the internal touchpad.

USER MANUAL Travelmate 4200 series ACER

TravelMate 4200 Series Service Guide

Service guide files and updates are available on the ACER/CSD web; for more information, please refer to http://csd.acer.com.tw

PRINTED IN TAIWAN

Revision History

Please refer to the table below for the updates made on TravelMate 4200 service guide.

Date Chapter Updates

Copyright

Copyright © 2005 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation.

Intel is a registered trademark of Intel Corporation.

Pentium and Pentium II/III are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.

Conventions

The following conventions are used in this manual:

SCREEN MESSAGES	Denotes actual messages that appear on screen.
NOTE Gives bits and pieces of additional information related to the current topic.
WARNING Alerts you to any damage that might result from doing or not doing specific actions.
CAUTION Gives precautionary measures to avoid possible hardware or software problems.
IMPORTANT Reminds you to do specific actions relevant to the accomplishment of procedures.

Preface

Before using this information and the product it supports, please read the following general information.

1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION decided for Acer's "global" product offering. To better fit local market requirements and enhance product competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g. add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic service guide. In such cases, please contact your regional offices or the responsible personnel/channel to provide you with further technical details.
2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

System Specifications

Features

Below is a brief summary of the computer's many features:

Platform and memory

Intel® Centrino® Duo mobile technology, featuring: Intel® Core™ Duo processor T2300/T2400/T2500/T2600 (2 MB L2 cache, 1.66/1.83/2/2.16GHz, 667 MHz FSB) Intel® 945GM/945PM+ICH7M ☐ Integrated Intel® PRO/Wireless 3945ABG network connection (dual-band tri-mode 802.11a/b/g) Wi-Fi CERTIFIED™ solution, supporting Acer SignalUp™ wireless technology ☐ 256/512 MB of DDR2 533/677 MHz memory, upgradeable to 2 GB using two so DIMM modules (dual-channel support)

Display and graphics

15.4" WXGA color TFT LCD, 1280 x 800 pixel resolution, supporting simultaneous multi-window viewing via Acer GridVista™ ☐ 15" XGA color TFT LCD, 1024 x 768 pixel resolution NVIDIA® GeForce™ Go 7300 (72MV) graphics with 128 MB of dedicated GDDR2 VRAM, supporting NVIDIA® TurboCache™ technology with up to 128 MB of additional dynamically shared system memory, Microsoft® DirectX® 9.0 and PCI Express® 16.7 million colors Intel® 945GM integrated 3D graphics, featuring Intel Graphics Media Accelerator 950 and up to 128 MB of dynamically shared system memory, supporting Microsoft® DirectX® 9.0 and PCI Express® Dual independent display support ☐ MPEG-2/DVD hardware-assisted capability

Storage subsystem

☐ 80/100/120 GB ATA/100 hard disk drive ☐ Optical drive options: -8X DVD-Super Multi double-layer -8X DVD-Dual double-layer

Input devices

88/89-key keyboard ☐ Touchpad with 4-way scroll button □ 12 function keys ☐ Four easy-launch buttons ☐ Two front-access buttons: WLAN LED-button and Bluetooth® LED-button

Audio

☐ Audio system with two built-in speakers

Intel® High-Definition audio support ☐ Sound Blaster Pro™ and MS Sound compatible ☐ S/PDIF (Sony/Philips Digital Interface) support for digital speakers

Communication

Modem: 56K ITU V.92 modem with PTT approval; wake-on ring ready ☐ LAN: gigabit Ethernet; wake-on-LAN ready ☐ WLAN: integrated Intel® PRO/Wireless 3945ABG network connection (dual-band tri-mode 802.11a/b/g) Wi-Fi CERTIFIED™ solution, supporting Acer SignalUp™ wireless technology WPAN: integrated Bluetooth® 2.0+EDR

Power subsystem

☐ ACPI 1.0b power management standard: supports Standby and Hibernation power-saving modes ☐ 71 W 8-cell, 59.2W 8-cell or 44 W 6-cell Li-ion battery pack ☐ 2-hour rapid charge; 2.5-hour charge-in-use 90 W AC adapter

I/O Ports

☐ PC Card slot (one Type II) ☐ Four USB 2.0 ports ☐ External display (VGA) port ☐ Headphones/speaker/line-out jack with S/PDIF support □ Microphone/line-in jack ☐ Ethernet (RJ-45) port □ Modem (RJ-11) port ☐ DC-in jack for AC adaptor

Environment

Temperature: operating: 5 °C to 35 °C Non-operating: -20 °C to 65 °C Humidity (non-condensing): operating: 20%~80% Non-operating: 20%~80%

System Block Diagram

This is for UMA models

This is for discrete models

Board Layout

Top View

1 JP1 LCD Connector 10 SW7 Touchpad Down Button 2 SW1 Lid Switch 11 SW2 Touchpad Up Button 3 JP3 MDC Connector 12 SW5 Touchpad Left Button 4 JP2 Power Button Connector 13 SW3 Touchpad Left Button 5 JP6 Media Board Connector 14 JP13 Internal Microphone Connector 6 JP7 Touchpad Board Connector 15 JP12 Internal Speaker Connector 7 JP43 SIM Card Connector 16 JP9 PCMCIA Socket 8 SW4 Touchpad Right Button 17 IR1 FIR Module 9 SW6 Touchpad Left Button 18 JP8 Internal Keyboard Connector

Bottom View

NOTE: This is engineering sample. The image above may not be exactly the same as the real main board you get.

1 JP19 FAN Connector 17 JP40 Headphone/SPDIF Jack 2 U42 VGA Chipset 18 JP41 Line-In Jack 3 JP18 CPU Socket 19 JP42 Microphone-in Jack 4 JP16 DVI Connector 20 IR2 CIR Module 5 JP15 CRT Connector 21 SW8 Wireless LAN Switch 6 JP14 TV-Out Connector 22 SW9 Bluetooth and 3G Switch 7 PCN1 DC-IN Jack 23 U48 South Bridge Chipset 8 JP17 Mini Card Connector 24 JP30 Mini Card Connector 9 JP22 DDRII so-DIMM Socket 25 JP29 IEEE 1394 Connector 10 JP21 DDRII so-DIMM Socket 26 JP27 5 IN1 Socket 11 J3 Clear CMOS Jumper 27 JP23 RJ45 Connector 12 JP24 ODD Connector 28 JP5 USB Connector 13 PJP1 Battery Connector 29 JP4 USB Connector 14 JP32 HDD Connector (SATA) 30 JP28 MINIPCI Connector (TV-Tuner) 15 JP33 HDD Connector (PATA) 31 JP25 FAN Connector 16 JP36 Bluetooth Connector 32 U40 North Bridge Chipset

Jumper Board Layout

Switch Board Top View

Label Description
SW1 Arcade/TV tunver switch
SW2 Volume Up switch
SW3 Volume Down switch
SW4 Play/Pause switch
SW5 Stop switch
SW6 Forward/Next switch
SW7 Backward/Previous switch

Media Board Top View

Label Description
SW1 Power Button
SW2 E-mail Button
SW3 Internet Button
SW4 User Button
SW5 E-Power Button

Media Board Bottom View

Label Description
JP3 USB Connector
JP2 USB Connector
JP6 RF INe Connector
JP5 RF Cable Connector
JP4 AV IN Connector
JP7 Board to Main Board	Connector

LS-2923P Power Board Top View

Label Description
JP1 SIM Card Connector

Jumper Setting

Label Description
J3 Clear CMOS Jumper	Note: J3 locates at bottom side of the main board as the red circle highlighted.

Your Acer Notebook tour

After knowing your computer features, let us show you around your new TravelMate computer.

TravelMate 4200 front view

# Icon Item Description
1 Display screen	Also called LCD	(liquid-crystal display),	displays computer output.
2 Keyboard For	entering data into	your computer.
3 Touchpad Touch	ch-sensitive pointing device which		functions like a computer mouse.
4 Click buttons (left,		center and right)	The left and right buttons function like the left and right mouse buttons; the center button serves as a 4-way scroll button.
5 Palmrest Comfortable support area for our hands			when you use the computer.
6 Microphone Internal microphone for sound recording.
7 Easy-launch Buttons Buttons for launching frequently used programs.
8 Status indicators Light-Emitting Diodes (LEDs) that light up to show the status of the computer's functions and components.
9 Power button Turns the computer on and off.

Closed Front View

# Icon Item Description
1 Speaker Left and right speakers deliver stereo audio output.
2	[542K]	Bluetooth®communication button/indicator	Enable/disable Bluetooth function.Indicates the status of Bluetooth-communications.
3 Wireless		communication button/indicator	Enable/disable Wireless function. Indicates the status of wireless LAN communications.
4 Power indicator Indicates the computer's power status.
5 Battery indicator Indicates the computer's battery status.
6 Microphone-in jack Accepts input from external microphones.
7 Line-in jack accepts audio line-in devices (e.g., audio [AXOS]			CD player, stereo walkman).
8 Headphones/	[1W5ZZ]	speakers/line-out jack with S/PDIF support	Connects to audio line-out devices (e.g., speakers, headphones).
9 Latch Locks and release the lid.

Left View

# Icon Item Description
1 Kensington lock slot Connects to a [5540]	Kensington-compatible	computer security lock.
2 Ventilation slots Enables the computer to stay cool, even after prolonged use.
3 Two USB 2.0 ports Connects to US$B 2.0 devices (e.g., USB mouse, USB camera).
4 Modem (RJ-11) port Connects to a phone line.
5 PC Card slot Accepts one Type II PC Card.
6 PC Card slot eject	button	Ejects the PC Card from the slot.

Right View

# Icon Item Description
1 Three USB 2.0 ports Connect to USB 2.0	0 devices (e.g., USB	mouse, USB camera).
2 Ventilation slots Enable the computer to stay cool, even after prolong use.
3 Modem (RJ-11) port Connects to a phone line.

4 Ethernet (RJ-45) Connects to an Ethernet [263K]

10/100/1000-

based network.

Rear Panel

# Icon Item Description
1 DC-in jack Connects to an AC	adapter.
		External display (VGA) port	Connects to a display device(e.g., external monitor, LCD projector).
		Battery Powers the computer

Base view

# Item Description
1 Battery lock Locks the battery in position.
2 Cooling fan Helps keep the computer cool.
3 Hard disk bay	Houses the computer's hard disk (secured with screws)

4 Memory compartment Houses the computer's main memory.

5 Battery release latch Release the battery for removal.

6 Battery bay Houses the computer's battery pack.

Indicators

The computer has four easy-to-read status indicators on the upper-right above the keyboard, and four on the front panel.

TravelMate 4200:

The power, battery and wireless communication status indicators are visible even when the LCD display is closed.

Icon Function	Description
	Cap lock Lights when Cap Lock is activated
	Num lock Lights when Num Lock is activated.
	HDD Indicates when the hard disc or optical drive is active.
[YAOA]	Bluetooth Indicates the status of Bluetooth communication.
	Wireless LAN Indicates the status of wireless LAN communication.
	Battery Lights up when the battery is being charged.
	Power Lights up when the computer is on.

NOTE: 1. Charging: The light shows amber when the battery is charging. 2. Fully charged: The light shows green when in AC mode.

Easy-Launch Buttons

Located above the keyboard are four buttons. These buttons are called easy-launch buttons. They are: mail, Web browser, Empowering Key "e", and one user-programmable button.

Press "e" to run the Acer Empowering Technology. The mail and Web browser buttons are pre-set to email and Internet programs, but can be reset by users. To set the Web browser, mail, and programmable buttons, run the Acer Launch Manager.

Launch key Default application
P User-programmable
P User-programmable
e	Acer Empowering Technology (user-programmable)
Web browser Internet browser (user-programmable)
Mail Email application (user-programmable)

Using the Keyboard

The keyboard has full-sized keys and an embedded keypad, separate cursor keys, two Windows keys, and twelve function keys.

Lock Keys and Embedded Numeric Keypad

The keyboard has three lock keys which you can toggle on and off.

Aspire Series:

TravelMate 4200:

Lock Key Description
Caps Lock When Caps Lock is on, all alphabetic characters typed are in uppercase.
Num lock++	When Num Lock is on, the embedded keypad is in numeric mode. The keys function as a calculator (complete with the arithmetic operators +, -, *, and /). Use this mode when you need to do a lot of numeric data entry. A better solution would be to connect an external keypad.
Scroll lock++	When Scroll Lock is on, the screen moves one line up or down when you press the up or down arrow keys respectively. Scroll Lock does not work with some applications.

The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols are not printed on the keys.

Desired Access Num Lock On Num Lock Off
Number keys on embedded keypad	Type numbers in a normal manner.
Cursor-control keys on embedded keypad	Holdwhile using cursor-control keys.	Holdwhile using cursor-control keys.
Main keyboard keys Holdwhile typing letters on embedded keypad.		Type the letters in a normal manner.

Windows Keys

The keyboard has two keys that perform Windows-specific functions.

Key Icon Description
Windows key Pressed alone, this		key has the same effect as clicking on the Windows Start button; it launches the Start menu. It can also be used with other keys to provide a variety of function:Activates next taskbar button.Opens the My Computer windowOpens Help and Support.Opens the Find: All Files dialog box.Opens the Run dialog box.+ M Minimizes all windows.Undoes the minimize all windows action.
Application key		This key has the same effect as clicking the right mouse button; it opens the application's context menu.

Hot Keys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness, volume output, and the BIOS utility.

To activate hot keys, press and hold the key before pressing the other key in the hotkey combination.

Aspire Series:

TravelMate 4200:

Hot Key Icon	Function Description
Fn-F1 Hot key help Displays help (control)		on hot keys.
Fn-F2 Acer eSetting Launches the (control)		Acer eSettings in Acer e Manager.
Fn-F3 Acer	(AST6)	ePowerManagement	Launches the Acer ePowerManagement in Acer eManager.
Fn-F4 Sleep Puts the computer in (control)		Sleep mode.
Fn-F5 Display toggle Switches display output between the display screen, external monitor (if connected) and both.
Fn-F6 Screen blank Turns the display screen backlight off to save power. Press any key to return.
Fn-F7 Touchpad toggle Turns the (control)		internal touchpad on and off.
Fn-F8 Speaker toggle Turns the (control)		speakers on and off.
Fn-1	(20TZ)	Volume up	Increases the speaker volume.
Fn-1 Volume down Decreases (2XC7)		the speaker volume.
Fn-2	(Y4SS)	Brightness up	Increases the screen brightness.

Hot Key Icon Function Description
Fn- [IMAGE] Brightness down Decreases the screen brightness

Special Key

You can locate the Euro symbol and US dollar sign at the upper-center and/or bottom-right of your keyboard. To type:

Aspire Series:

TravelMate 4200:

The Euro symbol

1. Open a text editor or word processor.
2. Either directly press the symbol at the bottom-right of the keyboard, or hold and then press the <5> symbol at the upper-center of the keyboard.

The US dollar sign

1. Open a text editor or word processor.
2. Either directly press the key at the bottom-right of the keyboard, or hold and then press the <4> key at the upper-center of the keyboard.

NOTE: This function varies by the operating system version.

NOTE: Some fonts and software do not support the Euro symbol. Please refer to www.microsoft.com/ typography/faq/faq12.htm for more information.

Acer Empowering Technology

Acer's innovative Empowering Technology makes it easy for you to access frequently used functions and manage your new Acer notebook. It features the following handy utilities:

☐ Acer eDataSecurity Management protects data with passwords and advanced encryption algorithms. ☐ Acer eLock Management limits access to external storage media. ☐ Acer ePerformance Management improves system performance by optimizing disk space, memory and registry settings. ☐ Acer eRecovery Management backs up/recovers data flexibly, reliably and completely. ☐ Acer eSettings Management accesses system information and adjusts settings easily. ☐ Acer eNet Management hooks up to location-based networks intelligently. ☐ Acer ePower Management extends battery power via versatile usage profiles. ☐ Acer ePresentation Management connects to a projector and adjusts display settings conveniently.

For more information, press the <$> key to launch the Empowering Technology menu, then click on the appropriate utility and select the Help function.

Acer eDataSecurity Management

Acer eDataSecurity Management is a handy file encryption utility that protects your files from being accessed by unauthorized persons. It is conveniently integrated with Windows Explorer as a shell extension for quick and

easy data encryption/decryption and also supports on-the-fly file encryption for MSN Messenger and Microsoft Outlook.

There are two passwords that can be used to encrypt/decrypt a file; the supervisor password and the file-specific password. The supervisor password is a "master" password that can decrypt any file on your system; the file-specific password will be used to encrypt files by default, or you can choose to enter your own file-specific password when encrypting a file.

NOTE: The password used to encrypt a file is the unique key that the system needs to decrypt it. If you lose the password, the supervisor password is the only other key capable of decrypting the file. If you lose both passwords, there will be no way to decrypt your encrypted file! Be sure to safeguard all related passwords!

Acer eLock Management

Acer eLock Management is a security utility that allows you to lock up your removable data, optical and floppy drives to ensure that data can't be stolen while your notebook is unattended.

☐ Removable data devices - includes USB disk drives, USB pen drives, USB flash drives, USB MP3 drives, USB memory card readers, IEEE 1394 disk drives and any other removable disk drives that can be mounted as a file system when plugged into the system. ☐ Optical drive devices - includes any kind of CD-ROM or DVD-ROM drives. ☐ Floppy disk drives - 3.5-inch disks only.

To activate Acer eLock Management, a password must be set first. Once set, you may apply lock to any of the three kinds of devices. Lock(s) will immediately be set without any reboot necessary, and will remain locked after rebooting, until unlocked.

If you do not set a password, Acer eLock Management will reset back to the initial status with all locks removed.

NOTE: If you lose your password, there is no method to reset it except by reformatting your notebook or taking your notebook to an Acer Customer Service Center. Be sure to remember or write down your password.

Acer ePerformance Management

Acer ePerformance Management is a system optimization tool that boosts the performance of your Acer notebook. It provides you with the following options to enhance overall system performance:

☐ Memory optimization - releases unused memory and checks usage. ☐ Disk optimization - removes unneeded items and files. ☐ Speed optimization - improves the usability and performance of your Windows XP system.

Acer eRecovery Management

Acer eRecovery Management is a powerful utility that does away with the need for recovery disks provided by the manufacturer. The Acer eRecovery Management utility occupies space in a hidden partition on your system's HDD. User-created backups are stored on D:\ drive. Acer eRecovery Management provides you with:

☐ Password protection. ☐ Recovery of applications and drivers. ☐ Image/data backup:

☐ Back up to HDD (set recovery point). ☐ Back up to CD/DVD.

☐ Image/data recovery tools:

☐ Recover from a hidden partition (factory defaults). ☐ Recover from the HDD (most recent user-defined recovery point). ☐ Recover from CD/DVD.

NOTE: If your computer did not come with a Recovery CD or System CD, please use Acer eRecovery Management's "System backup to optical disk" feature to burn a backup image to CD or DVD. To ensure the best results when recovering your system using a CD or Acer eRecovery Management, detach all peripherals (except the external Acer ODD, if your computer has one), including your Acer ezDock.

Acer eSettings Management

Acer eSettings Management allows you to inspect hardware specifications and to monitor the system health status. Furthermore, Acer eSettings Management enables you to optimize your Windows operating system, so your computer runs faster, smoother and better.

Acer eSettings Management also:

☐ Provides a simple graphical user interface for navigating through the program effortlessly. ☐ Displays general system status and advanced monitoring for power users. ☐ Logs when a hardware component has been removed or replaced. ☐ Permits you to migrate personal settings. ☐ Keeps a history log of all alerts that were previously issued.

Acer eNet Management

Acer eNet Management helps you to quickly and easily connect to both wired and wireless networks in a variety of locations. To access this utility, either click on the “Acer eNet Management” icon on your notebook, or start the program from the Start menu. You also have the option to set Acer eNet Management to start automatically when you boot up your PC.

Acer eNet Management automatically detects the best settings for a new location, while offering you the freedom to manually adjust the settings to match your needs, simply by right-clicking on the icon in the taskbar.

Acer eNet Management can save network settings for a location to a profile, and automatically apply the appropriate profile when you move from one location to another. Settings stored include network connection

settings (IP and DNS settings, wireless AP details, etc.), as well as default printer settings. Security and safety concerns mean that Acer eNet Management does not store username and password information.

Acer ePower Management

Acer ePower Management features a straightforward user interface. To launch it, select Acer ePower Management from the Empowering Technology interface, or double-click the Acer ePower Management icon in the task tray.

Acer Mode

The default setting is "Maximum Performance." You can adjust CPU speed, LCD brightness and other settings, or click on buttons to turn the following functions on/off: Wireless LAN, Bluetooth, CardBus, Memory Card, Audio, and Wired LAN.

DC Mode

To suit your usage, there are four pre-defined profiles - Entertainment, Presentation, Word Processing, and Maximum Battery. Or, you can define up to three of your own profiles.

Create new power scheme

1. Assign a name for the new scheme.
2. Choose existing scheme to use as a template.
3. Select whether used for mains (AC) or battery mode.
4. Choose which power options best fit your needs, then click OK.
5. The new profile will appear on the main screen.

Battery status

For real-time battery life estimates based on current usage, refer to the panel on the lower left-hand side of the window.

You can also click "Advanced Settings" to:

Set alarms. ☐ Re-load factory defaults. ☐ Select what actions will be taken when the cover is closed, and set passwords for accessing the system after Hibernation or Standby. ☐ View information about Acer ePower Management.

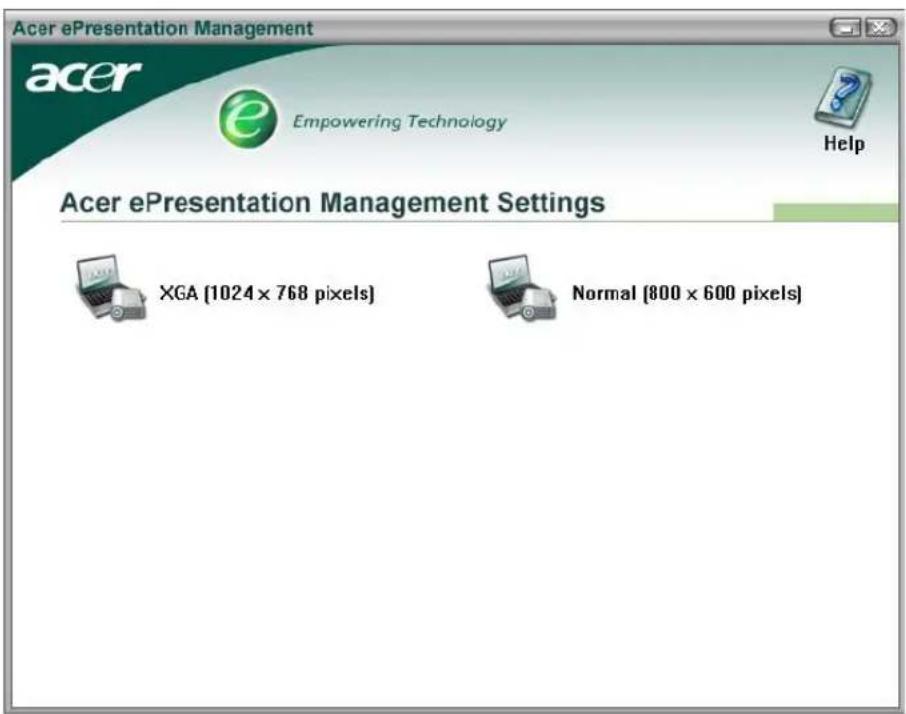

Acer ePresentation Management

Acer ePresentation Management lets you select from two of the most common projector resolutions: XGA and SVGA.

Hardware Specifications and Configurations

Processor

Item Specification
CPU type	Intel®CoreTM Duo processor T2300/T2400/T2500/T2600 (2 MB L2 cache, 1.66/1.83/2/2.16GHz, 667 MHz FSB)
Core logic	Intel®945GM/945PM+ICH7-M
CPU package	μ FCBGA-1466
CPU core voltage

BIOS

Item Specification
BIOS vendor Phneoix
BIOS Version V1.10
BIOS ROM type 512K Flash ROM
BIOS ROM size 1MB Flash BIOS
BIOS package 32-pin PLCC
Supported protocols ACPI 1.0b/2.0/3.0, PCI2.2, System/HDD Password Security Control, INT13h Extensions, PnP 1.0a, SMBIOS 2.4, BIOS Boot Specification(Compaq, Phoenix, INtel), Simple Boot Flag 1.0, Boot Block, PCI BusPower Management Interface Specification,USB 1.1/2.0, PC Card 95, IrDA1.0, Intel AC97 CNR Specification, WfM 2.0, PXE 2.1, Boot IntegrityService Application Program Interface (BIS) 1.0, PC99a and MobilePC2001 Compliant, Intel (R) SpeedStep Technology, Legacy 1394 Devicesupport, DMI 2.0, PS/2 keyboard and mouse
BIOS password control Set by setup manual

Second Level Cache

Item Specification
Cache controller Built-in CPU
Cache size	2MB for Intel® Pentium® M 945GM/945PM Processor
1st level cache control Always enabled
2st level cache control Always enabled
Cache scheme control Fixed in write-back

System Memory

Item Specification
Memory controller	Built-in Intel® 945GM/945PM
Memory size 0MB (no on-board memory)
DIMM socket number 2 sockets
Supports memory size per socket	1024MB
Supports maximum memory size	2G (by two 1024MB SO-DIMM module)
Supports DIMM type	DDR 2 Synchronous DRAM
Supports DIMM Speed	400 MHz
Supports DIMM voltage	1.8V
Supports DIMM package	200-pin soDIMM
Memory module combinations	You can install memory modules in any combinations as long as they match the above specifications.

Memory Combinations

Slot 1 Slot 2 Total Memory
0MB 128MB 128MB
0MB 256MB 256MB
0MB 512MB 512MB
0MB 1024MB 1024MB
128MB 128MB 256MB
128MB 256MB 384MB
128MB 512MB 640MB
128MB 1024MB 1152MB
256MB 128MB 384MB
256MB 256MB 512MB
256MB 512MB 768MB
256MB 1024MB 1280MB
512MB 128MB 640MB
512MB 256MB 768MB
512MB 512MB 1024MB
512MB 1024MB 1536MB
1024MB 0MB 1024MB
1024MB 128MB 1152MB
1024MB 256MB 1280MB
1024MB 512MB 1536MB
1024MB 1024MB 2048MB

NOTE: Above table lists some system memory configurations. You may combine DIMMs with various capacities to form other combinations. On above table, the configuration of slot 1 and slot 2 could be reversed.

LAN Interface

Item Specification
Chipset Broadcom BCM4401E
Supports LAN protocol 10/100Mbps
LAN connector type	RJ45
LAN connector location	Right side
Features	Integrated 10/100 BASE-T transceiverWake on LAN support compliant with ACPI 2.0PCI v2.2

Modem Interface

Item Specification
Data modem data baud rate (bps)	56K
Supports modem protocol	V.90/V.92
Modem connector type	RJ11
Modem connector location	Right side

Bluetooth Interface

Item Specification
Chipset	Built-in Intel® ICH7-M

Bluetooth Interface

Item Specification
Data throughput 723 bps (full speed data rate)
Protocol Bluetooth 2.0
Interface USB 1.1
Connector type Mini-USB

Wireless Module 802.11b/g (optional device)

Item Specification
Chipset Built-in ICH7-M
Data throughput 11~54 Mbps
Protocol 802.11b+g
Interface Mini-PCI type II (What does PCI Bus means on the system block diagram?)

Hard Disk Drive Interface

Item
Vendor & Model Name	Seagate 40G ST9402112AToshiba MK4025GASHitachi HTS421240H9AT00WD WD400UE-22HCT0Samsung M40MP0402H	Seagate ST96812ASeagate ST960821AToshiba MK6025GASHGST HTS541260H9AT00WD WD600UE-22HCT0	TOSHIBA MK8025GASHITACHI HTS421280H9AT00SEAGATE ST9808210ASEAGATE ST98823ATOSHIBA MK8026GAXHGST HTS541280H9AT00WD WD800UE-22HCT0
Capacity (MB)	40000 60000 80000
Bytes per sector	512 512 512
Data heads 2 3	(for Hitachi and Seagate)	4 (for Toshiba)	4 (for Hitachi)3 (for Seagate)
Drive Format
Disks	1 2 2
Spindle speed (RPM)	4200 RPM	4200 RPM	4200 RPM
Performance Specifications
Buffer size	2048KB	8192KB	8192KB
Interface	ATA/ATAPI-6; ATA-6	ATA/ATAPI-6; ATA-6	ATA/ATA-6; ATA-6
Max. media transfer rate (disk-buffer, Mbytes/s)	372 350 350
Data transfer rate (host~buffer, Mbytes/s)	100 MB/Sec.Ultra DMA mode-5	100 MB/Sec.Ultra DMA mode-5	100 MB/Sec.Ultra DMA mode-5
DC Power Requirements
Voltage tolerance	5V(DC) +/- 5%	5V(DC) +/- 5%	5V(DC) +/- 5%

Combo Drive Interface

Item Specification
Vendor & model name DVD/CDRW	HLDS GCC-4244N
Performance Specification With CD	Diskette With DVD Diskette
Transfer rate (KB/sec) Sustained:	Max 3.6Mbytes/sec	Sustained:Max 10.8Mbytes/sec
Buffer Memory 2MB
Interface Enhanced IDE(ATAPI) compatible
Applicable disc format DVD: DVD-ROM, (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R (read, single border), DVD-RW, DVD-RAM (2.6GB, 4.7GB)CD: CD-DA, CD-ROM, CD-ROM XA, CD-R, CD-RW Photo (Multisession)Video CD, CD-Extra, (CD+), CD-test
Loading mechanism Load: Manual	Release: (a) Electrical Release (Release Button)(b) Release by ATAPI command(c) Emergency Release
Power Requirement
Input Voltage 5 V +/- 5 % (Operating)

DVD-Dual Interface

Item Specification
Vendor & model name LITEON SOSW-833S PIONEER DVR-K16RA
Performance Specification With CD	Diskette With DVD Diskette
Transfer rate (KB/sec) Sustained:	Max 3.6Mbytes/sec	Sustained: Max 10.8Mbytes/sec
Buffer Memory 2MB
Interface Enhanced IDE(ATAPI) compatible
Applicable disc format Support disc formats
Loading mechanism Load: Manual	Release: (a) Electrical Release (Release Button)(b) Release by ATAPI command(c) Emergency Release
Power Requirement
Input Voltage 5 V +/- 5 % (Operating)

HD Audio Interface

Item Specification
Audio Controller ALC883

HD Audio Interface

Item Specification
Audio onboard or optional Built-in
Mono or Stereo Stereo
Resolution Wide range (°V80dB ~ +42dB) volume	control with 1.5dBresolution of analog to analog mixer gain16 bit stereo digital to analog converter16 bit stereo analog to digital converter
Compatibility HD Audio
Mixed sound source Line-in, CD
Voice channel 8/16-bit, mono/stereo
Sampling rate All DACs support 44.1k/48k/96k/19	2kHz sample rateAll ADCs support 44.1k/48k/96kHz sample rate16/20/24-bit S/PDIF-OUT supports 44.1k/48k/96k/192kHz sample rate16/20/24-bit S/PDIF-IN supports 44.1k/48k/96kHz sample rate
Internal microphone Yes
Internal speaker / Quantity Yes/2

Video Interface

Item Specification
Chipset	Built-in Intel® 945GM for UMA modelsNVIDIA® GeForceTM Go 7300 (72MV) for discrete models
Package 35.5 mm x 40 mm 1257 pin mBGA
Interface internal PCIE
Supports ZV (Zoomed Video) port Yes
Memory Interface	64-bit
Memory Bandwidth(GB/sec)	5.6
Fill Rate (Gpixels/sec)	1.4
Vertices/Second (Millions)	260
Memory Data Rate (MHz)	700
RAMDACs (MHz)	400

NOTE: RAMDAC refers to Random Access Memory Digital to Analog Converter: the VGA controller chip that maintains the range of colors and converts data from memory into analog signals for the monitor.

Video Memory

Item Specification
Chipset	Built-in Intel® 945GM for UMA modelsNVIDIA® GeForceTM Go 7300 (72MV) for discrete models
Memory size	64MB/128MB
Interface DDR2

USB Port

Item Specification
Chipset	Built-in ICH7-M
USB Compliancy Level	2.0
OHCI	USB 1.1 and USB 2.0 Host controller

USB Port

Item Specification
Number of USB port 3
Location Three on the right side
Serial port function control Enable/Disable by BIOS Setup

PCMCIA Port

Item Specification
PCMCIA controller ENE CB714
Supports card type Type-II
Number of slots One type-II
Access location Left panel
Supports ZV (Zoomed Video) port No ZV support
Supports 32 bit CardBus Yes

System Board Major Chips

Item Controller
Core logic	Intel® 945GM?945PM+ICH7-M
VGA	Built in Intel®945GM for UMA modelsNVIDIA® GeForceTM Go 7300 (72MV) for discrete models
LAN ENE BCM4401E
USB 2.0 Built in ICH7-M
Super I/O controller	SMsC LPC47N207
MODEM	Built-in ICH7-M
Bluetooth	Built-in ICH7-M
Wireless 802.11 b+g	Built-in ICH7-M
PCMCIA	ENE CB714
HD Audio	Realtek ALC883

Keyboard

Item Specification
Keyboard controller	ENE KB 910Q
Total number of keypads	88-/89-key
Windows logo key	Yes
Internal & external keyboard work simultaneously	Plug USB keyboard to the USB port directly: Yes

Battery

Item	Specification
Vendor & model name	Sanyo (6cell) 2.0Sony (6cell) 2.0Panasonic (6cell) 2.0Snayo (6cell) 2.4Sony (6cell) 2.4Panasonic (6cell)2.4Sanyo (9cell) 2.4

Battery

Item	Specification
Battery Type Li-ion
Pack capacity 4000 mAH forSanyo (6cell) 2.0	3920 mAH Sony (6cell) 2.03900 mAH Panasonic (6cell) 2.04800 mAH Snayo (6cell) 2.44800 mAH Sony (6cell) 2.44800 mAH Panasonic (6cell)2.4Sanyo (9cell) 2.4
Number of battery cell 6/9
Package configuration 3 cells in series, 2 series in parallel	3 cells in series, 3 series in parallel
Normal voltage 14.8V
Charge voltage 16.8+-0.2v

LCD 14.1" inch

Item Specification
Vendor & model name AU B141EW01 CMO N14111-	L02	QDIQD14TL01-03	SAMSUNGLTN141W1-L01
Screen Diagonal (mm) 14.1 inches 14.1 inches 14.1 inches	1 inches
Active Area (mm) 304.1x228.1 304.1x228.1 304.1x228.1
Display resolution (pixels)	1024x768 XGA	1024x768 XGA	1024x768 XGA
Pixel Pitch	0.297x0.297 0.099x0.297 0.297x0.297
Pixel Arrangement	R.G.B. Vertical Stripe	R.G.B. Vertical Stripe	R.G.B. Vertical Stripe
Display Mode	Normally White	Normally White	Normally White
Typical White Luminance (cd/m2) also called Brightness	180 (5 point average)150 (5 point average)	160	150
Luminance Uniformity	N/A	N/A	70
Contrast Ratio	300	300	250
Response Time (Optical Rise Time/Fall Time)msec	24/1115/35	8/17	10/25
Nominal Input Voltage VDD	+3.3V Typ.	+3.3V	3.3V
Typical Power Consumption (watt)	5.6/5.7	3.96	N/A
Weight 550 570	600
Physical Size(mm)	317.3x242.0x6.0	317.3x242.0x5.9	317.3x242.0x6.5
Electrical Interface	1 channel LVDS	1 channel LVDS	1 channel LVDS
Support Color	262K colors(RGB 6-bit data driver)	262,144	262,144
Viewing Angle (degree)Horizontal: Right/LeftVertical: Upper/Lower	40/4010/30	45/4515/35	40/4020/40
Temperature Range(°C)OperatingStorage (shipping)	0 to +50-20 to +60	0 to +50-25 to +60	0 to +50-20 to +60

LCD Inverter

Item Specification
Vendor & model name Darfon/V189-301GP
Brightness conditions N/A
Input voltage (V) 9~21
Input current (mA) 2.56 (max)
Output voltage (V, rms) 780V (2000V for kick off)
Output current (mA, rms) 6.5 (max)
Output voltage frequency (k Hz) 65K Hz (max)

AC Adaptor

Item Specification
Input rating 90V AC to 264V AC, 47Hz to 63Hz
Maximum input AC current 1.7A
Inrush current 220A@115VAC	220A@230VAC
Efficiency 82% min. @115VAC input full load

System Power Management

ACPI mode	Power Management
Mech. Off (G3)	All devices in the system are turned off completely.
Soft Off (G2/S5)	OS initiated shutdown. All devices in the system are turned off completely.
Working (G0/S0)	Individual devices such as the CPU and hard disc may be power managed in this state.
Suspend to RAM (S3)	CPU set power downVGA SuspendPCMCIA SuspendAudio Power DownHard Disk Power DownCD-ROM Power DownSuper I/O Low Power mode
Save to Disk (S4)	Also called Hibernation Mode. System saves all system states and data onto the disc prior to power off the whole system.

System Utilities

BIOS Setup Utility

The BIOS Setup Utility is a hardware configuration program built into your computer's BIOS (Basic Input/Output System).

Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run Setup. Please also refer to Chapter 4 Troubleshooting when problem arises.

To activate the BIOS Utility, press F2 during POST (when "Press to enter Setup" message is prompted on the bottom of screen).

Press F12 to enter setup. The default parameter of F12 Boot Menu is set to "disabled". If you want to change boot device without entering BIOS Setup Utility, please set the parameter to "enabled".

Press during POST to enter multi-boot menu. In this menu, user can change boot device without entering BIOS SETUP Utility.

PhoenixBIOS Setup Utility
Information	Main	Advanced	Security	Boot	Exit
CPU Type :Genunie Intel (R) CPUCPU Speed : 1.66GHz
HDD Model Name :HDD Serial Number :ATAPI Model Name : NoneATAPI Serial Number : None
BIOS Version: V1.10VGA BIOS Ver Intel V1256
Serial Number xxxxxxxxxxxxxxxxxxxxxxxxx				22 Byte32 Byte16 Byte16 Byte32 Byte
Asset Tag Number N/A
Produce Name TravelMate 4200
Manufacturer Name: Acer
UUID: xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

Navigating the BIOS Utility

There are six menu options: Info., Main, System Devices, Security, Boot, and Exit.

Follow these instructions:

To choose a menu, use the cursor left/right keys (←→). To choose a parameter, use the cursor up/down keys (↑↓). To change the value of a parameter, press + or -. A plus sign (+) indicates the item has sub-items. Press ENTER to expand this item. Press [ESC] while you are in any of the menu options to go to the Exit menu. In any menu, you can load default settings by pressing F9. You can also press F10 to save any changes made and exit the BIOS Setup Utility.

NOTE: You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for a particular menu are shown on the bottom of the screen. Help for parameters are found in the Item Specific Help part of the screen. Read this carefully when making changes to parameter values. Please note that system information is subject to different models.

Information

PhoenixBIOS Setup Utility
Information	Main	Advanced	Security	Boot	Exit
CPU Type :	Genunie Intel (R) CPU
CPU Speed :	1.66GHz
HDD Model Name :
HDD Serial Number :
ATAPI Model Name :	None
ATAPI Serial Number :	None
BIOS Version:	V1.10
VGA BIOS Ver	Intel V1256
				22 Byte
Serial Number	xxxxxxxxxxxxxxxxxxxxxx			32 Byte
Asset Tag Number	N/A			16 Byte
Produce Name	TravelMate 4200			16 Byte
Manufacturer Name:	Acer			32 Byte
UUID:	xxxxxxxxxxxxxxxxxxxxxxxxxxxxx

NOTE: The system information is subject to different models.

Parameter Description
CPU Type This field shows the CPU type and speed of the system.
IDE1 Model Name This field	shows the model name of HDD installed on primary IDE master.
IDE1 Serial Number	This field displays the serial number of HDD installed on primary IDE master.
IDE2I Model Name	This field displays the mofel name of devices installed on secondary IDE master. The hard disk drive or optical drive model name is automatically detected by the system.
IDE2 Serial Number	This field shows the serial number of devices installed on secondary IDE master.
System BIOS ver Displays system BIOS version.
VGA BIOS Ver This field displays the VGA firmware version of the system.
KBC Ver This field shows the keyboard
Serial Number This field displays the serial number of this unit.
Asset Tag Number This field displays the asset tag number of the system.
Product Name This field shows product name of the system.
Manufacturer Name This field displays the manufacturer of this system.
UUID Number This will be visible only when an internal LAN device is presenting. UUID=32bytes

Main

The Main screen displays a summary of your computer hardware information, and also includes basic setup parameters. It allows the user to specify standard IBM PC AT system parameters.

PhoenixBIOS Setup Utility
Information	Main	Advanced	Security	Boot	Ex
System Time: [22:03:28]System Date: [12/21/2005]System Memory: 640 KBExtended Memory: 255 MBVideo Memory [64MB]Quiet Boot: [Enabled]Power on display: [Auto ]Network boot [Enabled]F12 Boot Menu [Disabled]D2D Recovery [Enabled]				Item Specific Help, , or selects field.
F1 Help ↑↓ Select Item F5/F6 Change Values F9 Setup DefaultsEsc Exit ↔ Select Menu Enter Select ▶ Sub-Menu F10 Save and Exit

NOTE: The screen above is for your reference only. Actual values may differ.

The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter Description	on Format/Option
System Time Sets the system	time. The hours are displayed with 24-hour format.	Format: HH:MM:SS (hour:minute:second) System Time
System Date Sets the system	date. Format MM/DD/YYYY (month/day/	year) System Date
System Memory This field reports the memory size of the system. Memory size is fixed to 640MB
Extended Memory This field reports the memory size of the extended memory in the system. Extended Memory size=Total memory size-1MB
VGA Memory Shows the VGA	memory size. VGA Memory size=64/128MB
Quiet Boot Determines if Customer Logo will be displayed or not; shows Summary Screen is disabled or enabled. Enabled: Customer Logo is displayed, and Summary Screen is disabled. Disabled: Customer Logo is not displayed, and Summary Screen is enabled.		Option: Enabled or Disabled
Power on display Auto: During power process, the system will detect if any display device is connected on external video port. If any external display device is connected, the power on display will be in CRT (or projector) only mode. Otherwise it will be in LCD only mode. Both: Simultaneously enable both the integrated LCD screen and the system's external video port (for an external CRT or projector).		Option: Auto or Both
Network Boot Enables, disables the system boot from LAN (remote server).		Option: Enabled or Disabled
F12 Boot Menu Enables, disables Boot Menu during POST.		Option: Disabled or Enabled
D2D Recovery Enables, disables D2D Recovery function. The function allows the user to create a hidden partition on hard disc drive to store operation system and restore the system to factory defaults.		Option: Enabled or Disabled

NOTE: The sub-items under each device will not be shown if the device control is set to disable or auto. This is because the user is not allowed to control the settings in these cases.

Advanced

The Advanced screen contains parameters involving your hardware devices. It also provides advanced settings of the system.

PhoenixBIOS Setup Utility
Information	Main	Advanced	Security	Boot	Exit
Infrared Port (FIR) [Enabled]				Item Specific Help
				Configure Infrared Port using options: [Disable] No configuration [Enabled] User configuration
F1 Help ↑↓ Select Item F5/F6 Change Values F9 Setup Defaults Esc Exit ←→ Select Menu Enter Select ▶ Sub-Menu F10 Save and Exit

The table below describes the parameters in the screen. Settings in boldface are the default and suggested parameter settings.

	Description Option
Infrared Port Configure	serial port B using options:[Disabled]: No configuration[Enabled]: User configuration[Auto]: BIOS or OS chooses configuration(OS Controlled) Displayedd when controlled by OS	DisabledEnabledAuto

Security

The Security screen contains parameters that help safeguard and protect your computer from unauthorized use.

PhoenixBIOS Setup Utility
Information	Main	Advanced	Security	Boot	Exit
Supervisor Password Is : ClearUser Password Is : HDD Password Is:Set Supervisor Password Set User Password Set Hdd PasswordPassword on Boot				ClearClear[Enter][Enter][Enter][Disabled]	Item Specific Help
					Supervisor Password controls accesses of the whole setup utility.It can be used to boot up when Password on boot is enabled.

F1 Help	↑↓ Select Item	F5/F6 Change Values	F9 Setup Defaults
Esc Exit	←→ Select Menu	Enter Select Sub-Menu	F10 Save and Exit

The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter Description Option
User Password is Shows the setting of the user password.		Clear or Set
Supervisor Password is Shows the setting of the Supervisor password		Clear or Set
Set User Password Press Enter to set the user password. When user password is set, this password protects the BIOS Setup Utility from unauthorized access. The user can enter Setup menu only and does not have right to change the value of parameters.
Set Supervisor Password Press	Enter to set the supervisor password.When set, this password protects the BIOS Setup Utility from unauthorized access. The user can not either enter the Setup menu nor change the value of parameters.
Primary HardDisk Security Enables or disables primary hard disk security function.
Password on Boot Defines whether a password is required or not while the events defined in this group happened. The following sub-options are all requires the Supervisor password for changes and should be grayed out if the user password was used to enter setup.		Disabled or Enabled

NOTE: When you are prompted to enter a password, you have three tries before the system halts. Don't forget your password. If you forget your password, you may have to return your notebook computer to your dealer to reset it.

Setting a Password

Follow these steps as you set the user or the supervisor password:

1. Use the ↑ and ↓ keys to highlight the Set Supervisor Password parameter and press the ENTER key. The Set Supervisor Password box appears:

Set Supervisor Password
Enter New Password	[ ]
Confirm New Password	[ ]

1. Type a password in the "Enter New Password" field. The password length cannot exceed 8 alphanumeric characters (A-Z, a-z, 0-9, not case sensitive). Retype the password in the "Confirm New Password" field.

IMPORTANT: Be very careful when typing your password because the characters do not appear on the screen.

1. Press ENTER.

After setting the password, the computer sets the User Password parameter to "Set".

1. If desired, you can opt to enable the Password on boot parameter.
2. When you are done, press ☑ to save the changes and exit the BIOS Setup Utility.

Removing a Password

Follow these steps:

1. Use the ☐ and ☐ keys to highlight the Set Supervisor Password parameter and press the ENTER key. The Set Password box appears:

Set Supervisor Password

Enter current password [ ]

Enter New Password [ ]

Confirm New Password [ ]

1. Type the current password in the Enter Current Password field and press ENTER.
2. Press ☐ twice without typing anything in the Enter New Password and Confirm New Password fields. The computer then sets the Supervisor Password parameter to "Clear".
3. When you have changed the settings, press ☐ to save the changes and exit the BIOS Setup Utility.

Changing a Password

1. Use the arrow keys to highlight the Set Supervisor Password parameter and press the Enter key. The Set Password box appears:

Set Supervisor Password

Enter current password [ ]

Enter New Password [ ]

Confirm New Password [ ]

1. Type the current password in the Enter Current Password field and press ENTER.
2. Type a password in the Enter New Password field. Retype the password in the Confirm New Password field.
3. Press ENTER. After setting the password, the computer sets the User Password parameter to "Set".
4. If desired, you can enable the Password on boot parameter.
5. When you are done, press F10 to save the changes and exit the BIOS Setup Utility.

If the verification is OK, the screen will display as following.

Setup Notice

Changes have been saved.

[ continue]

The password setting is complete after the user presses F10.

If the current password entered does not match the actual current password, the screen will show you the Setup Warning.

Setup Warning

Invalid password

Re-enter Password

[ continue]

If the new password and confirm new password strings do not match, the screen will display the following message.

Setup Warning

Password do not match

Re-enter Password

Boot

This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices include the diskette drive in module bay, the onboard hard disk drive, and the CD-ROM in module bay.

PhoenixBIOS Setup Utility
Information	Main	Advanced	Security	Boot	Exit
Boot priority order:1: IDE 0: TOSHIBA MK6025GAS-(PM)2: IDE 1: MATSHITADVD-RAM UJ-845S3: IDE 2:4: USB FDD:5: PCI LAN: Broadcom MBA6: USB HDD:7: USB KEY:8: USB CDROM:					Item Specific Help
					Use <↑> or <↓> to select a devic devices, then pressto move it up the list, orto move it down the list. Pressto escape the menu.
F1 Help ↑↓ Select Item F5/F6 Change Values F9 Setup DefaultsEsc Exit ←→ Select Menu Enter Select ▶ Sub-Menu F10 Save and Exit

Exit

The Exit screen contains parameters that help safeguard and protect your computer from unauthorized use.

PhoenixBIOS Setup Utility
Information	Main	Advanced	Security	Boot	Exit
Exit Saving ChangesExit Disarding ChangesLoad Setup DefaultsDiscard ChangesSave Changes				Item Specific Help
				Exit System Setup and save your changes to CMOS.
F1 Help ↑↓ Select Item F5/F6 Change Values F9 Setup DefaultsEsc Exit ↔ Select Menu Enter Select ▶ Sub-Menu F10 Save and Exit

The table below describes the parameters in this screen.

Parameter Description

Exit Saving Changes Exit System Setup and save your changes to CMOS.

Exit Discarding Changes Exit utility without saving setup data to CMOS.

Load Setup Default Load default values for all SETUP item.

Discard Changes Load previous values from CMOS for all SETUP items.

Save Changes Save Setup Data to CMOS.

BIOS Flash Utility

The BIOS flash memory update is required for the following conditions:

□ New versions of system programs □ New features or options ☐ Restore a BIOS when it becomes corrupted.

Use the Phlash utility to update the system BIOS flash ROM.

NOTE: If you do not have a crisis recovery diskette at hand, then you should create a Crisis Recovery Diskette before you use the Phlash utility.

NOTE: Do not install memory-related drivers (XMS, EMS, DPMI) when you use the Phlash.

NOTE: Please use the AC adaptor power supply when you run the Phlash utility. If the battery pack does not contain enough power to finish BIOS flash, you may not boot the system because the BIOS is not completely loaded.

Follow the steps below to run the Phlash:

First, you have to create a crisis diskette. Follow the steps to create a crisis diskette.

1. Insert a floppy disk into the notebook under Windows mode.
2. Execute "wincris.exe"
3. Wait for a few minutes. The process will complete automatically. After you have created the crisis diskette, you can then recover the failed system.
4. Insert the Crisis diskette into the computer.
5. Press Fn+Esc and power on the system.
6. The system will execute the file automatically. Wait for a few minutes; the system will reboot as the entire process completes.

Machine Disassembly and Replacement

This chapter contains step-by-step procedures on how to disassemble the notebook computer for maintenance and troubleshooting.

To disassemble the computer, you need the following tools:

□ Wrist grounding strap and conductive mat for preventing electrostatic discharge ☐ Small Philips screwdriver □ Philips screwdriver ☐ Plastic flat head screwdriver Tweezers

NOTE: The screws for the different components vary in size. During the disassembly process, group the screws with the corresponding components to avoid mismatch when putting back the components. When you remove the stripe cover, please be careful not to scrape the cover.

General Information

Before You Begin

Before proceeding with the disassembly procedure, make sure that you do the following:

1. Turn off the power to the system and all peripherals.
2. Unplug the AC adapter and all power and signal cables from the system.
3. Remove the battery pack.

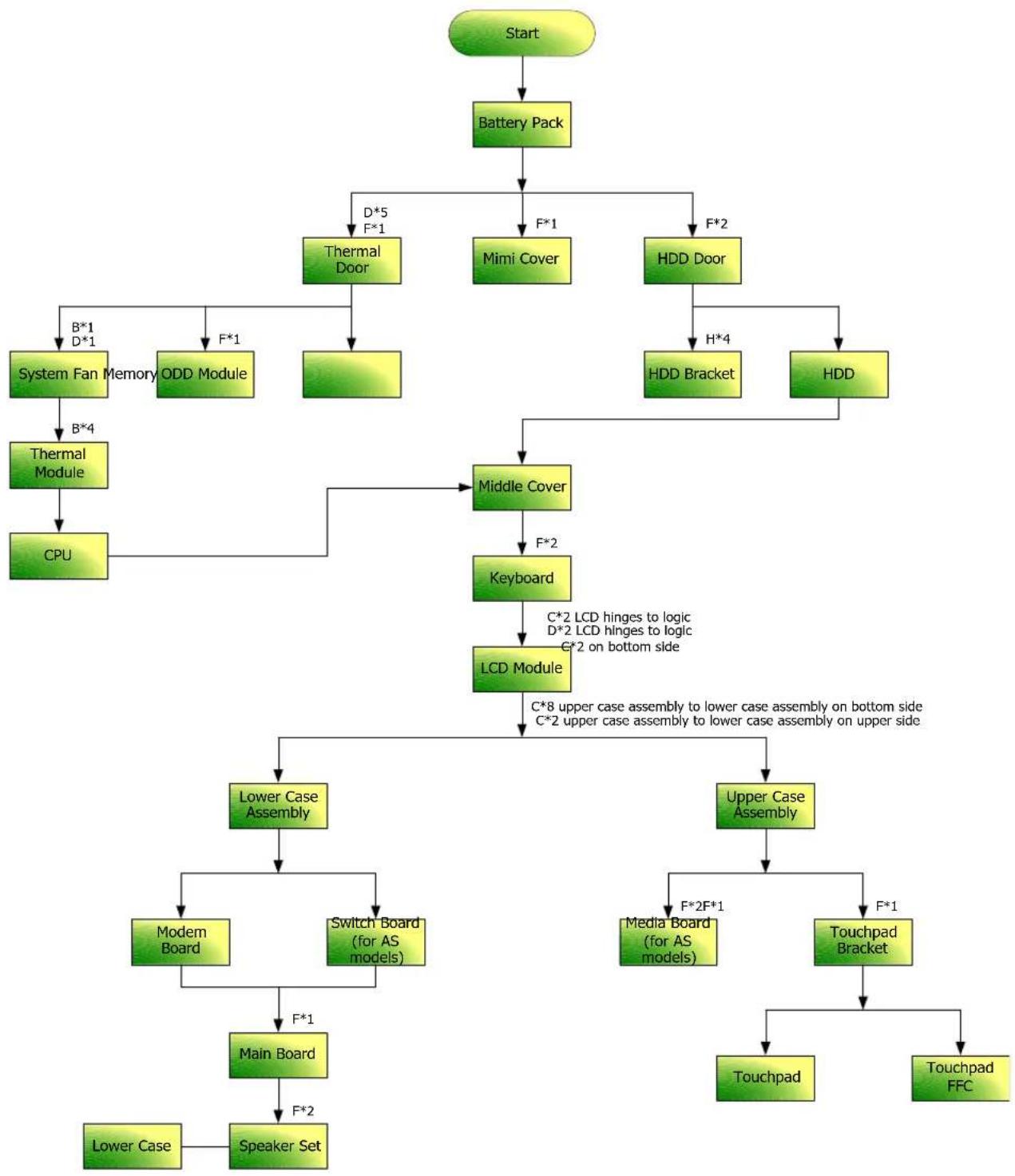

Disassembly Procedure Flowchart

The flowchart on the succeeding page gives you a graphic representation of the entire disassembly sequence and instructs you on the components that need to be removed during servicing. For example, if you want to remove the system board, you must first remove the keyboard, then disassemble the inside assembly frame in that order.

Screw List

Item Description Part Number
A SCREW M2.5*3(NL) 86.TAVV5.001
B SCREW M2.5*6(NL) 86.TAVV5.002
C SCREW M2.5*10(NL) 86.TAVV5.003
D SCREW M2.5*15(NL) 86.TAVV5.004
E SCREW M2*2.2 86.TAVV5.005
F SCREW M2*3(NL) 86.TAVV5.006
G SCREW M2*4 86.TAVV5.007
H SCREW M3*4(NL) 86.TAVV5.008
I SCREW D-SUB 4#X40* 1/5-NI (NL) 86.TAVV5.009

Removing the Battery Pack

1. Slide the battery latch then remove the battery.

Removing the HDD Module/Memory/System Fan/Thermal Module/CPU/ODD Module and LCD Module

Removing the HDD Module

1. Remove the two screws fastening the HDD door.
2. Detach the HDD door from the notebook.

1. Pull the HDD module outwards to disconnect the HDD module from the main board.
2. Take out the HDD module carefully.

Removing the Memory/System Fan/Thermal Module/CPU

1. Remove the six screws fastening the thermal door. (M2.5*15(NL) for red circle; M2*3(NL) for yellow circle)
2. Detach the thermal door from the notebook.
3. Pop out the memory then remove it

1. Use a tweezer to take out the fan cable as shown.
2. Disconnect the fan cable from the main board.

1. Remove the two screws fastening the system fan.
2. Take out the system fan from the main unit.

1. Remove the four screws fastening the thermal module.
2. Then detach the thermal module carefully.

1. Use a flat-headed screwdriver to release the CPU lock (Turn anti-clockwise).
2. Detach the CPU from the CPU socket carefully.

1. Tear off the tape fastening the antenna set.
2. Then remove the antenna protection cover.

1. Remove the screw holding the mini cover.
2. Detach the mini cover from the main unit.

Removing the ODD Module

1. First, remove the screw fastening the ODD module as shown.
2. Push the ODD module outwards then remove it.

Removing the LCD Module

1. Open the LCD module as shown (see the left and the middle pictures).
2. Detach the middle cover from the main unit carefully.

1. Remove the screw fastening the keyboard.
2. Then turn over the keyboard as shown.
3. Disconnect the keyboard cable from the main board.

1. Turn over the notebook, remove two screws fastening the LCD module on the bottom.
2. Then turn the notebook to the front side. Take out the antenna then disconnect the LCD cable (see the middle and the right images).

1. Remove four screws fastening the LCD module (M2.5*10(NL) for yellow circles; M2.5*15(NL) for red circles).
2. Then detach the entire LCD module from the main unit carefully.

Disassembling the Main Unit

Separate the Main Unit Into the Upper and the Lower Case Assembly

1. Remove two screws fastening the upper case assembly to the lower case assembly.
2. Disconnect the LED board cable from the main board.

1. Disconnect the touchpad cable from the main board.
2. Remove eight screws fastening the upper case assembly and the lower case assembly on the bottom as shown.
3. Detach the upper case assembly carefully.

Disassembling the Upper Case Assembly

1. Remove the two screws fastening the media board.
2. Take out the media board cable from the lower case as shown.
3. Detach the media board from the upper case carefully.

NOTE: Only Aspire 5650 series have media board.

1. Tear off the mylar on top of the touchpad bracket.
2. Remove the screws holding the touchpad bracket.
3. Then detach the touchpad bracket from the upper case.

1. Disconnect the touchpad FFC.
2. Then remove the touchpad FFC from the touchpad.
3. Detach the touchpad from the upper case.

Disassembling the Lower Case Assembly

1. Detach the switch board from the main board.
2. Remove the screw fastening the modem board.

1. Disconnect the modem board from the main board then detach the modem board.
2. Detach the modem cable from the lower case.

1. Disconnect the speaker cable from the main board.
2. Then disconnect the microphone cable from the main board.
3. Remove the screw fastening the main board to the lower case.

1. Pull the lower case outwards as the image shows and detach the main board from the lower case carefully.
2. Take out the microphone from the lower case.

1. Remove the two screws fastening the speaker set.
2. Take out the speaker from the lower case.

Disassembling the LCD Module

1. Remove the four screw caps as shown.
2. Remove the four screws holding the LCD bezel.
3. Then detach the LCD bezel from the LCD module.

1. Remove the screw fastening the LCD inverter.
2. Take out the LCD inverter from the LCD cover, then disconnect the LCD cable from the inverter.
3. Disconnect the LCD power cable on the other side.

1. Remove the two screws fastening the LCD assembly.
2. Take out the LCD assembly from the LCD panel.
3. Tear off the tape fastening the LCD cable.

1. Remove the four screws fastening the LCD right bracket.
2. Remove the LCD right bracket.

1. Remove the four screws holding the LCD left bracket.
2. Remove the LCD left bracket.

Disassembling the External Modules

Disassembling the HDD Module

1. Remove two screws holding the HDD bracket on one side.
2. Remove another two screws fastening the HDD bracket on the other side.
3. Detach the HDD from the HDD bracket.

Disassembling the ODD Module

1. Remove the three screws holding the optical bracket.
2. Remove the optical bracket from the optical disk drive.

Troubleshooting

Use the following procedure as a guide for computer problems.

NOTE: The diagnostic tests are intended to test only Acer products. Non-Acer products, prototype cards, or modified options can give false errors and invalid system responses.

1. Obtain the failing symptoms in as much detail as possible.
2. Verify the symptoms by attempting to re-create the failure by running the diagnostic test or by repeating the same operation.
3. Use the following table with the verified symptom to determine which page to go to.

Symptoms (Verified) Go To
Power failure. (The power indicator does not go on or stay on.)	“Power System Check” on page 71.
POST does not complete. No beep or error codes are indicated.	“Power-On Self-Test (POST) Error Message” on page 74“Undetermined Problems” on page 86
POST detects an error and displayed messages on screen.	“Error Message List” on page 75
Other symptoms (i.e. LCD display problems or others).	“Power-On Self-Test (POST) Error Message” on page 74
Symptoms cannot be re-created (intermittent problems).	Use the customer-reported symptoms and go to “Power-On Self-Test (POST) Error Message” on page 74“Intermittent Problems” on page 85“Undetermined Problems” on page 86

System Check Procedures

External Diskette Drive Check

Do the following to isolate the problem to a controller, driver, or diskette. A write-enabled, diagnostic diskette is required.

NOTE: Make sure that the diskette does not have more than one label attached to it. Multiple labels can cause damage to the drive or cause the drive to fail.

Do the following to select the test device.

1. Boot from the diagnostics diskette and start the diagnostics program.
2. See if FDD Test is passed as the program runs to FDD Test.
3. Follow the instructions in the message window.

If an error occurs with the internal diskette drive, reconnect the diskette connector on the system board.

If the error still remains:

1. Reconnect the external diskette drive/DVD-ROM module.
2. Replace the external diskette drive/CD-ROM module.
3. Replace the main board.

External CD-ROM Drive Check

Do the following to isolate the problem to a controller, drive, or CD-ROM. Make sure that the CD-ROM does not have any label attached to it. The label can cause damage to the drive or can cause the drive to fail.

Do the following to select the test device:

1. Boot from the diagnostics diskette and start the diagnostics program.
2. See if CD-ROM Test is passed when the program runs to CD-ROM Test.
3. Follow the instructions in the message window.

If an error occurs, reconnect the connector on the System board. If the error still remains:

1. Reconnect the external diskette drive/CD-ROM module.
2. Replace the external diskette drive/CD-ROM module.
3. Replace the main board.

Keyboard or Auxiliary Input Device Check

Remove the external keyboard if the internal keyboard is to be tested.

If the internal keyboard does not work or an unexpected character appears, make sure that the flexible cable extending from the keyboard is correctly seated in the connector on the system board.

If the keyboard cable connection is correct, run the Keyboard Test.

If the tests detect a keyboard problem, do the following one at a time to correct the problem. Do not replace a non-defective FRU:

1. Reconnect the keyboard cables.
2. Replace the keyboard.
3. Replace the main board.

The following auxiliary input devices are supported by this computer:

□ Numeric keypad External keyboard

If any of these devices do not work, reconnect the cable connector and repeat the failing operation.

Memory check

Memory errors might stop system operations, show error messages on the screen, or hang the system.

1. Boot from the diagnostics diskette and start the diagnostics program (please refer to the main board).
2. Go to the diagnostic memory in the test items.
3. Press F2 in the test items.
4. Follow the instructions in the message window.

NOTE: Make sure that the DIMM is fully installed into the connector. A loose connection can cause an error.

Power System Check

To verify the symptom of the problem, power on the computer using each of the following power sources:

1. Remove the battery pack.
2. Connect the power adapter and check that power is supplied.
3. Disconnect the power adapter and install the charged battery pack; then check that power is supplied by the battery pack.

If you suspect a power problem, see the appropriate power supply check in the following list:

☐ "Check the Power Adapter" on page 72 ☐ "Check the Battery Pack" on page 73

Check the Power Adapter

Unplug the power adapter cable from the computer and measure the output voltage at the plug of the power adapter cable. See the following figure

Pin 1: +19 to +20.5V Pin 2: 0V, Ground

1. If the voltage is not correct, replace the power adapter.
2. If the voltage is within the range, do the following:

☐ Replace the System board. ☐ If the problem is not corrected, see “Undetermined Problems” on page 86. ☐ If the voltage is not correct, go to the next step.

NOTE: An audible noise from the power adapter does not always indicate a defect.

1. If the power-on indicator does not light up, check the power cord of the power adapter for correct continuity and installation.
2. If the operational charge does not work, see "Check the Battery Pack" on page 73.

Check the Battery Pack

To check the battery pack, do the following:

From Software:

1. Check out the Power Management in Control Panel
2. In Power Meter, confirm that the parameters shown on the screen for Current Power Source and Total Battery Power Remaining are correct.
3. Repeat steps 1 and 2 for both battery and adapter.
4. This helps you identify whether the problem is with recharging or discharging.

From Hardware:

1. Power off the computer.
2. Remove the battery pack and measure the voltage between battery terminals 1(+) and 6(ground). See the following figure.

1. If the voltage is still less than 7.5 Vdc after recharging, replace the battery.

To check the battery charge operation, use a discharged battery pack or a battery pack that has less than 50% of the total power remaining when installed in the computer.

If the battery status indicator does not light up, remove the battery pack and let it return to room temperature. Re-install the battery pack.

If the charge indicator still does not light up, replace the battery pack. If the charge indicator still does not light up, replace the DC/DC charger board.

Touchpad Check

If the touchpad doesn't work, do the following actions one at a time to correct the problem. Do not replace a non-defective FRU:

1. Reconnect the touchpad cables.
2. Replace the touchpad.
3. Replace the system board.

After you use the touchpad, the pointer drifts on the screen for a short time. This self-acting pointer movement can occur when a slight, steady pressure is applied to the touchpad pointer. This symptom is not a hardware problem. No service actions are necessary if the pointer movement stops in a short period of time.

Power-On Self-Test (POST) Error Message

The POST error message index lists the error message and their possible causes. The most likely cause is listed first.

NOTE: Perform the FRU replacement or actions in the sequence shown in FRU/Action column, if the FRU replacement does not solve the problem, put the original part back in the computer. Do not replace a non-defective FRU.

This index can also help you determine the next possible FRU to be replaced when servicing a computer.

If the symptom is not listed, see "Undetermined Problems" on page 86.

The following lists the error messages that the BIOS displays on the screen and the error symptoms classified by function.

NOTE: Most of the error messages occur during POST. Some of them display information about a hardware device, e.g., the amount of memory installed. Others may indicate a problem with a device, such as the way it has been configured.

NOTE: If the system fails after you make changes in the BIOS Setup Utility menus, reset the computer, enter Setup and install Setup defaults or correct the error.

Index of Error Messages

Error Code List

Error Codes Error Messages
006 Equipment Configuration Error	Causes:1. CPU BIOS Update Code Mismatch2. IDE Primary Channel Master Drive Error (THe causes will be shown before “Equipment Configuration Error”)
010 Memory Error at xxxx:xxxx:xxxxh (R:xxxxh, W:xxxxh)
070 Real Time Clock Error
071 CMOS Battery Bad
072 CMOS Checksum Error
110 System disabled.	Incorrect password is specified.
<No error code> Battery critical LOW	In this situation BIOS will issue 4 short beeps then shut down system, no message will show.
<No error code> Thermal critical High	In this situation BIOS will shut down system, not show message.

Error Message List

Error Messages FRU/Action in Sequence
Failure Fixed Disk Reconnect hard disk drive connector. “Load Default Settings” in BIOS Setup Utility. Hard disk drive System board
Stuck Key see “Keyboard or Auxiliary Input Device	Check” on page 70.
Keyboard error see “Keyboard or Auxiliary Input Device Check” on page 70.
Keyboard Controller Failed see “Keyboard or Auxiliary Input Device Check” on page 70.
Keyboard locked - Unlock key switch Unlock external keyboard
Monitor type does not match CMOS - Run Setup Run “Load Default Settings” in BIOS Setup Utility.
Shadow RAM Failed at offset: nnnn BIOS ROM	System board
System RAM Failed at offset: nnnn	DIMM System board
Extended RAM Failed at offset: nnnn	DIMM System board
System battery is dead - Replace and run Setup	Replace RTC battery and Run BIOS Setup Utility to reconfigure system time, then reboot system.
System CMOS checksum bad - Default configuration used	RTC battery Run BIOS Setup Utility to reconfigure system time, then reboot system.
System timer error	RTC battery Run BIOS Setup Utility to reconfigure system time, then reboot system. System board

Error Message List

Error Messages	FRU/Action in Sequence
Real time clock error RTC battery	Run BIOS Setup Utility to reconfigure system time, then reboot system.System board
Previous boot incomplete - Default configuration used	Run “Load Default Settings” in BIOS Setup Utility.RTC batterySystem board
Memory size found by POST differed from CMOS	Run “Load Default Settings” in BIOS Setup Utility.DIMMSystem board
Diskette drive A error Check the drive is defined with the proper diskette type in BIOSSetup UtilitySee “External Diskette Drive Check” on page 70.
Incorrect Drive A type - run SETUP	Check the drive is defined with the proper diskette type in BIOS Setup Utility
System cache error - Cache disabled System board
CPU ID: System board
DMA Test Failed DIMM	System board
Software NMI Failed DIMM	System board
Fail-Safe Timer NMI Failed DIMM	System board
Device Address Conflict Run “Load Default Settings” in BIOS Setup Utility.RTC batterySystem board
Allocation Error for device Run “Load Default Settings” in BIOS Setup Utility.RTC batterySystem board
Failing Bits: nnnn DIMM	BIOS ROMSystem board
Fixed Disk n None
Invalid System Configuration Data	BIOS ROMSystem board
I/O device IRQ conflict	Run “Load Default Settings” in BIOS Setup Utility.RTC batterySystem board
Operating system not found	Enter Setup and see if fixed disk and drive A: are properly identified. Diskette driveHard disk driveSystem board

Error Message List

No beep Error Messages FRU/Action	in Sequence
No beep, power-on indicator turns off and LCD is blank.	Power source (battery pack and power adapter). See “Power System Check” on page 71..Ensure every connector is connected tightly and correctly.Reconnect the DIMM.LED board.System board.
No beep, power-on indicator turns on and LCD is blank.	Power source (battery pack and power adapter). See “Power System Check” on page 71..Reconnect the LCD connectorHard disk driveLCD inverter IDLCD cableLCD InverterLCDSystem board
No beep, power-on indicator turns on and LCD is blank. But you can see POST on an external CRT.	Reconnect the LCD connectors.LCD inverter IDLCD cableLCD inverterLCDSystem board
No beep, power-on indicator turns on and a blinking cursor shown on LCD during POST.	Ensure every connector is connected tightly and correctly.System board
No beep during POST but system runs correctly. S	speakerSystem board

Phoenix BIOS Beep Codes

Code Beeps POST	Routine Description
02h Verify Real Mode
03h Disable Non-Maskable Interrupt (NMI)
04h Get CPU type
06h Initialize system hardware
08h Initialize chipset with initial POST values
09h Set IN POST flag
0Ah Initialize CPU registers
0Bh Enable CPU cache
0Ch Initialize caches to initial POST values
0Eh Initialize I/O component
0Fh Initialize the local bus IDE
10h Initialize Power Management
11h Load alternate registers with initial POST values		values
12h Restore CPU control word during warm boot
13h Initialize PCI Bus Mastering devices
14h Initialize keyboard controller
16h 1-2-2-3 BIOS ROM checksum
17h Initialize cache before memory autosize
18h 8254 timer initialization
1Ah 8237 DMA controller initialization
1Ch Reset Programmable Interrupt Controller
20h 1-3-1-1 Test DRAM refresh
22h 1-3-1-3 Test 8742 Keyboard Controller
24h Set ES segment register to 4 GB
26h Enable A20 line
28h Autosize DRAM
29h Initialize POST Memory Manager
2Ah Clear 215 KB base RAM
2Ch 1-3-4-1 RAM failure on address line xxxx
2Eh 1-3-4-3 RAM failure on data bits xxxx of low byte of memory bus
2Fh Enable cache before system BIOS shadow
30h 1-4-1-1 RAM failure on data bits xxxx of high byte of memory bus
32h Test CPU bus-clock frequency
33h Initialize Phoenix Dispatch Manager
36h Warm start shut down
38h Shadow system BIOS ROM
3Ah Autosize cache
3Ch Advanced configuration of chipset registers
3Dh Load alternate registers with CMOS values
42h Initialize interrupt vectors
45h POST device initialization
Code Beeps POST Routine Description
46h 2-1-2-3 Check ROM copyright notice
48h Check video configuration against CMOS
49h Initialize PCI bus and devices
4Ah Initialize all video adapters in system
4Bh QuietBoot start (optional)
4Ch Shadow video BIOS ROM
4Eh Display BIOS copyright notice
50h Display CPU type and speed
51h Initialize EISA board
52h Test keyboard
54h Set key click if enabled
58h 2-2-3-1 Test for unexpected interrupts
59h Initialize POST display service
5Ah Display prompt “Press F2 to enter SETUP”
5Bh Disable CPU cache
5Ch Test RAM between 512 and 640 KB
60h Test extended memory
62h Test extended memory address lines
64h Jump to User Patch1
66h Configure advanced cache registers
67h Initialize Multi Processor APIC
68h Enable external and CPU caches
69h Setup System Management Mode (SMM) area
6Ah Display external L2 cache size
6Bh Load custom defaults (optional)
6Ch Display shadow-area message
6Eh Display possible high address for UMB		recovery
70h Display error messages
72h Check for configuration errors
76h Check for keyboard errors
7Ch Set up hardware interrupt vectors
7Eh Initialize coprocessor if present
80h Disable onboard Super I/O ports and IRQs
81h Late POST device initialization
82h Detect and install external RS232 ports
83h Configure non-MCD IDE controllers
84h Detect and install external parallel ports
85h Initialize PC-compatible PnP ISA devices
86h Re-initialize onboard I/O ports
87h Configure Motherboard Configurable Devices		(optional)
88h Initialize BIOS Area
89h Enable Non-Maskable Interrupts (NMIs)
8Ah Initialize Extended BIOS Data Area
8Bh Test and initialize PS/2 mouse
Code Beeps POST	Routine Description
8Ch Initialize floppy controller
8Fh Determine number of ATA drives (optional)
90h Initialize hard-disk controllers
91h Initialize local-bus hard-disk controllers
92h Jump to UserPatch2
93h Build MPTABLE for multi-processor boards
95h Install CD ROM for boot
96h Clear huge ES segment register
97h Fixup Multi Processor table
98h 1-2 Search for option ROMs. One long, two short		beeps on checksum failure.
99h Check for SMART drive (optional)
9Ah Shadow option ROMs
9Ch Set up Power Management
9Dh Initialize security engine (optional)
9Eh Enable hardware interrupts
9Fh Determine number of ATA and SCSI drives
A0h Set time of day
A2h Check key lock
A4h Initialize Typematic rate
A8h Erase F2 prompt
AAh Scan for F2 key stroke
ACh Enter SETUP
AEh Clear Boot flag
B0h Check for errors
B2h POST done- prepare to boot operating system
B4h 1 One short beep before boot
B5h Terminate QuietBoot (optional)
B6h Check password (optional)
B9h Prepare Boot
BAh Initialize DMI parameters
BBh Initialize PnP Option ROMs
BCh Clear parity checkers
BDh Display MultiBoot menu
BEh Clear screen (optional)
BFh Check virus and backup reminders
C0h Try to boot with INT 19
C1h Initialize POST Error Manager (PEM)
C2h Initialize error logging
C3h Initialize error display function
C4h Initialize system error handler
C5h PnPnd dual CMOS (optional)
C6h Initialize notebook docking (optional)
C7h Initialize notebook docking late
C8h Force check (optional)
C9h Extended checksum (optional)
D2h Unknown interrupt

Code Beeps
E0h Initialize the chipset
E1h Initialize the bridge
E2h Initialize the CPU
E3h Initialize the system timer
E4h Initialize system I/O
E5h Check force recovery boot
E6h Checksum BIOS ROM
E7h Go to BIOS
E8h Set Huge Segment
E9h Initialize Multi Processor
EAh Initialize OEM special code
EBh Initialize PIC and DMA
ECH Initialize Memory type
EDh Initialize Memory size
EEh Shadow Boot Block
EFh System memory test
F0h Initialize interrupt vectors
F1h Initialize Run Time Clock
F2h Initialize video
F3h Initialize System Management Mode
F4h 1 Output one beep before boot
F5h Boot to Mini DOS
F6h Clear Huge Segment
F7h Boot to Full DOS

Index of Symptom-to-FRU Error Message

LCD-Related Symptoms

Symptom / Error Action in Sequence
LCD backlight doesn't workLCD is too darkLCD brightness cannot be adjustedLCD contrast cannot be adjusted	Enter BIOS Utility to execute “Load Setup Default Settings”, then reboot system.Reconnect the LCD connectors spacecraft (if contrast and brightness function key doesn't work).LCD inverter IDLCD cableLCD inverterLCDSystem board
Unreadable LCD screenMissing pels in charactersAbnormal screenWrong color displayed	Reconnect the LCD connectorLCD inverter IDLCD cableLCD inverterLCDSystem board
LCD has extra horizontal or vertical lines displayed.	LCD inverter IDLCD inverterLCD cableLCDSystem board

Indicator-Related Symptoms

Symptom / Error Action in Sequence
Indicator incorrectly remains off or on, but system runs correctly	Reconnect the inverter boardInverter boardSystem board

Power-Related Symptoms

Symptom / Error Action in Sequence
Power shuts down during operation Power source	(battery pack and power adapter). See “Power System Check” on page 71.Battery packPower adapterHard drive & battery connection boardSystem board
The system doesn’t power-on. Power source (battery pack and power adapter). See “Power System Check” on page 71.Battery packPower adapterHard drive & battery connection boardSystem board
The system doesn’t power-off. Power source (battery pack and power adapter). See “Power System Check” on page 71.Hold and press the power switch for more than 4 seconds.System board

Power-Related Symptoms

Symptom / Error Action in Sequence

Battery can’t be charged See “Check the Battery Pack” on page 73.Battery packSystem board

PCMCIA-Related Symptoms

Symptom / Error Action in Sequence
System cannot detect the PC Card (PCMCIA) PC	MCIA slot assembly
	System board
PCMCIA slot pin is damaged. PCMCIA slot assembly

Memory-Related Symptoms

Symptom / Error Action in Sequence
Memory count (size) appears different from actual size.	Enter BIOS Setup Utility to execute “Load Default Settings, then reboot system.DIMMSystem board

Speaker-Related Symptoms

Symptom / Error Action in Sequence
In Windows, multimedia programs, no sound comes from the computer.	Audio driverSpeakerSystem board
Internal speakers make noise or emit no sound. SpeakerSystem board

Power Management-Related Symptoms

Symptom / Error Action in Sequence
The system will not enter hibernation See “Save to	Disk (S4)” on page 35. Keyboard (if control is from the keyboard) Hard disk drive System board
The system doesn’t enter hibernation mode and four short beeps every minute.	Press Fn+F4and see if the computer enters hibernation mode. Touchpad Keyboard Hard disk connection board Hard disk drive System board
The system doesn’t enter standby mode after closing the LCD	See “Save to Disk (S4)” on page 35. LCD cover switch System board
The system doesn’t resume from hibernation mode.	See “Save to Disk (S4)” on page 35. Hard disk connection board Hard disk drive System board
The system doesn’t resume from standby mode after opening the LCD.	See “Save to Disk (S4)” on page 35. LCD cover switch System board

Power Management-Related Symptoms

Symptom / Error Action in Sequence
Battery fuel gauge in Windows doesn’t go higher than 90%.	Remove battery pack and let it cool for 2 hours.Refresh battery (continue use battery until power off, then charge battery).Battery packSystem board
System hangs intermittently. Reconnect hard disk/	CD-ROM drives.Hard disk connection boardSystem board

Peripheral-Related Symptoms

Symptom / Error Action in Sequence
System configuration does not match the installed devices.	Enter BIOS Setup Utility to execute “Load Default Settings”, then reboot system.Reconnect hard disk/CD-ROM/diskette drives.
External display does not work correctly. Press Fn	+F5, LCD/CRT/Both display switchingSystem board
USB does not work correctly System board
Print problems. Ensure the “Parallel Port” in the “O	nboard Devices Configuration” ofBIOS Setup Utility is set to Enabled.Onboard Devices ConfigurationRun printer self-test.Printer driverPrinter cablePrinterSystem Board
Serial or parallel port device problems.	Ensure the “Serial Port” in the Devices Configuration” of BIOS Setup Utility is set to Enabled.Device driverDevice cableDeviceSystem board

Keyboard/Touchpad-Related Symptoms

Symptom / Error Action in Sequence

Keyboard (one or more keys) does not work. Reconnect the keyboard cable.

Touchpad does not work. Reconnect touchpad cable.

Modem-Related Symptoms

Symptom / Error Action in Sequence
Internal modem does not work correctly. Modem p	phone portmodem combo boardSystem board

NOTE: If you cannot find a symptom or an error in this list and the problem remains, see "Undetermined Problems" on page 86.

Intermittent Problems

Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement should be considered only when a recurring problem exists.

When analyzing an intermittent problem, do the following:

1. Run the advanced diagnostic test for the system board in loop mode at least 10 times.
2. If no error is detected, do not replace any FRU.
3. If any error is detected, replace the FRU. Rerun the test to verify that there are no more errors.

Undetermined Problems

The diagnostic problems does not identify which adapter or device failed, which installed devices are incorrect, whether a short circuit is suspected, or whether the system is inoperative.

Follow these procedures to isolate the failing FRU (do not isolate non-defective FRU).

NOTE: Verify that all attached devices are supported by the computer.

NOTE: Verify that the power supply being used at the time of the failure is operating correctly. (See “Power System Check” on page 71.):

1. Power-off the computer.
2. Visually check them for damage. If any problems are found, replace the FRU.
3. Remove or disconnect all of the following devices:

□ Non-Acer devices ☐ Printer, mouse, and other external devices Battery pack □ Hard disk drive DIMM ☐ CD-ROM/Diskette drive Module PC Cards

1. Power-on the computer.
2. Determine if the problem has changed.
3. If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU.
4. If the problem remains, replace the following FRU one at a time. Do not replace a non-defective FRU:

□ System board LCD assembly

Jumper and Connector Locations

Board Layout

Top View

1 JP1 LCD Connector 10 SW7 Touchpad Down Button 2 SW1 Lid Switch 11 SW2 Touchpad Up Button 3 JP3 MDC Connector 12 SW5 Touchpad Left Button 4 JP2 Power Button Connector 13 SW3 Touchapd Left Button 5 JP6 Media Board Connector 14 JP13 Internal Microphone Connector 6 JP7 Touchpad Board Connector 15 JP12 Internal Speaker Connector 7 JP43 SIM Card Connector 16 JP9 PCMCIA Socket 8 SW4 Touchpad Right Button 17 IR1 FIR Module 9 SW6 Touchpad Left Button 18 JP8 Internal Keyboard Connector

Bottom View

NOTE: This is engineering sample. The image above may not be exactly the same as the real main board you get.

1 JP19 FAN Connector 17 JP40 Headphone/SPDIF Jack 2 U42 VGA Chipset 18 JP41 Line-In Jack 3 JP18 CPU Socket 19 JP42 Microphone-in Jack 4 JP16 DVI Connector 20 IR2 CIR Module 5 JP15 CRT Connector 21 SW8 Wireless LAN Switch 6 JP14 TV-Out Connector 22 SW9 Bluetooth and 3G Switch 7 PCN1 DC-IN Jack 23 U48 South Bridge Chipset 8 JP17 Mini Card Connector 24 JP30 Mini Card Connector 9 JP22 DDRII so-DIMM Socket 25 JP29 IEEE 1394 Connector 10 JP21 DDRII so-DIMM Socket 26 JP27 5 IN1 Socket 11 J3 Clear CMOS Jumper 27 JP23 RJ45 Connector 12 JP24 ODD Connector 28 JP5 USB Connector 13 PJP1 Battery Connector 29 JP4 USB Connector 14 JP32 HDD Connector (SATA) 30 JP28 MINIPCI Connector (TV-Tuner) 15 JP33 HDD Connector (PATA) 31 JP25 FAN Connector 16 JP36 Bluetooth Connector 32 U40 North Bridge Chipset

Jumper Board Layout

Switch Board Top View

Label Description
SW1 Arcade/TV tunver switch
SW2 Volume Up switch
SW3 Volume Down switch
SW4 Play/Pause switch
SW5 Stop switch
SW6 Forward/Next switch
SW7 Backward/Previous switch

Media Board Top View

Label Description
SW1 Power Button
SW2 E-mail Button
SW3 Internet Button
SW4 User Button
SW5 E-Power Button

Media Board Bottom View

Label Description
JP3 USB Connector
JP2 USB Connector
JP6 RF INe Connector
JP5 RF Cable Connector
JP4 AV IN Connector
JP7 Board to Main Board	Connector

LS-2923P Power Board Top View

Label Description
JP1 SIM Card Connector

Jumper Setting

Label Description
J3 Clear CMOS Jumper	Note: J3 locates at bottom side of the main board as the red circle highlighted.

FRU (Field Replaceable Unit) List

This chapter gives you the FRU (Field Replaceable Unit) list in global configurations of Travelmate 4200. Please refer to this chapter whenever ordering for parts to repair or for RMA (Return Merchandise Authorization).

Please note that WHEN ORDERING FRU PARTS, you should check the most up-to-date information available on your regional web or channel. For whatever reasons a part number change is made, it will not be noted on the printed Service Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code from those given in the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations on how to dispose it properly, or follow the rules set by your regional Acer office on how to return it.

Exploded Diagram

The exploded diagram is not available as the service guide released. We will update this chapter as soon as we get the data from our vendor.

Parts

CATEGORY PARTNAME DESCRIPTION Acer PN
ADAPTER
	ADAPTER 90W 3PIN DELTA ADP-90SB BBAC	ADAPTER 90W 3PIN DELTA ADP-90SB BBAC	AP.09001.003
	ADAPTER 90W 3PIN LITEON PA-1900-04LR	ADAPTER 90W 3PIN LITEON PA-1900-04LR	AP.09003.006
	ADAPTER 90W 3PIN LISHIN SLS0202C19A20LF	ADAPTER 90W 3PIN LISHIN SLS0202C19A20LF	AP.09006.004
BATTERY
	BATTERY LI-ION 6 CELLS 4000MAH SANYO	BATTERY LI-ION 6 CELLS 4000MAH SANYO	BT.00603.017
	BATTERY LI-ION 6 CELLS 4000MAH PANASONIC	BATTERY LI-ION 6 CELLS 4000MAH PANASONIC	BT.00605.004
	BATTERY LI-ION 6 CELLS 4000MAH SONY	BATTERY LI-ION 6 CELLS 4000MAH SONY	BT.00604.008
BOARD
	MODEM BOARD FOXCONN T60M845.02	MODEM BOARD FOXCONN T60M845.02	54.TAVV5.001
	BLUETOOTH MODULE FOXCONN T60H928.00 (BRM2045)	BLUETOOTH MODULE FOXCONN T60H928.00 (BRM2045)	54.TAVV5.002
	MINI PCI WIRELESS BOARD 802.11 A/B/G MOW1 INTEL MM872612	MINI PCI WIRELESS BOARD 802.11 A/B/G MOW1 INTEL MM872612	KI.GLN01.001
	MINI PCI WIRELESS BOARD 802.11 A/B/G MOW2 INTEL MM872659	MINI PCI WIRELESS BOARD 802.11 A/B/G MOW2 INTEL MM872659	KI.GLN01.002
	MINI PCI WIRELESS BOARD 802.11 A/B/G ROW INTEL MM874511	MINI PCI WIRELESS BOARD 802.11 A/B/G ROW INTEL MM874511	KI.GLN01.003
	MINI PCI WIRELESS BOARD 802.11 A/B/G JPN	MINI PCI WIRELESS BOARD 802.11 A/B/G JPN	KI.GLN01.004
	SWITCH BOARD W/O TV AS/TM SWITCH	BOARD W/O TV AS/TM 55.TAVV5.001
	SIM BOARD W/FFC SIM BOARD W/FFC	55.TAVV5.002
	INVERTER BOARD - 15 IN. INVERTER BOARD - 15 IN. 19.TAVV5.001
	INVERTER BOARD - 15.4 IN. INVERTER BOARD - 15.4 IN. 19.TAVV5.002
N/A EXPRESS CARD EXPRESS CARD 55.TAVV5.003
CABLE
	FFC CABLE - T/P TO MB FFC CABLE - T/P TO MB 50.TAVV5.001

CATEGORY	PARTNAME	DESCRIPTION	Acer PN
	RJ-11 CABLE RJ-11 CABLE 50.TAVV5.002
	BLUETOOTH CABLE BLUETOOTH CABLE 50.TAVV5.003
	LCD WIRESET - 15 IN. LCD WIRESET - 15 IN. 50.TAVV5.004
	LCD WIRESET - 15.4 LCD WIRESET - 15.4 50.TAVV5.005
N/A POWER CORD US 3 PIN POWER CORD US 3 PIN 27.TAVV5.001
		POWER CORD EU 3 PIN POWER CORD EU 3 PIN 27.TAVV5.002
		POWER CORD AUS 3 PIN POWER CORD AUS 3 PIN 27.TAVV5.003
		POWER CORD UK 3 PIN POWER CORD UK 3 PIN 27.TAVV5.004
		POWER CORD CHINA 3 PIN POWER CORD CHINA 3 PIN 27.TAVV5.005
		POWER CORD SWISS 3 PIN POWER CORD SWISS 3 PIN 27.TAVV5.006
		POWER CORD ITALIAN 3 PIN POWER CORD ITALIAN 3 PIN 27.TAVV5.007
		POWER CORD DENMARK 3 PIN POWER CORD DENMARK 3 PIN 27.TAVV5.008
		POWER CORD JP 3 PIN POWER CORD JP 3 PIN 27.TAVV5.009
		POWER CORD SOUTH AFRICA 3 PIN POWER CORD SOUTH AFRICA 3 PIN POWER CORD SOUTH AFRICA 3 PIN POWER CORD SOUTH AFRICA 3 PIN POWER CORD SOUTH AFRICA 3 PIN POWER CORD SOUTH AFRICA 3 PIN POWER CORD SOUTH AFRICA 3 PIN POWER CORD SOUTH AFRICA 3 PIN POWER CORD SOUTH AFRICA 3 PIN POWER CORD SOUTH AFRICA 3 PIN POWER CORD SOUTH AFRICA 3 PIN
		POWER CORD KOERA 3 PIN POWER CORD KOERA 3 PIN 27.TAVV5.011
		POWER CORD ISRAEL 3 PIN POWER CORD ISRAEL 3 PIN 27.TAVV5.012
		POWER CORD INDIA 3 PIN POWER CORD INDIA 3 PIN 27.TAVV5.013
		POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TW N 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN Power CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWN 3 PIN POWER CORD TWNT 3 PIN POWER CORD TWNT 3 PIN POWER CORD TWNT 3 PIN POWER CORD TWNT 3 PIN POWER CORD TWNT 3 PIN POWER CORD TWNT 3 PIN POWER CORD TWNT 3 PIN POWER CORD TWNT 3 PIN POWER CORD TWNT 3 PIN POWER CORD TWNT 3 PIN POWER CORD TWNT 3 PIN POWER CORD TWNT 3 PIN POWER CORD TWNT 3 PIN LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMERLEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMEL LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMR LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER TEAM LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER ELMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMERS LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER ELAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAEMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEA EMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMEN LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LETAILLE LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LEAMER LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LEAMER LETAILLE LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LETAILLE LEAMER RETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAEMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAILLLE LEAMER LETAINLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMER LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEAMERS LETAILLE LEGES LETAILLE LEGES LETAILLE LEGES LETAILLE LEGES LETAILLE LEGES LETAILLE LEGES LETAILLE LEGES LETAILLE LEGES LETAILLE LEGES LETAILLE LEGES LETAILLE LEGES LETAILLE LEGES LETAILLE LEGES LETAILLE LEGES LETAILLE LEGES LETAILLE LEGES LETAILLE LEGES LETAILLE LEGES LETAILLE LEGES LETAILLE LEGES LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGIS LETAILLE LEGIS LETAILLE LEGIS LETAILLE LEGIS LETAILLE LEGIS LETAILLE LEGIS LETAILLE LEGIS LETAILLE LEGIS LETAILLE LEGIS LETAILLE LEGIS LETAILLE LEGIS LETAILLE LEGIS LETAILLE LEGIS LETAILLE LEGIS LETAILLE LEGIS LETAILLE LEGIS LETAILLE LEGIS LETAILLE LEGIS LETAILLE LEGIS LETAILLE LEGIS LETAILLE LEGI LETAILLE LEGI LETAILLE LEGI LETAILLE LEGI LETAILLE LEGI LETAILLE LEGI LETAILLE LEGI LETAILLE LEGI LETAILLE LEGI LETAILLE LEGI LETAILLE LEGI LETAILLE LEGI LETAILLE LEGI LETAILLE LEGI LETAILLE LEGI LETAILLE LEGI LETAILLE LEGI LETAILLE LEGI LETAILLE LEGI LETAILLE LEGI LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEG i LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGS LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGes LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGis LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGi LETAILLE LEGn LETAILLE LEGn LETAILLE LEGn LETAILLE LEGn LETAILLE LEGn LETAILLE LEGn LETAILLE LEGn LETAILLE LEGn LETAILLE LEGn LETAILLE LEGn LETAILLE LEGn LETAILLE LEGn LETAILLE LEGn LETAILLE LEGn LETAILLE LEGn LETAILLE LEGn LETAILLE LEGn LETAILLE LEGn LETAILLE LEGn LETAILLE LEGn LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGg LETAILLE LEGg LETAILLE LEGg LETAILLE LEGg LETAILLE LEGg LETAILLE LEGg LETAILLE LEGg LETAILLE LEGg LETAILLE LEGg LETAILLE LEGg LETAILLE LEGg LETAILLE LEGg LETAILLE LEGg LETAILLE LEGg LETAILLE LEGg LETAILLE LEGg LETAILLE LEGg LETAILLE LEGg LETAILLE LEGg LETAILLE LEGg LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGa LETAILLE LEGa LETAILLE LEGa LETAILLE LEGa LETAILLE LEGa LETAILLE LEGa LETAILLE LEGa LETAILLE LEGa LETAILLE LEGa LETAILLE LEGa LETAILLE LEGa LETAILLE LEGa LETAILLE LEGa LETAILLE LEGa LETAILLE LEGa LETAILLE LEGa LETAILLE LEGa LETAILLE LEGa LETAILLE LEGa LETAILLE LEGa LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEGs LETAILLE LEG

CATEGORY PARTNAME DESCRIPTION Acer PN
	OPTICAL BRACKET OPTICAL BRACKET 33.TAVV5.002
	HDD DOOR TM HDD DOOR TM 42.TAVV5.004
	HDD BRACKET HDD BRACKET 33.TAVV5.003
	DVD/CDRW COMBO BEZEL DVD/CDRW COMBO BEZEL 42.TAVV5.005
	DVD DUAL BEZEL DVD DUAL BEZEL 42.TAVV5.006
	DVD SUPER MULTI BEZEL HLDS DVD SUPER MULTI BEZEL HLDS 42.TAVV5.010
LCD
	ASSY LCD MODULE 15 IN. XGA AUO (B150XG02. V4) TM FOR WIRELESS	ASSY LCD MODULE 15 IN. XGA AUO (B150XG02. V4) TM FOR WIRELESS	N/A
	ASSY LCD MODULE 15.4 WXGA TM FOR WIRELESS	ASSY LCD MODULE 15.4 WXGA TM FOR WIRELESS	N/A
	LCD 15 IN. XGA AUO (B150XG02. V4) LF	LCD 15 IN. XGA AUO (B150XG02. V4) LF	LK.15005.010
	LCD 15 IN. XGA QDI QD15XL06 V.3 LF	LCD 15 IN. XGA QDI QD15XL06 V.3 LF	LK.15009.008
	LCD 15 IN. XGA LG LP154X08-TLA2 LF	LCD 15 IN. XGA LG LP154X08-TLA2 LF	LK.15008.019
	LCD 15 IN. XGA CMO N150X3-L09 Rev. C1 LF	LCD 15 IN. XGA CMO N150X3-L09 Rev. C1 LF	LK.1500D.013
	LCD 15 IN. XGA SAMSUNG LTN150XB-L03-V LF	LCD 15 IN. XGA SAMSUNG LTN150XB-L03-V LF	LK.15006.008
	LCD 15.4 WXGA LG LP154W01-TLA1 LF	LCD 15.4 WXGA LG LP154W01-TLA1 LF	LK.15408.013
	LCD 15.4 WXGA SAMSUNG LTN154X3-L01-100 LF	LCD 15.4 WXGA SAMSUNG LTN154X3-L01-100 LF	LK.15406.014
	LCD 15.4 WXGA AUO B154EW01 V.8 LF	LCD 15.4 WXGA AUO B154EW01 V.8 LF	LK.15405.005
	LCD 15.4 WXGA CMO N154I1-L0B Rev. C1 LF	LCD 15.4 WXGA CMO N154I1-L0B Rev. C1 LF	LK.1540D.005
	LCD 15.4 WXGA QDI QD15TL07-01 LF	LCD 15.4 WXGA QDI QD15TL07-01 LF	LK.15409.008
	LCD PANEL 15 IN. WITH LOGO W/15 IN. ANTENNA TM	LCD PANEL 15 IN. WITH LOGO W.15 IN. ANTENNA TM	60.TAVV5.003
	LCD PANEL 15.4 IN. WITH LOGO W/ 15.4 IN. ANTENNA TM	LCD PANEL 15.4 IN. WITH LOGO W/ 15.4 IN. ANTENNA TM	60.TAVV5.005
	LCD BEZEL - 15 IN. LCD BEZEL - 15 IN.	60.TAVV5.004
	LCD BEZEL - 15.4 TEXTURE LCD BEZEL - 15.4 TEXTURE 60.TAVV5.006
	LCD BRACKET SET (R&L) - 15 LCD BRACKET SET (R&L) - 15 6K.TAVV5.001
	LCD BRACKET SET (R&L) - 15.4 LCD BRACKET SET (R&L) - 15.4 6K.TAVV5.003
COMMUNICATION MODULE
	WIRELESS ANTENNA 15 IN. WIRELESS	ANTENNA 15 IN. 50.TAVV5.011
	WIRELESS ANTENNA 15.4 IN. WIRELESS	S ANTENNA 15.4 IN. 50.TAVV5.012
MISCELLANEOUS
N/A LCD RUBBER	LCD RUBBER 47.TAVV5.001
	LATCH RUBBER LATCH RUBBER 47.TAVV5.006
	LCD SCREW PAD LCD SCREW PAD 47	TAVV5.002
CPU/PROCESSOR
N/A CPU INTEL YONAH FSB-667 DUALCORE 2.16G 2M		CPU INTEL YONAH FSB-667 DUALCORE 2.16G 2M	KC.26001.DTP
CPU INTEL YONAH FSB-667 DUALCORE 1.83G 2M		CPU INTEL YONAH FSB-667 DUALCORE 1.83G 2M	KC.24001.DTP
CPU INTEL YONAH FSB-667 DUALCORE 1.66G 2M		CPU INTEL YONAH FSB-667 DUALCORE 1.66G 2M	KC.23001.DTP
OPTICAL DRIVE
	DVD/CDRW COMBO MODULE DVD/CDRW COMBO MODULE N/A
	DVD/CDRW COMBO DRIVEPANASONIC UJDA-770 LF	DVD/CDRW COMBO DRIVEPANAOSNIC UJDA-770 LF	KO02406.13
	DVD/CDRW COMBO DRIVE HLDSGCC-4244N LF	DVD/CDRW COMBO DRIVE HLDSGCC-4244N LF	KO.0240A.005
	DVD DUAL MODULE TRAY IN DVD DUAL MODULE TRAY IN N/A
	DVD DUAL DRIVE PIONEER DVR-K16RA TRAY IN	DVD DUAL DRIVE PIONEER DVR-K16RA TRAY IN	KU.00805.023
	DVD DUAL DRIVE PANASONIC UJ-850B TRAY IN	DVD DUAL DRIVE PANASONIC UJ-850B TRAY IN	KU.00807.022
	DVD DUAL DRIVE LITEON SOSW-833S TRAY IN	DVD DUAL DRIVE LITEON SOSW-833S TRAY IN	KU.00804.019
	DVD DUAL DRIVE HLDS GWA-4082NTRAY IN	DVD DUAL DRIVE HLDS GWA-4082NTRAY IN	KU0080D.019
	DVD SUPER MULTI MODULE HLDSGSA-4028N TRAY IN	DVD SUPER MULTI MODULE HLDSGSA-4028N TRAY IN	N/A
	DVD SUPER MULTI DRIVE HLDSGSA-4028N TRAY IN	DVD SUPER MULTI DRIVE HLDSGSA-4028N TRAY IN	KU.0080D.017
HDD/HARD DISK DRIVE
	HDD PATA 80G 5400RPM SEAGATE MERCURY2 ST98823A FW:3.04(ROHS)	HDD PATA 80G 5400RPM SEAGATE MERCURY2 ST98823A FW:3.04(ROHS)	KH.08001.014
	HDD PATA 80G 5400RPM HGSTMORAGA+ HTS541080G9AT00FW:A56J (ROHS)	HDD PATA 80G 5400RPM HGSTMORAGA+ HTS541080G9AT00FW:A56J (ROHS)	KH.08007.013
	HDD PATA 80G 5400RPM WD ML40WD800-22HCTO (ROHS)	HDD PATA 80G 5400RPM WD ML40WD800-22HCTO (ROHS)	KH.08008.027
KEYBOARD
CATEGORY	PARTNAME	DESCRIPTION	Acer PN
	KEYBOARD DARFON CHINESE TM KEYBOARD DARFON CHINESE TM KB.TNT07.001
	KEYBOARD DARFON THAILAND TM KEYBOARD DARFON THAILAND TM KB.TNT07.003
	KEYBOARD DARFON HEBREW TM KEYBOARD DARFON HEBREW TM KB.TNT07.023
	KEYBOARD DARFON KOREA TM KEYBOARD DARFON KOREA TM TBA
	KEYBOARD DARFON ARABIAN TM KEYBOARD DARFON ARABIAN TM KB.TNT07.018
	KEYBOARD DARFON US INTERNATIONAL TM	KEYBOARD DARFON US INTERNATIONAL TM	KB.TNT07.002
	KEYBOARD DARFON RUSSIA TM KEYBOARD DARFON RUSSIA TM KB.TNT07.014
	KEYBOARD DARFON GREEK TM KEYBOARD DARFON GREEK TM KB.TNT07.021
	KEYBOARD DARFON CZECH REPUBLIC TM	KEYBOARD DARFON CZECH REPUBLIC TM	KB.TNT07.012
	KEYBOARD DARFON UK TM KEYBOARD DARFON UK TM KB.TNT07.005
	KEYBOARD DARFON SWEDEN TM KEYBOARD DARFON SWEDEN TM KB.TNT07.015
	KEYBOARD DARFON FRENCH TM KEYBOARD DARFON FRENCH TM KB.TNT07.007
	KEYBOARD DARFON PORTUGUESE TM	KEYBOARD DARFON PORTUGUESE TM	KB.TNT07.011
	KEYBOARD DARFON SWISS/G TM KEYBOARD DARFON SWISS/G TM KB.TNT07.008
	KEYBOARD DARFON DENMARK TM KEYBOARD DARFON DENMARK TM KB.TNT07.017
	KEYBOARD DARFON ITALIAN TM KEYBOARD DARFON ITALIAN TM KB.TNT07.006
	KEYBOARD DARFON BELGIUM TM KEYBOARD DARFON BELGIUM TM KB.TNT07.009
	KEYBOARD DARFON GERMAN TM KEYBOARD DARFON GERMAN TM KB.TNT07.004
	KEYBOARD DARFON CANADA FRANCH TM	KEYBOARD DARFON CANADA FRANCH TM	KB.TNT07.020
	KEYBOARD DARFON NORWAY TM KEYBOARD DARFON NORWAY TM KB.TNT07.016
	KEYBOARD DARFON HUNGARY TM KEYBOARD DARFON HUNGARY TM KB.TNT07.013
	KEYBOARD DARFON SPANISH TM KEYBOARD DARFON SPANISH TM KB.TNT07.010
	KEYBOARD DARFON TURKEY TM	KEYBOARD DARFON TURKEY TM	KB.TNT07.022
LCD
N/A	ASSY LCD MODULE 15 IN. XGA AUO (B150XG02. V4) TM FOR WIRELESS	ASSY LCD MODULE 15 IN. XGA AUO (B150XG02. V4) TM FOR WIRELESS	N/A
	ASSY LCD MODULE 15.4 WXGA TM FOR WIRELESS	ASSY LCD MODULE 15.4 WXGA TM FOR WIRELESS	N/A
MAINBOARD
	MAINBOARD 945GM UMA 10/100 W/O EXPRESS CARD, CARD READER, CPU, MEMORY	MAINBOARD 945GM UMA 10/100 W/O EXPRESS CARD, CARD READER, CPU, MEMORY	MB.A9302.001
PCMCIA SLOT/PC CARD SLOT
N/A	PCMCIA SOCKET	PCMCIA SOCKET	22.TAVV5.001
MEMORY
	MEMORY 512MB DDR II 533 NANYA NT512T64UHA1FN-37B	MEMORY 512MB DDR II 533 NANYA NT512T64UHA1FN-37B	KN.51203.023
	MEMORY 512MB DDR II 533 INFINEON HYS64T64020HDL-3.7-A	MEMORY 512MB DDR II 533 INFINEON HYS64T64020HDL-3.7-A	KN.51202.021
	MEMORY 512MB DDR II 533 MICRON MT8HTF6464HDY-53EB3	MEMORY 512MB DDR II 533 MICRON MT8HTF6464HDY-53EB3	KN.51204.019
	MEMORY 512MB DDR II 533 SAMSUNG M470T6554CZ3-CD500	MEMORY 512MB DDR II 533 SAMSUNG M470T6554CZ3-CD500	KN.5120B.015
	MEMORY 512MB DDR II 533 HYNIX HYMP564S64P6-C4	MEMORY 512MB DDR II 533 HYNIX HYMP564S64P6-C4	KN.5120G.005
FAN
	FAN ASSY - UMA FAN ASSY - UMA 23.TAVV5.001
HEATSINK
	THERMAL MODULE - CPU THERMAL MODULE - CPU 60.TAVV5.009
MISCELLANEOUS
N/A NAME PLATE	- TM4200 NAME PLATE - TM4200 40.TAVV5.001
	RUBBER FOOT - LARGE RUBBER FOOT - LARGE 47.TAVV5.003
	RUBBER FOOT - MIDDLE RUBBER FOOT - MIDDLE 47.TAVV5.004
	RUBBER FOOT - SMALL RUBBER FOOT - SMALL 47.TAVV5.005
	LATCH RUBBER LATCH RUBBER 47.TAVV5.006
	THERMAL DOOR RUBBER THERMAL DOOR RUBBER 47.TAVV5.007
POINTING DEVICE
	TOUCHPAD W/SPONGE TOUCHPAD W/SPONGE 56.TAVV5.001
SPEAKER
	SPEAKER SET (R&L) SPEAKER SET (R&L) 23.TAVV5.002
	MIC MIC 23.TAVV5.003
SCREW
CATEGORY PARTNAME DESCRIPTION Acer PN
N/A SCREW M2.5*	3(NL) SCREW M2.5*3(NL) 86.TAVV5.001
	SCREW M2.5*6(NL) SCREW M2.5*6(NL)	86.TAVV5.002
	SCREW M2.5*10(NL) SCREW M2.5*10(NL)	86.TAVV5.003
	SCREW M2.5*15(NL) SCREW M2.5*15(NL)	86.TAVV5.004
	SCREW M2*2.2 SCREW M2*2.2 86.TAVV5.005
	SCREW M2*3(NL) SCREW M2*3(NL) 86.TAVV5.006
	SCREW M2*4 SCREW M2*4 86.TAVV5.007
	SCREW M3*4(NL) SCREW M3*4(NL) 86.TAVV5.008
	SCREW D-SUB 4#X40* 1/5-NI (NL) SCREW D-SUB 4#X40* 1/5-NI (NL) 86.TAVV5.009
