EM-7T HM50/70 - Keyboard ACER - Free user manual and instructions

Product Type	Laptop Keyboard
Model	EM-7T HM50/70
Compatibility	Acer Aspire 5517, similar models
Key Count	99, 100, or 103 keys (varies by language)
Layout	Standard notebook with embedded numeric keypad
Special Keys	Windows keys, Application key, Hotkeys (Fn+), Euro/USD symbols
Lock Keys	Caps Lock, Num Lock, Scroll Lock
Interface	Internal FFC connection to mainboard
Dimensions (approx)	Fit 15.6" laptop; width ~37 cm, depth ~11 cm
Weight (approx)	~150 g
Color	Black
Language Variants	US International, UK, German, French, Spanish, Italian, etc.
Backlight	Not available
Features	Spill-resistant membrane; low-profile keys; silent typing
Operating Temperature	5°C to 35°C
Compliance	RoHS

Frequently Asked Questions - EM-7T HM50/70 ACER

How do I remove the keyboard from my Acer laptop?

First, remove the battery and switch cover. Then pry up the center of the keyboard, rotate it upward, and disconnect the FFC cable from the mainboard. Refer to the service manual for detailed steps.

Can I replace the keyboard with a different language layout?

Yes, the EM-7T HM50/70 keyboard is available in multiple language variants. Ensure you order the correct part number for your language and region.

How do I clean the keyboard?

Turn off the laptop and disconnect power. Use compressed air to remove debris. For stains, lightly dampen a cloth with isopropyl alcohol and wipe gently. Do not pour liquids directly on the keys.

What do the hotkeys (Fn+..) do?

The Fn key combined with F1-F12 activates functions like display toggle (F5), sleep (F4), brightness up/down (F6/F7), speaker toggle (F8), and touchpad toggle (F9). See your user manual for the full list.

Why did my keyboard stop working?

Possible causes include a loose FFC cable, driver issue, or hardware failure. Try reconnecting the keyboard cable, updating drivers, or testing with an external keyboard. If unresponsive, the keyboard may need replacement.

How do I type the Euro symbol?

Hold the Alt Gr key (right Alt) and press the 5 key (key with € symbol). On some layouts, use Ctrl+Alt+5.

Is the keyboard backlit?

No, the standard EM-7T HM50/70 keyboard does not have backlighting.

How do I lock the numeric keypad?

Press the Num Lock key. When the Num Lock indicator (on the front panel) is lit, the embedded numeric keypad is active. Press again to deactivate.

Are replacement keyboards available?

Yes, Acer offers spare keyboards under FRU part numbers like KB.I1700.438 (US International). Contact an authorized service provider or order online.

What precautions should I take when handling the keyboard?

Avoid static discharge by wearing an antistatic wrist strap. Handle the keyboard by its edges, and do not bend the FFC cable. Keep the keyboard away from liquids and excessive heat.

USER MANUAL EM-7T HM50/70 ACER

Aspire 5517 Service Guide

Service guide files and updates are available on the ACER/CSD web; for more information, please refer to http://csd.acer.com.tw

PRINTED IN TAIWAN

Revision History

Please refer to the table below for the updates made on Aspire 5517 service guides.

Date Chapter Updates

Copyright

Copyright © 2009 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation.

Intel is a registered trademark of Intel Corporation.

Pentium and Pentium II/III are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.

Conventions

The following conventions are used in this manual:

SCREEN MESSAGES	Denotes actual messages that appear on screen.
NOTE Gives bits and pieces of additional information related to the current topic.
WARNING Alerts you to any damage that might result from doing or not doing specific actions.
CAUTION Gives precautionary measures to avoid possible hardware or software problems.
IMPORTANT Reminds you to do specific actions relevant to the accomplishment of procedures.

Preface

Before using this information and the product it supports, please read the following general information.

1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION decided for Acer's "global" product offering. To better fit local market requirements and enhance product competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g. add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic service guide. In such cases, please contact your regional offices or the responsible personnel/channel to provide you with further technical details.
2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

Table of Contents

System Specifications 1

Features 1

System Block Diagram 4

Your Acer Notebook tour 5

Front View ....5

Closed Front View 6

Rear View 7

Left View 7

Right View 8

Bottom View 8

Indicators 10

TouchPad Basics 11

Using the Keyboard 12

Lock Keys and embedded numeric keypad 12

Windows Keys 13

Hot Keys 14

Special Key 15

Using the System Utilities 16

Acer GridVista (dual-display compatible) 16

Hardware Specifications and Configurations 17

System Utilities 25

BIOS Setup Utility 25

Navigating the BIOS Utility .....25

Aspire 5517 BIOS 26

Information 26

Main 27

Security 28

Boot 31

Exit 32

BIOS Flash Utilities 33

DOS Flash Utility ....34

WinFlash Utility 35

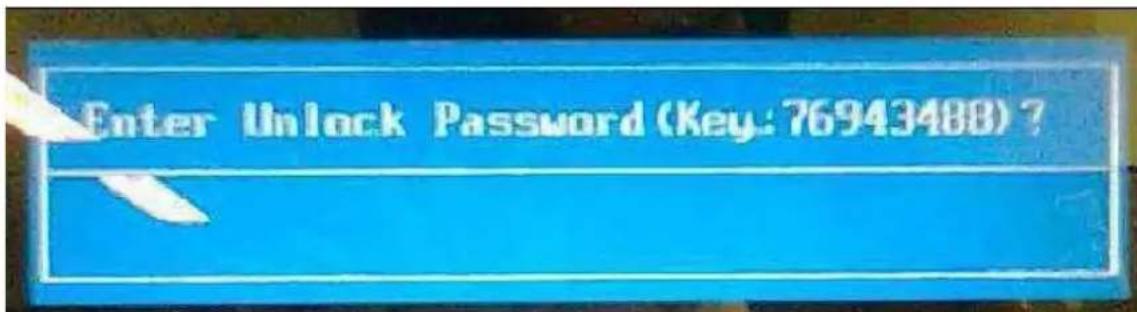

Remove HDD/BIOS Password Utilities ....36

Machine Disassembly and Replacement 41

Disassembly Requirements 41

Pre-disassembly Instructions 42

Disassembly Process 42

External Module Disassembly Process 43

External Modules Disassembly Flowchart 43

Removing the Battery Pack 44

Removing the SD Dummy Card 45

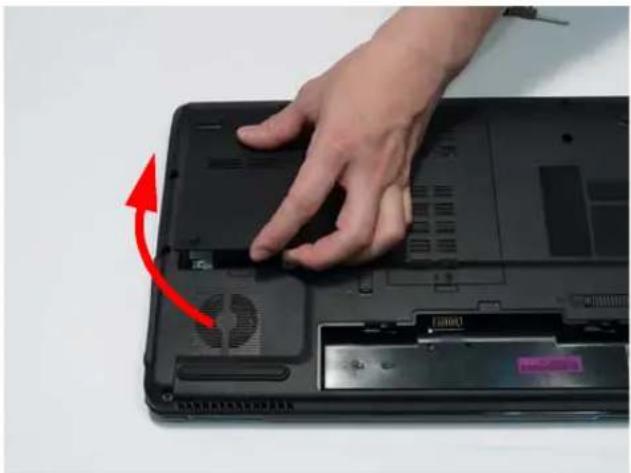

Removing the Lower Covers 46

Removing the Optical Drive Module 47

Removing the DIMM Modules 49

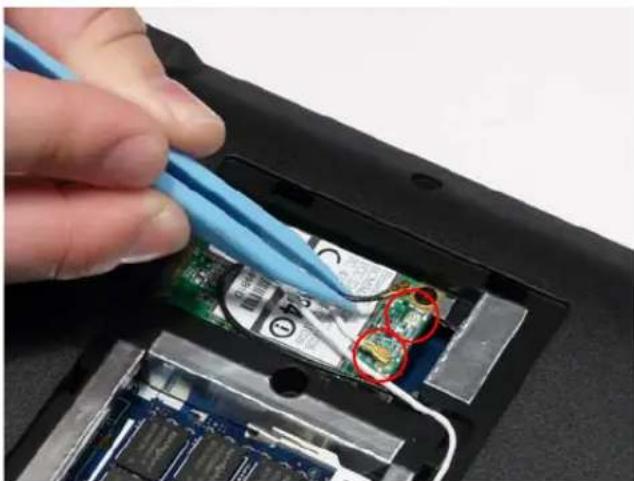

Removing the WLAN Module 50

Removing the Hard Disk Drive Module 52

Main Unit Disassembly Process 54

Main Unit Disassembly Flowchart ....54

Removing the Switch Cover ....55

Removing the Keyboard 56

Removing the LCD Module 57

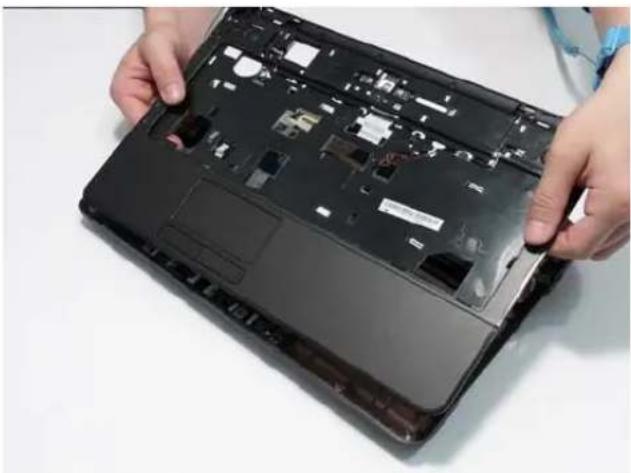

Removing the Upper Cover 61

Table of Contents

Removing the Power Board 65

Removing the Left Speaker Module 66

Removing the Right Speaker Module 68

Removing the TouchPad Bracket 70

Removing the Mainboard 72

Removing the RTC Battery 73

Removing the Thermal Module .....74

Removing the CPU Fan 76

Removing the CPU 78

LCD Module Disassembly Process 79

LCD Module Disassembly Flowchart 79

Removing the LCD Bezel 80

Removing the Camera Module .....81

Removing the LCD Panel 82

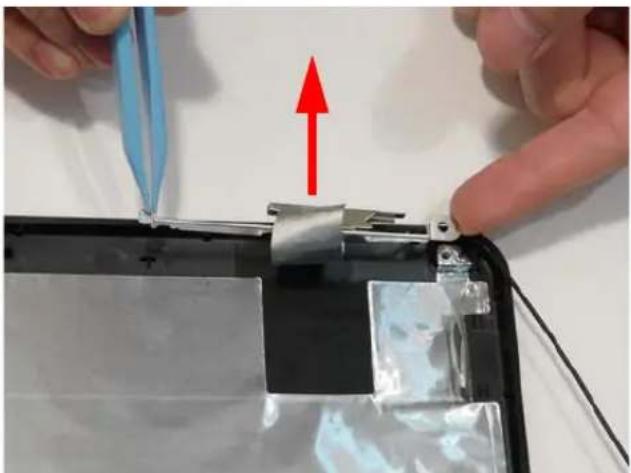

Removing the LCD Brackets and FPC Cable .....84

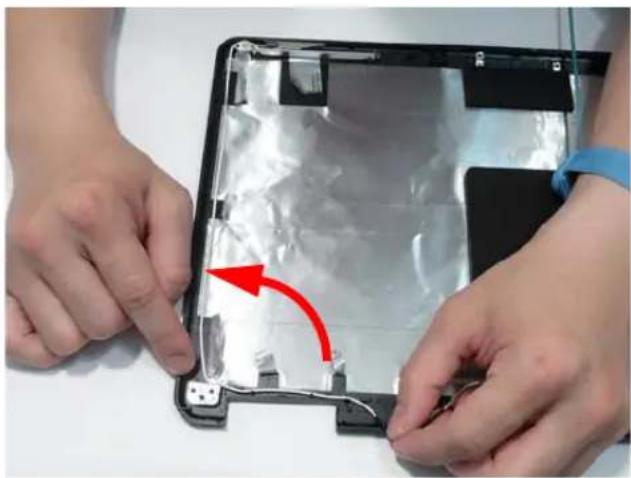

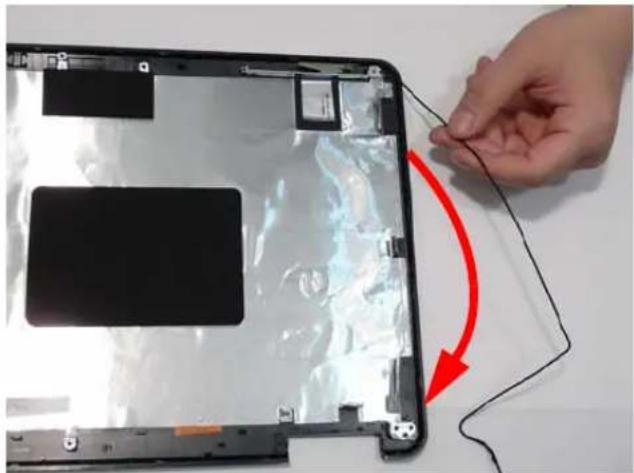

Removing the Antennas ....86

LCD Module Reassembly Procedure 89

Replacing the Antennas ....89

Replacing the LCD Panel 92

Replacing the Camera Module 94

Replacing the LCD Bezel 95

Main Module Reassembly Procedure .....97

Replacing the CPU 97

Replacing the CPU Fan 98

Replacing the Thermal Module 98

Replacing the Mainboard 99

Replacing the TouchPad Bracket 100

Replacing the Right Speaker Module 102

Replacing the Left Speaker Module 103

Replacing the Power Board 104

Replacing the Upper Cover 104

Replacing the LCD Module 108

Replacing the Keyboard 113

Replacing the Switch Cover 114

Replacing the Hard Disk Drive Module 114

Replacing the WLAN Module 116

Replacing the DIMM Modules 116

Replacing the ODD Module 117

Replacing the Lower Covers 117

Replacing the SD Dummy Card 118

Replacing the Battery 119

Troubleshooting 121

Common Problems 121

Power On Issue 122

No Display Issue 123

Random Loss of BIOS Settings 124

LCD Failure 125

Built-In Keyboard Failure 125

TouchPad Failure 126

Internal Speaker Failure 126

HDD Not Operating Correctly 128

ODD Failure 129

Wireless Function Failure 132

Thermal Unit Failure 132

Table of Contents

External Mouse Failure 133

Other Failures 133

Intermittent Problems 134

Undetermined Problems 134

Post Codes 135

Jumper and Connector Locations 139

Top View 139

Bottom View 140

Power Board 141

Clearing Password Check and BIOS Recovery 142

Clearing Password Check 142

Clear CMOS Jumper 142

BIOS Recovery by Crisis Disk 143

FRU (Field Replaceable Unit) List 145

Aspire 5517 Exploded Diagrams 146

Main Assembly 146

Base Assembly 148

Rear Assembly 149

Aspire 5517 FRU List 150

Model Definition and Configuration 160

Test Compatible Components 163

Microsoft® Windows® Vista Environment Test .....164

Online Support Information 167

Table of Contents

Features

Below is a brief summary of the computer's many features:

Operating System

• Genuine Windows® Vista™

Platform

• AMD Athlon™ 64 X2 dual-core processor - AMD Athlon™ 64 single-core processor - AMD M780G Chipset

System Memory

• Low-latency, high-bandwidth • 128-bit DDR2 SDRAM controller operating at up to 333 MHz
• On-board memory with up to 2 unbuffered SO-DIMM slots supporting DDR II 667/800.
• Adjustable Maximum 128MB UMA VGA memory shared from North Bridge • Maximum memory: 2GB per slot; 4GB total
• On-board cache up to 1MB

Display

• 15.6" WXGA, HD 720p, 1366x768

Graphics

• ATI Radeon™ HD 3200 Graphics

Storage subsystem

• 2.5" hard disk drive
• Multi-in-1 card-reader

Optical Drive

• DVD-Super Multi double-layer drive

Audio

• Realtek ALC272X-GR for High Definition Audio Codec with Dolby Digital Live - Internal speakers x2 (2W) - Mic-in jack

• Headphone/Line out jack

Dimensions and Weight

- 372.3mm x 246.5mm x 26.8mm/40.6mm with ID

- Weight less than 3100g (15.6" LCD/6-cell battery/super-multi ODD)

Communication

• Wireless

• 802.11b/g/n WLAN/WiMax

- Mini PCIE Wireless LAN module with mini card slot

- Dual-Band built-in Antenna for Wireless LAN

• LAN

• Atheros AR8132L for 10/100 LAN

- PCI-E 10/100M LAN

• WOL (AC mode S5) support

- Modem

• External USB 2.0 modem

• Support Wake on Ring (S3)

Privacy control

• BIOS user, supervisor, HDD passwords

- Kensington lock slot

Power subsystem

• 65W

• Universal jack for adapter

- Battery: 6-cell AS2009A

Special keys and controls

• 99-/100-/103-key keyboard

• Supports Application keys for Windows XP/Linux version

- Support for Home key and Application keys for Windows XP/Linux version

- Multi-language support

I/O interface

- VGA port, 15 pins

- DC-IN port for adapter

• RJ-45 Ethernet port for LAN

• 2 USB ports

• Headphone out / Line-out

- Microphone-in

- Multi-in-1 card reader (SD™, MMC, MS, MS PRO, xD)

• Kensington Lock (7.5mm)

Environment

- Temperature:

• Operating: 5 °C to 35 °C • Non-operating: -20 °C to 65 °C

• Humidity (non-condensing):

• Operating: 20% to 80% • Non-operating: 20% to 80%

System Block Diagram

Your Acer Notebook tour

After knowing your computer features, let us show you around your new computer.

Front View

No. Icon Item Description
1 Integrated		webcam	Web camera for video communication (for selected models).
2 Display screen Also called Liquid-Crystal Display (LCD), displays computer output.
3 Touchpad toggle Turns the internal touchpad on and off.
					Power button Turns the computer on and off.
					Wireless LAN communication button/indicator	Enables/disables the wireless LAN function. Indicates the status of wireless LAN communication.
4 Speaker Left and right speakers deliver stereo audio output.
5 Keyboard For entering data into your computer.
6 TouchPad Touch-sensitive pointing device which functions like a computer mouse.
No. Icon Item Description
7 Click buttons (left)		and right)	The left and right buttons function like the left and right mouse buttons.
8 Palmrest Comfortable support area for your hands when you use the computer.
9 HDD Indicates with	he hard disk drive is active.
		Num Lock Lights up	when Num Lock is activated.
		Caps Lock Lights up	when Caps Lock is activated.

Closed Front View

No. Icon Item Description
1		Power 1	Indicates the computer's power status.
	moo	Battery 1	Indicates the computer's battery status.1. Charging: The light shows amber when the battery is charging.2. Fully charged: The light shows green when in AC mode.
2 Multi-in-1 card		reader	Accepts Secure Digital (SD), MultiMediaCard (MMC), Memory Stick (MS), Memory Stick PRO (MS PRO), xD-Picture Card (xD).NOTE: Push to remove/install the card.Only one card can operate at any given time.

NOTE: The front panel indicators are visible even when the computer cover is closed

Rear View

No. Icon	Item Description
1 Ventilation	slots Enable the computer to stay cool,	even after prolonged use.

Left View

No. Icon Item Description
1 DC-in jack Connects to an AC adapter
2 Ethernet (RJ-45)		port	Connects to an Ethernet 10/100-based network.
2 External display		(VGA) port	Connects to a display device(e.g. external monitor, LCD projector).
4 USB 2.0 ports Connect to USB 2.0 devices (e.g. USB mouse,USB camera).
5 Microphone-in		jack	Accepts input from external microphones.
		Headphones/speaker/line-outjack	Connects to audio line-out devices(e.g. speakers, headphones).

Right View

No. Item	Description

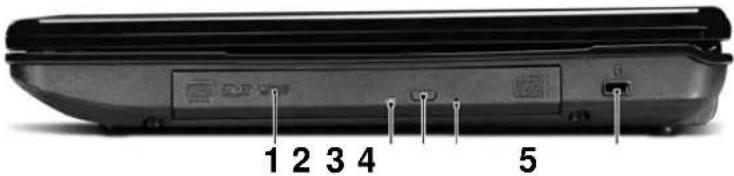

1 Optical drive	Internal	optical drive; accepts CDs or DVDs.
2 Optical disk access	access	Lights up when the optical drive is active.
		indicator
3 Optical drive	eject button	Ejects the optical disk from the drive.
4		Emergency eject holeEjects the optical drive tray when the computer is turned off.Note:Insert a paper clip into the emergency eject hole to eject the optical drive tray when the computer is off.
5 Kensington lock slot	lock slot	Connects to a Kensington-cocompatible computer security lock.Note:Wrap the computer security lock cable around an immovable object such as a table or handle of a locked drawer. Insert the lock into the notch and turn the key to secure the lock. Some keyless models are also available.

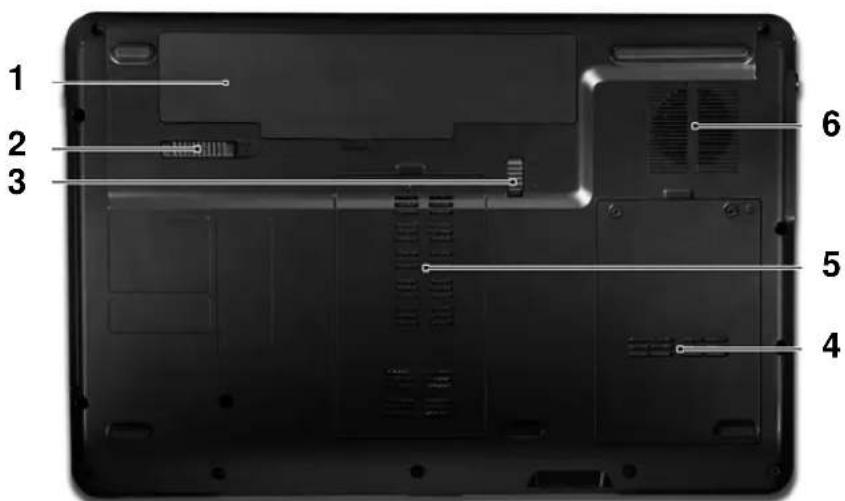

Bottom View

No. Icon Item Description
1 Battery bay	Houses the computer's battery pack.
2 Battery release		latch	Releases the battery for removal.
No. Icon Item Description
3 Battery lock Locks the battery in position.
4 Hard disk bay Hou [XTAS] the co — computer's hard disk (secured with screws).
5 Memory [XGAC]	compartment		Houses the computer's main memory.
5 Ventilation slots		and cooling fan	Enable the computer to stay cool, even after prolonged use.Note: Do not cover or obstruct the fan opening.

Indicators

The computer has several easy-to-read status indicators. The front panel indicators are visible even when the computer cover is closed.

Icon Function Description
	Power Indicates the computer's power status.
(b204)	Battery Indicates the computer's battery status.
(a205)	HDD Indicates when the hard disk drive is active.
(TD85)	Num Lock Lights up when Num Lock is activated.
(KC2Y)	Caps Lock Lights up when Caps Lock is activated.

NOTE: 1. Charging: The light shows amber when the battery is charging. 2. Fully charged: The light shows green when in AC mode.

TouchPad Basics

The following items show you how to use the TouchPad:

- Move your finger across the TouchPad (1) to move the cursor.

- Press the left (2) and right (3) buttons located beneath the TouchPad to perform selection and execution functions. These two buttons are similar to the left and right buttons on a mouse. Tapping on the TouchPad is the same as clicking the left button.

Function	Left Button (2)	Right Button (3)	Main TouchPad (1)
Execute Quickly	click twice. Tap twice (at the same speed		as double-clicking a mouse button).
Select Click once. Tap once.
Drag Click and hold, then use finger on the TouchPad to drag the cursor.			Tap twice (at the same speed as double-clicking a mouse button); rest your finger on the TouchPad on the second tap and drag the cursor.
Access context menu		Click once.

NOTE: When using the TouchPad, keep it - and your fingers - dry and clean. The TouchPad is sensitive to finger movement; hence, the lighter the touch, the better the response. Tapping too hard will not increase the TouchPad's responsiveness.

Using the Keyboard

The keyboard has full-sized keys and an embedded numeric keypad, separate cursor, lock, Windows, function and special keys.

Lock Keys and embedded numeric keypad

The keyboard has three lock keys which you can toggle on and off.

Lock key Description
Caps Lock When Caps Lock is on, all alphabetic characters typed are in uppercase.
Num Lock+	When Num Lock is on, the embedded keypad is in numeric mode. The keys function as a calculator (complete with the arithmetic operators +, -, *, and /). Use this mode when you need to do a lot of numeric data entry. A better solution would be to connect an external keypad.
Scroll Lock+	When Scroll Lock is on, the screen moves one line up or down when you press the up or down arrow keys respectively. Scroll Lock does not work with some applications.

The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols are not printed on the keys.

Desired access Num Lock on Num Lock off
Number keys on embedded keypad	Type numbers in a normal manner.
Cursor-control keys on embedded keypad	Holdwhile using cursor-control keys.	Holdwhile using cursor-control keys.
Main keyboard keys	Holdwhile typing letters on embedded keypad.	Type the letters in a normal manner.

Windows Keys

The keyboard has two keys that perform Windows-specific functions.

Key Description
	Windows key Pressed alone, this key has the same effect as clicking on the Windows Start button; it launches the Start menu. It can also be used with other keys to provide a variety of functions:<@>: Open or close the Start menu<@> +: Display the desktop<@> +: Open Windows Explore<@> +: Search for a file or folder<@> +: Cycle through Sidebar gadgets<@> +: Lock your computer (if you are connected to a network domain), or switch users (if you're not connected to a network domain)<@> +: Minimizes all windows<@> +: Open the Run dialog box<@> +: Cycle through programs on the taskbar<@> +: Open Ease of Access Center<@> +: Open Windows Mobility Center<@> +: Display the System Properties dialog box<@> +: Restore minimized windows to the desktop<@> +: Cycle through programs on the taskbar by using Windows Flip 3-D<@> +: Bring all gadgets to the front and select Windows Sidebar<CTRL> + <@> +: Search for computers (if you are on a network)<CTRL> + <@> +: Use the arrow keys to cycle through programs on the taskbar by using Windows Flip 3-DNote: Depending on your edition of Windows Vista, some shortcuts may not function as described.
[SWZC]	Application key This key has the same effect as clicking the right mouse button; it opens the application's context menu.

Hot Keys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness, volume output and the BIOS utility.

To activate hot keys, press and hold the key before pressing the other key in the hotkey combination.

Hotkey Icon	Function Description
	+Hotkey help Displays help on hotkeys.
	+Acer eSetting	Management	Launches Acer eSettings Management in Acer Empowering Technology.
	+Acer ePo [SAHW]	Management	Launches Acer ePower Management in Acer Empowering Technology.
	+Sleep Puto the computer in Sleep mode.
	+Display toggle Switches display output between screen, external monitor (if connected) and both.
	+Screen blank Turns the display screen backlight off to save power. Press any key to return.
	+TouchPad toggle Turns the internal TouchPad on and off.
	+Speaker toggle Turns the speakers on and off.
	+	Brightness up	Increases the screen brightness.
	+ < Brightness down	Decreases the screen brightness.

Special Key

You can locate the Euro symbol and the US dollar sign at the upper-center and/or bottom-right of your keyboard.

The Euro symbol

1. Open a text editor or word processor.
2. Hold and then press the <5> key at the upper-center of the keyboard.

NOTE: Some fonts and software do not support the Euro symbol. Please refer to www.microsoft.com/typography/faq/faq12.htm for more information.

The US dollar sign

1. Open a text editor or word processor.
2. Hold and then press the <4> key at the upper-center of the keyboard.

NOTE: This function varies by the operating system version.

Using the System Utilities

Acer GridVista (dual-display compatible)

NOTE: This feature is only available on certain models.

To enable the dual monitor feature of the notebook, first ensure that the second monitor is connected, then select Start, Control Panel, Display and click on Settings. Select the secondary monitor (2) icon in the display box and then click the check box Extend my windows desktop onto this monitor. Finally, click Apply to confirm the new settings and click OK to complete the process.

Acer GridVista is a handy utility that offers four pre-defined display settings so you can view multiple windows on the same screen. To access this function, please go to Start→All Programs and click on Acer GridVista. You may choose any one of the four display settings indicated below:

Double (vertical), Triple (primary at left), Triple (primary at right), or Quad Acer Gridvista is dual-display compatible, allowing two displays to be partitioned independently.

Acer Gridvista is dual-display compatible, allowing two displays to be partitioned independently.

AcerGridVista is simple to set up:

1. Run Acer GridVista and select your preferred screen configuration for each display from the task bar.
2. Drag and drop each window into the appropriate grid.
3. Enjoy the convenience of a well-organized desktop.

NOTE: Please ensure that the resolution setting of the second monitor is set to the manufacturer's recommended value.

Hardware Specifications and Configurations

Processor

Item Specification
CPU • AMD Athlon64 Dual	-Core Process, Cache 1MB, TK42• AMD Athlon64 Process, 2.2GHz, Cache 256KB, TF38• AMD Athlon64 Process, 2.0GHz, Cache 256KB, TF36• AMD Athlon64 Process, 1.6GHz, Cache 512KB, TF20
Type AMD Athlon64 Dual	-Core Mobile CPU
Core Logic • AMDRS780MN• AMDSB710• Integrated VGA solution
CPU Package Micro uPGA	A-638 Package
Power 45W
On-die Cache Up to 1MB	L2 cache
Front Side Bus 667/800/1066MHz

Processor Specifications

Item	CPU Speed	Cores	Bus Speed	Mfg Tech	Cache Size	Package	Core Voltage	Acer P/N
AATF20	1.6GHz	1	638 MHz		512K	TF20 PGA	15W	KC.ATF02.200
AATK42	1.6GHz	2	638 MHz	65 nm	1M	TK42	20W	KC.ATK02.420

CPU Fan True Value Table

Fan On Temp (°C)	Fan Speed (rpm)	SPL Spec (dBA)
55	3000 28
60	3300 31
65	3700 34
75	4100 37
80	4500 40

• Throttling 50%: On=90°C, Off=80°C - OS Shutdown: 95°C • H/W Shutdown: 92°C

Northbridge

Item Specification
Chipset	ATI RS780MN
Package	465 BGA

Southbridge

Item Specification
Chipset	ATI SB710
Package	549 BGA

BIOS

Item Specification
BIOS vendor	Phoenix BIOS
BIOS Version	V0.11T04
BIOS ROM type Flash
Features • Flash ROM 1MB	Supports ISIPPSupports Acer UISupports multi-bootSuspend to RAM (S3)/Disk (S4)Various hot-keys for system controlSupports SMBUS 2.0, PCI2.3ACPI 2.0 compliance with Intel Speed Step support C1, C2, C3, C4 and S3, S4 for mobile CPUDMI utility for BIOS serial number configurable/asset tagSupports PXESupports Y2K solutionSupports Win Flash Wake on LAN from S3Wake on LAN form S4 in AC modeSystem information

System Memory

Item Specification
Memory controller ATI RS780MN +	ATI SB710
Memory size 4GB maximum
DIMM socket number 2
Supports memory size per socket 2GB
Supports maximum memory size 4GB (total)
Supports DIMM type 200-pin +1.8V	DDRII
Supports DIMM Speed 667/800 MHz
Supports DIMM voltage 1.8V
Cache	Upto 1MB L2 Cache on CPU

Memory Combinations

Slot 1	Slot 2 Total Memory
0MB	512MB	512MB
0MB	1024MB	1024MB
0MB	2048MB	2048MB
512MB	512MB	1024MB
512MB	1024MB	1536MB
512MB	2048MB	2560MB
1024MB	0MB	1024MB
1024MB	512MB	1536MB
1024MB	1024MB	2048MB
1024MB	2048MB	3072MB
2048MB	0MB	2048MB
2048MB	512MB	2560MB
2048MB	1024MB	3072MB
2048MB	2048MB	4096MB

NOTE: Above table lists some system memory configurations. You may combine DIMMs with various

capacities to form other combinations. On above table, the configuration of slot 1 and slot 2 could be reversed.

LAN Interface

Item Specification
LAN Chipset Atheros AR8132L
Package
LAN connector type
LAN connector location
Feature
Interface

Wireless Module 802.11b/g/n

Item Specification
Manufacturer Foxconn
Model Atheros xb63 Broadcom 4312
802.11g •	•
Radio Technology
Operating Frequency
Modulation Schemes
Channel Numbers
Data Rate
Media Access Protocol
Transmitter Output Power
802.11b
Radio Technology
Operating Frequency
Modulation Schemes
Channel Numbers
Data Rate
Media Access Protocol
Transmitter Output Power

Hard Disk Drive Interface

Item Specification
Vendor & Model Name	SeagateST9160310ASST9160314ASST9250315ASST9320320ASST9320325AS	SeagateST9320320ASST9160310AS	ToshibaMK1655GSXMK1655GSXMK3255GSXMK3263GSX	WDWD1600BEVTWD2500BEVTWD3200BEVTWD5000BEVT
Capacity (MB) 500,	250 320, 160 320,	250, 160 500,	320, 250,	160
Bytes per sector	512	512	512	512
Data heads	4, 2	4, 2	4, 2, 2	4, 4, 3, 2
Drive Format
Disks	2, 1	2 or 1, 1	2, 1, 1	2, 2, 2, 1
Spindle speed (RPM)	5400	5400	5400	5400
Item	Specification
Performance Specifications
Buffer size 8 MB 8	MB 8 MB 8 MB
Interface SATA SATA	SATA SATA
Internal transfer rate (Mbits/sec, max)		352 395~952	(typical)	850 Mbits/s maximum
I/O data transfer rate (Mbytes/sec max)		150 300 300 max	imum
DC Power Requirements
Voltage tolerance	5V ±5% 5V ±5%	5V ±5% 5V ±5%

Super-Multi Drive

Item Specification	ion
Vendor & model name	HLDS GT20N		Sony AD7580S
Performance Specification	With CD Diskette	With DVD Diskette	With CD Diskette	With DVD Diskette
Transfer rate (MB/sec)	Sustained: 3,600 KB/s (24x) max.	Sustained: 11.08 Mbytes/s (8x) max.	Sustained: 1,571 (typical)	Sustained: 10,993 (typical)
Buffer Memory	2 MB
Interface	SATA

Item Specification
Applicable disc formats • DVD-ROM:• 4.7GB (Single Layer)• 8.5GB (Dual Layer)• DVD-R:• 3.95GB (Ver. 1.0: read only)• 4.7GB (Ver. 2.0 for Authoring: read only)• 4.7GB (Ver. 2.1 for General: read & write)• (DL) 8.5GB (Ver. 3.0)• DVD-RW:• 4.7GB (Ver. 1.2/ Rev 1.0, 2.0, 3.0)• DVD-RAM: 1.46GB/side, 4.7GB/side (Ver. 2.2)• DVD+R: 4.7GB (Ver. 1.3)• (DL) 8.5GB (Ver. 1.1)• DVD+RW:• 4.7GB (Vol.1 Ver.1.3)• CD-ROM Mode-1 data disc• CD-ROM Mode-2 data disc• CD-ROM XA, CD-I, Photo-CD Multi-Session, Video CD• CD-Audio Disc• Mixed mode CD-ROM disc (data and audio)• CD-Extra• CD-Text• CD-R (Conforming to “Orange Book Part 2”: read & write)• CD-RW (Conforming to “Orange Book Part 3”: read & write)	DVD Read:DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-Video, DVD-Audio, SACD (Hybrid), UDF DVD, DVD-R, DVD-R DL, DVD-R 3.95 GB, DVD-R Authoring, DVD-R Multi-Border, DVD-RW, DVD+R, DVD+R DL, DVD+R Multi-Session, DVD+RW, DVD-RAM V1.0, DVDRAM V2.0 & 2.1 &2.2.CD Read:CD-DA, CD-ROM Mode-1, CD-ROM/XA Mode-2 Form-1 and Mode-2 Form-2, CD-i, CD-i Bridge, Video-CD (MPEG-1), Karaoke CD, Photo-CD, Enhanced CD, CD Plus, CD Extra, itrax CD, CD-Text, UDF CD, CD-R, and CD-RWDVD Write:DVD Data & VideoCD Read:CD-DA, CD-ROM Mode-1, CD-ROM/XA Mode-2 Form-1 and Mode-2 Form-2, CD-i, Video-CD, CD-Text
Loading mechanism Drawer (Solenoid Open)Tact SW (Open)Emergency Release (draw open hole)
Power Requirement
Input Voltage DC 5 V +/- 5%

Audio Interface

Item Specification

Chipset Realtek ALC272X-GR

Package 48-pin LQFP ‘Green’

Features High Definition Audio Codec with Dolby Digital Live

Audio Amplifier

Item Specification
Model
Package
Features •

Speakers

Item Specification
Vendor and Model
Item Specification
Dimensions
Weight
Nominal Impedance 4Ohm
Power Rating 2W
Output Sound Pressure Level
Frequency Range
Distortion

Microphone

Item Specification
Vendor and Model
Directivity
Current Consumption
S/N Ratio
Frequency

Power and Keyboard Controller

Item Specification
Controller EM-7T
Package
Features • Touchpad pointing device
Supply Current
Total number of keypads 99-/100-/103-key keyboard
Windows logo key Yes
Hotkeys See “Hot Keys” on page	14.

Battery

Item	Specification
	6 Cell
Vendor & model name SANYO/SONY/PANASONIC/SIMPLO AS2009A
Battery Type Li-ion
Pack capacity	4400 mAh
Normal Voltage	2.2 Ah
Package configuration 3S2P

LCD 15.6"

Item Specification
Vendor/model name	CMO N156B3-L02
Screen Diagonal (mm)	396.2
Display Area (mm)	344.23 x 193.54
Display resolution (pixels)	1366 x 768
Pixel Pitch	0.252
Display Mode	Normal (white)
Typical White Luminance ( cd/m2 )(also called Brightness)	220
Contrast Ratio 500:1
Response Time (Optical Rise Time/Fall Time) msec	8
Input Voltage
Typical Power Consumption (watt)	5.75
Weight (with inverter) 500
Physical Size (mm) 359.3 x 209.5 x	5.9
Electrical Interface LVDS
Support Color 262K
Viewing Angle (up/down/right/left)	20/45/45/45°
Temperature Range (°C)
Operating	0 to +50
Storage (shipping)	-20 to +60

Card Reader

Item Specification
Part Name 5-in1 card reader
Package Built-in
General Features • PCI-E interface	• Push-push type• D u m m y c a r d

BIOS Setup Utility

The BIOS Setup Utility is a hardware configuration program built into your computer's BIOS (Basic Input/Output System).

Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run Setup. Please also refer to Chapter 4 Troubleshooting when problem arises.

To activate the BIOS Utility, press F2 during POST (when "Press to enter Setup" message is prompted on the bottom of screen).

Press F2 to enter setup. The default parameter of F12 Boot Menu is set to "disabled". If you want to change boot device without entering BIOS Setup Utility, please set the parameter to "enabled".

Press during POST to enter multi-boot menu. In this menu, user can change boot device without entering BIOS SETUP Utility.

Navigating the BIOS Utility

There are six menu options: Information, Main, Advanced, Security, Boot, and Exit.

Follow these instructions:

• To choose a menu, use the left and right arrow keys.
• To choose an item, use the up and down arrow keys. • To change the value of a parameter, press F5 or F6. • A plus sign (+) indicates the item has sub-items. Press Enter to expand this item.
• Press Esc while you are in any of the menu options to go to the Exit menu.
• In any menu, you can load default settings by pressing F9. You can also press F10 to save any changes made and exit the BIOS Setup Utility.

NOTE: You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for a particular menu are shown on the bottom of the screen. Help for parameters are found in the Item Specific Help part of the screen. Read this carefully when making changes to parameter values. Please note that system information is subject to different models.

Aspire 5517 BIOS

Information

The Information screen displays a summary of your computer hardware information.

PhoenixBIOS Setup Utility
Information	Main	Security	Boot	Exit
CPU Type CPU Speed		AMD Athlon(tm) X2 ZM-84 2300 Mhz
HDD Model Name:		ST960821A-(PM)
HDD Serial Number:		3LF005DB
ATAPI Model Name:		MATSHITADVD
System BIOS Version:		V1.00
VGA BIOS Version:		ATI M92 V008.0501.0-26.00
Serial Number: Asset Tag Number:
Product Name:		Aspire 5517
Manufacturer Name:		Acer
UUID:		39353164386665643635001EECE1D377
F1 Help ↑↓ Select Item F5/F6 Change Values F9 Setup Defaults Esc Exit ← Select Menu Enter Select ▶ Sub-Menu F10 Save and Exit

NOTE: The screen above is for your reference only. Actual values may differ according to model.

The table below describes the parameters in this screen.

Parameter Description
CPU Type This field shows the CPU type and speed of the system.
CPU Speed This field shows the speed of the CPU.
HDD Model Name This field shows the model name of HDD installed on primary IDE master.
HDD Serial Number This field displays the serial number of HDD installed on primary IDE master.
ATAPI Model Name This field shows the model name of the Optical device installed in the system.
System BIOS Version Displays system BIOS version.
VGA BIOS Version This field displays the VGA firmware version of the system.
Serial Number This field displays the serial number of this unit.
Asset Tag Number This field displays the asset tag number of the system.
Product Name This field shows product name of the system.
Manufacturer Name This field displays the manufacturer of this system.
UUID Number Universally	Unique Identifier (UUID) is an identifier standard used in software construction, standardized by the Open Software Foundation (OSF) as part of the Distributed Computing Environment (DCE).

Main

The Main screen allows the user to set the system time and date as well as enable and disable boot option and recovery.

PhoenixBIOS Setup Utility
Information	Main	Security	Boot	Exit
					Item Specific Help
System Time: System Date: System Memory: Extended Memory: Video Memory: Quiet Boot: Network Boot: F12 Boot Menu: D2D Recovery: SATA Mode:		[09:00:00] [12/12/2008] 634 KB 1790 MB [256MB] [Enabled] [Enabled] [Disabled] [Enabled] [IDE AHCI]			,, or selects field.
F1 Help ↑↓ Select Item F5/F6 Change Values F9 Setup Defaults Esc Exit ← Select Menu Enter Select ▶ Sub-Menu F10 Save and Exit

NOTE: The screen above is for your reference only. Actual values may differ.

The table below describes the parameters in this screen.

Parameter Description Format/Option
System Time Sets the system time. The hours are displayed with 24-hour format.		Format: HH:MM:SS(hour:minute:second)
System Date Sets the system date. Format MM/DD/YYYY		(month/day/year)
System Memory	This field reports the memory size of the system.	N/A
Extended Memory	This field reports the Extended Memory size.	N/A
Video Memory	This field shows the memory allocated for the video graphics.	N/A
Quiet Boot Allows startup to skip certain tests while booting,decreasing the time needed to boot the system.		Option: Enabled or Disabled
Network Boot Enables, disables the system boot from LAN (remote server).		Option: Enabled or Disabled
F12 Boot Menu	Enables, disables Boot Menu during POST.	Option: Enabled or Enabled
D2D Recovery Enables, disables D2D Recovery function. The function allows the user to create a hidden partition on hard disc drive to store operation system and restore the system to factory defaults.		Option: Enabled or Disabled
SATA Mode Control the mode in which the SATA controller should operate.		Option: AHCI or IDE

Security

The Security screen contains parameters that help safeguard and protect your computer from unauthorized use.

PhoenixBIOS Setup Utility
Information	Main	Security	Boot	Exit
					Item Specific Help
	Supervisor Password Is:		Clear
	User Password Is:		Clear		Supervisor Password controls access to the setup utility. It can be used to boot up when Pawword on boot is enabled.
	HDD0 Password Is:		Clear
	Set Supervisor Password		[Enter]
	Set User Password		[Enter]
	Set SATA Port 0 HDD Password		[Enter]
	Password on Boot:		[Disabled]
F1 Help ↑ Select Item F5/F6 Change Values F9 Setup DefaultsEsc Exit ← Select Menu Enter Select ▶ Sub-Menu F10 Save and Exit

The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter Description Option
Supervisor Password Is	Shows the setting of the Supervisor password	Clear or Set
User Password Is	Shows the setting of the user password.	Clear or Set
HDD0 Password	Shows the setting of the hard disk password.	Clear or Set
Set Supervisor Password Press	Enter to set the supervisor password. When set, this password protects the BIOS Setup Utility from unauthorized access. The user can not either enter the Setup menu nor change the value of parameters.	N/A
Set User Password Press Enter to set the user password. When user password is set, this password protects the BIOS Setup Utility from unauthorized access. The user can enter Setup menu only and does not have right to change the value of parameters.		N/A
Set SATA Port0 HDD Password	Enter HDD Password. N/A
Password on Boot Defines whether a password is required or not while the events defined in this group happened. The following sub-options are all requires the Supervisor password for changes and should be grayed out if the user password was used to enter setup.		Disabled or Enabled

NOTE: When you are prompted to enter a password, you have three tries before the system halts. Don't forget your password. If you forget your password, you may have to return your notebook computer to your dealer to reset it.

Setting a Password

Follow these steps as you set the user or the supervisor password:

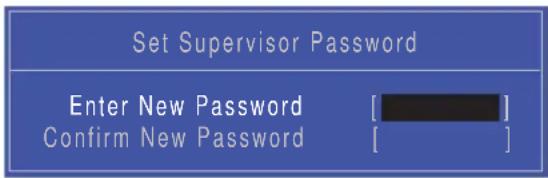

1. Use the up and down arrow keys to highlight the Set Supervisor Password parameter and press the Enter key. The Set Supervisor Password box appears:

1. Type a password in the "Enter New Password" field. The password length cannot exceed 8 alphanumeric characters (A-Z, a-z, 0-9, not case sensitive). Retype the password in the "Confirm New Password" field.

IMPORTANT: Be very careful when typing your password because the characters do not appear on the screen.

1. Press Enter. After setting the password, the computer sets the User Password parameter to "Set".
2. If desired, you can opt to enable the Password on boot parameter.
3. When you are done, press F10 to save the changes and exit the BIOS Setup Utility.

Removing a Password

Follow these steps:

1. Use the up and down arrow keys to highlight the Set Supervisor Password parameter and press the Enter key. The Set Password box appears:

1. Type the current password in the Enter Current Password field and press Enter.
2. Press Enter twice without typing anything in the Enter New Password and Confirm New Password fields. The computer then sets the Supervisor Password parameter to "Clear".
3. When you have changed the settings, press F10 to save the changes and exit the BIOS Setup Utility.

Changing a Password

1. Use the up and down arrow keys to highlight the Set Supervisor Password parameter and press the Enter key. The Set Password box appears.

1. Type the current password in the Enter Current Password field and press Enter.
2. Type a password in the Enter New Password field. Retype the password in the Confirm New Password field.
3. Press Enter. After setting the password, the computer sets the User Password parameter to "Set".
4. If desired, you can enable the Password on boot parameter.
5. When you are done, press F10 to save the changes and exit the BIOS Setup Utility.

If the verification is OK, the screen will display as following.

Setup Notice

Changes have been saved. Continue [ ]

The password setting is complete after the user presses Enter.

If the current password entered does not match the actual current password, the screen will show you the Setup Warning.

Setup Warning

Invalid Password. Continue [ ]

If the new password and confirm new password strings do not match, the screen will display the following message.

Setup Warning

Passwords do not match. Re-enter password. Continue [ ]

Boot

This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices include the USB diskette drives, the onboard hard disk drive and the DVD drive in the module bay.

Select Boot Devices to select specific devices to support boot.

PhoenixBIOS Setup Utility
Main Boot SecurityInformation Exit
Boot priority order: 1: IDE0: ST960821A 2: IDE1: MATSHITADVD 3: USB FDD: 4: Network boot: Realtek Boot Agent 5: USB HDD: xxxx USB 6: USB CDROM:	Item Specific Help
	Use <↑> or <↓> to select a device, then press <F6> to move it up the List, or <F5> to move it down the list. Press <Esc> to escape the menu.
F1 Help ↑ Select Item F5/F6 Change Values F9 Setup Defaults Esc Exit ← Select Menu Enter Select Sub-Menu F10 Save and Exit

Exit

The Exit screen allows you to save or discard any changes you made and quit the BIOS Utility.

PhoenixBIOS Setup Utility
Main Boot SecurityInformation Exit
				Item Specific Help
				Exit System Setup and save your changes to CMOS.
Exit Saving Changes [Enter]
Exit Discarding Changes [Enter]
Load Setup Defaults [Enter]
Discard Changes [Enter]
Save Changes [Enter]

The table below describes the parameters in this screen.

Parameter Description
Exit Saving Changes Exit	System Setup and save your changes to CMOS.
Exit Discarding Changes	Exit utility without saving setup data to CMOS.
Load Setup Default Load	default values for all SETUP item.
Discard Changes Load	previous values from CMOS for all SETUP items.
Save Changes Save Setup Data to CMOS.

BIOS Flash Utilities

The BIOS flash memory update is required for the following conditions:

• New versions of system programs
• New features or options
• Restore a BIOS when it becomes corrupted.

Use the Phlash utility to update the system BIOS flash ROM.

NOTE: If you do not have a crisis recovery diskette at hand, then you should create a Crisis Recovery Diskette before you use the Phlash utility.

NOTE: Do not install memory-related drivers (XMS, EMS, DPMI) when you use the Phlash.

NOTE: Please use the AC adaptor power supply when you run the Phlash utility. If the battery pack does not contain enough power to finish BIOS flash, you may not boot the system because the BIOS is not completely loaded.

Follow the steps below to run the Phlash.

1. Prepare a bootable diskette.
2. Copy the flash utilities to the bootable diskette.
3. Then boot the system from the bootable diskette. The flash utility has auto-execution function.

DOS Flash Utility

Perform the following steps to use the DOS Flash Utility:

1. Press F2 during boot to enter the Setup Menu.
2. Select Boot Menu to modify the boot priority order, for example, if using USB HDD to Update BIOS, move USB HDD to position 1.

PhoenixBIOS Setup Utility
Main Boot SecurityInformation Exit
Boot priority order: 1: IDE0: ST960821A 2: IDE1: MATSHITADVD 3: USB FDD: 4: Network boot: Realtek Boot Agent 5: USB HDD: xxxx USB 6: USB CDROM:	Item Specific Help
	Use <↑> or <↓> to select a device, then press <F6> to move it up the List, or <F5> to move it down the list. Press <Esc> to escape the menu.
F1 Help ↑↓ Select Item F5/F6 Change Values F9 Setup Defaults Esc Exit ← Select Menu Enter Select Sub-Menu F10 Save and Exit

1. Execute the FLASH.BAT batch file to update BIOS in DOS mode.

The flash process begins as shown.

1. In flash BIOS, the message Please do not remove AC Power Source displays.

Plug in the AC power to continue.

1. Flash is complete when the message Flash programming complete displays.

WinFlash Utility

Perform the following steps to use the WinFlash Utility:

1. Double-click the WinFlash executable.
2. Click OK to begin the update. WinFlash closes all applications and shuts down the system. NOTE: Place only one *.wph file with flash32.exe in the same folder when executing this procedure.

Remove HDD/BIOS Password Utilities

This section provides you with details about removing HDD/BIOS password:

Remove HDD Password:

If you key in the wrong HDD password three times, an error is generated.

To reset the HDD password, perform the following steps:

1. An error code is generated for unlocking the HDD. Note down this code.

1. Execute the UnlockHD.EXE file to create the unlock code in DOS Mode using the format UnlockHD [Encode code] with the code noted in the previous step, as follows:

UnlockHD 76943488

1. Select 2 to obtain the password. This password can be used for unlocking the HDD.

Password :46548274

1. Shut down the computer by pressing down the Power button for 4 seconds.
2. Turn on the computer and key in the password to unlock the HDD.

Removing BIOS Passwords:

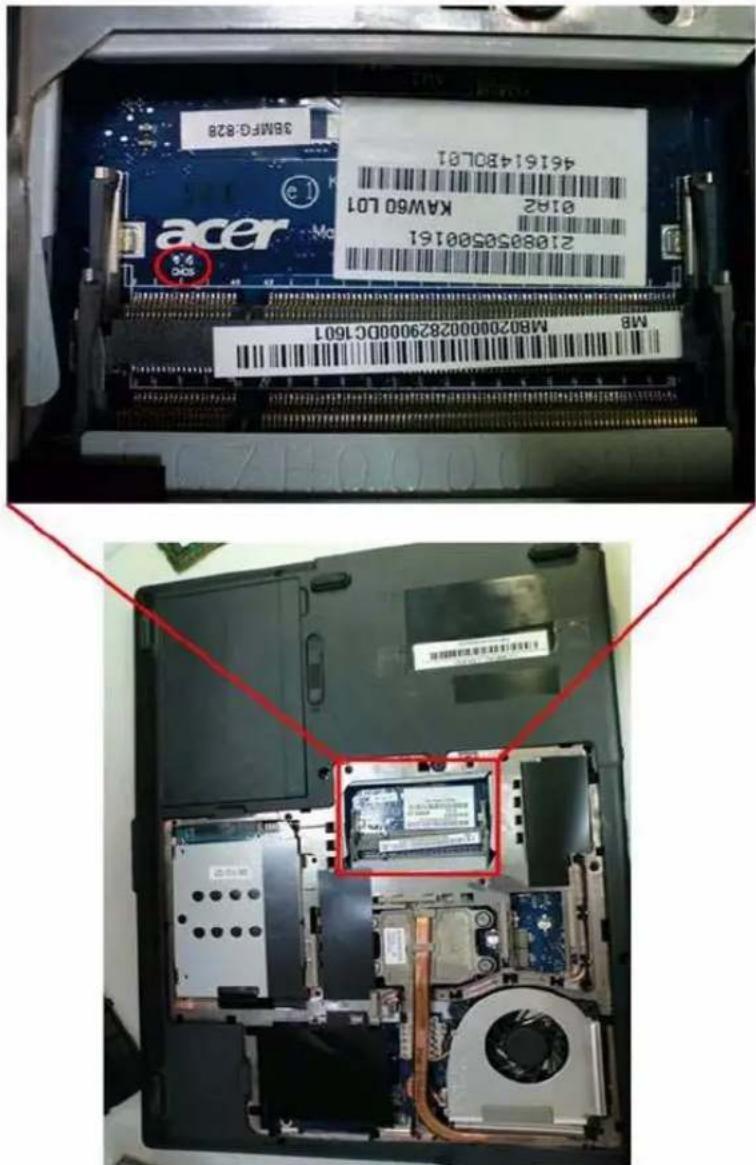

To clear the User or Supervisor passwords through hardware, open the WLAN door and use a metal instrument to short the J1 jumper.

Cleaning BIOS Passwords

To clean the User or Supervisor passwords using software utilities, perform the following steps:

1. From a DOS prompt, execute clnpwd.exe

1. Press 1 or 2 to clean the desired password shown on the screen.

The onscreen message determines whether the function is successful or not.

Using Boot Sequence Selector

The Boot Sequence Selector allows the boot order to be changed without accessing the BIOS. To use Boot Sequence Selector, perform the following steps:

1. Enter into DOS.
2. Execute BS.exe to display the usage screen.

d:\BOOTSEQ>bs
*** Boot Sequence Selector Version 0.03 ***
Create by Rockwell Chuang 10/01/2005.
Usage:
BS [ 1 | 2 | 3 | 4 ]
BS 1 : [ Floppy ] => [HardDisk] => [ CD-ROM ] => [ LAN ]
BS 2 : [HardDisk] => [ CD-ROM ] => [ LAN ] => [ Floppy ]
BS 3 : [ CD-ROM ] => [HardDisk] => [ LAN ] => [ Floppy ]
BS 4 : [ LAN ] => [ Floppy ] => [HardDisk] => [ CD-ROM ]
d:\BOOTSEQ>

1. Select the desired boot sequence by entering the corresponding sequence. For example, enter BS2 to change the boot sequence to HDD | CD ROM | LAN | Floppy.

Using DMITools

The DMI (Desktop Management Interface) Tool copies BIOS information to EEPROM to be used in the DMI pool for hardware management.

When the BIOS displays Verifying DMI pool data it is checking that the table correlates with the hardware before sending to the operating system (Windows, etc.).

To update the DMI Pool, perform the following steps:

1. Boot into DOS.
2. Execute dmitools. The following messages report to screen to confirm completion:
3. dmitools /r ==> Read DMI string from BIOS
4. dmitools /wm xxxx ==> Write manufacturer name to EEPROM (max. 16 characters)
5. dmitools /wp xxxx ==> Write product name to EEPROM (max. 16 characters)
6. dmitools /ws xxxx ==> Write serial number to EEPROM (max. 22 characters)
7. dmitools /wu xxxx ==> Write UUID to EEPROM
8. dmitools /wa xxxx ==> Write asset tag to EEPROM (max. 32 characters)

The following examples show the commands and the corresponding output information.

Read DMI Information from Memory

Input:

dmitools /r

Output:

Manufacturer (Type1, Offset04h): Acer

Product Name (Type1, Offset05h): TravelMate xxxxx

Serial Number (Type1, Offset07h): 01234567890123456789

UUID String (Type1, Offset08h): xxxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx

Asset Tag (Type3, Offset04h): Acet Asstag

Write Product Name to EEPROM

Input:

dmitools /wp Acer

Write Serial Number to EEPROM

Input:

dmitools /ws 01234567890123456789

4). Write UUID to EEPROM ( Create UUID from Intel WFM20.pdf )

Input:

dmitools /wu

5). Write Asset Tag to EEPROM

Input:

dmitools /wa Acer Asstag

NOTE: When using any of the Write options, restart the system to make the new DMI data effective.

Using the LAN MAC EEPROM Utility

You can use the MAC.BAT utility to write the MAC.CFG file to the EEPROM under DOS mode.

1. Use a text editor (for example: Notepad) to open the MAC.CFG file. You can see the MAC.CFG contents as below:

MAC CFG - 記事本
檔案(E) 編輯(E) 格式(O) 檢視(V) 說明(H)
Title= MAC Address byte
WriteData='001122334455'
StartAddr=7A
WriteLeng=6
KeepByte=0

WriteData = '001122334455' MAC value

StartAddr=7A MAC address

WriteLeng=6 MAC value length

KeepByte=0 don't care

1. In DOS mode, run the MAC.BAT file to write MAC values to eeprom.

C:\MAC>mac.bat
C:\MAC>eeprom w MAC.cfg
Progress --> \
Write Data to EEPROM OK!!

Machine Disassembly and Replacement

IMPORTANT: The outside housing and color may vary from the mass produced model.

This chapter contains step-by-step procedures on how to disassemble the notebook computer for maintenance and troubleshooting.

Disassembly Requirements

To disassemble the computer, you need the following tools:

• Wrist grounding strap and conductive mat for preventing electrostatic discharge
• Flat screwdriver • Philips screwdriver
• Plastic flat screwdriver
• Plastic tweezers

NOTE: The screws for the different components vary in size. During the disassembly process, group the screws with the corresponding components to avoid mismatch when putting back the components.

Pre-disassembly Instructions

Before proceeding with the disassembly procedure, make sure that you do the following:

1. Turn off the power to the system and all peripherals.
2. Unplug the AC adapter and all power and signal cables from the system.

1. Place the system on a flat, stable surface.
2. Remove the battery pack.

Disassembly Process

IMPORTANT: The LCD Module cannot be disassembled outside of factory conditions. If any part of the LCD Module is faulty, such as the camera, antenna or LCD panel, the whole module must be replaced.

The disassembly process is divided into the following stages:

• External module disassembly
• Main unit disassembly • LCD module disassembly

The flowcharts provided in the succeeding disassembly sections illustrate the entire disassembly sequence. Observe the order of the sequence to avoid damage to any of the hardware components. For example, if you want to remove the mainboard, you must first remove the keyboard, then disassemble the inside assembly frame in that order.

Main Screw List

Screw Quantity Part Number
SCREW M2.5*4 1 86.N2802.001
SCREW M2.5*6 10 86.N2802.002
SCREW M2.5*8 30 86.N2802.003
SCREW M2*3 17 86.N2802.004
SCREW M3*3 4 86.N2802.005

External Module Disassembly Process

IMPORTANT: The outside housing and color may vary from the mass produced model.

External Modules Disassembly Flowchart

The flowchart below gives you a graphic representation of the external module disassembly sequence and instructs you on the components that need to be removed during servicing. For example, if you want to remove the keyboard, you must first remove the switch board.

Screw List

Step Screw	Quantity Part No.
Lower Covers M2.5*	8 3 86.N2802.003
ODD Module M2.5*	8 1 86.N2802.003
WLAN Module M2*3	2 86.N2802.004
HDD Carrier M3*3	4 86.N2802.005

Removing the Battery Pack

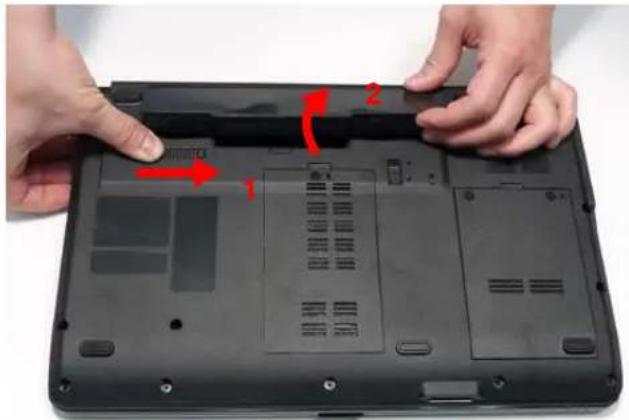

1. Turn computer over. Slide the battery lock in the direction shown.

1. Slide and hold the battery release latch to the release position (1), then lift out the battery pack from the main unit (2).

Removing the SD Dummy Card

1. Push the SD dummy card all the way in to eject it.

1. Pull it out from the slot.

Removing the Lower Covers

1. See "Removing the Battery Pack" on page 44.
2. Remove the three screws securing the Memory and HDD Covers.

Step Size Quantity Screw Type
Lower Covers M2.5*8 3

1. Remove the HDD cover as shown.

1. Carefully open the Memory Cover.

Removing the Optical Drive Module

1. See "Removing the Battery Pack" on page 44.
2. Remove the screw securing the ODD module.

Step Size Quantity Screw Type
ODD Module M2.5*8 1

1. Insert a suitable tool into the access slot in the battery bay as shown. Gently lever the ODD module out of the chassis.
2. Pull the optical drive module out from the chassis.

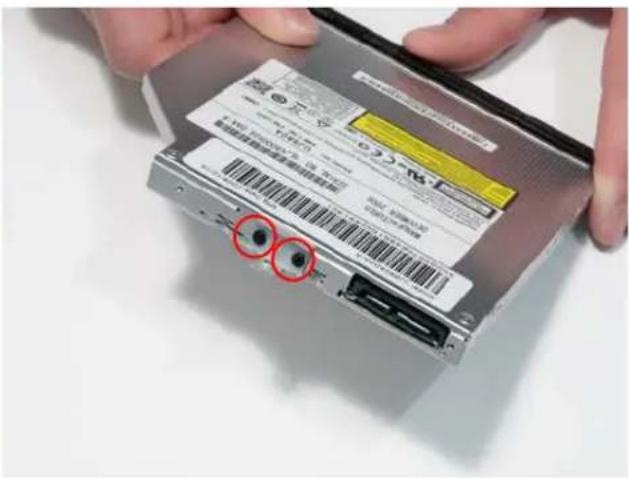

1. Remove the two screws securing the ODD bracket and remove the ODD bracket from the optical disk drive module.

Step Size Quantity Screw Type
ODD Bracket M2*3 2

1. Remove the ODD bezel by rotating the top edge downward and pulling it clear of the module.

Removing the DIMM Modules

1. See "Removing the Lower Covers" on page 46.
2. Push out the release latches on both sides of the DIMM socket to release the DIMM module.

1. Remove the DIMM module.

1. Repeat steps for the second DIMM module if present.

Removing the WLAN Module

1. See "Removing the Lower Covers" on page 46.
2. Remove the adhesive tape securing the Antenna cables in place.

1. Disconnect the antenna cables from the WLAN Board.

NOTE: Cable placement is Black to the MAIN terminal (upper) and White to the AUX terminal (lower).

1. Move the antenna away and remove the two screws to release the WLAN Board.

Step Size Quantity Screw Type
WLAN Module M2*3	2

1. Detach the WLAN Board from the WLAN socket.

NOTE: When reattaching the antennas, ensure the cables are tucked into the chassis to prevent damage.

Removing the Hard Disk Drive Module

1. See "Removing the Lower Covers" on page 46.
2. Using the pull-tab, slide the HDD Module in the direction of the arrow to disconnect the interface.

1. Lift the HDD Module clear of the HDD bay.

NOTE: To prevent damage to the device, avoid pressing down on it or placing heavy objects on top of it.

1. Remove the four screws (two on each side) securing the hard disk to the carrier.

Step Size Quantity Screw Type
HDD Carrier M3*3 4

1. Remove the HDD from the carrier.

Main Unit Disassembly Process

Main Unit Disassembly Flowchart

Screw List

Step Screw Quantity Part No.
LCD Module M2.5*8 2 86.	N2802.003
LCD Module M2.5*8 4 86.	N2802.003
Upper Cover M2.5*8 11 86.	N2802.003
Upper Cover M2.5*8 9 86.	N2802.003
Power Board M2*3 2 86.	N2802.004
Left Speaker Module M2*3 1 86.	N2802.004
Right Speaker Module M2*3 1 86.	N2802.004
TouchPad Bracket	M2*3 2 86.	N2802.004
Mainboard	M2.5*4 1 86.	N2802.001
Thermal Module	M2.5*6 4 86.	N2802.002
CPU Fan	M2*3 3 86.	N2802.004

Removing the Switch Cover

CAUTION: Using metal tools to remove the Switch Cover may cause damage to the outer casing. The use of plastic tools or fingers is recommended to remove the Switch Cover.

1. See "Removing the Battery Pack" on page 44.
2. Turn the computer over. Press down the / and * keys on the right side of the keyboard to expose the cutout. Insert a suitable plastic tool (or finger) and pry the Switch Cover upward, away from the Upper Cover.

1. Work along the Switch Cover toward the left hinge, gently prying up the cover as shown.

1. Lift the Switch Cover clear of the computer.

Removing the Keyboard

1. See "Removing the Switch Cover" on page 55.
2. Pry up the centre of the Keyboard and rotate it upward away from the Upper Cover.

1. Turn the keyboard over on to the TouchPad area to expose the FFC connector.

1. Open the locking latch and disconnect the FFC from the mainboard.

1. Lift the keyboard clear of the Upper Cover.

Removing the LCD Module

1. See "Removing the Keyboard" on page 56.
2. Turn the computer over. Remove the two securing screws from the bottom of the chassis.

Step Size Quantity Screw Type
LCD Module M2.5*8	2

1. Remove the Antenna Cables from the cable channel as shown. Ensure that the cables are free from all cable clips.

1. Stand the computer on the LCD Panel and pull the Antenna cables completely through the chassis.

1. Disconnect the LCD cable from the Mainboard and remove the cable from the cable channel.

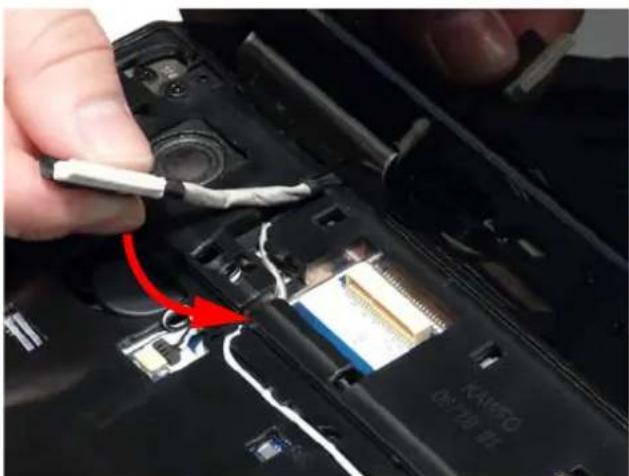

1. Remove the white Antenna cable from the cable channel. Ensure that the cable is completely free of the retaining clips all the way to the hinge well.

1. Remove the adhesive tape securing the Antenna cable to the Upper Cover.

1. Remove the black Antenna cable from the cable channel as shown. Ensure that the cable is completely free of the retaining clips all the way to the hinge well.

1. Open the LCD Panel to the full extent to expose the Hinge Covers.

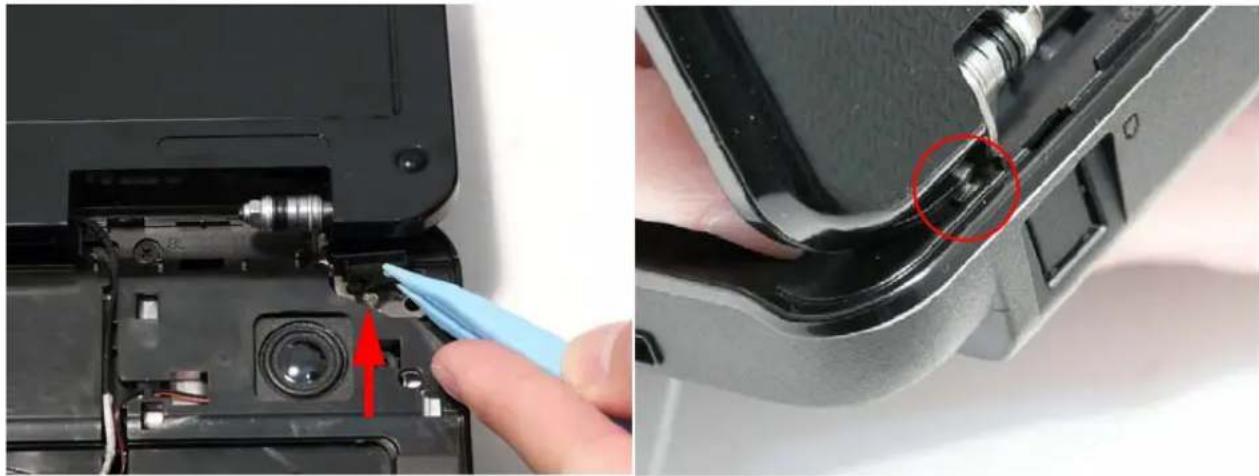

2. Press the left side Hinge Cover inward, as shown, and lift to remove the cover from the chassis.

1. Repeat the process for the right side Hinge Cover.

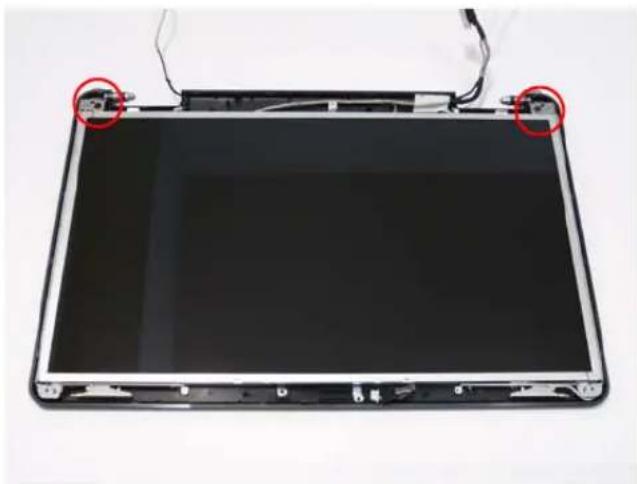

2. Remove the four securing screws (two each side) from the LCD module.

Step Size Quantity Screw Type
LCD Module M2.5*8	4

1. Remove the left and right screw covers from on top of the hinges.

1. Lift the LCD Module clear of the Upper Cover.

Removing the Upper Cover

1. See "Removing the LCD Module" on page 57.
2. Turn the computer over. Remove the eleven screws on the bottom panel.

Step Size Quantity Screw Type
Upper Cover M2.5*8 11

1. Turn the computer over. Remove the three screw caps at the rear of the Upper Cover as shown.

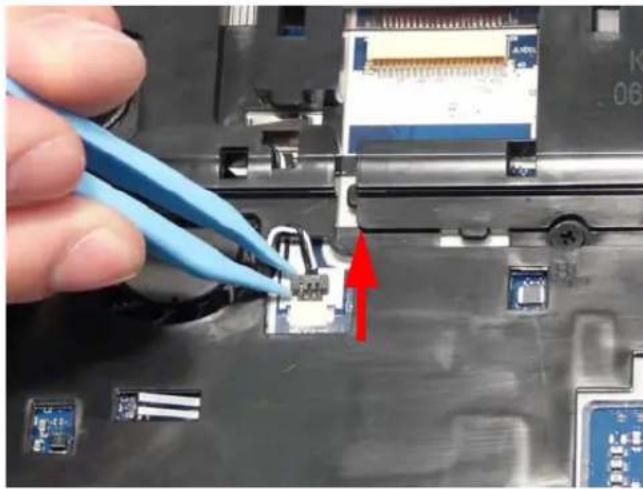

1. Disconnect the following four cables from the Mainboard.

1. Disconnect A as shown.

1. Disconnect C as shown.

1. Release the locking latch on B and remove the FFC cable as shown.

1. Release the locking latch on D and remove the FFC cable as shown.

NOTE: Avoid pulling on cables directly to prevent damage to the connectors. NOTE: Use the pull-tabs on FFCs whenever available to prevent damage.

1. Remove the nine screws on the top panel.

Step Size Quantity Screw Type
Upper Cover M2.5*8 9

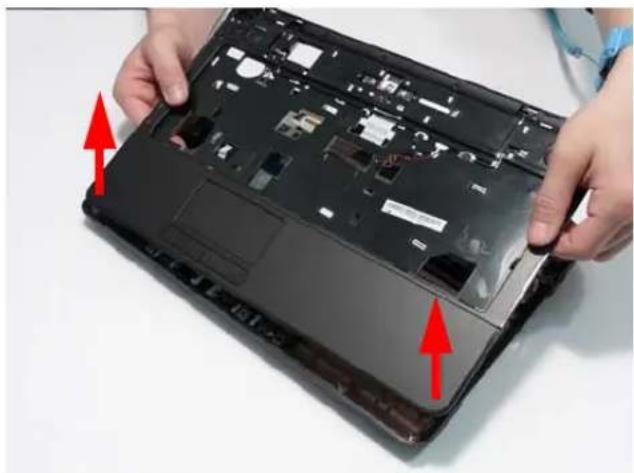

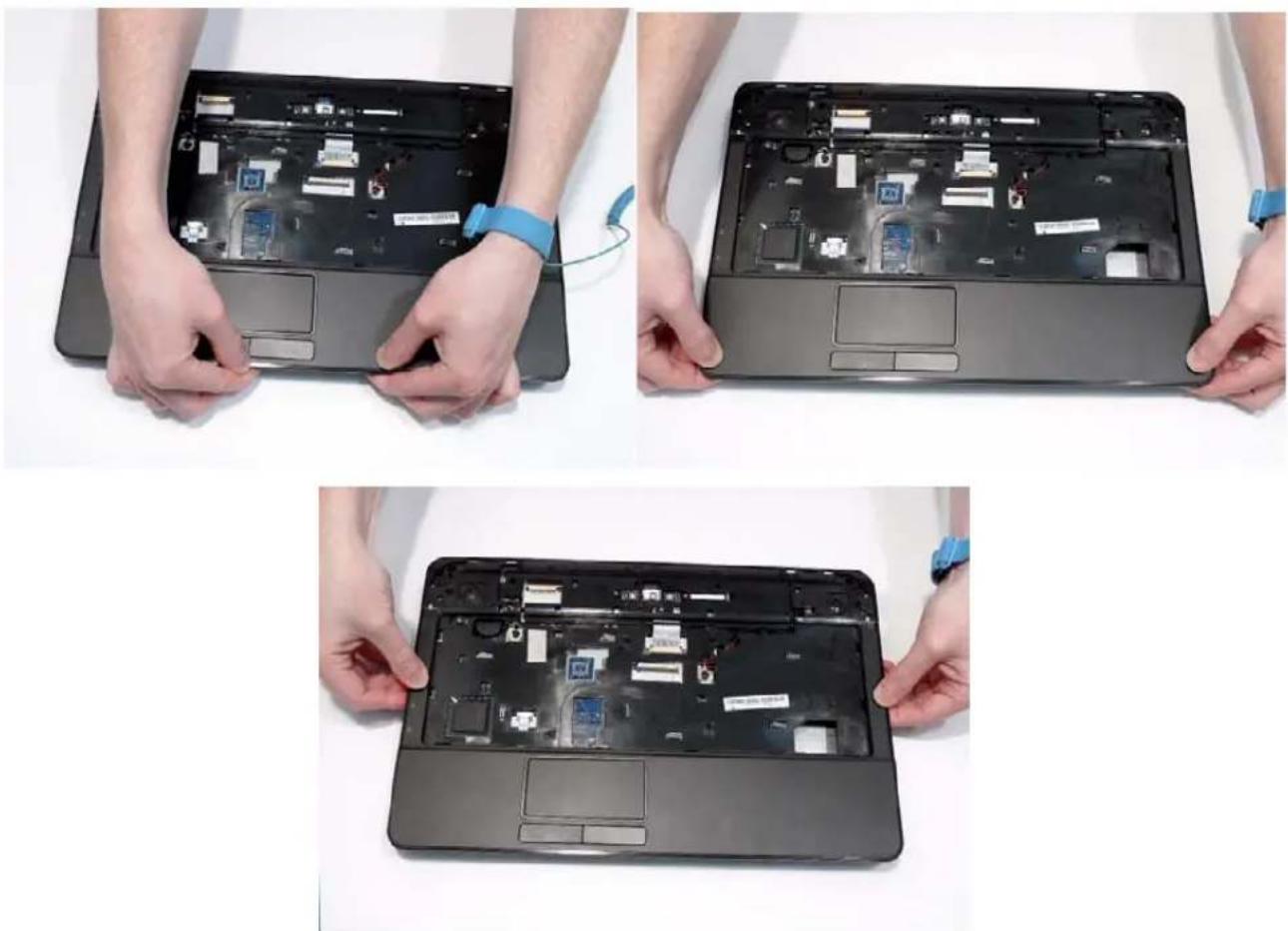

1. Starting at the rear left side of the cover, pry apart the Upper and Lower Covers as shown. Work along the back edge of the casing to the right as shown, then lift the Upper Cover clear of the Lower Cover.

Removing the Power Board

1. See "Removing the Upper Cover" on page 61.
2. Locate the Power Board on the Upper Cover as shown.

1. Remove the two screws securing the Power Board to the Upper Cover.

Step Size Quantity Screw Type
Power Board M2*3 2

1. Lift the Power Board clear of the Upper Cover as shown.

Removing the Left Speaker Module

1. See "Removing the Upper Cover" on page 61.
2. Locate the Left Speaker Module on the Upper Cover as shown.

1. Remove the adhesive tape from the Speaker cable.

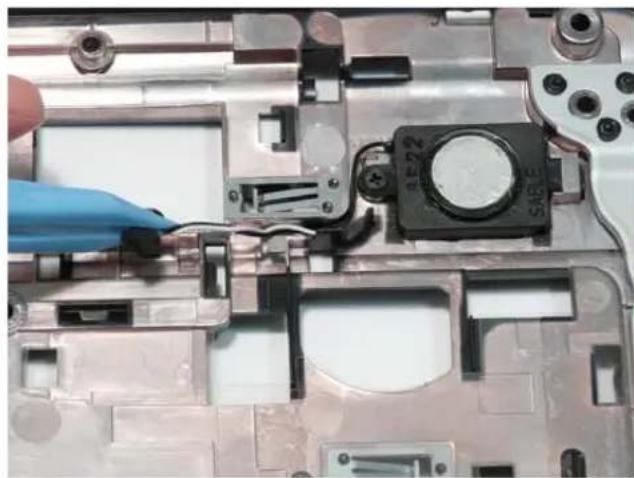

1. Remove the Speaker cable from the cable channel. Ensure that the cable is free from all cable clips.

1. Remove the single securing screw from the Left Speaker Module.

Step Size Quantity Screw Type
Left Speaker Module	M2*3 1

1. Lift the Speaker clear of the Upper Cover, left side first as shown.

Removing the Right Speaker Module

1. See "Removing the Upper Cover" on page 61.
2. Locate the Right Speaker Module on the Upper Cover as shown.

1. Turn the Upper Cover over and remove the Right Speaker Module cable from the cable channel. Ensure that the cable is free from all cable clips.

1. Turn the Upper Cover over and pass the cable through the cover as shown.

1. Remove the single securing screw from the Right Speaker Module.

Step Size Quantity Screw Type
Right Speaker Module	M2*3 1

1. Lift the Speaker clear of the Upper Cover, right side first as shown.

Removing the TouchPad Bracket

IMPORTANT: The TouchPad Board cannot be removed individually. To replace the TouchPad Board, replace the entire Upper Cover.

1. See "Removing the Upper Cover" on page 61.
2. Lift the FFC to detach the adhesive securing the cable to the Upper Cover.

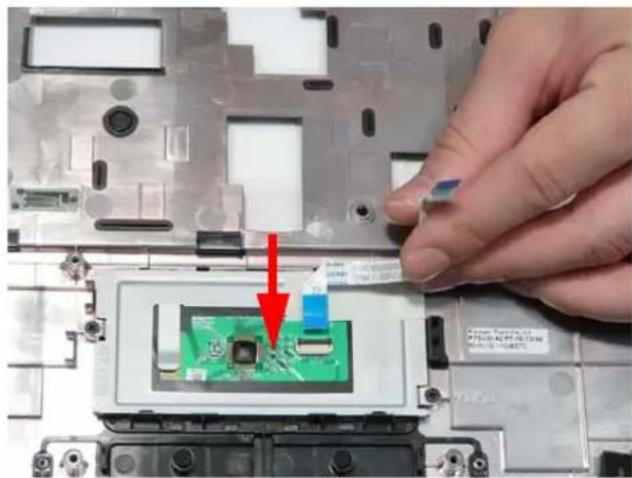

1. Release the FFC locking latch and disconnect the TouchPad FFC from the cover.

1. Remove the two screws from the TouchPad bracket.

Step Size Quantity Screw Type
TouchPad Bracket M2*3 2

1. Lift the rear edge of the TouchPad bracket first to clear the securing clips and remove it as shown.

Removing the Mainboard

1. See "Removing the Upper Cover" on page 61.
2. Remove the single securing screw from the Mainboard.

Step Size Quantity Screw Type
Mainboard M2.5*4 1

1. Lift the mainboard from the chassis, right edge first, and place it on a clean, dust-free surface.

Removing the RTC Battery

IMPORTANT: Follow local regulations for disposal of all batteries.

The RTC Battery is soldered to the Mainboard. To replace the battery, solder the new battery to the connections shown.

Removing the Thermal Module

1. See "Removing the Lower Covers" on page 46.

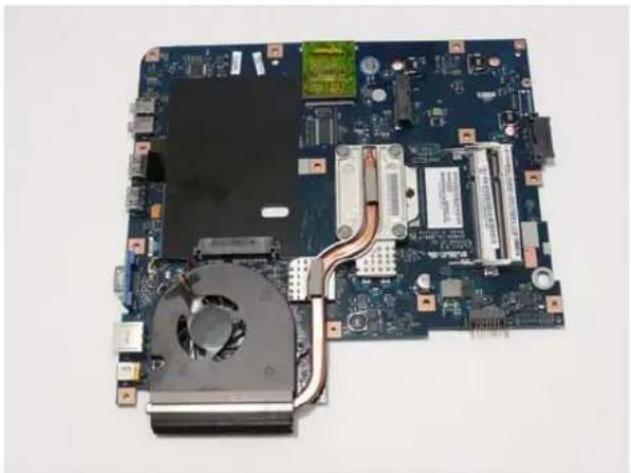

2. Turn the Mainboard over to access the Thermal Module.

1. Remove the four securing screws (in reverse numerical order from screw 4 to screw 1) from the Thermal Module.

Step Size Quantity Screw Type
Thermal Module M2 5*6 4

1. Using both hands, lift the Thermal Module clear of the Mainboard.

Removing the CPU Fan

1. See "Removing the Thermal Module" on page 74.
2. Disconnect the Fan cable from the Mainboard as shown.

1. Remove the three securing screws from the Fan Module.

Step Size Quantity Screw Type
CPU Fan M2*3 3

1. Lift the CPU Fan clear of the Mainboard as shown.

Removing the CPU

IMPORTANT: The pins on the underside of the CPU are very delicate. If they are damaged, the CPU may malfunction. Place the CPU on a clean, dry surface when it is not installed.

1. See "Removing the Thermal Module" on page 74.
2. Using a flat-bladed screw driver, rotate the CPU locking screw 180° counter-clockwise as shown.

1. Lift the CPU clear of the socket as shown.

LCD Module Disassembly Process

LCD Module Disassembly Flowchart

Screw List

Step Screw	Quantity Part No.
LCD Bezel M2.5*6	4 86.N2802.002
LCD Panel M2.5*6	2 86.N2802.002
LCD Brackets M2*3	6 86.N2802.004

Removing the LCD Bezel

1. See "Removing the LCD Module" on page 57.
2. Remove the two upper and two lower bezel screw caps and screws.

Step Size Quantity Screw Type
LCD Bezel M2.5*6 4

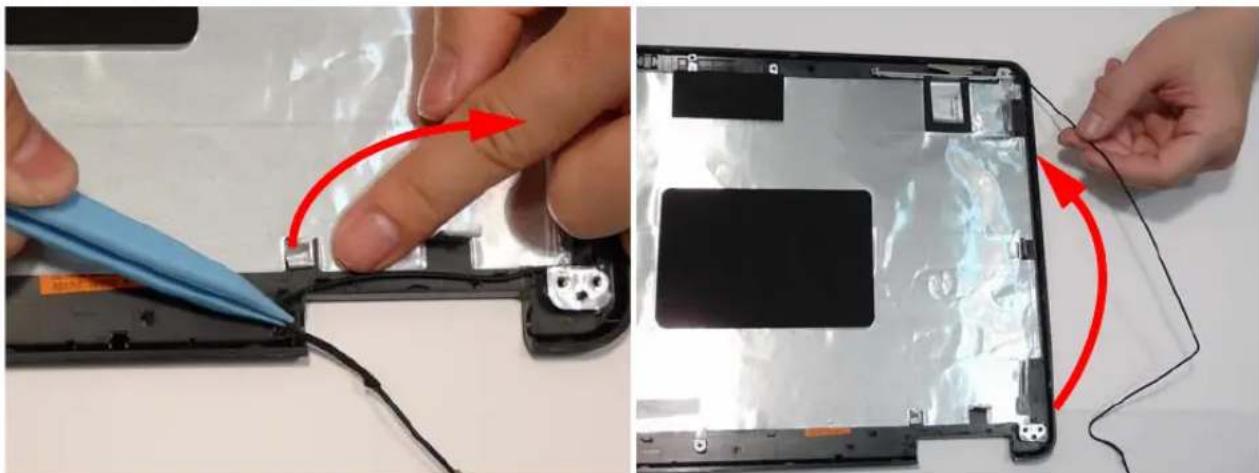

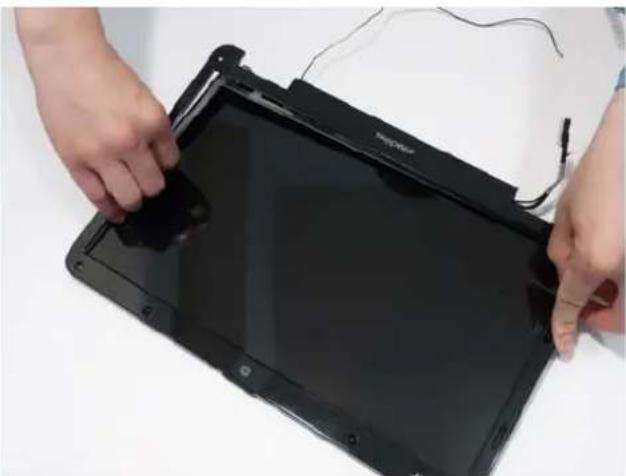

1. Starting from the bottom edge of the bezel, pry the bezel upwards and away from the panel. Work along the right side toward the top of the bezel, prying the covers apart. Continue along the top edge and down the left side to remove the bezel.

NOTE: If necessary, use a pry to lift up the outside edges of the bezel.

Removing the Camera Module

1. See "Removing the LCD Bezel" on page 80.

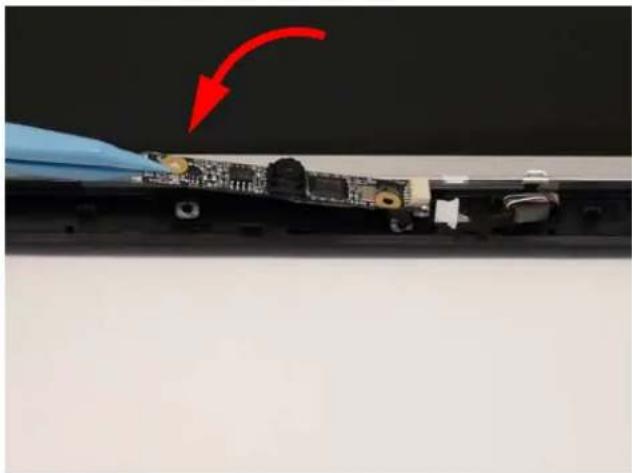

2. Locate the Camera Module at the top of the LCD Module and disconnect the camera cable.

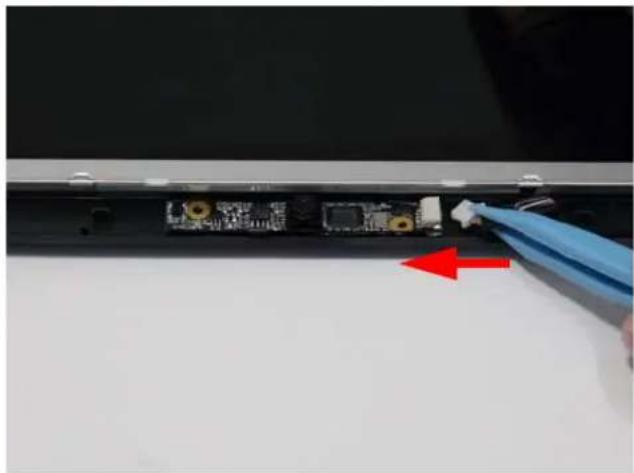

1. Remove the Camera from the module.

Removing the LCD Panel

1. See "Removing the Camera Module" on page 81.
2. Remove the two securing screws from the LCD Panel.

Step Size Quantity Screw Type
LCD Panel M2.5*6 2

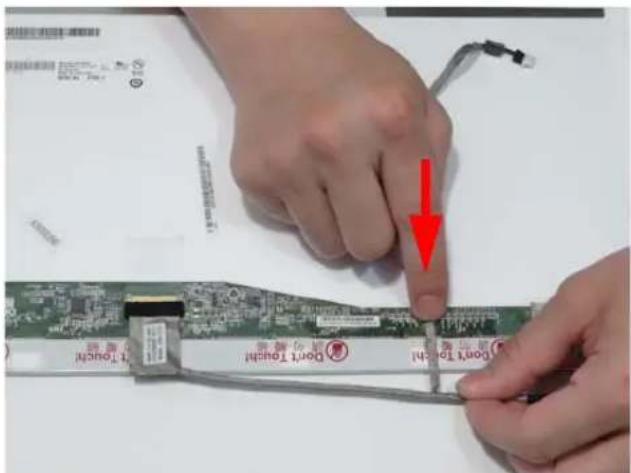

1. Remove the adhesive strip holding the cables in place.

1. Remove the Camera cable cluster from the LCD Module as shown.

1. Lift the LCD Panel clear of the module.

Removing the LCD Brackets and FPC Cable

1. See "Removing the LCD Panel" on page 82.
2. Remove the six securing screws (three on each side) from the LCD Panel brackets.

Step Size Quantity Screw Type
LCD Brackets M2*3 6

1. Remove the LCD brackets by pulling away from the LCD Panel.

1. Turn the LCD panel over to expose the rear. Lift the adhesive protector and disconnect the cable from the LCD Panel.

1. Lift the cable as shown to disengage the adhesive strip securing it in place.

1. Lift the FPC cable to disengage the remaining adhesive and remove the cable from the panel.

Removing the Antennas

1. See "Removing the LCD Panel" on page 82.
2. Remove the adhesive strips holding the left antenna cable in place. Ensure the cable is free from obstructions.

1. Remove the cable from the cable channel. Ensure that the cable is free from all cable clips and adhesive strips.

1. Remove the adhesive tape securing the left Antenna to the LCD Module.

1. Lift the left Antenna clear of the cover.

1. Remove the adhesive strips holding the right antenna cable in place. Ensure the cable is free from obstructions.

1. Remove the cable from the cable channel. Ensure that the cable is free from all cable clips and adhesive strips.

1. Remove the adhesive tape securing the right Antenna to the LCD Module.

1. Lift the right Antenna clear of the cover.

LCD Module Reassembly Procedure

Replacing the Antennas

1. Replace the right Antenna as shown. Ensure that the locating pins on the Antenna are correctly seated.

1. Replace the adhesive strip to secure the Antenna in place.

1. Run the cable down the side of the LCD Module using all available clips and adhesive.

1. Run the cable along the cable channel as shown, using all available cable clips.

1. Replace the left Antenna as shown. Ensure that the locating pins on the Antenna are correctly seated.

1. Replace the adhesive strip to secure the Antenna in place.

1. Run the cable down the side of the LCD Module using all available clips and adhesive.

1. Run the cable along the cable channel as shown, using all available cable clips and adhesive.

1. The Antennas and cables appear as shown when correctly installed.

Replacing the LCD Panel

1. Connect the LCD cable to the panel connector as shown.

1. Run the cable along the back of the panel and press down as indicated to secure the cable in place.
2. Press down the adhesive strip to secure the cable in place.

1. Run the cable across the back of the panel as shown and press down as indicated to secure the cable in place.

IMPORTANT: Ensure that the LCD cable runs between the green callouts to avoid trapping when the panel is replaced in the LCD Module.

1. Align the LCD brackets with the screw holes on the panel. Replace the six screws (three on each side) in the brackets as shown.

1. Place the LCD Panel in the LCD Module, top edge first, and secure the LCD cable with adhesive tape.

IMPORTANT: Ensure that the LCD power cable passes through the hinge well and is not trapped under the panel.

1. Replace the Camera cable cluster in the LCD Module.

1. Secure the LCD module with the two securing screws.

Replacing the Camera Module

1. Place the camera in the LCD Module.

1. Connect the cable to the camera module.

Replacing the LCD Bezel

1. Replace the bezel and press down until there are no gaps between the bezel and the LCD Module.

IMPORTANT: Ensure that the LCD cables pass through the hinge wells and are not trapped by the bezel.

1. Replace the four screws and screw caps provided.

Main Module Reassembly Procedure

Replacing the CPU

IMPORTANT: The CPU has a Pin1 locator that must be positioned corresponding to the marker on the CPU socket.

1. Place the CPU into the CPU socket as shown, taking note of the Pin1 locator.

1. Using a flat-bladed screwdriver, rotate the CPU locking screw 180° clockwise to secure the CPU in place.

Replacing the CPU Fan

1. Align the screw holes on the CPU Fan and Mainboard and replace the Fan.

1. Replace the three screws to secure the Fan to the Mainboard.

1. Connect the Fan power cable to the Mainboard connector.

Replacing the Thermal Module

IMPORTANT: Apply a suitable thermal grease and ensure all heat pads are in place before replacing the Thermal Module.

The following thermal grease types are approved for use:

The following thermal pads are approved for use:

- Eapus XR-PE

1. Remove all traces of thermal grease from the CPU using a lint-free cloth or cotton swab and Isopropyl Alcohol, Acetone, or other approved cleaning agent.
2. Apply a small amount of thermal grease to the centre of the CPU—there is no need to spread the grease manually, the force used during the installation of the Thermal Module is sufficient.
3. Align the screw holes on the Thermal Module and Mainboard then replace the module. Keep the module as level as possible to spread the thermal grease evenly.
4. Replace the four securing screws (in numerical order from screw 1 to screw 4) to secure the Thermal Module in place.

Replacing the Mainboard

1. Ensure that the Mainboard is face up (the CPU is not visible). Place the Mainboard in the chassis, left edge first (1), then rotate it downward into position (2).

NOTE: Ensure the I/O ports are positioned correctly through the casing.

1. Replace the single securing screw in the mainboard.

Replacing the TouchPad Bracket

1. Replace the TouchPad bracket top edge first to engage the securing clips.
2. Press the bracket down to engage the securing clips.

1. Replace the two screws to secure the TouchPad Bracket to the Upper Cover.

1. Replace the TouchPad FFC and close the locking latch on the connector.

1. Replace the FFC and press down as indicated to secure it to the Upper Cover.

Replacing the Right Speaker Module

1. Place the module left side first on the Upper Cover as shown. Ensure that the left side of the module is seated correctly in the securing clip.
2. Replace the single screw to secure the module in place.

1. Pass the cable through the Upper Cover as shown.

1. Turn the Upper Cover over and run the cable along the cable channel using all available cable clips.

1. The cable runs as shown when correctly installed.

Replacing the Left Speaker Module

1. Place the module right side first on the Upper Cover as shown. Ensure that the right side of the module is seated correctly in the securing clip.
2. Replace the single screw to secure the module in place.

1. Run the cable along the cable channel using all available cable clips.

1. Secure the cable in place with adhesive tape.
2. The cable runs as shown when correctly installed.

Replacing the Power Board

1. Slide the Power Board in to the Upper Cover front edge first to engage the securing clip.

1. Press the board down to locate the securing pin.

1. Replace the two screws to secure the board to the Upper Cover.

Replacing the Upper Cover

1. Place the Upper Cover on the Lower Cover as shown.

1. Press down around the edges to secure it in place.

1. Replace the nine screws in the Upper Cover as shown.

1. Replace the three screw caps as shown.

1. Connect the following cables to the Mainboard.

1. Connect A as shown. 7. Connect C as shown.

1. Connect B and close the locking latch to secure the cable in place.

1. Connect D and close the locking latch to secure the cable in place.

1. Turn the computer over and replace the eleven screws as shown.

Replacing the LCD Module

1. Align the screw holes on the LCD Module and Upper Cover and replace the LCD Module.

1. The left and right screw covers are shaped differently. Ensure that the correct cover is used.

1. Replace the left screw cover as shown. Ensure that the securing tab on the rear of the cover is seated correctly in the Upper Cover.

1. Replace the right screw cover as shown. Ensure that the securing tab on the rear of the cover is seated correctly in the Upper Cover.

1. Replace the four screws securing the LCD Module to the Upper Cover.

1. Ensure that the Hinge Covers are replaced correctly. Identify the rear edge of the covers by the two securing clips.
2. Align the left Hinge Cover as shown and press down to replace the cover.

1. Repeat the process for the right side Hinge Cover.
2. Run the black Antenna cable along the cable channel as shown using all available retaining clips.
3. Replace the adhesive strip to secure the cable in place.

1. Run the white Antenna cable along the cable channel as shown using all available retaining clips.

1. Run the LCD cable along the cable channel using all available cable clips.
2. Connect the LCD cable to the Mainboard as shown.

1. Stand the computer on the LCD Panel and pass the Antenna cables through the chassis.

1. The Upper Cover appears as shown when the Antenna and LCD cables are correctly installed.

1. Turn the computer over. Run the Antenna cables along the cable channel as shown, using all available cable clips.

1. Replace the two screws securing the LCD Module to the Lower Cover.

Replacing the Keyboard

1. Connect the Keyboard FFC to the Mainboard and close the locking latch to secure the cable in place.

1. Turn the Keyboard over and insert it front edge first into the chassis.

NOTE: Ensure that the six locating tabs are correctly seated.

1. Press down as indicated to secure the Keyboard in place.

Replacing the Switch Cover

1. Place the Switch Cover left side first on to the Upper Cover.

1. Press down as indicated to snap the Switch Cover into place.

Replacing the Hard Disk Drive Module

1. Place the HDD in the HDD carrier.
2. Replace the four screws (two each side) to secure the carrier.

1. Insert the HDD, as indicated and lower it into place.

1. Slide the HDD in the direction of the arrow to connect the interface.

Replacing the WLAN Module

1. Insert the WLAN Module into the WLAN socket.

1. Connect the two Antenna cables to the module.

NOTE: The black cable connects to the upper terminal (MAIN) and the white cable to the lower terminal (MAIN).

1. Replace the two screws to secure the module.

1. After connecting the cables to the terminals, secure the cables in place with adhesive tape to avoid trapping.

Replacing the DIMM Modules

1. Insert the DIMM Module in place.

1. Repeat steps for the second DIMM module if present.

1. Press down to lock the DIMM module in place.

Replacing the ODD Module

1. Press the bezel into the tray, bottom edge first, to secure it to the ODD Module.

1. Push the ODD Module into the ODD bay until it is flush with the casing.
2. Secure the ODD bracket with the two screws.

1. Replace the single screw to secure the Module.

Replacing the Lower Covers

1. Replace the Memory Cover as shown.

1. Replace the HDD Cover as shown.

IMPORTANT: Press down around the perimeter of the covers to ensure that all the securing tabs are correctly located in the casing.

1. Replace the three screws to secure the covers in place.

Replacing the SD Dummy Card

1. Insert the SD Dummy Card into the slot as shown.
2. Push until the card clicks into place and is flush with the casing.

Replacing the Battery

1. Slide and hold the battery release latch to the release position (1), insert the battery pack and press down (2).
2. Slide the battery lock in the direction shown to secure the battery in place.

Common Problems

Use the following procedure as a guide for computer problems.

NOTE: The diagnostic tests are intended to test only Acer products. Non-Acer products, prototype cards, or modified options can give false errors and invalid system responses.

1. Obtain the failing symptoms in as much detail as possible.
2. Verify the symptoms by attempting to re-create the failure by running the diagnostic test or by repeating the same operation.
3. Use the following table with the verified symptom to determine which page to go to.

Symptoms (Verified) Go To
Power On Issue Page 122
No Display Issue Page 123
LCD Failure Page 125
Internal Keyboard Failure Page 125
TouchPad Failure Page 126
Internal Speaker Failure Page 126
ODD Failure Page 129
WLAN Failure Page 132
Thermal Unit Failure Page 132
Other Functions Failure Page 133
Intermittent Failures	Page 134
Undermined Failures	Page 134

1. If the Issue is still not resolved, see "Online Support Information" on page 167.

Power On Issue

If the system doesn't power on, perform the following actions one at a time to correct the problem. Do not replace a non-defective FRUs:

Computer Shutdown Intermittently

If the system powers off at intervals, perform the following actions one at a time to correct the problem.

1. Check the power cable is properly connected to the computer and the electrical outlet.
2. Remove any extension cables between the computer and the outlet.
3. Remove any surge protectors between the computer and the electrical outlet. Plug the computer directly into a known good electrical outlet.
4. Disconnect the power and open the casing to check the Thermal Unit (see "Thermal Unit Failure" on page 132) and fan airways are free of obstructions.
5. Remove all external and non-essential hardware connected to the computer that are not necessary to boot the computer to the failure point.
6. Remove any recently installed software.
7. If the Issue is still not resolved, see "Online Support Information" on page 167.

No Display Issue

If the Display doesn't work, perform the following actions one at a time to correct the problem. Do not replace a non-defective FRUs:

No POST or Video

If the POST or video doesn't display, perform the following actions one at a time to correct the problem.

1. Make sure that the internal display is selected. On this notebook model, switching between the internal display and the external display is done by pressing Fn+F5. Reference Product pages for specific model procedures.
2. Make sure the computer has power by checking at least one of the following occurs:

- Fans start up

- Status LEDs light up

If there is no power, see "Power On Issue" on page 122.

1. Drain any stored power by removing the power cable and battery and holding down the power button for 10 seconds. Reconnect the power and reboot the computer.
2. Connect an external monitor to the computer and switch between the internal display and the external display is by pressing Fn+F5 (on this model).

If the POST or video appears on the external display, see "LCD Failure" on page 125.

1. Disconnect power and all external devices including port replicators or docking stations. Remove any memory cards and CD/DVD discs. Restart the computer.

If the computer boots correctly, add the devices one by one until the failure point is discovered.

1. Reseat the memory modules.
2. Remove the drives (see "Disassembly Process" on page 42).
3. If the issue is still not resolved, see "Online Support Information" on page 167.

Abnormal Video Display

If video displays abnormally, perform the following actions one at a time to correct the problem.

1. Reboot the computer.
2. If permanent vertical/horizontal lines or dark spots display in the same location, the LCD is faulty and should be replaced. See "Disassembly Process" on page 42.
3. If extensive pixel damage is present (different colored spots in the same locations on the screen), the LCD is faulty and should be replaced. See "Disassembly Process" on page 42.
4. Adjust the brightness to its highest level. See the User Manual for instructions on adjusting settings. NOTE: Ensure that the computer is not running on battery alone as this may reduce display brightness. If the display is too dim at the highest brightness setting, the LCD is faulty and should be replaced. See "Disassembly Process" on page 42.
5. Check the display resolution is correctly configured:

a. Minimize or close all Windows. b. If display size is only abnormal in an application, check the view settings and control/mouse wheel zoom feature in the application. c. If desktop display resolution is not normal, right-click on the desktop and select Personalize→ Display Settings. d. Click and drag the Resolution slider to the desired resolution. e. Click Apply and check the display. Readjust if necessary.

1. Roll back the video driver to the previous version if updated.
2. Remove and reinstall the video driver.
3. Check the Device Manager to determine that:
4. The device is properly installed. There are no red Xs or yellow exclamation marks. • There are no device conflicts.
5. No hardware is listed under Other Devices.
6. If the Issue is still not resolved, see "Online Support Information" on page 167.
7. Run the Windows Memory Diagnostic from the operating system DVD and follow the onscreen prompts.
8. If the Issue is still not resolved, see "Online Support Information" on page 167.

Random Loss of BIOS Settings

If the computer is experiencing intermittent loss of BIOS information, perform the following actions one at a time to correct the problem.

1. If the computer is more than one year old, replace the CMOS battery.
2. Run a complete virus scan using up-to-date software to ensure the computer is virus free.
3. If the computer is experiencing HDD or ODD BIOS information loss, disconnect and reconnect the power and data cables between devices.

If the BIOS settings are still lost, replace the cables.

1. If HDD information is missing from the BIOS, the drive may be defective and should be replaced.
2. Replace the Motherboard.
3. If the Issue is still not resolved, see "Online Support Information" on page 167.

LCD Failure

If the LCD fails, perform the following actions one at a time to correct the problem. Do not replace a non-defective FRUs:

Built-In Keyboard Failure

If the built-in Keyboard fails, perform the following actions one at a time to correct the problem. Do not replace a non-defective FRUs:

TouchPad Failure

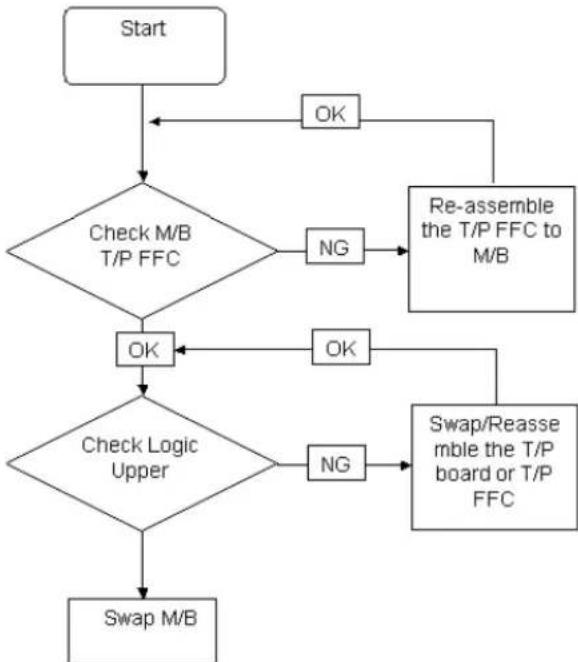

If the TouchPad doesn't work, perform the following actions one at a time to correct the problem. Do not replace a non-defective FRUs:

Internal Speaker Failure

If the internal Speakers fail, perform the following actions one at a time to correct the problem. Do not replace a non-defective FRUs:

Sound Problems

If sound problems are experienced, perform the following actions one at a time to correct the problem.

1. Reboot the computer.
2. Navigate to Start → Control Panel → System and Maintenance → System → Device Manager. Check the Device Manager to determine that:
3. The device is properly installed.
4. There are no red Xs or yellow exclamation marks. • There are no device conflicts.
5. No hardware is listed under Other Devices.
6. Roll back the audio driver to the previous version, if updated recently.
7. Remove and reinstall the audio driver.
8. Ensure that all volume controls are set mid range:

a. Click the volume icon on the taskbar and drag the slider to 50. Ensure that the volume is not muted.

b. Click Mixer to verify that other audio applications are set to 50 and not muted.

1. Navigate to Start → Control Panel → Hardware and Sound → Sound. Ensure that Speakers are selected as the default audio device (green check mark). NOTE: If Speakers does not show, right-click on the Playback tab and select Show Disabled Devices (clear by default).
2. Select Speakers and click Configure to start Speaker Setup. Follow the onscreen prompts to configure the speakers.
3. Remove and recently installed hardware or software.
4. Restore system and file settings from a known good date using System Restore.

If the issue is not fixed, repeat the preceding steps and select an earlier time and date.

1. Reinstall the Operating System.
2. If the Issue is still not resolved, see "Online Support Information" on page 167.

Microphone Problems

If internal or external Microphones do no operate correctly, perform the following actions one at a time to correct the problem.

1. Check that the microphone is enabled. Navigate to Start→ Control Panel→ Hardware and Sound→ Sound and select the Recording tab.
2. Right-click on the Recording tab and select Show Disabled Devices (clear by default).
3. The microphone appears on the Recording tab.
4. Right-click on the microphone and select Enable.
5. Select the microphone then click Properties. Select the Levels tab.
6. Increase the volume to the maximum setting and click OK.
7. Test the microphone hardware:

a. Select the microphone and click Configure. b. Select Set up microphone. c. Select the microphone type from the list and click Next. d. Follow the onscreen prompts to complete the test.

1. If the issue is still not resolved, see "Online Support Information" on page 167.

HDD Not Operating Correctly

If the HDD does not operate correctly, perform the following actions one at a time to correct the problem.

1. Disconnect all external devices.
2. Run a complete virus scan using up-to-date software to ensure the computer is virus free.
3. Run the Windows Vista Startup Repair Utility:

a. Insert the Windows Vista Operating System DVD in the ODD and restart the computer. b. When prompted, press any key to start from the operating system DVD. c. The Install Windows screen displays. Click Next. d. Select Repair your computer. e. The System Recovery Options screen displays. Click Next. f. Select the appropriate operating system, and click Next.

NOTE: Click Load Drivers if controller drives are required.

g. Select Startup Repair.

h. Startup Repair attempts to locate and resolve issues with the computer.

i. When complete, click Finish.

If an issue is discovered, follow the onscreen information to resolve the problem.

1. Run the Windows Memory Diagnostic Tool. For more information see Windows Help and Support.
2. Restart the computer and press F2 to enter the BIOS Utility. Check the BIOS settings are correct and that CD/DVD drive is set as the first boot device on the Boot menu.
3. Ensure all cables and jumpers on the HDD and ODD are set correctly.
4. Remove any recently added hardware and associated software.
5. Run the Windows Disk Defragmenter. For more information see Windows Help and Support.
6. Run Windows Check Disk by entering chkdsk /r from a command prompt. For more information see Windows Help and Support.
7. Restore system and file settings from a known good date using System Restore. If the issue is not fixed, repeat the preceding steps and select an earlier time and date.
8. Replace the HDD. See "Disassembly Process" on page 42.

ODD Failure

If the ODD fails, perform the following actions one at a time to correct the problem. Do not replace a non-defective FRUs:

ODD Not Operating Correctly

If the ODD exhibits any of the following symptoms it may be faulty:

• Audio CDs do not play when loaded • DVDs do not play when loaded - Blank discs do not burn correctly • DVD or CD play breaks up or jumps • Optical drive not found or not active:

• Not shown in My Computer or the BIOS setup • LED does not flash when the computer starts up • The tray does not eject

• Access failure screen displays • The ODD is noisy

Perform the following general solutions one at a time to correct the problem.

1. Reboot the computer and retry the operation.
2. Try an alternate disc.
3. Navigate to Start→ Computer. Check that the ODD device is displayed in the Devices with Removable Storage panel.
4. Navigate to Start→ Control Panel→ System and Maintenance→ System→ Device Manager.

a. Double-click IDE ATA/ATAPI controllers. If a device displays a down arrow, right-click on the device and click Enable. b. Double-click DVD/CD-ROM drives. If the device displays a down arrow, right-click on the device and click Enable. c. Check that there are no yellow exclamation marks against the items in IDE ATA/ATAPI controllers. If a device has an exclamation mark, right-click on the device and uninstall and reinstall the driver. d. Check that there are no yellow exclamation marks against the items in DVD/CD-ROM drives. If a device has an exclamation mark, right-click on the device and uninstall and reinstall the driver. e. If the exclamation marker is not removed from the item in the lists, try removing any recently installed software and retrying the operation.

Discs Do Not Play

If discs do not play when inserted in the drive, perform the following actions one at a time to correct the problem.

1. Check that the disc is correctly seated in the drive tray and that the label on the disc is visible.
2. Check that the media is clean and scratch free.
3. Try an alternate disc in the drive.
4. Ensure that AutoPlay is enabled:

a. Navigate to Start→ Control Panel→ Hardware and Sound→ AutoPlay. b. Select Use AutoPlay for all media and devices. c. In the Audio CD and DVD Movie fields, select the desired player from the drop down menu.

1. Check that the Regional Code is correct for the selected media:

IMPORTANT: Region can only be changed a limited number of times. After Changes remaining reaches zero, the region cannot be changed even if Windows is reinstalled or the drive is moved to another computer.

a. Navigate to Start→ Control Panel→ System and Maintenance→ System→ Device Manager. b. Double-click DVD/CD-ROM drives. c. Right-click DVD drive and click Properties, then click the DVD Region tab. d. Select the region suitable for the media inserted in the drive.

Discs Do Not Burn Properly

If discs cannot be burned, perform the following actions one at a time to correct the problem.

1. Ensure that the default drive is record enabled:

a. Navigate to Start→Computer and right-click the writable ODD icon. Click Properties. b. Select the Recording tab. In the Desktop disc recording panel, select the writable ODD from the drop-down list. c. Click OK.

1. Ensure that the software used for burning discs is the factory default. If using different software, refer to the software's user manual.

Playback is Choppy

If playback is choppy or jumps, perform the following actions one at a time to correct the problem.

1. Check that system resources are not running low:

a. Try closing some applications. b. Reboot and try the operation again.

1. Check that the ODD controller transfer mode is set to DMA:

a. Navigate to Start→ Control Panel→ System and Maintenance→ System→ Device Manager.

b. Double-click IDE ATA/ATAPI controllers, then right-click ATA Device 0. c. Click Properties and select the Advanced Settings tab. Ensure that the Enable DMA box is checked and click OK. d. Repeat for the other ATA Devices shown if applicable.

Drive Not Detected

If Windows cannot detect the drive, perform the following actions one at a time to correct the problem.

1. Restart the computer and press F2 to enter the BIOS Utility.
2. Check that the drive is detected in the ATAPI Model Name field on the Information page.

NOTE: Check that the entry is identical to one of the ODDs specified in "Hardware Specifications and Configurations" on page 17.

1. Turn off the power and remove the cover to inspect the connections to the ODD. See "Disassembly Process" on page 42.

a. Check for broken connectors on the drive, motherboard, and cables. b. Check for bent or broken pins on the drive, motherboard, and cable connections. c. Try an alternate cable, if available. If the drive works with the new cable, the original cable should be replaced.

1. Reseat the drive ensuring and all cables are connected correctly.
2. Replace the ODD. See "Disassembly Process" on page 42.

Drive Read Failure

If discs cannot be read when inserted in the drive, perform the following actions one at a time to correct the problem.

1. Remove and clean the failed disc.
2. Retry reading the CD or DVD.

d. Test the drive using other discs. e. Play a DVD movie. f. Listen to a music CD.

If the ODD works properly with alternate discs, the original disc is probably defective and should be replaced.

1. Turn off the power and remove the cover to inspect the connections to the ODD. See "Disassembly Process" on page 42.

a. Check for broken connectors on the drive, motherboard, and cables. b. Check for bent or broken pins on the drive, motherboard, and cable connections. c. Try an alternate cable, if available. If the drive works with the new cable, the original cable should be replaced.

1. Replace the ODD. See "Disassembly Process" on page 42.

Wireless Function Failure

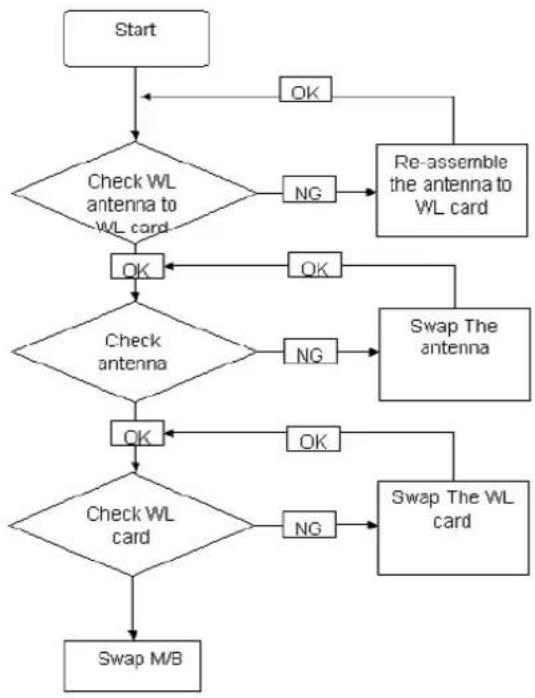

If the WLAN fails, perform the following actions one at a time to correct the problem. Do not replace a non-defective FRUs:

Thermal Unit Failure

If the Thermal Unit fails, perform the following actions one at a time to correct the problem. Do not replace a non-defective FRUs:

External Mouse Failure

If an external Mouse fails, perform the following actions one at a time to correct the problem.

1. Try an alternative mouse.
2. If the mouse uses a wireless connection, insert new batteries and confirm there is a good connection. See the mouse user manual.
3. If the mouse uses a USB connection, try an alternate USB port.
4. Try an alternative program to verify mouse operation. Reinstall the program experiencing mouse failure.
5. Restart the computer.
6. Remove any recently added hardware and associated software.
7. Remove any recently added software and reboot.
8. Restore system and file settings from a known good date using System Restore. If the issue is not fixed, repeat the preceding steps and select an earlier time and date.
9. Run the Event Viewer to check the events log for errors. For more information see Windows Help and Support.
10. Roll back the mouse driver to the previous version if updated recently.
11. Remove and reinstall the mouse driver.
12. Check the Device Manager to determine that:
13. The device is properly installed. There are no red Xs or yellow exclamation marks. • There are no device conflicts.
14. No hardware is listed under Other Devices.
15. If the Issue is still not resolved, see "Online Support Information" on page 167.

Other Failures

If the CRT Switch, Dock, LAN Port, external MIC or Speakers, PCI Express Card, 5-in-1 Card Reader or Volume Wheel fail, perform the following general steps to correct the problem. Do not replace a non-defective FRUs:

1. Check Drive whether is OK.
2. Check Test Fixture is ok.
3. Swap M/B to Try.

Intermittent Problems

Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement should be considered only when a recurring problem exists.

When analyzing an intermittent problem, do the following:

1. Run the advanced diagnostic test for the system board in loop mode at least 10 times.
2. If no error is detected, do not replace any FRU.
3. If any error is detected, replace the FRU. Rerun the test to verify that there are no more errors.

Undetermined Problems

The diagnostic problems does not identify which adapter or device failed, which installed devices are incorrect, whether a short circuit is suspected, or whether the system is inoperative.

Follow these procedures to isolate the failing FRU (do not isolate non-defective FRU).

NOTE: Verify that all attached devices are supported by the computer.

NOTE: Verify that the power supply being used at the time of the failure is operating correctly. (See “Power On Issue” on page 122.):

1. Power-off the computer.
2. Visually check them for damage. If any problems are found, replace the FRU.
3. Remove or disconnect all of the following devices:
4. Non-Acer devices
5. Printer, mouse, and other external devices

• Battery pack

- Hard disk drive

• DIMM • CD-ROM/Diskette drive Module - PC Cards

1. Power-on the computer.
2. Determine if the problem has changed.
3. If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU.
4. If the problem remains, replace the following FRU one at a time. Do not replace a non-defective FRU:
5. System board
6. LCD assembly

Post Codes

These tables describe the POST codes and descriptions during the POST.

Code Beeps POST Routine Description
02h		Verify Real
03h Disable Non-Maskable Interrupt (NMI)
04h		Get CPU
06h		Initialize system
08h Initialize chipset with initial POST values
09h Set IN POST flag
0Ah Initialize CPU registers
0Bh Enable CPU cache
0Ch Initialize caches to initial POST values
0Eh Initialize I/O component
0Fh Initialize the local bus IDE
10h		Initialize Power
11h		Load alternate
12h Restore CPU control word during warm boot
13h		Initialize PCI
14h Initialize keyboard controller
16h	1-2-2-3 BIOS ROM checksum
17h		Initialize cache
18h		8254 timer
1Ah 8237 DMA controller initialization
1Ch Reset Programmable Interrupt Controller
20h	1-3-1-1 Test DRAM refresh
22h	1-3-1-3	Test 8742 Keyboard Controller
24h Set ES segment register to 4 GB
26h Enable A20 line
28h		Autosize DRAM
29h Initialize POST Memory Manager
2Ah Clear 512 KB base RAM
2Ch	1-3-4-1	RAM failure on address line xxxx*
2Eh	1-3-4-3	RAM failure on data bits xxxx* of low byte of memory bus
2Fh Enable cache before system BIOS shadow
30h	1-4-1-1	RAM failure on data bits xxxx* of high byte of memory bus
32h Test CPU bus-clock frequency
33h Initialize Phoenix Dispatch Manager
36h Warm start shut down
38h Shadow system BIOS ROM
3Ah		Autosize cache
3Ch Advanced configuration of chipset registers
3Dh		Load alternate registers with CMOS values
42h		Initialize interrupt
45h POST device initialization
46h 2-1-2-3 Check ROM copyright notice
48h Check video configuration against CMOS
49h Initialize PCI bus and devices
4Ah Initialize all video adapters in system
4Bh		QuietBoot start
4Ch Shadow video BIOS ROM
4Eh Display BIOS copyright notice
50h Display CPU type and speed
51h		Initialize EISA
52h		Test keyboard
54h Set key click if enabled
58h 2-2-3-1 Test for unexpected interrupts
59h Initialize POST display service
5Ah Display prompt "Press F2 to enter SETUP"
5Bh Disable CPU cache
5Ch Test RAM between 512 and 640 KB
60h Test extended memory
62h Test extended memory address lines
64h		Jump to
66h Configure advanced cache registers
67h Initialize Multi Processor APIC
68h Enable external and CPU caches
69h Setup System Management Mode (SMM) area
6Ah Display external L2 cache size
6Bh Load custom defaults (optional)
6Ch Display shadow-area message
6Eh Display possible high address for UMB recovery
70h Display error messages
72h Check for configuration errors
76h Check for keyboard errors
7Ch Set up hardware interrupt vectors
7Eh Initialize coprocessor if present
80h Disable onboard Super I/O ports and IRQs
81h Late POST device initialization
82h Detect and install external RS232 ports
83h Configure non-MCD IDE controllers
84h Detect and install external parallel ports
85h Initialize PC-compatible PnP ISA devices
86h Re-initialize onboard I/O ports.
87h Configure Motheboard Configurable Devices (optional)
88h Initialize BIOS Data Area
89h Enable Non-Maskable Interrupts (NMIs)
Code	Beeps	POST Routine Description
8Ah Initialize Extended BIOS Data Area
8Bh Test and initialize PS/2 mouse
8Ch		Initialize floppy
8Fh Determine number of ATA drives (optional)
90h Initialize hard-disk controllers
91h Initialize local-bus hard-disk controllers
92h		Jump to
93h Build MPTABLE for multi-processor boards
95h Install CD ROM for boot
96h Clear huge ES segment register
97h Fixup Multi Processor table
98h 1-2 Search for option ROMs. One long, two short beeps on checksum failure
99h Check for SMART Drive (optional)
9Ah		Shadow option
9Ch Set up Power Management
9Dh Initialize security engine (optional)
9Eh Enable hardware interrupts
9Fh Determine number of ATA and SCSI drives
A0h Set time of day
A2h		Check key
A4h		Initialize Typematic
A8h		Erase F2
AAh Scan for F2 key stroke
ACh		Enter SETUP
AEh Clear Boot flag
B0h Check for errors
B2h POST done - prepare to boot operating system
B4h 1 One short beep before boot
B5h		Terminate QuietBoot
B6h Check password (optional)
B9h		Prepare Boot
BAh		Initialize DMI parameters
BBh Initialize PnP Option ROMs
BCh		Clear parity checkers
BDh		Display MultiBoot menu
BEh Clear screen (optional)
BFh Check virus and backup reminders
C0h Try to boot with INT 19
C1h Initialize POST Error Manager (PEM)
C2h Initialize error logging
C3h Initialize error display function
C4h Initialize system error handler
C5h PnPnd dual CMOS (optional)
C6h Initialize notebook docking (optional)
C7h Initialize notebook docking late
C8h Force check (optional)
C9h Extended checksum (optional)
D2h		Unknown interrupt

Code Beeps For Boot Block in Flash ROM
E0h Initialize the chipset
E1h Initialize the bridge
E2h Initialize the CPU
E3h		Initialize system
E4h		Initialize system
E5h Check force recovery boot
E6h		Checksum BIOS
E7h		Go to
E8h Set Huge Segment
E9h Initialize Multi Processor
EAh Initialize OEM special code
EBh Initialize PIC and DMA
ECH Initialize Memory type
EDh Initialize Memory size
EEh		Shadow Boot
EFh		System memory
F0h		Initialize interrupt
F1h Initialize Run Time Clock
F2h		Initialize video
F3h Initialize System Management Mode
F4h	1	Output one beep before boot
F5h Boot to Mini DOS
F6h Clear Huge Segment
F7h Boot to Full DOS

* If the BIOS detects error 2C, 2E, or 30 (base 512K RAM error), it displays an additional word-bitmap (xxxx) indicating the address line or bits that failed. For example, "2C 0002" means address line 1 (bit one set) has failed. "2E 1020" means data bits 12 and 5 (bits 12 and 5 set) have failed in the lower 16 bits. Note that error 30 cannot occur on 386SX systems because they have a 16 rather than 32-bit bus. The BIOS also sends the bitmap to the port-80 LED display. It first displays the check point code, followed by a delay, the high-order byte, another delay, and then the low-order byte of the error. It repeats this sequence continuously.

Jumper and Connector Locations

Top View

Item Description

JLVDS1 LCD Connector

JP14 Power/B Connector

JSPK1 Speaker(Left) Connector

JSPK2 Speaker(Right) Connector

JKB1 Internal Keyboard Connector

JTP1 Touch Pad Connector

U18 South Bridge

SW2 Touch pad (Left) Button

SW3 Touch pad (Right) Button

Bottom View

ITEM DESCRIPTION
PJP1 AC-IN	Connector
JRJ1 RJ45	Connector
JCRT1 CRT	Connector
JP12 Fan	Connector
JUSB1 USB	Connector
JUSB2 USB	Connector
JMIC1 MIC-In	Jack
JHP1 Head-Phone	Jack
JSATA2 HDD	Connector
U39 North	Bridge
JCPU1 CPU	Socket
JREAD1 Card	Reader Socket
PJP2 Battery	Connector
JDIMM2 Memory	DIMM2 Connector
JDIMM1 Memory	DIMM1 Connector
JSATA1 ODD	Connector
JMINI2 Wireless	Card Connector

Power Board

ITEM DESCRIPTION

U1 Lid Switch

SW1 TP Lock Button

SW2 ON/OFF Button

SW3 Wireless Button

LED1 ON/OFF LED

LED3 Media LED

LED4 Num LED

LED5 Wireless LED

LED6 Caps LED

LED7 TP Lock LED

Clearing Password Check and BIOS Recovery

This section provides you with the standard operating procedures of clearing password and BIOS recovery for Aspire 5517. The machine provides one Hardware Open Gap on main board for clearing password check, and one Hotkey for enabling BIOS Recovery.

Clearing Password Check

Steps for Clearing BIOS Password Check

If users set BIOS Password (Supervisor Password and/or User Password) for a security reason, BIOS will ask the password during systems POST or when systems enter to BIOS Setup menu. However, once it is necessary to bypass the password check, users need to short the HW Gap to clear the password by the following steps:

1. Power Off the system, and remove HDD, AC and Battery from the machine.
2. Disconnect the RTC Battery cable and locate the J1 jumper.
3. Use an electric conductivity tool to short the two points of the HW Gap.
4. Plug in AC, keep the short condition on the HW Gap, and press Power Button to power on the system till BIOS POST finish. Then remove the tool from the HW Gap.
5. Restart the system. Press the F2 key to enter the BIOS Setup menu.
6. If there is no password request, the BIOS password has been cleared. Otherwise, please follow the steps and try again.

NOTE: These steps are only for clearing the BIOS password (Supervisor Password and User Password).

Clear CMOS Jumper

Item Description Location
J1 Clear GMOS Jumper Thermal Module Bay, under Modem Board

BIOS Recovery by Crisis Disk

BIOS Recovery Boot Block:

The BIOS Recovery Boot Block is a special block of the BIOS. It is used to boot up the system with minimal BIOS initialization. Users can enable this feature to restore the BIOS firmware to a successful one once the previous BIOS flashing process failed.

BIOS Recovery Hotkey:

The system provides a function hotkey: Fn+Esc, to enable the BIOS Recovery process when the system is powered on during BIOS POST. To use this function, it is strongly recommended to have the AC adapter and battery present. If this function is enabled, the system will force the BIOS to enter a special BIOS block, called the Boot Block.

Steps for BIOS Recovery from USB Storage:

Before doing this, prepare the Crisis USB key. The Crisis USB key can be made by executing the Crisis Disk program on another system with Windows XP OS.

Follow the steps below:

1. Copy the xxxxx.wph BIOS file into the Crisis folder, which is included with the crisis program.
2. Rename the xxxxx.wph file to BIOS.wph.
3. Plug in the USB disk.
4. Launch the wincris.exe program to create a USB Crisis Disk. Click Start to initiate the process.
5. Select the Quick Format option to format the disk and click Start. Follow the instructions on the screen to create the disk.

To use the Crisis USB key, do the following:

1. Plug USB storage into USB port.
2. Press Fn + ESC button then plug in AC power. The Power button flashes orange once.
3. Press Power button to initiate system CRISIS mode. When CRISIS is complete, the system auto restarts with a workable BIOS.
4. Update the latest version BIOS for this machine by regular BIOS flashing process.

FRU (Field Replaceable Unit) List

This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of Aspire 5517. Refer to this chapter whenever ordering for parts to repair or for RMA (Return Merchandise Authorization).

Please note that WHEN ORDERING FRU PARTS, you should check the most up-to-date information available on your regional web or channel. For whatever reasons a part number change is made, it will not be noted on the printed Service Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code from those given in the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations on how to dispose it properly, or follow the rules set by your regional Acer office on how to return it.

Aspire 5517 Exploded Diagrams

Main Assembly

No.	Description Acer P/N
1	Middle Cover Assy	60.PEE02.002
2	Hinge Cap Assy	42.N2802.001
3	Upper Case Assy	60.PEE02.001
4	Mainboard MB.PGY02	.001
5	Lower Case 60.N2802	.002

Base Assembly

No.	Description Acer P/N
1 Fan	23.N2802.001
2 Thermal Module 60.N6502.001
3 Mainboard MB.PGY02.001

Rear Assembly

No.	Description Acer P/N
1	RAM Door 42.N2802.004
2	HDD Door 42.N2802.005
3	Lower Case 60.N2802.002

Aspire 5517 FRU List

CATEGORY Description AcerPN
Board
	POWER BOARD 55.N2802.001
	WLAN CARD-XB63 NI.23600.007
	WLAN CARD-BCM4312 NI.23600.029
Cable
	TP FFC 50.N2802.001
	POWER CORD US 3 PIN 27.TAVV5.001
	POWER CORD EU 3 PIN 27.TAVV5.002
	POWER CORD AUS 3 PIN 27.TAVV5.003
	POWER CORD UK 3 PIN 27.TAVV5.004
	POWER CORD CHINA 3 PIN 27.TAVV5.005
	POWER CORD SWISS 3 PIN 27.TAVV5.006
	POWER CORD ITALIAN 3 PIN 27.TAVV5.007
	POWER CORD DENMARK 3 PIN 27.TAVV5.008
	POWER CORD JP 3 PIN 27.TAVV5.009
	POWER CORD SOUTH AFRICA 3 PIN	27.TAVV5.010
	POWER CORD KOERA 3 PIN	27.TAVV5.011
	POWER CORD ISRAEL 3 PIN	27.TAVV5.012
	POWER CORD INDIA 3 PIN	27.TAVV5.013
	POWER CORD TWN 3 PIN	27.TAVV5.014
	POWER CORD ARGENTINA 3 PIN	27.APV02.001
CPU/Processor
	CPU AMD Athlon TF20 PGA 1.6G 512K 638 15W G2	KC.ATF02.200
	CPU AMD AthlonX2 TK42 1.6G 1M 638 20W G2	KC.ATK02.420
Case/Cover/Bracket Assembly
	UPPER CASE ASSY	60.PEE02.001
	LOWER CASE 60.N2802.002
	TP BRACKET 33.N2802.001
	MIDDLE COVER ASSY 60.PEE02.002
	HINGE CAP ASSY 42.N2802.001
	UP CAP R 42.PEE02.001
	UP CAP L 42.PEE02.002
	RAM DOOR ASSY 42.N2802.004
	HDD DOOR ASSY 42.N2802.005
HDD
	HDD SEAGATE 2.5" 5400rpm 160GB ST9160310AS Crockett SATA LF F/W:0303	KH.16001.034
	HDD TOSHIBA 2.5" 5400rpm 160GB MK1655GSX Libra SATA LF F/W: FG011J	KH.16004.006
	HDD HGST 2.5" 5400rpm 160GB HTS543216L9A300 Falcon-B SATA LF F/W:C40C	KH.16007.019
	HDD WD 2.5" 5400rpm 160GB WD1600BEVT-22ZCTO ML160 SATA LF F/W:11.01A11	KH.16008.022
	HDD SEAGATE 2.5" 5400rpm 250GB ST9250315AS Wyatt SATA LF F/W:0001SDM1	KH.25001.016
	HDD TOSHIBA 2.5" 5400rpm 250GB MK2555GSX Libra SATA LF F/W:FG001J	KH.25004.003
	HDD HGST 2.5" 5400rpm 250GB HTS545025B9A300 Panther B SATA LF F/W:C60F	KH.25007.015
	HDD WD 2.5" 5400rpm 250GB WD2500BEVT-22ZCT0 ML160 SATA LF F/W:11.01A11	KH.25008.021
	HDD SEAGATE 2.5" 5400rpm 320GB ST9320320AS Crockett SATA LF F/W:0303	KH.32001.008
	HDD TOSHIBA 2.5" 5400rpm 320GB MK3255GSX Libra SATA LF F/W:FG011J	KH.32004.002
	HDD HGST 2.5" 5400rpm 320GB HTS545032B9A300 Panther B SATA LF F/W: C60F	KH.32007.007
	HDD WD 2.5" 5400rpm 320GB WD3200BEVT-22ZCT0 ML160 SATA LF F/W:11.01A11	KH.32008.013
	HDD SEAGATE 2.5" 5400rpm 500GB ST9500325AS Wyatt SATA LF F/W:0001SDM1	KH.50001.011
	HDD WD 2.5" 5400rpm 500GB WD5000BEVT-22ZAT0 ML250 SATA LF F/W:01.01A01	KH.50008.013
	HDD HGST 2.5" 5400rpm 500GB HTS545050B9A300 Panther B SATA LF F/W:C60F	KH.50007.009
	HDD HGST 2.5" 5400rpm 160GB HTS545016B9A300 Panther B SATA LF F/W:C60F	KH.16007.024
	HDD BRACKET ASSY 33.N2802.002
ODD
	DVD SUPER MULTI DRIVE MODULE 6M.N2802.003
	ODD TOSHIBA Super-Multi DRIVE 12.7mm Tray DL 8X TS-L633B LF W/O bezel SATA	KU.00801.030
	ODD PANASONIC Super-Multi DRIVE 12.7mm Tray DL 8X UJ880A LF W/O bezel SATA	KU.00807.064
	ODD HLDS Super-Multi DRIVE 12.7mm Tray DL 8X GT20N LF W/O bezel SATA	KU.0080D.040
	ODD SONY Super-Multi DRIVE 12.7mm Tray DL 8X AD-7580S LF W/O bezel SATA	KU.0080E.017
	ODD PLDS Super-Multi DRIVE 12.7mm Tray DL 8X DS-8A3S LF W/O bezel SATA	KU.0080F.004
	ODD BEZEL-SUPER MULTI 42.N2802.006
	ODD BRACKET 33.N2802.003
Keyboard
	Keyboard EM-7T HM50/70 Internal 17 Standard 99KS Black US International	KB.I1700.438
	Keyboard EM-7T HM50/70 Internal 17 Standard 99KS Black Greek	KB.I1700.423
	Keyboard EM-7T HM50/70 Internal 17 Standard 99KS Black Arabic	KB.I1700.414
	Keyboard EM-7T HM50/70 Internal 17 Standard 99KS Black Russian	KB.I1700.430
	Keyboard EM-7T HM50/70 Internal 17 Standard 99KS Black Thailand	KB.I1700.435
	Keyboard EM-7T HM50/70 Internal 17 Standard 100KS Black UK	KB.I1700.437
	Keyboard EM-7T HM50/70 Internal 17 Standard 100KS Black German	KB.I1700.422
	Keyboard EM-7T HM50/70 Internal 17 Standard 100KS Black Swiss/G	KB.I1700.434
	Keyboard EM-7T HM50/70 Internal 17 Standard 100KS Black CZ/SK	KB.I1700.417
	Keyboard EM-7T HM50/70 Internal 17 Standard 100KS Black Belgium	KB.I1700.415
	Keyboard EM-7T HM50/70 Internal 17 Standard 100KS Black Danish	KB.I1700.419
	Keyboard EM-7T HM50/70 Internal 17 Standard 100KS Black Italian	KB.I1700.425
	Keyboard EM-7T HM50/70 Internal 17 Standard 100KS Black French	KB.I1700.421
	Keyboard EM-7T HM50/70 Internal 17 Standard 100KS Black Hungarian	KB.I1700.424
	Keyboard EM-7T HM50/70 Internal 17 Standard 100KS Black Norwegian	KB.I1700.428
	Keyboard EM-7T HM50/70 Internal 17 Standard 100KS Black Portuguese	KB.I1700.429
	Keyboard EM-7T HM50/70 Internal 17 Standard 100KS Black Spanish	KB.I1700.432
	Keyboard EM-7T HM50/70 Internal 17 Standard 100KS Black Turkish	KB.I1700.436
	Keyboard EM-7T HM50/70 Internal 17 Standard 100KS Black Sweden	KB.I1700.433
	Keyboard EM-7T HM50/70 Internal 17 Standard 100KS Black SLO/CRO	KB.I1700.431
	Keyboard EM-7T HM50/70 Internal 17 Standard 100KS Black Nordic	KB.I1700.427
LCD
	ASSY LCD MODULE 15.6 IN. WXGA GLARE W/ ANTENNA*2, CCD 0.3M	6M.PEF02.001
	LCD AUO 15.6" WXGA Glare B156XW01-V0 LF 220nit 8ms	LK.15605.001
	CCFL LCD AUO 15.6"W WXGA Glare B156XW01 V0 1A LF 220nit 8ms 500:1	LK.15605.002
	CCFL LCD SAMSUNG 15.6"W WXGA Glare LTN156AT01-A01 LF 220nit 8ms 600:1	LK.15606.001
	CCFL LCD LPL 15.6" WXGA Glare LP156WH1-TLA1 LF 220nit 8ms 400:1	LK.15608.001
	LCD CMO 15.6" WXGA Glare N156B3-L02 LF 220nit 8ms	LK.1560D.001
	LCD COVER 60.PEE02.004
	ANTENNA-AUX 50.N2802.002
	ANTENNA-MAIN 50.N2802.003
	LCD BEZEL FOR W/CCD-AS 60.PEF02.001
	LCD CABLE FOR W/CCD F 50.N2802.005
	LCD BRACKET R&L FOR LCD 33.N2802.004
	CAMERA 0.3 57.N2802.001
	INVERTER 19.N2802.001
	ASSY LCD MODULE 15.6 IN. WXGA GLARE W/O CCD 6M.PEF02.002
	LCD AUO 15.6" WXGA Glare B156XW01-V0 LF 220nit 8ms	LK.15605.001
	CCFL LCD AUO 15.6"W WXGA Glare B156XW01 V0 1A LF 220nit 8ms 500:1	LK.15605.002
	CCFL LCD SAMSUNG 15.6"W WXGA Glare LTN156AT01-A01 LF 220nit 8ms 600:1	LK.15606.001
	CCFL LCD LPL 15.6" WXGA Glare LP156WH1-TLA1 LF 220nit 8ms 400:1	LK.15608.001
	LCD CMO 15.6" WXGA Glare N156B3-L02 LF 220nit 8ms	LK.1560D.001
	LCD COVER 60.PEE02.004
	ANTENNA-AUX 50.N2802.002
	ANTENNA-MAIN 50.N2802.003
	ANTENNA-MAIN+MIMO 50.N2802.004
	LCD BEZEL FOR W/CCD-AS 60.PEF02.001
	LCD CABLE FOR W/CCD F 50.N3202.001
	LCD BRACKET R&L FOR LCD 33.N2802.004
	INVERTER 19.N2802.001
	ASSY LCD MODULE 15.6 IN. WXGA GLARE W/ ANTENNA*2, W/O CCD	6M.PEE02.001
	LCD AUO 15.6" WXGA Glare B156XW01-V0 LF 220nit 8ms	LK.15605.001
	CCFL LCD AUO 15.6"W WXGA Glare B156XW01 V0 1A LF 220nit 8ms 500:1	LK.1605.002
	CCFL LCD SAMSUNG 15.6"W WXGA Glare LTN156AT01-A01 LF 220nit 8ms 600:1	LK.15606.001
	CCFL LCD LPL 15.6" WXGA Glare LP156WH1-TLA1 LF 220nit 8ms 400:1	LK.15608.001
	LCD CMO 15.6" WXGA Glare N156B3-L02 LF 220nit 8ms	LK.1560D.001
	LCD COVER 60.N2802.004
	ANTENNA-AUX 50.N2802.002
	ANTENNA-MAIN 50.N2802.003
	ANTENNA-MAIN+MIMO 50.N2802.004
	LCD BEZEL FOR W/O CCD AS 60.PEE02.003
	LED CABLE FOR W/O CCD F 50.N3202.001
	LCD BRACKET R&L FOR LCD 33.N2802.004
	CAMERA 0.3 57.N2802.001
	ASSY LED MODULE 15.6 IN. WXGA GLARE W/ ANTENNA W/O CCD	6M.PEE02.002
	LCD AUO 15.6" WXGA Glare B156XW01-V0 LF 220nit 8ms	LK.15605.001
	CCFL LCD AUO 15.6"W WXGA Glare B156XW01 V0 1A LF 220nit 8ms 500:1	LK.15605.002
	CCFL LCD SAMSUNG 15.6"W WXGA Glare LTN156AT01-A01 LF 220nit 8ms 600:1	LK.15606.001
	CCFL LCD LPL 15.6" WXGA Glare LP156WH1-TLA1 LF 220nit 8ms 400:1	LK.15608.001
	LCD CMO 15.6" WXGA Glare N156B3-L02 LF 220nit 8ms	LK.1560D.001
	LCD COVER 60.PEE02.004
	ANTENNA-AUX 50.N2802.002
	ANTENNA-MAIN 50.N2802.003
	ANTENNA-MAIN+MIMO 50.N2802.004
	LCD BEZEL FOR W/O CCD F 60.PEE02.003
	LED CABLE FOR W/O CCD F 50.N3202.002
	LCD BRACKET R&L FOR LCD 33.N2802.004
Mainboard
	Mainboard AS5532 ATI RS780 SB710 8132 W/O 1394 V1.0 LF	MB.PGY02.001
Memory
	Memory NANYA SO-DIMM DDRII 667 1GBNT1GT64UH8D0FN-3C LF 64*16 0.07um	KN.1GB03.026
	Memory MICRON SO-DIMM DDRII 667 1GBMT8HTF12864HDY-667G1 LF 64*16 0.065um	KN.1GB04.010
	Memory ELPIDA SO-DIMM DDRII 667 1GBEBE11UE6ACUA-6E-E LF 64*16 0.065um	KN.1GB09.008
	Memory SAMSUNG SO-DIMM DDRII 667 1GBM470T2864EH3-CE6 LF 64*16 0.055um	KN.1GB0B.027
	Memory HYNIX SO-DIMM DDRII 667 1GBHYMP112S64CP6-Y5 LF	KN.1GB0G.012
	Memory HYNIX SO-DIMM DDRII 667 1GBHMP112S6EFR6C-Y5 LF 64*16 0.055um	KN.1GB0G.022
	Memory NANYA SO-DIMM DDRII 667 2GBNT2GT64U8HD0BN-3C LF 128*8 0.07um	KN.2GB03.011
	Memory MICRON SO-DIMM DDRII 667 2GBMT16HTF25664HY-667G1 LF 128*8 0.065um	KN.2GB04.010
	Memory ELPIDA SO-DIMM DDRII 667 2GBEBE21UE8ACUA-6E-E LF 128*8 0.07um	KN.2GB09.001
	Memory SAMSUNG SO-DIMM DDRII 667 2GBM470T5663EH3-CE6 LF 128*8 0.055um	KN.2GB0B.011
	Memory HYNIX SO-DIMM DDRII 667 2GBHYMP125S64CP8-Y5 LF	KN.2GB0G.004
	Memory HYNIX SO-DIMM DDRII 667 2GBHMP125S6EFR8C-Y5 LF 128*8 0.055um	KN.2GB0G.012
Heatsink
	THERMAL MODULE-AMD 60.N6502.001
	FAN 23.N2802.001
Speaker
	SPEAKER R 23.N2802.002
	SPEAKER L 23.N2802.003
Miscellaneous
	NAME PLATE-AS5517 40.PGZ02.001

Model Definition and Configuration

Model	RO	Country	Acer Part No	Description	CPU
AS5517-203G25Mi	PA USA	LX.PH10X.00	2	AS5517-203G25Mi VHP32ATUS1MC UMACks 2G+1G/250/6L2.2/5R/CB_bg_0.3D_HG_EN32	AATF20
AS5517-202G16Mi	PA ACLA-	Portuguese	LX.PH10C.001	AS5517-202G16Mi LINPUSATXC3UMACks 2*1G/160/6L2.2/5R/CB_bg_0.3D_HG_EN61	AATF20
AS5517-203G25Mi	PA USA	LX.PH10X.00	1	AS5517-203G25Mi VHP32ATUS1MC UMACks 2G+1G/250/6L2.2/5R/CB_bg_0.3D_HG_FRB2	AATF20
AS5517-203G16Mi	PA USA	LX.PH10Y.002	AS5517-203G16Mi	VHB32ATUS1MC UMACks 2G+1G/160/6L2.2/5R/CB_bg_0.3D_HG_EN32	AATF20
AS5517-203G25Mi	PA USA	LX.PH10Y.003	AS5517-203G25Mi	VHB32ATUS1MC UMACks 2G+1G/250/6L2.2/5R/CB_bg_0.3D_HG_EN32	AATF20
AS5517-202G16Mi	WW WW	S2.PH10C.00	1	AS5517-202G16Mi LINPUSAWW1UMACks 2*1G/160/6L2.2/5R/CB_bg_0.3D_HG_EN11	AATF20
AS5517-202G16Mi	PA USA	LX.PH10Y.001	AS5517-202G16Mi	VHB32ATUS1MC UMACks 1*2G/160/6L2.2/5R/CB_bg_0.3D_HG_EN32	AATF20
AS5517-203G16Mi	PA Canada	LX.PGZ0X.003	3	AS5517-203G16Mi VHP32ATCA2MC UMAks 2G+1G/160/6L2.2/5R/CB_bg_HG_FR33	AATF20
AS5517-202G16Mi	PA USA	LX.PGZ02.00	5	AS5517-202G16Mi W7HP64ATUS1MC UMAks 2*1G/160/6L2.2/5R/CB_bg_HG_FRB1	AATF20
AS5517-6C4G32Mi	PA USA	LX.PGZ02.00	1	AS5517-6C4G32Mi W7HP64ATUS1MC UMAks 2*2G/320/6L2.2/5R/CB_bg_HG_FRB1	AATK42
AS5517-6C3G25Mi	PA USA	LX.PGZ02.00	3	AS5517-6C3G25Mi W7HP64ATUS1MC UMAks 2G+1G/250/6L2.2/5R/CB_bg_HG_FRB1	AATK42
AS5517-203G16Mi	PA Canada	LX.PGZ0X.002	2	AS5517-203G16Mi VHP32ATCA2MC UMAks 2G+1G/160/6L2.2/5R/CB_bg_HG_FR81	AATF20
AS5517-202G16Mi	PA Canada	LX.PGZ02.006	6	AS5517-202G16Mi W7HP64ATCA2MC UMAks 2*1G/160/6L2.2/5R/CB_bg_HG_FR81	AATF20
AS5517-6C4G32Mi	PA Canada	LX.PGZ02.002	2	AS5517-6C4G32Mi W7HP64ATCA2MC UMAks 2*2G/320/6L2.2/5R/CB_bg_HG_FR81	AATK42
AS5517-6C3G25Mi	PA Canada	LX.PGZ02.004	4	AS5517-6C3G25Mi W7HP64ATCA2MC UMAks 2G+1G/250/6L2.2/5R/CB_bg_HG_FR81	AATK42
AS5517-203G16Mi	PA USA	LX.PGZ0X.00	1	AS5517-203G16Mi VHP32ATUS1MC UMAks 2G+1G/160/6L2.2/5R/CB_bg_HG_FRB2	AATF20
AS5517-202G16Mi	WW WW	S2.PGZ0C.00	1	AS5517-202G16Mi LINPUSAWW1UMAks 2*1G/160/6L2.2/5R/CB_bg_HG_EN11	AATF20

Model	LCD	VGA Chip	VRAM 1	Memory 1	Memory 2
AS5517-203G25Mi N15	.6WXGAG UMA N	SO2GBII6 SO1GBII6
AS5517-202G16Mi N15	.6WXGAG UMA N	SO1GBII6 SO1GBII6
AS5517-203G25Mi N15	.6WXGAG UMA N	SO2GBII6 SO1GBII6
AS5517-203G16Mi N15	.6WXGAG UMA N	SO2GBII6 SO1GBII6
AS5517-203G25Mi N15	.6WXGAG UMA N	SO2GBII6 SO1GBII6
AS5517-202G16Mi N15	.6WXGAG UMA N	SO1GBII6 SO1GBII6
AS5517-202G16Mi N15	.6WXGAG UMA N	SO2GBII6 N
AS5517-203G16Mi N15	.6WXGAG UMA N	SO2GBII6 SO1GBII6
AS5517-202G16Mi N15	.6WXGAG UMA N	SO1GBII6 SO1GBII6
AS5517-6C4G32Mi	N15.6WXGAG UMA N	SO2GBII6 SO2GBII6
AS5517-6C3G25Mi	N15.6WXGAG UMA N	SO2GBII6 SO1GBII6
AS5517-203G16Mi N15	.6WXGAG UMA N	SO2GBII6 SO1GBII6
AS5517-202G16Mi N15	.6WXGAG UMA N	SO1GBII6 SO1GBII6
AS5517-6C4C32Mi	N15.6WXGAG UMA N	SO2GBII6 SO2GBII6
AS5517-6C3G25Mi	N15.6WXGAG UMA N	SO1GBII6 SO1GBII6
AS5517-203G16Mi N15	.6WXGAG UMA N	SO2GBII6 SO1GBII6
AS5517-202G16Mi N15	.6WXGAG UMA N	SO1GBII6 SO1GBII6

Model HDD	1(GB)	HDD2(GB)	ODD	Media Processor	Extra SW1	Card Reader
AS5517-203G25Mi	N250GB5.4KS	N	NSM8XS	N	McAfee	5 in 1-Build in
AS5517-202G16Mi	N160GB5.4KS	N	NSM8XS	N	N	5 in 1-Build in
AS5517-203G25Mi	N250GB5.4KS	N	NSM8XS	N	McAfee	5 in 1-Build in
AS5517-203G16Mi	N160GB5.4KS	N	NSM8XS	N	McAfee	5 in 1-Build in
AS5517-203G25Mi	N250GB5.4KS	N	NSM8XS	N	McAfee	5 in 1-Build in
AS5517-202G16Mi	N160GB5.4KS	N	NSM8XS	N	N	5 in 1-Build in
AS551T-202G16Mi	N160GB5.4KS	N	NSM8XS	N	McAfee	5 in 1-Build in
AS5517-203G16Mi	N160GB5.4KS	N	NSM8XS	N	McAfee	5 in 1-Build in
Model	HDD 1(GB)	HDD 2(GB)	ODD	Media Processor	Extra SW1	Card Reader
AS5517-202G16Mi	N160GB5.4KS N	NSM8XS	N McAfee 5 in	1-Build in
AS5517-6C4G32Mi	N320GB5.4KS N	NSM8XS	N McAfee 5 in	1-Build in
AS5517-6C3G25Mi	N250GB5.4KS N	NSM8XS	N McAfee 5 in	1-Build in
AS5517-203G16Mi	N160GB5.4KS N	NSM8XS	N McAfee 5 in	1-Build in
AS5517-202G16Mi	N160GB5.4KS N	NSM8XS	N McAfee 5 in	1-Build in
AS5517-6C4G32Mi	N320GB5.4KS N	NSM8XS	N McAfee 5 in	1-Build in
AS551T-6C3G25Mi	N250GB5.4KS N	NSM8XS	N McAfee 5 in	1-Build in
AS5517-203G16Mi	N160GB5.4KS N	NSM8XS	N McAfee 5 in	1-Build in
AS5517-202G16MI	N160GB5.4KS N	NSM8XS	N N 5 in 1-Build in

Model Wireless LAN		Wireless LAN1	Bluetooth
AS5517-203G25Mi 3rd WiFi BG 3rd WiFi BG N
AS5517-202G16Mi 3rd WiFi BG 3rd WiFi BG N
AS5517-203G25Mi 3rd WiFi BG 3rd WiFi BG N
AS5517-203G16Mi 3rd WiFi BG 3rd WiFi BG N
AS5517-203G25Mi 3rd WiFi BG 3rd WiFi BG N
AS5517-202G16Mi 3rd WiFi BG 3rd WiFi BG N
AS5517-202G16Mi 3rd WiFi BG 3rd WiFi BG N
AS5517-202G16Mi 3rd WiFi BG 3rd WiFi BG N
AS5517-6C4G32Mi 3rd WiFi BG 3rd WiFi BG N
AS5517-6C3G25Mi 3rd WiFi BG 3rd WiFi BG N
AS5517-203G16Mi 3rd WiFi BG 3rd WiFi BG N
AS5517-202G16Mi 3rd WiFi BG 3rd WiFi BG N
AS5517-6C4G32Mi 3rd WiFi BG 3rd WiFi BG N
AS5517-6C3G25Mi 3rd WiFi BG.3rd WiFi BG N
AS5517-203G16Mi 3rd WiFi BG 3rd WiFi BG N
AS5517-202G16Mi 3rd WiFi BG 3rd WiFi BG N

Test Compatible Components

This computer's compatibility is tested and verified by Acer's internal testing department. All of its system functions are tested under Windows® XP Home, Windows® XP Pro environment.

Refer to the following lists for components, adapter cards, and peripherals which have passed these tests. Regarding configuration, combination and test procedures, please refer to the Aspire 5517 Compatibility Test Report released by the Acer Mobile System Testing Department.

Microsoft® Windows® Vista Environment Test

Vendor Type Description
Adapter
DELTA 65W Adapter	DELTA 65W 19V 1.7x5	5x11 Yellow ADP-65JH DBA, LV5 LED LF
LITE-ON 65W Adapter	LITE-ON 65W 19V 1.7	7x5.5x11 Yellow PA-1650-22AC LV5 LED LF
HIPRO 65W Adapter	HIPRO 65W 19V 1.7x5	5x11 Yellow HP-A0652R3B1LF, LV5 LED LF
Battery
SANYO 6CELL2.2 Battery	SANYO AS-2009A	Li-Ion 3S2P SANYO 6 cell4400mAh Main COMMON 2.2Ah(A)
SONY 6CELL2.2 Battery	SONY AS-2009A Li-Ion 3S2P SONY 6 cell 4400mAhMain COMMON 2.2Ah(G6F)
PANASONIC 6CELL2.2 Battery	PANASONIC	AS-2009A Li-Ion 3S2P PANASONIC 6cell 4400mAh Main COMMON 2.2Ah(CG )
SAMSUNG 6CELL2.2 Battery	SAMSUNG AS-2009A Li-Ion 3S2P SAMSUNG 6 cell4400mAh Main COMMON 2.2Ah(F)
SIMPLO	6CELL2.2	Battery SIMPLO AS-2009A Li-Ion 3S2P PANASONIC 6 cell4400mAh Main COMMON Panasonic 2.2Ah ( CG )
SIMPLO	6CELL2.2 Battery S	SIMPLO AS-2009A Li-Ion 3S2P LGC 6 cell4400mAh Main COMMON LGC 2.2Ah(S3 )
SIMPLO	6CELL2.2	Battery SIMPLO AS-2009A Li-Ion 3S2P SAMSUNG 6 cell4400mAh Main COMMON SDI 2.2Ah(F)
CPU
AMD	AATF20 CPU AMD	Athlon TF20 PGA 1.6G 512K 638 15W G2
AMD	AATK42	CPU AMD AthlonX2 TK42 1.6G 1M 638 20W G2
HDD
SEAGATE	N160GB5.4KS	HDD SEAGATE 2.5" 5400rpm 160GB ST9160310ASCrockett SATA LF F/W:0303
TOSHIBA	N160GB5.4KS	HDD TOSHIBA 2.5" 5400rpm 160GB MK1655GSX LibraSATA LF F/W: FG011J
HGST	N160GB5.4KS	HDD HGST 2.5" 5400rpm 160GB HTS543216L9A300Falcon-B SATA LF F/W:C40C
WD	N160GB5.4KS	HDD WD 2.5" 5400rpm 160GB WD1600BEVT-22ZCTOML160 SATA LF F/W:11.01A11
SEAGATE	N250GB5.4KS	HDD SEAGATE 2.5" 5400rpm 250GB ST9250315AS WyattSATA LF F/W:0001SDM1
TOSHIBA	N250GB5.4KS	HDD TOSHIBA 2.5" 5400rpm 250GB MK2555GSX LibraSATA LF F/W:FG001J
HGST	N250GB5.4KS	HDD HGST 2.5" 5400rpm 250GB HTS545025B9A300Panther B SATA LF F/W:C60F
WD	N250GB5.4KS	HDD WD 2.5" 5400rpm 250GB WD2500BEVT-22ZCT0ML160 SATA LF F/W:11.01A11
SEAGATE	N320GB5.4KS	HDD SEAGATE 2.5" 5400rpm 320GB ST9320320ASCrockett SATA LF F/W:0303
TOSHIBA	N320GB5.4KS	HDD TOSHIBA 2.5" 5400rpm 320GB MK3255GSX LibraSATA LF F/W:FG011J
Vendor	Type	Description
HGST N320GB5.4KS HDD HGST 2.5" 5400rpm 320GB HTS545032B9A300Panther B SATA LF F/W: C60F
WD N320GB5.4KS HDD WD 2.5" 5400rpm ML160 SATA LF F/W:11.01A11
SEAGATE N500GB5.4KS HDD SEAGATE 2.5" 5400rpm 500GB ST9500325AS WyattSATA LF F/W:0001SDM1
HGST N500GB5.4KS HDD HGST 2.5" 5400rpm 500GB HTS545050B9A300Panther B SATA LF F/W:C60F
WD N500GB5.4KS HDD WD 2.5" 5400rpm 500GB WD5000BEVT-22ZAT0ML250 SATA LF F/W:01.01A01
LCD
AUO N15.6WXGAG LCD AUO 15.6" WXGA Glare B156XW01-V0 LF 220nit 8ms
AUO N15.6WXGAG CCFL LCD AUO 15.6"W WXGA Glare B156XW01 V0 1A LF220nit 8ms 500:1
SAMSUNG N15.6WXGAG CCFL LCD SAMSUNG 15.6"W WXGA Glare LTN156AT01-A01 LF 220nit 8ms 600:1
LPL N15.6WXGAG CCFL LCD LPL 15.6" WXGA Glare LP156WH1-TLA1 LF220nit 8ms 400:1
CMO N15.6WXGAG LCD CMO 15.6" WXGA Glare N156B3-L02 LF 220nit 8ms
MEM
NANYA SO1GBII6 Memory NANYA SO-DIMM DDRII 667 1GBNT1GT64UH8D0FN-3C LF 64*16 0.07um
MICRON SO1GBII6 Memory MICRON SO-DIMM DDRII 667 1GBMT8HTF12864HDY-667G1 LF 64*16 0.065um
SAMSUNG SO1GBII6 Memory SAMSUNG SO-DIMM DDRII 667 1GBM470T2864EH3-CE6 LF 64*16 0.055um
HYNIX	SO1GBII6 Memory HYNIX SO-DIMM DDRII 667 1GBHYMP112S64CP6-Y5 LF
HYNIX	SO1GBII6 Memory HYNIX SO-DIMM DDRII 667 1GBHMP112S6EFR6C-Y5 LF 64*16 0.055um
NANYA SO2GBII6 Memory NANYA SO-DIMM DDRII 667 2GBNT2GT64U8HD0BN-3C LF 128*8 0.07um
MICRON SO2GBII6 Memory MICRON SO-DIMM DDRII 667 2GBMT16HTF25664HY-667G1 LF 128*8 0.065um
SAMSUNG SO2GBII6 Memory SAMSUNG SO-DIMM DDRII 667 2GBM470T5663EH3-CE6 LF 128*8 0.055um
HYNIX	SO2GBII6 Memory HYNIX SO-DIMM DDRII 667 2GBHYMP125S64CP8-Y5 LF
HYNIX	SO2GBII6 Memory HYNIX SO-DIMM DDRII 667 2GBHMP125S6EFR8C-Y5 LF 128*8 0.055um
ODD
TOSHIBA	NSM8XS	ODD TOSHIBA Super-Multi DRIVE 12.7mm Tray DL 8X TS-L633B LF W/O bezel SATA
PANASONIC	NSM8XS	ODD PANASONIC Super-Multi DRIVE 12.7mm Tray DL 8X UJ880A LF W/O bezel SATA
HLDS	NSM8XS	ODD HLDS Super-Multi DRIVE 12.7mm Tray DL 8X GT20N LF W/O bezel SATA
SONY	NSM8XS	ODD SONY Super-Multi DRIVE 12.7mm Tray DL 8X AD-7580S LF W/O bezel SATA
PLDS NSM8XS ODD P	LDS Super-Multi DR	VE 12.7mm Tray DL 8X DS-8A3S LF W/O bezel SATA
VGA Chip
None UMA UMA (AMD)
NB Chipset
AMD AMDRS780MN	MDRS780MN
SB Chipset
ATI AMDSB710 AMDS	B710
Keyboard
eMACHINES EM-7T	Keyboard EM-7T HM50	/70 Internal 17 Standard Black
LAN
Atheros AR8132L	Atheros AR8132L
WiFi Antenna
WNC PIFA	PIFA
Audio Codec
Realtek	ALC272X	Realtek Audio Codec ALC272X
A cover
Quanta Wistron	Normal wi IMR	Normal wi IMR
B cover
	Mirror w/Camera	Mirror w/Camera
Camera
Suyin	0.3M DV	Suyin 0.3M DV Camellia_2G
Chicony	0.3M DV	Chicony 0.3M DV Calla_2G
Card Reader
	5 in 1-Build in	5 in 1-Build in MS, MS Pro, SD, SC, XD
Software
	NIS	Antivirus application NIS
Wireless LAN
Foxconn	3rd WiFi BG	Foxconn FOX ATH_XB63 Foxconn Atheros XB63 minicard b/g
Foxconn	3rd WiFi BG	Foxconn Wireless LAN Broadcom 4312 minicard b/g

Online Support Information

This section describes online technical support services available to help you repair your Acer Systems.

If you are a distributor, dealer, ASP or TPM, please refer your technical queries to your local Acer branch office. Acer Branch Offices and Regional Business Units may access our website. However some information sources will require a user i.d. and password. These can be obtained directly from Acer CSD Taiwan.

Acer's Website offers you convenient and valuable support resources whenever you need them.

In the Technical Information section you can download information on all of Acer's Notebook, Desktop and Server models including:

• Service guides for all models - User's manuals - Training materials - Bios updates - Software utilities - Spare parts lists

• TABs (Technical Announcement Bulletin)

For these purposes, we have included an Acrobat File to facilitate the problem-free downloading of our technical material.

Also contained on this website are:

• Detailed information on Acer's International Traveler's Warranty (ITW) - Returned material authorization procedures - An overview of all the support services we offer, accompanied by a list of telephone, fax and email contacts for all your technical queries.

We are always looking for ways to optimize and improve our services, so if you have any suggestions or comments, please do not hesitate to communicate these to us.

A

AFLASH Utility 33

Antennas

Removing 86

Replacing 89

B

Battery

Replacing 119

Battery Pack

Removing 44

BIOS

ROM type 18

vendor 17

Version 17

BIOS Utility 25–33

Boot 31

Exit 32

Navigating 25

Onboard Device Configuration 29

Save and Exit 32

Security 28

System Security 32

Board Layout

Top View 139

brightness

hotkeys 14

C

Camera Module

Removing 81

Replacing 94

caps lock

on indicator 6, 10

Common Problems 122

computer

on indicator 6, 10

CPU

Removing 78

Replacing 97

CPU Fan

Removing 76

Replacing 98

D

DIMM Modules

Removing 49

Replacing 116

Display 4

display

hotkeys 14

E

EasyTouch Failure 132

Euro 15

External Module Disassembly

Flowchart 43

F

Features 1

Flash Utility 33

FPC Cable

Removing 84

FRU (Field Replaceable Unit) List 145

H

Hard Disk Drive

Removing 52

Replacing 114

HDTV Switch Failure 133

Hibernation mode

hotkey 14

Hot Keys 12

|

Indicators 10

Intermittent Problems 134

Internal Speaker Failure 126

J

Jumper and Connector Locations 139

K

Keyboard

Removing 56

Replacing 113

Keyboard Failure 125

L

LCD Bezel

Removing 80

Replacing 95

LCD Brackets

Removing 84

Replacing 92

LCD Cable

Replacing 92

LCD Failure 125

LCD Module

Removing 57

Replacing 108

LCD Module Disassembly

Flowchart 79

LCD Module Reassembly Procedure 89

LCD Panel

Removing 82

Replacing 92

Left Speaker Module

Removing 66

Lower Covers

Removing 46

Replacing 117

M

Main Unit Disassembly

Flowchart 54

Mainboard

Removing 72

Replacing 99

Media Access

On Indicator 6, 10

Memory

Removing 49

Replacing 116

Memory Check 122

Model Definition 160

N

No Display Issue 123

Notebook Manager

hotkey 14

num lock

on indicator 6, 10

0

ODD Failure 129

Online Support Information 167

Optical Disk Drive

Replacing 117

Optical Drive Module

Removing 47

P

Panel 5

Bottom 8

PC Card 10

Power Board

Removing 65

Replacing 104

Power On Failure 122

R

Right Speaker Module

Removing 68

Replacing 102

RTC Battery

Removing 73

s

SD Dummy Card

Removing 45

Replacing 118

Speakers

Removing 66, 68

Speakers

Hotkey 14

Switch Cover

Removing 55

Replacing 114

System

Block Diagram 4

T

Test Compatible Components 163

Thermal Module

Removing 74

Replacing 98

Thermal Unit Failure 132

TouchPad

Hotkey 14

Removing 70

TouchPad Bracket Removing 70 Replacing 100

TouchPad Failure 126

Troubleshooting Built-in KB Failure 125 EasyTouch Buttons 132 HDTV Switch 133 Internal Speakers 126 LCD Failure 125 No Display 123 ODD 129 Other Failures 133 Power On 122 Thermal Unit 132 TouchPad 126 WLAN 132

U

Undetermined Problems 134

Upper Cover

Removing 61

Replacing 104

utility

BIOS 25–33

W

Windows 2000 Environment Test 164

Wireless Function Failure 132

WLAN Module

Removing 50

Replacing 116
