Product Type	Mechanical keyboard
Dimensions	450 x 140 x 40 mm
Weight	1250 g
Layout Options	US ANSI, EU ISO
Key Switches	Hot-swappable (3-pin/5-pin compatible)
Backlight	Non-backlit (indicator lights only)
Power Supply	USB bus-powered
Key Rollover	NKRO (via DIP switch) or 6-key rollover
Macro Support	Ducky Macro V2.1 (up to 6 profiles)
DIP Switches	4 switches (Windows key lock, NKRO, VID, Menu key)
Indicator Lights	Adjustable brightness (Fn+Alt+Up/Down)
Mouse Function	Built-in mouse emulation (Fn+Alt+Num Lock)
Warranty	1 year from date of purchase
Manual Availability	Free PDF download, multilingual support available
Cleaning Instructions	Use key puller; avoid liquid exposure
Safety Warnings	Do not modify; liquid damage voids warranty
Spare Parts	Switches and keycaps are replaceable (hot-swap)

Frequently Asked Questions - Origin Phantom Ducky

How do I reset the keyboard to factory defaults?

Hold the Left Windows key + Right Windows key for 3 seconds. The backlight will flash 3 times to confirm the reset.

How do I enable or disable the Windows key lock?

Set DIP switch 1 to ON, then press and hold Fn + any Alt key + any Windows key for 3 seconds. The backlight will flash 3 times to indicate the lock is toggled.

How do I use the Ducky Macro V2.1 feature?

First, select a profile by pressing Fn + 1-6. Then press and hold Fn + Alt + Tab for 3 seconds to enter recording mode. Press the key you want to assign, then enter the desired key sequence. Press Fn + Alt + Tab for 1 second to exit.

How can I adjust the brightness of the indicator lights?

Press Fn + Alt + ↑ to increase brightness, or Fn + Alt + ↓ to decrease brightness.

How do I change the key switches?

Use a key puller to remove the keycap, then a switch puller to gently pull out the switch. Align the pins with the holes and push the new switch in until it clicks. Ensure correct orientation to avoid damaging the PCB.

What are the DIP switches for?

DIP switches are located on the underside of the keyboard. DIP1: Windows key lock (ON enables lock). DIP2: NKRO mode (ON for NKRO, OFF for 6-key rollover). DIP3: Vendor ID (ON for user-defined VID). DIP4: Right Windows key changes to Menu key (ON). Default all OFF.

How do I set up a custom macro to show the desktop?

Enter macro mode (Fn+Alt+Tab 3s), press the key you want to assign (e.g., Z), then press Windows key + D, then Fn+Alt, then Fn+Alt+Tab 1s to save.

What is the warranty period and how do I claim it?

The warranty is 1 year from date of purchase. It covers defects but not liquid damage or modifications. Contact the vendor you purchased from for RMA procedures.

How do I download the manual?

Visit the manual page on notice-facile.com and click the download button to get the PDF. You can also request a translated version by selecting your language and providing your email.

How do I activate the mouse function?

Press Fn + Alt + Num Lock to toggle mouse mode. The 'M' indicator will light up when active. Use the number pad keys to control mouse movement and clicks.

USER MANUAL Origin Phantom Ducky

Ducky Origin Non-backlit Specs 15

Indicator light brightness adjustment 16

Reset Back to Factory Defaults 16

Windows Key Lock Feature 17

Mouse Function 18

DIP Switch Functions 19

Key Switch Function 20

Ducky Macro V2.1 21

Ducky Macro V2.1 Setting Section 22

Ducky Macro V2.1 Multimedia Function Keys 23

Ducky Macro V2.1 Windows Common Function Keys 24

Ducky Macro V2.1 Keyboard Button Function Keys 25

Ducky Macro V2.1 Set Up Example 26

Hot-swap Set-up Example 27

Disclaimers 28

Ducky Origin

非背光

型號：DKOR2308A/DKOR2308I

Ducky Macro V2.1

Step1. 選取要錄製的Profile

Size: 450 x 140 x 40 mm
Weight: 1250g

For more information on the specs and details of our keyboards, please contact the distributor for your region.

ANSI

100%

Pure grid layout of empty rectangular blocks without any text, numbers, or symbols

ISO

100%

Indicator light brightness adjustment

Increase brightness

Fn + Alt + ↑

Decrease brightness

Fn + Alt + ↓

Reset Back to Factory Defaults

US ANSI and EU ISO layout

Left Windows key + Right Windows key

Note:

Hold for 3 seconds. The keyboard's backlit will flash 3 times to indicate the keyboard have been reset.

Open / Close Windows Function (Windows Key Lock)

While DIP 1 is ON, press and hold Fn + any Alt keys + any Windows key for 3 seconds, the keyboard's backlit will flash 3 times to indicate the keyboard that have been turned ON / OFF(The default setting is ON).

Mouse Function

ON/ OFF (default setting):

Full Size →

Fn + Alt + Number Lock

Note:

The corner right indicator "M" key will light up upon activation.

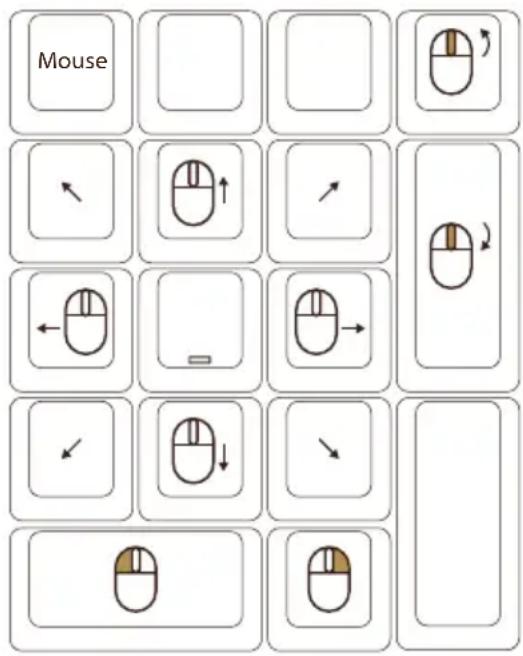

Mouse function diagram

100% (Full Size)

DIP Switch Functions

Note : You can input the ideal VID in both situation, but the VID can be only changed when DIP 3 turned on.

DIP Switches are on the underside of your keyboard.

DIP Switches are defaulted as OFF when you receive the keyboard.

DIP1	OFF (Default)	ON
	Disable Windows keyLock Function	Enable Windows keyLock Function
DIP2	OFF (Default)	ON
	NKRO Mode 6 Key Rollover	- Useful for Mac and Linux devices
DIP3	OFF (Default)	ON
	Ducky Vendor ID (VID) User defined VID
DIP4	OFF (Default)	ON
	Right Windows key is default Right	Windows key changes to the Menu key

Key Switch Functions

Note : You can press Esc key to leave the switching function before starting it.

1. Applicable keys: Fn/Alt/Ctrl/Windows/Caps Lock

2. Operation:

● Press Fn + Alt + k for 5 seconds.

● Until the Esc, L_Ctrl, L_Win, L_Alt, R_Alt, R_Win, Fn, R_Ctrl, and Caps Lock keys are all lighting up. The colorways are respectively pink, red, orange, yellow, green, blue, indigo, purple and white.

● Except for Esc & Caps Lock key, the rest of 7 keys are able to switch each function and color at will. (2 keys max at the same time)

- Press Caps Lock once will change its own function to Fn (turns into indigo LED color) then L_Ctrl key (turns into red LED color) in order.

● Press Caps Lock again to resume Caps Lock (it will be illuminated White for Caps Lock).

● Press Esc key once to save and exit.

Ducky Macro V2.1

Step1. Profile Selections

Fn+		=	Switch to profile 1	Factory settings (Default)
	2		Switch to profile 2	Customize Macro Key Features
	3		Switch to profile 3
	4		Switch to profile 4
	5		Switch to profile 5
	6		Switch to profile 6

Note:
Once the profile is selected then the Caps Lock or indicator lights will blink in the amount of selected profile number.

Step2. To enter Macro recording

Press and hold Fn + Alt + Tab for 3 seconds to enter Macro recording.

Once in recording mode the Caps Lock or indicator lights will flash slowly.

Step3. Press a key to start recording Macro

Press on the key you want to use to activate Macro. The key pressed will blink (Non-backlit version will not) and the Caps Lock or indicator lights will flash swiftly.

Step4. Recording Macro

Enter any key, and choose the Macro implementation.

Step5. To exit or continuing recording

Press and hold Fn + Alt + Tab for 1 seconds to exit recording or press Fn + Alt to continue.

Ducky Macro V2.1 Setting Section

Unable to set Macro function

Fn

Fn + ESC

Fn + F1~F12

Fn + PrtSc

Fn + ScrLk

Fn + Pause

Fn + 0~9

Fn + Ctrl

Fn + Alt

Fn + Windows

Fn + ↑ ↓ ← →

Fn + Space

s can be set to Macro (US ANSI keyboard as example)

● White keys can be set to Macro, grey keys cannot be set to Macro.

● White keys can be set to Macro, grey keys cannot be set to Macro.

Ducky Macro V2.1 Multimedia Function Keys

Note :

Need to be recorded first before use.

Fn + Windows Key + Keys below
A	Mute	M	Search
B	Volume up	N	Previous page
C	Volume down	O	Next page
D	Play / Pause	P	Mouse Left Click
E	Stop	Q	Mouse Right Click
F	Next playlist	R	Mouse Middle Click
G	Previous playlist	S	Mouse Cursor Up
H	Calculator	T	Mouse Cursor Down
I	My Computer	U	Mouse Cursor Left
J	Browser	V	Mouse Cursor Right
K	Mail	W	Mouse Scroll Up
L	Multimedia	X	Mouse Scroll Down
Reset Macro setting for single profile

US ANSI and EU ISO layout	Hold any Windows key + Spacebar for 3 seconds.
JP JIS layout	Hold Windows key + Spacebar for 3 seconds.

Ducky Macro V2.1 Windows Common Function Keys

Ctrl + C	Copy select item	Windows + D	Desktop
Ctrl + X	Cut select item	Windows + M	Minimized all windows
Ctrl + V	Paste select item	Windows + L	Lock computer or change user
Ctrl + Z	Undo	Windows + R	Open [Run] window
Ctrl + Y	Redo	Windows + F	Search files or folders
Ctrl + N	Open new file	Windows + ↑	Maximized all windows
Ctrl + O	Open current file	Windows + ↓	Minimized windows
Ctrl + S	Save file change	Windows + ←	Maximized window to the left side
Ctrl + P	Print file	Windows + →	Maximized window to the right side
Alt + F4	Quit the software	Windows + Home	Minimized all windows other than the one used

• http://windows.microsoft.com/en-us/windows/keyboard-shortcuts

Ducky Macro V2.1 Keyboard Button Function Keys

Note:

1. Need to be recorded first before use.

Fn + Shift + Keys below
A	Prompt Profile value Backlit mode	N	ave mode (Default)
B	Profile 1 Backlit mode : Co	O	cle mode
C	Profile 2	P	Backlit mode : Rain Drop mode
D	Profile 3 Backlit mode : Rip	Q	ode
E	Profile 4	R	Backlit mode : Random Reactive mode
F	Profile 5	S	Backlit mode : Reactive mode
G	Profile 6 Backlit mode : 10	T	ll backlit mode
H	Backlit modes switching Backlit mode	U	reathe mode
I	Adjust color red Backlit mode	V	r mode
J	Adjust color green Backlit mode	W	klit OFF
K	Adjust color blue The key" . "or	X	per pad (Num_)
L	Erase all value	Y	Number Lock
M	Color Palette

Ducky Macro V2.1 Set Up Example

Note:

Set the Profile from Profile 2\~6 before setting Macro.

Example A Configure the key "Z" to "Q" output.

Operation method :

Press Fn + Alt + Tab for 3 seconds → Press Z → Press down Q → Press Fn + Alt →

Press Fn + Alt + Tab for 1 second

Example B To set Z as show "desktop" (under Windows system)

Operation method :

Press Fn + Alt + Tab for 3 seconds → Press Z → Press Windows key + D → Press Fn + Alt →

Press Fn + Alt + Tab for 1 second

Example C - To set Fn + Ctrl + M as "mute volume"

Operation method :

Press Fn + Alt + Tab for 3 seconds → Press Fn + Ctrl + M → Press Fn + Windows key + A →

Press Fn + Alt → Press Fn + Alt + Tab for 1 second

Example D. To set Fn + Ctrl + Q as "Reactive mode"

Operation method :

Press Fn + Alt + Tab for 3 seconds → Press Fn + Ctrl + Q → Press Fn + Shift + S →

Press Fn + Alt → Press Fn + Alt + Tab for 1 second

Hot-swap

Set-up Example

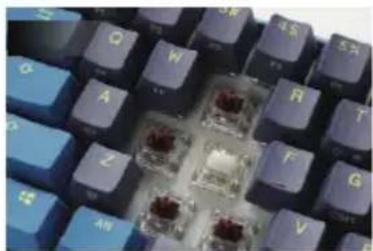

Use key puller to pull out the key caps Use switch puller to pull out the switches

Close-up of a keyboard with blue and purple keys and two red connectors (no text or symbols visible)

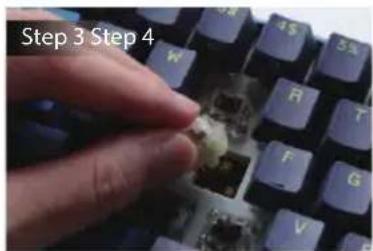

Align switch pins with the holes

Gently push the switch in

Close-up of a keyboard with blue keys and black connectors (no readable text or symbols)

Disclaimers

• When swapping out switches, please make sure to secure the keyboard in place and then pull the switch out.
• Please ensure the correct pin direction and avoid applying excessive force to prevent damaging the PCB and switch during inserting switches.
  ● Products that have been exposed to liquid damage will not be under warranty coverage.
  ● Products that have been subjected to any modifications will not be under warranty coverage.

Warranty is 1 year from date of purchase via our Official Vendors vhttps://www.duckychannel.com.tw/en/location/global Please contact the vendor you purchased from for RMA procedures.
