IZ-9046 - Household Fan Izzy - Free user manual and instructions

Product Type	Domestic fan
Model	IZ-9046
Brand	Izzy
Dimensions (H x W x D)	Approx. 50 x 40 x 30 cm
Weight	Approx. 3.5 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	50 W
Fan Speed Settings	3 speed levels
Oscillation	Yes, wide angle
Tilt Adjustment	Yes, adjustable head
Control Type	Manual buttons
Noise Level	Approx. 55 dB (max speed)
Airflow	Approx. 70 m³/min
Blade Diameter	40 cm
Material	ABS plastic, metal stand
Cleaning Instructions	Wipe with a damp cloth; do not use abrasive cleaners
Safety Features	Overheat protection, safety grill
Certifications	CE, RoHS
Warranty	2 years

Frequently Asked Questions - IZ-9046 Izzy

How do I assemble the Izzy IZ-9046 fan?

Attach the base to the stand, then mount the fan head. Refer to the user manual for detailed steps.

How many speed settings does the fan have?

It has three speed levels: low, medium, and high, controlled by the buttons on the base.

Can the fan oscillate?

Yes, press the oscillation button to enable wide-angle air distribution.

How do I clean the fan?

Unplug the fan, wipe the exterior with a damp cloth. Do not immerse in water.

Is the fan noisy?

Noise levels are around 55 dB on maximum speed, similar to a quiet conversation.

Can I adjust the tilt of the fan head?

Yes, manually tilt the fan head up or down to direct airflow.

What is the power consumption?

The fan consumes 50 watts at maximum speed.

Does the fan have a remote control?

No, this model is controlled via manual buttons on the base.

What safety features does the fan have?

It includes overheat protection and a safety grill to prevent accidental contact.

What is the warranty period?

Izzy offers a 2-year warranty for the IZ-9046 model.

USER MANUAL IZ-9046 Izzy

White outdoor air purifier with a digital display and control panel, no visible text or symbols on the device itself.

ΜΠΕΝΡΟΥΜΩΗ

White industrial device with two vertical supports and a labeled component (8), no visible text or symbols on the body itself.

Thank you for having chosen an appliance from the IZZY range.

Safety interlocks

Please read these instructions carefully before using the appliance and save them for future reference. Please keep the sales receipt for guarantee purposes (pls see below “Guarantee and Customer Service”) Any us which does not conform to the instructions will absolve IZZY from an liability.

• Make sure your electricity supply is the same as the one shown on the underside of the appliance.
- Never leave the appliance unattended when operating.
- Close supervision is necessary when your appliance is being used near children or infirm persons. Ensure that they do not play with the appliance.
- This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, children or those with lack of experience and knowledge, unless they have been given supervision or instructic concerning use of the appliance by a person responsible for their safety.
WARNING: Do not expose babies and the elderly many hours in front of the fan's air.

- Switch off and unplug:

- When not in use.

- When you move it.

- Before cleaning.

- Never use the appliance for any other use than indicated. - The device is intended for indoor use. Do not use the device outdoors.

- The device is intended only for domestic use. Any other use will cancel the warranty.

• Always use the mixer on a secure, dry level surface.

- Do not operate or place the device or parts in places of high humidity or where it may get wet.

- Do not use this appliance in the immediate surroundings of a bath,

shower or a swimming pool or in places where it may get wet.

• Never let the power unit, cord or plug get wet. If the appliance does get wet, immediately remove the power cord from the wall outlet and do not put your hands in the water. Never run the wet appliance and contact one of the authorized BENRUBI service centers.
• Never place appliance close to radiant heat source.

CAUTION: To prevent injury, do not place foreign objects, pencils, e through the air outlets when the appliance is plugged in or when it is in operation.

CAUTION: To avoid injury, do not put your fingers through the air outlets when the appliance is plugged in or when it is in operation.

• Leave space of about 1 meter around the appliance so that you do not block the air outlets and the movement of the fan.
• Do not let the power cord of the appliance hang over the edge of a table or bench edge or where a child can grab it. Do not allow the power cord to touch any warm surface.
• Do not operate the appliance in areas where gasoline, paint or other flammable liquids are used or stored.
• Do not operate the device in closets or other enclosed spaces as this ma cause fire hazard.
• Ensure that the power cord is not clamped from any object, e.g. furniture. Do not press the power cord and never place it under carpets or ma where there is a risk of stepping on it. Keep the power cord in a place when there is no danger of stumbling.
• Do not place the appliance next to fabrics, e.g. hanging curtains, etc. Do not place clothes on the appliance to dry or for any other reason.
• Before inserting or removing the socket, make sure the appliance turned OFF.
• It is recommended that this appliance is plugged directly into the wa socket.
• Never use the cord to pull the plug out of the socket. Disconnect always by pulling on the plug.
• Ensure that the power cord does not come into contact with moving parts of the appliance.
• Do not use the appliance if it has been dropped or damaged in any way and contact an authorized BENRUBI Service Center.
• In case that you notice some strange noise, smell, smoke or anything unusual, do not use the appliance. Disconnect it from electricity and

contact an authorized BENRUBI Service Center.

• Failure to use properly may cause injury.
• Never leave the power cable wrapped during use. Unwind it completely.
• Never use highly corrosive or abstractive cleaning agents. Never use metal scouring pads for cleaning.
• Do not move the appliance when it is in operation.
• Do not touch the appliance with wet or damp hands.
• Do not use an extension power cord.
• This appliance is not intended to be operated by means of an external timer or separate remote control system.
• Check the power cord periodically for possible damages.
• If the power cord or the plug of the appliance has been damaged, do not use the appliance and contact an authorized BENRUBI Service Center.
• In case of a possible damage, do not attempt to repair the appliance by yourself. Please contact one of the authorized BENRUBI service centers.
• Any repair made by an unauthorized BENRUBI Service Center CANCELS THE GUARANTEE.
• Any misuse of the device cancels the warranty.
• Only use original spare parts
• The appliance conforms to EU directive 2014/30/EU on Electromagnetic Compatibility, the 2014/35/ EU Low Voltage Directive, the2011/65/EU RoHS Directive and the directive 2009/125/EC for eco-design.

SAVE THESE INSTRUCTIONS

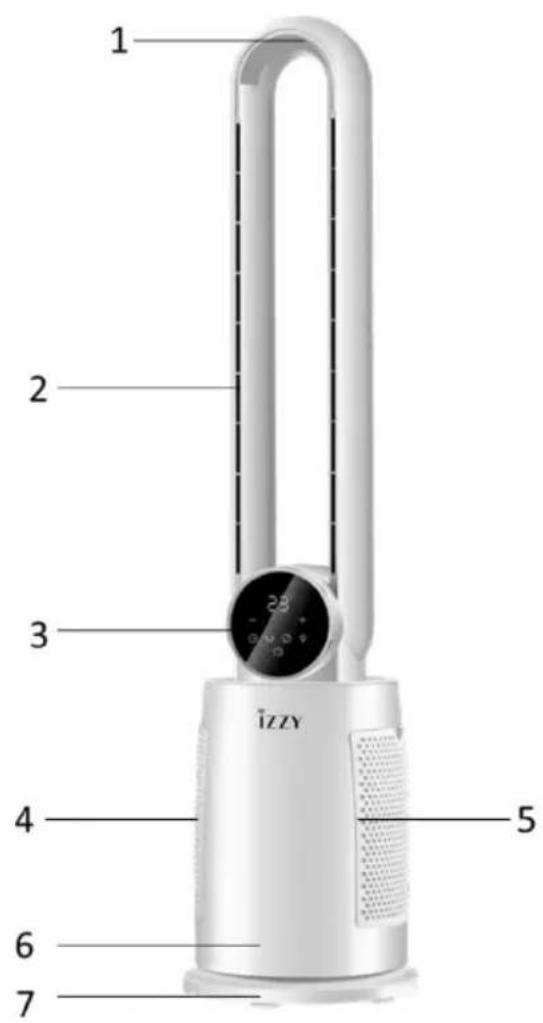

Parts of the Appliance

White industrial device with two vertical towers and a labeled component (8), no visible text or symbols on the device itself.

1. Light
2. Air outlets
3. Control panel with indication lights
4. Detachable left filter
5. Detachable right filter
6. Body
7. Base

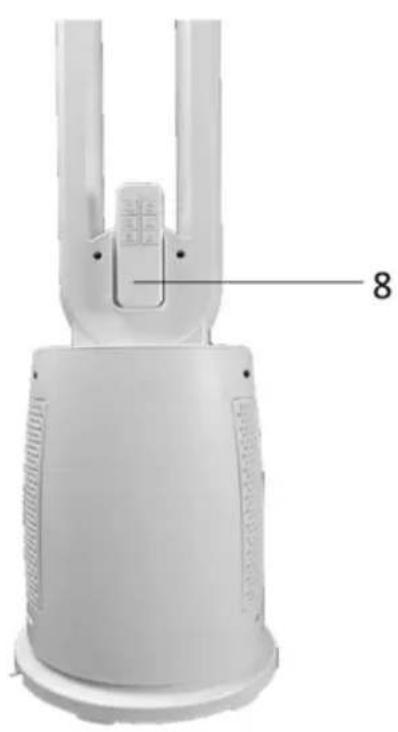

8. Magnetic storage slot for remote control

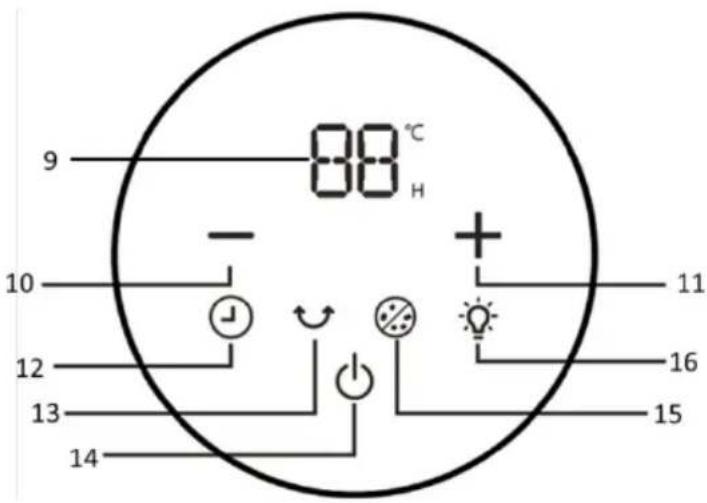

Control panel

1. Display

2. Speed/timer decrease button " "

3. Speed/timer increase button "

1. TIMER button

1. SWING button

1. Power button

1. ANION purify air button

1. LIGHT button

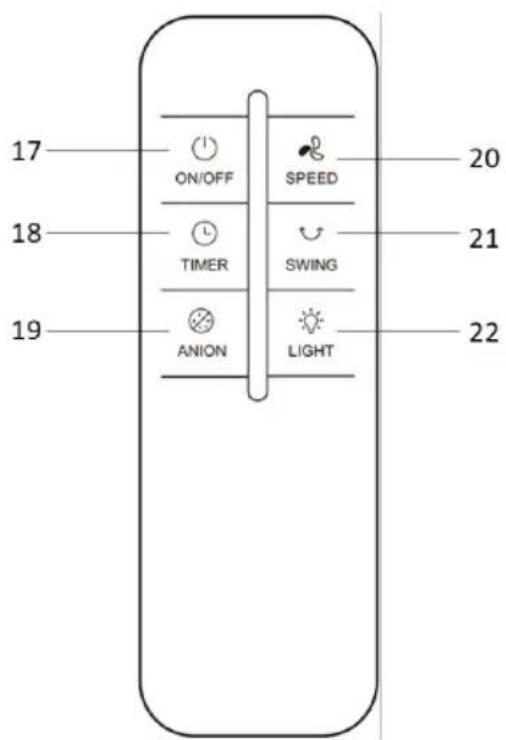

Remote control

1. ON/OFF button

1. TIMER button

1. ANION purify air button

1. SPEED control button

1. SWING button

1. LIGHT button

Installation and Replacement of Remote-Control Batteries

The controller works with 2xAAA batteries.

Batteries installation

1. Slide the battery compartment cover located on the back of the remote control.
2. Insert the batteries and close the lid by sliding it inwards.

Batteries replacement

1. Slide the battery compartment cover located on the back of the remote control.
2. Remove the old batteries and insert the new ones.
3. Close the lid by sliding inwards.

Note: Make sure you connect the batteries with the correct polarity.

Disposal of old batteries:

• Batteries must be disposed carefully and in accordance with local and national regulatory requirements for battery recycling and disposal.
• Batteries should be disposed of in the special battery recycling bins.
• Keep batteries in a safe place, away from children and pets. Also, make sure to protect them from sunlight.
• Efficient battery disposal helps protect the environment and recycle valuable resources.

Using the Fan (with Control Panel)

CAUTION:

• Always place the device on a flat, dry and stable surface. There is a risk of damage if it is not installed on a flat and level surface.

• Before using, make sure that the appliance is in the "OFF" position.

• Plug in. A sound will be heard and on the control panel the power indication (14) will remain on.

• Press the power button ⏻(14). The fan will turn on and the display will show the room temperature.
• Press the decrease (10) or increase (11) speed buttons to set the speed of your choice. The selected speed will be displayed for a few seconds on the display screen and then the root temperature will be displayed.

The appliance has 3 speed options:

• 01 - LOW
• 02-MEDIUM

• 03-HIGH

• Press the SWING button (13) to select the swing mode. The corresponding indication will turn on. To deactivate the swing function, press the SWING button (13) again. The corresponding indication will turn off.

• To activate the air-purify function, press the ANION button Ⓧ (15). The corresponding indication will turn on. To deactivate the air-purify function, press the ANION button Ⓧ(15) again. The corresponding indication will turn off.

• To set the timer, press the timer button (12) successively until the desired operating time is selected (1 to 12 hours). The display will show the selected time for a few seconds and then the room temperature. When the time you set is up, the fan will automatically stop working and enter standby mode.

Notes:

• To set the time you can also use keys (10) or (11).
- If you wish to change or cancel the timer setting, press the button (12) again. The display will show the time you have selected. Press button (12) or buttons — (10) or + (11) successively until the new desired time appears on the display.
- To deactivate the timer setting, the display should show "00".

1. To turn on the light, press the LIGHT button (16).

2. Press the power button (14) to turn off the appliance. The appliance enters standby mode and the indication light (14) remains on.

3. Unplug the fan when not in use.

Using the Fan (with Remote Control)

CAUTION:

• Always place the device on a flat, dry and stable surface. There is a risk of damage if it is not installed on a flat and level surface.

• Before using, make sure that the appliance is in the "OFF" position.

• Plug in. A sound will be heard and on the control panel the power indication (14) will remain on.

• Press the power button ⏻(17). The fan will turn on and the display will show the room temperature.
• Press successively the SPEED button (20) to set the speed of your choice. The selected speed will be displayed for a few seconds on the display screen and then the room temperature will be displayed.

The appliance has 3 speed options:

• 01 - LOW
• 02-MEDIUM

• 03-HIGH

• Press the SWING button (21) to select the swing mode. The corresponding indication will turn on. To deactivate the swing function, press the SWING button (21) again. The corresponding indication will turn off.

• To activate the air-purify function, press the ANION button ⚙ (19). The corresponding indication will turn on. To deactivate the air-purify function, press the ANION button ⚙ (19) again. The corresponding indication will turn off.

• To set the timer, press the timer button (18) successively until the desired operating time is selected (1 to 12 hours). The display will show the selected time for a few seconds and then the room temperature. When the time you set is up, the fan will automatically stop working and enter standby mode.

Notes:

• If you wish to change or cancel the timer setting, press successively the TIMER button (18) until the new desired time appears on the display.

• To deactivate the timer setting, the display should show "00".

• To turn on the light, press the LIGHT button (16).

• Press the power button (17) to turn off the appliance. The appliance enters standby mode and the indication light (14) remains on.

• Unplug the fan when not in use.

Care and Cleaning

• Switch off and unplug the appliance before cleaning.
• Do not disassemble the fan to clean it.
• At regular intervals, clean the main body of the appliance with a soft cloth and dry thoroughly.
• Never use highly corrosive or abstractive cleaning agents. Never use metal brushes or sponges for cleaning and do not immerse the appliance in water.
• To ensure that the air circulates properly on the motor, keep the air outlets at the rear of the motor clean.

Filter cleaning:

1. Remove the detachable filters by pressing down slightly.

2. Wash with warm soapy water and dry thoroughly.

3. Place the filters back into the slots.

- Never use strong corrosive or abrasive cleaners. Never use metal brushes or sponges for cleaning.

CAUTION: Make sure the filters are thoroughly dry before reinserting them and before turning on the appliance.

CAUTION: Do not put the filters in the dishwasher.

Storage

• Switch off and unplug the appliance before storing it.
• Store the appliance in a dry place without humidity.
• Before using the appliance for a long time, make sure it is clean and dry.
• Store the appliance where it is not reachable by children.

Technical Information

Model: BLADELESS fan IZ-9046 IZZY

Voltage: AC 220\~240V

Frequency: 50/60Hz

Rated input: max 60W

Important Information for Correct Disposal of the Product in Accordance with EC Directive 2002/96/EC

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Guarantee & Customer Service

- BENRUBI Company guarantees its products for any manufacturing defect or defective materials for a period of two (2) years from the date of purchase or delivery by presenting purchase receipt. If your product malfunctions or you find any defects, please revert to the retail location you have purchased it from or contact an authorized BENRUBI Service Centre. To find the nearest authorized BENRUBI Service Centre, visit our website www.benrubi.gr. It is in the discretion of BENRU Company to replace or repair the defective product.

- The warranty does not cover damages resulting from normal wear, breakage, scaling, improper installation or maintenance of the product, mishandling, abnormal working conditions, failure implement the instructions, conversion or repair of the product by an unauthorized technician who does not belong to the BENRUBI Service Centers.

Also, the warranty does not cover the following indicative factors:

• Stains, discoloration or scratches.

- Burns due to exposure to heat or flame.

- Damage from thermal shock (sudden temperature change or change of voltage).

FOR MORE INFORMATION PLEASE CONTACT:

(NEW) H. BENRUBI & FILS SA

27 Aghiou Thoma str, GR15124, Maroussi – Athens,

Tel./Customer Support: [phone]

e-mail: [e-mail]
