MT-607 - Loudspeaker MONSTER - Free user manual and instructions

Product Type	Bookshelf Speakers with Bluetooth
Brand	Monster
Model	MT-607
Power Supply	AC 100-240V, 50-60Hz
Woofer Size	6.5" Aluminum
Speaker Output	2 x 50W RMS
Max Power	120W
Frequency Response	50Hz - 60kHz
Bluetooth Version	Standard (pairing code: none)
Bluetooth Range	Approximately 10m (typical)
Input Modes	Bluetooth, AUX (3.5mm/RCA), USB
LED Indicators	Blue (Bluetooth), Blue flashing (pairing), Yellow (AUX), Purple (USB)
Controls	MODE/VOLUME knob (press to switch mode, rotate for volume)
Speaker Cable Included	Yes, for connecting left and right speakers
Warranty	2 Years
Dimensions (approx.)	30 x 20 x 25 cm (each)
Weight (approx.)	5 kg each
Care & Maintenance	Clean with a dry cloth; avoid moisture and direct sunlight
Safety Notes	Do not open; keep away from water; unplug when not in use
Package Contents	2 speakers, AC power cable, speaker cable, user manual, warranty certificate

Frequently Asked Questions - MT-607 MONSTER

How do I connect the speakers via Bluetooth?

Turn on the speakers by flicking the power switch. The LED will flash blue, indicating pairing mode. On your phone, select MT-607 from the Bluetooth devices list. Once connected, the LED will stay solid blue.

Why is there no sound from the right speaker?

Ensure the supplied speaker cable is securely connected to both the left and right speakers at the SPEAKER OUT (R) port on the left speaker and the corresponding terminals on the right speaker.

How do I switch between input modes?

Press the MODE/VOLUME KNOB repeatedly to cycle through modes: Bluetooth (blue LED), AUX (yellow LED), and USB (purple LED). The LED color indicates the current mode.

Can I use a USB stick with these speakers?

Yes, insert a USB stick into the USB port on the left speaker. The speaker will automatically enter USB mode (purple LED). Use the MODE button to skip tracks: press once for next, twice for previous.

What is the maximum power output?

The speakers have a max power output of 120W (2 x 50W RMS) with a peak frequency response from 50Hz to 60kHz.

How do I clean the speakers?

Use a soft, dry cloth to wipe the exterior. Do not use water, solvents, or abrasive cleaners. Keep the speakers away from moisture and direct sunlight.

What is the warranty period?

These speakers come with a 2-year warranty against manufacturing defects. For support, contact Monster at 1300 886 649 or [e-mail].

No sound in Bluetooth mode even though connected?

Check that the LED is solid blue (not flashing). If flashing, the device is in pairing mode. Also adjust the volume knob on the speaker and the volume on your Bluetooth device.

What does the flashing blue LED mean?

A flashing blue LED indicates that the speaker is in Bluetooth pairing mode and ready to connect to a new device. The LED will become solid blue once paired.

Can I connect the speakers to a TV?

Yes, if your TV has a 3.5mm headphone jack or RCA audio output, use an AUX cable (3.5mm to RCA) to connect to the AUX IN port on the left speaker. Select AUX mode (yellow LED).

USER MANUAL MT-607 MONSTER

Two black audio/video speakers with speaker spouts and sound effect indicators (no visible text or symbols)

Welcome

Premium connectivity that fuels modern lifestyle and empowers innovation.

A better everyday experience through amazing products.

The user manual will provide everything you need to know about using your new product.

All our products are produced and tested to stringent standards of performance and safety, and are pleased to provide a 2 Year Warranty with your purchase.

We hope you enjoy your purchase.

MONSTER™

Always Lead. Never Follow.

Contents

Welcome 2

Product Overview 4

Controls and Connections 5

Operation 7

Troubleshooting 9

Specifications 10

Compliance and Responsible Disposal 11

Product Overview

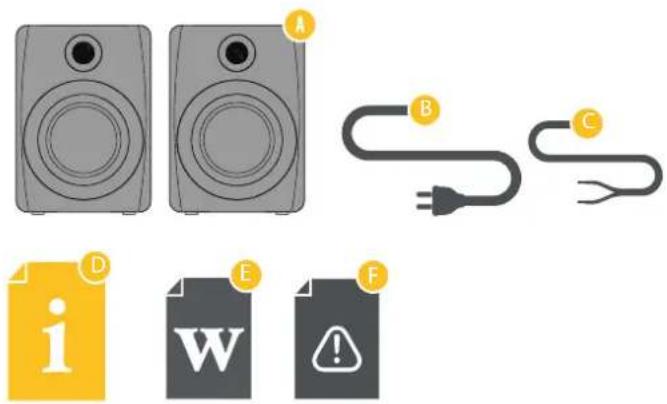

What's in the box:

A. Bookshelf Speakers with Bluetooth (2)
B. AC Power Cable
C. Speaker Cable
D. User Manual
E. Warranty Certificate
F. General Safety Warnings

Controls and Connections

Rear View

Left Speaker

1. MODE/VOLUME KNOB - press to change the input source mode. Press twice to disconnect Bluetooth connection. Adjust the knob to increase/decrease volume level.
2. LED status indicator - lights up corresponding to the currently selected input mode:
3. Blue - Bluetooth mode
4. Blue (flashing) - Bluetooth pairing mode
5. Yellow - AUX mode
6. Purple - USB mode
7. USB PORT
8. AUX IN - connect a 3.5mm cable to RCA audio cable to an external device for music playback.
9. SPEAKER OUT (R) - connect the supplied speaker cable to the - and + ports on the other speaker to play music from both speakers.
10. POWER/ON/OFF SWITCH - flick the switch to turn the speaker on/off.
11. Power - plug in the supplied AC cord.

Operation

Powering the Bookshelf Speakers

• Connect the left and right speakers with the supplied speaker cable.
• Connect the AC Power Cord to an external power supply.
• Flick the POWER/ON/OFF switch to turn the speaker on. The LED status indicator will flash blue, indicating it is ready to pair with a Bluetooth device.

Bluetooth® Mode

• On your smart phone, select MT-607 from the list of available devices.
• Once Bluetooth connection is successful, the LED status indicator will stop flashing and light up solid blue.
• You can now use your smart phone to play audio to the speakers.
• Use the MODE/VOLUME KNOB to adjust volume level, or you can control volume directly from your smart phone.

AUX-IN Mode

• Connect a 3.5mm cable to RCA audio cable to the AUX IN port on the left speaker and the other end to an external audio device.
• Press the MODE/VOLUME KNOB repeatedly until the LED status indicator lights up yellow, indicating it is in AUX mode.
• You can now use your external audio device to play audio to the radio.
• Use the MODE/VOLUME KNOB to adjust volume level, or you can control volume directly from your external audio device.

PC INPUT Mode

OPERATION | 7

USB Card Mode

• Insert a USB Stick to the USB port.
• The speaker will automatically enter USB mode upon the LED status indicator lights up purple,
• You may press the MODE button to skip to the next song and press the MODE button twice to go back to the previous song.
• Use the MODE/VOLUME KNOB to adjust volume level.

Troubleshooting

If you encounter any problems with your product, please check this list of possible issues for a solution. If you don't find a solution here, contact After Sales Support on 1300 886 649.

Problem Solution
No audio from right speaker	· Ensure that the speaker cable is connected to the left and right speakers
No sound in USB mode	· Adjust the volume knob.· Check that the USB cable is securely connected to the USB INPUT port.· Adjust the volume of your PC/laptop.· Check that your PC/laptop is on the correct speaker output.
No sound in Bluetooth mode	· Check that you are connected to the Bluetooth device. The LED status indicator should light up blue (flashing indicates it is in pairing mode).· Adjust the volume knob.· Adjust the volume of your Bluetooth device.

Specifications

Power AC100-240V ~ 50-60Hz
Woofer Size 6.5" Aluminum speaker
Speaker output 2 x 50W
Max power 120W Max
Frequency Response 50Hz-60kHz

For Technical and Warranty Support

1300 886 649

[e-mail]

monsterproducts.com.au

Distributed by Tempo (Aust) Pty Ltd,

PO BOX 6097, North Sydney NSW 2059

Compliance and Responsible Disposal

Packaging

The packaging of your product has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can be a suffocation hazard for babies and young children, please ensure all packaging materials are out of reach and are safely disposed of. Please recycle these materials rather than throwing them away.

Product

At the end of its working life, do not throw this product out with your household rubbish. An environmentally friendly method of disposal will ensure that valuable raw materials can be recycled. Electrical and electronic items contain materials and substances which, if handled or disposed of incorrectly, could potentially be hazardous to the environment and human health.

Compliance

This product complies with the Australian Safety Standard AS/NZS 62368.1 to ensure the safety of the product.

MONSTER™
