USER MANUAL GZ-X2 GIGABYTE
User Guide For GZ-X Series

Optional remarks based on models available in your territory:
-
The IEEE1394 situated on the front panel is optional.
-
Tool-less illustrations indicated pertain to models with tool-less options
- Front intake system fan indicated are also specific to certain models
Installation of Front Multi-Media I/O Ports

Incorrect connector installation may possibly burn out the motherboard and other components. Be sure to observe the instructions on installation manual. Any loss caused by nonobservance of the proper operation provided is not covered by the warranty.
The connector or socket varies with different motherboards. For detailed instructions, please refer to the instructions provided by the motherboard manufacturer.
The Front Panel consists of
(1)2xUSB 2.0 (2)1xIEEE 1394 (Optional) (3)1xAudio Jacks 4)Power SW / Reset SW / LED connectors
1 2xUSB 2.0
Insert the USB 2.0 connector into the corresponding sockets on the motherboard. (Please double check the layout on motherboard user manual)
USB 2.0 connector
2 10
1 9

2 1xIEEE 1394 (Optional)
Insert the IEEE 1394 connector into the corresponding socket on the motherboard. There is a converter connector, please refer to the instructions supplied by the motherboard manufacturer and make sure the correct type of connector prior to installation.
IEEE 1394 connector A
2 10
1 9

IEEE 1394 connector B
2 10
1 9

IEEE 1394 connector C
2 | • | • | • | • | • | • | 16
1 | • | • | • | • | • | • | 15

3 1xAudio Jacks
Insert the audio connector into the corresponding socket on the motherboard. There are HD audio and AC97 connector, please refer to the motherboard user manual.





Be sure that different motherboards may have different installation positions. For detailed instructions, please refer to the instructions supplied by the motherboard manufacture
Hardware Installation

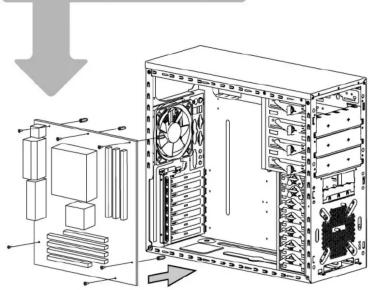

1 Motherboard Installation

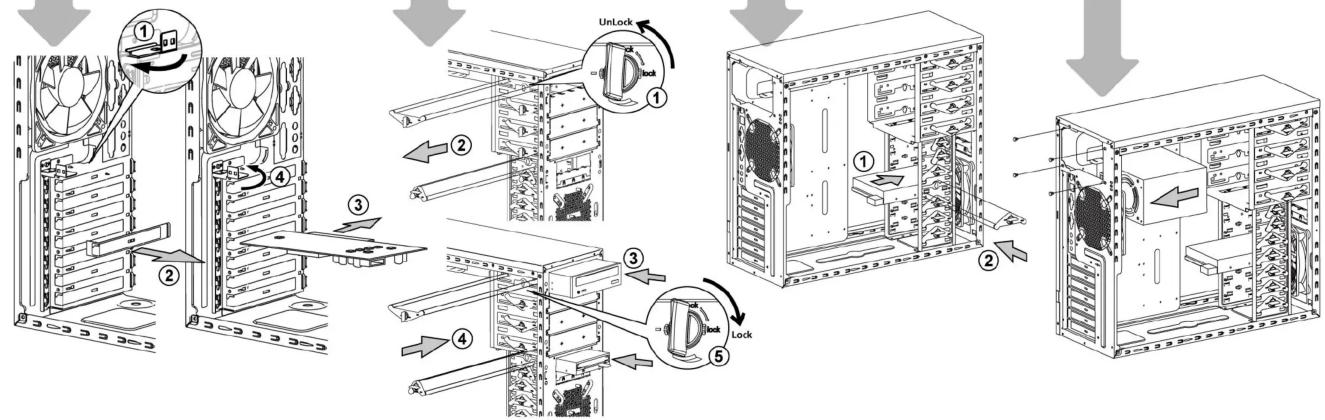

2 Add-on card Installation
