Product Type	Blender
Brand	Oster
Model	BLSTPYG1312XBG
Motor Power	1200 W
Jar Material	Glass
Jar Capacity	64 oz (1.9 L)
Number of Speeds	12
Control Type	Dial
Pulse Function	Yes
Ice Crush Function	Yes
Dishwasher Safe Parts	Jar, lid, and blending cup (if included)
Dimensions (H x W x D)	15.5 x 8.5 x 8.5 in (39.4 x 21.6 x 21.6 cm)
Weight	6.8 lbs (3.1 kg)
Power Source	120 V, 60 Hz
Cord Length	24 in (61 cm)
Non-Slip Base	Yes
Safety Lock for Jar	Yes
Overload Protection	Yes
Cleaning Brush Included	No
Recipe Book Included	Yes

Frequently Asked Questions - BLSTPYG1312XBG OSTER

Can I blend hot liquids in this blender?

No, do not blend hot liquids as the glass jar may crack. Allow liquids to cool to room temperature before blending.

How do I clean the blender jar?

The glass jar and lid are dishwasher safe. For hand cleaning, use warm soapy water and a non-abrasive sponge. Avoid submerging the motor base in water.

What is the maximum capacity for dry blending?

For dry ingredients like grains or nuts, do not fill beyond the 4-cup (32 oz) mark to ensure proper blending and avoid motor strain.

Can I use the blender to crush ice?

Yes, the blender has an ice crush function. Use the Pulse setting and add ice cubes gradually for best results.

Why does the blender stop working mid-use?

The blender may have an overload protection feature that shuts off the motor if it becomes too hot. Unplug the unit and let it cool for 15-20 minutes before resuming.

What is the warranty period for this blender?

Oster offers a 1-year limited warranty for this model. Retain your receipt for proof of purchase.

Can I replace the glass jar if it breaks?

Yes, replacement jars are available from Oster or authorized retailers. Check the model number to ensure compatibility.

How do I use the pulse function?

Turn the dial to the Pulse position and press down lightly. Release to stop. Use for short bursts of blending.

Is the blender BPA-free?

Yes, the glass jar and all plastic parts are BPA-free for safe food preparation.

Can I blend frozen fruits without liquid?

Always add a small amount of liquid (e.g., milk, juice) to help the blades move and prevent the motor from straining.

USER MANUAL BLSTPYG1312XBG OSTER

Four black-and-white photos of a blender with control panel and buttons, arranged in a row (no visible text or symbols)

MODELOS

/ MODELS

BLSTPYG1309B,

BLSTPYG1310RBG,

BLSTPYG1311NBG

BLSTPYG1312XBG

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

PRECAUCIONES IMPORTANTES

Line drawing of a hand pouring liquid into a container over a plate (no text or symbols)

1. Read all instructions before using this product.
2. To protect against electric shock, do not place or immerse cord, plugs, or appliance in water or other liquid.
3. This appliance is not intended for use by children or by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Keep the appliance and its cord out of reach of children.
4. Never leave appliance unattended when in use.
5. Unplug from outlet when not in use, before putting on or taking off parts and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning. To disconnect, turn any control to OFF, then unplug power cord from outlet. Do not disconnect by pulling on cord.
6. Flashing light indicates ready to operate (models with stand-by mode). Avoid any contact with blades or moveable parts.
7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Do not attempt to replace or splice a damaged cord. Return appliance to the manufacturer (see warranty) for examination, repair or adjustment.
8. For appliances with markings on plug blade: This appliance has important markings on the plug blade. The attachment plug or entire cordset (if plug is molded onto cord) is not suitable for replacement. If damaged, the appliance shall be replaced.
9. The use of attachments, including canning jars, not recommended or sold by the manufacturer may cause fire, electric shock or injury.
10. Do not use outdoors or for commercial purposes.
11. Do not let cord hang over edge of table or counter, or touch hot surfaces, including the stove.
12. Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.
13. Blades are sharp. Handle carefully, especially when removing the blades from the container, emptying the container and during cleaning.
14. To reduce the risk of injury, never place cutter-assembly blades on base without jar properly attached.
15. Always operate blender with cover in place. Always wait until all moving parts have stopped before removing any lid or cover.
16. When blending hot liquids, remove center piece of two-piece cover (if a two-piece cover is provided). Beware of steam. Do not blend boiling liquids.
17. Do not use appliance for other than intended use. Misuse can cause injuries. Always use appliance on a dry, stable, level surface. Never fill beyond the MAX fill line.
18. If your blender comes with a grounded plug, connect to properly grounded outlets only. For containers with no lids or vents (when inserted in the blender), such as personal Blend and Go containers:
19. Do not blend carbonated, hot or boiling liquids and ingredients, as this may create pressure buildup. Only blend non-carbonated liquids and ingredients that are at room temperature or cooler. If the container is warm to the touch, allow to cool before opening.
20. Do not use the blender for longer than 1 minute at a time to avoid heat and pressure buildup. Allow to cool for 1 minute between cycles.

[ENGLISH-ESPA]

For appliances with food processor or food chopper attachments:

1. Keep hands and utensils away from moving blades or discs while processing or chopping food to reduce the risk of severe injury to persons or damage to the food processor or chopper. A scraper may be used but must be used only when the food processor or chopper is not running.
2. To reduce the risk of injury, never place cutting blade or discs on base without first putting container properly in place.
3. Be certain cover is securely locked in place before operating appliance.
4. For food processors: Never feed food by hand. Always use food pusher.
5. Do not attempt to defeat the cover interlock mechanism.
6. If mixing cup or bowl is chipped, cracked or damaged in any way, discontinue use of product.
7. If blades appear to be damaged, discard food and discontinue use of product.
8. Be careful if hot liquid is poured into the food chopper as it can be ejected out of the appliance due to a sudden steaming.

SAVE THESE INSTRUCTIONS

This appliance is intended for household use and similar environments, such as:

• in shops, offices and other similar working environments;
• in farm houses;
• by clients in hotels, motels and other residential type environments;
• in bed and breakfast type environments.

POWER CORD SPECIAL INSTRUCTIONS

• Try to position the blender near the power source to reduce the hazards associated with power cords (such as becoming entangled or tripping over a long power cord).
• Do not pull, twist or otherwise abuse the power cord.
• Do not wrap the power cord around the main body of the blender during or after use.
• Do not use an extension cord with this product.

This symbol is used in certain parts of this manual and is intended to help you easily identify those instructions that require special attention.

ENGLISH-2 ENGL

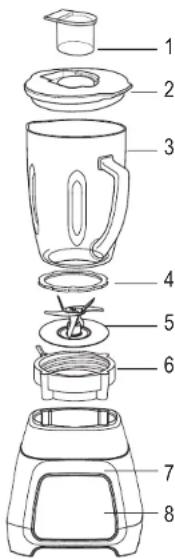

DESCRIPTION OF YOUR BLENDER

1. Filler Cap / 2-Ounce Scoop
2. Jar lid
3. 1.5 L (6-Cup) heat resistant, Boroclass® glass jar with thermal shock resistance
4. Locking Sealing Ring
5. Blade 2X Larger Blade System than traditional Oster ^2 Blenders
6. Threaded Cup Bottom with Locking Lever

7.MotorBase

1. Control Panel

a. Power Button ( )

b.AutomaticPrograms

Juices and Smoothies (JUGOS Y SMOOTHIES)
Food Chop (PROCESADOR DE ALIMENTOS / SALSAS)

c.ManualControls

1 - Low Speed
2 - Medium Speed
3 - High Speed

d.PulseButton

USING YOUR BLENDER

Your product includes the following technology and features:

• 2 Automatic Programs:
- Juices and Smoothies (JUGOS Y SMOOTHIES) - Perfect for blending any kind of beverage.
- Food Chop (PROCESADOR DE ALIMENTOS / SALSAS) – Allows to slice, shred or chop ingredients in blending jar (i.e. soups, purees, salsas, etc.).
- Reversible Motor Technology – The exclusive reversible motor technology spins blades in both directions to completely process all ingredients.
- Threaded Cup Bottom with Locking Lever – Advanced design for simple assembly to jar. Seals jar to blade for leak-proof operation.
- Blade (2X Larger Blade System than Traditional Oster ^ Blenders) – 3-in-1 multi-blade system precisely pulverizes, chops and mixes evenly.
- Manual Controls – Give you the flexibility to operate the blender to customize your recipes.
- Pulse Button – Press to pulse. Allows you to achieve precise results.
- Filler Cap / 2-Ounce Scoop – Scoop function that allows you to measure and add ingredients during use. Also allows you to open lid to allow steam to escape while blending hot foods.
- 1.5 Liter Boroclass ^ Glass Jar – Thermal shock resistant glass jar was created to withstand extreme temperature changes up to 90°C.

Before you use the product for the first time, separate the filler cap / 2-ounce scoop, jar lid, 1.5 L jar, sealing ring, blade and threaded cup bottom. Wash in warm, soapy water, or top rack in the dishwasher. Rinse and dry well.

BLADE & JAR ASSEMBLY

Locking Sealing Ring

Blade

Threaded Cup Bottom with Locking Lever

Fig. 1

Fig. 2

Incorrect

Correct!
Fig. 3

WARNING: Blade is sharp. Handle with care.

1. Place blade into threaded cup bottom (Fig. 1).
2. Place sealing ring over blade assembly. Carefully press and tuck sealing ring into last groove of threaded cup bottom (Fig. 2).
3. Ensure the locking sealing ring is fully and evenly tucked in place and holding the blade assembly to the threaded cup bottom. For correct assembly see (Fig. 3).

Locking Lever

Fig. 4

[ENGLISH-4 ENGLISH]

1. Install the integrated blade assembly onto the jar. Tum clockwise to tighten. Be sure the integrated blade assembly is tightened to the jar before using. NOTE: For proper installation onto blender motor base, make sure locking lever rotates past the anti-rotation tabs on the blender jar or Blend-N-Go cup. See (Fig. 4).

CAUTION: If locking lever is damaged or missing, do not operate blender, and contact Customer Service for a replacement.

1. Put the ingredients into the jar.

2. Secure the lid and filler cap

3. Place the jar onto the base.

4. Plug the power cord into a standard household outlet of the same voltage as the one indicated in the rating plate of your blender. You are now ready to start.

Using the Automatic Programs

1. Press the ON/OFF ( ) power button to turn the product on. The power light will blink, indicating the product is active and ready for use. The light will stay on when the motor is running.
2. Select and press the desired automatic pre-programmed setting button:
3. Juices and Smoothies (JUGOS Y SMOOTHIES) - Perfect for blending any kind of beverage
4. Food Chop (PROCESADOR DE ALIMENTOS / SALSAS) – Allows to slice, shred or chop ingredients in blending jar (i.e. soups, purees, salsas, etc.)
5. To change your selection, press ON/OFF ( twice followed by another Pre-Programmed Setting button Juices / Smoothies or Food Chop ("JUGOS Y SMOOTHIES" or "PROCESADOR DE ALIMENTOS / SALSAS").
6. Once the program is complete the product automatically stops. Please note: You may press the ON/OFF (按钮) button to cancel the program at any time. The blinking green light indicates that the blender is ready.
7. Press the ON/OFF (power button to turn the product off. This product is pre-programmed to turn off automatically if not used for a period of several minutes. All lights will turn off when the unit automatically powers down.

Using the Manual and Digital controls

Manual Controls include:

1 - Low Speed

2 - Medium Speed

3 - High Speed

Pulse (PULSO)

Use these controls for personal recipes or to continue blending after an automatic program is finished.

1. Press the ON/OFF (○) power button to turn the product on. The power light will blink, meaning the product is active and ready for use. The light will stay on when the motor is running.
2. Put the ingredients into the jar.
3. Secure the lid and the filler cap.

Low

1. Press the "1" button to run the product at a low speed.
2. Press the ON/OFF ( ) power button to turn the product off.

Medium

1. Press the "2" button to run the product at a medium speed.
2. Press the ON/OFF ( ) power button to turn the product off.

High

1. Press the "3" button to run the product at a high speed.
2. Press the ON/OFF ( 🔊 power button to turn the product off.

Pulse

1. Press and hold the "PULSO" button.
2. Release the pulse button to stop.
3. Press the ON/OFF ( ⏻ ) power button to turn the product off.
   NOTE: Use pulse button to crush ice or chop food.

Using the touch screen control

1. Plug in the blender. Once plugged in, press the ON/OFF ( Ⓧ power button for one second to turn the blender on.
2. Select setting and blend ingredients to desired consistency. Note: control panel lists function as well as desired outcome.
3. Press the ON/OFF ( ∅power button to stop and turn off blender.
4. Press and hold "PULSO" for ice crushing and chopping. Repeat as needed.

CARE AND MAINTENANCE

After Use:

1. Lift the jar straight up from the base, remove the lid and empty the jar.
2. If necessary, use a rubber spatula to scrape foods away from the sides of the jar.

Cleaning the 1.5 L jar and its accessories

WARNING: Blade is sharp. Handle with care.

Release the multi-functional blade from the bottom of the jar by turning the threaded cup bottom counterclockwise.

The filler cap / 2-ounce scoop, jar lid, 1.5 L jar, sealing ring, blade and threaded cup bottom, are dishwasher safe. Use the top rack of the dishwasher to wash these parts. The locking sealing ring can be placed into bottom basket of dishwasher.

You can also wash the parts in warm, soapy water. Rinse well and dry. Check the parts as you put them back together.

Cleaning the Blend-N-Go cup (models with Blend-N-Go accessory only)

Wash all components except blender base with soapy water with a soft sponge and a bottlebrush. Do not use abrasive cleansers or sponges for cleaning. Rinse well and dry. Parts are also dishwasher safe.

Cleaning the Blender

Wipe the base with a soft, damp cloth to clean. Never submerge the base in a liquid.

STORING

Reassemble the blender for storage. Leave the lid open a gap so no odors are retained.

WARNING: Never put the jar, or any other parts, in a microwave oven. Never store foods or drinks in the jar.

ENGLISH-6 ENCL

BLENDING TIPS

Liquids

Put liquids into the jar first, unless the recipe says otherwise.

Using the jar lid filler cap / 2-ounce scoop

Do not remove the lid while in use. Food may splatter if you do. Instead, open the jar lid filler cap / 2-ounce scoop to add smaller ingredients.

Working with Hot Foods or Liquids

WARNING: When you work with HOT FOODS, remove the jar lid filler cap / 2-ounce scoop to vent steam. Tilt the lid away from you partially covering the opening. Keep hands and other exposed skin away from the lid opening to prevent possible burns.

When you work with HOT LIQUIDS, remove the jar lid filler cap / 2-ounce scoop and start at a low speed, and then gradually increase to a faster speed. Do not add liquid over the 4-cup level. Always keep hands away from steam.

Line drawing of a hand pouring liquid into a beaker over a plate (no text or symbols)

Ingredients Quantities

Use only the amount of food suggested in the recipes. If you want greater amounts, prepare in batches. Using larger amounts may overload and strain the motor. You might also get different results from those described.

FREQUENTLY ASKED QUESTIONS

Why doesn't the blender turn on?

• Make sure the base is plugged in an active power receptacle.
• Verify blinking light is active after pushing on/off button ( Off
• If your blender has a touch screen, be sure to press the on/off button (○) for one second.

How can I prevent liquids from leaking out?

Check to see that the sealing ring is correctly assembled in between the jar blade and the 1.5 L jar.

ENGLISH-8 ENGL

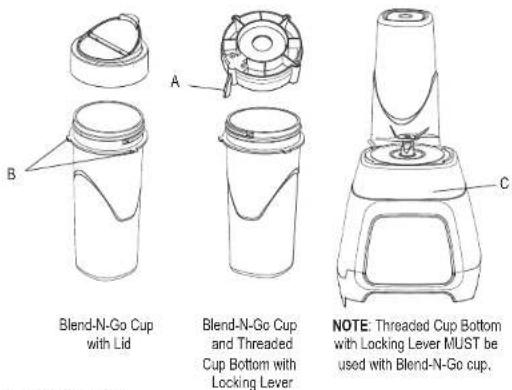

USING YOUR BLEND-N-GO

(MODELS WITH BLEND-N-GO ACCESSORY ONLY)

IMPORTANT: PLEASE MAKE SURE TO USE THE FOLLOWING PARTS FOR THE BLEND-N-GO CUP:

A. Locking Lever
B. Anti-Rotation Tabs
C. Blender Base

Ensure the locking sealing ring is fully and evenly tucked in place and holding the blade assembly to the threaded cup bottom. For correct assembly see (Fig. 3).

NOTE: For proper installation onto blender motor base, make sure locking lever rotates past the anti-rotation tabs on the Blend-N-Go cup.

WARNING: DO NOT PROCESS HOT FOODS OR LIQUIDS IN THE BLEND-N-GO CUP.

You're now ready to enjoy your blended drink!

Incorrect Correct!
Fig. 3

Oster®

The following information is for Mexico only.

LICUADORA OSTER®

MODELOS: BLSTPYG1309B-013, BLSTPYG1310RBG-013,

BLSTPYG1311NBG-013, BLSTPYG1312XBG-013

© 2022 Sunbeam Products, Inc. All rights reserved. One year limited warranty – please see insert for details.

www.oster.com

Impreso en México

Printed in Mexico

P.N. NWL0001394858

SAP# 2182045

BLSTPYG1309B_BLSTPYG1310RBG_BLSTPYG1311NBG_BLSTPYG1312NBG_22SEM1(LA)_GCDS-LD

OSTERLATINO

YouTube
