Product Type	Juice Extractor
Brand	Oster
Model	FPSTJE320S
Power	600 W
Voltage	127 V (model FPSTJE320S) / 220 V (model FPSTJE320R)
Frequency	60 Hz (127 V) / 50/60 Hz (220 V)
Speed Settings	2 speeds (1 and 2) plus Pulse (P)
Filter Material	Stainless Steel
Pulp Container Capacity	Large (exact capacity not specified)
Pitcher Capacity	40 oz (approx. 1.2 L)
Food Chute Size	Large enough for whole fruits/vegetables with cutting
Safety Features	Safety locking arm, unit won't operate if not properly assembled
Dishwasher Safe Parts	Yes (top shelf only): removable parts (lid, pulp container, filter basket, filter, pitcher, food pusher)
Cleaning Brush	Nylon brush recommended for filter mesh
Motor Base Cleaning	Wipe with damp cloth; do not immerse in water
Continuous Operation Limit	Do not operate continuously for more than 5 minutes
Cord Length	Short power supply cord (exact length not specified)
Warranty	1 year limited warranty
Included Accessories	Food pusher, 40 oz pitcher, pulp container, stainless steel filter, filter basket, lid
Not Suitable For	Bananas, avocados (no juice content)
Recipes Included	Yes (Fruit Potpourri, Pink Cloud, etc.)

Frequently Asked Questions - FPSTJE320S OSTER

How do I assemble the Oster FPSTJE320S juicer?

Place the filter basket on the motor base, then insert the stainless steel filter by pushing down and turning until it fits into the motor shaft grooves. Add the lid and secure it with the safety locking arm. Attach the pulp container and place the pitcher under the spout. Ensure all parts are properly locked before use.

What should I do if the juicer won't start?

Check that the safety locking arm is fully engaged and all parts are assembled correctly. Unplug the unit and verify there are no obstructions. If the problem persists, contact an authorized Oster service center.

How do I clean the stainless steel filter?

After disassembly, wash removable parts by hand with warm soapy water or on the top shelf of a dishwasher. For the filter, use a nylon brush to remove residue. If holes are blocked, soak the filter in hot water with 10% lemon juice for 10 minutes before cleaning.

Why is my juicer making a loud noise and vibrating?

This may indicate improper assembly or a clogged filter. Turn off and unplug the unit, then reassemble all parts correctly. Clean the filter thoroughly if pulp buildup is present. Avoid juicing overripe fruits that produce excess pulp.

Can I juice bananas or avocados with this juicer?

No, bananas and avocados do not contain enough juice and will clog the unit. Use a blender instead to incorporate them into juice.

How can I prevent too much pulp in my juice?

Push the food pusher slowly to allow proper extraction. If pulp is too wet or juice yield is low, clean the filter thoroughly with a nylon brush and soak in hot water with lemon juice if holes are blocked. Also try slower juicing action.

What should I do if juice leaks from the lid area?

Leakage usually occurs when the food pusher is pushed too quickly. Slow down the feeding rate. Also ensure the lid is properly locked and the filter basket is correctly seated.

Can I put a plastic bag inside the pulp container?

Yes, you can line the pulp container with a plastic bag to make cleanup easier. Just ensure the bag does not interfere with the operation.

How long can I operate the juicer continuously?

Do not operate the juicer continuously for more than 5 minutes. Allow it to cool down between uses to prevent motor damage.

What is the best way to store the juicer?

After cleaning and drying all parts, reassemble the juicer or store components separately in a dry place. Keep the motor base away from moisture. Ensure the cord is neatly wrapped.

USER MANUAL FPSTJE320S OSTER

Illustration of a Oster juice<|im_start|> Greenland tea maker with handle and side cup (no text or symbols)

MODELOS MODELS

FPSTJE320S & FPSTJE320R

PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

PRECAUCIONES IMPORTANTES

Line drawing of a Oster brand juice maker with a funnel and control panel (no text or symbols)

Line drawing of a Oster brand blender with a bucket and arrow indicating speed (no text or symbols)

USANDO SU ARTEFACTO

Line drawing of a brand Oester brand blender with control knob and side arm (no text or symbols)

Line drawing of a Oster blender with handle and top panel, showing internal structure and upward arrow (no text or symbols)

Illustration of a spoon cleaning a circular object with a mesh filter (no text or symbols)

When using electrical appliances, basic safety precautions should always be followed including the following:

1. READ ALL INSTRUCTIONS, PRODUCT LABELS AND WARNINGS BEFORE USING THE APPLIANCE.
2. To protect against risk of electrical shock, DO NOT put power cord or motor base in water or any other liquid.
3. Close supervision is necessary when any appliance is used by or near children.
4. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
5. Avoid contact with moving parts. DO NOT touch the small cutting blades located at the base of the stainless steel filter.
6. DO NOT operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized Oster® Service Center for examination, repair or electrical or mechanical adjustment.
7. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
8. DO NOT use outdoors.
9. DO NOT let cord hang over edge of table or counter.
10. DO NOT let cord touch hot surfaces, including the stove.
11. DO NOT operate this appliance continuously for more than 5 minutes.
12. Always make sure juicer lid/cover is clamped securely in place before motor is turned on. DO NOT unfasten locking arm while juicer is in operation.
13. Be sure to turn switch to off position "O" after each use of your juicer. Make sure the motor stops completely before disassembling.
14. DO NOT PUT YOUR FINGERS OR OTHER OBJECTS INTO THE JUICER OPENING WHILE IT IS IN OPERATION. IF FOOD BECOMES LODGED IN THE OPENING, USE FOOD PUSHER OR ANOTHER PIECE OF FRUIT OR VEGETABLE TO PUSH IT DOWN. WHEN THIS METHOD IS NOT POSSIBLE TURN THE MOTOR OFF AND DISASSEMBLE JUICER TO REMOVE THE REMAINING FOOD.
15. DO NOT use the appliance if the rotating sieve/filter is damaged.
16. DO NOT push produce into the food chute with your finger. Always use the food pusher provided.
17. DO NOT touch the small cutting blades in the base of the stainless steel filter basket.
18. Always make sure the juice extractor is properly and completely assembled before operating. The unit will not turn on unless properly assembled.

19. Always use the juice extractor on a dry, level surface.

20. Always turn the juice extractor off first before unplugging it from the outlet.

21. DO NOT place this appliance on or near a hot gas or electric burner or where it could touch a heated oven.
22. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
23. Close supervision is necessary when any appliance is used by or near children, or incapacitated individuals.
24. The instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system
25. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments, farm houses, by clients in hotels, motels and other residential type environments, bed and breakfast type environments.

THIS UNIT IS FOR HOUSEHOLD USE ONLY.

SAVE THESE INSTRUCTIONS

SPECIAL CORD SET INSTRUCTIONS

1. A short power supply cord is provided to reduce the hazards resulting from becoming entangled in or tripping over a longer cord.
2. An extension cord may be used if care is exercised in its use.
3. If an extension cord is used, the marked electrical rating of the extension cord must be the same as the product. The extended cord must be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over accidentally.

ENGLISH-2

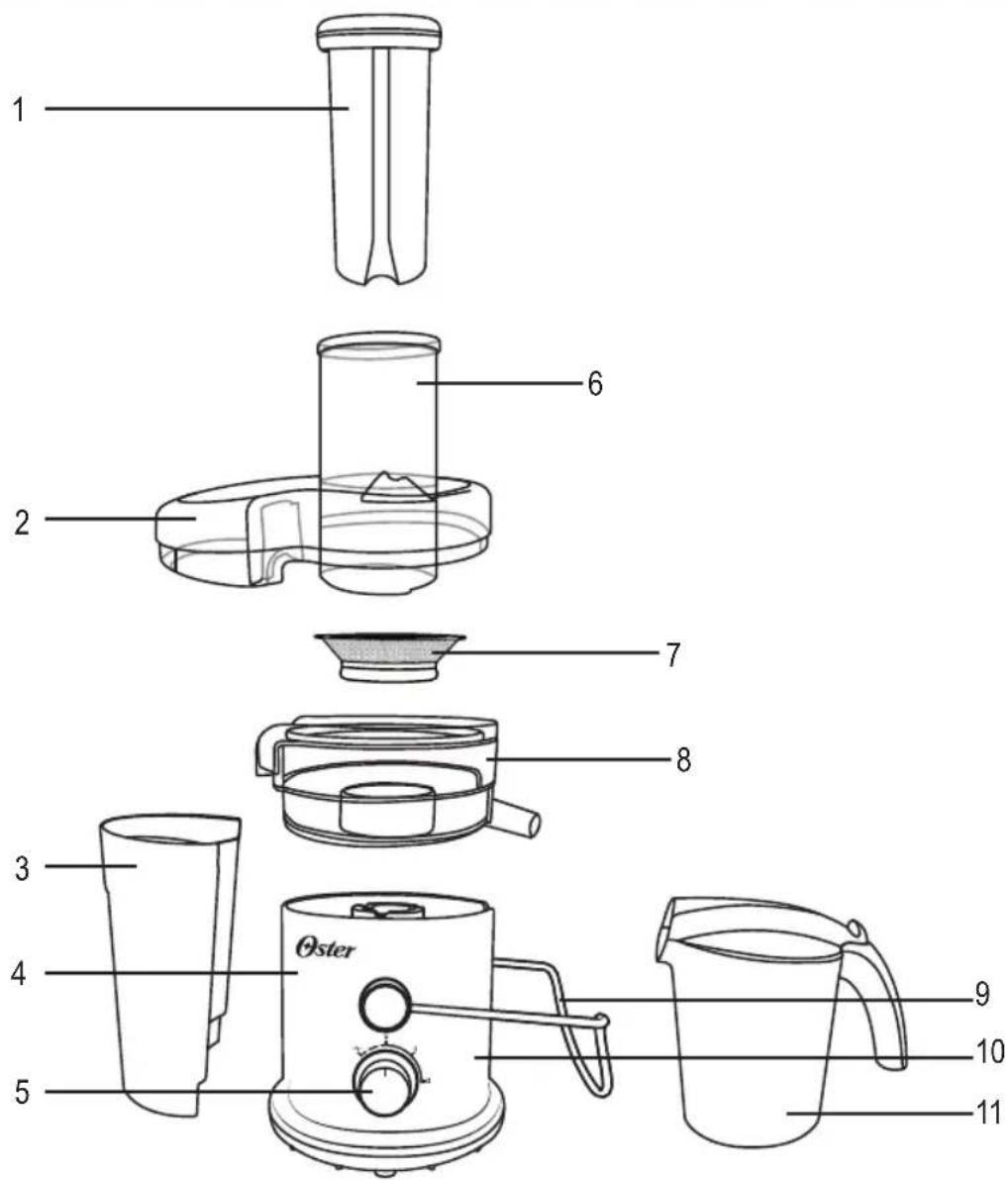

DESCRIPTION OF THE APPLIANCE

1. Food Pusher
2. Juice Extractor Lid/Cover
3. Large Pulp Collector Container
4. Motor Base Housing
5. ON/OFF Switch (Pulse, 0, 1, 2)

6. Food Chute

7. Stainless Steel Filter

8. Filter Basket
9. Stainless steel lock arm
10. Powerful Motor
11. 40 oz pitcher

BEFORE USING YOUR APPLIANCE

Follow the assembly instructions listed below before using your Oster® Juice Extractor:

1. Before you start assembling your juice extractor, make sure it is unplugged and it is placed on a dry and level surface.

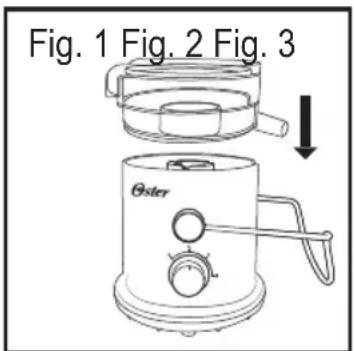

2. Place filter basket on top of the motor base (Figure 1).

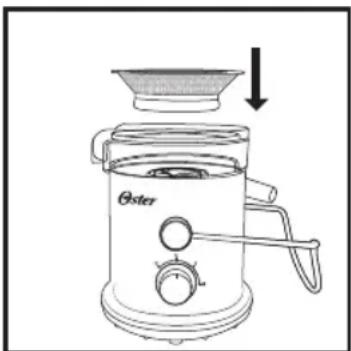

3. Place the stainless steel filter on top of the filter basket pushing down and turning it until it fits into the grooves of the motor shaft (Figure 2).

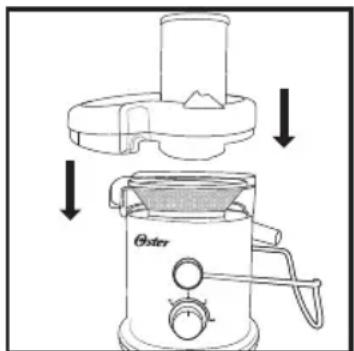

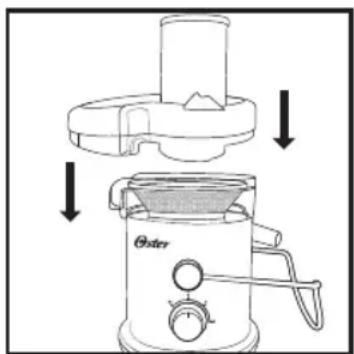

4. Place juicer cover/lid on top of the filter basket (Figure 3).

Line drawing of a Oster brand juice maker with a funnel and control panel (no text or symbols)

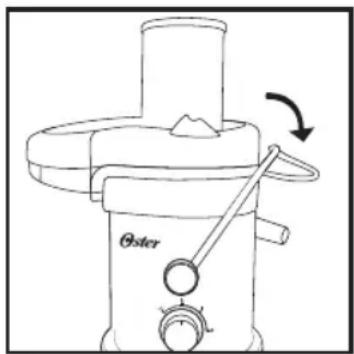

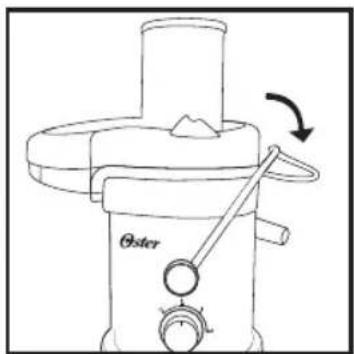

1. Raise the safety locking arm, then lower it to securely fit into the grooves in the lid to ensure the lid is locked into the unit (Figure 4).

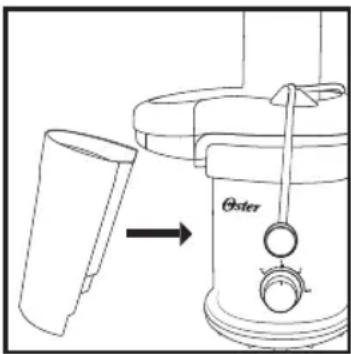

2. Place the pulp container into position by tilting it slightly (Figure 5). IMPORTANT: Make sure pulp container edge is underneath basket.

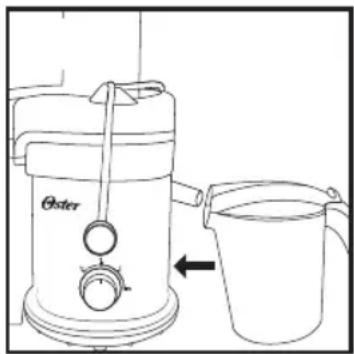

3. Place the pitcher under the spout located on the right hand side of the juicer by tilting it slightly. Other jars or glasses can be used as well (Figure 6).

Line drawing of a Oster brand blender with a bucket and arrow indicating direction (no text or symbols)

USING YOUR APPLIANCE

1. Prepare your fruits and vegetables by washing them thoroughly and peeling off those that need the skin removed.
2. Prepare the fruits and vegetables by cutting them into smaller pieces to ensure they will fit in the chute.
3. Make sure your juice extractor is properly assembled. Please follow the instructions from the section "Before Using Your Appliance."
4. Ensure the juice extractor and its accessories are clean by following the cleaning and maintenance section of this manual.
5. Place the pitcher or any other container/glass you may wish to use to collect the juice under the spout and make sure the pulp container is in place prior to juicing. Do not allow the pulp container to overfill as this may cause the unit to stall.

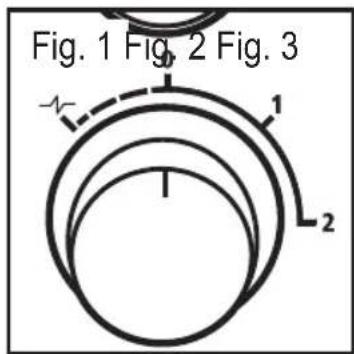

6. Plug the power cord into an electrical outlet and turn the unit on "1" or "2".
7. Once the juicer is on, place the fruits and vegetables on the food chute and use the food pusher slowly to drive them down. In order to extract the maximum amount of juice, it is important to push the food pusher slowly.
8. The juice extractor will separate the juice and the pulp in the pitcher and pulp container while you are juicing.
   NOTE: Both the pulp container as well as the pitcher can be emptied during juicing by turning the juice extractor off "O". Make sure to place both containers back in place before you resume juicing.

NEVER USE HAND OR FINGERS TO PUSH FOOD DOWN THE FOOD CHUTE OR TO CLEAR THE FOOD CHUTE. ALWAYS USE THE FOOD PUSHER PROVIDED.

AFTER USING YOUR APPLIANCE

Before cleaning and storing your juice extractor, follow the instructions below to disassemble the unit:

1. Turn juice extractor off "O" and unplug it from the electrical outlet (Figure 1).

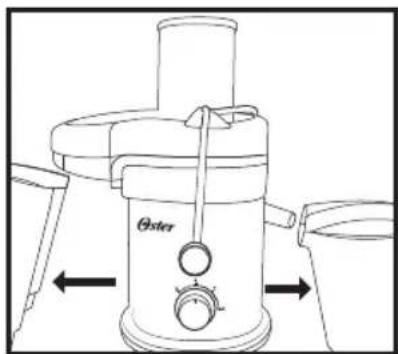

2. Remove the pitcher and the pulp container by tilting it slightly (Figure 2).

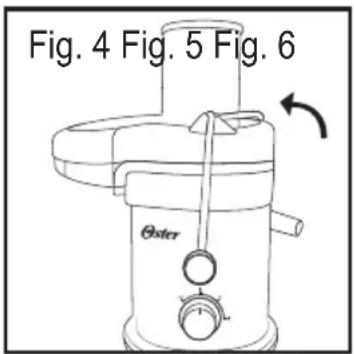

3. Unlock the safety locking arm to release the cover/lid (Figure 3).

Line drawing of a Oester brand juice maker with control panel and side arm (no text or symbols)

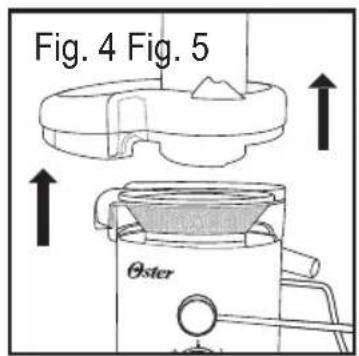

1. Lift the lid up and remove it from the juice extractor (Figure 4).

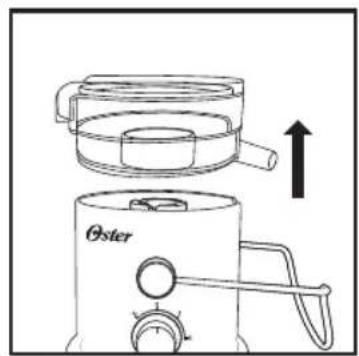

2. In order to remove the filter basket and the filter, hold the filter basket with two hands and then lift it straight up (Figure 5).

Line drawing of a Oster blender with handle and top panel, showing front view and upward arrow (no text or symbols on device)

WARNING: THE STAINLESS STEEL FILTER BASKET CONTAINS SMALL SHARP BLADES TO CUT AND PROCESS FRUITS AND VEGETABLES. DO NOT TOUCH BLADES WHEN HANDLING THE FILTER BASKET.

CARE AND CLEANING

1. After disassembling all removable parts of the juice extractor, wash them by hand with warm soapy water or in the dishwasher (top shelf only). If the pulp dries out in the pulp container, the filter or the filter basket, let it soak in water for approximately 10 minutes before washing it.
2. Wipe the motor base with a damp cloth.

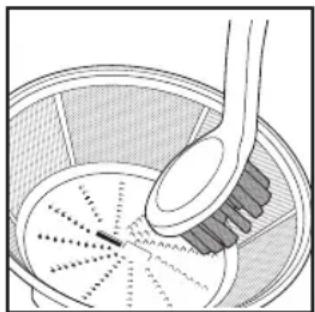

3. It is very important to keep the filter very clean, free of residues blocking the holes in order to ensure optimal performance. Use a nylon brush to clean it thoroughly, if necessary. If the holes in the mesh remain blocked, soak the filter in hot water with a water solution with 10% lemon juice.

NOTE: DO NOT IMMERSE THE MOTOR BASE IN WATER OR ANY OTHER LIQUID.

Illustration of a spoon cleaning a circular object with a mesh filter (no text or symbols)

MAINTENANCE

Some plastic parts might stain when in contact with some fruits and vegetables for too long. In order to avoid this from happening, all parts should be washed immediately after each use.

ENGLISH-7

TROUBLESHOOTING

Your Oster® appliance has been carefully designed to give you many years of trouble free service. In the unlikely event that your new appliance does not operate satisfactorily, please review the following potential problems and try the steps recommended BEFORE you call or take it to an Authorized Oster® Service Center.

PROBLEM SOLUTION
Juice Extractor will not work after switching on “1” or “2”.	Safety locking arm may not be locked properly in its position.Turn off and unplug unit and ensure all parts are assembled properly.Turn off and unplug unit and check if there are any residues blocking the unit.
Motor makes loud noise and unit starts vibrating.	Turn off and unplug unit and ensure all parts are assembled properly.Juicing overripe fruits may produce too much pulp and clog the filter. Turn off and unplug unit and clean the filter thoroughly.
Motor appears to stall when juicing.	If pulp starts building up under the lid, slow down the juicing process. Turn off and unplug unit and clean the filter basket, the stainless steel filter and the lid.
Too much pulp build up on. • Follow the instructions to disassemble the unit included in the “After Using Your Juice Extractor” section. Clean up pulp from the filter.
Pulp too wet and reduced juice extraction.	Try a slower juicing action. Remove stainless steel mesh filter and thoroughly clean mesh with a nylon brush. Rinse the filter basket with hot water. If the fine mesh holes are blocked, soak the basket in a solution of hot water with 10% lemon juice to unblock the holes or wash in the dishwasher. This will remove excess fiber build up (from fruit or vegetables), which could be reducing the flow of juice.
Juice leaks between the rim of the juicer and filter basket.	Try a slower juicing action by pushing the Food Pusher down slower.

TIPS AND SUGGESTIONS

• Do not place any fruits or vegetables until you turn the unit on. Allow unit to run for at least 10 seconds before you start juicing.
• Do not allow the pulp container to overfill as this may prevent correct operation or damage the unit.
• Ensure to remove large pits from fruits such as peach, mango, etc as they can damage the unit.
• You can use a plastic bag inside the pulp container to avoid having to clean it.
• Do not use bananas or avocados as they do not contain juice and will clog the unit. You can use a blender to add them to the juice.
• You can use the pulp of the juices you prepare in a variety of ways. The pulp from fruits and vegetables contains high amounts of fiber and cellulose, which are essential for a healthy and well balanced diet. You can use the pulp to thicken soups, bulk up rissoles and thicken casseroles or to enhance your desserts. Make sure to use the pulp the same day you juice to avoid loss vitamins.

RECIPES

FRUIT POTPOURRI

Ingredients:

4 medium apricots
2 cups cubed melon
1 large apple
1 orange

Preparation:

Process the fruits in the Oster® Juice Extractor, mix well and add a few ice cubes. Serve immediately.

PINK CLOUD

Ingredients:

1 cup strawberries
1 cored orange
1 cup cubed pear
1 small carrot

Preparation:

Process the fruits in the Oster® Juice Extractor, mix thoroughly. Serve immediately. Add a few ice cubes.

MIRACLE EXTRACT

Ingredients:

1 cup pineapple cubes
1 apple cubes
2 small carrots
1 cored orange
2 celery stalks
1 lime with peal

Preparation:

Process the fruits with the Oster ^® Juice Extractor, mix well. Add a few ice cubes. Serve immediately.

ENERGY COCKTAIL

Ingredients:

2 cups carrot
12 cup cucumber
12 spinach leaves
1 lime with peel
1 cup celery
1 apple
2 tablespoons honey
1 tomato

Preparation:

Process ingredients in the Oster® Juice Extractor, except the honey. Mix honey and juice well. Serve immediately, adding a few ice cubes as desired.

TOMATO COCKTAIL

Ingredients:

8 tomatoes
4 celery stalks
1 lime, peeled
1 carrot
12 teaspoon salt
1 tablespoon Worcestershire sauce

Procedure:

Wash vegetables thoroughly. Process the tomatoes, celery, lime and cucumbers. Mix the juices, add condiments, and stir well. Serve over ice in tall glasses. Garnish with a celery leaf. Yields 4 servings.

TEMPTATION

Ingredients:

6 apricots
2 cups melon
12 cup orange juice

Preparation:

Process the fruits with the Oster® Juice Extractor. Mix well the resulting extract. Add 6 ice-cubes. Serve immediately in medium glasses garnished with strawberries or a maraschino cherry and an orange slice.

SURPRISE PINEAPPLE CAKE

Ingredients:

^3/_4 cup pineapple extract

10 tablespoons butter

1 tablespoon powdered sugar

2 egg yolks

1 cup sweet condensed milk

54 lady-finger biscuits

Caramel:

14 cup water

1 cup sugar

Decoration:

1 can sliced pineapple

6-10 maraschino- cherries

Preparation:

Use the Oster® Juice Extractor to obtain the pineapple extract. With an Oster® mixer, beat the butter until creamy. Slowly add the sugar, yolks and sweetened condensed milk. Continue beating until fluffy, and then add the pineapple extract. Grease a spring mold lightly with butter, and build the cake by covering bottom and slides of the pan with the lady-finger biscuits slightly moistened with the canned pineapple's syrup.

Then add a layer of cream. Followed by a layer of biscuits, and so on until finishing with a layer of cream. Cool cake in refrigerator for three hours and unmold. Make caramel by boiling sugar and water. Decorate the cake with pineapple slices, maraschino cherries and caramel threads. Using a spring mold will yield the best results.

Oster®

Características eléctricas de los modelos de la serie: FPSTJE320S-XXX,Electric characteristics of series models: FPSTJE320R-XXX
Voltaje/Voltage Frecuencia/Frequency Potencia/Power
127 V 60 Hz 600 W
220 V 50/60 Hz 600 W
220 V 50 Hz 600 W
