Product Type	Embedded Computer / NAS
Brand	ASUS
Model	EBS-S100
Motherboard Form Factor	3.5" (146 mm x 105 mm)
Memory Type	DDR5 SO-DIMM
Memory Slots	1
Storage Interface	SATA 6Gb/s, M.2 (SATA), mSATA
Internal Storage Support	1 x 2.5" 7mm SATA SSD/HDD, 1 x M.2 2242/2280 SATA SSD, 1 x mSATA (optional)
Expansion Slots	1 x Mini PCIe (full-length), 1 x M.2 E-key (Wi-Fi), 1 x Nano SIM
Video Output	1 x HDMI, 1 x DisplayPort
USB Ports	2 x USB 3.2 Gen 2 (front), 4 x USB 2.0 (rear)
Serial Ports	1 x RS-232/422/485 (front), 3 x RS-232 (rear, one with CAN)
Ethernet	1 x Gigabit LAN (RJ-45)
Audio	Line-out, Mic-in (rear)
Antenna Holes	6 (for Wi-Fi/LTE antennas)
Power Input	9-36 Vdc (terminal block)
Power Adapter	90W (12V / 7.5A)
Watchdog Timer	Yes (HW and POST)
Operating Temperature	0°C to 40°C (with 0.1 m/s airflow)
Compliance	FCC Class A, CE, RoHS
Package Contents	EBS-S100, power adapter, power cord, I/O dust covers, terminal block adapter, wall mount kit, SATA & power cable, optional DIN rail clips, VESA mount

Frequently Asked Questions - EBS-S100 ASUS

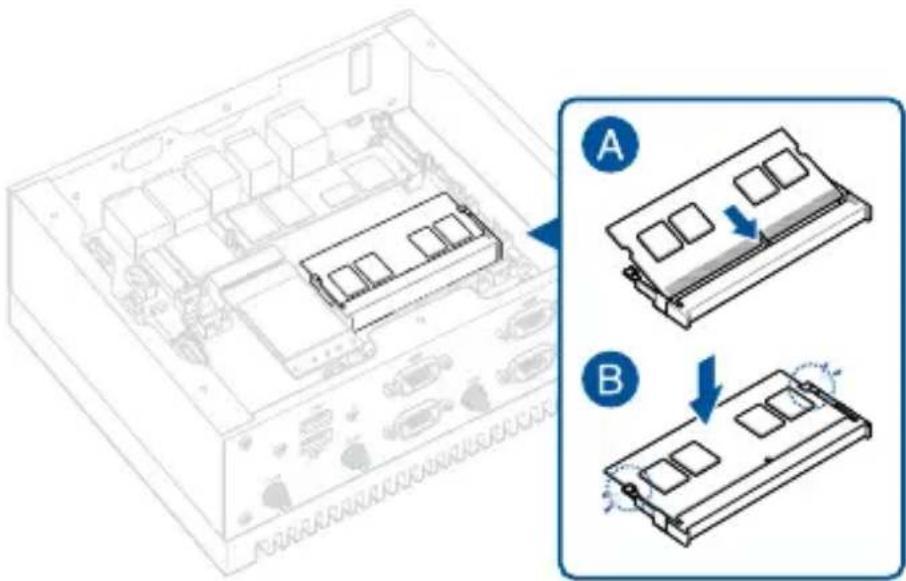

How to install a DDR5 memory module?

Align and insert the memory module into the SO-DIMM slot (A) and press it down (B) until it is securely seated in place. Refer to section 3.3.

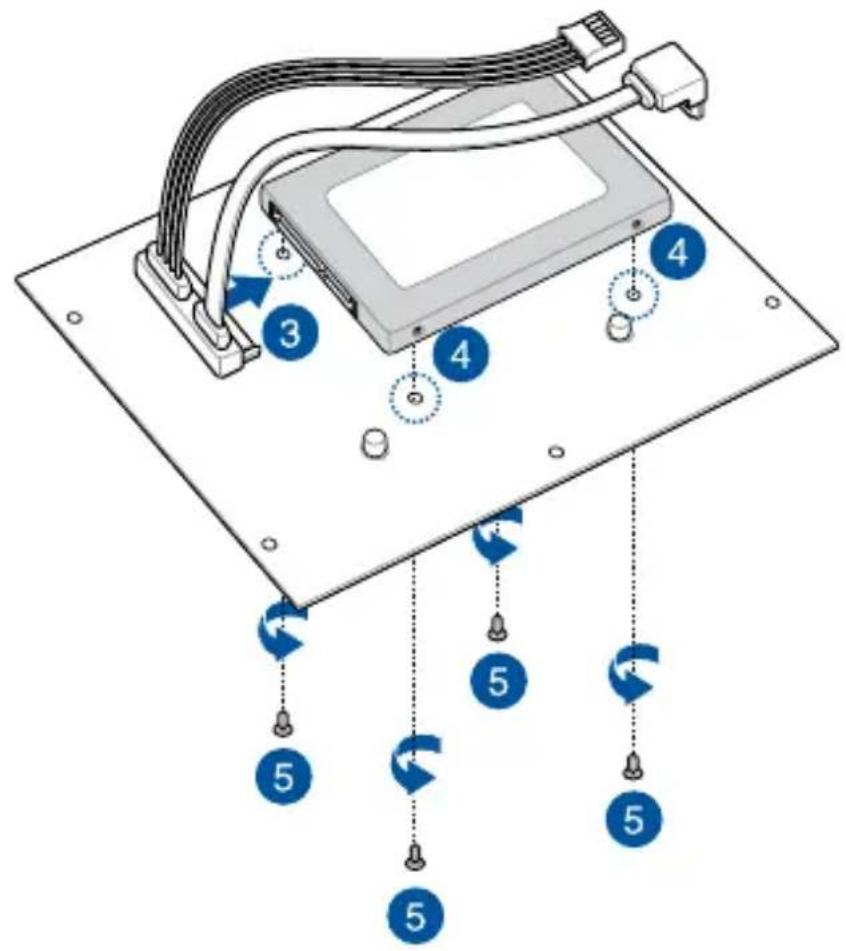

How to install a 2.5" storage device?

Remove the bottom cover. Connect the storage device cable to the SATA6G and SATA_PWR connectors on the motherboard. Place the 2.5" drive within the laser-etched marks on the bottom cover and secure with four screws (only 7mm height supported). Replace the bottom cover.

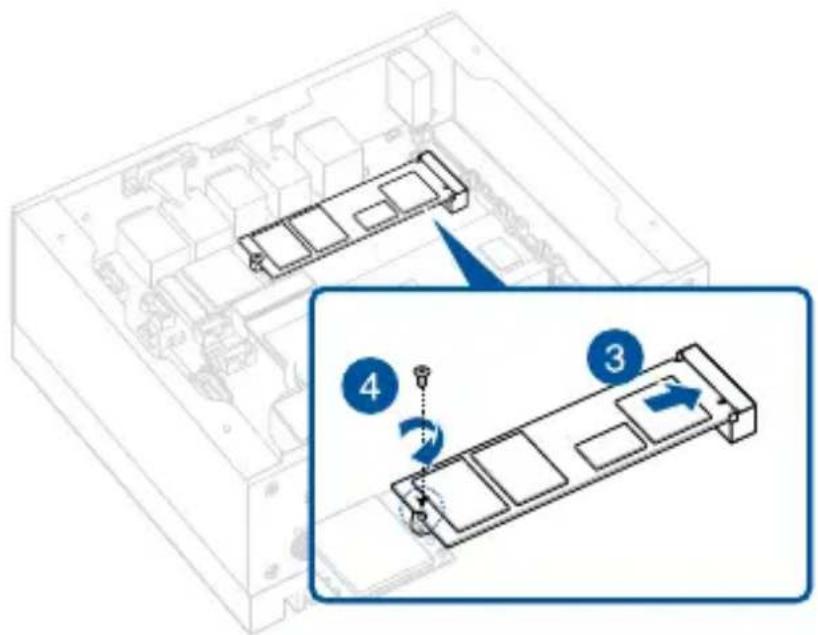

How to install an M.2 SSD?

For 2242 SSD: Align and insert into the M.2 (M-key) slot, push down and fasten with screw. For 2280 SSD: If a wireless card is installed, remove its screw and replace with a standoff, then insert and secure.

How to clear the CMOS (RTC RAM)?

Turn off the computer, unplug power. Short-circuit pins 1-2 of the CLRTC jumper for 5-10 seconds. Reconnect power, boot, and press or to enter BIOS and reload defaults.

How to enable the watchdog timer?

The HW watchdog timer is enabled by default via jumper. To program the POST watchdog, enter BIOS and enable the relevant option. For OS watchdog, you need to write software using the NCT6116D programming guidelines (section 4.3).

How to install antennas?

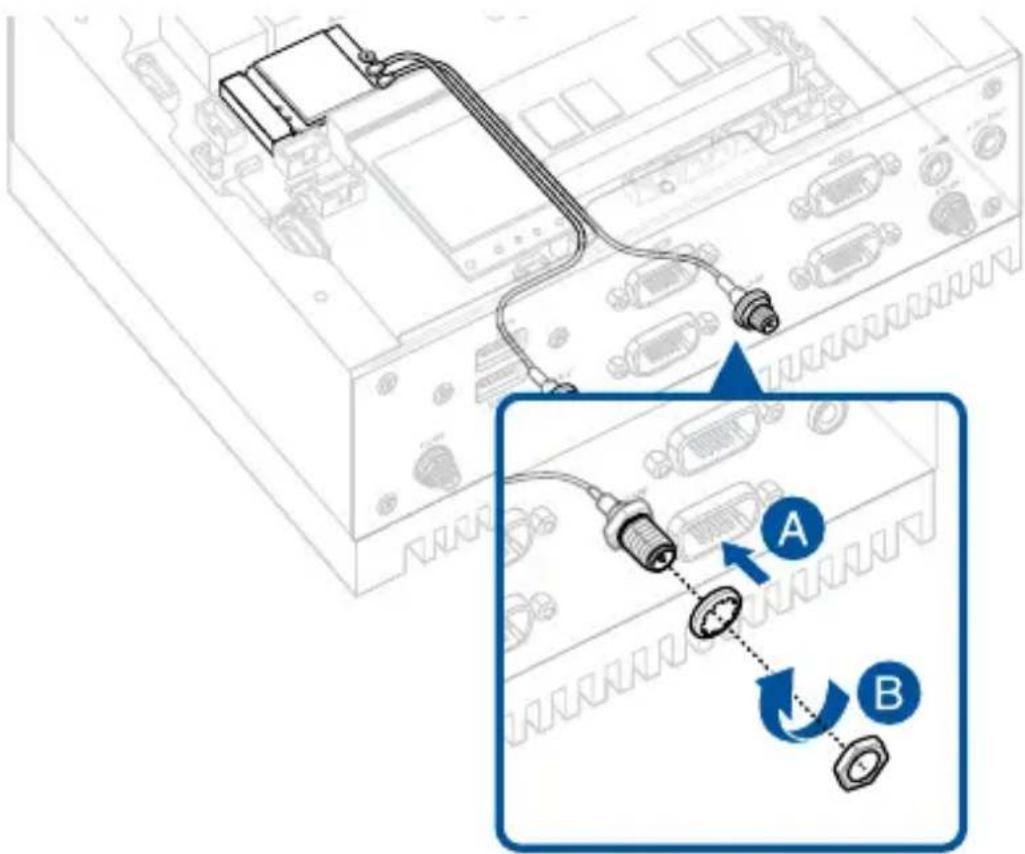

Remove bottom cover, insert the RF connector cable through the antenna hole from inside, secure with O-ring and hex nut, connect to wireless card, replace cover, then screw the external antennas onto the jacks.

How to connect the power adapter?

Connect the power cord to the AC adapter, then connect the DC connector to the power input (terminal block) on the device. Plug the adapter into a 100-240V power source. Use only the provided adapter.

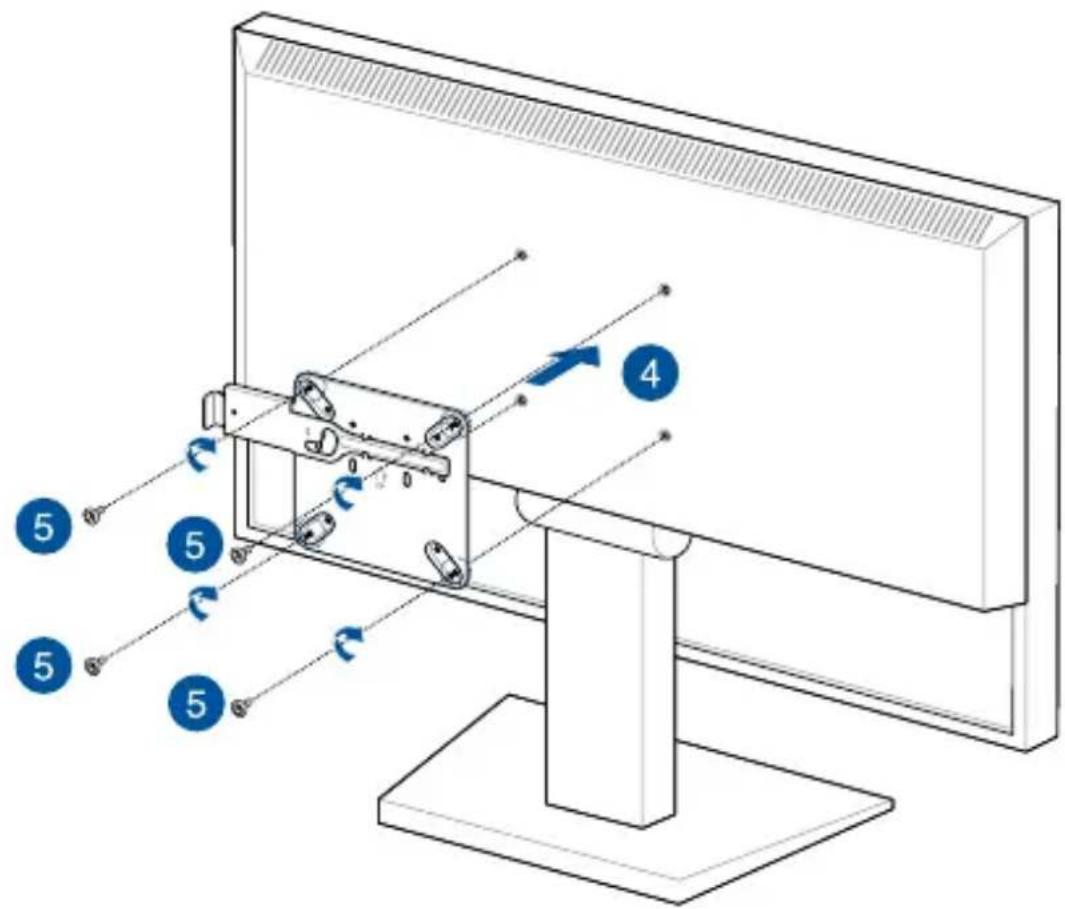

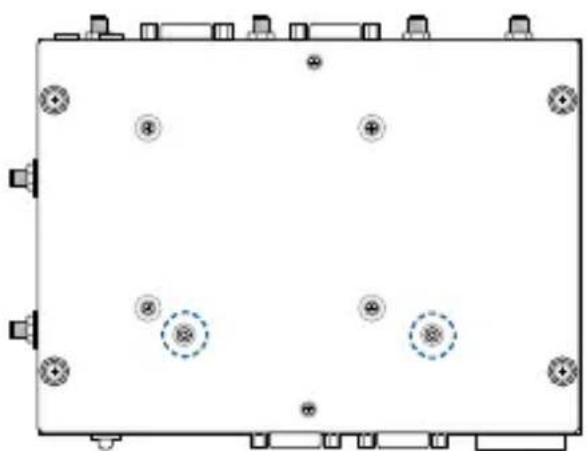

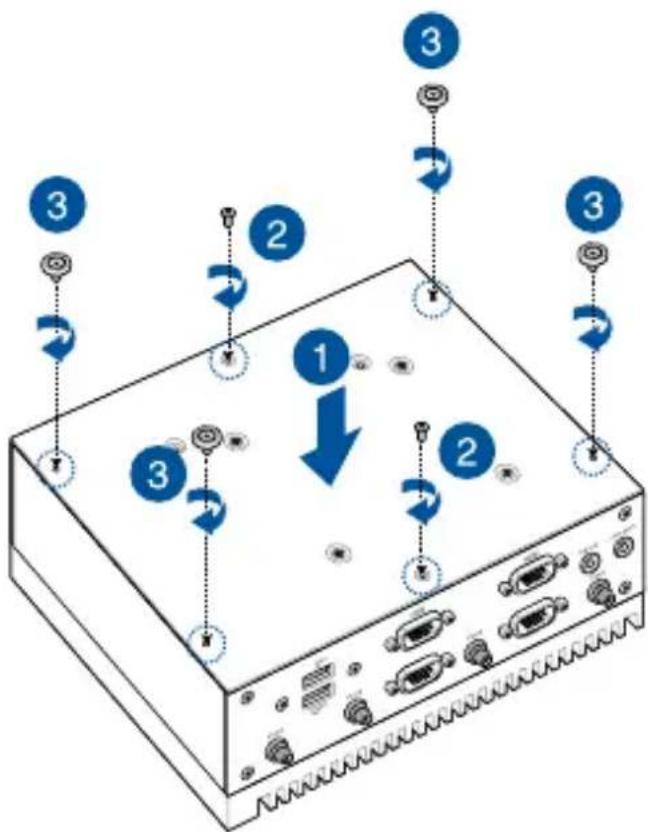

How to install the VESA mount?

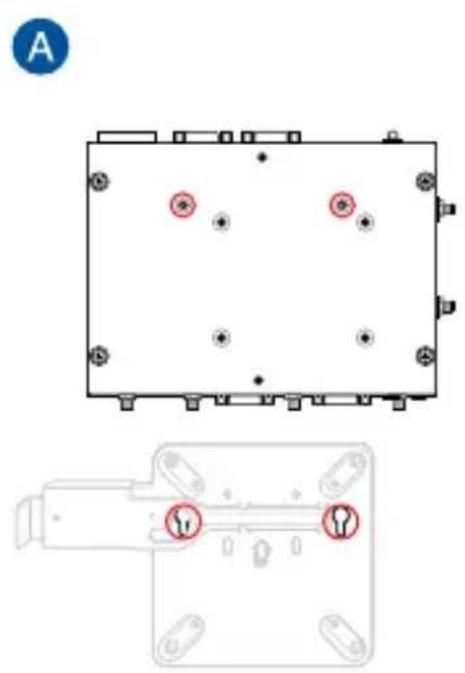

Attach two 12mm screws to the bottom of the device. Secure the VESA mounting plate to the compatible device using bundled screws. Then hook the device onto the plate and secure with the metal lock.

How to install DIN rail clips?

First install the wall mount brackets. Then align the DIN rail clips with the brackets and secure with screws. Finally, clip the assembly onto a DIN rail by hooking the top and pressing down until it snaps.

What key to enter BIOS setup?

Press or during POST (Power-On Self Test) to enter the BIOS setup. You can also press or repeatedly after powering on.

USER MANUAL EBS-S100 ASUS

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Copyright © 2023 ASUSTeK COMPUTER INC. All Rights Reserved.

LIMITATION OF LIABILITY

Circumstances may arise where because of a default on ASUS' part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.

ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.

This limit also applies to ASUS' suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.

UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.

SERVICE AND SUPPORT

Visit our multi-language web site at https://www.asus.com/support/

Contents

About this manual....5

Conventions used in this manual....6

Package contents ....7

Chapter 1: Getting to know your Embedded Computer

1.1 Features ....10

1.1.1 Front view....10
1.1.2 Rear view....13
1.1.3 Right view....15

1.2 Motherboard Overview 16

1.2.1 Motherboard layout....16
1.2.2 System memory....18
1.2.3 Onboard jumpers....19
1.2.4 Internal connectors....22

Chapter 2: Using your Embedded Computer

2.1 Getting started....32

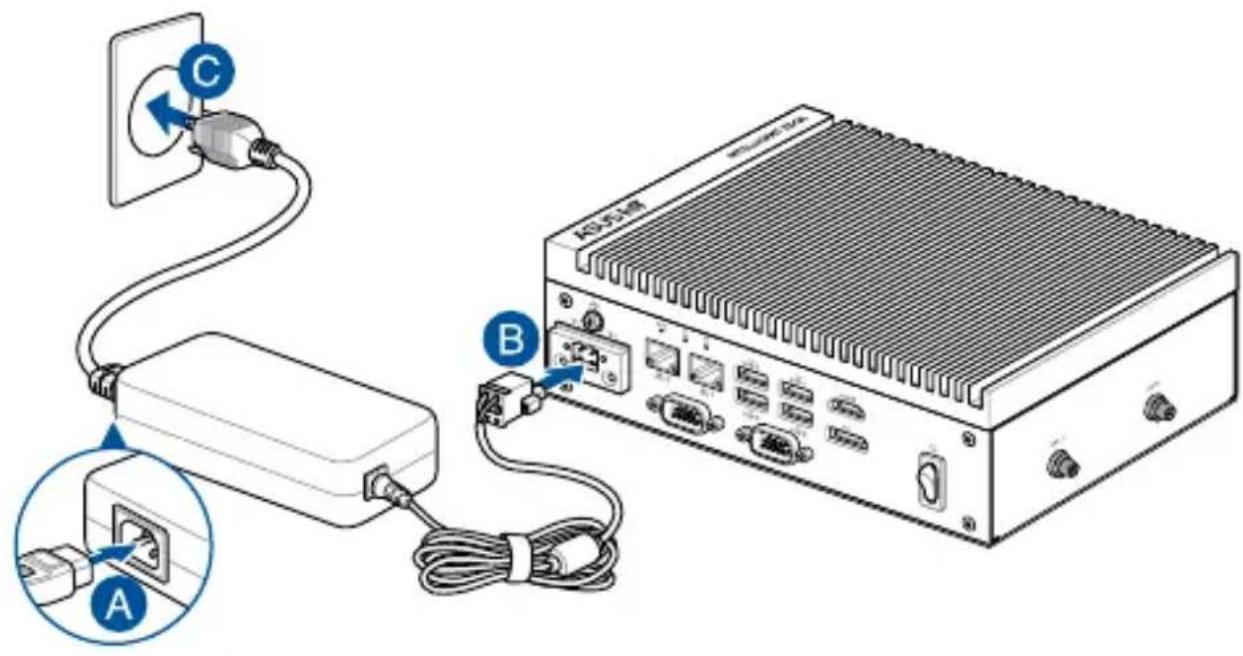

2.1.1 Connect the AC power adapter to your Embedded Computer ....32

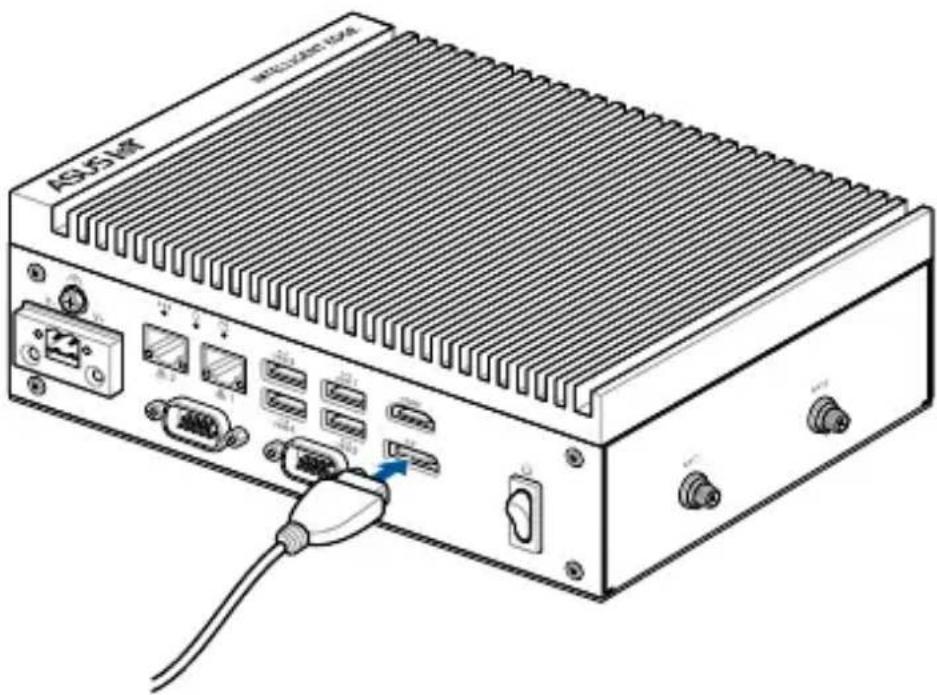

2.1.2 Connect a display panel to your Embedded Computer ....35

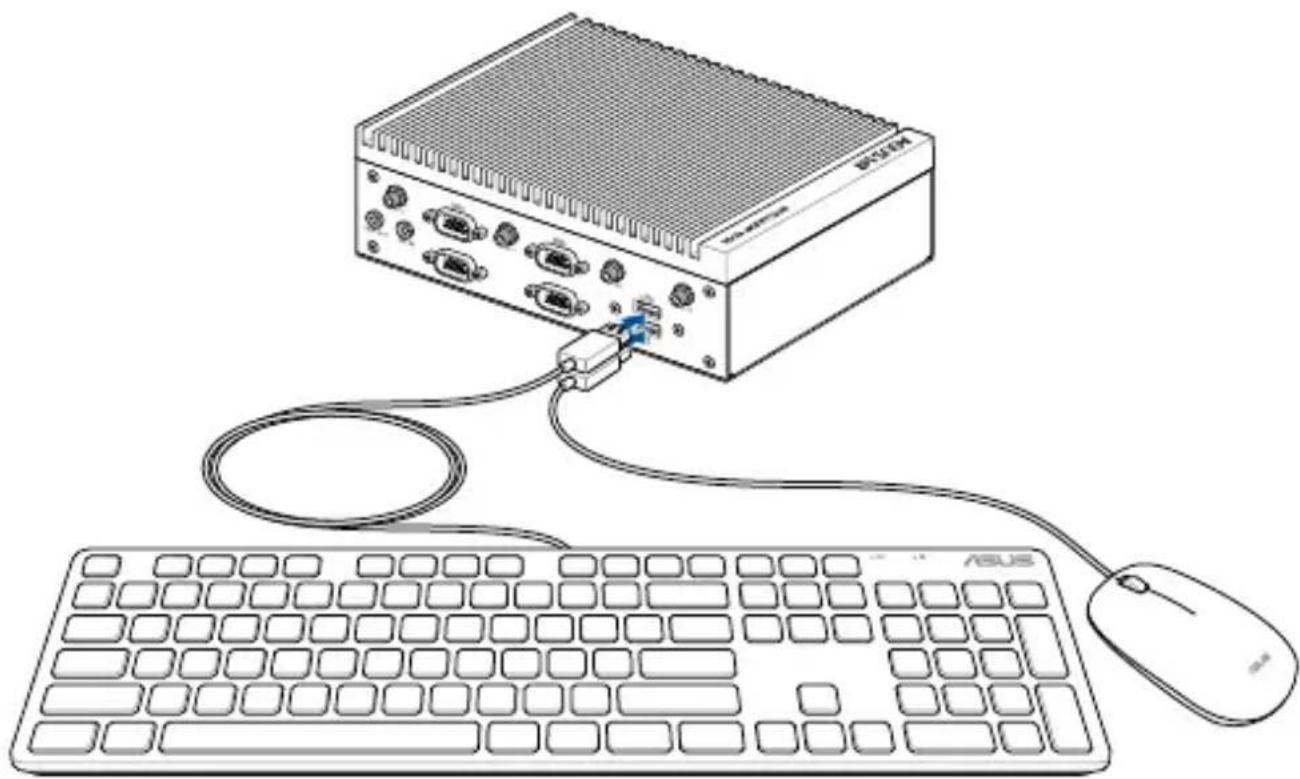

2.1.3 Connect the USB cable from keyboard or mouse....37

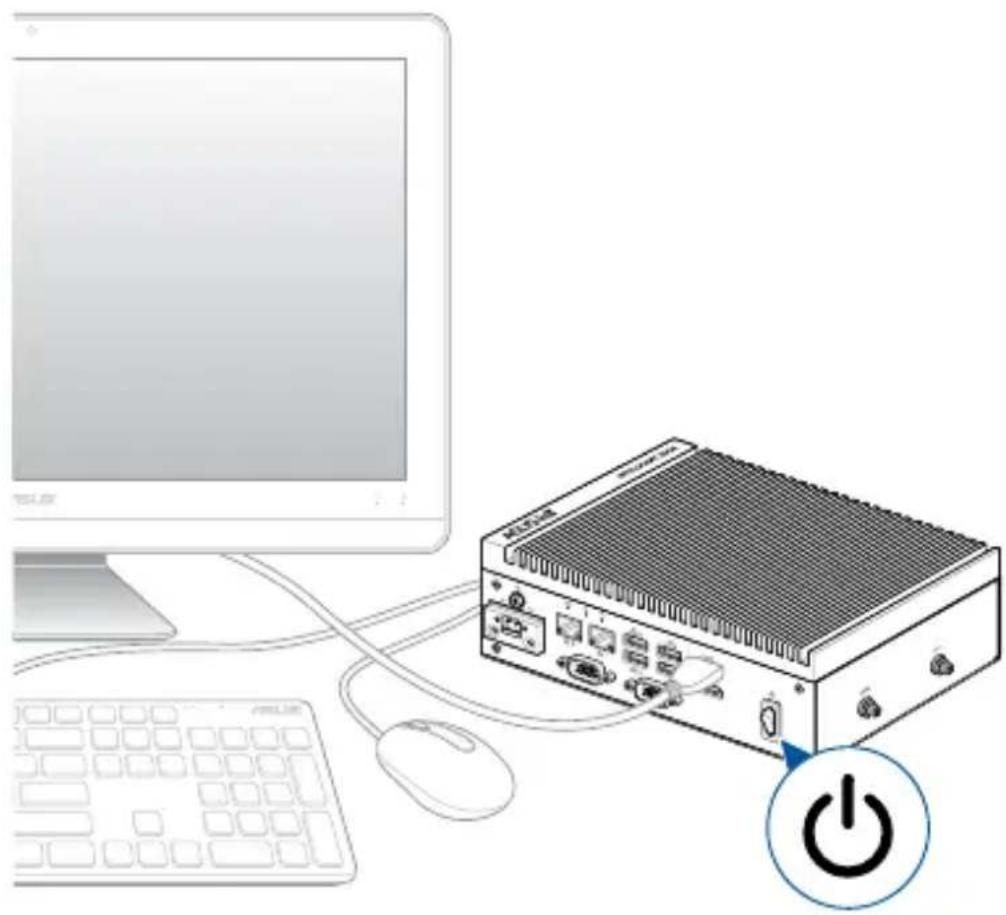

2.1.4 Turn on your Embedded Computer 38

2.2 Turning off your Embedded Computer....39

2.3 Putting your Embedded Computer to sleep....39
2.4 Entering the BIOS Setup 39

Chapter 3: Upgrading your Embedded Computer

3.1 Removing the bottom cover....42
3.2 Replacing the bottom cover ....43
3.3 Installing memory modules....44
3.4 Installing 2.5" storage device ....45
3.5 Installing an M.2 SSD....48

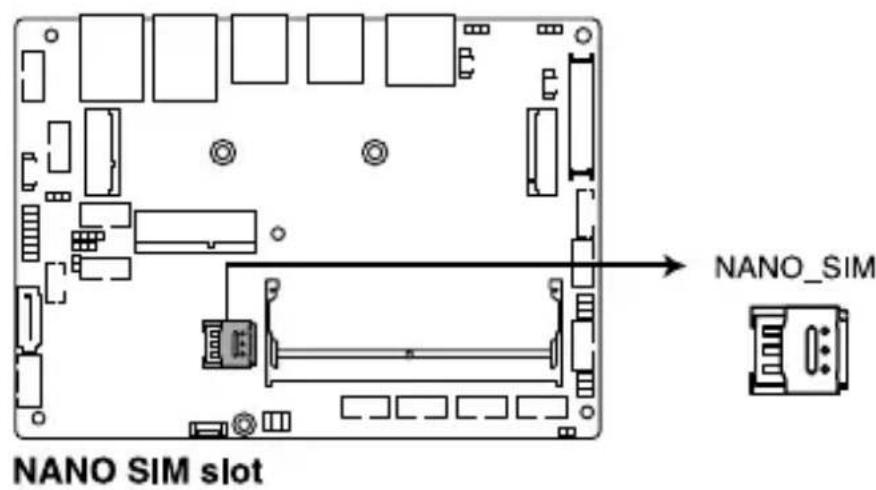

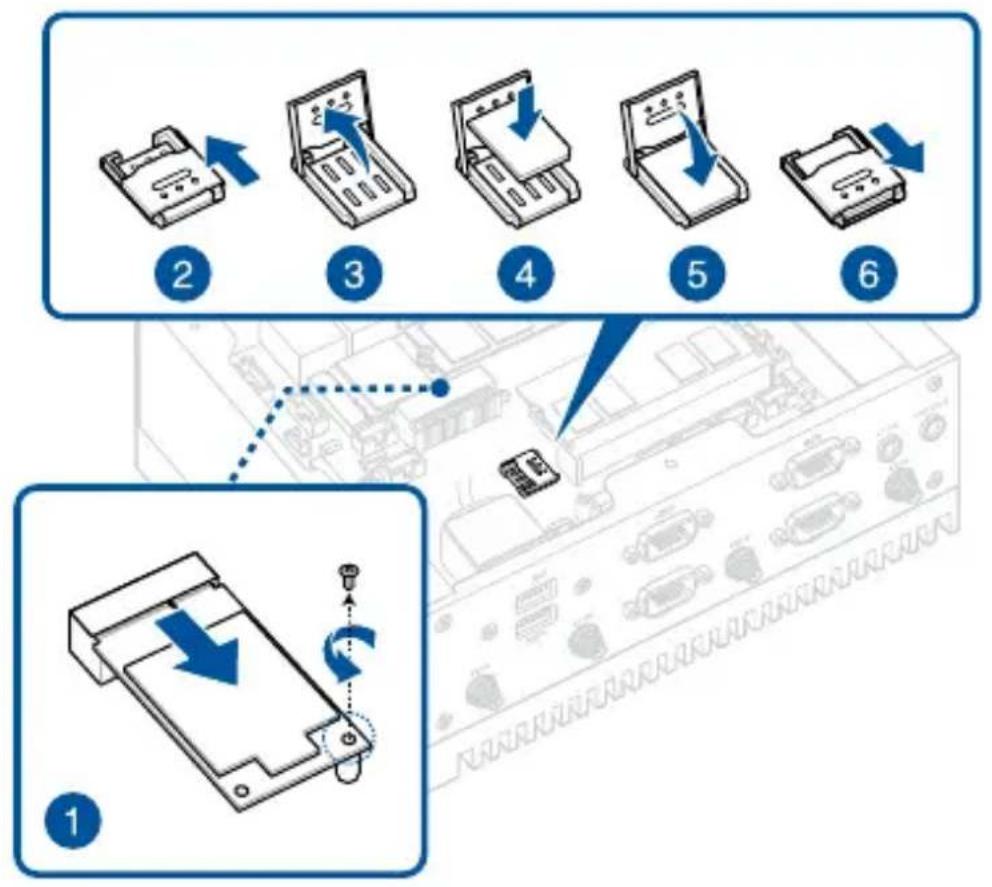

3.6 Installing a nano SIM card....50

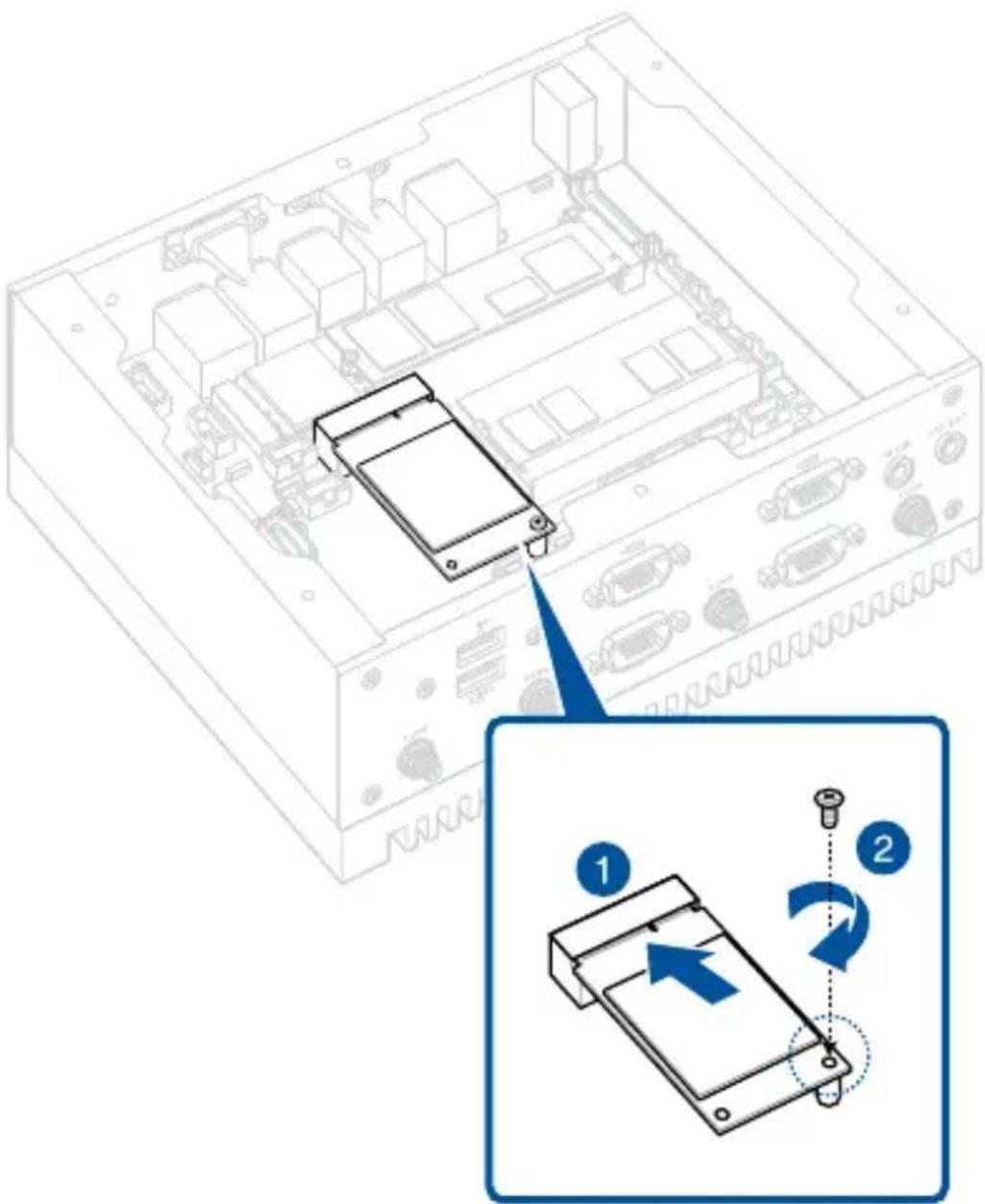

3.7 Installing a wireless card to the M.2 (E-key) slot 52

3.8 Installing an mPCIe / mSATA module....54

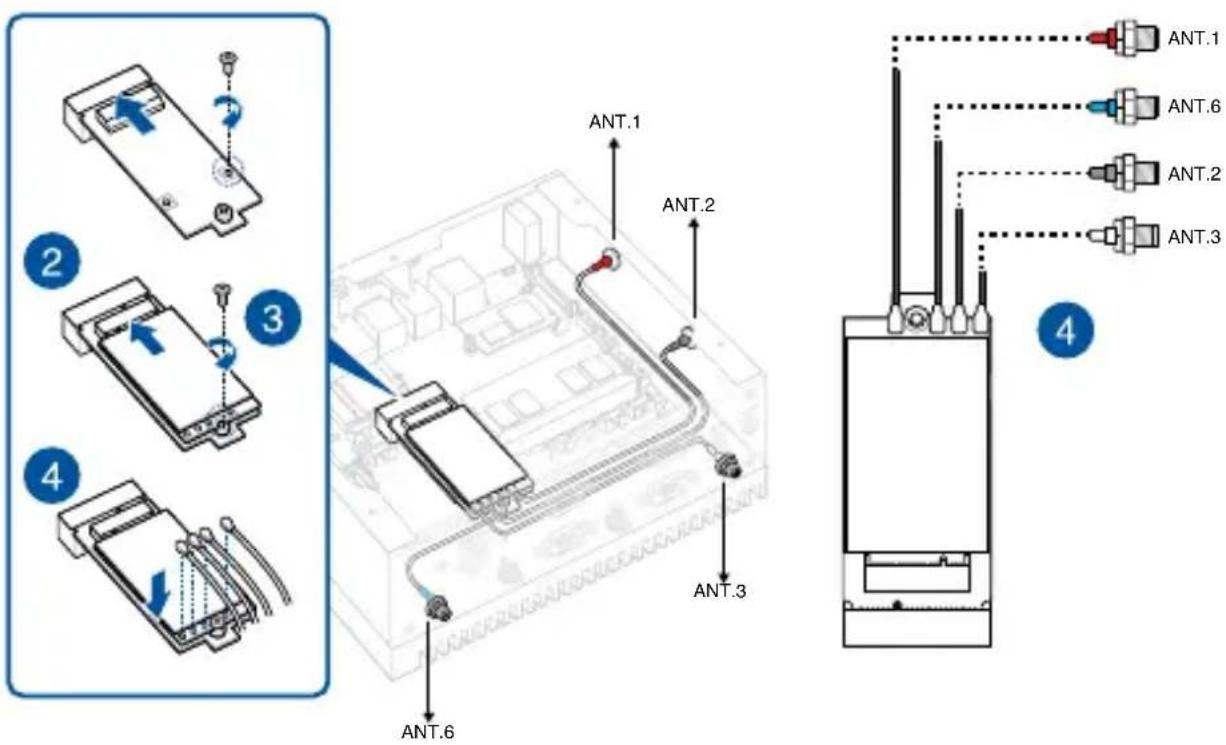

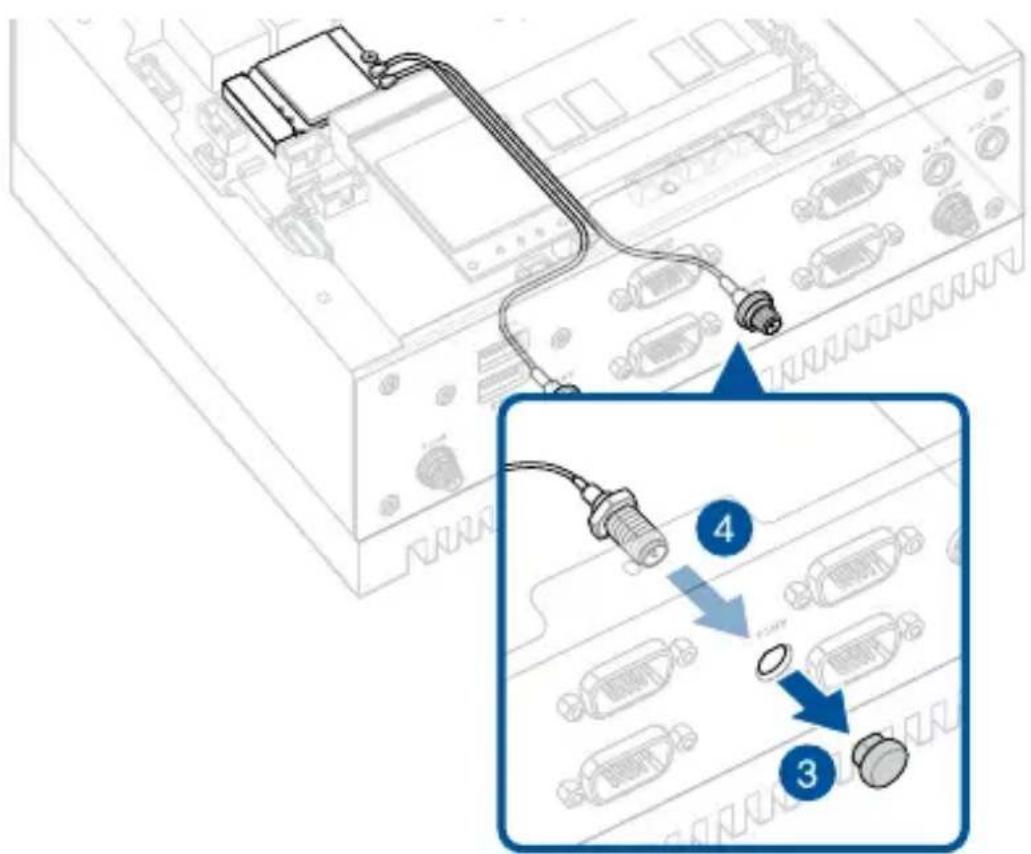

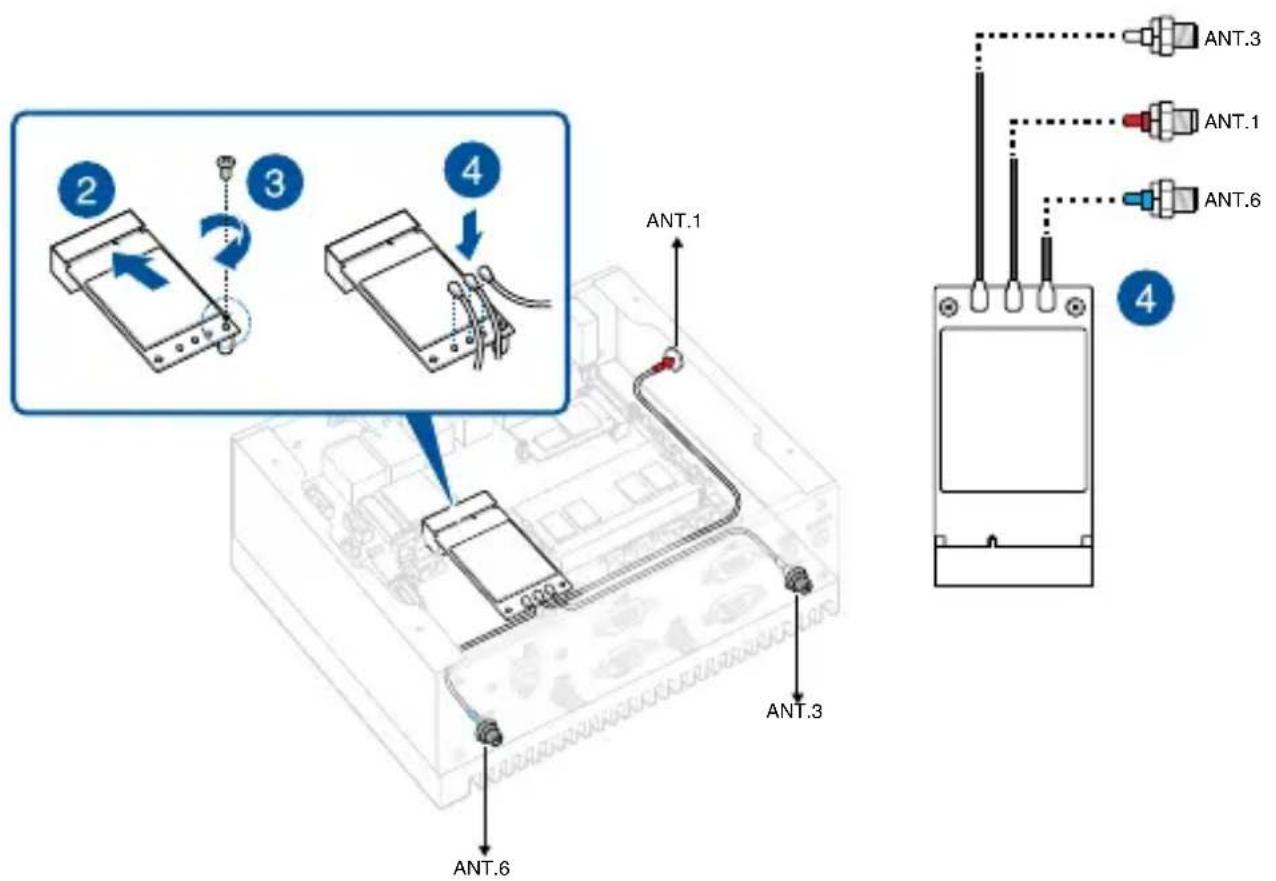

3.9 Installing antennas (optional)....59

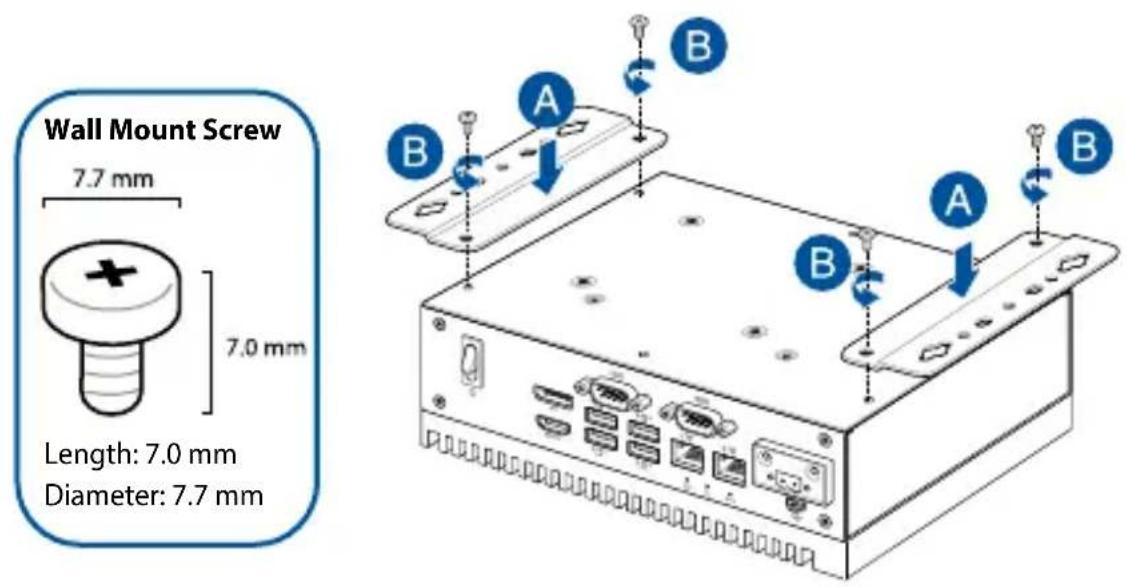

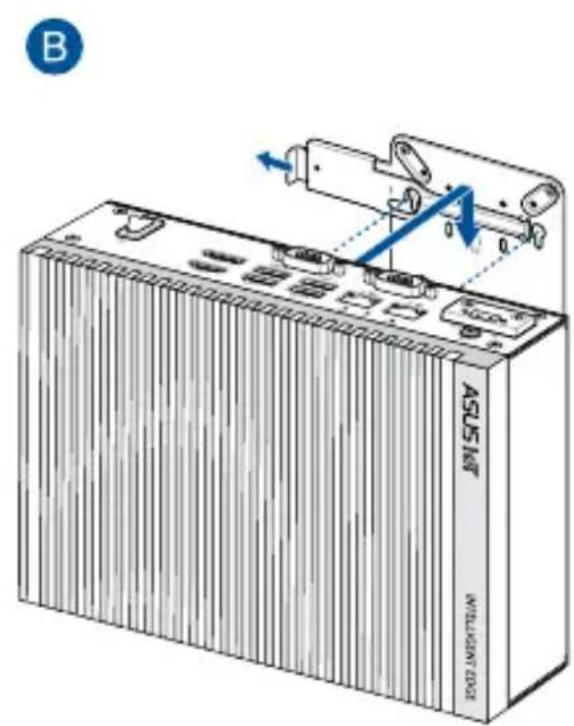

3.10 Installing wall mount brackets (optional) 61

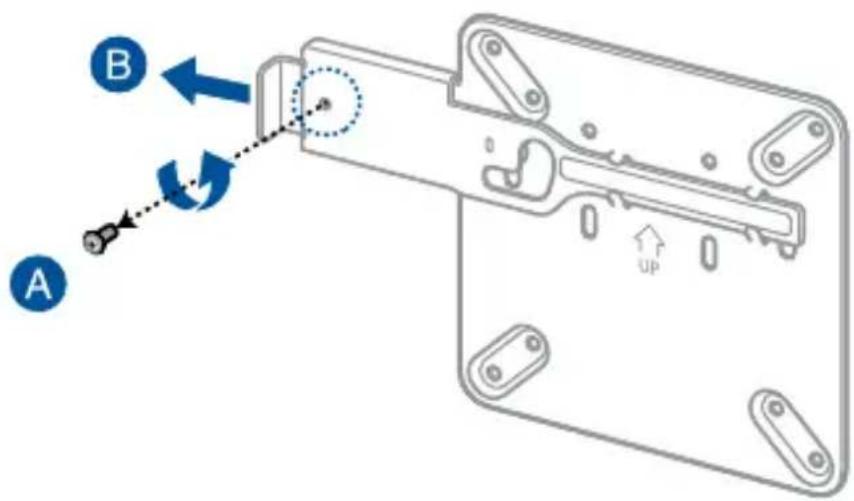

3.11 Installing the VESA mount (optional)....63

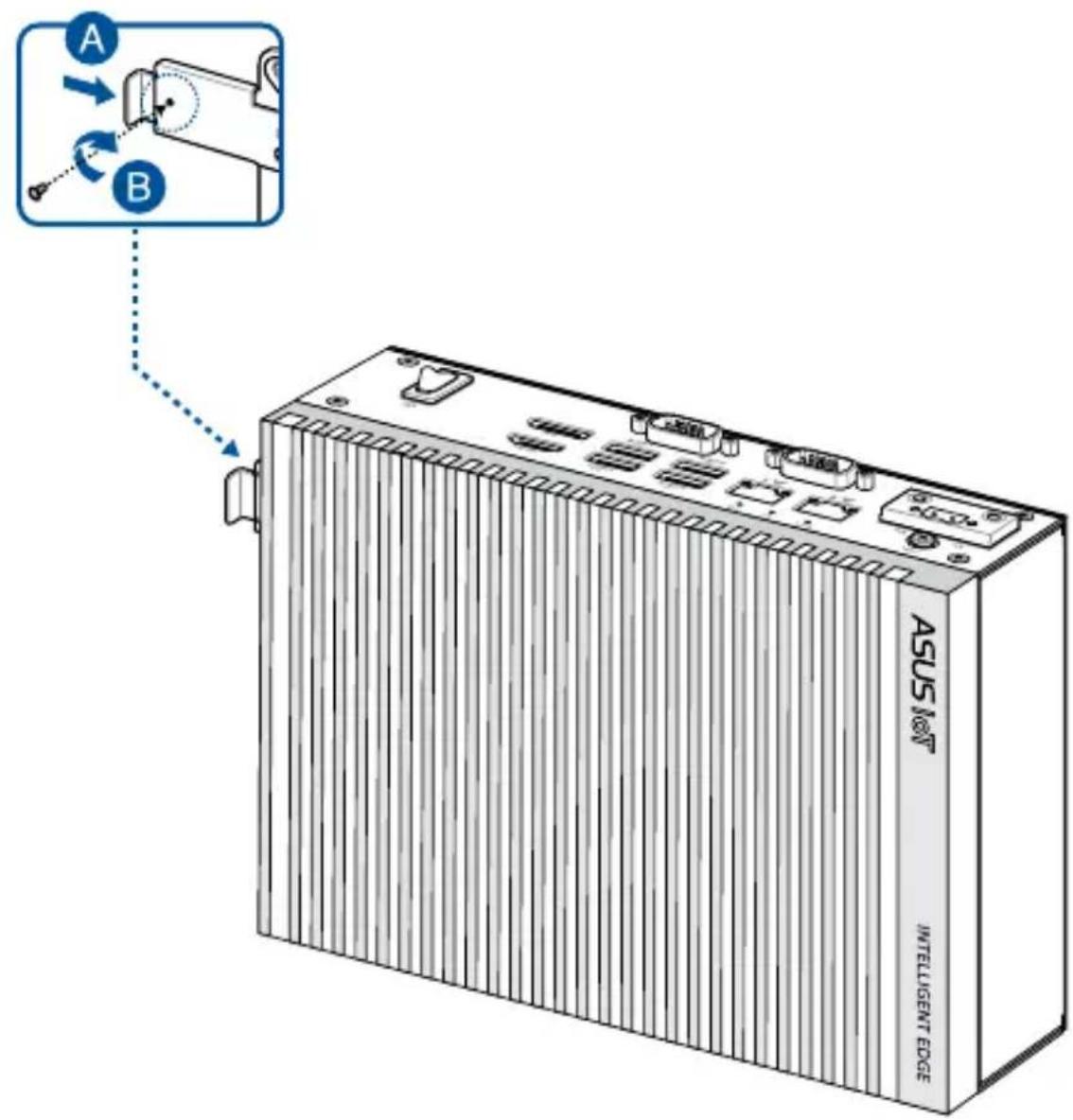

3.12 Installing DIN rail clips (optional) 67

Chapter 4: Watchdog Timer

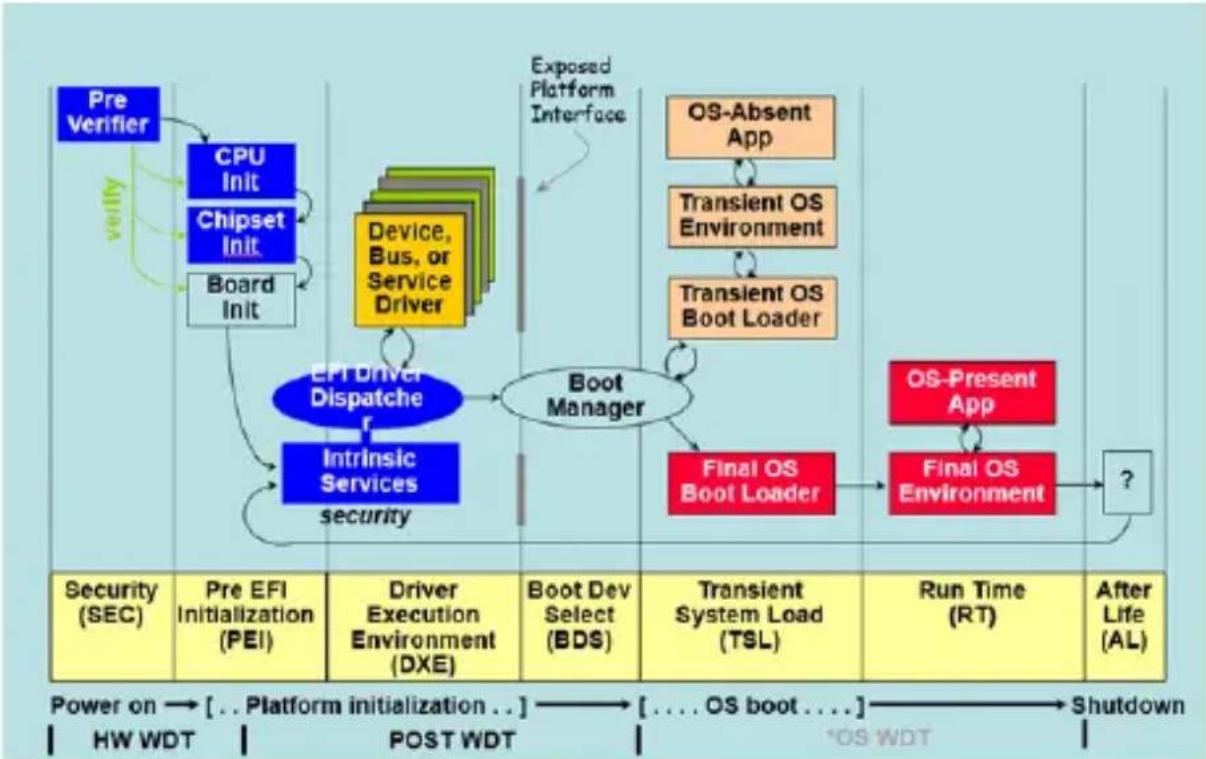

4.1 Watchdog Timer implementation....70
4.2 Watchdog Timer flowchart....72
4.3 Watchdog Timer Programming....73

Appendix

Safety information....78
Setting up your system....78
Care during use....79

Regulatory notices 80

Service and Support 87

About this manual

This manual provides information about the hardware and software features of your Embedded Computer, organized through the following chapters:

Chapter 1: Getting to know your Embedded Computer

This chapter details the hardware components of your Embedded Computer.

Chapter 2: Using your Embedded Computer

This chapter provides you with information on using your Embedded Computer.

Chapter 3: Upgrading your Embedded Computer

This chapter provides you with information on how to upgrade the memory modules, wireless modules, and hard disk drive / solid state drive of your Embedded Computer.

Chapter 4: Using the software

This chapter provides you with information on how to install the ASUS IEC Vision software and also provides a brief summary of the software layout.

Appendix

This section includes notices and safety statements your Embedded Computer.

Conventions used in this manual

To highlight key information in this manual, some text are presented as follows:

IMPORTANT! This message contains vital information that must be followed to complete a task.

NOTE: This message contains additional information and tips that can help complete tasks.

WARNING! This message contains important information that must be followed to keep you safe while performing certain tasks and prevent damage to your Embedded Computer's data and components.

Package contents

Your Embedded Computer package contains the following items:

EBS-S100 Series

Line drawing of a rectangular electronic device with a coiled cable and plug, no text or symbols present

Simple line drawing of a cord with two connectors (no text or symbols)

AC power adapter* Power cord*

Four simple 3D mechanical parts: rectangular blocks, a cylindrical part, and an rounded rectangular block (no text or symbols)

Line drawing of a cable with connector ends (no text or symbols)

I/O port dust covers Terminal block power adapter

Two identical rectangular metal plates with mounting holes and diamond-shaped cutouts (no text or symbols)

Line drawing of a USB cable connector with two connectors (no text or symbols)

Wall mount kit SATA and power cable

Optional item(s)

Two identical isometric diagrams of electrical connector packages (no text or symbols)

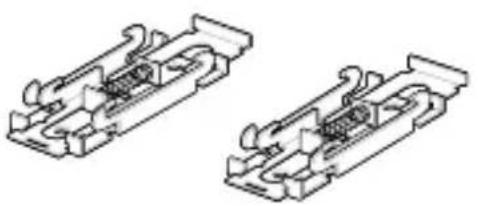

DIN rail clips VESA mount

Technical line drawing of a mechanical bracket or mounting bracket with mounting holes and internal features (no text or symbols)

NOTE:

*The bundled power adapter and power cord may vary depending on model and country (or region) of sale.

- Some bundled accessories may vary depending on model. For details on these accessories, refer to their respective user manuals.

- The device illustration is for reference only. Actual product specifications may vary depending on model.

- If the device or its components fail or malfunction during normal and proper use within the warranty period, bring the warranty card to the ASUS Service Center for replacement of the defective components.

1

Getting to know your Embedded Computer

1.1 Features

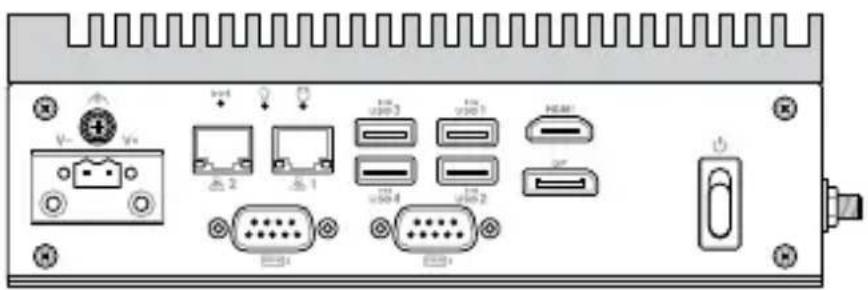

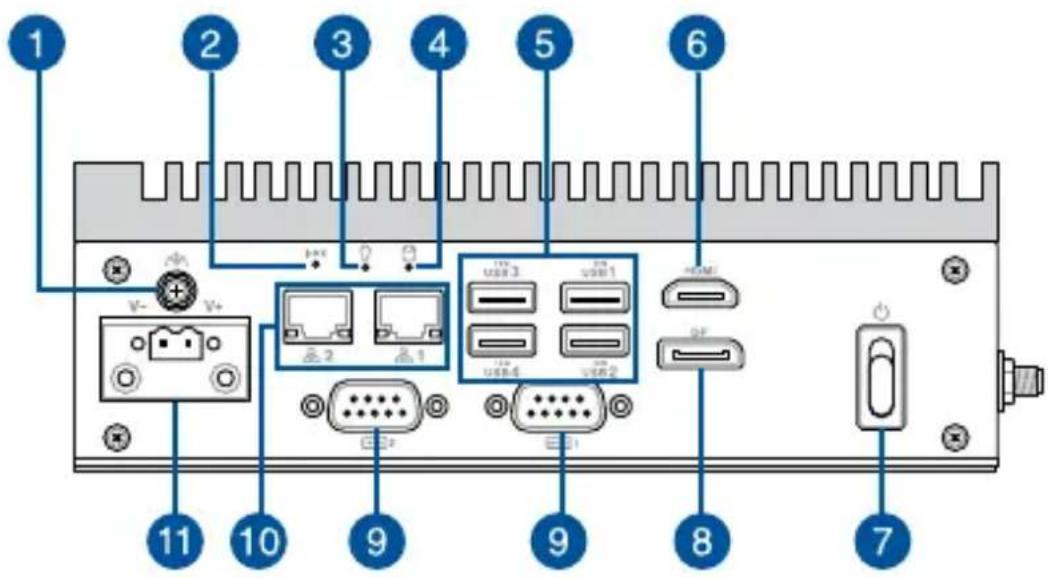

1.1.1 Front view

Functional Earth Ground (on selected models)

The Functional Earth Ground provides you with a grounding point.

System reset pinhole

The hard reset pinhole allows you to reboot your Embedded Computer.

Power indicator

The power indicator lights up when your Embedded Computer is turned on and blinks slowly when in sleep mode.

Drive activity indicator

This indicator lights up when your Embedded Computer is accessing the internal storage drive.

USB 3.2 Gen 2 port

The USB 3.2 Gen 2 (Universal Serial Bus) port provides a transfer rate up to 10 Gbit/s.

HDMI™ port

The HDMI (High Definition Multimedia Interface) port supports a Full-HD device, such as an LCD TV or monitor, to allow viewing on a larger external display.

Power button

The power button allows you to turn the Embedded Computer on or off. You can use the power button to put your Embedded Computer to sleep mode or press it for four (4) seconds to force shutdown your Embedded Computer.

Dual-mode DisplayPort

This port allows you to connect your Embedded Computer to an external display and supports DVI or HDM™ adapters.

Serial (COM) connector

The 9-pin RS-232/RS-422/RS-485 serial (COM) connector allows you to connect devices that have serial ports, such as bar code scanners, modems, and printers.

LAN port

The 8-pin RJ-45 LAN port supports a standard Ethernet cable for 10/100/1000 Mbps connection to a local network.

LAN port LED indications

Activity Link LED
Status Description
Off No link
Yellow Linked
Yellow (blinking) Data activity
Yellow (blinking then steady)	Ready to wake up from suspend mode

Speed LED

Status Description

Off 10 Mbps connection

Orange 100 Mbps connection

Green 1 Gbps connection

Power input

The supplied terminal block power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the Embedded Computer.

WARNING! The power adapter may become warm to hot when in use. Do not cover the adapter and keep it away from your body.

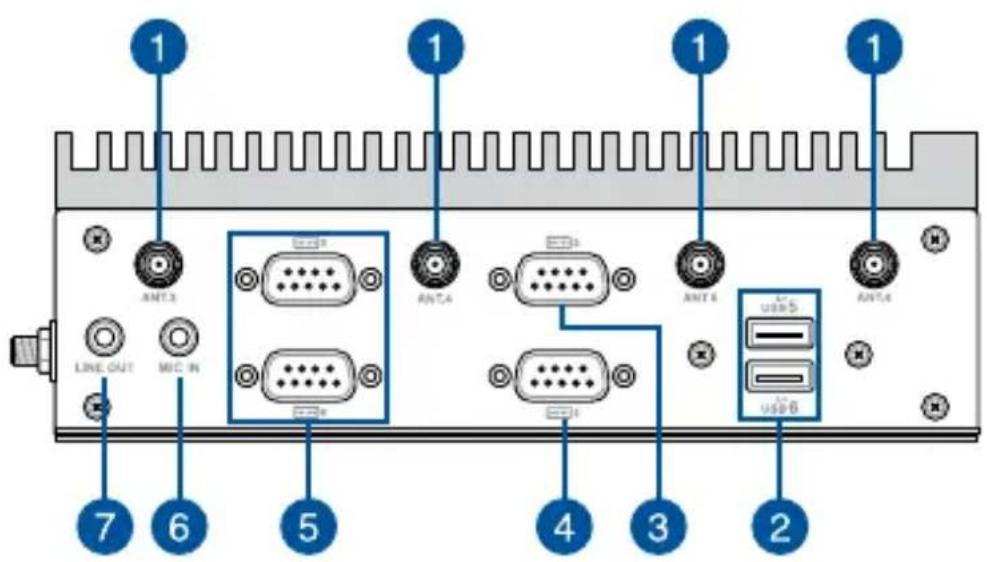

1.1.2 Rear view

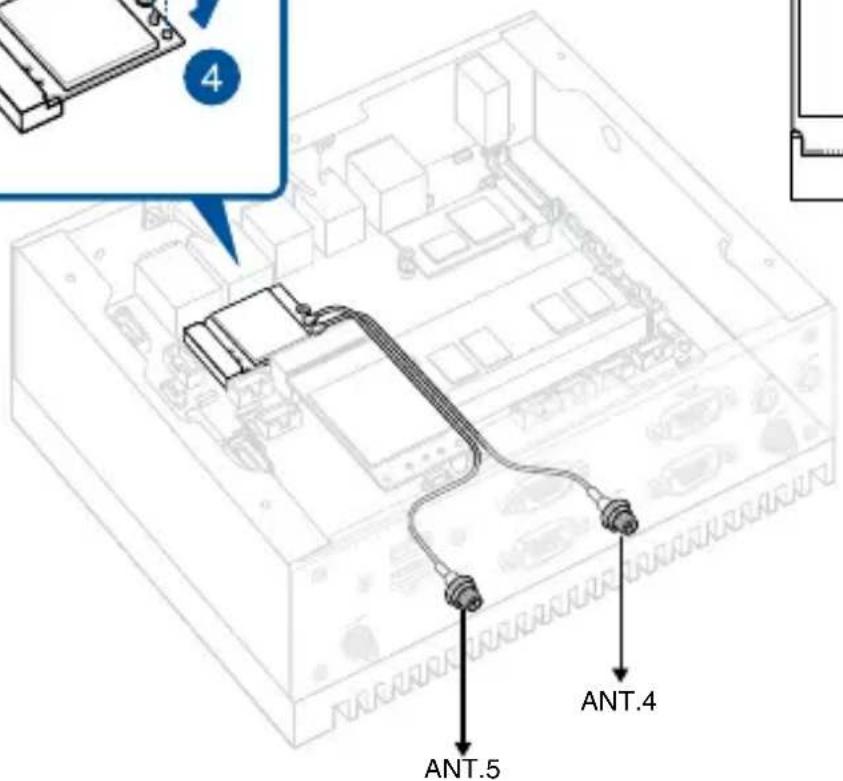

1 ANT. 3 Antenna hole

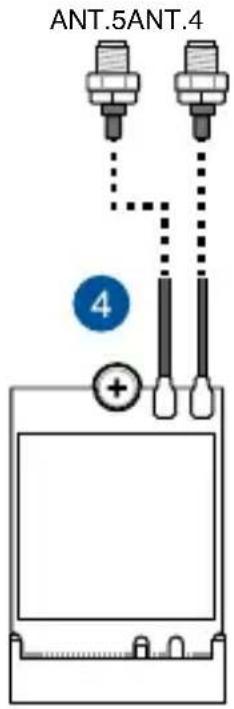

ANT. 4 The antenna hole allows you to connect a wireless ANT. 5 antenna to enhance wireless signal reception.

ANT. 6

2 USB 5 2.0 USB 2.0 port

The USB (Universal Serial Bus) port is compatible with USB 2.0 and USB 1.1 devices, such as keyboards, pointing devices, flash disk drives, external HDDs, speakers, cameras, and printers.

3 Serial (COM) connector

The 9-pin RS-232 serial (COM) connector allows you to connect devices that have serial ports, such as bar code scanners, modems, and printers.

NOTE: This port also supports General Purpose Iput/Output (GPIO) for customizing digital input/output.

Serial (COM) connector

The 9-pin RS-232 serial (COM) connector allows you to connect devices that have serial ports, such as bar code scanners, modems, and printers.

Serial (COM/CAN) connector (on selected models)

The 9-pin RS-232/CAN bus serial (COM/CAN) connector allows you to connect devices that have serial ports, such as bar code scanners, modems, and printers, and also devices with a Controller Area Network (CAN) interface, such as electronic control units (ECU). Refer to the table below for the pin definitions of the different COM/CAN connectors.

NOTE: Default set to RS-232.

Pin RS-232 CAN bus

1 NA NA
2 RXD CAN_L
3 TXD GND
4 NA NA
5 GND GND
6 NA NA
7 RTS# CAN_H
8 CTS# NA
9 NA NA

Microphone

The built-in microphone can be used for video conferencing, voice narrations, or simple audio recording.

Headphone jack

This port allows you to connect amplified speakers or headphones.

1.1.3 Right view

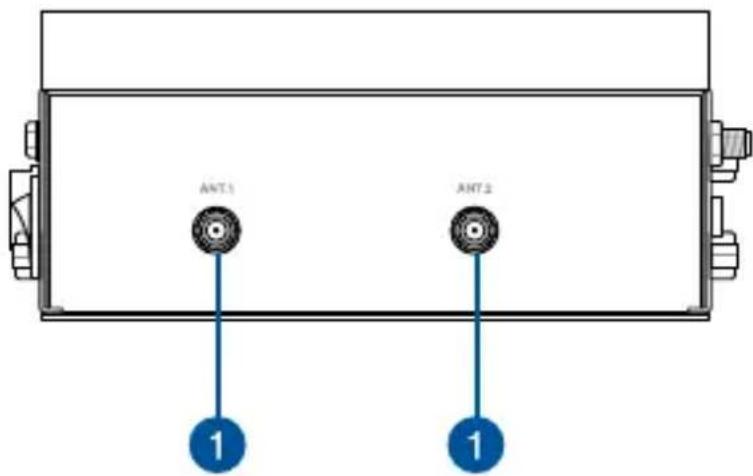

ANT. 1 Antenna hole

ANT. 2 The antenna hole allows you to connect a wireless antenna to enhance wireless signal reception.

1.2 Motherboard Overview

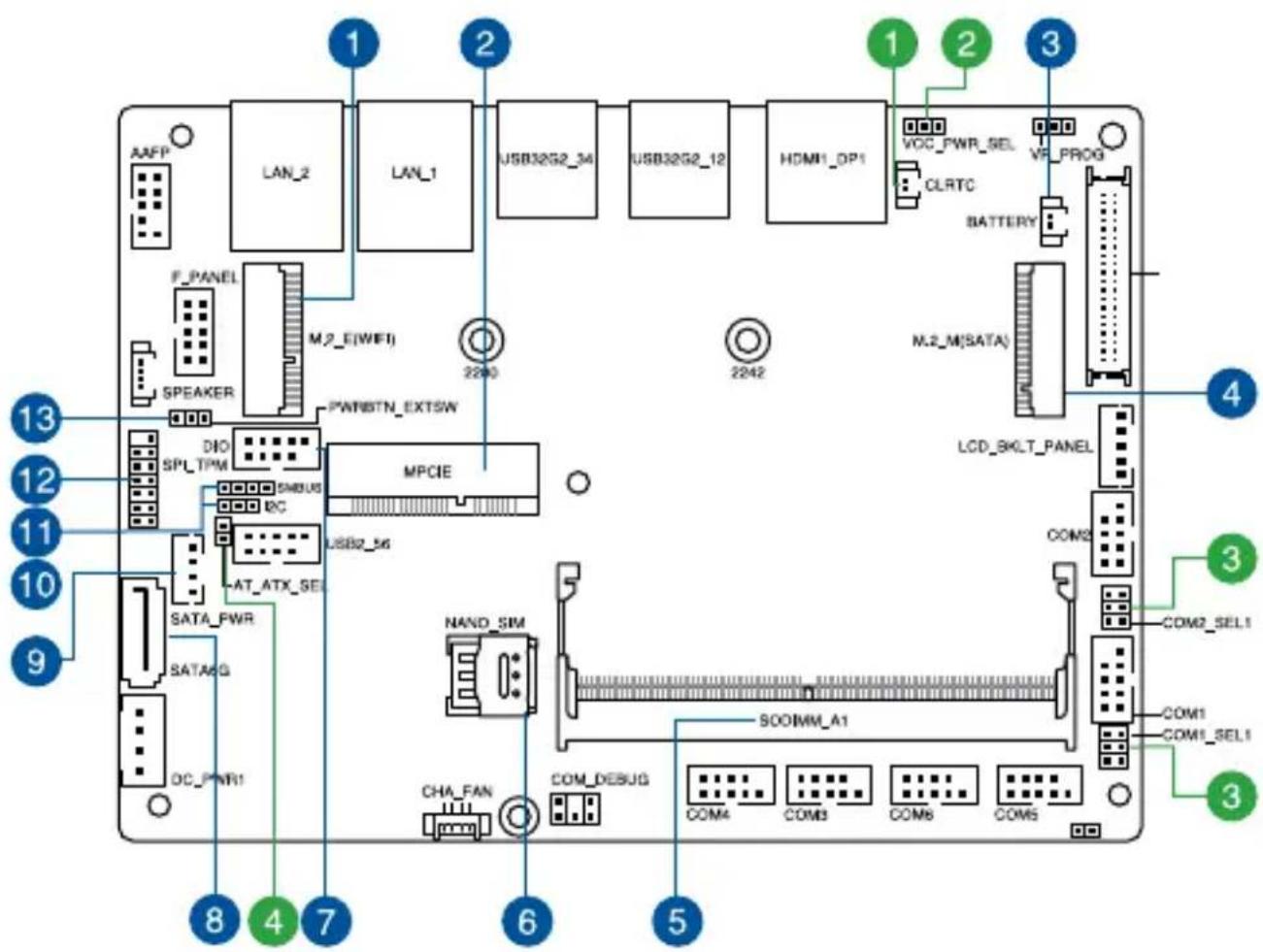

1.2.1 Motherboard layout

The EBS-S100 Series features a motherboard with a 3.5" dimension (146 mm x 105 mm).

Jumpers Page
1. Clear RTC RAM jumper 19
2. Display Panel VCC Power Selection jumper 20
3. COM +5V/+12V Selection jumper 20
4. AT/ATX Mode Configuration jumper 21

Connectors/slots Page

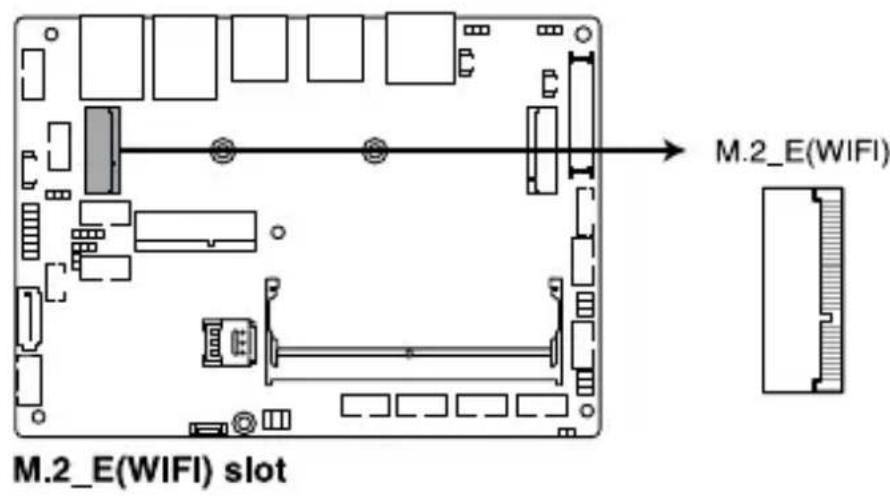

1. M.2 (E-key) Wi-Fi slot 25
2. Mini PCIe slot 23

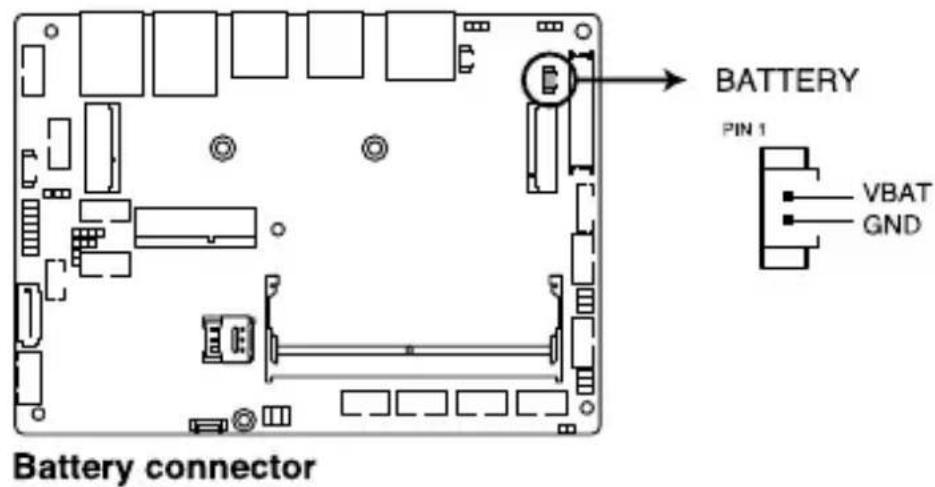

3. Battery connector 26
4. M.2 (M-key) slot 24
5. DIMM slot 18
6. Nano SIM Card slot 25

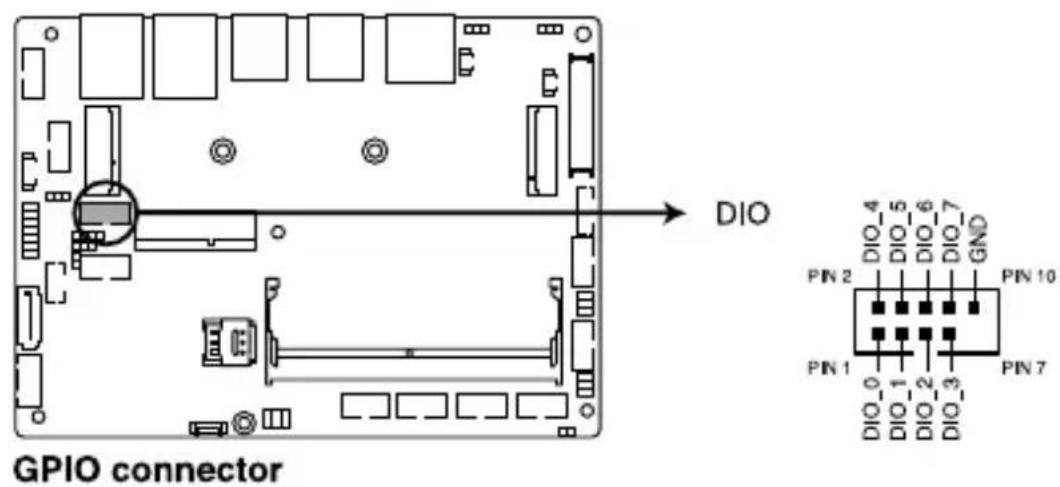

7. GPIO connector 27
8. SATA connector 22
9. SATA Power connector 22

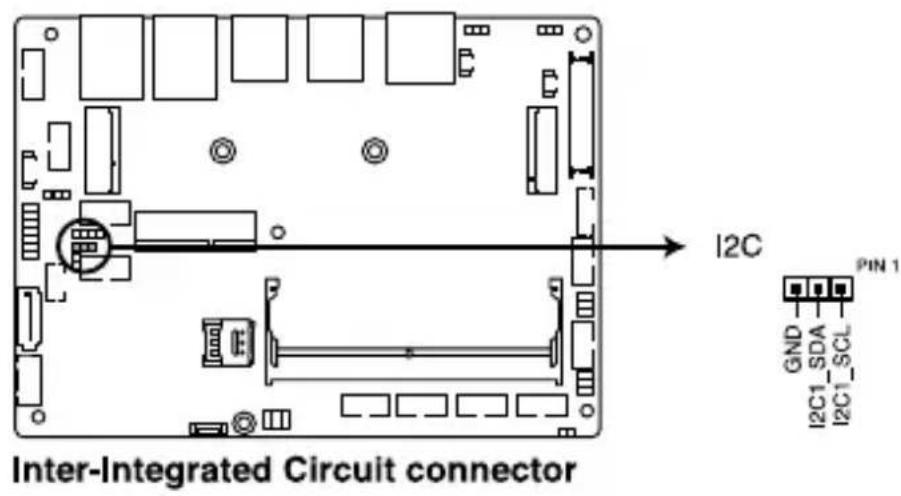

10. I2C connector 28

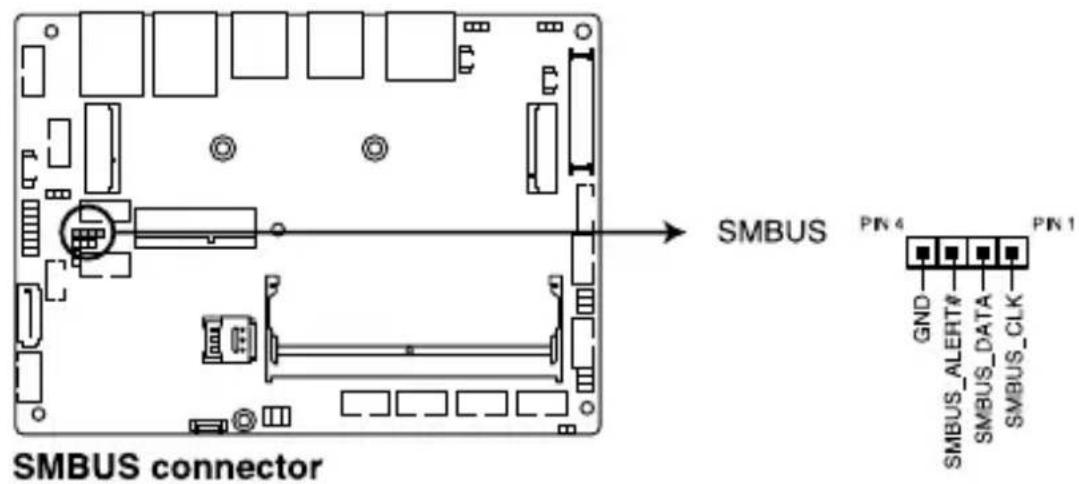

11. SMBus connector	27

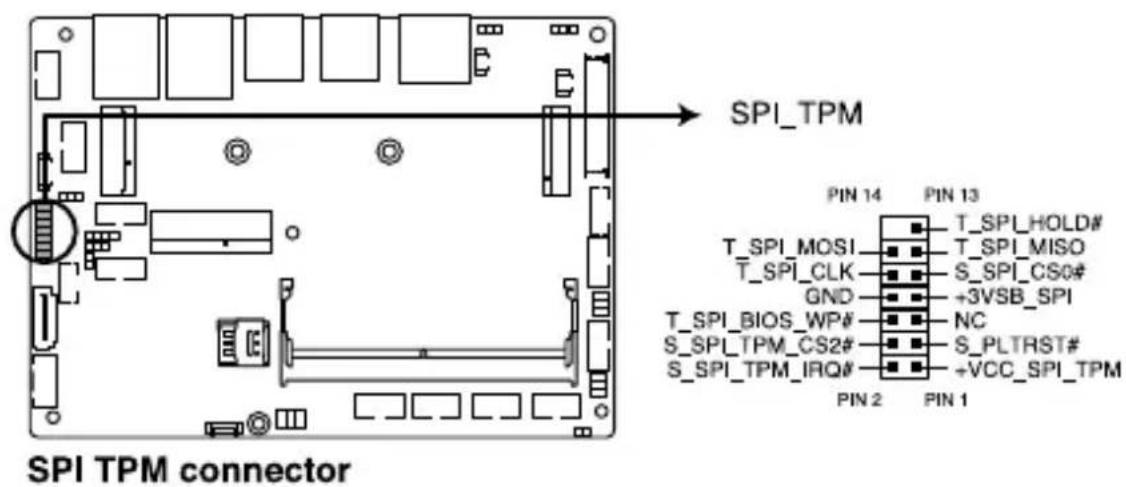

12. SPI TPM connector	29

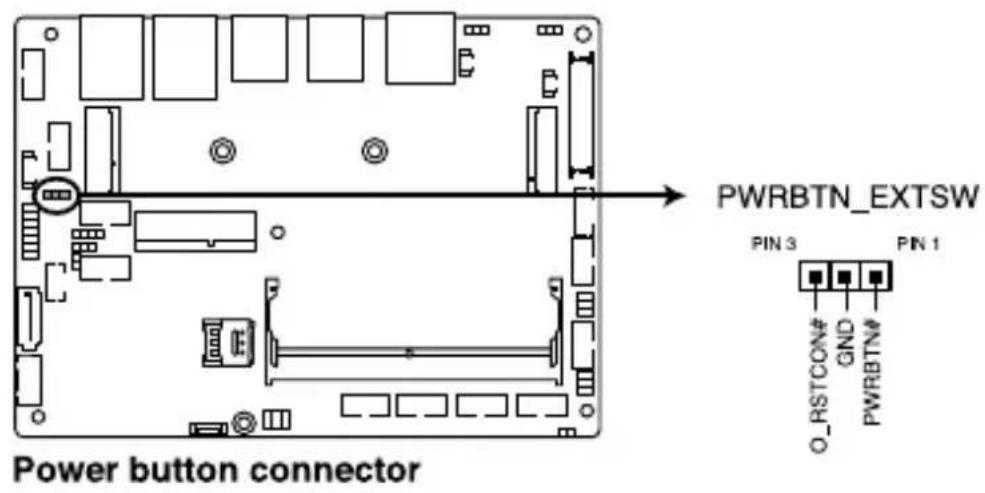

13. Power Button connector	26

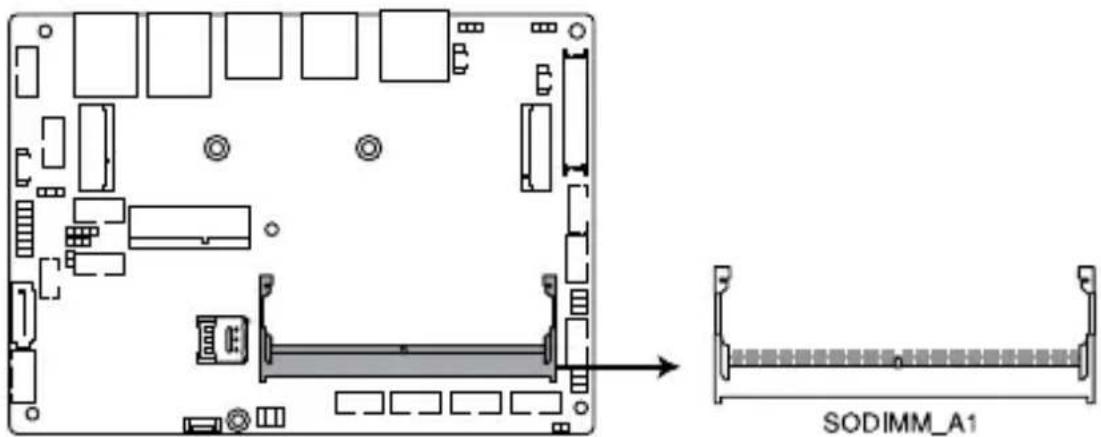

1.2.2 System memory

The motherboard comes with a Small Outline Dual Inline Memory Module (SODIMM) slot designed for DDR5 (Double Data Rate 5) memory modules.

SODIMM slot

1.2.3 Onboard jumpers

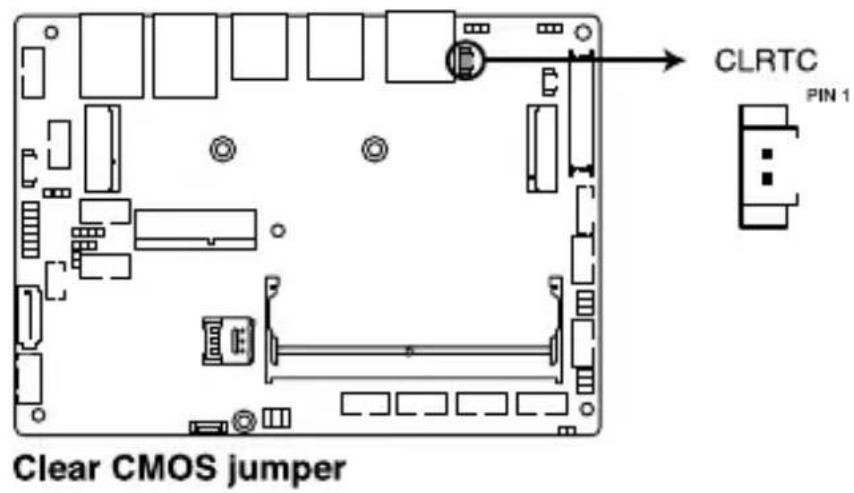

1. Clear RTC RAM jumper

The Clear RTC RAM jumper allows you to clear the Real Time Clock (RTC) RAM in the CMOS, which contains the date, time, system passwords, and system setup parameters.

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.
2. Short-circuit pin 1-2 with a metal object or jumper cap for about 5-10 seconds.
3. Plug the power cord and turn ON the computer.
4. Hold down the key during the boot process and enter BIOS setup to re-enter data.

NOTE: If the steps above do not help, remove the onboard button cell battery and move the jumper again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the button cell battery.

2. Display Panel VCC Power Selection jumper (on selected models)

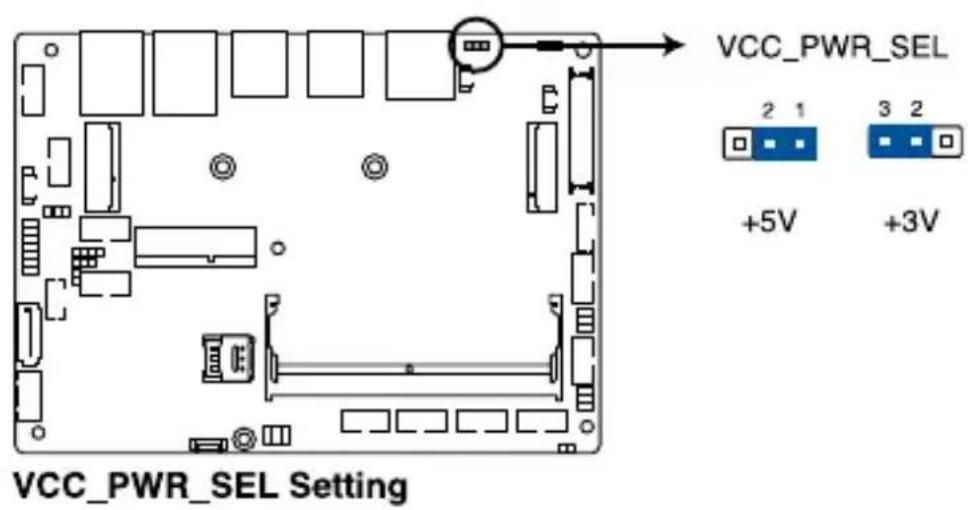

The Display Panel VCC Power jumper allows you to select the voltage for the LVDS panel.

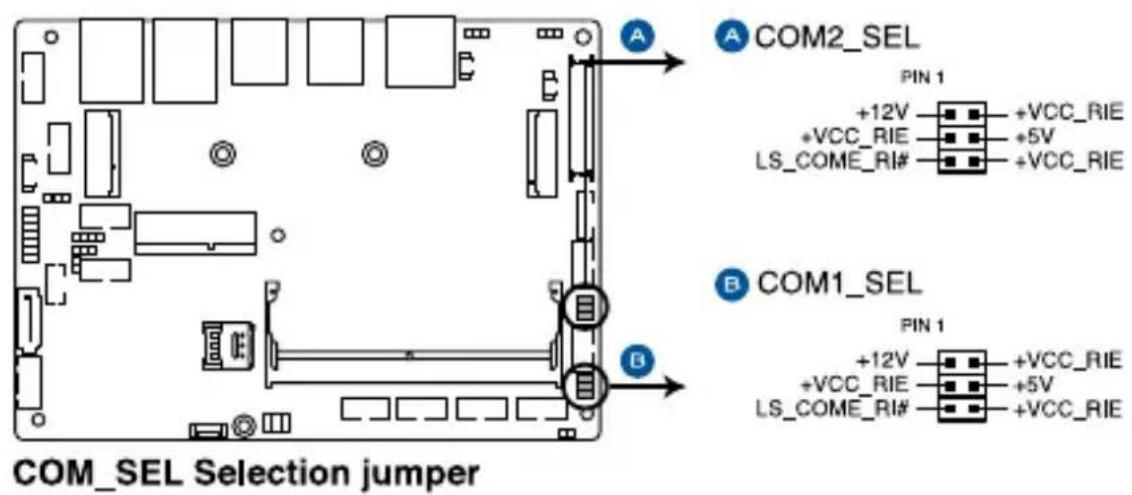

3. COM +5V/+12V Selection jumper

The COM +5V/+12V Selection jumper allows you to select the voltage for the COM1 and COM2 ports.

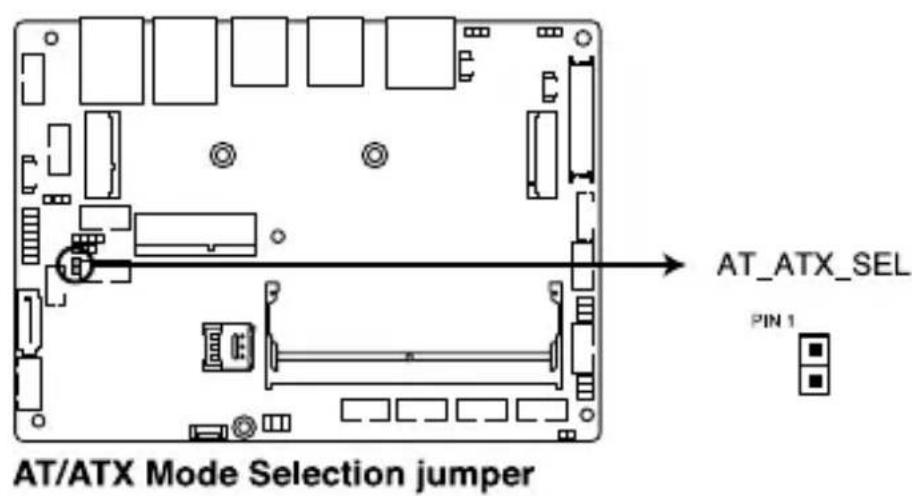

4. AT/ATX Mode Configuration jumper

The AT/ATX Mode Configuration jumper allows you to switch between AT and ATX modes. The default setting for this jumper is set to ATX mode with a jumper cap attached. To switch to AT mode, remove the jumper cap.

1.2.4 Internal connectors

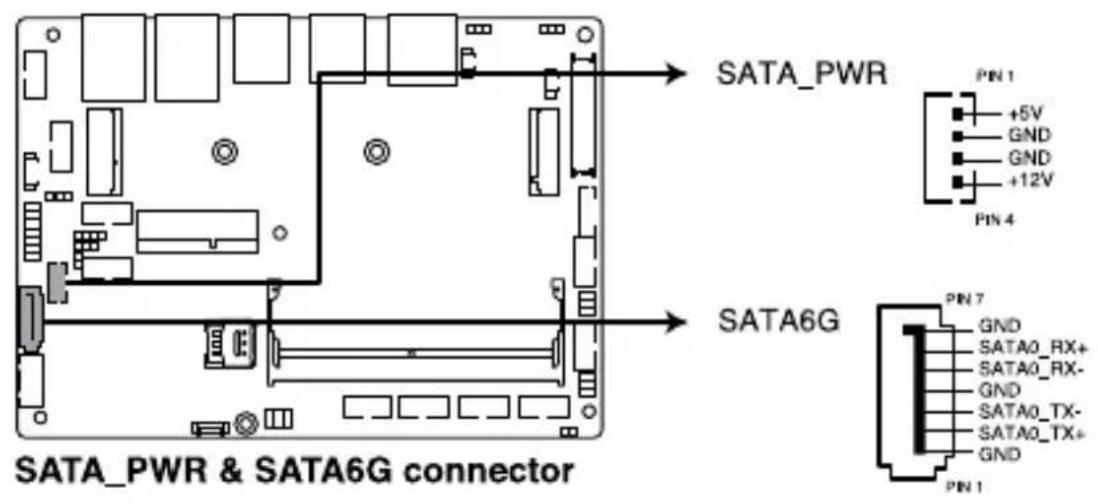

1. SATA 6Gb/s & SATA Power connector

The SATA 6Gb/s and SATA Power connectors allow you to connect SATA devices such as optical disc drives and hard disk drives via a SATA cable and power cable.

Connector type

Wafer HD 4P, 2.0mm pitch & Wafer HD 7p, 1.27mm pitch

NOTE: Ensure to use the bundled cable when connecting a storage device to this connector.

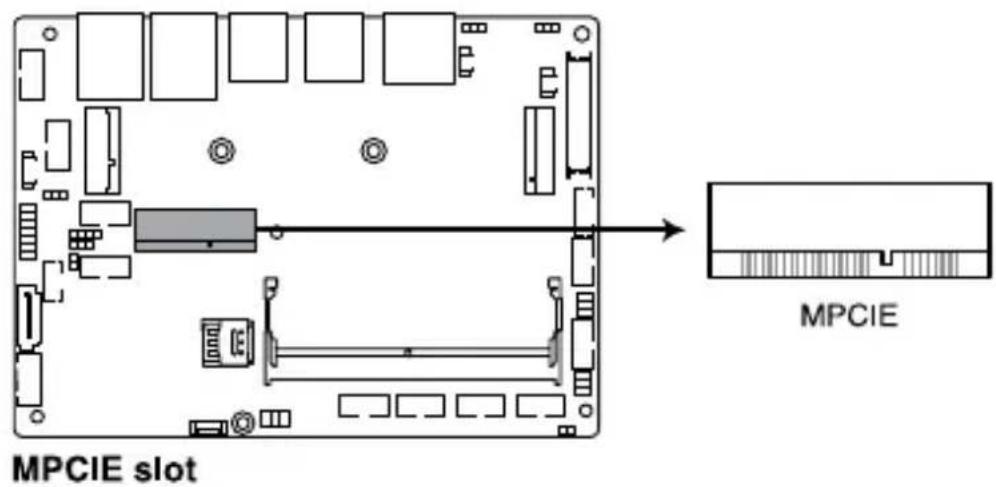

2. Mini PCIe slot

The Mini PCIe slot allows you to install a Mini PCIe peripheral device.

NOTE:

• The Mini PCIe peripheral device is purchased separately.
• The mSATA shares the same slot with a full-length Mini PCIe.

3. M.2 (M-key) slot

The M.2 slot allows you to install 2242/2280 M.2 devices, such as 2242/2280 M.2 SSD modules.

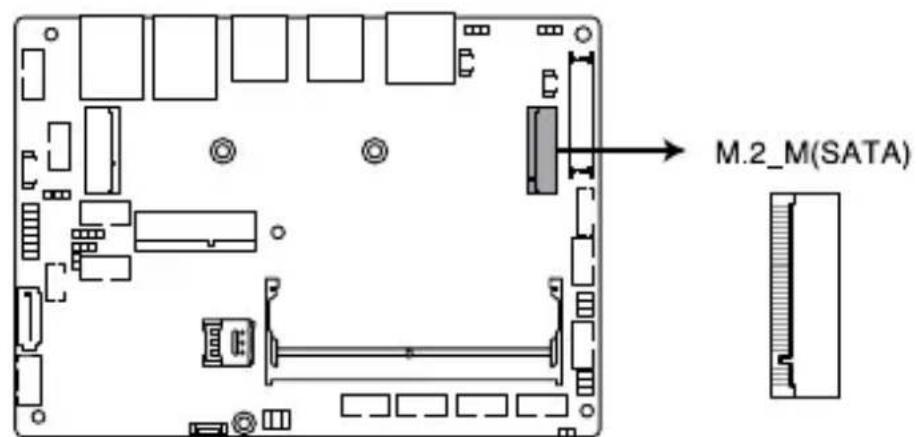

M.2_M(SATA) slot

NOTE:

• The M.2 SSD module is purchased separately.
  • This motherboard supports 2242/2280 SATA devices only.

4. M.2 (E-key) Wi-Fi slot

The M.2 Wi-Fi slot allows you to install an M.2 Wi-Fi module (E-key, type 2230).

NOTE: The M.2 Wi-Fi module is purchased separately.

5. Nano SIM Card slot

The Nano SIM Card slot allows you to install a Nano SIM card.

NOTE: The Nano SIM card is purchased separately.

6. Power Button connector

The Power Button connector allows you to connect an external power button.

7. Battery connector

The Battery connector allows you to connect a lithium CMOS battery.

8. SMBus connector

The System Management Bus (SMBus) connector allows you to connect SMBus devices. This connector is generally used for communication with system and power management-related tasks.

Connector type

Header 1x4p, 2.0mm pitch

9. GPIO connector

The GPIO connector allows you to connect a general purpose input/output module to customize digital signal input/output.

Connector type

BOX header 2x5p, K9, 2.0mm pitch

10. I2C connector

The I2C (Inter-Integrated Circuit) connector allows you to connect an I2C-compatible IoT security module.

Connector type

Header 1x3p, K6, 2.0mm pitch

11. SPI TPM connector

The SPI TPM connector supports a Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

Connector type

Header 2x7p, K14, 2.0mm pitch

Using your Embedded Computer

2

2.1 Getting started

2.1.1 Connect the AC power adapter to your Embedded Computer

To connect the AC power adapter to your Embedded Computer:

A. Connect the power cord to the AC power adapter.
B. Connect the DC power connector to your Embedded Computer's power (DC) input.
C. Plug the AC power adapter into a 100 V\~240 V power source.

NOTE:

The power adapter may vary in appearance, depending on model and country (or region) of sale. Refer to the following for more information on the different power adapters, as well as the system:

90W Power adapter

• Input voltage: 100-240 Vac
• Input frequency: 50-60 Hz
• Rated output current: 7.5 A max (90.0 W)
• Rated output voltage: 12.0 Vdc

System

• Input voltage: 100-240 Vac
• Input frequency: 50-60 Hz
• Rated input current: 10 A - 2.5 A (90.0 W)
• Rated input voltage: 9 - 36 Vdc

IMPORTANT!

• We strongly recommend that you use only the AC power adapter and cable that came with your Embedded Computer.
• We strongly recommend that you use a grounded wall socket while using your Embedded Computer.
• The socket outlet must be easily accessible and near your Embedded Computer.
• To disconnect your Embedded Computer from its main power supply, unplug your Embedded Computer from the power socket.

WARNING!

• Do not use power adapters or batteries from other devices to reduce the risk of injury to persons due to fire or explosion. Use only UL certified power adapters or batteries supplied by the manufacturer or authorized retailers.
• Do not disable or remove the power cord grounding plug, the grounding is an important safety feature.
• Ensure to plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times.

2.1.2 Connect a display panel to your Embedded Computer

You can connect a display panel or projector to your Embedded Computer that has the following connectors:

• HDMI™ connector
• DisplayPort

To connect a display panel to your Embedded Computer:

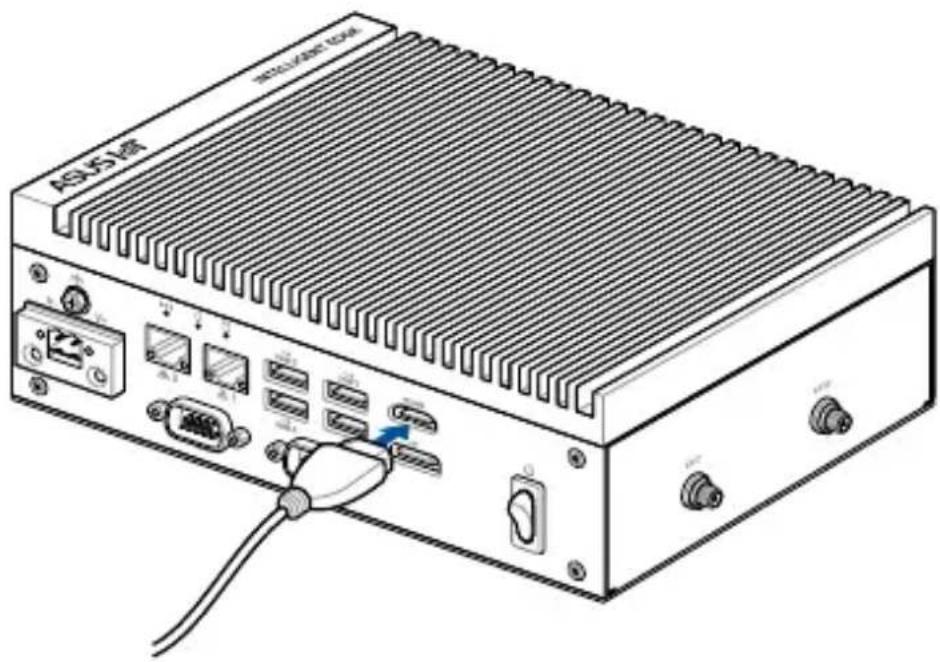

Connect one end of an HDMI™, or a DisplayPort cable to an external display, and the other end of the cable to your Embedded Computer's HDMI™ port, or DisplayPort.

Connect display via HDMI™ port

Illustration of an RS-51 microcontroller with ports and connectors (no text or symbols)

Connect display via DisplayPort

Illustration of an ASIS server rack with ports, connectors, and a cable inserted (no text or symbols)

2.1.3 Connect the USB cable from keyboard or mouse

You can connect generally any USB keyboard and mouse to your Embedded Computer. You can also connect a USB dongle for a wireless keyboard and mouse set.

To connect a keyboard and mouse to your Embedded Computer:

Connect the USB cable from your keyboard and mouse to any of the USB ports of your Embedded Computer.

NOTE:

• The keyboard varies with country or region.

- The keyboard and mouse are purchased separately.

Line drawing of a computer setup with an electronic device connected to a keyboard and mouse (no text or symbols present)

2.1.4 Turn on your Embedded Computer

Press the power button to turn on your Embedded Computer.

Illustration of a desktop computer setup with a connected network device and power button (no text or symbols)

2.2 Turning off your Embedded Computer

If your Embedded Computer is unresponsive, press and hold the power button for at least four (4) seconds until your Embedded Computer turns off.

2.3 Putting your Embedded Computer to sleep

To put your Embedded Computer on Sleep mode, press the Power button once.

2.4 Entering the BIOS Setup

BIOS (Basic Input and Output System) stores system hardware settings that are needed for system startup in the Embedded Computer.

In normal circumstances, the default BIOS settings apply to most conditions to ensure optimal performance. Do not change the default BIOS settings except in the following circumstances:

• An error message appears on the screen during the system bootup and requests you to run the BIOS Setup.
• You have installed a new system component that requires further BIOS settings or update.

WARNING! Inappropriate BIOS settings may result to instability or boot failure. We strongly recommend that you change the BIOS settings only with the help of a trained service personnel.

2.4.1 Load default BIOS settings

To load the default values for each of the parameters in your BIOS:

1. Enter the BIOS by pressing or on the POST screen.

NOTE: POST (Power-On Self Test) is a series of software controlled diagnostic tests that run when you turn on your Embedded Computer.

1. Navigate to the Exit menu.
2. Select the Load Optimized Defaults option, or you may press .
3. Select OK to load the default BIOS values.

3

Upgrading your Embedded Computer

IMPORTANT!

• Ensure that your hands are dry before proceeding with the rest of the installation process. Before installing any of the features in this guide, use a grounded wrist strap or touch a safely grounded object or metal object to avoid damaging them due to static electricity.
• Turn off the power of your Embedded Computer, and allow it to cool for at least 10 minutes before performing any installation/uninstallation process.

NOTE: The illustrations in this section are for reference only. The slots may vary depending on model.

3.1 Removing the bottom cover

1. Turn off your Embedded Computer then disconnect all cables and peripherals.
2. Place the Embedded Computer on a flat stable surface, with its top side facing down.

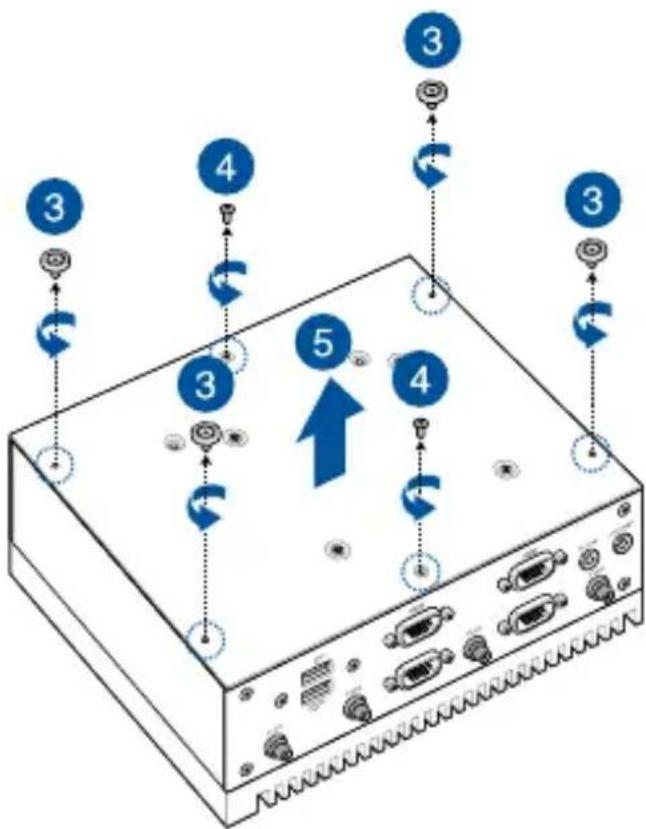

3. Remove the four (4) rubber feet screws from the bottom cover.
4. Remove the two (2) screws securing the bottom cover.
5. After removing the screws, remove the bottom cover and place it aside.

3.2 Replacing the bottom cover

1. Align the bottom cover with the screw holes, then replace the bottom cover onto the Embedded Computer.
2. Secure the bottom cover using the two (2) screws removed previously.
3. Replace the four (4) rubber feet screws removed previously.

3.3 Installing memory modules

Your Embedded Computer comes with an SO-DIMM slot that allows you to install DDR5 SO-DIMMs.

Align and insert the memory module into the slot (A) and press it down (B) until it is securely seated in place.

3.4 Installing 2.5" storage device

1. Remove the four (4) screw hole covers from the bottom cover, if they exist.

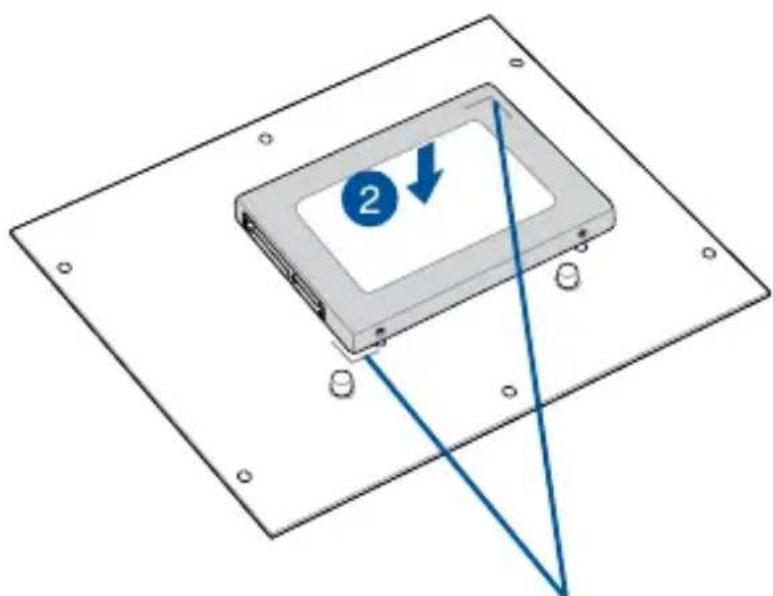

2. Prepare your 2.5" storage device, then position it within the two diagonally opposite laser-etched marks on the bottom cover of your Embedded Computer.

Diagram of a server rack with a blue arrow and number 2 indicating a component, mounted on a square base (no text or symbols beyond the label)

Laser-etched marks

1. Connect the storage device cable to the storage device.

2. Align the four (4) screw holes on the storage device with the ones on the bottom cover.

3. Secure the storage device to the storage bay using four (4) screws.

IMPORTANT! This device only supports 7mm 2.5" SSD.

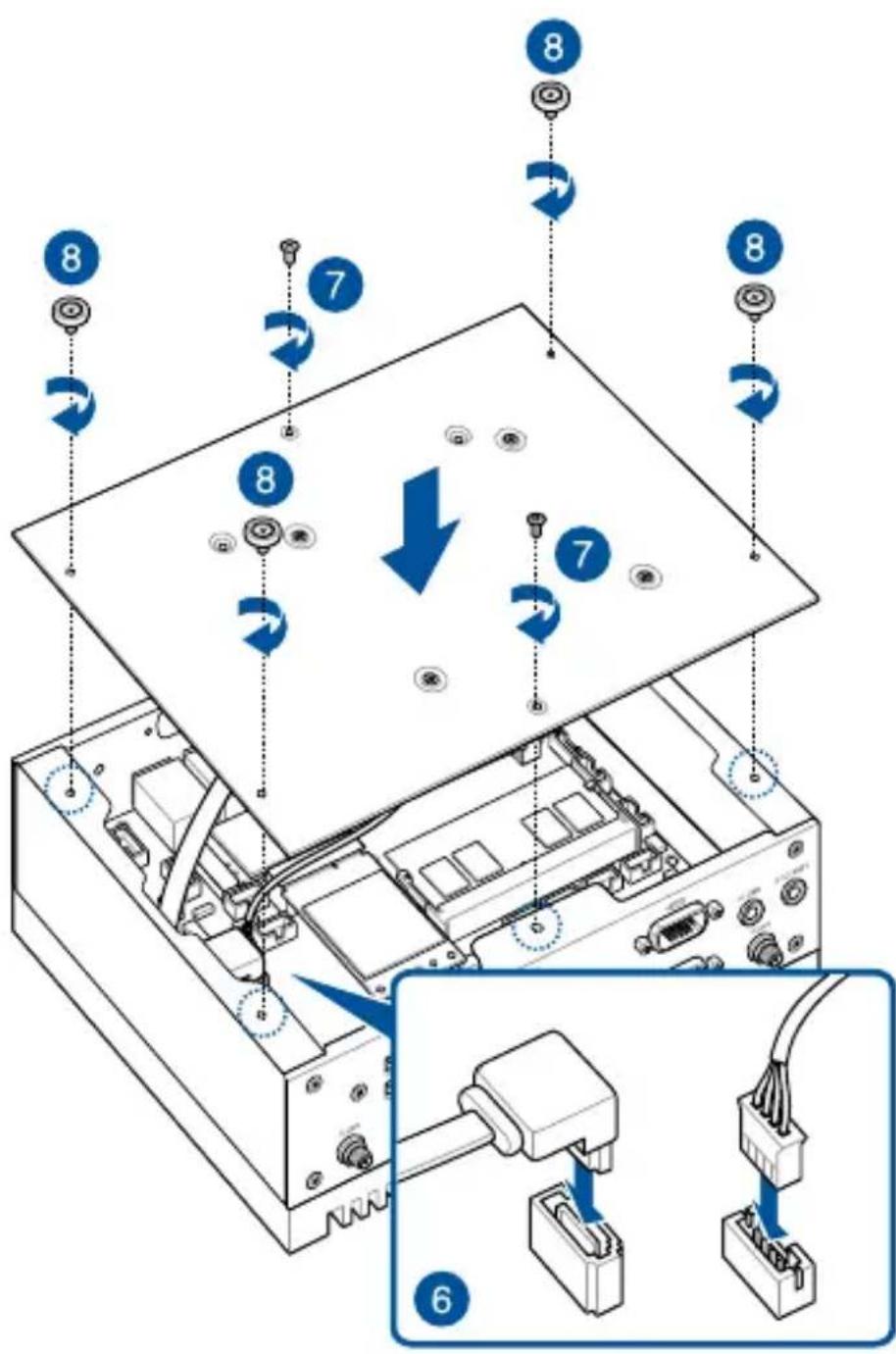

1. Connect the storage device cable to the SATA6G and SATA_PWR connectors on the motherboard.

2. Replace the bottom cover, then secure the bottom cover using the two (2) screws removed previously.

3. Replace the four (4) rubber feet screws removed previously.

3.5 Installing an M.2 SSD

To install an M.2 2242 SSD:

1. (Optional) Replace the standoff if it was removed.
2. Align and insert the M.2 SSD into its slot inside the Embedded Computer.
3. Gently push down the M.2 SSD on top of the standoff and fasten it using a screw.

To install an M.2 2280 SSD:

1. (Optional) If a wireless card is installed, remove the screw holding it in place (A), replace it with a standoff (B), and skip to step 3.

1. (Optional) Replace the standoff if it was removed.

2. Align and insert the M.2 SSD into its slot inside the Embedded Computer.

3. Gently push down the M.2 SSD on top of the standoff and fasten it using a screw.

3.6 Installing a nano SIM card

1. (Optional) Remove the mPCIe or mSATA card, if one is installed, by removing the screw securing the mPCIe or mSATA card first, then removing the mPCIe or mSATA card.
2. Push the nano SIM cover in the direction away from the SO-DIMM slots.
3. Lift the nano SIM cover.
4. Place the nano SIM into the nano SIM slot.
5. Close the nano SIM cover.
6. Push the nano SIM cover towards the SO-DIMM slots to secure the nano SIM card.

3.7 Installing a wireless card to the M.2 (E-key) slot

1. Remove the M.2 screw.

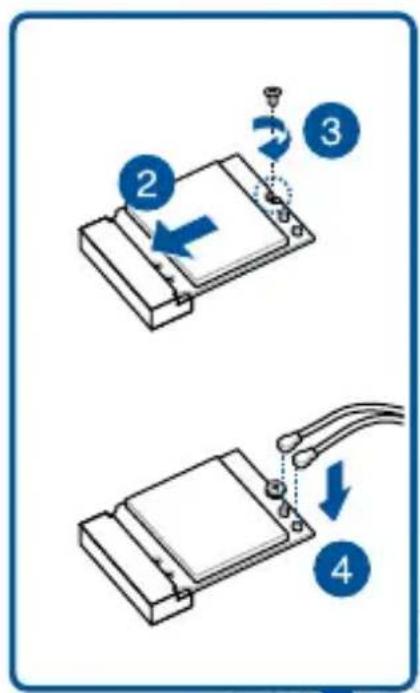

2. Align and insert the wireless card into the M.2 slot inside the Embedded Computer.
3. Gently push down the wireless card on top of the standoff, and then fasten it using the previously removed screw.
4. (Optional) Connect the RF cables from the antennas to your wireless card. Make sure that the correct cable is attached to each of the connectors by referring to the illustration on the next page.

NOTE:

- Please refer to the Installing antennas section for more information on installing the antennas.

- Connecting antennas to your wireless card may strengthen the wireless signal.

- A soft clicking sound indicates that the antenna has been securely attached on the wireless card.

3.8 Installing an mPCIe / mSATA module

Your Embedded Computer comes with an mPCIe / mSATA slot that allows you to install an LTE mPCIe module, mPCIe Coral TPU module, or mSATA storage module.

To install a 4G LTE mPCIe module:

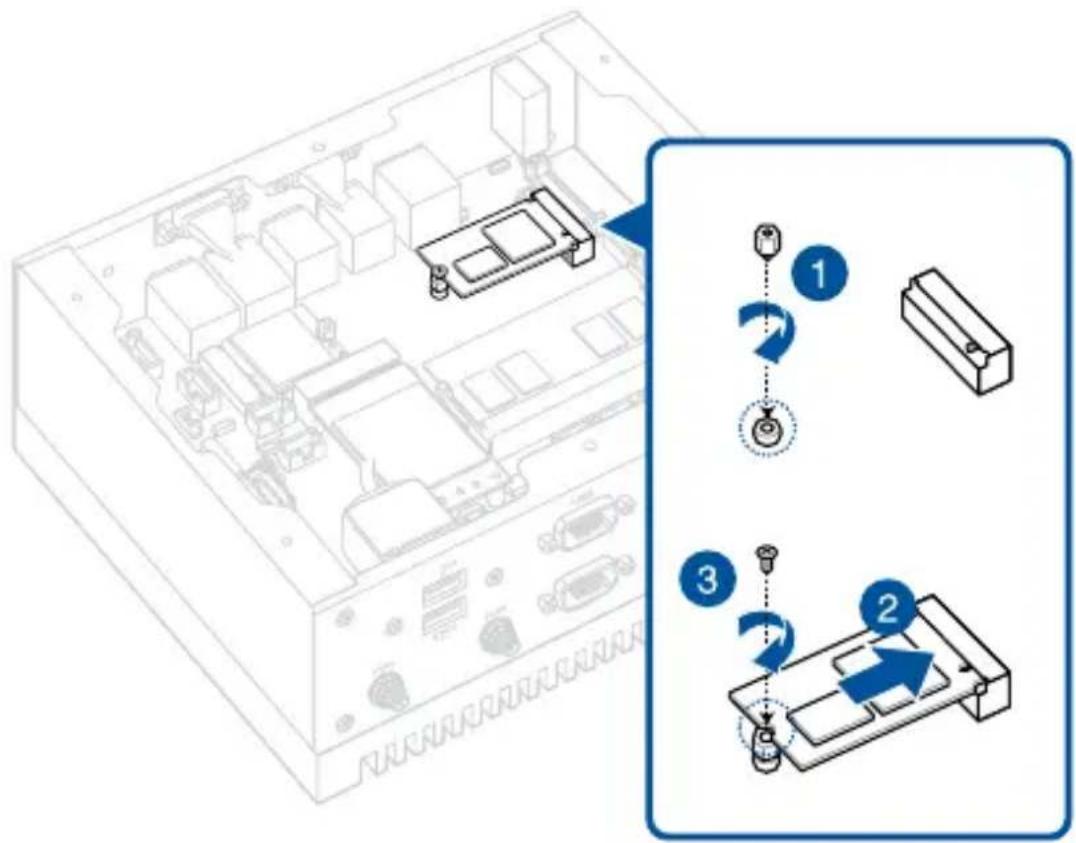

1. Remove the screw from the M.2 standoff.
2. Align and insert the LTE module into the slot.
3. Press down, and then secure it in place using the screw previously removed.
4. (Optional) Connect the RF cables from the antennas to your LTE module. Make that the correct cable is attached to each of the connectors by following chart on the next page.

NOTE:

- To enable the hot-plug function of your LTE module, click the weston-terminal icon in the upper left corner of your screen, and type the first command below when prompted:

mm_cli sim-detect 1 (enable hot-plug function)
mm_cli sim-detect 0 (disable hot-plug function)
mm_cli sim-detect (display current setting)

• Refer to Installing antennas for more information on installing the antennas.
• Connecting antennas to your LTE module may strengthen the signal.
• A soft clicking sound indicates that the antenna has been securely attached on the LTE module.

To install a 5G LTE mPCIe module:

1. Remove the screw from the M.2 standoff.
2. Align and insert the LTE module into the slot.
3. Press down, and then secure it in place using the screw previously removed.
4. (Optional) Connect the RF cables from the antennas to your LTE module. Make that the correct cable is attached to each of the connectors by following chart on the next page.

NOTE:

- To enable the hot-plug function of your LTE module, click the weston-terminal icon in the upper left corner of your screen, and type the first command below when prompted:

mm_cli sim-detect 1 (enable hot-plug function)
mm_cli sim-detect 0 (disable hot-plug function)
mm_cli sim-detect (display current setting)

• Refer to Installing antennas for more information on installing the antennas.
• Connecting antennas to your LTE module may strengthen the signal.
• A soft clicking sound indicates that the antenna has been securely attached on the LTE module.

To install an mSATA storage module:

1. Align and insert the mSATA storage module into the slot.
2. Press down, and then secure it in place using one (1) of the bundled screws.

3.9 Installing antennas (optional)

You may install antennas to the five (5) antenna jacks located on the front and rear panels. The installed antennas can be connected to an LTE module installed in the Mini PCIe/mSATA slot or to a wireless card installed in the M.2 Wi-Fi slot.

To install an antenna:

NOTE: If your Embedded Computer came pre-installed with wireless card antenna jacks, skip to step 8.

1. Remove the bottom cover. Refer to Removing the bottom cover for details.
2. Prepare the RF connector and cable.
3. Remove the rubber caps from the antenna holes.
4. Insert the antenna jack end of the RF connector and cable into the antenna hole from within the chassis outwards.

1. Insert the bundled O-ring over the antenna jack (A), then secure the antenna jack using one of the bundled hex screws (B).

1. Connect the other end of the RF connector and cable to your wireless card (refer to Installing a wireless card to the M.2 (E-key) slot for details) or to your WWAN card (refer to Installing an mPCIe / mSATA module for details).

2. Replace the bottom cover. Refer to Replacing the bottom cover for details.

3. Screw the external Wi-Fi antennas onto their corresponding antenna jacks on the front and rear panels by turning them in a clockwise direction.

4. Position the antennas for optimal signal reception.

3.10 Installing wall mount brackets (optional)

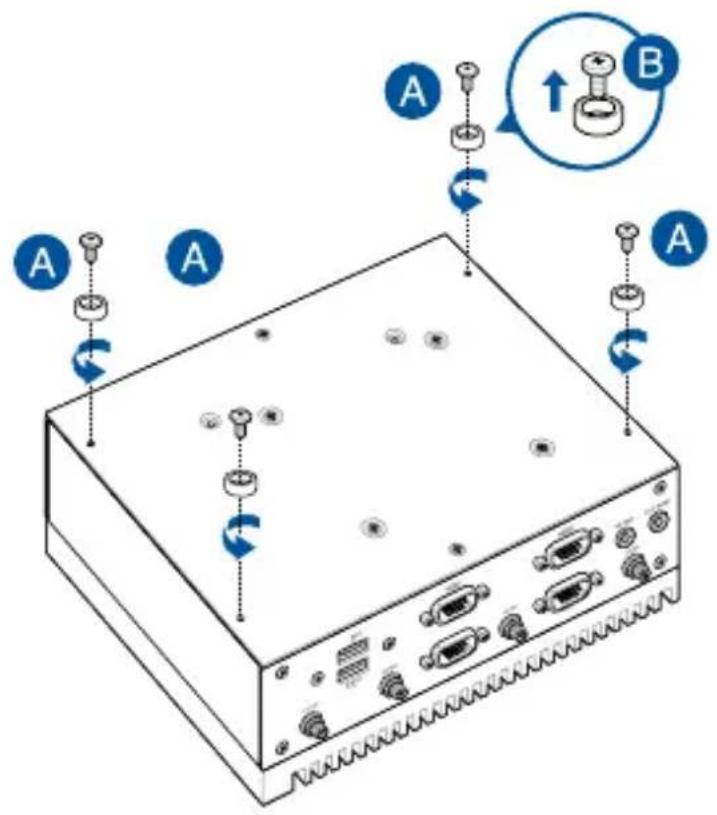

1. Remove the four (4) rubber feet screws (A), and then remove the rubber feet from the rubber feet screws (B).

1. Align the wall mount with the rubber feet screw holes (A), and then secure the wall mount brackets to your Embedded Computer using the rubber feet screws (B).

NOTE: The rubber feet and wall mount screws are the same screws.

3.11 Installing the VESA mount (optional)

You may install a VESA mount to your Embedded Computer, which allows you to install your Embedded Computer to a VESA mount-compatible device.

1. Place your Embedded Computer upside down on a flat and stable surface.

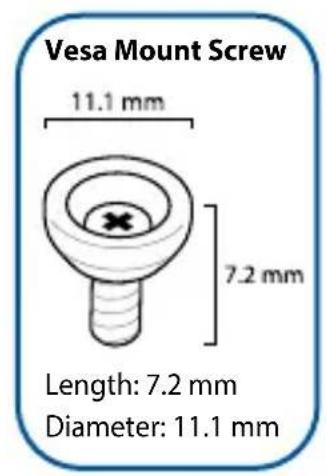

2. Attach the bundled two (2) 12mm screws into the screw holes at the bottom of your Embedded Computer.

Pure electrical circuit lines without any symbols

1. Remove the screw hole covers at the back of your VESA mount-compatible device, if they exist.

2. With the arrow on the VESA mounting plate pointing upward, align its screw holes to the screw holes of the VESA mount-compatible device.

3. Secure the VESA mounting plate to the VESA mount-compatible device using the bundled screws.

WARNING! Do not overtighten the screws as it may cause damage to your VESA mount-compatible device.

1. Remove the screw on the metal lock of the VESA mounting plate (A), and pull the metal lock outwards (B).

1. Position the Embedded Computer and insert the screws attached on the Embedded Computer to the mounting holes of the VESA mounting plate (A), then gently push the Embedded Computer down in the angle shown in the illustration to secure it in place (B).

Technical diagram showing a mechanical component with mounting holes and a close-up view of a device with two red circular features (no text or symbols present)

1. Push the metal lock back towards the Embedded Computer (A), and then secure it using the screw previously removed (B).

3.12 Installing DIN rail clips (optional)

1. Make sure that the wall mount brackets are already installed. Refer to the section Installing wall mount brackets for installation instructions.
2. Align the screw holes on the DIN rail clips to the ones on the wall mount brackets as shown below.
3. Secure the DIN rail clips to the wall mount brackets using the screws bundled with the DIN rail clips.

1. Clip the final assembly to a DIN rail by hooking the DIN rail clips to the top of the DIN rail and then pressing down until you hear the clips snap into place.

Watchdog Timer

4

4.1 Watchdog Timer implementation

There are two watchdog timer implementations designed on this product, the HW and POST watchdog timers. The watchdog timer circuit is in SuperIO and can be controlled by a hardware jumper and BIOS setup menu through the system BIOS for different boot phases.

Please refer to the table below for the different implementations of the Watchdog Timer.

Watchdog timer Implementation Default Timeout
HW Watchdog Timer	This Watchdog Timer can prevent the system from failing before BIOS takeover. After the system is powered on, the watchdog timer will start automatically through the jumper setting.	6 seconds.
	NOTE:Refer to the HW WDT enable jumper in the section Motherboard Overview for more information.The default setting for this jumper is set to HW WDT enabled with a jumper cap attached.

(continued on the next page)

Watchdog timer Implementation Default Timeout
POST Watchdog Timer	This Watchdog Timer is for recovering the system from crashes during BIOS takeover to OS. After system BIOS takeover, the BIOS will stop the HW watchdog timer and start the POST watchdog timer on the same hardware watchdog circuit.	The timeout value is determined by the BIOS settings.
	NOTE: The default setting for the BIOS item is set to enabled.
*OS Watchdog Timer	No implementation. User needs to write software in OS to keep updating the watchdog timer to prevent it from timing out. The application is executed on payload.	N/A
	NOTE: Please refer to the section Watchdog Timer Programming for more information.

4.2 Watchdog Timer flowchart

Please refer to the Watchdog Timer initialization flowchart below:

    subgraph Security (SEC)
        A
        B
        C
        D
    end

    subgraph Pre EFI Initialization (PEI)
        B
        C
        D
    end

    subgraph Driver Execution Environment (DXE)
        E
        F
    end

    subgraph Boot Dev Select (BDS)
        G
        H
        I
        J
        K
    end

    subgraph Transient System Load (TSL)
        K
        L
        M
    end

    subgraph Run Time (RT)
        M
        N
    end

    subgraph After Life (AL)
        N
    end

    note1[""Power on → [.. Platform initialization .."] --> [.... OS boot ....] --> Shutdown"]
    note2["+OS WDT"]

    note3["Exposed Platform Interface"]

    note4["Exposed Platform Interface"]

    note5["Exposed Platform Interface"]

    note6["Exposed Platform Interface"]

    note7["Exposed Platform Interface"]

    note8["Exposed Platform Interface"]

    note9["Exposed Platform Interface"]

    note10["Exposed Platform Interface"]

    note11["Exposed Platform Interface"]

    note12["Exposed Platform Interface"]

    note13["Exposed Platform Interface"]

    note14["Exposed Platform Interface"]

    note15["Exposed Platform Interface"]

    note16["Exposed Platform Interface"]

    note17["Exposed Platform Interface"]

    note18["Exposed Platform Interface"]

    note19["Exposed Platform Interface"]

    note20["Exposed Platform Interface"]

    note21["Exposed Platform Interface"]

    note22["Exposed Platform Interface"]

    note23["Exposed Platform Interface"]

    note24["Exposed Platform Interface"]

    note25["Exposed Platform Interface"]

    note26["Exposed Platform Interface"]

    note27["Exposed Platform Interface"]

    note28["Exposed Platform Interface"]

    note29["Exposed Platform Interface"]

    note30["Exposed Platform Interface"]

    note31["Exposed Platform Interface"]

    note32["Exposed Platform Interface"]

    note33["Exposed Platform Interface"]

    note34["Exposed Platform Interface"]

    note35["Exposed Platform Interface"]

    note36["Exposed Platform Interface"]

    note37["Exposed Platform Interface"]

    note38["Exposed Platform Interface"]

    note39["Exposed Platform Interface"]

    note40["Exposed Platform Interface"]

    note41["Exposed Platform Interface"]

    note42["Exposed Platform Interface"]

    note43["Exposed Platform Interface"]

    note44["Exposed Platform Interface"]

    note45["Exposed Platform Interface"]

    note46["Exposed Platform Interface"]

    note47["Exposed Platform Interface"]

    note48["Exposed Platform Interface"]

    note49["Exposed Platform Interface"]

    note50["Exposed Platform Interface"]

    note51["Exposed Platform Interface"]

    note52["Exposed Platform Interface"]

    note53["Exposed Platform Interface"]

    note54["Exposed Platform Interface"]

    note55["Exposed Platform Interface"]

    note56["Exposed Platform Interface"]

    note57["Exposed Platform Interface"]

    note58["Exposed Platform Interface"]

    note59["Exposed Platform Interface"]

    note60["Exposed Platform Interface"]

    note61["Exposed Platform Interface"]

    note62["Exposed Platform Interface"]

    note63["Exposed Platform Interface"]

    note64["Exposed Platform Interface"]

    note65["Exposed Platform Interface"]

    note66["Exposed Platform Interface"]

    note67["Exposed Platform Interface"]

    note68["Exposed Platform Interface"]

    note69["Exposed Platform Interface"]

    note70["Exposed Platform Interface"]

    note71["Exposed Platform Interface"]

    note72["Exposed Platform Interface"]

    note73["Exposed Platform Interface"]

    note74["Exposed Platform Interface"]

    note75["Exposed Platform Interface"]

    note76["Exposed Platform Interface"]

    note77["Exposed Platform Interface"]

    note78["Exposed Platform Interface"]

    note79["Exposed Platform Interface"]

    note80["Exposed Platform Interface"]

    note81["Exposed Platform Interface"]

    note82["Exposed Platform Interface"]

    note83["Exposed Platform Interface"]

    note84["Exposed Platform Interface"]

    note85["Exposed Platform Interface"]

    note86["Exposed Platform Interface"]

    note87["Exposed Platform Interface"]

    note88["Exposed Platform Interface"]

    note89["Exposed Platform Interface"]

    note90["Exposed Platform Interface"]

    note91["Exposed Platform Interface"]

    note92["Exposed Platform Interface"]

    note93["Exposed Platform Interface"]

    note94["Exposed Platform Interface"]

    note95["Exposed Platform Interface"]

    note96["Exposed Platform Interface"]

    note97["Exposed Platform Interface"]

    note98["Exposed Platform Interface"]

    note99["Exposed Platform Interface"]

    note100["Exposed Platform Interface"]

    Note110["Exposed Platform Interface"]

    Note120["Exposed Platform Interface"]

    Note130["Exposed Platform Interface"]

    Note140["Exposed Platform Interface"]

    Note150["Exposed Platform Interface"]

    Note160["Exposed Platform Interface"]

    Note170["Exposed Platform Interface"]

    Note180["Exposed Platform Interface"]

    Note190["Exposed Platform Interface"]

    Note200["Exposed Platform Interface"]

    Note210["Exposed Platform Interface"]

    Note220["Exposed Platform Interface"]

    Note230["Exposed Platform Interface"]

    Note240["Exposed Platform Interface"]

    Note250["Exposed Platform Interface"]

    Note260["Exposed Platform Interface"]

    Note270["Exposed Platform Interface"]

    Note280["Exposed Platform Interface"]

    Note290["Exposed Platform Interface"]

    Note300["Exposed Platform Interface"]

    Note310["Exposed Platform Interface"]

    Note320["Exposed Platform Interface"]

    Note330["Exposed Platform Interface"]

    Note340["Exposed Platform Interface"]

    Note350["Exposed Platform Interface"]

    Note360["Exposed Platform Interface"]

    Note370["Exposed Platform Interface"]

    Note380["Exposed Platform Interface"]

    Note390["Exposed Platform Interface"]

    Note400["Exposed Platform Interface"]

    Note410["Exposed Platform Interface"]

    Note420["Exposed Platform Interface"]

    Note430["Exposed Platform Interface"]

    Note440["Exposed Platform Interface"]

    Note450["Exposed Platform Interface"]

    Note460["Exposed Platform Interface"]

    Note470["Exposed Platform Interface"]

    Note480["Exposed Platform Interface"]

    Note490["Exposed Platform Interface"]

    Note500["Exposed Platform Interface"]

    Note510["Exposed Platform Interface"]

    Note520["Exposed Platform Interface"]

    Note530["Exposed Platform Interface"]

    Note540["Exposed Platform Interface"]

    Note550["Exposed Platform Interface"]

    Note560["Exposed Platform Interface"]

    Note570["Exposed Platform Interface"]

    Note580["Exposed Platform Interface"]

    Note590["Exposed Platform Interface"]

    Note600["Exposed Platform Interface"]


    Note610["Exposed Platform Interface"]

    Note620["Exposed Platform Interface"]


    Note630["Exposed Platform Interface"]


    Note640["Exposed Platform Interface"]


    Note650["Exposed Platform Interface"]


    Note660["Exposed Platform Interface"]


    Note670["Exposed Platform Interface"]


    Note680["Exposed Platform Interface"]


    Note690["Exposed Platform Interface"]


    Note700["Exposed Platform Interface"]


    Note710["Exposed Platform Interface"]


    Note720["Exposed Platform Interface"]


    Note730["Exposed Platform Interface"]


    Note740["Exposed Platform Interface"]


    Note750["Exposed Platform Interface"]


    Note760["Exposed Platform Interface"]


    Note770["Exposed Platform Interface"]


    Note780["Exposed Platform Interface"]


    Note790["Exposed Platform Interface"]


    Note800["Exposed Platform Interface"]


    Note810["Exposed Platform Interface"]


    Note820["Exposed Platform Interface"]


    Note830["Exposed Platform Interface"]


    Note840["Exposed Platform Interface"]


    Note850["Exposed Platform Interface"]


    Note860["Exposed Platform Interface"]


    Note870["Exposed Platform Interface"]


    Note880["Exposed Platform Interface"]


    Note890["Exposed Platform Interface"]


    Note900["Exposed Platform Interface"]


    Note910["Exposed Platform Interface"]


    Note920["Exposed Platform Interface"]


    Note930["Exposed Platform Interface"]


    Note940["Exposed Platform Interface"]


    Note950["Exposed Platform Interface"]


    Note960["Exposed Platform Interface"]


    Note970["Exposed Platform Interface"]


    Note980["Exposed Platform Interface"]


    Note990["Exposed Platform Interface"]


    Note1000["Eligible EPi"] --> B

4.3 Watchdog Timer Programming

Please refer to the pseudo code for the NCT6116D watchdog timer programming below:

SIO_INDEX_PORT is 0x2E

SIO_DATA_PORT is 0x2F

1. Set WDT Time Unit

Outportb(SIO_INDEX_PORT, 0x87); // Unlock SIO

Outportb(SIO_INDEX_PORT, 0x87); // Unlock SIO

Outportb(SIO_INDEX_PORT, 0x07);

Outportb(SIO_DATA_PORT, 0x08);

Outportb(SIO_INDEX_PORT, 0xF0);

val = Inportb(SIO_DATA_PORT) // Read current WDT setting

val = val | 0x08; // minute mode, val = val & 0xF7 if second mode

Outportb(SIO_INDEX_PORT, 0xF0);

Outportb(SIO_DATA_PORT, val); // Write back WDT setting

Outportb(SIO_INDEX_PORT, 0xAA); // Lock SIO

2. Set WDT Time

Outportb(SIO_INDEX_PORT, 0x87); // Unlock SIO
Outportb(SIO_INDEX_PORT, 0x87); // Unlock SIO
Outportb(SIO_INDEX_PORT, 0x07);
Outportb(SIO_DATA_PORT, 0x08);
Outportb(SIO_INDEX_PORT, 0xF1);
Outportb(SIO_DATA_PORT, Time); // Write WDT time, value 1 to 255
Outportb(SIO_INDEX_PORT, 0xAA); // Lock SIO

3. Enable WDT

Outportb(SIO_INDEX_PORT, 0x87); // Unlock SIO
Outportb(SIO_INDEX_PORT, 0x87); // Unlock SIO

Outportb(SIO_INDEX_PORT, 0x07);
Outportb(SIO_DATA_PORT, 0x08);
Outportb(SIO_INDEX_PORT, 0x30);
val = Inportb(SIO_DATA_PORT) // Read current WDT status

val = val | 0x01; // Enable WDT Timer

Outportb(SIO_INDEX_PORT, 0x30);
Outportb(SIO_DATA_PORT, val); // Write back WDT status

Outportb(SIO_INDEX_PORT, 0xAA); // Lock SIO

4. Disable WDT

Outportb(SIO_INDEX_PORT, 0x87); // Unlock SIO

Outportb(SIO_INDEX_PORT, 0x87); // Unlock SIO

Outportb(SIO_INDEX_PORT, 0x07);

Outportb(SIO_DATA_PORT, 0x08);

Outportb(SIO_INDEX_PORT, 0xF1);

Outportb(SIO_DATA_PORT, 0x00); // Clear WDT time, it means WDT Time-Out disable

Outportb(SIO_INDEX_PORT, 0x30);

val = Inportb(SIO_DATA_PORT) // Read current WDT status

val = val & 0xFE; // Disable WDT Timer

Outportb(SIO_INDEX_PORT, 0x30);

Outportb(SIO_DATA_PORT, val); // Write back WDT status

Outportb(SIO_INDEX_PORT, 0xAA); // Lock SIO

Appendix

Safety information

Your Embedded Computer is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions.

Setting up your system

• Read and follow all instructions in the documentation before you operate your system.
• Do not use this product near water or a heated source.
• Set up the system on a stable surface.
• Peripherals with extended tolerance (such as industrial grade mSATA and micro SD card) will allow this product to be used in environments with ambient temperatures between 0°C and 40°C with 0.1 m/s air flow.
• The product should be used in environments with an ambient temperature of 40^ when using the 90 W / 120 W power adapter.
• If you use an extension cord, make sure that the total ampere rating of the devices plugged into the extension cord does not exceed its ampere rating.
• This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.
• Restricted Access Location:

The equipment should only be installed in a Restricted Access Area where both these conditions apply:

• access can only be gained by USERS who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken; and
• access is through the use of a TOOL or lock and key, or other means of security, and is controlled by the authority responsible for the location.

- This device shall not be connected to an Ethernet network with outside plant routing.

Care during use

• Do not walk on the power cord or allow anything to rest on it.
• Do not spill water or any other liquids on your system.
• When the system is turned off, a small amount of electrical current still flows. Always unplug the power cord from the power outlets before cleaning the system.
• If you encounter the following technical problems with the product, unplug the power cord and contact a qualified service technician or your retailer.
• The power cord or plug is damaged.
  – Liquid has been spilled into the system.
• The system does not function properly even if you follow the operating instructions.
• The system was dropped or the cabinet is damaged.
• The system performance changes.

Safety Precautions

Accessories that came with this product have been designed and verified for the use in connection with this product. Never use accessories for other products to prevent the risk of electric shock or fire.

Lithium-Ion Battery Warning

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

NO DISASSEMBLY

The warranty does not apply to the products that have been disassembled by users

Regulatory notices

COATING NOTICE

IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied to insulate the device except on the areas where the I/O ports are located.

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
• This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

IMPORTANT! Outdoor operations in the 5.15\~5.25 GHz band is prohibited. This device has no Ad-hoc capability for 5250\~5350 and 5470\~5725 MHz.

CAUTION! Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment.

RF exposure warning

This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

End Product Labeling

This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users.

ISED Radiation Exposure Statement for Canada

This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with ISED RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. End users must follow the specific operating instructions for satisfying RF exposure compliance.

Operation is subject to the following two conditions:

• This device may not cause interference and
- This device must accept any interference, including interference that may cause undesired operation of the device.

Compliance Statement of Innovation, Science and Economic Development Canada (ISED)

This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CAN ICES-003(A)/NMB-003(A)

Wireless Operation Channel for Different Domains

N. America 2.412-2.462 GHz Ch01 through CH11

Japan 2.412-2.484 GHz Ch01 through Ch14

Europe ETSI 2.412-2.472 GHz Ch01 through Ch13

KC: Korea Warning Statement

Class A:

사용자 안내문

Japan RF Equipment Statement

屋外での使用について

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Declaration of compliance for product environmental regulation

ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements.

Please refer to https://csr.asus.com/Compliance.htm for information disclosure based on regulation requirements ASUS is complied with:

EU REACH and Article 33

Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulatory framework, we publish the chemical substances in our products at ASUS REACH website at https://csr.asus.com/english/REACH.htm

EU RoHS

This product complies with the EU RoHS Directive. For more details, see https://csr.asus.com/english/article.aspx?id=35

Japan JIS-C-0950 Material Declarations

Information on Japan RoHS (JIS-C-0950) chemical disclosures is available on https://csr.asus.com/english/article.aspx?id=19

India RoHS

This product complies with the “India E-Waste (Management) Rules, 2016” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1% by weight in homogenous materials and 0.01% by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule II of the Rule.

Vietnam RoHS

ASUS products sold in Vietnam, on or after September 23, 2011, meet the requirements of the Vietnam Circular 30/2011/TT-BCT.

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to https://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

Ecodesign Directive

European Union announced a framework for the setting of ecodesign requirements for energy-related products (2009/125/EC). Specific Implementing Measures are aimed at improving environmental performance of specific products or across multiple product types. ASUS provides product information on the CSR website. The further information could be found at https://csr.asus.com/english/article.aspx?id=1555.

低功率電波輻射性電機管理辦法

Taiwan NCC Warning Statement

Article 12: Without permission, any company, firm or user shall not alter the frequency, increase the power, or change the characteristic and functions of the original design of the certified lower power frequency electric machinery.

Article 14: The application of lower power frequency electric machineries shall not affect the navigation safety nor interfere alegal communication, if an interference is found, the service will be suspended until improvement is made and the interference no longer exists.

甲類警語

Visit our multi-language website at https://www.asus.com/support/.
