| Product Type | PCI Express Serial Card |
| Model | PCIE-1612B-AE |
| Brand | Advantech |
| Serial Ports | 2 ports (RS-232/422/485) |
| Interface | PCI Express x1 |
| Data Rate | Up to 921.6 kbps |
| Dimensions | 120 x 30 mm (half-length) |
| Weight | 85 g |
| Power Consumption | 2.5 W (typical) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 80°C |
| Humidity | 5% to 95% non-condensing |
| Maintenance | Keep dry; clean with a soft, dry cloth |
| Safety Precautions | Handle with ESD protection; power off before installation |
| Spare Parts | Not user-replaceable; contact Advantech support |
| Compatibility | Windows, Linux (drivers available) |
| Warranty | Typical 2 years on hardware |
Frequently Asked Questions - PCIE-1612B-AE Advantech
How do I install the PCIE-1612B-AE card?

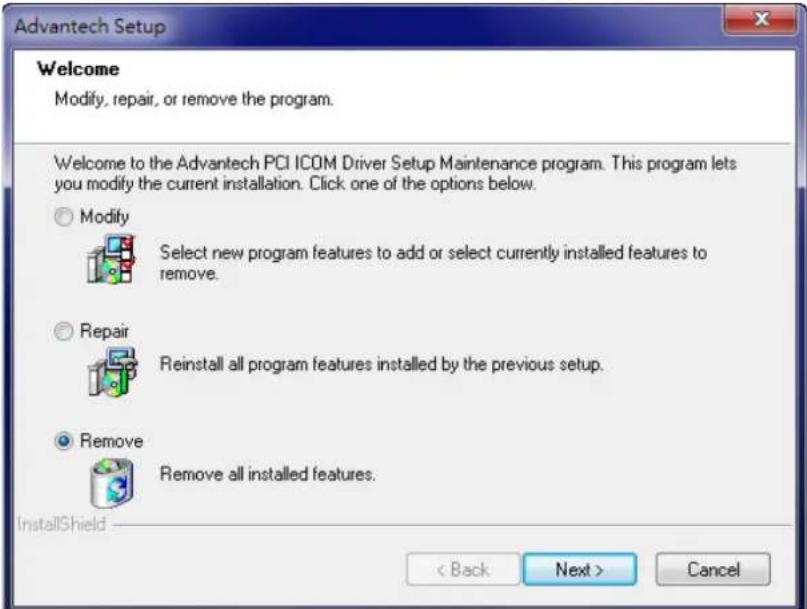

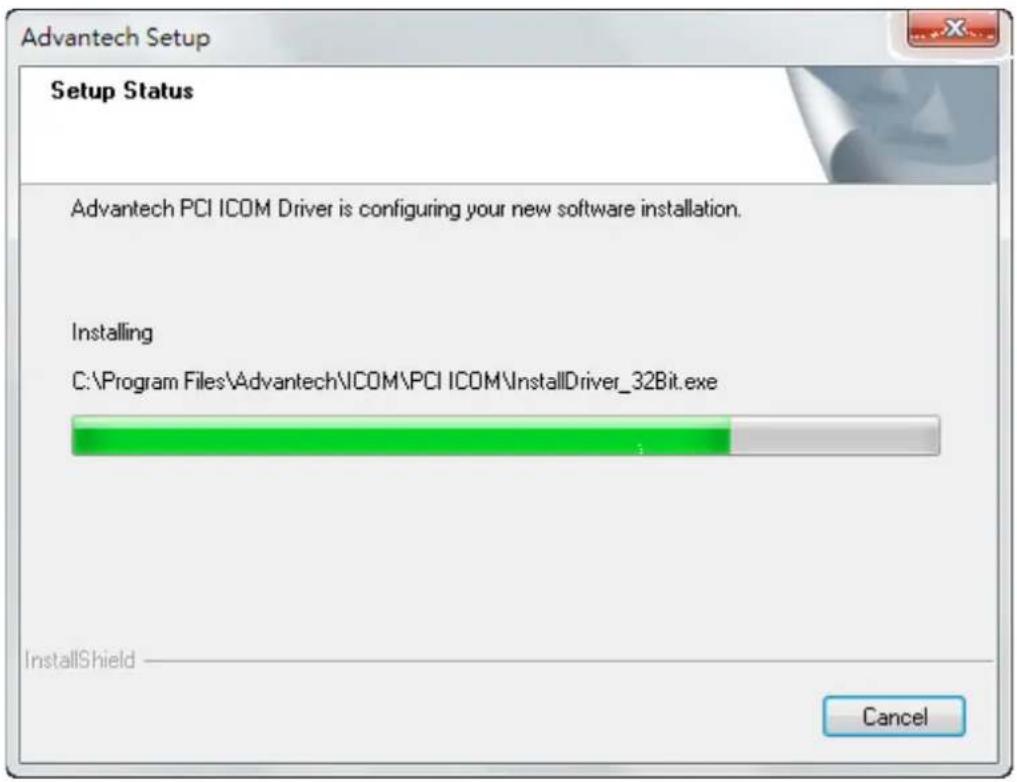

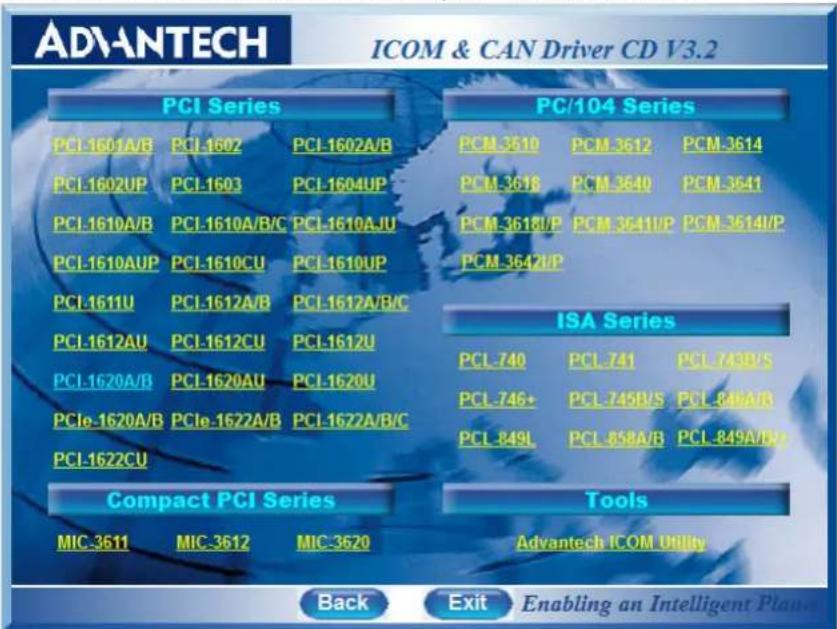

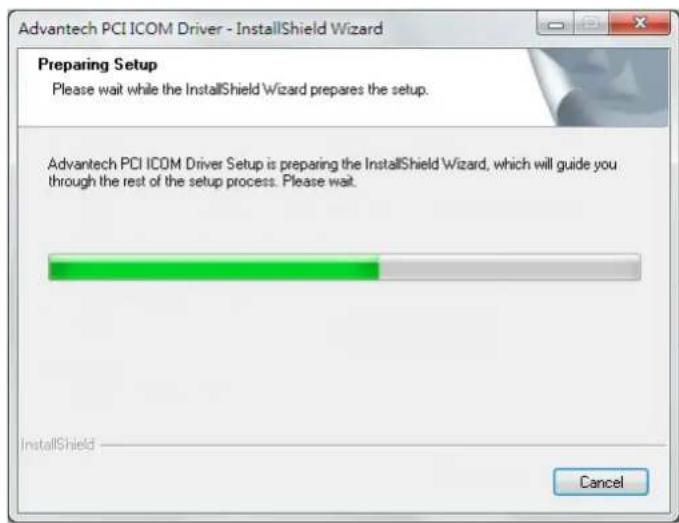

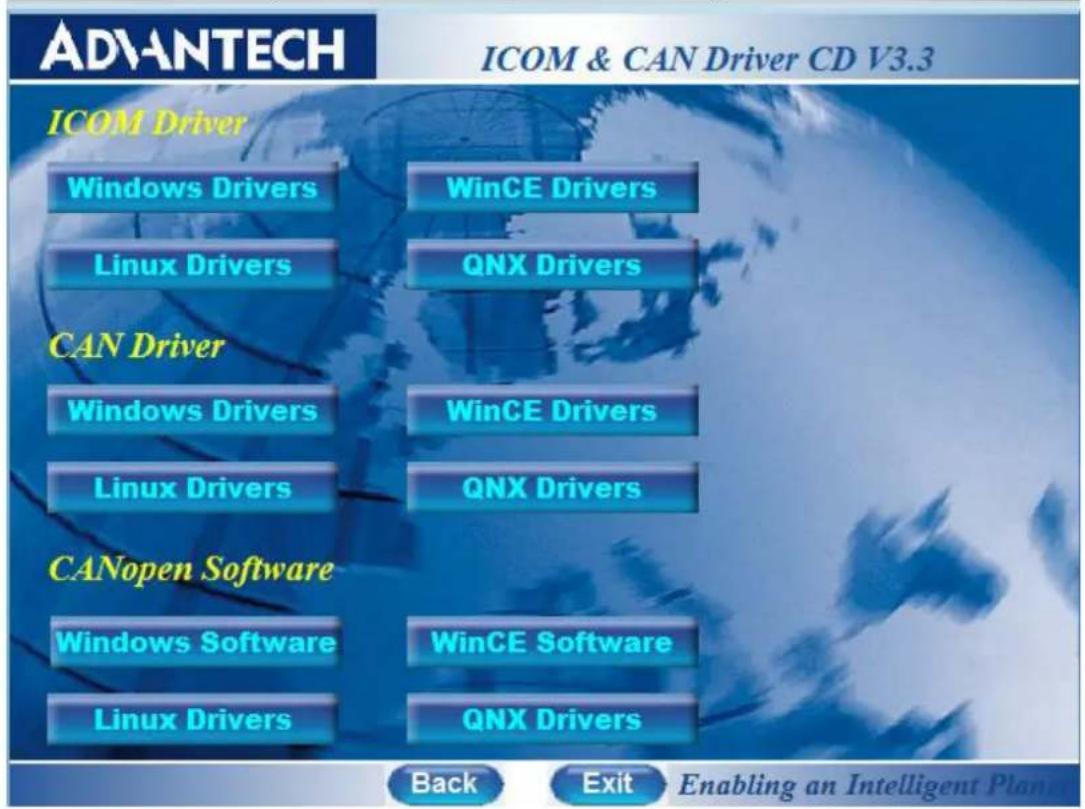

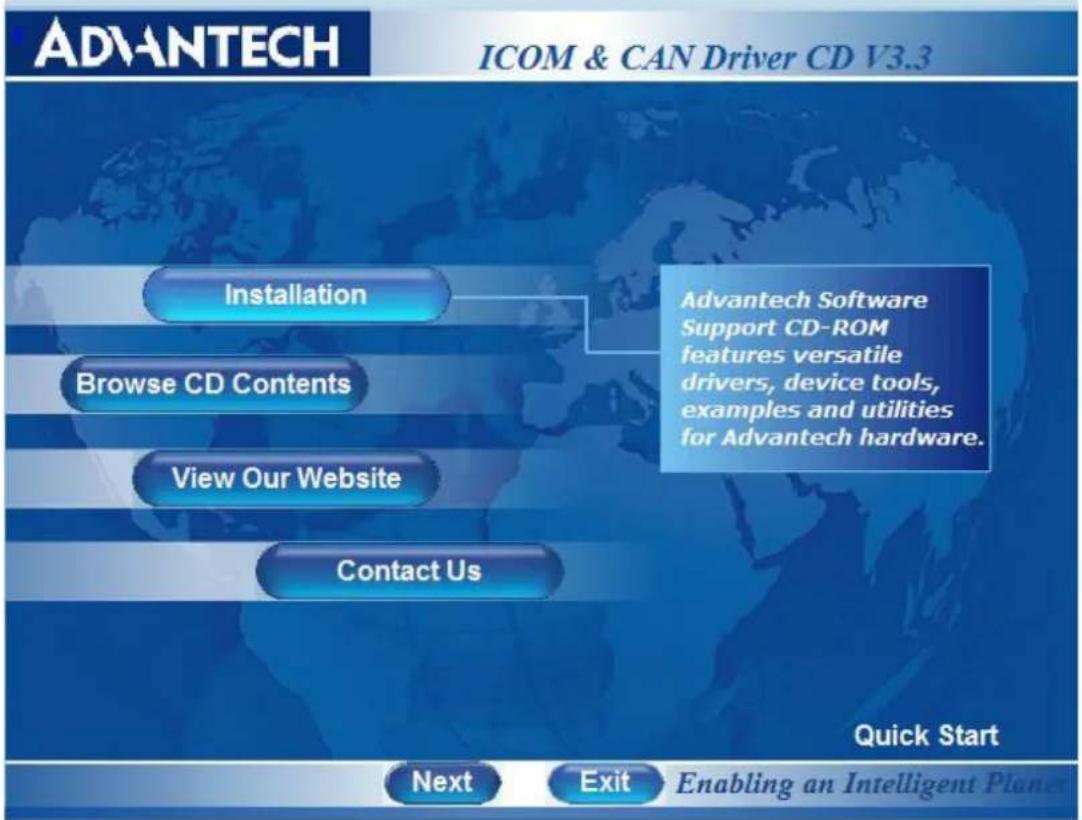

Power off your computer, open the case, insert the card into an available PCI Express slot, secure it, close the case, and boot up. Install the appropriate drivers from Advantech's website.
Which operating systems are supported?
The card supports Windows (7/8/10/11) and Linux. Check Advantech's driver page for specific kernel versions.

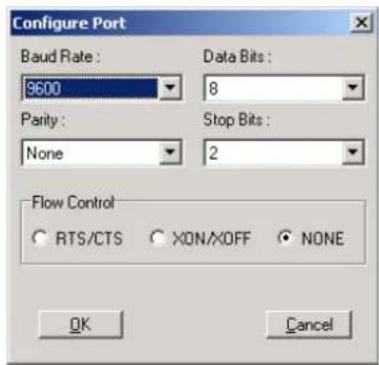

How do I configure the serial ports?

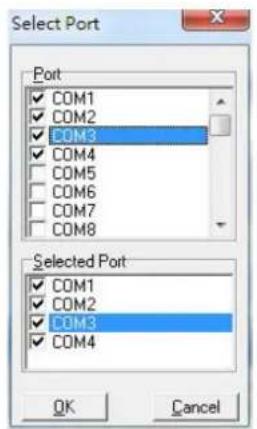

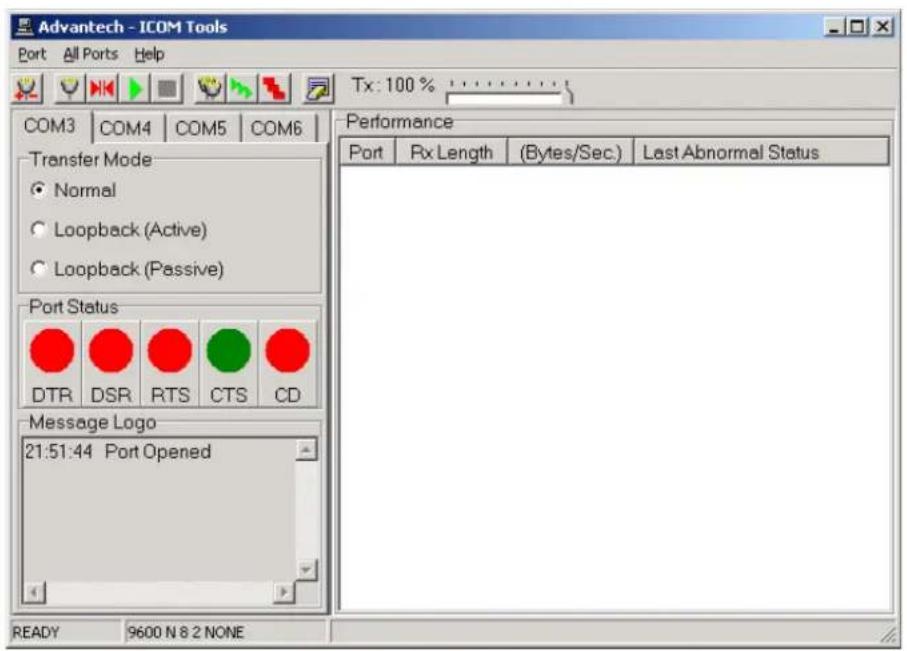

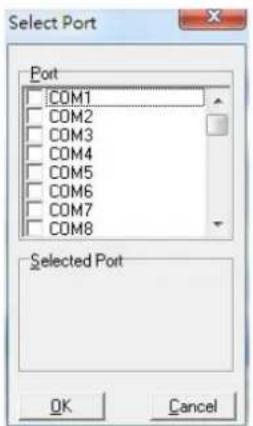

After driver installation, use Device Manager (Windows) or a terminal program to set baud rate, data bits, etc. Each port is independently configurable.
What is the maximum cable length?
For RS-232, up to 15 meters (50 ft). For RS-422/485, up to 1200 meters (4000 ft) depending on baud rate and wiring.
Can I use RS-422 and RS-485 on the same port?
Each port's mode is set via DIP switches or software. Some models allow per-port configuration. Refer to the manual for your specific revision.
The card is not detected; what should I do?
Ensure the card is fully seated in the slot. Check BIOS settings for PCIe devices. Try a different slot if available. Update drivers or test in another PC.
Do I need external power?
No, the card is powered entirely through the PCI Express bus. Typical power draw is 2.5 W, well within slot limits.
How do I clean the card?
Use a soft, dry cloth to wipe the exterior. For connectors, use isopropyl alcohol and a lint-free swab. Ensure the card is dry before reinstallation.

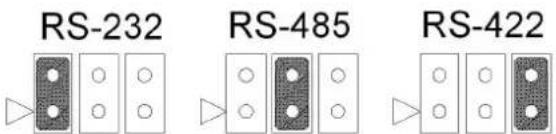

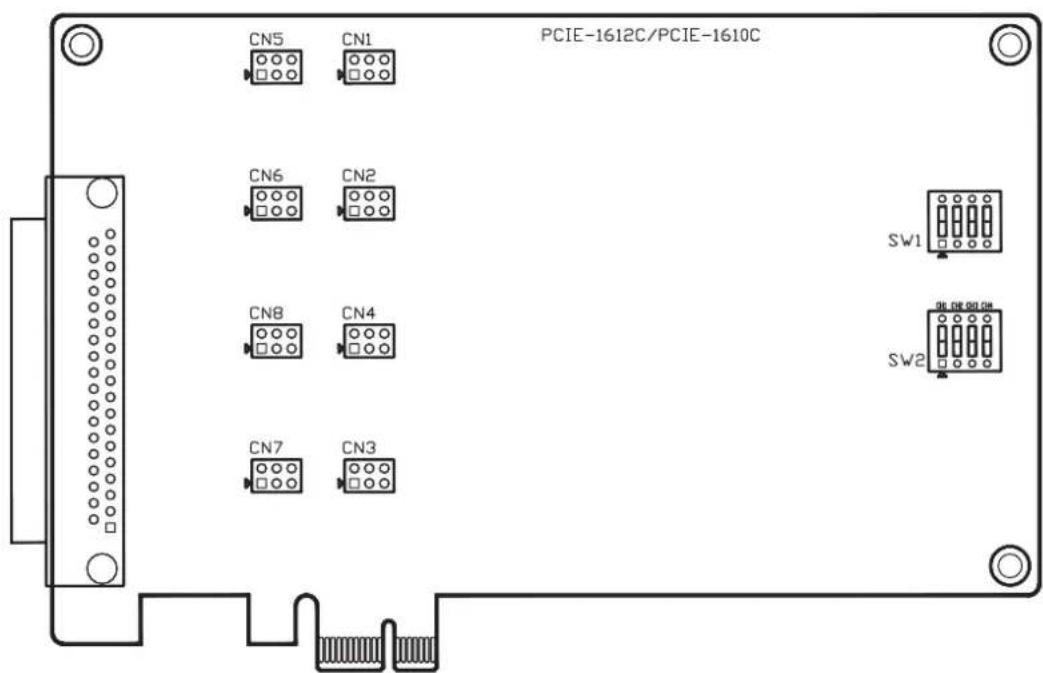

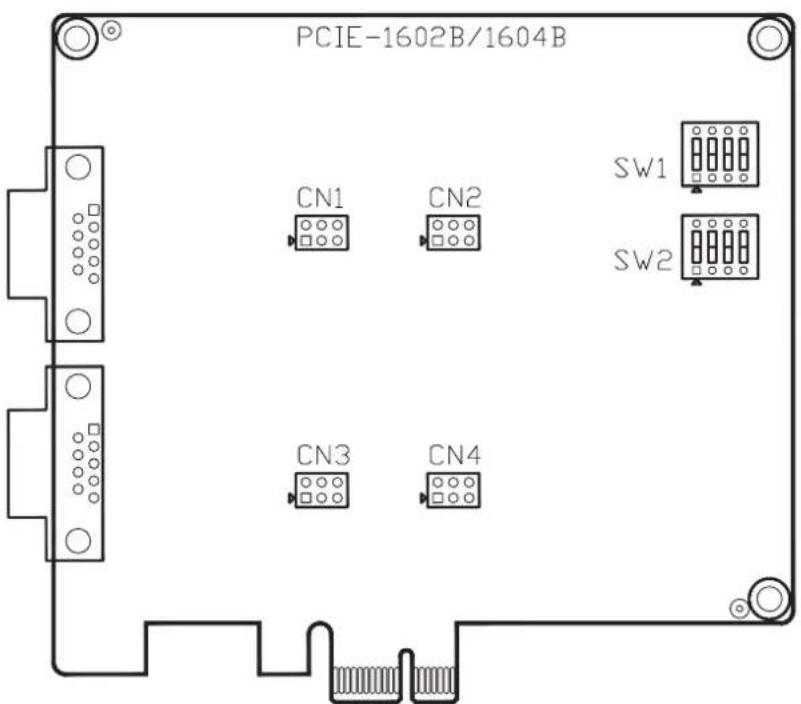

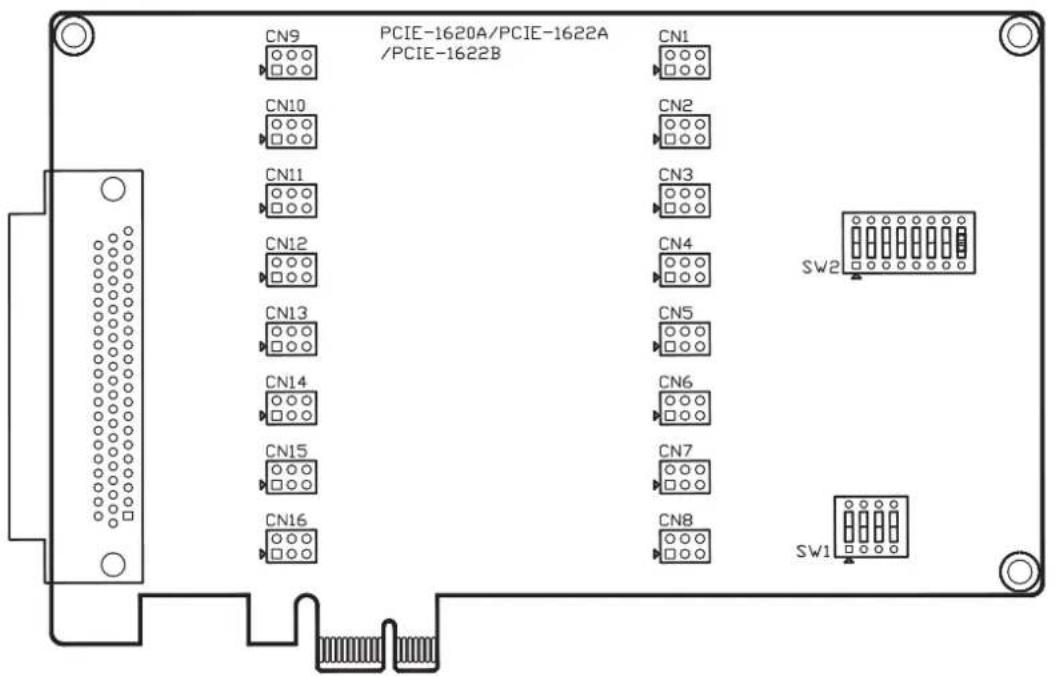

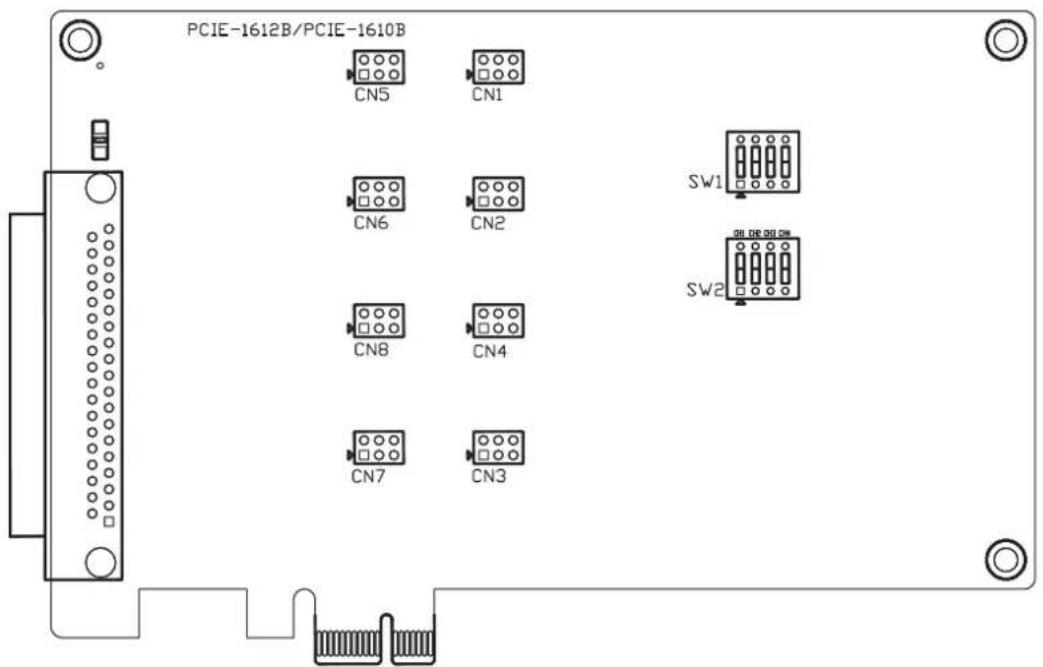

Are there any jumper settings?

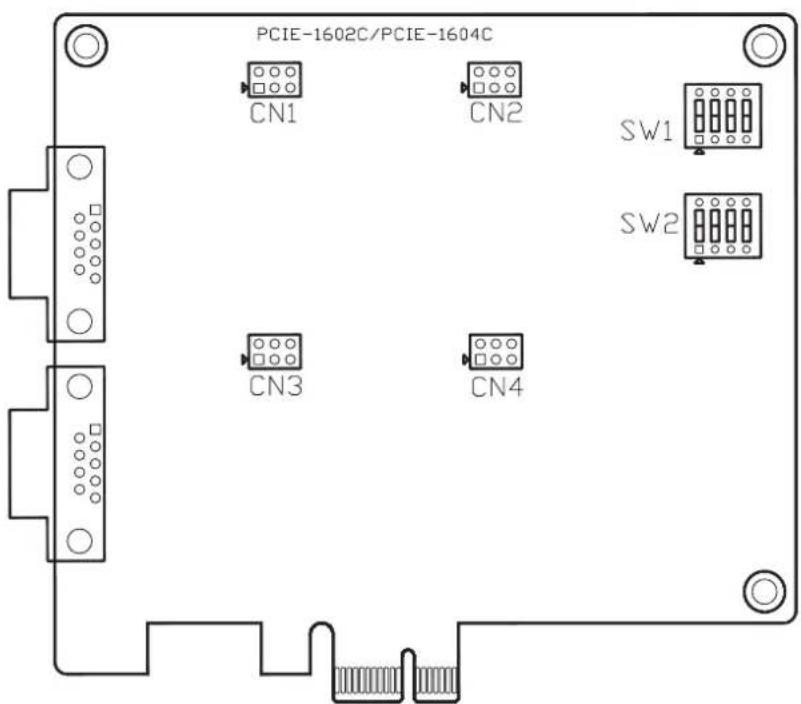

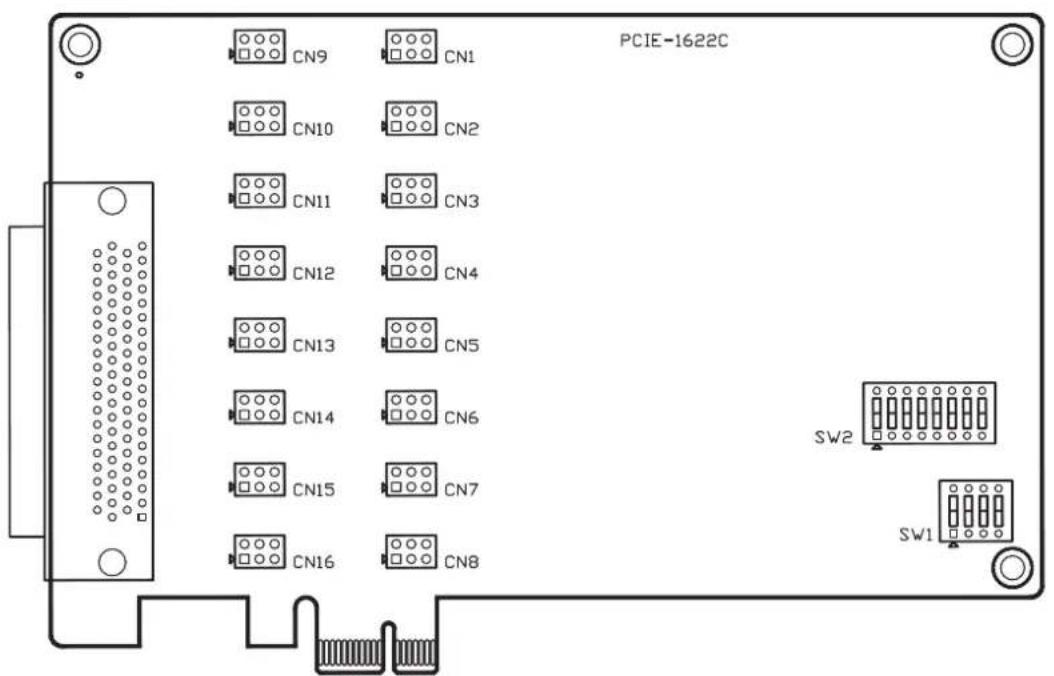

The PCIE-1612B-AE may have DIP switches for termination or port mode. See the manual for exact locations and settings.
What should I do if a port stops working?
Check cable connections and termination. Swap ports to isolate the issue. Reinstall drivers. If faulty, contact Advantech support for RMA.
