Product Type	Microwave Oven
Brand	Khind
Model	MW2001D
Voltage	230-240V, 50Hz
Input Power	1100W
Output Power	700W at 2450MHz
Capacity	20L
Net Weight	9.4 kg
Product Dimensions (L x W x H)	446 x 323 x 243 mm
Control Panel	Digital LED display with tactile buttons
Turntable	Glass tray with roller ring, removable for cleaning
Door Type	Front opening with safety interlock system
Child Lock	Auto lock after 1 minute of inactivity; unlock by opening door
Defrost Function	Weight-based, up to 2000g, with pause for turning food
Auto Cook Menus	6 presets: Potato, Popcorn, Pizza, Beverage, Frozen Dinner, Reheat
Microwave Power Levels	11 levels (0% to 100%)
Express Cooking	Press number 1-6 for 1-6 minutes at full power
Timer	Up to 99 minutes 99 seconds
Clock	12/24-hour selectable
Multistage Cooking	Up to 2 stages (microwave only)
Cleaning	Wipe interior with damp cloth; turntable and roller ring dishwasher safe
Safety Features	Door safety interlock, auto shut-off, grounded plug required
Installation	Freestanding only; do not place in cabinet; allow 20cm top, 10cm back, 5cm sides clearance
Included Accessories	Turntable glass tray, roller ring, user manual

Frequently Asked Questions - MW2001D Khind

How do I set the clock on the Khind MW2001D?

In standby mode, press and hold CLOCK/TIMER for more than 3 seconds to select 12-hour or 24-hour format. Use the number buttons to enter the time, then press CLOCK/TIMER again to confirm.

Can I use metal utensils or aluminum foil in this microwave?

No, metal utensils and dishes with metallic trim should not be used because microwaves cannot penetrate metal and may cause sparks. Narrow strips of aluminum foil (<1 inch wide) can be used to prevent overcooking, but keep at least 2.54 cm away from cavity walls.

How does the Auto Cook function work?

Press the desired auto cook menu button (e.g., Potato, Popcorn, Pizza) repeatedly to select the weight or servings quantity. Then press START to begin. The oven automatically sets time and power for optimal results.

What should I do if the microwave doesn’t start?

Ensure the door is fully closed and the safety interlock is engaged. Check that the power cord is plugged into a grounded outlet. If the display shows Loc, child lock is active – open and close the door to unlock.

How do I defrost food?

Press DEFROST once, then enter the food weight in grams (up to 2000g) using the number buttons. Press START. The oven will pause halfway to remind you to turn the food over, then press START again to continue.

Can I cook in multiple stages?

Yes, you can program up to 2 cooking sequences (e.g., high power then low power). Set the first stage (power + time) then set the second stage without pressing START between them. Press START to run both stages sequentially.

How to clean the microwave properly?

Unplug the oven. Wipe the interior with a damp cloth; for stubborn stains use mild detergent. The turntable glass tray and roller ring can be washed in warm soapy water or a dishwasher. Do not use abrasive cleaners or steam cleaners.

Why does my microwave make noise or vibrate?

Ensure the turntable glass tray and roller ring are correctly positioned. Clean the roller ring and oven base regularly to reduce noise. The microwave also requires proper ventilation – allow 20 cm above, 10 cm behind, and 5 cm on each side.

What is the maximum cooking time?

The maximum cooking time you can set is 99 minutes and 99 seconds. For timer function (countdown), the same limit applies.

Is the Khind MW2001D suitable for commercial use?

No, this microwave oven is designed for household use only. Using it in commercial or industrial environments will void the warranty.

USER MANUAL MW2001D Khind

USER MANUAL

KHIND®

Experience More

MICROWAVE

OVEN

MW2001D

Line drawing of a microwave oven (no text or symbols)

KHIND CARE Mobile App

Mobile App

Download to register for

E-warranty & enjoy hassle-free after-sales services.

1-800-88-0032

khind.com.my

IMPORTANT

Please read this manual carefully before operating this product. Keep this manual hand put a timer reference

P/N: 40-51644-01

Safety Precaution Information1

Precautions to avoid possible exposure to excessive microwave energy

(a) Do not attempt to operate this microwave oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not tamper with, or make any adjustment or repairs the door, control panel, safety interlocks or any other parts of the microwave by your own.
(b) Do no place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) Do no operate the microwave oven if it is damaged. It is particularly important that the microwave door closes properly and that there is no damage to the:
- Door (bent);
- Hinges and latches (broken or loosened):
- Door seals and sealing surfaces.
(d) The microwave oven should not be adjusted or repair by anyone except authorized service agent, after-sales service center, or properly qualified service personnel in order to avoid hazard.

Safety & Warning Information

1. Read all instructions before using the appliance.
2. Insert power plug to AC mains securely. Never operate with wet hands or when the plug is well, otherwise it may lead to electric shock.

3. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience or knowledge, unless they have given supervision or instruction, concerning the use of appliance by a person responsible for their safety.
   Children should be supervised to ensure that they do not play with the appliance.

4. This appliance is designed to use as described in the manual. Do not use corrosive chemicals or vapor in this appliance. This type of microwave oven is specially designed to heat or cook food only, use for industrial or laboratory use will void the warranty.

5. Do not operate the microwave oven when it is empty.

6. If the power cord is damaged, it must be replaced by the manufacturer, its authorized service agent or similarly qualified persons in order to avoid a hazard.

7. To reduce the risk of fire in the oven cavity:

- When food is heated or cooked in disposable containers of plastic, paper or other combustible materials, check the oven frequently to the possibility of ignition of deterioration of food container.

- Remove wire twist-ties from paper or plastic bags before placing bag in oven.

- If smoke is observed, switch off or unplug the appliance immediately and keep the door closed in order to stifle any flames.

- Do not use the cavity for storage purposes. Do not leave paper products, cooking ulensils or food in the cavity when not in use.

- The microwave oven is intended for heating food and beverages. Drying of food, clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

1. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.

2. Microwave heating of beverages can result in delayed eruptive boiling, therefore extra attention must be taken when handling the container.

3. Do not fry food in the microwave oven. Hot oil can damage oven parts and utensils and

even result in skin burn hazard.

1. Eggs in shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
2. Pierce foods with skins such as potatoes, whole squashes, apples and chestnuts before cooking.
3. Utensils should be checked to ensure that they are suitable for use in microwave oven.
4. The microwave oven should be cleaned regularly and any food deposits removed. Failure to maintain the microwave oven in a clean condition could lead to deterioration of the surface adversely affect the lifespan of the appliance and possibly result in a hazardous situation.
5. The microwave oven is only used in freestanding.
6. The microwave oven shall not be placed in a cabinet.
7. Do not install oven over a range cooktop or other heat-producing appliances. If installed and damaged happened the warranty would be voided.
8. The temperature of microwave door, outer surface and accessible surface may be high when the appliance is operating. Do not touch with bare hand.
9. The microwave oven shall be placed against a wall.
10. WARNING: If the door or door seals are damaged, the microwave oven must not be operated until it has been repaired by a manufacturer, authorized service agent or similarly qualified persons in order to avoid a hazard.
11. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
12. WARNING! During use the appliances becomes hot. Attention should be taken to avoid touching heating elements inside the microwave oven, for cooking ranged and outside of microwave ovens.
13. The microwave oven is for household use only and not for commercial use.
14. Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.
15. Please secure the tumtable glass tray before you move the appliance to avoid damages.
16. CAUTION! It is dangerous to repair or maintain the appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to the nearest service centre.
17. Use oven insulated gloves if you take off any heated food.
18. WARNING! It is hazardous for anyone other than a trained person, authorized service centre or qualified technician to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.
19. Do not use the microwave oven outdoors.
20. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.

Cleaning & Maintenance

1. Turn off the microwave oven and unplug the power cord from the AC Mains Switch before cleaning.
2. Always keep the microwave oven interior clean. When food splatters or spilled liquids adhere to microwave oven walls, wipe with a damp cloth. Mild detergents may be used if the microwave oven gets very dirty. Avoid using spray or other harsh cleaners. They may stain, streak or dull the door surface.

3

1. The outside of the microwave oven should be cleaned with a damp cloth. To prevent damage to the operating parts inside the microwave oven, water should not be allowed to soap into the ventilation openings.
2. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
3. The appliance shall not be cleaned with a steam cleaner.
4. Always keep the control panel or control knob dry. If it's wet clean it with a soft, damp cloth. Remind to always keep the microwave oven door open when cleaning the control knob to prevent it accidentally turning on.
5. If steam accumulates inside or around the outside of the microwave oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
6. It is occasionally necessary to remove the turntable glass tray for cleaning. Wash the tray in warm soapy water or in a dishwasher.
7. The roller ring and microwave oven base should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the microwave oven with mild detergent. The roller ring may be washed in mild, soapy water or in a dishwasher. When removing the roller ring, be sure to replace it in the proper position.
8. Remove odours from your microwave oven by combining a 300ml water with the juice and skin of one lemon in a microwaveable bowl. Microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
9. If the light bulb burns out, please contact customer service to have it replaced.
10. The microwave oven should be cleaned regularly and any food deposits should be removed. Failure to maintain the microwave oven in a clean condition could lead to deterioration of surface that could adversely affect the life of the unit and could possibly result in a hazardous situation.
11. Please do not dispose appliance into the domestic rubbish bin; it should be disposed to the particular disposal centre provided by the municipalities.

Grounding Instructions

1. This appliance must connect to a grounded electrical main switch. This microwave oven is equipped with a cord having a grounding wire with a grounding plug
2. In the event of an electrical short circuit, grounding will reduce risk of electric shock by providing an escape wire for the electric.
3. It is recommended that a separate circuit serving only for the microwave oven. As using a high voltage is dangerous and may result in a fire or other accident to cause microwave oven damage.
4. WARNING! Improper use of the grounding plug can result in a risk of electric shock.

Note:

a. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
b. Neither the manufacturer nor the dealer can accept any liability for damage to the microwave oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are coloured in accordance with the following code:

Green & Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

Installation Guide

1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING! Please do not operate the oven on below situation:

a) Microwave Oven misaligned or bent door
b) Damaged door seals and sealing surface
Please contact a qualified service personnel or send to nearest authorized service center if found problem above.
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
5. For correct operation, the microwave oven must have sufficient airflow. Allow 20 cm of space above the top surface of oven, 10 cm at back and 5 cm at both sides. Do not cover or block any openings on the appliance. Do not remove feel.
6. Do not operate the microwave oven without turntable glass tray, roller ring, and swivel shaft in their proper positions.
7. Make sure that the power cord is undamaged and does not place under the oven or over any hot or sharp surface.
8. The socket must be readily accessible so that it can be easily unplugged in an emergency.
9. The microwave oven is only used in freestanding.
10. The microwave oven shall not be placed in a cabinet.

1. Only use utensils that are suitable for use in microwave ovens. Metallic containers for food and beverages are not allowed during microwave cooking. This requirement is not applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking.
2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks or fires.
4. Round / oval dishes rather than square / oblong ones are recommend, as food in corners tends to overcook.
5. Narrow strip of aluminum foil may be used to prevent overcooking of exposed areas. But and keep a distance of 1 inch (2.54 cm) between foil and cavity.

General guide to help you select the correct utensils.

Cookware	Microwave Cooking
Heat-Resistant Glass	Yes
Non Heat-Resistant Glass	No
Heat-Resistant Ceramics	Yes
Microwave-Sale Plastic Dish	Yes
Kitchen Paper	Yes
Metal Tray	No
Metal Rack	No
Aluminium Foil & Foil Containers	Refer to No.5 Cooking Utensil Guide

4

5

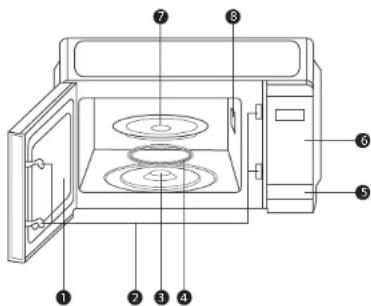

Parts Identification

1. Oven Window
2. Door Safety Lock System
3. Swivel Shaft
4. Roller Ring
5. Door Release Button
6. Control Panel
7. Turntable Glass Tray
8. Wave Guide (Please do not remove the mica plate that covering the wave guide)

* Pictures are for illustration purpose only.

Specifications

Model		MW2001D
Voltage		230-240V	-	50Hz
Input	Power	1100W
Output Power	700W, 2450MHz
Capacity		20L
Net	Weight	9.4kg
Product Dimension (L x W x H)		446 x 323 x 243mm

* Specifications are subject to change without prior notice.

Operating Features

Control Panel Functions

• DISPLAY
Time, power and indicators are displayed.
• AUTO COOK MENUS
6 Instant settings to cook popular foods.
CLOCK/TIMER
Press to set clock time and timer function.
• DEFROST
Press to defrost food based on weight.
POWER LEVEL
Press to set microwave cooking power level.
• NUMBER BUTTONS (0-9)
Press to set time, food weight or servings. But use number buttons 1\~6 to set express cooking programs.
- STOP / CANCEL
Press once to temporarily stop cooking, or twice to cancel cooking altogether.
• START

Press to start cooking programs.

How to Use:

1. When the power cord is plugged in AC main switch, a "beep" sound occurs and the display will show "1:01".
2. In the process of setting, if no action taken in 25 seconds the microwave oven will return to standby mode.
3. During cooking, if press STOP/CANCEL button once, the program will be paused, then press START button to resume. But if press STOP / CANCEL button twice, the program will be cancelled.
4. After cooking end, the display will show "End" and it will have "beep" sound every two minutes until user press STOP/CANCEL button or open the door.
5. During operation, if press a valid function button, the buzzer will ring once, but if press an invalid function button, the buzzer rings twice.

Setting the Clock:

User can select to use 12-hour clock or 24-hour clock by select and pressing CLOCK / TIMER button.

1. In standby mode, press and hold CLOCK / TIMER button for more than 3 seconds to select 12-hour clock or press it again to select 24-hour clock.
2. Press the number buttons to set correct time.
3. Press CLOCK / TIMER button to confirm.

6

Express Cooking:

In standby mode, when you press a number button (1, 2, 3, 4, 5 or 6) once, the corresponding system direct start cooking time starts respectively 1 minute, 2 minutes, 3 minutes, 4 minutes, 5 minutes or 6 minutes. The microwave oven will start to cook at full power level.

Setting the Timer

1. In standby mode or during cooking, press CLOCK/TIMER button once.
2. Use number buttons to set desired time. The longest time is 99 minutes 99 seconds.
3. Press START button to confirm.

NOTE: When the countdown ends, the buzzer will occur "beep" sound to remind you. You can check the countdown time by pressing CLOCK / TIMER button, if STOP / CANCEL button is pressed when the display shows the time, the function can be cancelled.

Microwave Cooking

1. In standby mode, press POWER LEVEL button repeatedly to select a cooking power level.
2. Use number buttons to set cooking time. The longest time is 99 minutes and 99 seconds.
3. Press START button to confirm.

Press POWER LEVEL button to set a cooking power level:

Press POWER LEVEL	Power (Display)	Power POWER LEVEL	Power (Display)
Once	100% (P100)	7 times	40% (P-40)
Twice	90% (P-90)	8 times	30% (P-30)
3 times	80% (P-80)	9 times	20% (P-20)
4 times	70% (P-70)	10 times	10% (P-10)
5 times	60% (P-60)	11 times	0% (P-00)
6 times	50% (P-50)	-	-

NOTE: During cooking, the current power level can be seen by pressing POWER LEVEL button.

Defrost

1. In standby mode, press DEFROST button once.
2. Use number buttons to set food weight. The maximum weight is 2000g
3. Press START button to confirm.

NOTE: During defrosting, the system will pause and occur sound to remind user to turn food over, and then press START button to resume.

Multistage Cooking

The microwave oven can be programmed up to 2 cooking sequences.

You can set as the following cooking program.

Microwave cooking—Microwave cooking (with lower power level)

Microwave cooking (with lower power level)

1. Input the first microwave cooking program. Do not press START button

2. Input the second microwave cooking program.

3. Press START button to start.

NOTE: Express cooking, defrost and auto cook menus cannot be set in multistage cooking program.

Child Lock Mode

1. This Child Lock function is to prevents any unsupervised operation by children.
2. To enter child lock mode: In standby mode, if there is not any operation within one minute, the oven will auto enter child lock mode. Press any button, the display panel will show "Loc" for 3 seconds to remind user to unlock the child lock mode.
3. To cancel: In child lock mode, open and close the oven door once to cancel the program and the "Loc" will disappear.

Auto Cook

For the following food or cooking mode, it is not necessary to program the time and the cooking power. It is sufficient to indicate the type of food that you want to cook as well as the weight or servings quantity of the food.

1. In standby mode, press the corresponding auto cook menu button once or repeatedly to select weight or servings quantity.

2. Press START button to start.

Auto Cook Menus:

Auto Cook Menu Note
Potato (230 g/serving, 1~3 servings)	For a better cooking effect, when you cook popcorn, you need to fold the four corners of the package (As the figure below). Then put it in the center of the microwave oven.The result of auto cooking depends on factors such as fluctuation of voltage, the shape and size of food, your personal preference If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly.
Popcorn (99 g)
Pizza (150 g, 300 g, 450 g)
Beverage (200 ml/serving, 1~3 servings)
Frozen Dinner (250 g, 500 g)
Reheat (200~800 g)

Note:

Radio Interference

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

Fungsi Panel Kawalan

• PAPARAN DIGITAL
