RCJ1809 - Rice cooker Khind - Free user manual and instructions

Product Type	Jar Rice Cooker
Model	RCJ1809
Brand	Khind
Voltage	220-240V ~50-60Hz
Power	640-762W
Inner Pot Capacity	1.8 Litres
Net Weight	2.8 kg
Product Dimensions (LxWxH)	288 x 273 x 300 mm
White Rice Capacity	Min 2 cups / Max 10 cups
Brown Rice Capacity	Min 2 cups / Max 5 cups
Accessories Included	Measuring Cup, Rice Spoon, Steam Tray, Dew Collector
Functions	Cook and Keep Warm
Control Type	Switch Button (mechanical)
Indicator Lights	COOK and WARM indicator lights
Keep Warm Duration	Up to 6 hours (recommended max)
Cleaning Advice	Wipe outer body with damp cloth; clean inner pot with mild detergent; avoid abrasive materials; dry with soft cloth
Safety Features	Automatic keep warm after cooking; control lever disengages if inner pot not placed properly; thermal cutout
Warranty & Support	1-800-88-0032 (Malaysia); KHIND CARE Mobile App for registration
Country of Origin	Designed and property of Khind-Mistral (M) Sdn Bhd

Frequently Asked Questions - RCJ1809 Khind

How do I cook rice in the Khind RCJ1809?

Measure rice using the provided measuring cup. Rinse the rice separately (do not wash in the inner pot). Place washed rice in the inner pot and add water at a ratio of 1:1.2 (rice to water). Wipe the outside of the pot, place it in the cooker, lock the lid, plug in, and press the switch button to start cooking. The COOK indicator will light up. When done, the switch will pop up and the WARM indicator will light.

What is the maximum amount of rice I can cook?

For white rice, the maximum is 10 cups (using the measuring cup provided). For brown rice, the maximum is 5 cups. Do not cook less than 2 cups for this model.

How do I steam food in this rice cooker?

Pour at least 0.5L of water into the inner pot. Place the steam tray with food inside. Close the lid and press the switch button. Cooking time varies depending on the food. Use caution when removing the steam tray as steam is hot.

How should I clean the rice cooker?

Always unplug and let cool before cleaning. Wipe the outer body with a damp cloth. Clean the inner pot with dishwashing detergent and a soft sponge. Do not use abrasive cleaners or metal brushes. Clean the heating plate gently with a damp cloth to remove any rice grains.

Why won't the switch button engage?

The switch button will not engage if the inner pot is not sitting properly on the heating plate. Ensure the inner pot is correctly aligned and placed flat. Also check that the lid is locked properly. If the problem persists, the unit may need service.

What does the WARM indicator light mean?

The WARM indicator lights up when the rice cooker is in keep warm mode. This occurs automatically after cooking is complete or when you first plug in the unit. The cooker will keep the rice warm for up to 6 hours, after which quality may decline.

Can I wash rice directly in the inner pot?

No. Washing rice directly in the inner pot can damage the non-stick coating and deform the bottom. Always use a separate container to rinse the rice.

How do I reheat rice without it sticking?

After cooking, stir the rice with the spatula. Sprinkle a little water on top, then press the cook lever. Wait a few minutes after it trips before serving. This helps reduce crust and sticking.

Is the Khind RCJ1809 safe to leave unattended?

The appliance is designed with safety features such as automatic keep warm and a thermal cutout. However, it is recommended not to leave it unattended for long periods. Always unplug when not in use.

Where can I get support or register my product?

You can download the KHIND CARE Mobile App to register your product for after-sales services. Alternatively, call the customer service hotline at 1-800-88-0032 (Malaysia) or visit khind.com.my.

USER MANUAL RCJ1809 Khind

USER MANUAL

KHIND®

Experience More

JAR RICE COOKER

RCJ1009

RCJ1809

Line drawing of a rice cooker with control panel (no text or symbols)

KHIND CARE Mobile App

Mobile App

Download to register for

E-wormally & enjoy hussie-free after-sales services

1-800-88-0032

khind.com.my

IMPORTANT

Please read this manual carefully before operating this product. Keep this manual hand to start a reference

P/N: 40-51863-00

Safety Precaution Information

Safety & Warning Information

1. Carefully read all instructions before operating this appliance.
2. Do not use this appliance if the cord or plug is damaged, or if this unit is malfunctioned or damaged in any way.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. The heating plate's surface is subject to residual heat after use. Do not touch the surface and any hot parts of the appliance during use or immediately after use. It will be very hot.
6. The Steam Vent is extremely hot when cooking.
7. This appliance is intended for household use only. Commercial use voids warranty.
8. Do not immerse the appliance into water or other liquids except the inner pot.

9. WARNING! Avoid spillage on the power connector.

10. WARNING! Misuse of this appliance may cause injury.

11. Beware of hot steam coming out of the appliance during operation when you open the lid. Keep hands and face away from the appliance to avoid steam.

12. Always place the rice cooker on flat and stable surface before cooking. Do not expose rice cooker to water, humid conditions or heat sources. Do not expose Inner Pot to direct flame.
13. While Inner Pot is not placed in the rice cooker, the control lever will not engage. Do not engage or press by force.
14. Do not use the appliance around the perimeter of an inflammable object.
15. Check if the voltage indicated on the appliance corresponds to the local voltage before you connect to the appliance.
16. In order to avoid hazard due to the inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switch device, such as a limer, or connected to a circuit that is regularly switch on and off by the utility.

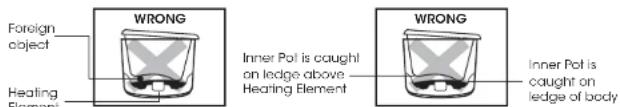

Note: If the Inner Pot is not sitting properly on the heating element's plate, the control lever cannot be engaged.

Cleaning & Maintenance

1. Always switch off the appliance, unplug from the switch and let the appliance is cool down under below situation:
   a) If this appliance is left unattended, or
   b) When the appliance is not in use, or
   c) Before cleaning, or
   d) Before pulling on or taking off inner pot or steam tray, or
   e) When moving this appliance
2. Use a damp cloth to clean the outer body. Remove the Inner Pot, clean with dishwashing detergent or soft cleaning agent. Do not use abrasive material or corrosive chemical detergent for the cleaning of the appliance.
3. Do not use wire brush or hard brush to clean, it may scratch and cause damage to the Inner Pol surface.
4. Dry the rice cooker by using a soft cloth.
5. Grains of rice and other foreign objects may slick onto the heating plate of the cooker. These stains must be cleaned using a soft damp cloth. By doing so, the clean and dry contact area between the heating plate and the bottom of the Inner Pot will improve the cooking performance.
6. Do not immerse the appliance into water or other liquids except the inner pot.

3

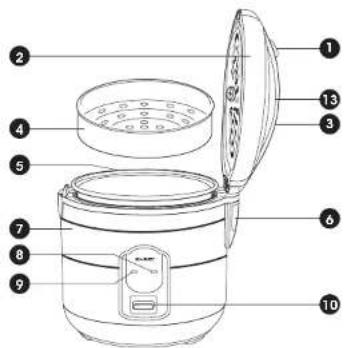

Parts Identification

1. Open Button
2. Lid Cover
3. Handle
4. Steam Tray
5. Inner Pot
6. Dew Collector
7. Rice Cooker Body
8. WARM Indicator Light
9. COOK Indicator Light

10.SwitchButton
11.MeasuringCup
12.RiceSpoon
13. Steam Vent

Accessories

* Pictures are for illustration purpose only.

Dew Collector

- Hold the sides and remove/install in the direction of the arrows.

- Remove and clean the dew collector after every use.

Specifications

Model	RCJ1009	RCJ1809
Voltage	220-240V - 50-60Hz	220-240V - 50-60Hz
Power	366-436W	640-762W
Inner Pol Capacity	1.0 Lilre	1.8 Lilre
Net Weight	1.5 kg	2.8 kg
Product Dimension (LxWxH)	228 x 224 x 260mm	288 x 273 x 300mm

* Specifications are subject to change without prior notice.

Cooking Rice Capacity Measurement

Cup (White Rice)	Min 1 / Max 5	Min 2 / Max 10
Cup (Brown Rice)	Min 1 / Max 3	Min 2 / Max 5

*Above table is for references only.

How to Use

1. Measure and wash the required amount of rice in separate container with measuring cup provided.
2. Rinse the rice several times until the water in the bowl runs clear.
   Note: Do not rinse the rice in Inner Pot. If the pot is used for washing the rice, the coating may be damaged or caused deform in bottom.
3. Put washed rice into Inner Pot with the corresponding amount of fresh water with the ratio of 1:1.2 while rice to water as an indication.

*Reminder:

i) Please do not cook less than 1 cups of rice for RCJ1009 or 2 cups of rice for RCJ1809.
ii) Please pre-soak your brown rice for 30 minutes before cooking & do not cook more than 5 cups of brown rice for RCJ1809.
** Adjust the amount of water to suit your personal taste.
***Ratio indication above is for references only.

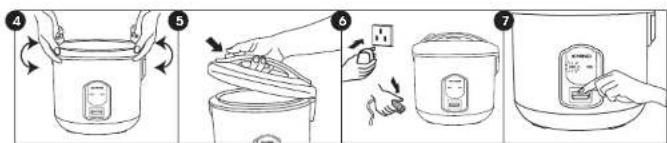

1. Wipe the water outside of Inner Pot, place the pot into the rice cooker to align Inner Pot with Heating Element correctly. Turn Inner Pot gently to right and left.

Important note: If Inner Pot is not placed properly, cooking will not begin.

1. Lock cover lid until it clicks. If lid not locked properly, cooking will be adversely affected.
2. Connect power cord to:

a) The socket localed by the side of the rice cooker and
b) The AC power socket. The Keep Warm indicator will light up after 1-2 minutes. The rice cooker will be in keep warm stage.

1. Press Switch Button to commence cooking operation. The Cooking indicator will light up.

2. When the cooking is finished, the Switch Button will pop up and click sound will be heard. At the same time, the Cooking indicator light will go off, and the Keep Warm light will light up.

3. To reheat rice and avoid having crust or minimize rice sticking to the pot, may follow below instruction:

i) Stir to loosen rice by spatula given.
ii) Sprinkle a bit of water on the rice.
iii) Engage Cook Lever.
iv) Wait a few minutes after Cook Lever trips before consuming rehealed rice.

4

10.Tips:

i) It is not advisable to keep warm rice for more than 6 hours. The rice will lose its moisture and turn yellowish.
ii) For tastier cooked rice, use filtered or mineral water to wash and cook rice.

How to Steam

1. Pour at least 0.5L of water into inner pot, place the steam tray with vegetables or other food suitable for steaming cooking in the inner pot.
2. Press the Switch Button to commerce cooking and steaming operation.
3. The steaming period will differ based on the quantity and type of food.
4. Steaming time can be extended by adding more water.
5. Be careful of the hot steam when taking out the steam tray.

6 Pengumpul Embun
