GRC6BK - Rice cooker GEMINI - Free user manual and instructions

Product Type	Rice Cooker
Brand	Gemini
Model	GRC6BK
Capacity	0.6 Litre (approx.)
Rated Power	350W
Rated Voltage	220-240V
Frequency	50-60Hz
Dimensions (H x W x D)	214 x 223 x 203 mm
Control Panel	Touch screen with digital display
Cooking Programs	White Rice, Quick Cook Rice, Brown Rice, Congee, Soup, Quinoa, Steam, Yogurt, Reheat
Preset Timer	Yes (1-24 hours, except Yogurt)
Keep Warm Function	Automatic 24-hour keep warm after cooking
Inner Pot	Non-stick coating, removable
Lid	Removable aluminum lid with steam vent
Accessories Included	Rice scoop, measuring cup
Safety Features	Overheat protection (auto switch to keep warm), automatic shut-off
Cleaning	Inner pot: mild detergent and soft cloth; Housing: damp cloth; Do not immerse
Usage Location	Indoor, household use only
Warranty	Refer to manual or contact customer service

Frequently Asked Questions - GRC6BK GEMINI

How do I start cooking rice?

Select your desired program using the MENU button (e.g., White Rice), then press the START button. The cooker will automatically switch to keep warm mode once cooking is complete.

Why is there a smell and white smoke when I first use the cooker?

This is normal. A slight smell and white smoke may be emitted due to the insulation material heating for the first time. Ensure sufficient ventilation; the smell will dissipate quickly.

Can I use a metal spoon with the inner pot?

No. Use a plastic or wooden rice spoon to avoid damaging the non-stick coating. Metal spoons can scratch the surface.

How do I clean the rice cooker?

Unplug and let it cool. Remove the inner pot and wash with mild detergent and a soft cloth. Wipe the housing with a damp cloth. Do not immerse the cooker in water. The removable aluminum lid can be cleaned separately.

What does the PRESET function do?

The PRESET function allows you to set a delayed start. Select a cooking program, press PRESET, and use HOUR and MIN buttons to set the desired delay (1-24 hours). The cooker will start cooking automatically at the set time.

Can I cook other foods besides rice?

Yes, the cooker has programs for Congee, Soup, Quinoa, Steam, Yogurt, and Reheat. Follow the recommended water-to-ingredient ratios and cooking times in the manual.

What should I do if the control panel is deformed?

Stop using the product immediately to avoid electric shock. Contact customer service or an authorized repair center for assistance.

How do I set the cooking time manually?

After selecting a program, press HOUR or MIN to adjust the cooking time (within the adjustable range for each program). The default time will be shown, and you can increase it as needed.

Why does the cooker automatically switch to keep warm?

This is a built-in safety feature. After cooking completes, the unit automatically enters keep warm mode to maintain your food at a serving temperature for up to 24 hours. Do not use keep warm for more than 4 hours to avoid taste spoilage.

Can I use an extension cord?

If necessary, use a 13 amp cable. A smaller current rating may cause overheating or short circuit. However, it is recommended to plug directly into a wall socket.

USER MANUAL GRC6BK GEMINI

When using this appliance, basic precautions should always be followed including the following:

Read all instructions before use:

1. This product is only for home use, not for outdoor.
2. Remove the product from the outlet to the "off" mode before unplugging the plug from the outlet. Do not use the way to pull the power cord to unplug the plug, should be hold the plug and remove it from the socket. Do not pull down the plug directly from the socket by pressing the rewinding system directly. Remove the plug from the socket by hand and then retract the wire.
3. Do not allow the wires to touch the hot surface. Before removing and cleaning, the product must be completely cooled.
4. When not in use, be sure to unplug the power plug from the power outlet.
5. If the power cord is damaged, please stop using the product immediately. In order to avoid electric shock, do not disassemble and reassemble. If any damage, please carry it to our maintenance center. Unauthorized repair / modification or product for non-product design, purposes warranty will not provide
6. Children should be supervised to make sure they don't play with the device.
7. Touch hot metal parts or steam may burn.
8. Don't touch the inside of the product while it is in operation.
9. Home appliances should not use an additional timer or independent Trent control systemperation.
10. The power cord should not be hung from the edge of the table or in contact with hot surfaces. In case of damage to the power cord.
11. This product should not be placed next to objects with high temperature.
12. Warning: If the control panel deform, please stop using the product immediately to avoid electric shock.
13. After the inner pot is washed, wipe it with a dry cloth to put it into the rice cooker.
14. The bottom of the inner pot should avoid collision to prevent deformation, and other containers should not be used instead of the inner pot. The inner pot and the heating plate should be kept clean to avoid damage.
15. The inner pot can be cleaned with water. Do not rinse the rice cooker directly with water, or immerse the product in water/other liquids to avoid fire, electric leakage or life safety.
16. When the product is working, it cannot be moved.
17. When cooking, do not cover the venting opening with a cloth or any foreign matter otherwise it will be prone to malfunction.
18. When cooking the rice, do not touch the product, excluding the handle. Do not approach the steam vent to prevent burns.
19. Please use plastic or wooden rice spoon, do not use metal rice spoon to avoid damage to the inner pot surface coating.

20. During the cooking process, after the switch button automatically jumps, do not force the button to be pressed to avoid damaging the rice cooker.

21. Children over 8 years old, persons with weak body, sense, intelligence, inexperience and knowledge can use this machine after they have been given instructions on how to use it safely and are aware of possible dangers. Children should not play with this product cleaning and maintenance can not be handled by children.

22. When first time to use this appliance, a slightly smell and white smoke may be emitted. It is normal status. Please ensure sufficient ventilation, those smell and white smoke will disappear quickly.

Special statement:

1. To avoid overloading the circuit, do not operate the other on the same circuit.

2. If the extension cord is necessary, use a 13 amp cable. A smaller current than this product may cause overheating and short circuit.

3. Please keep this manual for future reference.

4. Do not allow children or untrained personnel to use the product without supervision.

5. Do not immerse the product, power cord, or plug in any liquid. Doing so may cause electric shock or fire.

6. When the product is not in use, disconnect the plug from the power supply.

7. Do not touch the product with wet hands.

8. Do not expose the product to outdoor (rain or under the sun).

9. After inserting the plug into the socket and opening it, make sure that the qualified personnel supervise the use of the product.

10. Before using this product, remove all packaging materials.

11. After unpacking, check for damage and there are no missing parts.

12. All packaging materials, such as plastic bags, poly foam, tape, etc. should be placed in places where children are not exposed, because improper use of these materials will lead to child suffocation, and even death.

13. Use only the parts provided in the product and in the packaging, otherwise it may pose a hazard to the user and may damage the product.

14. Before using the product, please check the product rating label on the power, voltage is consistent. The rating label is attached to the back of the product. If you have any questions, please contact our customer service department for assistance.

15. Do not allow the power cord to touch a sharp edge or hot surface during operation.

16. This product is not a toy, cannot be used directly into the people and animals, otherwise it will be burned.

17. This product cannot be used in unstable locations or burning objects, otherwise it is likely to cause a fire or burn.

18. Parts are not included in the warranty, if you need to be replaced, must be purchased with my company. Parts are not necessarily available, it may take some time to replace.

19. This product is for home use only and should not be used for any commercial purpose.

20. Please must clean the product and kill all the insects before sent to our repair center otherwise our company will charge extra cost for cleaning and pest control.

21. You may notice an odour & gas using the appliance for the first time, use to the insulation material. This is harmless and will subside quickly.

22. Do not use this product near an open flame, on or near the surface of heat-resistant objects such as carpets and plastics. Keep combustible materials away at least 1.5m from the cooker. Do not place the items that are susceptible to steam on top of this product.

23. Do not connect and pull the power cord with wet hands, otherwise it may cause a short circuit or electric shock.

24. When the cooker is in use, hot vapor will emit from top of the vent. Please do not get close or touch the steaming valve when cooking. Do not cover the steaming valve at all times during cooking.

25. Do not leave the unit while it is in operation.

26. Do not use sharp or abrasive items in contact with the inner pot as this will damage then on-stick coating.

27. Do not use extension power cord with other electrical appliance, use wall socket only.

28. Always grasp the plug to disconnect the unit from the power source. Do not pull the cord.

29. Ensure cooking with care, the pot and its outer surface are dried with clean dry cloth before cooking.

30. Please follow the instruction of cooking stated in this manual. Please ensure the content does not exceed the maximum water line engraved inside the cooking pot.

31. This inner pot must be used with the cooker. Please do not use the inner pot with other cooking device. The inner pot should not be used direct on stove.

32. This product is not intended to use by persons (including children) with weak physical condition, slow reaction, mental retardation, lack of experience and common sense, unless they are under supervision or instruction by the person who is responsible for their safety.

33. To avoid danger of electric shock, unplug from outlet when not in use and before cleaning.

34. Regularly check the power cord of this product. If the power cord is damaged, it must be replaced by our after-sales service department or qualified electrician to avoid danger.

35. Do not use accessories that are not supplied with this unit to avoid danger and injury.

36. There is a "warm reminder" message on the product, please pay attention to it before use.

37. Switch the cooker off immediately when the digital touch control panel was touched by mistake, or it will cause dry cooking.

38. Do not put any item or food into the inner pot for storage purpose.

39. This product is not a toy, please do not let children to play with it.

40. Do not wet the heating tray of the main machine.

41. If switch on the cooker with no filled water in the inner pot by mistake, there will be high temperature protection and it will not work. when the top temperature exceeds 105^ C or bottom temperature exceeds 165^ C, the cooker will switch to keep warm mode automatically.

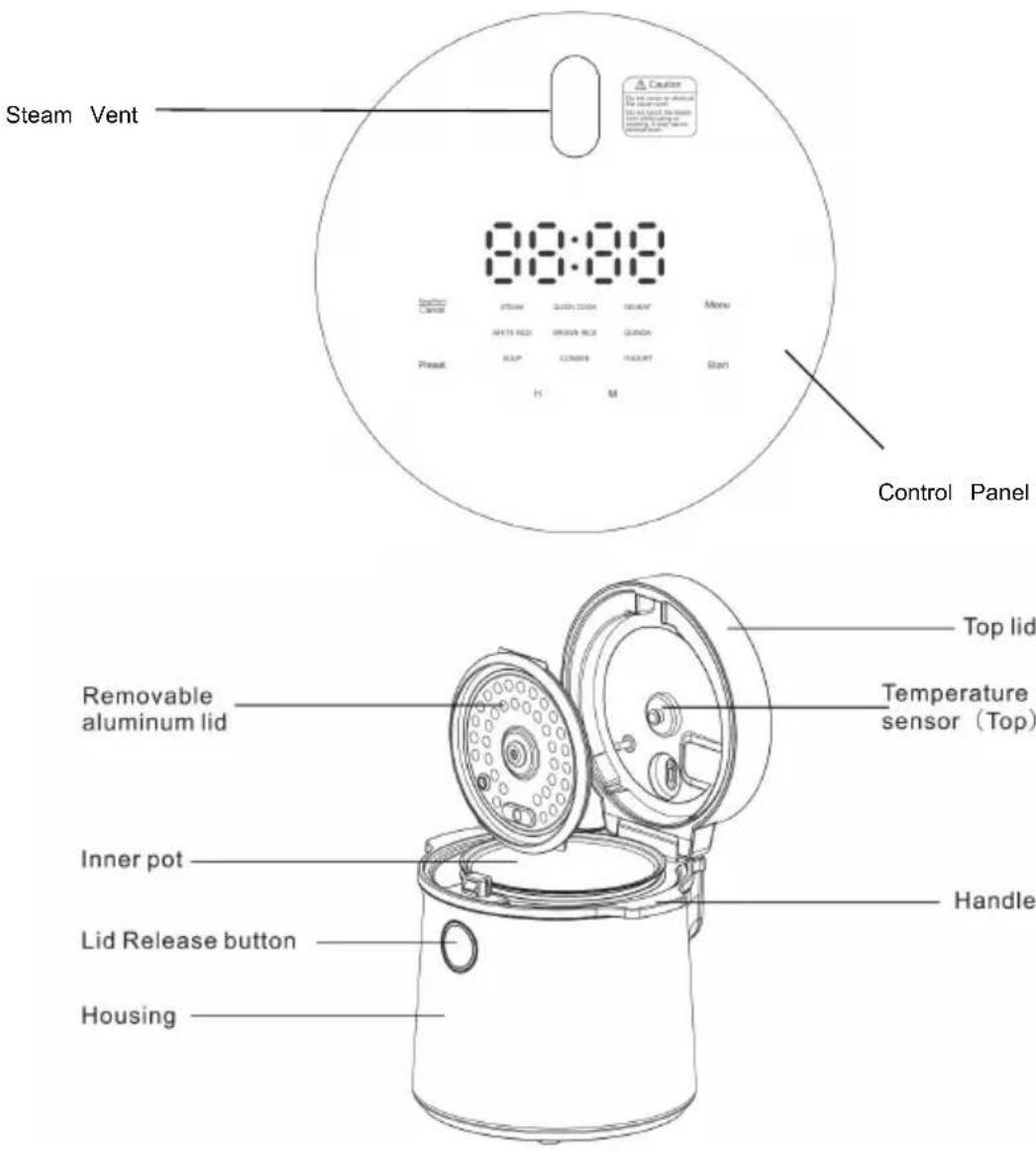

PARTS AND FEATURES

Accessories:

Rice scoop

Measuring Cup

USER'S GUIDANCE:

1. Remove all packaging materials and promotion labels.
2. Make sure the electricity supply is 220-240V;50Hz -60Hz.
3. Plug the unit into the wall power outlet, then heard a beep signal and there is an indicator “.-”display on the control panel, the unit is now ready for use.
4. Wash the plastic accessories thoroughly.
5. Remove the inner cooking pot from rice cooker and clean with warm, soapy water. Rinse and dry thoroughly before placing into the cooker.
6. Wipe body clean with a damp cloth.

NOTE: The unit must not be connected to power outlet before and during cleaning. Make sure the power cord unplugged.

The steps are as follows:

1. Read the instructions and follow the prompts.
2. Please remove all the packing materials before use.
3. Open the cooker by pressing the lid release button.
4. Make sure there are no objects between the inner pot and the heating or tray.
5. Place the inner pot into the cooker, make sure that the inner pot is properly installed.

wipe clean the outer and edge of inner pot with clean soft cloth

1. Keep it away from the wall, do not put the unit near flammable materials, power socket and cooking stove.
2. Prepare the ingredients. Please do not overfill the cooking pot.
3. Plug in the connector to the appliance inlet on the housing first. (Fig.1)

1. Connect the cord plug to the power source.(Fig. 2)

1. Select the programs under the section of the "PROGRAM SELECTION AND SETTING" section below.
2. Press the "START" button to start the cooking operation.

IMPORTANT NOTES:

1. After every use, you must clean the inner pot with mild detergent and rinse thoroughly with tap water.
2. User the measuring cup correctly and do not rinse rice or food ingredients inside the inner pot, it may cause damage on the non-stick coating.

Illustration of a cooking pot with a spoon and a cross mark, no text or symbols present

Correct use of measuring Incorrect use of measuring Do not rinse rice or food ingredients inside the inner pot.

1. Make sure the content does not exceed the indicator water line inside the pot.
2. Dry and turn the inner pot slowly to let it fit the outer housing well.

FUNCTION REVIEW

PROGRAM SELECTION

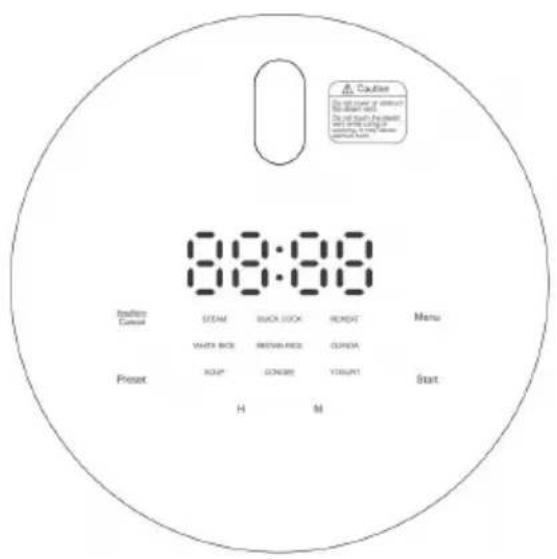

Please select the functions on the touch screen control panel below by touching the desired program selection icon.

"START"

This START button is used for starting cooking. By pressing the MENU button for choosing the desired cooking program and then press START for program start. After cooking is finished, it will automatically enter to keep warm mode. Pressing the CANCNEL button, to cancel the working program and then you can select a new program.

When the program was on, the black round program display screen will show as below:

White rice : Flashing lamp Quick cook rice : Flashing lamp
Brown rice :Timer count down Congee:Timer count down
Soup : Timer count down Quinoa : Timer count down
White rice : Flashing lamp	Yogurt : Timer count down
Reheat : Timer count down

"MENU"

This function allows you to select one of the 9 default Program cooking in display screen. Each press you switch one program. Press MENU button and select desired program. Indicator light of selected program is on. Press START button to begin cooking.

Adjustable Cooking time setting

There are default cooking time for the 9 programs, customers can adjust the cooking time according to the different ingredients and favors by the following steps:

1. Press MENU button to select your desired program, the default cooking time will be shown on the display screen.

2. Then press HOUR or MIN button to increase the cooking time.

3. Cooking time will be back to default cooking time when it increases to the maximum.

"HOUR"&"MIN"

The "HOUR" means Hour is for adjusting cooking time and preset time in hour unit. The "MIN" means Minute, for adjusting cooking time and preset time in minute unit.

Press MENU button and select desired program. Indicator light of selected program is on.

Press HOUR and MIN button to set the timer, and press START button to begin cooking.

"PRESET"

The function is used to set the delayed start on desired program. This feature is available in all modes of cooking, except for "yogurt", Choose a cooking program by a "MENU" button, press the "PRESET" button, its indication light is on. The screen will flashily display the default delay

start time. Use the "HOUR" and "MIN" button to set the desired period of time for the delayed start function.

"CANCEL/KEEP WARM"

With this function, you can keep food warming or cancel all working mode. When cooking finished, the unit will switch to keep warm mode automatically. During cooking long press "CANCEL/KEEP WARM" button for 3 seconds to cancel the program; press again "KEEP WARM" button once will be activated 24-Hour automatic keep Warm function after cooking program finished and its indicator light will be on. Do not use the KEEP WARM mode more than 4 hours. Or else taste may be spoiled.

PROGRAM SETTING

Program	Rice to water ratio	Quantity Default cooking time	Adjustable cooking time	Preset time
White Rice	1:1 1	-3cup No show Non adjustable	1hr-24hrs
Quick cook rice	1:1 1	-3cup No show Non adjustable	Non	adjustable
Brown rice	1:1 1	-3cup 1hr	1hr-2hrs	1hr-24hrs
Congee	1:6	1cup	1hr	1hr-1hr30mins
Soup	/	/	1hr30mins	1hr30mins-6hrs
Quinoa	1:1	1-3cup	30mins	30mins-1hr30mins
Steam	/	/	30mins	30mins-1hr30mins
Yogurt	/	Milk:500 ml lactobacillus:0.5g	8hrs	Non adjustable Non adjustable
Reheat	/	/	30mins	30mins-1hr

• The above actual cooking time will be cooked throughly in 360° induction heating intelligent control and vary according to the surrounding temperature, humidity, actual amount of water, atmospheric pressure, it is for reference only.
• Please further adjust the cooking time and the volume of water for different brand of rice by your own preference.

CLEANING AND MAINTENANCE

1. Disconnect the power cord from Housing. Then unplug the power cord connector form the unit.
2. Cooled down the machine and inner pot before cleaning.
3. Holding the removable lid with right thumb and forefinger as picture below, remove it lightly, clean the lid and inner pot separately with mild detergent and soft cloth. Do notk

use hard material e.g. scrubber, scouring pad/ball for cleaning.

Technical line drawing of a mechanical component with no visible text or symbols

1. Clean the housing with damp cloth and dry thoroughly. Do not immerse the cooker into water or allow liquid to flow into the interior of the product or inside the base when cleaning.

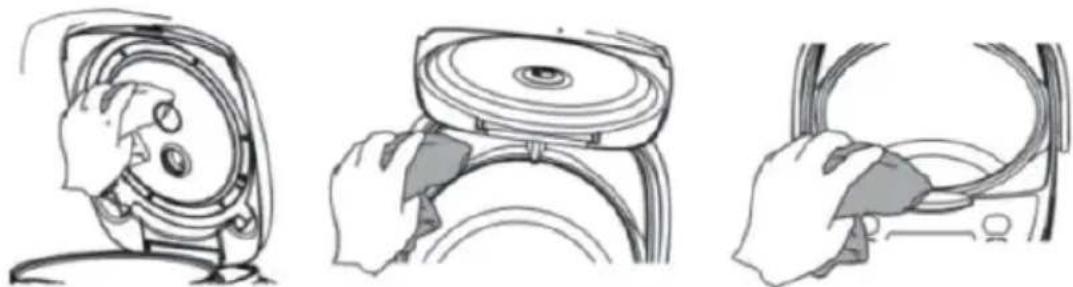

Three technical line drawings showing hands operating a mechanical component, no text or symbols present

1. Follow the cleaning procedures stated in this manual to well maintain the unit before storage. Make sure the whole unit is dry before you store it. Store the unit in cool dry place and avoid exposure to direct sunlight.

2. After cooking with curry, and other soy sauce should clean inner pot immediately to avoid inner pot coloring.

3. After using for a while, the pot may vary in color due to the contact with water and detergent and colored ingredients. This is normal, and rice cooker can safely be operated on.

PRODUCT SPECIFICATION

Model No: GRC6BK

Rated voltage: 220V-240V ; 50H-60Hz

Rated power: 350W

Capacity (approx.) :0.6 Litre

Product dimension (H x W x D) : 214 x 223 x 203mm

*The final product specification may be varied according to different material.

安全預防措施

Technical line drawing of a mechanical component with a hand adjusting a circular feature (no text or symbols)

Three-step line drawings showing hands adjusting a device component (no text or symbols present)

購買日期 Date of Purchase:

單據編號 Invoice No.:

The product specifications may be changed without prior notice.

Please contact customer service for details if necessary.

說明書內容以英文版本為準

If there is any inconsistency or ambiguity

between the English version and the Chinese version, the English version shall prevail.

保養登記

Warranty Registration

於網上登記新產品保養

Register your product online

www.dchtoolbox.com

小電維修服務 - 自攜點

Repair Service - Collection Points

Gilman

since 1841

DCHToolBox

大昌行電器維修中心

4/F, DCH Building, 20 Kai Cheung Road, Kowloon Bay, Hong Kong

客戶服務熱線 Customer Service Hotline: [phone]
