C102 GLASS - Computer Case GIGABYTE - Free user manual and instructions

USER MANUAL C102 GLASS GIGABYTE

INSTALLATION GUIDE
安裝說明書 / 安裝说明书
Please visit www.gigabyte.com for more product information.

Warranty

Gigabyte provides limited product warranty. For the latest and current terms of the Limited Product Warranty, please visit http://www.gigabyte.com/support-downloads/customer-service.aspx.

WEEE Information

This symbol on the product or in the instructions means that your electrical and electronic

equipment should be disposed at the end of its life separately from your household waste.

There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231

Tel: [phone]

http://www.gigabyte.com

China

GIGABYTE CHINA

Address: 24/F, HaiTong Securities Tower, No.689 Guangdong Road, Shanghai, China

Tel: [phone]

Europe

G.B.T. TECHNOLOGY TRADING GMBH Germany

Address: Bullenkoppel 16, 22047 Hamburg, Deutschland

Tel: [phone]

North America

G.B.T. INC. USA

Address: 17358 Railroad Street, City of Industry, CA91748 USA

Tel: [phone]

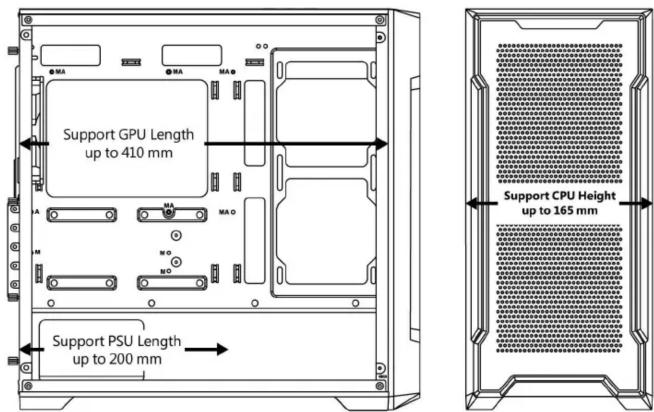

CPU Height : 165mm / GPU Length : 410mm / PSU Length : 200mm

Line drawing of a computer tower case with internal compartments and mounting feet (no text or symbols)

2

Technical line drawing of an open industrial refrigerator with internal compartments and ventilation slots (no text or symbols)

*Be careful when handling the tempered glass panel.
*拿取強化玻璃側板時請小心
*拿取强化玻璃侧板时请小心

Interior view of a computer tower case showing internal components and a highlighted CPU socket (no text or labels visible)

2

Technical line drawing of an internal electronic device with screw and ventilation fixtures (no text or symbols)

*The quantity of standoff 6.5mm depends on motherboard's type.
*銅柱所需數量取決於主機板類型
*铜柱所需数量取决于主机板类型

Interior view of a computer tower case showing internal hardware and storage racks (no text or symbols visible)

5.2 For 2.5" cage / 2.5" 插槽 / 2.5" 插槽

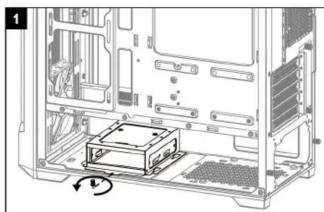

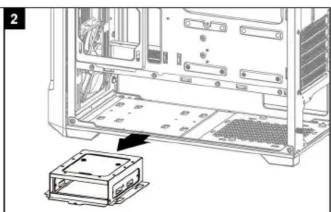

■ Remove the 3.5" Cage / 拆卸3.5" 插槽 / 拆卸3.5" 插槽

Interior view of a computer tower showing internal components and a highlighted case (no text or symbols visible)

Diagram of a computer tower rear panel with an attached case (no text or symbols visible)

Diagram of an internal computer case with a highlighted PSU component (no text or symbols present)

2

Technical line drawing of a computer chassis frame with internal components and mounting holes (no text or symbols)

2

Technical line drawing of a rectangular electronic device casing with internal components and mounting holes (no text or symbols)

3

4

Technical line drawing of an internal computer case with visible circuitry and components (no text or labels)

1. Install the additional system fan(not included)

Technical line drawing of a computer case with fan compartments and ventilation grilles (no text or symbols)

2

Technical line drawing of a modular server rack with fan modules and ventilation ducts (no text or symbols)

3

Technical line drawing of a modular electronic device with ventilation grilles and a solar panel above (no text or symbols)

4

1 Rear : 120mm x1
2 Top : 120mm x3 / 140mm x2
3 Front: 120mm x3 / 140mm x2
4 Side : 120mm x2

1 Rear : 120mm
2 Top : 120mm / 140mm / 240mm /
280mm / 360mm
3 Front: 120mm / 140mm / 240mm / 280mm / 360mm
4 Side : 120mm / 240mm
