SM335S - Food processor Khind - Free user manual and instructions

Product Type	Stand Mixer / Food Processor
Model	SM335S
Power	300 W
Voltage	220-240 V~ 50/60 Hz
Bowl Capacity	3.5 Litres
Bowl Material	Stainless Steel
Product Dimensions (W x D x H)	343 x 221 x 368 mm
Net Weight	2.35 kg
Speed Settings	Variable with 5 speed levels (1-5) plus Turbo
Turbo Function	Yes, momentary maximum speed
Included Accessories	2 Beaters, 2 Dough Hooks, Mixing Bowl, Bowl Lid, Spatula
Dishwasher Safe Parts	Beaters, dough hooks, bowl, lid (top rack, max 50°C)
Safety Features	Motor fuse protector, eject button, off position required for attachment removal
Material of Mixer Head	Plastic (PP)
Usage	Household only

Frequently Asked Questions - SM335S Khind

How do I assemble the stand mixer?

Press the cradle release button to raise the cradle. Place the mixing bowl onto the stand. Lower the cradle, then attach the mixer head by pressing it onto the cradle until it locks. Push the bowl lid into position.

Can I wash the bowl and accessories in the dishwasher?

Yes, the bowl, beaters, dough hooks, and lid are dishwasher safe. Place them on the top rack only and select a low temperature cycle (maximum 50°C) to avoid damage.

What should I do if the mixer stops working suddenly?

The motor is equipped with a fuse protector. If it stops, unplug the appliance and let it cool down for about 15 minutes. The fuse will reset automatically once cooled. If the problem persists, contact a qualified technician.

How do I remove the beaters or dough hooks?

Ensure the speed switch is at OFF (0) position and the appliance is unplugged. Hold the tools and press the eject button located on the mixer head to release them.

What is the recommended speed for beating egg whites?

For egg whites (up to 6), start at low speed and gradually increase to speed 4-5. Beat for approximately 2-4 minutes until stiff peaks form.

Can I use the mixer without the stand?

Yes, the mixer head can be detached from the stand for handheld use. Simply press the mixer release button to remove it. The beaters/dough hooks can be used directly in other bowls.

How do I clean the mixer head and stand?

Wipe the mixer head and stand with a damp cloth and dry thoroughly. Never immerse them in water or let the cord/plug get wet. Do not use abrasive cleaners.

What is the maximum quantity for bread dough?

For bread dough using the dough hooks, the recommended maximum quantity is 350g of flour. Use speed 1-5 and mix for 2-3 minutes.

Why does the bowl show limescale marks?

Limescale can be removed by wiping the stainless steel bowl with a cloth soaked in vinegar. Rinse thoroughly afterwards. Keep the bowl away from direct heat sources to prevent discoloration.

Is the SM335S suitable for heavy dough?

Yes, it can handle heavy doughs like bread dough up to 350g. However, do not overload the motor; if the dough hooks cannot revolve freely, reduce the quantity. The appliance is intended for household use.

USER MANUAL SM335S Khind

Silhouette of a person in a globe with white lines indicating direction (no text or symbols)

Stand Mixer / 搅拌机 / Pengadun Elektrik

Instruction Manual / 说明指示书 / Buku Panduan

Important/重要/Mustahak

Please read this manual carefully before operating this product. Keep this manual handy for further reference.

Safety and Warning Information

Read all instructions before using this appliance.

1. This appliance is intended for household use only. Commercial or other unintended use will void the warranty.
2. Always switch off the appliance, unplug from the mains and let the appliance cools down when the appliance is not in use or before cleaning or before putting on or taking off parts or before approaching parts that move in use.
3. Do not place unnecessary load on the motor by beating mixtures that do not allow the beaters or dough hooks to revolve freely.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. Do not operate appliance near hot ovens or other appliances that is emitting high temperatures.

3. Do not use the appliance other than its intended purpose. Do not use accessories other than what is approved by distributor.

4. Be careful when handling the rotating beaters/ kneaders, emptying the bowl and during cleaning.

5. Ensure that the appliance is switched off before removing it from the stand.

6. WARNING! Misuse of this appliance may cause injury.

Note: The motor is equipped with a fuse protector.

Safety Precaution Information

Cleaning & Maintenance

• Always switch off, unplug and remove the beaters or kneaders before cleaning.
- Never use abrasives to clean parts.

TO CLEAN MIXER HEAD

• Wipe with damp cloth, then let dry.
• Never immerse mixer head in water or let cord/ plug get wet

TO CLEAN CRADLE/ STAND

• Wipe with damp cloth and let dry.
• Never immerse cradle/ stand in water or use abrasives to clean

TO CLEAN ALL OTHER PARTS

• Wash by hands and let dry
• Alternatively, these are dishwasher safe and can be washed on the top rack of dishwasher. Avoid placing items on the bottom rack directly over the heating element. A short low temperature (maximum 50°C is recommended)

TO CLEAN THE BOWL

- Never use a wire brush, steel wool or bleach to clean your bowl. Use vinegar remove limescale. Keep bowl away from heat (cooker tops, ovens, and microwaves).

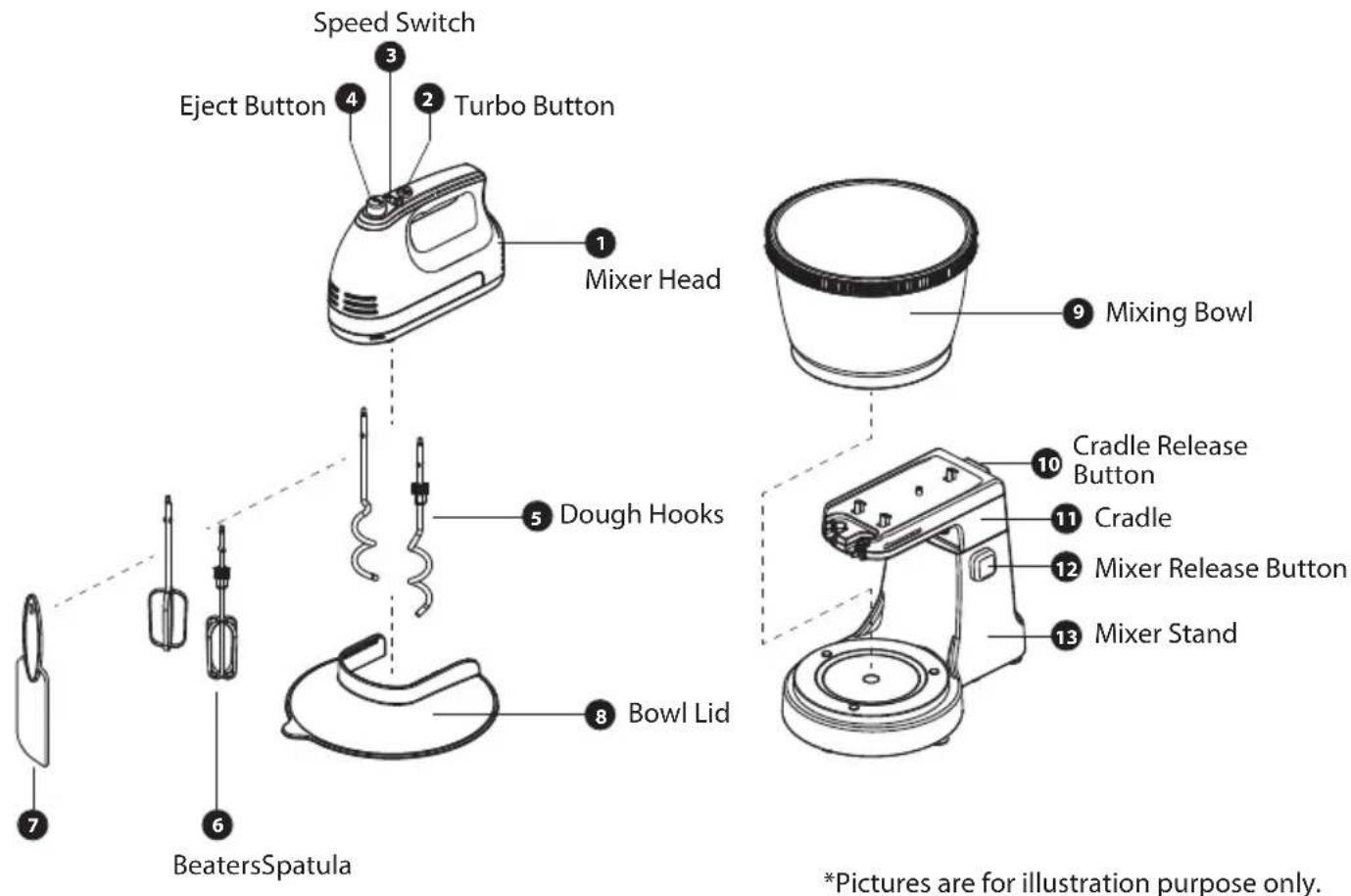

Parts Identification

Specifications

Model	SM335P	SM335S
Voltage	220-240V~ 50/60Hz	220-240V~ 50/60Hz
Power	300W	300W
Bowl Capacity	3.5 Litres	3.5 Litres
Bowl Material	PP/Plastic	Stainless Steel
Net Weight (kg)	1.95kg	2.35kg
Product Dimension	343 x 221 x 368mm	343 x 221 x 368mm

*Specifications are subject to change without prior notice.

How to Use

HOW TO ASSEMBLE

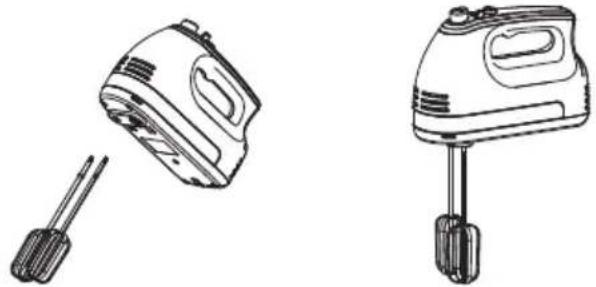

HAND MIXER

1. Insert the dough-hooks/ beaters into the mixer head. (Fig. 1)
2. Ensure the dough-hooks/ beaters are locked at the right place. (Fig. 2)

- If using mixer with the stand, insert the dough-hooks/ beaters with the plastic gear ensuring it align with the drive gear on the cradle.

- The dough-hooks/ beaters can only be removed when the speed switch is in the off '0' position.

Line drawings of three different handwheels, one with a handle, one with a stand, and one with a handle (no text or symbols present)

Fig. 1 Fig. 2

STAND MIXER

1. Press the cradle release button, raise the cradle. Place the mixing bowl onto the mixer stand. (Fig. 3 & 4)
2. Press the cradle release button, push down the cradle. (Fig. 5)
3. Hold and press down the mixer head onto the cradle and lock properly. Push the bowl lid to the cradle, lock it into position. (Fig. 6 & 7)

Diagram of a coffee maker with directional arrows indicating flow or movement (no text or symbols)

Fig. 3 Fig. 4

Line drawing of a kitchen mixer with a bucket and handle (no text or symbols)

Line drawing of a kitchen mixer with a downward arrow indicating cooling effect (no text or symbols)

Line drawing of a kitchen mixer with a downward arrow indicating motion (no text or symbols)

Line drawing of a kitchen mixer with a lid and bucket, showing the mixing process (no text or symbols)

1. Press the cradle release button and lift the cradle.
2. Place the ingredients into the mixing bowl and place bowl onto mixer stand.
3. Press again the cradle release button and push down the cradle/ mixer head carefully.
4. Plug in and select speed by pushing the speed switch to desired speed. First dot is the slowest and increase speed by pushing further.
5. Press turbo button to maximum speed. The motor operates for as long as the button is held.
6. To stop operating, pull the switch back to OFF (0) position and raise the mixer head.
7. To remove tools, make sure speed switch is at OFF position and is unplugged. Hold onto the tools and press the eject button to remove.

*TIPS*

1. To beat butter or margarine, let butter sit and soften at room temperature before beating.
2. When beating small quantity mixtures, hand mixer performs better.
3. The larger the quantity the longer time it requires.

Recommended Speeds For Beaters And Dough Hooks

Please note that these are recommendations for using the stand and supplied mixing bowl. If using the mixer by hand, the speed you select may depend upon the bowl size (if not using the bowl supplied), quantities, the ingredients you are mixing and personal preference.

Gradually increase to the recommended speeds below.

Food Type	Recommended Maximum Quantities	Recommended Speeds	Approximate Times
Beaters
Egg whites	6	4 - 5	2 - 4 minutes
Cream	300ml	1 - 5	4 minutes
All-in-one cake mixes	400g	1 - 5	112 - 2 minutes
Batter	400ml	4 - 5	1 minute
Rubbing fat into flour Adding water to combine pastry ingredients	150g	1 - 21	4 minutes1 minute
Dough hooks
Bread	350g	1 - 5	2 - 3 minutes
Batter	400ml	4 - 5	1 minute
Mix muffins blend butter & sugar	350g	4 - 54 - 5	1 minute1 minute

安全和警告信息

使用本设备之前，请仔细阅读所有说明。

Line drawings of three different types of handwheels: a motor, a handheld electric shaver, and a standard electric hand mixer (no text or symbols present)

图1 图2

搅拌机

Line drawing of a kitchen mixer with directional arrows indicating motion (no text or symbols)

图3 图4

Line drawing of a kitchen mixer with a bucket and handle (no text or symbols)

Line drawing of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

图5 图7

Line drawing of a hand mixer with an arrow indicating downward motion (no text or symbols)

图6

Line drawing of a kitchen mixer with a lid and mixing bowl (no text or symbols)

操作说明

Line drawings of three different types of household appliances: a hand mixer, a motor, and a stand mixer (no text or symbols present)

Rajah 1 Rajah 1

BADAN BERDIRI PENGADUN

Line drawing of a kitchen mixer with four sequential steps showing the setup (no text or symbols)

Rajah 3 Rajah 4
Rajah 5 Rajah 7 Rajah 6

ARAHAN PENGGUNAAN
