CM1215 - Food processor Khind - Free user manual and instructions

Product Type	Coffee Maker
Brand	Khind
Model	CM1215
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	Approx. 900W
Water Tank Capacity	1.2 L (max)
Carafe Capacity	Approx. 1 L
Functions	Brewing, auto keep warm, programmable timer (24h)
Auto Shut-off	After 40 minutes (keep warm) or 2 hours (after brewing)
Safety Features	Boil-dry protection, anti-scald design, auto shut-off
Cleaning	Detachable parts washable in hot soapy water; exterior wipe with damp cloth
Descaling	Regular descaling with household descaler or citric acid (water:descaler 4:1)
Filter Type	Permanent filter (included)
Dimensions (approx.)	250 x 180 x 300 mm
Weight (approx.)	1.5 kg
Material	Plastic housing, glass carafe
Usage	Household only
Warranty	1 year (typical, refer to manual)

Frequently Asked Questions - CM1215 Khind

How do I clean the coffee maker after use?

Unplug and let it cool. Wash all detachable parts (carafe, filter, funnel) in hot soapy water. Wipe the exterior with a soft damp cloth. Do not immerse the base in water.

How can I descale the coffee maker?

Mix water and household descaler at a 4:1 ratio (or use citric acid). Fill the tank to max level, place the carafe on the warm plate, and run the appliance until about one cup has dispensed. Let it sit for 15 minutes, then run the rest. Repeat if needed. Rinse by running clean water through at least 3 cycles.

Can I use other liquids besides water?

No, this appliance is designed to boil water only. Heating other liquids voids the warranty and may cause damage or injury.

What is the auto shut-off time?

After brewing completes, the keep warm function will turn off automatically after 40 minutes. If you do not manually turn it off, the appliance will shut off after 2 hours from the completion of brewing.

How do I set the delayed start timer?

First, set the current clock by pressing PROG once and adjusting HOUR/MIN. Then press PROG again to set the TIMER (desired start time). Press ON/OFF twice to activate AUTO mode. The appliance will start brewing at the set time.

Why is my coffee not hot enough?

Ensure the keep warm plate is clean and the carafe is properly placed. If you serve coffee long after brewing, it may cool down. For best taste, serve immediately. The keep warm function maintains temperature, but not for extended periods.

What should I do if the carafe is cracked?

Do not operate the appliance with a cracked carafe. Replace it with an identical part. Using a damaged carafe may cause leakage or breakage due to heat.

Can I use a paper filter instead of the permanent filter?

The appliance is designed to use the included permanent filter. Using a paper filter may not fit properly and could cause overflow. Stick to the recommended filter.

How much coffee powder should I use?

Use one level spoon of coffee powder per cup of water. Adjust according to personal taste. For a full carafe (about 10 cups), use 10 spoons.

What does the 'AUTO' indicator mean?

The AUTO indicator lights up when the programmable timer is set. The appliance will start brewing automatically at the programmed time. Once brewing starts, the indicator turns off and the RUN indicator comes on.

USER MANUAL CM1215 Khind

Abstract grayscale graphic with white silhouettes of a globe and Earth, no text or symbols present

Please read this manual carefully before operating this product. Keep this manual handy for further reference. 请在使用此产品前，详读此说明书，并将之收藏以作日后参考。

This manual is also available online.

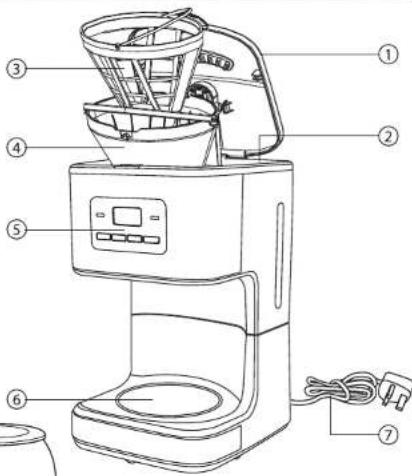

Parts identification / 零件名称 / Pengenalan bahagian

1. Top Cover / 水箱上盖 / Penutup Atas
2. Water Tank / 水箱 / Tangki Air
3. Filter / 滤网 / Penapis
4. Funnel / 漏斗 / Corong
5. Control Panel / 控制面板 / Panel Kawalan
6. Keep Warm Plate / 保温底盘 / Piring Kekal Hangat
7. Power Cord / 电源线 / Talikod Kuasa
8. Carafe Lid / 咖啡壶盖 / Penutup Karaf
9. Carafe / 咖啡壶 / Karaf

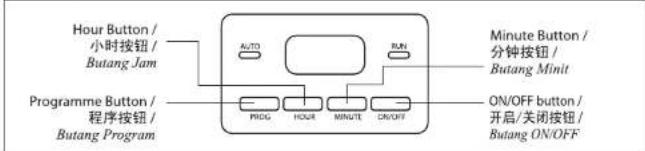

Control Panel / 控制面板 / Panel Kawalan

1. Always turn off the coffee maker and disconnect the power supply when not used. 咖啡机不使用时，必须关掉电源。

2. When pouring freshly boiled coffee, the inclined angle of carafe should not be more than 45 degrees from the vertical position. You should pour the coffee slowly until the carafe is empty. Otherwise the coffee in the carafe will rush to the bottom of the carafe lid, and the coffee will flow out from two edges of the lid and cause scalding.
   倒出刚煮沸的咖啡时，咖啡壶的倾斜角度不可超过垂直线45度。您需缓缓地将咖啡倒出直至倒空。否则，壶内的咖啡将集中在咖啡盖底部，咖啡就会从盖子的两个边沿流出导致灼伤。

3. This appliance is designed to boil water. Heating or boiling of other kinds of liquids voids the warranty. 本产品只供煮水。如煮其他液体，此保修将无效。

4. Check if the power supply matches the specifications mentioned before use. 使用本产品前先检查屋内电源规格是否适用。

5. Insert plug to AC mains securely. Do not operate with wet hands or when the plug is wet. 将插头插进插座。禁止用潮湿的手或插头来操作此电热壶。

6. Do not fill water beyond the maximum capacity of the water tank. Spilt hot boiling water can cause bodily harm or result in short circuit. 不可装水超过水箱的最大容量。溢出的沸水会烫伤身体或导致电器短路。

7. Steam from boiling water can cause scalding. Be careful when handling coffee maker with freshly boiled water.

1. Always wipe and dry the surface of the coffee maker with a soft cloth before use. 使用咖啡机前应用软布抹干壶身。

2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. 当电源线损坏时，请送往维修中心，所授权的维修中心或拥有同等技术的人士替换。

2. Do not dry boil the coffee maker. 不可干烧咖啡机。

3. Do not operate the coffee maker in humid or high temperature environments. 不可在高温或潮湿的环境使用咖啡机。

4. Do not open the Top Cover while water is boiling. 在水沸腾时，请勿打开水箱上盖。

5. This appliance is intended for household use only. Not for commercial use. 此电器仅家庭式使用，不可用作商业用途。

6. Do not cover the steam vent during operations. 操作时，不要遮盖着蒸汽孔。

7. Do not place the appliance near hot gas, electric burner or oven. 请勿将此电器放置于靠近煤气，电火炉或烘炉旁边。

8. Do not operate the appliance with cracked carafe or carafe with loose handle. 请勿用破裂的咖啡壶或疏松的壶把手来操作此电器。

Caution / 指示

1. Always ensure the coffee maker is at OFF position before adding water into the water tank in order to avoid splashing steam. 在装水入水箱前，请确保咖啡机处于“OFF”的位置以防止蒸汽飞溅。
2. The Keep Warm Plate's surface is subject to residual heat after use. Do not touch the surface and any hot parts of the appliance during use or immediately after use. It will be very hot! 使用后，保温盘表面仍有余热。在使用过程中或使用后不要立即触摸此电器的表面和任何高温部件。小心烫！
3. WARNING: Avoid spillage on the power connector. 警告：避免液体溅到电源插座及插头。
4. WARNING: Misuse of this appliance may cause injury. 警告：滥用本产品可能会造成伤害。

Cleaning & Maintenance / 清洗與保养

1. Be sure to unplug and allow this appliance to cool down before cleaning. 清理前，确保将插头拔出及让此电器冷却。
2. To protect against electrical shock, do not immerse cord, plug or unit in water or liquids. After each use, always make sure plug is first removed from the wall outlet. 避免触电，切勿将电源线，插头或此机浸入水中或任何液体里。每一次使用后，确保插头先从墙上的插座移除。
3. Clean all detachable parts after each use in hot, sudsy water. 每一次使用后，将所有的附件用热肥皂水清洗。
4. Wipe the appliance's exterior surface with a soft, damp cloth to remove stains. 用软湿布擦拭产品外壳以去除污渍。
5. Water droplets may buildup in the area above the funnel and drip onto the appliance base during brewing. To control the dripping, wipe off the area with a clean, dry cloth after each use of the product. 冲煮咖啡时，水滴可能聚集在漏斗以上的位置，而后滴入产品底座。为了控制水滴入产品底座，在每一次使用后，用一块洁净的干布抹干该位置。
6. Use a damp cloth to gently wipe the keep warm plate. Never use abrasive cleaner to clean it. 使用湿布轻轻擦拭保温盘。不用具有腐蚀性的清洁剂进行清理。
7. Replace all parts and keep for next use. 将附件重新装上和收藏以供下次使用。

Removing Mineral Deposits / 清除沉积物

1. To keep your coffee maker operating efficiently, you should clean away the mineral deposits left by the water regularly, according to the water quality in your area and the frequency of use. 为了让您的咖啡机维持高效能，您需根据所在区域的水质及使用的频率，定时清理用水所残留的沉积物。
2. Fill the water tank with water and household descaler to the maximum level. (the ratio of water and descaler is 4:1, for details refer to the instruction of household descaler purchased) 将水及除垢液倒入水箱直至最高水平。
   (水和除垢液的比例为4:1, 细节可参考除垢液的说明指示)
3. You can use citric acid instead of the household descaler. 您可使用柠檬酸取代家用除垢剂。
4. Place the carafe on the keep warm plate. 将咖啡壶放回保温盘上。
5. Press the on/auto/off button once and the indicator will illuminate red. After a while, the water will flow out automatically. 按一下开启/自动/关闭按钮，显示屏上红色显示灯亮起。一会儿，水会自动流出。

Cleaning & Maintenance / 清洗與保养

1. After percolating the equivalent of one cup, switch off the appliance by pressing the on/off button twice. 释放了相等于一杯咖啡的份量后，再次按下开启/关闭按钮，则机器将会关闭。
2. Leave the solution to work for 15 minutes and repeat the process. 让除垢液静置15分钟，然后重复操作步骤。
3. Switch the appliance on by pressing the on/off button once and run off the water until the water tank is completely empty. 按一次开启/关闭按钮以开启机器，然后释放除垢液，直到水箱完全清空。
4. Rinse by operating the appliance with water for at least 3 times. 用干净的水冲洗机器至少三遍。

How to use / 使用方法

Check that all accessories are complete and the unit is not damaged. Add water into water tank to the max level and brew water for several times without coffee powder, then discard the water. Clean all detachable parts thoroughly with warm water.

1. Open the water tank lid and fill the water tank with drinking water. The water level should not exceed MAX level as indicated on water gauge.
   打开水箱盖，用玻璃杯装适量的水到水箱内，然后盖上水箱盖。注：水位不得超过最大刻度
2. Put the funnel into funnel holder, then place the filter in the funnel, and make sure it is assembled correctly. 放入滤网并确保放到位。注：本机附带一可拆式漏斗，将其旋至最左边然后向上提，
   即可取出漏斗。
3. Add proper coffee powder into filter. Usually a cup of coffee requires a spoon of coffee powder, but you may adjust according to personal taste, and then close the funnel holder. 按一杯咖啡一平勺咖啡粉计算，加入适量的咖啡粉到滤网内。也可根据自己的口味，适量增加或减少咖啡的量。
4. Place the carafe on the keep warm plate. 将咖啡壶放在保温盘上。
5. Plug the power cord into the outlet. The LCD will display "12:00" and ":" will flash, but all the button lights will not illuminate.
   将电源线插入插座。液晶显示屏将显示“12:00”，“：”将闪烁，但所有按钮指示灯均不点亮。
6. Press ON/OFF button, the indicator of RUN will be illuminated red. The appliance will begin working. 按开/关按钮，运行指示灯将呈红色亮起。设备将开始工作。
7. The brewing process can be interrupted by pressing the ON/OFF button twice again at any time, and the indicator of RUN will be extinguished. The appliance will continue brewing once ON/OFF is pressed again. 随时可以再次按ON / OFF按钮两次来中断冲泡过程，并且RUN指示灯将熄灭。再次按开/关，咖啡机将继续冲泡。
8. Remove out carafe to serve when finish brewing (about one minute later after the coffee stops dripping out). 取出冲泡玻璃瓶，以在完成冲泡时使用（大约在咖啡滴出一分钟后）。

How to use / 使用方法

Note: The coffee you get will be slightly less than the water you have added, as some water is absorbed by coffee ground.

1. When the process is finished, if you do not want to serve immediately, keep the power supply of the coffee maker on, the coffee can be kept warm in the warming plate. The appliance will be cut off power automatically after 40 minutes if it has not been manually disconnected at the completion of brewing. For an optimum coffee taste, serve it just after brewing. 完成该过程后，如果您不想立即食用，请保持咖啡机的电源接通，可以在加热板上将咖啡保温。如果冲煮完成时尚未手动断开设备的连接，则40分钟后，设备将自动切断电源。为了获得最佳的咖啡口味，请在冲泡后立即食用。

2. Always turn the coffee maker off and disconnect the power supply when not in use. Note: Pay attention when pouring the coffee out, as the temperature of freshly brewed coffee is high and may cause hazard. 用完之后应及时关掉电源，并拔下插头。 注意：不得将咖啡壶或电源线插头浸入水或其它液体中，而且，刚煮好的咖啡温度是很高的，倒咖啡时要小心，以免被煮沸的咖啡烫伤。

Programming to Delay the Start of Automatic Brewing / 延迟自动冲煮程序设置

If you do not want the coffee maker to start operation immediately, for example now it is 5:10 pm, you hope that the coffee maker will automatically start at 8:15 in the evening, first follow steps 1 to 5, then you can set the automatic start function as follows:

Press PROG button one time, the word CLOCK is showed at the up-right corner on display. 按下PROG按钮一次，显示屏的右上角会显示CLOCK一词。

1. CLOCK Press the HOUR and MIN button continuously to set the present time (real clock), that is 17:10 (See fig. 1). 连续按下HOUR和MIN按钮以设置当前时间（实际时钟），即17:10（见图1），

Note: the time cycle is 24 hours.

注意：时间周期为24小时。

1. Press PROG button once again and the word TIMER shows on up-left corner of display. 再次按PROG按钮，显示屏的左上角将显示TIMER字样。

2. TIMER 20:15 (fiq 2 见图 2) Set the delayed starting time by pressing HOUR and MIN button repetitively, that is 20:15 (see Fig. 2). 重复按 HOUR 和 MIN 按钮设置延迟的启动时间，即 20:15（见图 2）。

3. Press the ON/OFF twice, the indicator of AUTO will illuminate. The LCD will display the current clock. You may see the automatic start time by pressing PROG. 按开/关两次，“自动”指示灯将点亮。液晶显示屏将显示当前时钟。通过按PROG，您可能会看到自动开始时间。

Note: You may cancel the automatic start function by pressing ON/OFF once to stop machine, or pressing ON/OFF button twice to start brewing immediately. If you want to change the automatic start time, only following the above 1-5 steps again.

When the time is due, the indicator of AUTO will go out, while the indicator of RUN turn on and the unit starts brewing. The appliance will be cut off power automatically after two hours if it has not been manually disconnected at the completion of brewing.

A clean coffee maker is essential for making great-tasting coffee. 一个干净的咖啡壶，是制作绝佳咖啡必不可少的。

• Regularly clean the coffee maker.

定时清洗咖啡壶

- After opening a package of coffee powder, reseal it tightly and store it in a refrigerator to maintain its freshness.

- For optimum coffee taste, buy whole coffee beans and finely grind them just before brewing. 一杯理想的咖啡，需采用咖啡豆，现磨现煮。

- Do not reuse coffee powder, since this will greatly reduce coffee flavor. Reheating coffee is not recommended, as coffee is at its peak flavour immediately after brewing. 不要使用已经冲煮过的咖啡粉，这会大大降低咖啡的口感。不建议重新将咖啡加热，因为咖啡的最佳口感既冲泡后立即享用。

- Clean the coffee maker when it is oily, due to over-extraction. Small oil droplets on the surface of brewed black coffee are due to the extraction of oil from the coffee powder. 若冲煮被过度提取的咖啡豆，会产生油脂，需清洗咖啡机。研磨后的咖啡粉被冲煮后，会产生小油滴悬浮在黑咖啡上。

- Oiliness may occur more frequently if heavily roasted coffee beans are used. 如果使用被过度烘炒的咖啡豆，则可能会更频繁地出现油脂。

Perhatian
