Product Type	Built-in Electric Oven
Brand	Mayer
Model	MMDO13C
Energy Efficiency Class	A
Usable Volume	65 liters
Oven Mass	33 kg
Heat Source	Electric
Number of Cavities	1
Energy Consumption (Conventional)	0.83 kWh/cycle
Energy Consumption (Forced Air)	0.79 kWh/cycle
Temperature Range	30°C – 250°C (depending on mode)
Heating Modes	11 modes: Conventional, Convention, ECO, Conventional + Fan, Radiant Heat, Double Grill + Fan, Double Grill, Pizza, Bottom Heat, Defrost, Dough Proving
Additional Functions	Meat probe, Timer, Child lock, Quick preheat, End time setting
Accessories Included	Wire rack, Baking tray
Optional Accessories	Rotating grill, Barbecue sticks
Interior Light	Halogen, 25 W, 230 V
Maximum Operating Time	9 hours (automatic shut-off)
Door Type	Removable for cleaning
Cleaning	Enamel interior, removable door panels
Control Type	Knobs and touch controls
Power Supply	Electric, 230 V (typical)
Installation Type	Built-in (not behind decorative door)
Child Safety	Childproof lock
Cooling System	Cooling fan

Frequently Asked Questions - MMDO13C Mayer

How do I set the clock on the Mayer MMDO13C oven?

After connecting the oven, touch the clock symbol. Use the slider or '+/-' symbol to set hours. Touch the clock symbol again to set minutes, then confirm by touching the clock symbol once more. The clock uses a 24-hour display.

How to activate the child lock?

Press and hold the child lock button () for 3 seconds to activate or deactivate the lock. When active, a lock symbol appears in the status bar. This prevents accidental changes.

What heating modes are available?

The oven offers 11 modes: Conventional, Convention, ECO, Conventional + Fan, Radiant Heat, Double Grill + Fan, Double Grill, Pizza, Bottom Heat, Defrost, and Dough Proving. Each is suitable for different dishes.

How do I clean the oven interior?

Clean the enamel surfaces with hot soapy water and a soft cloth. Do not use abrasive cleaners or scouring pads. For heavy soiling, use an oven cleaner. Remove the door and side racks for thorough cleaning.

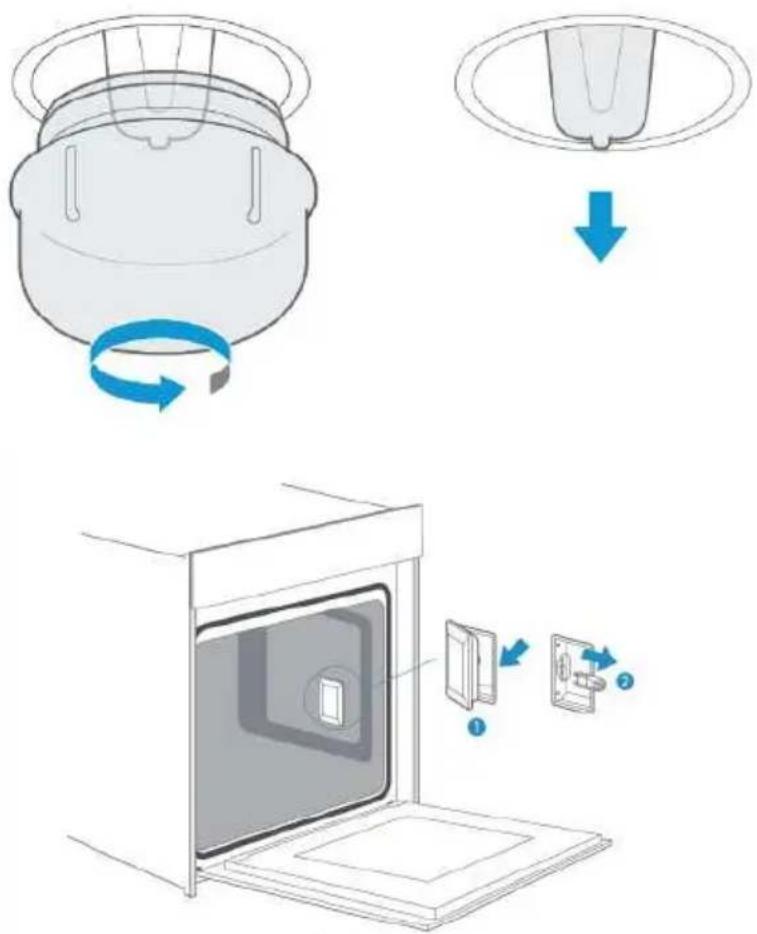

How to replace the interior light bulb?

Unplug the oven or switch off the circuit breaker. Allow the oven to cool. Place a towel in the cavity. Turn the glass cover counterclockwise to remove it. Pull out the old halogen lamp (25 W, 230 V) without turning. Insert the new lamp, ensuring pins align, then push firmly. Screw the glass cover back on.

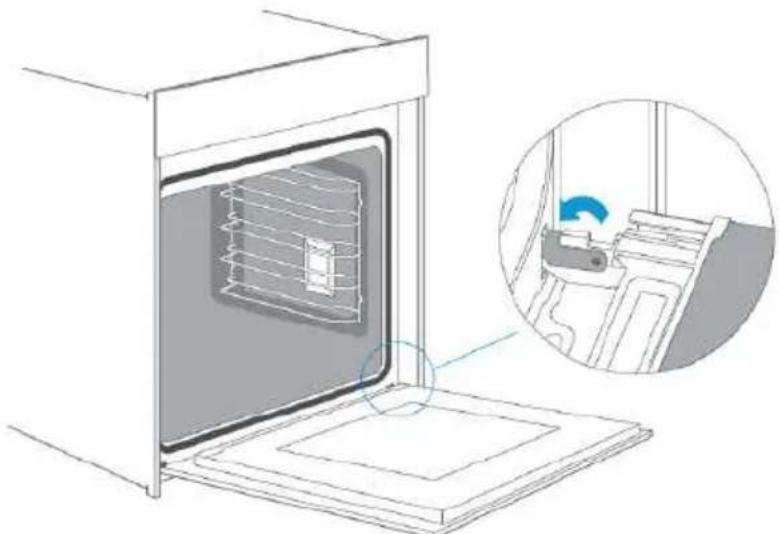

Can I remove the oven door for cleaning?

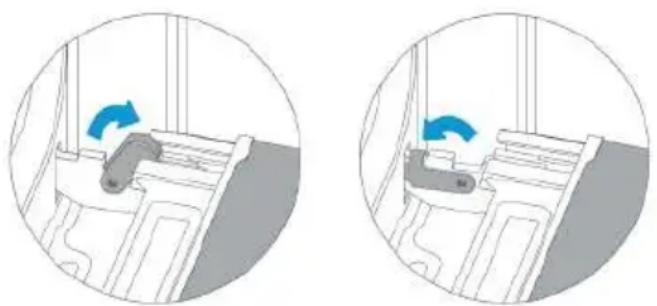

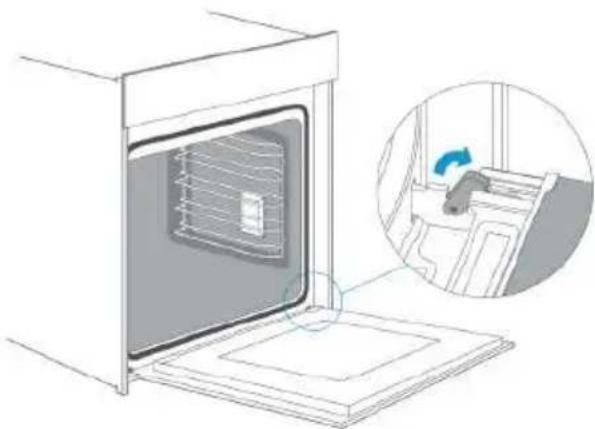

Yes. Open the door fully, fold open the locking levers on both hinges, close the door slightly, then lift and pull it off. To reattach, reverse the steps. Ensure hinges are correctly seated and locking levers are closed.

What is the maximum cooking time?

The oven automatically shuts off after 9 hours of continuous operation to prevent accidental overheating.

Can I use aluminum foil in the oven?

Aluminum foil must not touch the door glass or heating elements. Do not cover the cavity floor with foil. Use foil only on accessories and ensure it does not protrude.

How to use the meat probe?

Insert the probe into the thickest part of the meat, avoiding bone or fat. The oven detects the probe and shows temperature settings. Use the +/- symbols to set desired core temperature. The oven will cook until the internal temperature is reached.

What should I do if the oven does not turn on?

Check the circuit breaker and ensure power is supplied. Verify that other kitchen appliances work. If the fuse is fine, contact after-sales service. Do not attempt repairs yourself.

USER MANUAL MMDO13C Mayer

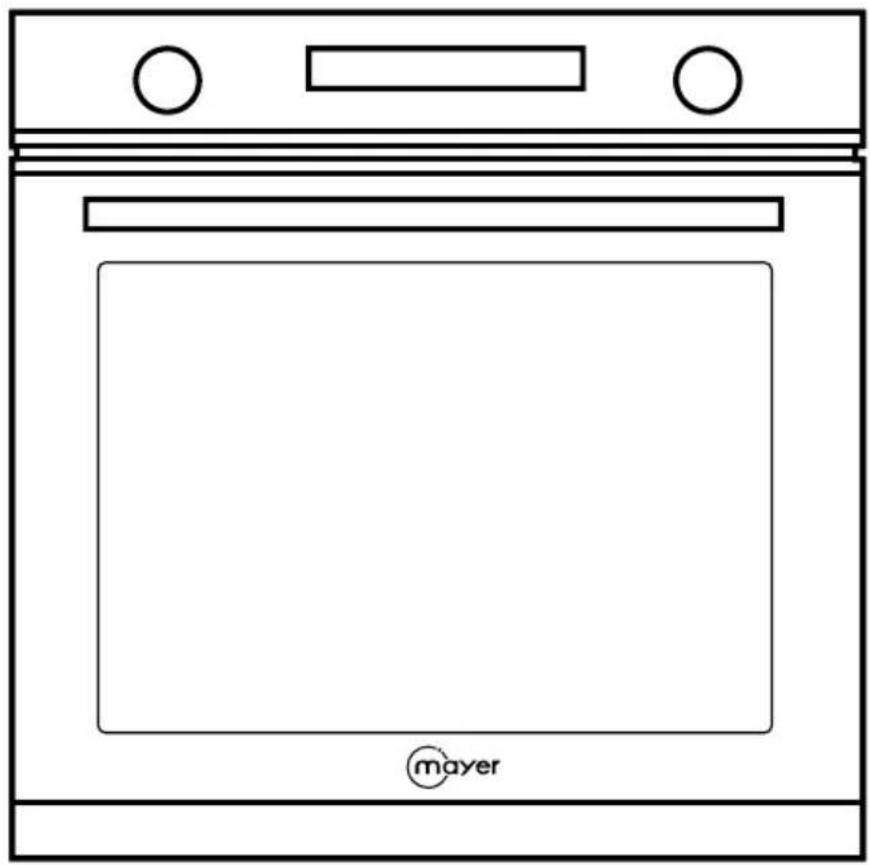

Built-in Oven MMD013C

Line drawing of a kitchen oven with two circular handles and a door, labeled 'mayer' at the bottom (no other text or symbols)

BUILT-IN OVEN

Please read this instruction manual thoroughly before operating and keep it for future reference

IMPORTANT SAFETY INSTRUCTIONS

• The appliance is only intended to be fitted in a kitchen. Observe the special installation instructions.
• Check the appliance if there is any damage after unpacking it. Do not connect the appliances if it has been damaged. Only a licensed professional may connect appliances without plugs.
  • Damage caused by incorrect connection is not covered under warranty.
  • Only use this appliance indoors.
  • The appliance must only be used for the preparation of food and drink.
  • The appliance must be supervised during operation.
• This appliance may be used by children over the age of 8 and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.
  • Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.
• Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
• Please always slide accessories into the cavity the right way round.

Warning

Risk of electric shock

1. Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is fuse box. Contact the after sales service.
2. The cable insulation on electrical appliances may melt when touching hot parts of the appliance. Never bring electrical appliance cables into contact with hot parts of the appliance.
3. Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.
4. A defective appliance may cause electric shock. Never switch on a defective appli-box. Contact the after-sales service.

Risk of burns

1. The appliance becomes very hot. Never touch the interior surfaces of the appliance or the heating elements.

2. Always allow the appliance to cool down.

3. Keep children at a safe distance.

4. Accessories and ovenware become very hot. Always use oven gloves to remove accessories or ovenware from the cavity.

5. Alcoholic vapors may catch fire in the hot cooking compartment. Never prepare food containing large quantities of drinks with high alcohol content. Only use small quantities of drinks with high alcohol content. Open the appliance door with care.

Risk of scalding

1. The accessible parts become hot during operation. Never touch the hot parts. Keep children at a safe distance.
2. When you open the appliance door, hot steam can escape. Steam may not be visible, depending on its temperature. When opening, do not stand too close to the appliance.
3. Open the appliance door carefully. Keep children away. Water in a hot cavity may create hot steam. Never pour water into the hot cavity.

Risk of injury

1. Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents.
2. The hinges on the appliance door move when opening and closing the door, and you may be trapped. Keep your hands away from the hinges.

Risk of fire

1. Combustible items stored in the cavity may catch fire. Never store combustible items in the cavity. Never open the appliance door if there is smoke inside. Switch off the appliance and unplug it from the mains or switch off the circuit breaker in the fuse box.
2. A draught is created when the appliance door is opened. Greaseproof paper may come into contact with the heating element and catch fire. Do not place greaseproof paper loosely over accessories during preheating. Always weight down the greaseproof paper with a dish or a baking tin. Only cover the surface required with greaseproof paper. Greaseproof paper must not protrude over the accessories.

Hazard due to magnetism

Permanent magnets are used in the control panel or in the control elements. They may affect electronic implants, e.g. heart pacemakers or insulin pumps. Wearers of electronic implants must stay at least 10cm away from the control panel.

Cause of damage

1. Accessories, foil, greaseproof paper or ovenware on the cavity floor: do not place accessories on the cavity floor. Do not cover the cavity floor with any sort of foil or greaseproof paper. Do not place ovenware on the cavity floor if a temperature of over 50 °C has been set. This will cause heat to accumulate. The enamel will be damaged.
2. Aluminium foil: Aluminium foil in the cavity must not come into contact with the door glass. This could cause permanent discolouration of the door glass.
3. Silicone pans: Do not use any silicone pans, or any mats, covers or accessories that contain silicone. The oven sensor may be damaged.
4. Water in a hot cooking compartment: do not pour water into the cavity when it is hot. This will cause steam. The temperature change can cause damage to the enamel.
5. Moisture in the cavity: Over an extended period of time, moisture in the cavity may lead to corrosion. Allow the appliance to dry after use. Do not keep moist food in the closed cavity for extended periods of time. Do not store food in the cavity.
6. Cooling with the appliance door open: Following operation at high temperatures, only allow the appliance to cool down with the door closed. Do not trap anything in the appliance door. Even if the door is only left open a crack, the front of nearby furniture may become damaged over time. Only leave the appliance to dry with the door open if a lot of moisture was produced while the oven was operating.
7. Fruit juice: when baking particularly juicy fruit pies, do not pack the baking tray too generously. Fruit juice dripping from the baking tray leaves stains that cannot be removed. If possible, use the deeper universal pan.
8. Extremely dirty seal: If the seal is very dirty, the appliance door will no longer close properly during operation. The fronts of adjacent units could be damaged. Always keep the seal clean.
9. Appliance door as a seat, shelf or worktop: Do not sit on the appliance door or place or hang anything on it. Do not place any cookware or accessories on the appliance door.
10. Inserting accessories: depending on the appliance model, accessories can scratch the door panel when closing the appliance door. Always insert the accessories into the cavity as far as they will go.
11. Carrying the appliance: do not carry or hold the appliance by the door handle. The door handle cannot support the weight of the appliance and could break.
12. If you use the residual heat of the switched off oven to keep food warm, a high moisture content inside the cavity can occur. This may lead to condensation and can cause corrosion damage of your high quality appliance as well as harm your kitchen. Avoid condensation by opening the door or use "Defrost" mode.

• To operate this appliance safe, please be sure that it has been installed to a professional standard respecting the installation instructions. Damages occur because of incorrect installation are not within the warranty.
• While doing the installation, please wear protective gloves to prevent yourself from getting cut by sharp edges.
• Check the appliance if there is any damage before installation and do not connect the appliance if there is.
• Before turning on the appliance, please clean up all the packaging materials and adhesive film from the appliance.

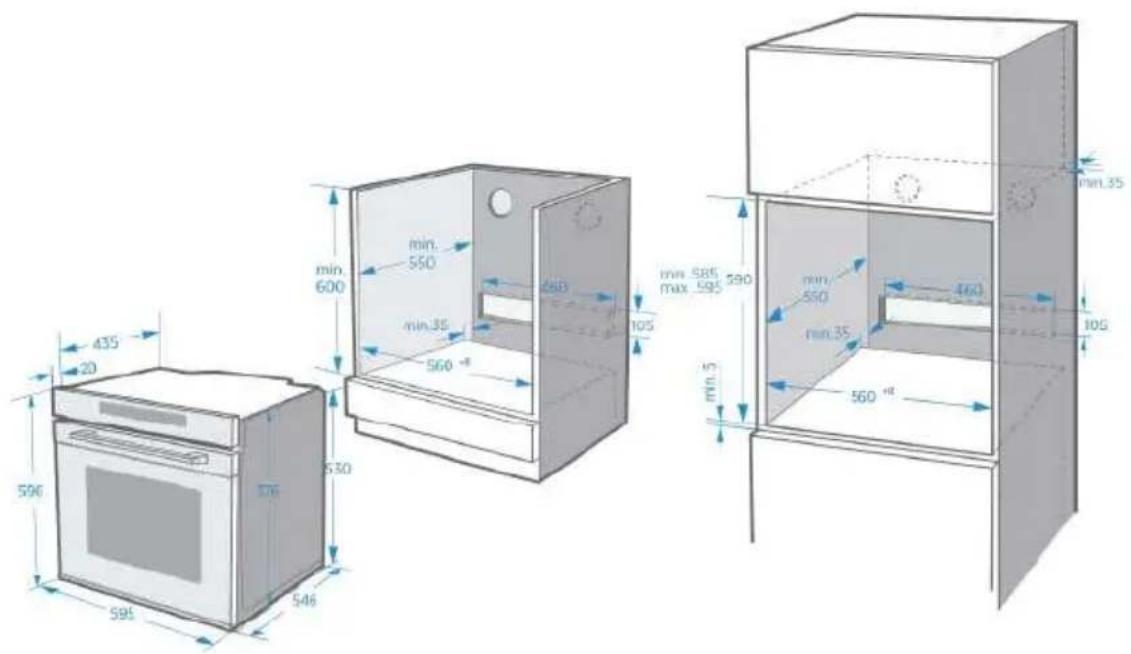

  • The dimensions attached are in mm.
• It is necessary to have the plug accessible or incorporate a switch in the fixed wiring, in order to disconnect the appliance from the supply after installation when necessary.

Warning : The appliance must not be installed behind a decorative door in order to avoid overheating.

INTRODUCTION OF PARTS

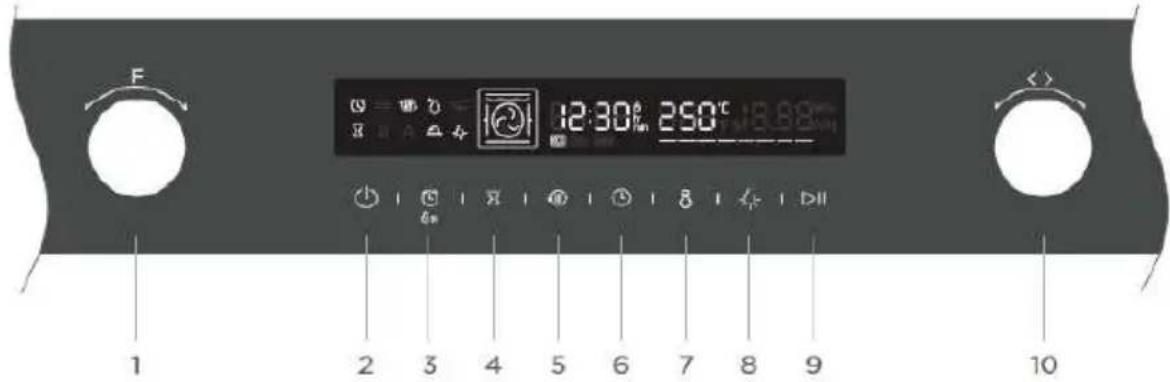

Control Panel

	1. Oven – Function	Turn this knob to change heating mode.
	2. ON / OFF	Switch on and off oven.
	3. Timer / Child-Proof Lock	Use timer function/use child-proof lock with 3s press
	4. End time	Set an end time to the cooking duration.
	5. Quick preheat	Use this to have a quick preheat.
	6. Duration & Clock Setting	Set a duration time then select function & set clock in standby mode.
	7. Temperature Setting	Press to set temperature.
	8. Lamp ON / OFF	Switch on and off lamp.
	9. Start / Pause	Start and pause the cooking process.
	10. Adjust	Change the adjustment values shown in the display.

Accessories

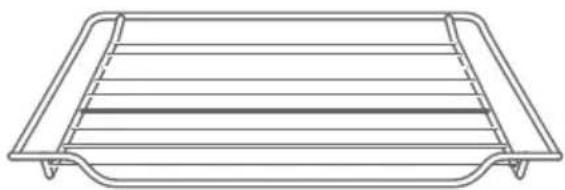

Line drawing of a rectangular tray with horizontal lines and side supports (no text or symbols)

Wire Rack Baking Tray

For ovenware, cake tins and ovenproof dishes. For roasts and grilled food.

Simple 3D illustration of a rectangular baking tray with cutouts (no text or symbols)

For tray bakes and small baked products.

CONTROLS AND OPERATIONS

Your appliance has various operating modes which make your appliance easier to use.

To enable you to find the correct type of heating for your dish, we have explained the differences and scopes of application here.

The symbols for each type help you to remember them.

Types of heating

Heating Mode Temperature Use
	Conventional	30 ~ 250°C	For traditional baking and roasting on one level. Especially suitable for cakes with moist toppings.
	Convention	50 ~250°C	For baking and roasting on one or more levels. Heat comes from the ring heater surrounding the fan evenly.
	ECO 140°C~240°C		For energy-saved cooking.
	Conventional + Fan	50°C~250°C	For baking and roasting on one or more levels. The fan distributes the heat from the heating elements evenly around the cavity.
	Radiant Heat 150°C~250°C		For grilling small amounts of food and for browning food. Please put the food in the centre part under the grill heating element.
	Double Grill + Fan	50°C~250°C	For grilling flat items and for browning food. The fan distributes the heat evenly around the cavity.
	Double Grill 150°C~250°C		For grilling flat items and for browning food.
	Pizza	50°C~250°C	For pizza and dishes which need a lot of heat from underneath. The bottom heater and ring heater will work.
	Bottom Heat	30°C~220°C	For add extra browning to the bases of pizzas, pies, and pastries. Heating come from the bottom heater.
	Defrost -		For gently defrosting frozen food.
	Dough Proving	30°C~45°C	For making yeast dough and sour dough to prove and culturing yogurt.

Types of additional function		Temperature Use
	Meat Probe	40°C~90°C	For helping baking meat like steak and chicken.

Notes:

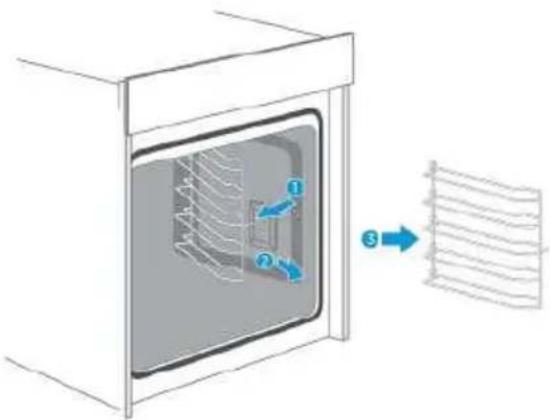

1. To defrost big portions of food, it is possible to remove the side-racks and place the container on the cavity floor.
2. To warming tableware, it is beneficial to remove the side-racks and the heating modes "Hot Air Grilling" and "Fan Heating" with temperature setting of 50^ C are useful. "Hot Air Grilling" should be used, if more than half of the cavity floor is covered by the tableware.
   Due to an optimum evenness of heat distribution inside the cavity during "Fan Heat -
3. ing", the fan will work at certain times of the heating process, to guaranty the best possible performance.

Caution

1. If you open the appliance door during an on-going operation, the operation will not be paused. Please be especially careful with the risk of burns.
2. Do not cover the ventilation slots. Otherwise, the appliance may overheat. To make the appliance cools down more quickly after the operation, the cooling fan may continue to run for a period afterwards.

Cooling fan

• The cooling fan switches on and off as required. The hot air escapes above the door.

Cooking with oven

1. After the oven has been electrically connected, touch the oven-function symbol to select functions, use the slider or “+/-” symbol to set cooking temperature.
2. Touch ON/OFF symbol, oven begin to work, if not, oven will back to clock after 5 minutes.
3. During the cooking process, you can touch ⏻ to cancel it

NOTE: After temperature setting, you can touch 🔒 to set the cooking duration time, you can set it by slider or “+/-” symbol.

Quick preheat

You can use quick preheat to shorten the preheat time. When you select a function, touch the 📂, mark of quick preheat in the screen will light

up. If this function can't quick preheat, then there will be a "beep", there is no quick preheat in defrost and dough proving.

Set a finish time

Then you finished the time setting, you can set a time when cooking end.

1. Touch ☒, then you can use slider or "+/-"symbol to set end time in hours, touch ☒ again then set it in minutes. When you finished the setting, touch ☒ to make sure.
2. When you set the end time, you need set cooking duration time. Please check cooking with oven.
3. For example, when you set end time is 10 o'clock, and cooking duration time is 1 hour, then oven will heat up at 9 o'clock, and finish at 10 o'clock.

Change during cooking

1. During the period of appliance operating, you can change the heating type setting and temperature setting by oven-function or slider. After the change, if there no other action after 6 seconds the oven will heat as what you changed.

2. If you want change cooking duration time in the cooking process, please touch 🔒 and change it by slider or “+/-”symbol. After the change, if there no other action after 6 seconds the oven will work as what you changed. During the cooking process with a end time setting, you can’t do any change.

3. When you want cancel the cooking process, please touch ⏻.

Notes

1. Changing modes/temperature/rest cooking time may have some negative influences for the result of cooking, we warmly recommend you not to do so unless you are well experienced on cooking.

2. Changing modes/temperature/rest cooking time may have some negative influences for the result of cooking, we warmly recommend you not to do so unless you are well experienced on cooking.

Caution

• After the appliance switched off, it becomes very hot especially inside the cavity. Never touch the interior surfaces of the appliance or the heating elements. Use oven gloves to remove accessories or ovenware from the cavity, and allow the appliance to cool down.
- Keep children at a safe distance at the same time to avoid the injury of burns.

Timer

• You can use timer function by touch Ⓤ. When the time arrived, oven will give "beep" for remind. At the first touch of Ⓤ, set timer by hours, then touch Ⓤ again, set timer by minutes. Touch Ⓤ again and the setting is finished.
• You can set the timer before and during cooking process, but when you are selecting function and temperature, it's not available.

Childproof lock

• Your appliance has a childproof lock so that children cannot switch it on accidentally or change any settings.
• When you give a long press for 3 seconds, childproof lock is activated. A long press for 3 seconds again the oven is unlocked.
• You can activate and deactivate childproof lock when the oven is work or not. Give a long press for 3 seconds you can switch on and off the childproof lock. When the childproof is on, there will be a ☑ in the status bar.

Meat probe

- Your oven has an additional meat probe function. When you insert the meat probe into the position, the will be light on. At the same time, the clock area will be changed to show the temperature setting of meat probe, you can use + and -, also the slider to change the setting. Then press choose the function, adjust temperature the same way, and turn the oven on by pressing (Before start make sure everything is well prepared). In this mode, is used to change both the meat probe and core temperature. You can get the setting changed also during the process of cooking.

Notes

1. Meat probe can be used together with rotary system;
2. While using meat probe, please make the head of it into the food instead of some - where else, for the sake of long-term using.

ACCESSORIES

Your appliance is accompanied by a range of accessories. Here, you can find an overview of the accessories included and information on how to use them correctly.

Accessories included

Your appliance is equipped with the following accessories:

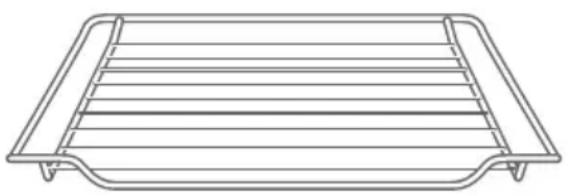

Line drawing of a rectangular tray or container with horizontal slats and side supports (no text or symbols)

Wire Rack
For ovenware, cake tins and ovenproof dishes. For roasts and grilled food.

Simple line drawing of a rectangular baking tray with cutouts (no text or symbols)

Baking Tray
For tray bakes and small baked products.

• You can use the tray to place liquid or cooking food with juice.
• Only use original accessories. They are specially adapted for your appliance.
• You can buy accessories from the after-sales service, from specialist retailers or online.

Note:

- The accessories may deform when they become hot. This does not affect their function. Once they have cooled down again, they regain their original shape.

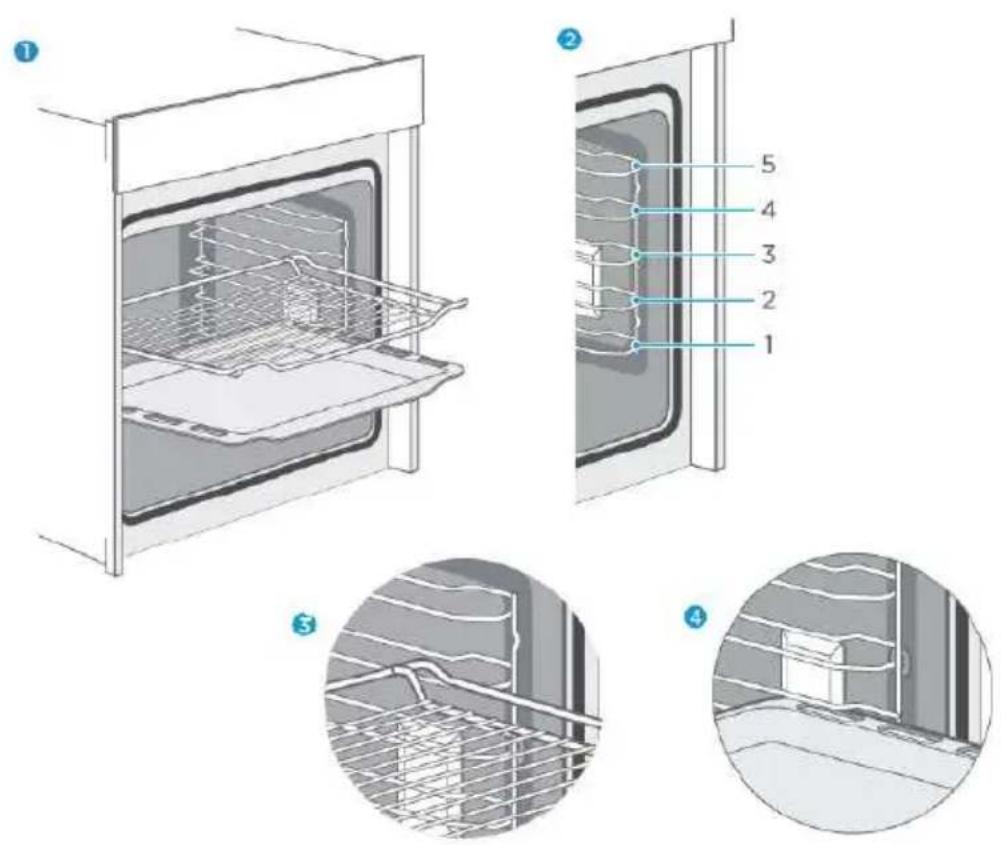

Inserting accessories

• The cavity has five shelf positions. The shelf positions are counted from the bottom up.
• The accessories can be pulled out approximately halfway without tipping.

Notes

1. Ensure that you always insert the accessories into the cavity the right way round.
2. Always insert the accessories fully into the cavity so that they do not touch the appliance door.

Locking function

• The accessories can be pulled out approximately halfway until they lock in place. The locking function prevents the accessories from tilting when they are pulled out. The accessories must be inserted into the cavity correctly for the tilt protection to work properly.
• When inserting the wire rack, ensure the wire rack is onto the right facing direction like the picture 1 3
• When inserting the backing tray, ensure the backing tray is onto the right facing direction like the picture 1 4

Optional accessories

• You can buy optional accessories from the after-sales service, from specialist retailers or online. Please see your sales brochures for more details.
- When purchasing, please always quote the exact order number of the optional accessory.

Simple line drawing of a rectangular container with a diagonal line and a circular base (no text or symbols)

Rotating Grill

For roasting meat like chicken, turkey.

Barbecue stick

For making barbecue, like meat and vegetables.

Inserting accessories:

- Barbecue sticks are only suitable with rotating grill, when using barbecue sticks, put them onto the wire rack of rotating grill. before inserting accessories into cavity, please insure all the food is well put, then slightly insert them into level 2 of the cavity.

Notes:

1. The rotating grill is not continuously rotating, you can choose to make it turn during the process of cooking based on the performance of food. Make sure you have dressed with heat insulating gloves and be careful with the heat rushing out while opening the door of the oven. The rotating grill can make 90 degree rotations and probably you don't even need to turn it at all.
2. The barbecue sticks are dangerous with cuspidal heads, please make sure children a d disabled people are away with them. And check sticks are not into the convention cover before oven gets turned on cause this will make damage to oven and could hurt people also.
3. We strongly suggest to use level 2 of cavity, top + bottom heating function to bake while using rotating grill and barbecue sticks.

CONTROLS AND OPERATIONS

using the appliance to prepare food for the first time, you must clean the cavity and accessories.

1. Remove all stickers, surface protection foils and transport protection parts.
2. Remove all accessories and the side-racks from the cavity.
3. Clean the accessories and the side-racks thoroughly using soapy water and a dish cloth or soft brush.
4. Ensure that the cavity does not contain any leftover packaging, such as polystyrene pellets or wooden piece which may cause risk of fire.
5. Wipe the smooth surfaces in the cavity and the door with a soft, wet cloth.
6. To remove the new-appliance smell, heat up the appliance when empty and with the oven door closed.
7. Keep the kitchen highly ventilated while the appliance is heating up first time. Keep children and pets out of the kitchen during this time. Close the door to the adjacent rooms.
8. Adjust the settings indicated. You can find out how to set the heating type and the temperature in the next section.

SETTING
Heating Mode	Conventional
Temperature	250°C
Time	1h

After the appliance has cooled down:

1. Clean the smooth surfaces and the door with soapy water and a dish cloth.
2. Dry all surfaces.
3. Install the side-racks.

Setting the time

Before the oven can be used, the time should be set.

1. After the oven has been electrically connected, touch the clock symbol then you can set time of day in hours by slider or “+/-”symbol.
2. Touch clock symbol again then you can set time in minutes by slider or "+/-"symbol.
3. Touch clock symbol to finish the setting.

NOTE: The clock has a 24 hour display.

ENERGY EFFICIENT USE

1. Remove all accessories, which are not necessary during the cooking & baking process
2. Do not open the door during the cooking & baking process.
3. If you open the door during cooking & baking, switch the mode to "Lamp" (Without change the temperature setting).
4. Decrease the temperature setting in not fan assisted modes to 50^ C at 5min to 10min before

end of cooking & baking time. So you can use the cavity heat to complete the process.

1. Use "Fan Heating", whenever possible. You can reduce the temperature by 20^ C to 30^ C.
2. You can cook and bake using "Fan Heating" on more than one level at the same time.
3. If it is not possible to cook and bake different dishes at the same time, you can heat one after the other to use the preheat status of the oven.
4. Do not preheat the empty oven, if it is not required.

If necessary put the food into the oven immediately after reaching the temperature indicated by switching off the indicator light the first time.

1. Do not use reflective foil, like aluminium foil to cover the cavity floor.
2. Use the timer and or a temperature probe whenever possible.
3. Use dark matt finish and light weighted baking molds and containers. Try not to use heavy accessories with shiny surfaces, like stainless steel or aluminium.

ENVIRONMENT

The packaging is made for protect your new appliance against damages during transport. The materials used are selected carefully and should be recycled. Recycling reduces the use of raw materials and waste. Electrical and electronic appliances often contain valuable materials. Please do not dispose of it with your household waste.

Symbol of a trash bin crossed with no visible text or labels

HEALTH

Acrylamide occurs mainly by heating up starchy food (i.e. potato, French fries, bread) to very high temperatures over long times.

Tips

1. Use short cooking times.
2. Cook food to a golden yellow surface colour, do not burn it to dark brown colours.
3. Bigger portions have less acrylamide.
4. Use "Fan Heating" mode if possible.
5. French fries: Use more than 450g per tray, place them evenly spread and turn them time by time. Use the product information if available to get the best cooking result.

CLEANING AND MAINTENANCE

Cleaning agent

• With good care and cleaning, your appliance will retain its appearance and remain fully functioning for a long time to come. We will explain here how you should correctly care for and clean your appliance.
• To ensure that the different surfaces are not damaged by using the wrong cleaning agent, observe the information in the table. Depending on the appliance model, not all of the areas listed may be on/in your appliance.

Caution

Risk of surface damage

Do not use:

1. Harsh or abrasive cleaning agents.
2. Cleaning agents with a high alcohol content.
3. Hard scouring pads or cleaning sponges.
4. High-pressure cleaners or steam cleaners.
5. Special cleaners for cleaning the appliance while it is hot.

Tip

• Highly recommended cleaning and care products can be purchased through theafter-sales service.
• Observe the respective manufacturer's instructions.

Area Appliance exterior Cleaning
Appliance exteriorStainless steel front	Hot soapy water:Clean with a dish cloth and then dry with a soft cloth.Remove flecks of lime-scale, grease, starch and albumin (e.g. egg white) immediately.Corrosion can form under such flecks.Special stainless steel cleaning products suitable for hot surfaces are available from our after-sales service or from specialist retailers.Apply a very thin layer of the cleaning product with a soft cloth.
Plastic	Hot soapy water:Clean with a dish cloth and then dry with a soft cloth. Do not use glass cleaner or a glass scraper.
Painted surfaces	Hot soapy water:Clean with a dish cloth and then dry with a soft cloth.
Control panel	Hot soapy water:Clean with a dish cloth and then dry with a soft cloth. Do not use glass cleaner or a glass scraper.
Door panels	Hot soapy water:Clean with a dish cloth and then dry with a soft cloth.Do not use a glass scraper or a stainless steel scouring pad.
Enamel surfaces and self-cleaning surfaces	Observe the instructions for the surfaces of the cooking compartment that follow the table.
Glass cover for the interior lighting	Hot soapy water:Clean with a dish cloth and then dry with a soft cloth.If the cooking compartment is heavily soiled, use oven cleaner.If the cooking compartment is heavily soiled, use oven cleaner.
Door seal do not remove	Hot soapy water:Clean with a dish cloth. Do not scour.
Stainless steel door cover	Stainless steel cleaner:Observe the manufacturer's instructions.Do not use stainless steel care products.Remove the door cover for cleaning.
Accessories	Hot soapy water:Soak and clean with a dish cloth or brush.If there are heavy deposits of dirt, use a stainless steel scouring pad.
Rails	Hot soapy water:Soak and clean with a dish cloth or brush.
Pull-out system	Hot soapy water:Clean with a dish cloth or a brush.Do not remove the lubricant while the pull-out rails are pulled out. It is best to clean them when they are pushed in.Do not clean in the dishwasher.
Meat thermometer	Hot soapy water:Clean with a dish cloth or a brush. Do not clean in the dishwasher.

Notes

1. Slight differences in colour on the front of the appliance are caused by the use of different materials, such as glass, plastic and metal.
2. Shadows on the door panels, which look like streaks, are caused by reflections made by the interior lighting.
3. Enamel is baked on at very high temperatures. This can cause some slight colour variation. This is normal and does not affect operation. The edges of thin trays cannot be completely enamelled. As a result, these edges can be rough. This does not impair the anti-corrosion protection.
4. Always keep the appliance clean and remove dirt immediately so that stubborn deposits of dirt do not build up.

Tips

1. Clean the cooking compartment after each use. This will ensure that dirt cannot be baked on.
2. Always remove flecks of lime scale, grease, starch and albumin (e.g. egg white) immediately.
3. Remove flecks of food with sugar content immediately, if possible, when the fleck is still warm.
4. Use suitable ovenware for roasting, e.g. a roasting dish.

APPLIANCE DOOR

With good care and cleaning, your appliance will retain its appearance and remain fully functional for a long time to come. This will tell you how to remove the appliance door and clean it.

For cleaning purposes and to remove the door panels, you can detach the appliance door.

The appliance door hinges each have a locking lever.

When the locking levers are closed, the appliance door is secured in place. It cannot be detached.

When the locking levers are open in order to detach the appliance door, the hinges are locked. They cannot snap shut.

Two circular diagrams showing a mechanical device with blue directional arrows indicating rotation (no text or symbols)

Warning - Risk of injury

1. If the hinges are not locked, they can snap shut with great force. Ensure that the locking levers are always fully closed or, when detaching the appliance door, fully open.
2. The hinges on the appliance door move when opening and closing the door, and you may be trapped. Keep your hands away from the hinges.

Removing the appliance door

1. Open the appliance door fully.
2. Fold open the two locking levers on the left and right
3. Close the appliance door as far as the limit stop.
4. With both hands, grip the door on the left- and right-hand side, and pull it out upwards.

Illustration of an oven with a rack and a close-up inset showing a hand holding a device (no text or symbols present)

Fitting the appliance door

Reattach the appliance door in the opposite sequence to removal.

1. When attaching the appliance door, ensure that both hinges are placed right onto the installing holes of the front panel of the cavity.

Ensure that the hinges are inserted into the correct position. You must be able to insert them easily and without resistance. If you can feel any resistance, check that the hinges are inserted into the holes right.

1. Open the appliance door fully. While opening the appliance door, you can make another check if the hinges are onto the right position. If you make the fitting wrong, you will not be able to make the appliance door fully opened.

Fold both locking levers closed again.

1. Close the cooking compartment door. By the same time, we warmly recommend you to check one more time, if the door is onto the right position and if the ventilation slots are not half-sealed.

Line drawing of a kitchen oven with a rack inside, showing internal components and a magnified inset of the interior (no text or symbols)

Removing the door cover

The plastic inlay in the door cover may become discoloured. To carry out thorough cleaning, you can remove the cover.

Remove the appliance door like instructed above.

1. Press on the right and left side of the cover.
2. Remove the cover.

3. After removing the door cover, that rest parts of the appliance door can be easily taken off so that you can go on with the cleaning. When the cleaning of the appliance door has finished, put the cover back in place and press on it until it clicks audibly into place.

4. Fitting the appliance door and close it.

Diagram of a door with a blue arrow pointing to the interior wall (no text or symbols)

Diagram of a mechanical assembly with a blue arrow indicating direction (no text or symbols present)

Diagram of a mechanical assembly with a blue arrow indicating a process or movement (no text or symbols present)

Caution

While the appliance door is well installed, the door cover can also be taken off, by this time.

1. Removing the door cover means to set the inner glass of the appliance door free, the glass can be easily moved and cause damage or injury.
2. As removing the door cover and inner glass means to reduce the overall weight of the appliance door. The hinges can be easier to be moved when closing the door and you may be trapped. Keep your hands away from the hinges.

Because of the 2 points above, we strongly recommend you not to remove the door cover unless the appliance door removed. Damage caused by incorrect operation is not covered under warranty.

Rails

• When you want have a good cleaning for the rails and cavity, you can remove the shelves and clean it. In this way your appliance will retain its appearance and remain fully functional for a long time to come.
  • Detaching and refitting the rails.
• Inserting the holders.
• Attaching the rails.

Notes

The telescopic runners/shelves/self-cleaning baffle are optional accessories.

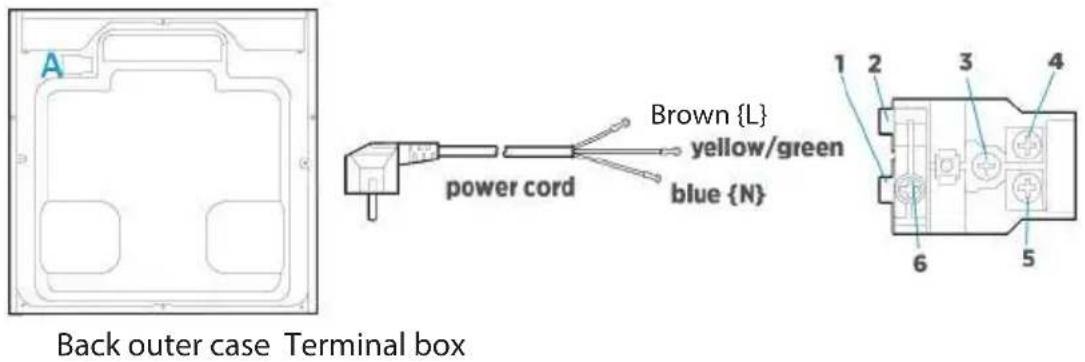

Change the power cord

Position A show the terminal box position on the back of the back outer case and it's closed.

1. Cut off the power, use small flat screwdriver to open two snap 1, 2.
2. Use Phillips screwdriver to take off screws 3, 4, 5 and 6.
3. Change the new power cord, fix the yellow/green wire on 3, brother wire on 4, blue wire on 5.
4. Twist screw 6 closed the terminal box cover finish the changing.

TROUBLESHOOTING

If a fault occurs, before calling the after-sales service, please ensure that is not because of incorrect operations and refer to the fault table, attempt to correct the fault yourself.

You can often easily rectify technical faults on the appliance yourself.

If a dish does not turn out exactly as you wanted, you can find many tips and instructions for preparation at the end of the operating manual..

Problem Cause of Issue Solution
The appliance does not work.	Faulty fuse.	Check the circuit breaker in the fuse box.
	Power cut.	Check whether the kitchen light or other kitchen appliances are working.
Knobs have fallen out of the support in the control panel.	Knobs have been accidentally disengaged.	Knobs can be removed.Simply place knobs back in their support in the control panel and push them in so that they engage and can be turned as usual.
Knobs can no longer be turned easily.	There is dirt under knobs.	Knobs can be removed.To disengage knobs, simply remove them from the support.Alternatively, press on the outer edge of knobs so that they tip and can be picked up easily.Carefully clean the knobs using a cloth and soapy water.Dry with a soft cloth.Do not use any sharp or abrasive materials.Do not soak or clean in the dishwasher.Do not remove knobs too often so that the support remains stable.

Problem Solution
Fan does not work all the time in the mode: “Fan Heating”	This is a normal operation due to the best possible heat distribution and best possible performance of the oven.
After a cooking process a noise can be heard and a air flow in the near of the control panel can be observed.	The cooling fan is still working, to prevent high moisture conditions in the cavity and cool down the oven for your convenience. The cooling fan will switch off automatically.
The food is not sufficient cooked in the time given by the recipe.	A temperature different from the recipe is used. Double check the temperatures. The ingredient quantities are different to the recipe. Double check the recipe.
Uneven browning.	The temperature setting is too high, or the shelf level could be optimized. Double check the recipe and settings. The surface finish and or colour and or material of the baking ware were not the best choice for the selected oven function. When use radiant heat, such as “Top & Bottom Heating” mode, use matt finished, dark coloured and light weighted oven ware.
The lamp doesn’t turn on.	The lamp needs to be replaced.

Warning

Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.

Maximum operating time

The maximum operating time of this appliance is 9 hours, to prevent that you forget shot off the power.

Replacing the lamp on the corner of the cavity

If the cavity lamp fails, it must be replaced. Heat-resistant, 25 watt, 230 V halogen lamps are available from the after-sales service or specialist retailers.

When handling the halogen lamp, use a dry cloth. This will increase the service life of the lamp.

Warning

Risk of electric shock

When replacing the lamp, the lamp socket contact are live. Before replacing the lamp, unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

Risk of burns

The appliance becomes very hot. Never touch the interior surfaces of the appliance or the heating elements. Always allow the appliance to cool down. Keep children at a safe distance.

1. Place a towel in the cold cavity to prevent damage.
2. Turn the glass cover anti-clockwise to remove it.
3. Pull out the lamp – do not turn it.
4. Screw the glass cover back in.
5. Remove the towel and switch on the circuit breaker to see if lamp switches on.

Insert the new lamp, making sure that the pins are in the correct position. Push the lamp in firmly.

Lateral Lamp

Glass cover

If the glass cover of the halogen lamp is damaged, it must be replaced. You can obtain a new glass cover from the after-sales service. Please specify the E number and FD number of your appliance.

TIPS AND TRICKS

You want to cook your own recipe	Try to use settings of similar recipes first and optimize the cooking process due to the result.
Is the cake baked ready?	Put a wooden stick inside the cake about 10 minutes before the given baking time is reached. If there is no raw dough at the stick after pulling out, the cake is ready.
The cake loses massive volume during cooling down after baking.	Try to lower the temperature setting by 10°C and double check the food preparing instructions regarding the mechanical handling of the dough.
The height of the cake is in the middle much higher than at the outer ring	Do not grease the outer ring of the spring form
The cake is too brown at the top	Use a lower shelf level and or use a lower set temperature (this may lead to a longer cooking time)
The cake is too dry	Use a 10°C higher set temperature (this may lead to a shorter cooking time)
The food is good looking but the humidity inside is too high	Use a 10°C lower set temperature (this may lead to a longer cooking time) and double check the recipe
The browning is uneven	Use a 10°C lower set temperature (this may lead to a longer cooking time). Use the "Top & Bottom Heating" mode on one level.
The cake is less browned on the bottom	Choose a level down
Baking on more than one level at the same time: One shelf is darker than the other.	Use a fan assisted mode for baking at more than one level and take out the trays individually when ready. It is not necessary that all trays are ready at the same time.
Condensing water during baking	Steam is part of baking and cooking and moves normally out of the oven together with the cooling air flow. This steam may condensate at different surfaces at the oven or near to the oven and build water droplets. This is a physical process and cannot be avoid completely.
Which kind of bakeware can be used?	Every heat resistant baking ware can be used. It is recommended not to use aluminium in direct contact with food, especially when it is sour. Please ensure a good fitting between container and lid.
How to use the grill function?	Preheat the oven for 5 minutes and place the food in the level given by this manual. Close the oven door when you use any grilling mode. Do not use the oven when the door is open, except for load / remove / check the food.
How to keep clean the oven during grilling?	Use the tray filled with 2 litre of water in at level 1. Nearly all fluids drip down from the food placed on the rack will captured by the tray.
The heating element in all grilling modes are switching on and off over the time.	It is a normal operation and depends on the temperature setting.
How to calculate the oven settings, when the weight of a roast is not given by a recipe?	Choose the settings next to the roast weight and change the time slightly. Use a meat probe if possible to detect the temperature inside the meat. Place the head of the meat probe carefully in the meat, due to the manufacturer instructions. Make sure, that the head of the probe is placed in the middle of the biggest part of the meat, but not in the near of a bone or hole.
What happens if a fluid is poured to a food in the oven during the baking or cooking process?	The fluid will boil and steam will arise as a normal physical process. Please be careful, because the steam is hot. See also “Condensing water during baking” for more information. If the fluid contains alcohol, the boiling process will be quicker and can lead to flames in the cavity. Make sure, that the oven door is closed during such kind of processes. Please control the baking or cooking process carefully. Open the door very gentle and only if necessary.

TYPICAL RECIPES

Cake	Form	Level	Mode	Temp.in °C	Duration in minutes
Sponge Cake (Simple) in a Box Shape	Box	2	Conventional with Fan	170	50
Sponge Cake (Simple) in a Box Shape	Box	1	Conventional	140	70
Sponge Cake Fruits in a Round Form	Round Form	1	Conventional with Fan	150	50
Sponge Cake with Fruit on a Tray	Tray	1	Conventional	140	70
Raisins Brioche Muffins (Yeast Cake)	Muffin Form	2	Conventional	220	p.h.t.: 19:00b.t.: 11:00
Gugelhupf (with Yeast)	Tray	1	Conventional	150	p.h.t.: 11:00b.t.: 60:00
Muffins	Muffin Form	1	Conventional	160	p.h.t.: 8:30b.t.: 30:00
Muffins	Muffin Form	1	Conventional with Fan	150	p.h.t.: 8:30b.t.: 30:00
Apple Yeast Cake on a Tray	Tray	1	Conventional with Fan	160	p.h.t.: 10:00b.t.: 42:30
Water Sponge Cake (6 Eggs)	Spring From	1	Conventional	160	p.h.t.: 9:30b.t.: 41:00
Water Sponge Cake (4 Eggs)	Spring From	1	Conventional	160	p.h.t.: 9:00b.t.: 26:00
Apple Yeast Cake on a Tray	Tray	2	Conventional with Fan	150	p.h.t.: 8:00b.t.: 42:00

p.h.t. = Preheat Time b.t. = Baking Time

Cake	Form	Level	Mode	Temp.in °C	Duration in minutes
Hefezopf (Callah)	Tray	2	Conventional with Fan	150	40
Butter Yeast Cake	Tray	2	Conventional	150	p.h.t.: 8:00b.t.: 30:00
Shortbread	Tray	2	Conventional	170	p.h.t.: 8:00b.t.: 13:00
Shortbread 2 Tray	Tray	2+4	Conventional with Fan	160	p.h.t.: 8:20b.t.: 12:00
Vanilla Cookies	Tray	2	Conventional	160	p.h.t.: 8:00b.t.: 10:00
Vanilla Cookies	Tray	2+4	Conventional with Fan	150	p.h.t.: 8:00b.t.: 14:00

Bread	Form	Level	Mode	Temp.in °C	Duration in minutes
White Bread ( 1 kg Flour) Box shape	Box	1	Conventional	170	p.h.t.: 9:20b.t.: 50:00
White Bread ( 1 kg Flour) Box shape	Box	1	Conventional with Fan	170	p.h.t.: 12:00b.t.: 45:00
Fresh Pizza (thin)	Tray	2	Conventional	170	p.h.t.: 9:30b.t.: 21:00
Fresh Pizza (thick)	Tray	2	Conventional	170	p.h.t.: 10:00b.t.: 45:00
Fresh Pizza (thick)	Tray	2	Conventional with Fan	170	p.h.t.:8:00b.t.: 41:00
Meat	Form	Level	Mode	Temp.in °C	Duration in minutes
Beef Tender Loin (1.6 kg)	Tray	2	Double Grill with fan	180	55
Meatloaf (1 kg) Meat	Tray	1	Conventional	180	75
Chicken (1 kg)	Tray	L2:Rack L1:Tray	Double Grill with fan	180	50
Fish (2.5 kg)	Tray	2	Conventional	170	70
Ribs Tomahawk Cooked B.T.	Tray	3	Convention	120	85
Pork Roast of the neck (1.2 kg)	Tray	1	Convention	160	82
Chicken (1.7 kg)	Tray	L2:Rack L1:Tray	Convention	180	78

TEST FOOD

Recipes	Accessories	Function	Temp.in °C	Level	Time (min)	Pre-heat
Sponge Cake	Springform 26cm		170	1	30-35	Yes
Sponge Cake	Springform 26cm		160	1	30-35	Yes
Small Cake	1 Tray		150	2	30-40	Yes
Small Cake	1 Tray		150	2	40-50	No
Small Cake	2 Tray		150	L2&L 4	30-35	No
Cheese Cake	Springform Φ26cm		150	1	70-80	No
Apple Pie	Springform Φ20cm		170	1	80-85	Yes
Apple Pie	Springform Φ20cm		160	1	70-88	Yes 5min
Bread	1 Tray		210	1	30-35	Yes
Bread	1 Tray		190	1	30-35	Yes
Toast	Rack		Max	5	6-8	Yes 5min
Chicken	Rack & Tray		180	Rack 2 Tray 1	75-80	Yes

1. In chicken recipe, begin with the backside on top and turn the Chicken after 30 min. to the top side
2. Use a dark, frosted mold and place it on the rack
3. Take out the trays at the moment, when the food is ready, even when it is not at the end of the given baking time.
4. Choose the lower temperature and check after the shortest time, given in the table.
5. If using the tray to capture fluids dripping from the food placed on the rack during any grilling mode, the tray should be set to level 1 and filled with some water.
6. The burger patties should turned around after 2/3 of the time.

COOKING BY ECO MODE

Recipes	Accessories	Temp.in °C	Level	Time (min)	Pre-heat
Challah	1 Tray	180	1 45-50		No
Roast Pork	1 Tray	200	1 80-85		No
Clafouti Cherry Cake	Round form	200	1 55-60		No
Roast Beef 1.3kg	1 Tray	200	1 80-85		No
Brownies	Rack and glass plate	180		55-601	No
Potato Gratin	Rack and glass plate	180	1 65-70		No
Lasagne	Rack and glass plate	180	1 75-80		No
Cheese Cake	Springform 20cm	180		80-901	No

ENERGY EFFICIENCY

Please note the following information:

1. The measurement is carried out in the "ECO" mode to determine the data regarding the forced air mode and the label-class
2. The measurement is carried out in the "Top & Bottom Heating" mode to determine the data regarding the conventional mode
3. During the measurement only the necessary accessory is in the cavity. All other parts have to be removed
4. The oven is installed as described in the installation guide and placed in the middle of the cabinet
5. It is necessary for the measurement to close the door like in the household, even when the cable disturbs the sealing function of the gasket during the measurement. To make sure, that there are no negative effects regarding the disturbed sealing due to the energy data, it is necessary to close the door carefully during the measurement. It is may be required to use a tool to guaranty the sealing of the gasket like in the household, where no cable disturbs the sealing function.
6. The determination of the cavity volume carried out for the usage "Defrost" as described. To ensure an efficient use of the oven, all accessories including side-racks are removed.

DATASHEET

BUILD IN OVEN - MMDO8R
Mass of the Oven 33kg
No of Cavities 1
Heat Source Electric
Usable Volume 65L
ECelectric, cavity (Conventional) 0.83kWh/cycle
ECelectric, cavity (Forced Air) 0.79kWh/cycle
EEICavity 95,9
Energy Efficiency Class (A+++ to D) A
